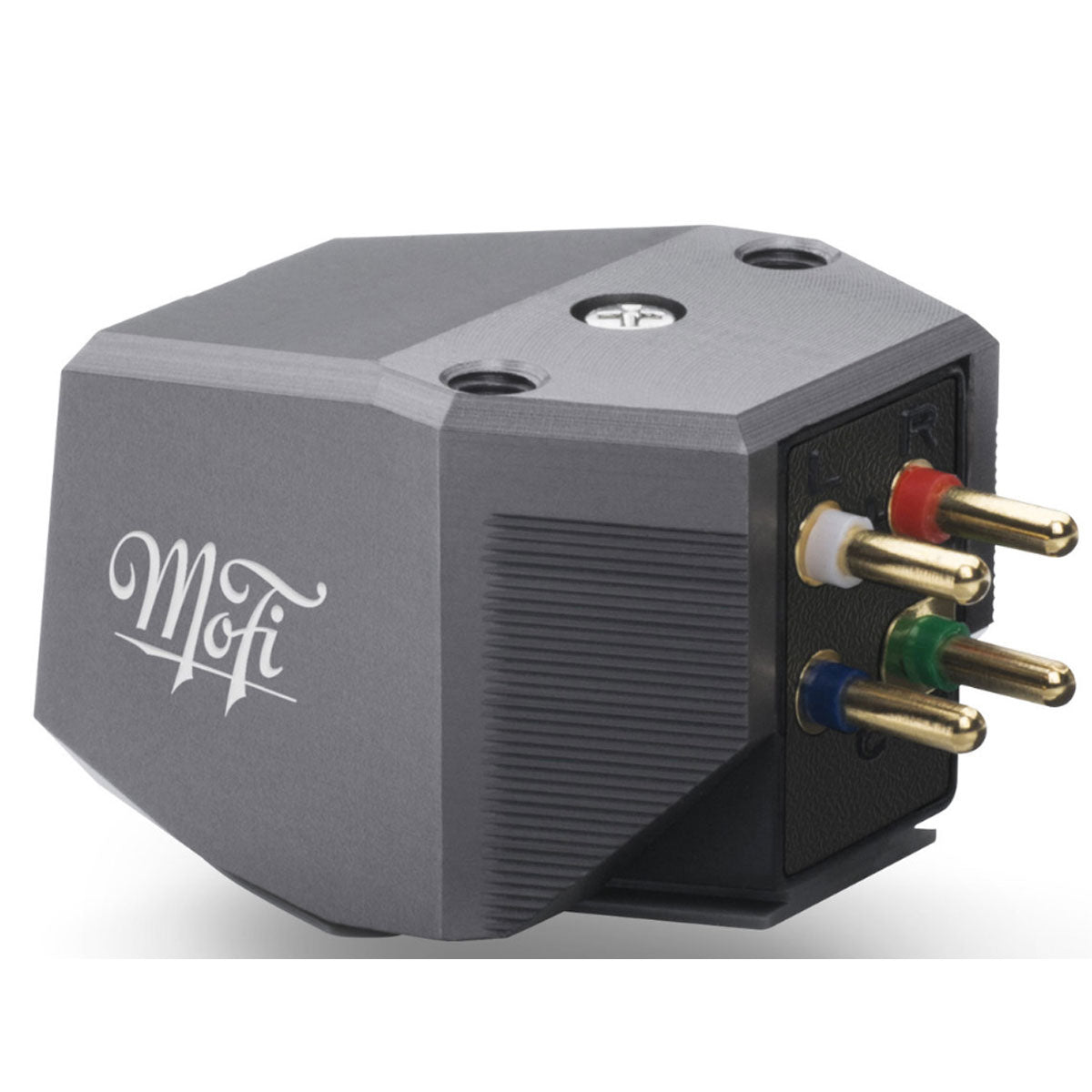

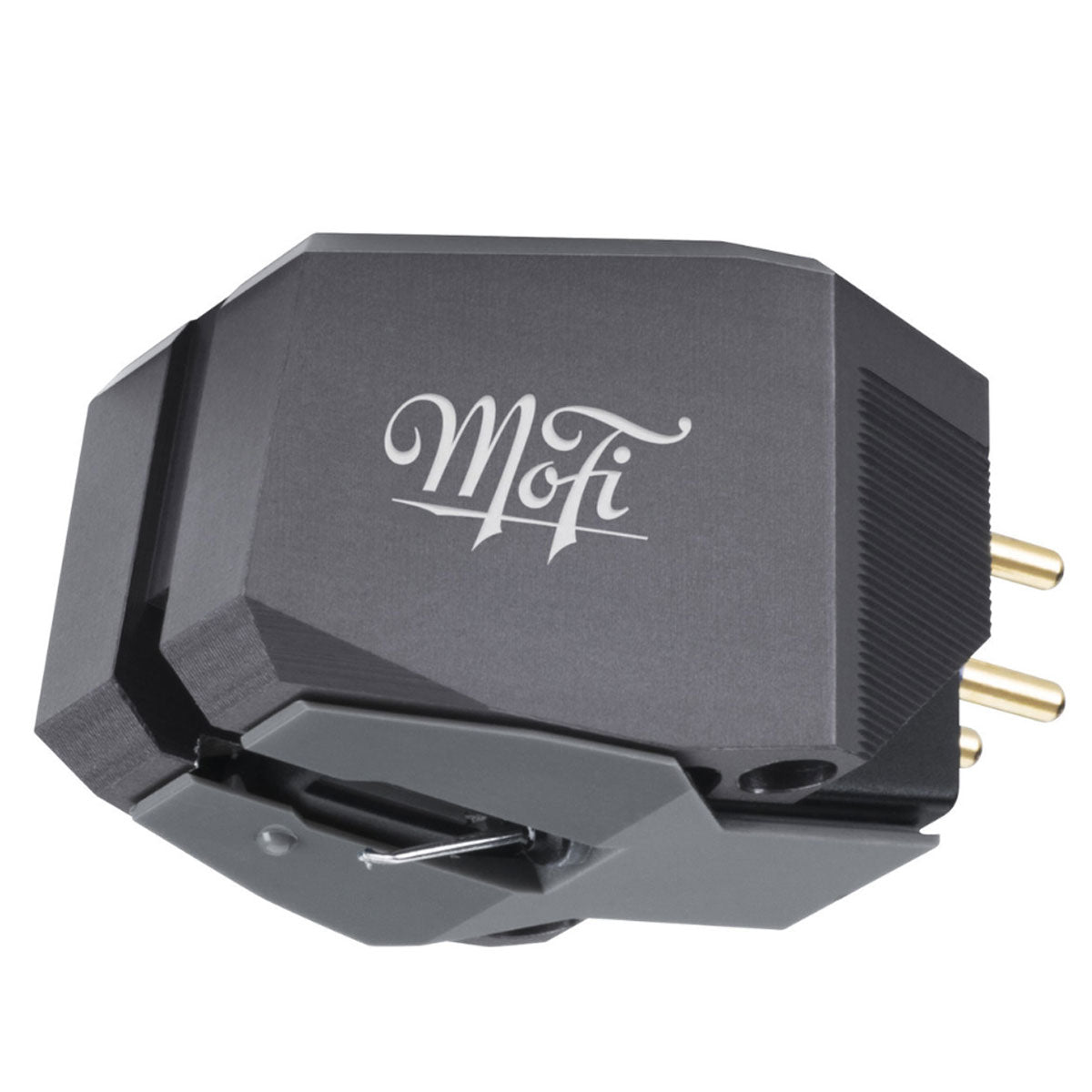

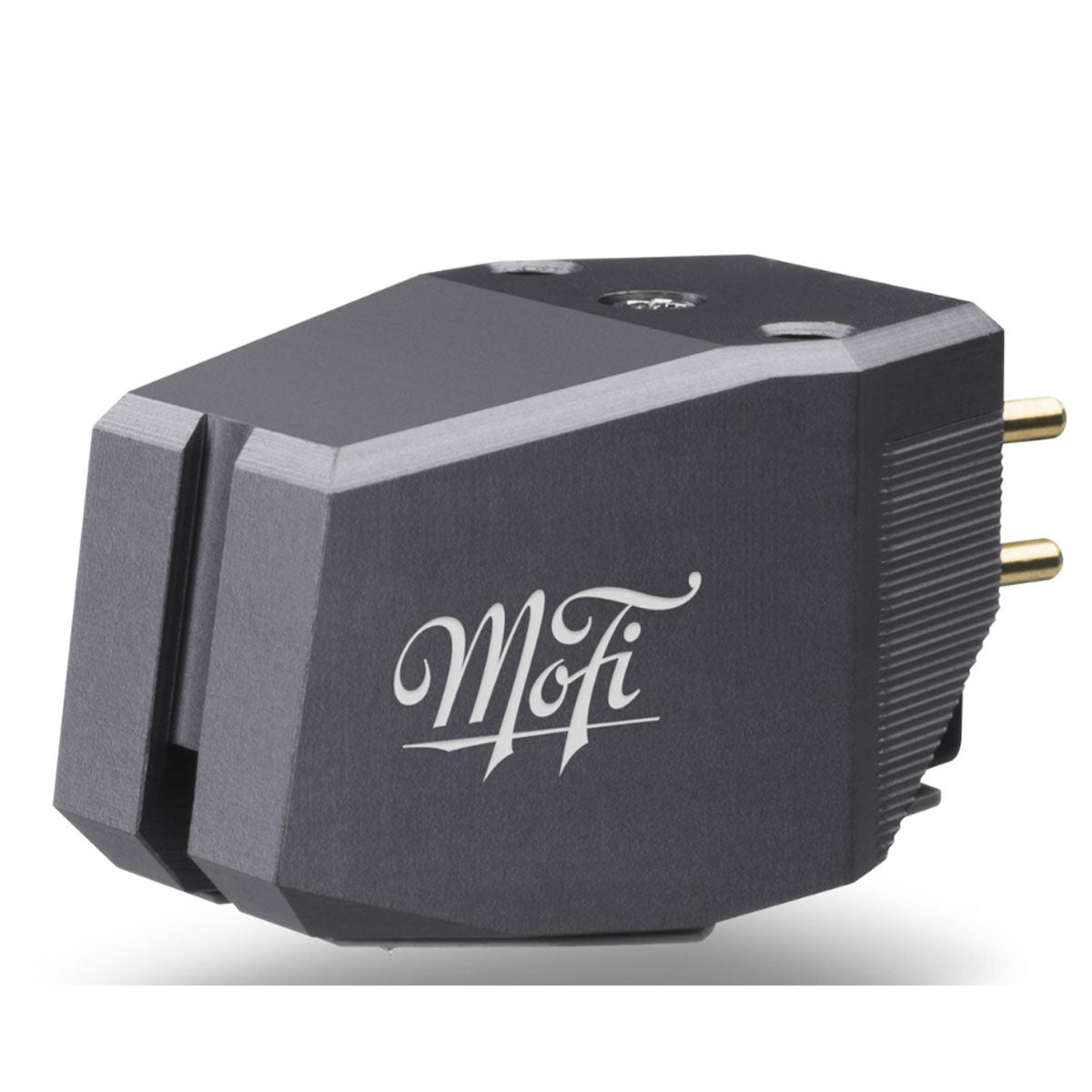

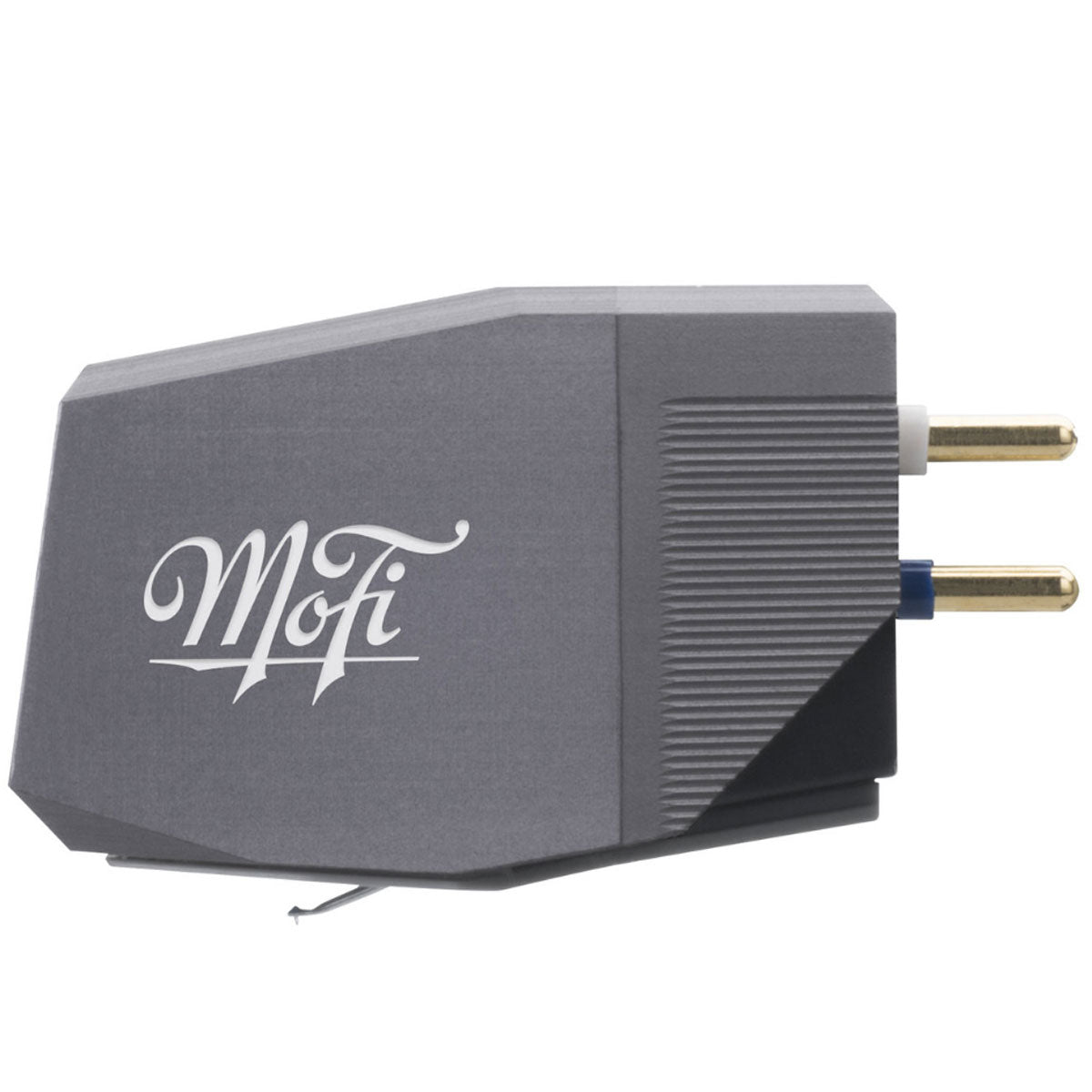

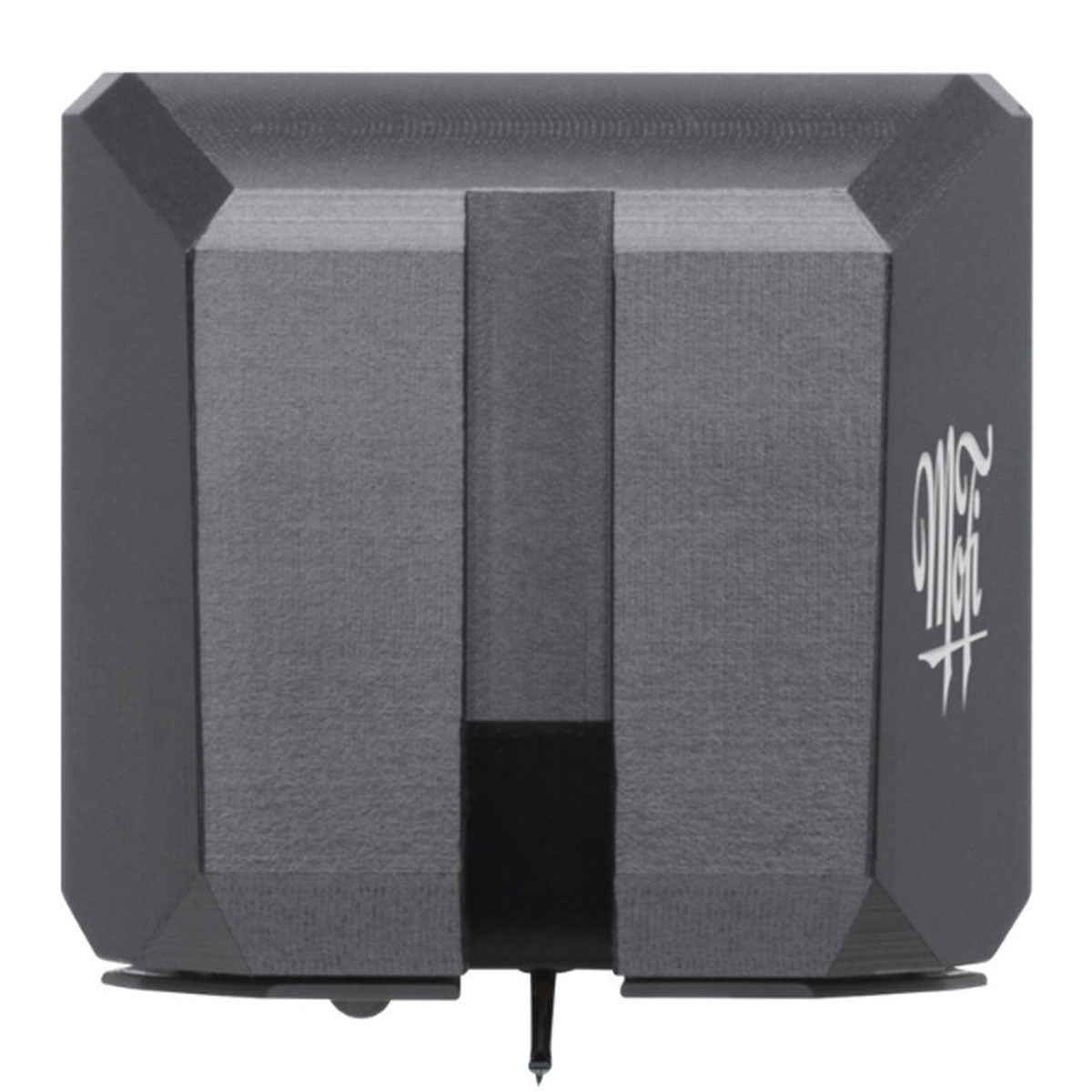

MoFi MasterTracker

Moving Magnet Phono Cartridge
Item #MasterTracker

MoFi MasterTracker

Moving Magnet Phono Cartridge
Was $799.00 $499.00
Save $300
In Stock: Free 2-Day Shipping
Contact Us

Overview

MoFi cartridges are designed by looking at where a record starts: On a cutting lathe like the model used at Mobile Fidelity Sound Lab. MasterTracker features a V-Twin dual-magnet generator that mirrors the layout of the cutting head that originally makes a record’s grooves. Employing two low-mass, powerful magnets aligned in a V formation parallel with the record grooves, MasterTracker accurately extracts music from your LPs and features stellar tracking ability.

WELL-DAMPED BILLET ALUMINUM BODY
The well-damped billet aluminum body controls resonances for tight, accurate bass reproduction. MasterTracker has the lightest-weight magnets in the Tracker Series, delivering the kind of detailed, open performance normally attributed to high-end moving-coil cartridges.


MICRO-LINE DIAMOND STYLUS
By using a Micro-Line diamond stylus shaped like the cutting head of a record lathe, MasterTracker traces vinyl groove walls with microscopic precision.


SPECIFICATIONS


Type
Dual Magnet (MM) Stereo


Stylus
Micro-Line


Output Voltage
3mV


Frequency Response
20–25,000Hz


Weight
9.7g


Tracking Force
1.8–2.2g


Impedance
47kOhm


Capacitance
100pF


Compliance
Static compliance : 40 x 10e-6/dyne
Dynamic compliance : 10 x 10e-6/dyne


FEATURES
• V-Twin dual-magnet generator
• Micro-Line stylus with tapered cantilever
• Well-damped billet aluminum body
• Ohno continuous cast copper coils
• 3mV output


In The Box
MasterTracker Cartridge
with Stylus Guard
2. Stylus Cleaning Brush
3. Hex Driver
4. 2.5mm x 8mm Hex Screw (2)
5. 2.5mm x 10mm Hex Screw (2)
6. 2.5mm Metal Washer (2)
7. 2.5mm Nylon Washer (2)

Details & Specs

Type
Dual Magnet (MM) Stereo


Stylus
Micro-Line


Output Voltage
3mV


Frequency Response
20–25,000Hz


Weight
9.7g


Tracking Force
1.8–2.2g


Impedance
47kOhm


Capacitance
100pF


Compliance
Static compliance : 40 x 10e-6/dyne
Dynamic compliance : 10 x 10e-6/dyne
