Mission 778X

Digital-to-Analogue Converter/ Integrated Amplifier

Mission 778X

Digital-to-Analogue Converter/ Integrated Amplifier
$899.00
Select Color:


Overview

Delivering 65 watts per channel at 4 Ohms, this compact integrated amplifier features an ESS Sabre32 DAC, Bluetooth 5.0, and an MM phono stage. Supporting 384kHz PCM and DSD256, it brings versatile connectivity to any high performance sound system setup.

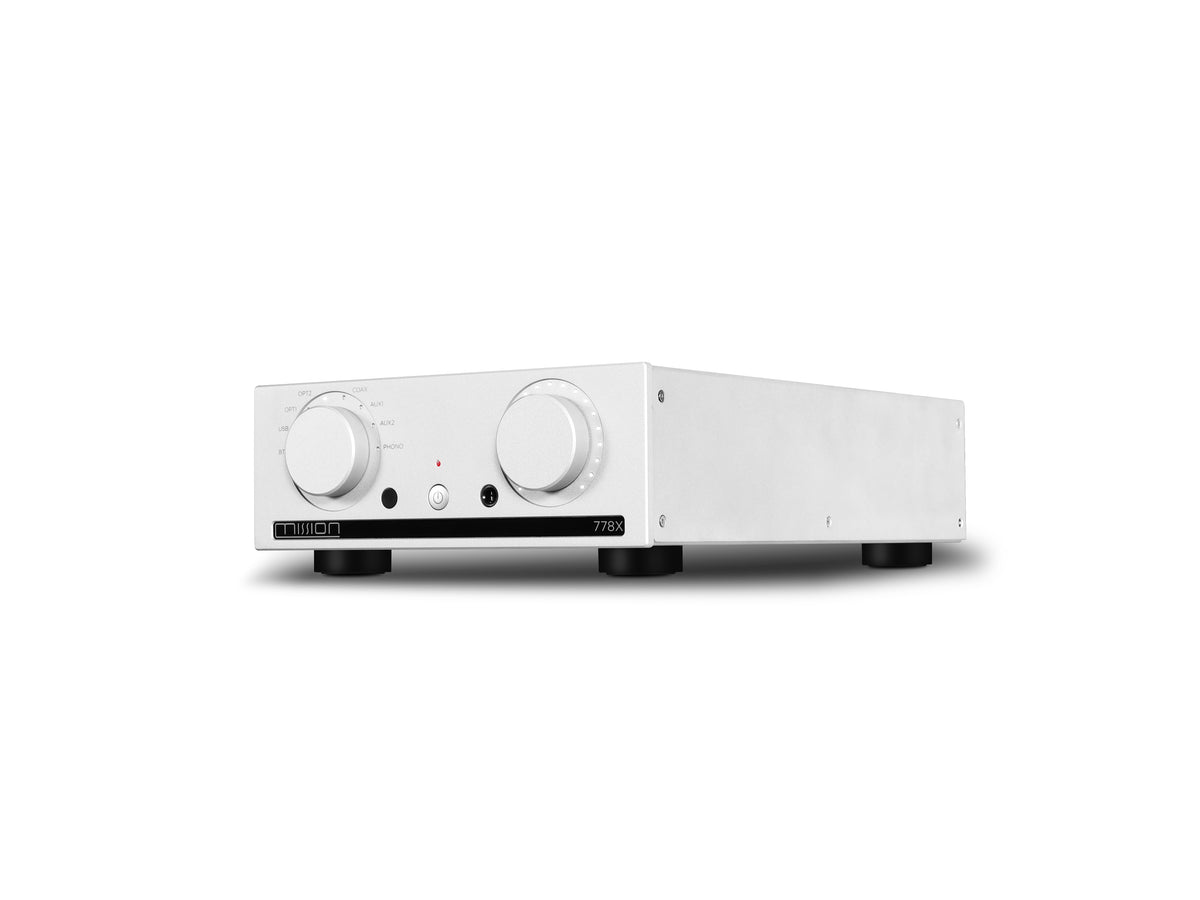

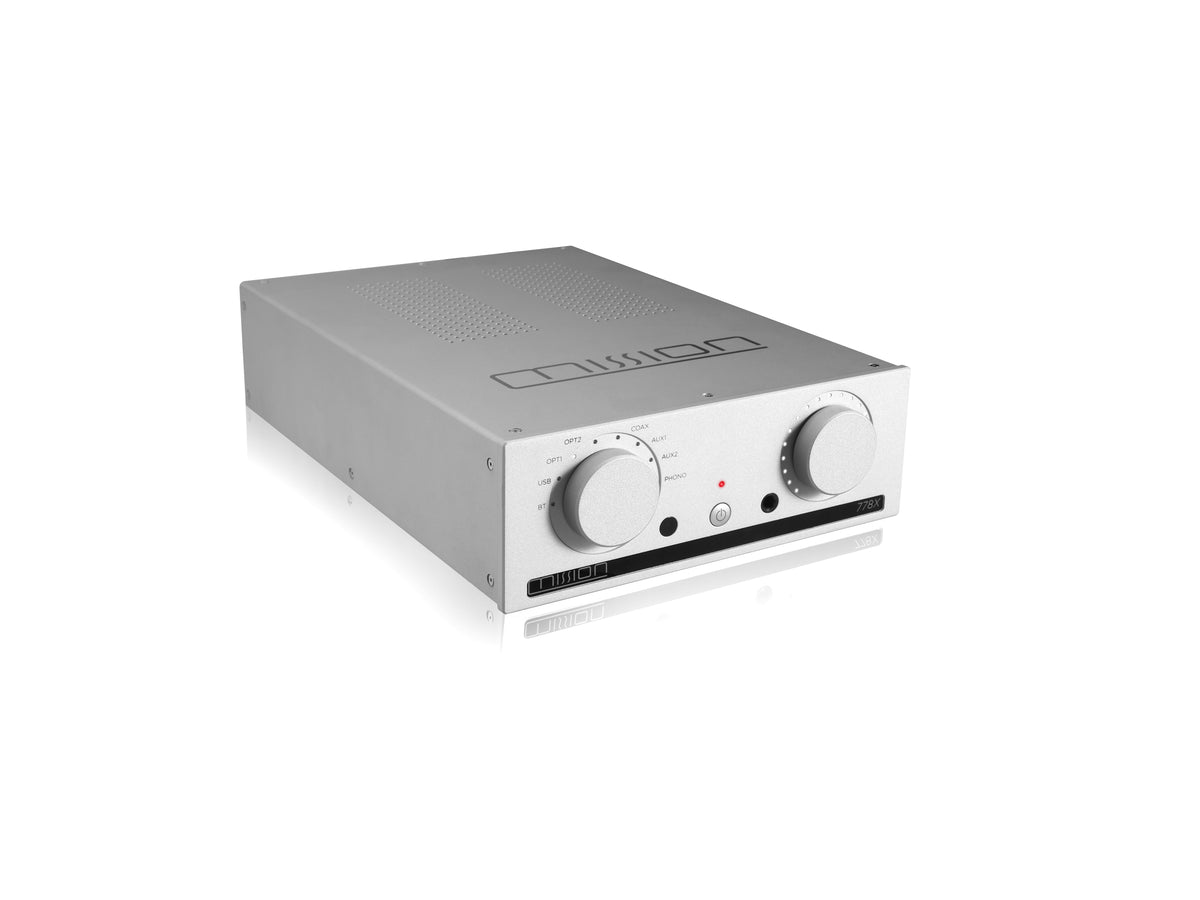

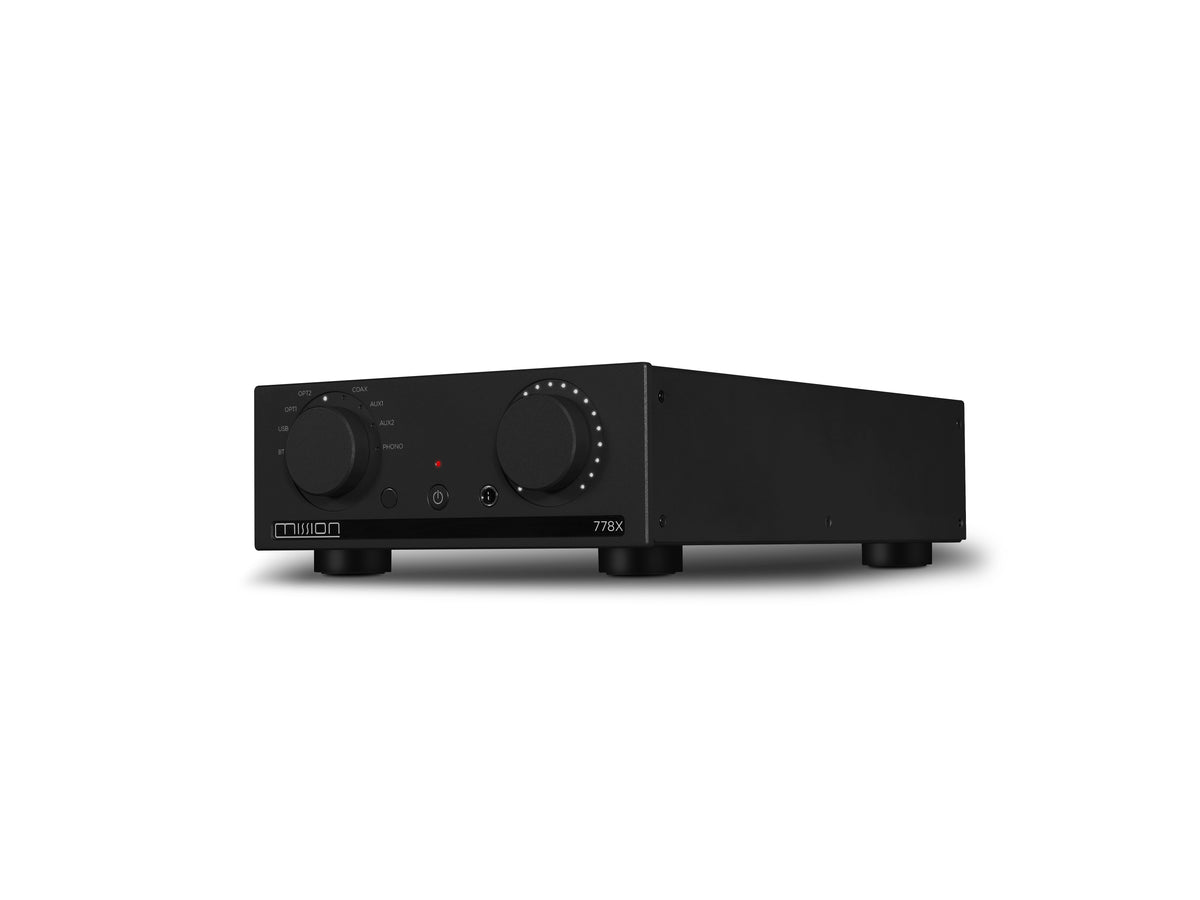

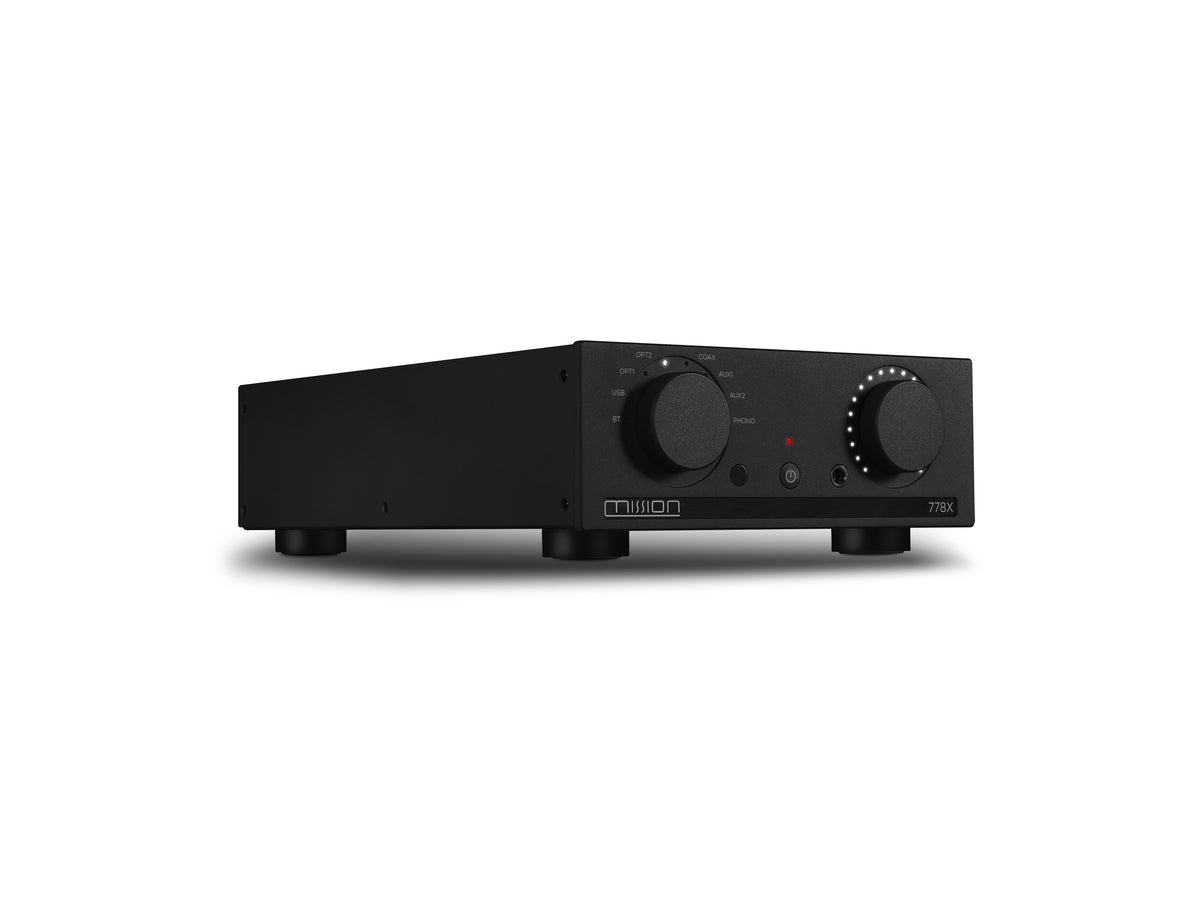

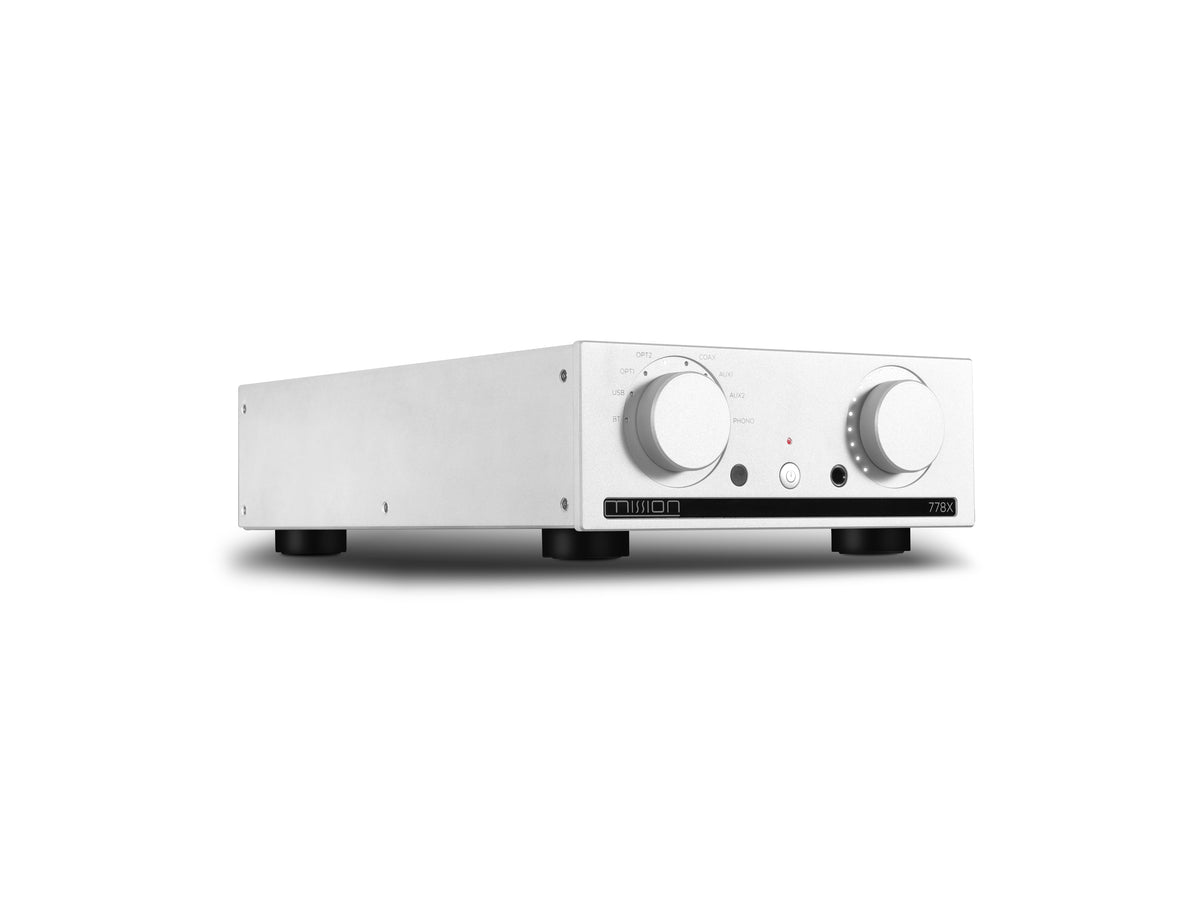

The Mission 778X integrates a high performance stereo power amplifier, preamplifier, and digital to analog converter into a compact 236 mm chassis. Delivering 45 watts per channel into 8 Ohms or 65 watts per channel into 4 Ohms, this unit features large tactile controls and LED level indicators. The integrated preamplifier includes two auxiliary line inputs alongside a dedicated JFET based Moving Magnet phono stage with precise RIAA equalization, eliminating the need for an external phono preamp when connecting turntables.

Digital processing utilizes an ESS Sabre32 ES9018K2M Reference chip with 32 bit HyperStream architecture and Time Domain Jitter Eliminator. Digital connection options include one coaxial input, two Toslink optical inputs, a PC USB port, and Bluetooth 5.0 supporting aptX and AAC codecs. The USB interface processes PCM audio files up to 384kHz and DSD up to DSD256, while optical and coaxial inputs support sampling rates up to 192kHz.

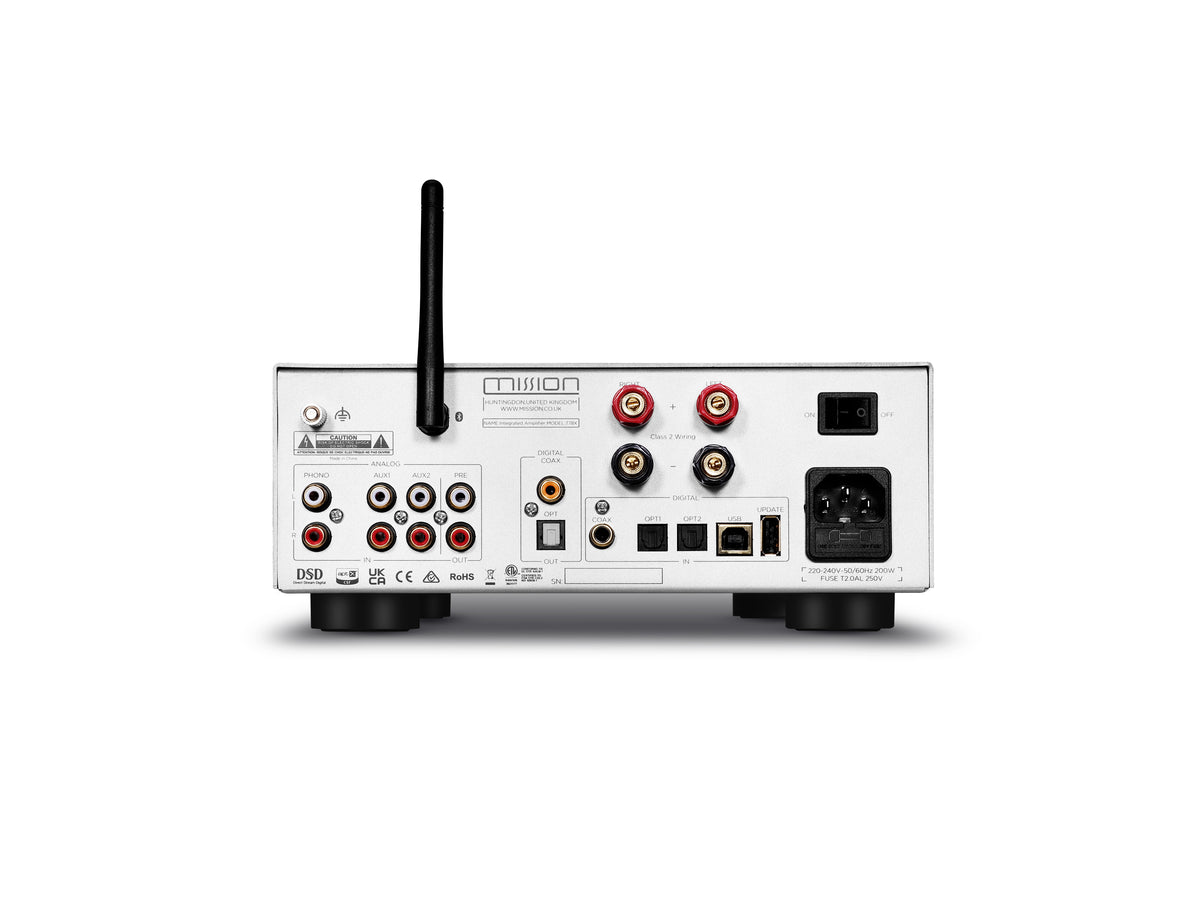

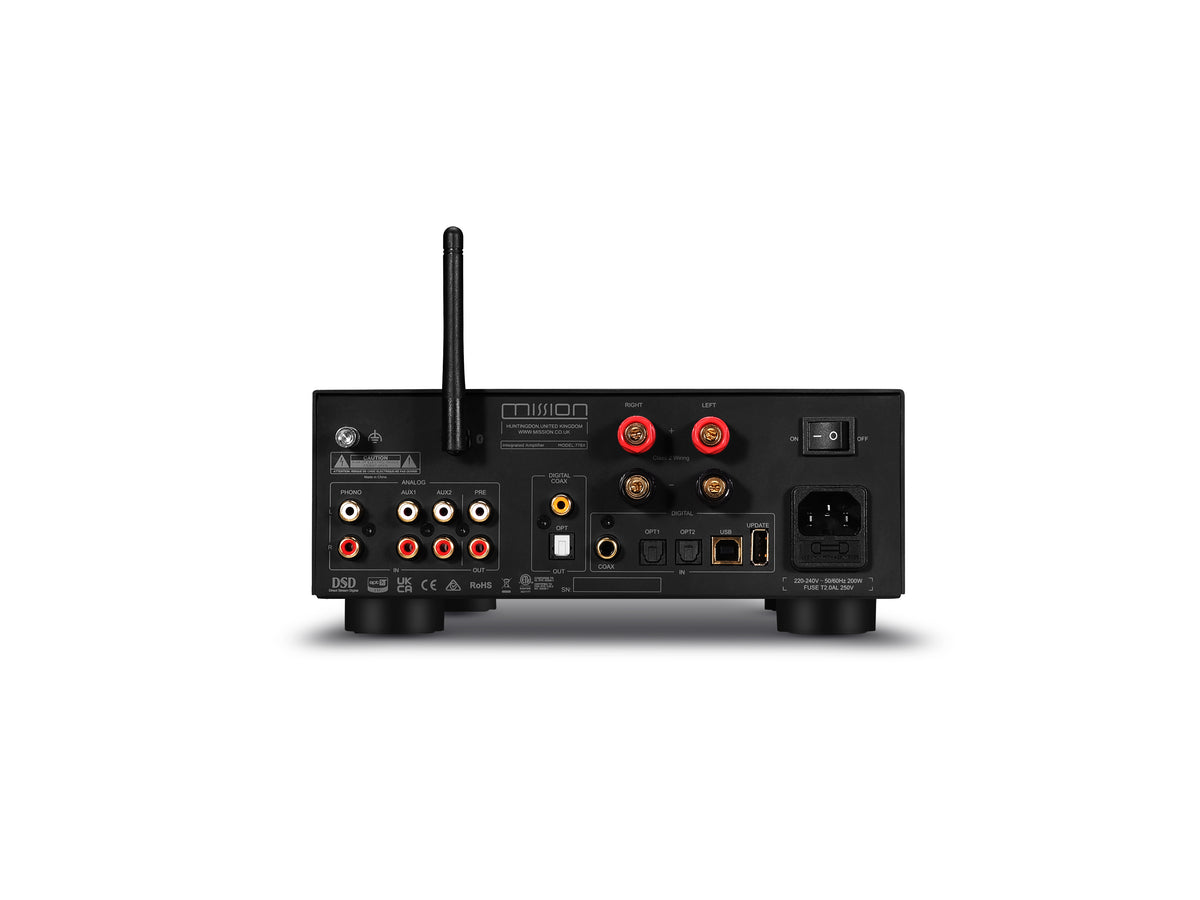

Output routing options include coaxial and optical digital outputs, a stereo preamplifier RCA output, and binding posts for stereo speakers. An onboard headphone amplifier with a high slew rate provides dedicated output for headphones with load impedances between 20 and 600 Ohms. Weighing 6.3 kg, this versatile amplifier serves as a central hub for modern smart home integration and multi source sound system setup configurations.

Details & Specs

Model Mission 778X
General Description Digital-to-Analogue Converter, Stereo Amplifier
Design Philosophy and Core Technology Integrated Amplifier (45 watts @ 8 ohms, 65 watts @ 4 ohms)

ESS Sabre32 ES9018K2M Reference Chip

Ultra-low Noise Digital Audio File Compatibility (384kHz PCM, DSD256)

Bluetooth 5.0 (aptX / AAC) Support

Dedicated high-performance, low-noise MM Phono Stage

Headphone AMP with high-speed output signal transition

USB Upgrade Support

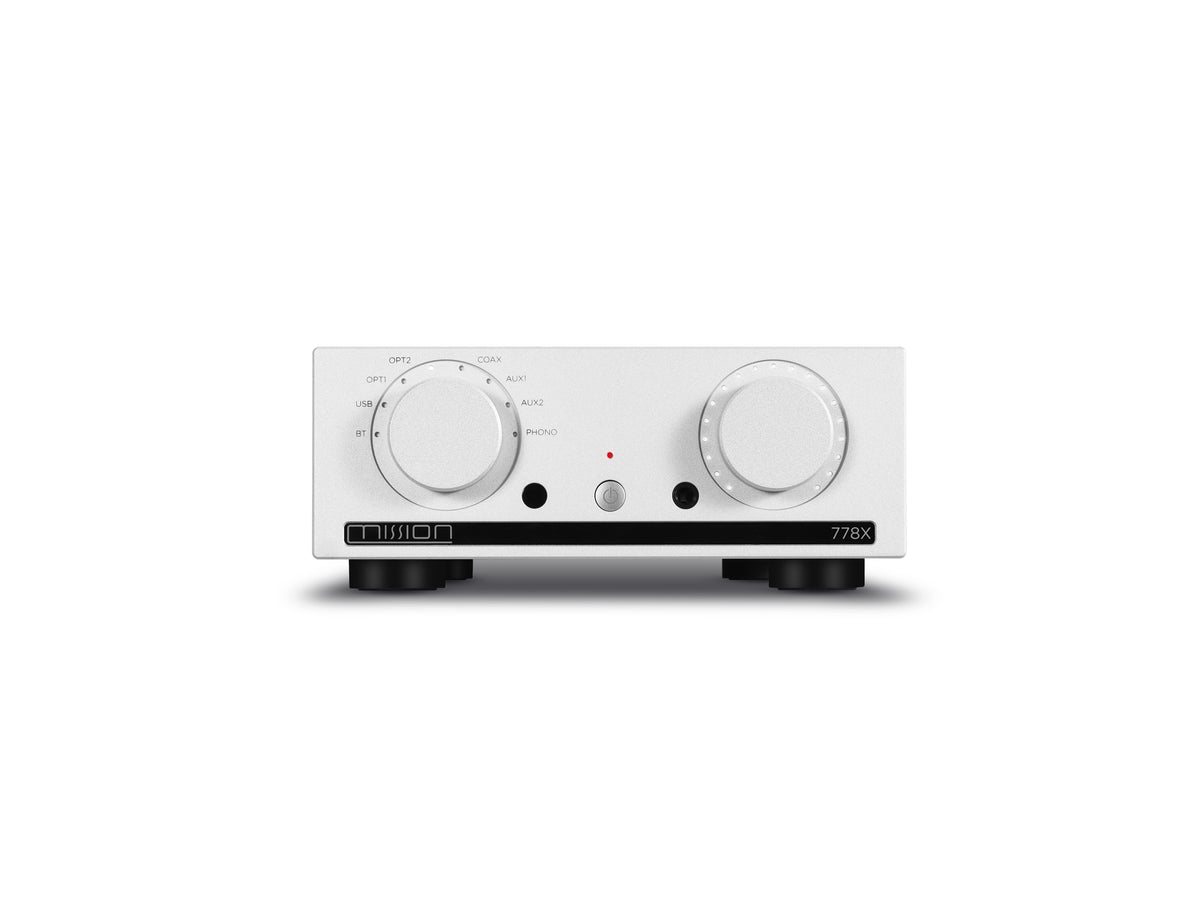

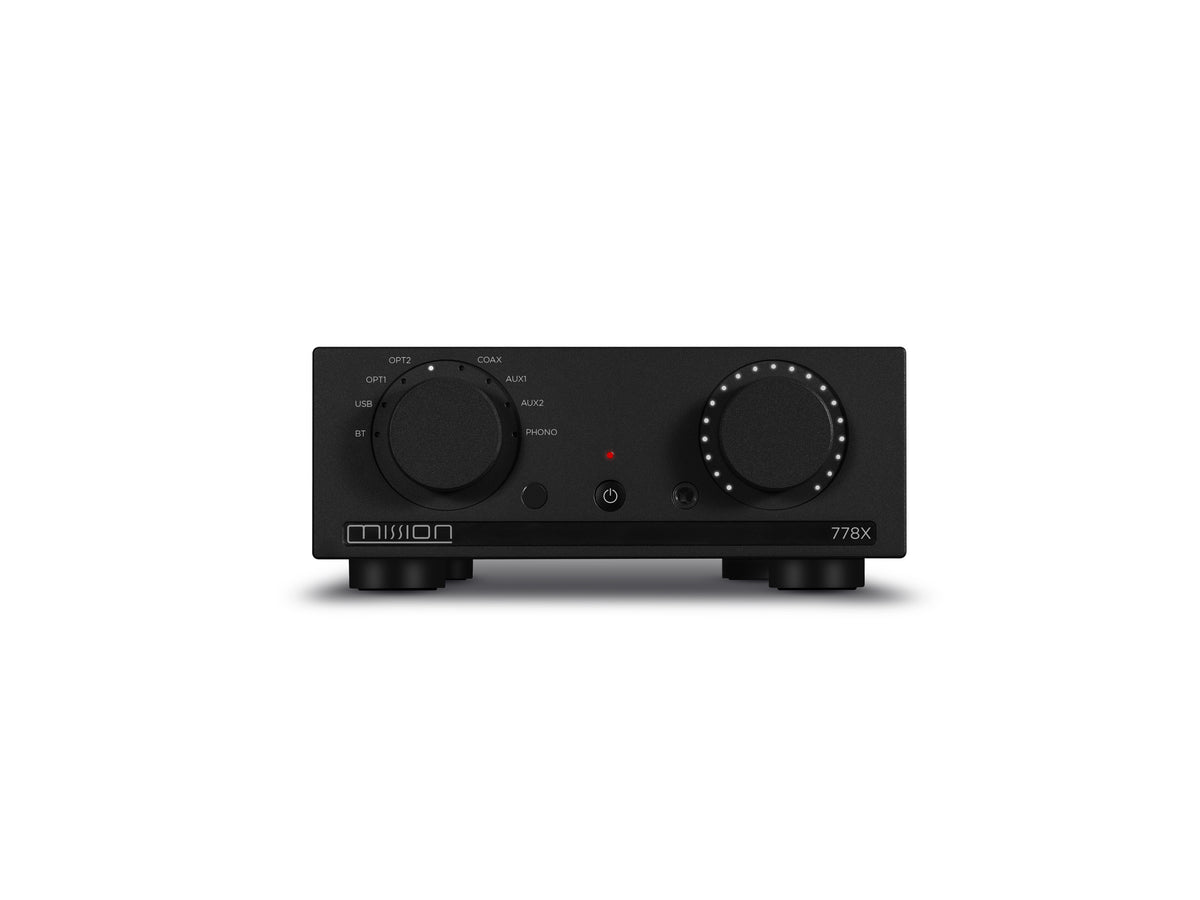

Large tactile controls with LED level indicators
Inputs 1 x Coaxial
2 x Toslink Optical
1 x PC USB
1 x Bluetooth (aptX/AAC)
2 x AUX
1 x RCA (Phono MM)
Outputs 1 x Coaxial
1 x Toslink Optical
1 x RCA (PRE Out)
Sampling Frequency Optical / Coaxial: 44.1kHz–192kHz
PC USB: 44.1kHz–384kHz (PCM) / DSD64, DSD128, DSD256
Preamplifier Section
Gain (Max.) +0dB (Line), +47dB (Phono MM)
Input Sensitivity 540mV (Line, Volume = 0dB)
2.5mV (Phono MM, Volume = 0dB)
Input Impedance 10KΩ (AUX)
47KΩ // 100pF (Phono MM)
Total Harmonic Distortion (THD) <0.003%
Frequency Response (Ref. 1kHz) 20Hz–20kHz (±0.1dB)
PRE Output Level 2.1Vrms (Max.)
PRE Output SNR >110dB (A-weighted)
DAC
D to A Converter ESS Sabre32 ES9018K2M
Resolution 32-bit
Max. Sampling Frequency Optical/Coaxial: 192kHz
USB: PCM 384kHz / 11.2896MHz (DSD256)
Total Harmonic Distortion (THD) <0.001% (1kHz @ 0dBFS)
Output Level (0dBFS, 1kHz) 2.1Vrms
Power Amplifier Section
Gain +31dB
Rated Power Output 2 x 45W (@ 8Ω)
2 x 65W (@ 4Ω)
Frequency Response (Ref. 1kHz) 20Hz–20kHz (±0.5dB)
Total Harmonic Distortion (THD) <0.005% (30W / 8Ω)
Input Sensitivity 540mV (RCA AUX In)
2.5mV (Phono MM)
Signal-to-Noise Ratio (SNR) >108dB (Ref. 45W, A-weighted)
Crosstalk @ 1kHz >80dB (Ref. 1W)
Standby Power Consumption <0.5W
Headphone Amplifier
Total Harmonic Distortion (THD) <0.01% (1kHz, 50mW)
Output Impedance 4.7Ω
Load Impedance 20–600Ω
General
Dimensions (W x H x D) 236 x 98 x 380mm
Carton Size (W x H x D) 450 x 392 x 175mm
Net Weight 6.3kg
Finish Black / Silver
Power Requirements (Depending on Region) 220–240V ~ 50/60Hz
100–120V ~ 50/60Hz
Standard Accessories Power Cord, Remote Control, User Manual, Antenna
