Mission 778CDT

CD Transport

Mission 778CDT

CD Transport
$699.00
Select Color:


Overview

Equipped with a custom optical transport, low noise power supplies, and USB file support, this compact CD transport delivers clean SPDIF signals via coaxial and optical outputs. Featuring an OLED display and remote control, it integrates easily into any audio visual solutions setup.

The Mission 778CDT is a CD transport built with a custom drive and a servo system that keeps disc rotation steady and tracking accurate. It works with standard CDs, CD-Rs, CD-RWs, and data CDs. For digital files, it can play audio from a USB hard drive and supports formats like WAV, MP3, WMA, AAC, FLAC, and APE when stored on FAT16, FAT32, or exFAT drives.

A temperature controlled crystal oscillator master clock helps keep digital output stable and reduces jitter. Each main circuit, such as the optical assembly, laser, decoder, and clock, gets its own low noise power supply. Digital audio can be sent out through coaxial or optical SPDIF connections, both set for 75 Ohm impedance and a 500 millivolt peak signal. The frequency response stays flat from 20Hz to 20kHz at standard CD sampling rates.

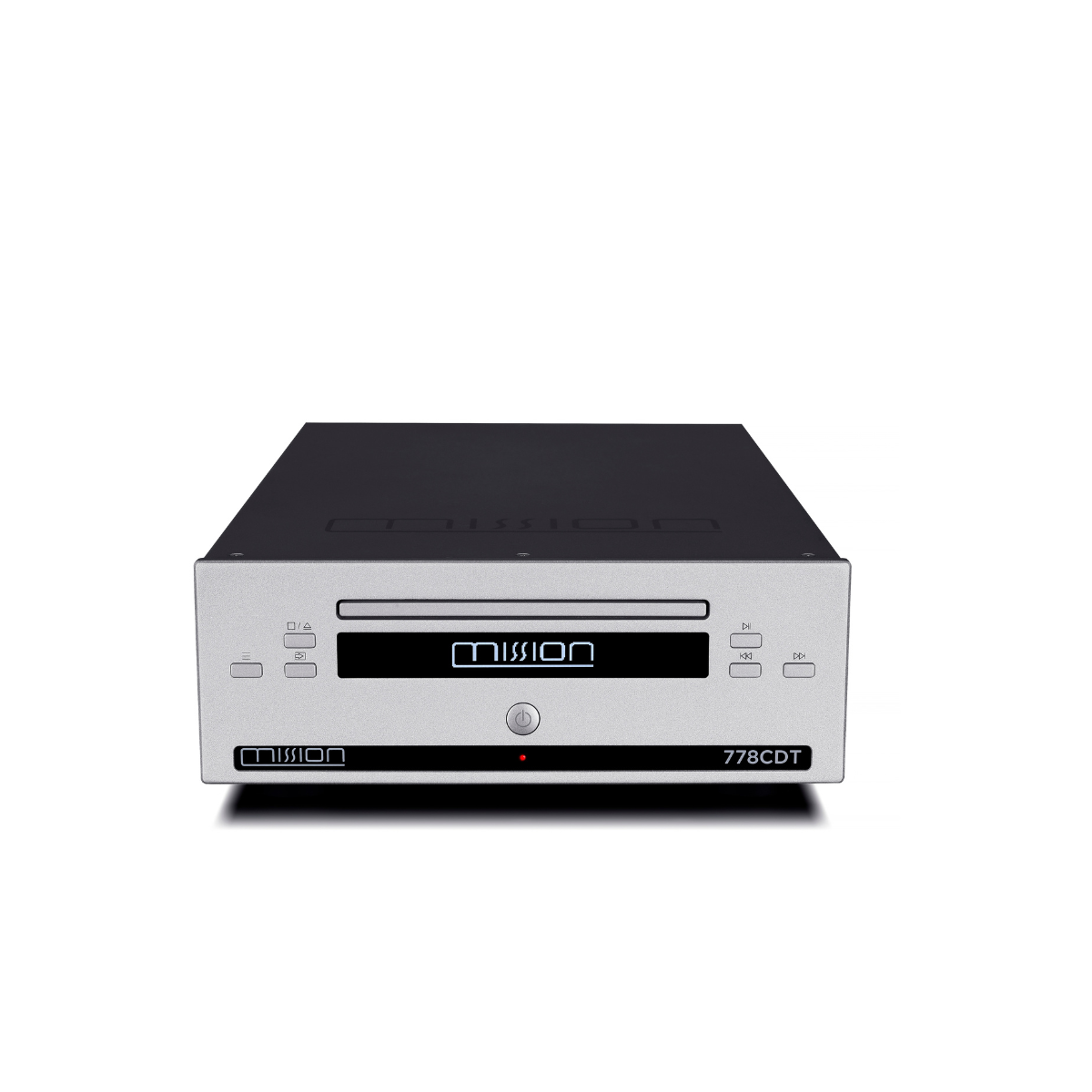

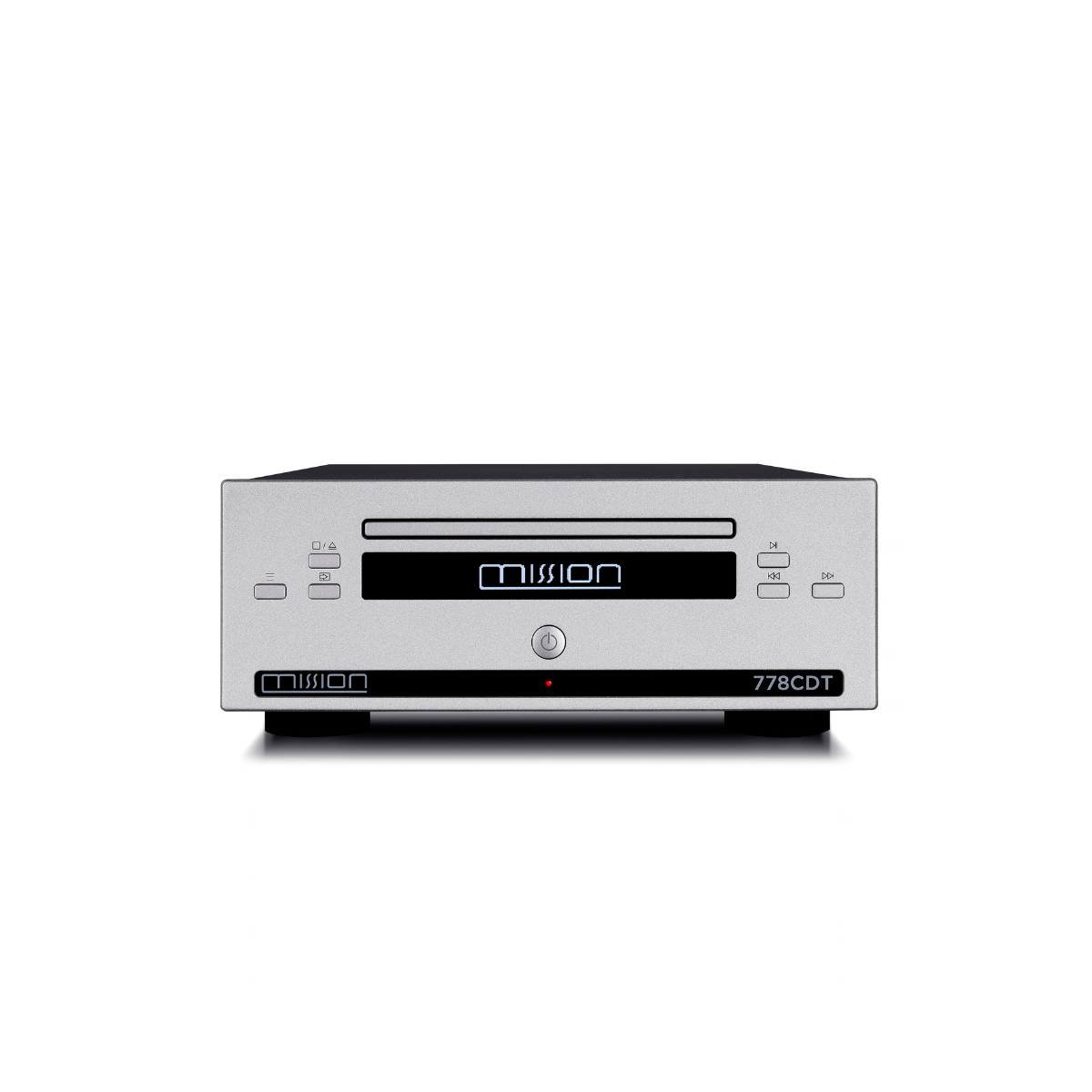

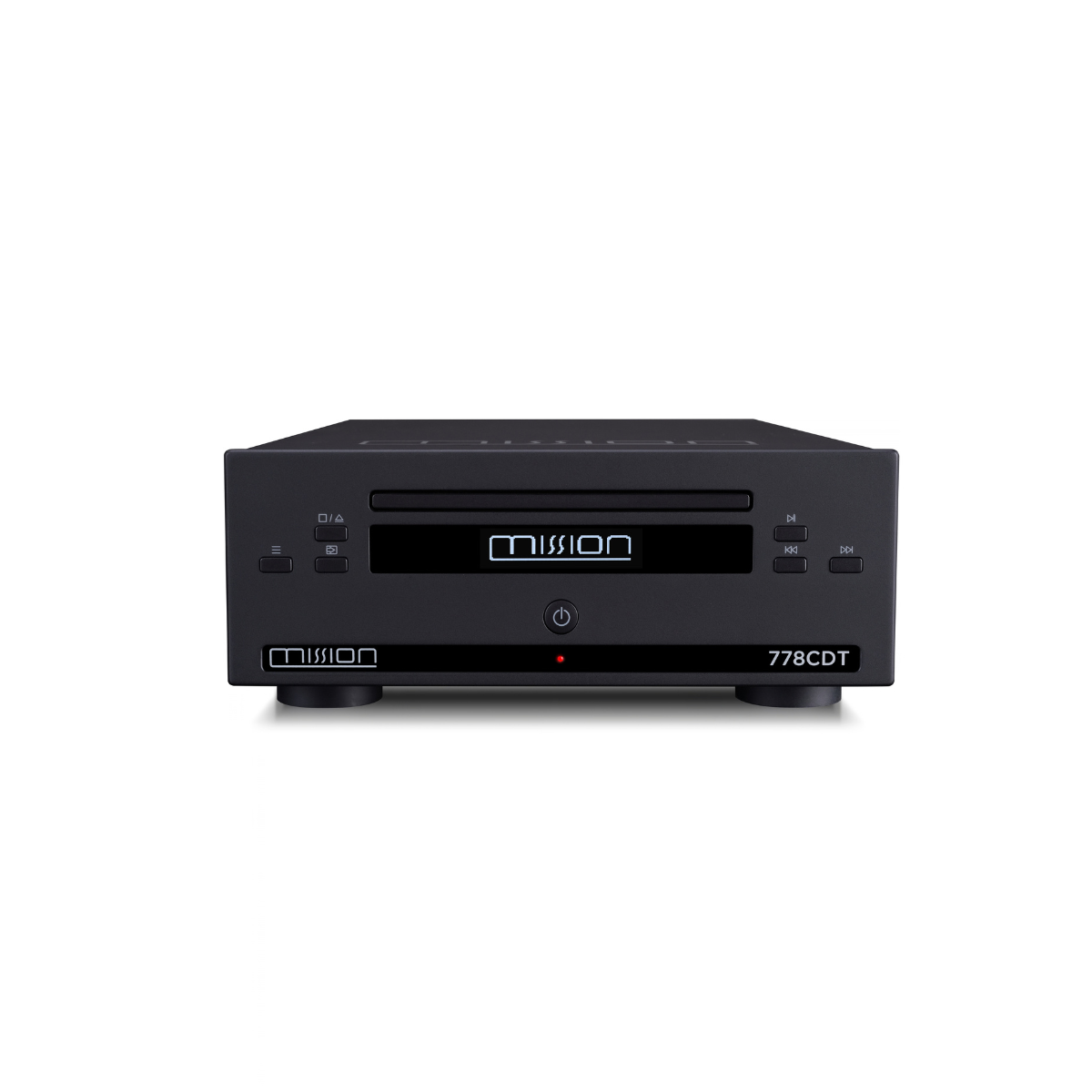

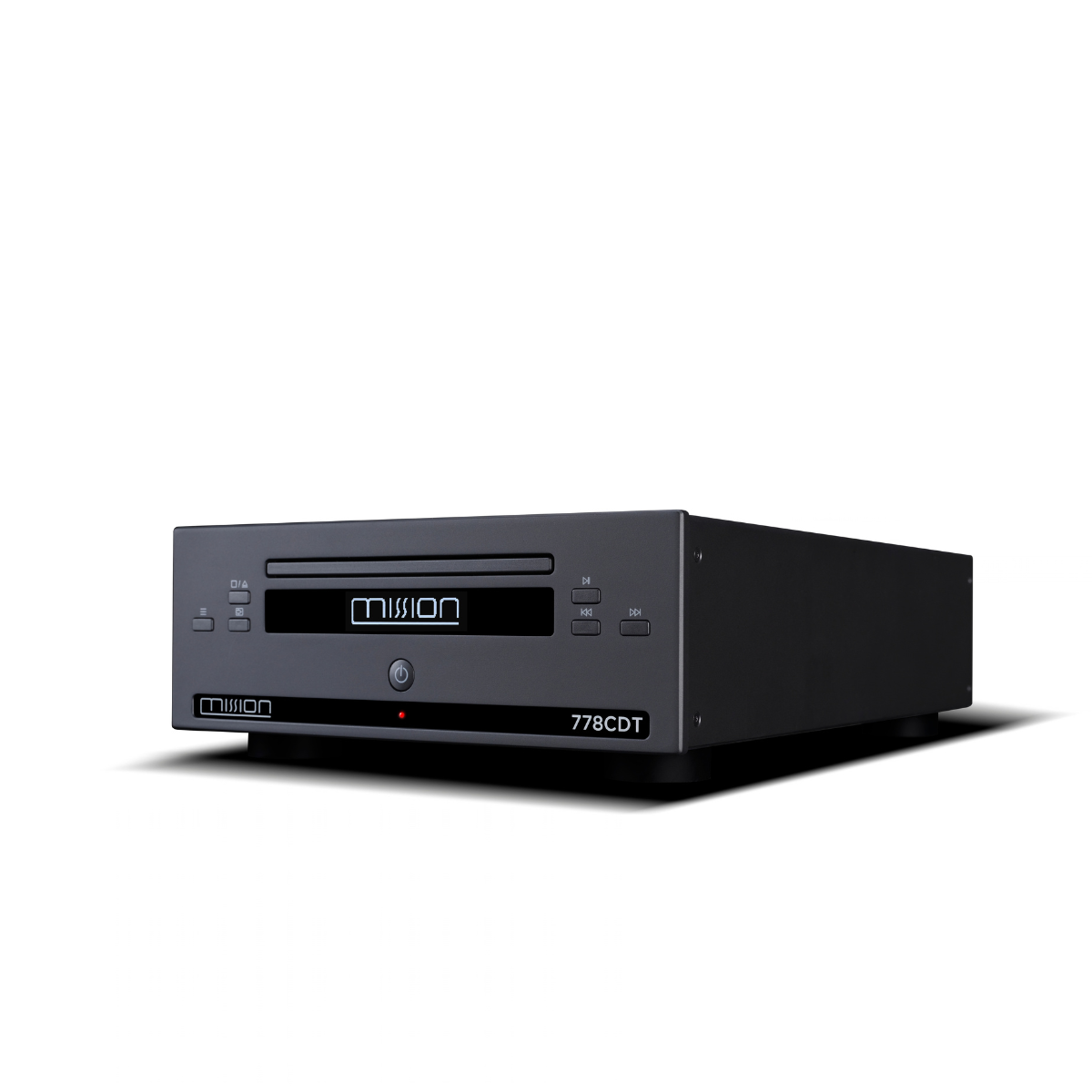

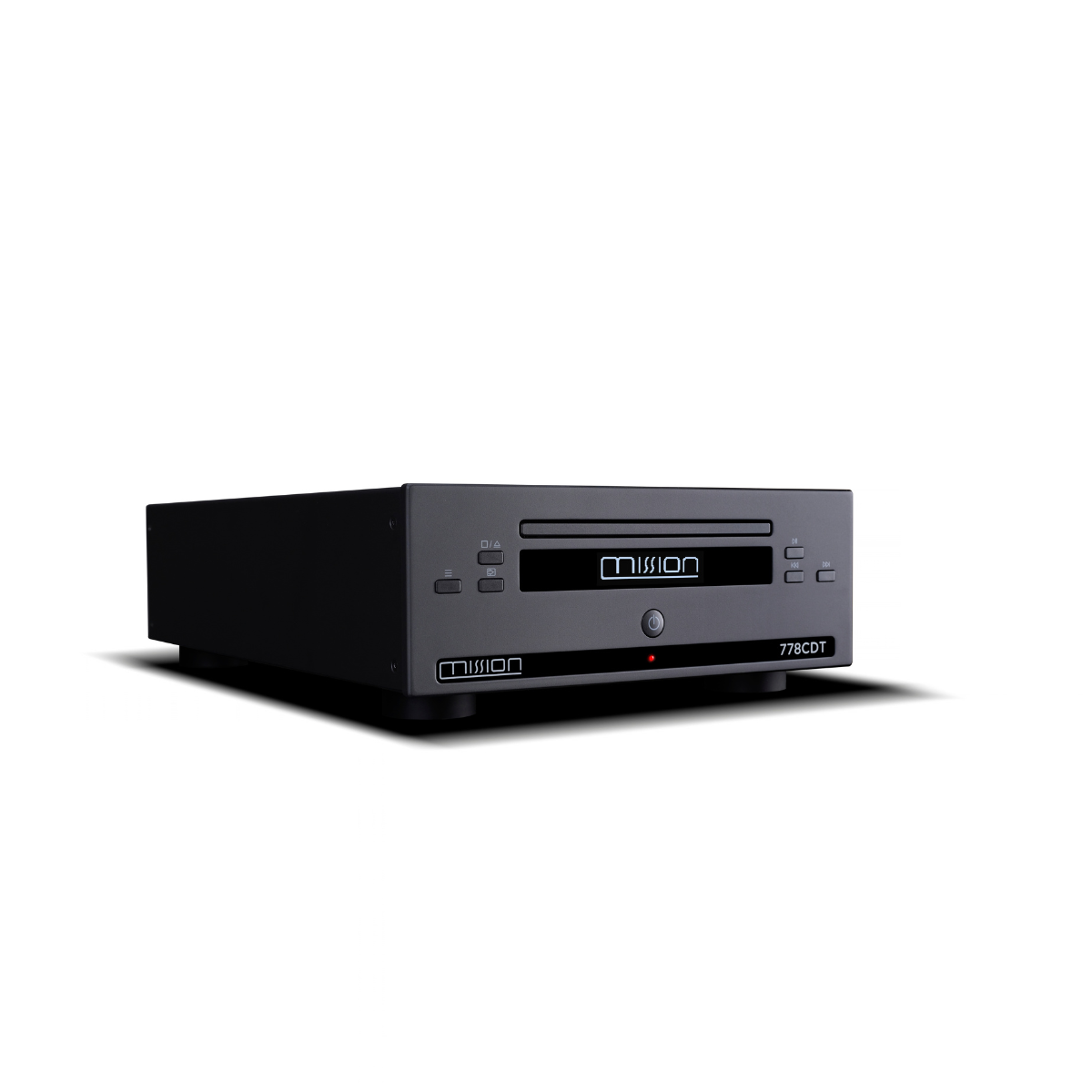

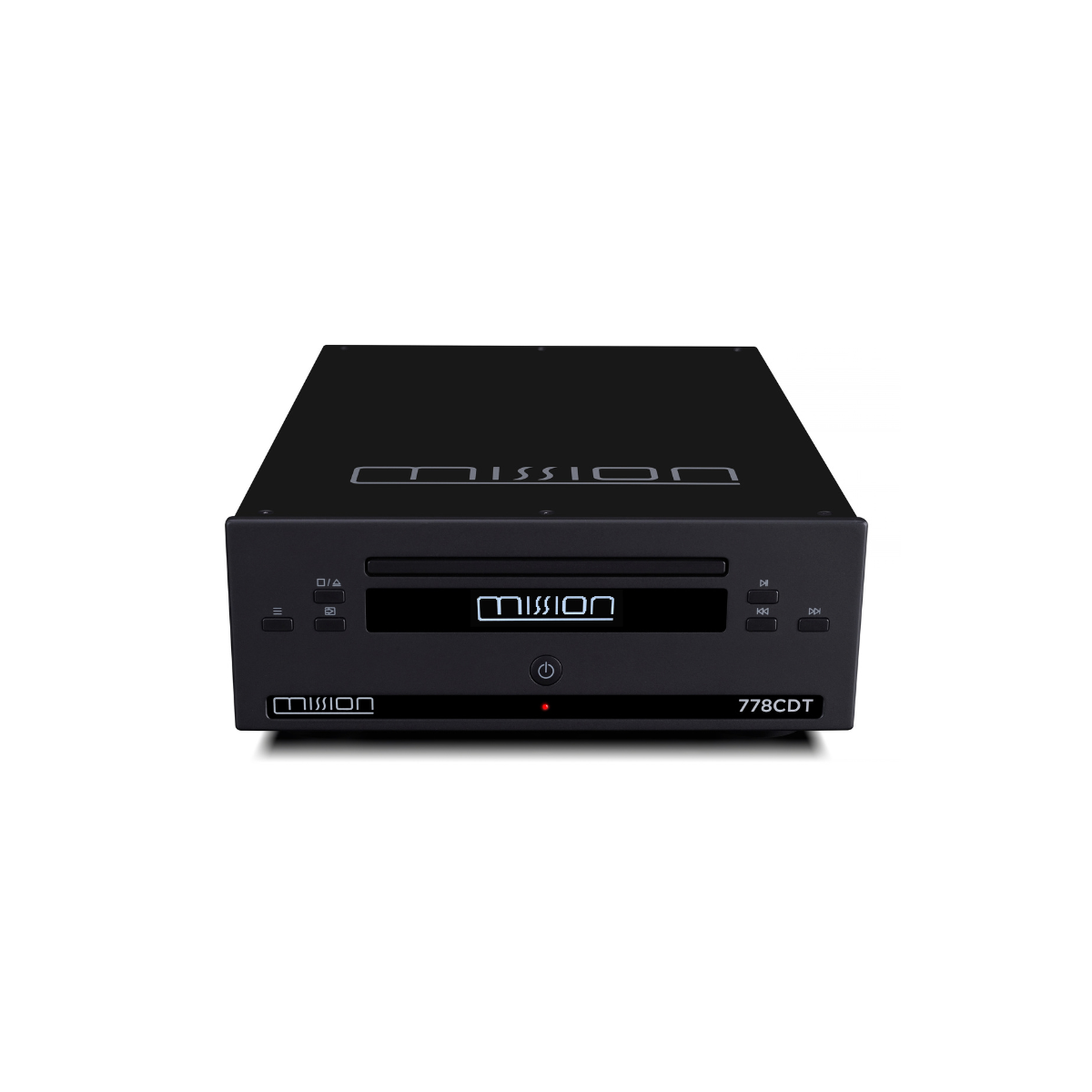

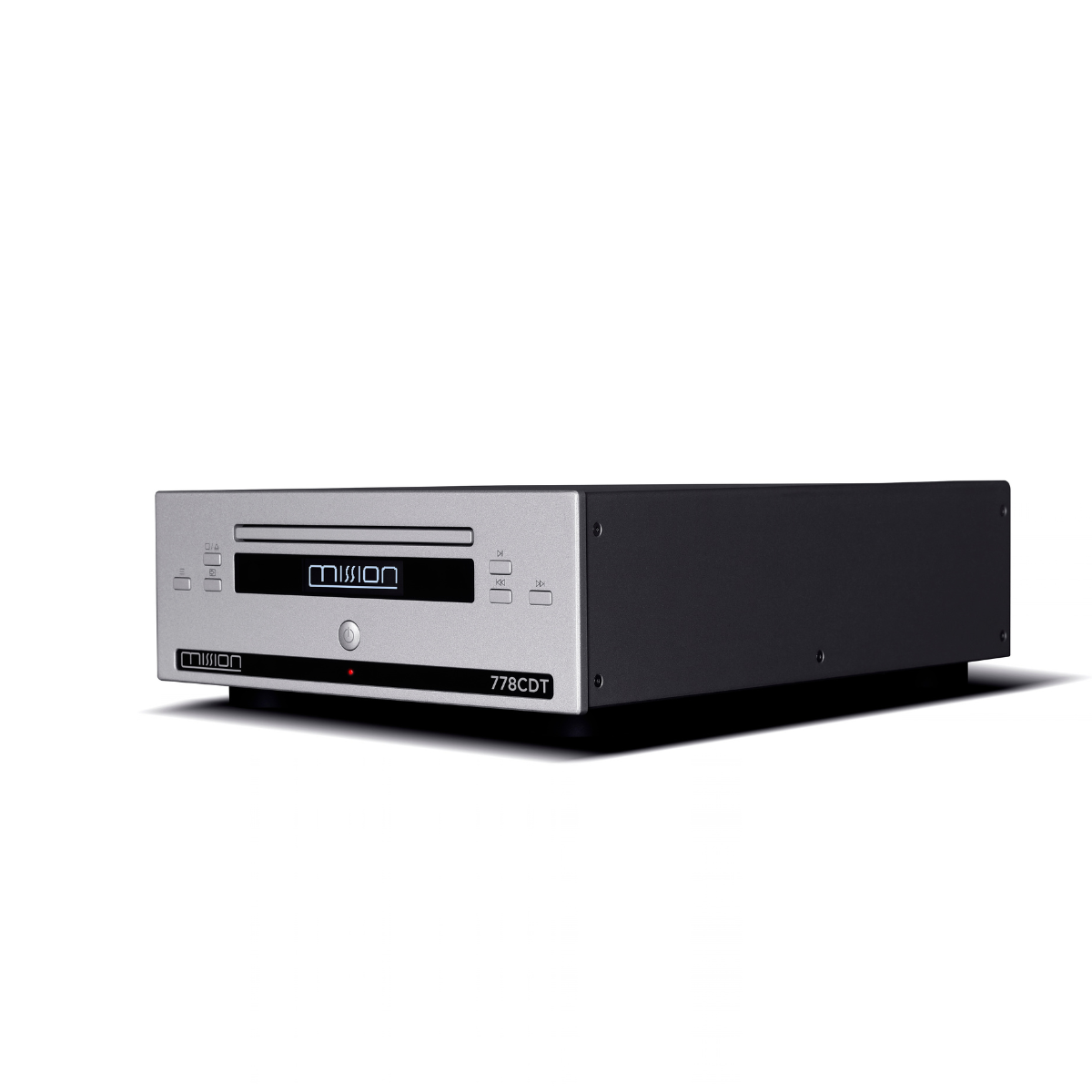

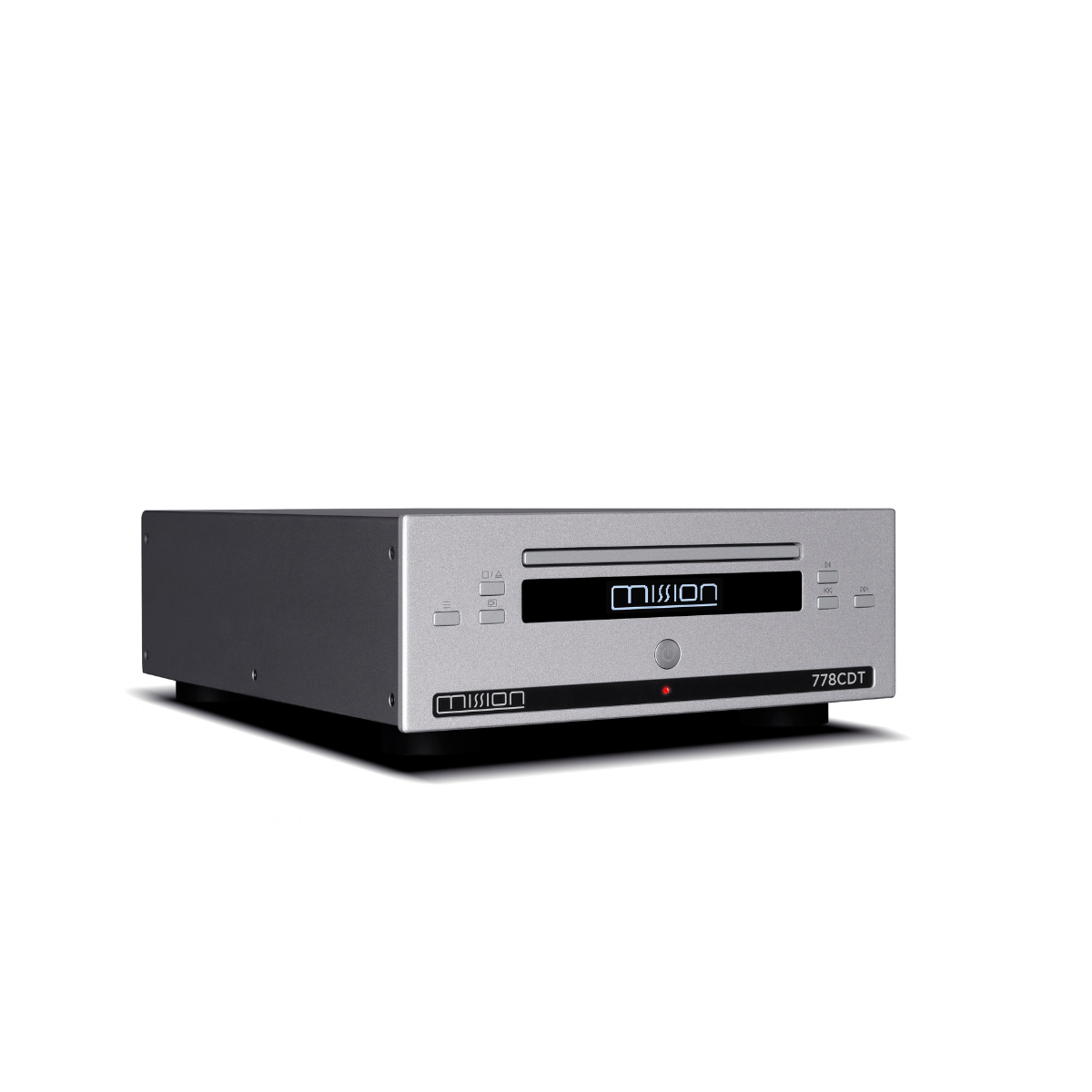

The 778CDT comes in a compact chassis that measures 236 millimeters wide, 98 millimeters high, and 357 millimeters deep. It weighs just over 5 kgs. The included remote also works with the matching 778X and 778S components. The front OLED panel shows CD text clearly, and standby power use stays under 0.5 watts. Both silver and black finishes are available, so it can blend into most modern audio setups.

Details & Specs

Specification Mission 778CDT
Model 778CDT
General Description CD Transport
Design Philosophy and Core Technology Playback from CD, CD-R, CD-RW, Data CD or USB-HDD

Compatible with CD/CD-R/CD-RW and data CD formats

High-end CD mechanism with a precision optical system

OLED display with CD text support

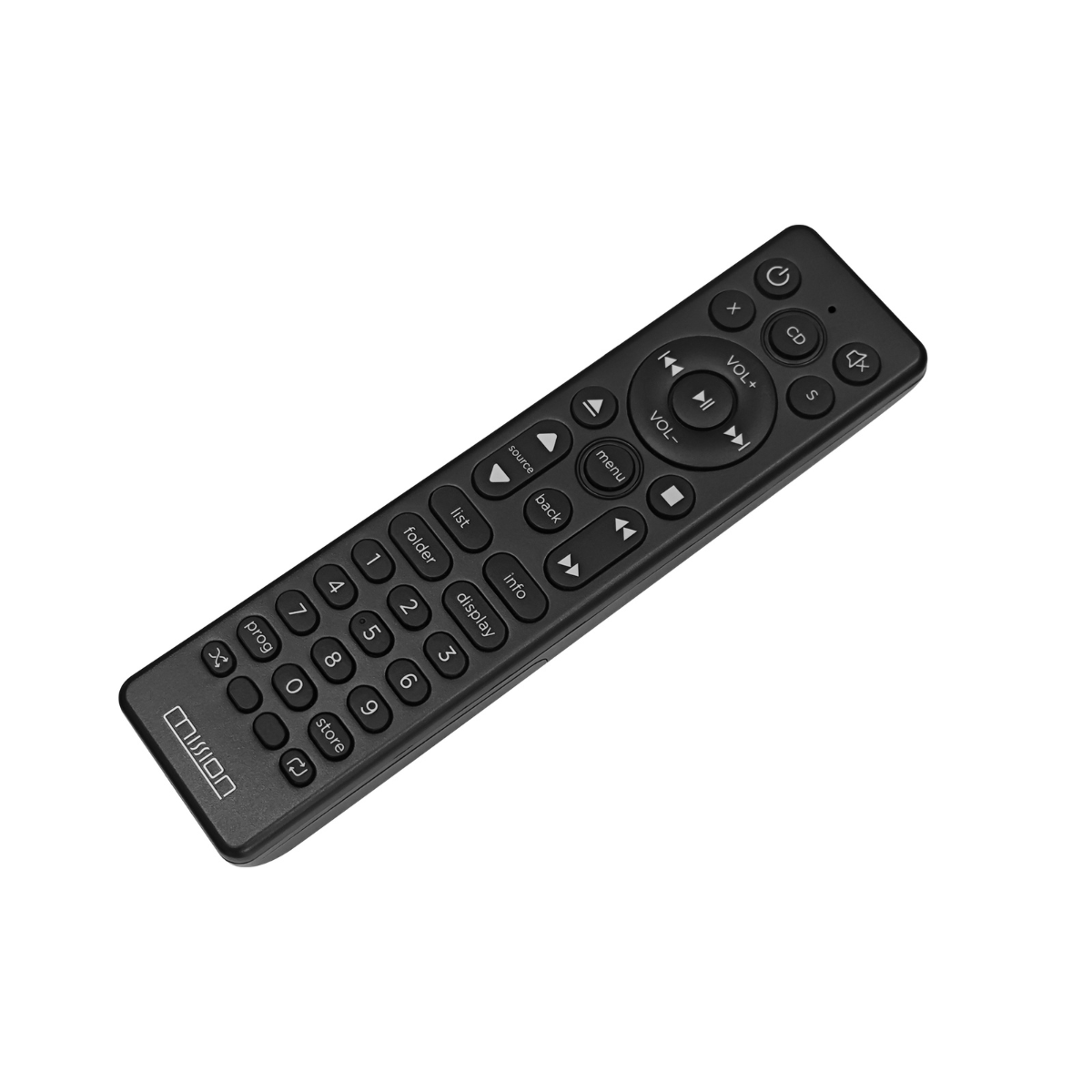

Fully functioning remote control

Also compatible with the Mission 778X and 778S components
USB Storage Device Audio Format WAV, MP3, WMA, AAC, FLAC, APE
USB Storage Device File System FAT16, FAT32, exFAT
Digital Output Amplitude 500 ± 50mVpp
Output Impedance 75Ω
Frequency Response -0.01 dB (20Hz–20kHz, ref. 1kHz)
Sampling Rate 44.1kHz

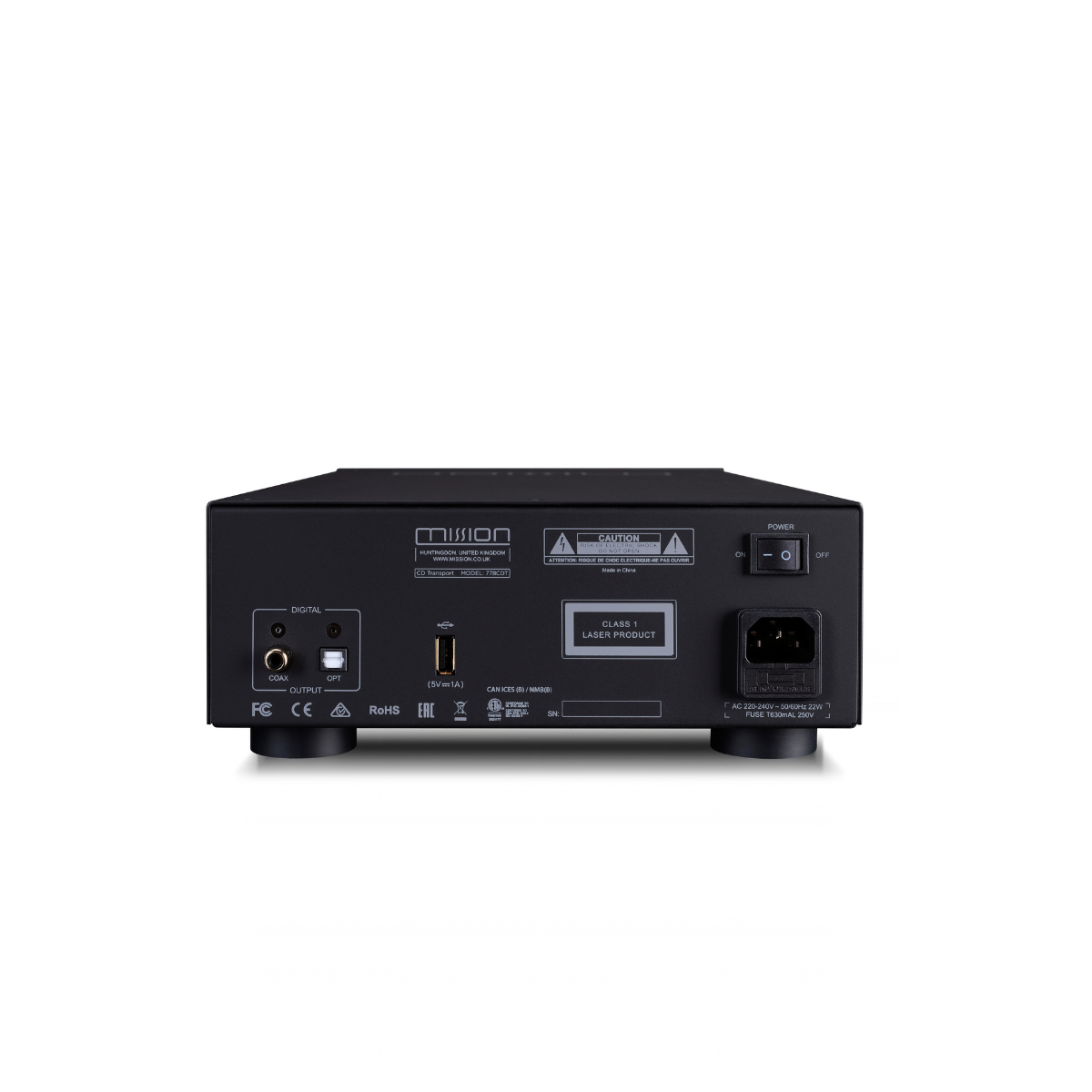

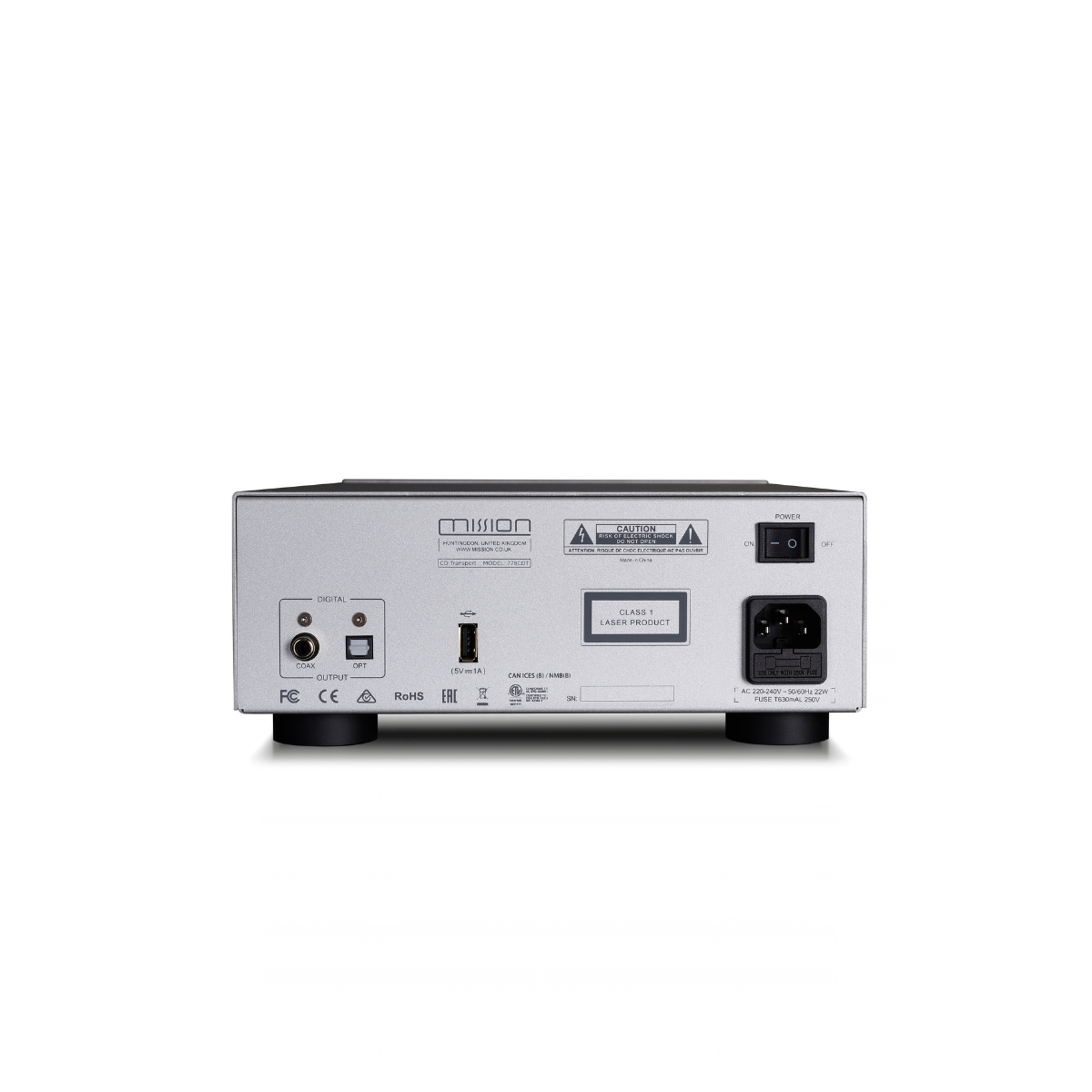

Digital Output Interface 1 x Coaxial, 1 x Optical
Standby Power Consumption <0.5W
Power Requirements (According to Region) 220–240V, 50/60Hz
100–120V, 50/60Hz
Product Size W x H x D 236 x 98 x 357mm
Carton Size W x H x D 470 x 161 x 514mm
Net Weight 5.04kg
Gross Weight 6.74kg
Finish Silver/Black
