Mission 770

2-way Vented-Box / Standmount Speakers - Pair

Mission 770

2-way Vented-Box / Standmount Speakers - Pair
$4,995.00
Select Color:


Overview

Featuring an eight inch mineral loaded polypropylene driver and a 28 mm soft dome tweeter, these two way bass reflex speakers deliver clean output down to 30Hz. A damped twin wall cabinet and 88dB sensitivity ensure smooth integration into any high performance sound system setup.

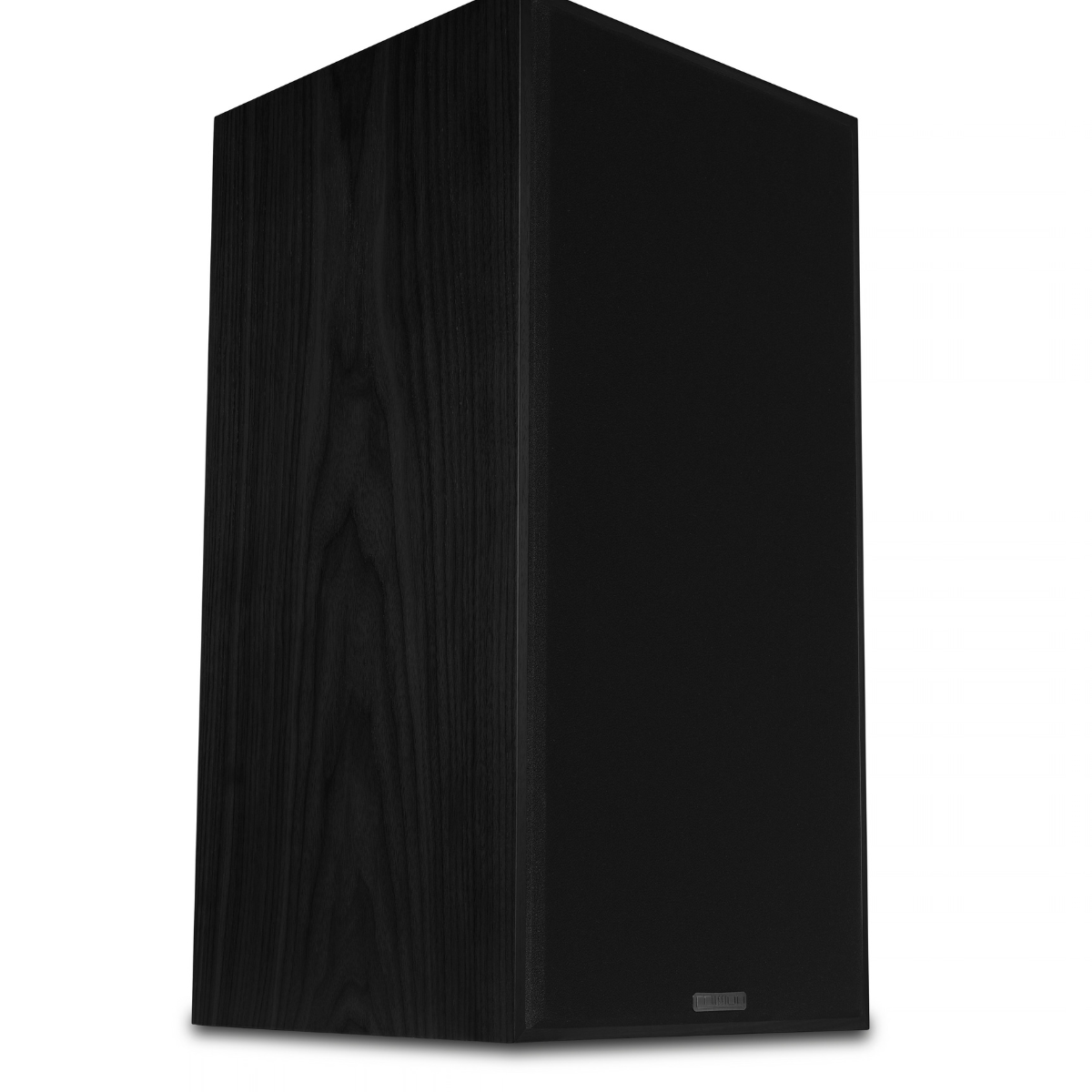

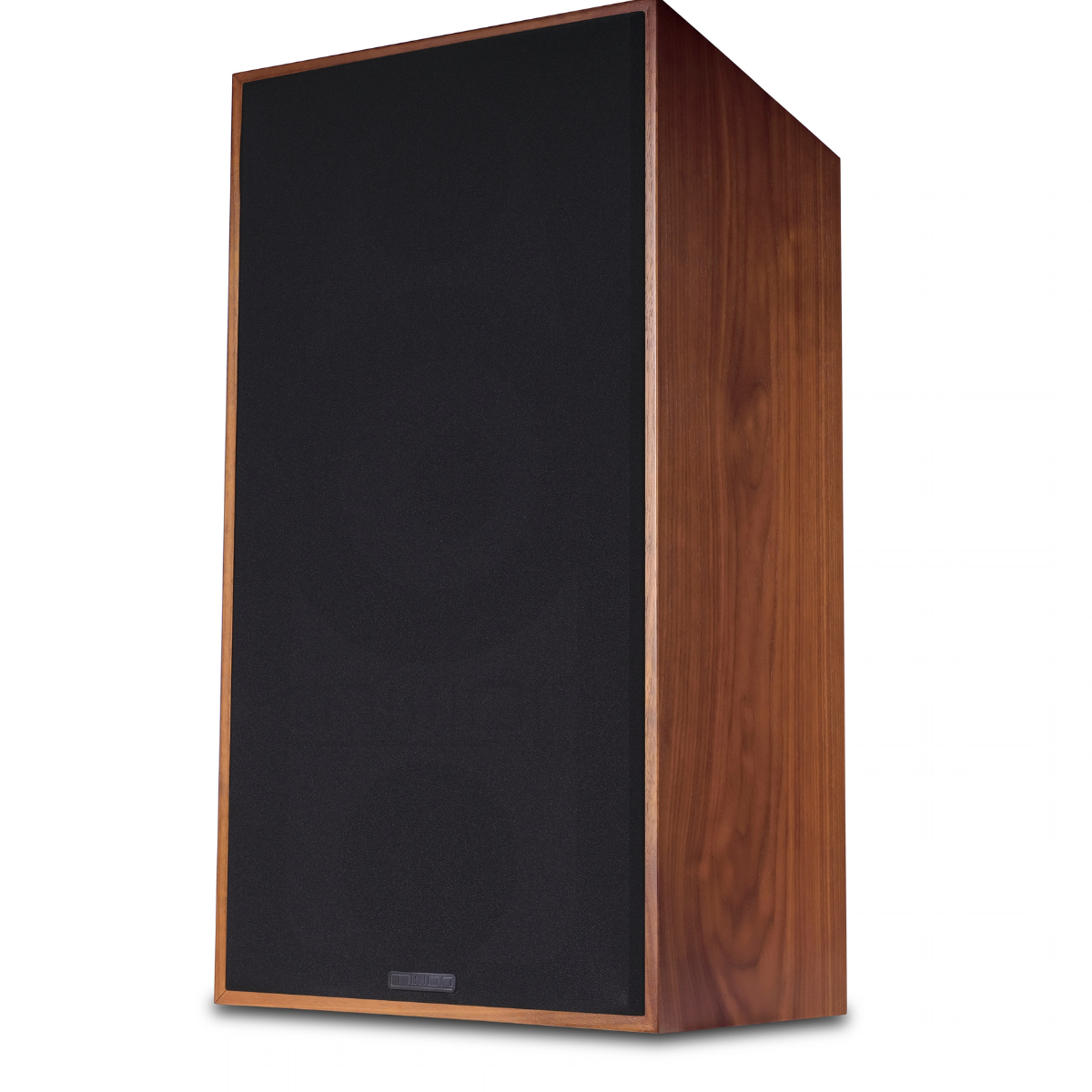

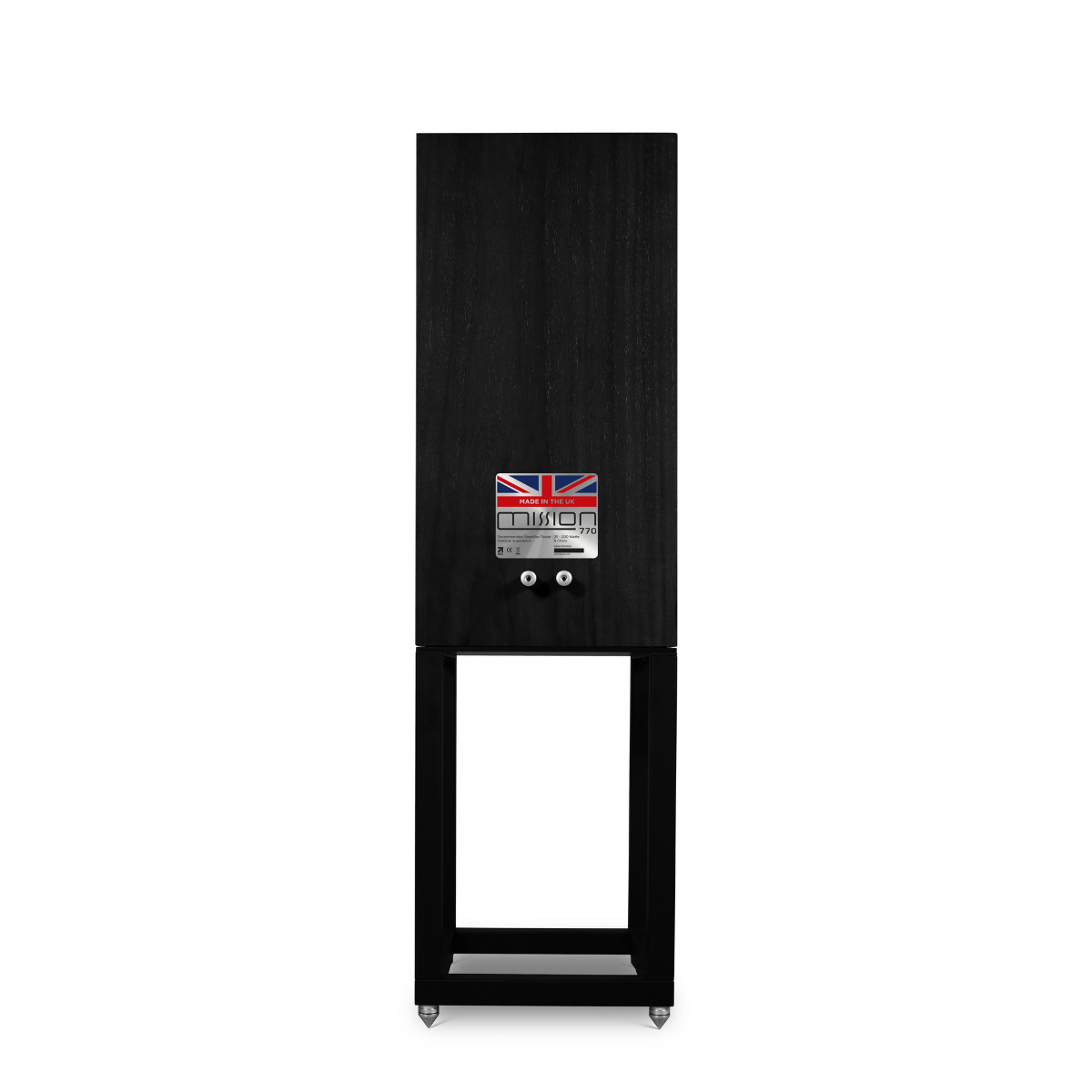

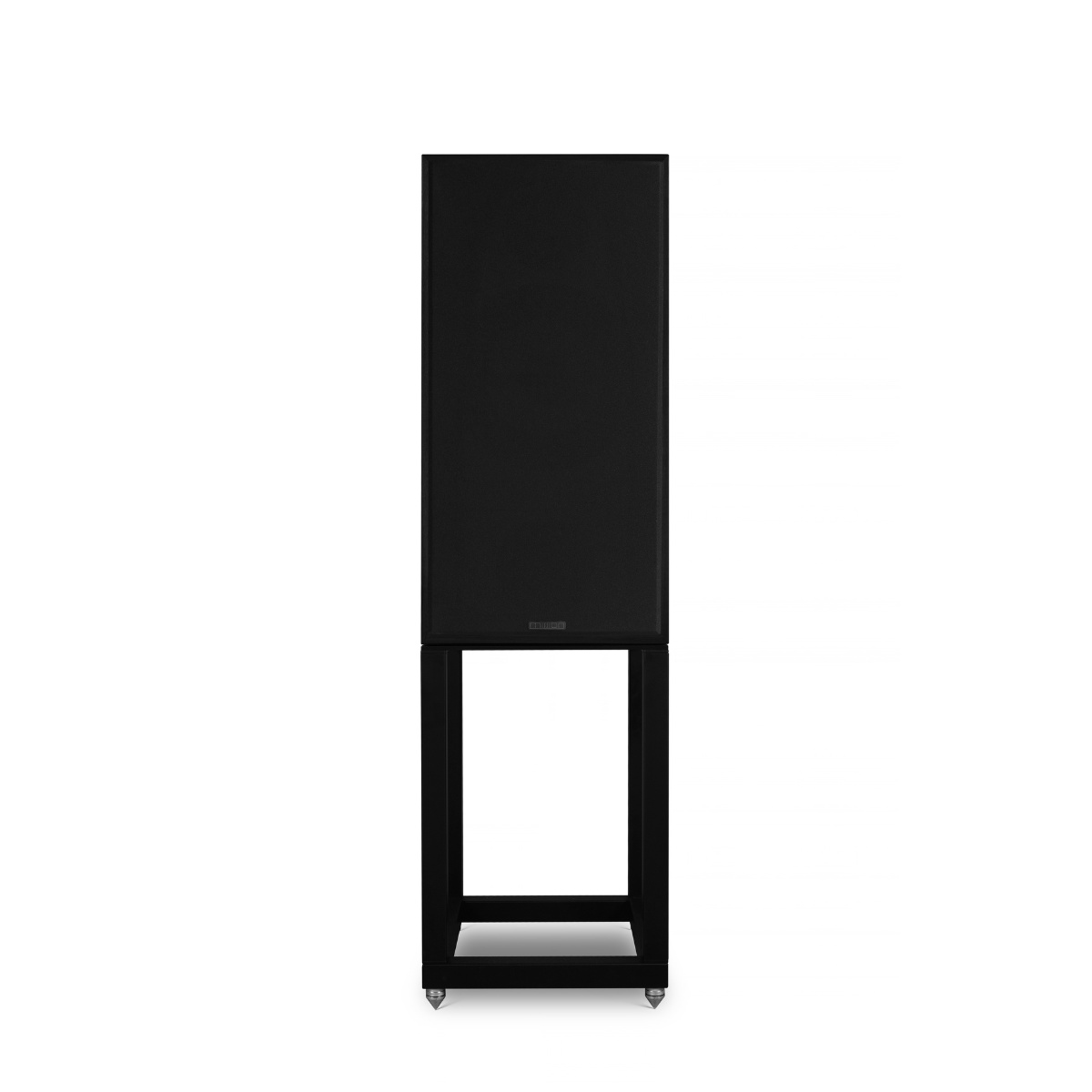

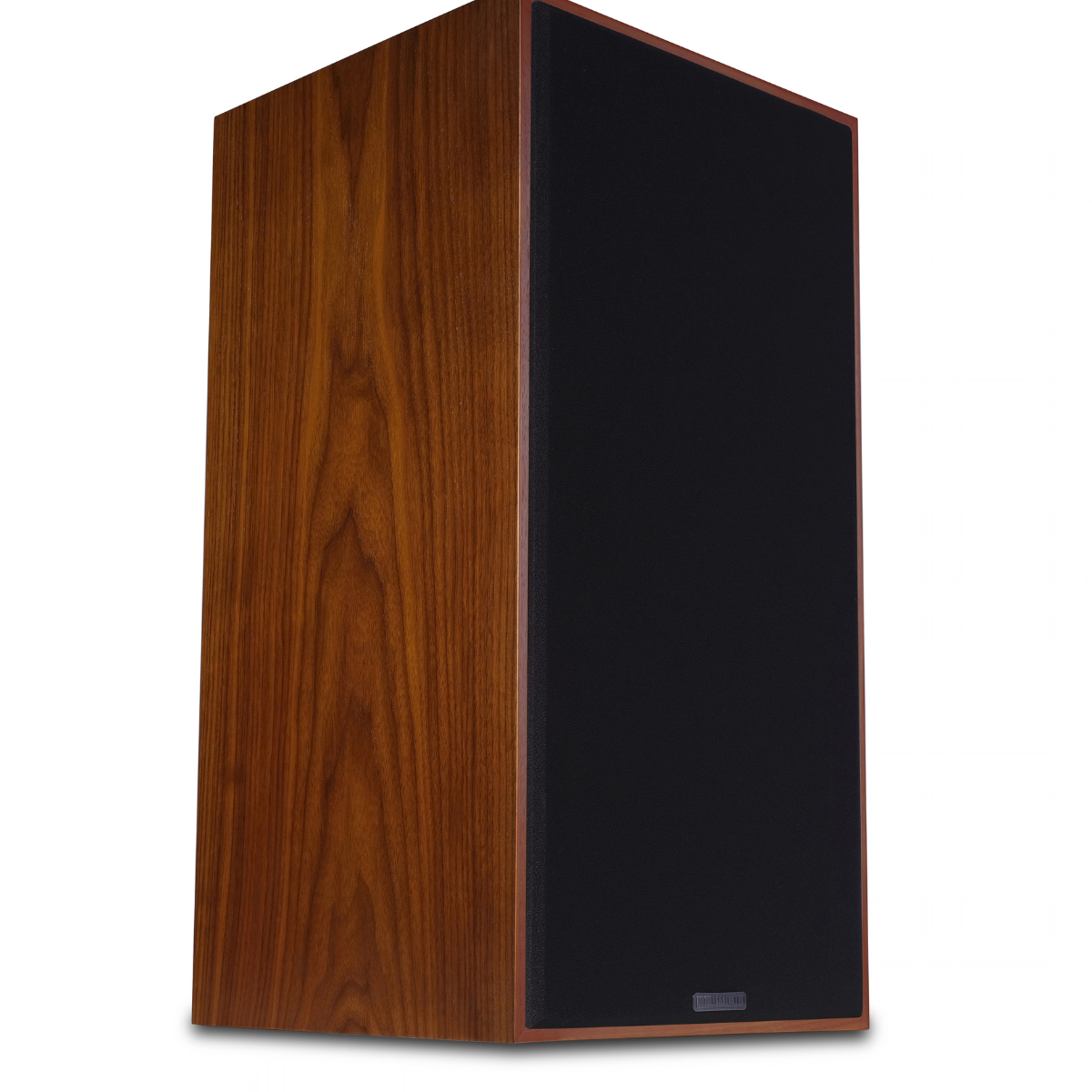

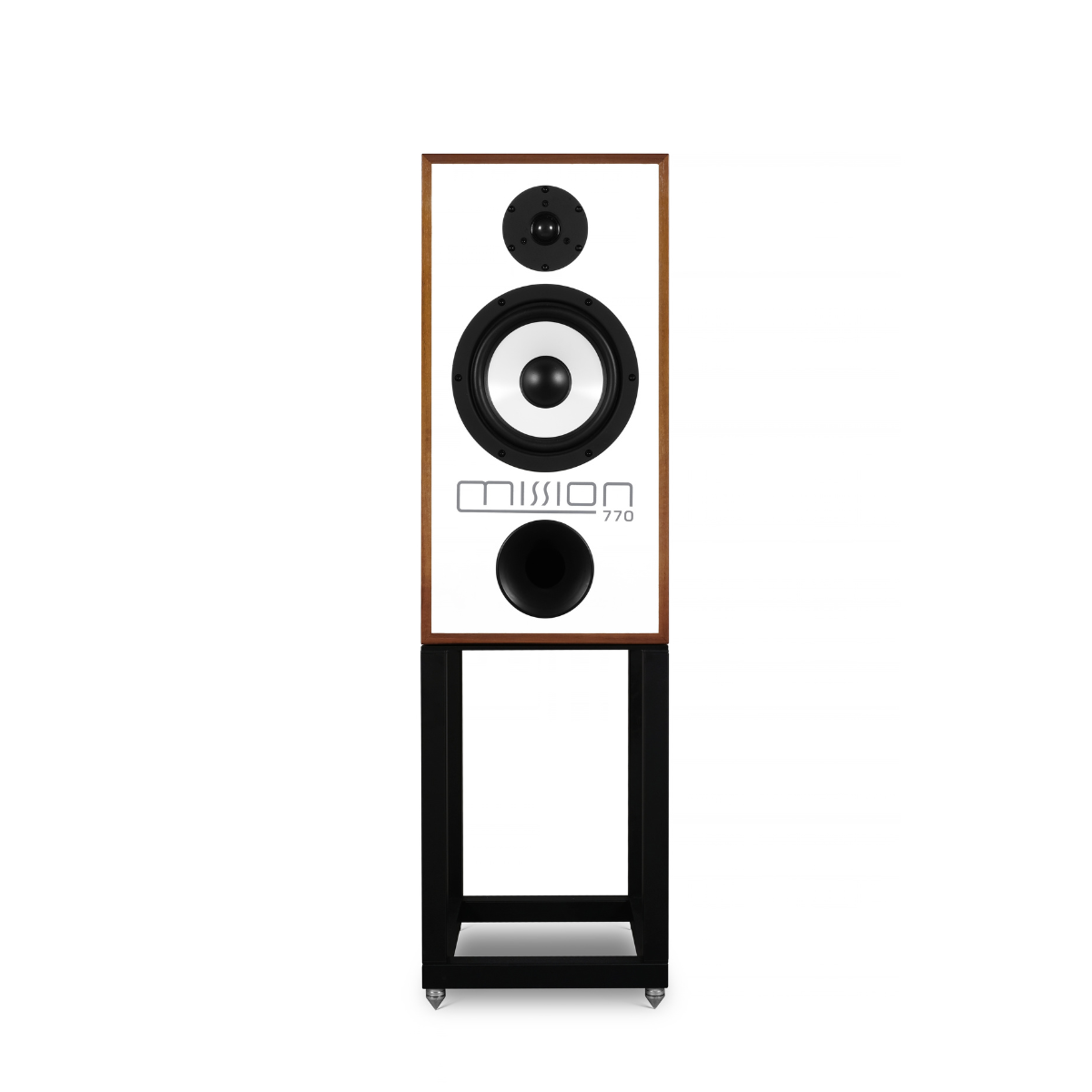

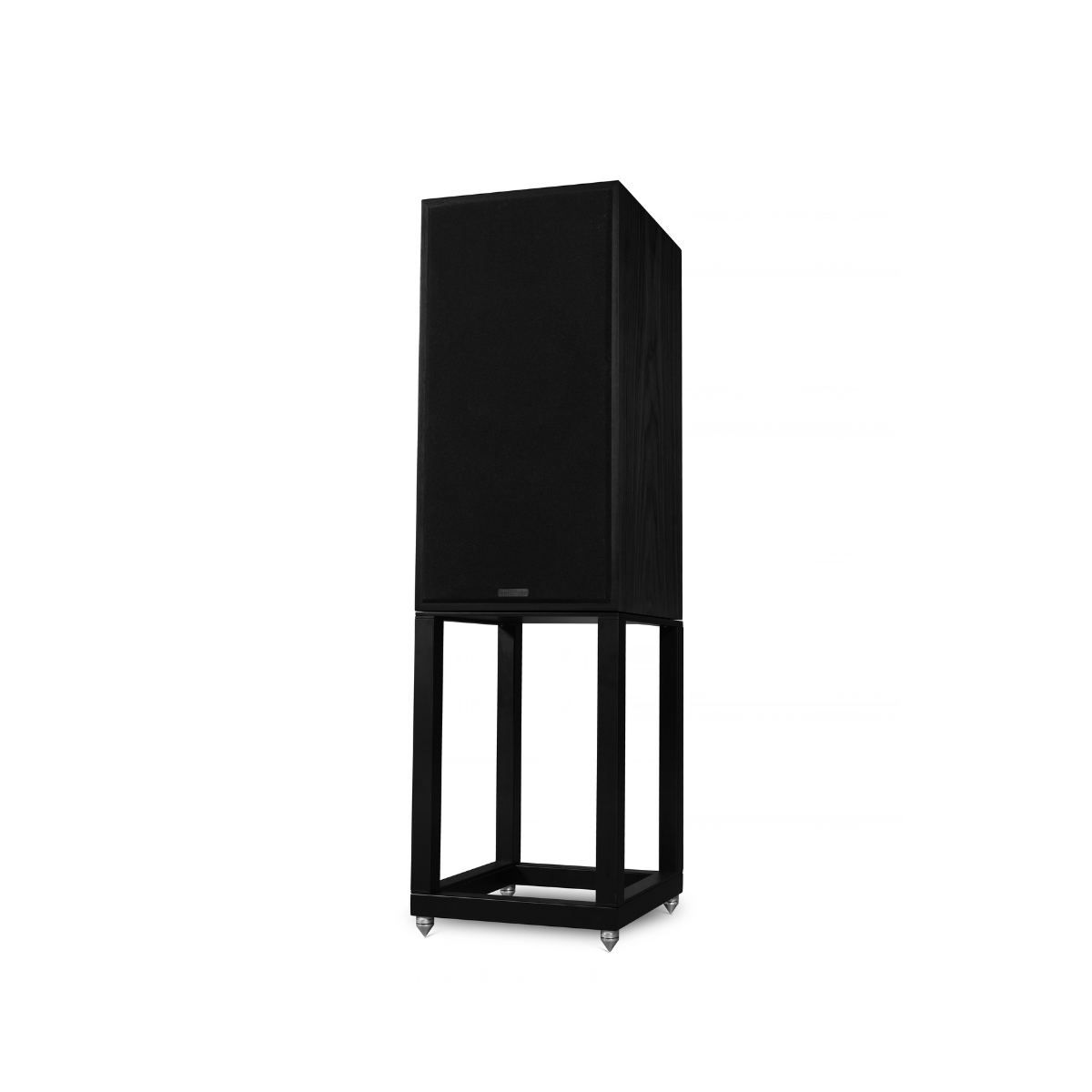

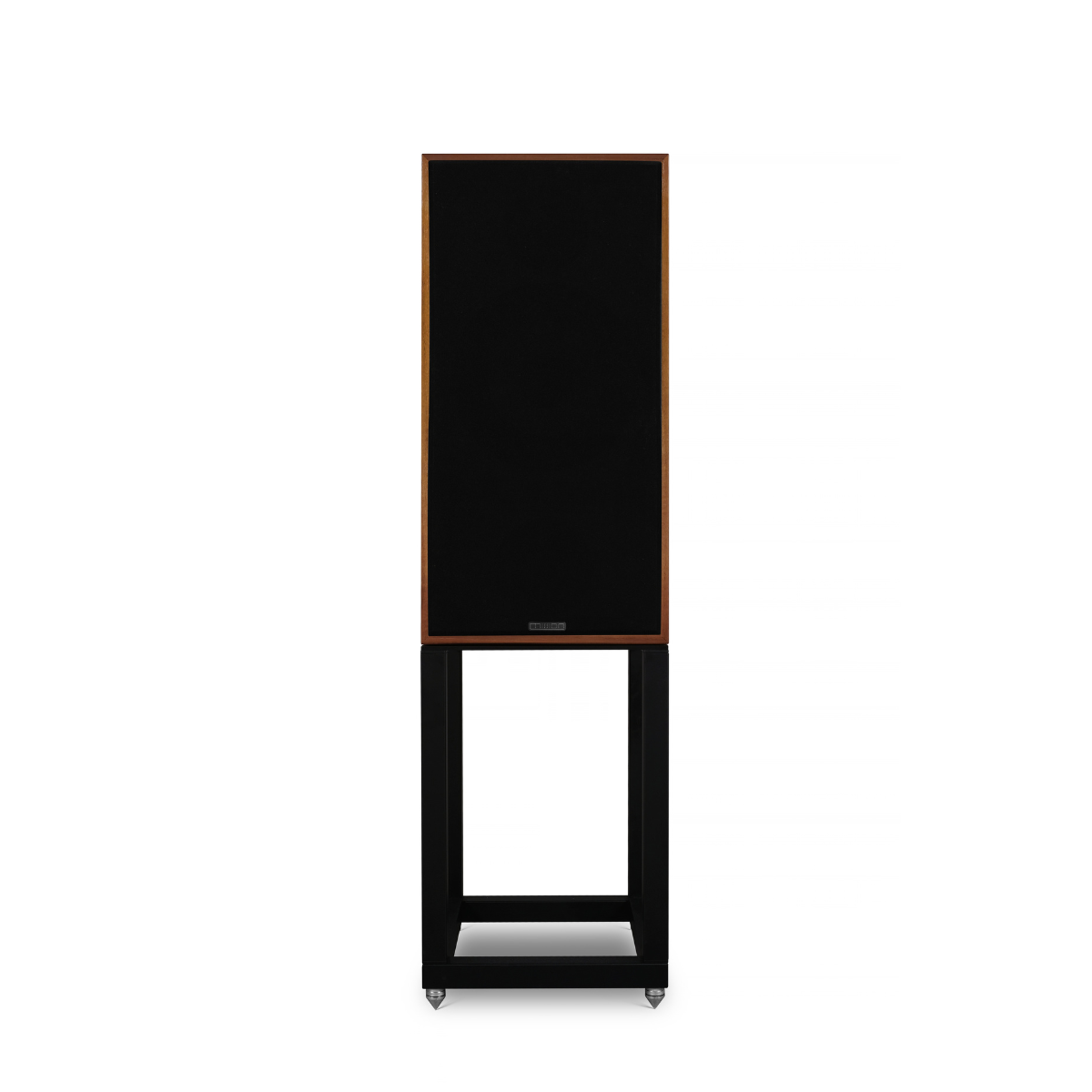

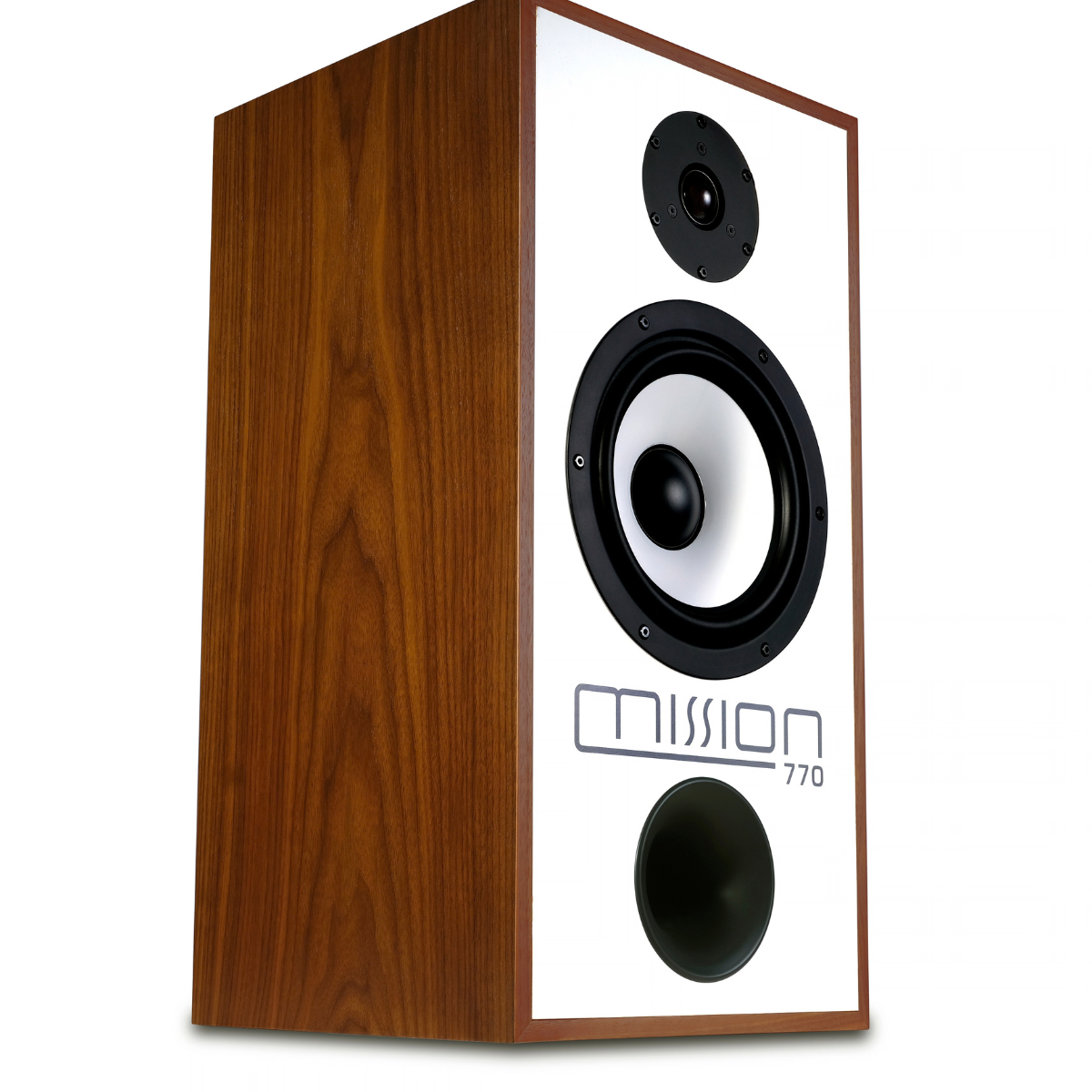

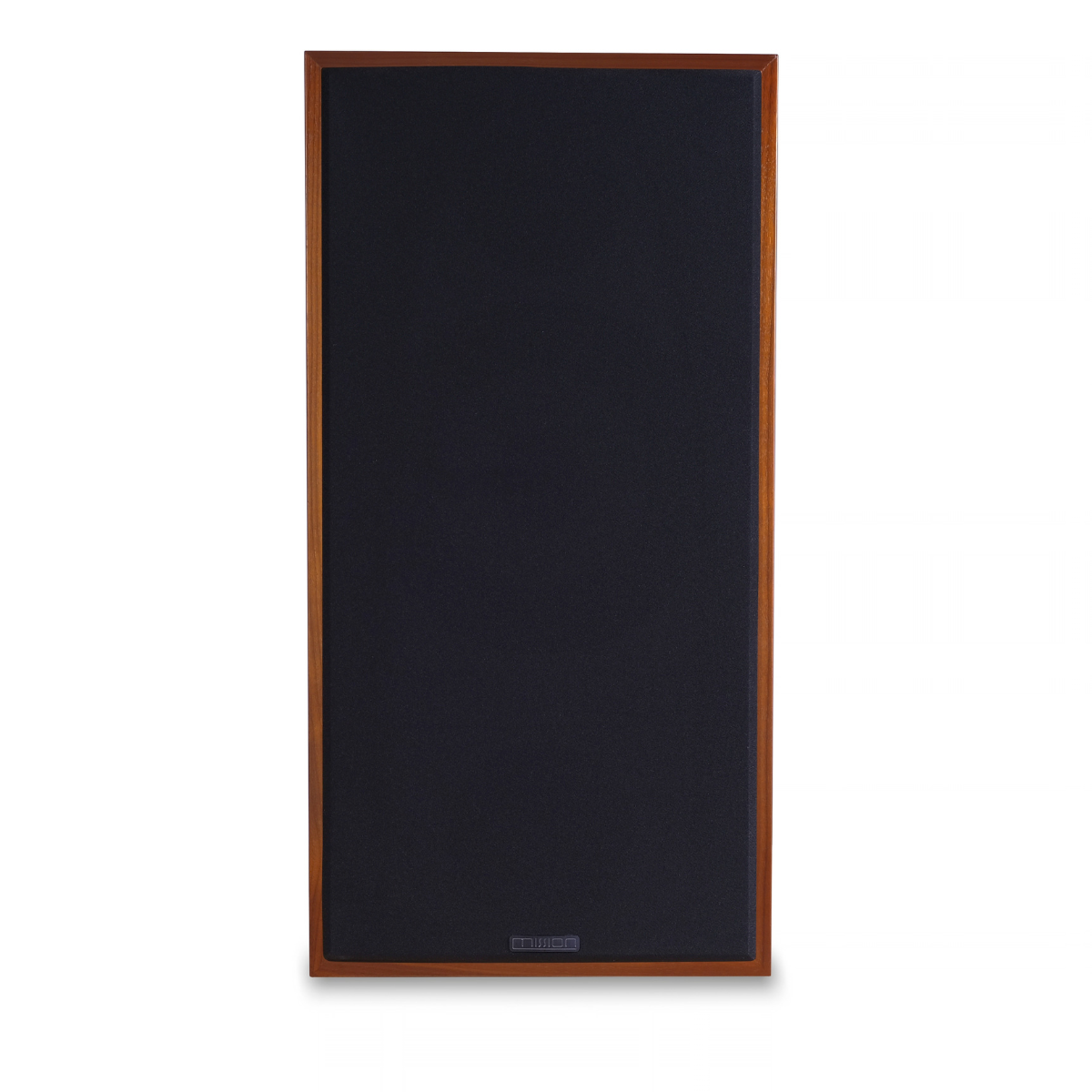

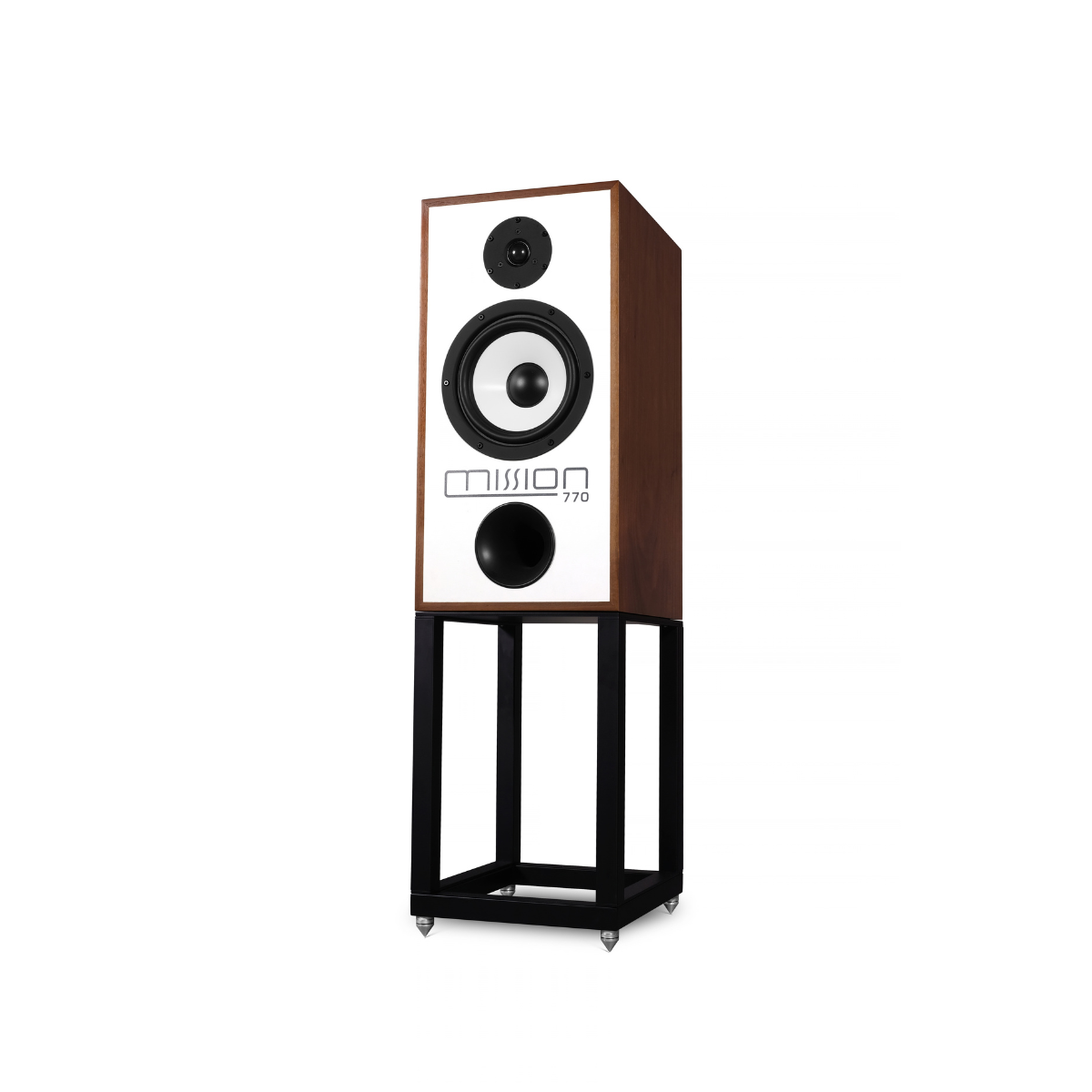

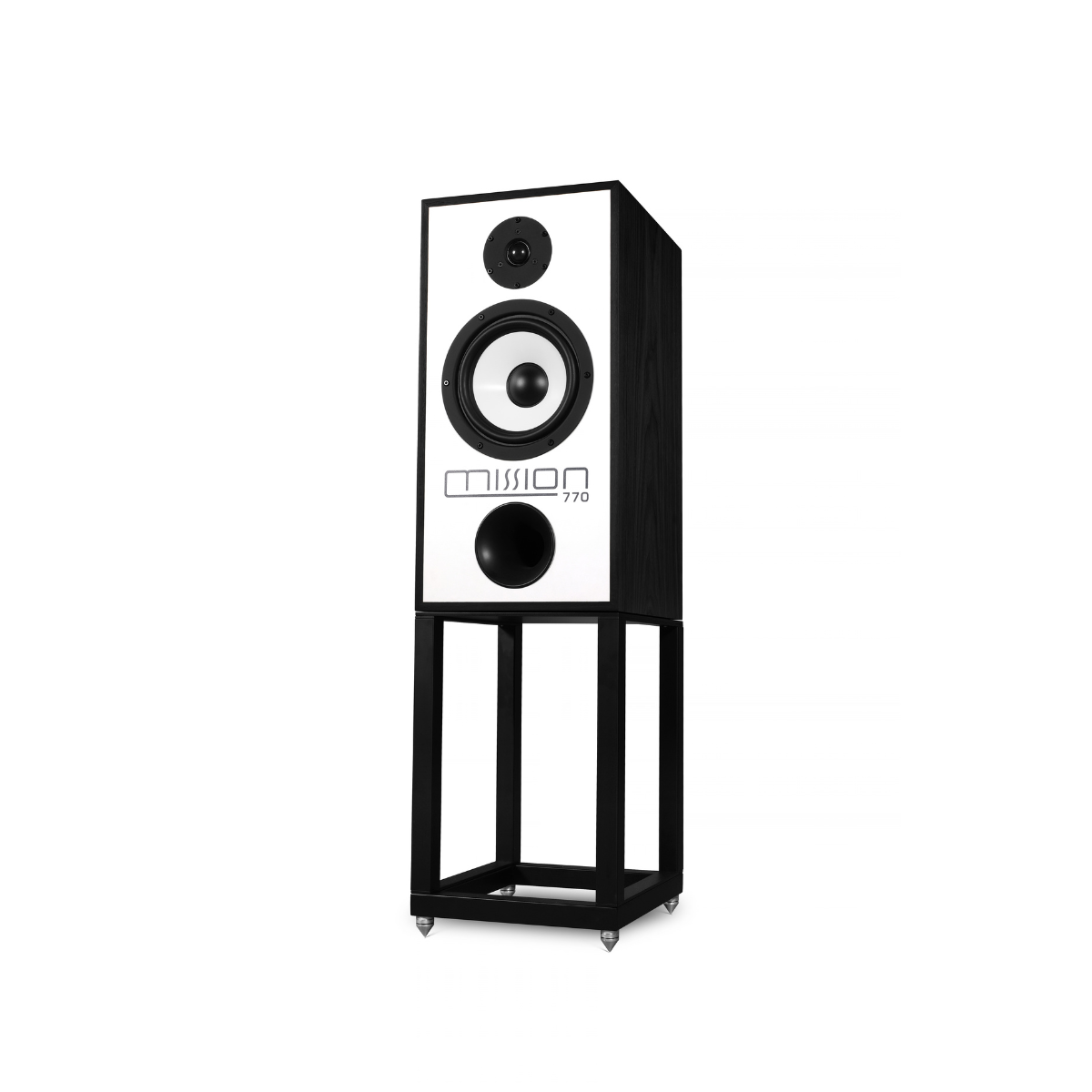

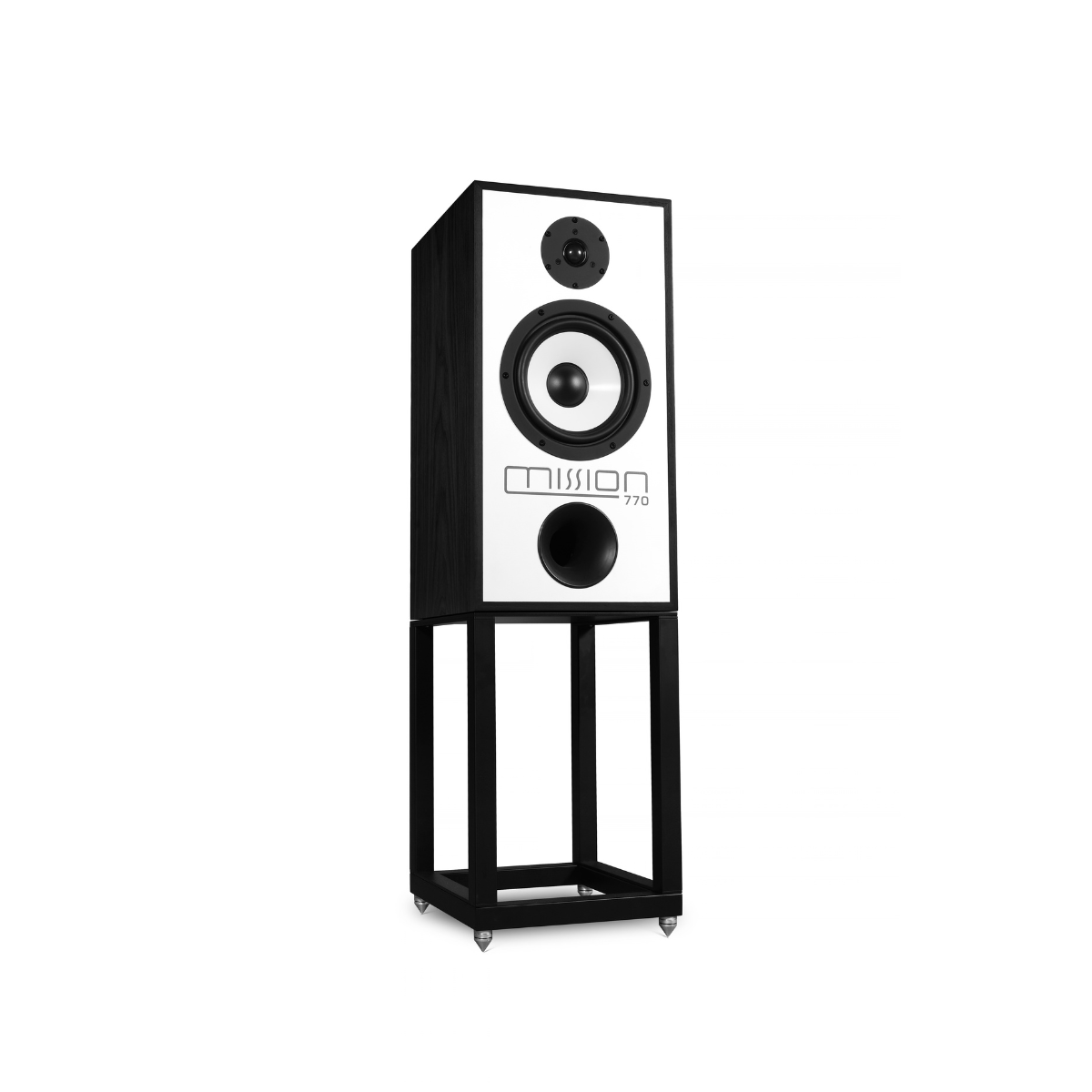

The Mission 770 standmount speaker brings together a traditional British cabinet style with updated acoustic engineering. The cabinet measures 590 mm tall, 300 mm wide, and 322 mm deep including the rear terminals. It uses a 38.5 liter enclosure finished in real wood veneer. Inside, a twin wall made from high density MDF and particle board is bonded with a high damping adhesive. Internal bracing and acoustic foam are used to keep unwanted resonances in check across the frequency range.

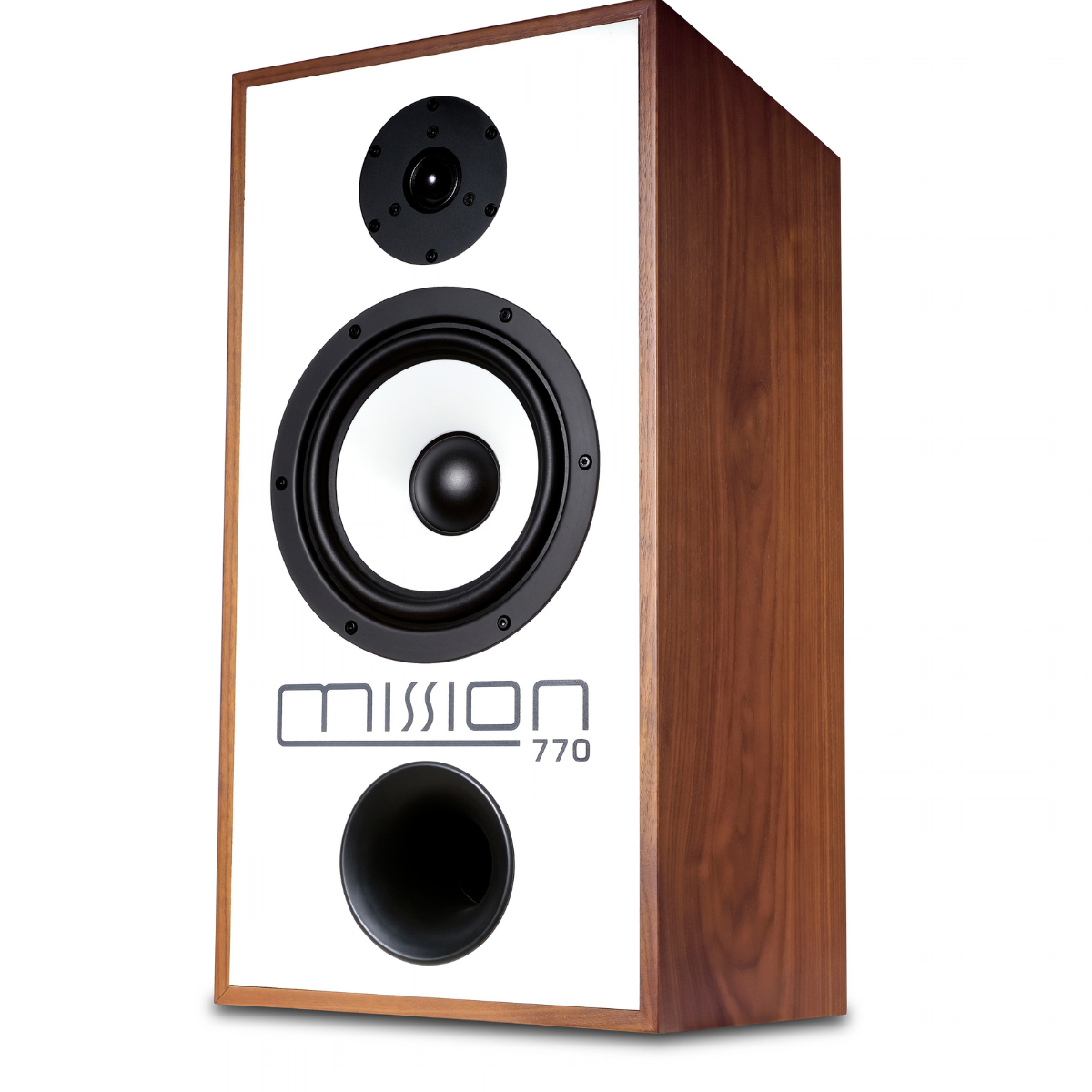

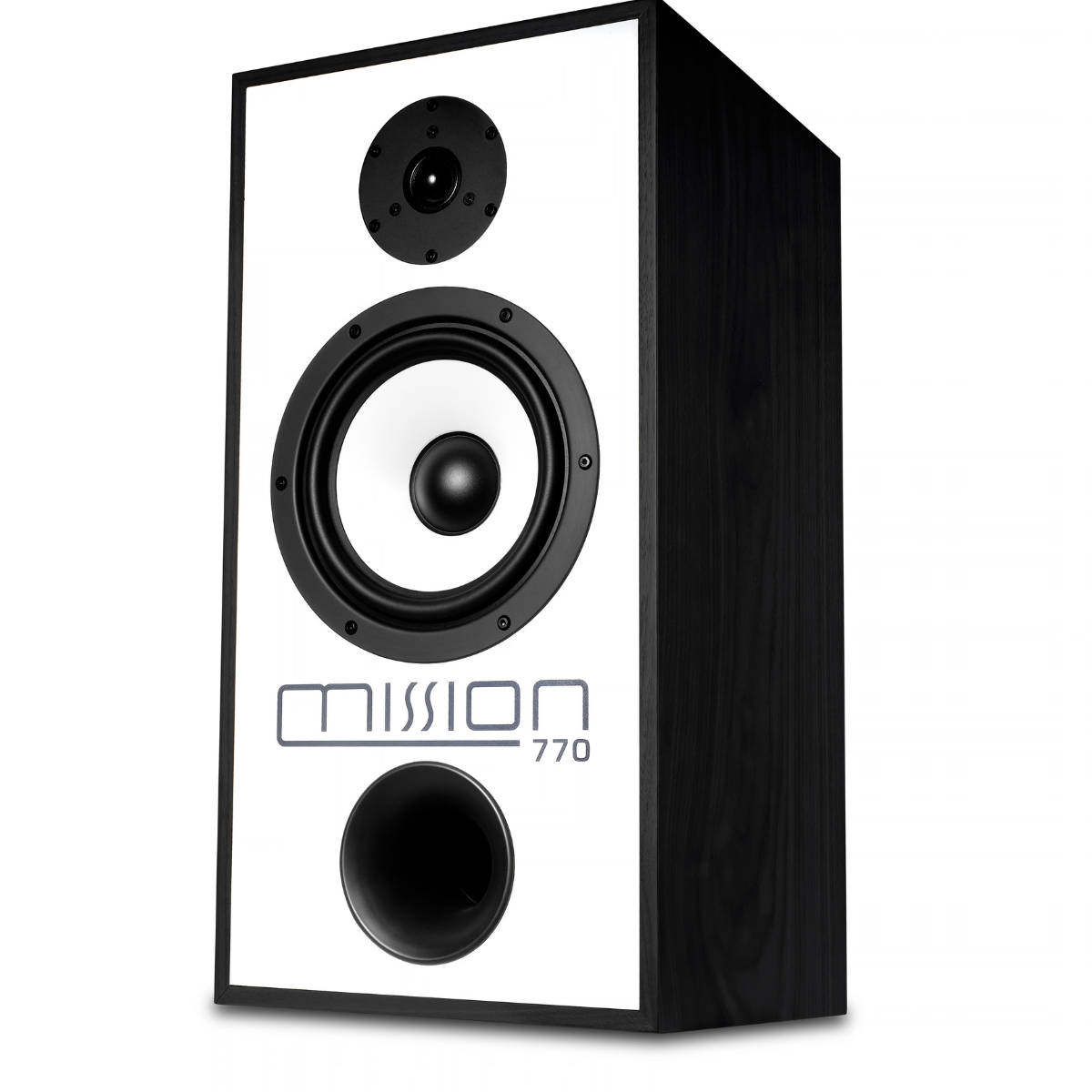

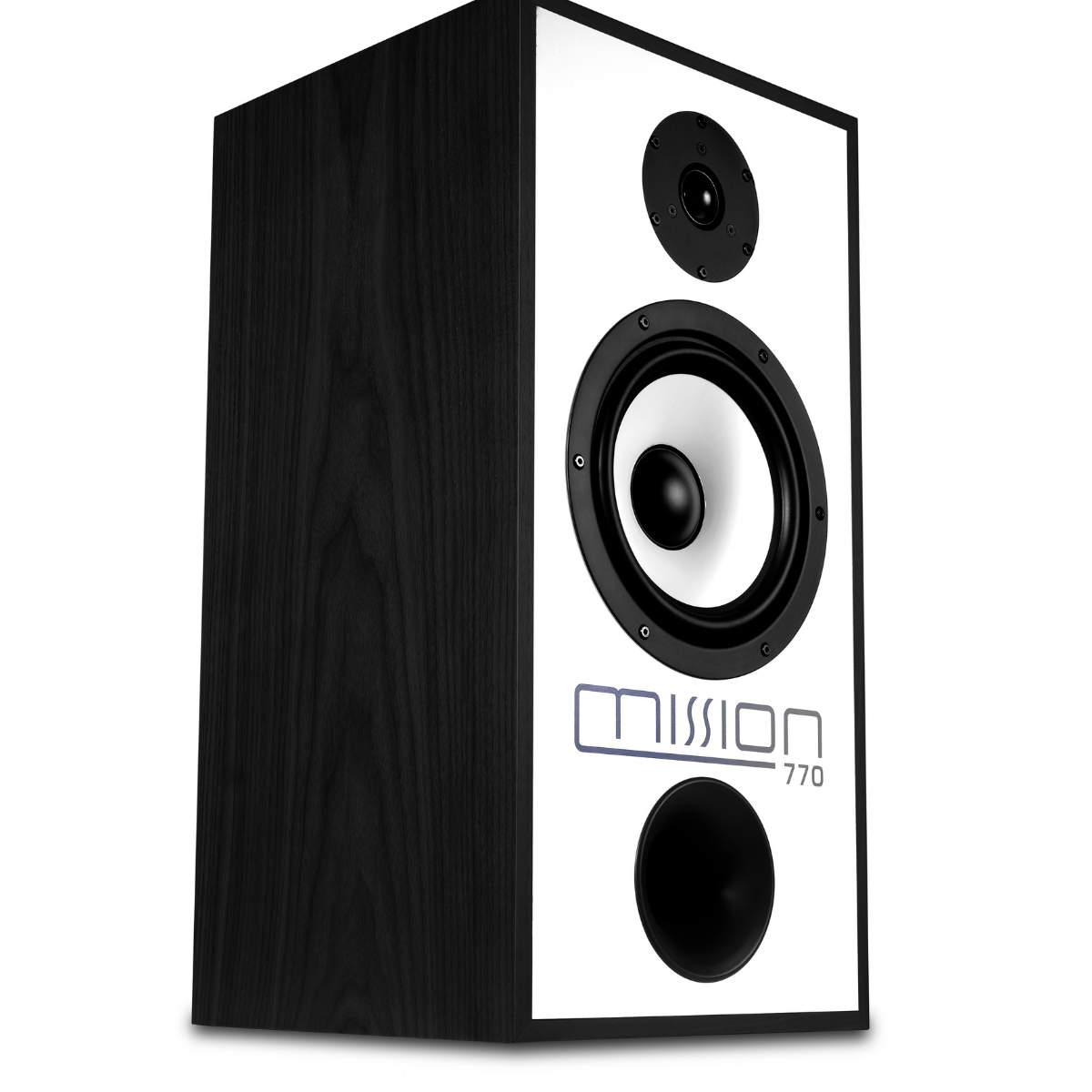

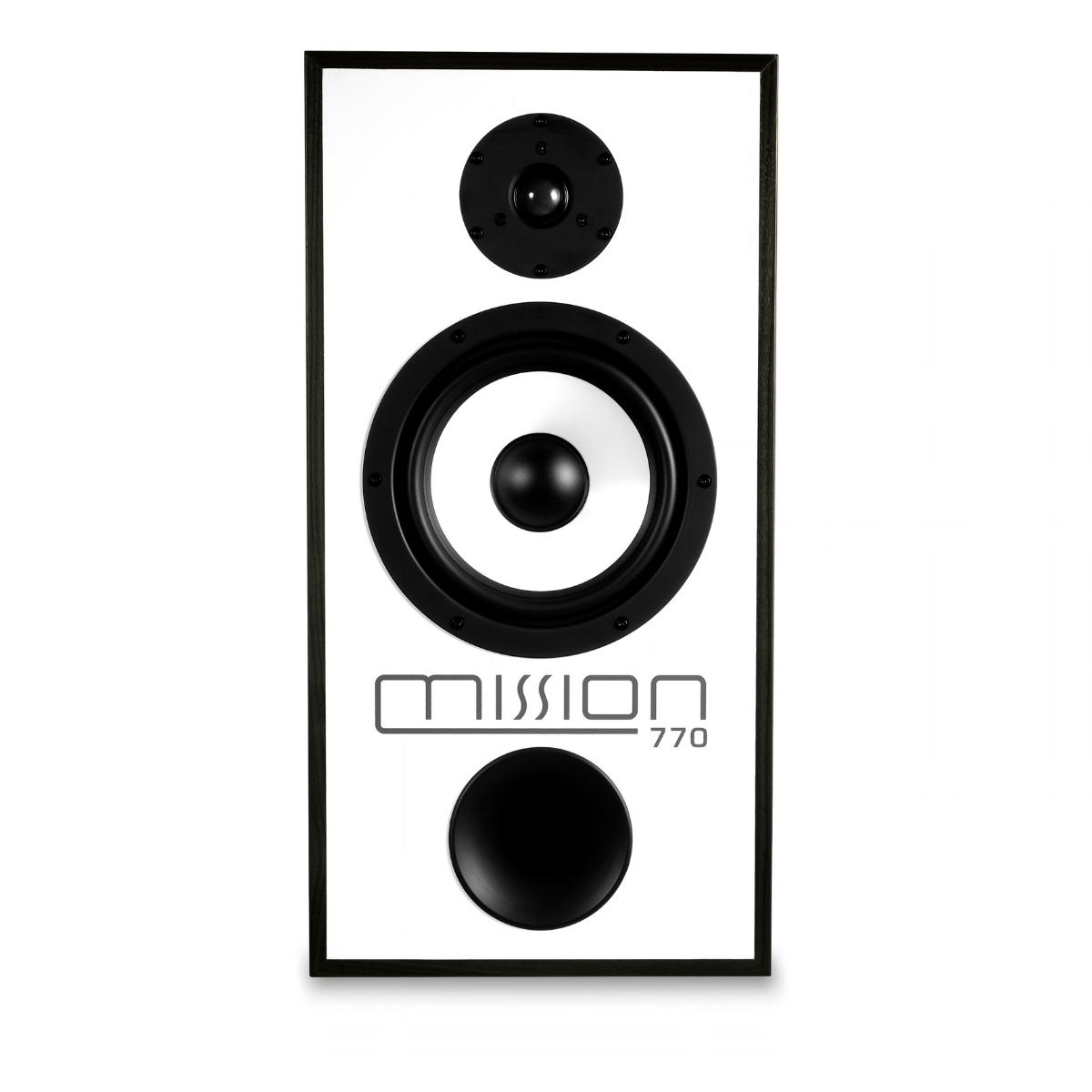

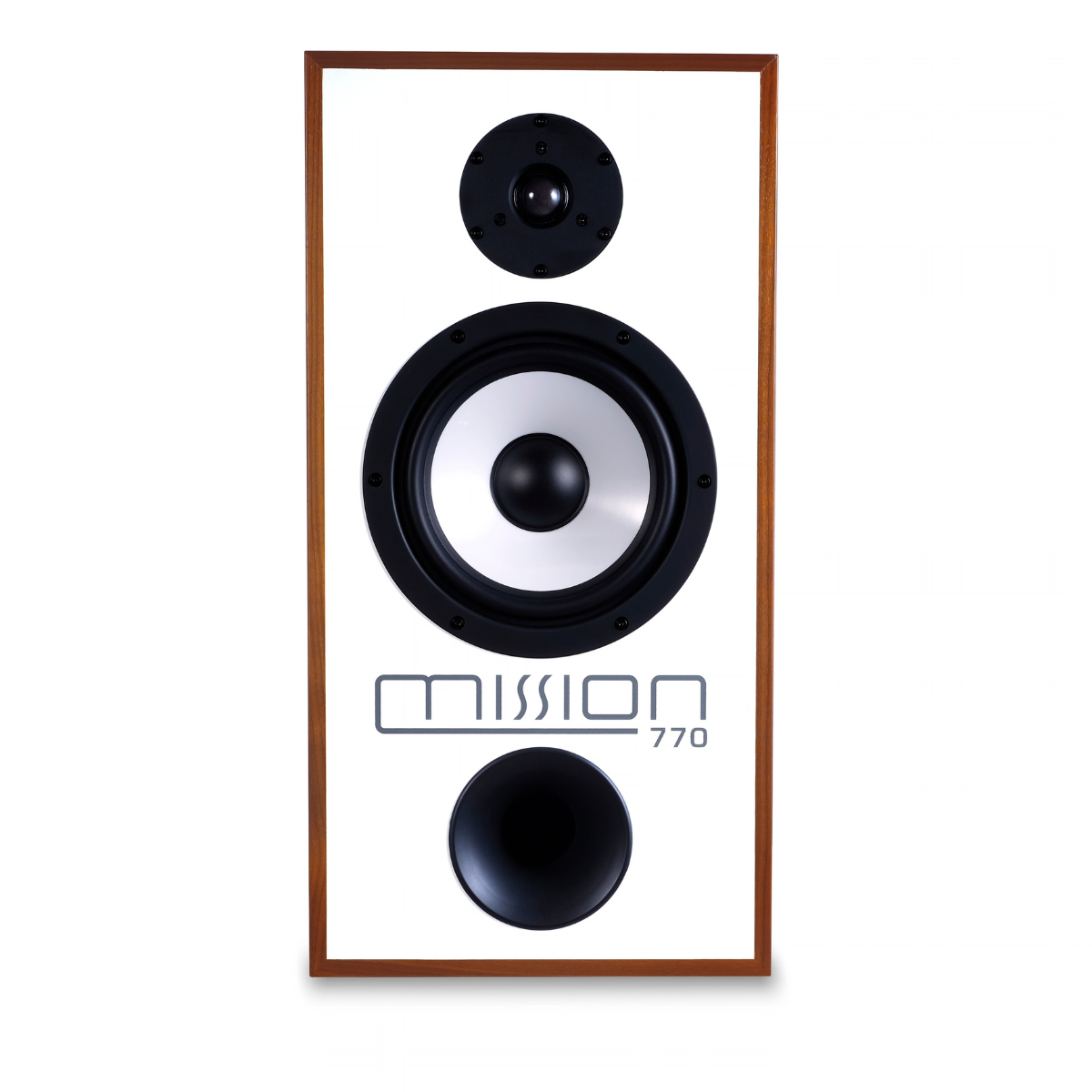

The main driver is an eight inch polypropylene cone reinforced with minerals. It sits in a die cast chassis with large rear openings to help airflow. The low density nitrile surround helps cut down on reflections at the edge of the cone. A flared reflex port is used to extend the bass response down to 30Hz. For the high frequencies, a 28 mm soft dome tweeter made from damped microfibre is paired with a strong ferrite magnet and a damped rear chamber. This setup keeps the tweeter's resonance well below the 2.9kHz crossover point.

The crossover splits the bass and treble signals onto separate circuit boards. Polypropylene capacitors and air core inductors are used for reliable signal handling. The speaker works with amplifiers from 25 to 200 watts. It offers 88dB sensitivity and can reach a peak SPL of 117dB. These details make it a solid fit for high output systems where clean integration and consistent performance are important.

Details & Specs

Model Mission 770
General Description 2-way vented-box / standmount
Model: Mission 770
Enclosure Type Bass reflex
Transducer Complement 2-way
Bass Driver 8" (200mm) mineral loaded polypropylene cone
Treble Driver 1.25" (28mm) soft dome
AV Shield No
Sensitivity (2.83V @ 1m) 88dB

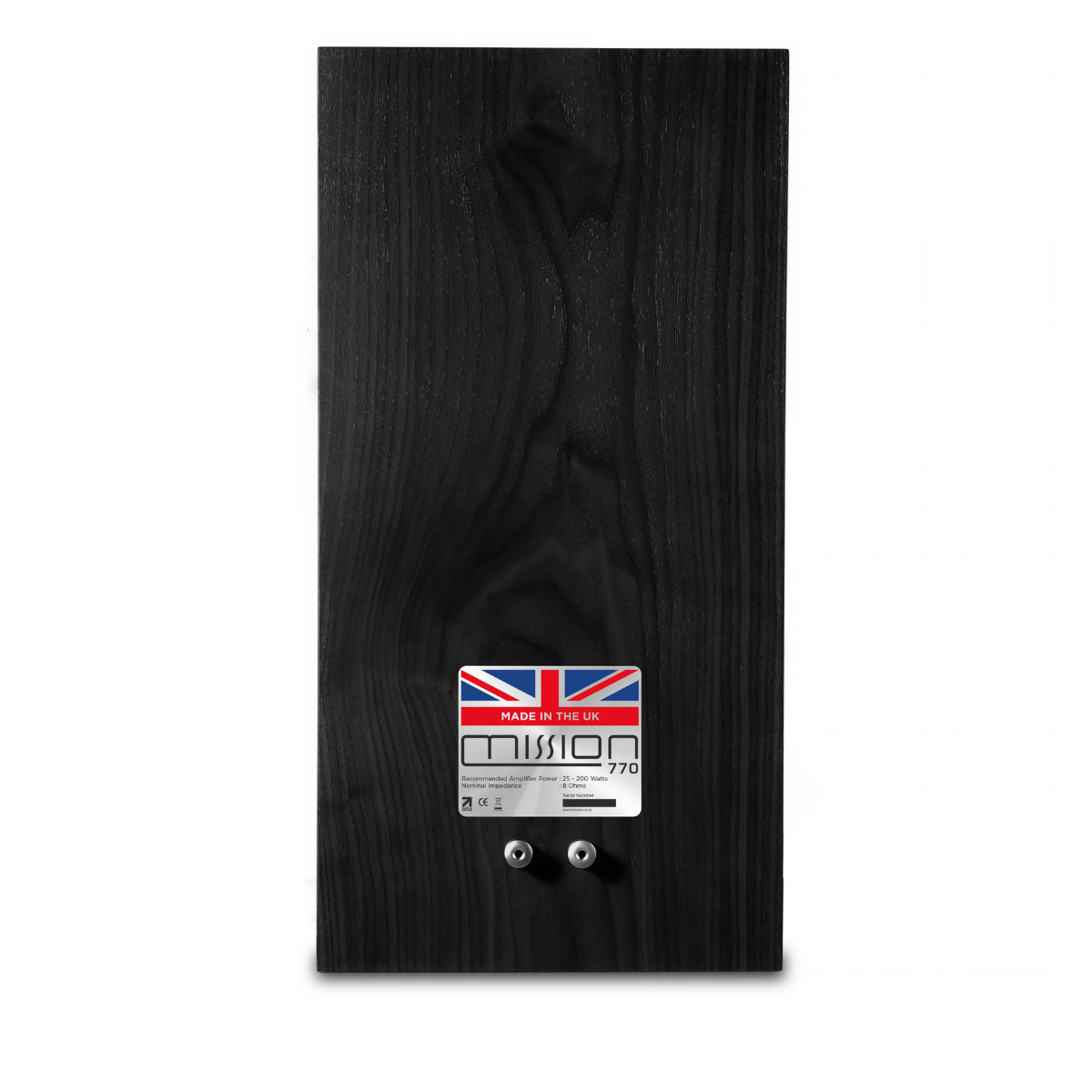

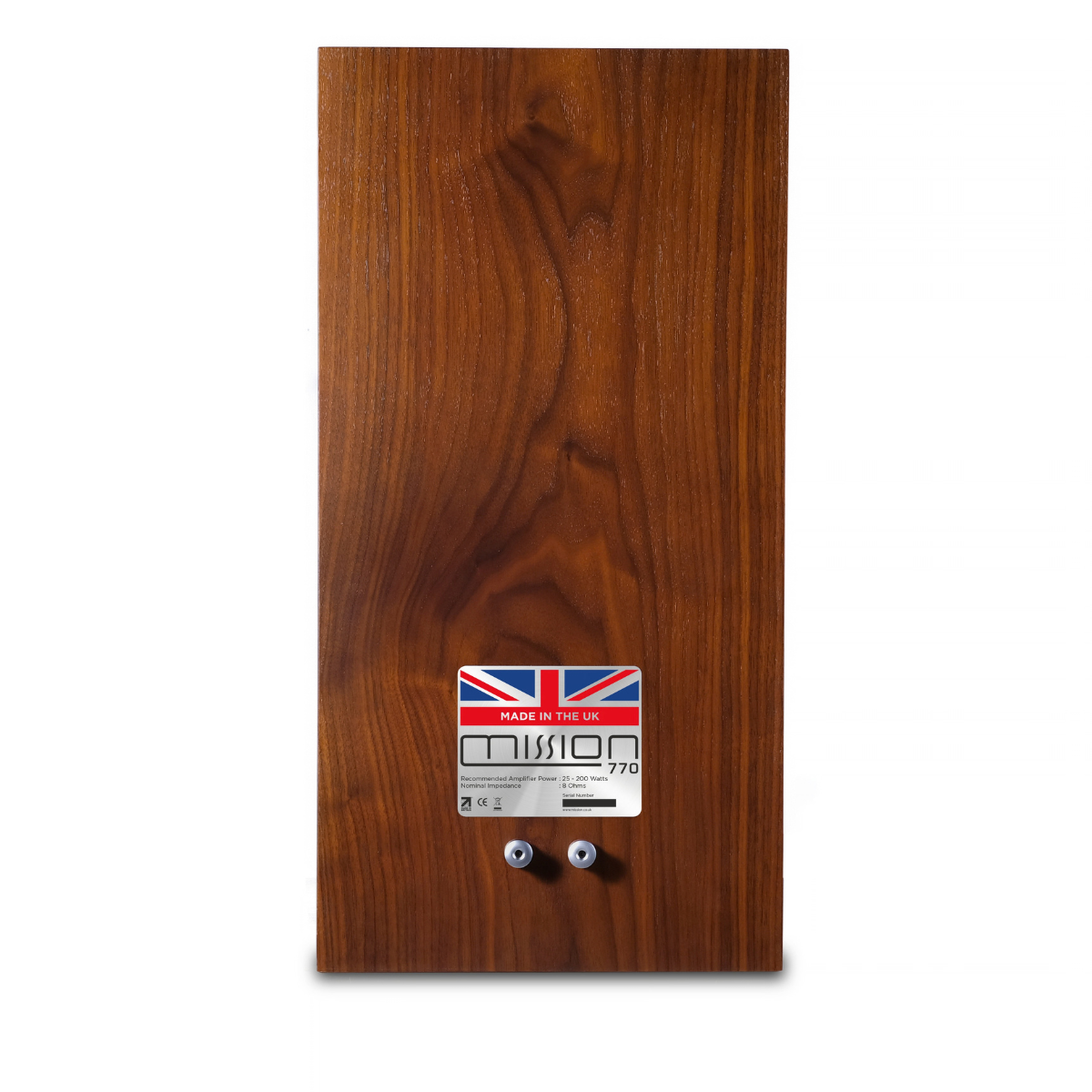

Recommended Amplifier Power 25-200W
Peak SPL 117dB
Nominal Impedance 8
Minimum Impedance 6
Frequency Response (+/-3dB) 42Hz ~ 20kHz
Bass Extension (-6dB) 30Hz
Crossover Frequency 2.9kHz
Cabinet Volume (in Litres) 38.5L
Dimensions (mm)
Height (on Plinth) 590mm
Width 300mm
Depth (with Terminals) (300 + 22)mm
Carton Size 440 x 430 x 725mm
Net Weight 19.2kg / pcs
