Mission 700

Bookshelf Speaker - Pair

Mission 700

Bookshelf Speaker - Pair
$1,799.00
Select Color:


Overview

Mission 700 bookshelf speakers pair a 165mm mineral loaded cone with a 28mm microfibre dome tweeter for low distortion playback down below 38Hz. Their braced twin wall cabinets and inverted driver design deliver clean audio performance, making them ideal for an audiophile sound system setup.

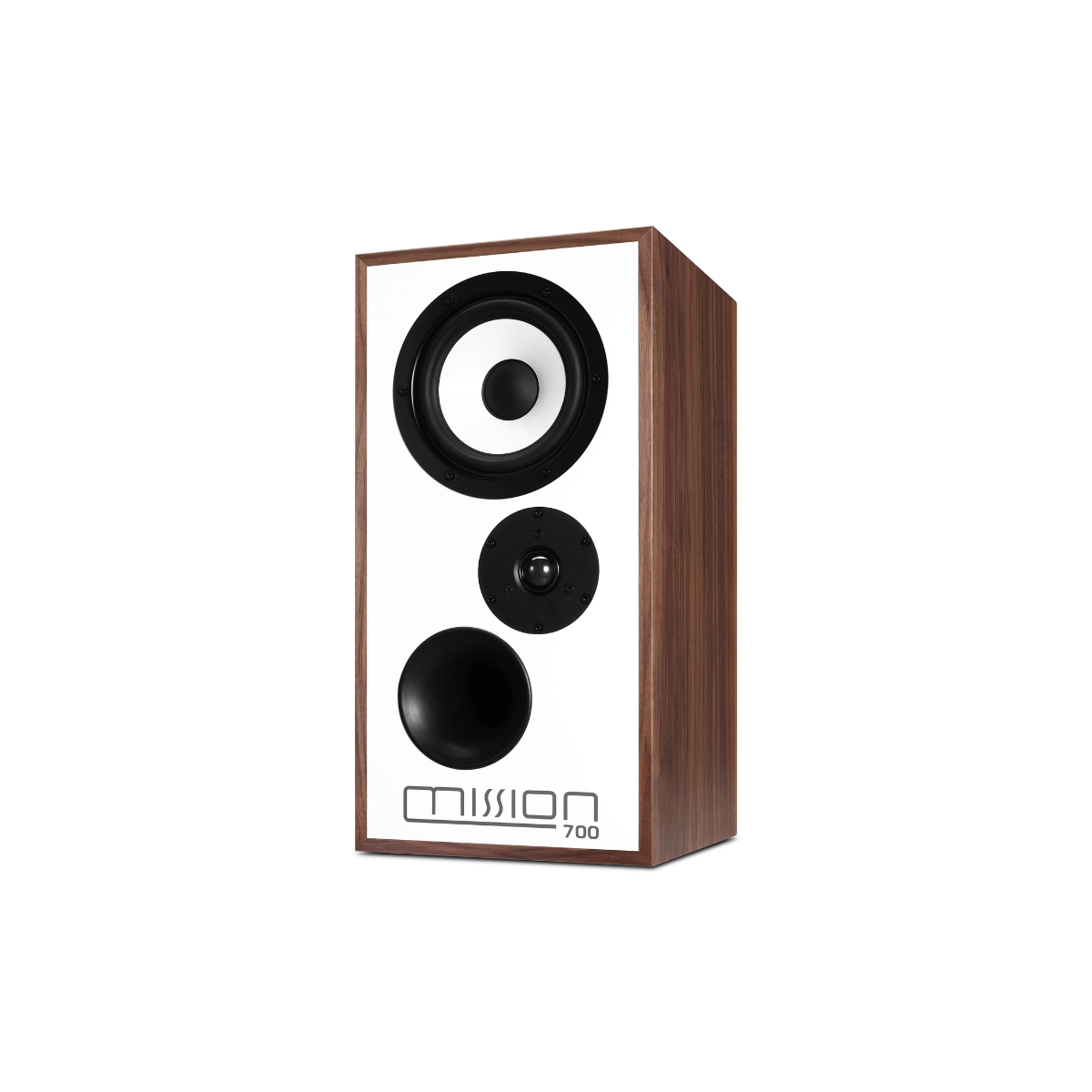

The Mission 700 bookshelf speakers update a classic design with modern engineering. A 165mm mineral loaded polypropylene mid and bass cone provides fast, tight bass response down to below 38Hz in room. Built on a die cast chassis with large rear windows, the driver reduces internal reflections while using a low density nitrile surround to match impedance. The front firing reflex port features flared entry and exit points to smooth airflow and eliminate port noise during heavy playback.

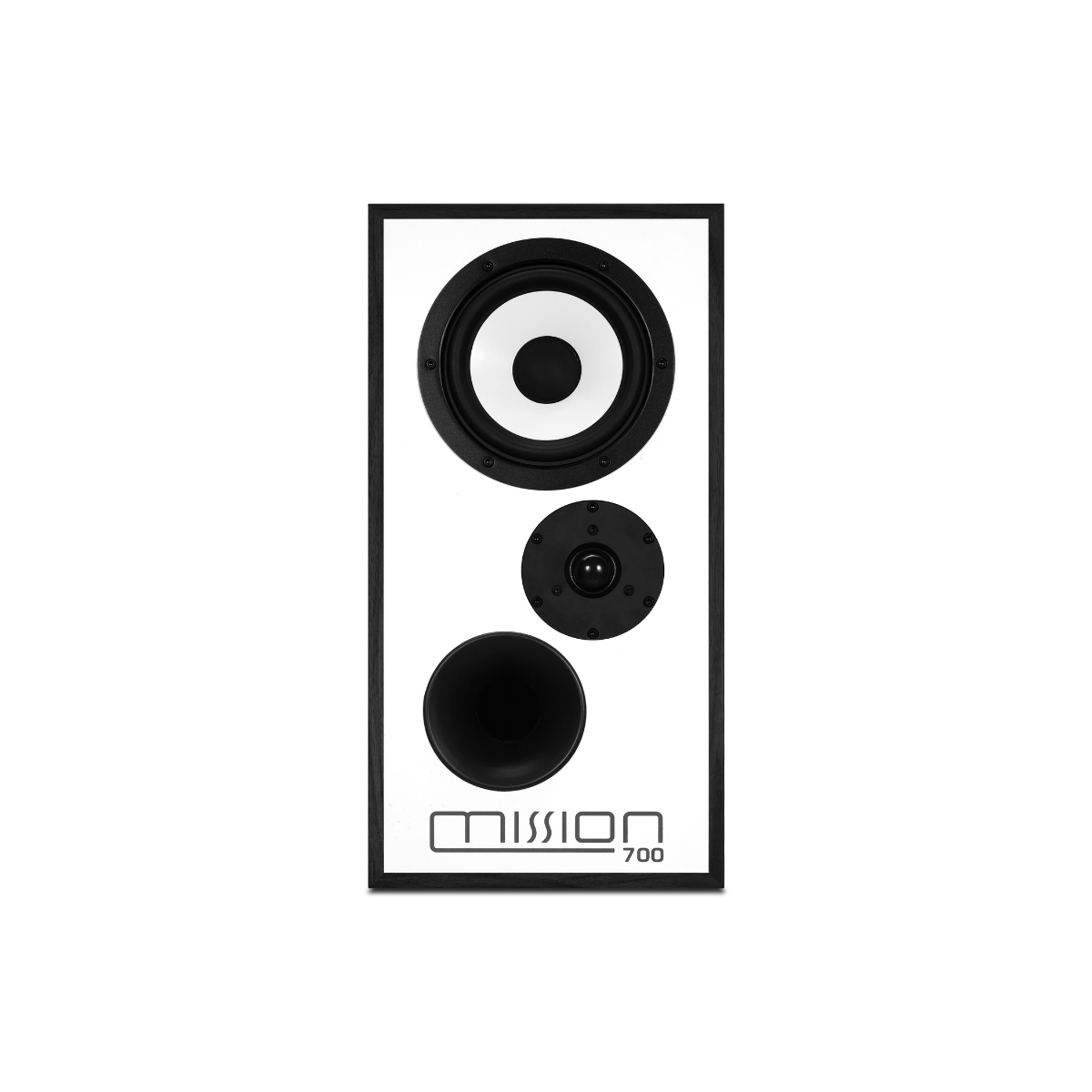

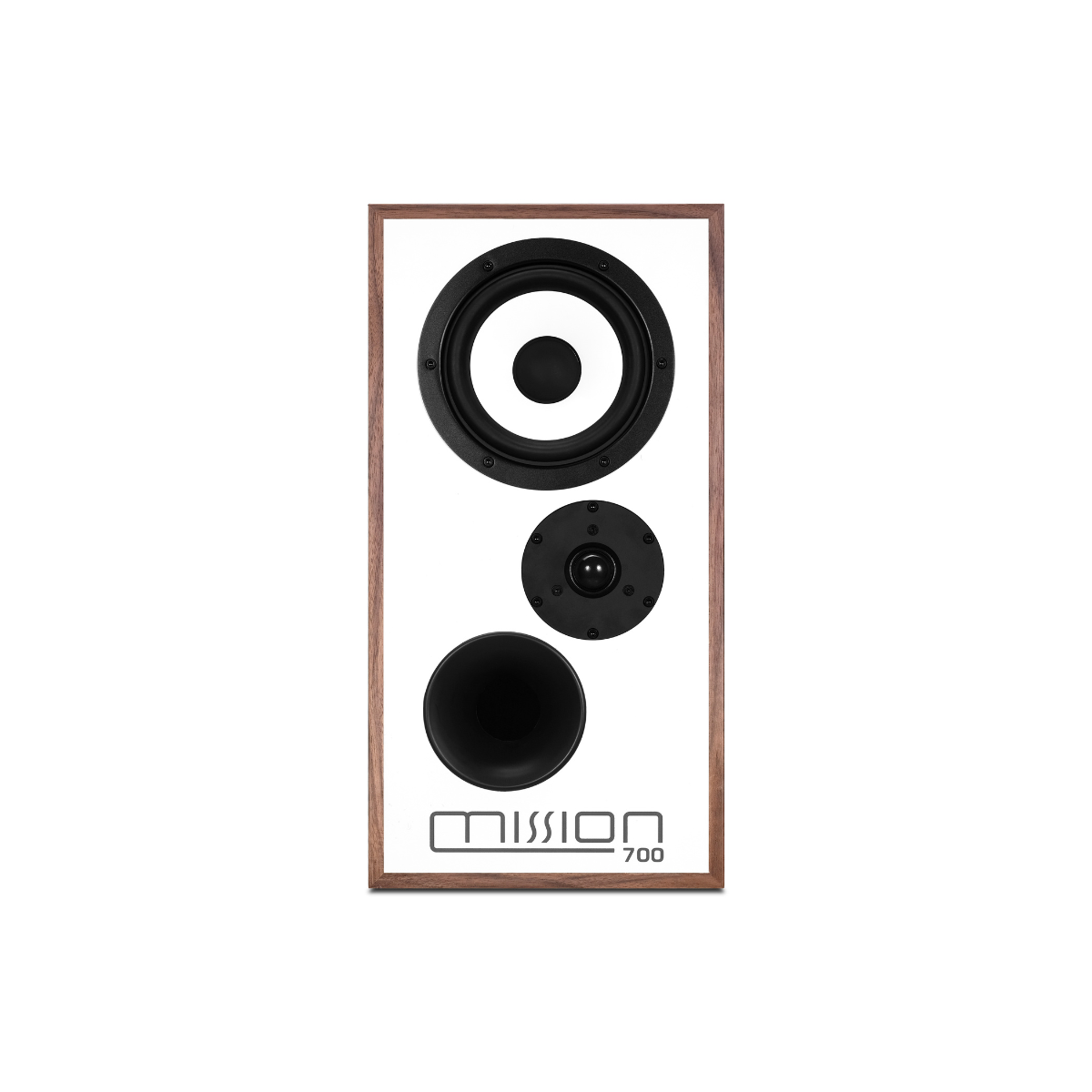

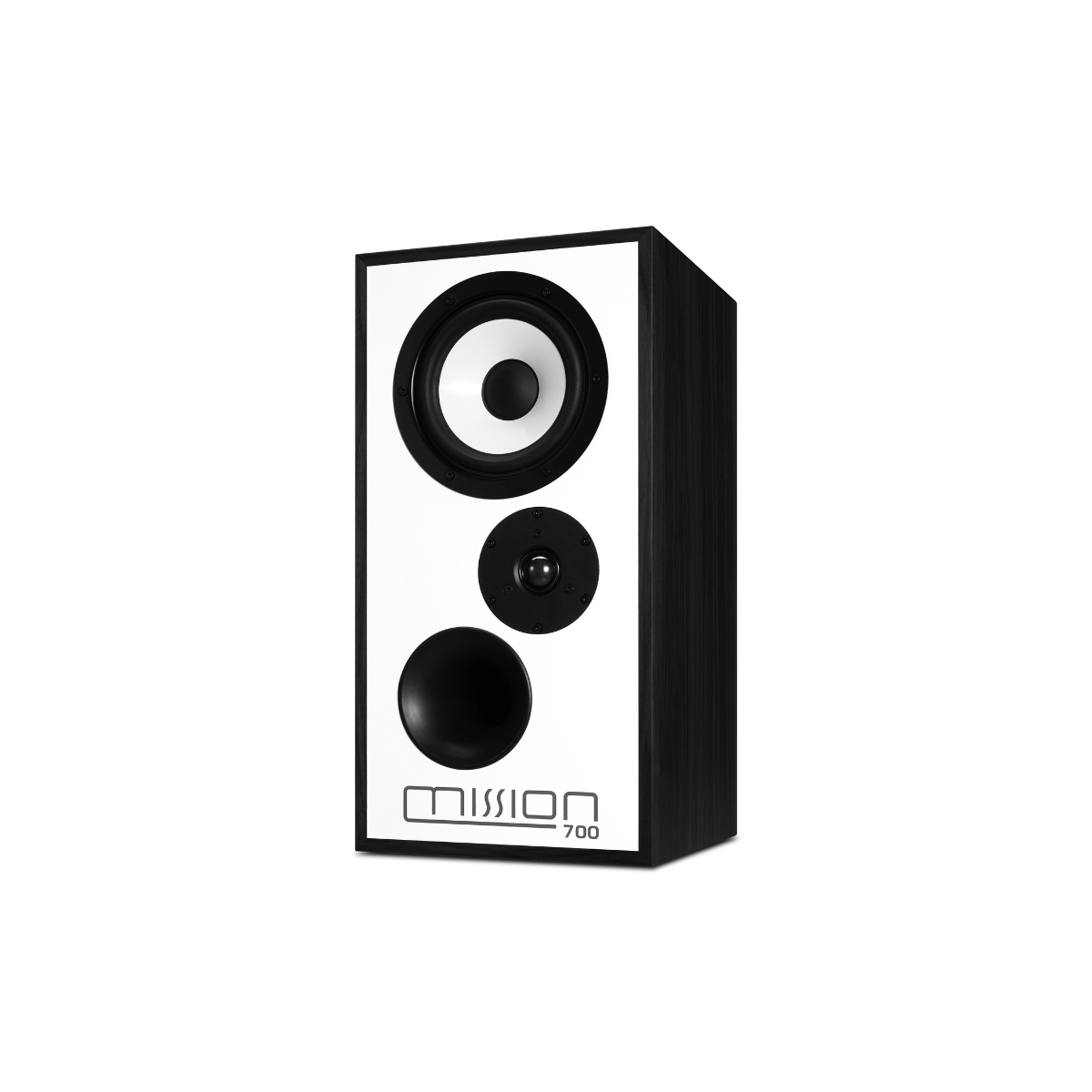

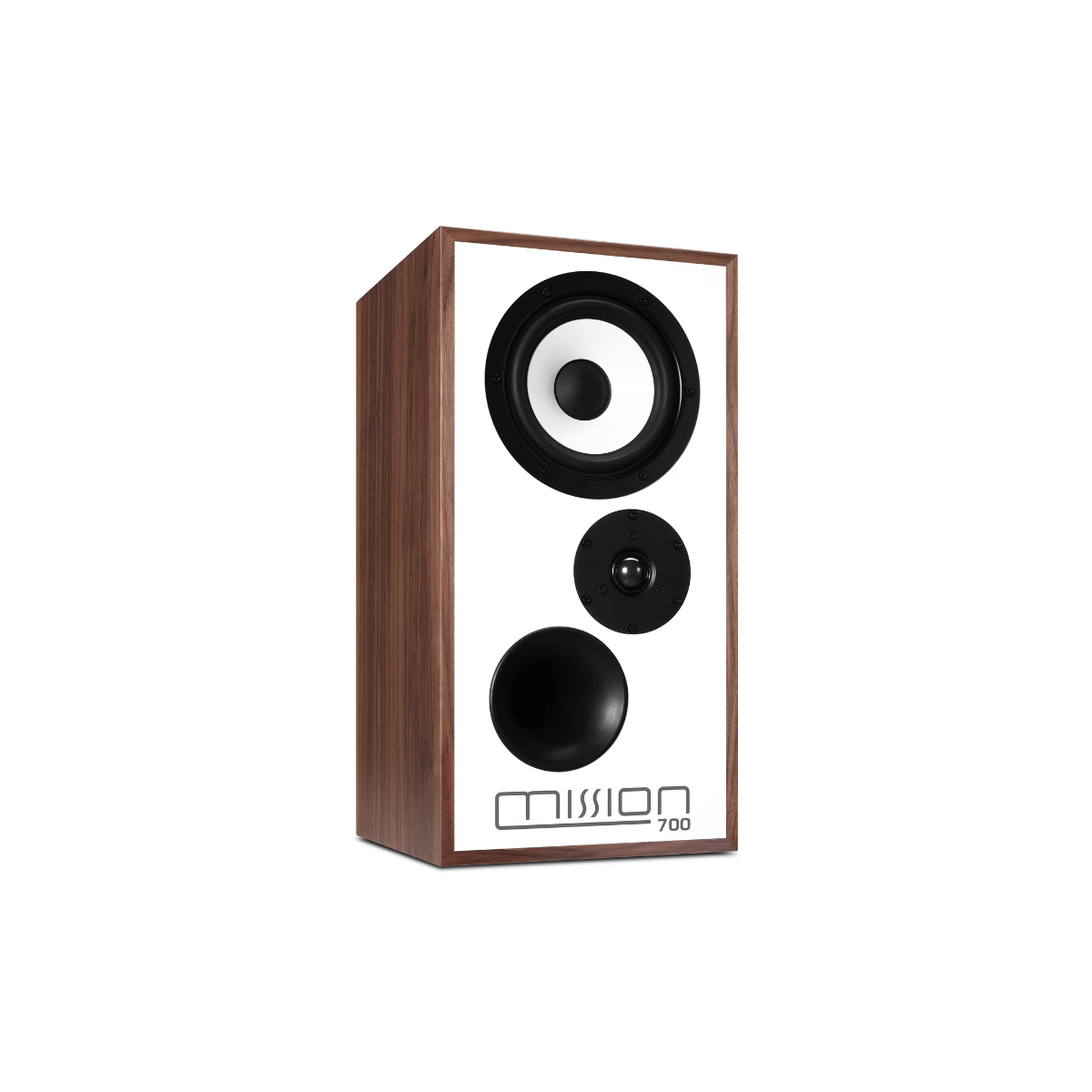

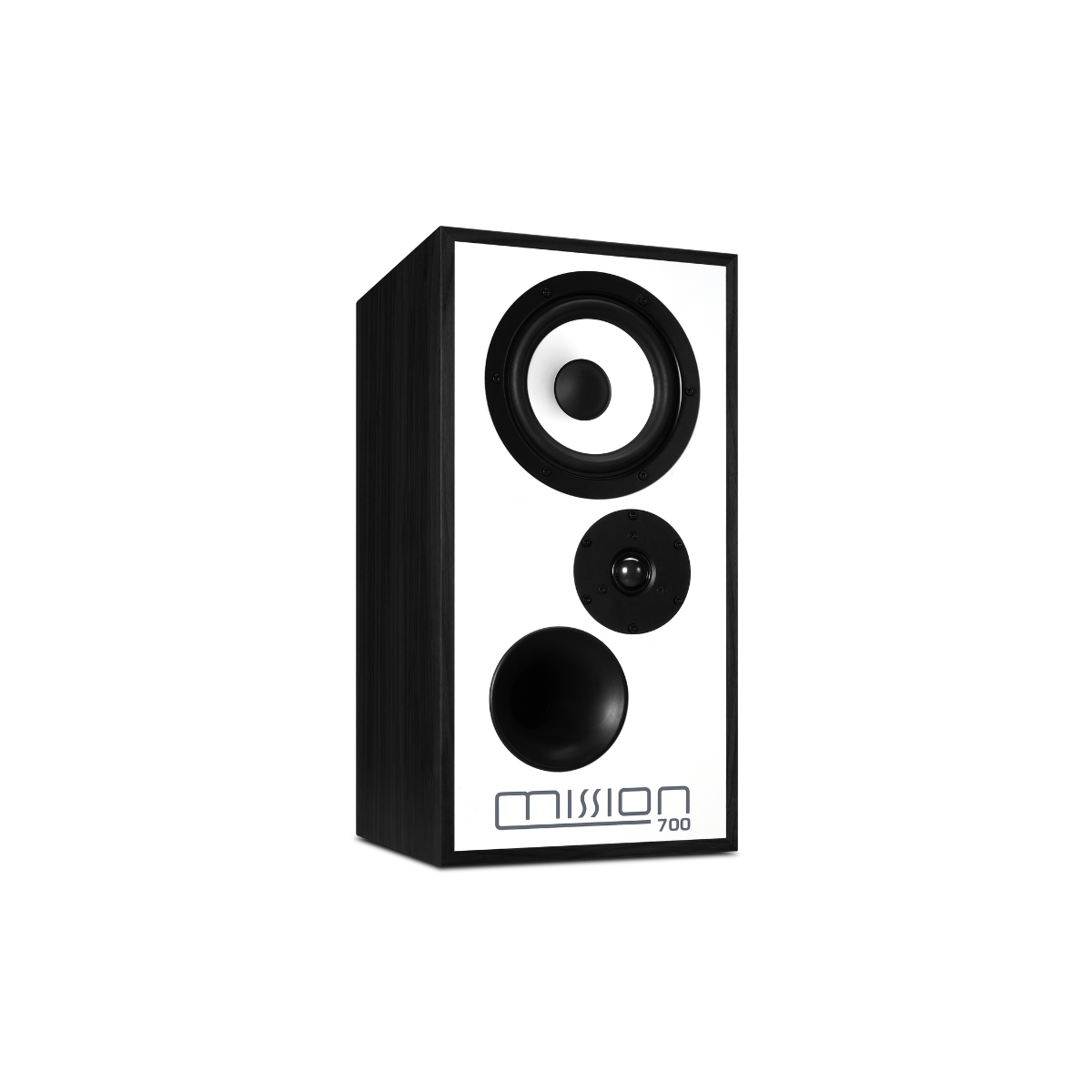

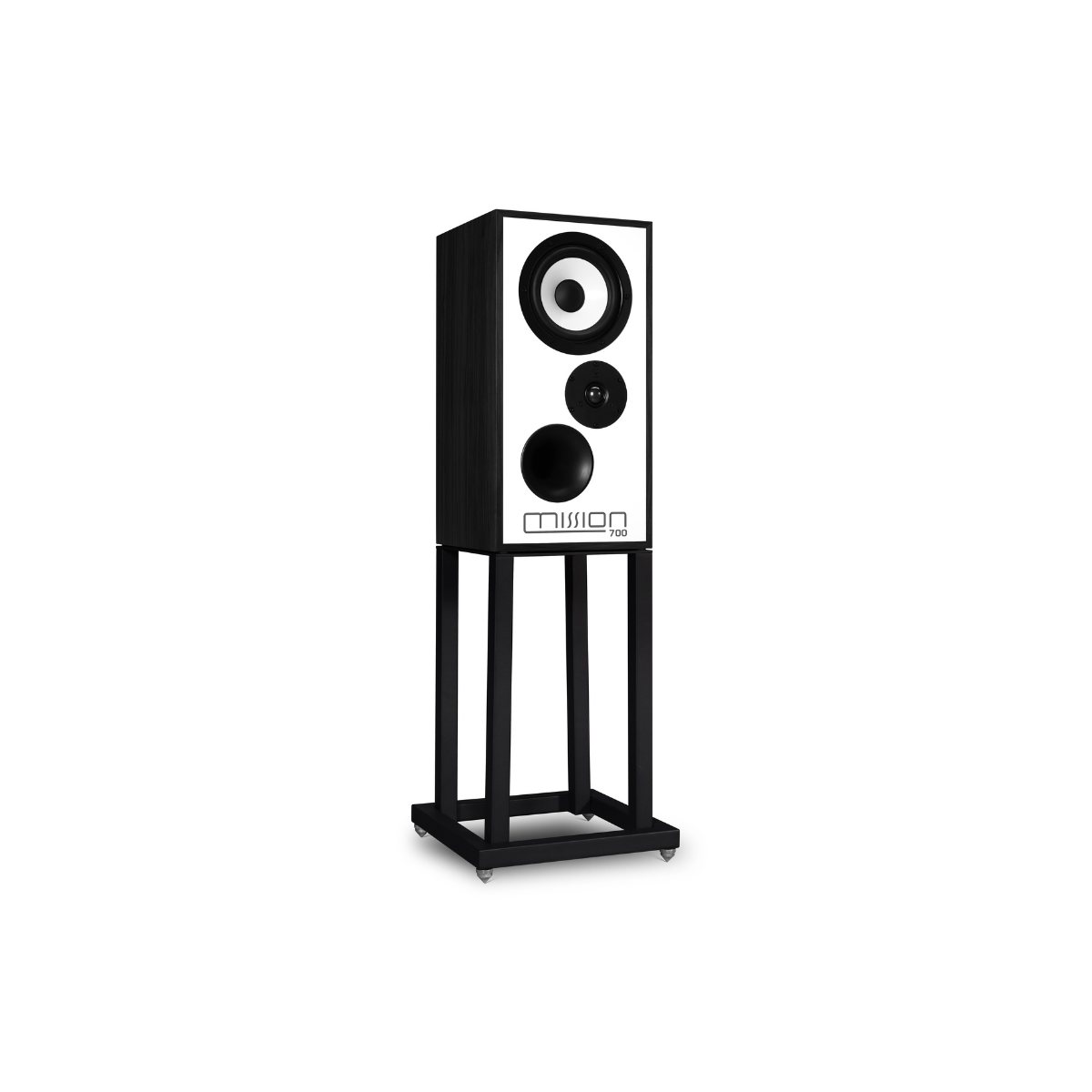

High frequencies are handled by a 28mm microfibre dome tweeter positioned below the main driver, reversing traditional placement for improved integration. A damped rear chamber lowers fundamental resonance well below the crossover point, generating detailed high frequencies without harshness. The crossover circuit uses separate boards for bass and treble frequencies, incorporating short signal paths alongside air core inductors and polypropylene capacitors for clear signal translation.

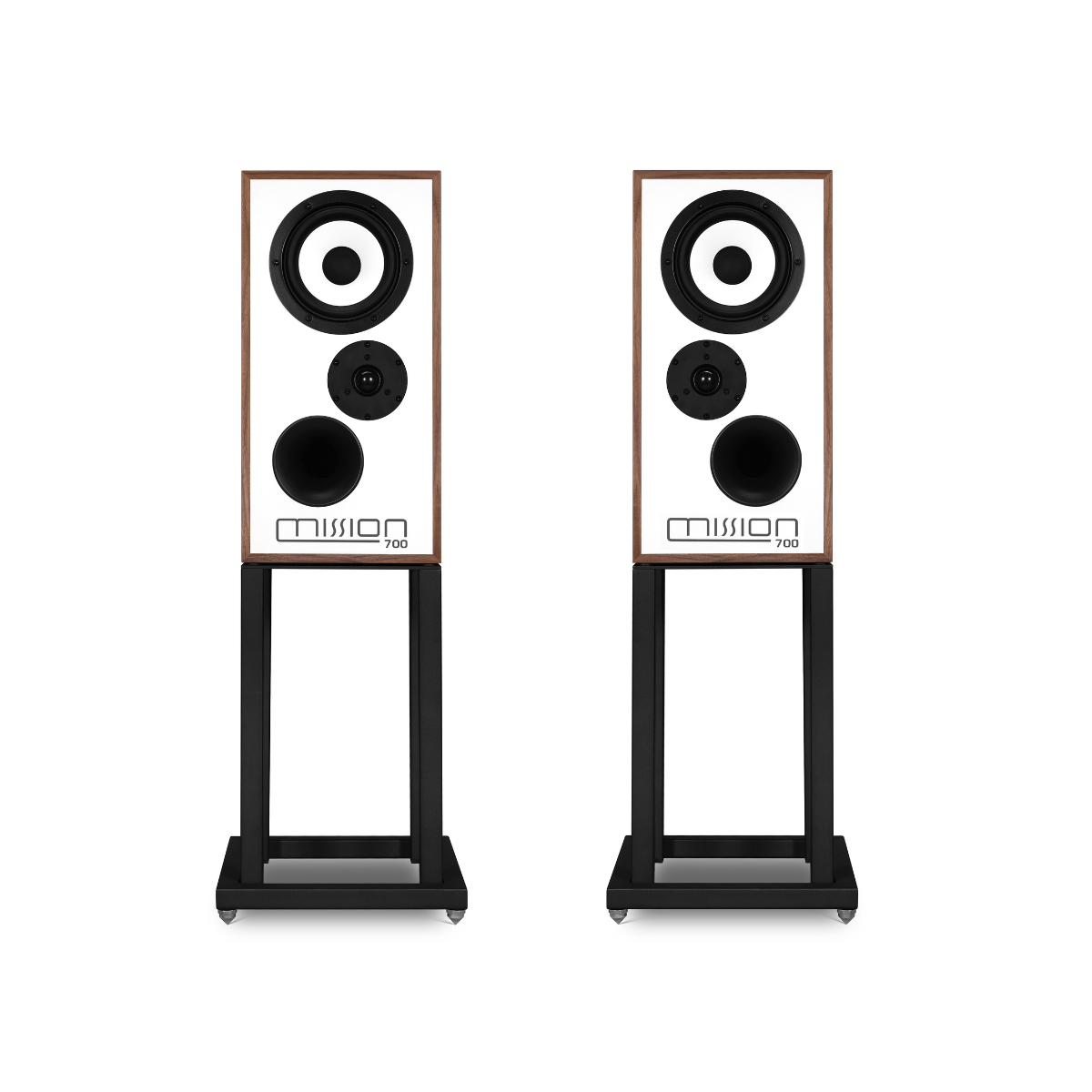

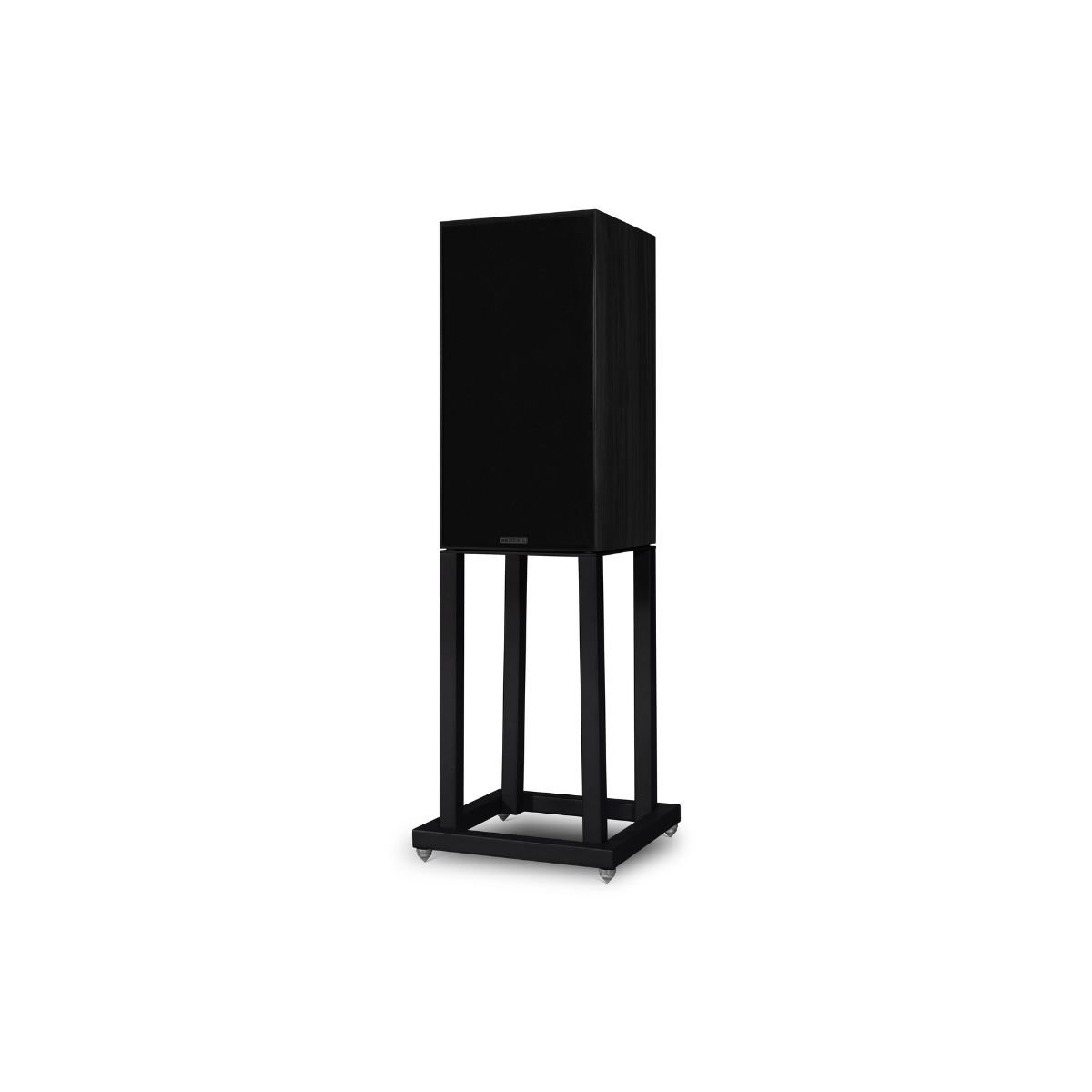

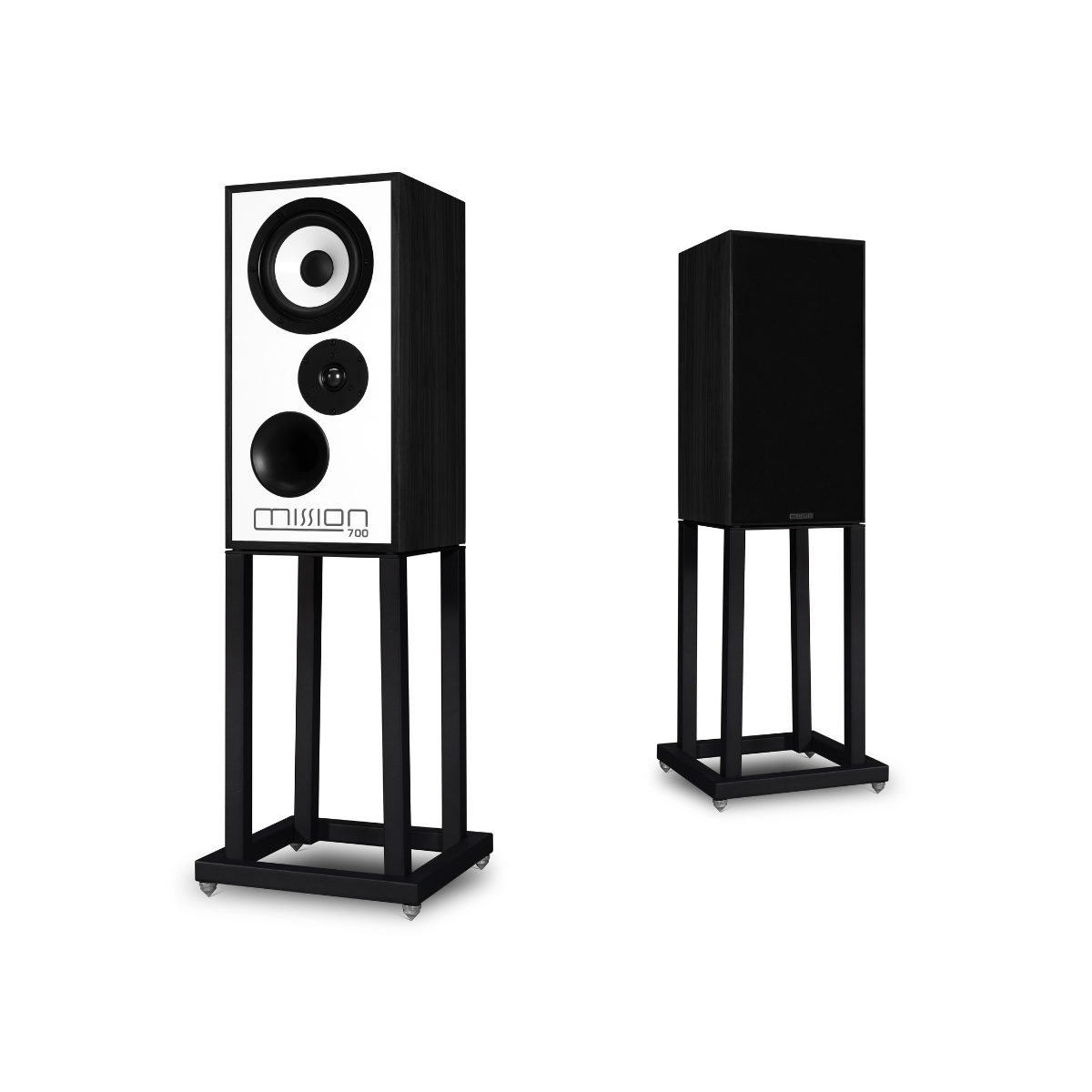

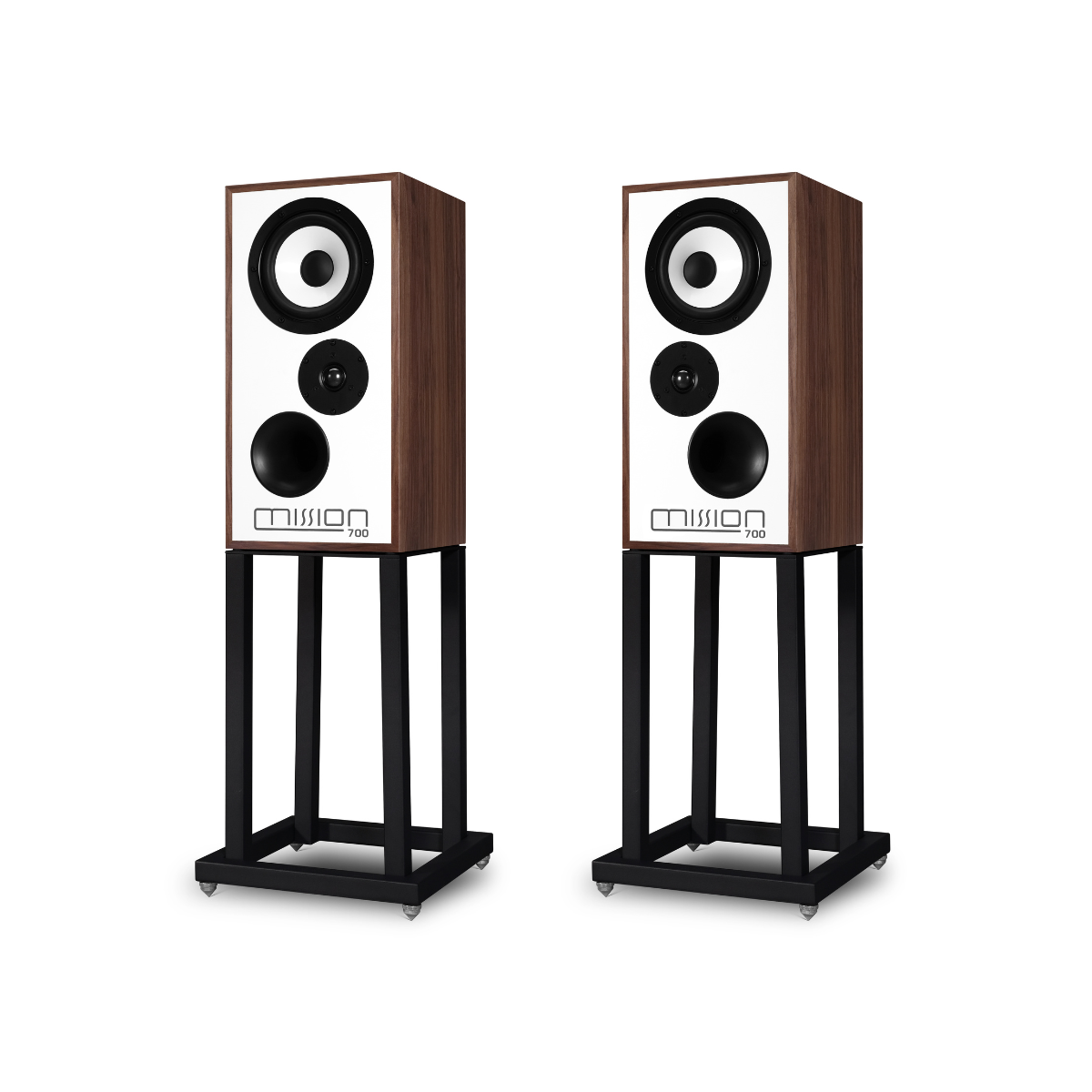

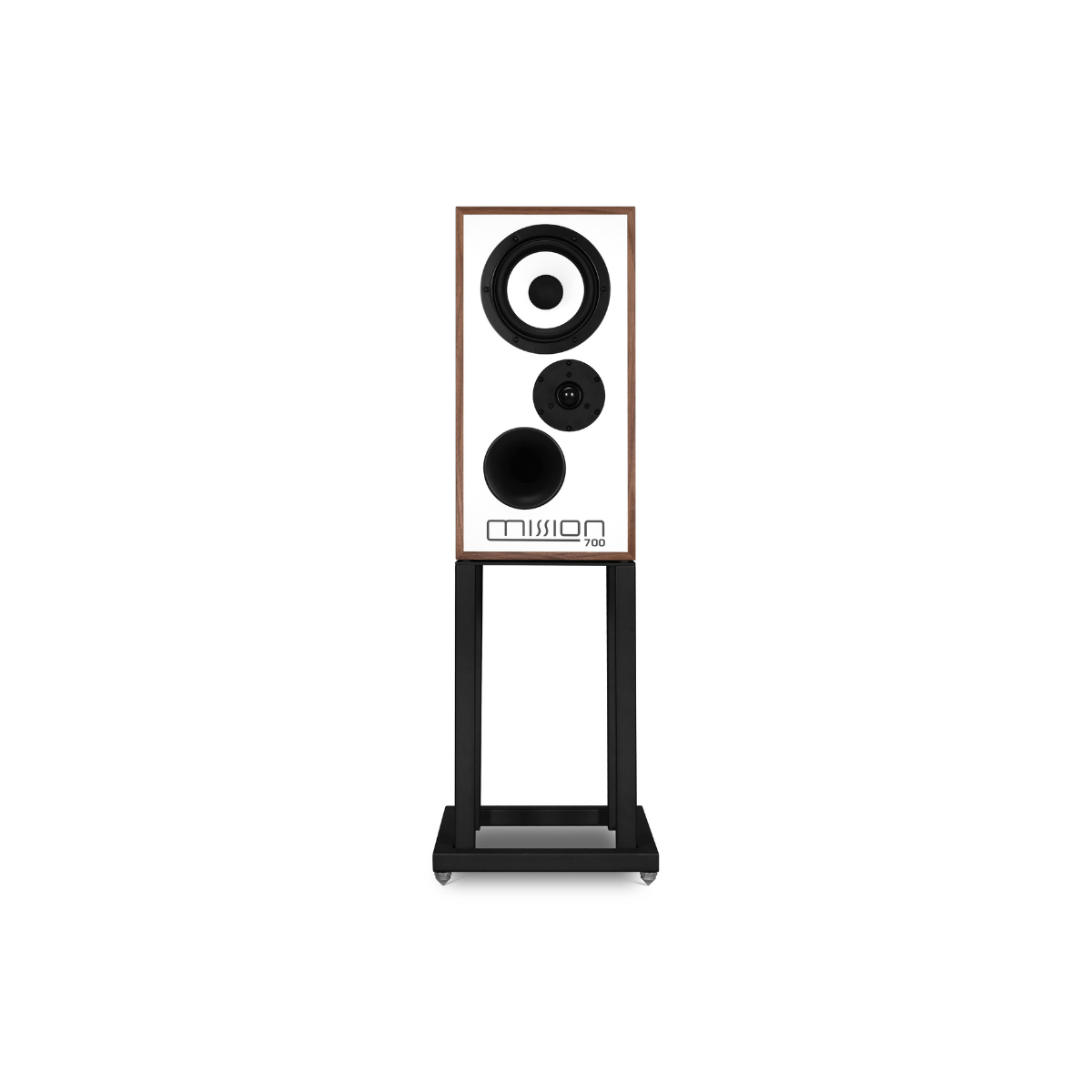

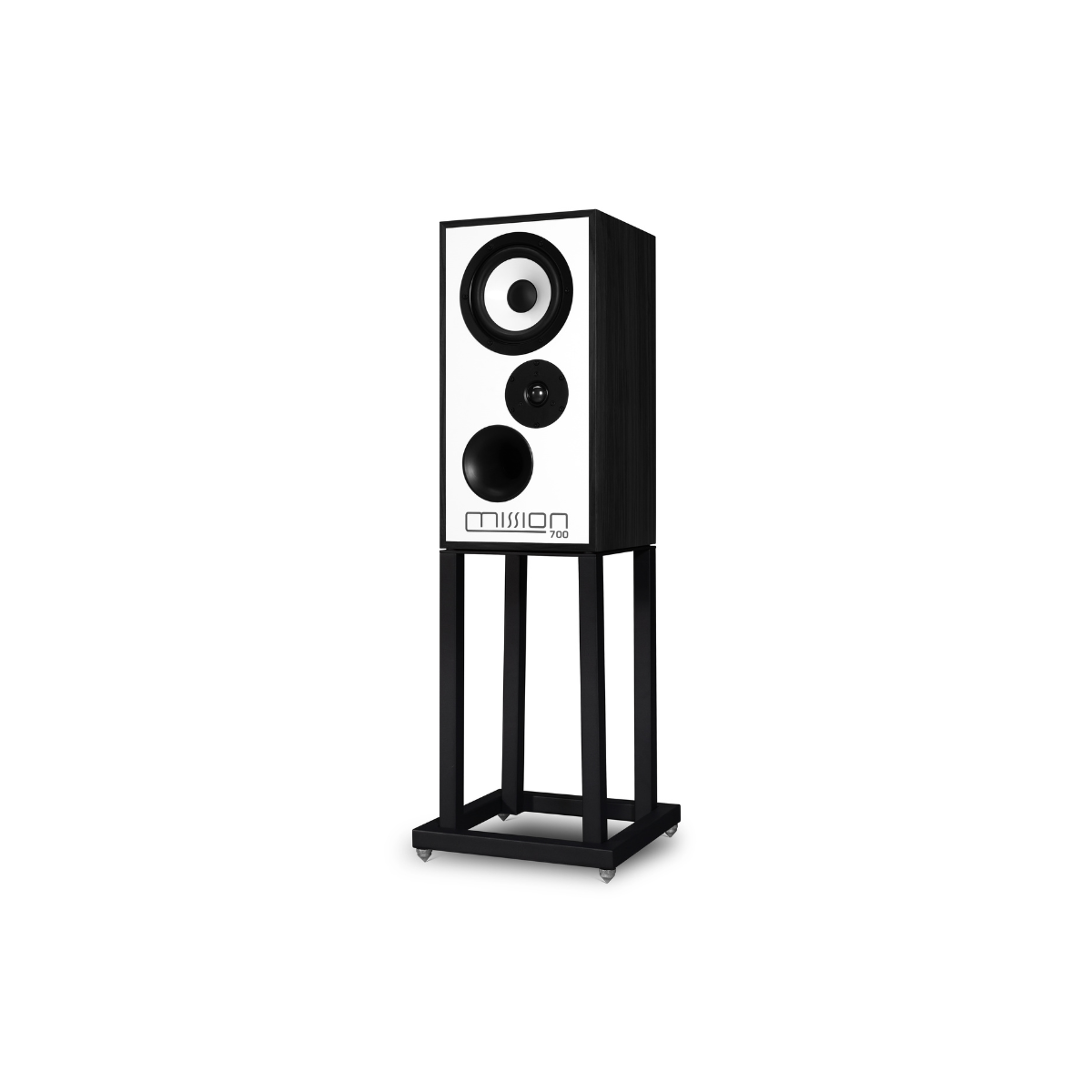

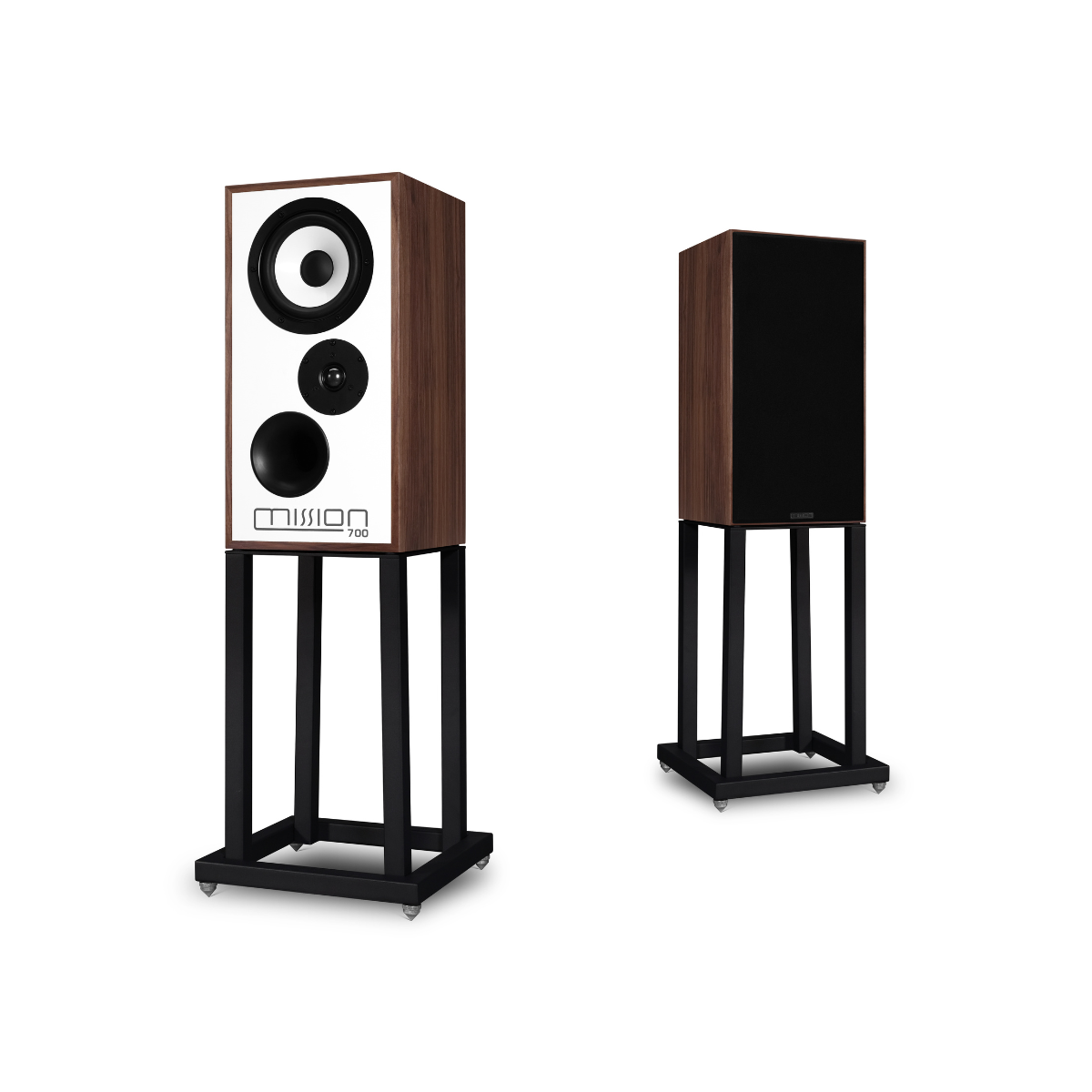

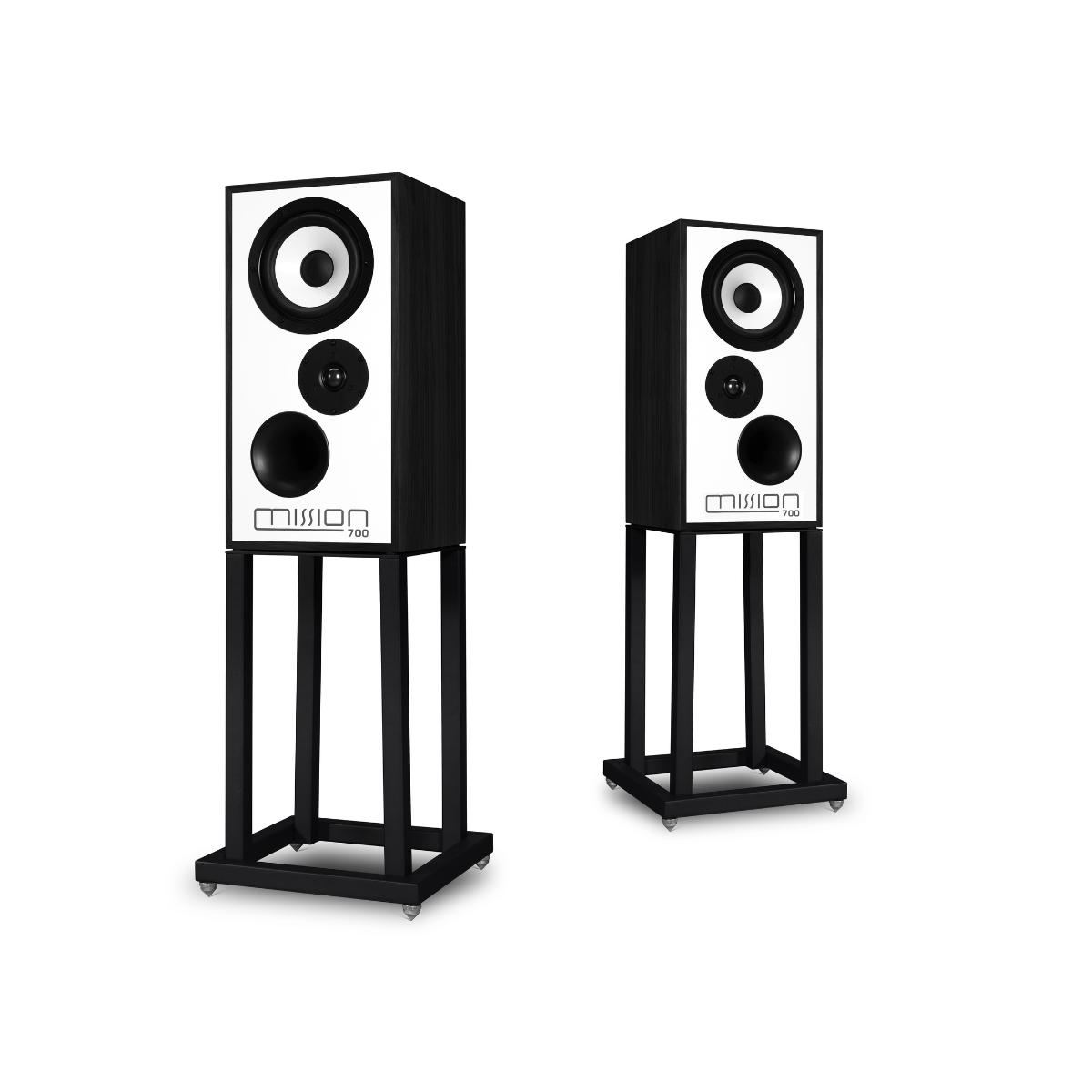

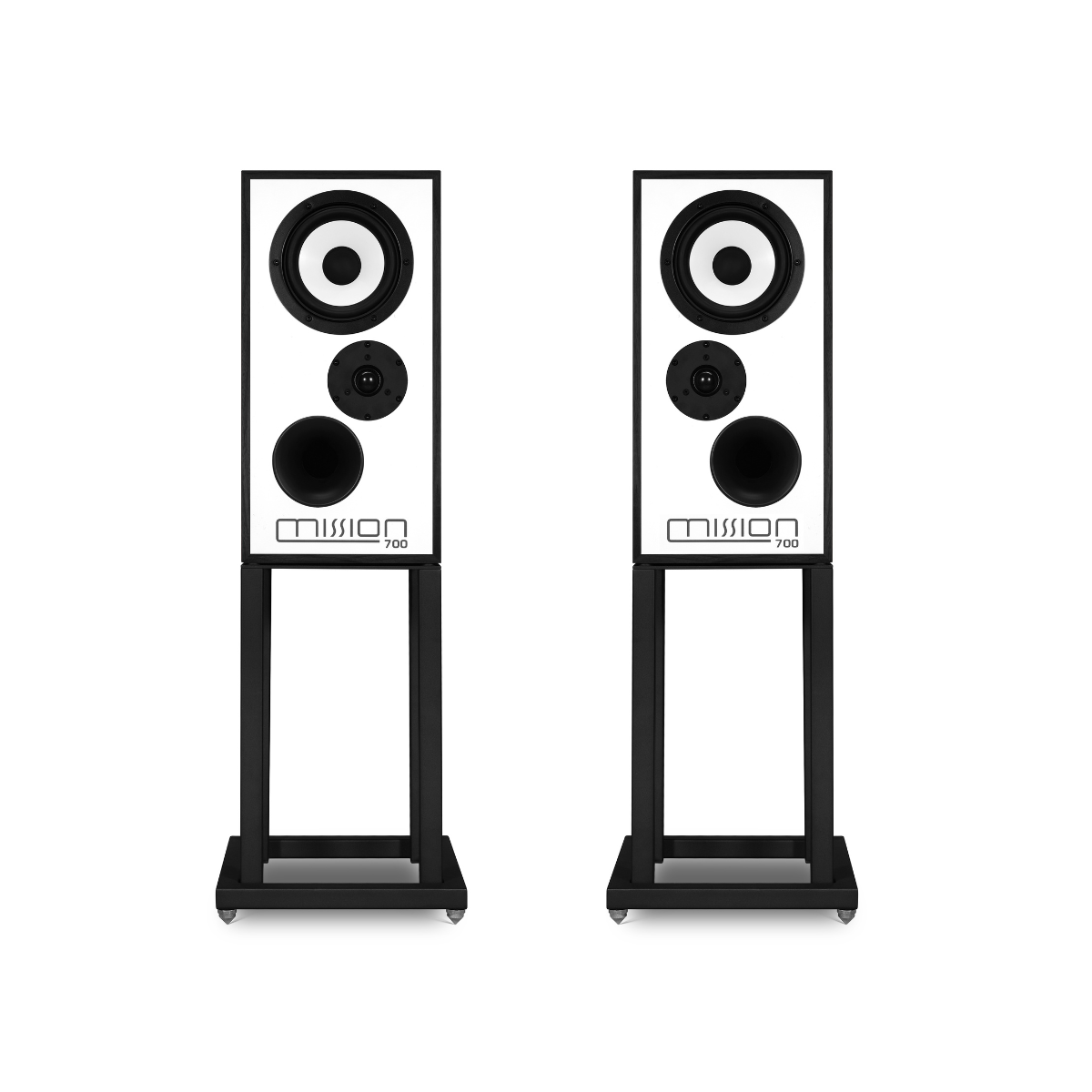

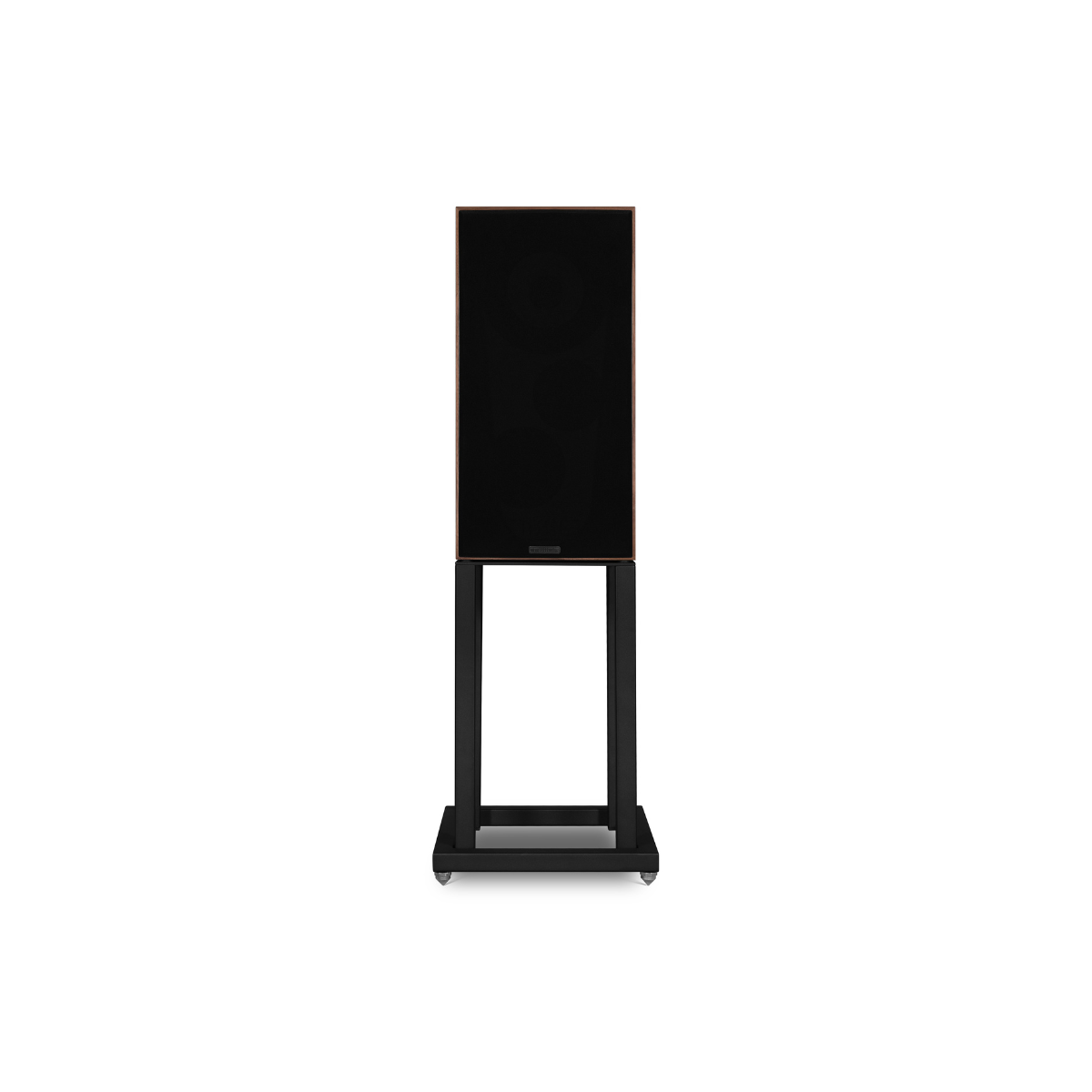

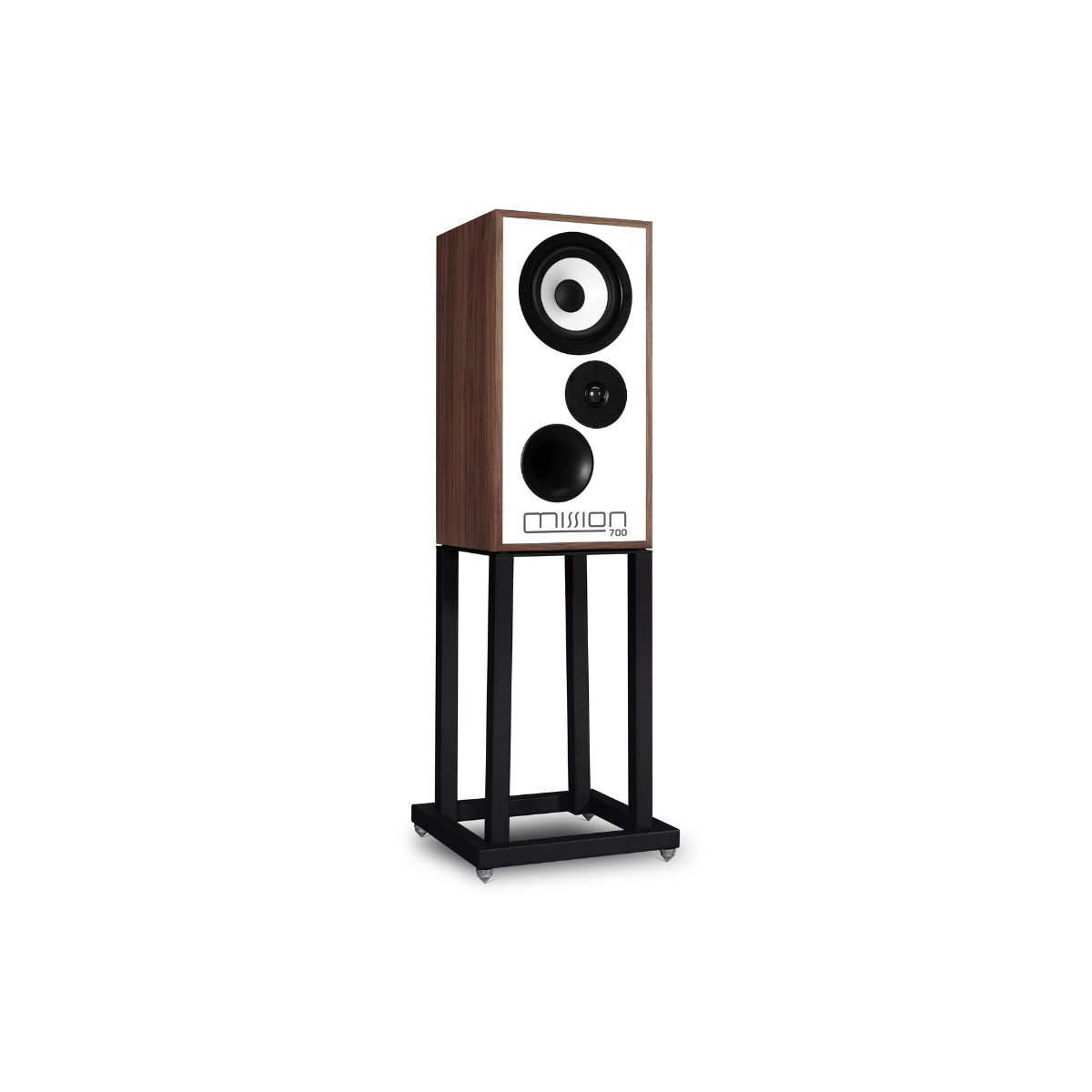

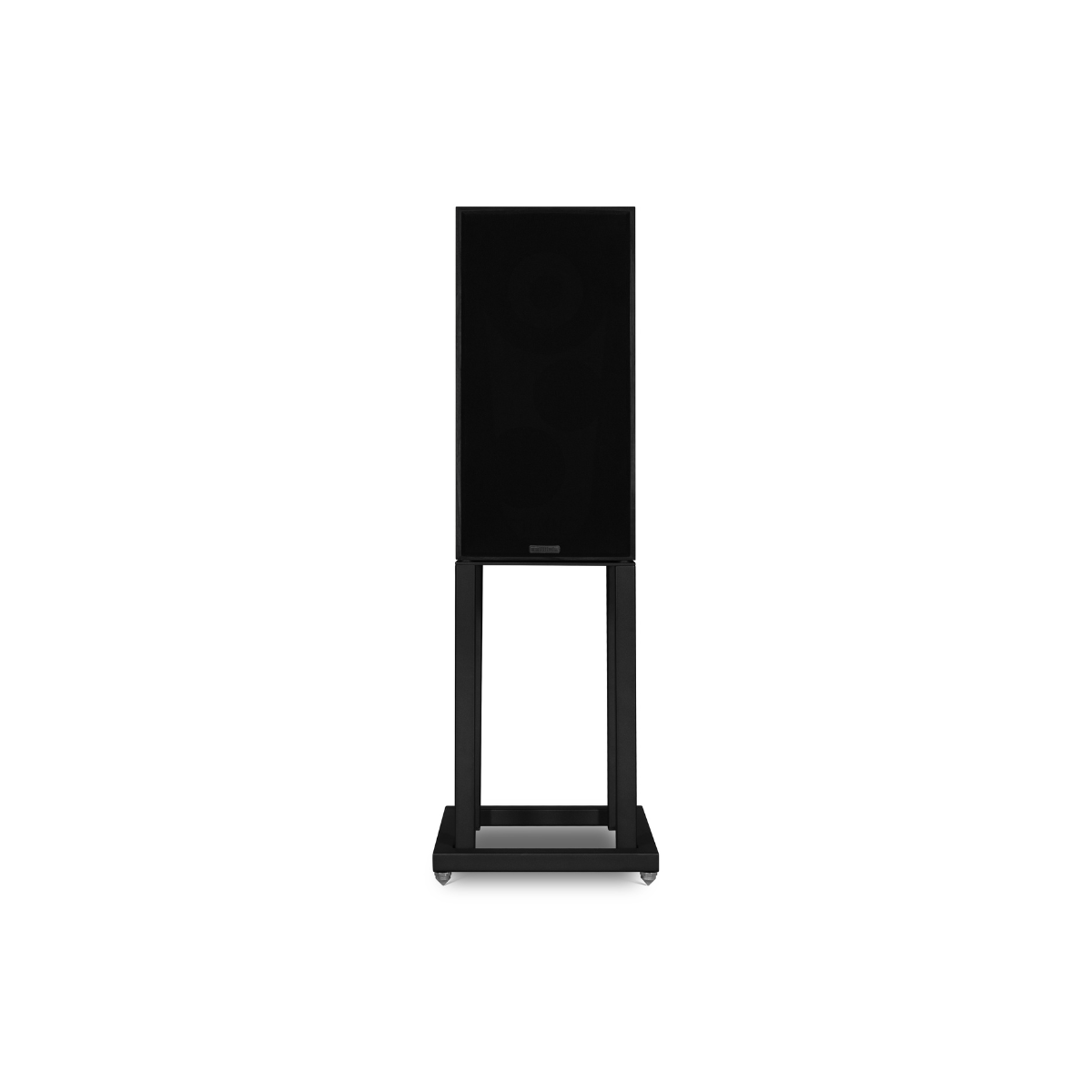

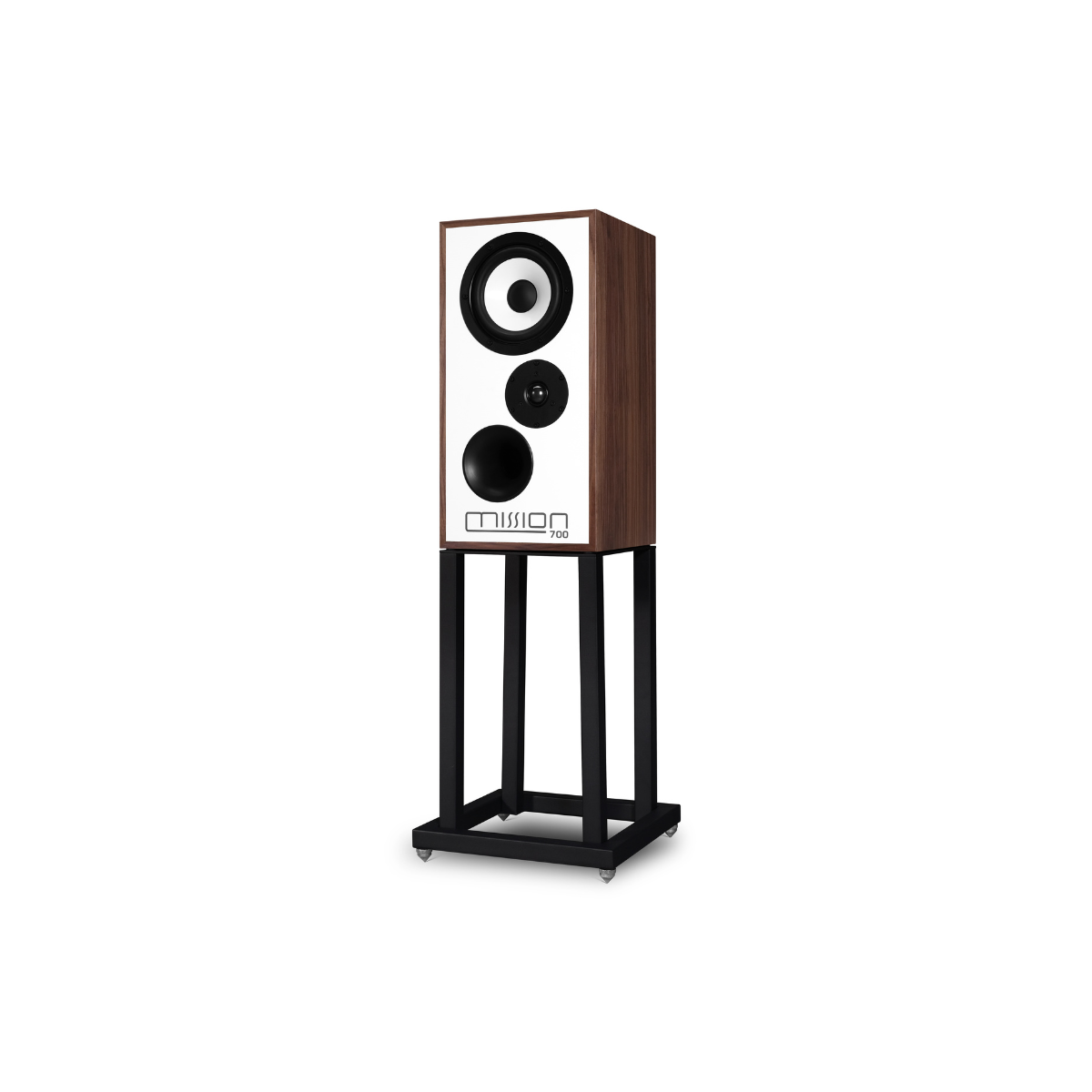

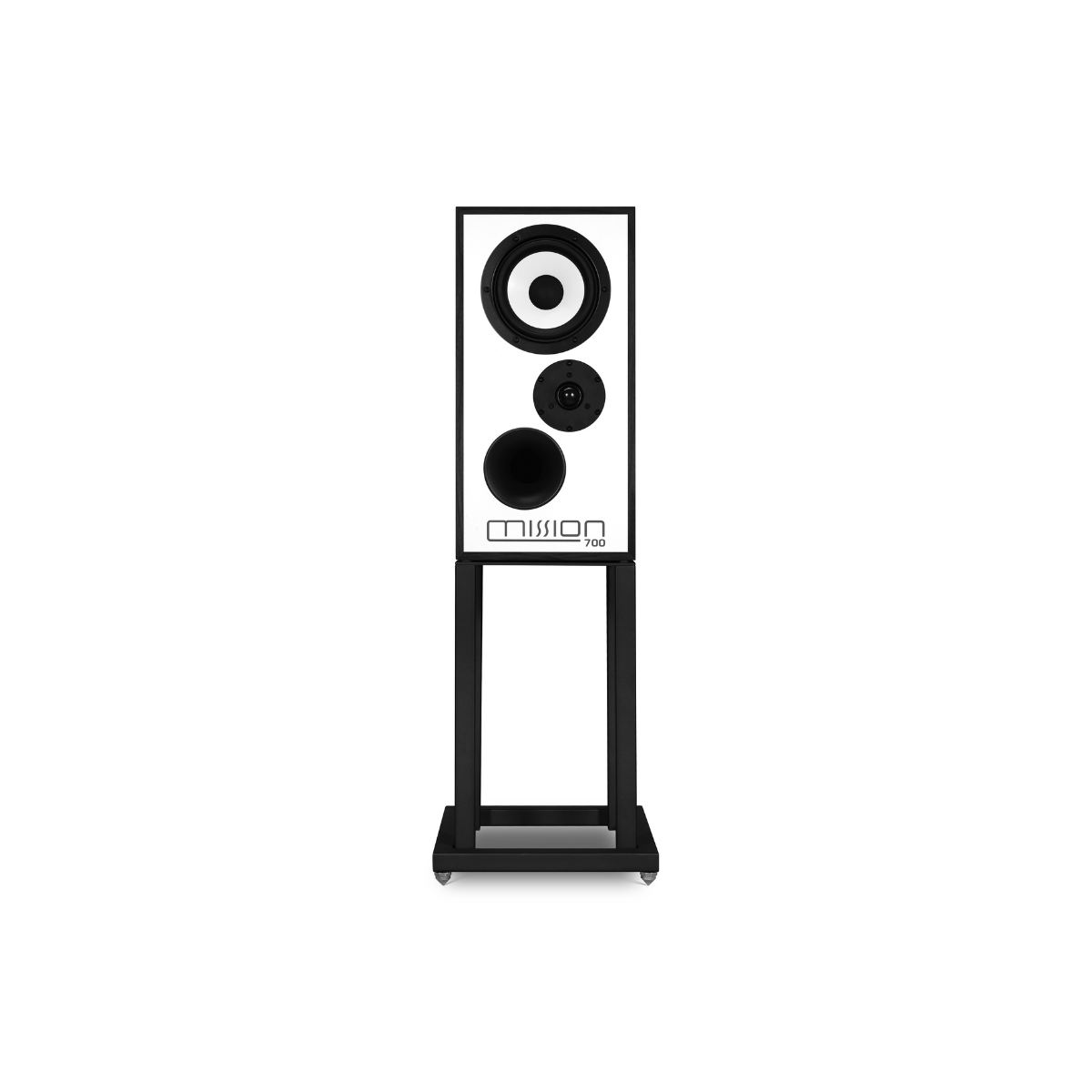

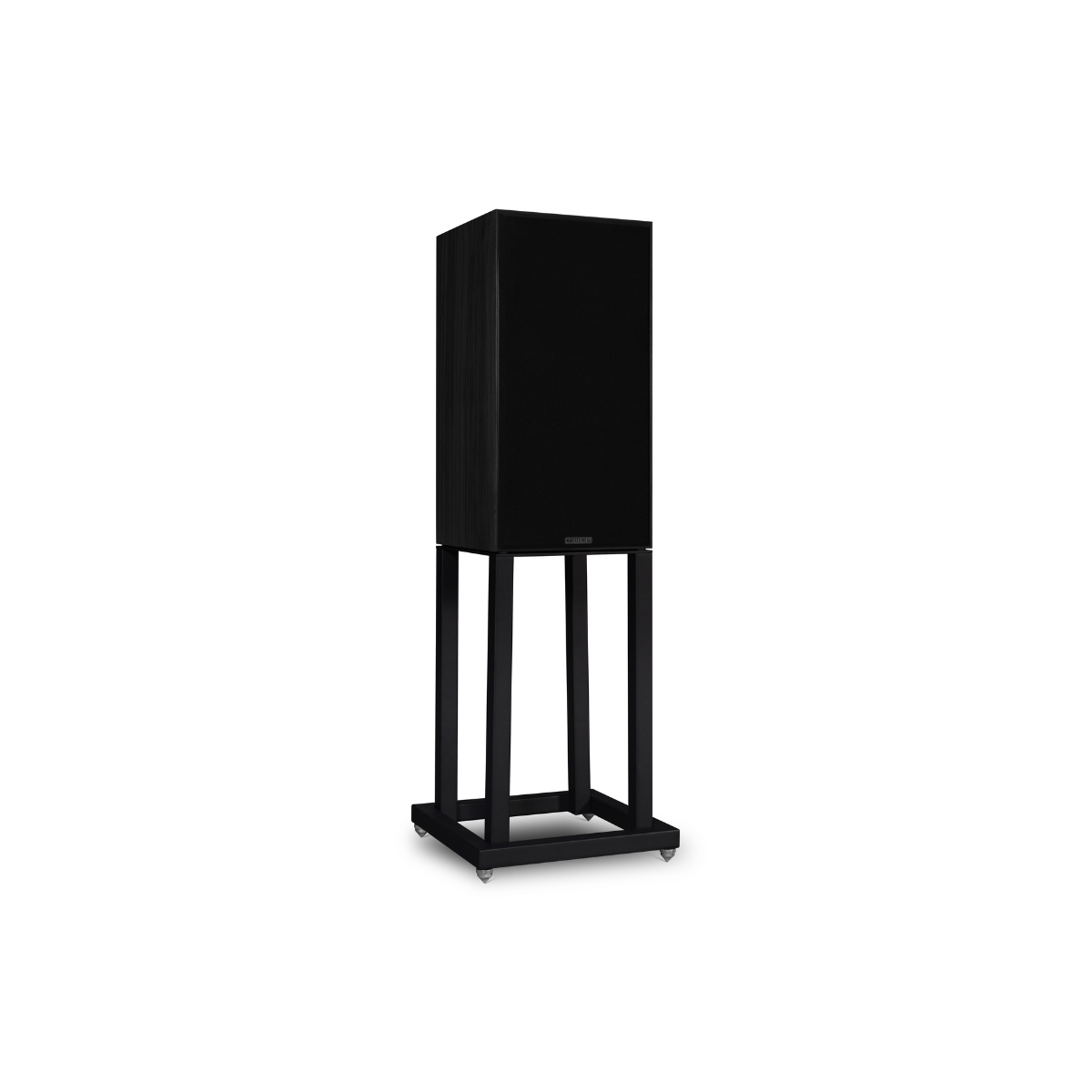

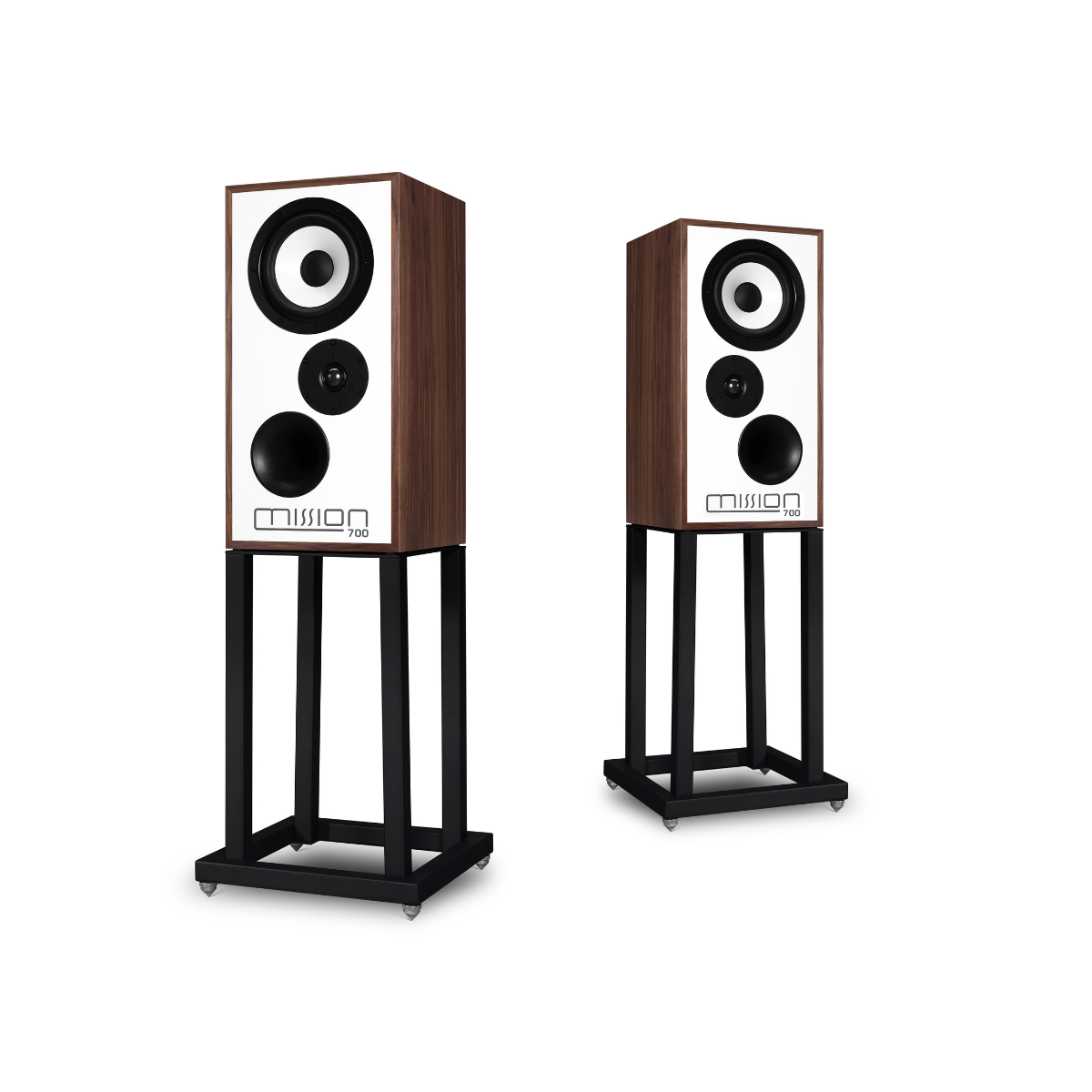

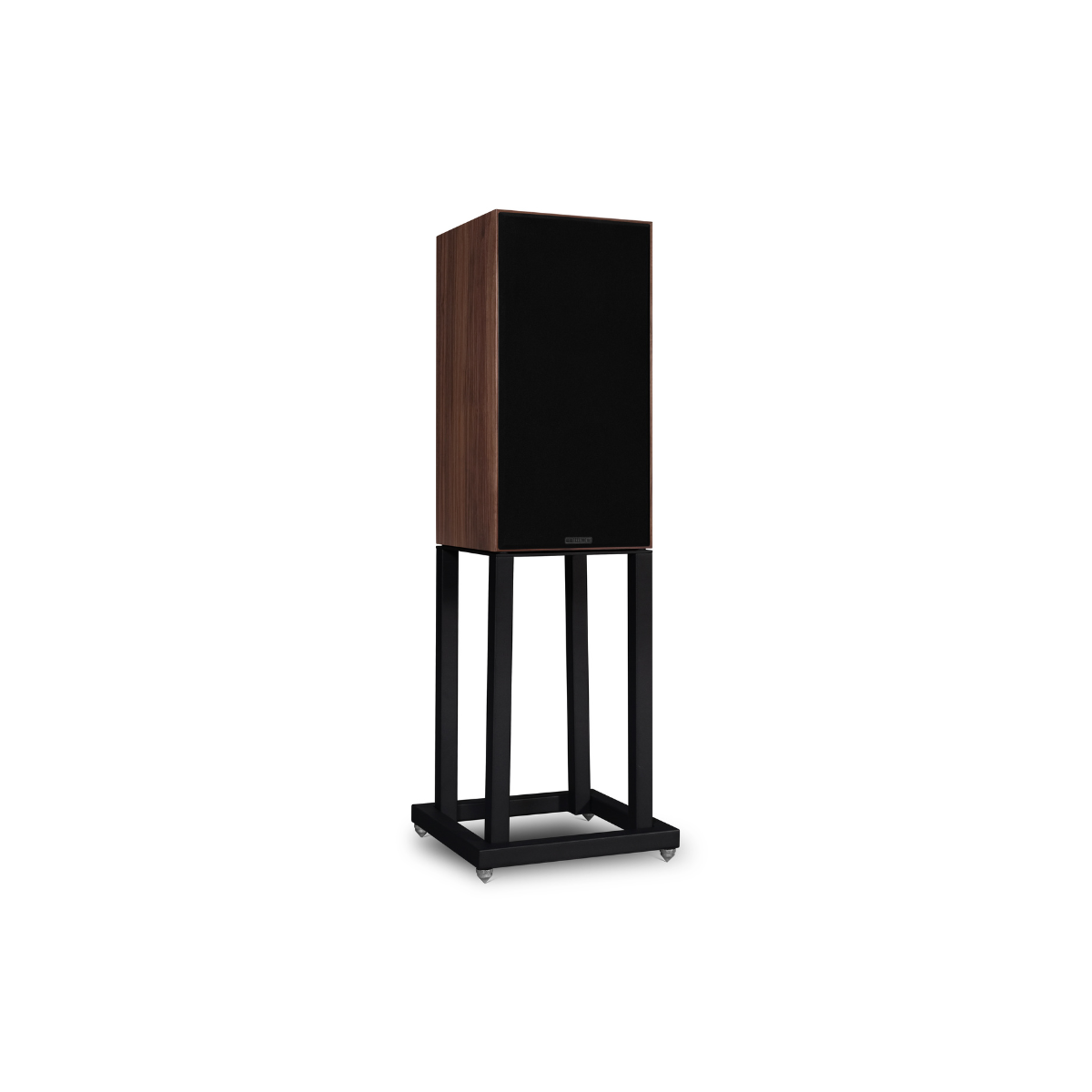

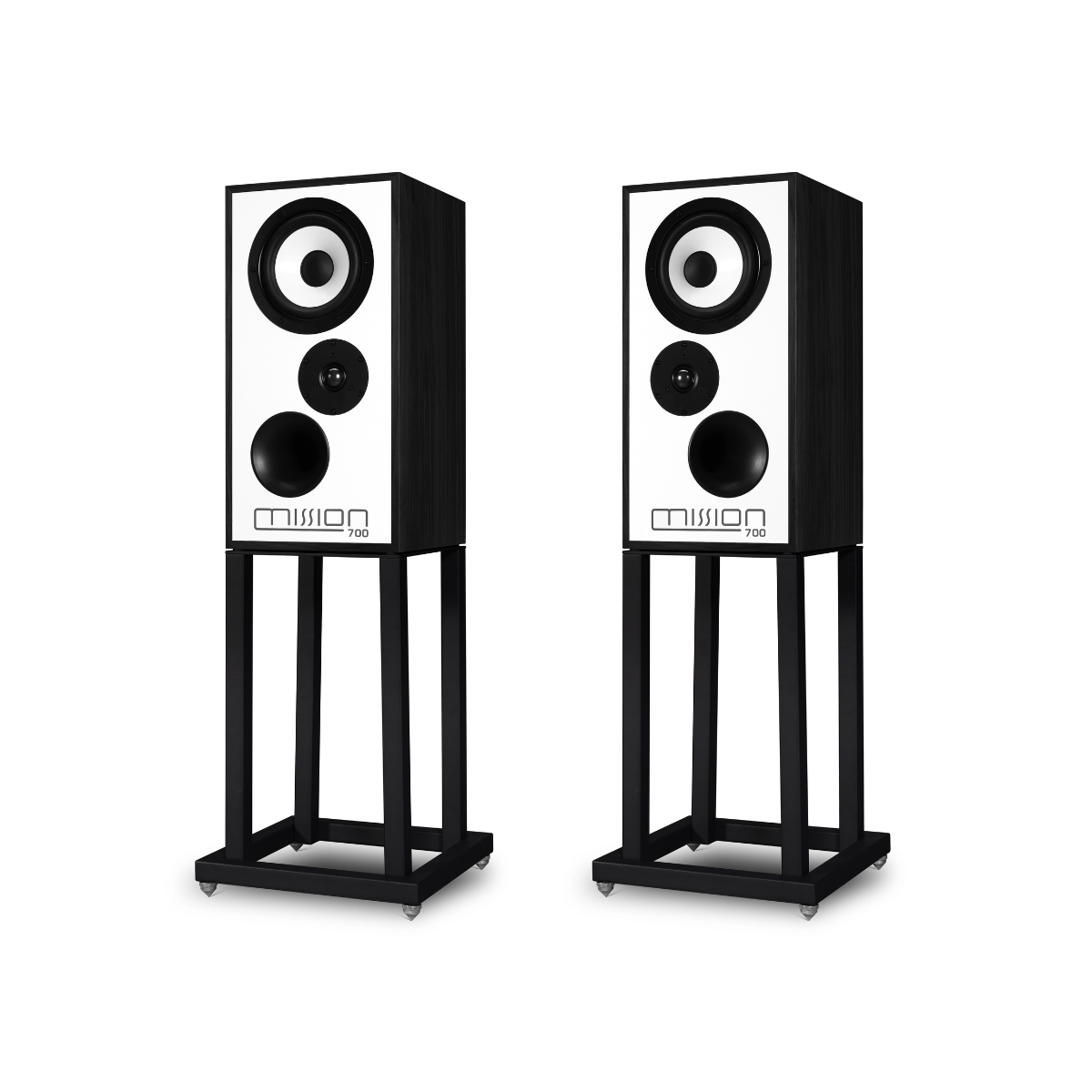

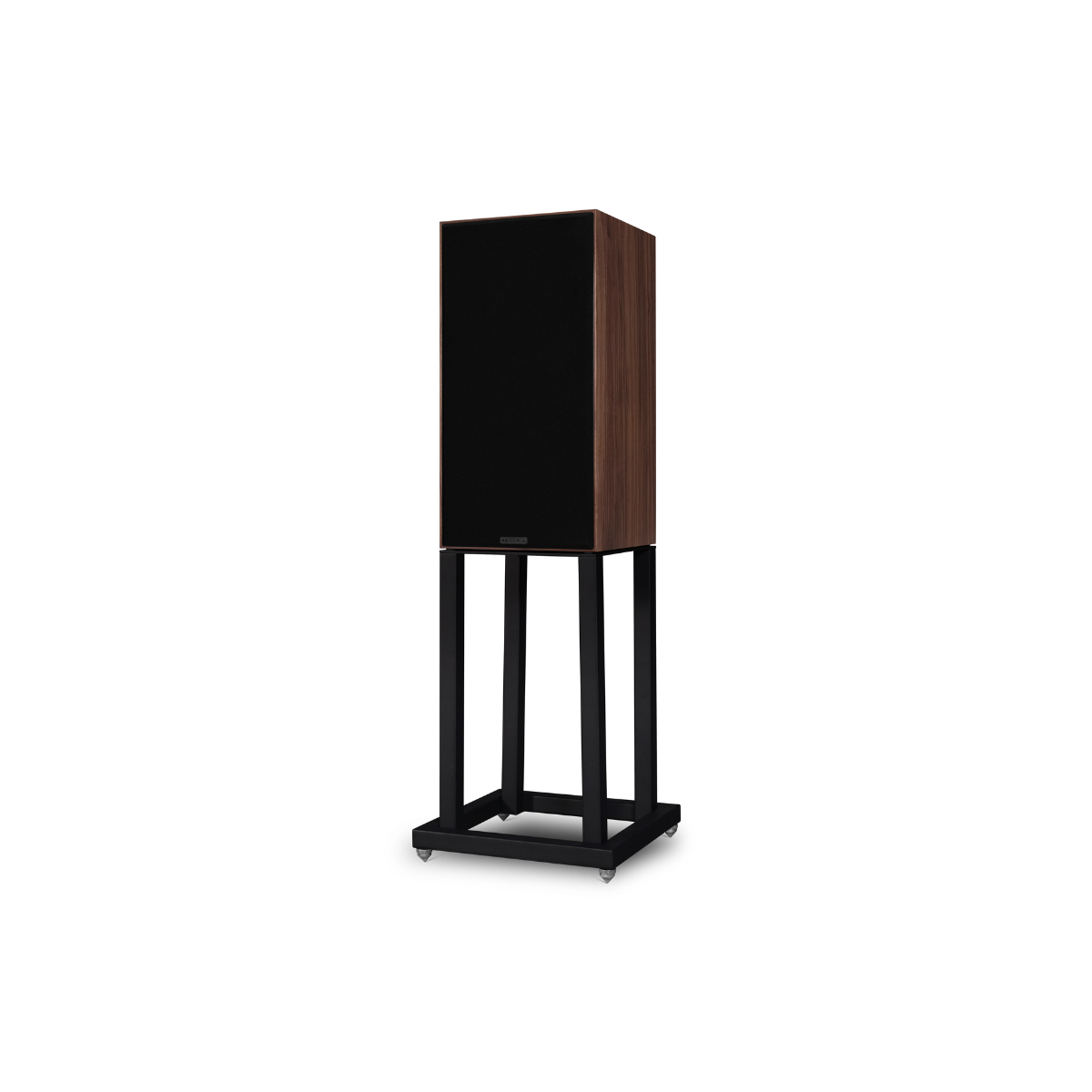

The cabinet uses a twin wall sandwich of high density MDF and particle board bonded with damping adhesive, keeping cabinet resonances below audibility. Internal bracing connects the front baffle directly to the drive units, while internal acoustic foam and damping fiber control internal air reflections. Measuring 51cm high by 26cm wide and 27cm deep, these speakers integrate cleanly into any two channel sound system setup. Optional carbon steel floor stands are also available to elevate the speakers to ideal listening height.

Details & Specs



Model Mission 700
Speaker Type Two-way standmount
Enclosure Type Bass reflex
Treble Driver 28mm microfibre dome
Mid/Bass Driver 165mm mineral-loaded polypropylene cone
Sensitivity (2.8V @ 1m) 86dB
Nominal Impedance 8 Ohms
Recommended Amp Power 25-150W
Frequency Response (+/-3dB) 45Hz-20kHz
Bass Extension (-6dB) 38Hz
Crossover Frequency 3kHz
Cabinet Volume 24.8L
Dimensions (H x W x D) 510 x 260 x 270mm
Weight (Each Speaker) 12.8kg
Stand Dimensions (H x W x D) 485 x 320 x 330mm
