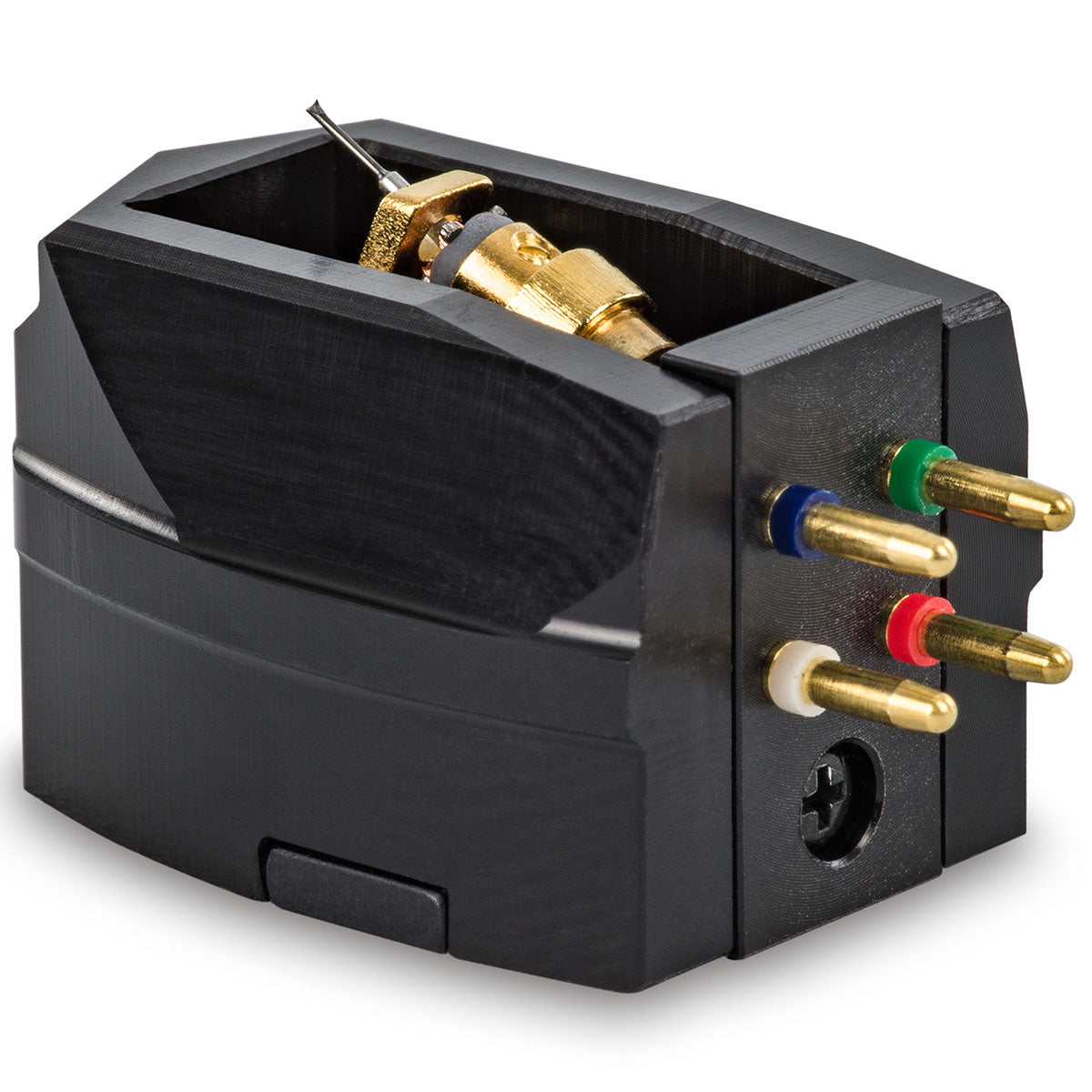

Michell Cusis S

Moving Coil Cartridge

Michell Cusis S

Moving Coil Cartridge
$1,999.00
More on the way! Order now to reserve risk free.
Contact Us

Overview

All of Michell's Cusis cartridges share the same moving coil design. At the heart of the cartridge is a samarium-cobalt magnet which is combined with pure iron to create a very stable magnetic field within the cartridge. 30μ pure copper wire is used to precision wind the cartridge coils onto an ultra-lightweight armature, which is mounted onto a specially designed damper. The damper has been specifically designed to give the stylus assembly the perfect support, which ensures the stylus tracks the groove precisely.

All of Michell's Cusis cartridges share the same moving coil design. At the heart of the cartridge is a samarium-cobalt magnet which is combined with pure iron to create a very stable magnetic field within the cartridge. 30μ pure copper wire is used to precision wind the cartridge coils onto an ultra-lightweight armature, which is mounted onto a specially designed damper. The damper has been specifically designed to give the stylus assembly the perfect support, which ensures the stylus tracks the groove precisely.

Details & Specs

Model Cusis E Cusis S Cusis M
Tracking Force 2.0g 2.0g 2.0g
Loading 100 Ω 100 Ω 100 Ω
Frequency Response 20-25000 Hz 20-35000hz 15-45000Hz
Output Voltage 0.35mV 0.4mV 0.25mV
Weight 8.9g 8.9g 8.1g
Cantilever Material Aluminium Boron Boron
Stylus Profile Elliptical Shibata Ultra-precise Microline
Channel Balance <1dB <1dB <1dB
Channel Separation 23dB 25dB 28dB
Compliance 8x10-6cm/dyne 8x10-6cm/dyne 8x10-6cm/dyne
Tracking Ability 70µ / 2.0g 70µ / 2.0g 70µ / 2.0g
Internal Impedence 4.5 Ω 4.5 Ω 3 Ω
Type Moving Coil Moving Coil Moving Coil
Coil Material Pure 30µ Copper Pure 30µ Copper Pure 30µ Copper
Run-in Period > 40 Hours > 40 Hours > 40 Hours
Body Material Acetyl Acetyl Carbon Loaded Acrylic
