Item #MP100

McIntosh MP100

Phono Preamplifier
Item #MP100

McIntosh MP100

Phono Preamplifier
$2,000.00
In Stock: Free 2-Day Shipping
Contact Us

Overview

The MP100 is the first dedicated phono preamplifier from McIntosh and is designed to help both new and experienced vinyl lovers get the most fidelity, performance and – most importantly – enjoyment from their albums.

Like all McIntosh products, the MP100 is packed with features designed specifically for the vinyl lover including Moving Coil and Moving Magnet inputs; Moving Coil and Moving Magnet adjustable loading (6 settings each); balanced and unbalanced analog outputs; optical, coax and USB digital outputs; and a Mono switch for when playing mono records to decrease noise and play the signal correctly. For pure analog use, the digital outputs can be completely disabled and powered down.

There are many ways to integrate the MP100 into your audio system. If you’re new to vinyl and just building your system, it can become the main part of your setup. Or if you already have a system with an older preamp you don’t want to part with, the MP100 is an excellent way to add modern phono features. If you’ve got a home theater system and would like to add a turntable, the MP100 is an easy way to add full phono preamp capabilities without having to get a full-sized stereo preamp that would undoubtedly duplicate many of your home theater processor’s features.

While spinning vinyl on a turntable is a great and unique way to enjoy music, there’s no denying the convenience of having digital versions of the albums. When used with a properly configured conversion program, the MP100 can “rip” the records to a computer via USB to produce high-quality digital files. The digital outputs are fixed at 24-bit/96kHz to capture the full dynamic range of a record while optimizing digital file size. If an album has a very loud section, the clipping indicator will alert you so you can lower the digital output in order to produce a distortion-free recording.

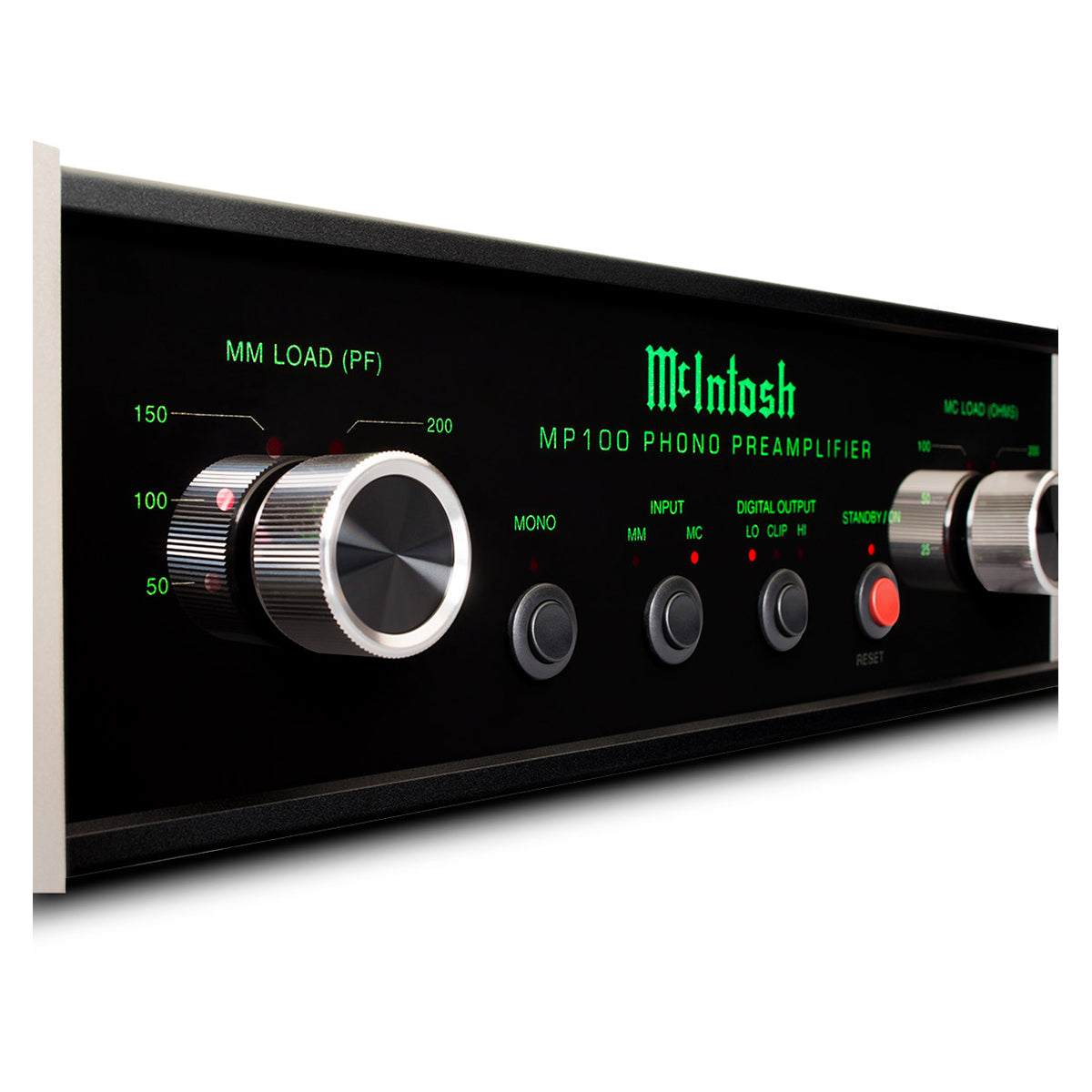

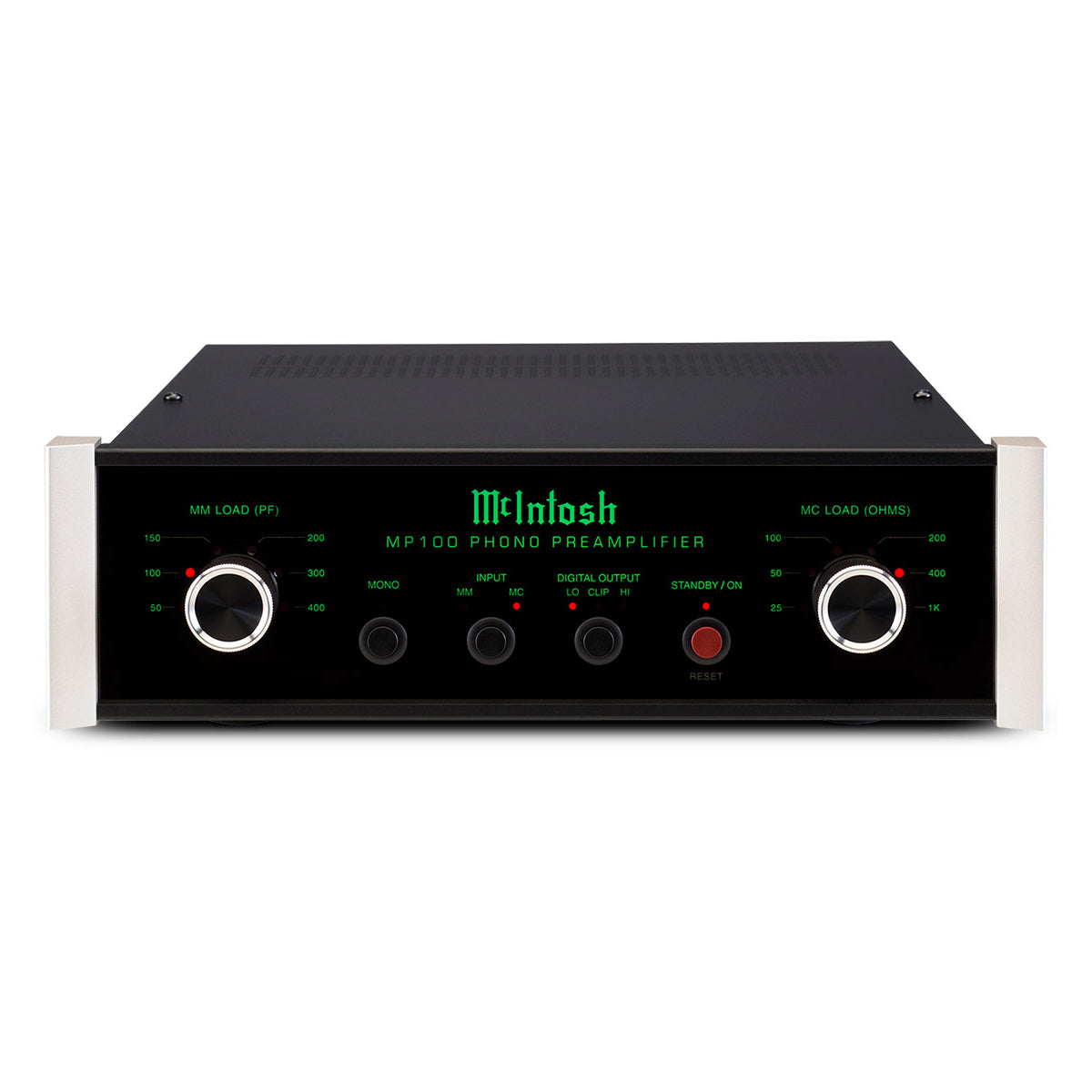

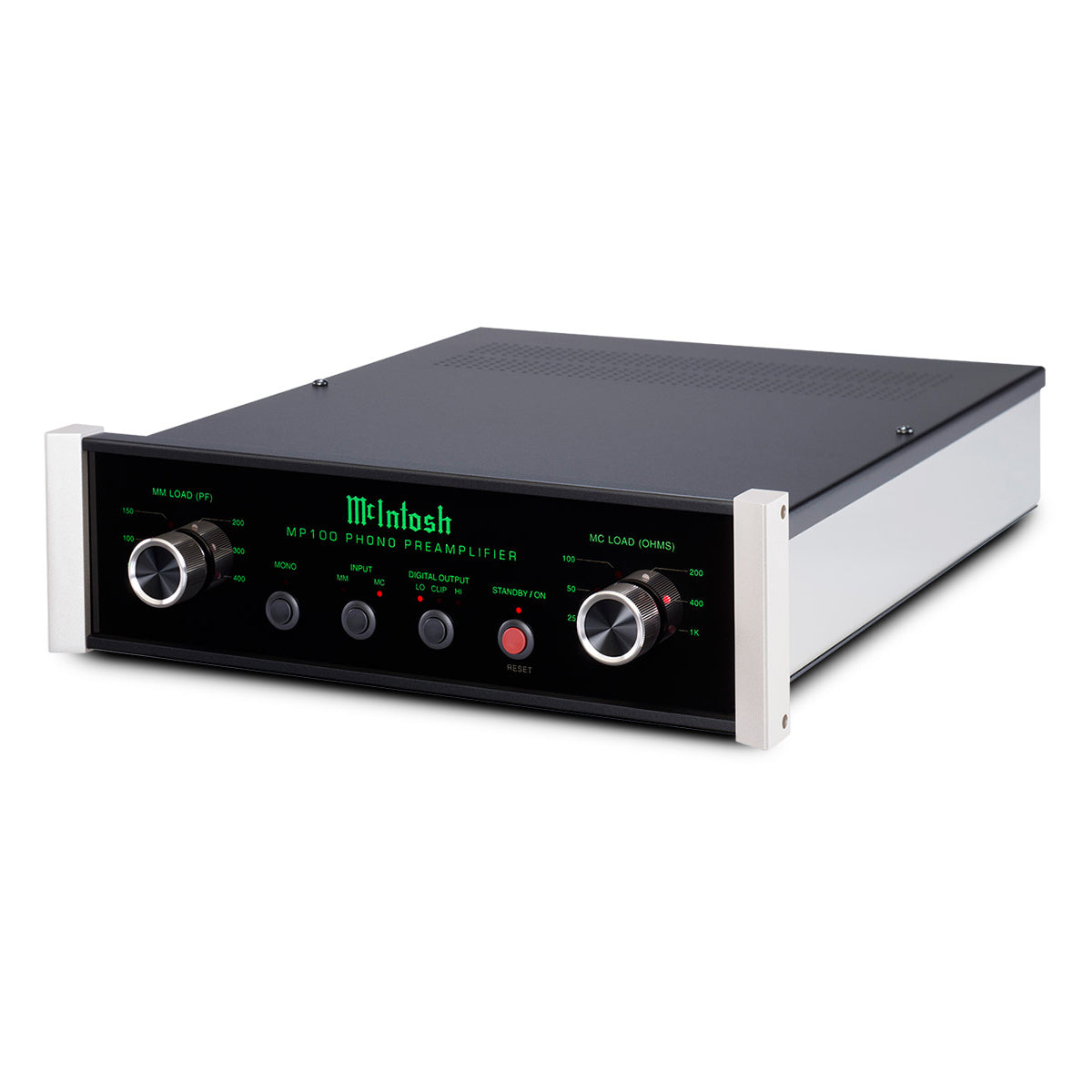

Compact in size at just 3” tall, it has many ageless McIntosh design cues. It shares the same 11.5” narrow chassis design as the MXA80 Integrated Audio System, MHA150 Headphone Amplifier and MB50 Streaming Audio Player to help build a cohesive system. It can also easily be added to a system comprised of standard, wider width chassis.

Details & Specs

  • Frequency Response: ±0.3dB from 20Hz to 20kHz
  • Total Harmonic Distortion: 0.005% Maximum from 20Hz to 20kHz
  • Inputs: 1 Moving Coil (adjustable) 1 Moving Magnet (adjustable)
  • Input Impedance: Moving Coil: 25, 50, 100, 200, 400 or 1,000 ohms; 470pF / Moving Magnet: 50, 100, 150, 200, 300, 400pF; 47K ohms
  • Signal to Noise Ratio: Moving Coil: 78dB / Moving Magnet: 80dB

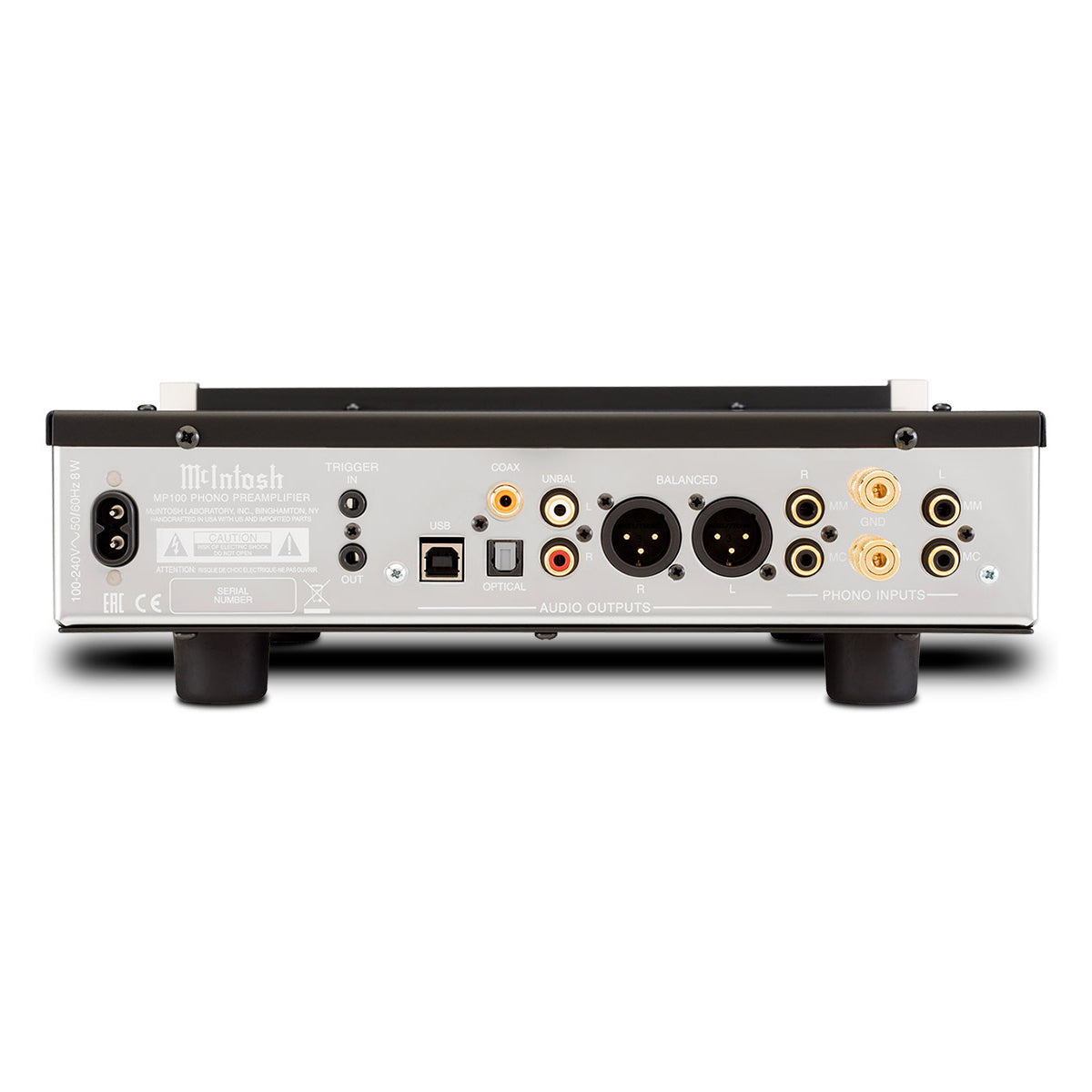

  • Outputs: 1 Balanced, 1 Unbalanced, 1 Coax, 1 Optical, 1 USB
  • Maximum Output Voltage: Balanced: 16 Vrms / Unbalanced: 8 Vrms Overall
  • Dimensions (W x H x D): 11-1/2”(29.2cm) x 3-25/32” (14.9cm) x 16-3/4” (42.5cm)
  • Weight: 8.6 lbs (3.9 kg) net, 9.6 lbs (4.4 kg) in shipping carton
