Item #MDA16D

MartinLogan MDA16

16 Channel Matrix Distribution Amplifier
Item #MDA16D

MartinLogan MDA16

16 Channel Matrix Distribution Amplifier
$3,499.99
More on the way! Order now to reserve risk free.
Contact Us

Overview

The MDA16 powers up to eight zones with sixteen full channels at 60 Watts per channel into 8 Ohms (or 120 into 4 Ohms). Zones can also be bridged for a high output mode with 200 Watts per channel into 8 Ohms.

MartinLogan has long been known for providing Truth in Sound. This heritage is at the very heart and soul of who they are.

With the ever-growing popularity of whole-house and outdoor audio systems, the challenge of unlocking the performance potential of sound has only increased. Historically, when selecting distribution solutions, there has only been access to a mix of one or two key features—web-based setup, digital inputs, equalization, and/or matrixing capabilities. Enter MartinLogan’s MDA. These astounding devices deliver all of these features in one chassis and with the added benefit of Anthem Room Correction (ARC) and bass management for adding dedicated subwoofers.

MDAs are some of the most flexible and adaptive distribution solutions available today, delivering dramatic levels of performance where it matters—in the room. With full matrix switching capabilities of analog and digital inputs, and independent room correction with ARC in each zone, MDAs allow you to install robust audio solutions throughout a home or business. These unique technologies actually understand the unique acoustic signature of each listening space and correct deviations from an ideal response.

With an eye on preserving even the most subtle nuances of music, MDAs accept high-resolution PCM up to 24-bit/192kHz. MDAs will never hold back a compelling musical experience. The MDA16 powers up to eight zones with sixteen full channels at 60 Watts per channel into 8 Ohms (or 120 into 4 Ohms). Zones can also be bridged for a high output mode with 200 Watts per channel into 8 Ohms. MDAs are the first solution to offer the ability to expand a system by adding external subwoofers. This is accomplished through either an RCA connection to a powered subwoofer or external sub amplifier; or by assigning a zone’s output to power a subwoofer. You can even bridge multiple zones to provide more power when it’s needed. Any subwoofer attached to an MDA also benefits from Anthem Room Correction, which not only corrects acoustic output for an ideal response but also sets bass management settings (including subwoofer phase) for a flawless transition to the main speakers.

MDAs are fully configurable using an intuitive webbased interface that controls every available setting for every zone and every input. It has never been easier to set up a whole-house audio system with such extremely accurate results.

High use environments are highly susceptible to acoustically harmful room interactions due to the prevalence of hard materials and complex surfaces. This reduces clarity in the midrange and muddies the bass. Configuring custom DSP settings is a relatively common feature in high-end distribution solutions, but is limited to simple parametric equalization which has severe limitations. MDAs utilize both speaker-based DSP and Anthem Room Correction to deliver perfect sound in every environment, rendering music with clear dialogue and deep, accurate bass. Anthem Room Correction is accomplished through a simple measurement process that can take as little as five minutes per zone. Speaker-specific DSP settings are preloaded for performance optimization of MartinLogan custom install and outdoor speakers. This level of customization effortlessly provides exceptional sound quality while helping protect speakers from being overdriven. Further, to safeguard speakers, DSP selection has the added benefit of including sophisticated impedance/voltage curves that, when combined with Advanced Load Monitoring, maintain absolute control of MartinLogan speakers and intervene if a speaker may experience damage.

MDAs are designed to sound great with more than just MartinLogan speakers. In addition to providing the benefits of Anthem Room Correction and Active Load Monitoring for any connected speaker or subwoofer, MDAs allow you to fine-tune any speaker’s response by adjusting the volume level, left/right balance, and bass and treble levels. Additionally, with both IP and RS-232 connections, MDAs are compatible with leading home automation systems, including Control4, Crestron, Elan, RTI, Savant, and URC.

Details & Specs

MDAs are the most flexible and adaptive distribution solutions available today, delivering dramatic levels of performance where it matters—in the room.

With full matrix switching capabilities of analog and digital inputs, and independent room correction with ARC® Genesis in each zone, MDAs allow you to install robust audio solutions throughout a home or business. These unique technologies actually understand the unique acoustic signature of each listening space and correct deviations from an ideal response.

With an eye on preserving even the most subtle nuances of music, MDAs accept high-resolution PCM up to 24-bit/192kHz. MDAs will never hold back a compelling musical experience.

Key Features

  • 60 Watts (8 Ohms) / 120 Watts (4 Ohms) with all channels driven, or bridges to provide 200 Watts (8 Ohms).

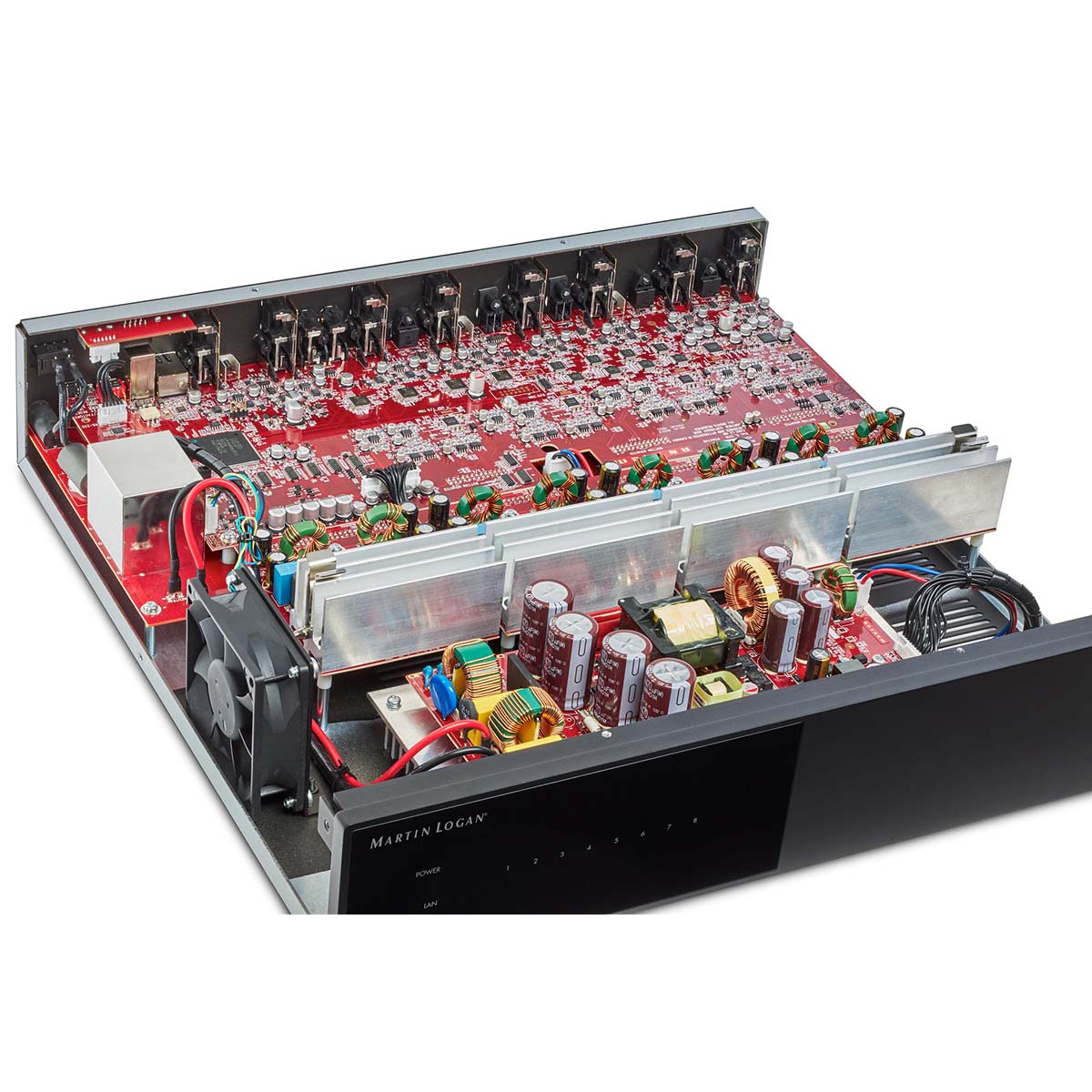

  • 8- or 16-channels of Ultra-Class-D amplification, each supported by Advanced Load Monitoring technology, delivers fast, reliable performance even under the most demanding loads.
  • 24-bit/192kHz digital-to-analog converter (DAC) maintains the integrity of high-resolution source materials.
  • Customized pre-set DSP settings.
  • Separate zone-specific bass management and subwoofer integration via a passive (RCA) or active (powered by another zone in bridge mode) connection.
  • Bridging allows up to 200 Watts for high power applications such as subwoofers.
  • Digital switching output allows linking of digital inputs between multiple MDA.
  • Analog pass-through connections allow daisy chaining of multiple MDA.
  • Speaker terminal block connections accept up to 12 AWG, ideal for long speaker cable runs.
  • IP/RS232 capability ensures compatibility with leading home automation systems.
  • ON/OFF switched via IP/RS232, 12-Volt trigger, or audio sensing.
  • High-efficiency design meets global power saving standards. Secure professional rack-mount arms included.

Features

  • Web-Based Setup
    Nothing could be simpler than on-site configuration and calibration using our intuitive Web-based controls. The specially designed, adaptive user interface works on any device. Custom configure zones, from input assignments to zone names. Adjust levels (and every aspect of performance) independently. Run Anthem Room Correction (ARC Genesis) for each zone, and customize settings separately, Network firmware update with the touch of a button.
  • Automation Compatibility
    Robust IP/RS-232 connection capability ensures compatibility with leading home automation systems, with easily downloaded drivers.
  • Digital Inputs, Digital Switching
    Fast, efficient Ultra-Class-D amplification is supported by proprietary Advanced Load Monitoring technology, delivering reliable performance under even the most demanding loads. Our high-efficiency design meets and exceeds global power-saving standards. Smooth, instantaneous digital switching output allows the linking of digital inputs between multiple amplifiers and analog pass-through connections allow daisy-chaining of multiple MDA units.
  • Dedicated Subwoofers For Each Zone
    Install and control subwoofers independently in separate zones, with dedicated outputs (both low and high level, including bridge mode), and zone-independent settings for the new, more advanced Anthem Room Correction (ARC® Genesis). Toggle ARC Genesis on/off in each zone to hear the benefits of premium room optimization.
  • Zone Configuration Options
    Zones can have custom names, multiple inputs, independent playback, and tuning controls. Bridge zones for more power. Enable subwoofer bass management in any zone, instantly set crossover frequency, level, phase, and polarity. Only the MDA Series gives you this much control over multiple zones, supporting more creative system designs and more thrilling audio performance.
  • Analog/Digital Matrix Switching
    Full digital/analog matrix switching allows you to assign any analog RCA, digital coaxial or digital optical input to any output, either pre-configured via the web interface or switched in real-time via IP commands.

Specifications

  • Channels / Zones: 16 channels / Up to 8 zones
  • Power Output RMS per Channel (8 Ohm): 60 Watts
  • Power Output RMS per Channel (4 Ohm): 120 Watts
  • High Output Mode (Bridged) RMS per Channel (8 Ohm): 200 Watts
  • Digital-to-Analog Converter: PCM up to 24 bit/192 kHz

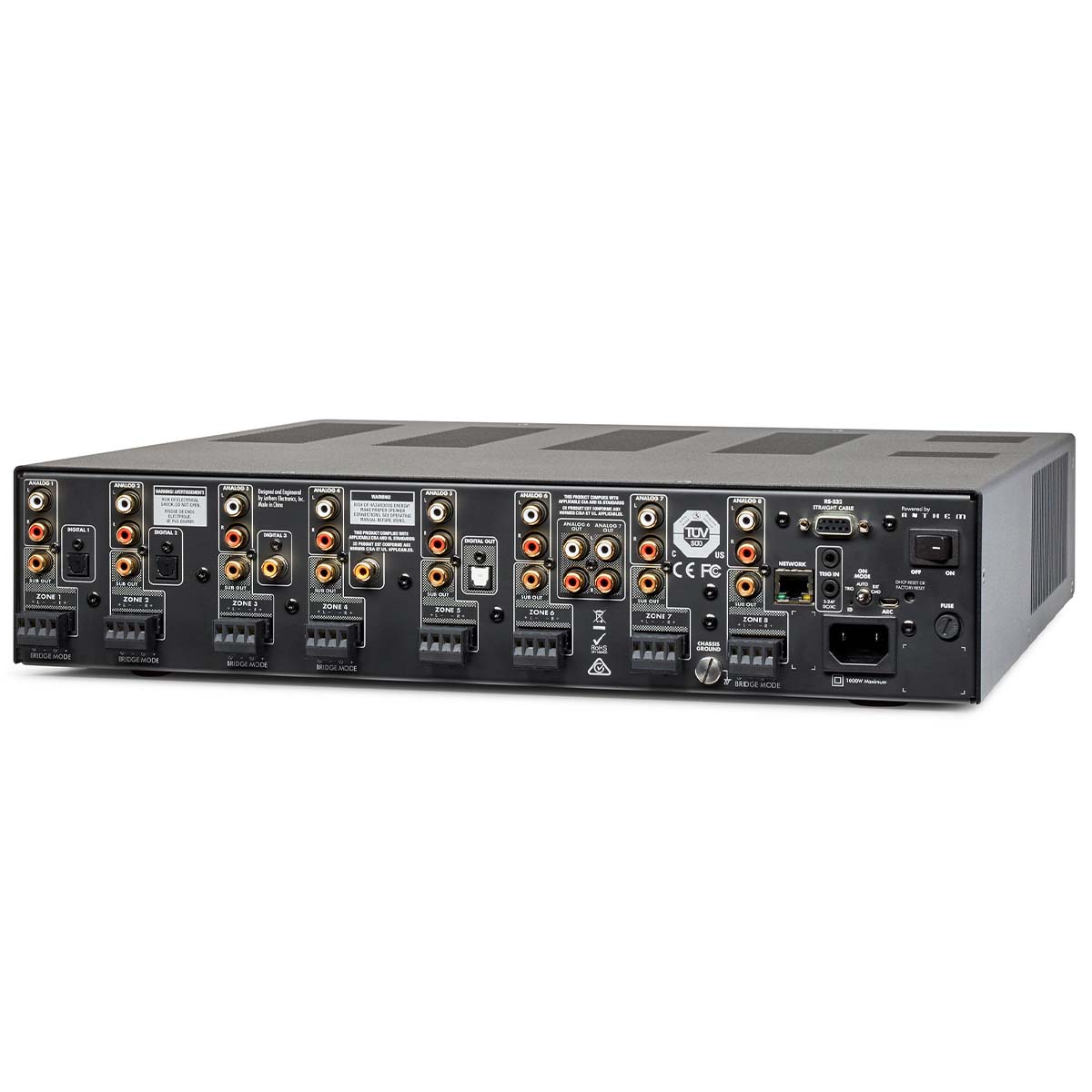

  • Inputs (Analog): 8x RCA pairs (left/right)
  • Inputs (Digital S/PDIF):
    • 2x RCA coaxial
    • 2x optical (Toslink)
  • Inputs (Network):
    • RJ-45 10Base-T/100
    • Base-TX ethernet port
  • Inputs (Trigger): 1x 3.5mm (5 – 24V DC/AC)
  • Outputs (Speaker level): 8x removable Phoenix style (left/right) accommodate wire up to 12AWG
  • Output (Analog, passthrough): 2x RCA pair (left/right)
  • Outputs (Subwoofer): 8x RCA (with bass management and room correction)
  • Outputs (Digital Matrix): 1x optical (Toslink)
  • Outputs (Other): 1x 3.5mm 12V trigger
  • Audio In-Out Matrix: Yes
  • Advanced Load Monitoring: Yes
  • Controls (Via web-based UI):
    • Bass Level: ±6dB for each zone
    • Treble Level: ±6dB for each zone
    • Level Balancing: ±10dB for each zone
  • Controls (Back panel):
    • Power Mode:
      • Auto
      • Trigger
      • External Command
    • Network Reset (pinhole)
    • Factory Reset (pinhole)
    • Main Power: On /Off
  • Microphone (For room correction): Included dual input microphone (3.5mm and mini-USB)
  • Setup: Web-based user interface
  • IP Control (Via IP or RS-232): Drivers for Control4, Crestron, Savant, URC, Elan
  • AC Voltage: 120V~50/60Hz
  • Rack Mount Ears / Feet: Included
  • Rack Space (Feet removed): 2U
  • Frequency Response: 10Hz – 20kHz ±0.5dB
  • Room Correction: Anthem Room Correction (ARC®)
  • Inputs (Other):
    • Micro-USB (for ARC)
    • RS-232

Approximate Dimensions

  • Depth: 16.4"
  • Height: 3.5"
  • Width: 17"

Approximate Weight

  • Unit: 24 lbs
  • Shipping: 29 lbs

Warranty Information

  • Manufacturer Warranty (authorized online retailer): 3 Years Limited Warranty
