Item #MLNO585P5AM

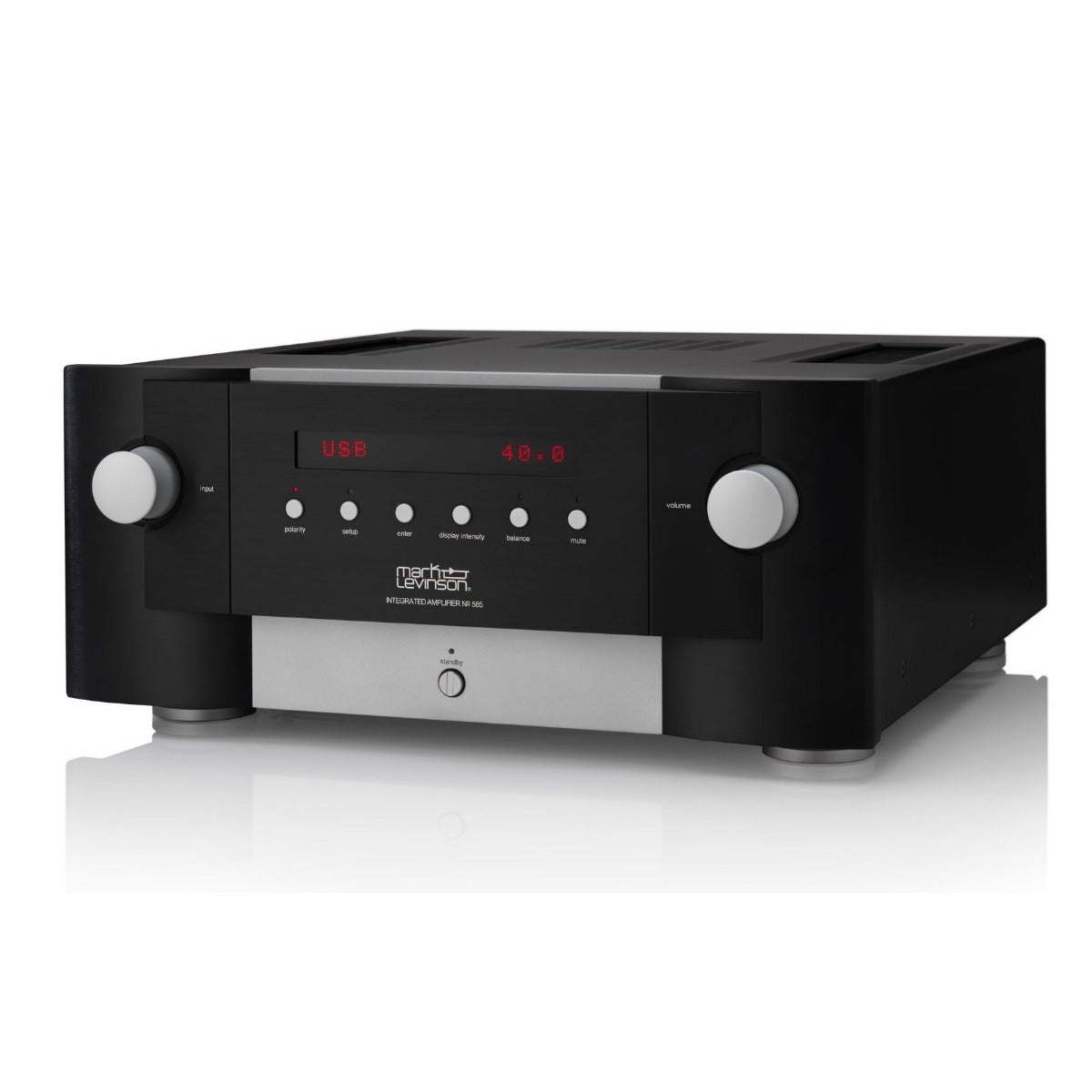

Mark Levinson No. 585.5

Integrated Amplifier
Item #MLNO585P5AM

Mark Levinson No. 585.5

Integrated Amplifier
$19,500.00
More on the way! Order now to reserve risk free.
Contact Us

Overview

Building on the international success of the celebrated Nº 585 integrated amplifier, the Nº 585.5 incorporates the same discrete class A Pure Phono stage found in the award winning Nº 526 preamplifier. With unsurpassed analog design, advanced digital audio capability, extensive control and a robust 200 watts per channel, the Nº 585.5 delivers exceptional system performance.

  • Pure Path Phono pre amp – a discrete design with no op-amps and operates exclusively in class A throughout
  • Fixed-gain moving magnet (MM) section with five capacitive cartridge-loading settings
  • Moving coil (MC) section with three gain settings and 10 resistive cartridge-loading settings
  • Ultrasonic filter intelligently compensates for rumble and warping
  • High resolution sound from class A/B amps
  • Discrete analog circuitry throughout
  • 4 analog inputs
  • 6 digital inputs: USB, AES/EBU, S/PDIF
  • 32-bit/192khz performance, including DSD over PCM via USB 80 Hz high-pass option allows proper operation of a 2.1-channel system
  • Ethernet, RS-232, IR and 12V trigger ports
  • Mark Levinson extruded aluminum remote
  • 200W at 8 ohms; 300-350W at 4 Ohms
  • Designed and handcrafted in the USA

Evolution
The Mark Levinson Nº 585 has swept up best in class awards and countless accolades around the world, and is now widely regarded as perhaps the finest integrated amplifier ever made. Now, the Nº 585.5 redefines the playback quality of a classic medium; by adding the same Pure Phono stage found in the award winning Nº 523 and Nº 526 preamplifiers taking the reproduction of any source material to new heights of realism.

Architecture

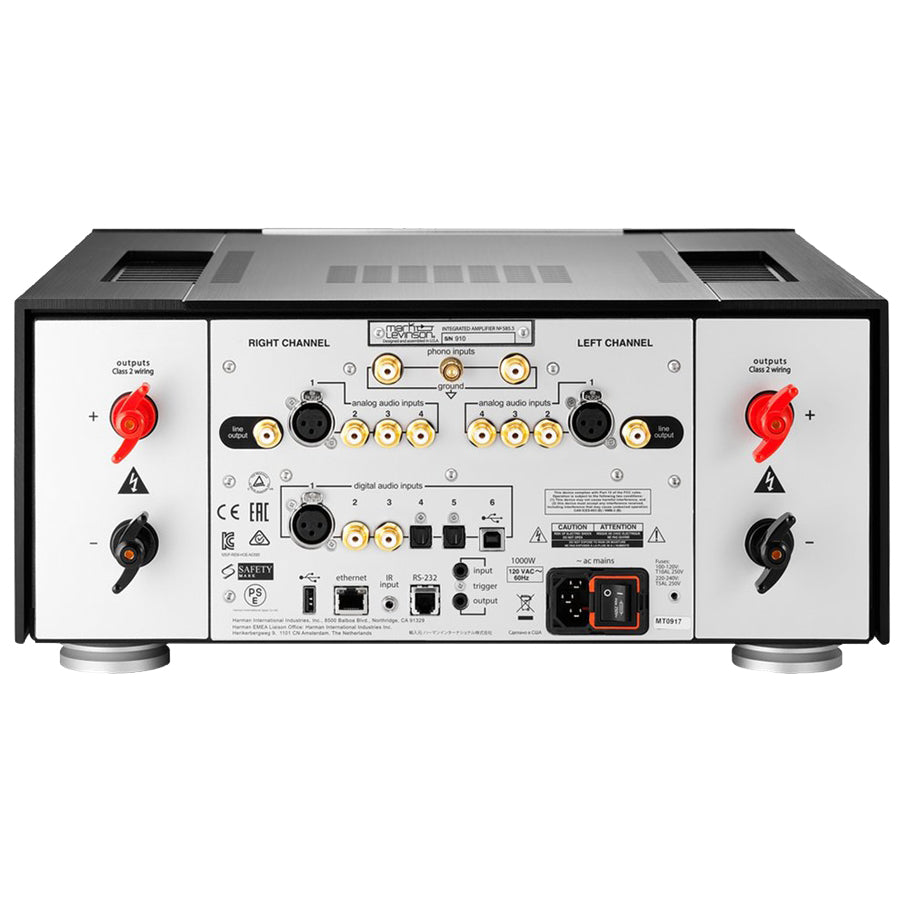

The foundation of the No 585.5 is its fully discrete, mirror-imaged, dual-monaural analog circuitry featuring individual signal switching relays for each of its five stereo inputs: one XLR and three RCA plus a Stereo Pure Phono stage. Volume controls use discrete R2R ladders and low-noise analog switches for the widest possible bandwidth and maximum signal integrity. The fully-differential Class AB power stage includes an oversized 900VA toroidal transformer with individual secondary windings for the left and right channels.

Amplification
Each elegantly simple amplifier channel utilizes twelve output transistors and multiple smaller local capacitors that allow them to be placed physically closer to the amplifiers for greater transient response when power is needed immediately. This robust architecture results in a conservative power rating of 200W per channel. System integration and expansion are possible using the stereo RCA pre-outs which can operate full-range or with an included switchable, second-order, 80Hz crossover filter allowing for seamless integration into 2.1-channel systems with powered subwoofers.

Pure Phono
The Pure Phono stage is a discrete design with no op-amps and operates exclusively in class A throughout, employing tantalum nitride thin-film resistors and polypropylene capacitors with exceptionally low tolerances.

A fixed-gain moving magnet (MM) section with five capacitive cartridge-loading settings, and a moving coil (MC) section with three gain settings and 10 resistive cartridge-loading settings ensures optimization for any cartridge. And an ultrasonic filter intelligently compensates for rumble and warping. The Pure Phono stage also contains physically separated channels and balanced inputs for sonic purity.

Audio Chassis
Building upon this superb analog platform, the Nº 585.5 adds equally outstanding digital audio capability. An ESS Sabre 32-bit O/A convertor with proprietary jitter elimination circuitry and fully balanced, discrete IN circuitry forms the heart of the digital audio processing stage. Six digital audio inputs are provided including one AES/EBU, two coaxial and two optical plus a USB audio processor capable of asynchronous data transfer of high resolution DSD and PCM files at up to 192kHz/32 bits resolution. For low-resolution audio formats, proprietary Clari-Fi'" signal processing reconstructs information and bandwidth lost in compressed file formats restoring them to higher fidelity.


Reviews

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Audionut
Wonderful Integrated with all in one Solution

First let me say the build quality is fantastic in this product. The sound is exceptional for a solid state product. (I am a 20 year tube amp user). The notes have that decay around them and the midrange (voices) are wonderful. The key to solid state is the bas control and this has it in spades. Very articulate and solid bass. It never leaves my Kef Reference 5s wanting. The Dac is very good and competes well with my Holo Audio Spring Dac and phono section dethroned my long time favorite EAR 834 deluxe. If you looking for an all in one solution. This is it. I listened to 3 other solutions in the 12-20k bracket and this was the best integrated amp of all of them.
