Lyngdorf LS-1000

Line Source Speaker

Lyngdorf LS-1000

Line Source Speaker
From $2,517.00
Select Version


Overview

Created for today’s most immersive home cinemas, the Lyngdorf LS-1000 is a custom installation line source speaker system designed to deliver reference-quality sound across every seat in the room. Developed by the same team behind Steinway & Sons' legendary systems, the LS-1000 uses multiple drivers in a vertical array to dramatically reduce floor and ceiling reflections, expand the sweet spot, and provide a more uniform listening experience—ideal for large rooms, wide seating layouts, and multi-row theaters.

The LS-1000 can be used as a full-range speaker without additional woofers or paired with Lyngdorf boundary woofers for even more powerful and extended bass performance. Each speaker stack must be configured using either four or five modules for proper acoustic alignment and performance.

  • Line source design for even sound dispersion and reduced room reflections
  • Modular system combining 16 midrange drivers and 32 soft dome tweeters

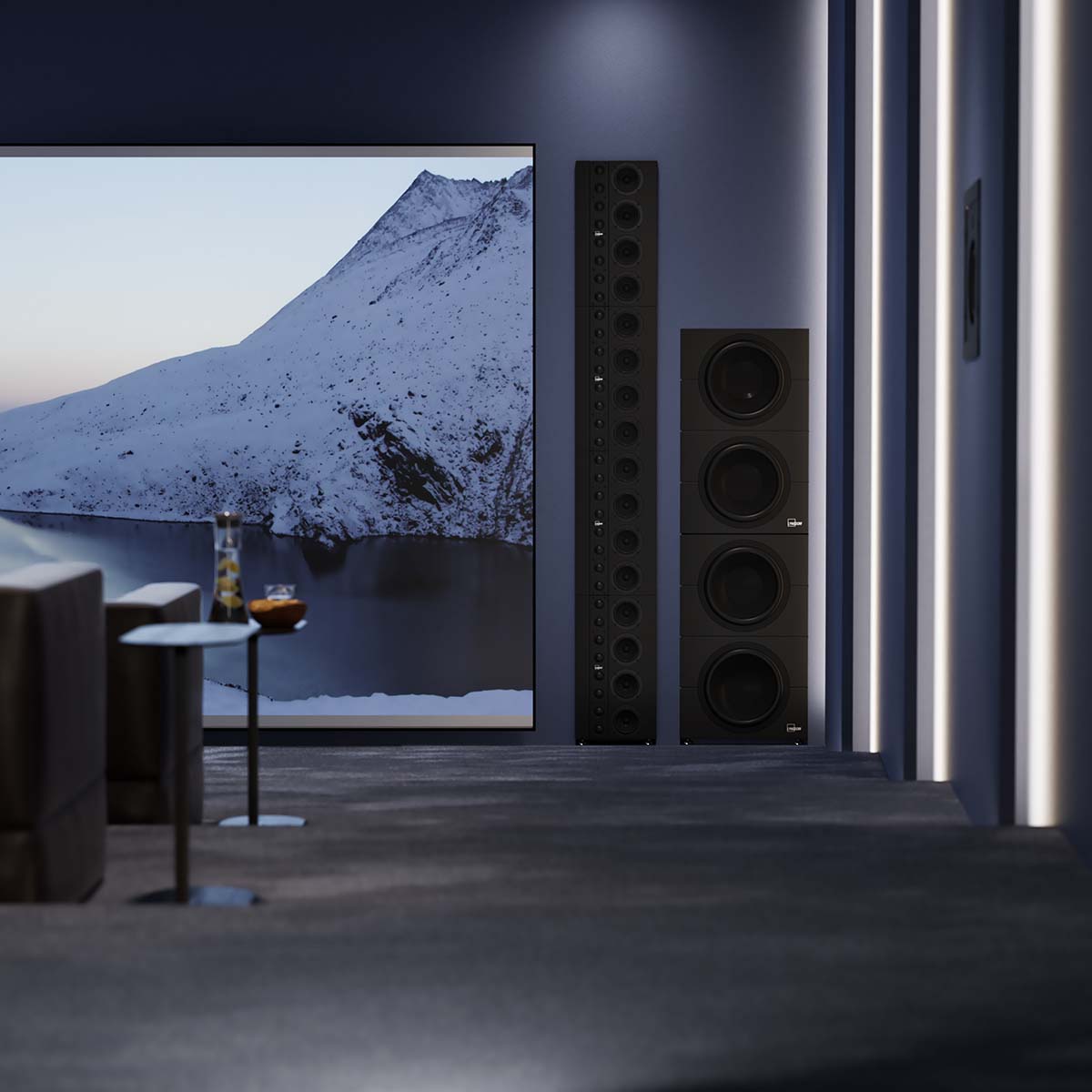

  • Use standalone or pair with boundary woofers for enhanced low-end response

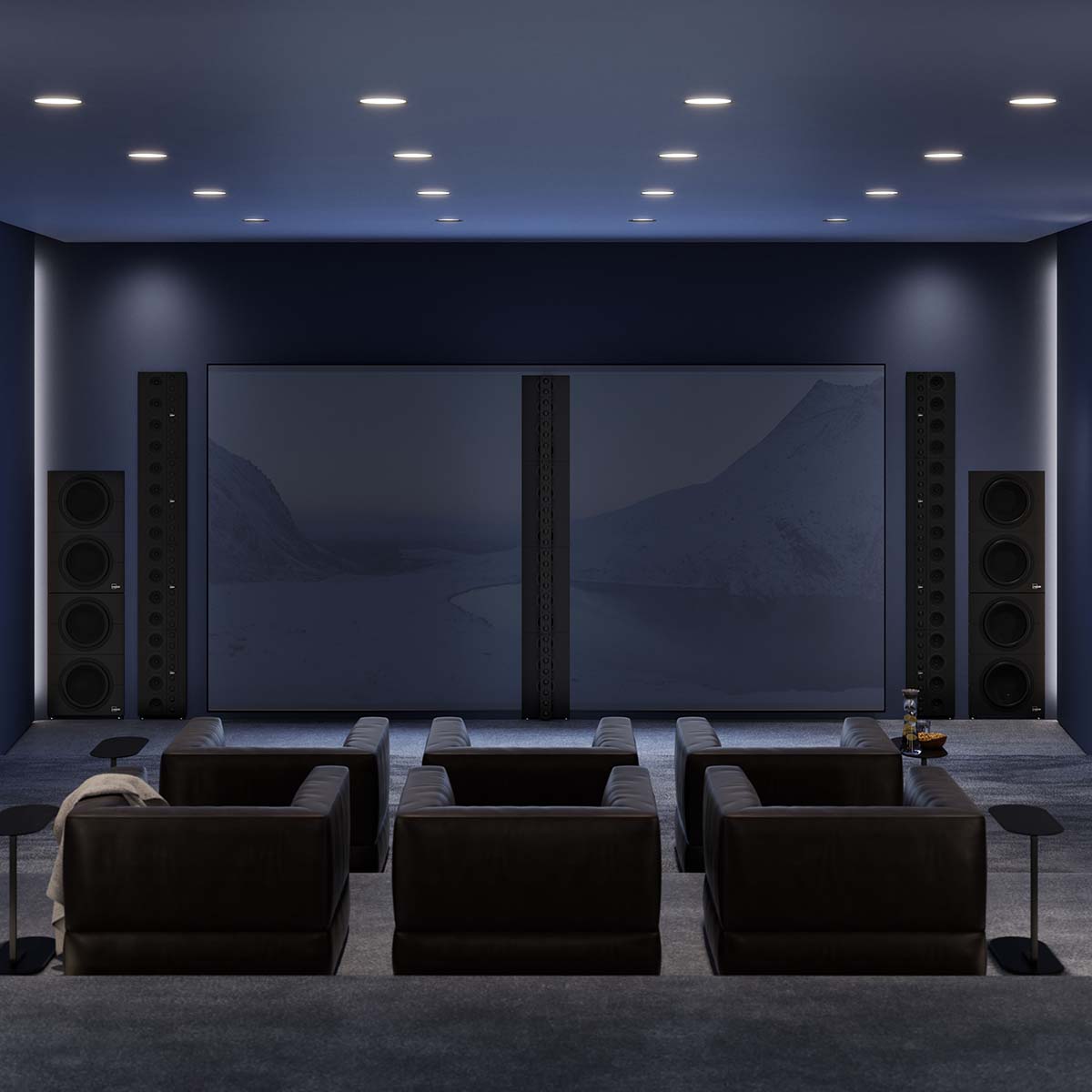

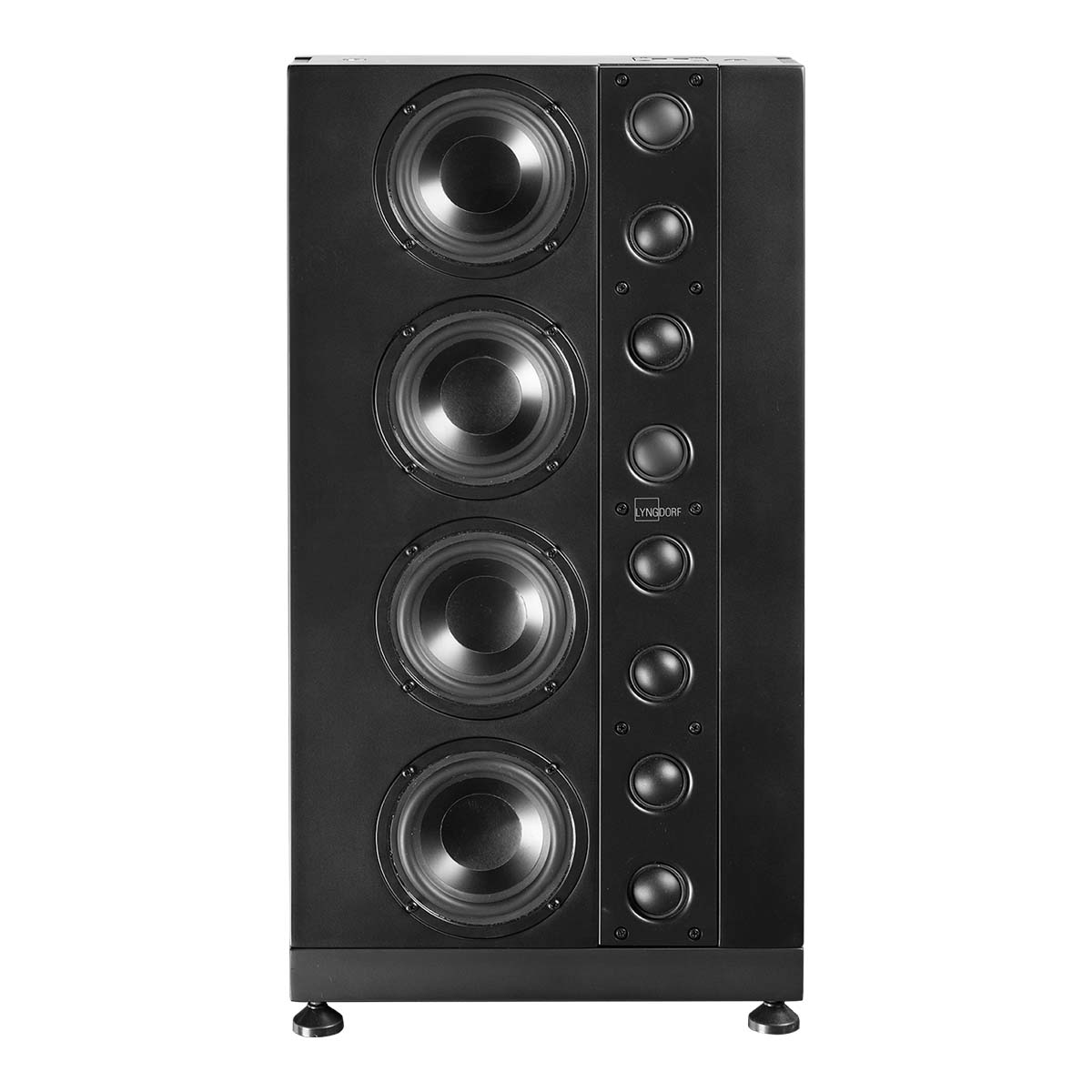

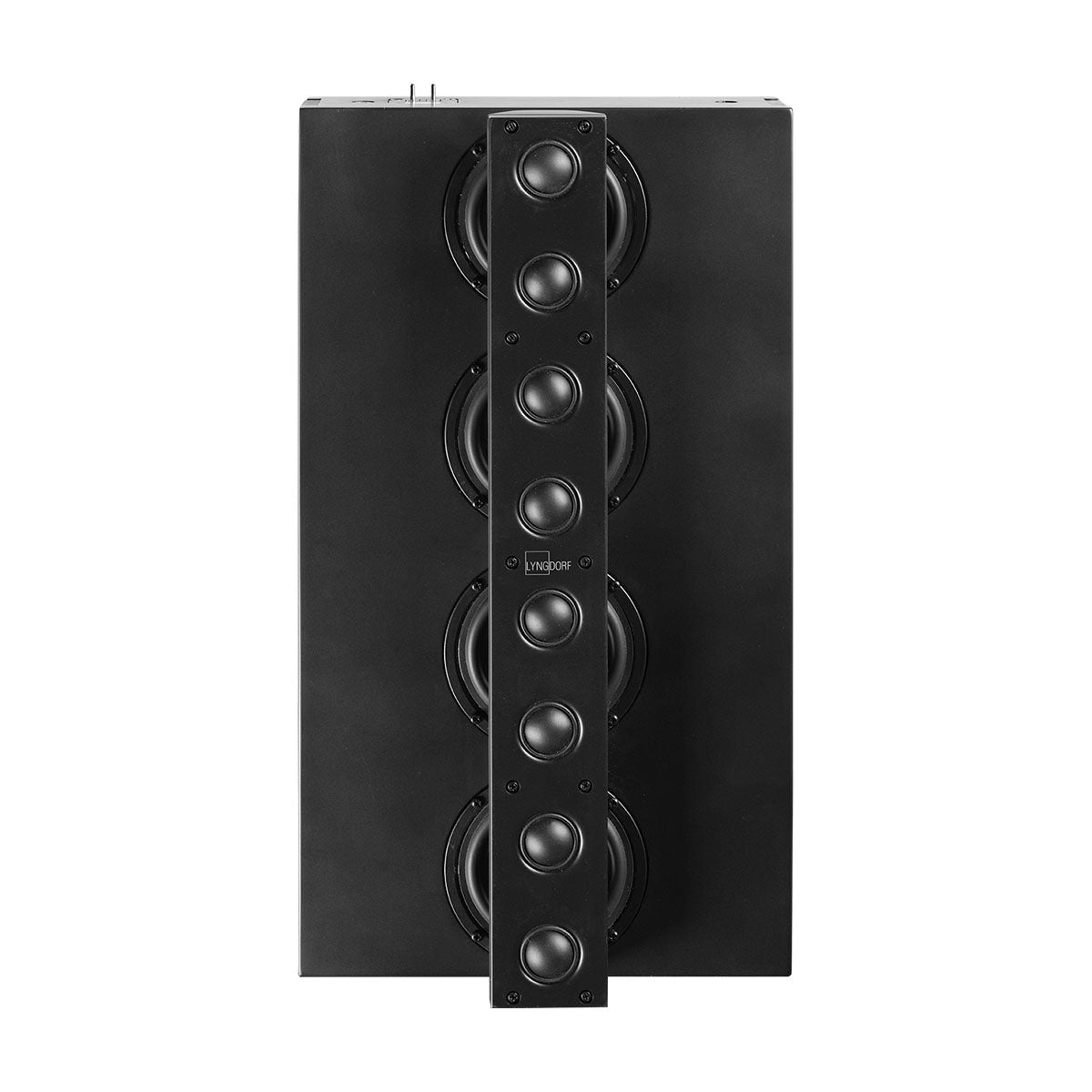

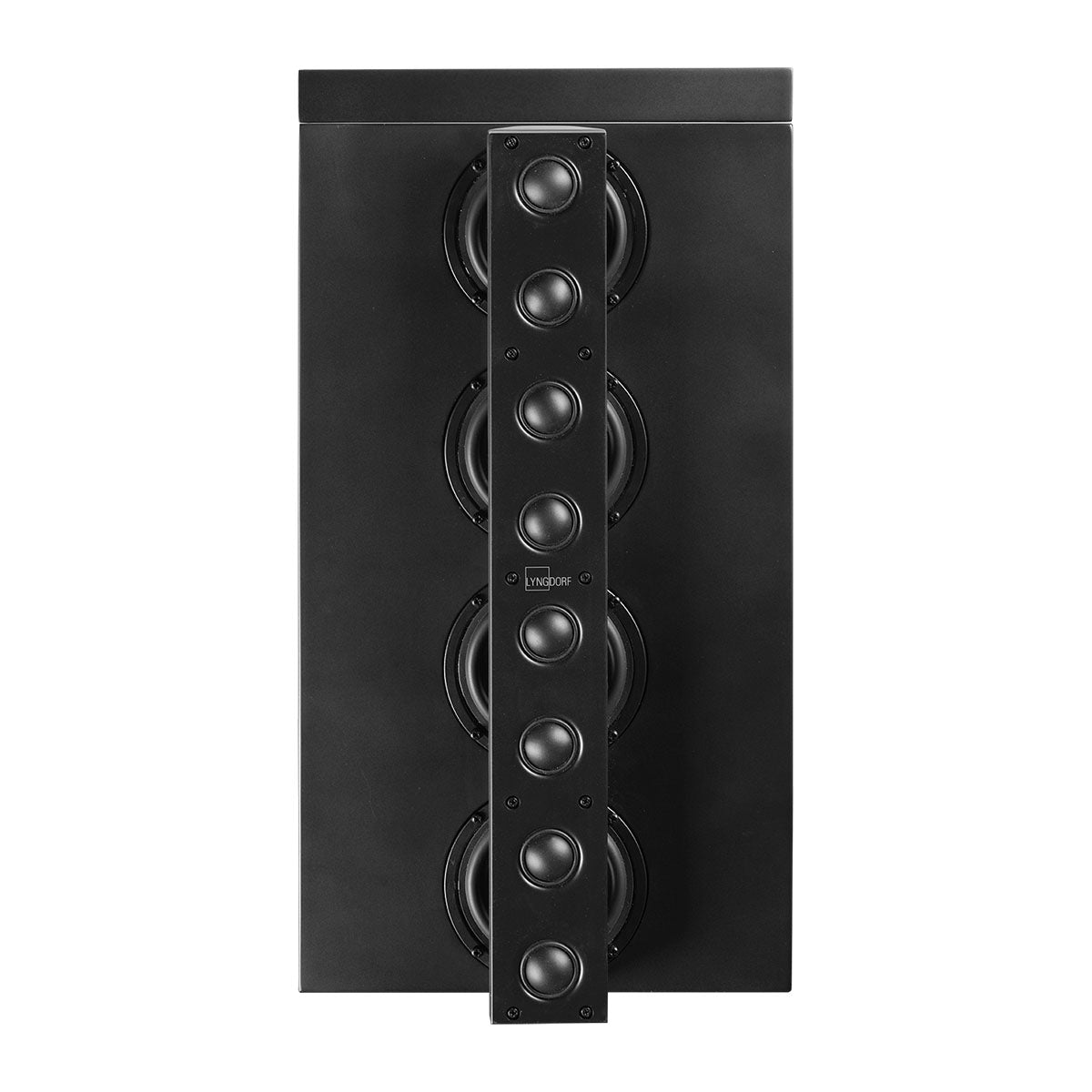

  • Available in Left, Right, and Center models for precise soundstage control
  • Shallow, rigid enclosures for easy behind-screen installation

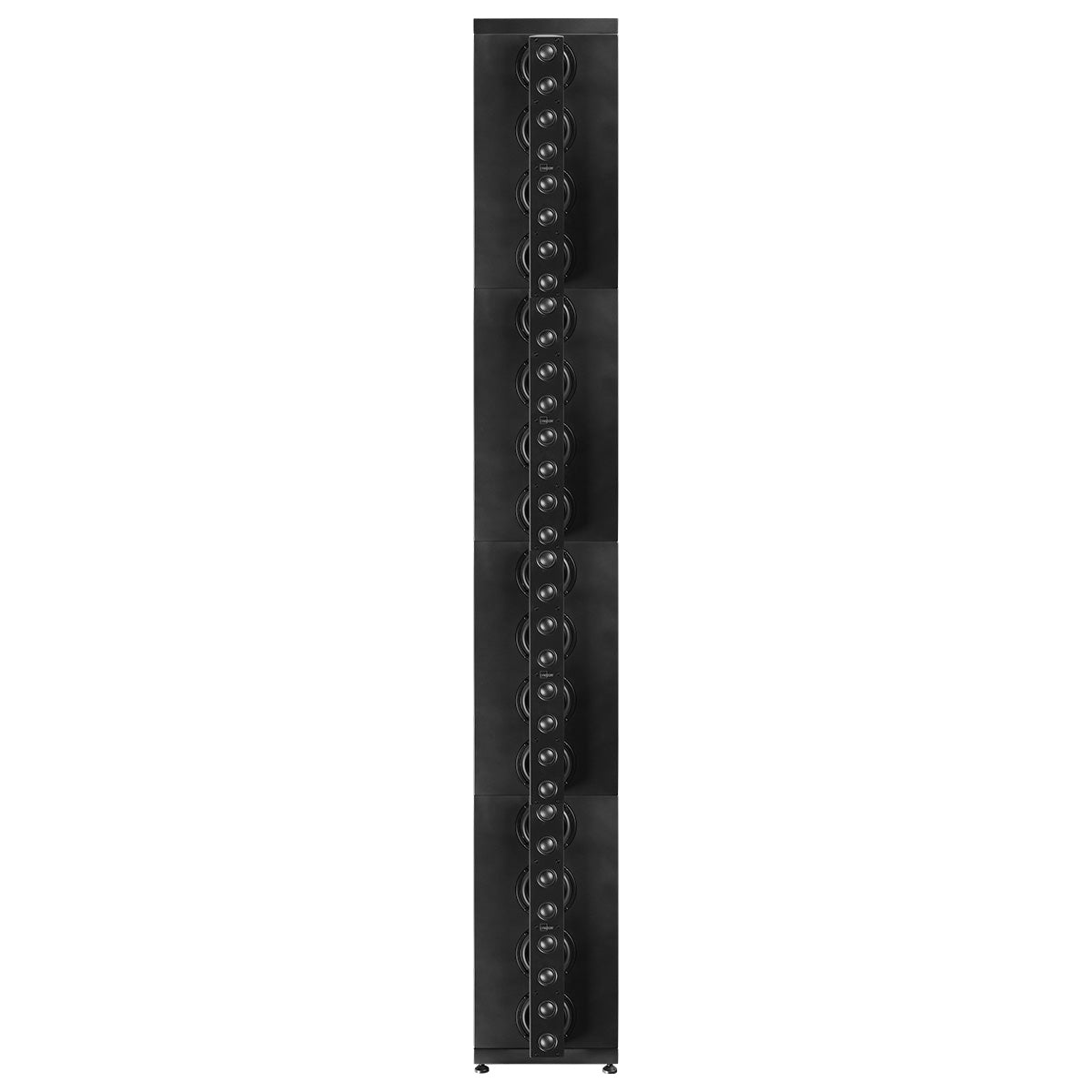

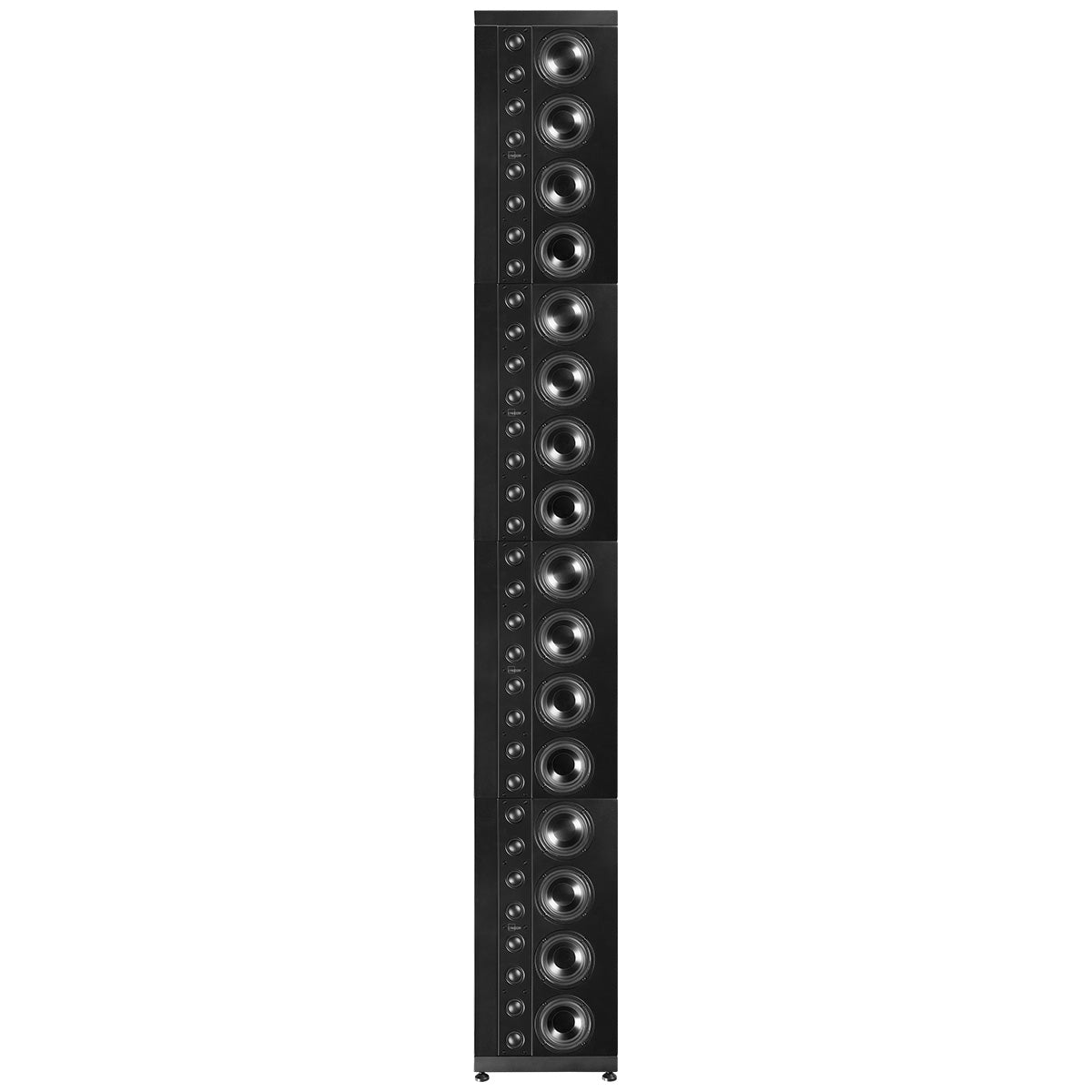

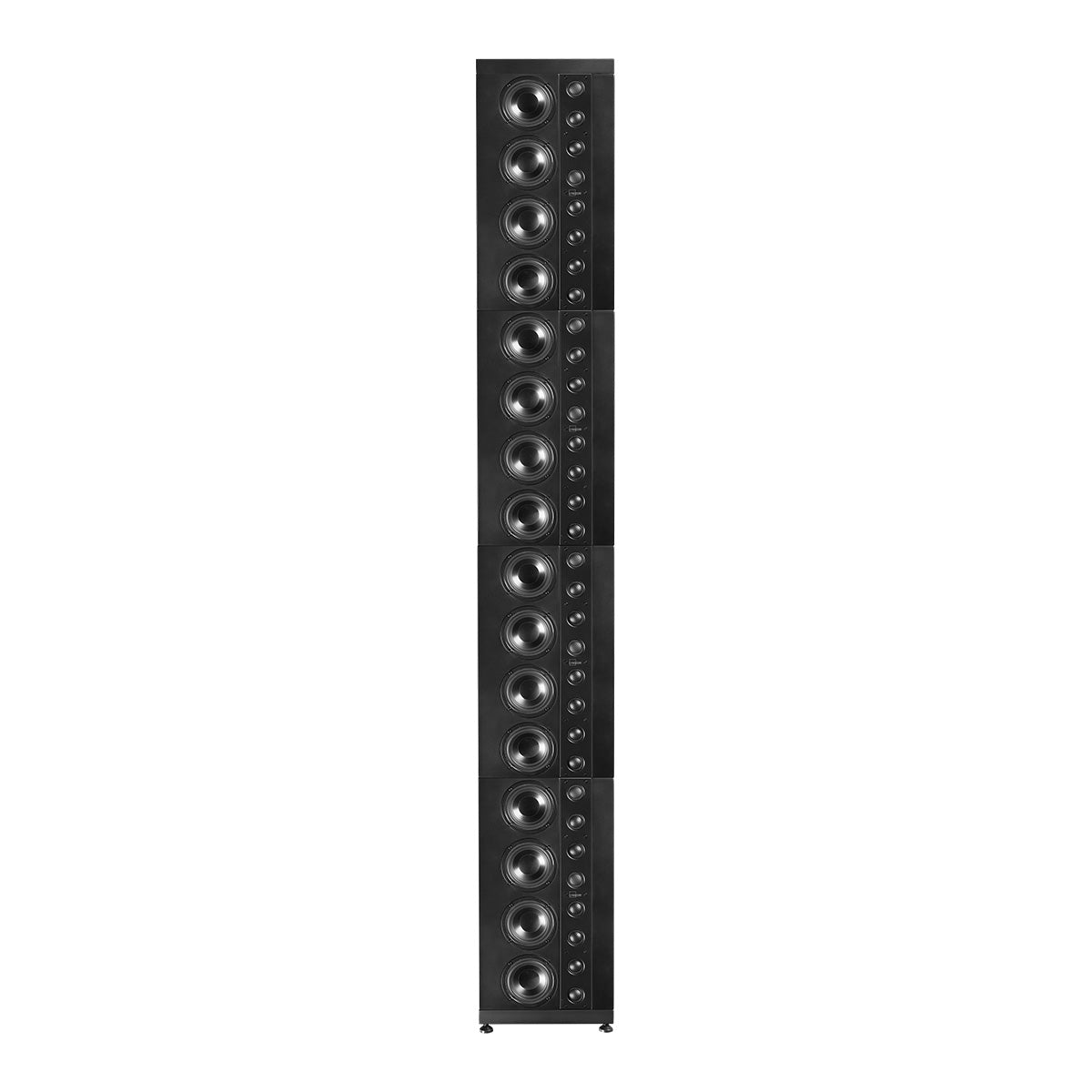

  • Configured in 4- or 5-module stacks for optimal performance
  • High sensitivity (98 dB) and 300W IEC handling for effortless dynamics

Details & Specs

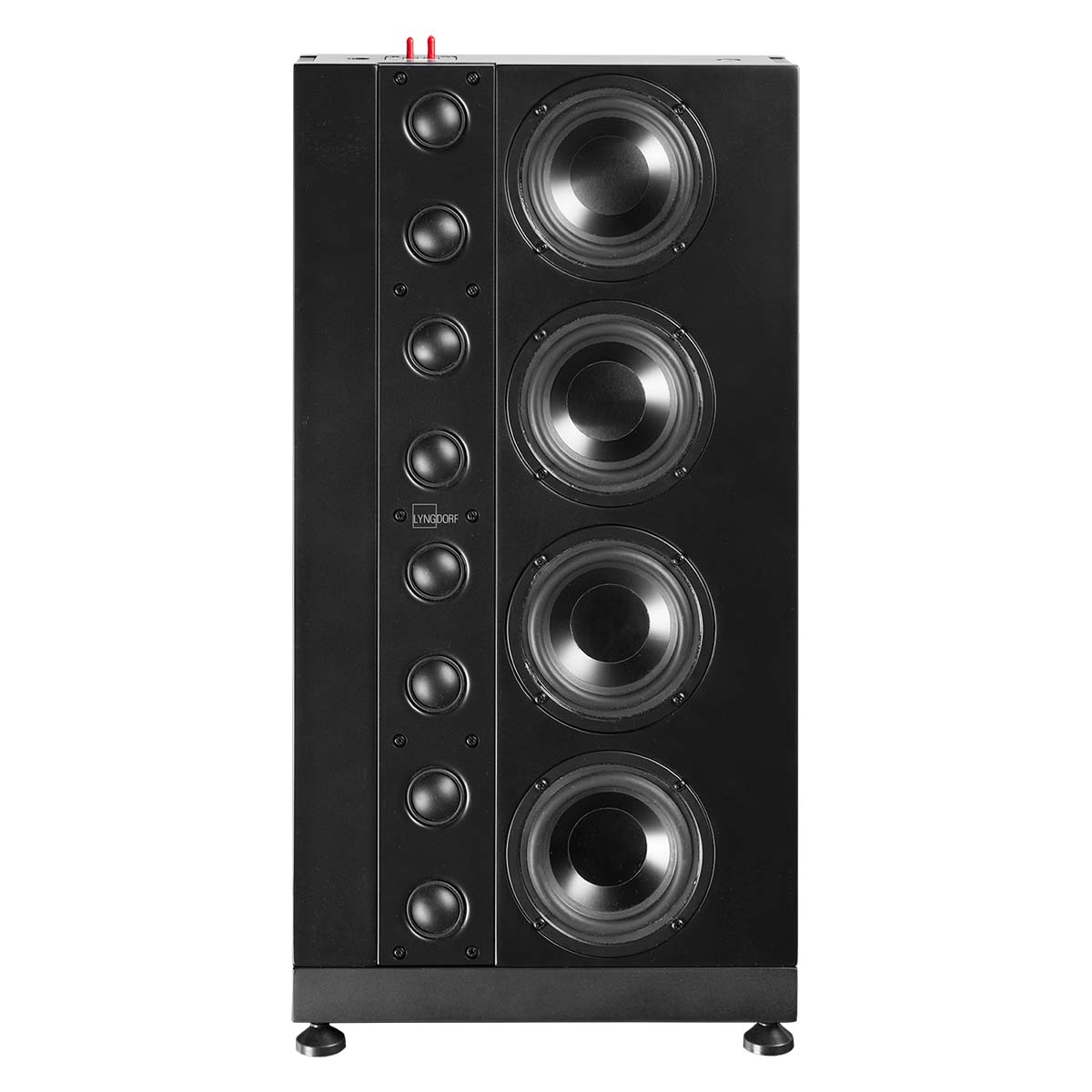

ModelLyngdorf LS-1000 Right
Description2-way line source, closed
Tweeter8 pcs 1" soft dome
Midrange driver4 pcs 115 mm (4.5"), 25 mm (1") voice coil, aluminum cone, vented magnet
EnclosureMDF
Frequency range100 – 20,000 Hz (-3 dB) (for four LS-1000 modules)
Frequency extension down to 50 Hz depending on EQ
Nominal Impedance16 Ohm (line source consisting of four LS-1000 modules: 4 Ohm)
Sensitivity98 dB (2.83 V/1 m) (for four LS-1000 modules)
Power handling300 W (IEC) (for four LS-1000 modules)
Maximum SPL120 dB (for four LS-1000 modules)
Crossover point1.8 kHz
ConnectionsScrew terminals
MountingIn-wall
Dimensions (W x H x D)280 x 500 x 85 mm / 11 x 19.7 x 3.35 in + mounting
Weight9.9 kg / 21.8 lb
FinishMatte black
