KLIPSCH PSM-525-T

5-1/4" Two-Way Surface-Mount Speaker

KLIPSCH PSM-525-T

5-1/4" Two-Way Surface-Mount Speaker
$235.00
Select Color Options:

Contact Us

Overview

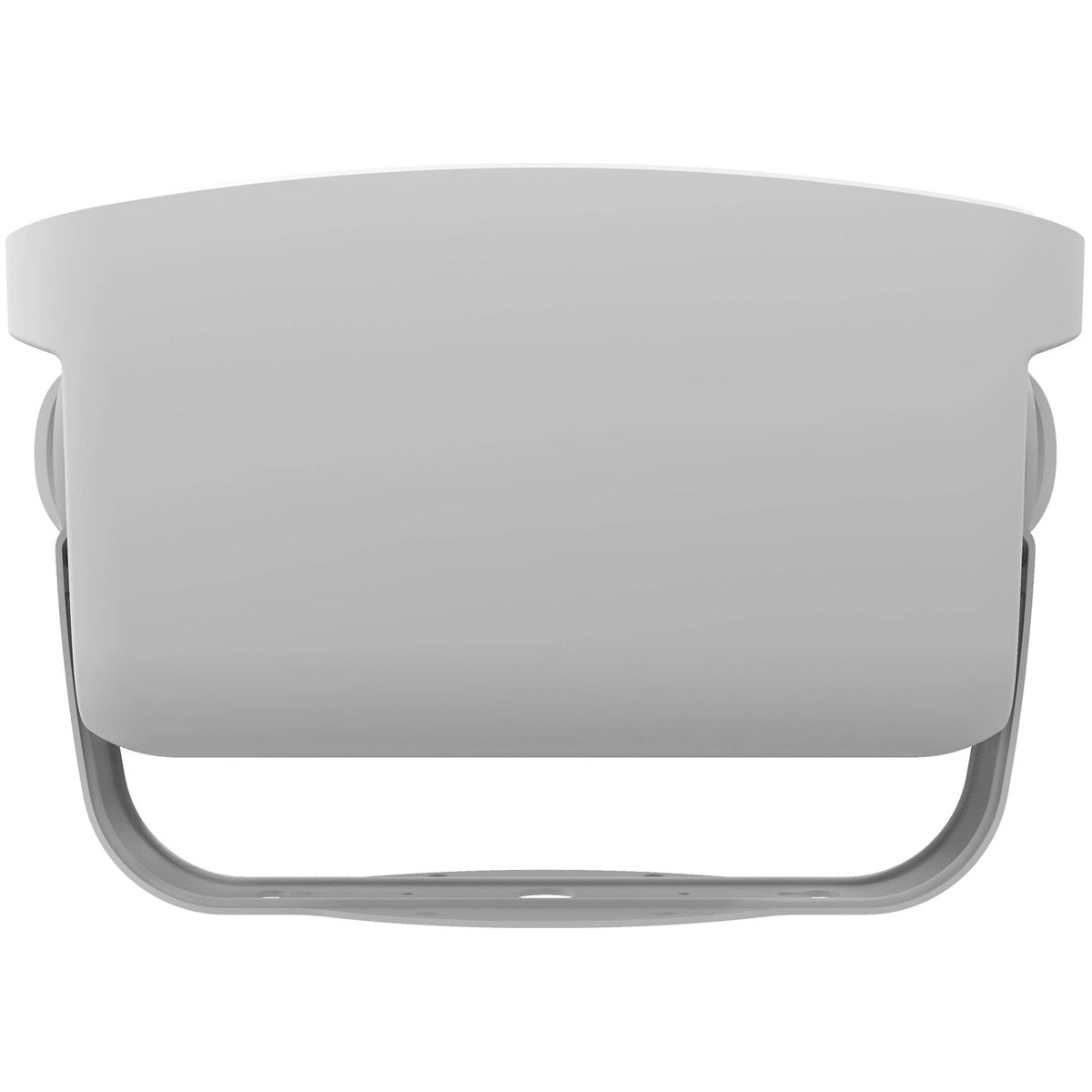

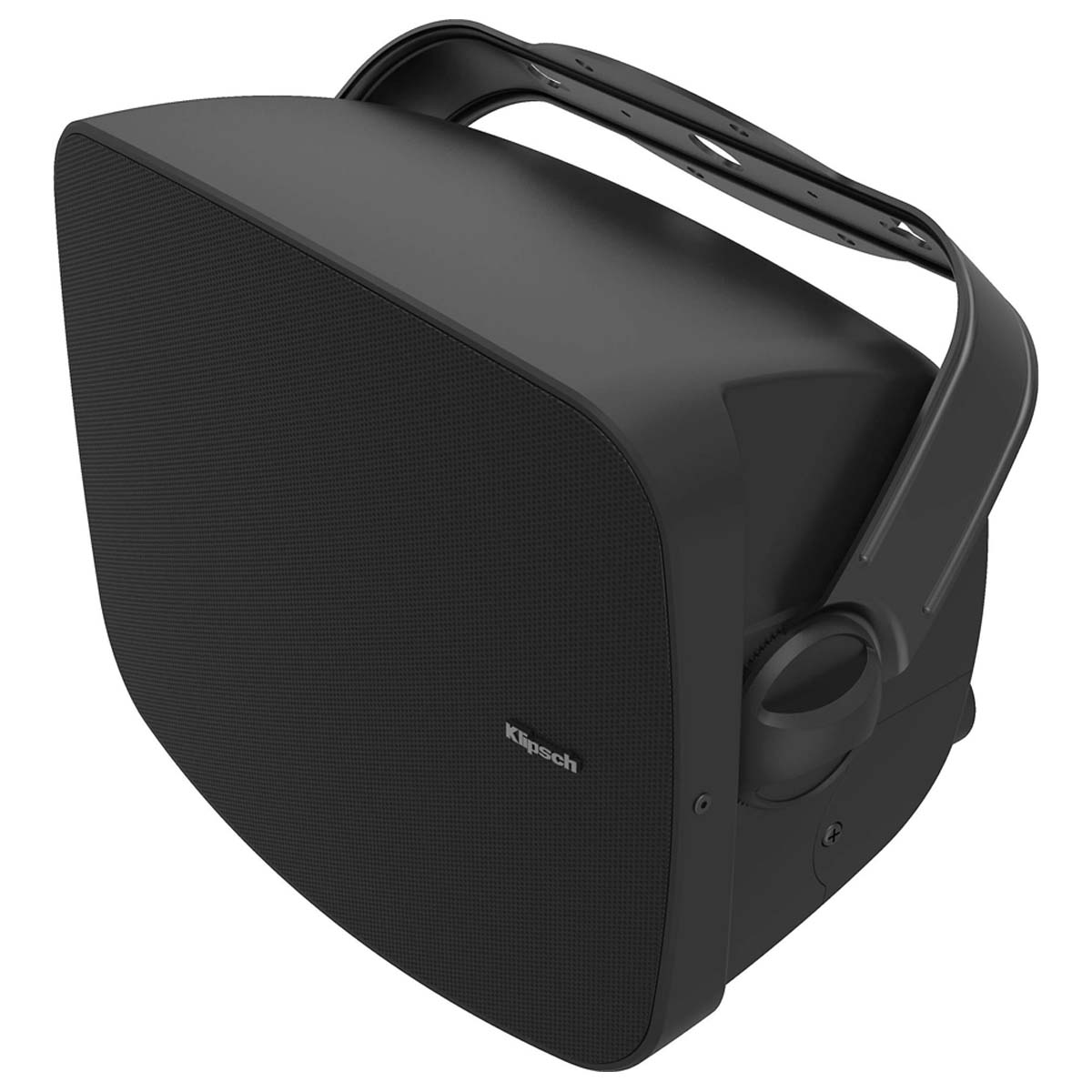

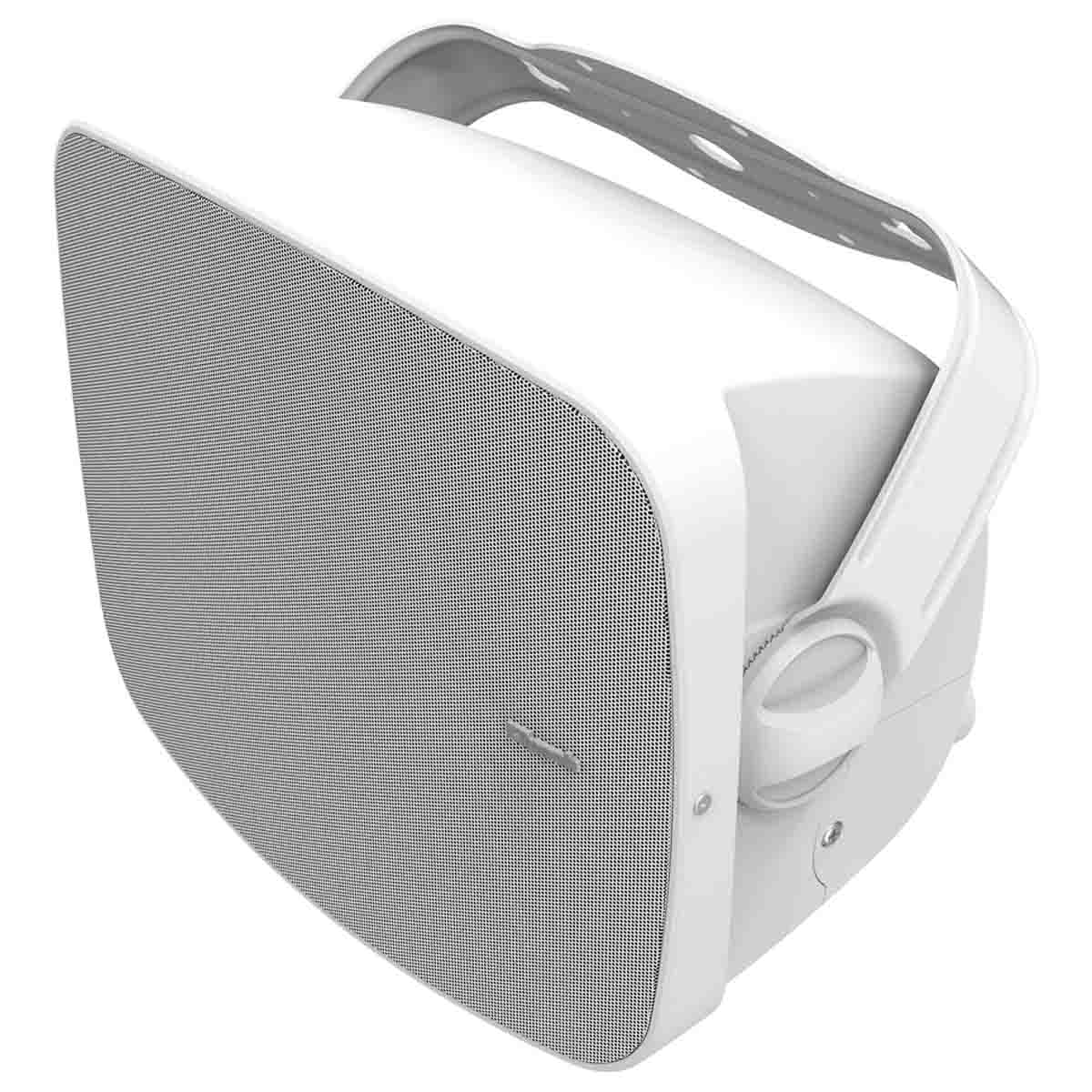

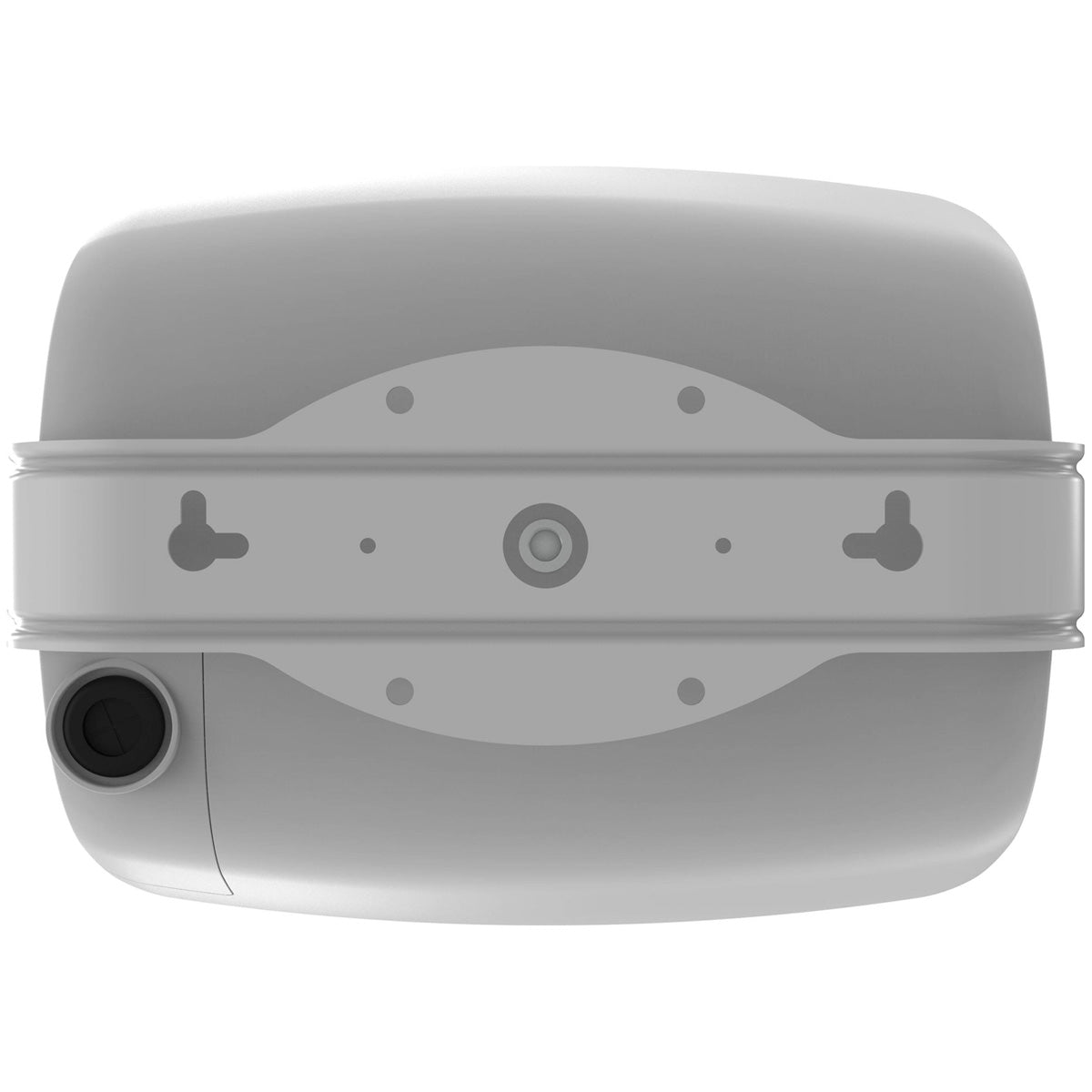

The compact PSM-525-T serves up clear, low-distortion Klipsch sound in a rugged, weather-resistant design. Its 1" titanium compression driver and 5-1/4" woofer combine for clear background music and paging announcements. And an all-new Tractrix® port design allows maximum bass response from minimum cabinet volume. A built-in multi-tap transformer gives you a range of options for distributing power to multiple speakers in a 70- or 100-volt installation. The C-shaped bracket makes for simple surface-mounting and handy angle adjustments.

More Bass, Less Space With The All-New Tractrux® Hyperfold Port™

Klipsch is all about high efficiency, low distortion. Building upon that legacy, we’re introducing the all-new patented Tractrix® Hyperfold Port™ engineered to extend port length for maximum bass power via proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas.

IPX6 Rated For Commercial Environments

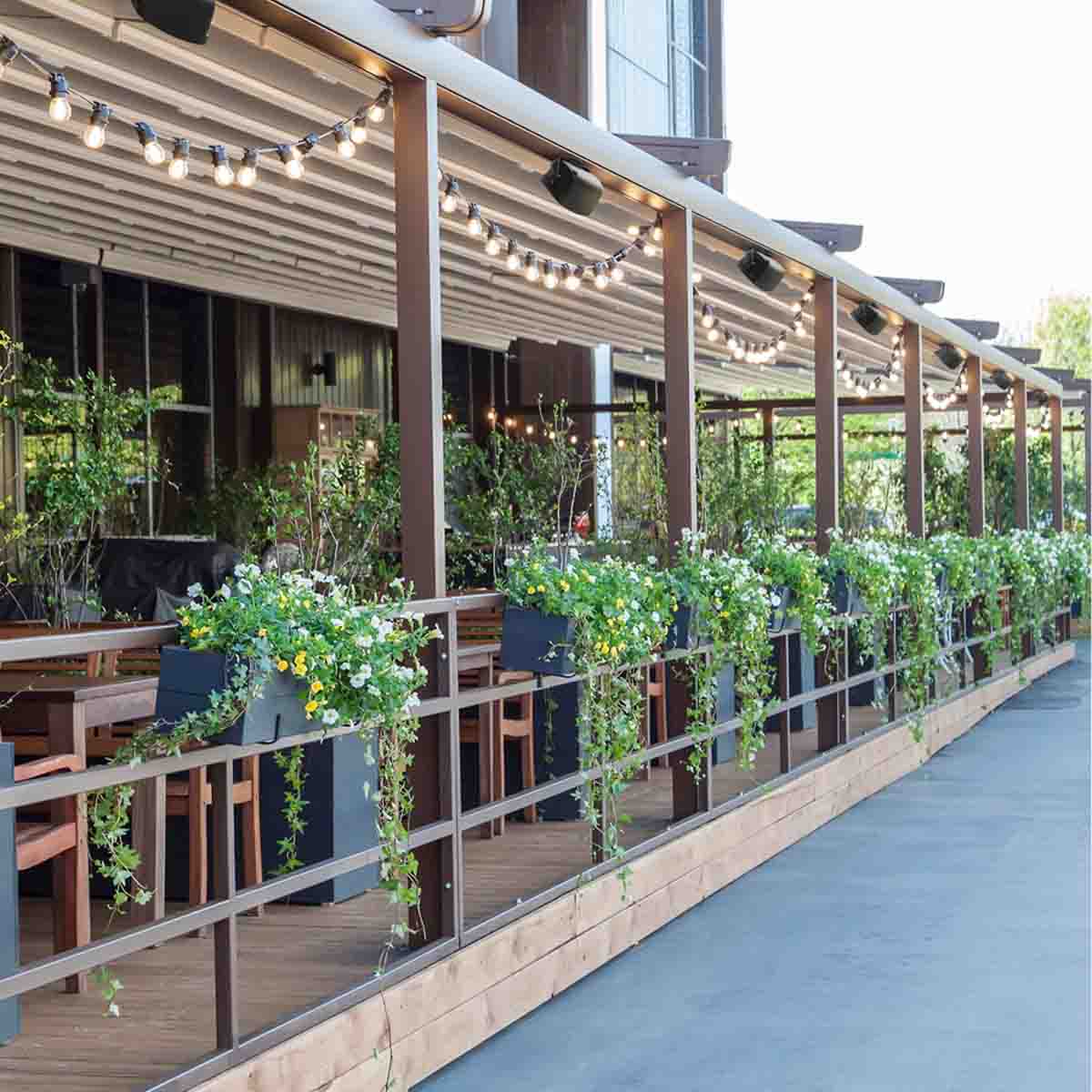

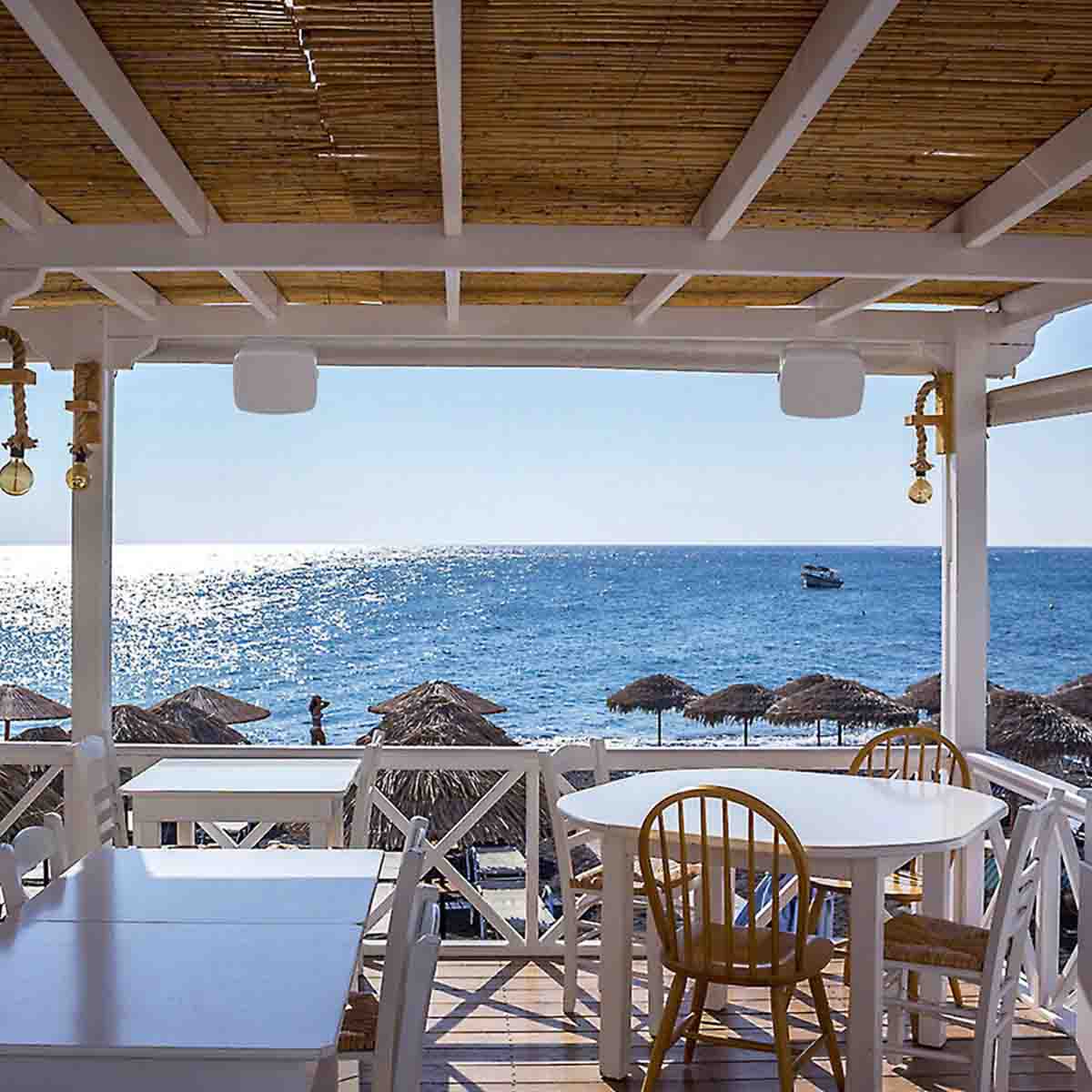

Perfect for indoor and outdoor commercial installations around the globe, the Klipsch PSM-525-T is IPX6 Rated. Your clients will rest easy knowing their new speakers will be waterresistant and rainproof for the most challenging commercial environments.

Multiple Tap Settings

The PSM-525-T includes a multi-tap transformer for 70 or 100 volt installations. There is also a bypass position that allows normal 8 ohm operation for installations that do not require a transformer.

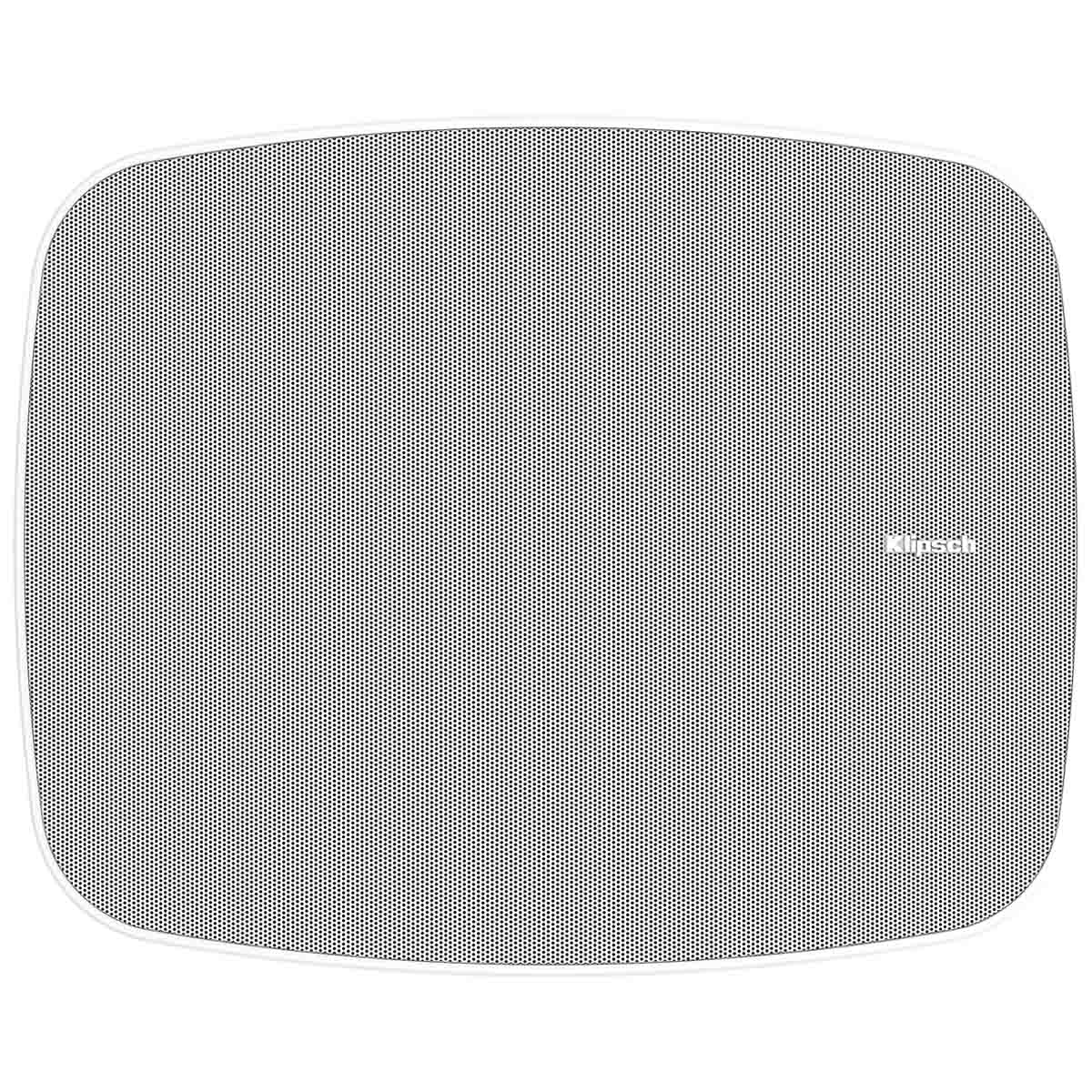

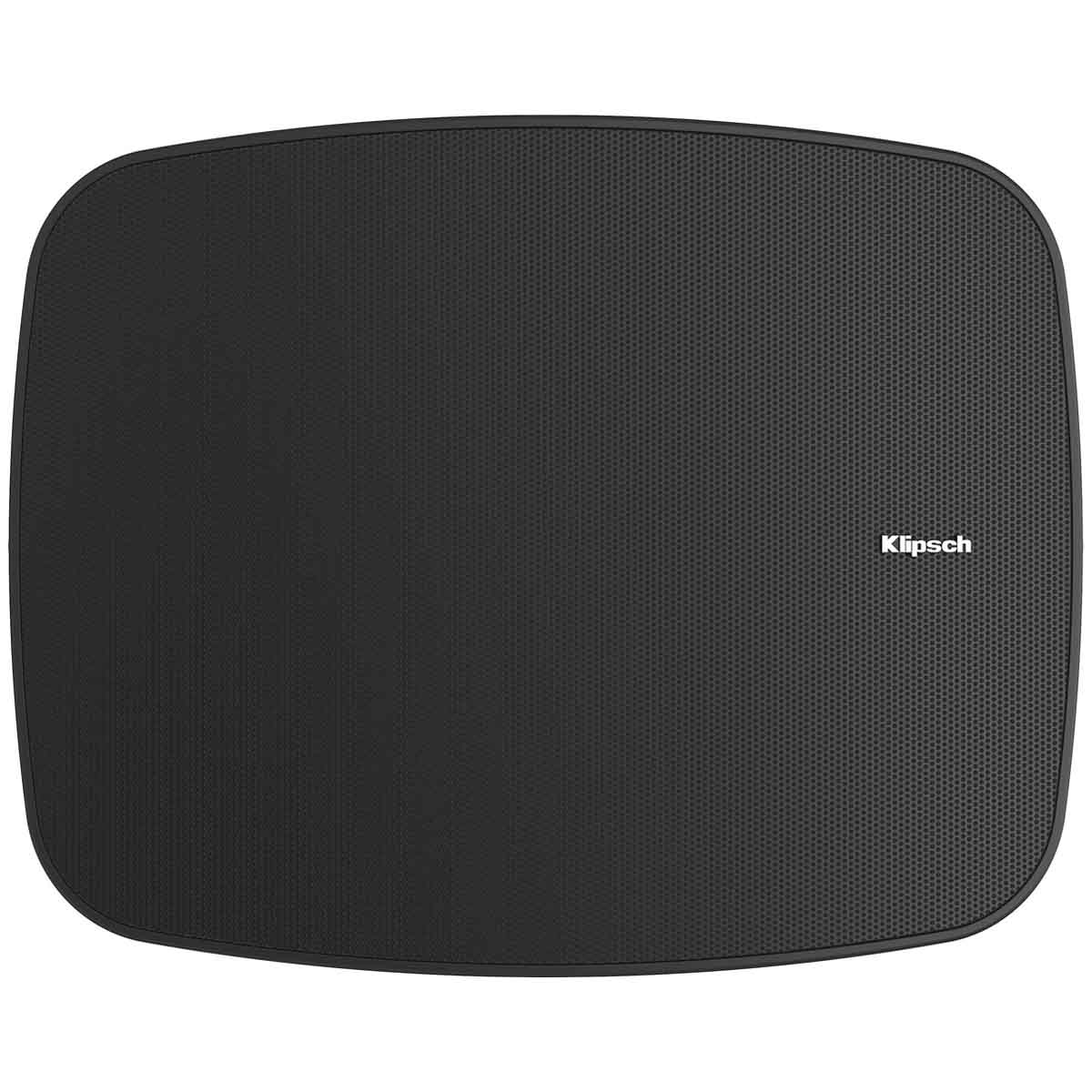

Set Screws On Grille

The included set screws on each grille ensures a secure fit between the speaker and grille, while making sure the grilles stay on the enclosures regardless of the environment.

1” Titanium Compression Driver For Effortless, High-Clarity Detail

Klipsch outperforms the competition with our all-new 1” Titanium-loaded floating driver bridge with wide dispersion phase plug. Using our patented mumps technology, the PSM-525-T gives any space extra-wide coverage while providing even and consistent energy for your project.

Phoenix Connector For Simplified Installation

The PSM-525-T employ a phoenix connector for quick and intuitive connection

Details & Specs

Model PSM-525-T
Frequency Response 58Hz-20kHz +/- 4dB, 48Hz -10dB
Power Handling 65 watts (16.7V) 55Hz-10kHz (260 watts peak)
Calc. Max. Cont. Output 104dB
Sensitivity 89dB
Coverage 100° +/- 20° 1kHz-20kHz
Directivity Index 7dB +/- 1.5dB 1kHz-20kHz
Nominal Impedence 8 ohms 4.3 ohms at 175Hz minimum
Acoustic Crossover 2kHz
Transducers 5.25” woofer
1” titanium compression driver,
on a K-1200M horn/tweeter bridge
Enclosure Material All Weather ABS Plastic, Paintable
IP Rating IPX6
Enclosure Tuning Vented via 3 folded Tractrix ports
Input Connectors 4 pin euro block
Transformer Taps 70V: 30W, 15W, 7.5W, 3.8W
100V: 30W, 7.5W, 3.8W
Bypass position: 8 ohms nominal
Dimensions [With Bracket] 12.13”(309mm) x 9.5”(242mm) x 6.5”(166mm)
[8.38”(213mm)]
Weight 7.75 lbs (3.29kg)
