Klipsch PSM-450-T

4-1/2" Two-Way Surface-Mount Speaker - Each

Klipsch PSM-450-T

4-1/2" Two-Way Surface-Mount Speaker - Each
$215.00
Select Color Options:

Contact Us

Overview

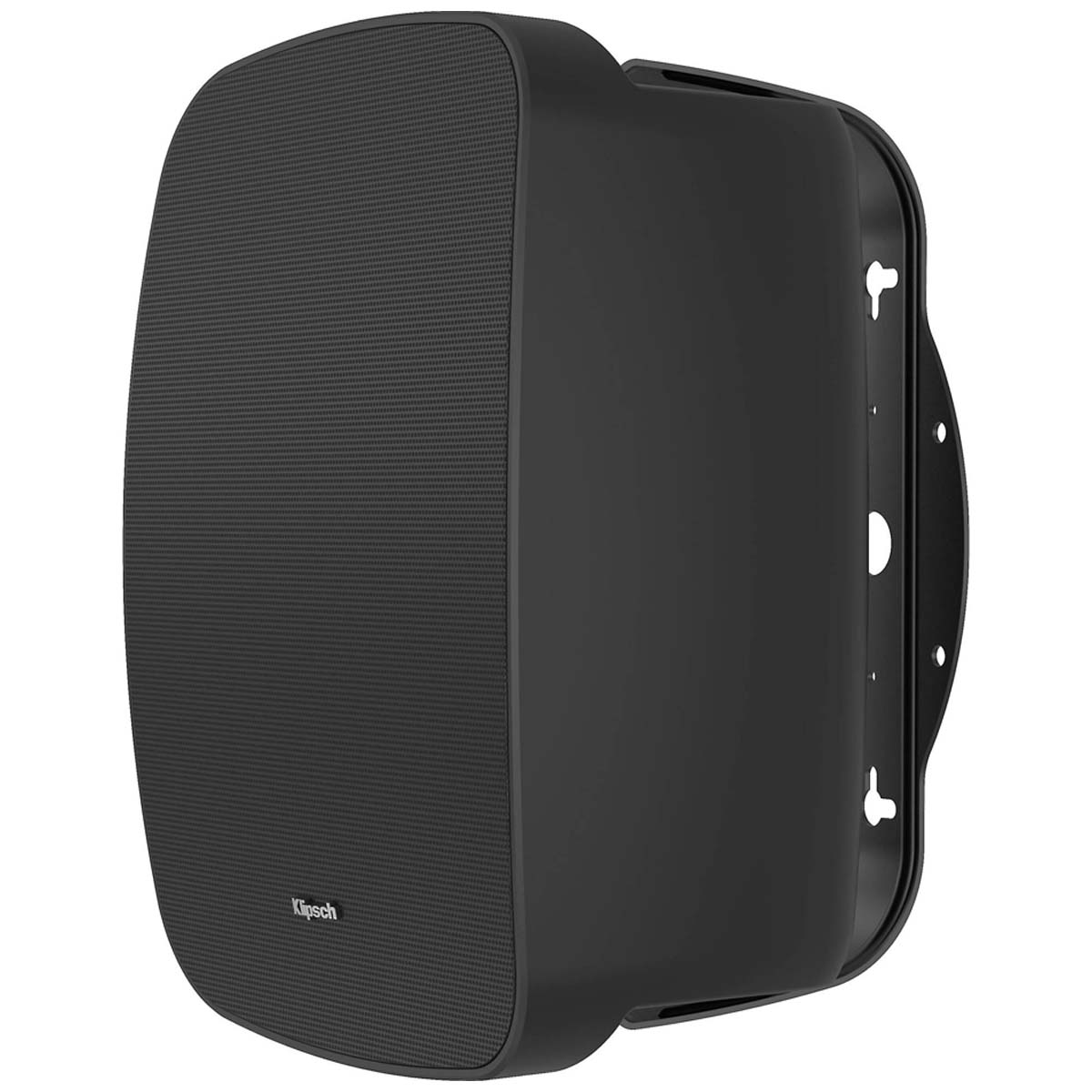

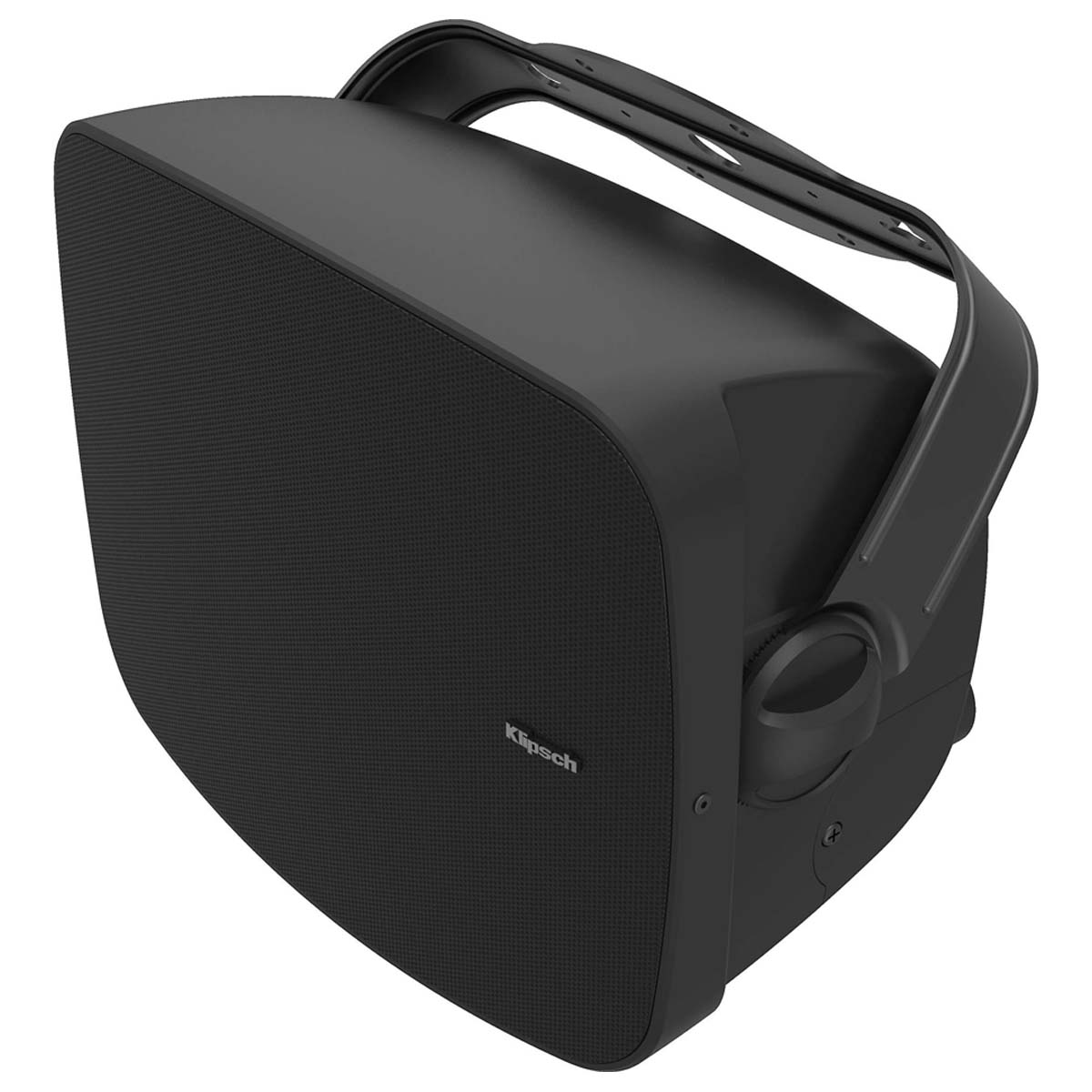

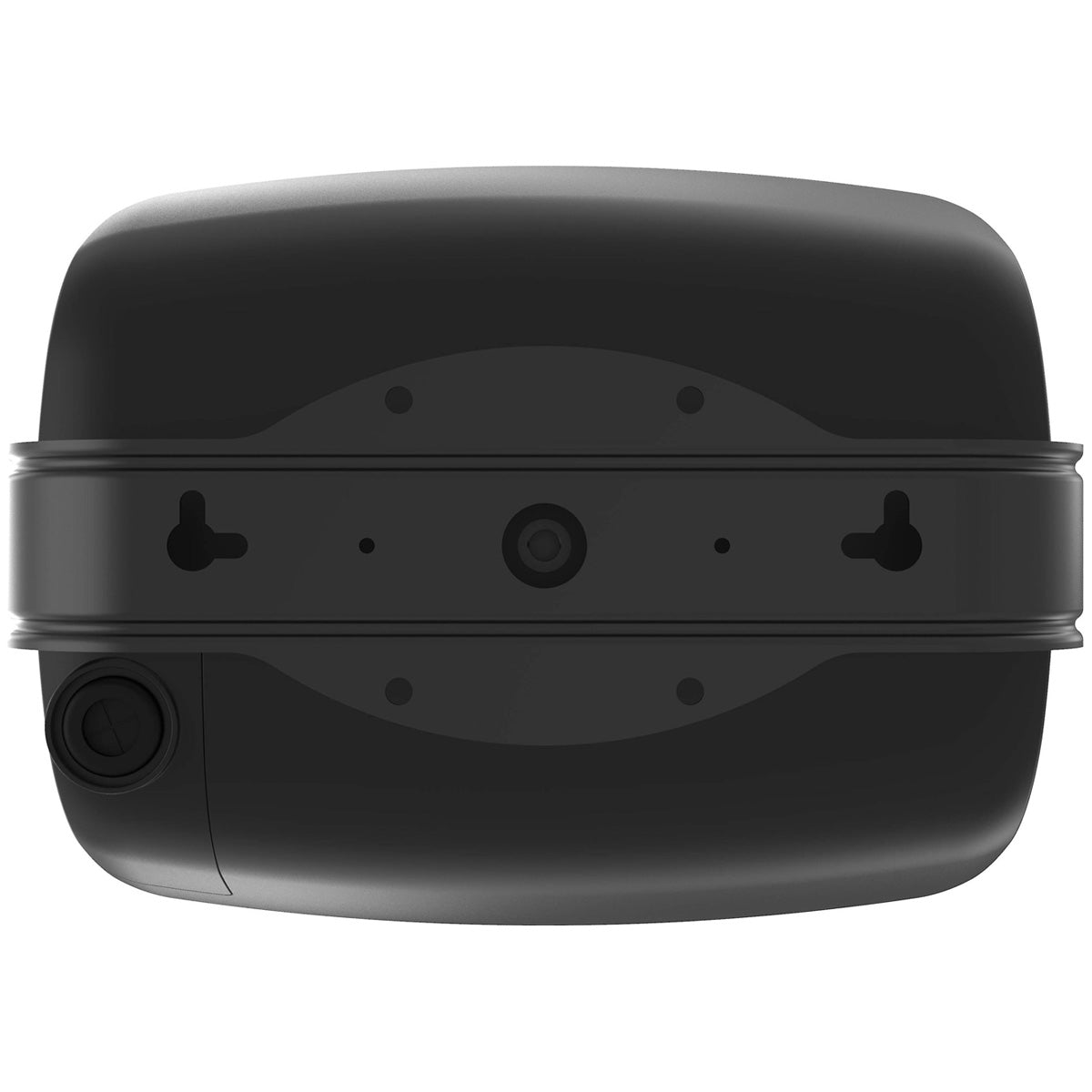

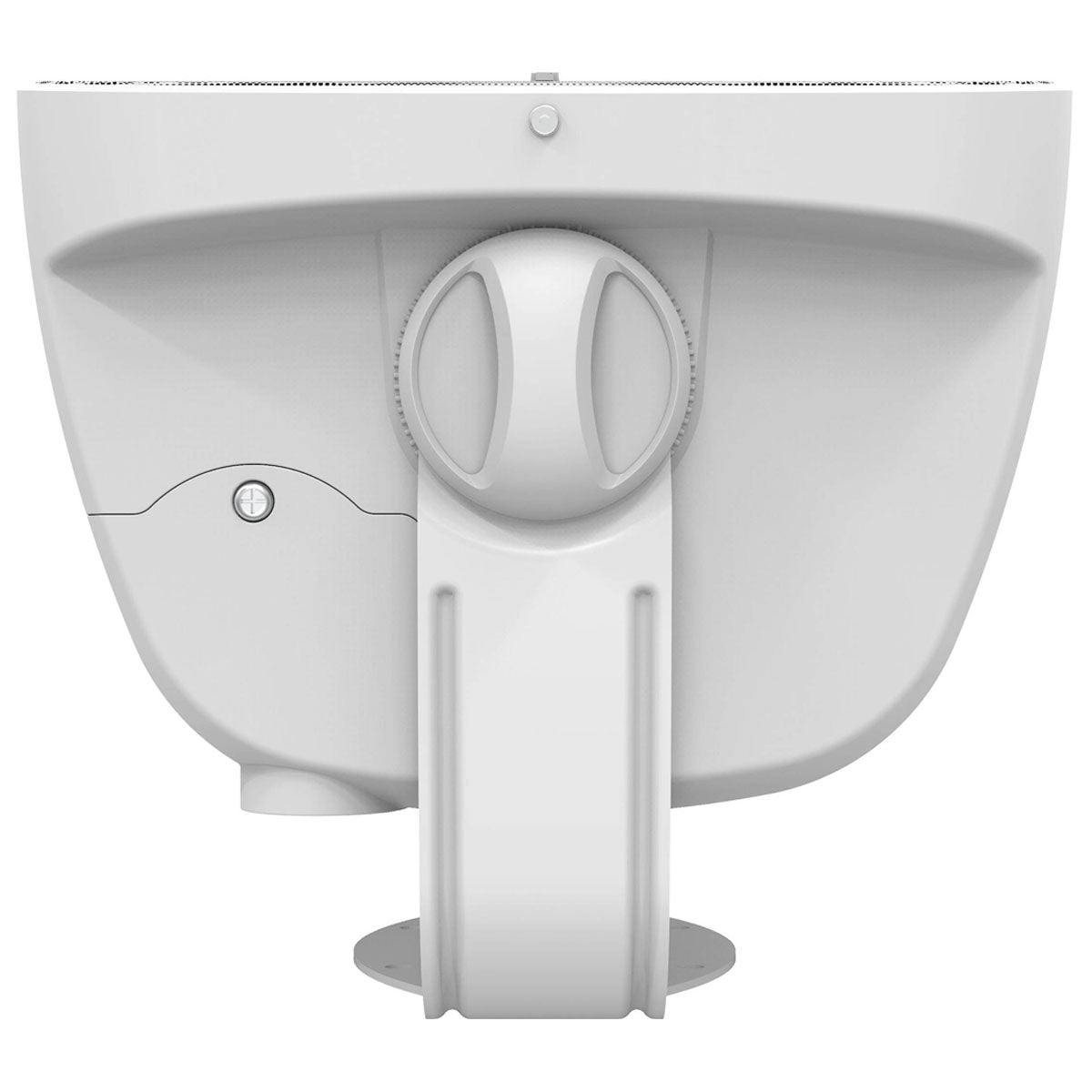

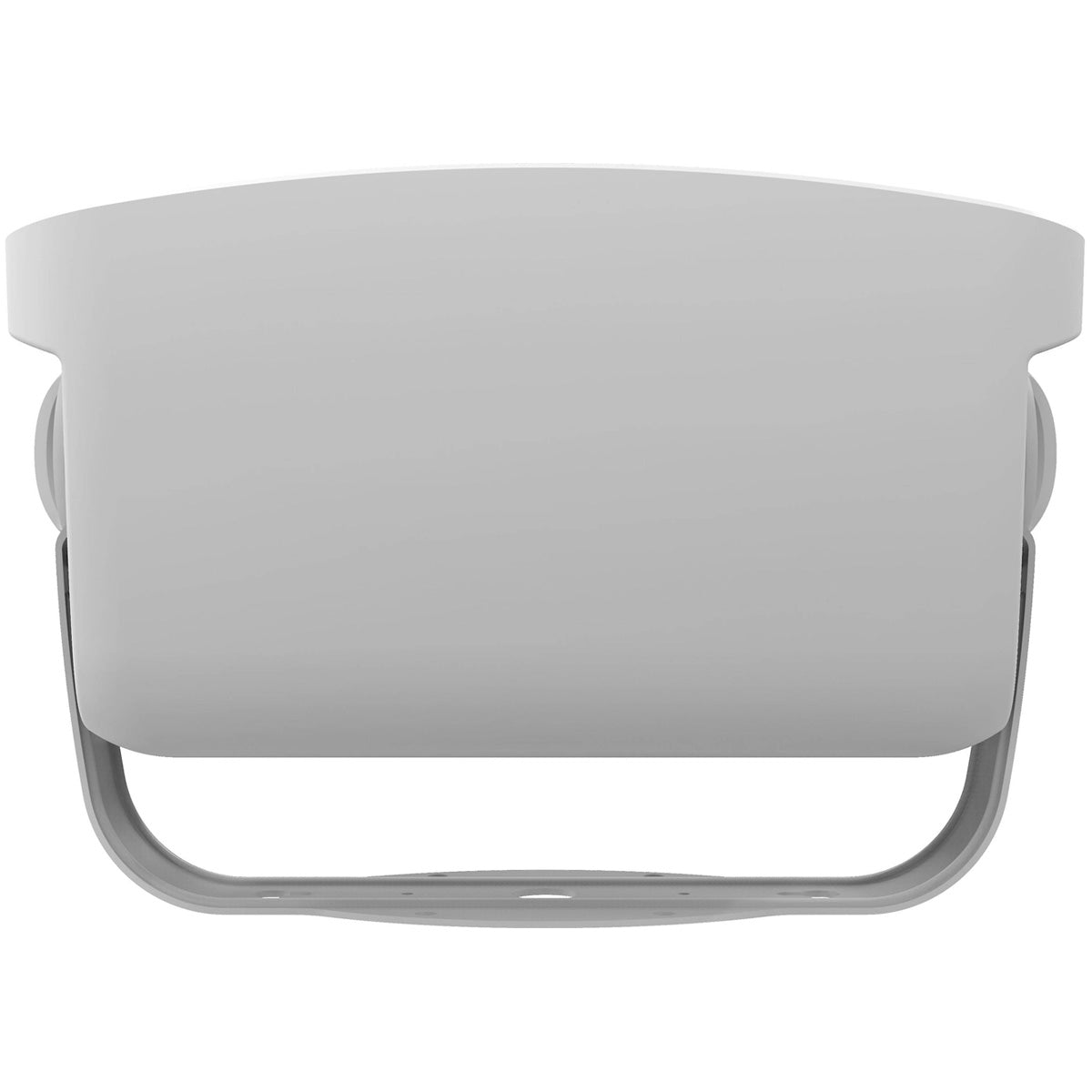

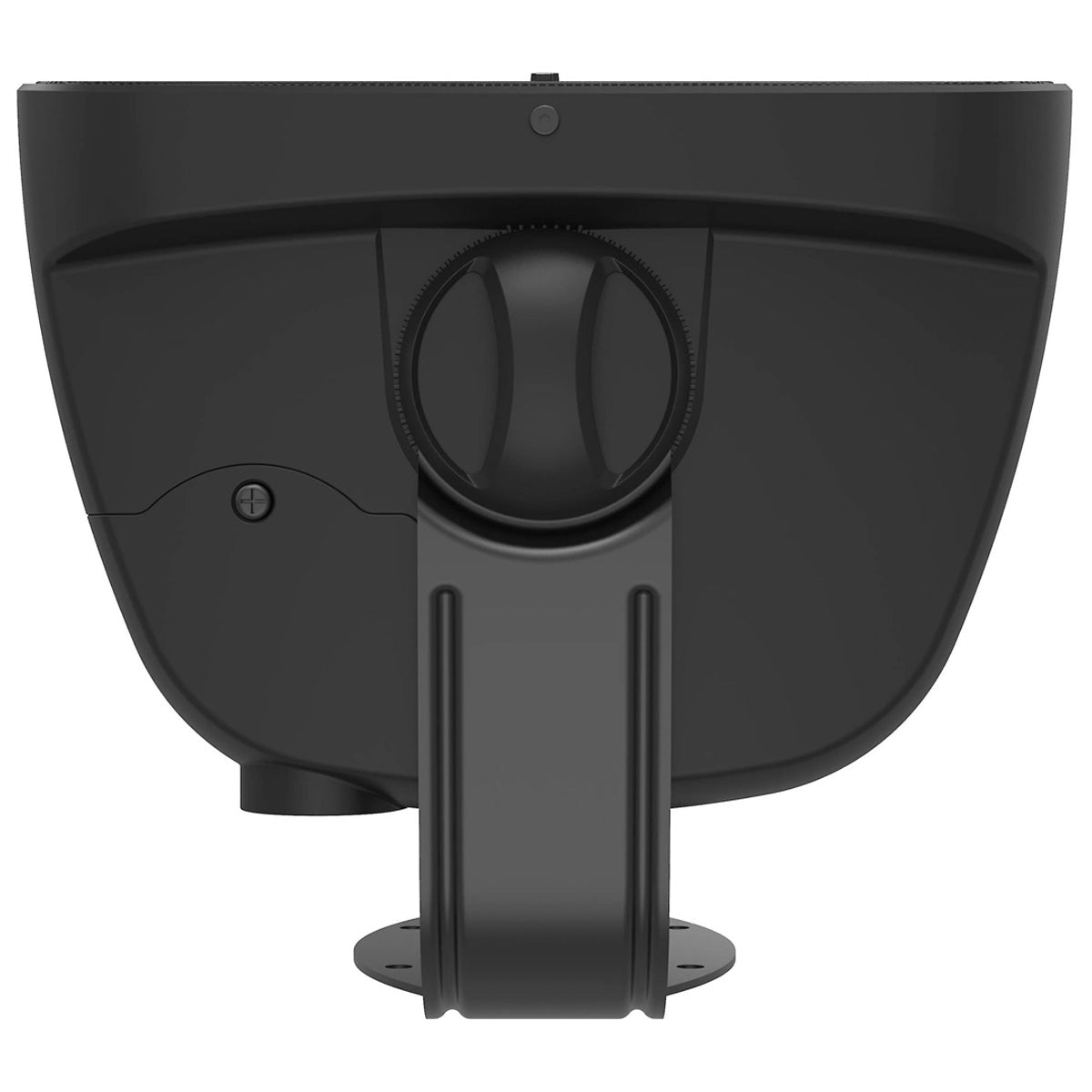

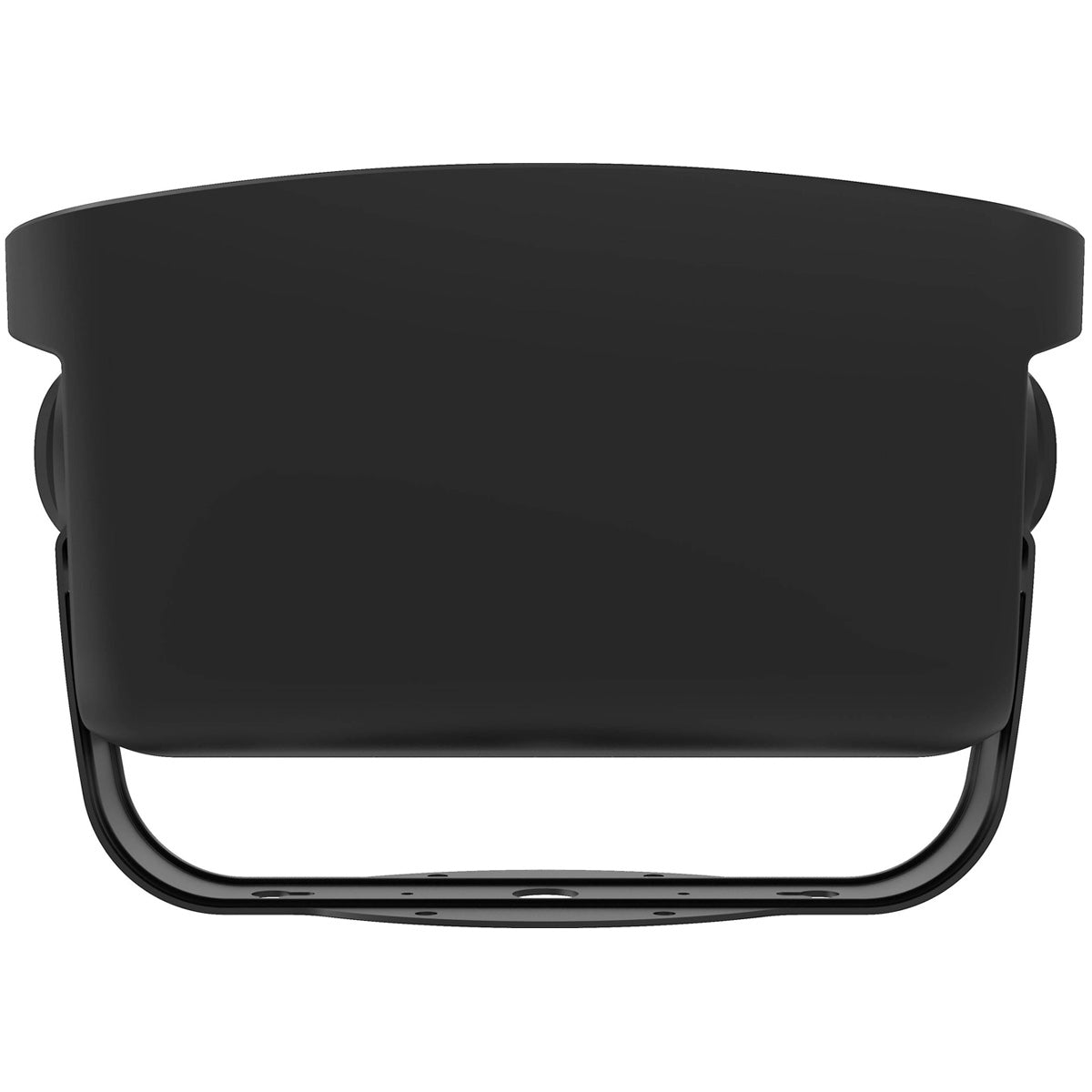

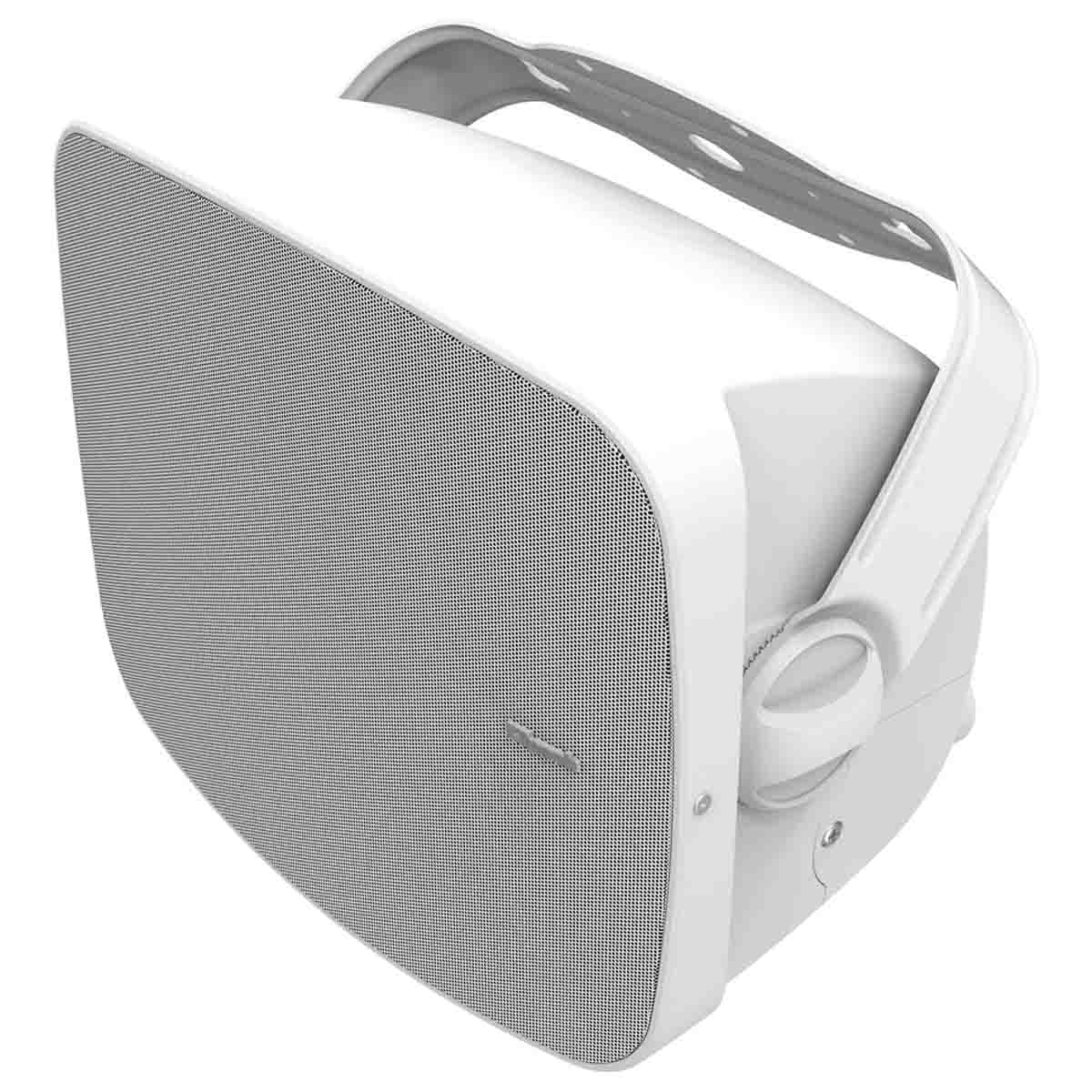

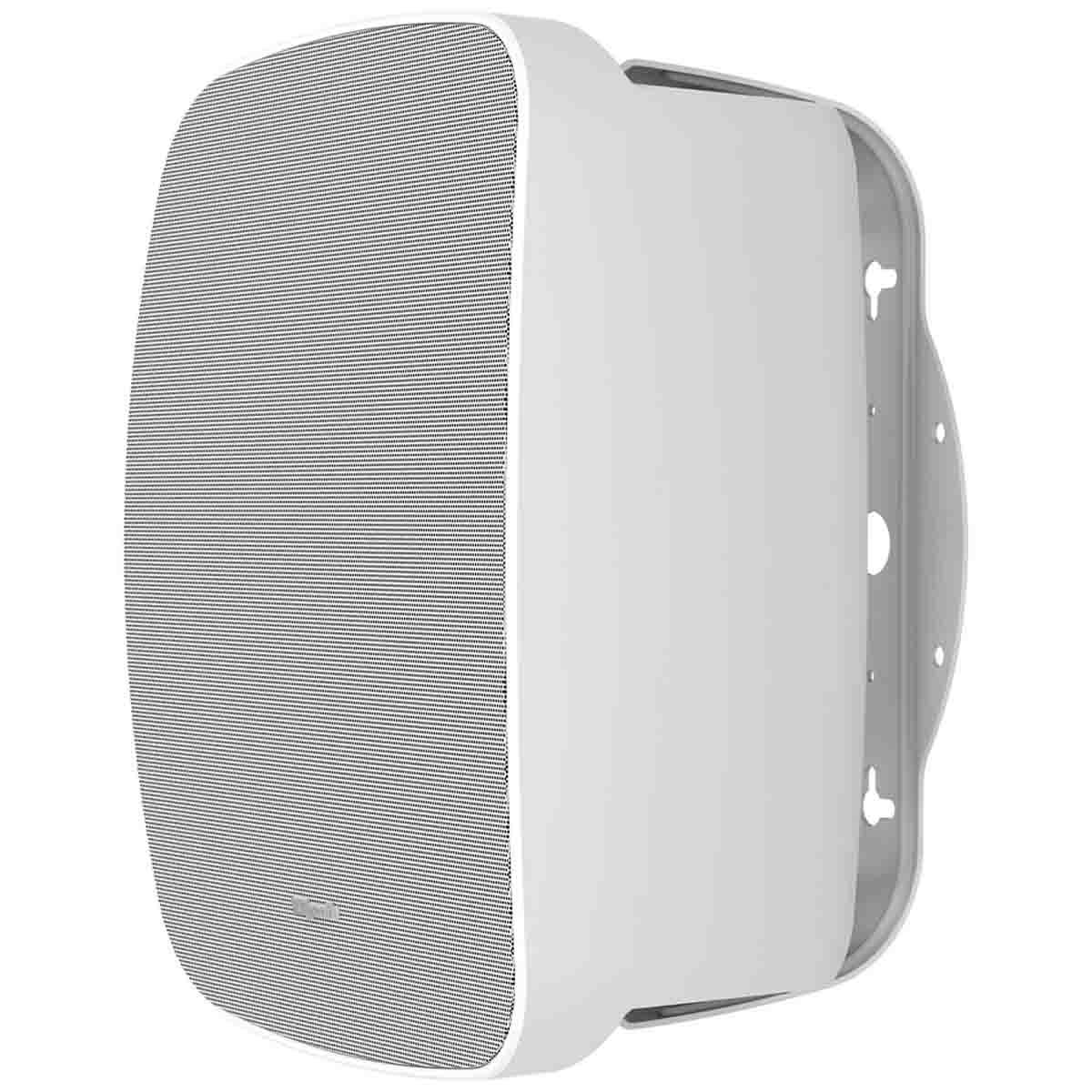

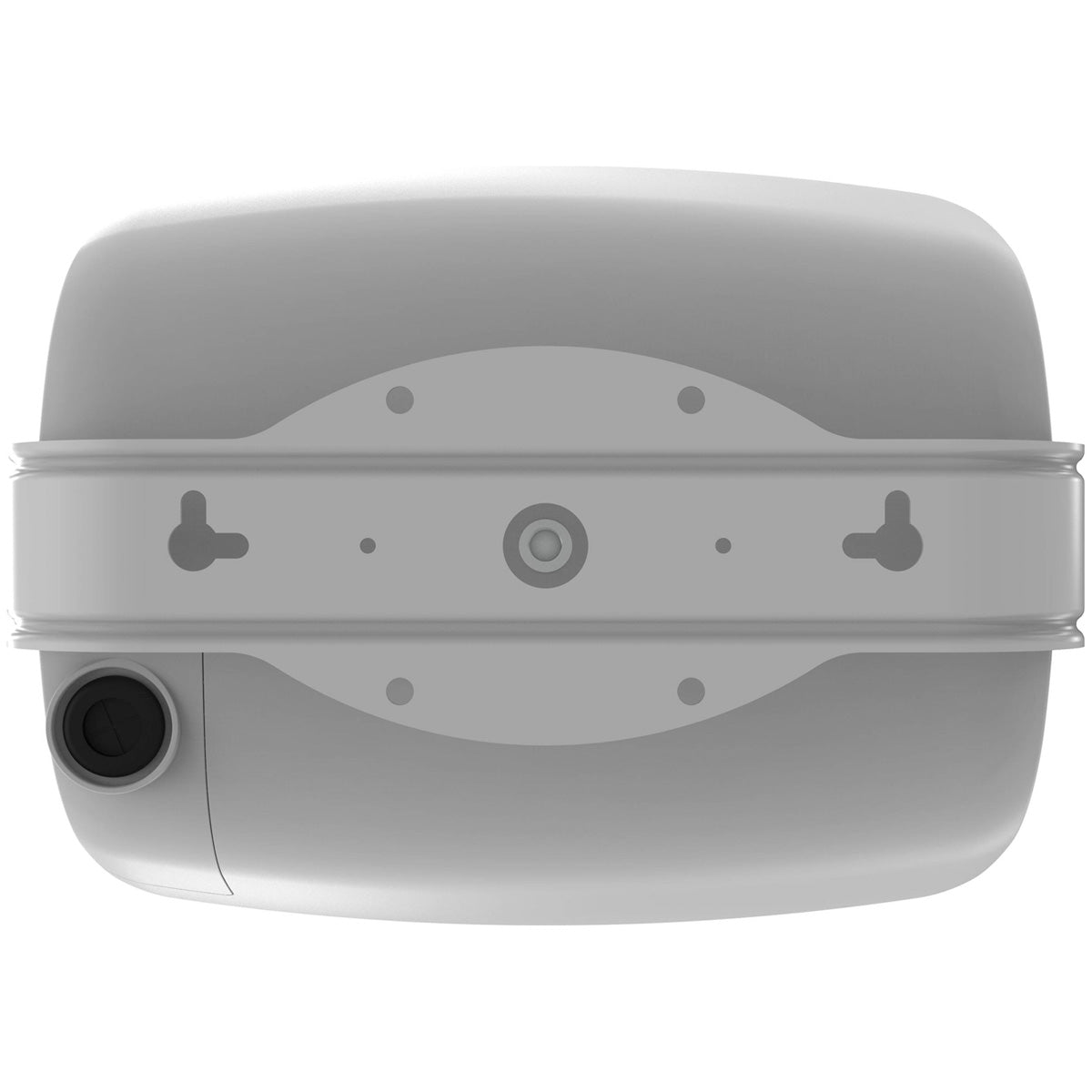

The compact PSM-450-T serves up clear, low-distortion Klipsch sound in a rugged, weather-resistant design. Its 1" titanium compression driver and 4-1/2" woofer combine for clear background music and paging announcements. And an all-new Tractrix® port design allows maximum bass response from minimum cabinet volume. A built-in multi-tap transformer gives you a range of options for distributing power to multiple speakers in a 70- or 100-volt installation. The C-shaped bracket makes for simple surface-mounting and handy angle adjustments.

More Bass, Less Space With The All-New Tractrux® Hyperfold Port™

Klipsch is all about high efficiency, low distortion. Building upon that legacy, we’re introducing the all-new patented Tractrix® Hyperfold Port™ engineered to extend port length for maximum bass power via proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas.

IPX6 Rated For Commercial Environments

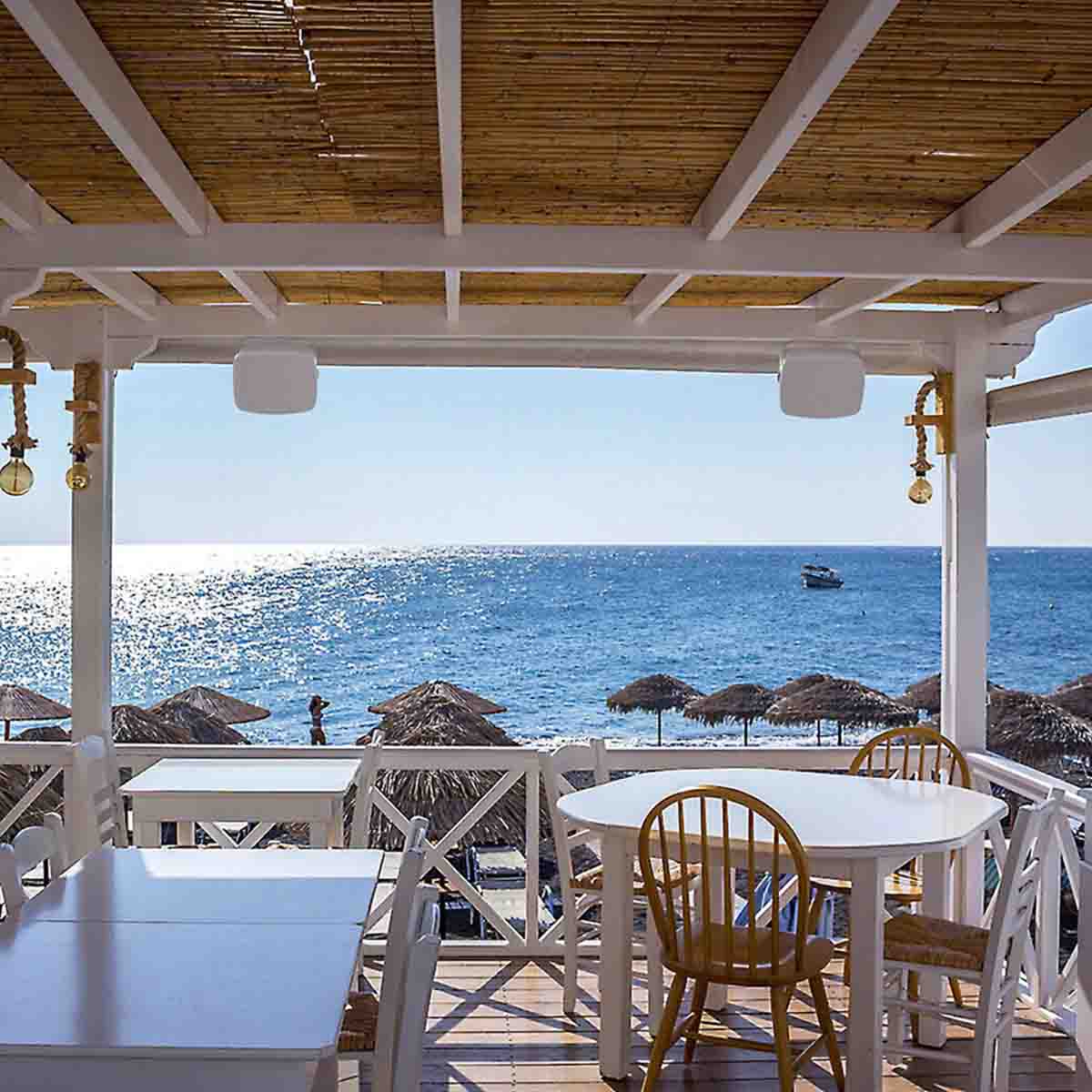

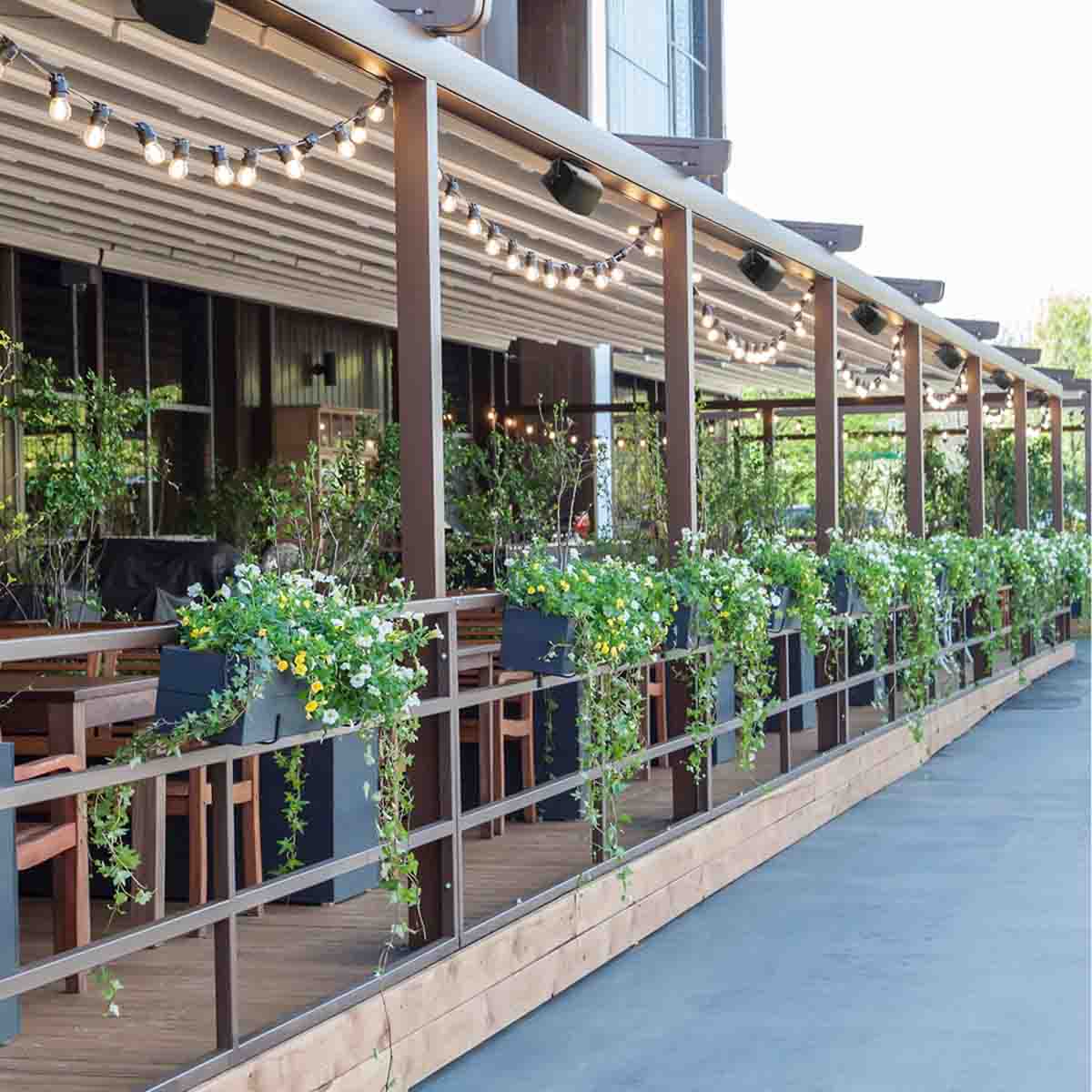

Perfect for indoor and outdoor commercial installations around the globe, the Klipsch PSM-450-T is IPX6 Rated. Your clients will rest easy knowing their new speakers will be waterresistant and rainproof for the most challenging commercial environments.

Multiple Tap Settings

The PSM-450-T includes a multi-tap transformer for 70 or 100 volt installations. There is also a bypass position that allows normal 8 ohm operation for installations that do not require a transformer.

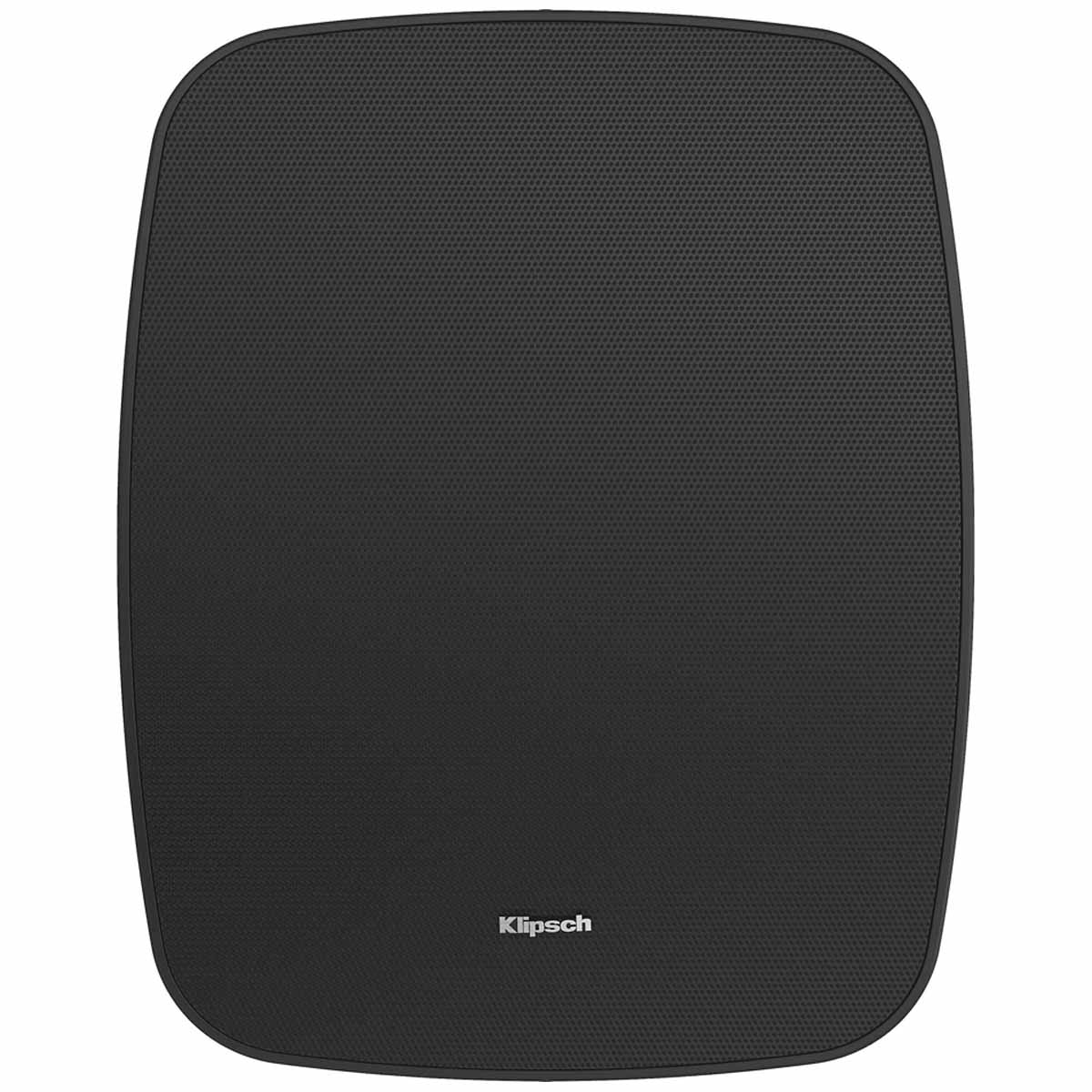

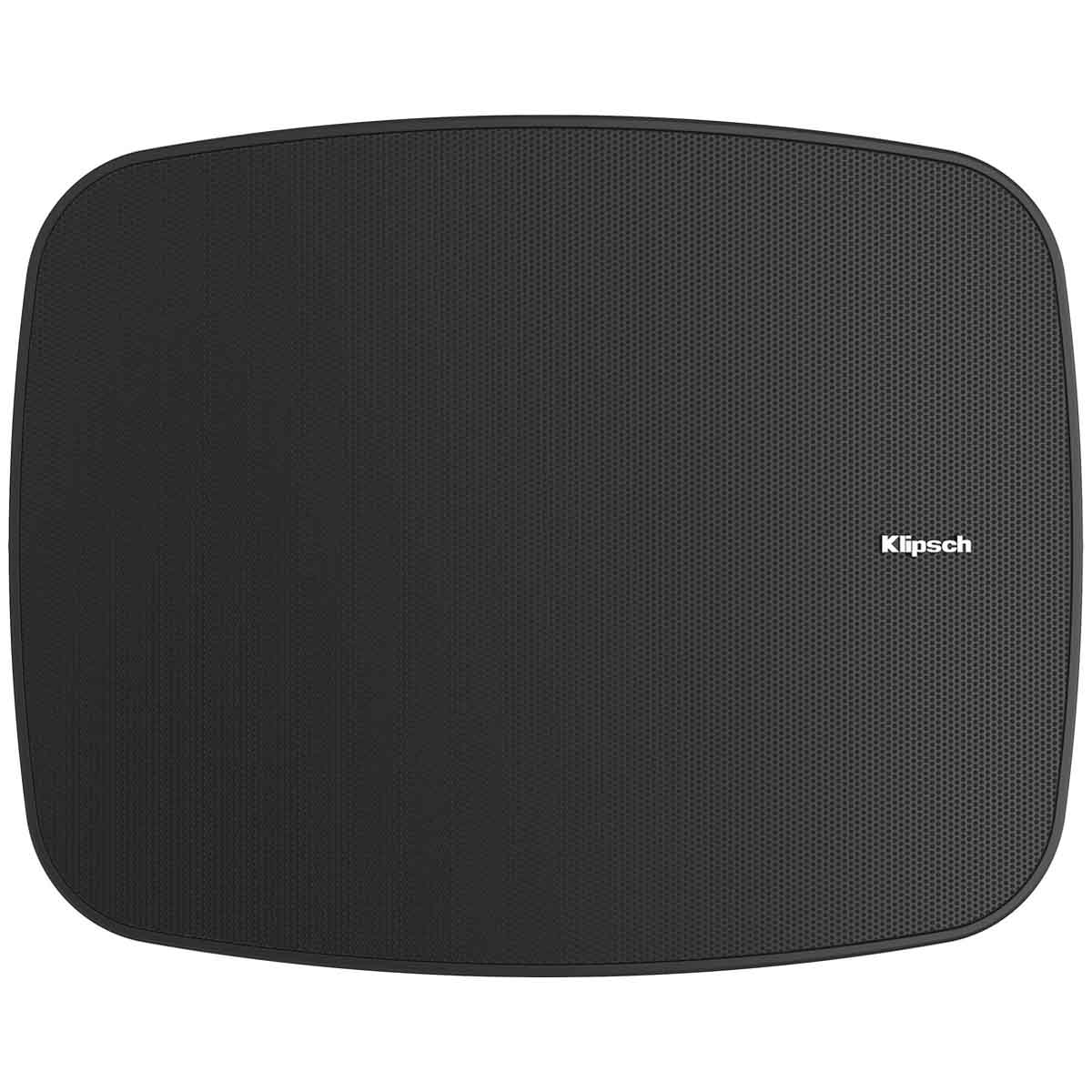

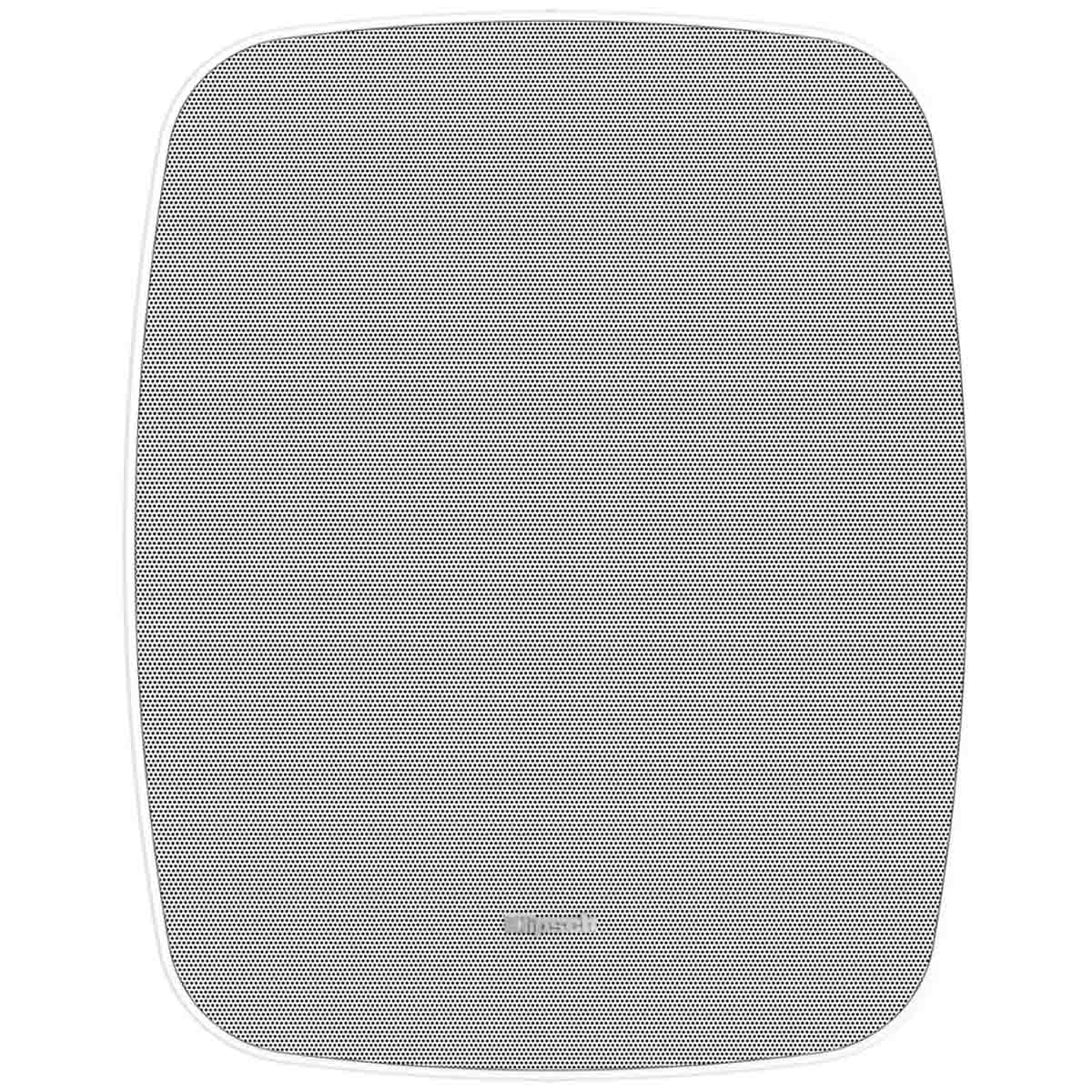

Set Screws On Grille

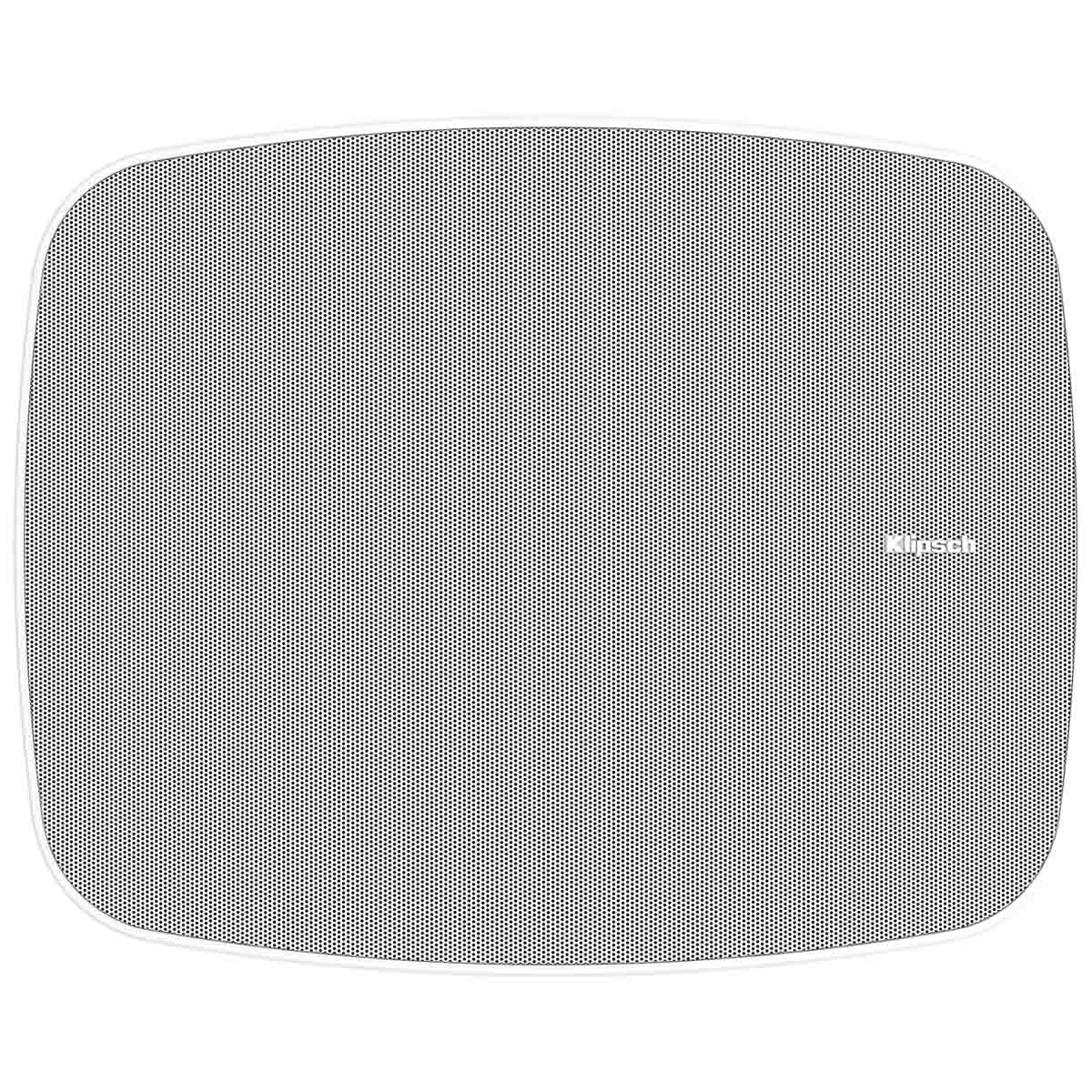

The included set screws on each grille ensures a secure fit between the speaker and grille, while making sure the grilles stay on the enclosures regardless of the environment.

1” Titanium Compression Driver For Effortless, High-Clarity Detail

Klipsch outperforms the competition with our all-new 1” Titanium-loaded floating driver bridge with wide dispersion phase plug. Using our patented mumps technology, the PSM-450-T gives any space extra-wide coverage while providing even and consistent energy for your project.

Phoenix Connector For Simplified Installation

The PSM-450-T employ a phoenix connector for quick and intuitive connection.

Details & Specs


Model PSM-450-T
Frequency Response 60Hz-20kHz +/- 4dB, 50Hz -10dB
Power Handling 50 watts (14.6V) 58Hz-10kHz (200 watts peak)
Calc. Max. Cont. Output 102dB
Sensitivity 88dB
Coverage 90° +/- 40° 1kHz-20kHz
Directivity Index 7dB +/- 3dB 800Hz-20kHz
Nominal Impedance 8 ohms 4.3 ohms at 185Hz minimum
Acoustic Crossover 2kHz
Transducers 4.5” woofer
1” titanium compression driver,
on a K-1500M horn/tweeter bridge
Enclosure Material All Weather ABS Plastic, Paintable
IP Rating IPX6
Enclosure Tuning Vented via 3 folded Tractrix ports
Input Connectors 4 pin euro block
Transformer Taps 70V: 15W, 7.5W, 3.8W, 1.9W
100V: 15W, 7.5W, 3.8W
Bypass position: 8 ohms nominal
Dimensions [With Bracket] 12.13”(309mm) x 9.5”(242mm) x 6.5”(166mm)
[8.38”(213mm)]
Weight 7.25 lbs (3.29kg)
