Klipsch Klipschorn 80th Anniversary

Limited Edition Two-Way Loudspeaker - Pair

Klipsch Klipschorn 80th Anniversary

Limited Edition Two-Way Loudspeaker - Pair
$24,998.00
Pre-Order: Shipping in November
Contact Us

Overview

Hand built in book matched Tigerwood veneer, the Klipschorn 80th Anniversary two way loudspeaker pairs a 15 inch K 33 E woofer with a 4 inch compression driver. An exceptional foundation for an active DSP sound system setup featuring adjustable trim controls.

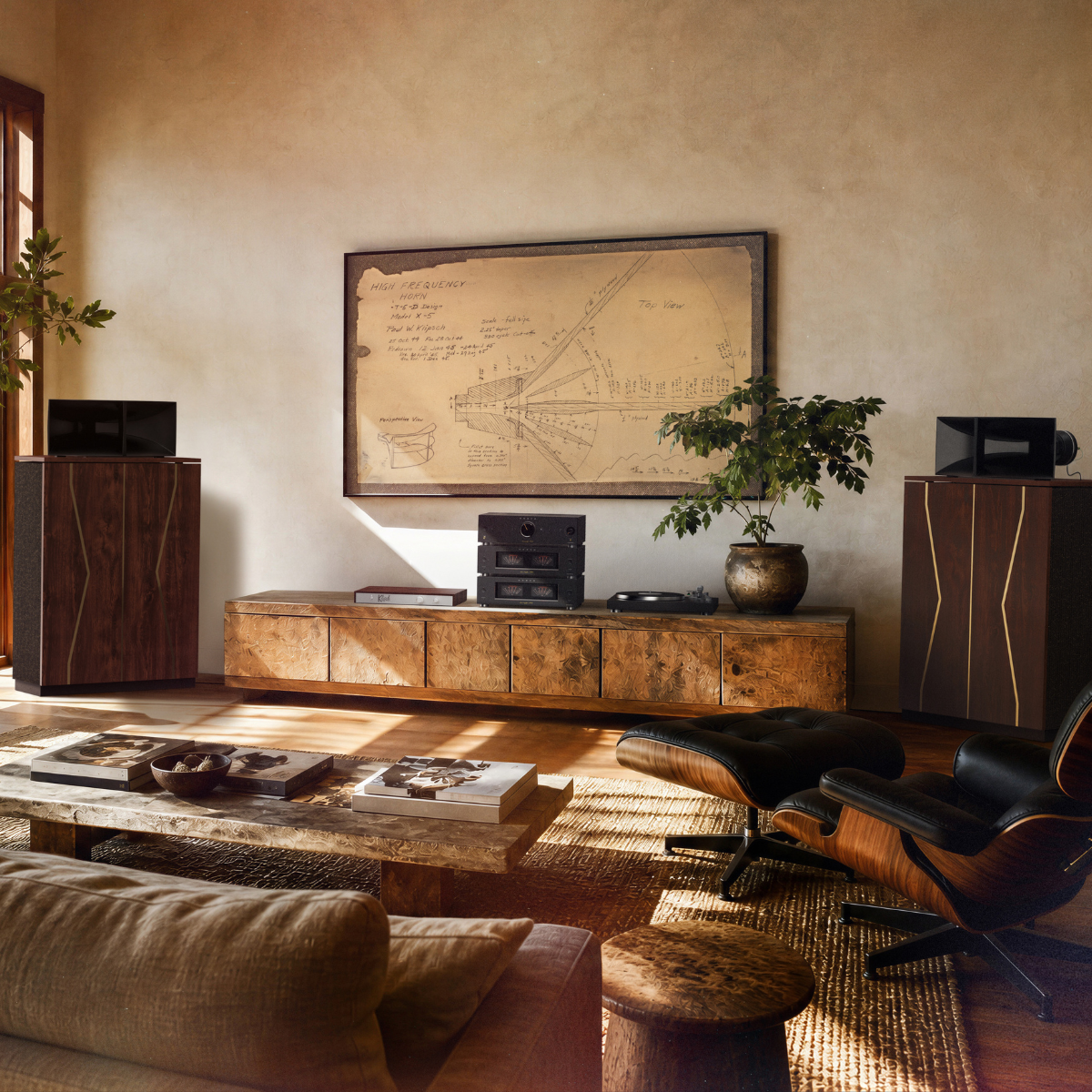

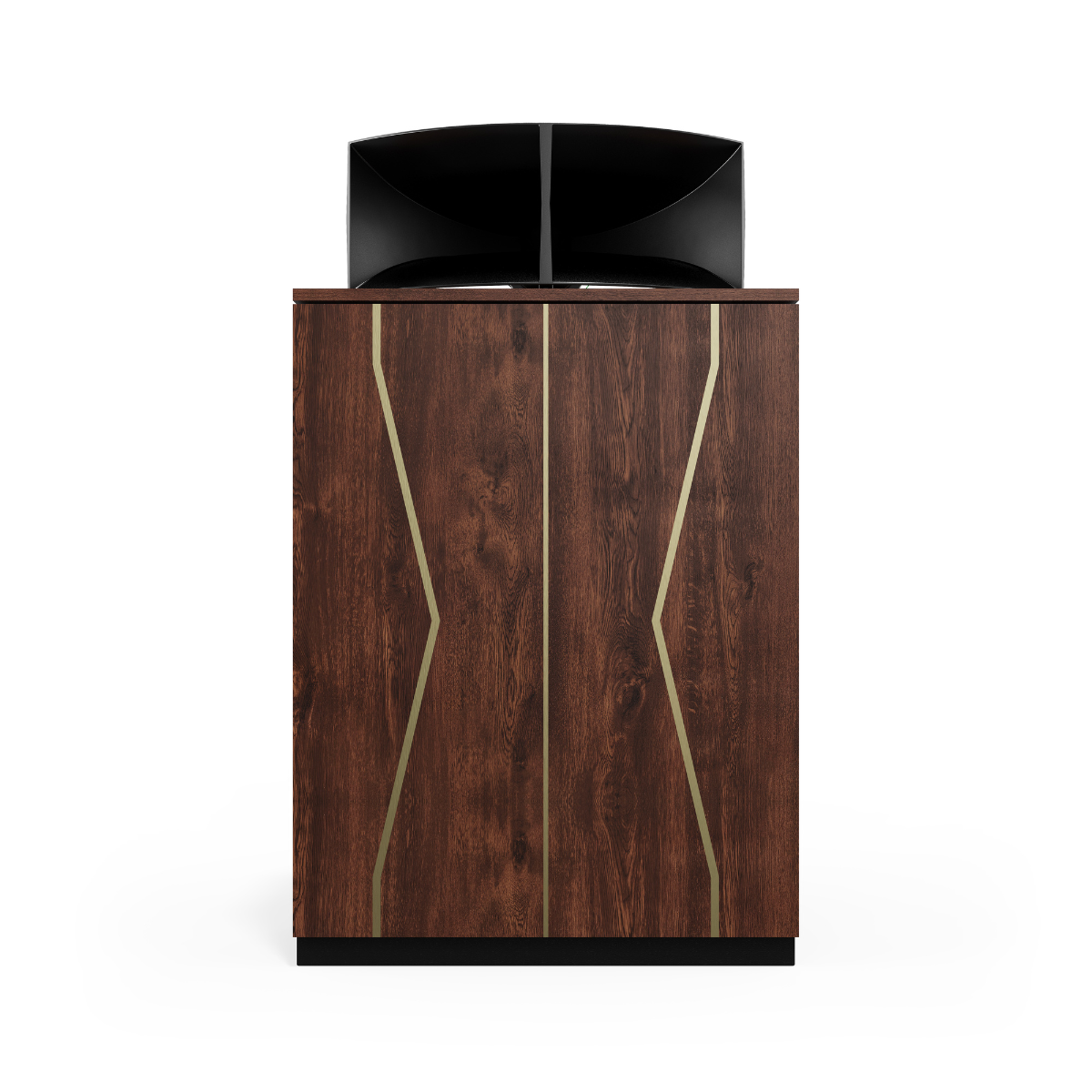

The Limited Edition 80th Anniversary Klipschorn Two Way Loudspeaker builds on Paul W. Klipsch's original folded horn design with updated acoustic components. Each speaker is hand built in Hope and finished with book matched Tigerwood veneer. The cabinet is fully enclosed and includes brass inlay accents and a sandcast aluminum horn. When placed as a pair, the speakers create a mirrored look.

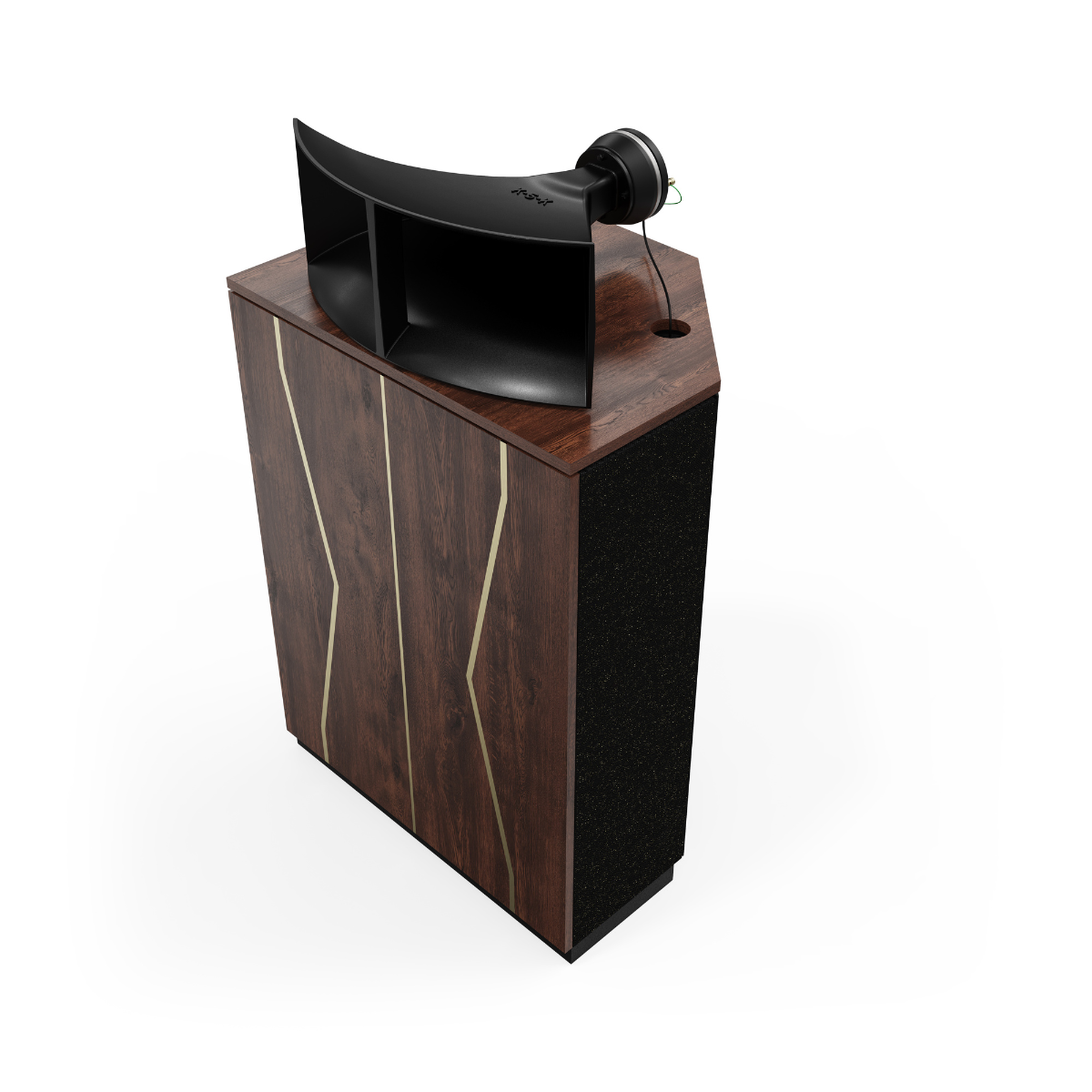

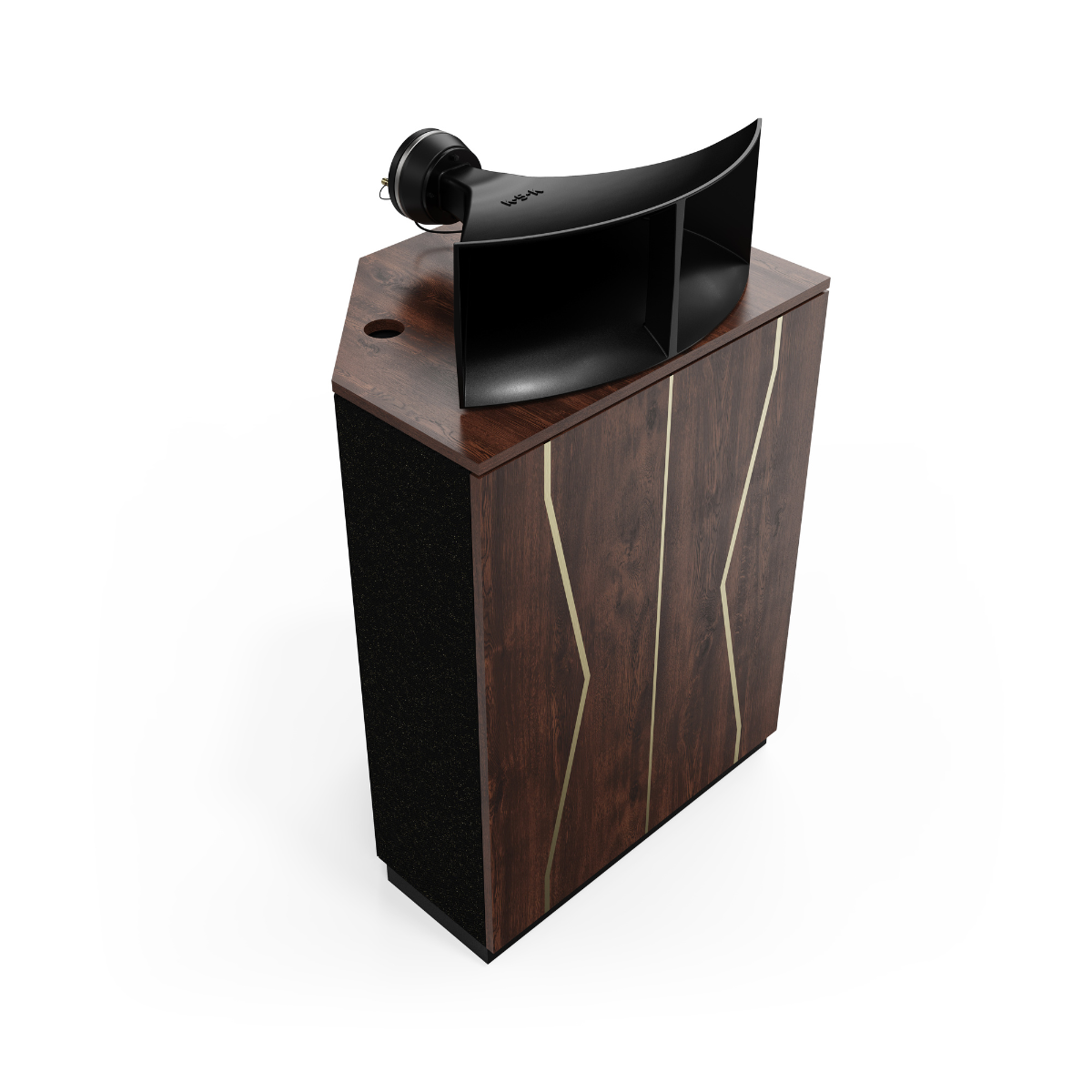

High frequencies are handled by a K 5 K horn with a two inch throat and a four inch compression driver that uses the same motor structure found in the Klipsch Jubilee. Bass comes from a 15 inch K 33 E woofer inside a fully enclosed cabinet. The folded horn layout helps improve efficiency and extends the bass response.

An external active DSP crossover network manages the system signal. It comes in a Tigerwood veneer chassis that fits on a shelf or in a rack. The crossover adjusts phase, time delay, gain, and EQ, and includes trim controls for both low and high frequencies to help match the sound to the room. Each pair includes a 180 gram vinyl LP of archival tape recordings and a membership to the Klipsch Museum of Audio History.

Details & Specs

Model Klipsch Klipschorn 80th Anniversary
Frequency Response 34 Hz - 20kHz (±2.5dB), 1/8 space anechoic, -3dB
Frequency Response (f10) 28 Hz - 21kHz (±2.5dB), 1/8 space anechoic, -10dB
Power Handling 100 watts / 400 watts
Maximum SPL 120dB, pink noise, 1m, 20V, 34Hz-10kHz
Sensitivity 103dB, Pink noise, 2.83V, 1m, 34Hz-10kHz
Crossover Point 350Hz
Horizontal Coverage Pattern 90°, ±30°, 350Hz to 20kHz
Vertical Coverage Pattern 60°, ±30°, 1.4kHz to 15kHz
Nominal Impedance 8 ohms (4 ohm minimum at 50Hz)
Transducers K-331-E 15” Woofer; K-692 HF Driver with K-5-K Al Horn
Enclosure Horn Loaded System
Enclosure Material 19mm Medium Density Fiberboard with real wood veneer
Terminals 5-way binding posts
Dimensions (W × H × D) 31.50” × 52.0” × 24.0”
(80 × 132 × 61 cm)
Net Weight 145 lbs (65.7 kg)
Shipping Weight 160 lbs (72.5 kg)
