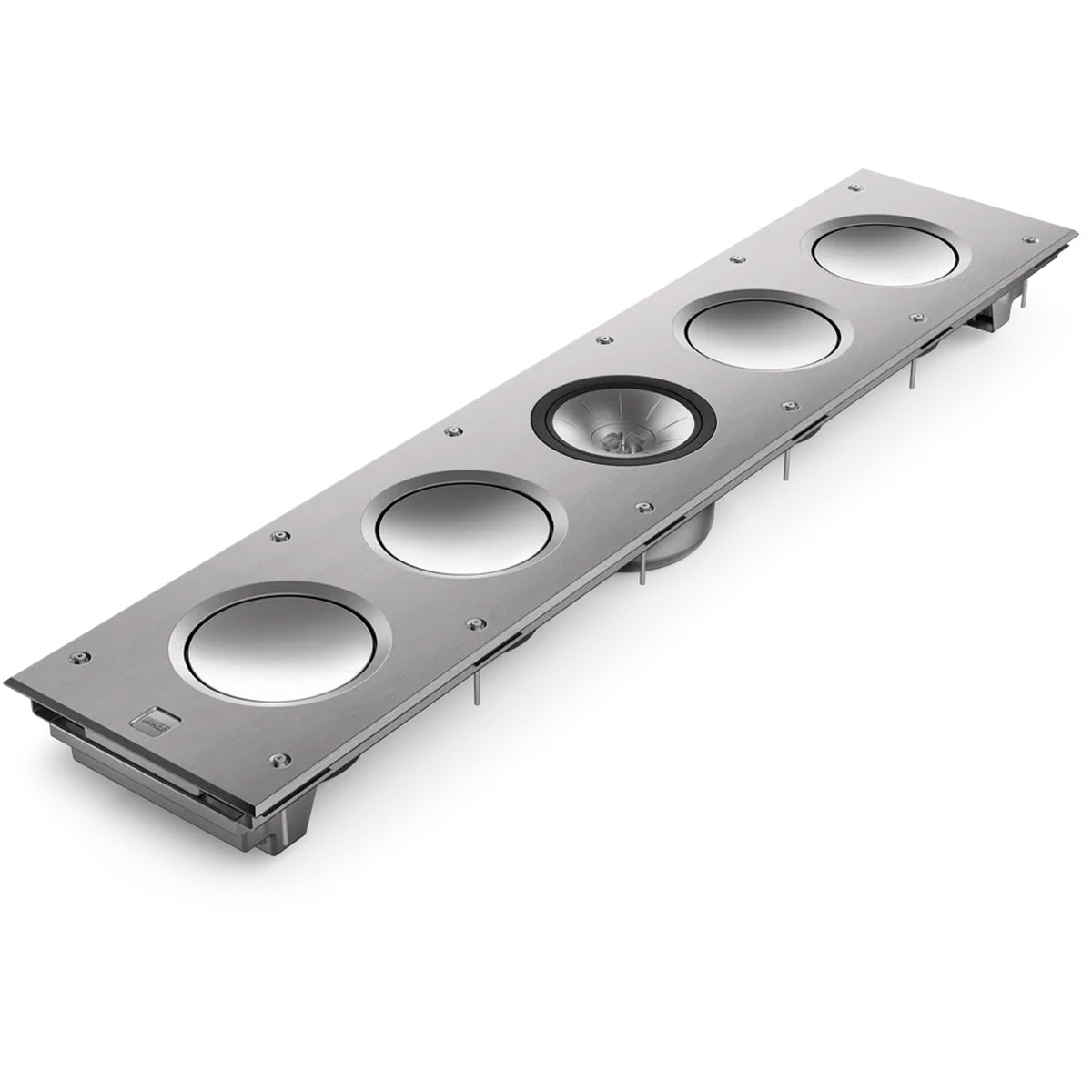

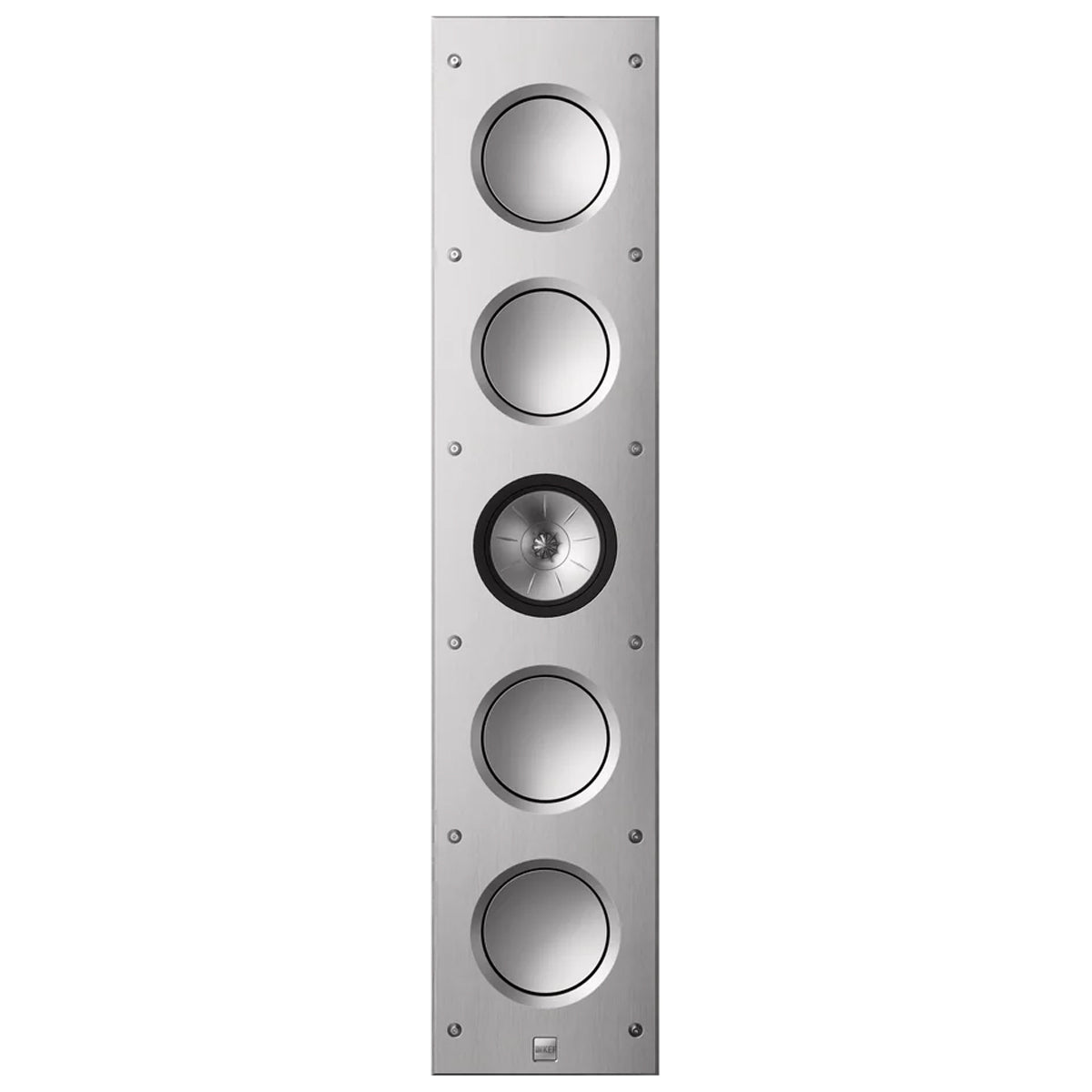

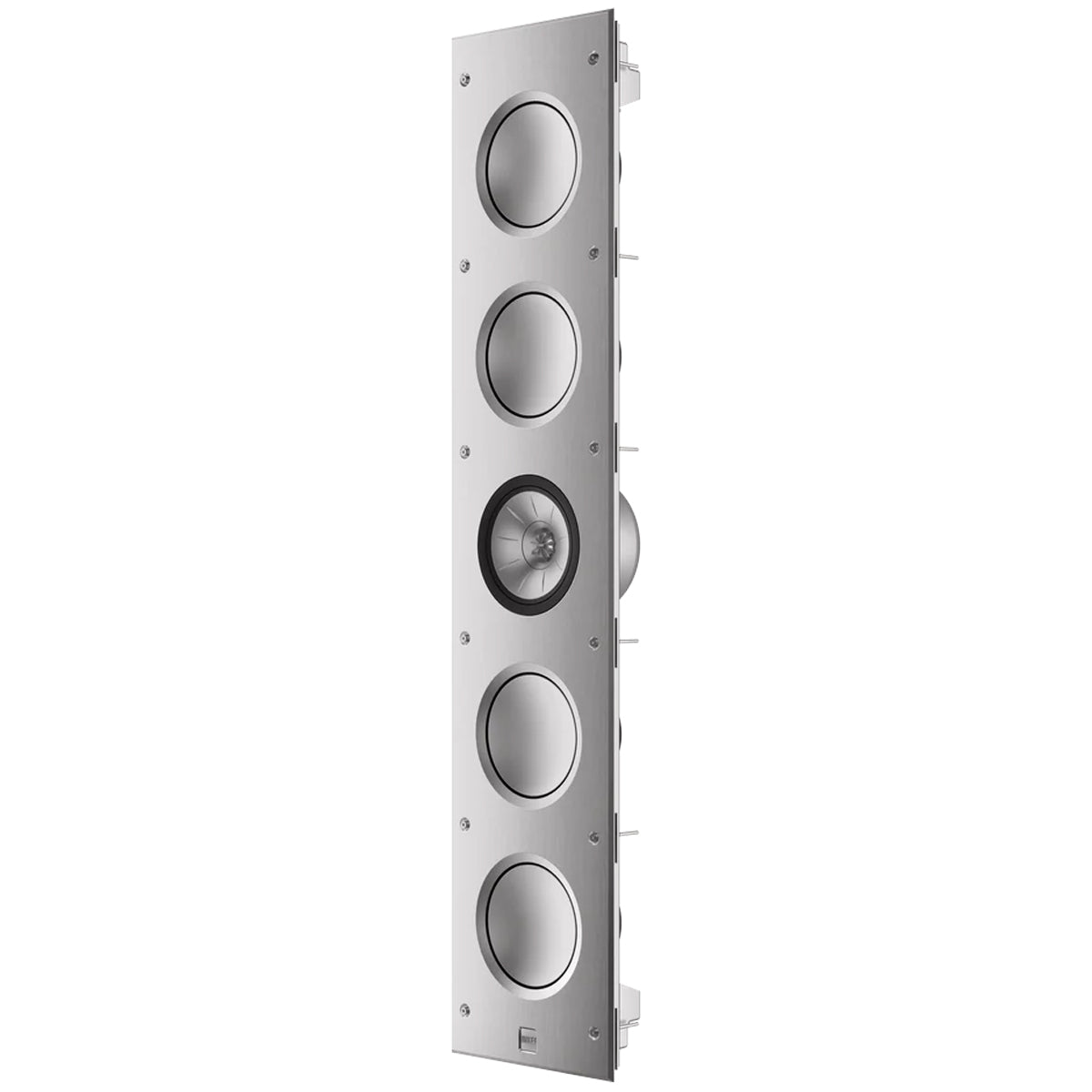

KEF Ci5160RLM-THX

Extreme In-Wall THX Ultra2 Speaker - Silver - Each

KEF Ci5160RLM-THX

Extreme In-Wall THX Ultra2 Speaker - Silver - Each
$3,299.99
In Stock: Free 2-Day Shipping

Overview

The Ci5160RLM-THX is an in-wall architectural speaker featuring the 12th generation Uni-Q driver array with KEF’s groundbreaking Metamaterial Absorption Technology (MAT), refined to maximize its full potential and proudly carries the THX Certified Ultra designation. Together with four 6.5” hybrid aluminum bass drivers, it delivers the most dynamic audio experience for home theaters.

Metamaterial Absorption Technology

Absorbs 99% of the unwanted sound.

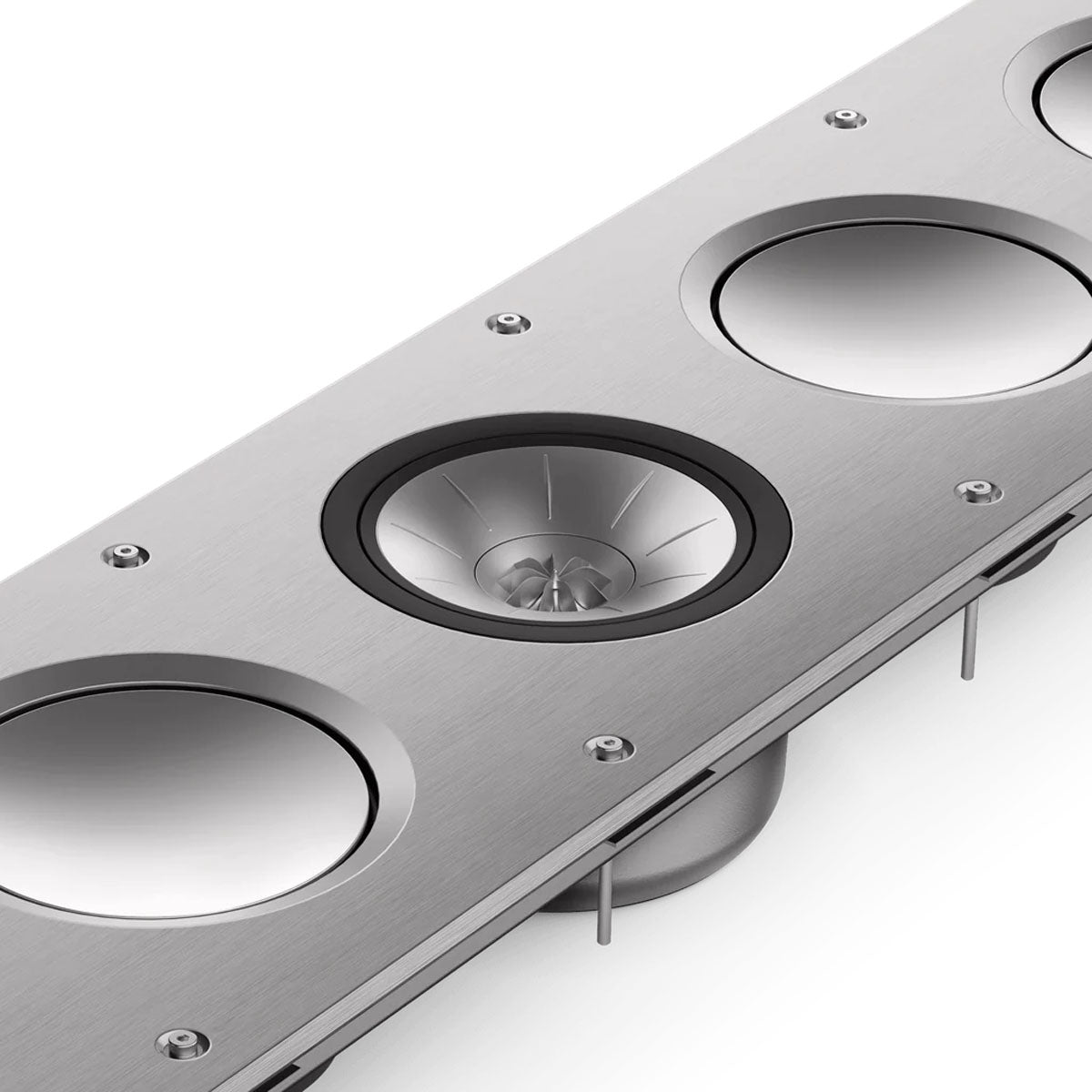

Uni-Q

Acts as a single point source to enlarge the ‘sweet spot’ and disperse sound more evenly.

THX Certified

Ci5160RLM-THX delivers ultra-high performance with true theater sound quality for large theaters and living rooms and it is THX Certified Ultra.

True bass definition

Four hybrid aluminum bass drivers for tight, deep, controlled bass.

Total attention to detail

The 5.5 mm thick precision-machined aluminum baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best.

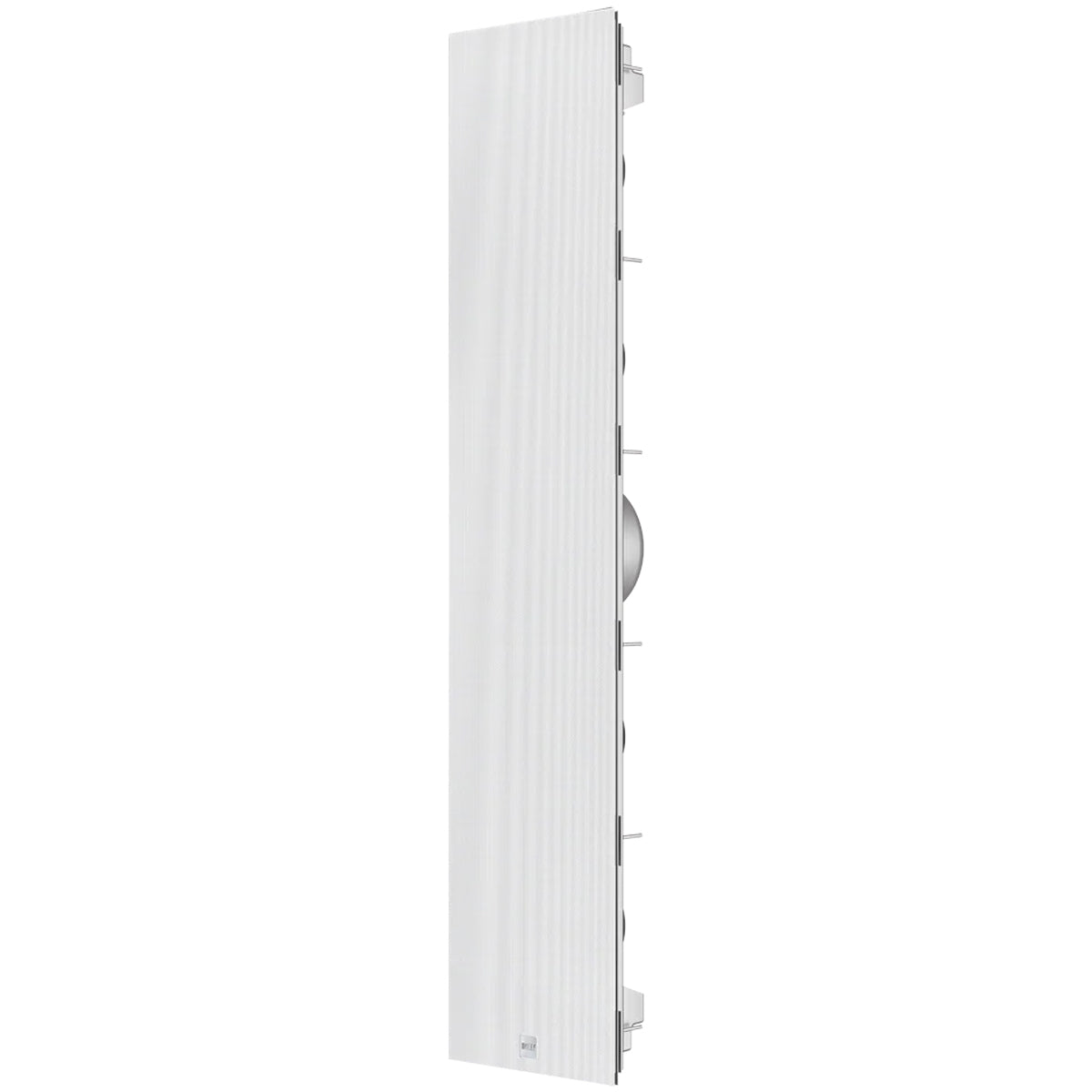

Hide your speakers, not your sound

The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment.

Finished to perfection

Available in Aluminum Silver, including tone matched Uni-Q and bass drivers.

Details & Specs

Model Ci5160RLM-THX
Series R Series
Nominal Impedance
Sensitivity (2.83V/1m) 89dB
Frequency Response (±6 dB) open-backed 40 – 28kHz
Frequency Range (–10 dB) 32 – 45kHz
Nominal Coverage (degrees) 150°
Crossover Frequency 640Hz, 2.6kHz
Drive Units LF: 4 × 160mm (6.5in.)
MF: 160mm (6.5in.) Uni-Q
HF: 25mm (1in.) vented aluminum dome with Metamaterial Absorption Technology1
Recommended Amplifier Power 50 – 350 W
Recommended High-pass Filter (Hz) 35Hz – 80Hz
Product External Dimensions (H × W × D) 1070 × 230 × 105.7 mm (42.13 × 9.06 × 4.16 in.)
Cut-out Dimensions (H × W) 1052 × 209 mm (41.42 × 8.23 in.)
Net Weight 18.7kg (41.1 lbs.)
Mounting Depth From Surface 99mm (3.9 in.)
Optional Rough-In Frame RIF5160L
Ideal Rear Volume (L) 90
Minimum Rear Volume (L) 40
Max SPL (dB) 110dB
Certification THX® Certified Ultra
Wall Thickness (Maximum) 40mm (1.58 in.)
Wall Thickness (Minimum) 6mm (0.24 in.)
