Item #TE300

TE300

Extendable Tilting TV Wall Mount for 43” to 90” TVs
Item #TE300

TE300

Extendable Tilting TV Wall Mount for 43” to 90” TVs
$129.99
More on the way! Order now to reserve risk free.

Overview

Supporting 43 to 90 inch displays up to 150 pounds, this tilting mount pulls six inches from the wall to make cable connection simple. With 12 degrees of tilt and 8 degrees of left or right panning, it easily fixes glare issues in commercial audio visual solutions.

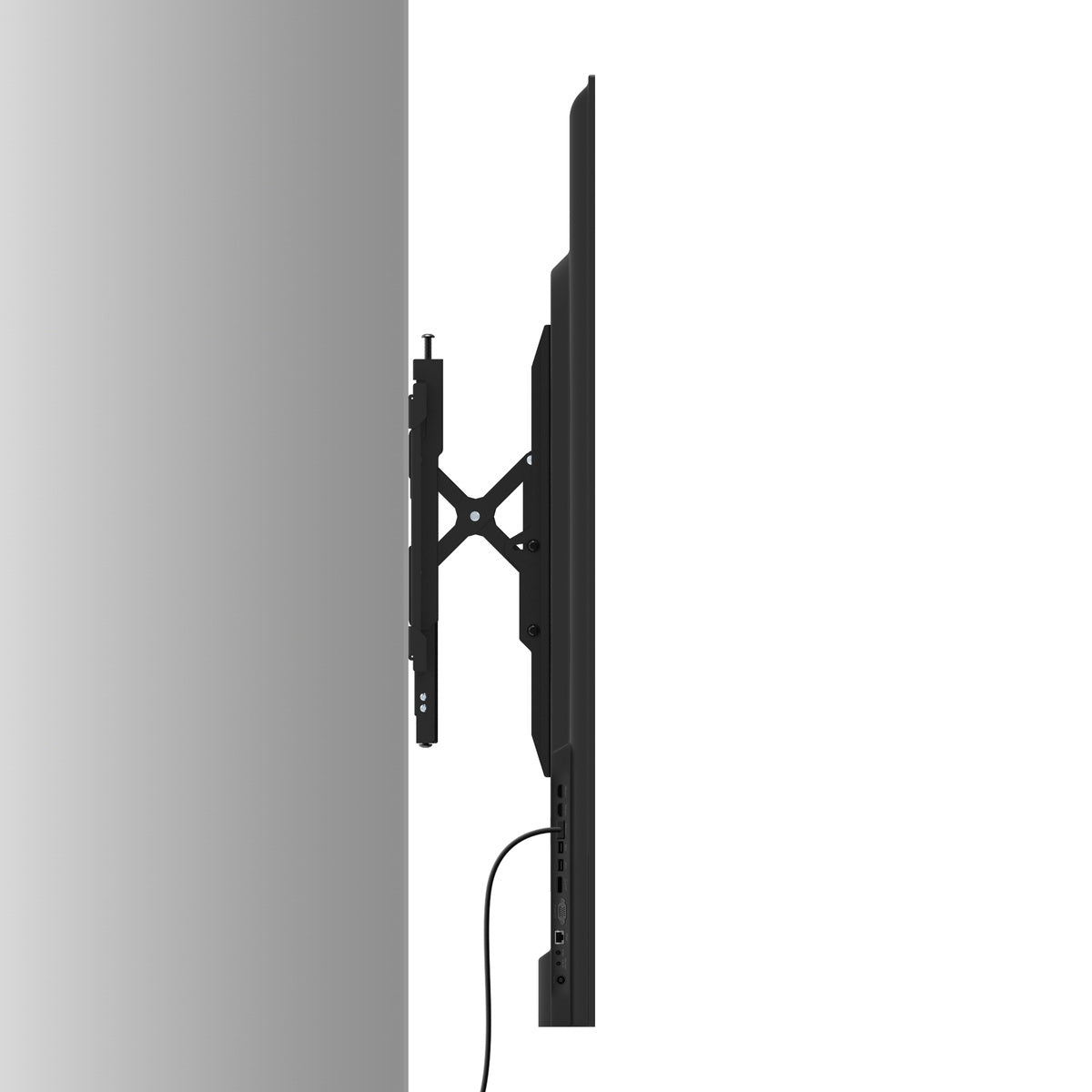

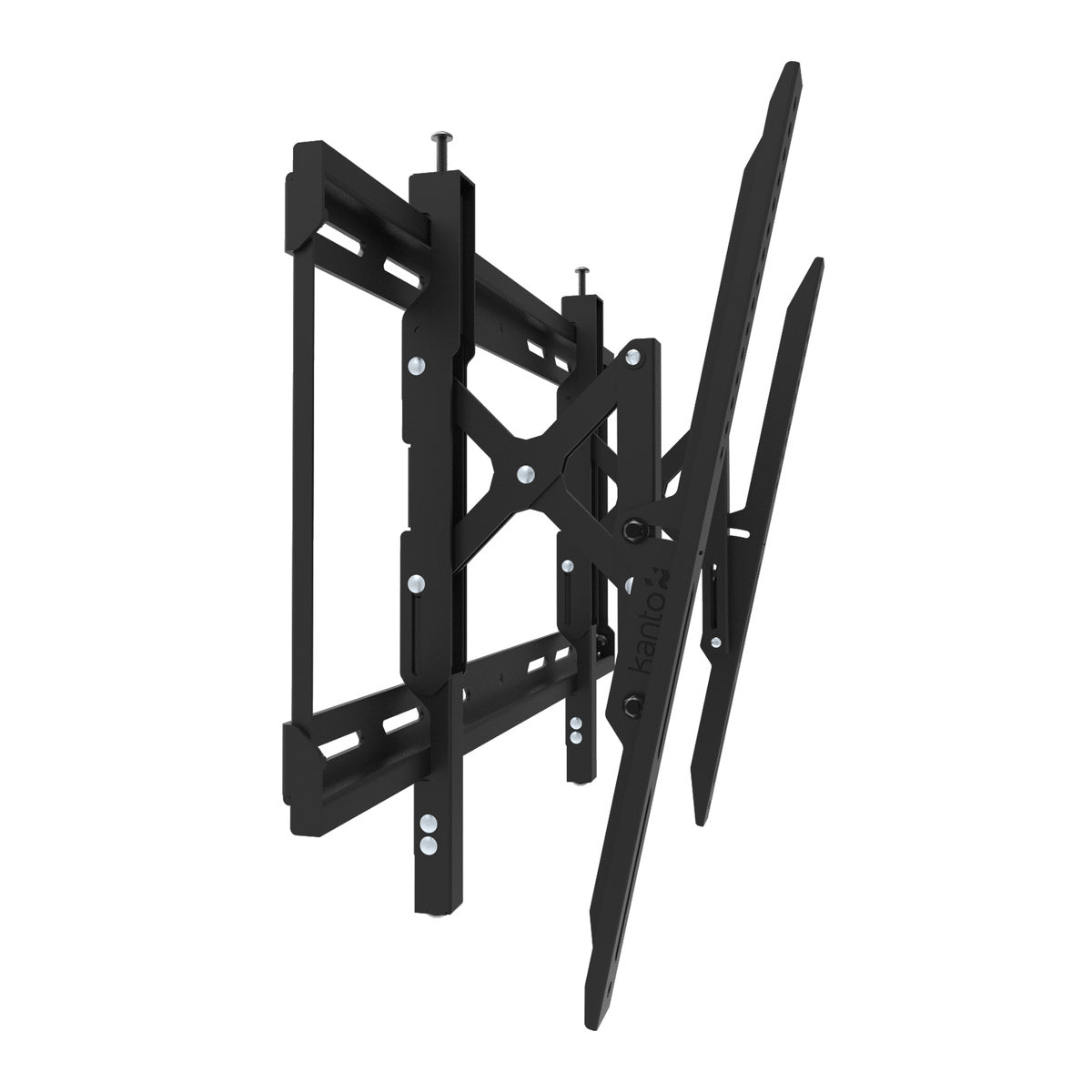

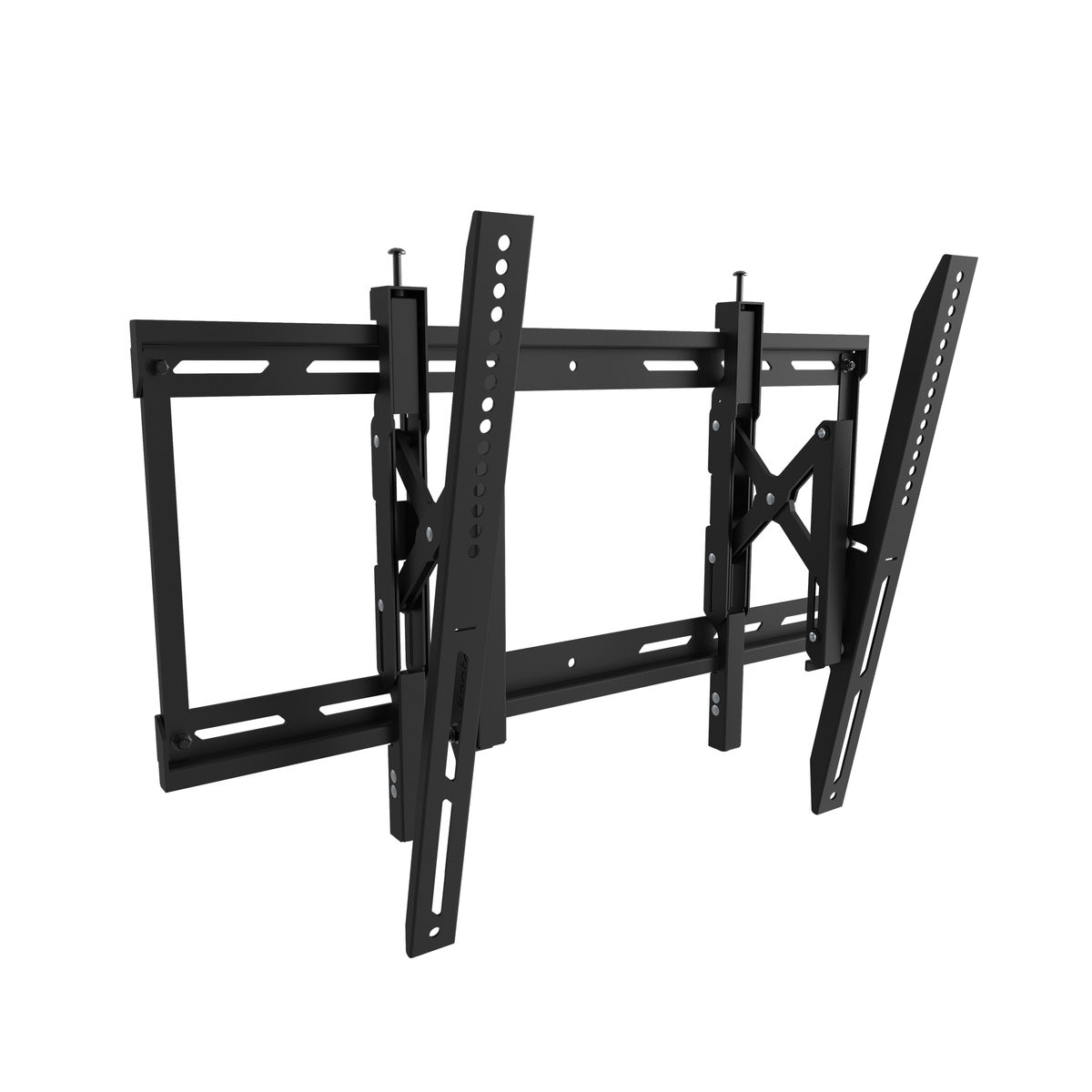

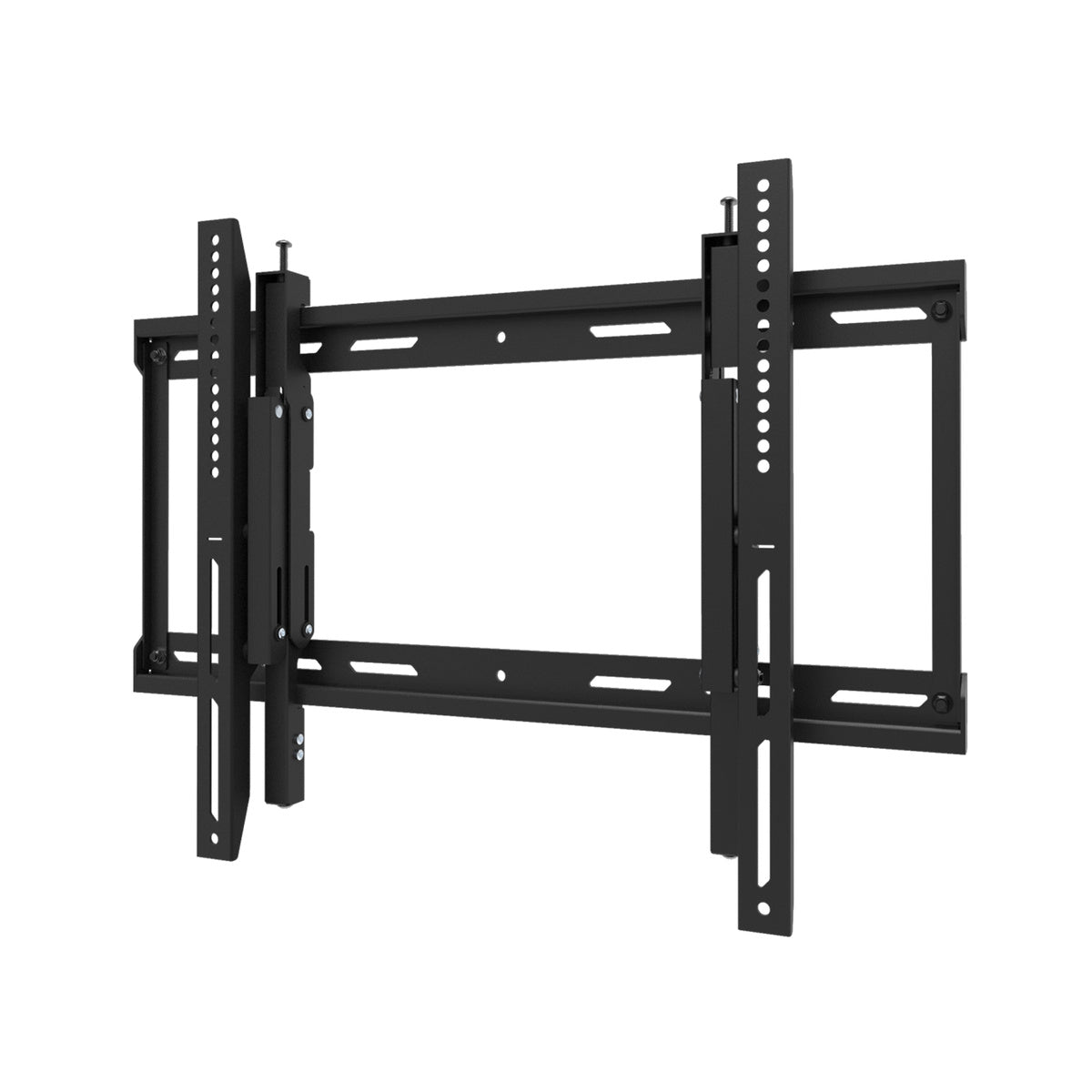

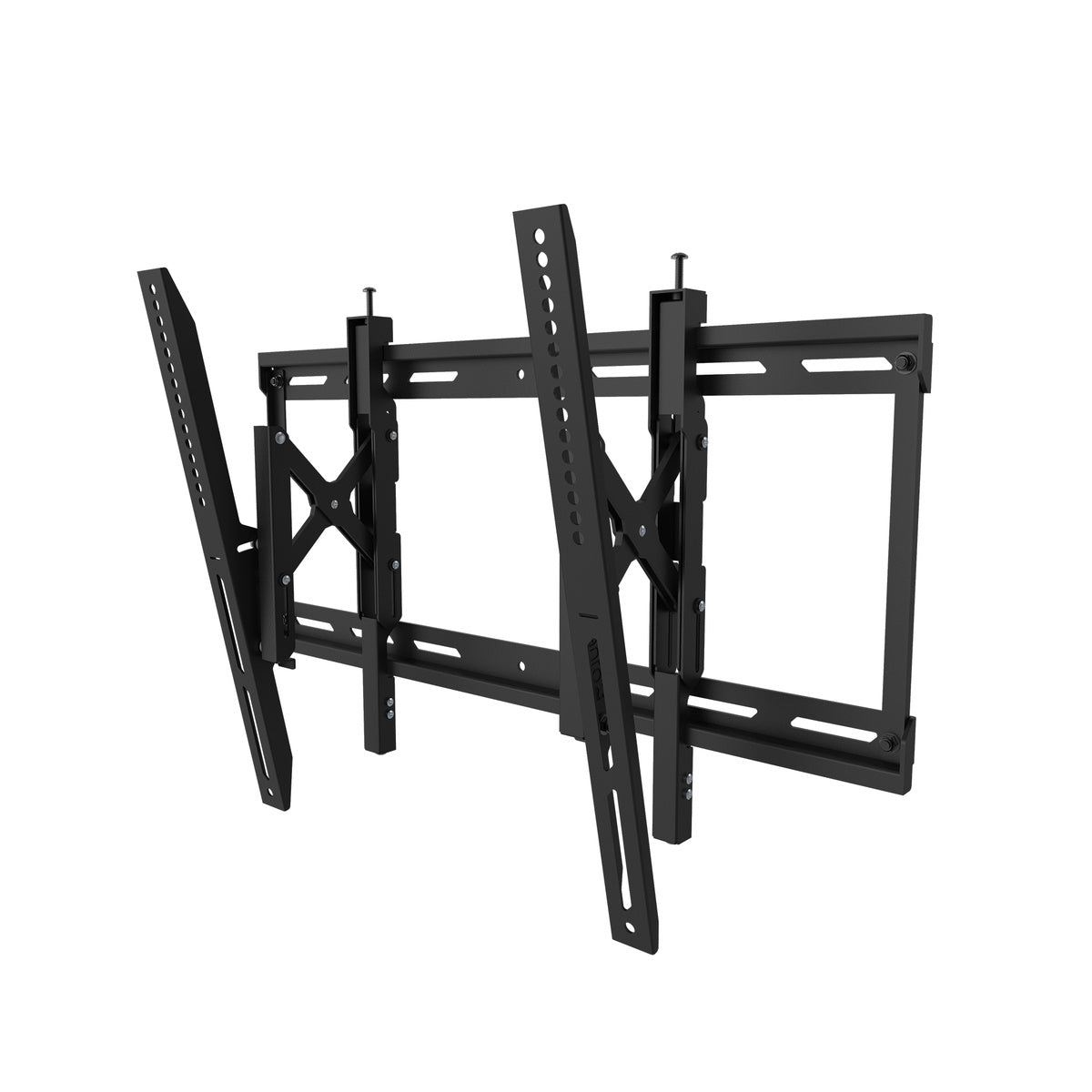

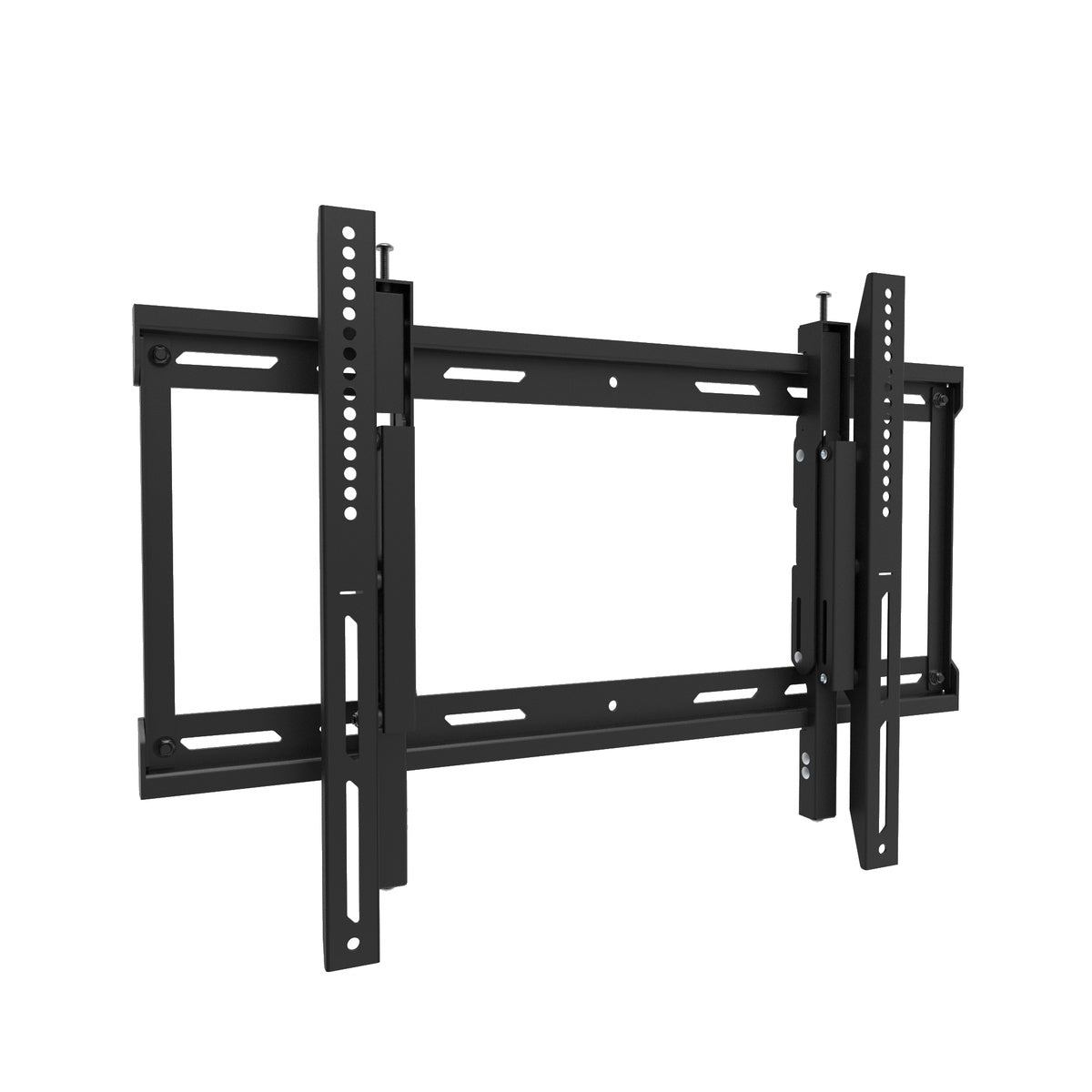

The Kanto TE300 Extendable Tilting TV Wall Mount is built for flat panel displays between 43 and 90 inches. It supports up to 150 pounds and is designed to make cable management easier. The mount can pull out from the wall by up to 6 inches, so it is possible to reach the back of the TV without having to plan all the wiring ahead of time.

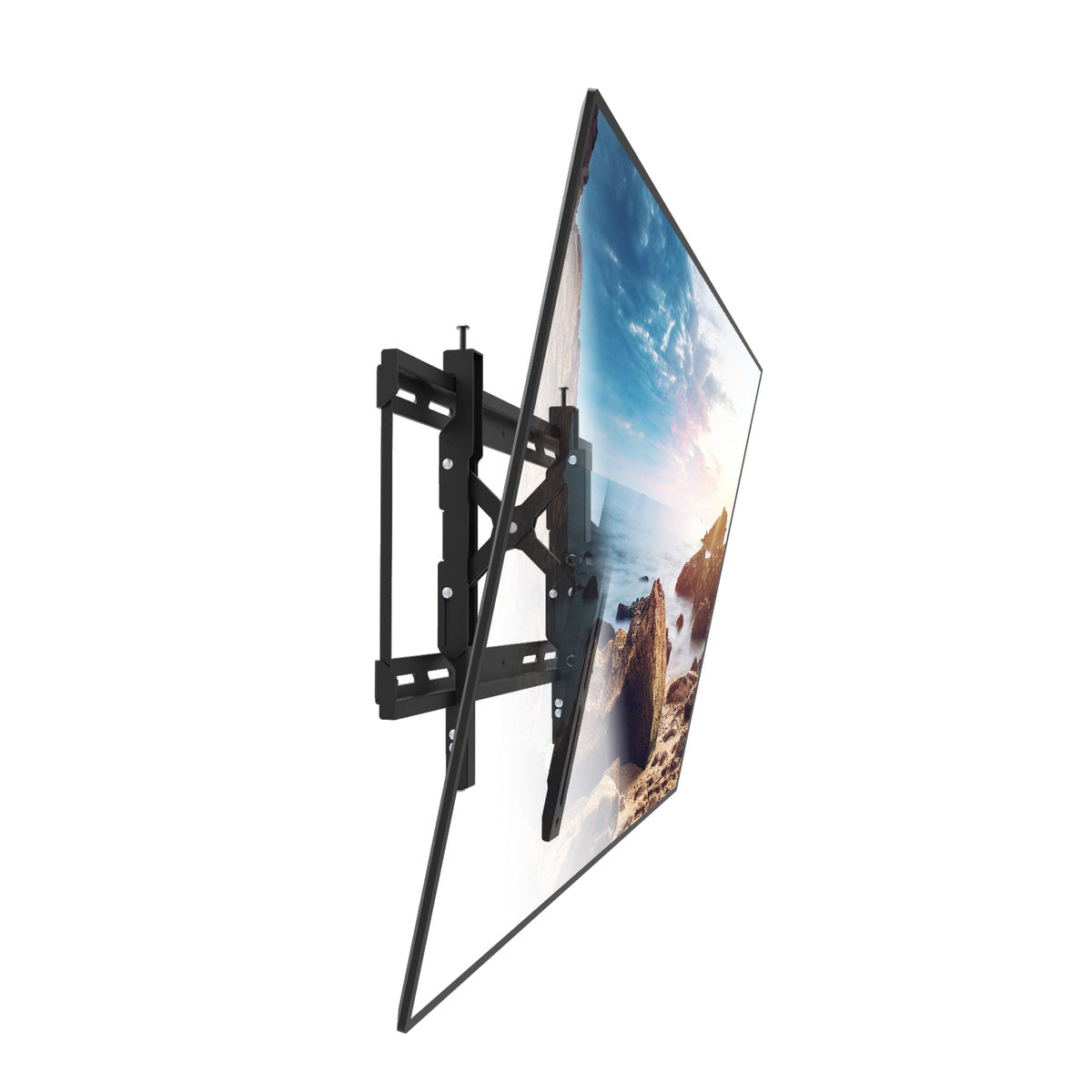

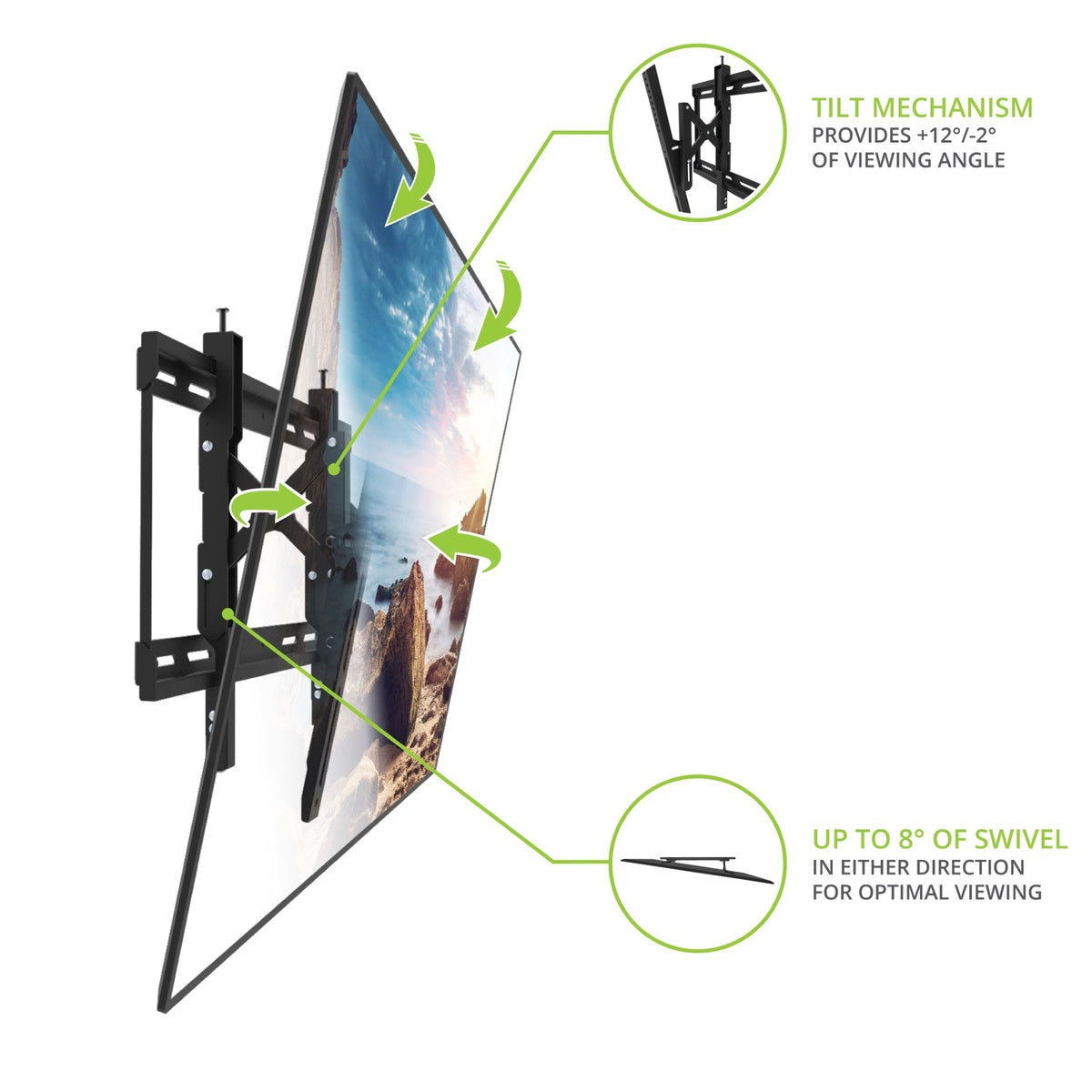

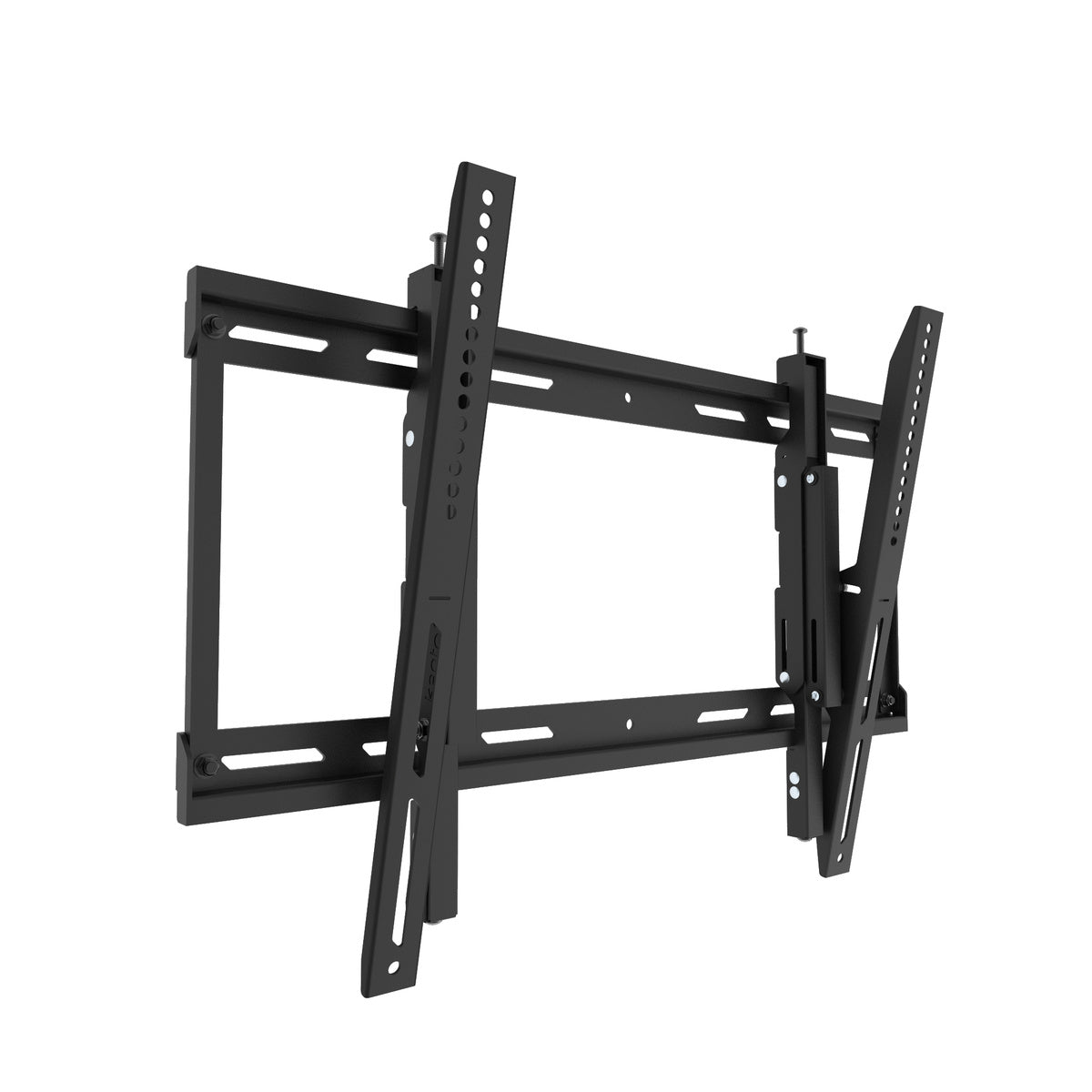

When extended, the mount allows the TV to pan 8 degrees left or right. This helps adjust the viewing angle as needed. The tilt feature lets the screen move forward by 12 degrees or back by 2 degrees, which helps reduce glare and keeps the picture clear when the TV is mounted higher on the wall.

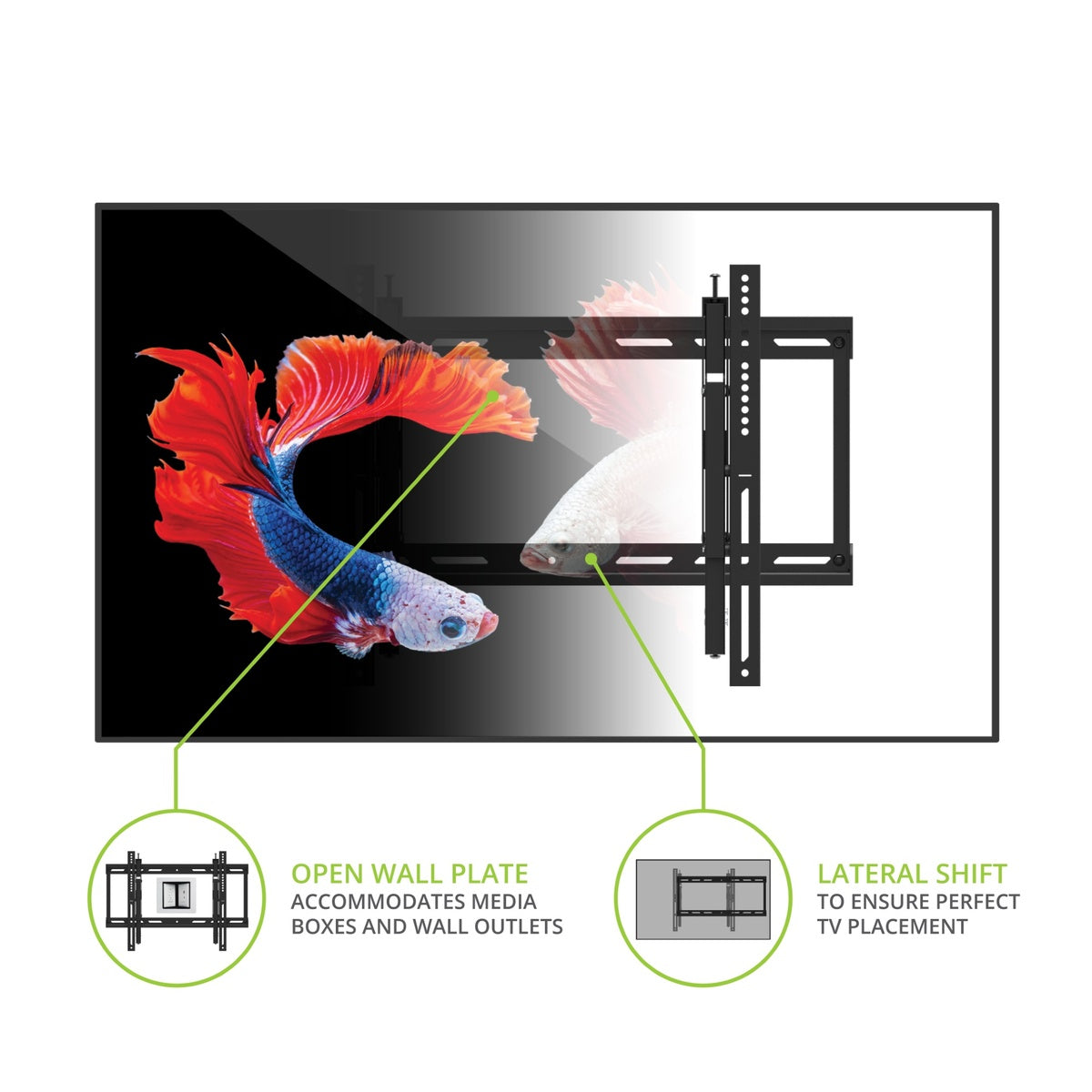

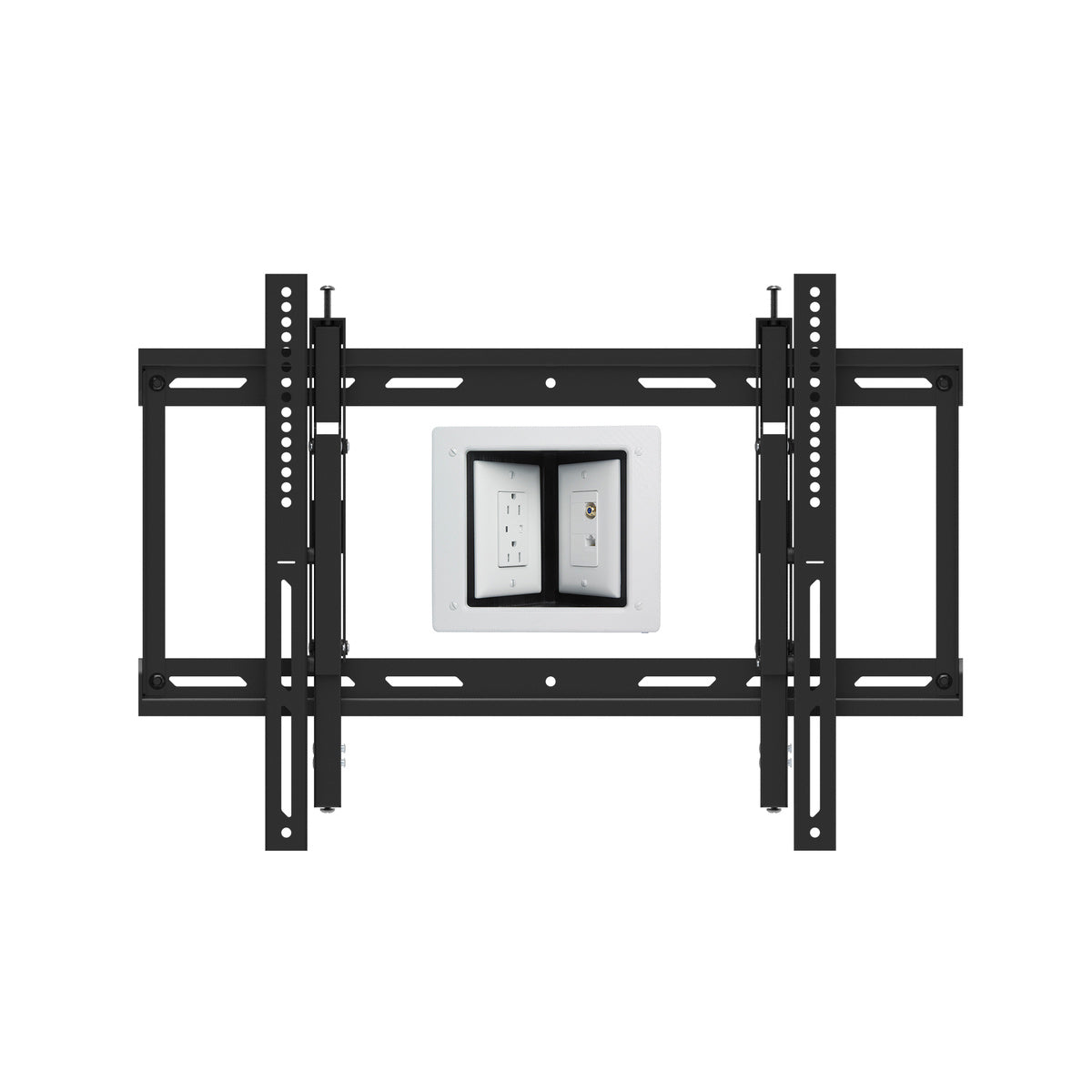

Several adjustment features help with a clean and balanced installation. The large TV brackets make it easy to fine tune the vertical position. The open frame wall bracket allows for horizontal adjustment and gives space to run cables through the wall. These features make the TE300 a practical choice for home theaters or commercial AV setups where both viewing angles and cable access matter.

Details & Specs

Model TE300
Product Dims (W x D x H) 27" x 6" x 18.9" (68.6 x 15.2 x 48 cm)
Product Weight 12.1 lb (5.5 kg)
TV Size Fits most flat panel TVs from 43” to 90”
Load Rated Supports TVs up to 150 lb (68 kg)

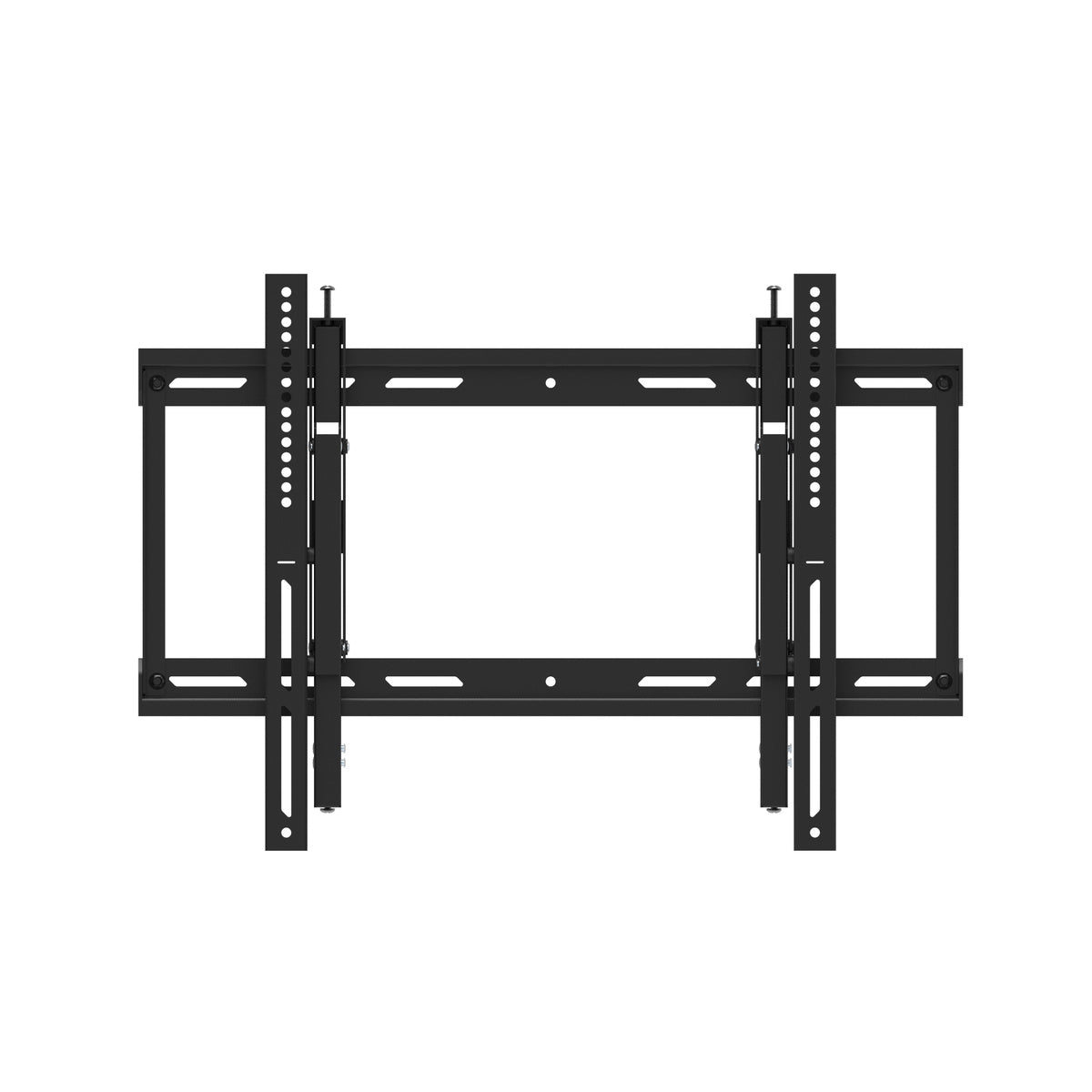

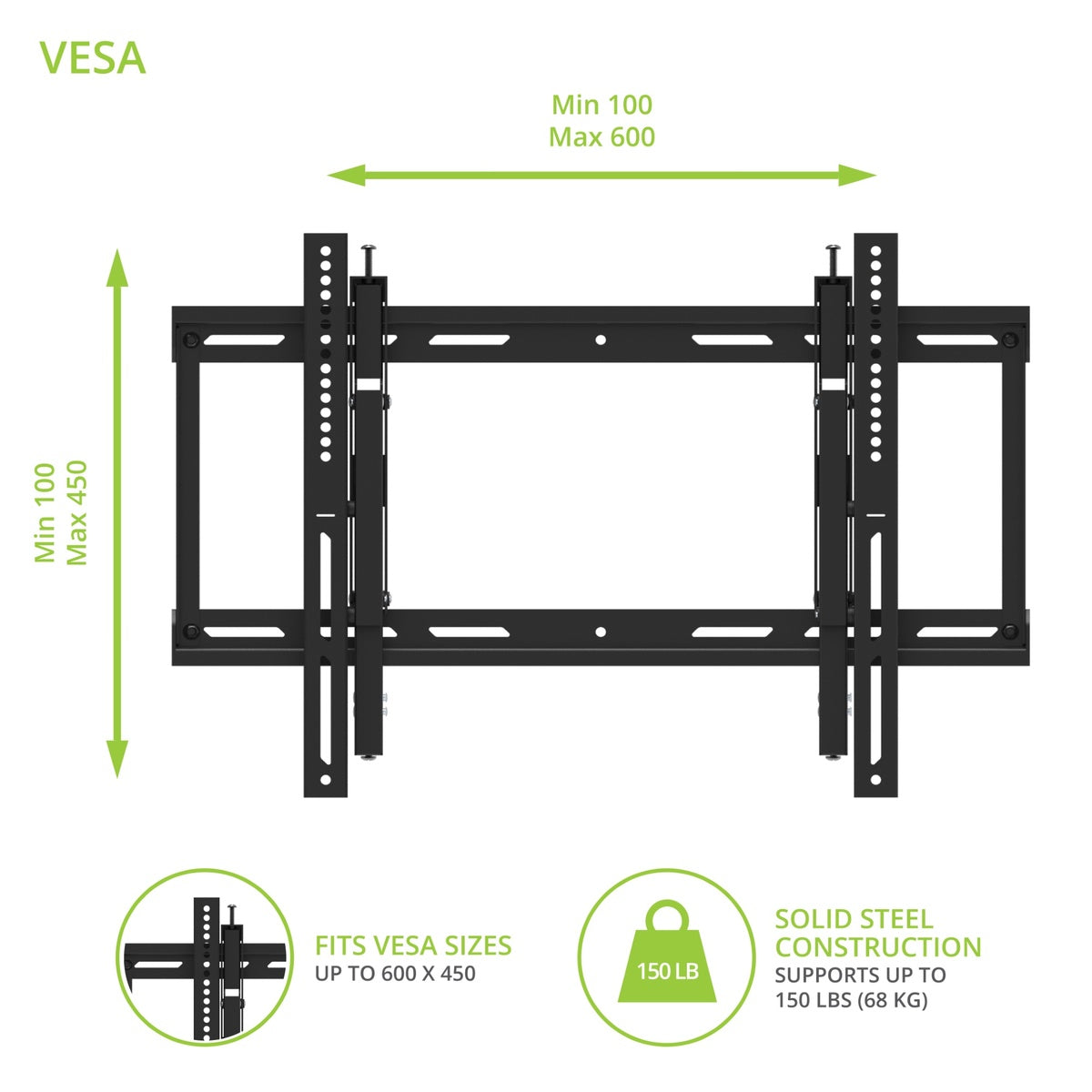

Vesa Accommodates VESA sizes from 100x100 to 600x450

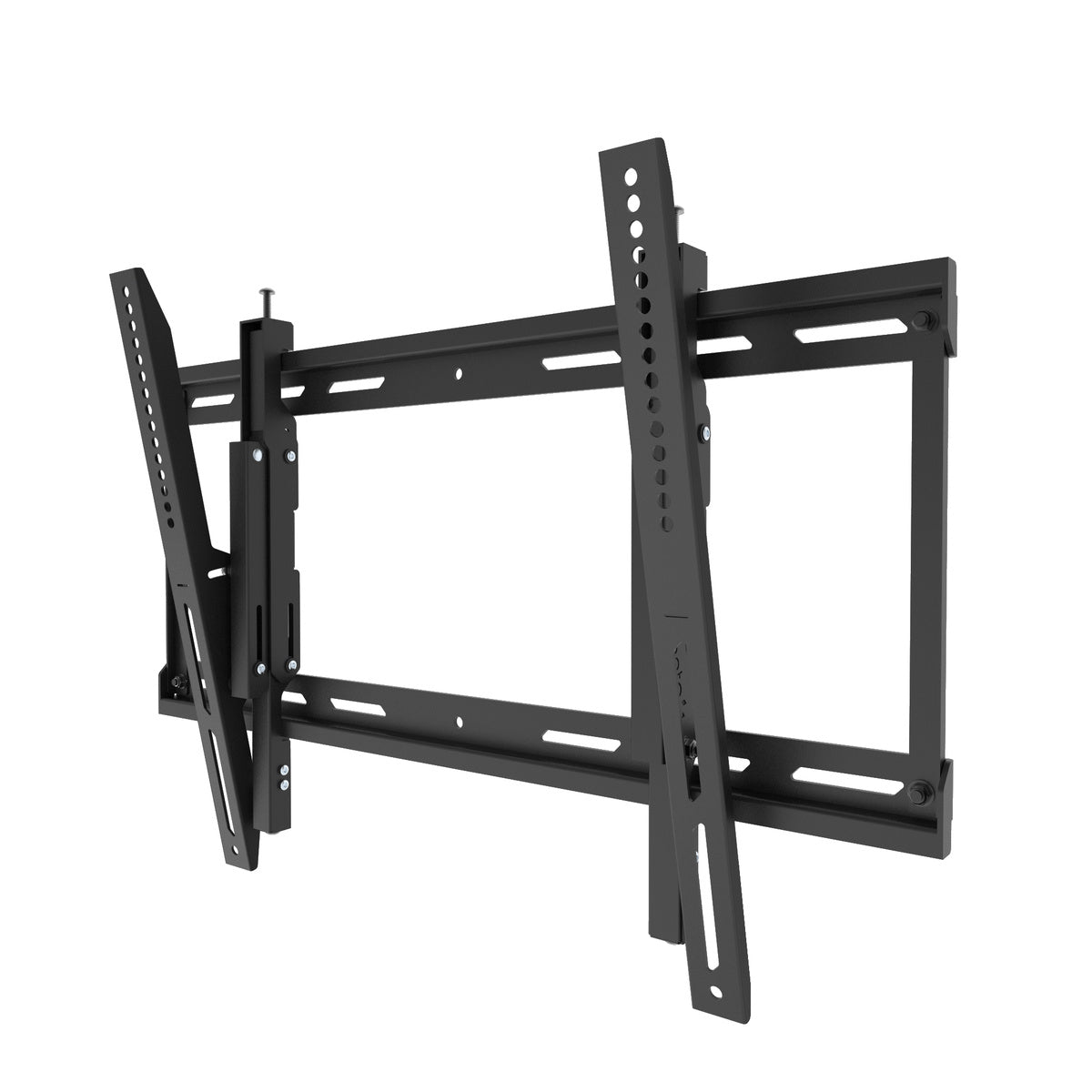

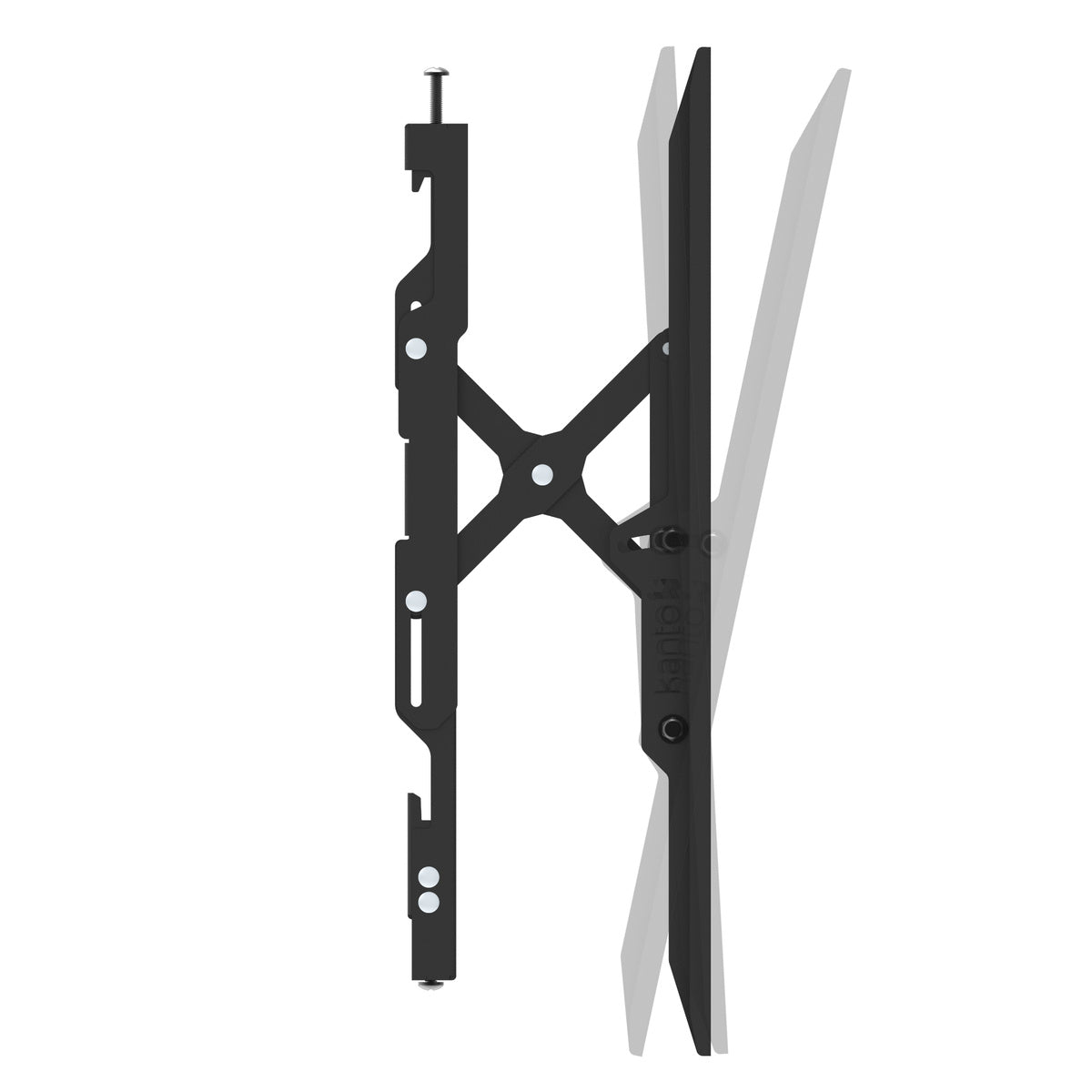

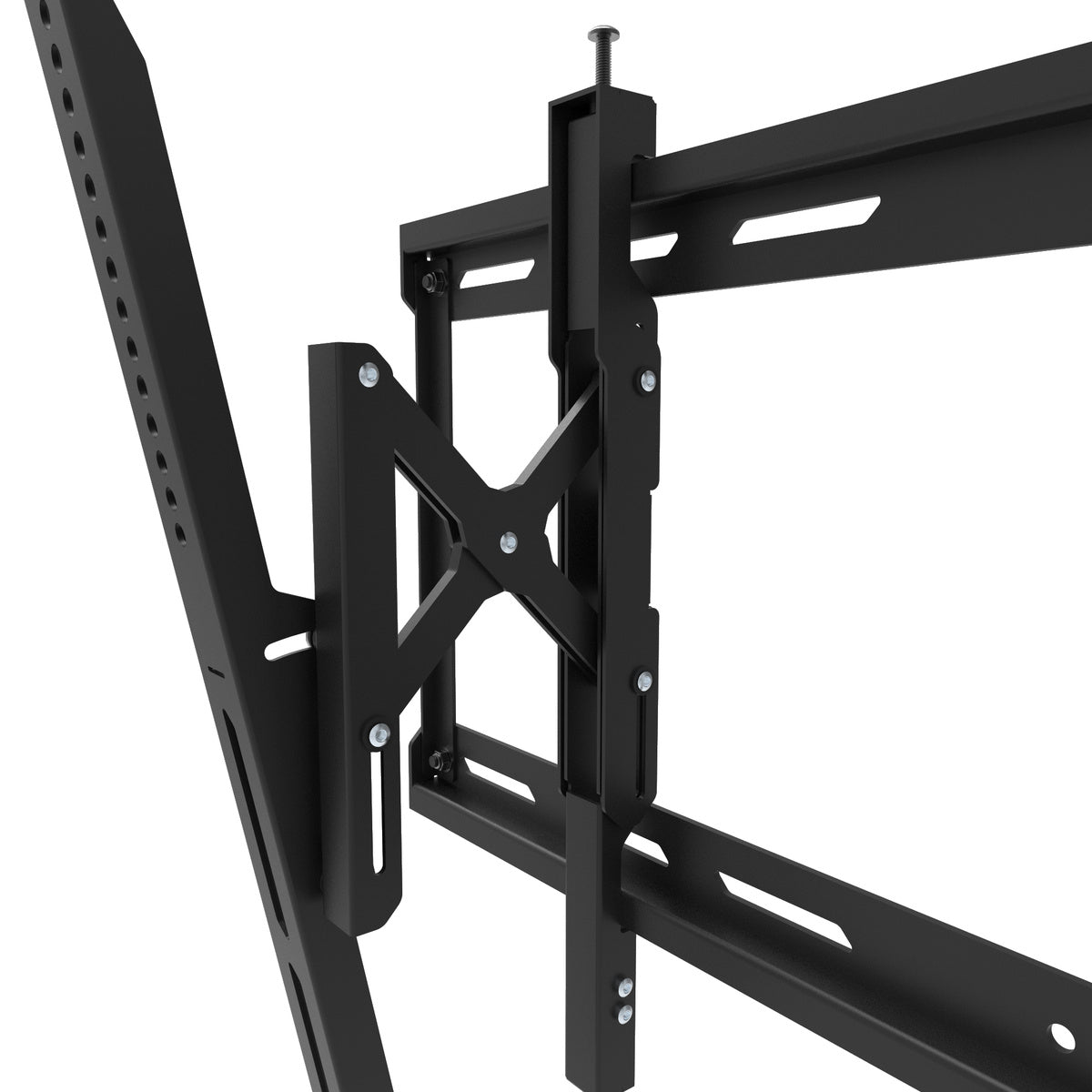

Tilt Tilt mechanism provides +12° to -2° viewing angle

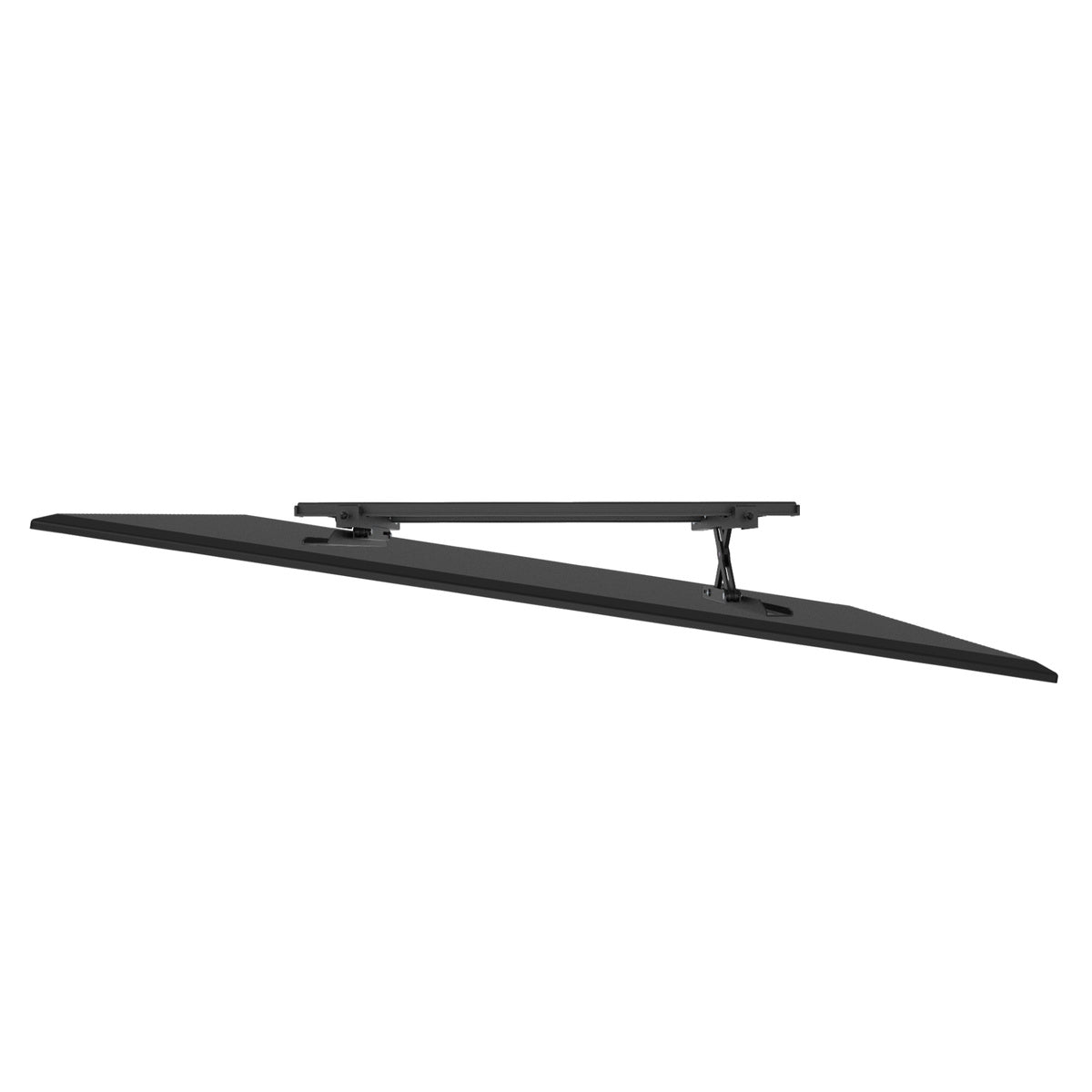

Swivel 8° of swivel in either direction

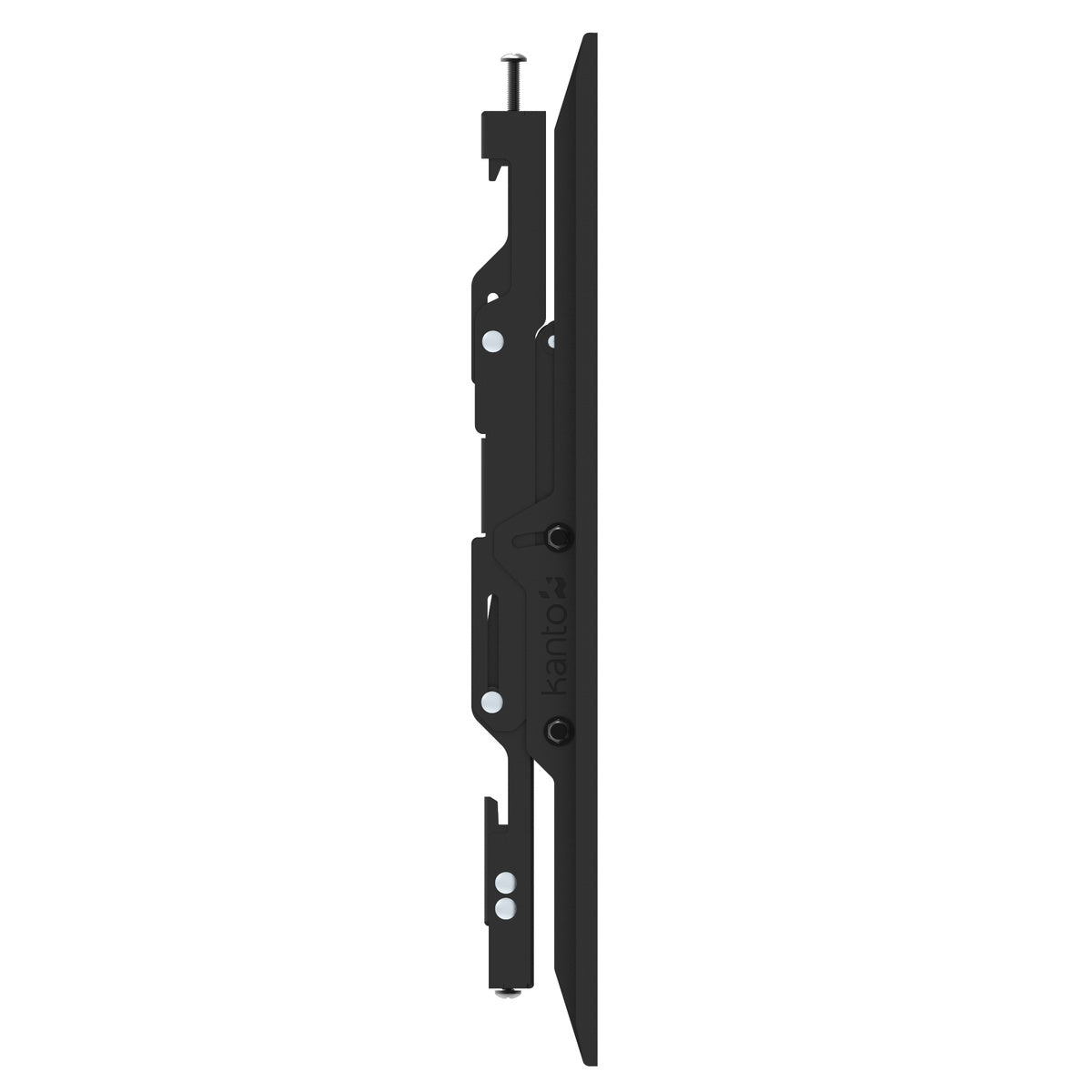

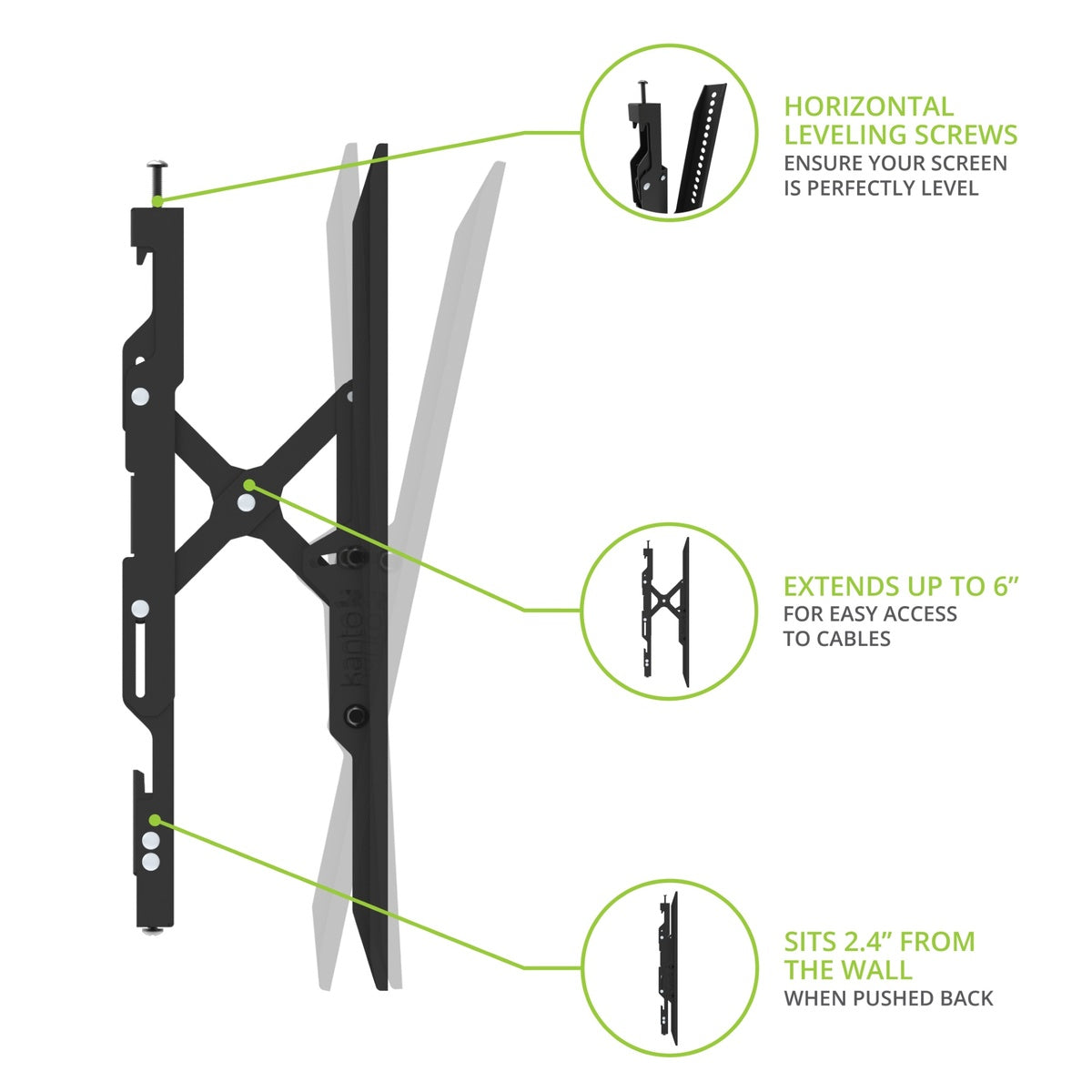

Profile Sits 2.4” (6.1 cm) from the wall

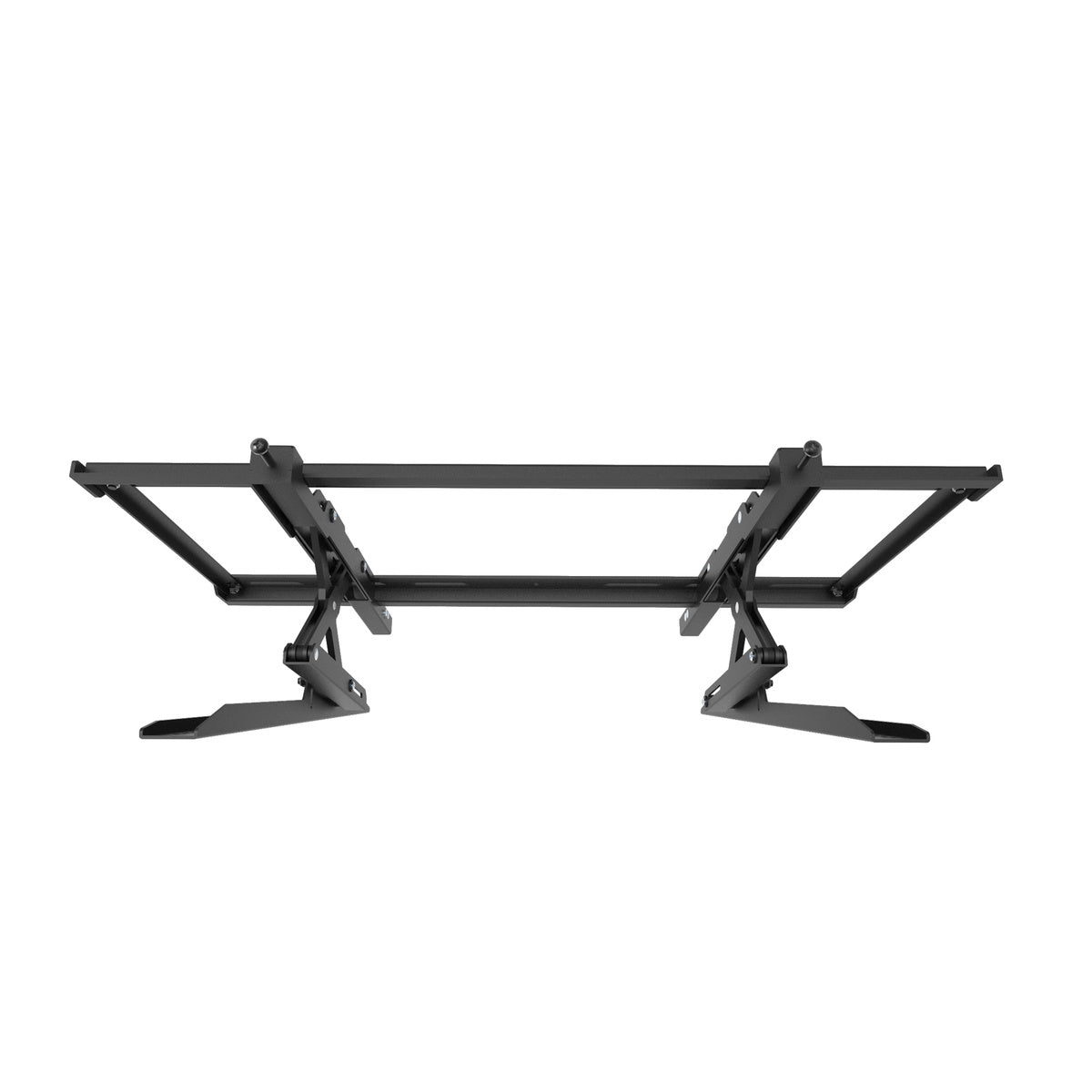

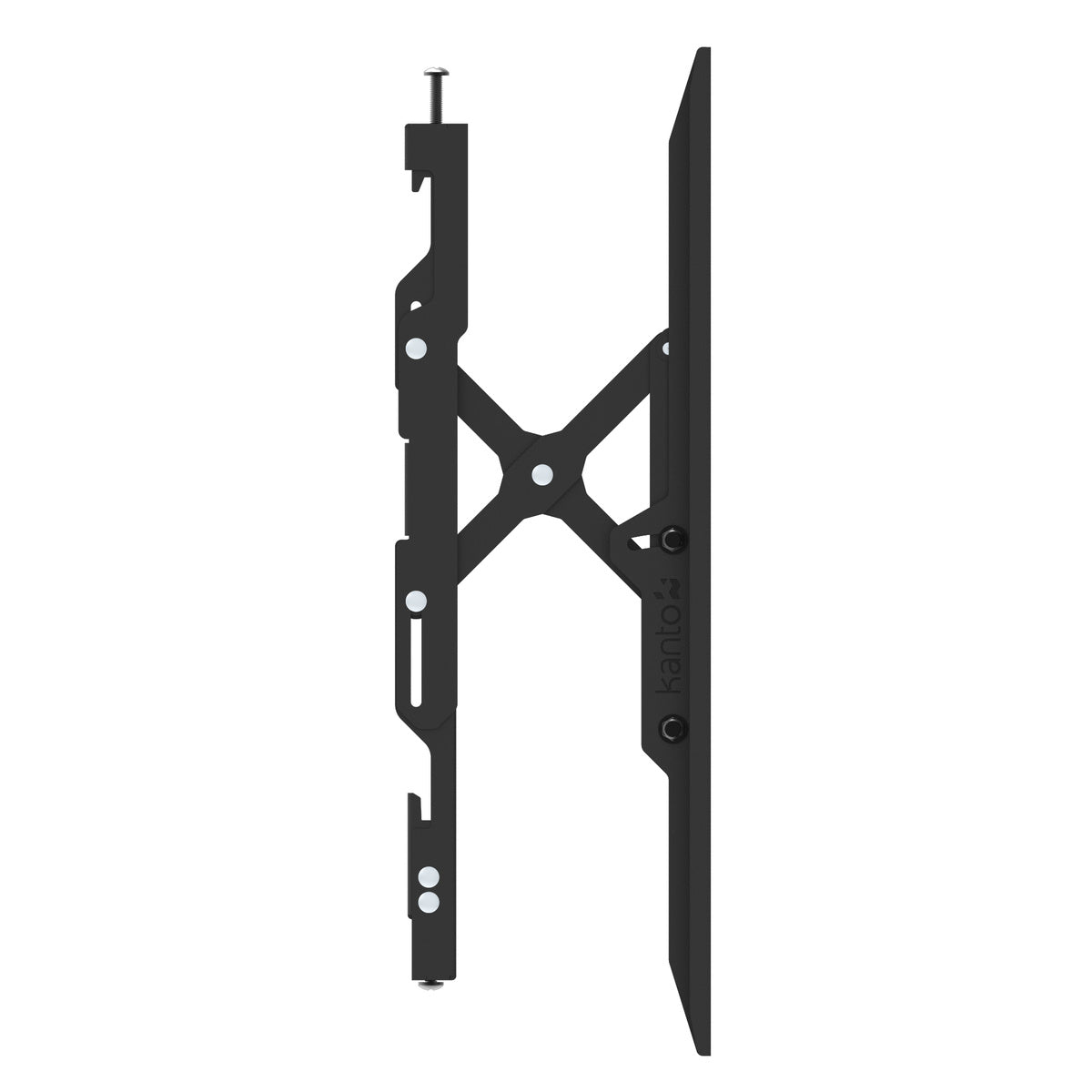

Extension Extends up to 6” (15.2 cm) from the wall

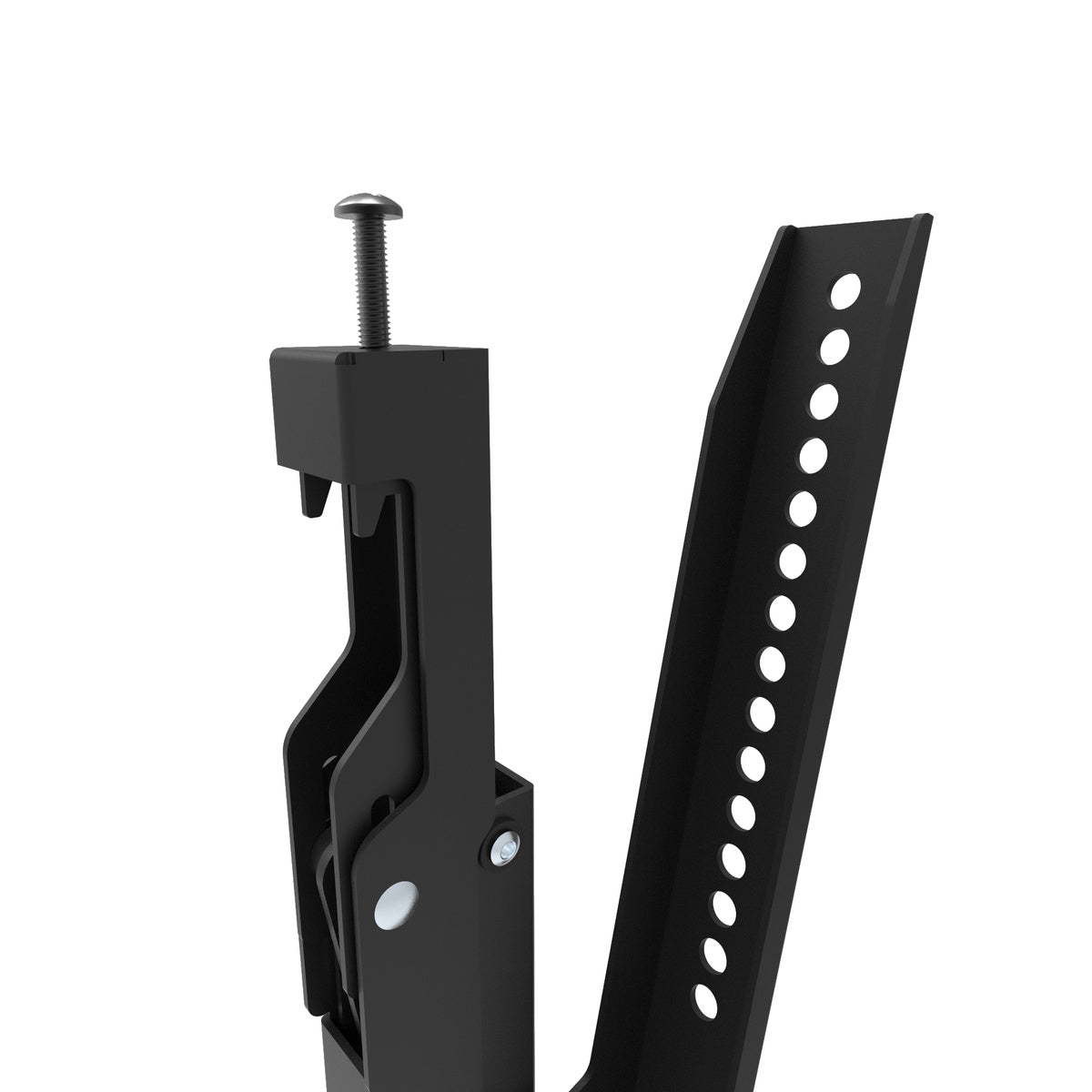

Leveling Adjustable horizontal leveling
Stud Spacing 27” (68.6 cm) dual stud wall plate accommodates up to 24" stud spacing

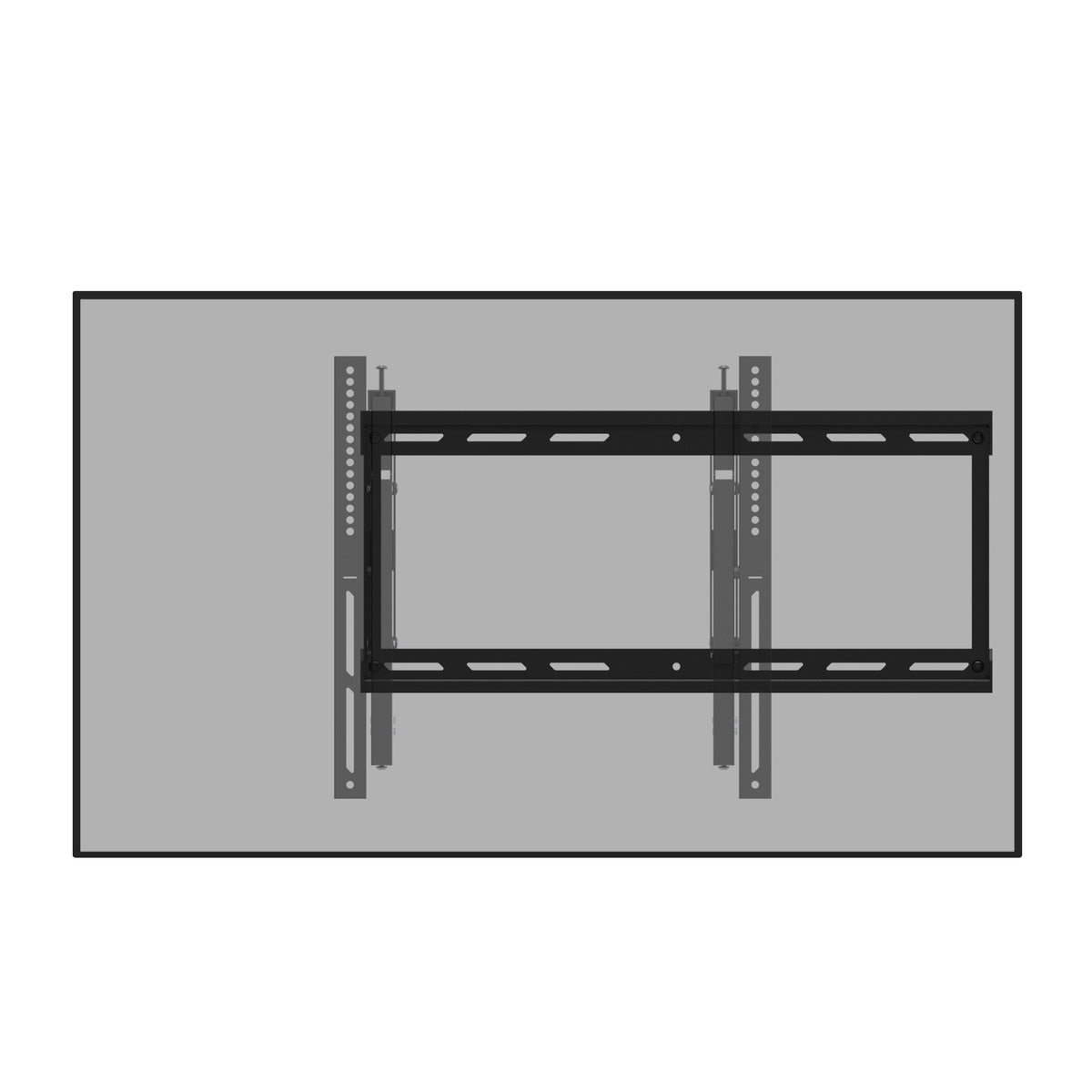

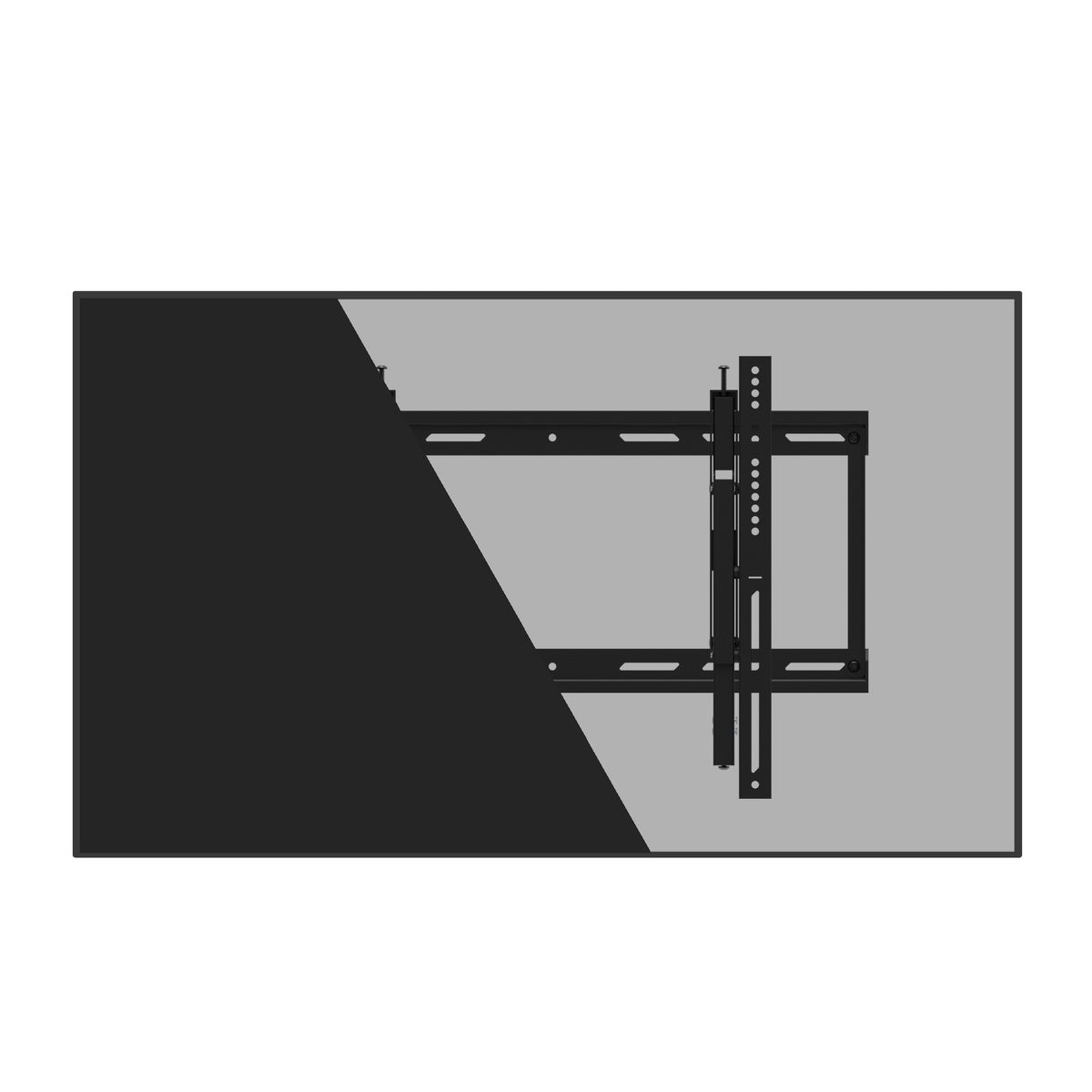

Horizontal Offset TV can be shifted laterally depending on VESA pattern
Min-Max TV Display Size 43-90
Recommended Max Weight 150
Assembly Required Yes
Installation Required Yes
Hardware and Manuals Includes manual and all mounting hardware for wood stud and concrete installation
