Tilting TV Wall Mount for 55" - 120" TVs
Item #T6090

T6090

Tilting TV Wall Mount for 55" - 120" TVs
$239.99
More on the way! Order now to reserve risk free.

Overview

Supporting 55 to 120 inch screens up to 200 pounds, this low profile wall mount has a slim two inch depth. Installers can line up large displays perfectly using horizontal leveling screws and a wide wall plate, while the 15 degree tilt mechanism locks to prevent public tampering.

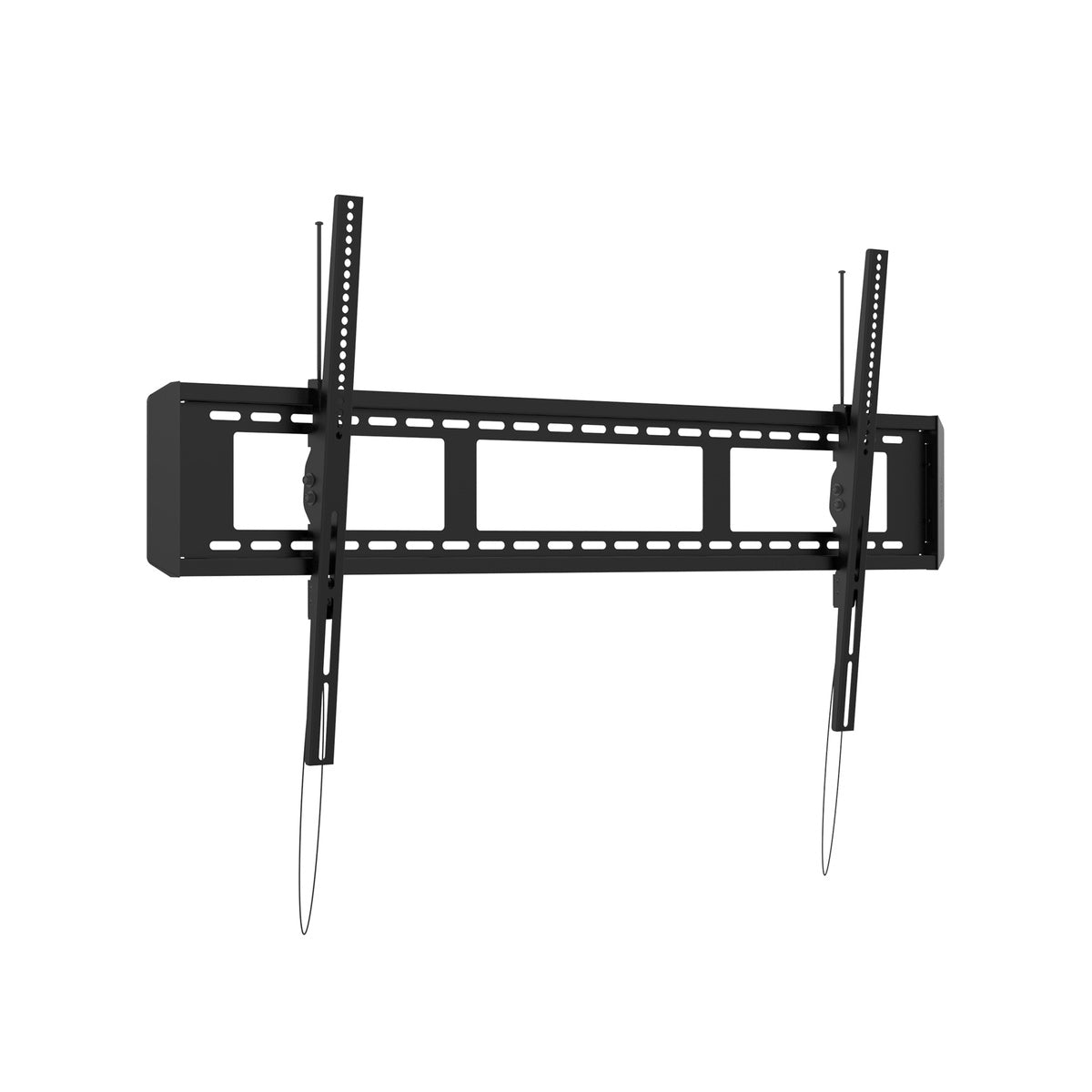

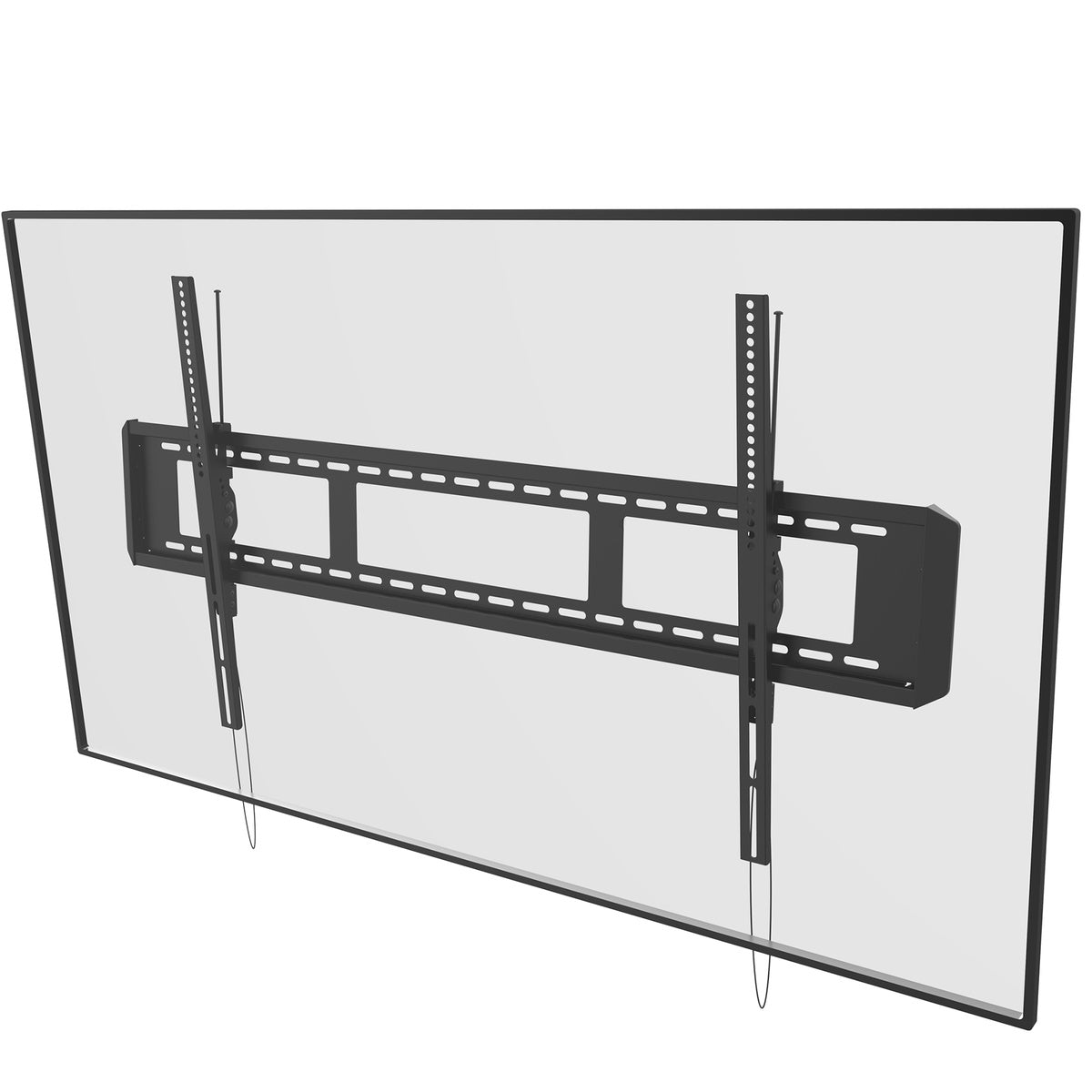

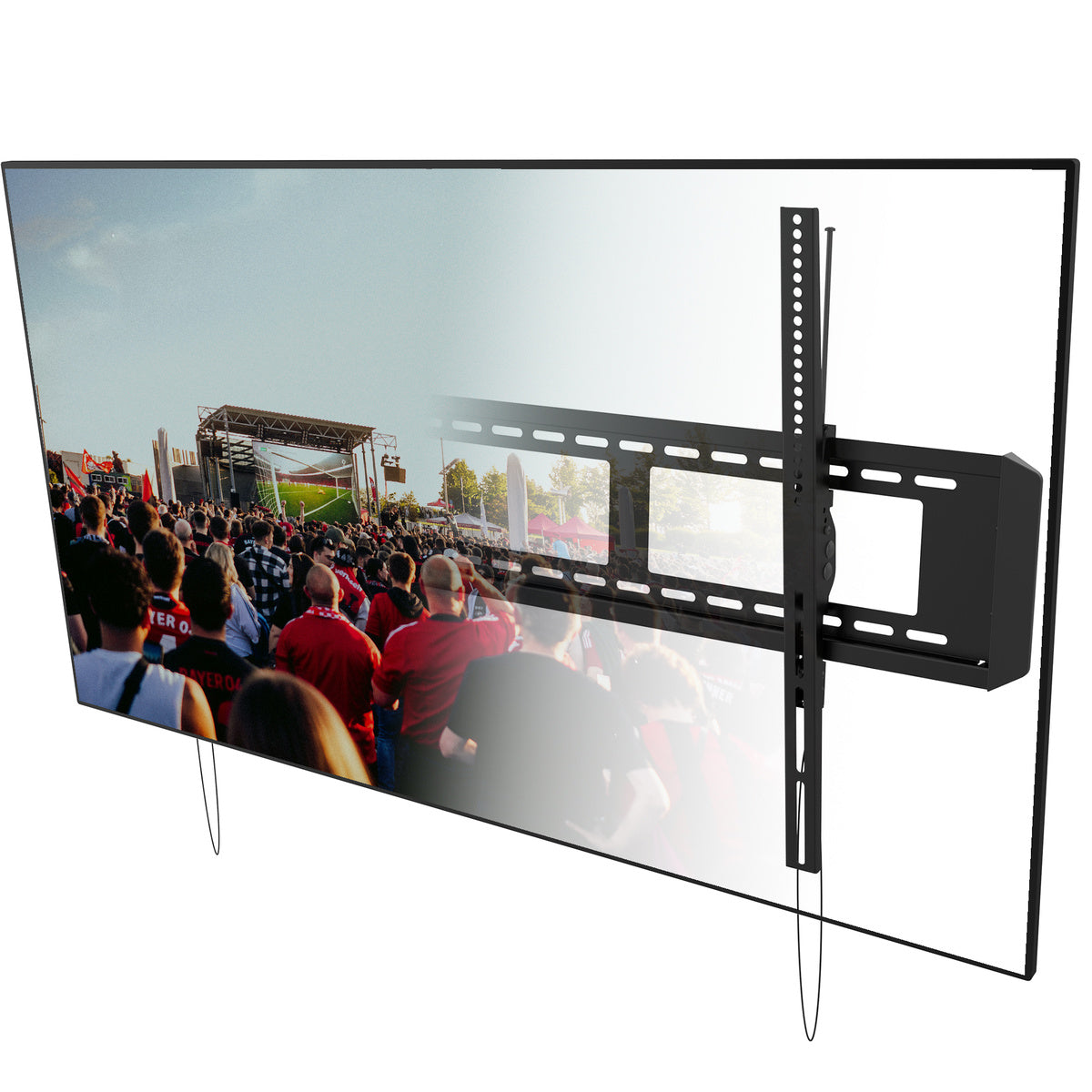

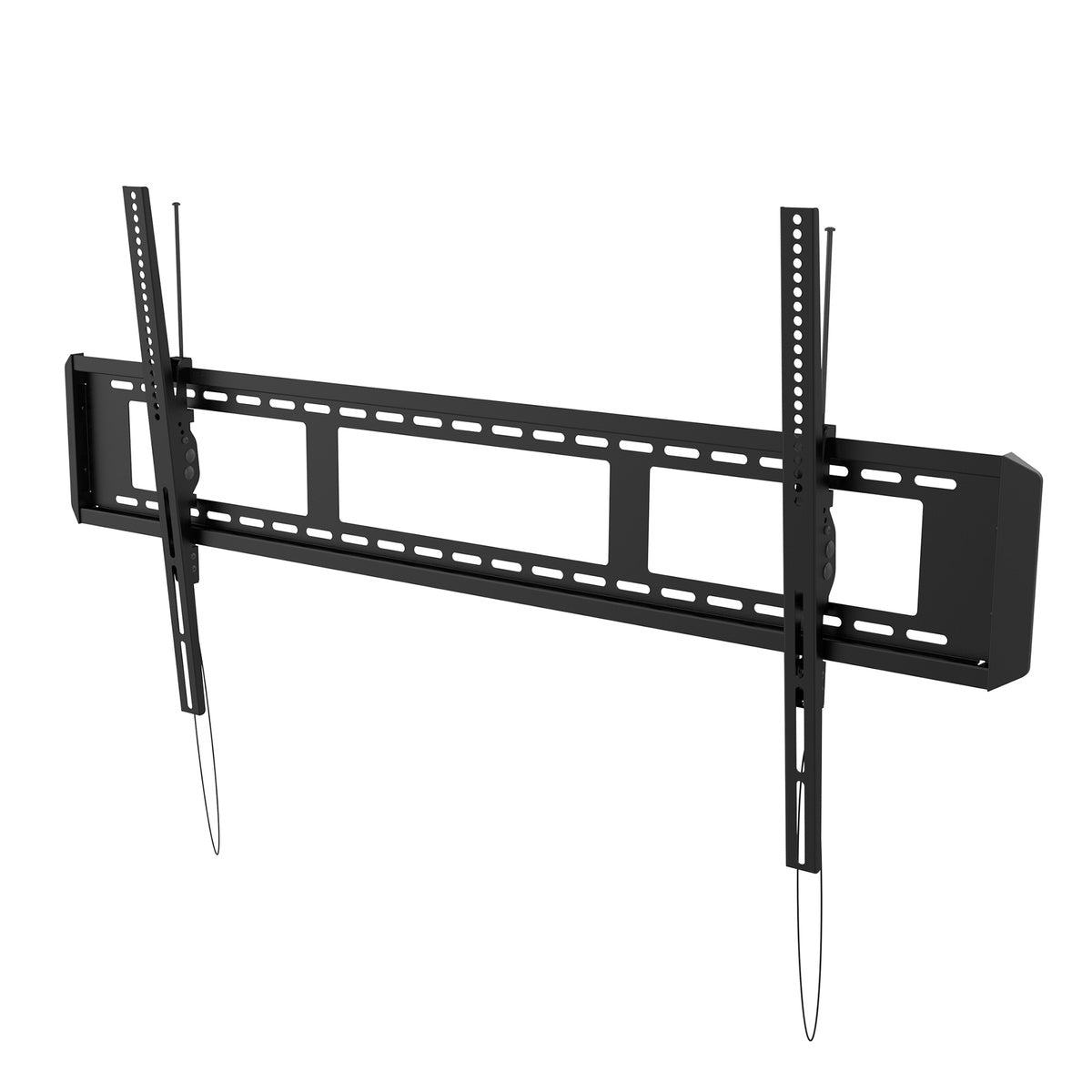

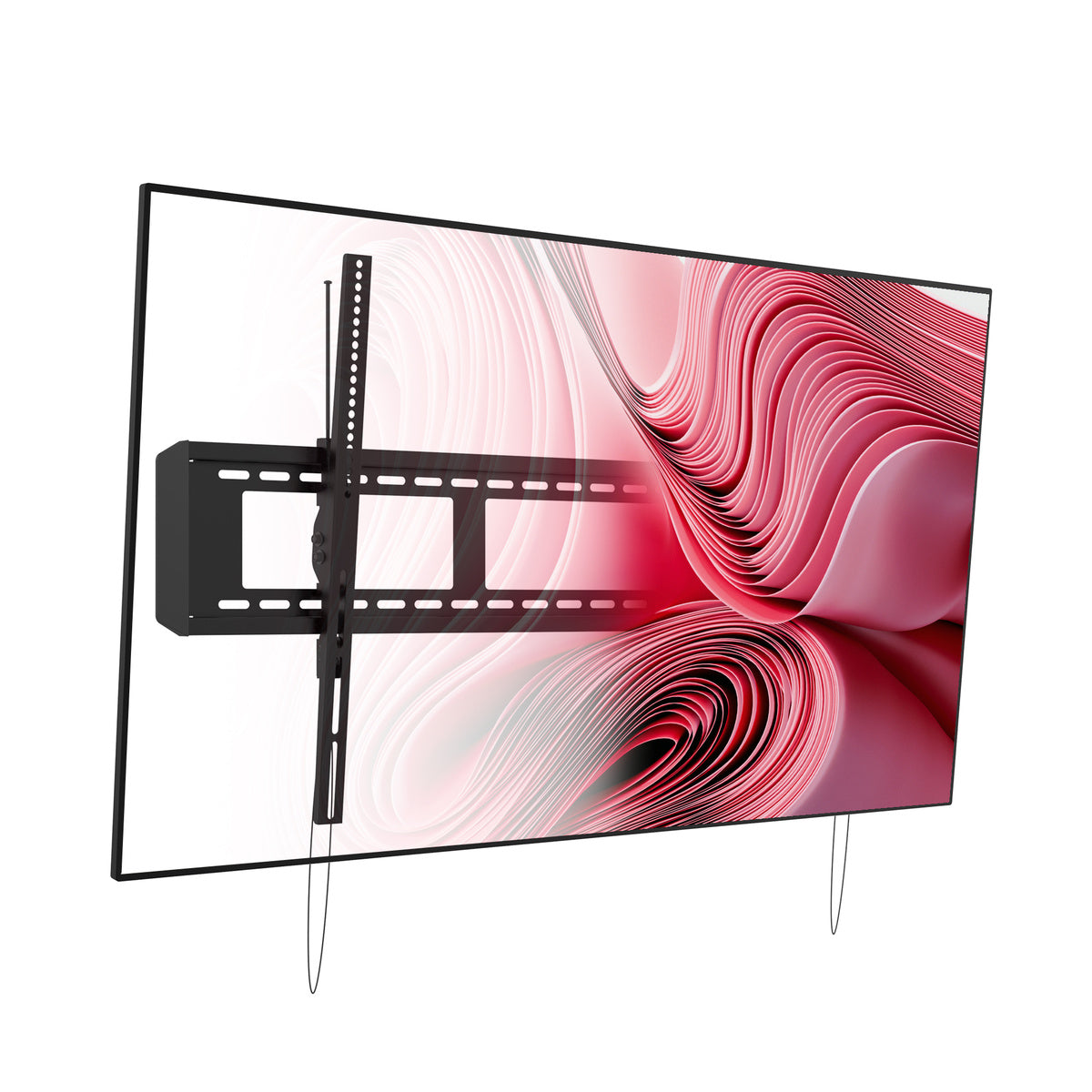

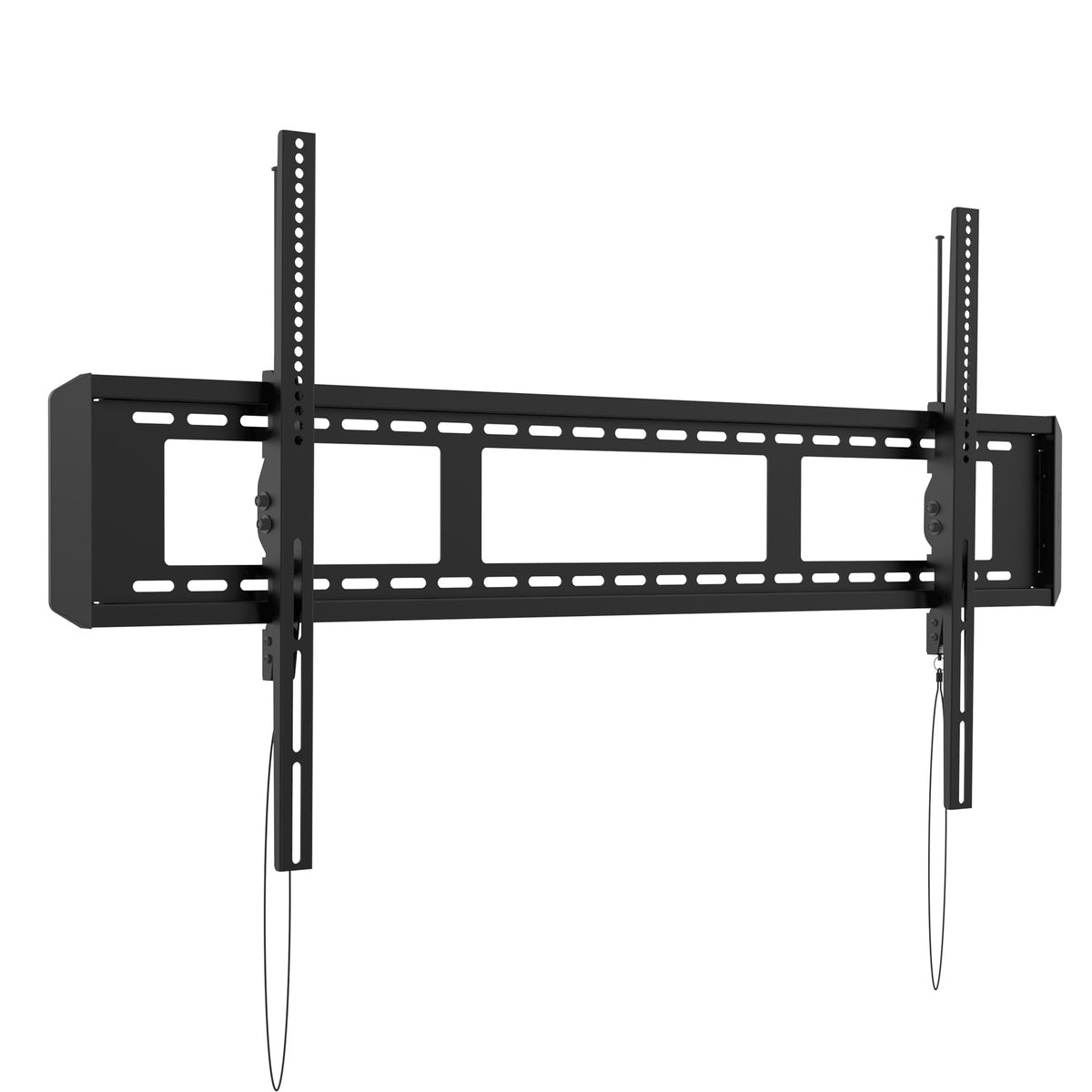

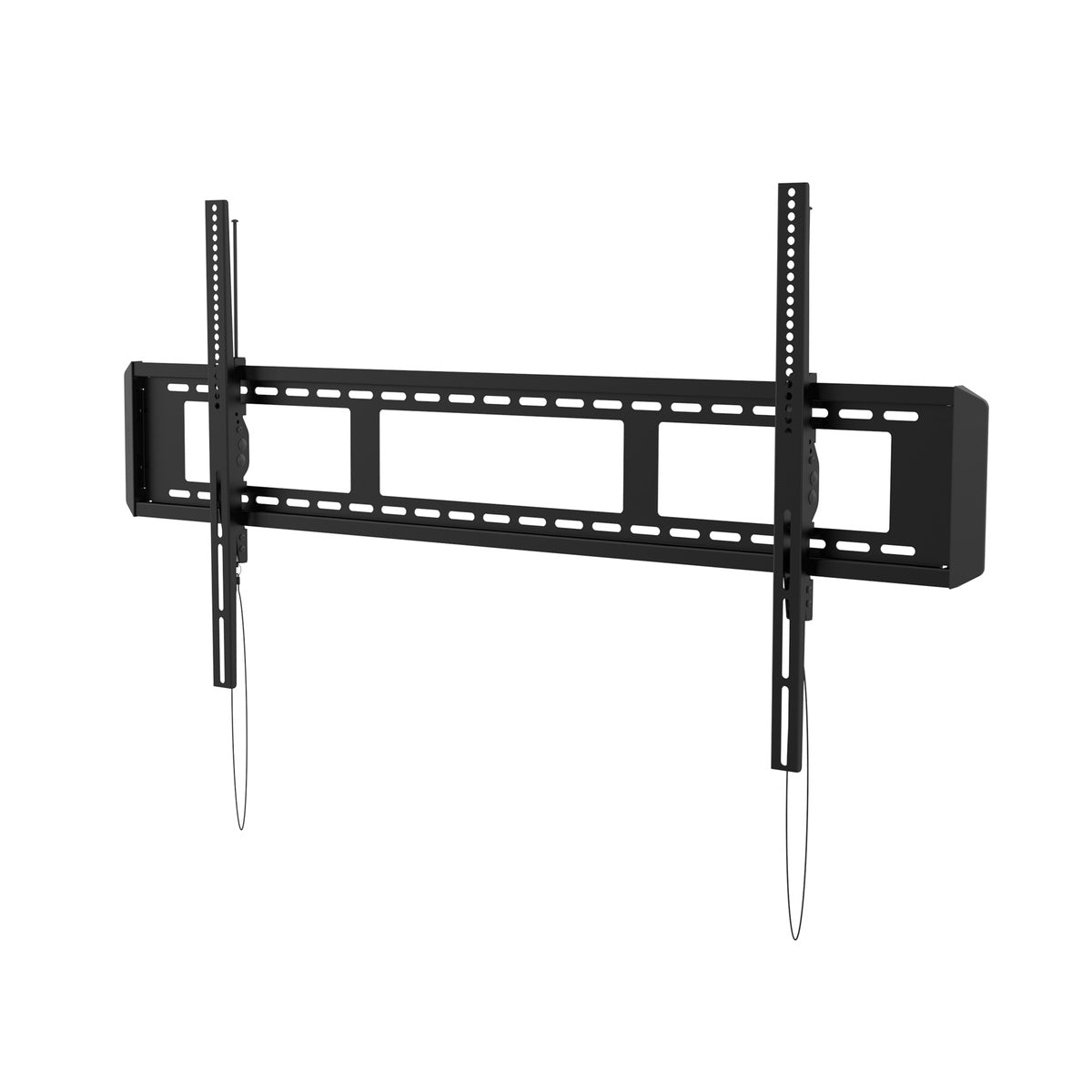

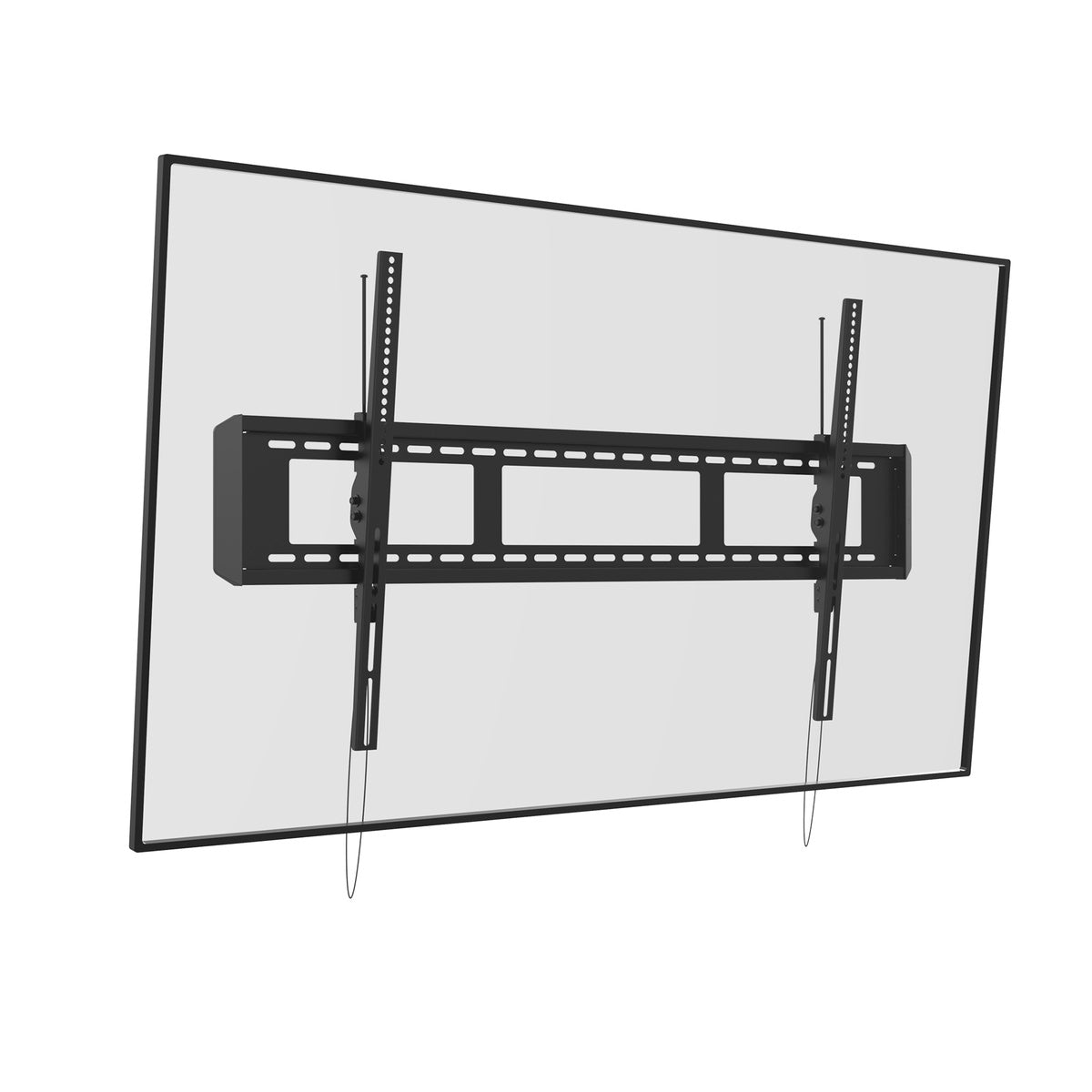

The Kanto T6090 Tilting TV Wall Mount is built for large flat panel displays from 55 inches to 120 inches. It supports up to 200 pounds and fits VESA patterns up to 1100 by 600. This makes it a practical choice for heavy commercial screens and large televisions.

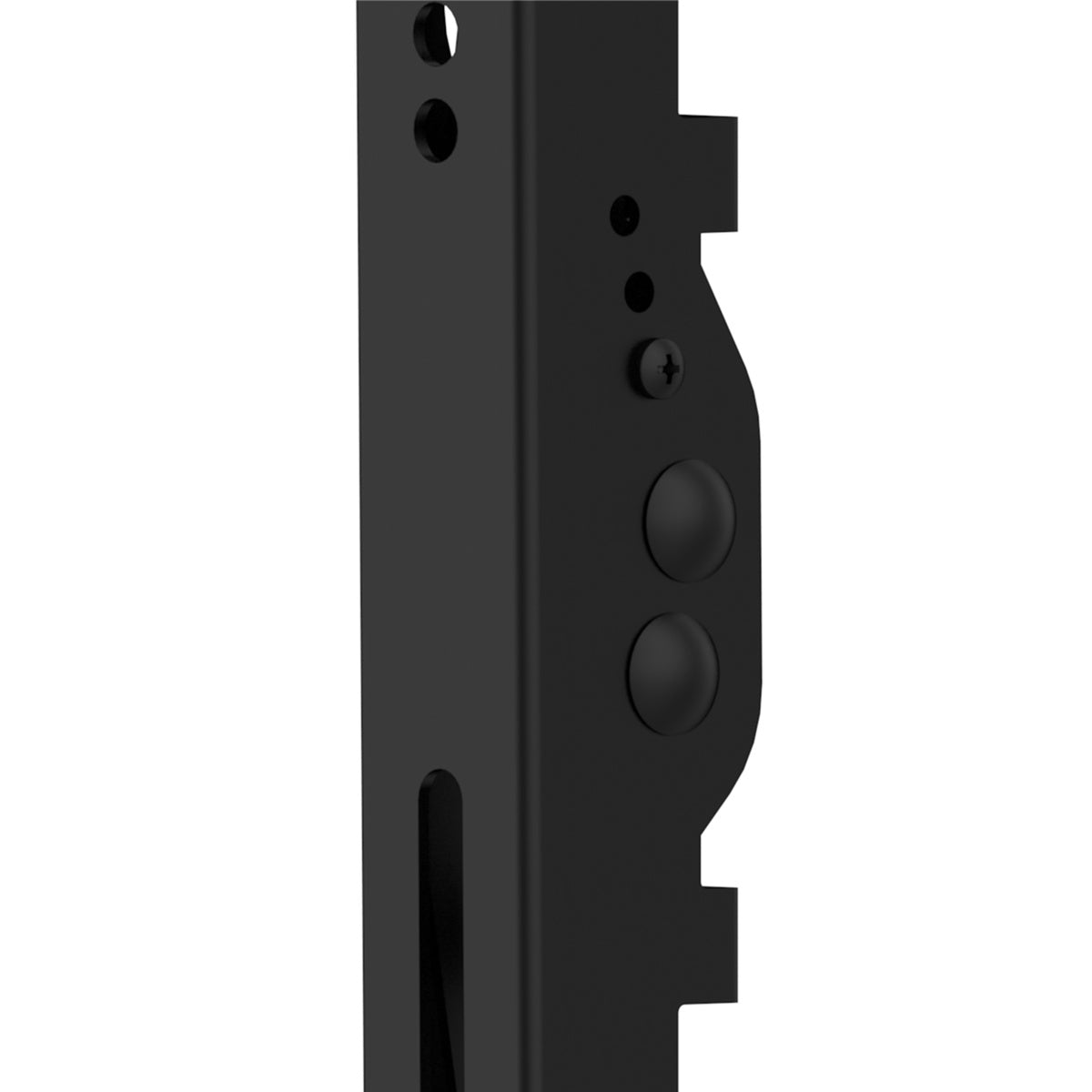

The mount allows up to 15 degrees of tilt, which helps reduce glare and makes it easier to view screens placed high on a wall. Tilt can be locked in five degree steps to prevent changes in public or shared spaces. The mount keeps the TV close to the wall, with only 2 inches of space behind the panel, so the setup stays low profile.

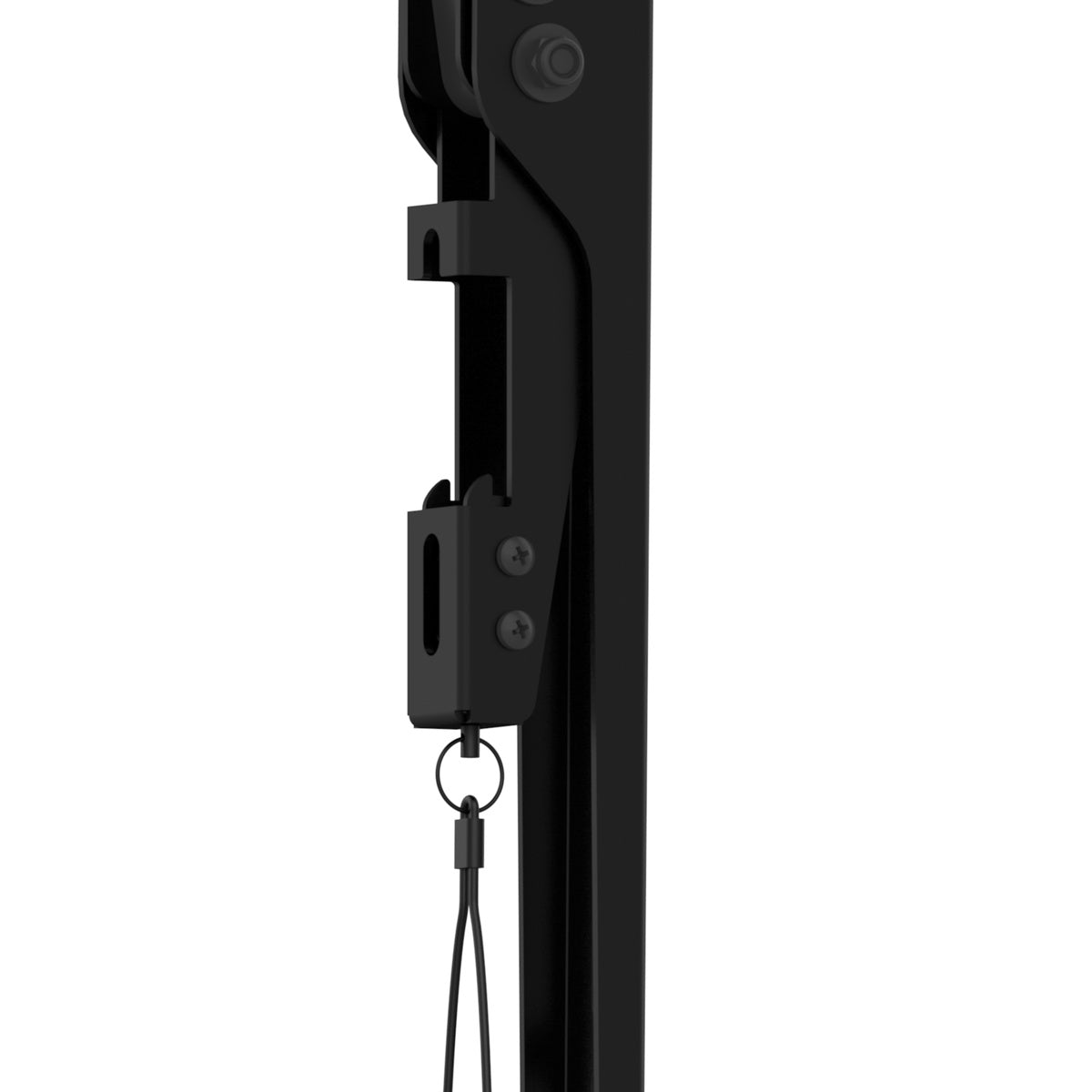

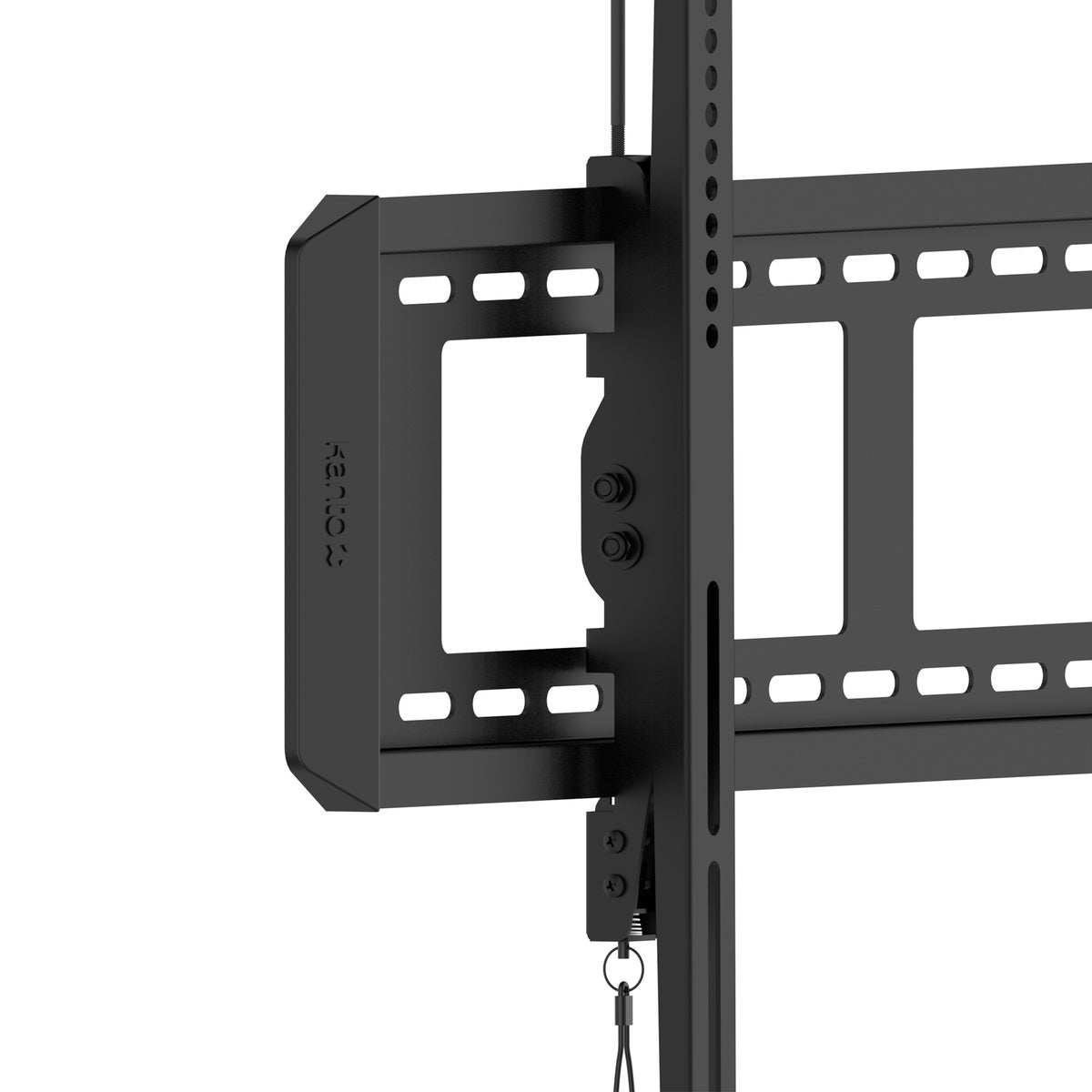

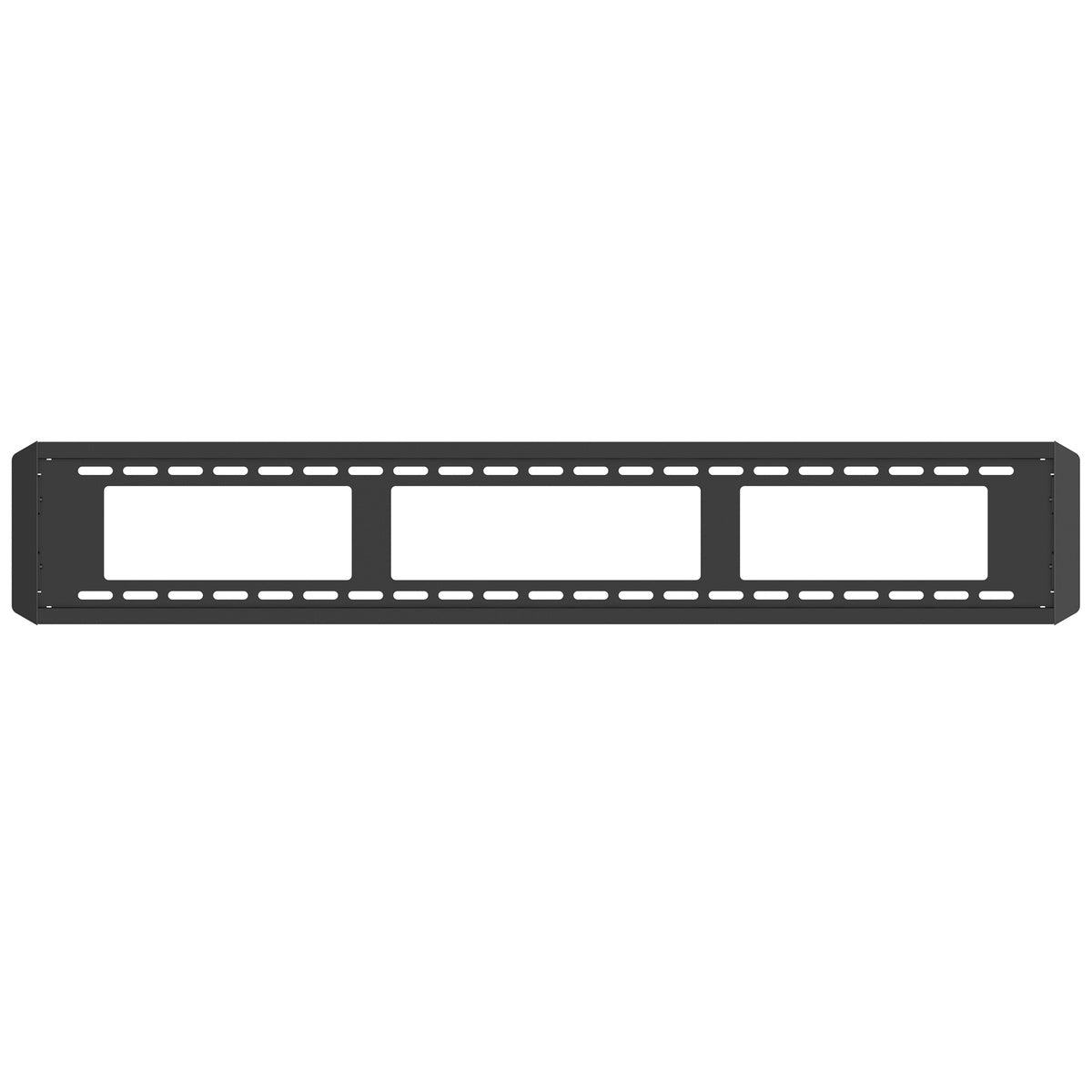

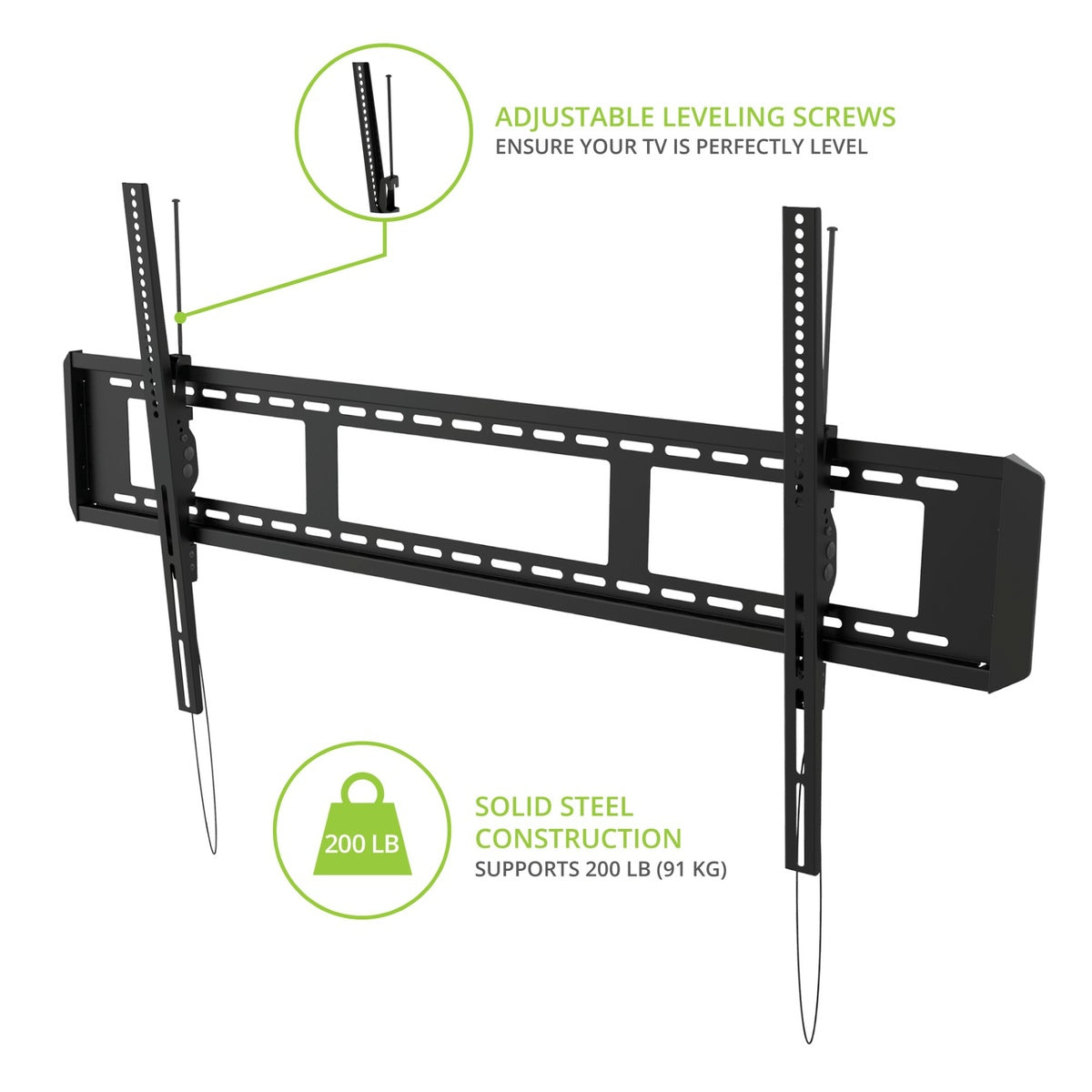

An extra wide wall plate lets installers move the display side to side to center it in the room, which helps with stud placement. Leveling screws are easy to reach and make it simple to adjust the screen after mounting. Quick release brackets allow for easy access when running cables or swapping out hardware. The T6090 is built to handle demanding installations in commercial AV setups or conference rooms where reliability matters.

Details & Specs

Model T6090
Product Dims (W x D x H) 47.6" x 2" x 24.6" (121 x 5 x 62.5 cm)
Product Weight 14.3 lb (6.5 kg)
TV Size Fits most flat panel TVs from 55” to 120”
Load Rated Supports TVs up to 200 lb (91 kg)

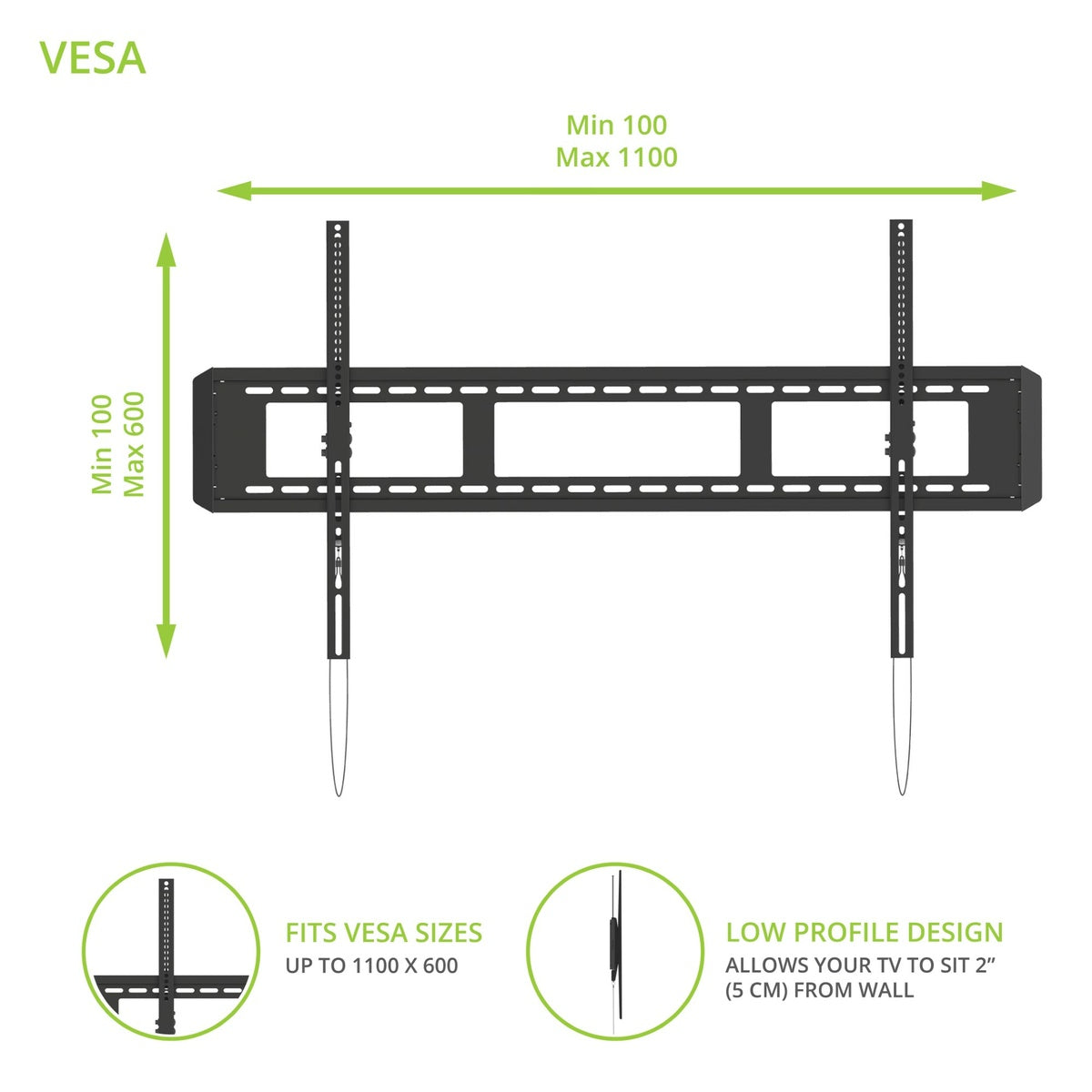

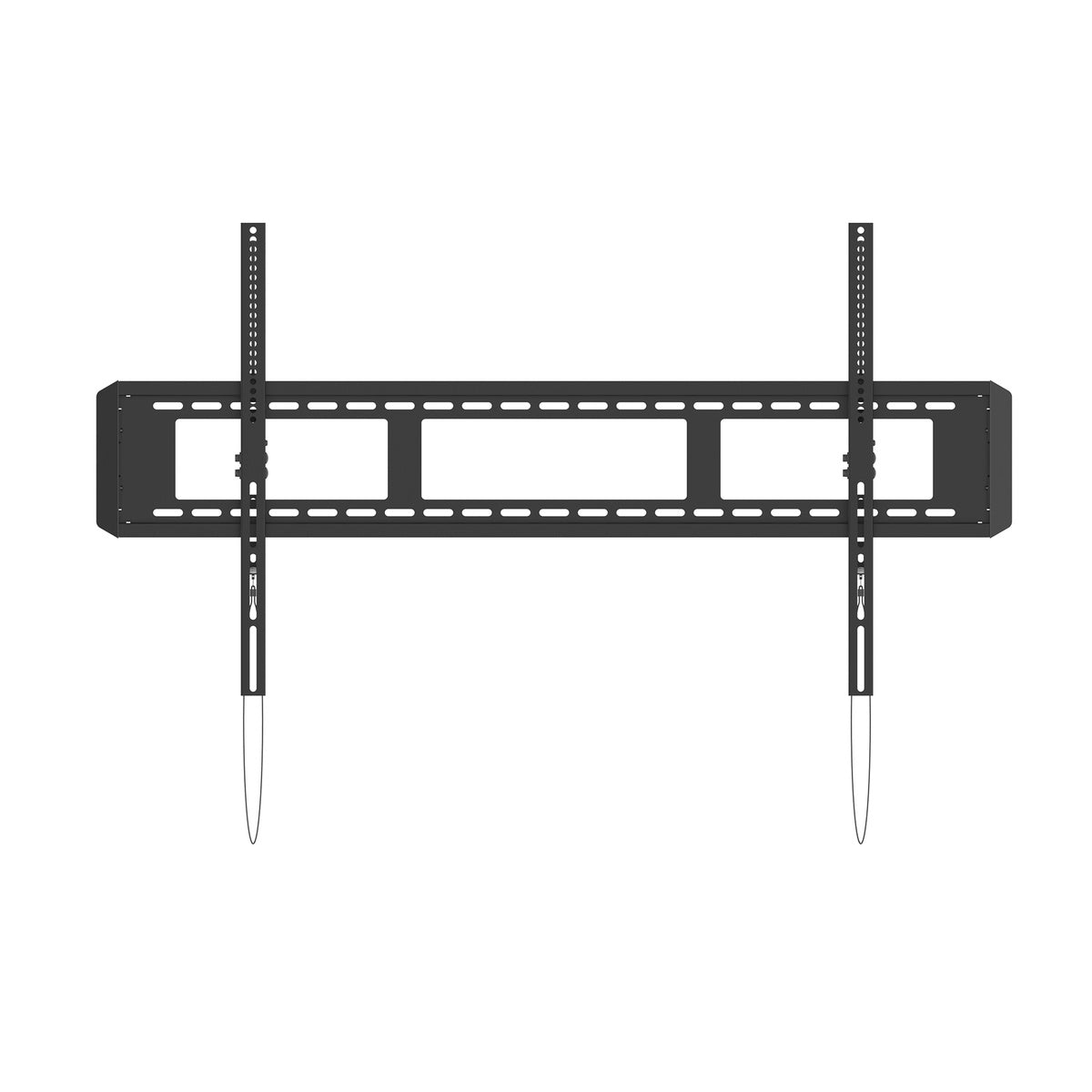

Vesa Accommodates VESA sizes from 100x100 to 1100x600

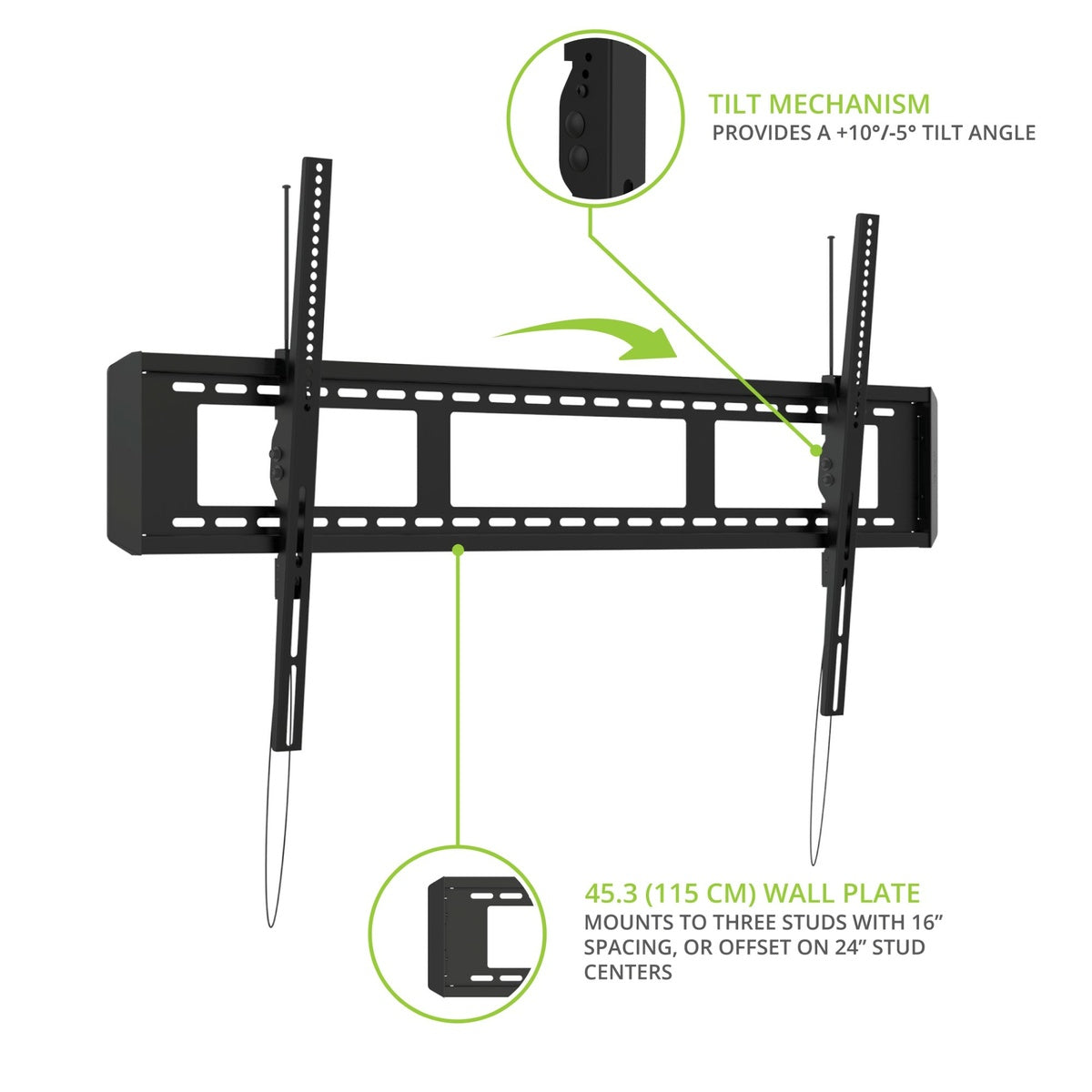

Tilt Accessible tilt mechanism provides a +10° to -5° viewing angle

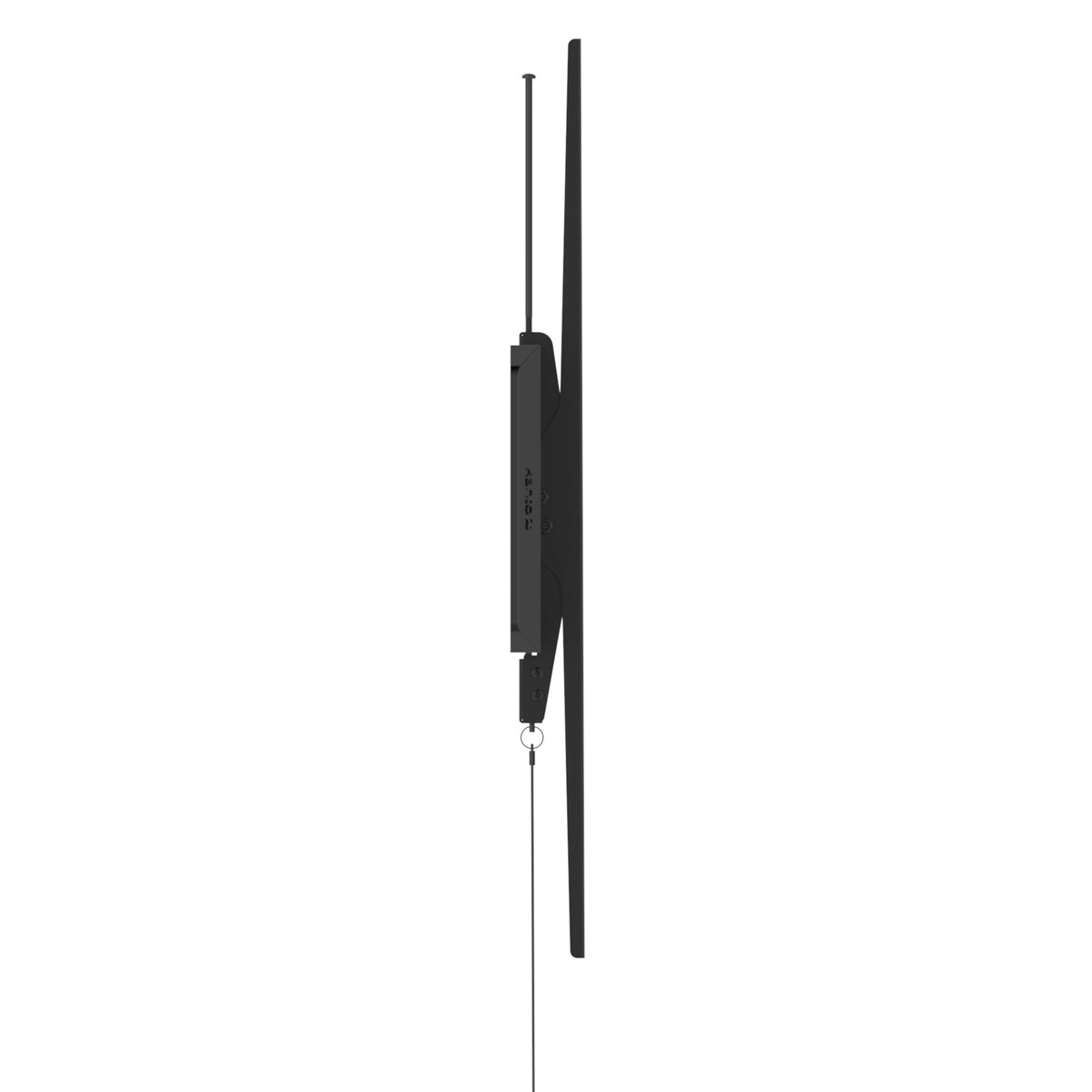

Profile Sits 2” (5 cm) from the wall

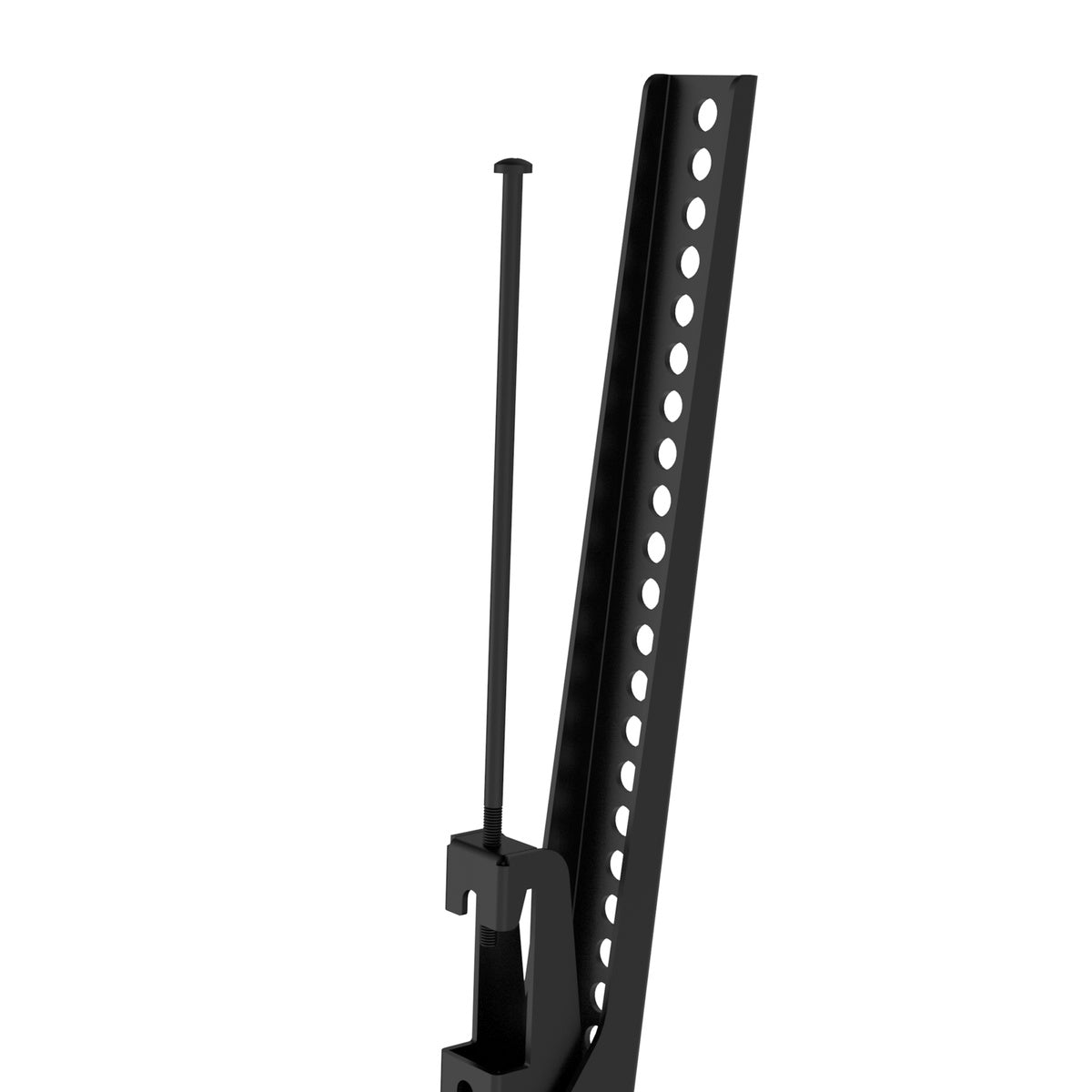

Leveling Adjustable horizontal leveling
Stud Spacing 45.3” (115 cm) wall plate allows mounting to three 16” studs, or offsetting on 24” stud centers
Min-Max TV Display Size 55-120
Recommended Max Weight 200
Assembly Required Yes
Installation Required Yes
Hardware and Manuals Includes manual and all mounting hardware for wood stud and concrete installation
