Kanto R500 Recessed Articulating Mount - Large
Item #R500

Kanto R500

Kanto R500 Recessed Articulating Mount - Large
$279.99
More on the way! Order now to reserve risk free.
Contact Us

Overview

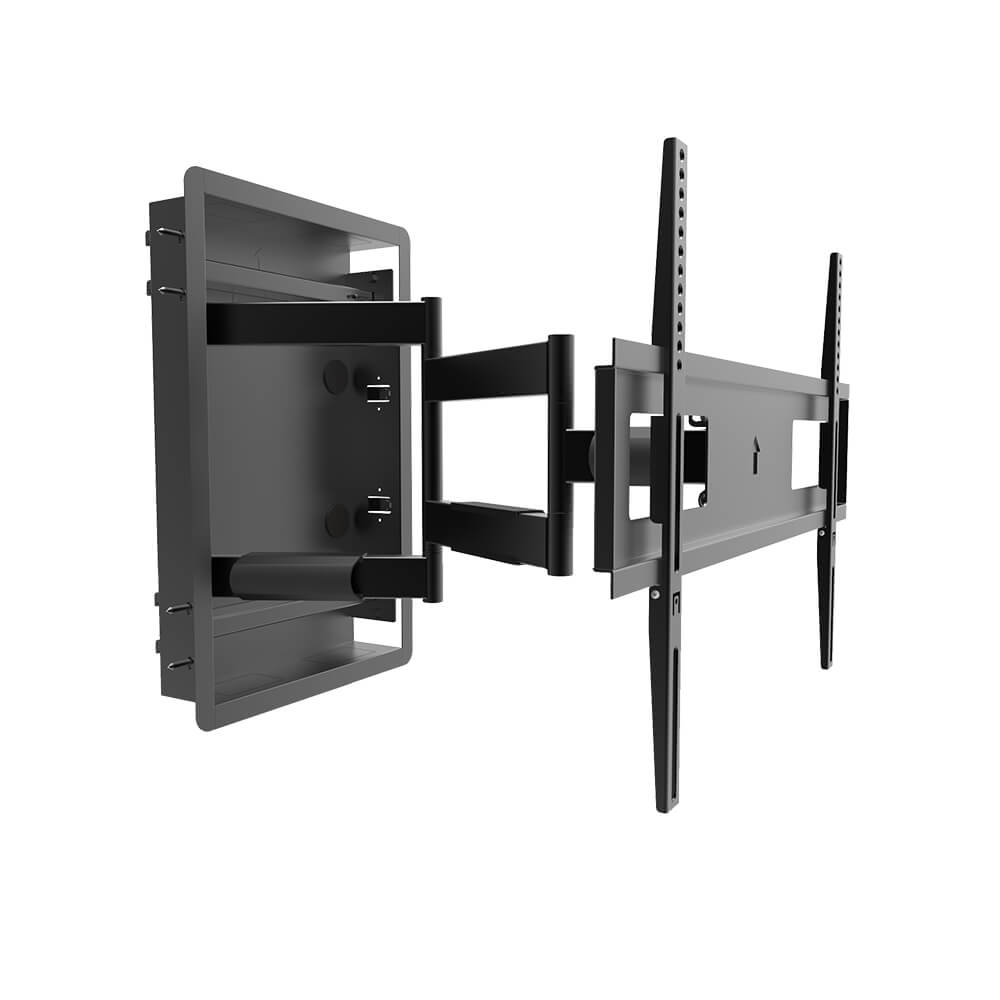

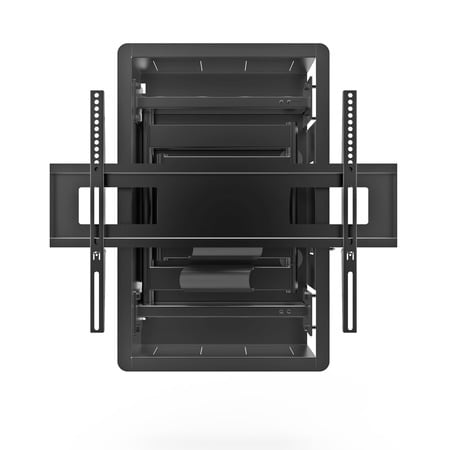

Achieve an ultra-low-profile setup with the R500 recessed wall mount. Designed to be inserted between two studs measuring 16” apart, this unique mounting solution lets your TV sit 1.25” from the wall when fully retracted. Its 27.6” long articulating arm provides -5°/+10° of tilt and 180° of swivel, ensuring optimal viewing from all angles. Built out of high-grade steel, the R500 supports 46” to 80” TVs weighing up to 135 pounds.

Full Range of Motion

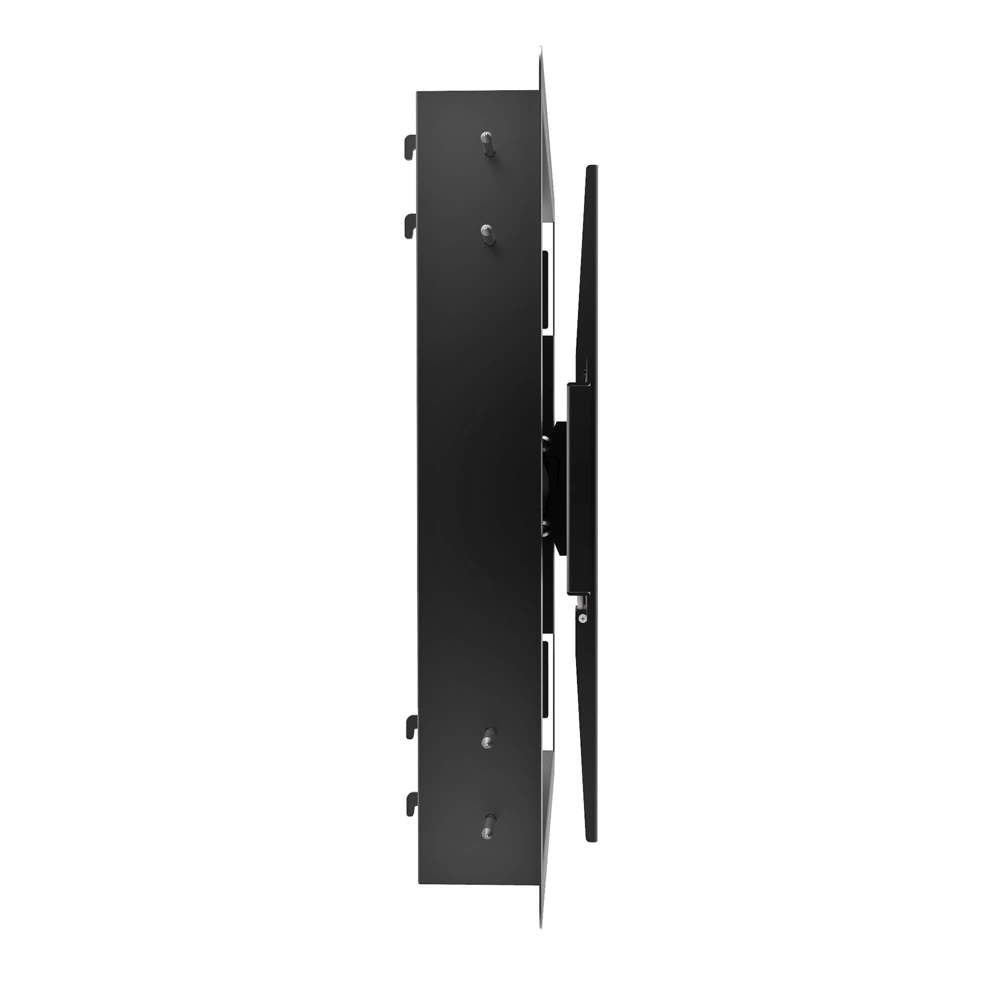

The R500’s in-wall design is made to fit securely between 16” stud centers. When fully retracted, this 46″-80″ TV wall mount’s arm assembly allows your TV to sit almost flush with the wall.

Supports Up to 135 Pounds

Constructed out of solid steel, the R500 safely supports 46” to 80” TVs weighing up to 135 pounds, while its adjustable mounting brackets accommodate VESA sizes between 100×100 and 600×400.

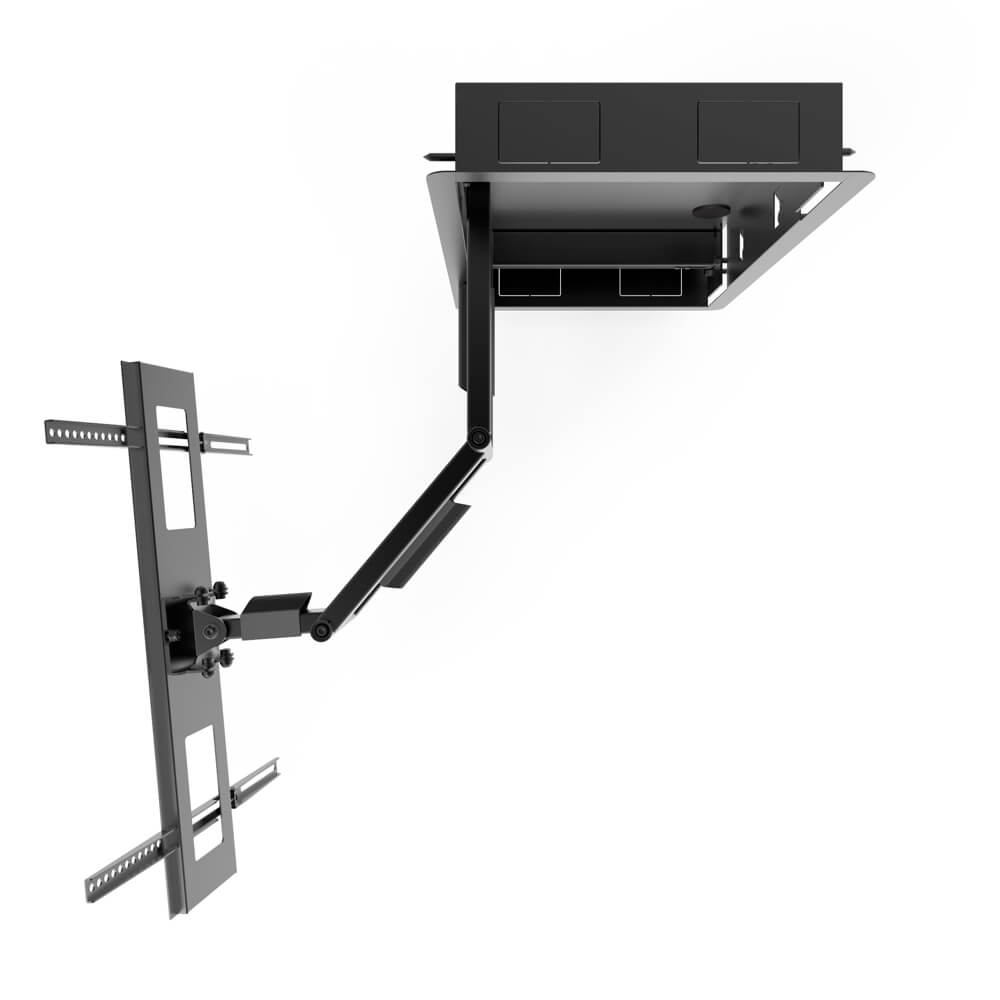

Full Range of Motion

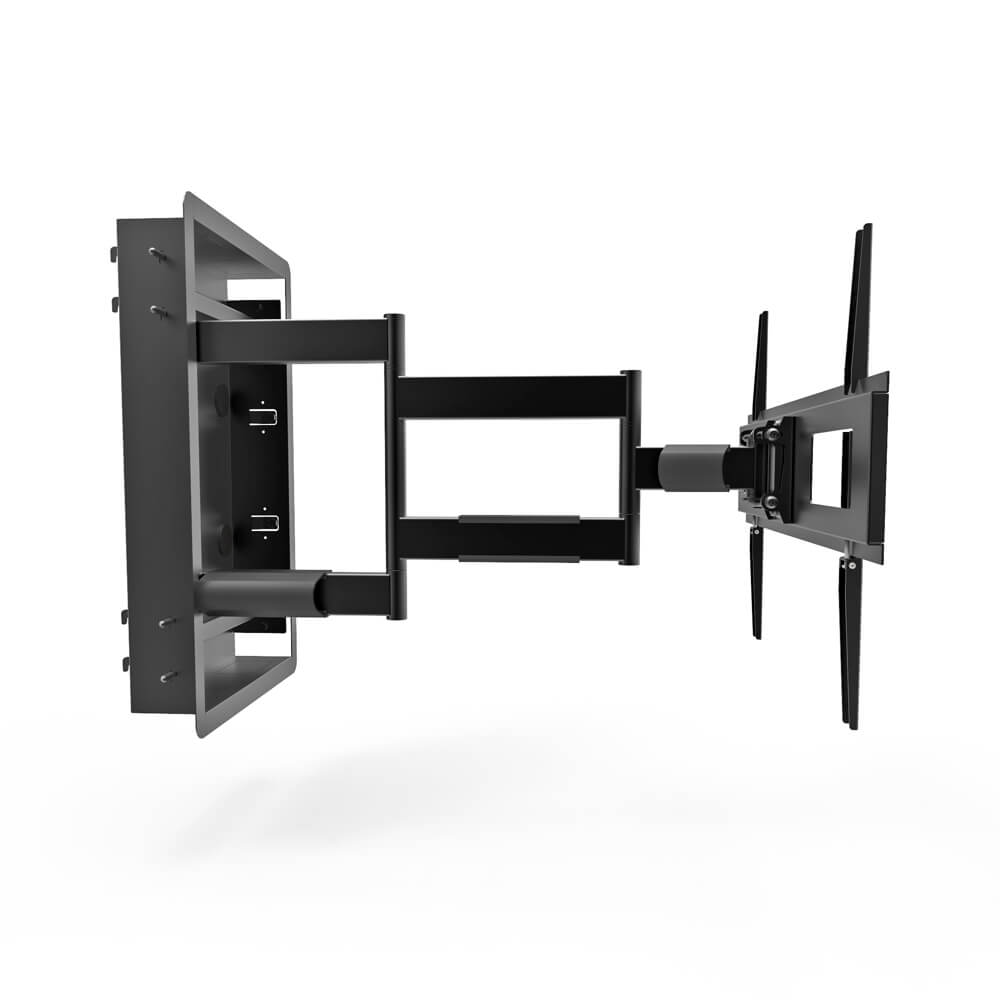

Use the R500’s articulating arm to ensure you always have the perfect viewing angle. Extend it out 27.6” to provide ample room to tilt and swivel your TV.

Details & Specs

Specifications

  • TV Sizes: 46” to 80”
  • Weight Allowance: 135 lb (62 kg)
  • VESA Sizes: 100×100 to 600×400
  • In-Wall Box: 14.2″ (36 cm) wide by 23.1″ (58.6 cm) tall by 3.7″ (9.3 cm) deep
  • In-Wall Box Installation: Fits between 16″ stud centers

Measurements

  • Shipping box weight: 38.6 lb (17.5 kg)
  • Shipping box dimensions: 27.8″ x 17.7″ 5.5″ (70.5 x 45 x 14 cm)
  • Product weight: 36.4 lb (16.5 kg)
  • UPC: 800152717463

Features

  • Paper wall template for marking pilot holes
  • Installation Manual
  • All mounting hardware for wood stud installation
  • +10° to -5° Tilt
  • 180° Swivel
  • 1.25″ from the wall
  • Extension: 27.6″ (70.2 cm) from the wall Integrated cable management
  • 5 year waranty
