Item #R300

Kanto R300

Kanto R300 Recessed Articulating Mount - Medium
Item #R300

Kanto R300

Kanto R300 Recessed Articulating Mount - Medium
$179.99
In Stock: Free 2-Day Shipping
Contact Us

Overview

Achieve an ultra-low-profile setup with the R300 recessed wall mount. Designed to be inserted between two studs measuring 16” apart, this unique mounting solution lets your TV sit 1.25” from the wall when fully retracted. Its 18.5” long articulating arm provides -5°/+10° of tilt and 180° of swivel, ensuring optimal viewing from all angles. Built out of high-grade steel, the R300 supports 32” to 55” TVs weighing up to 80 pounds.

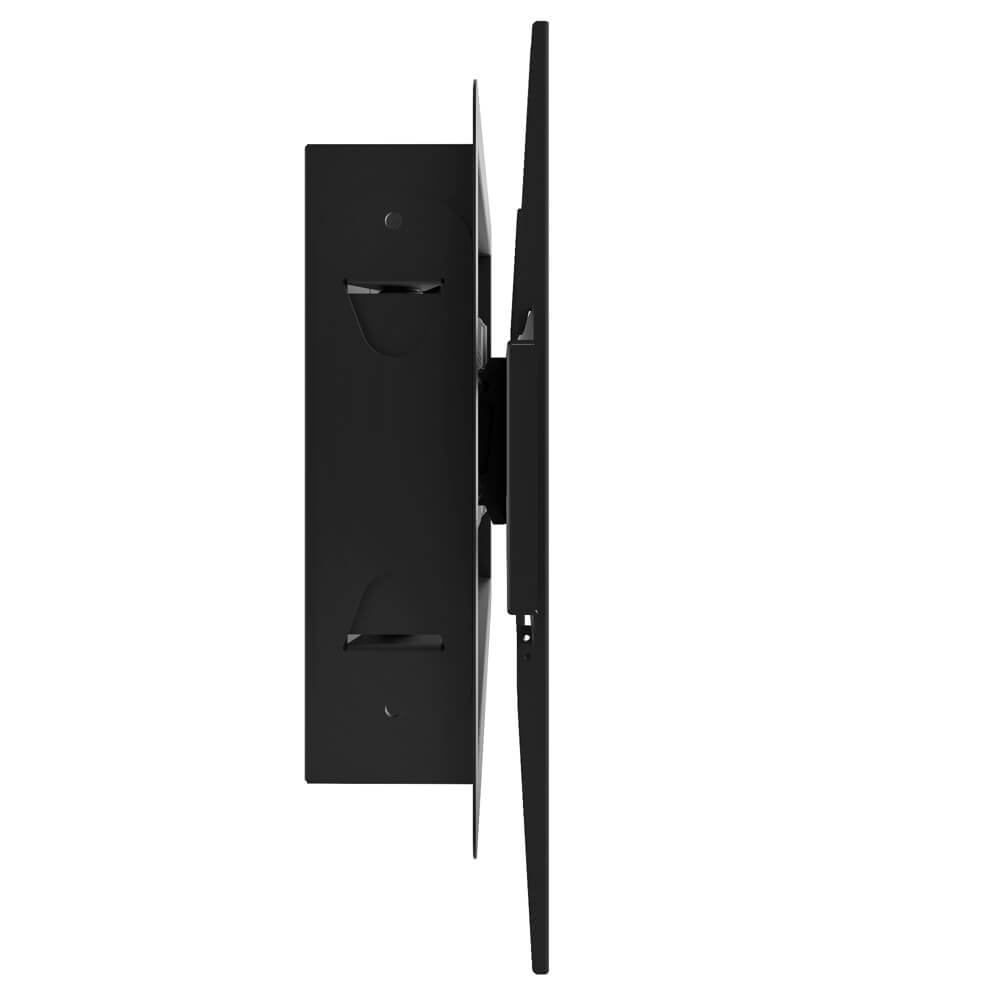

Recessed Design

This 32 in. to 55 in. TV wall bracket’s in-wall design is made to fit securely between 16” stud centers. When fully retracted, its arm assembly allows your TV to sit almost flush with the wall.

Supports Up to 80 Pounds

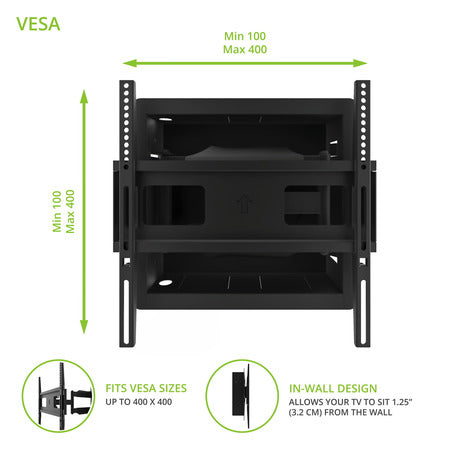

Constructed out of solid steel, the R300 safely supports 32” to 55” TVs weighing up to 80 pounds, while its adjustable mounting brackets accommodate VESA sizes between 100×100 and 400×400.

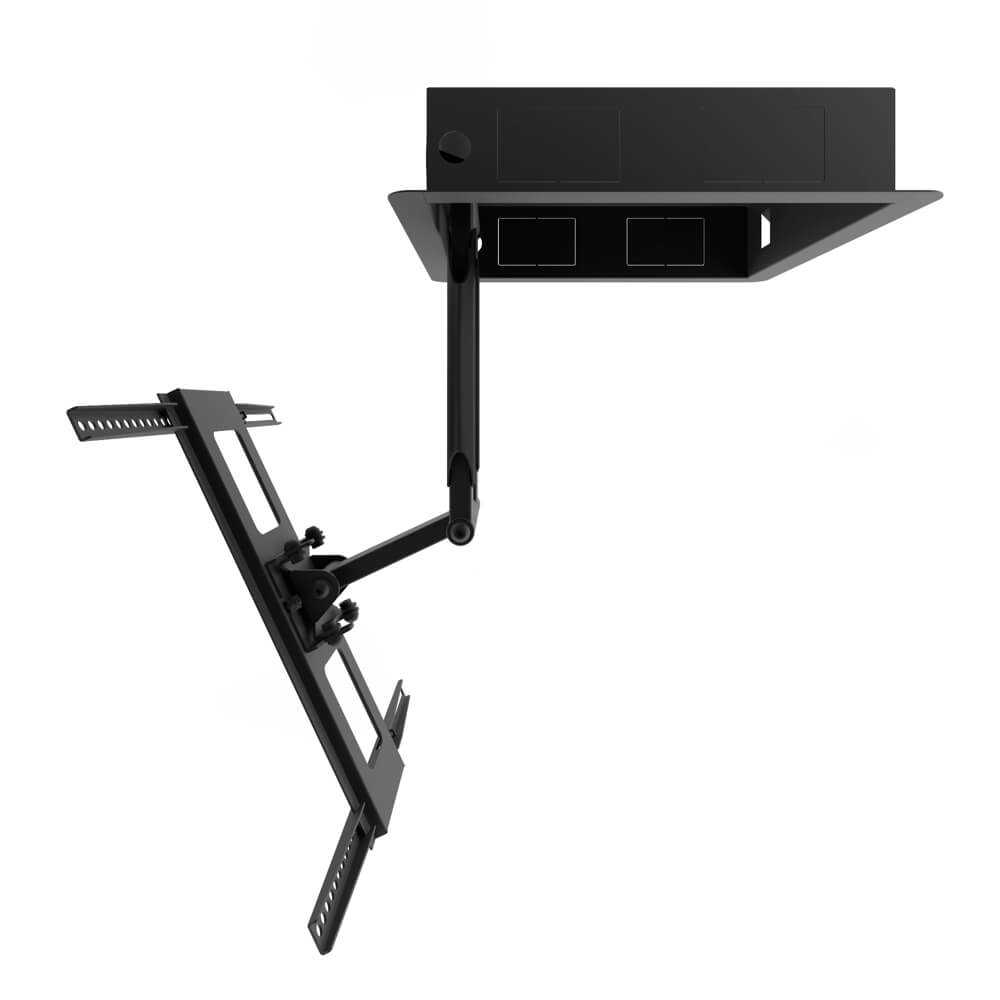

Full Range of Motion

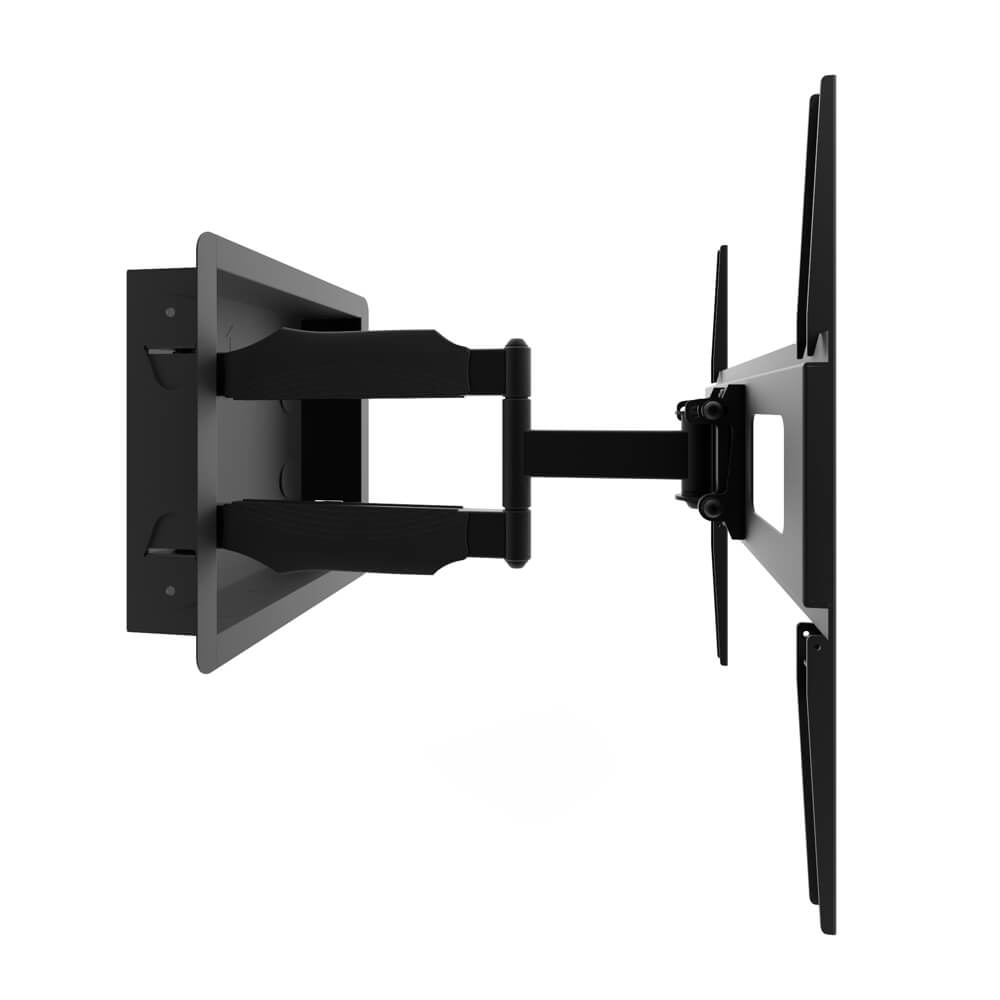

Use the 32 in. to 55 in. TV wall bracket’s articulating arm to ensure you always have the perfect viewing angle. Extend it out 18.5” to provide ample room to tilt and swivel your TV.

Details & Specs

Specifications

  • TV Sizes: 32” to 55”
  • Weight Allowance: 80 lbs (36 kg)
  • VESA Sizes: 100×100 to 400×400
  • In-Wall Box: 14.4″ (36.5 cm) wide by 13″ (33 cm) tall by 3.5″ (8.9 cm) deep
  • In-Wall Box Installation: Fits between 16″ stud centers

Measurements

  • Shipping box weight: 22 lb (10 kg)
  • Shipping box dimensions: 19.3″ x 16.5″ 5.5″ (49 x 42 x 14 cm)
  • Product weight: 20.5 lb (9.3 kg)
  • UPC: 800152717456

Features

  • Paper wall template
  • Installation Manual
  • All mounting hardware for wood stud installation
  • +10° to -5° Tilt
  • 180° Swivel
  • 1.25″ from the wall
  • Extension: 18.5″ (46.9 cm) from the wall Integrated cable management
  • 5 year warranty
