Item #PT405

PT405

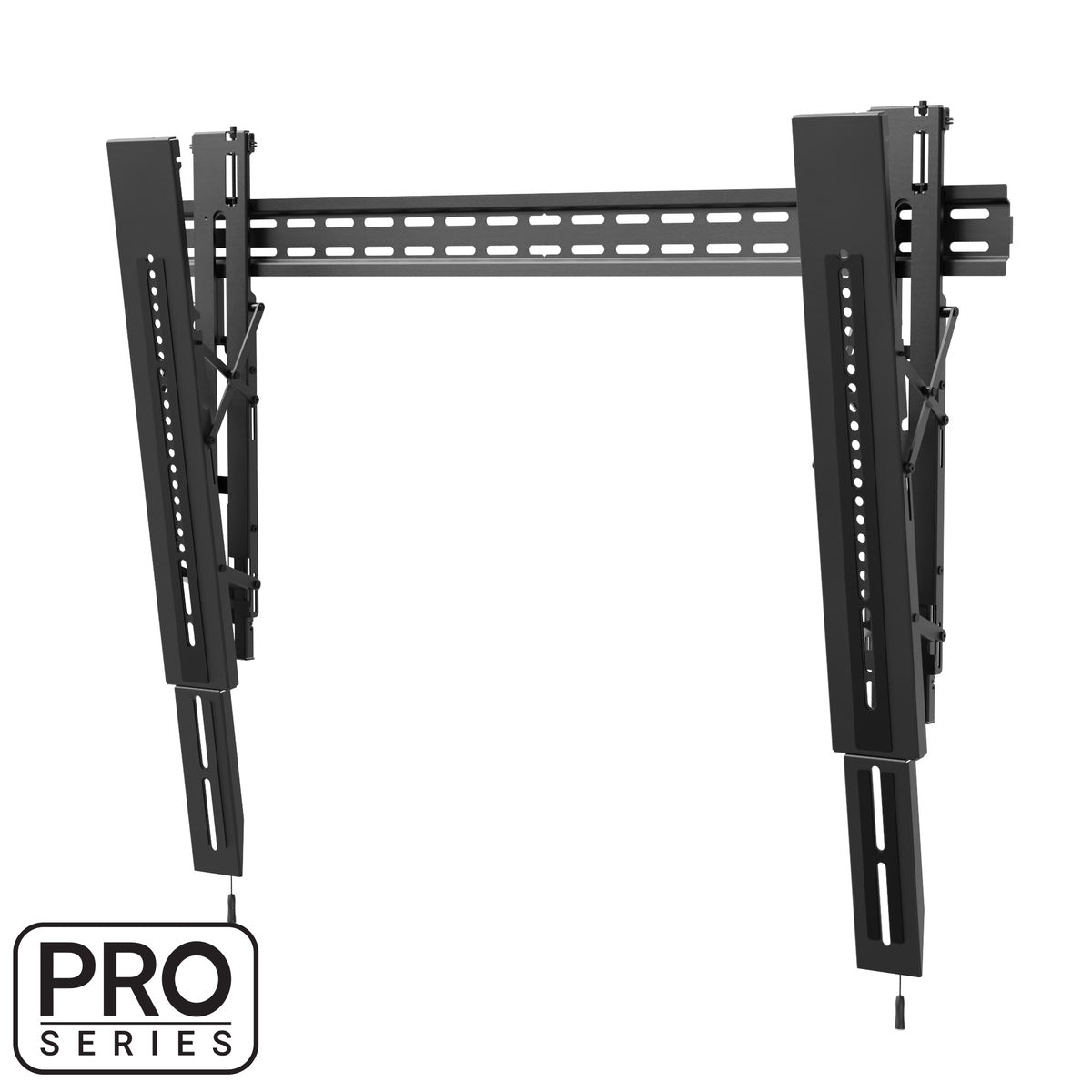

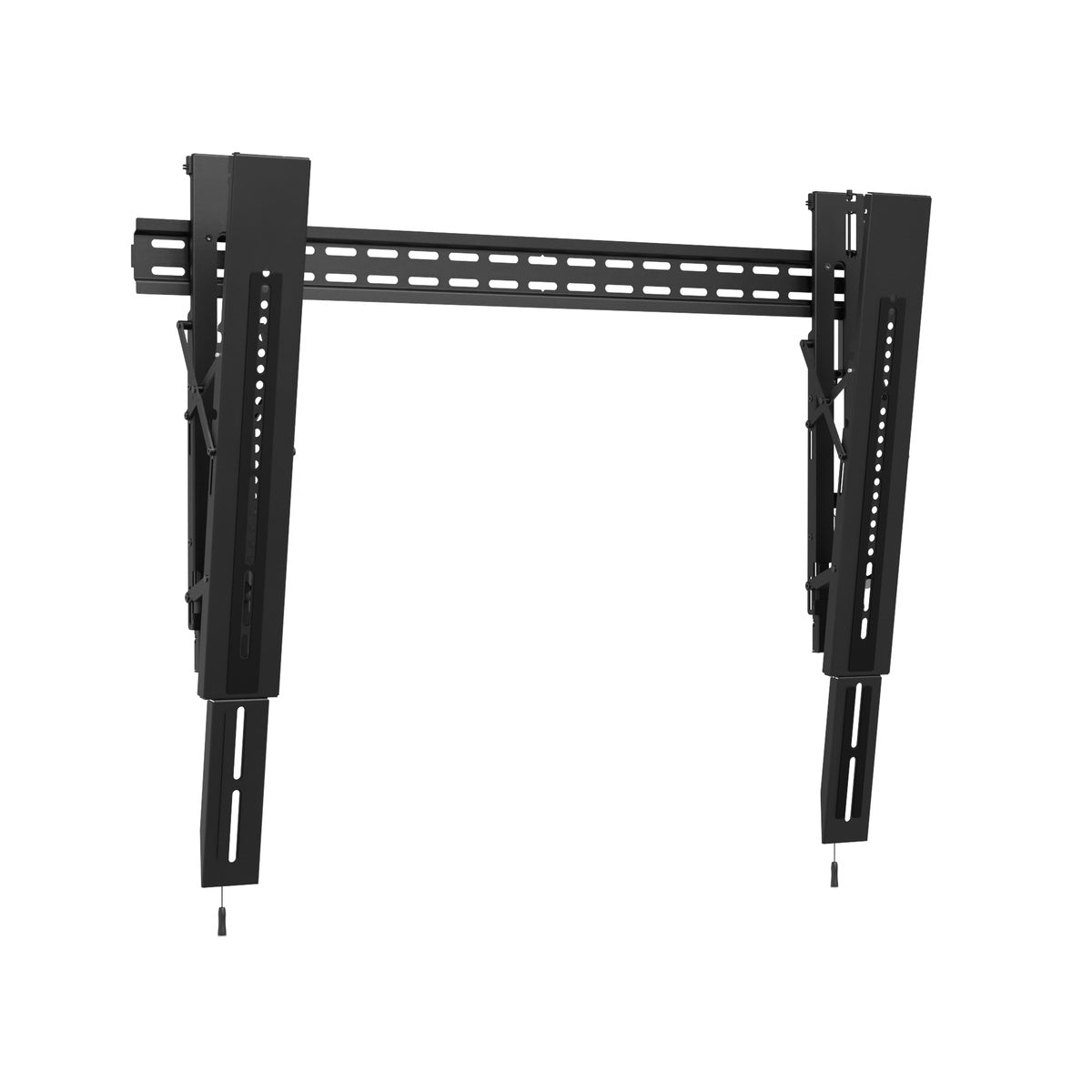

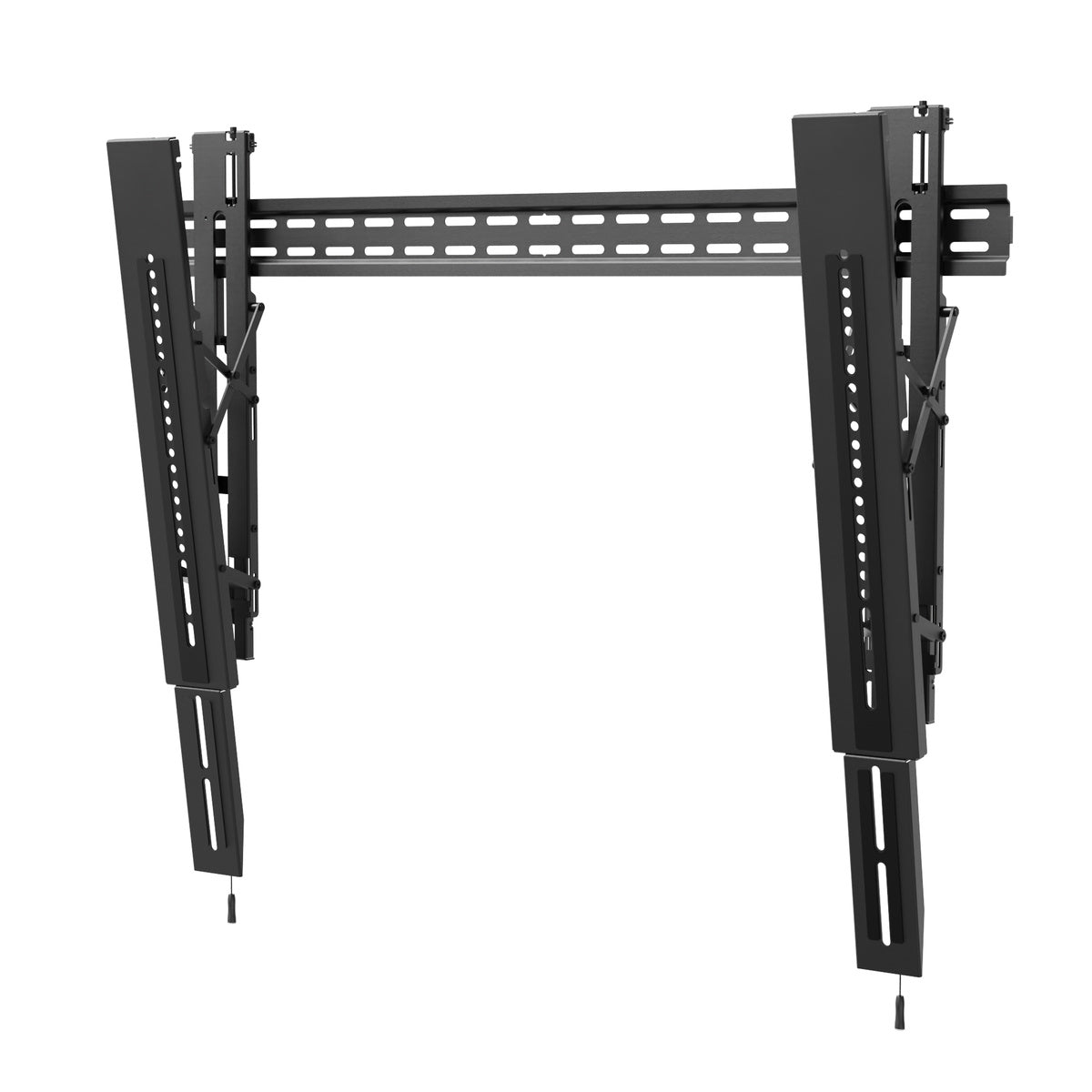

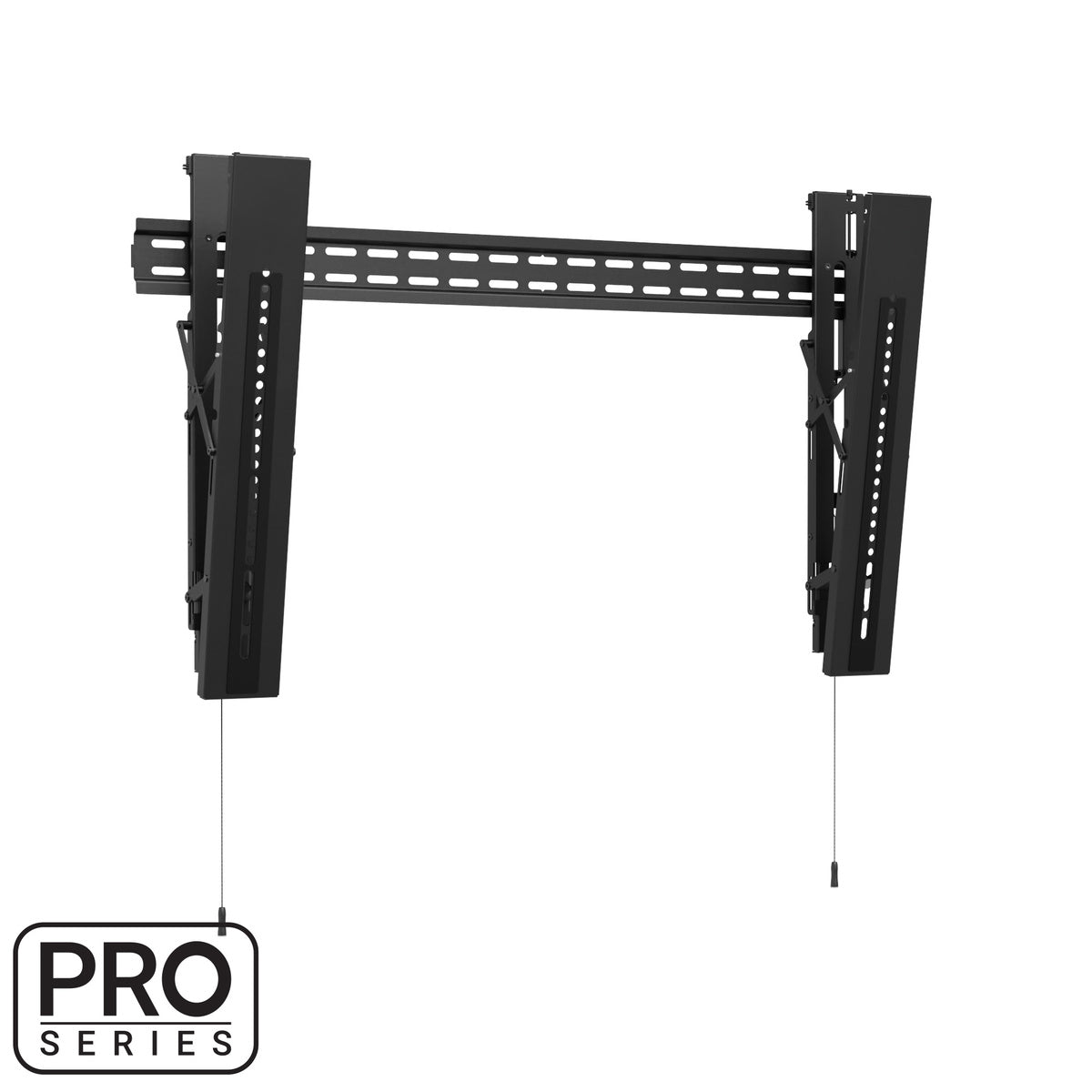

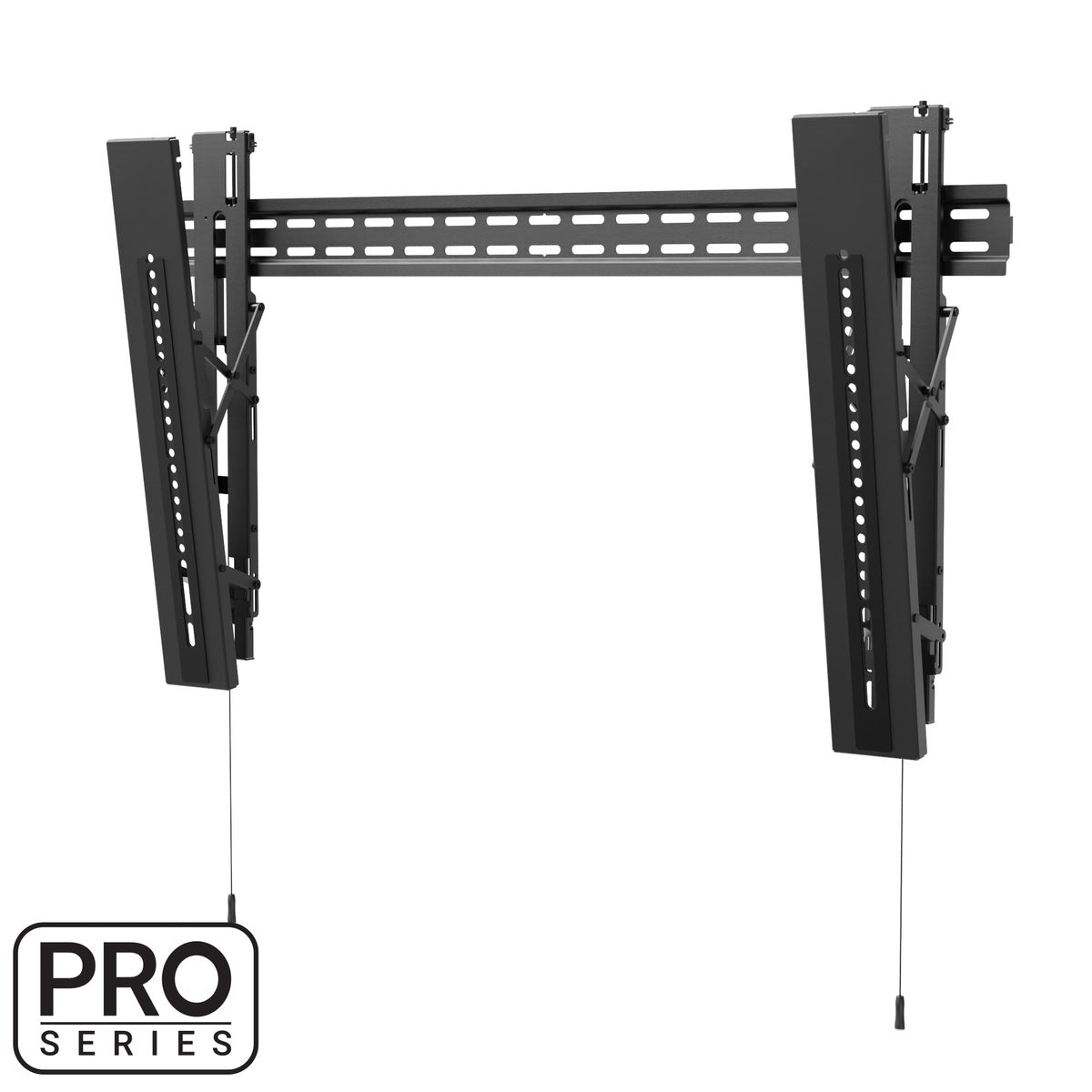

Ultra Low-Profile Tilting TV Mount for 50” - 90” TVs
Item #PT405

PT405

Ultra Low-Profile Tilting TV Mount for 50” - 90” TVs
$199.99
More on the way! Order now to reserve risk free.

Overview

Sitting just 0.7 inches from the wall, this low profile mount holds 50 to 90 inch displays up to 125 pounds. Featuring 10 degrees of forward tilt to minimize glare, post install adjustments, and a service kickstand, it anchors sleek residential smart home integration.

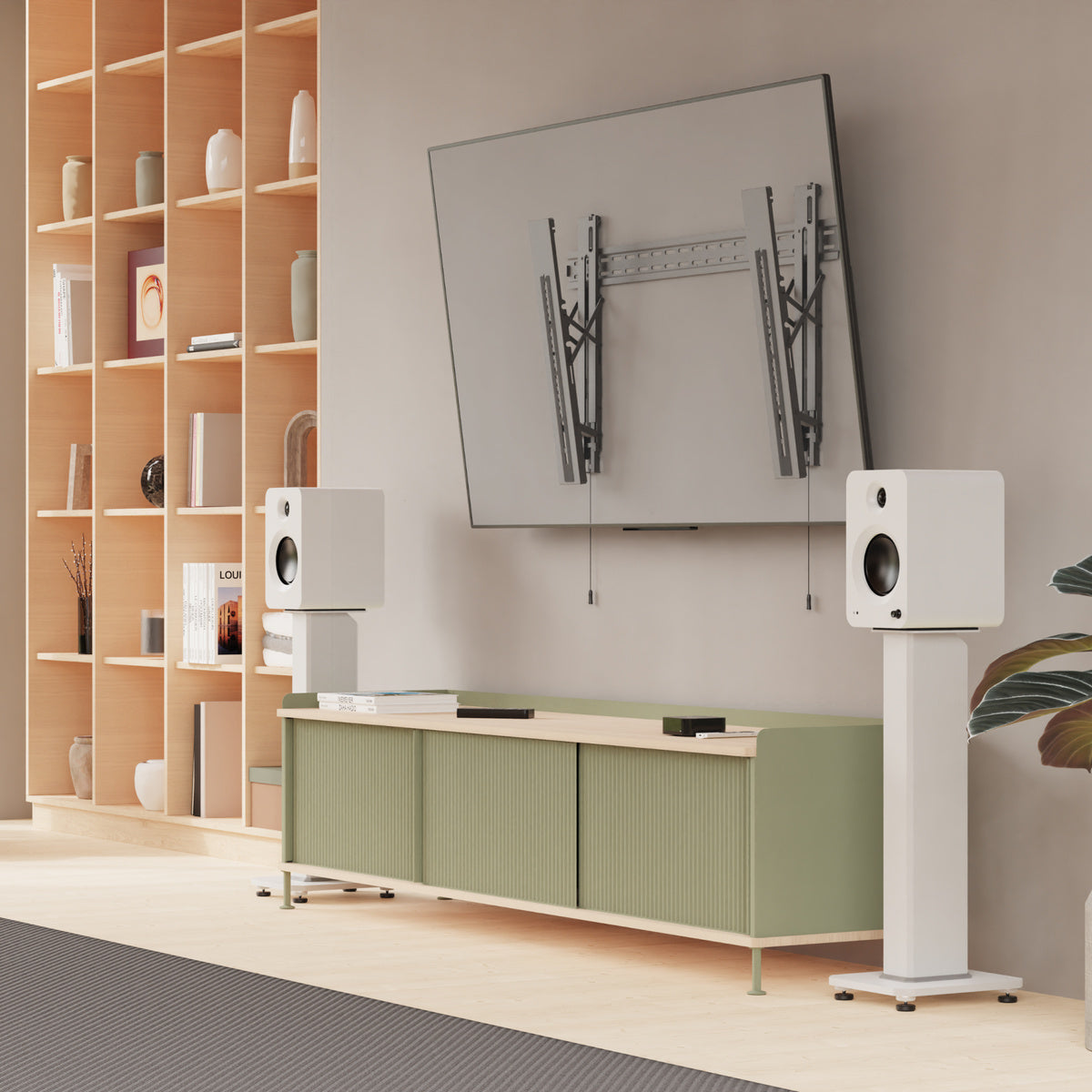

The Kanto PT405 Ultra Low Profile Tilting TV Mount provides a highly secure structural solution for installing large television screens ranging from 50 to 90 inches. Engineered to maintain a flat appearance, this hardware allows the television to sit just 0.7 inches away from the wall surface. This tight spacing solves the aesthetic problem of protruding screens, making the display resemble a hanging picture.

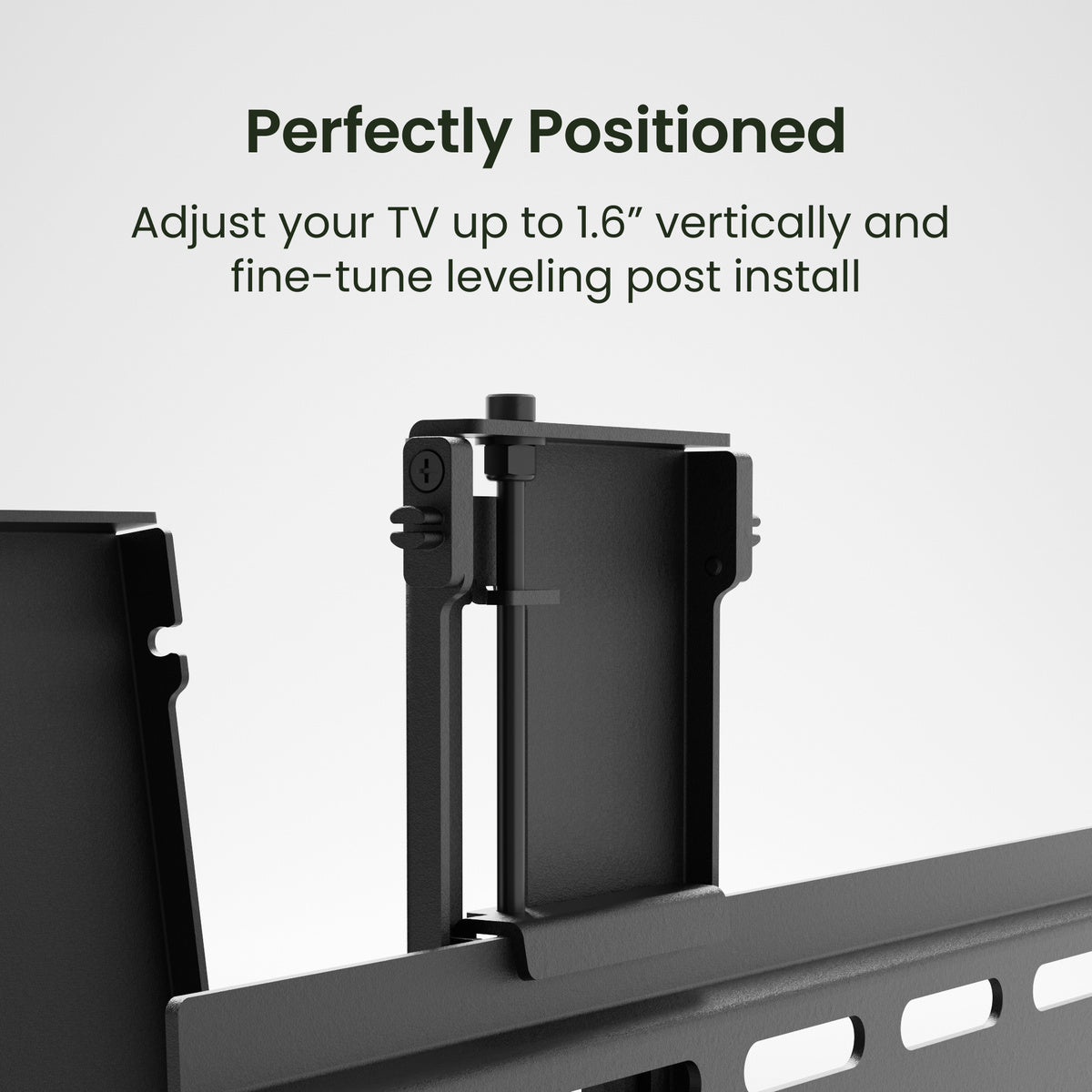

Structurally built to handle heavy loads, the mount supports a maximum weight capacity of 125 pounds and easily matches various VESA patterns up to 800x600. The wide 32 inch wall plate is long enough to span across two or three studs, allowing for convenient horizontal shift adjustments to center the screen properly even when the local wall studs are not aligned correctly. Technicians can also take advantage of 1.6 inches of vertical height shift after the initial installation is complete, which helps line up and level the television precisely.

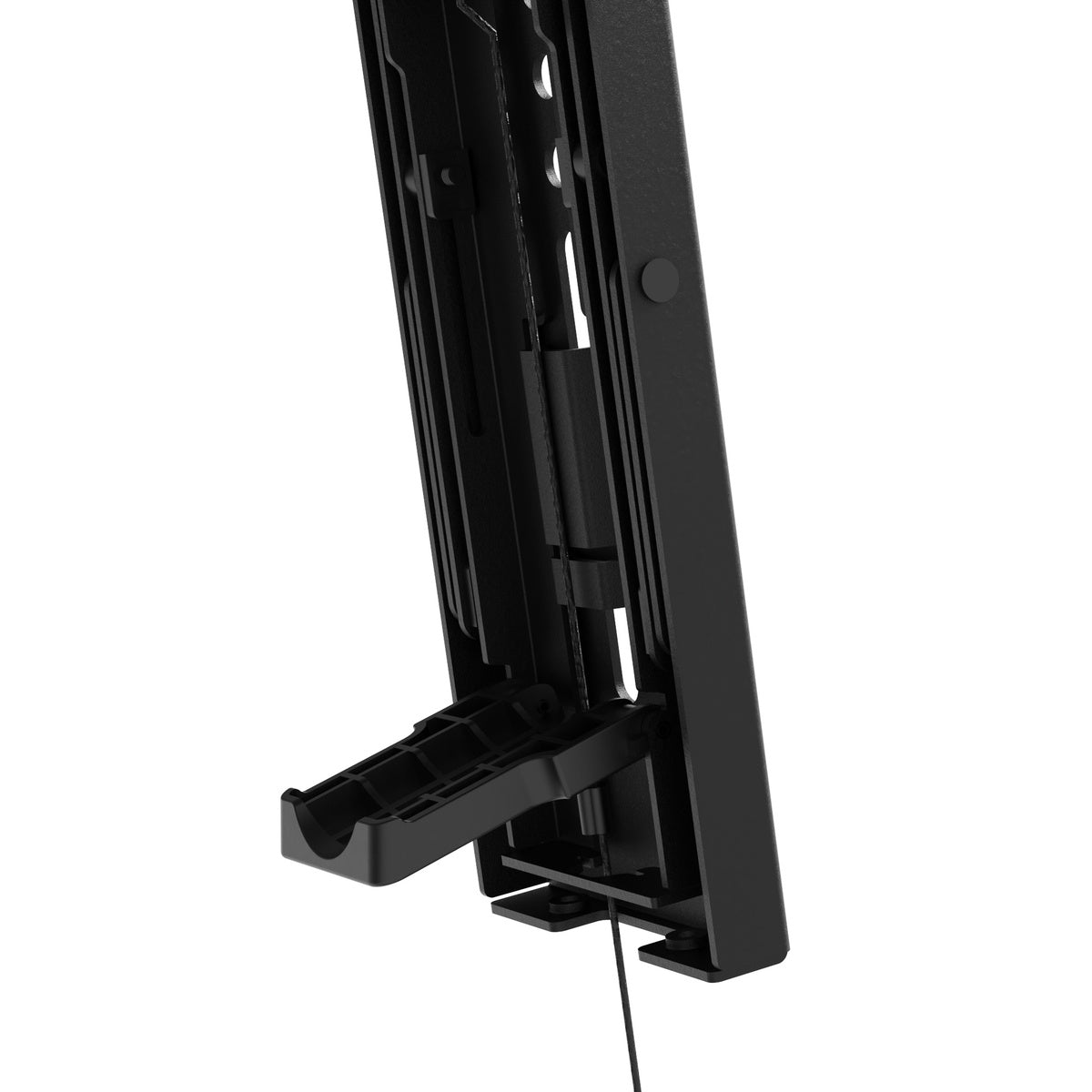

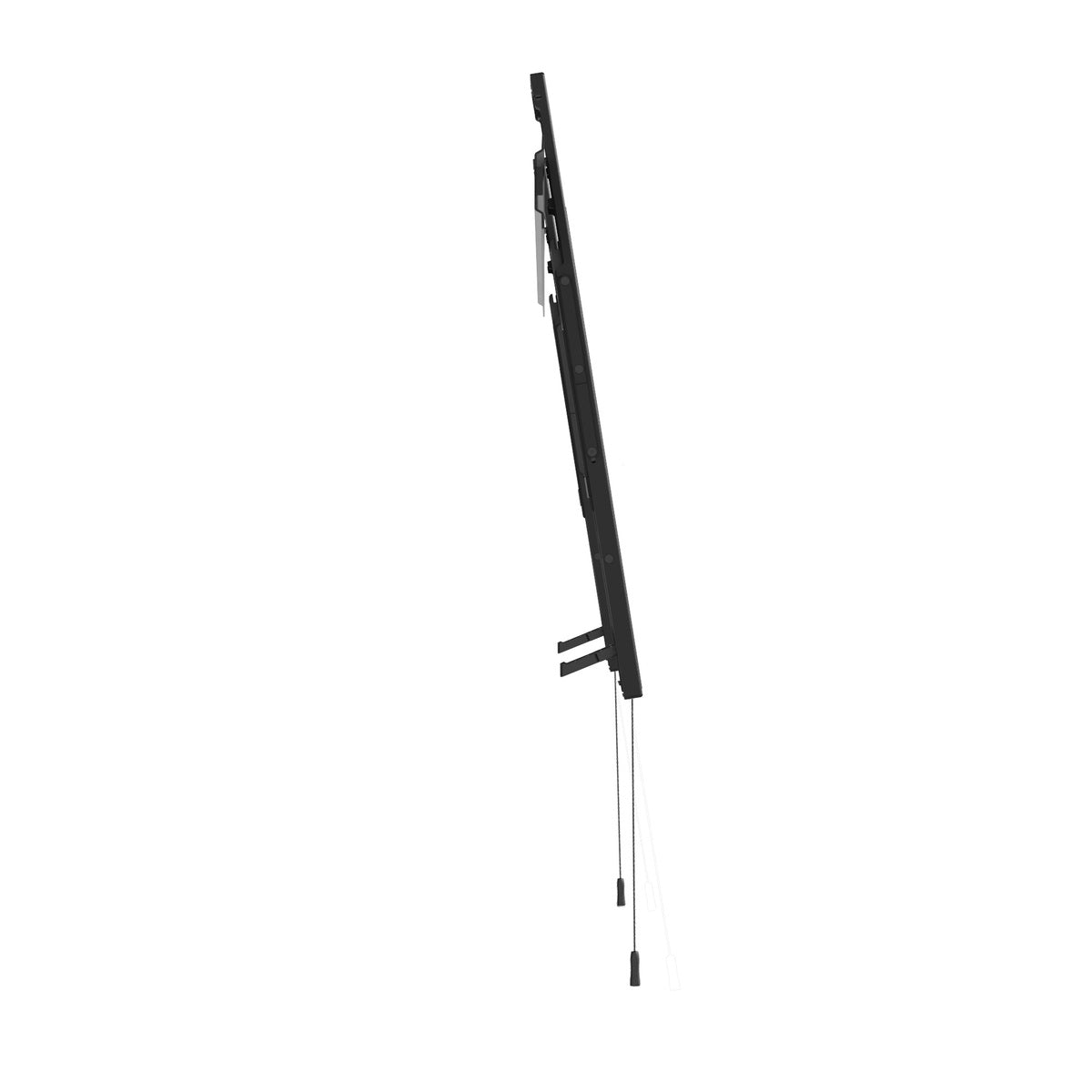

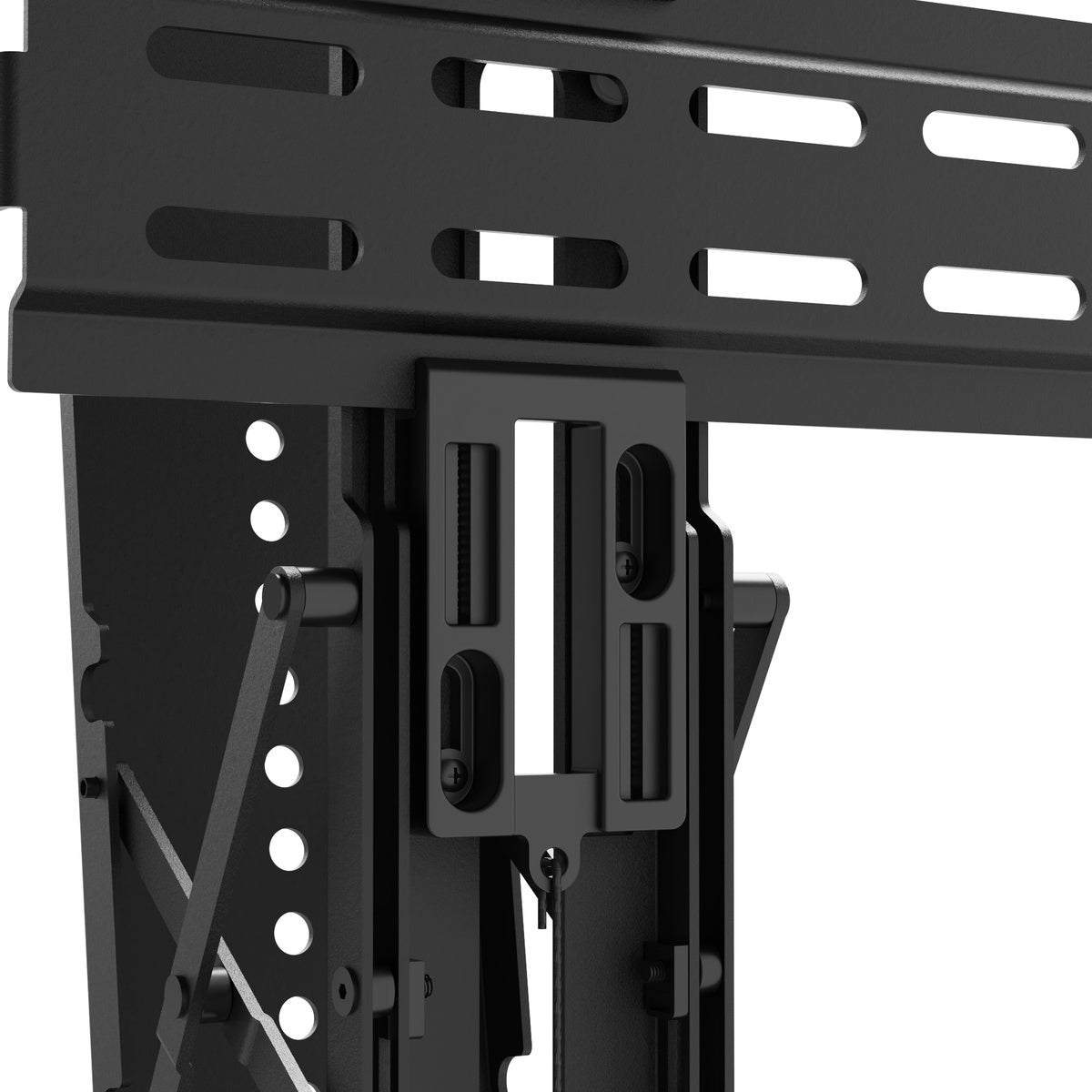

To eliminate screen glare in brightly lit environments, the mount tilts forward up to 10 degrees. Despite its slim profile, the assembly facilitates simple maintenance over time. Technicians can tilt the bracket backward and deploy an integrated kickstand, which props the screen away from the wall for fast wiring adjustments and access to rear ports. This functional design feature comes with a 10 year Pro Series warranty. By delivering structural stability and a flush aesthetic, this unit acts as a reliable building block for a clean commercial AV installation or a clean residential smart home integration.

Details & Specs

Model PT405
Product Dims (W x D x H) 39.4" x 0.7" x 30.4" (100 x 1.8 x 77.2 cm)
Product Weight 14.8 lb (6.7 kg)
TV Size Fits most TVs from 50” to 90”

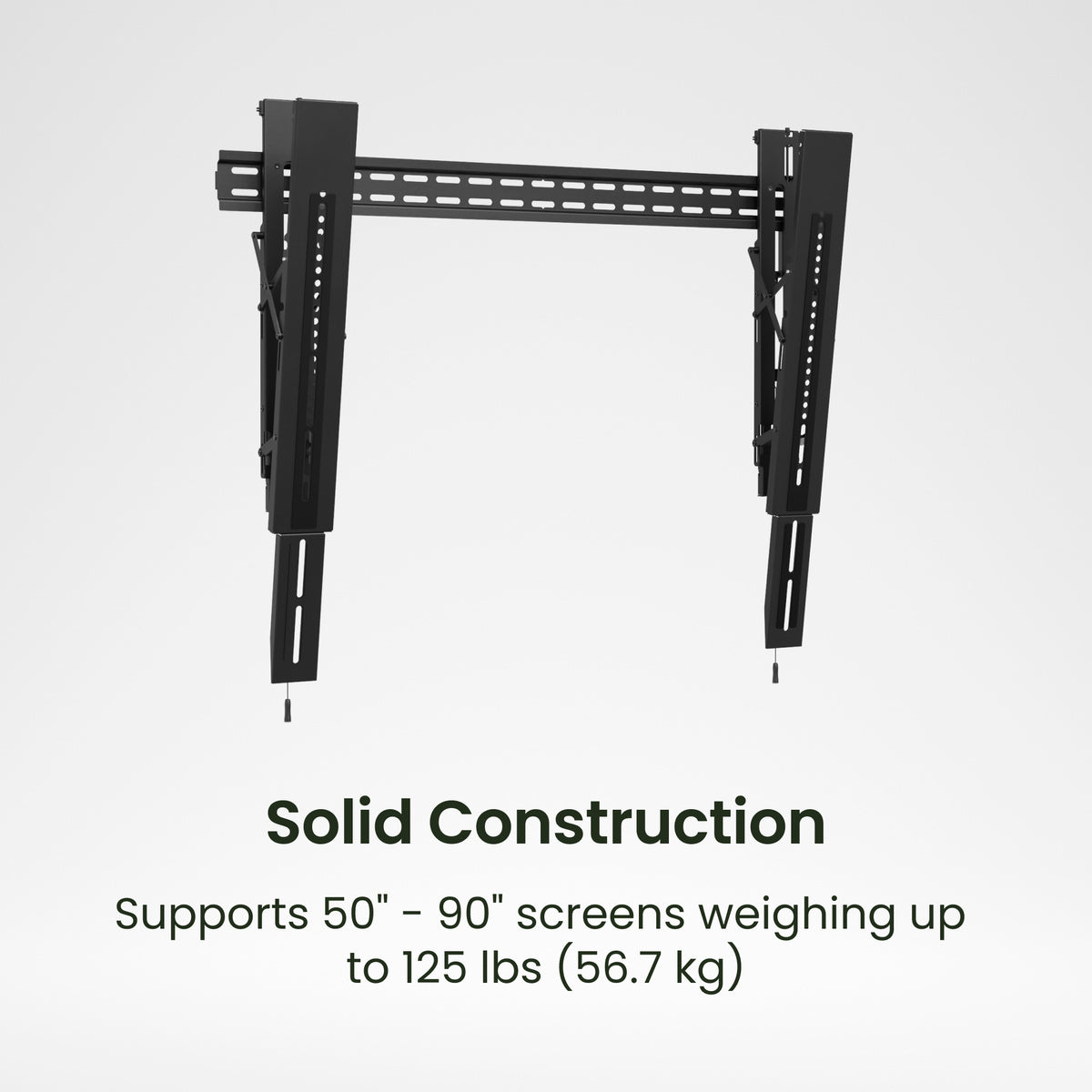

Load Rated Supports TVs up to 125 lb (56.7 kg)

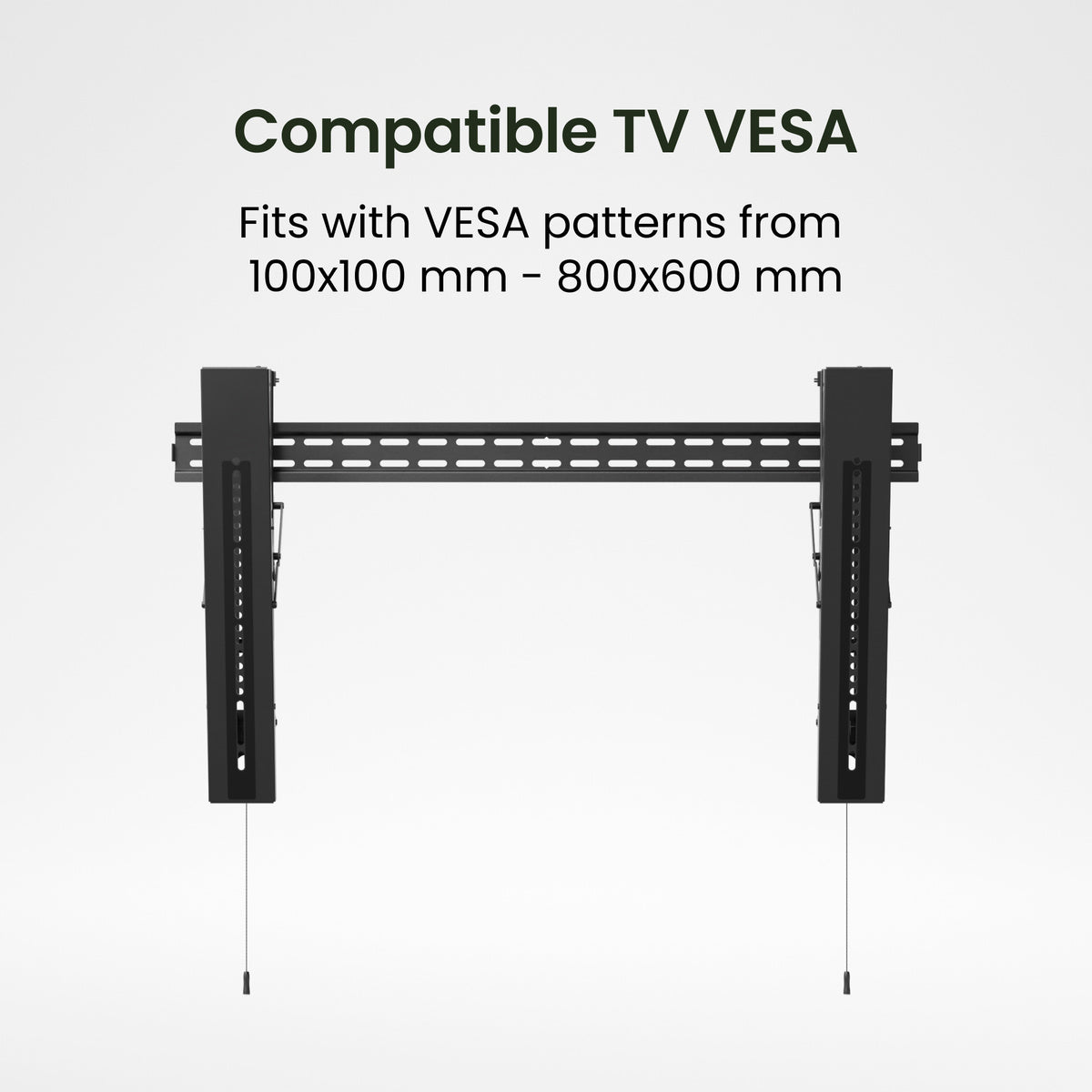

Vesa Accommodates VESA sizes from 100x100 to 800x600

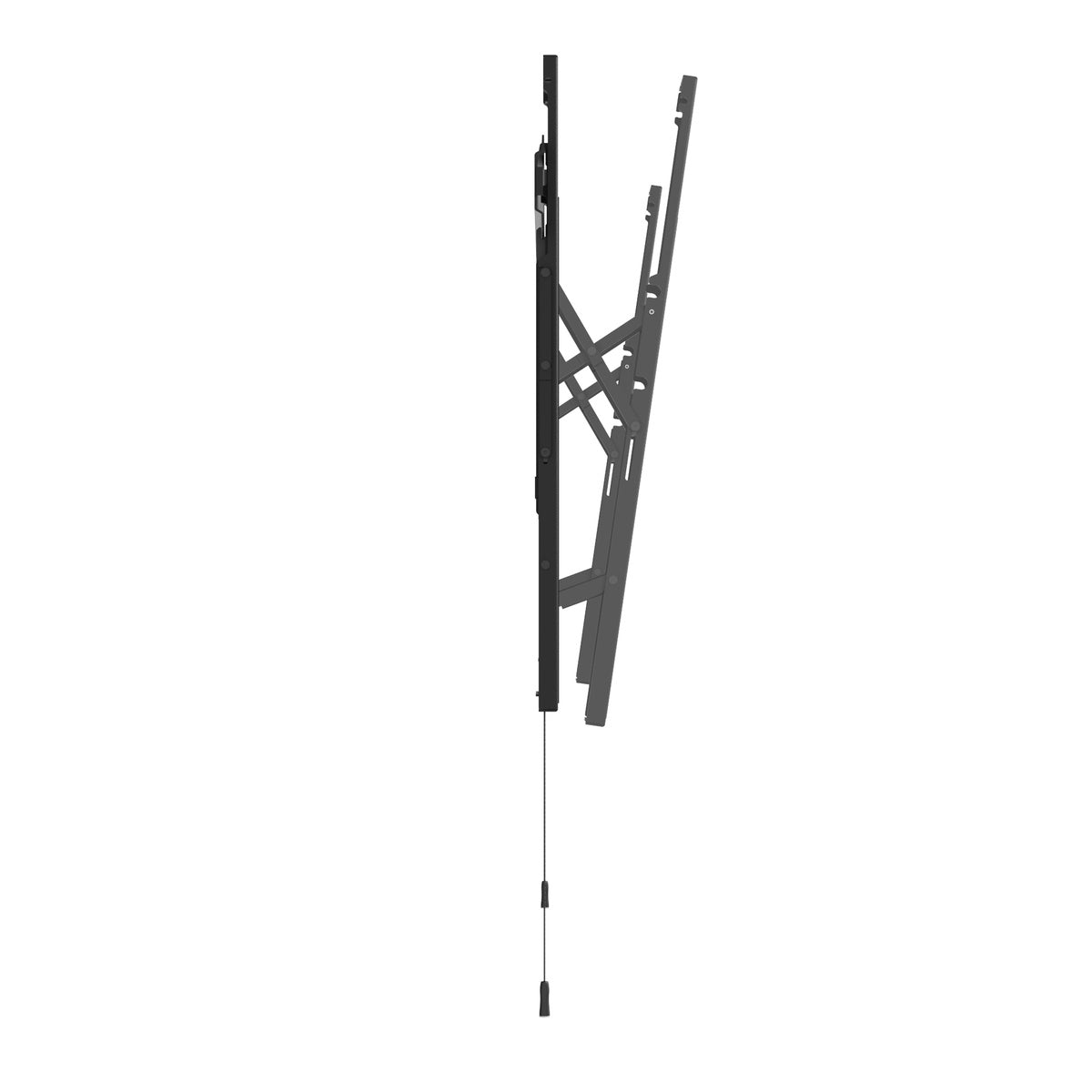

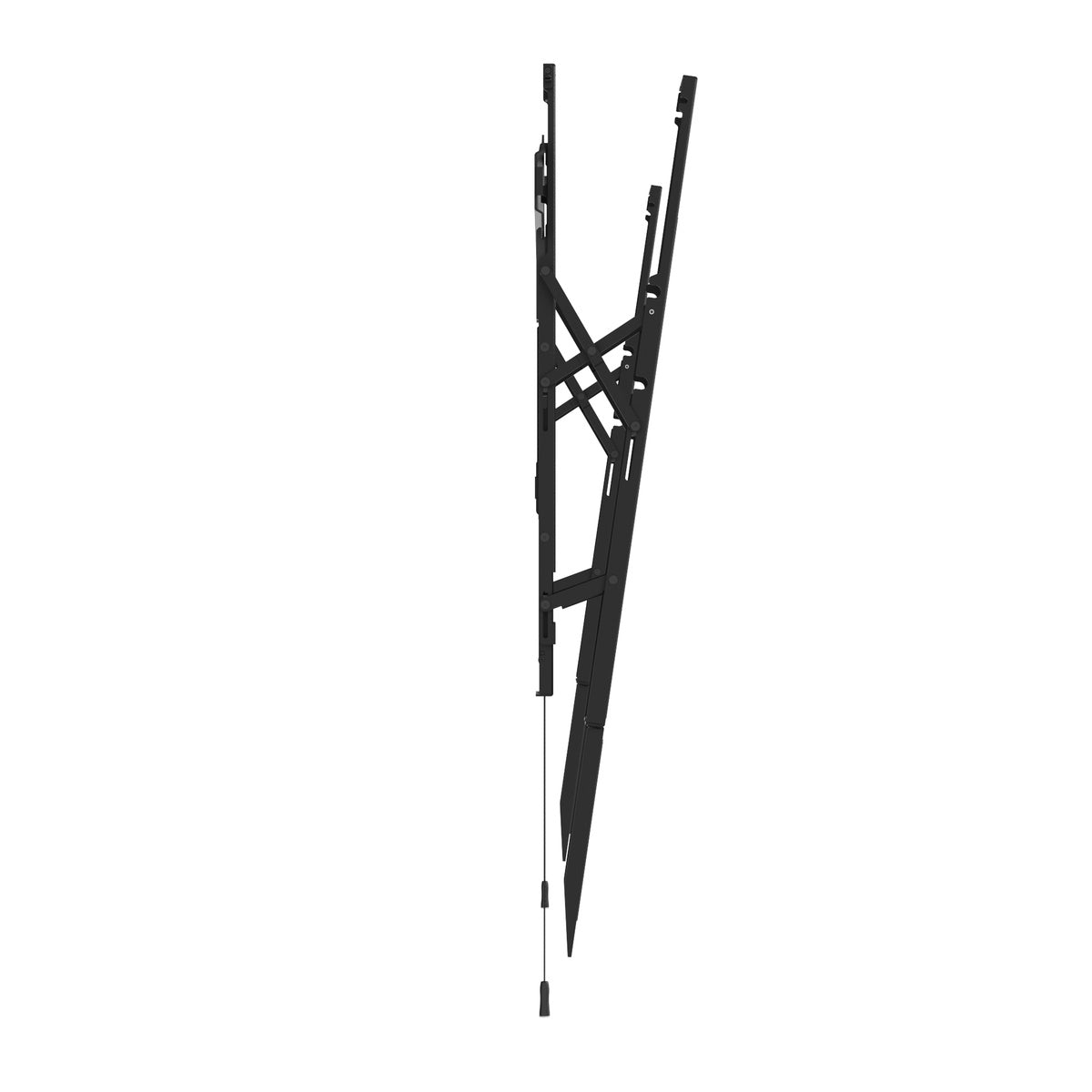

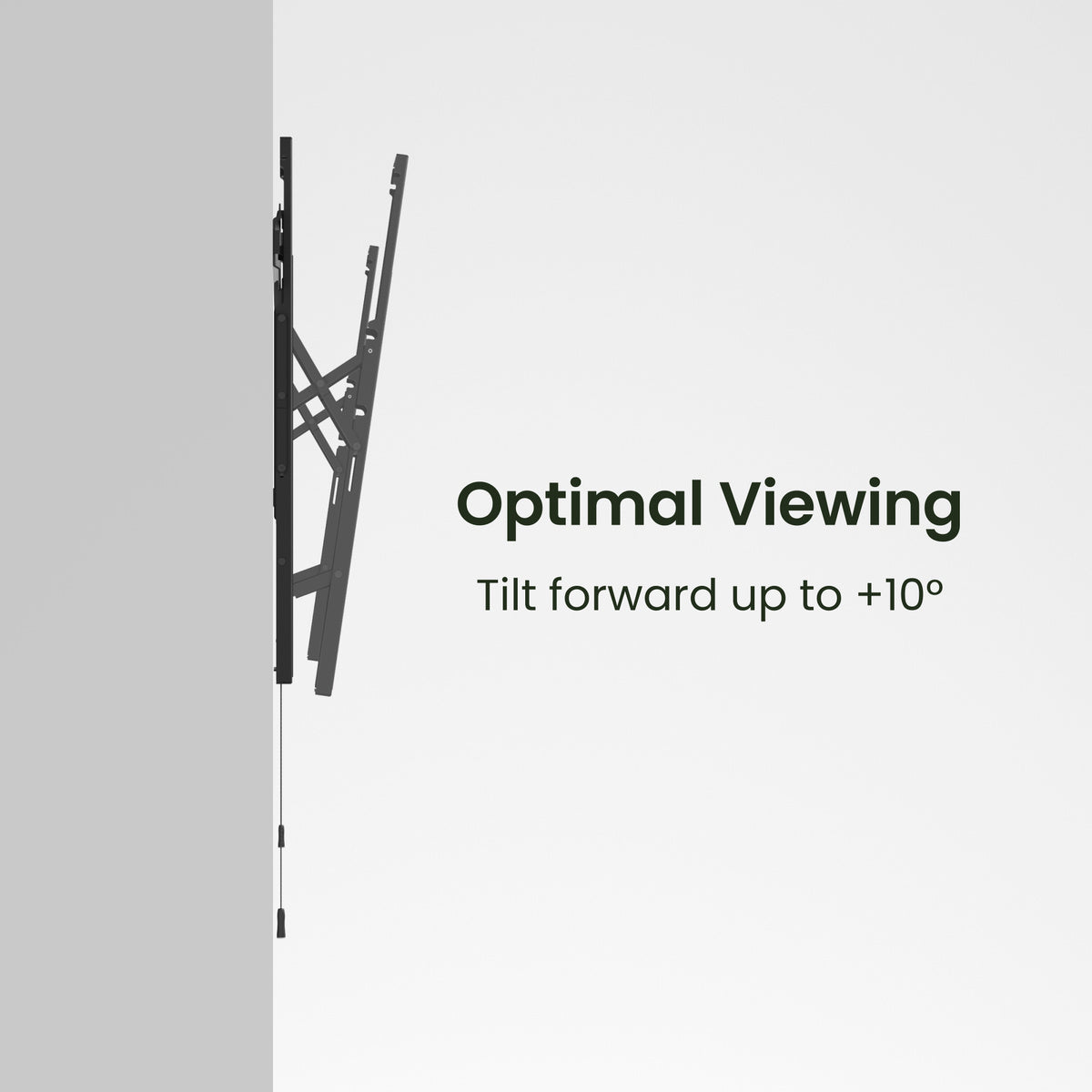

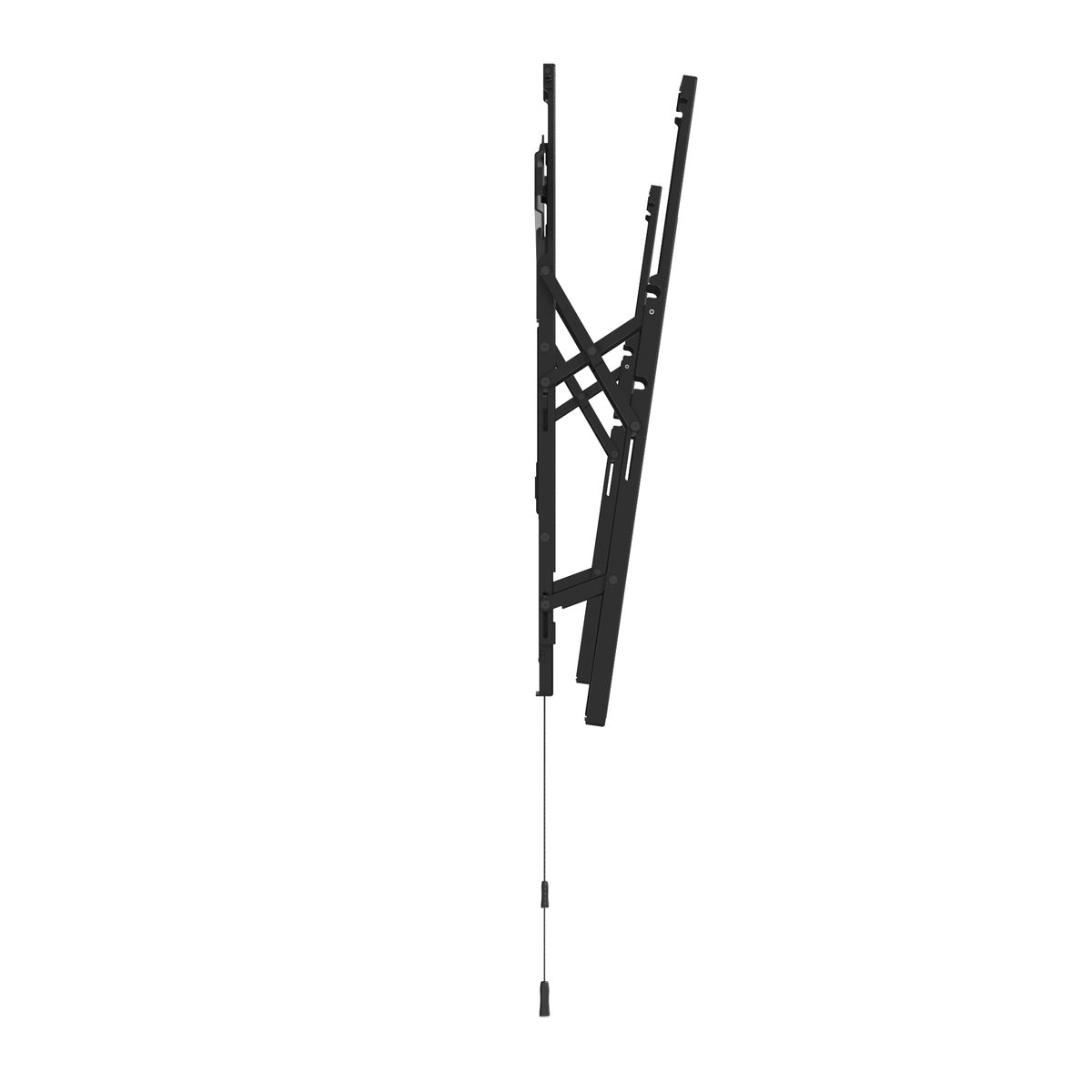

Tilt Tilt mechanism provides +10° viewing angle

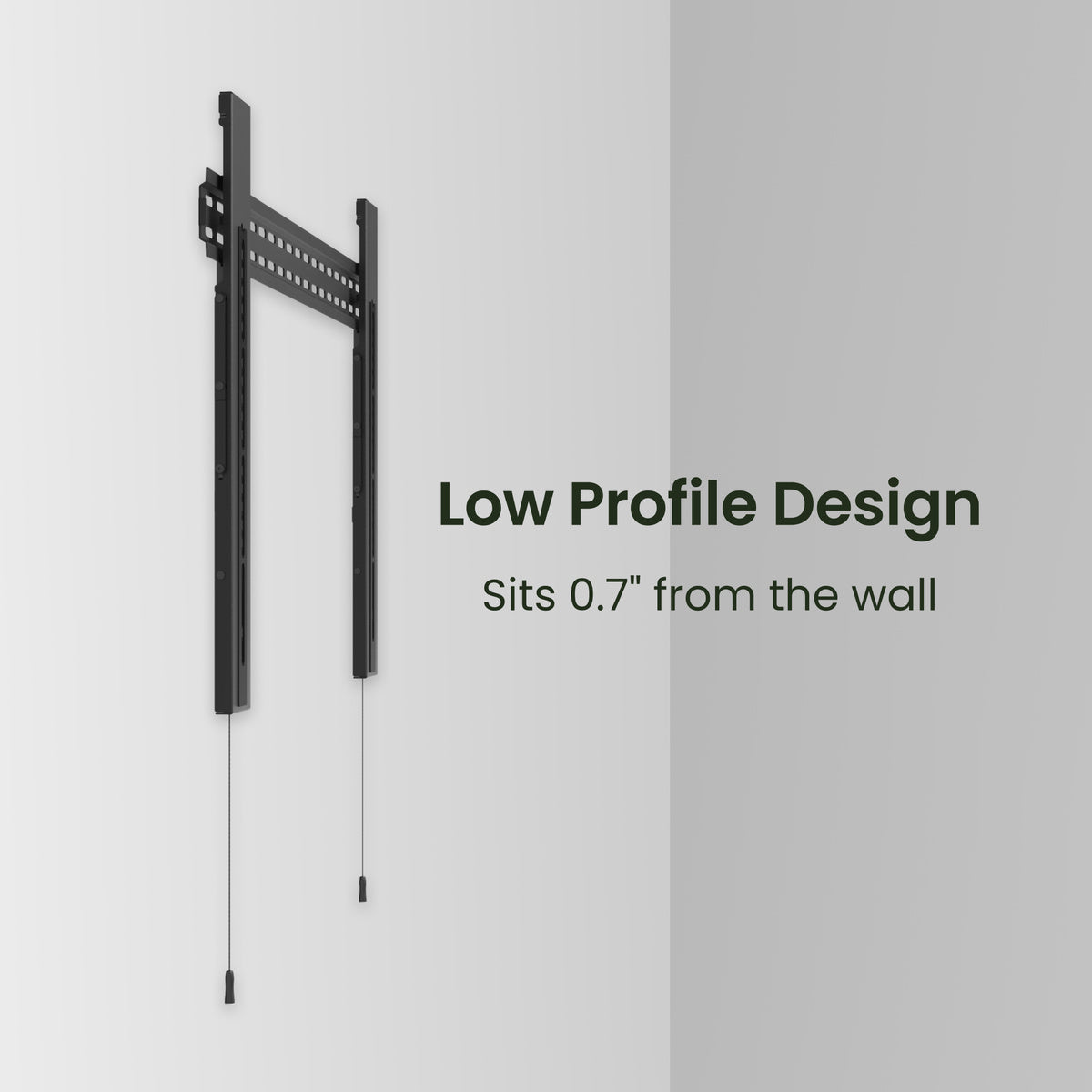

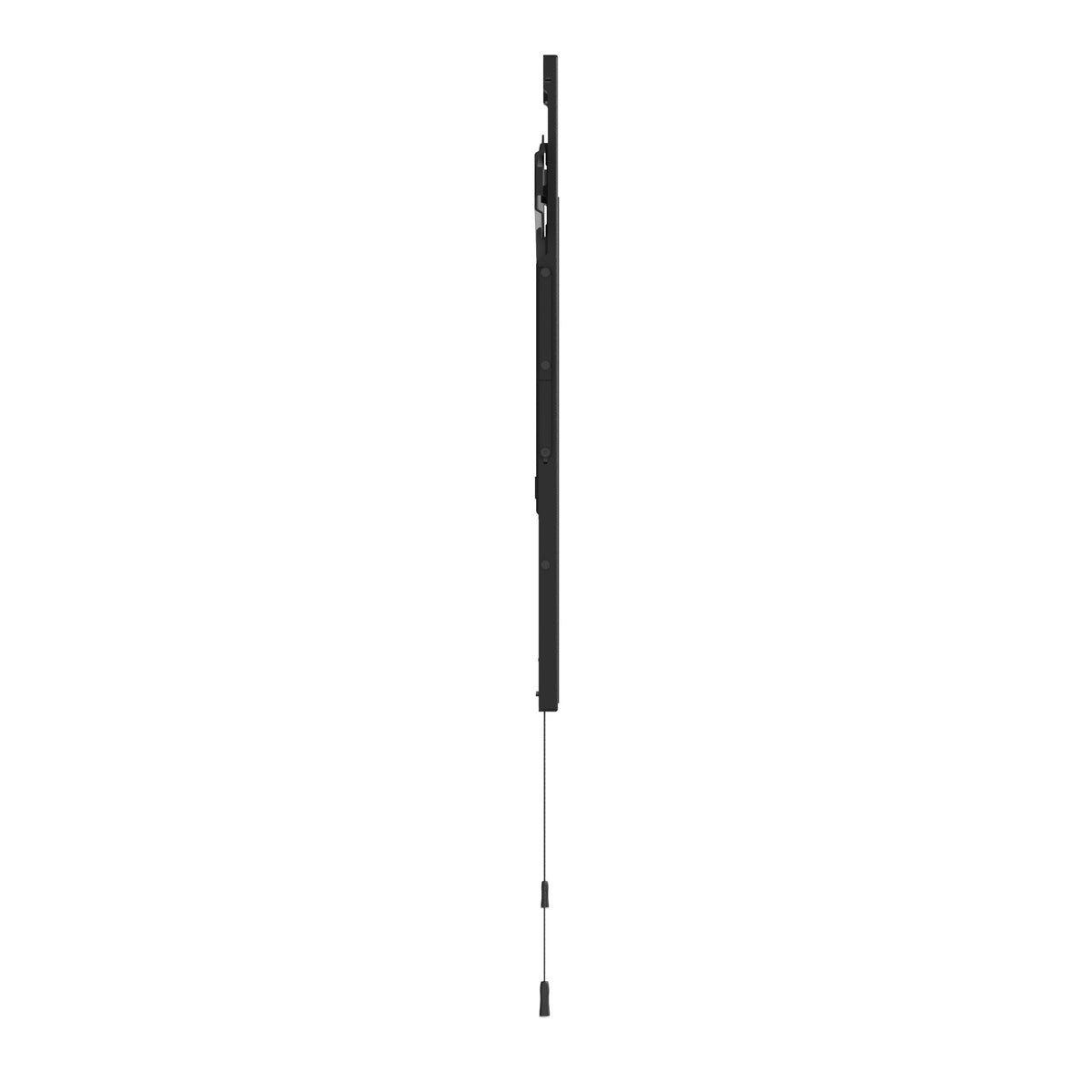

Profile Sits 0.7” (1.8 cm) from the wall

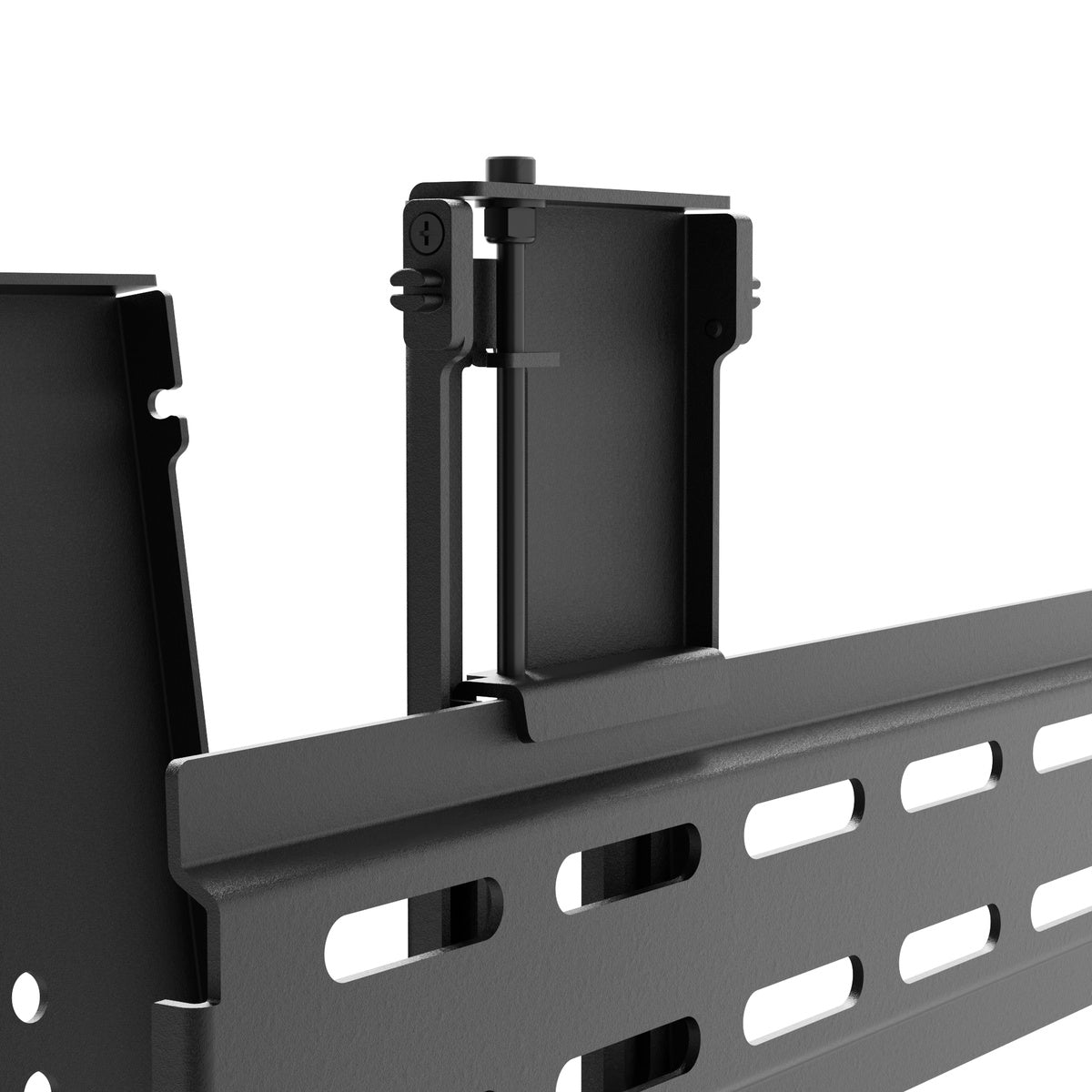

Leveling Adjustable horizontal leveling

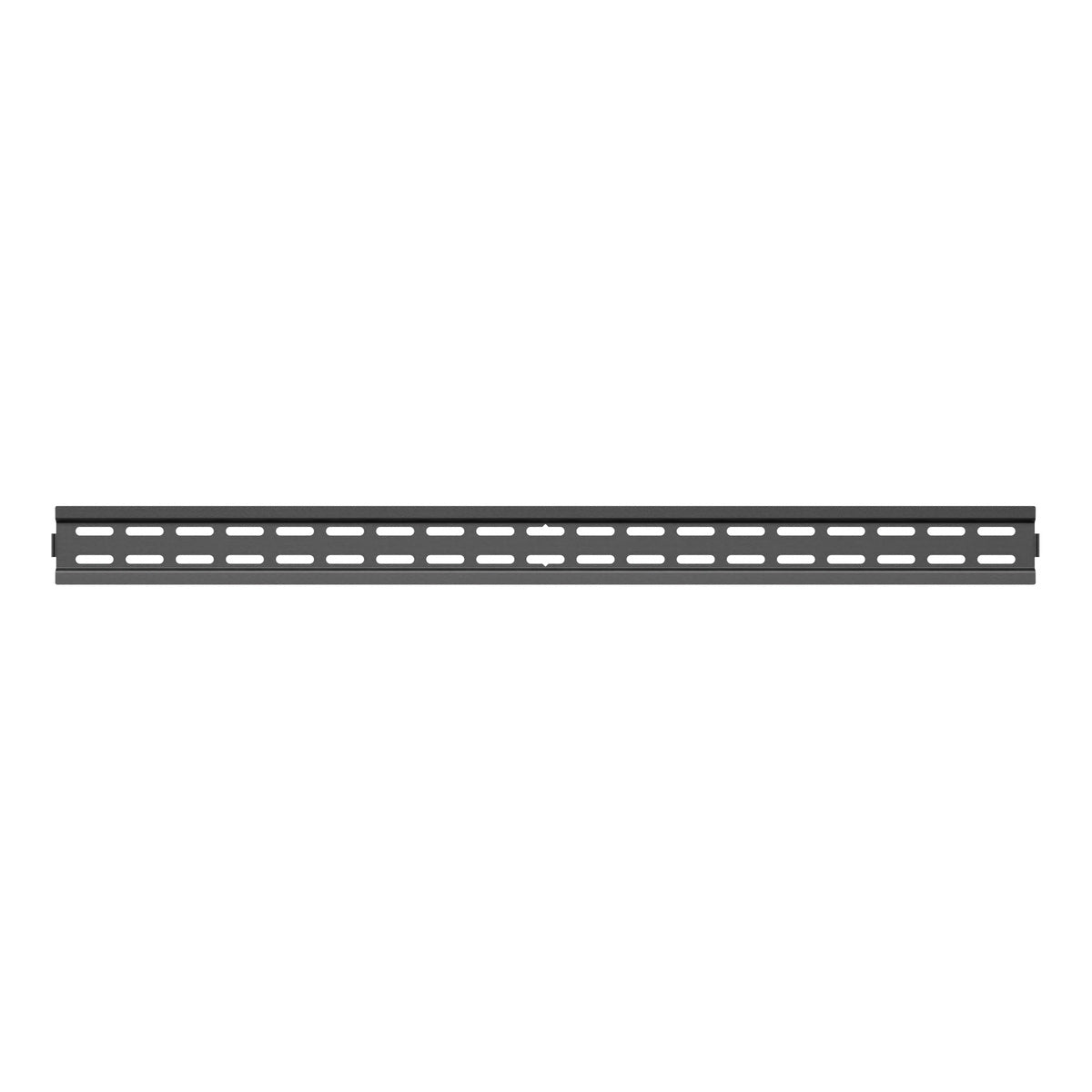

Stud Spacing 39.4” (100 cm) dual stud wall plate accommodates up to dual 24" stud spacing or triple 16" stud spacing
Horizontal Offset TV can be shifted laterally depending on VESA pattern
Min-Max TV Display Sizet 50-100
Recommended Max Weight 125
Assembly Required Yes
Installation Required Yes
Hardware and Manuals Includes manual and all mounting hardware for wood stud and concrete installation
