R400 and R600

Pro Series Recessed In-wall Full Motion Articulating TV Mount

R400 and R600

Pro Series Recessed In-wall Full Motion Articulating TV Mount
From $219.99
Select Model


Overview

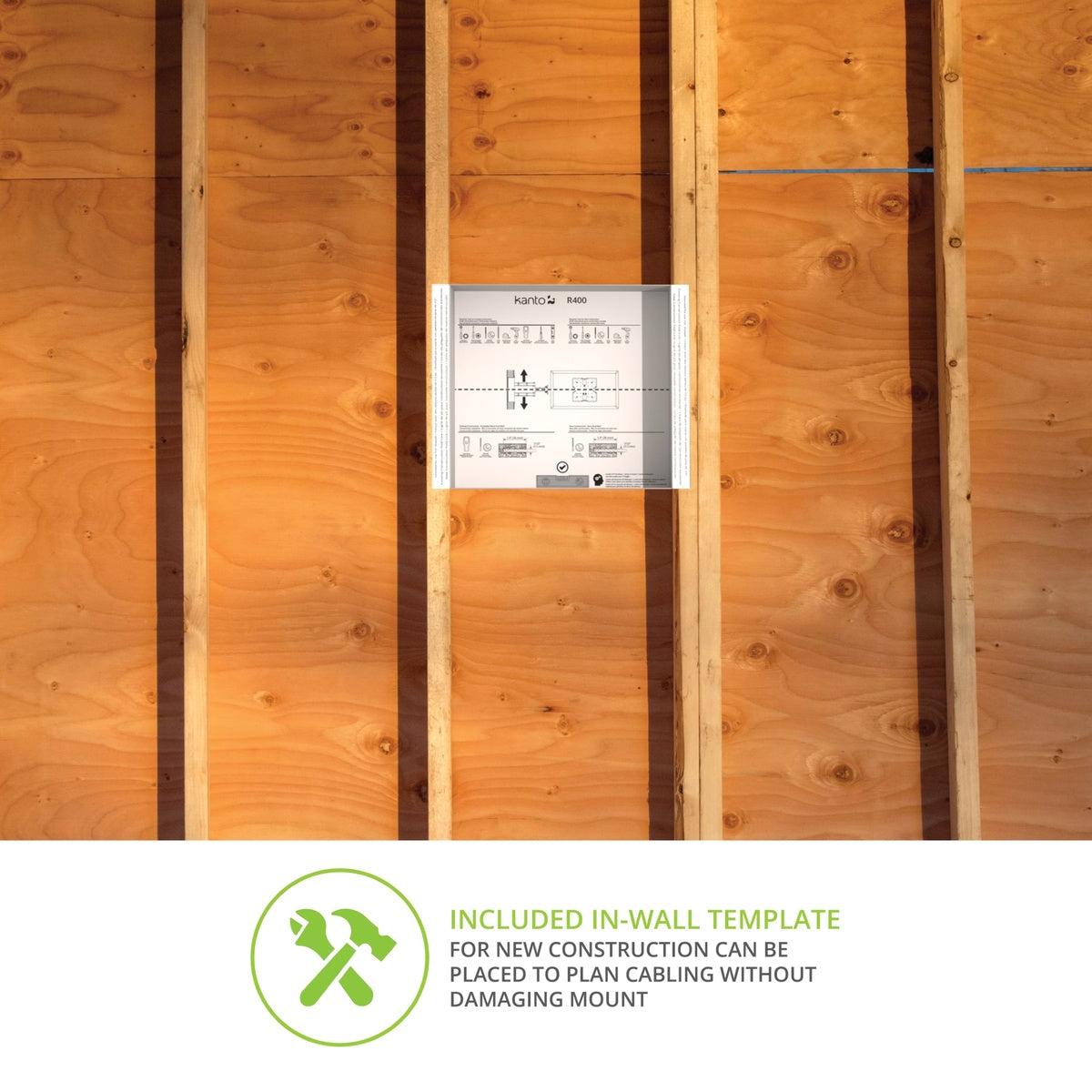

These recessed full motion mounts are designed to sit flush against the wall, creating a clean look without visible gaps. They can extend up to 18 inches, which helps with positioning screens or displays. The mounts include space inside the wall cavity for streaming devices and cables, so everything stays out of sight. Oversized box options and templates for new construction make it easier to plan and install the hardware in different setups.

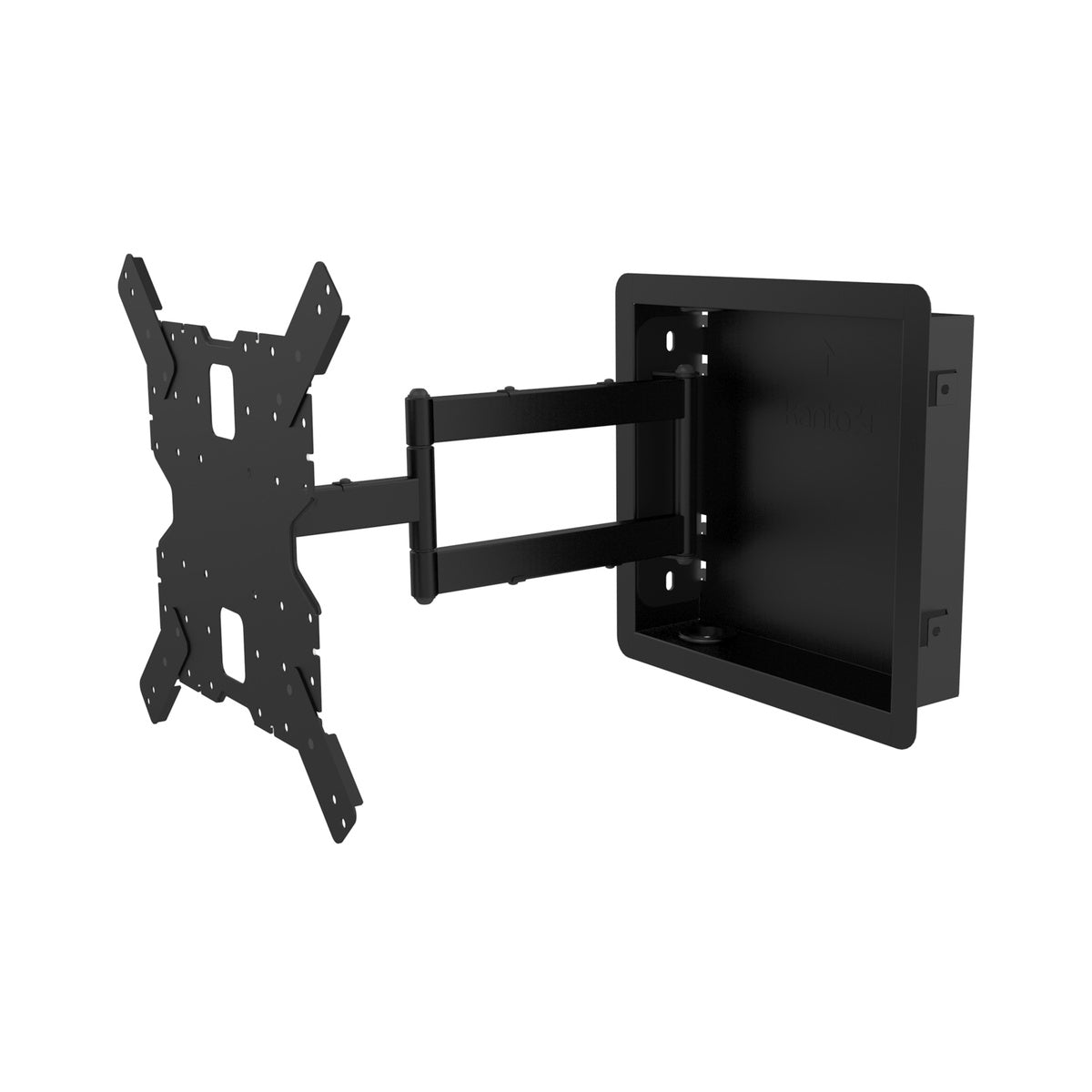

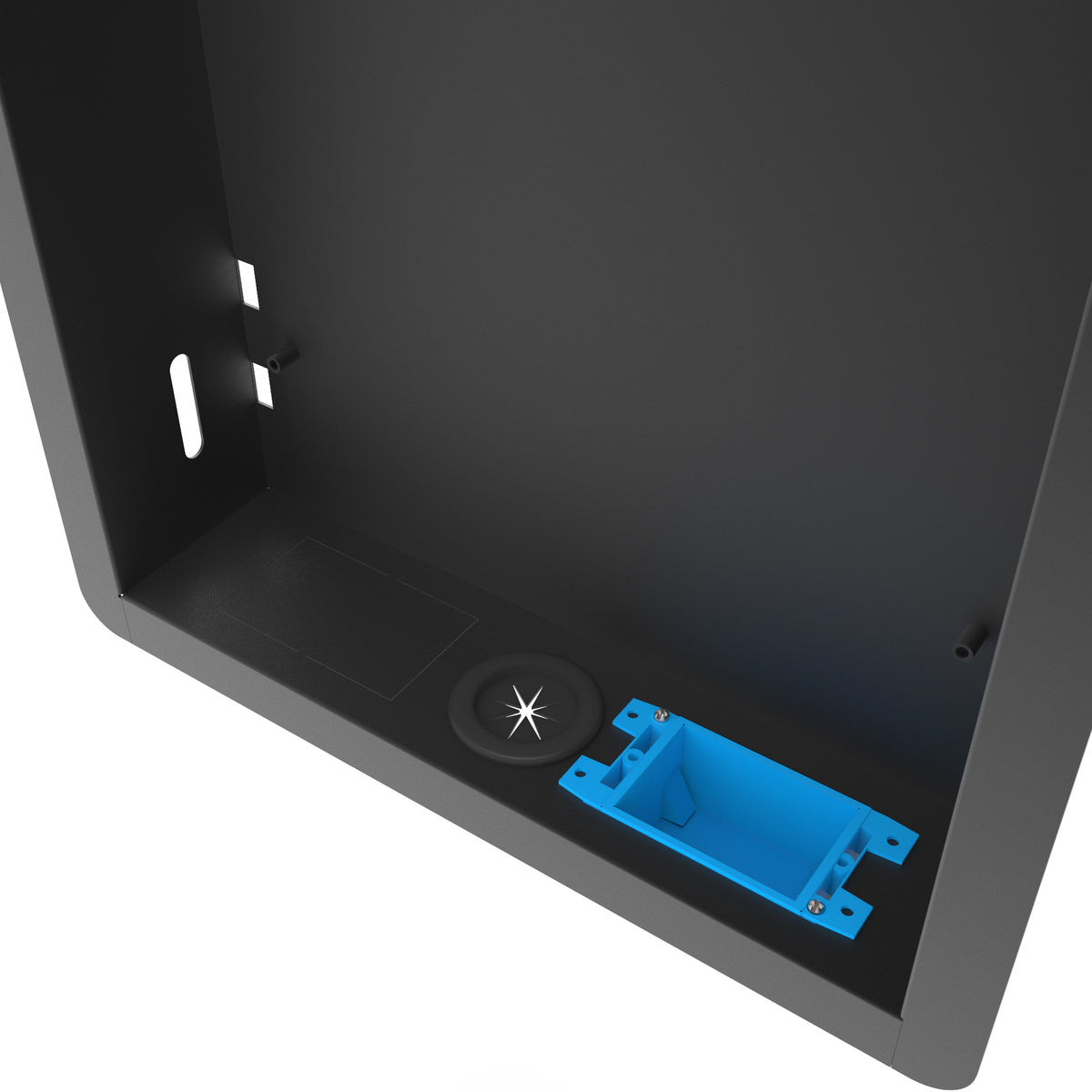

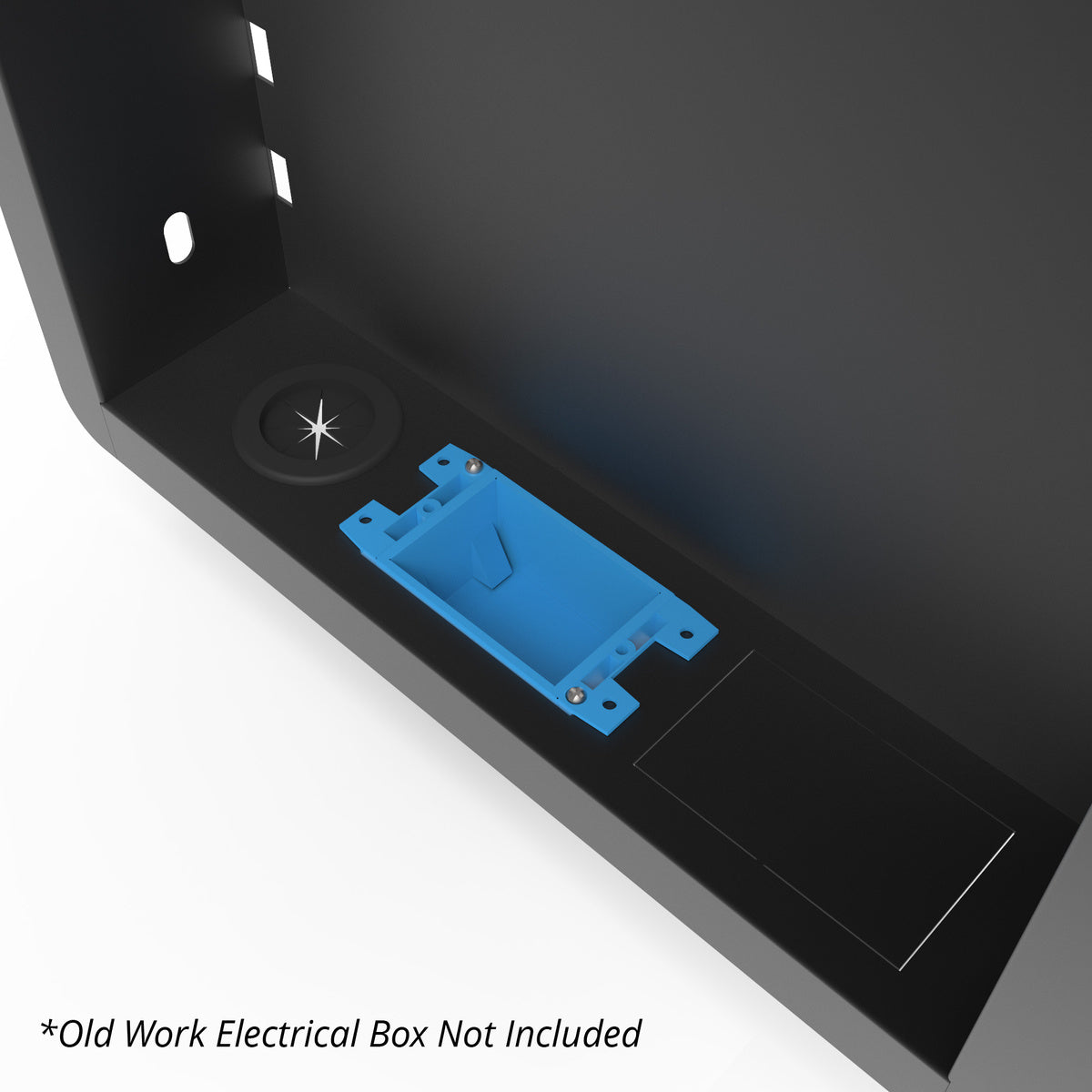

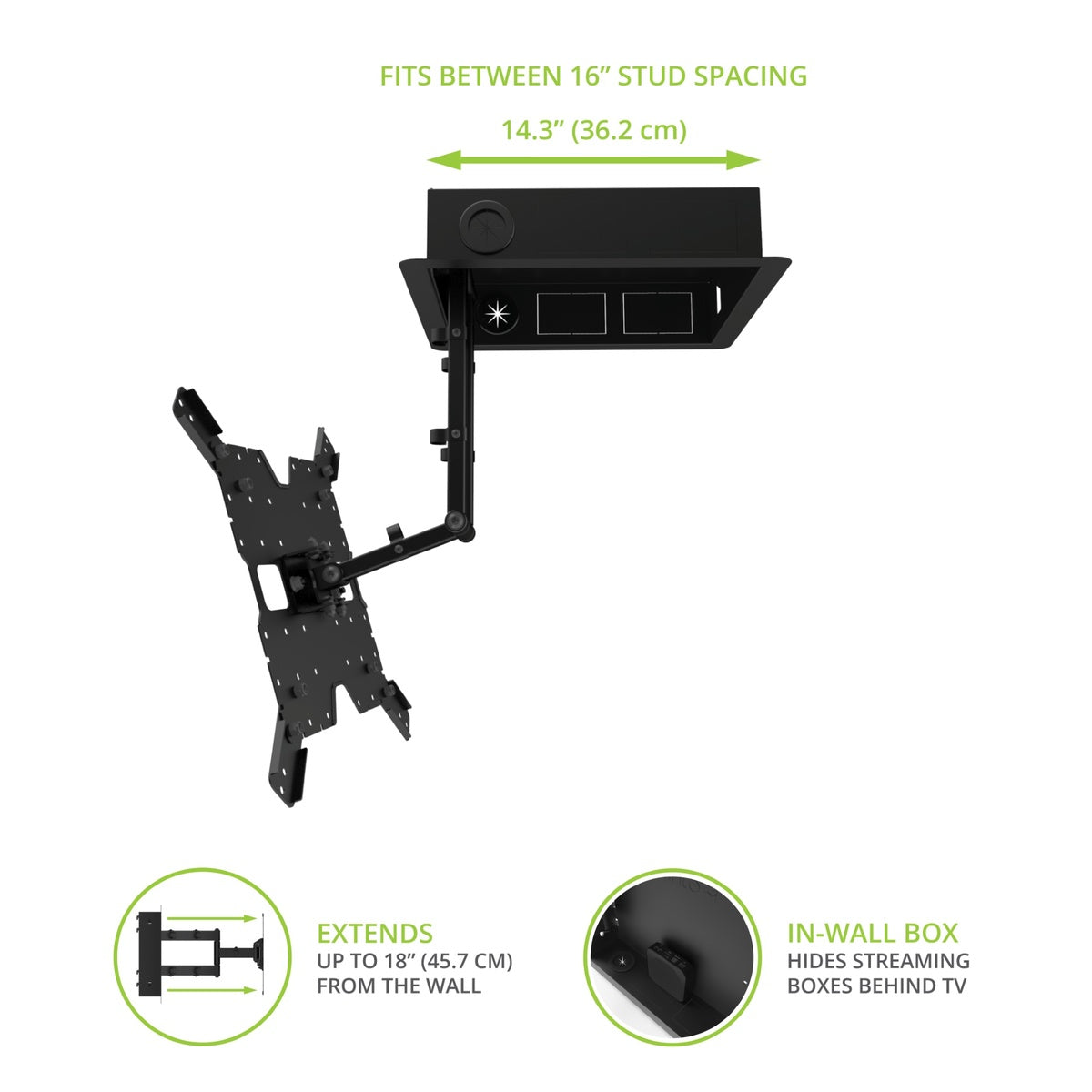

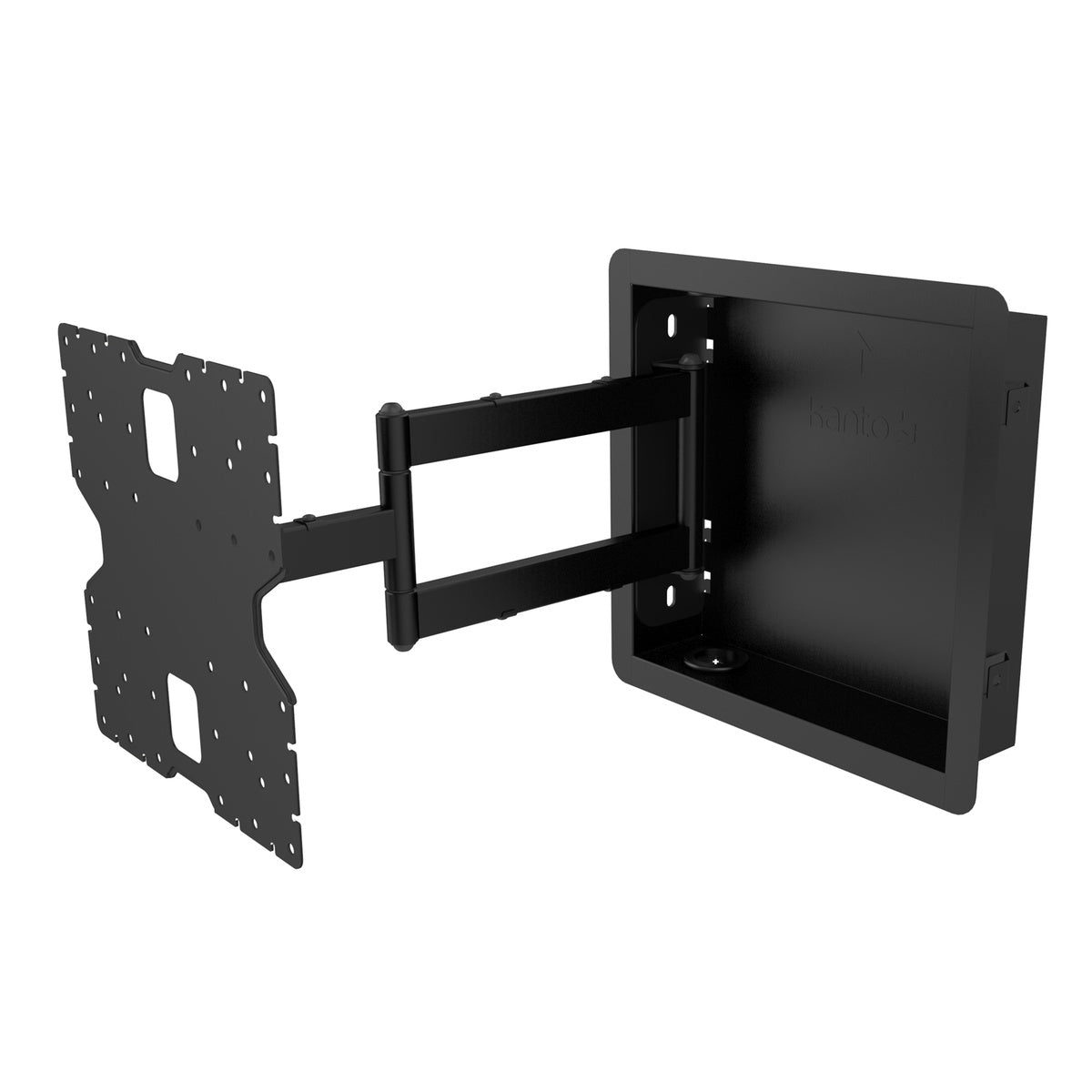

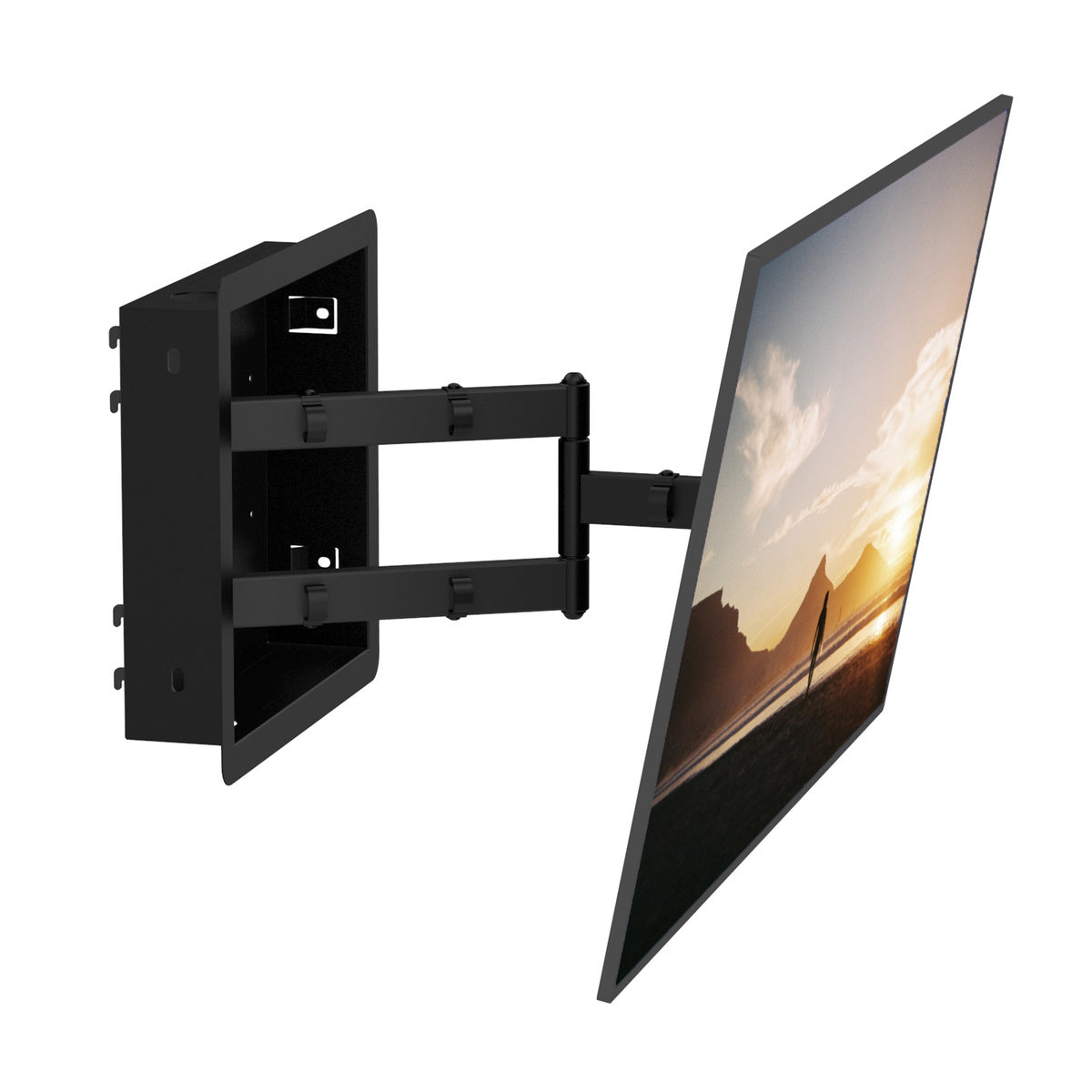

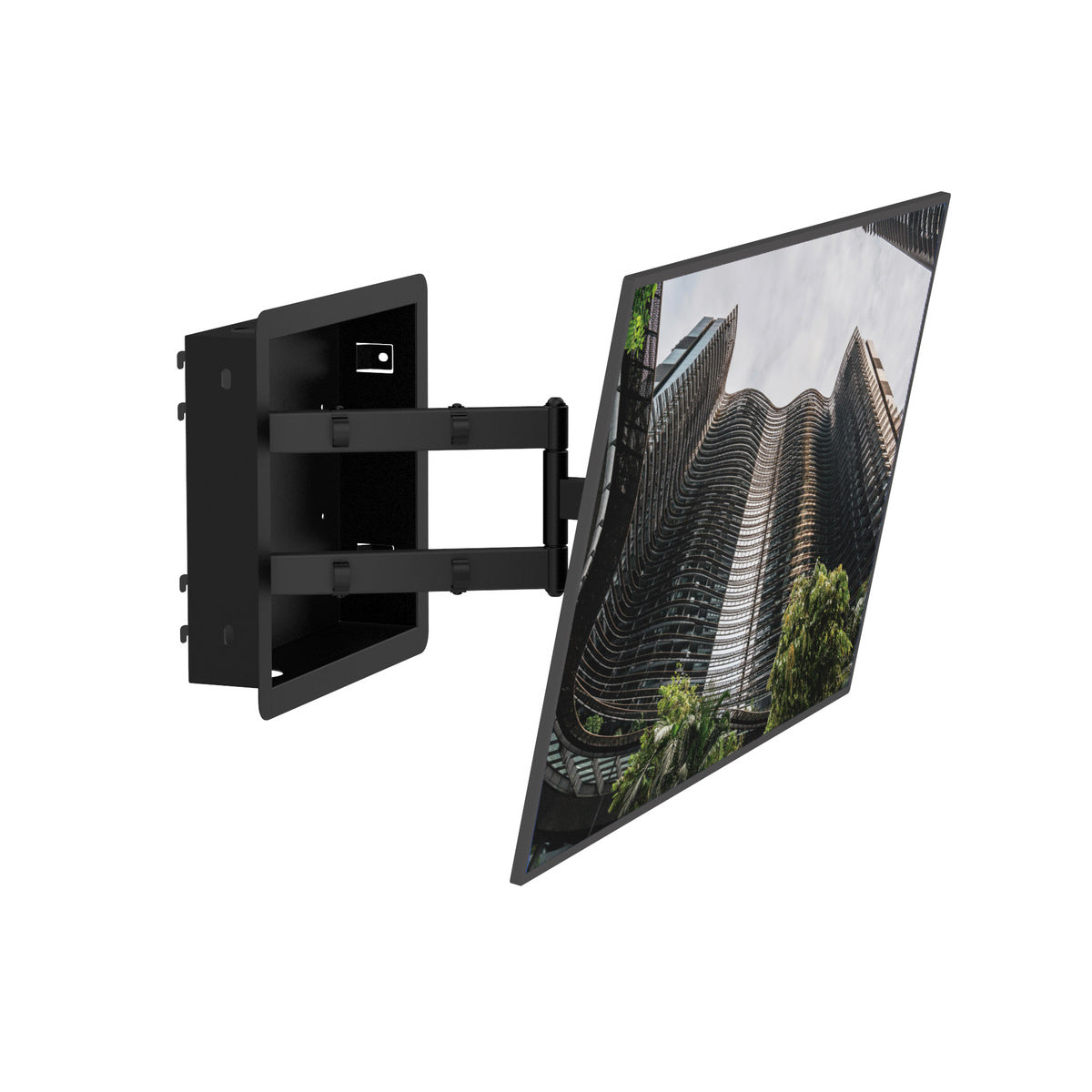

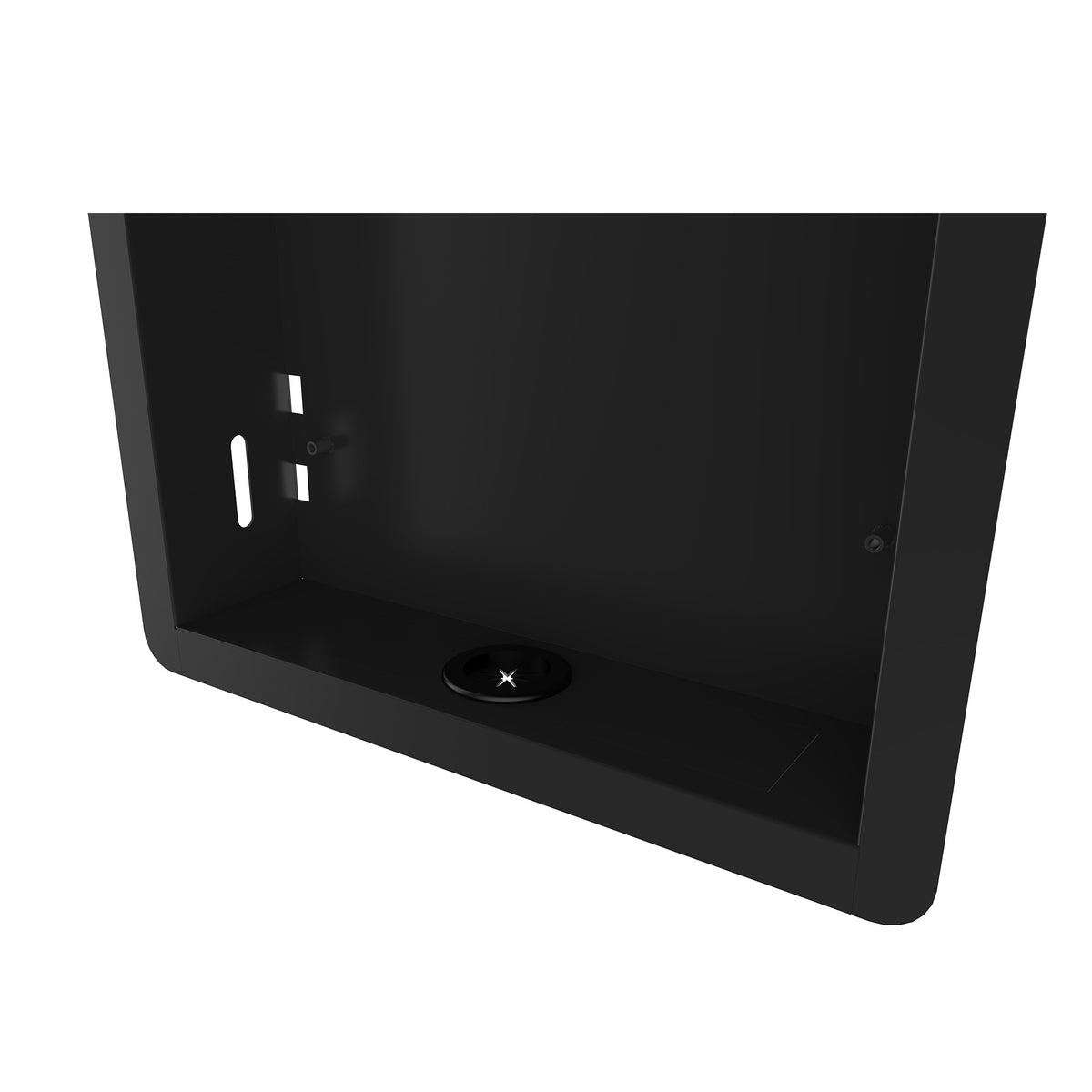

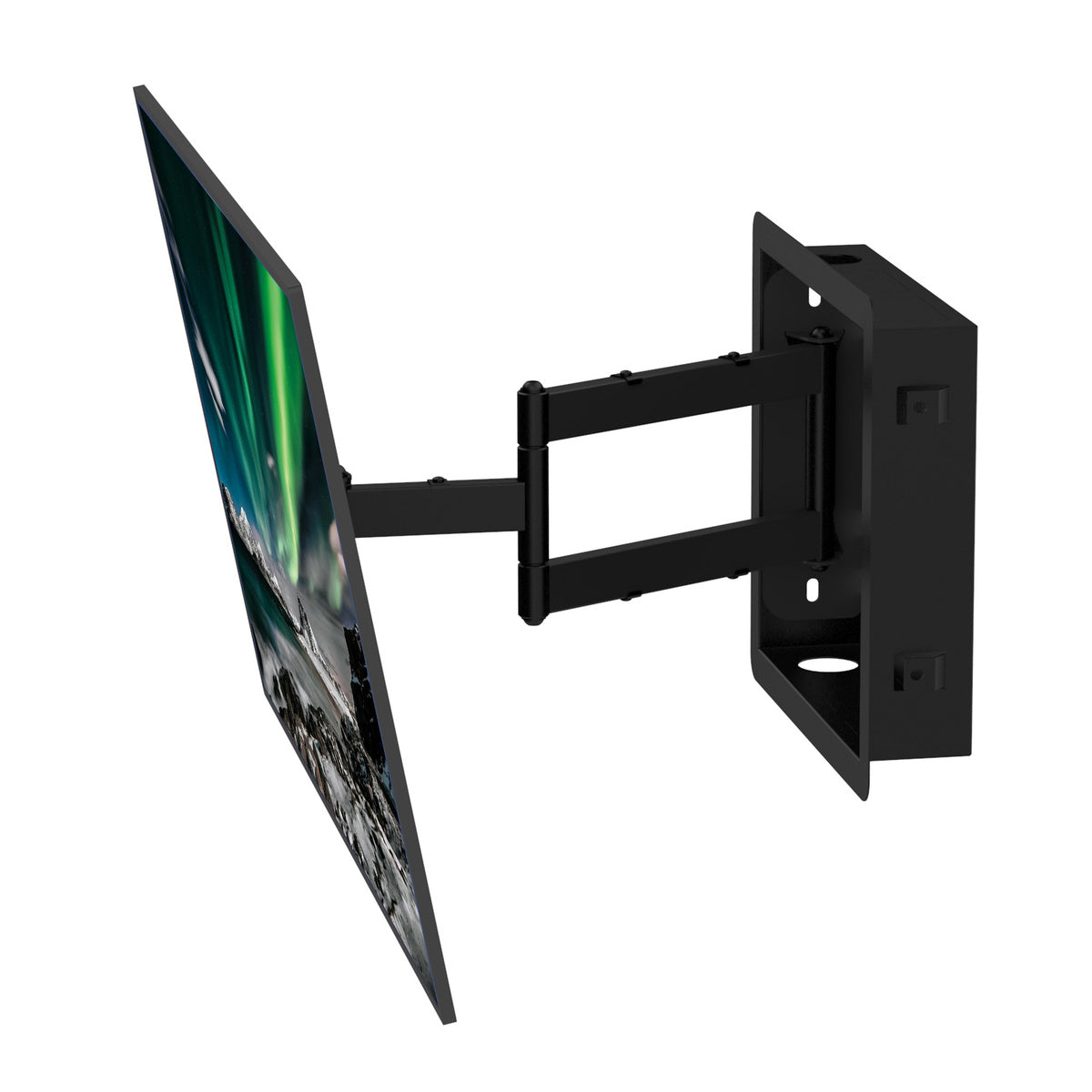

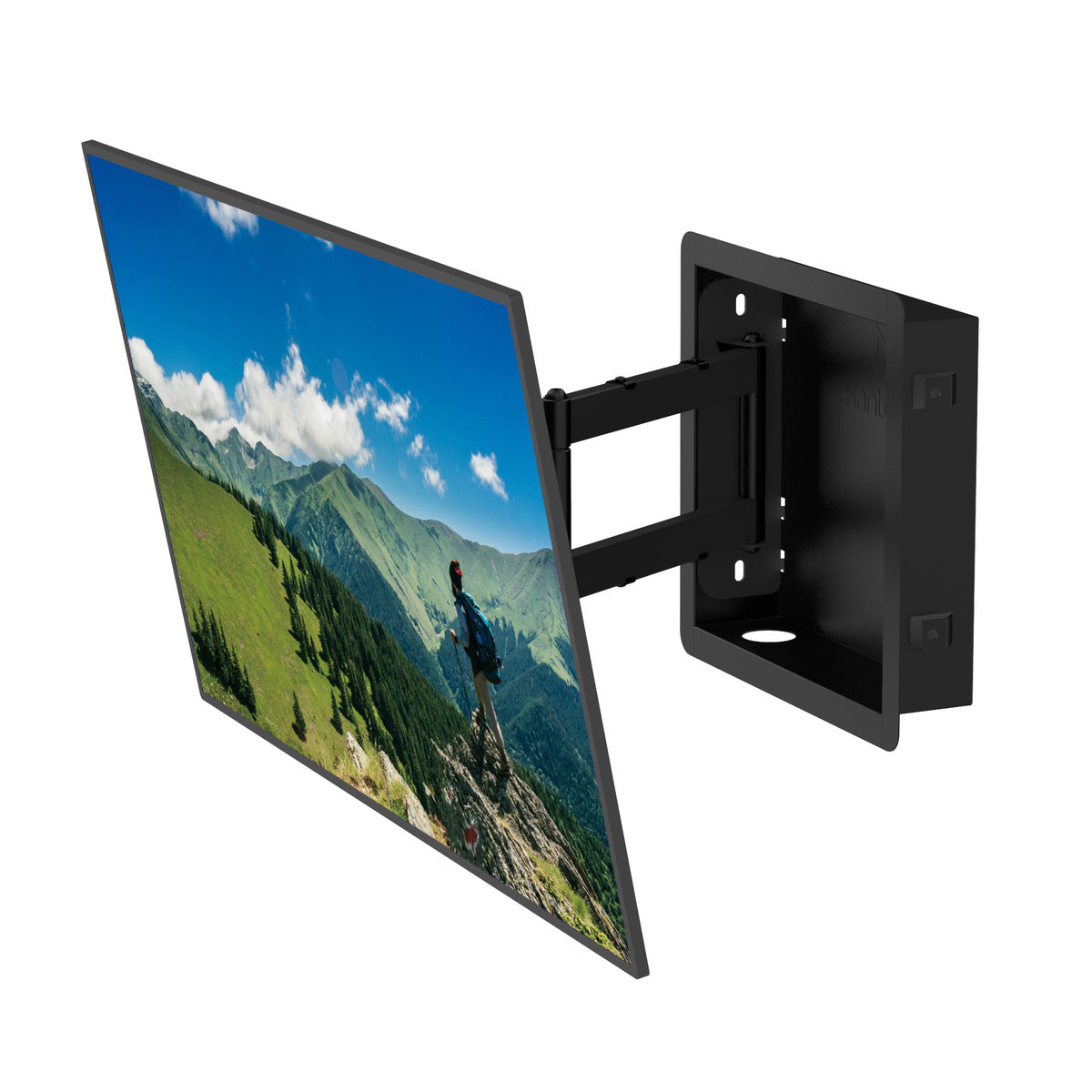

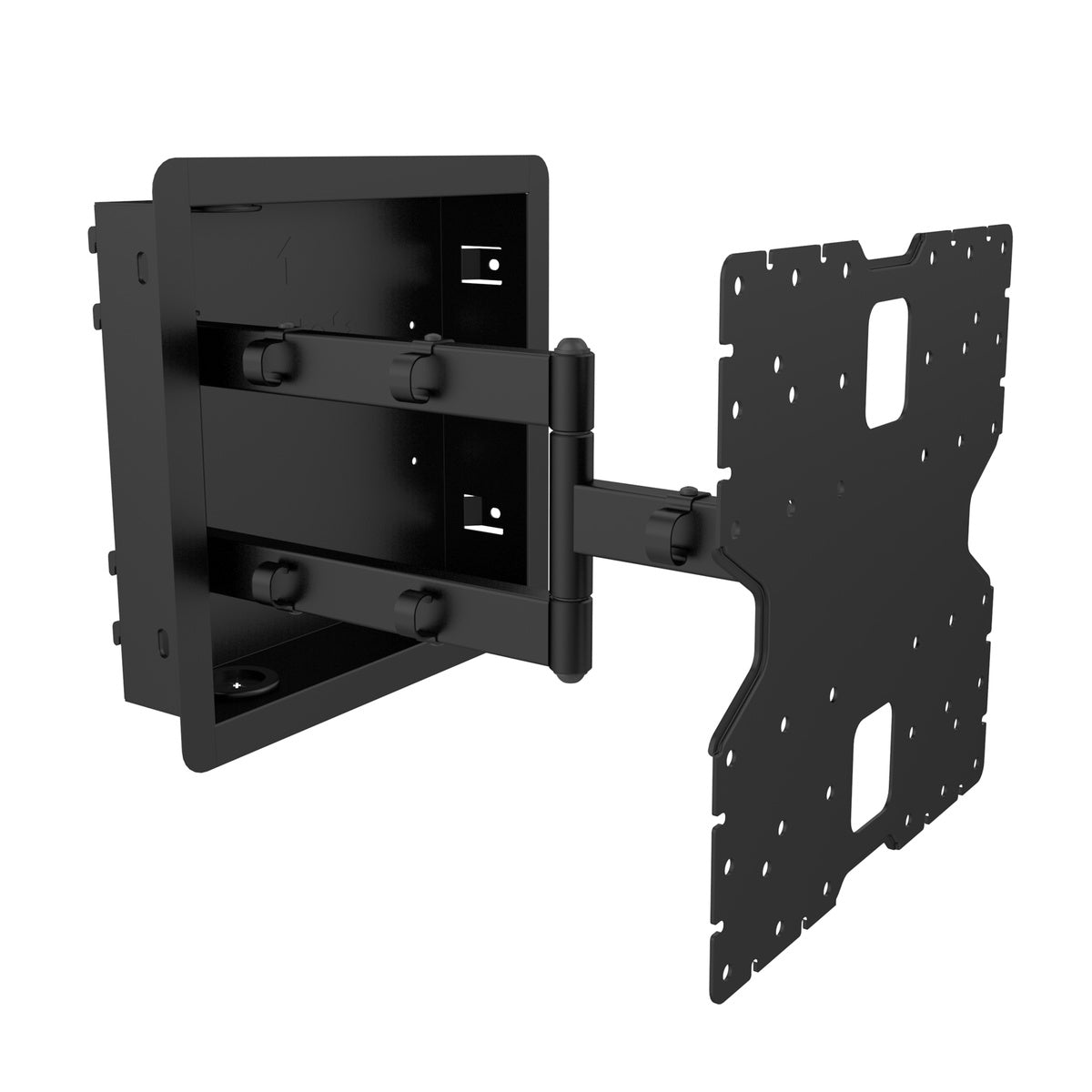

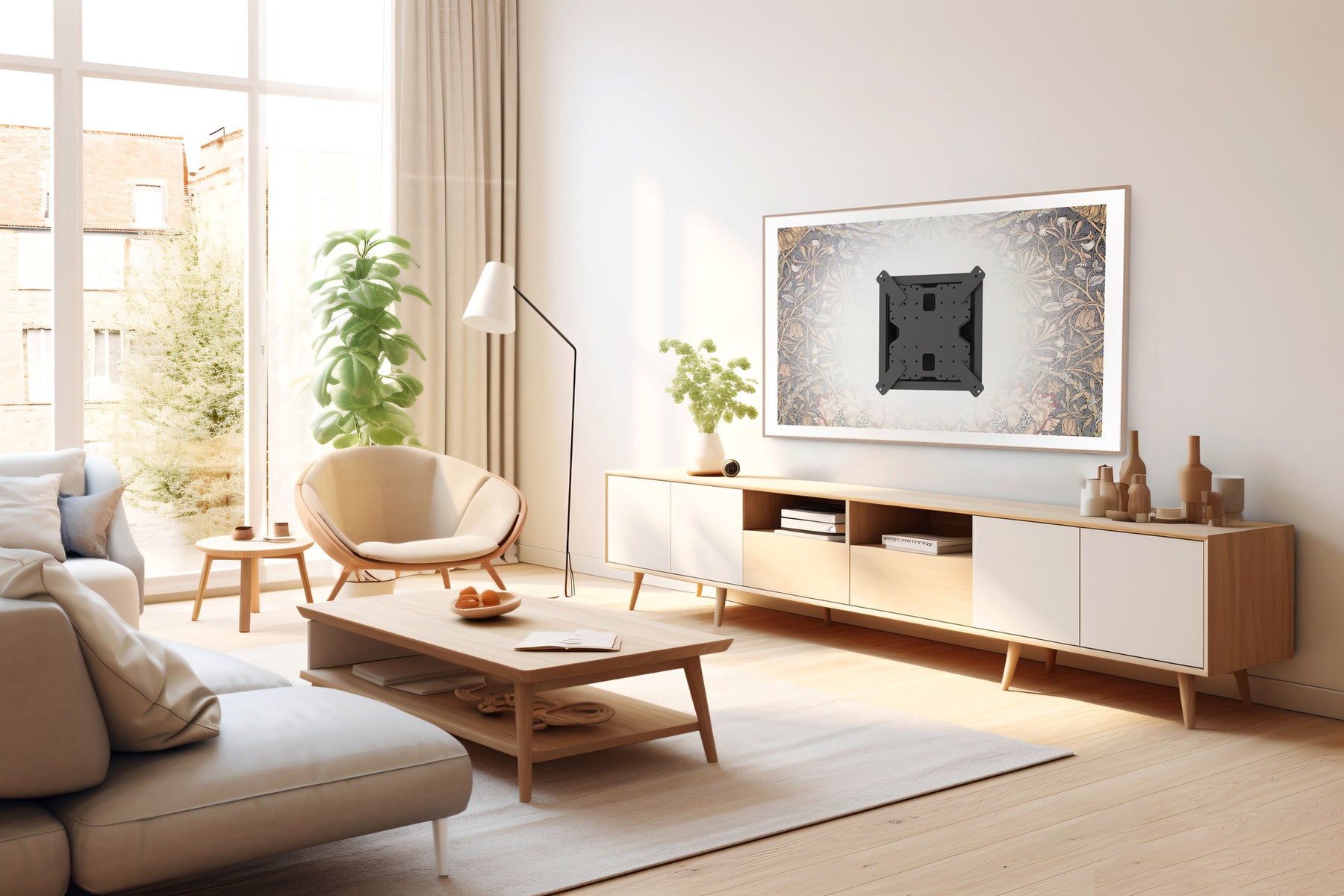

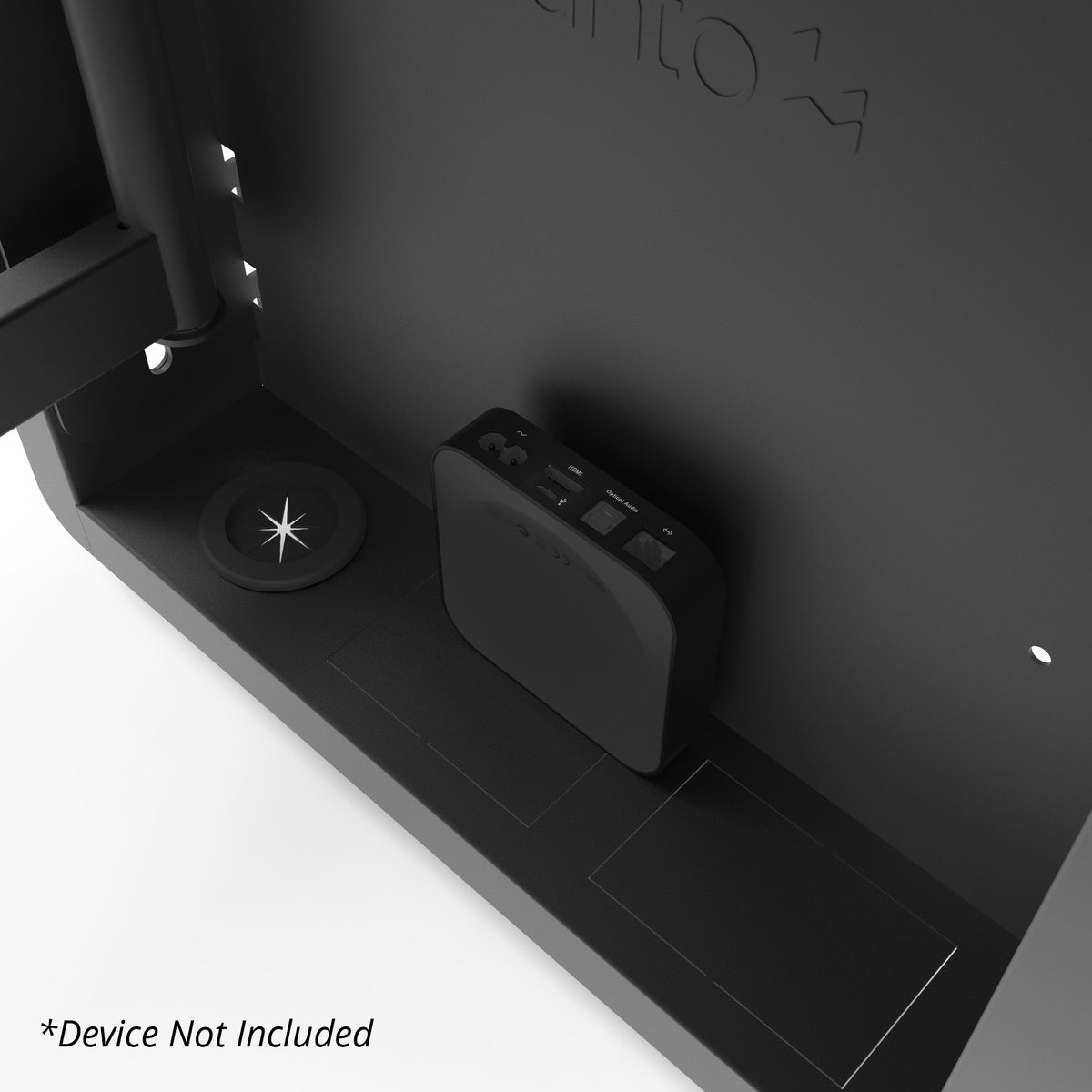

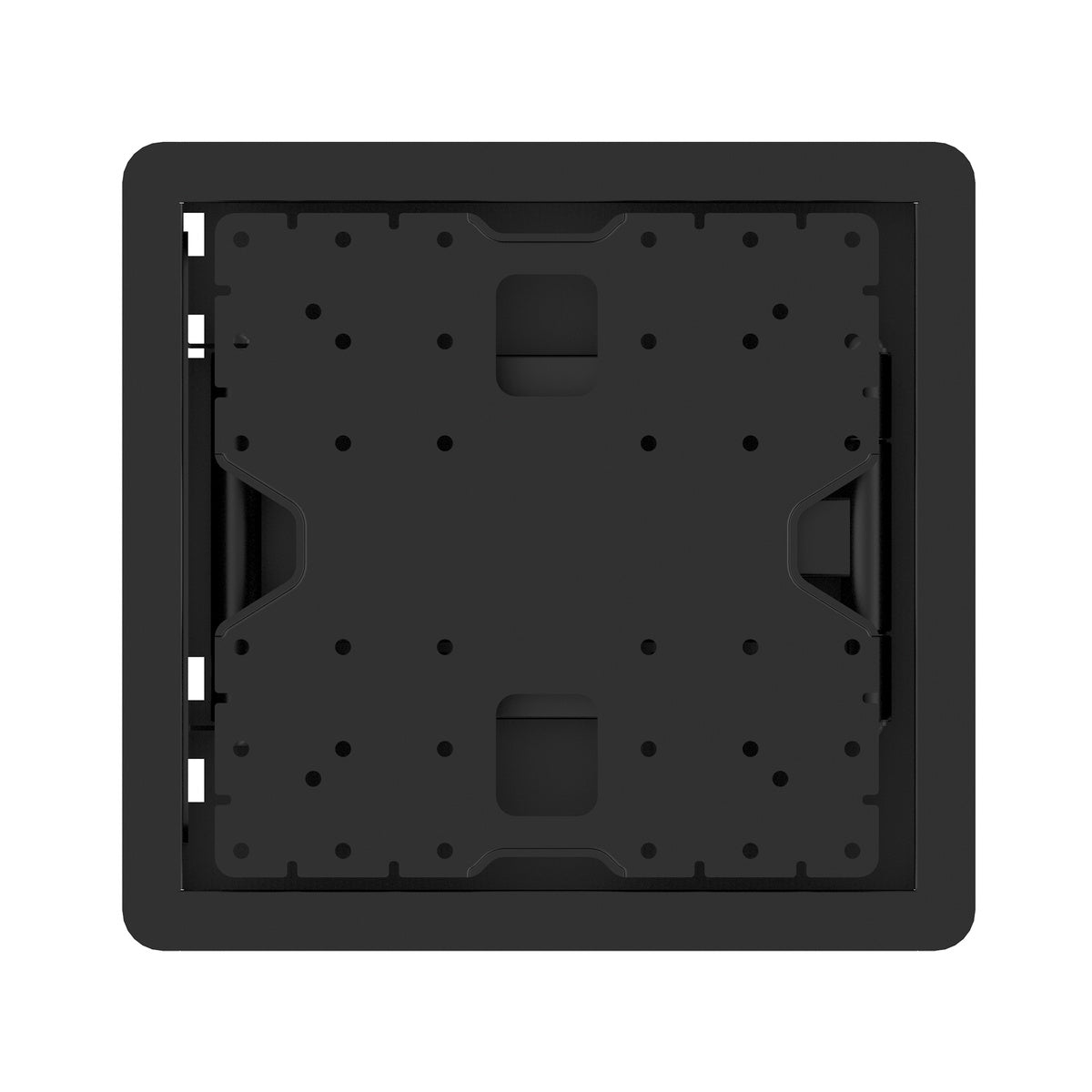

The Kanto Pro Series Recessed In Wall Full Motion Articulating TV Mount is available in two distinct configurations engineered to hide hardware completely within a standard wall cavity. The R400 model delivers a true no gap installation that allows a display to sit perfectly flush against the drywall surface, making thin panels like OLED screens appear to float like a picture frame. The integrated recessed box mounts between structural studs, offering a hidden storage cavity for streaming boxes and small electronic accessories. Metal knockouts make it straightforward to run a power outlet directly into the box, while thick rubber grommets handle routing for all other connection cables.

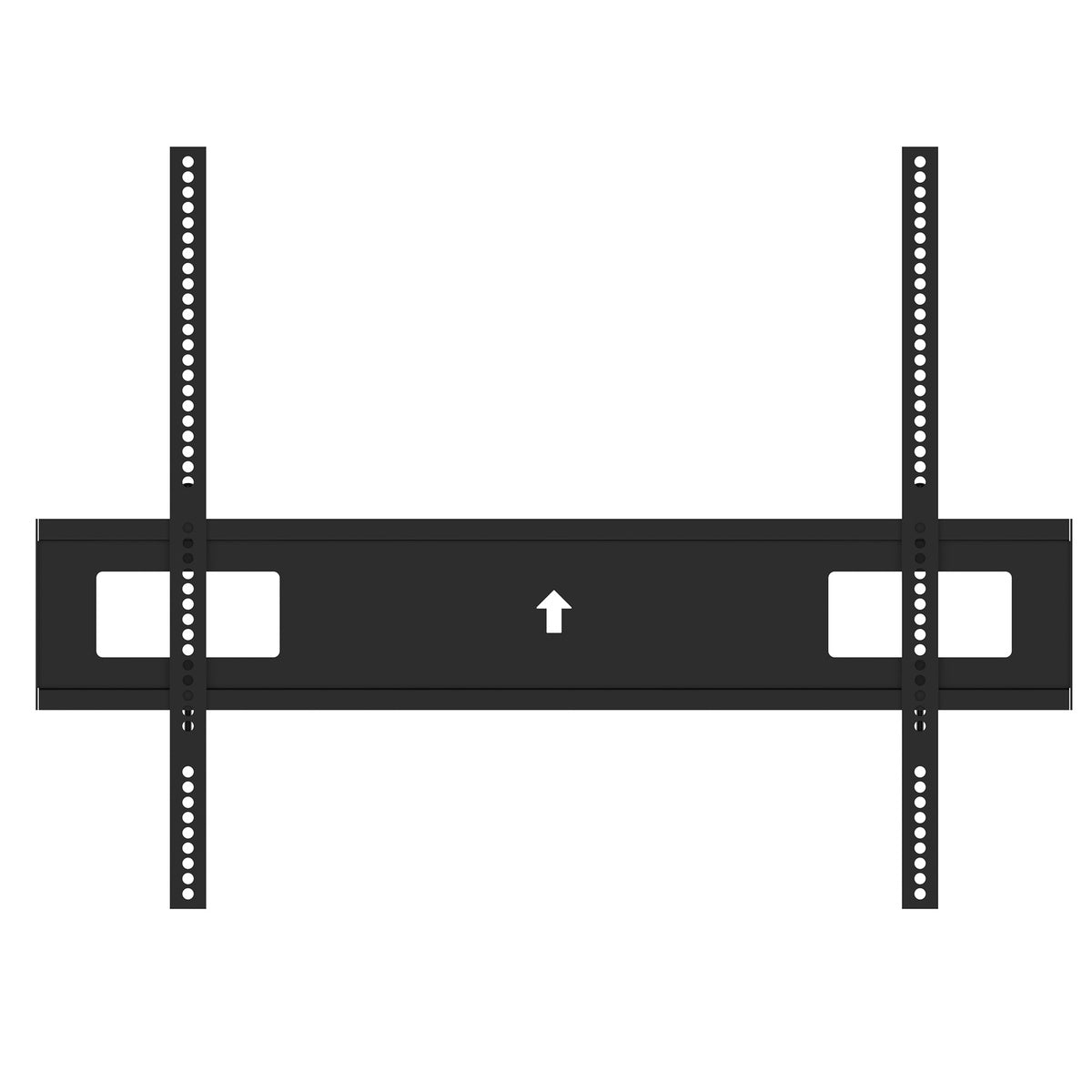

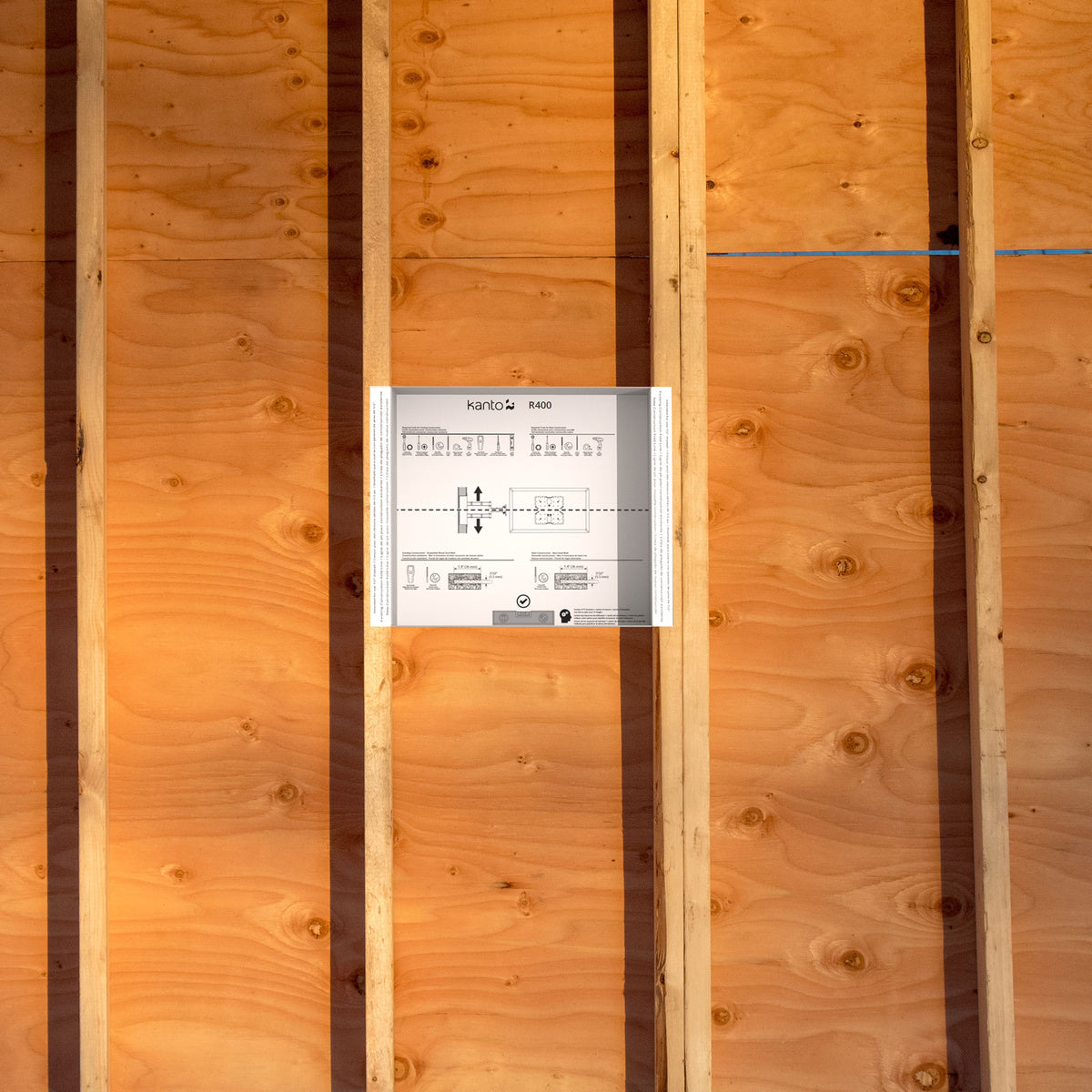

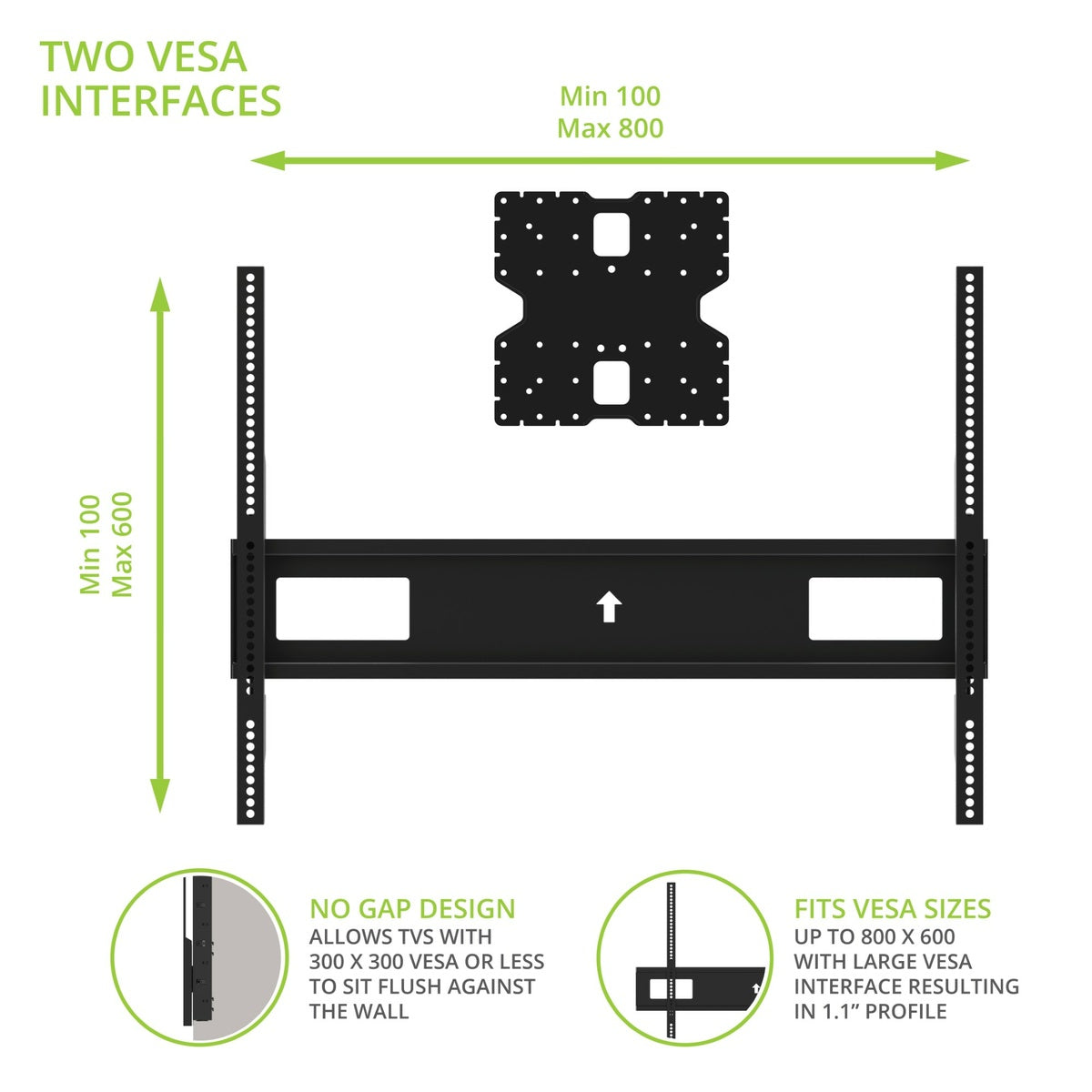

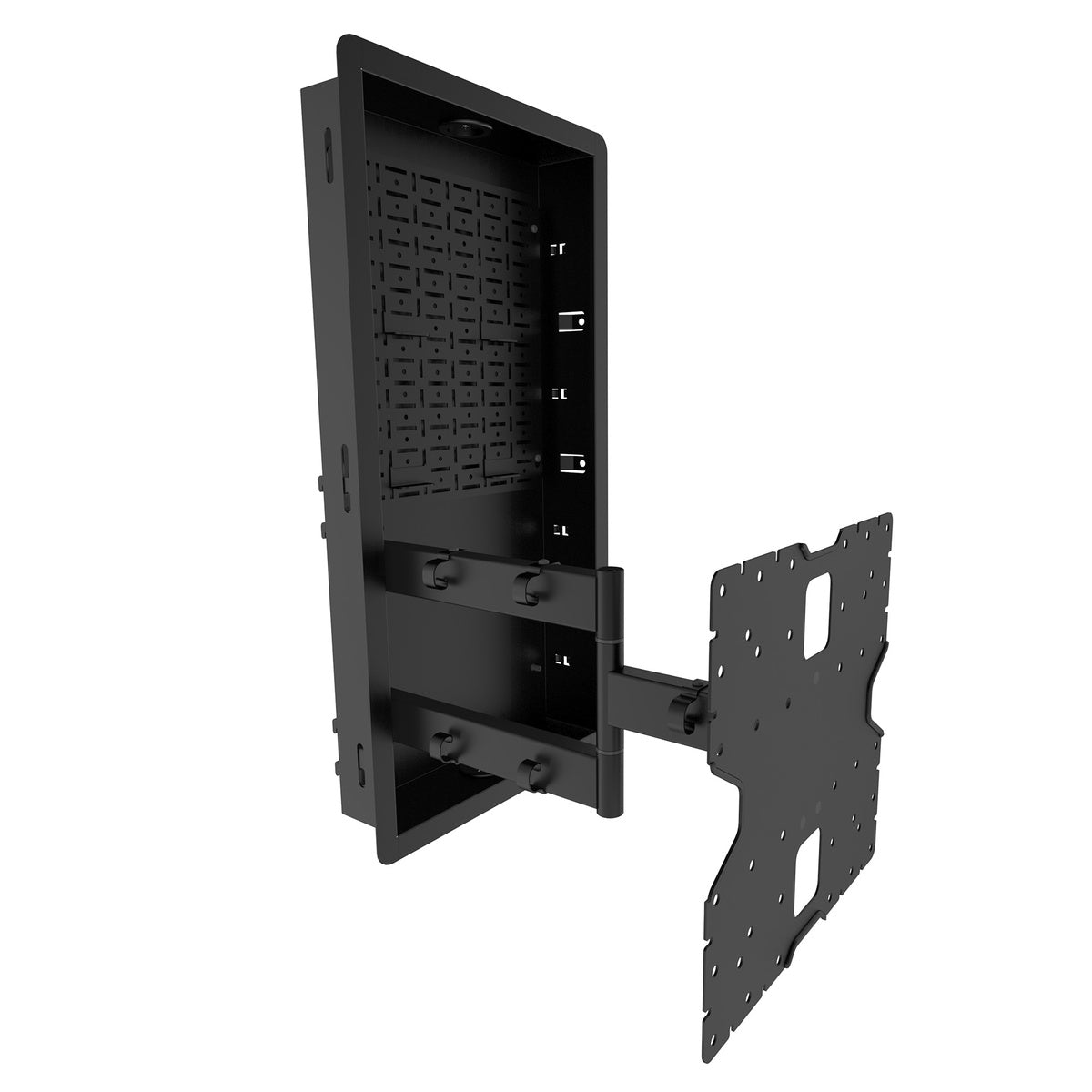

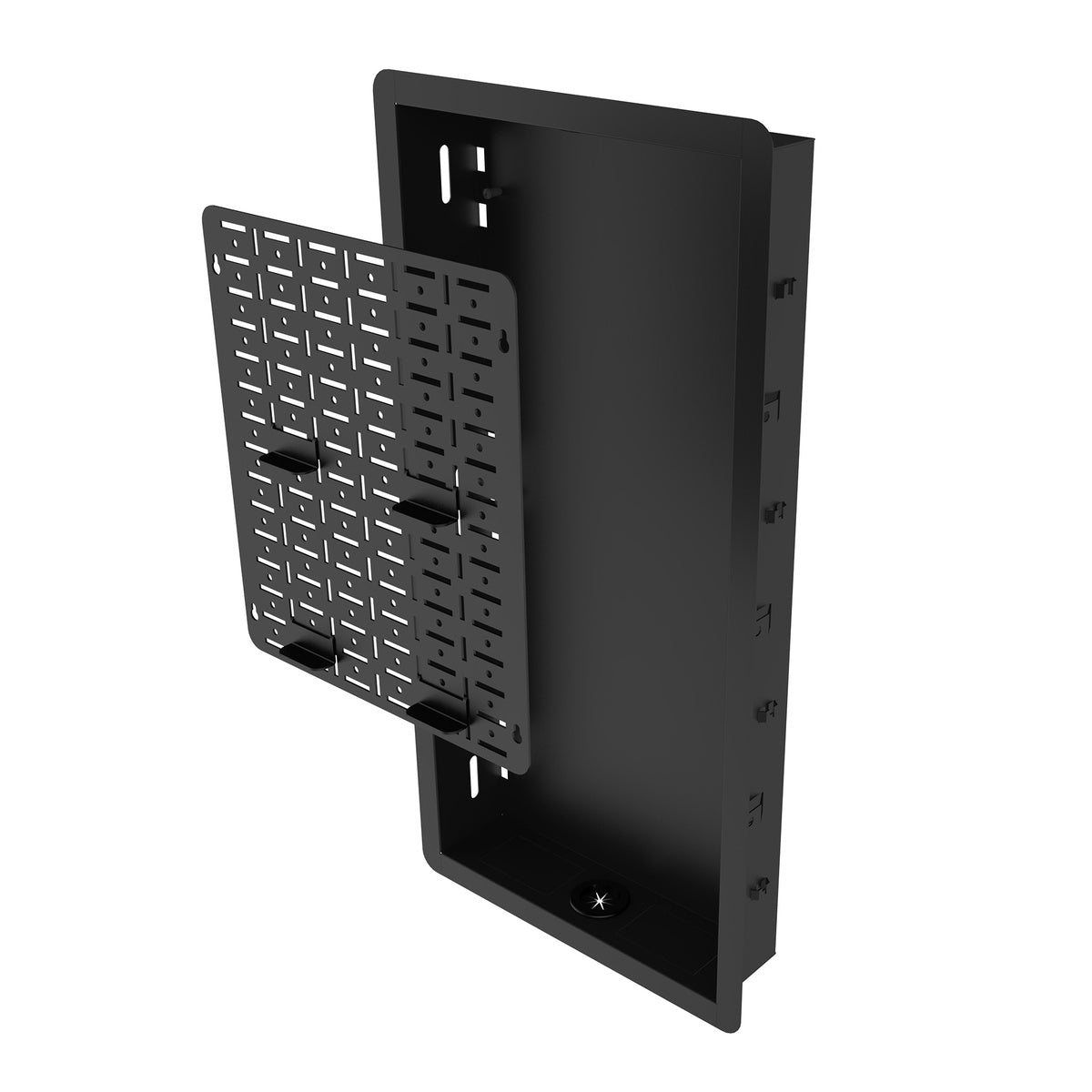

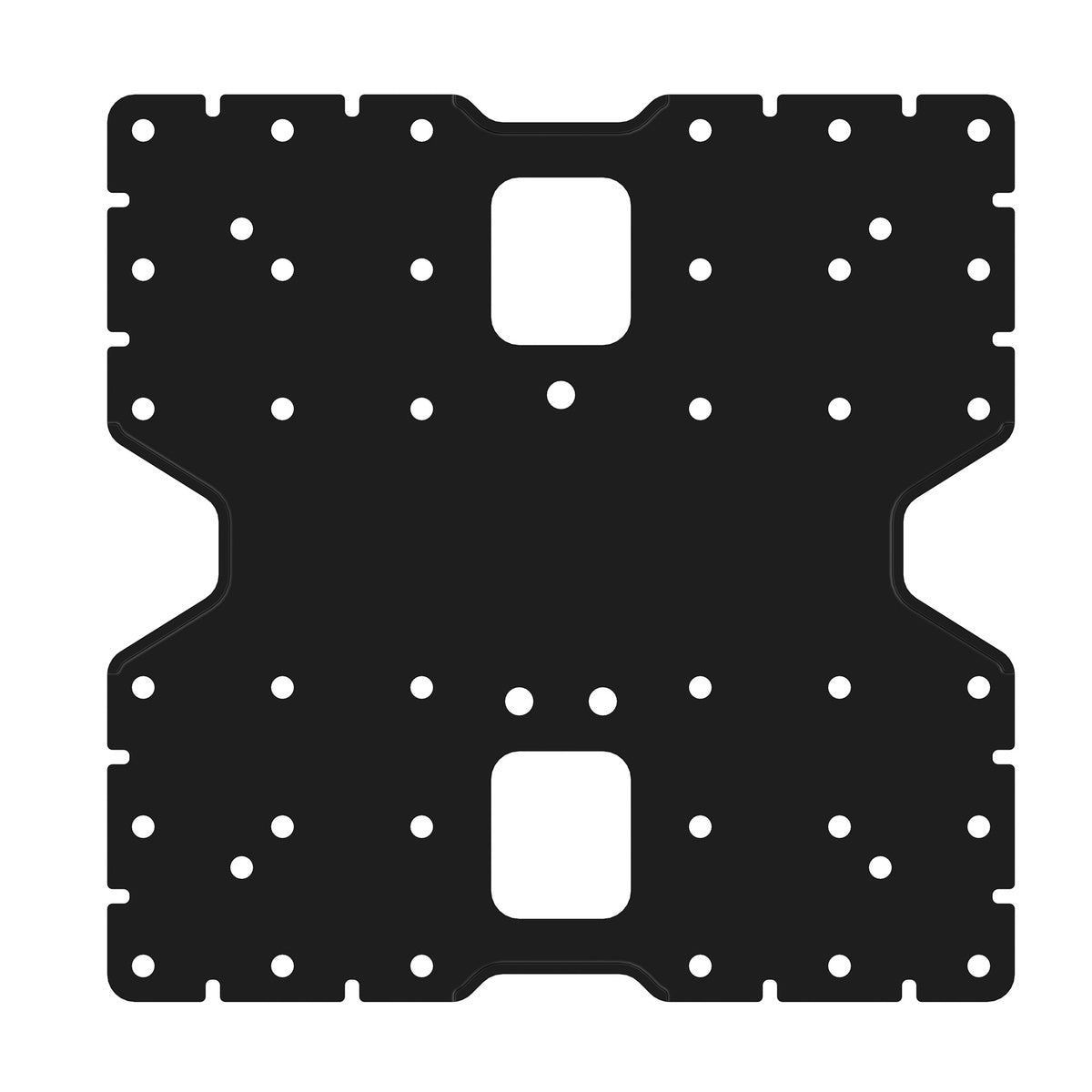

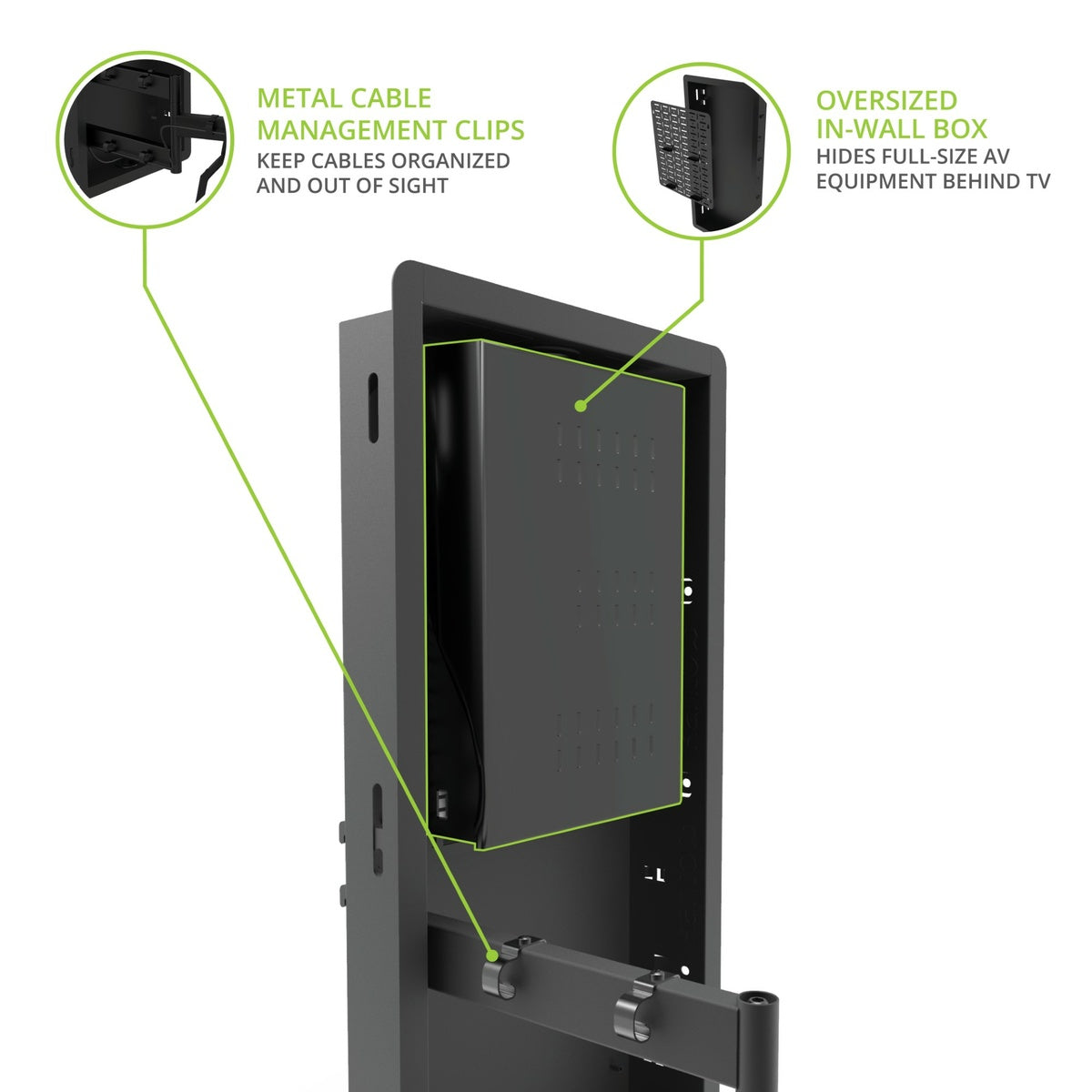

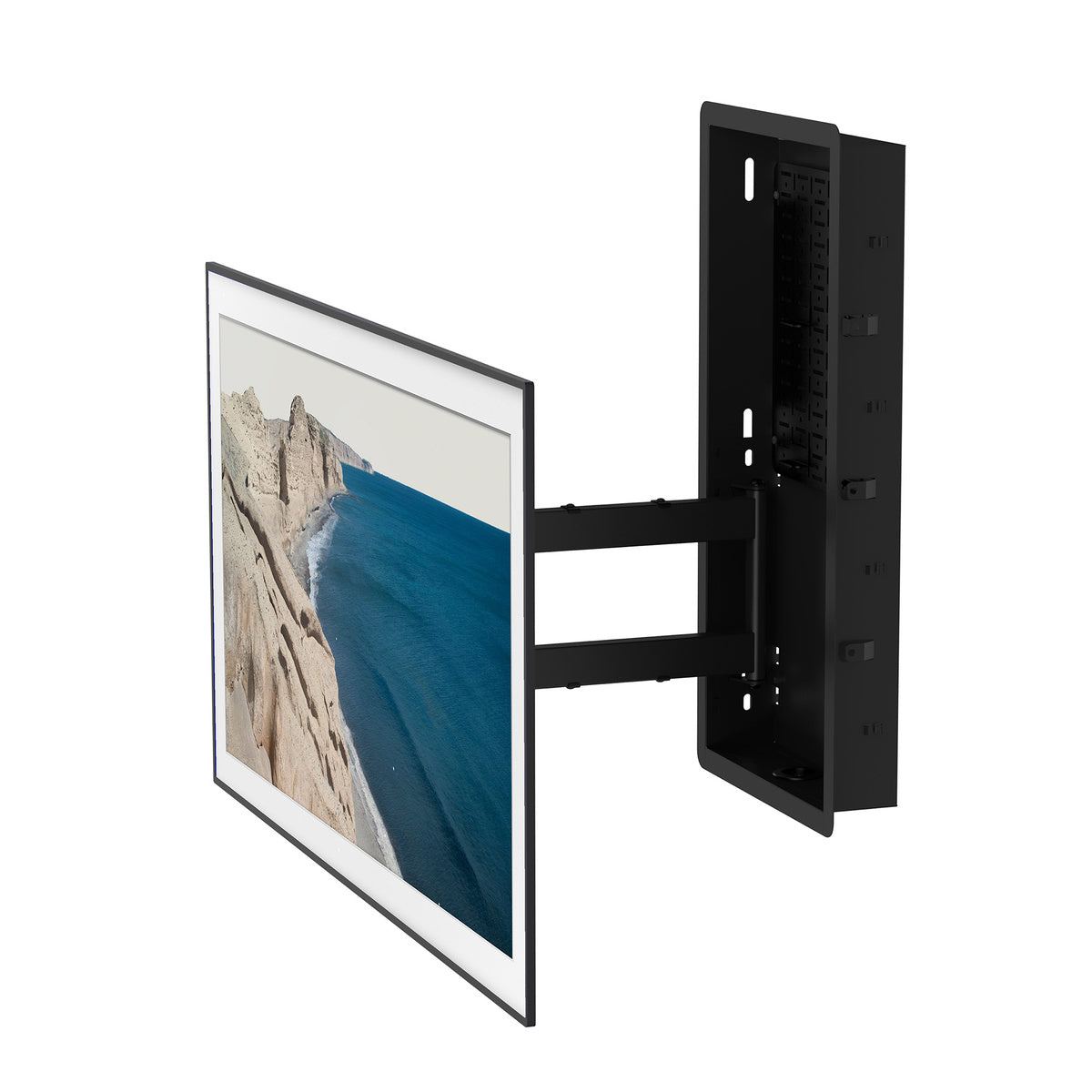

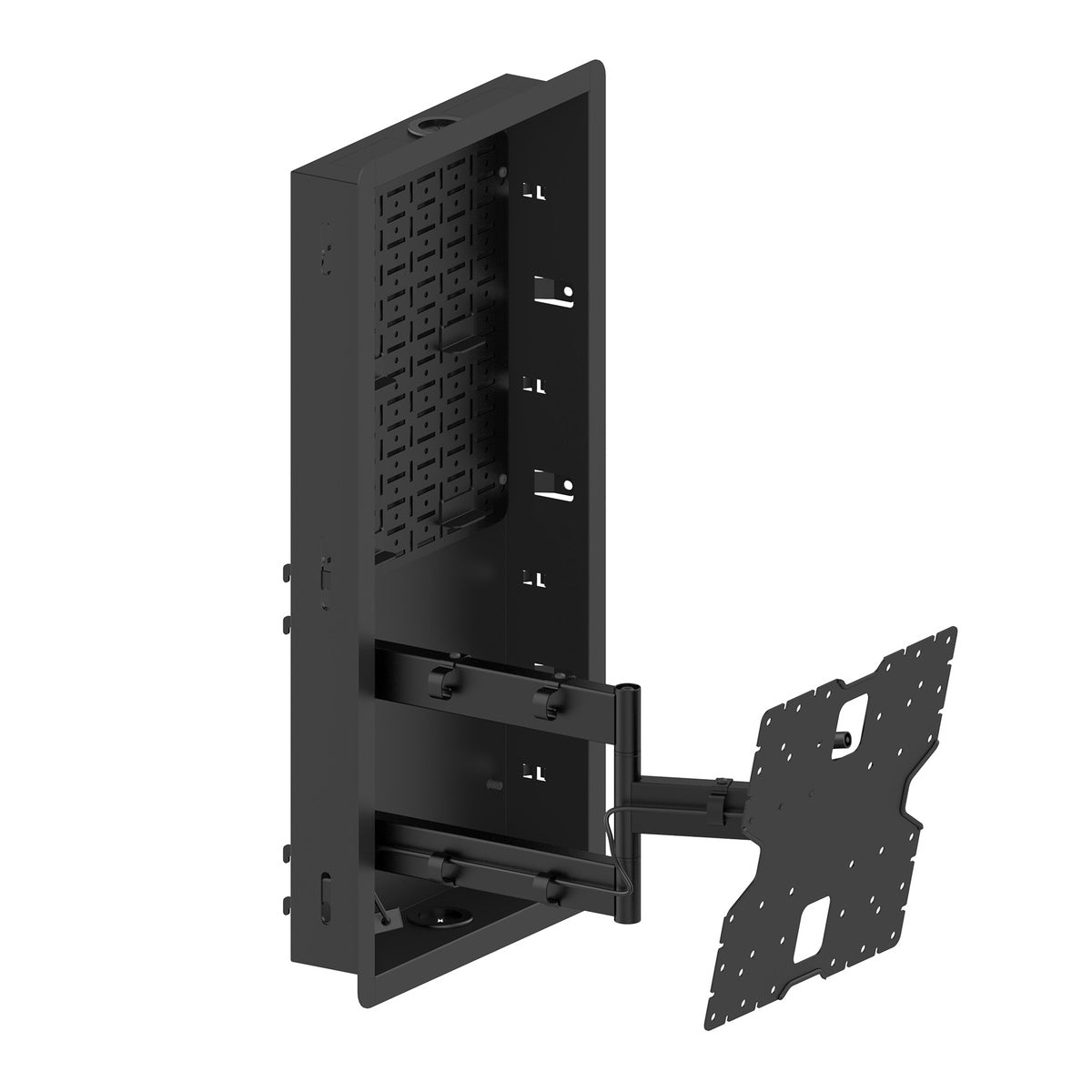

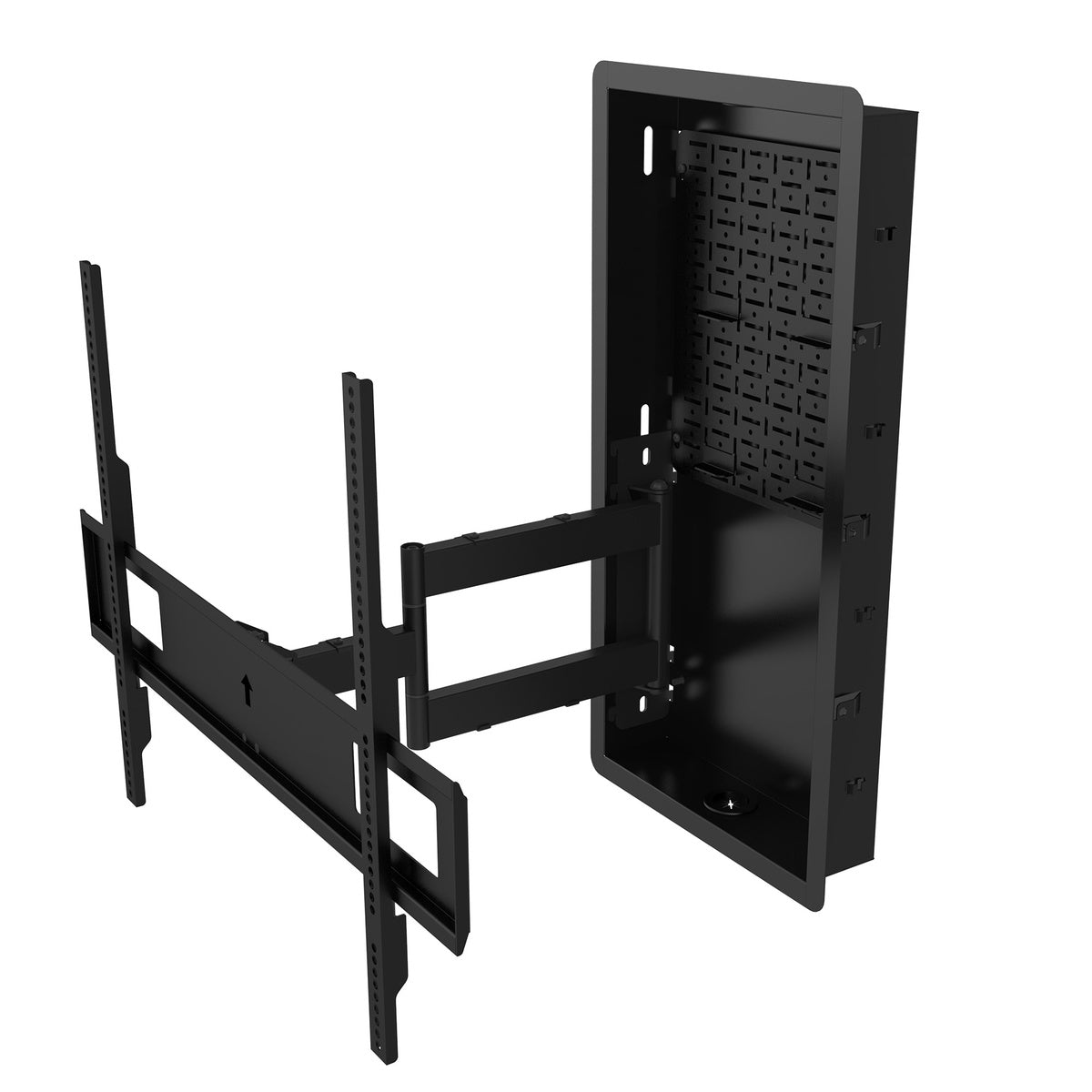

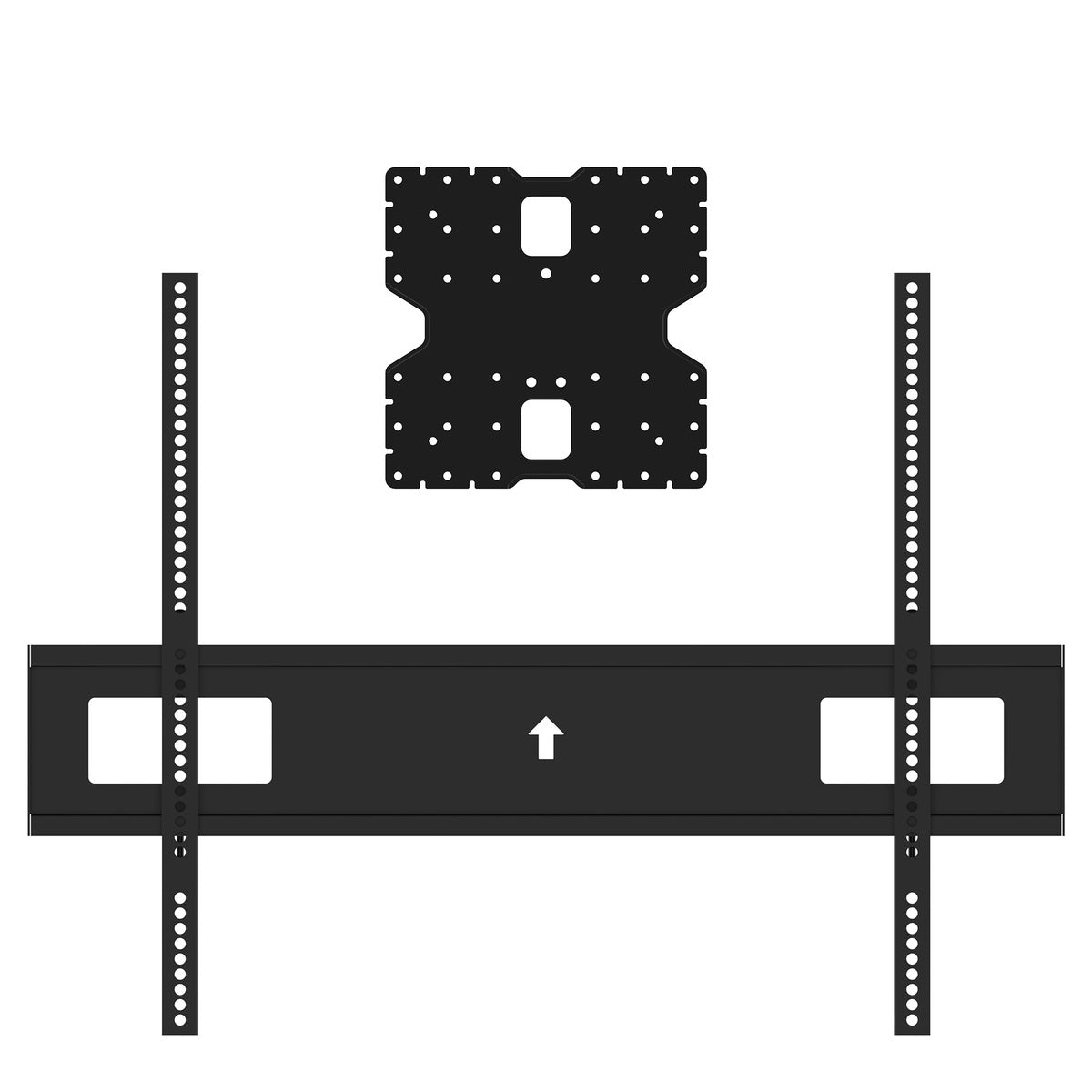

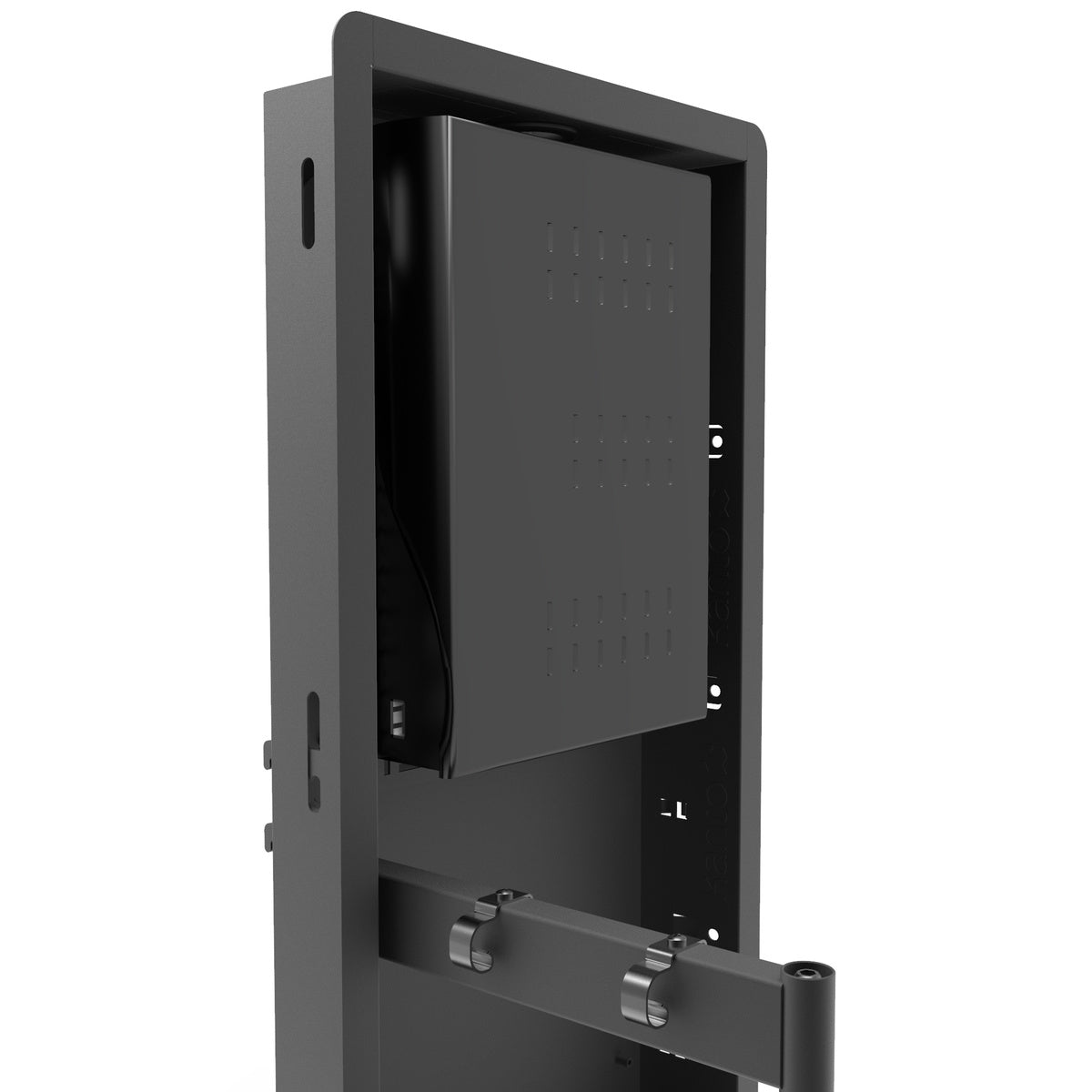

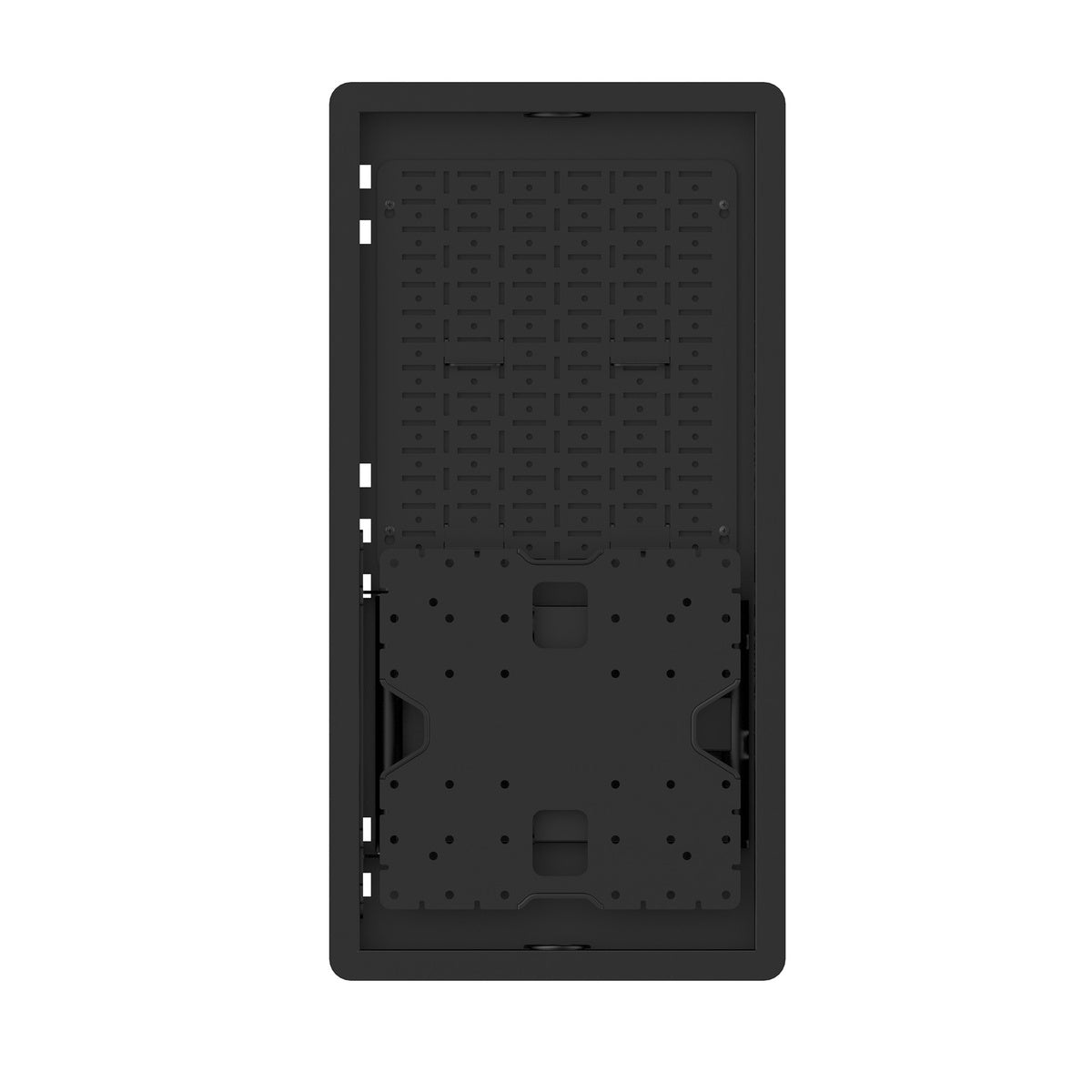

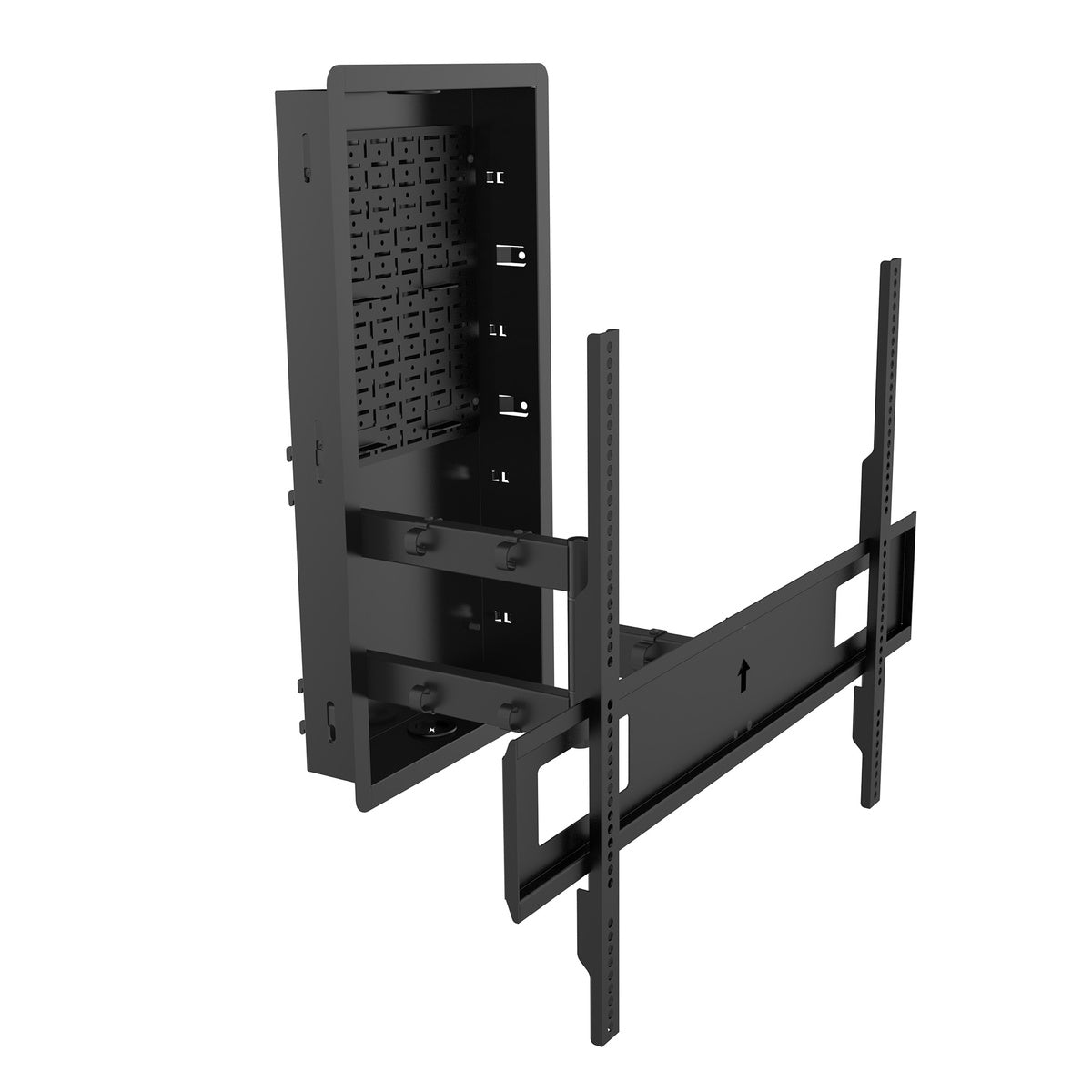

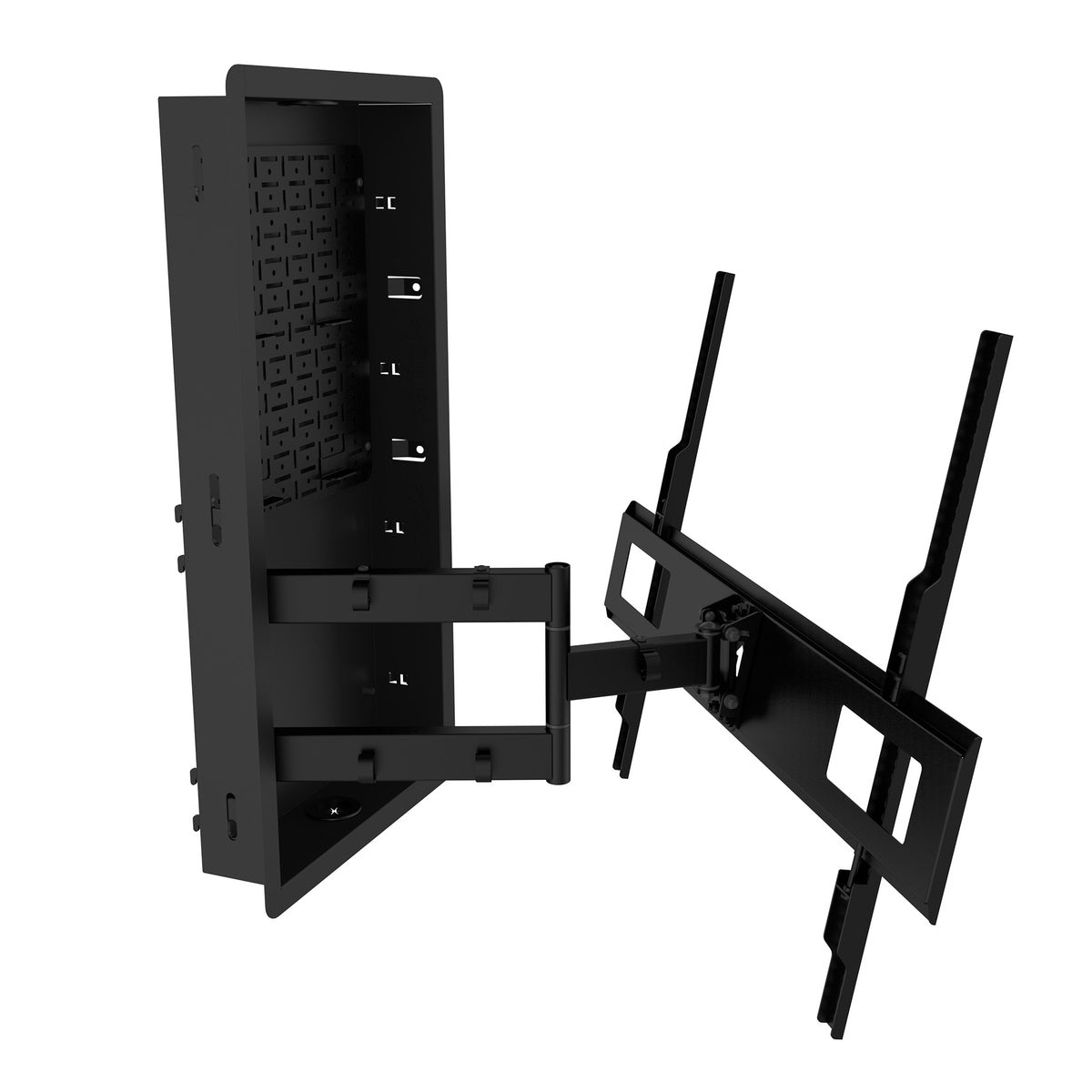

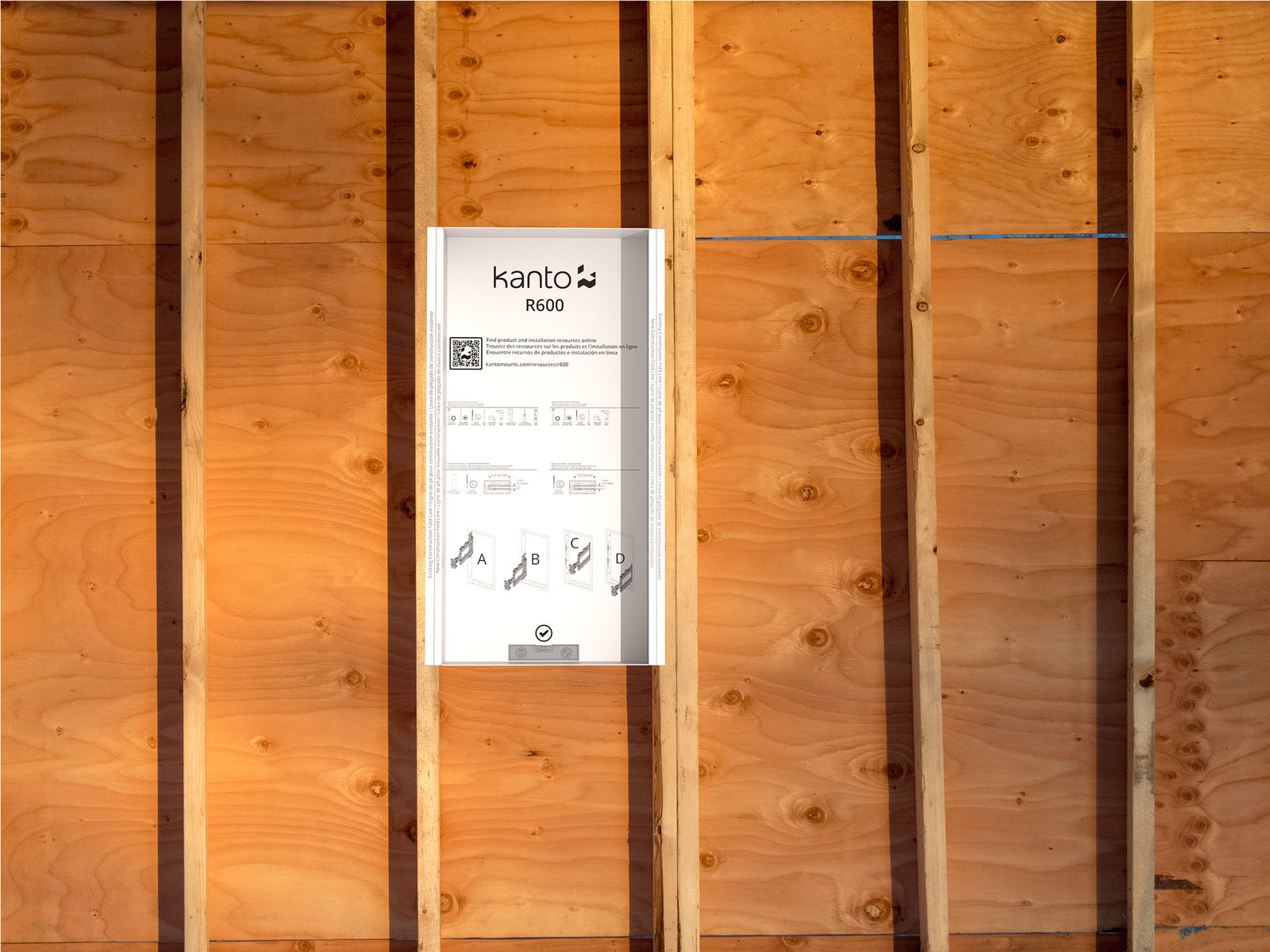

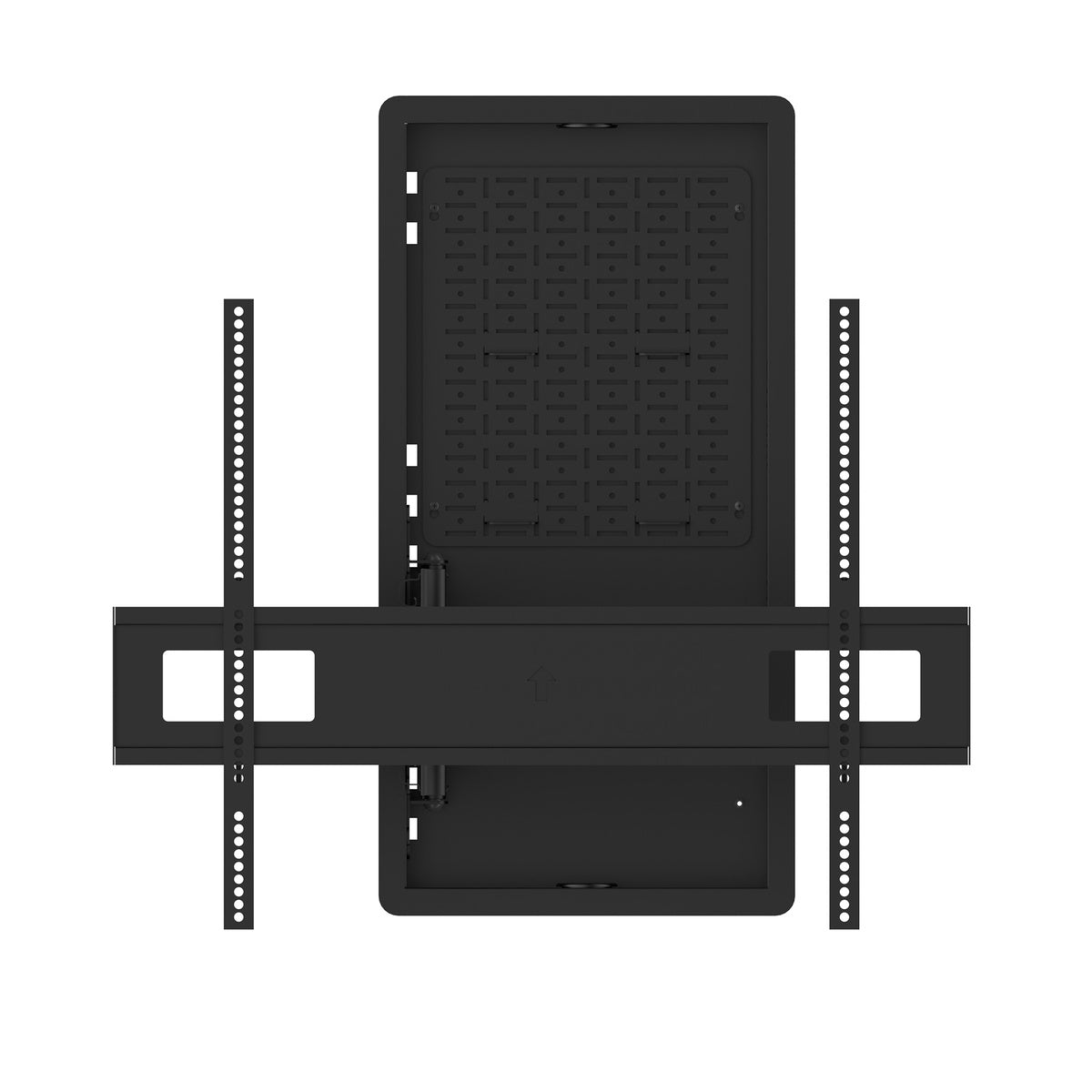

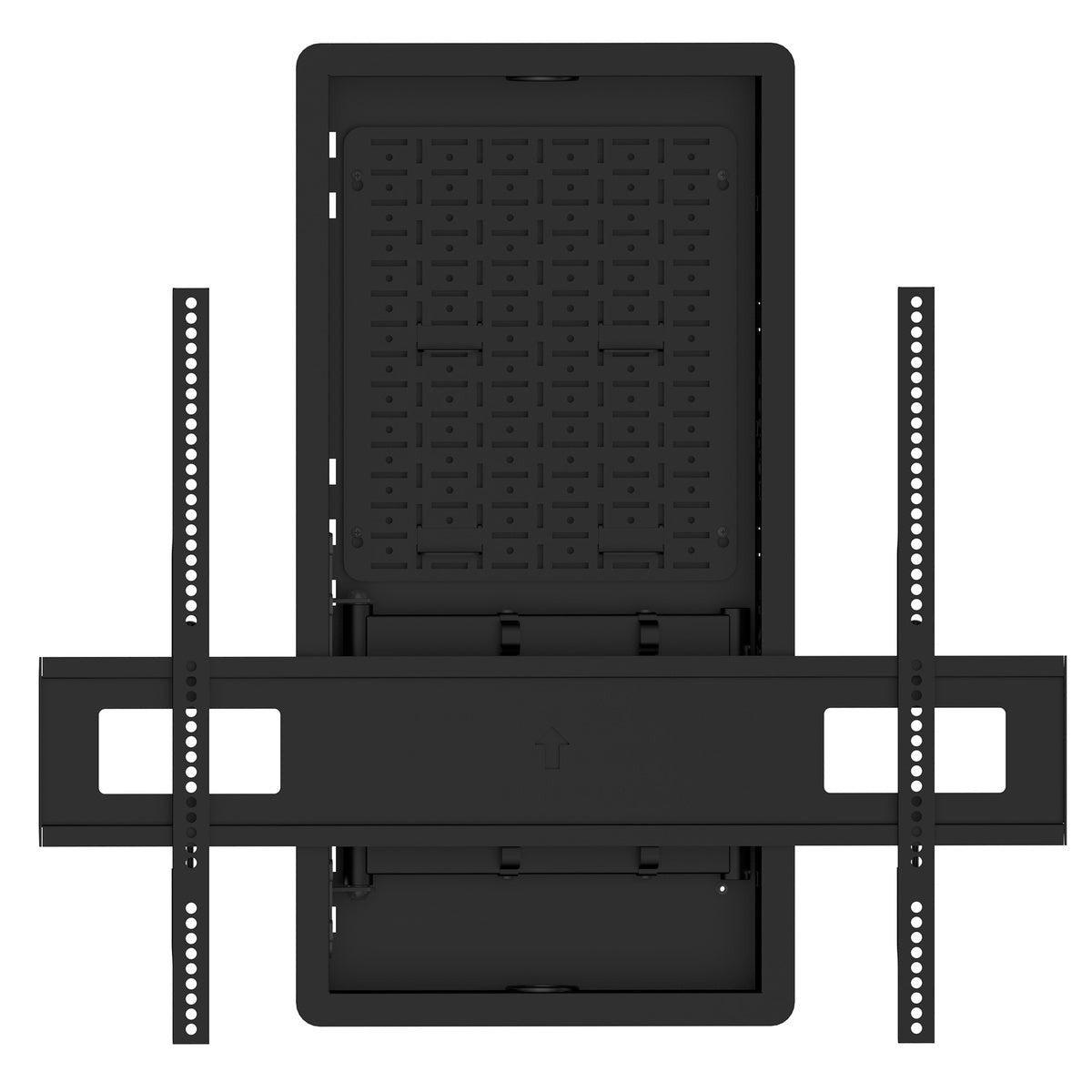

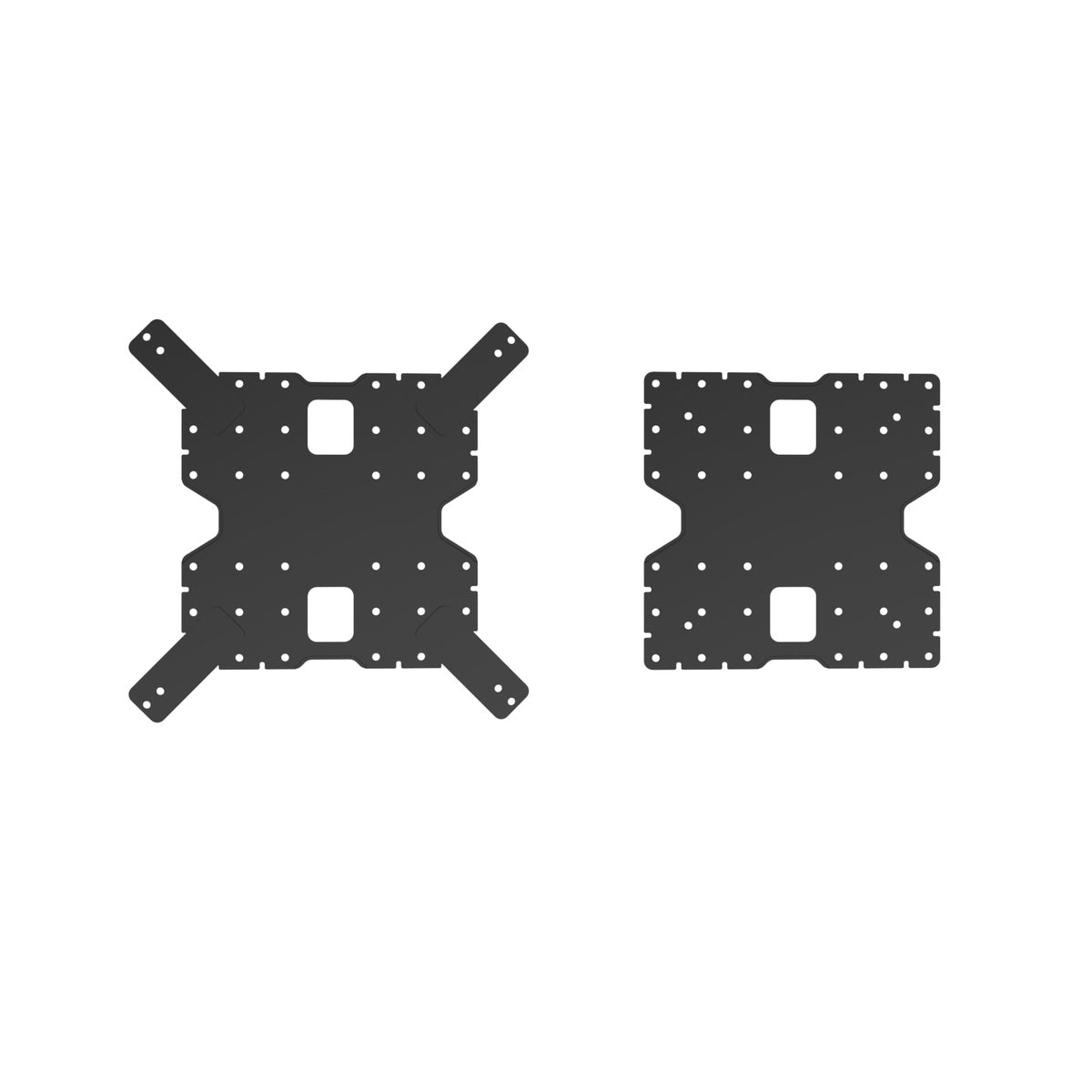

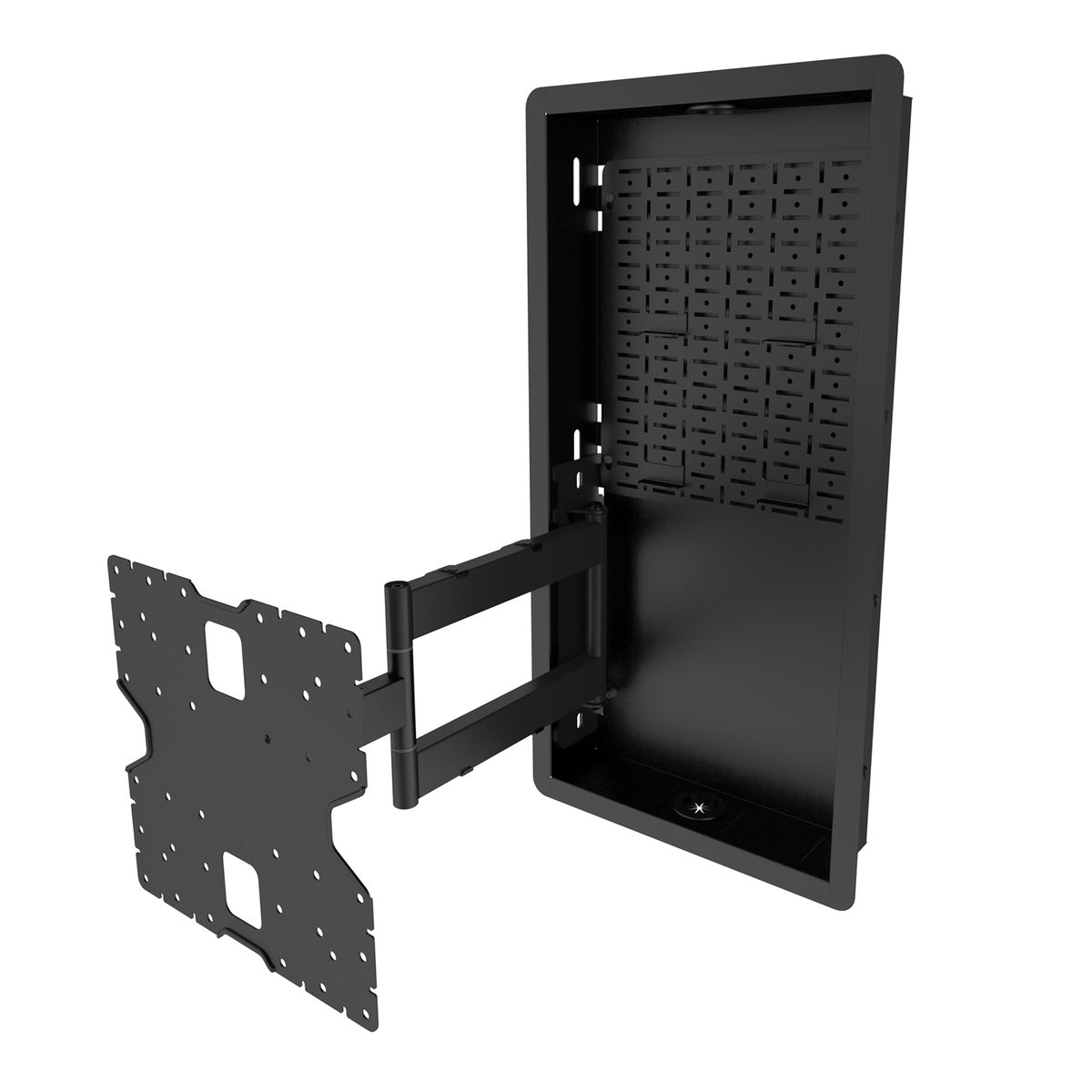

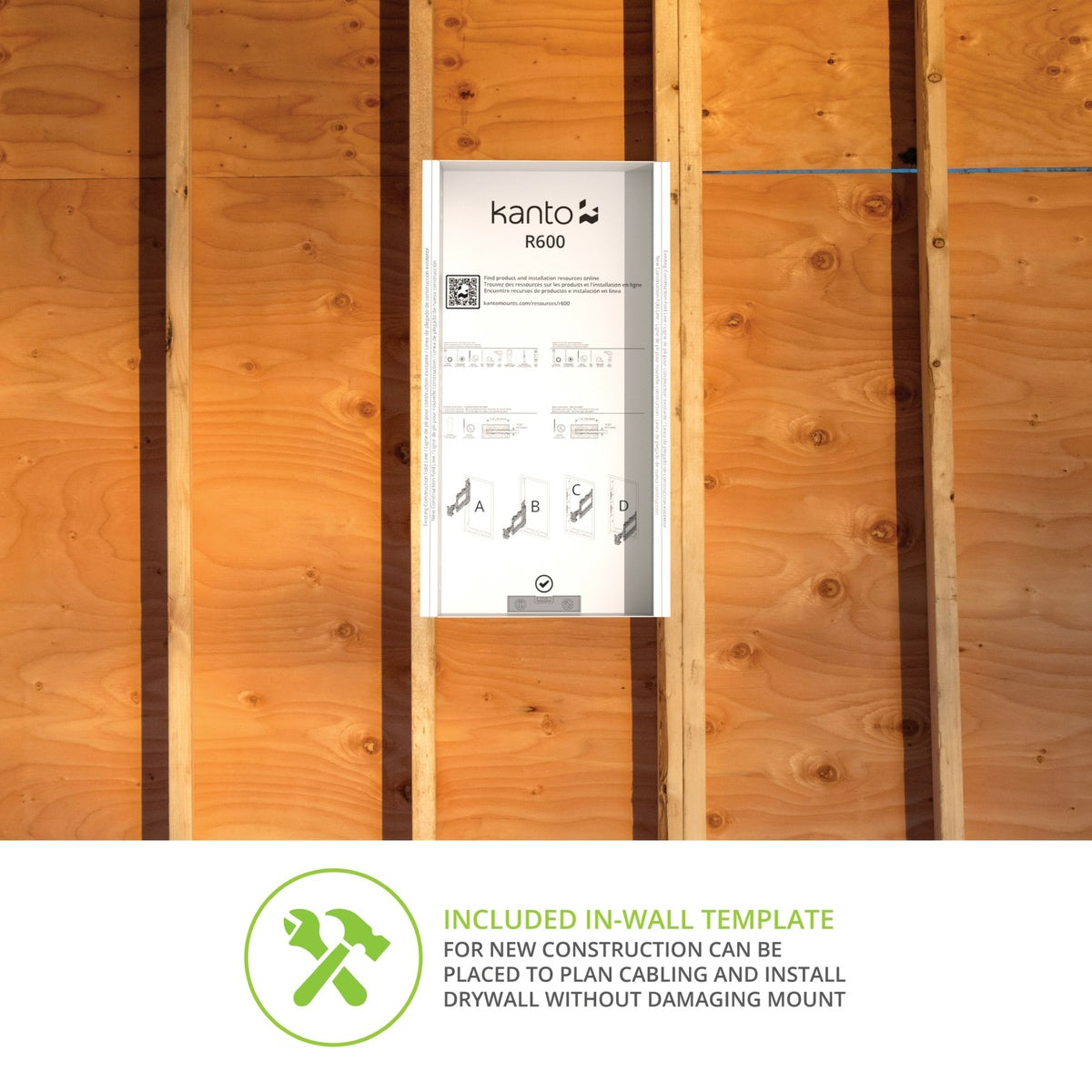

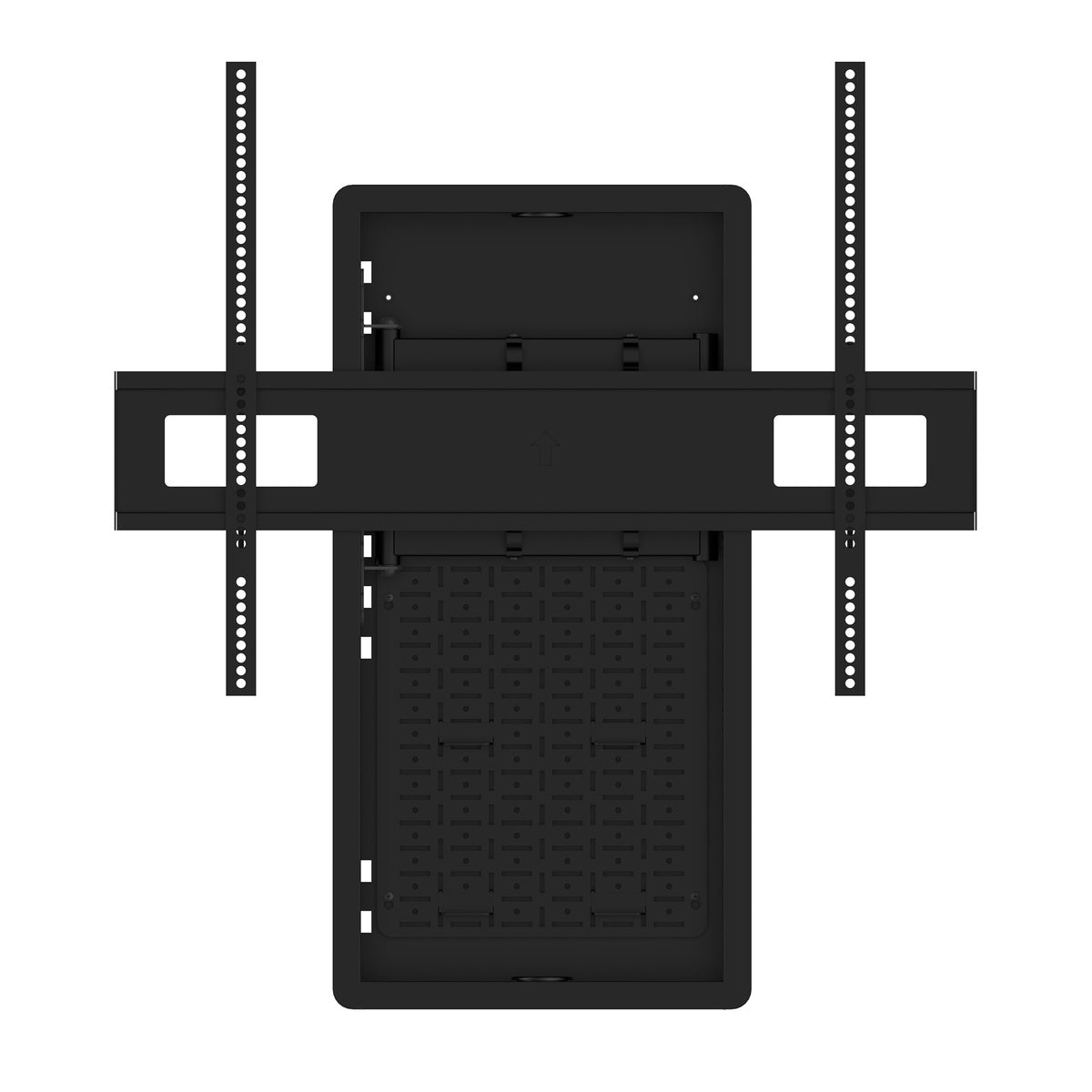

For larger projects, the R600 model features an oversized in wall box equipped with an accessory plate to secure cable set top boxes and TV breakout boxes inside the wall. This model includes two separate television mounting interfaces, providing one no gap profile for compact VESA patterns and a second heavy duty configuration for extra large panels. Contractors can use the foldable new construction box to pre wire the space and finish the drywall while keeping the main mounting assembly clean and scuff free in its factory packaging until final deployment.

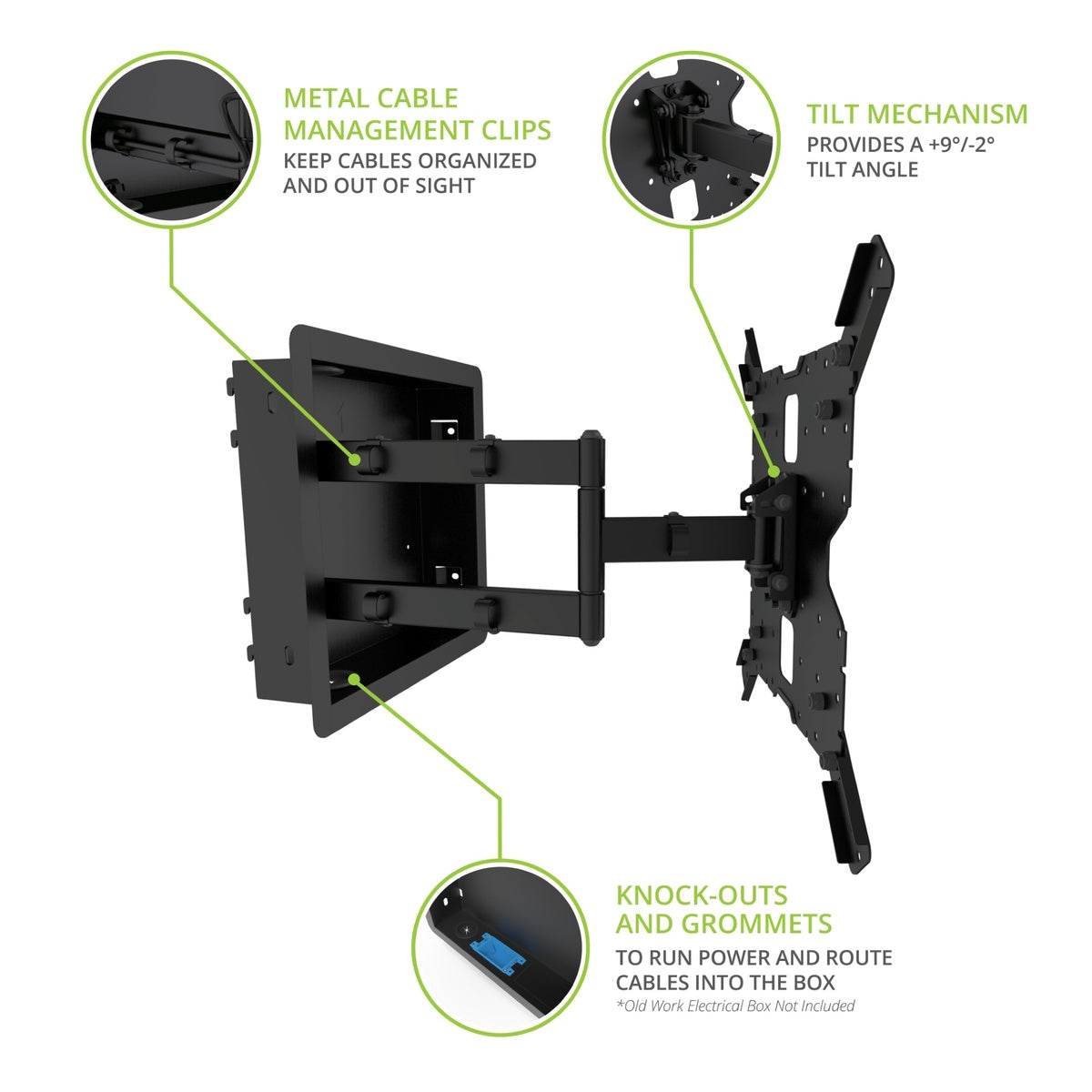

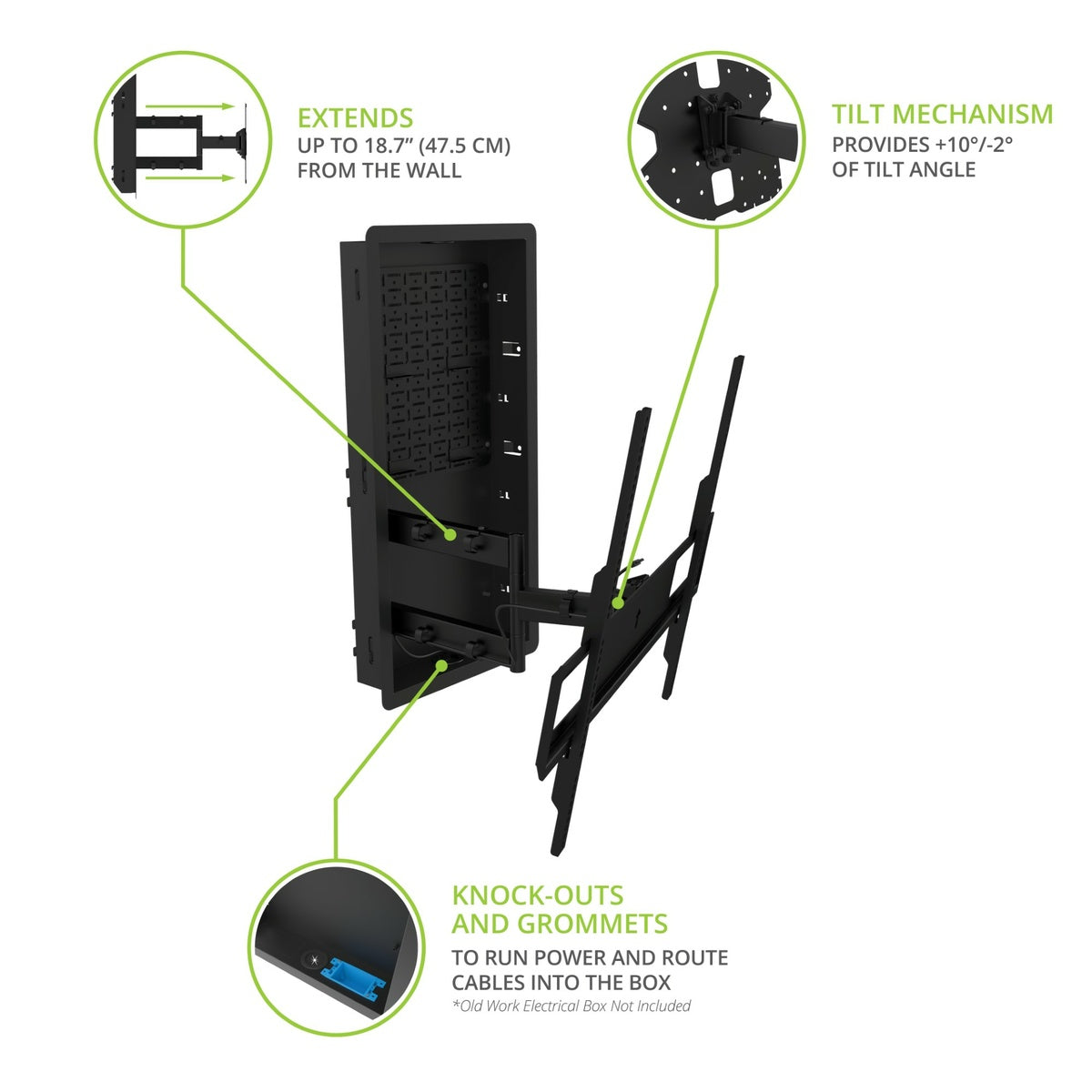

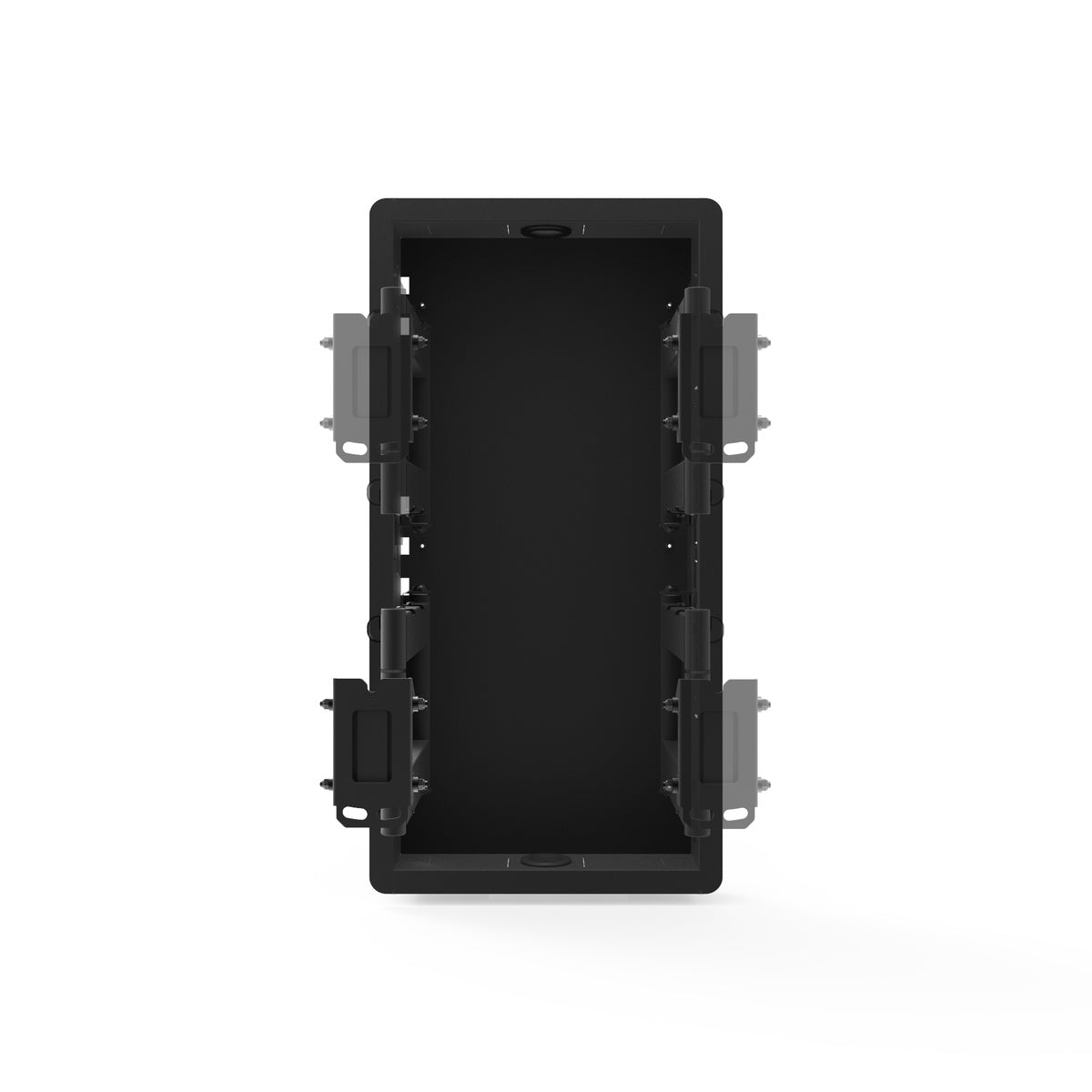

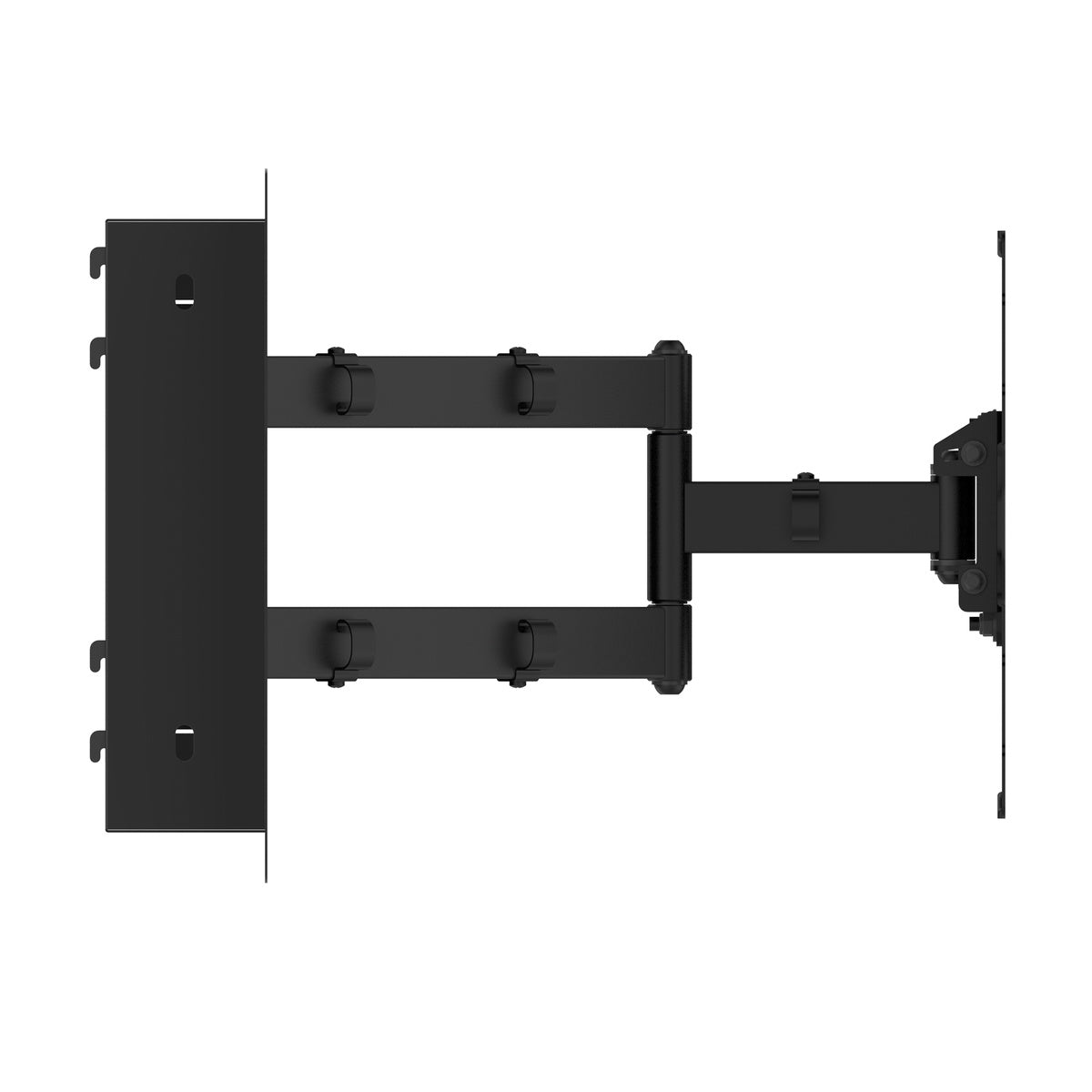

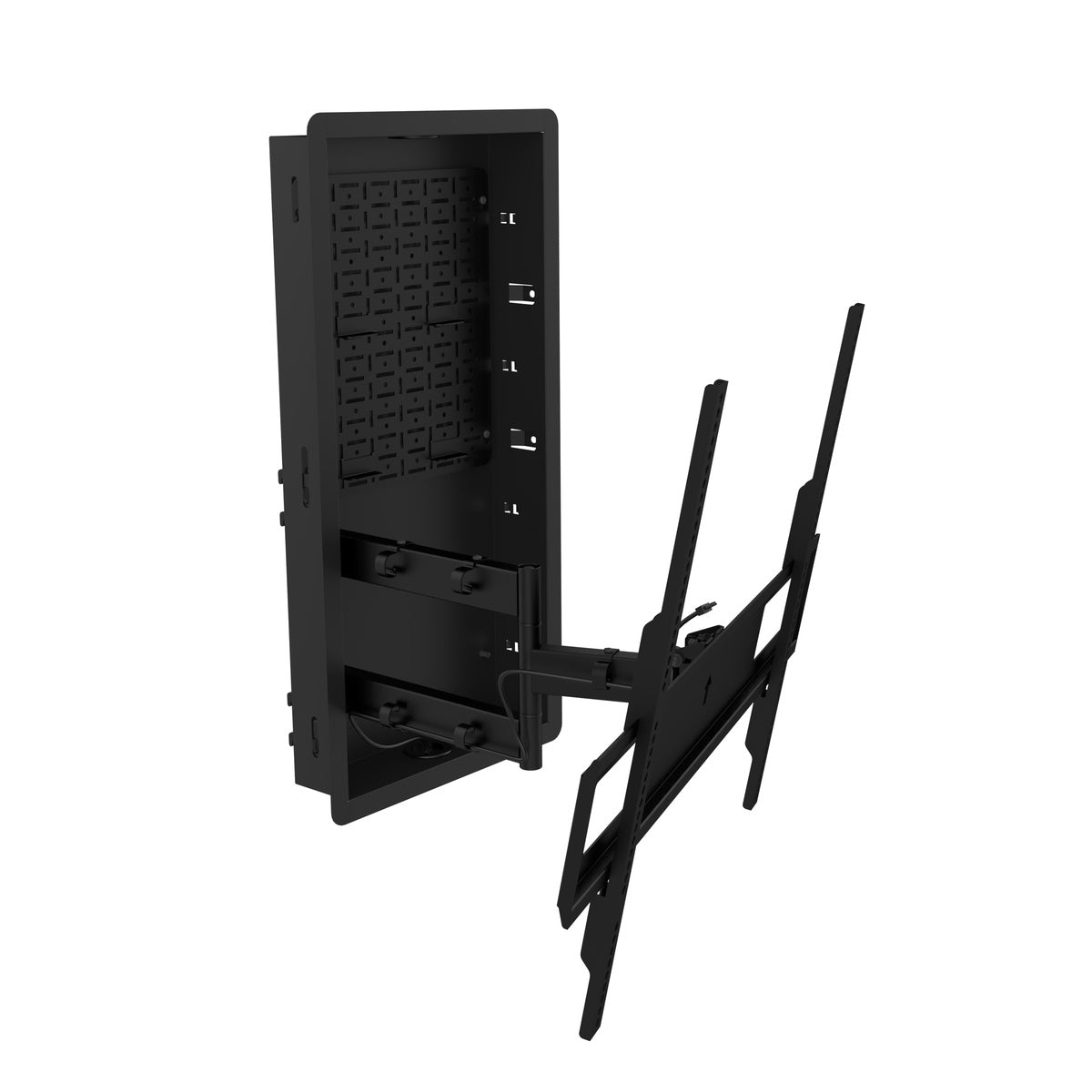

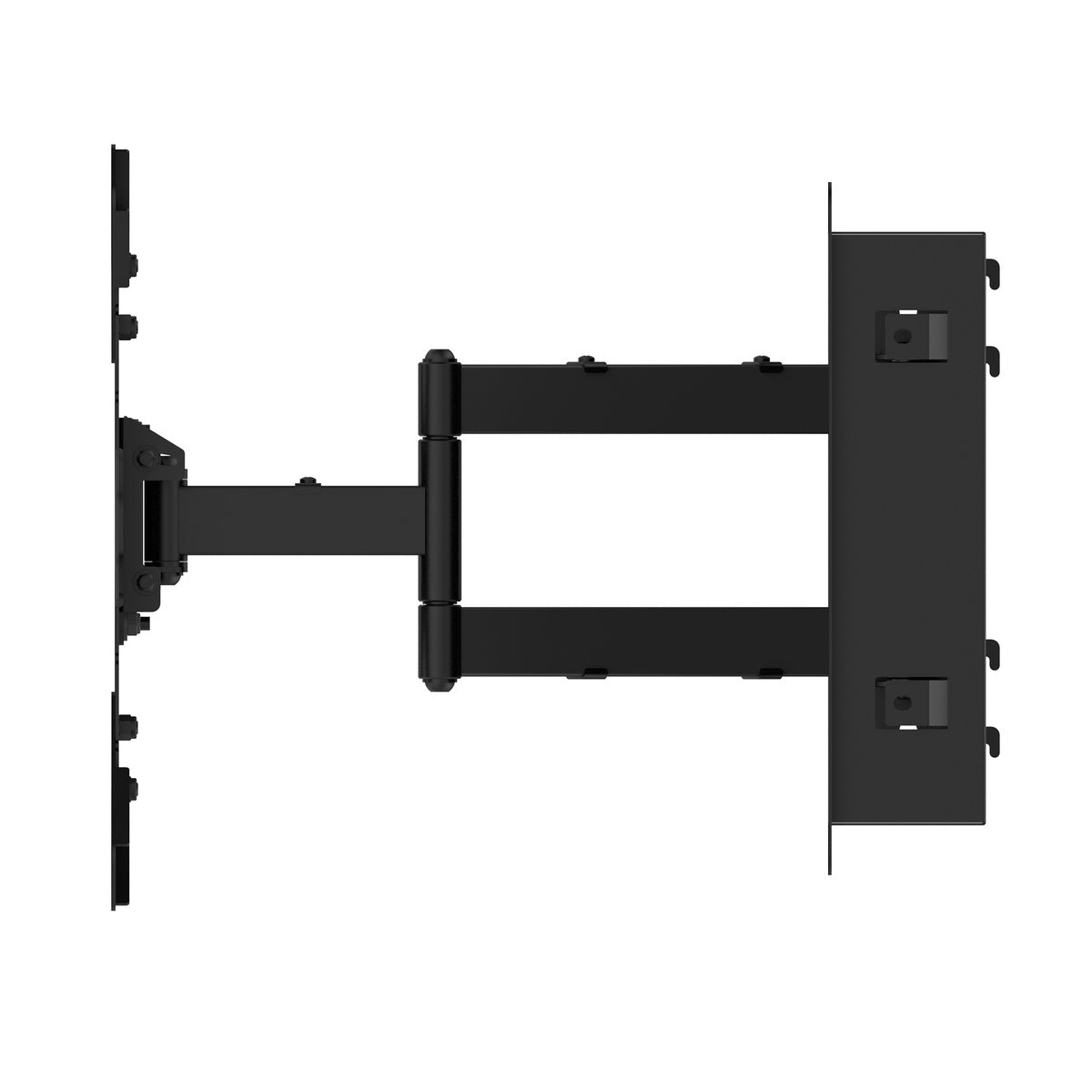

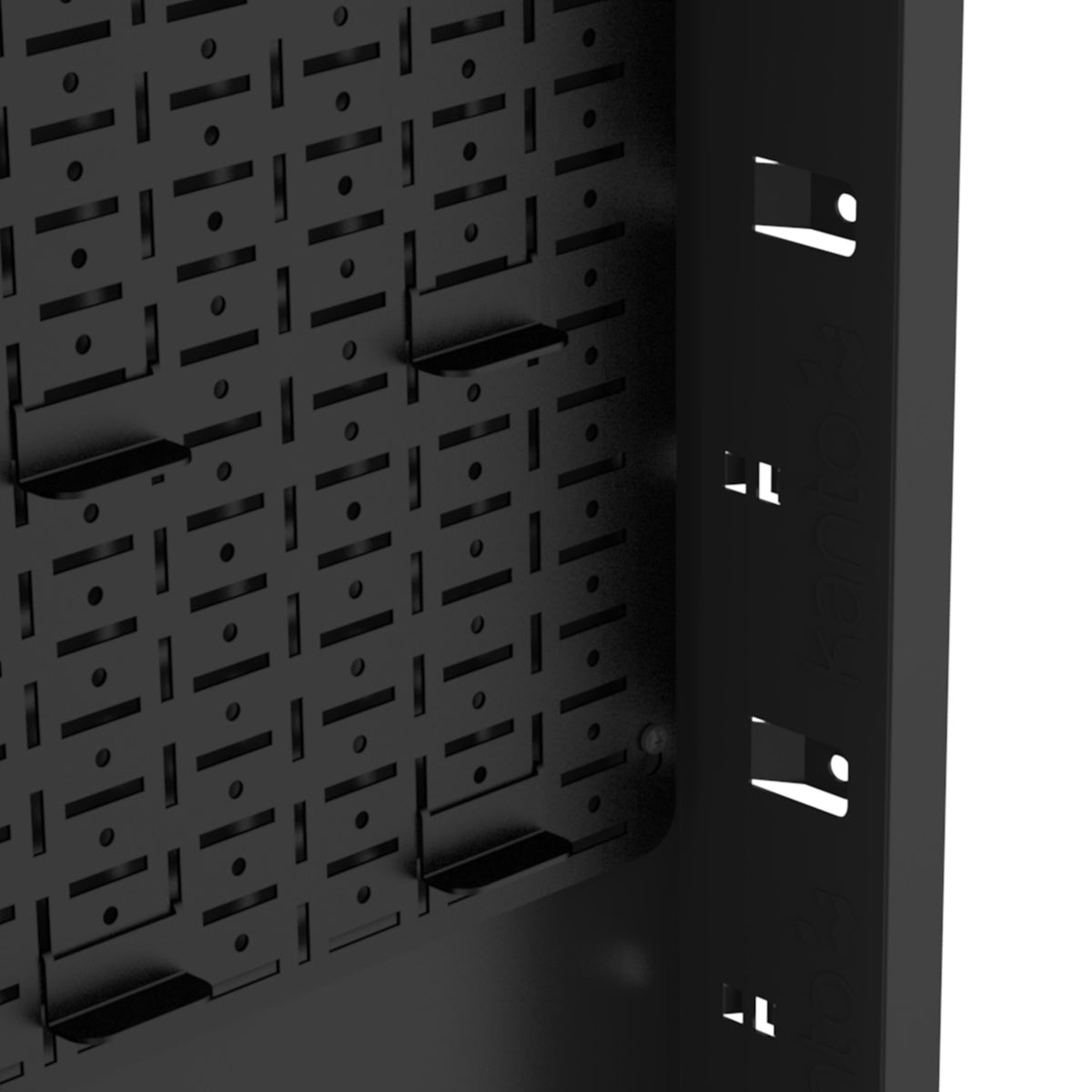

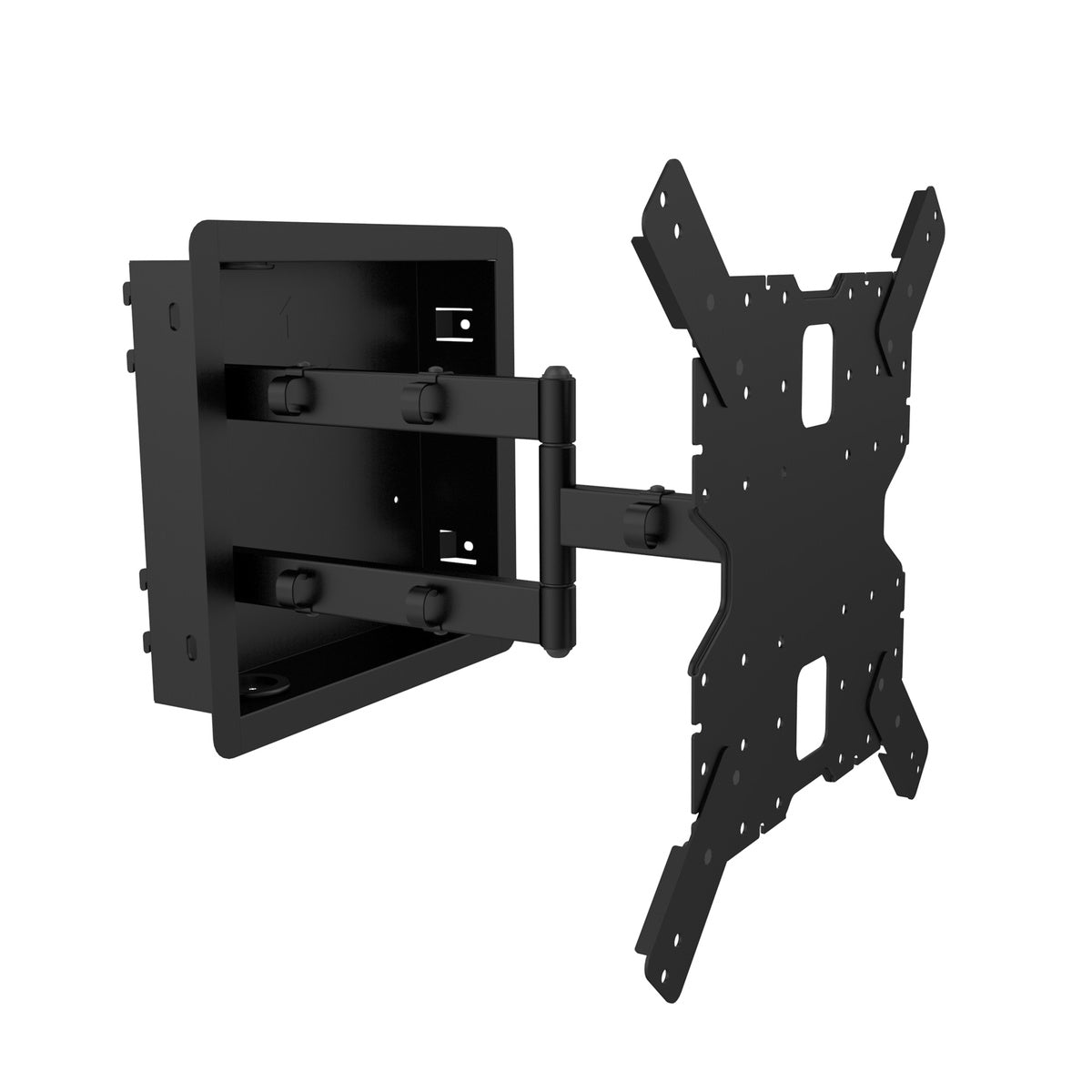

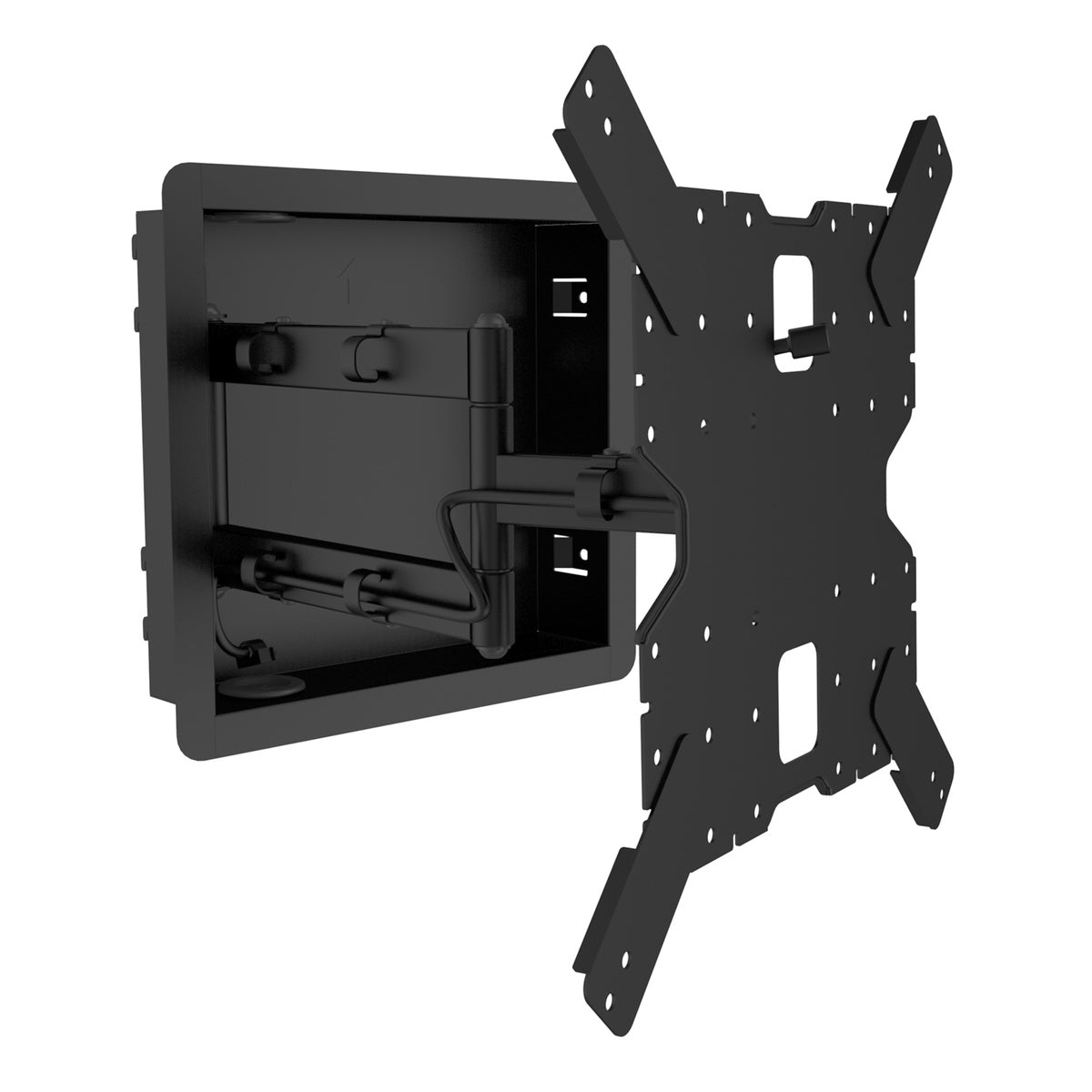

Both configurations provide functional extension capabilities up to 18 inches on durable articulating arms. To eliminate cable strain and clutter when the screen is pulled away from the wall, the mechanisms utilize durable metal cable management clips and zip tie mounting points. These recessed units provide a practical hardware foundation for a clean smart home integration** or a high end commercial AV installation.

Details & Specs

Specification R400 R600
Product Dims (W x D x H) 17.3'' x 17.8'' x 17.3'' (44 x 45.2 x 44 cm) 33.5'' x 22.3'' x 32'' (85 x 56.6 x 81.3 cm)
Product Weight 23.1 lb (10.5 kg) 45.2 lb (20.5 kg)
TV Size Fits most TVs from 35” to 65” Fits most TVs from 65” to 90”
Load Rated Supports TVs up to 80 lb (36 kg) Supports TVs up to 135 lb (61 kg)

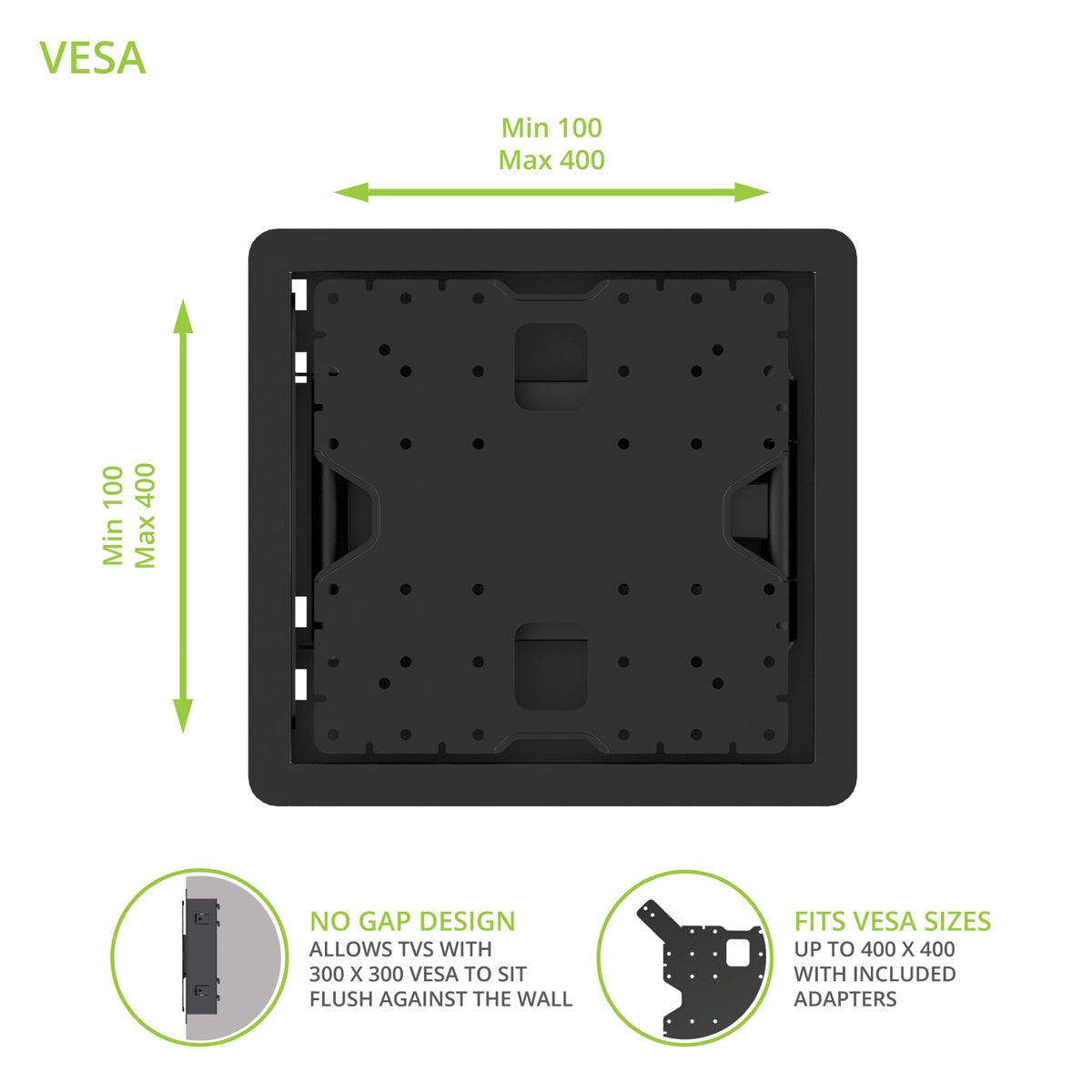

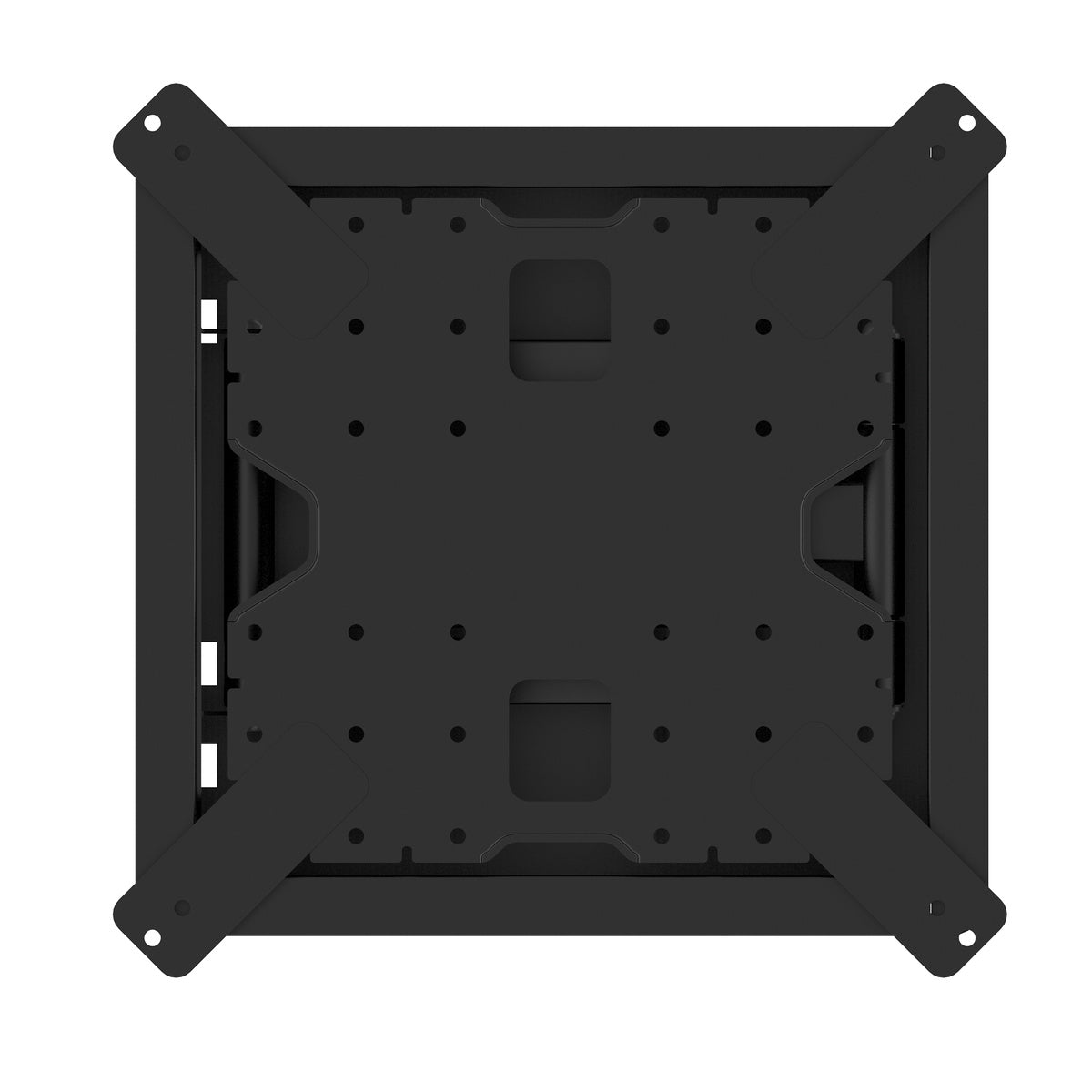

Vesa Accommodates VESA sizes from 100x100 to 400x400 Accommodates VESA sizes from 100x100 to 800x600

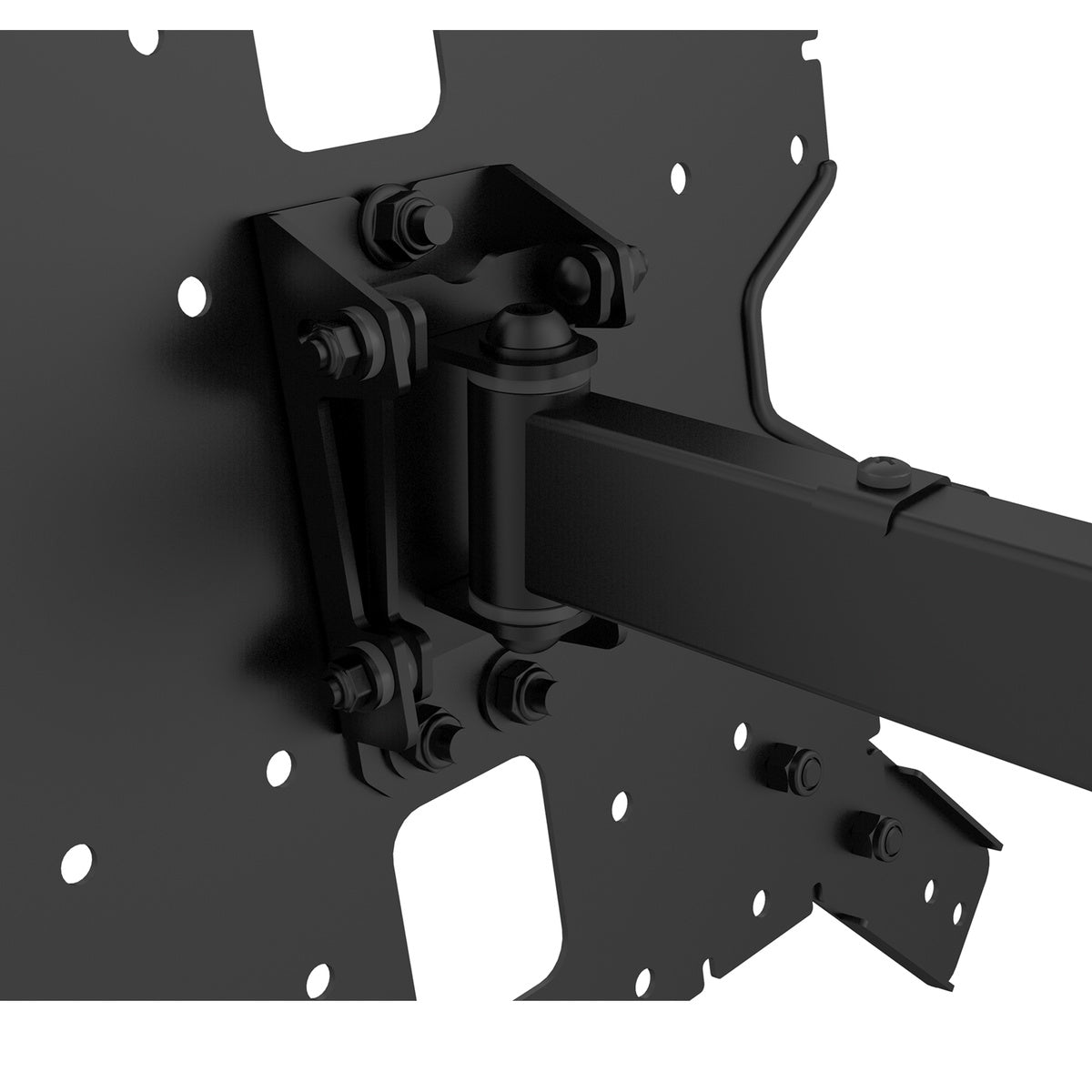

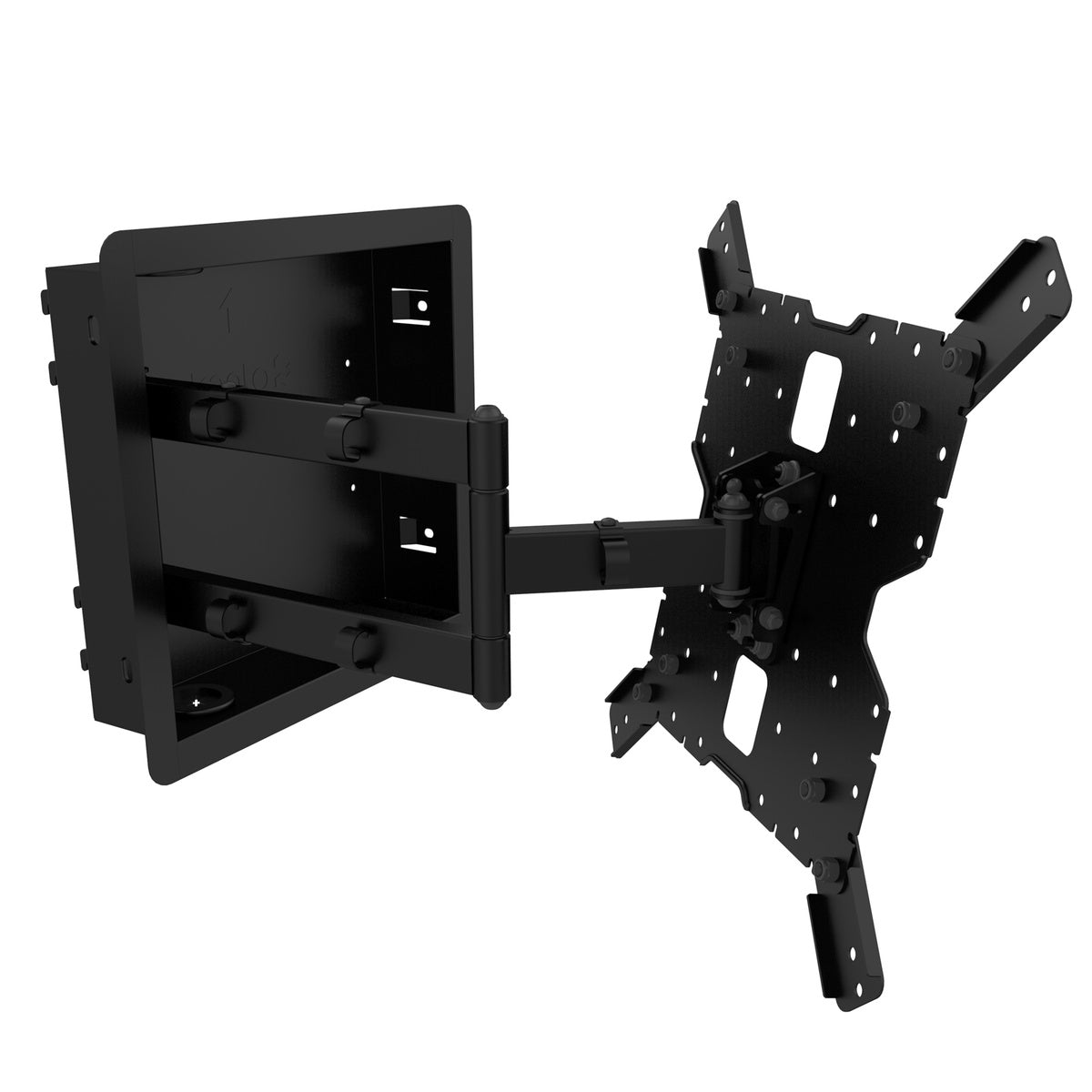

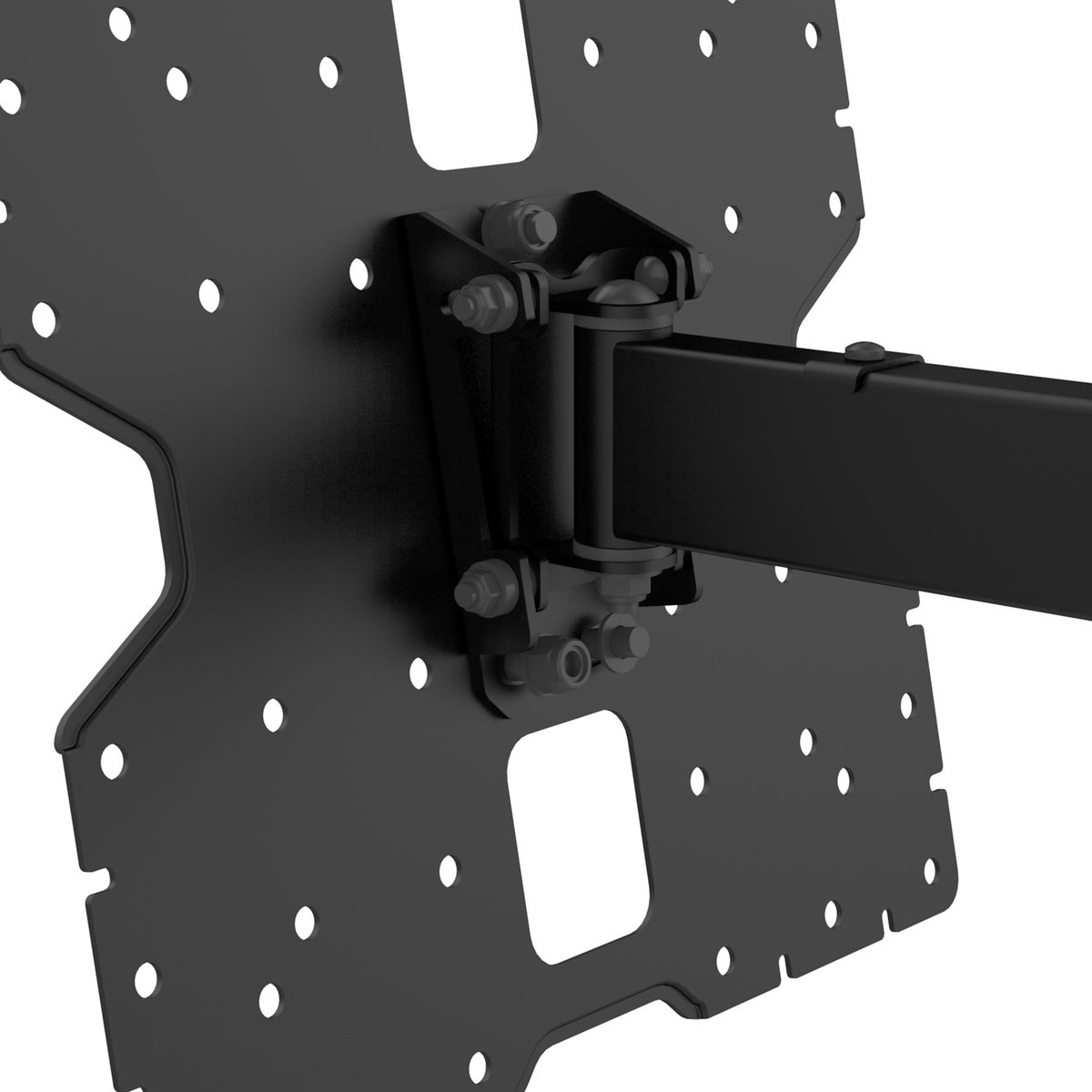

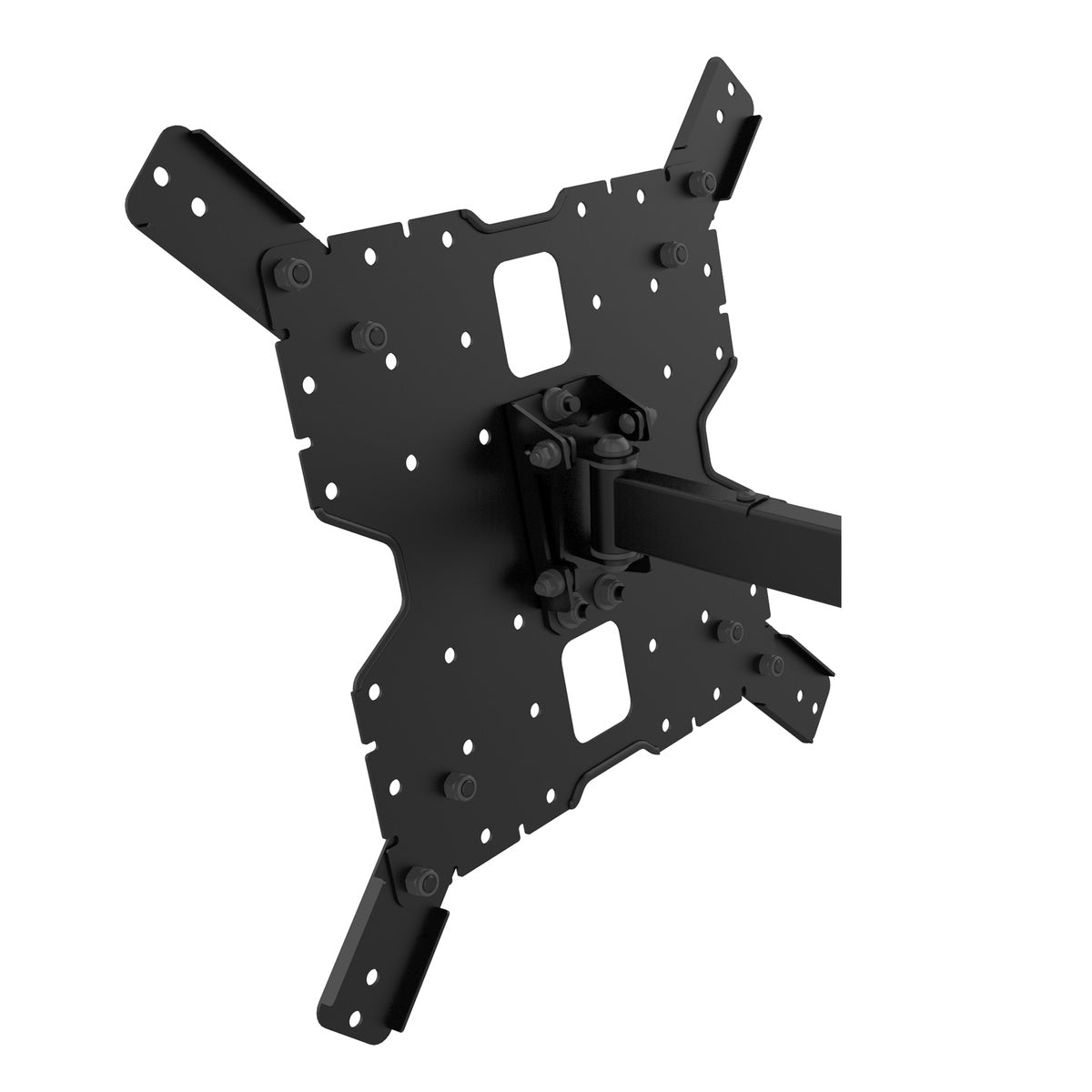

Tilt Accessible tilt mechanism provides a +9° to -2° viewing angle Accessible tilt mechanism provides a +10° to -2° viewing angle

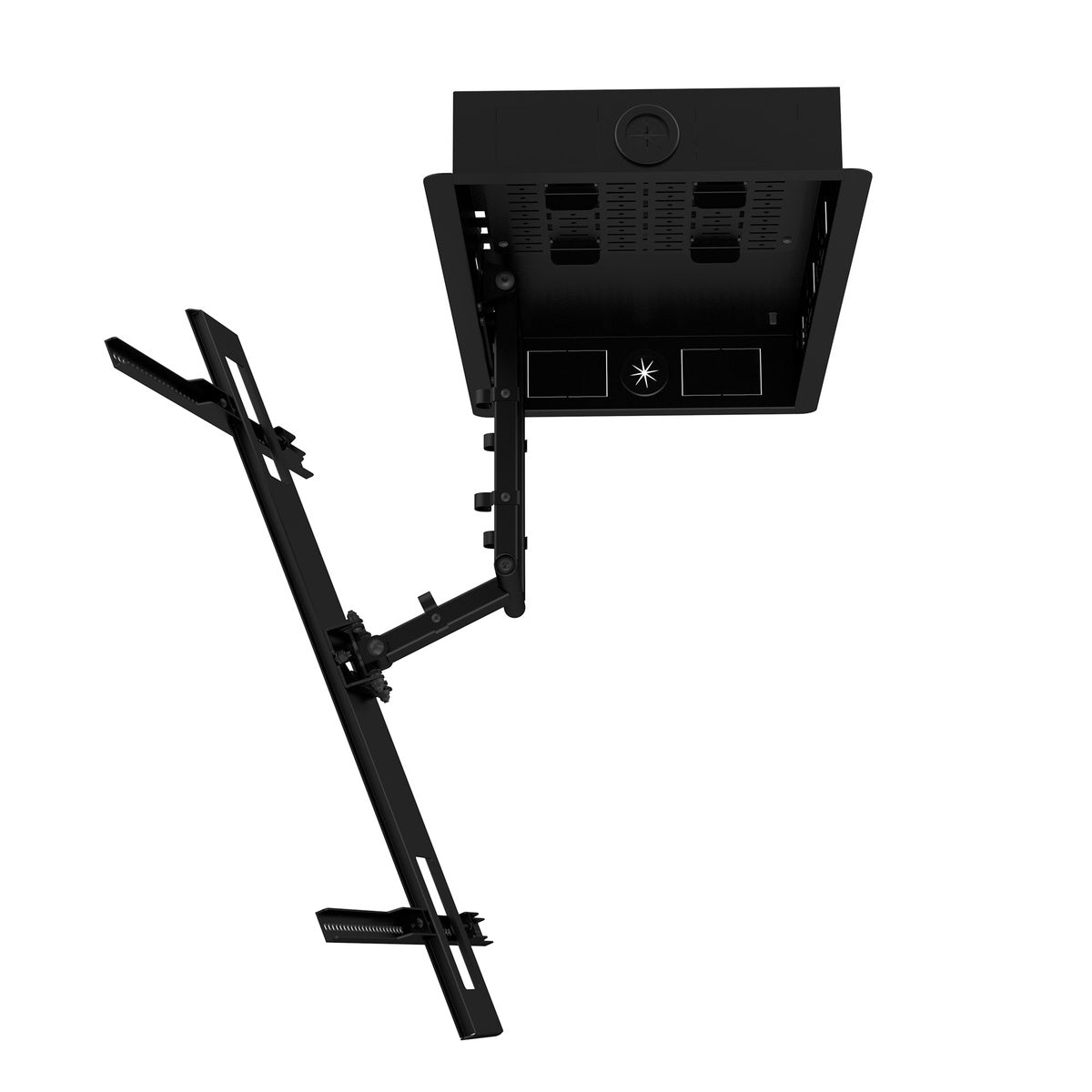

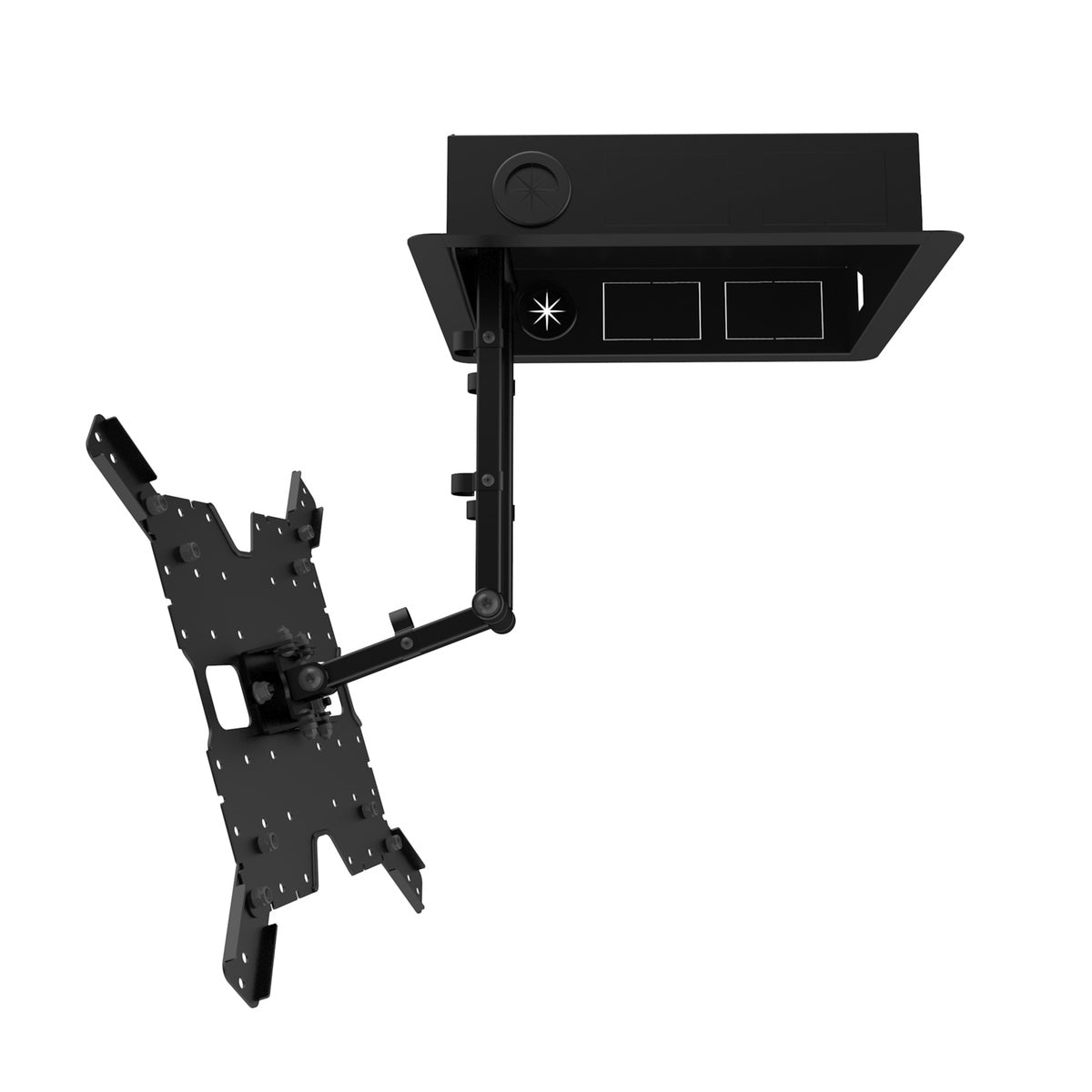

Swivel 90° of swivel in either direction, depending on screen size 90° of swivel in either direction, depending on screen size

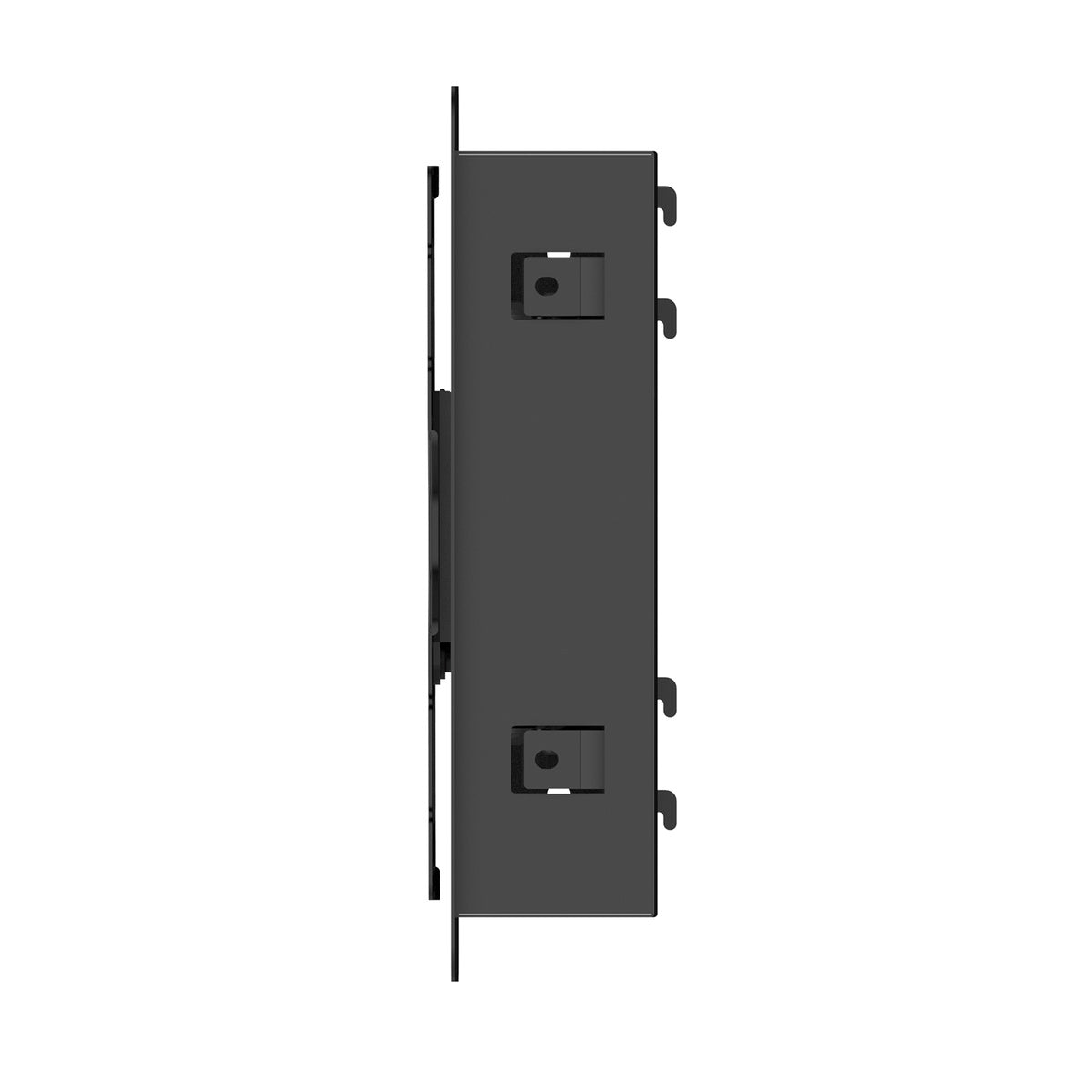

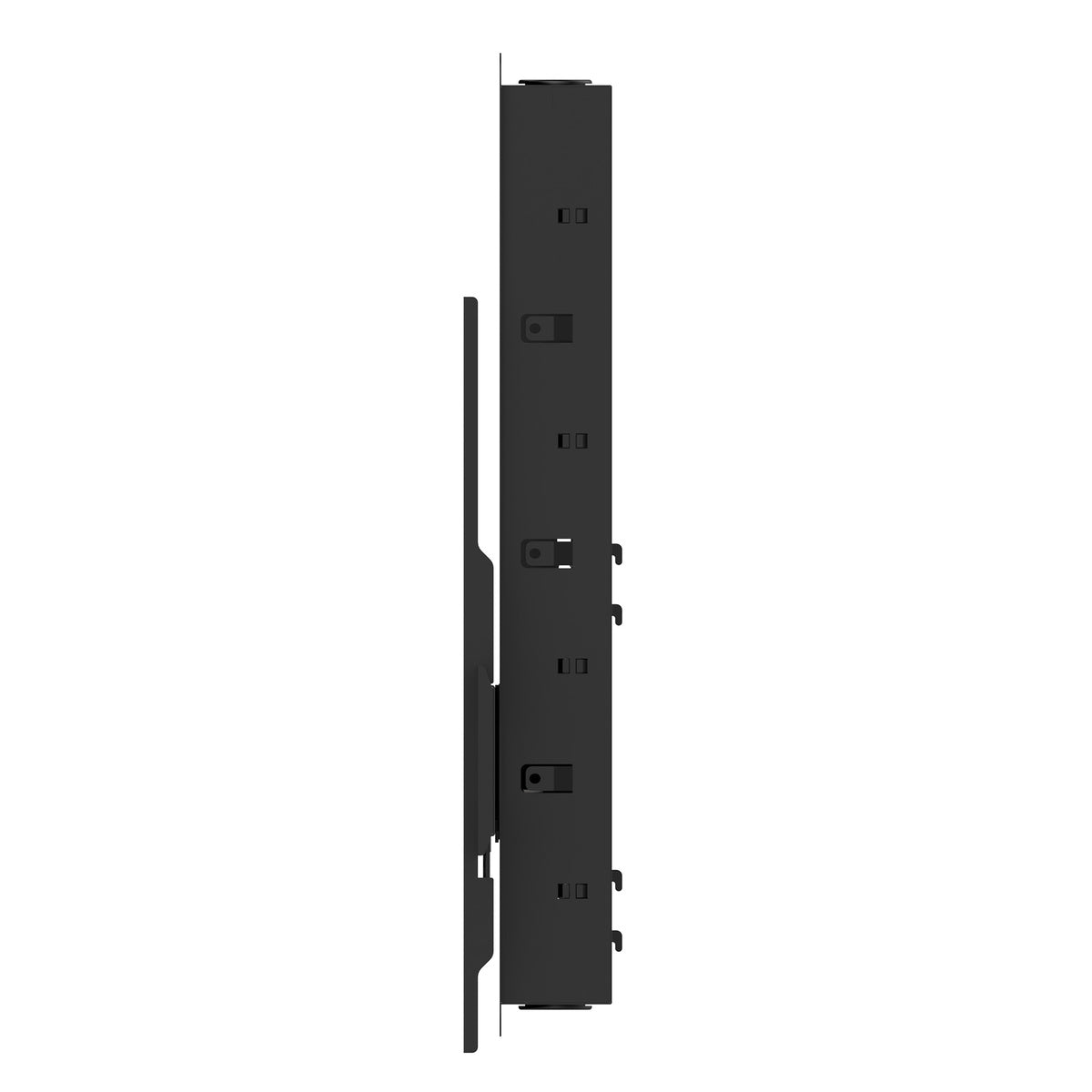

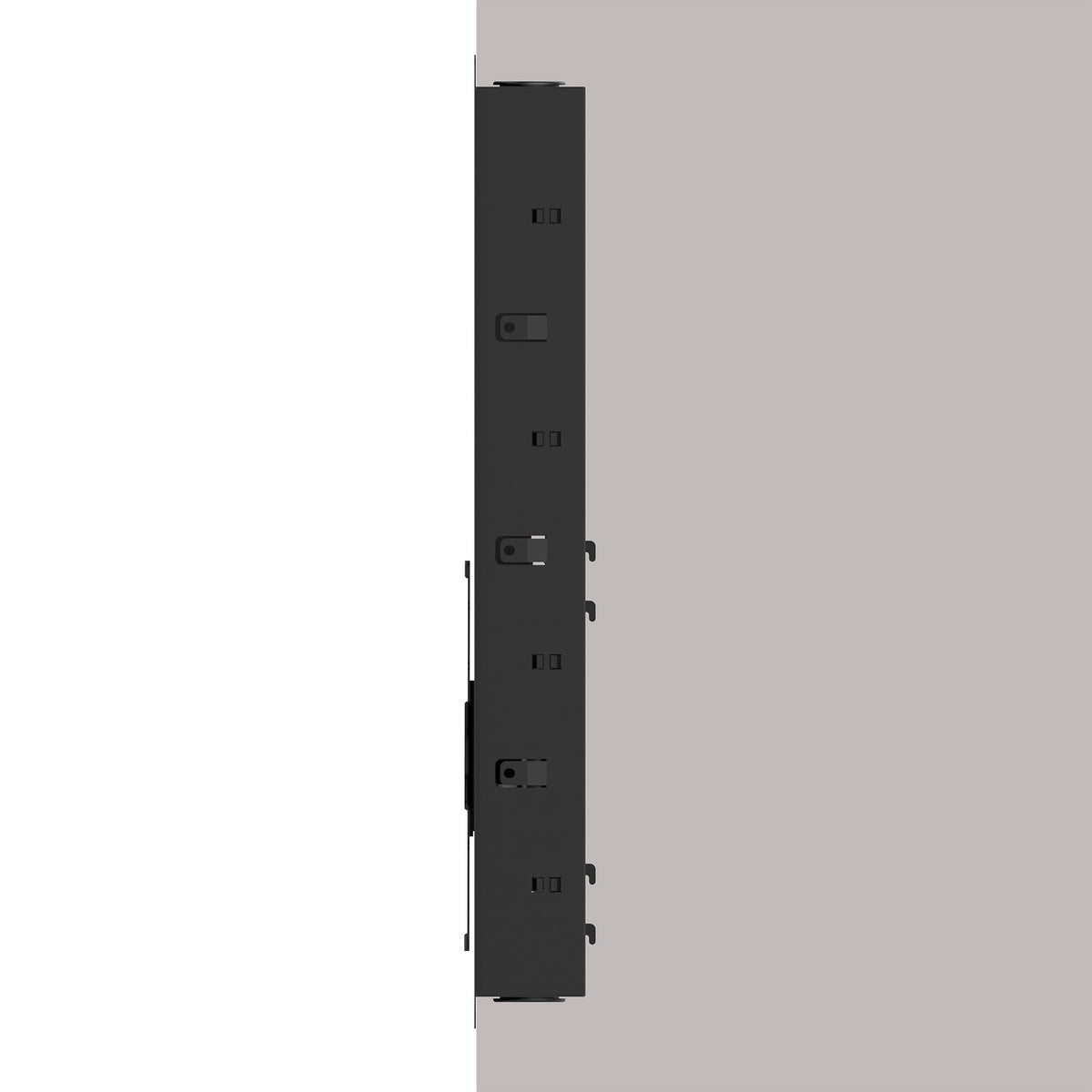

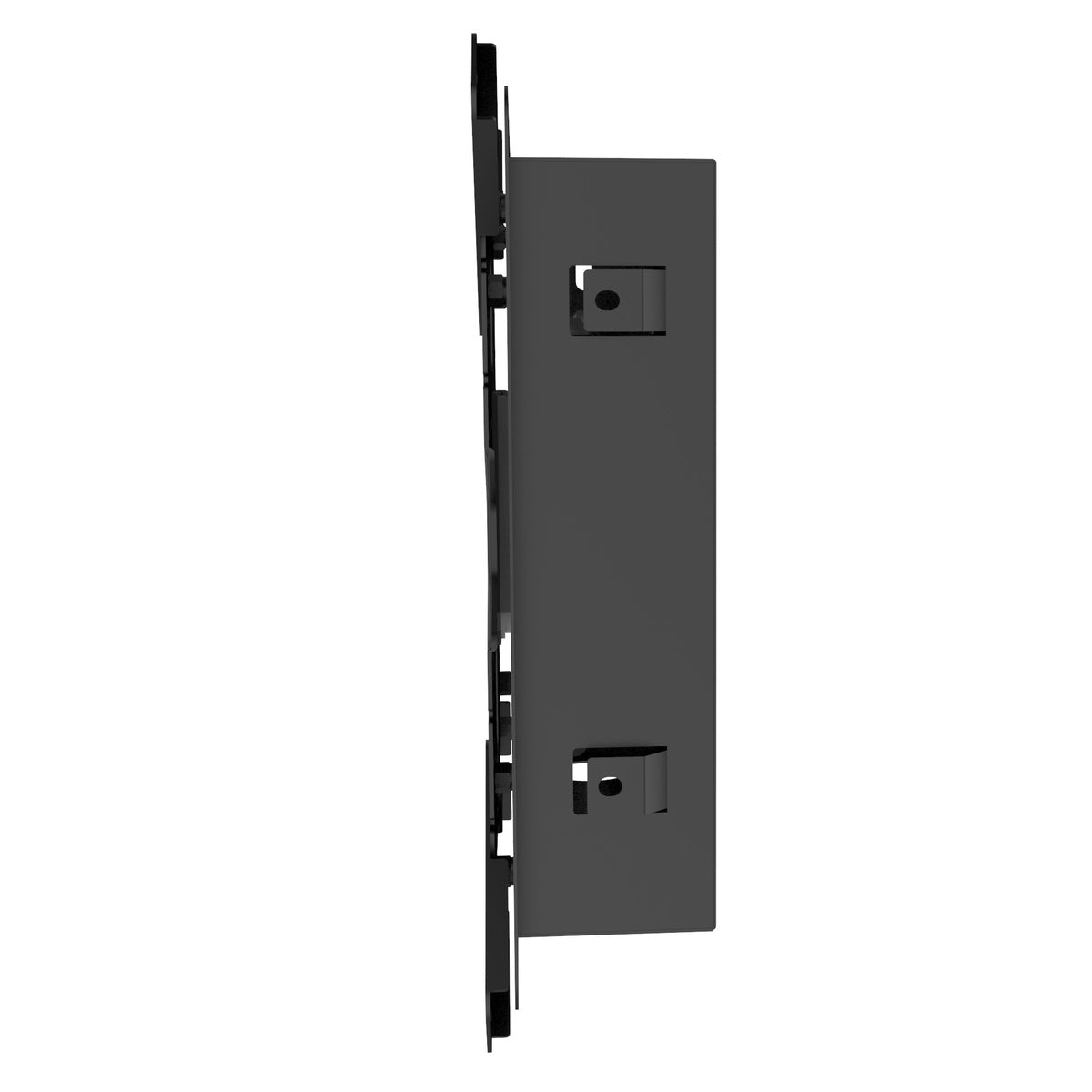

Profile Sits flush against the wall with 300x300 VESA and lower 0.3" profile for 400x400 VESA Sits flush against the wall with 300x300 VESA and lower 1.1" profile for 800x600 VESA

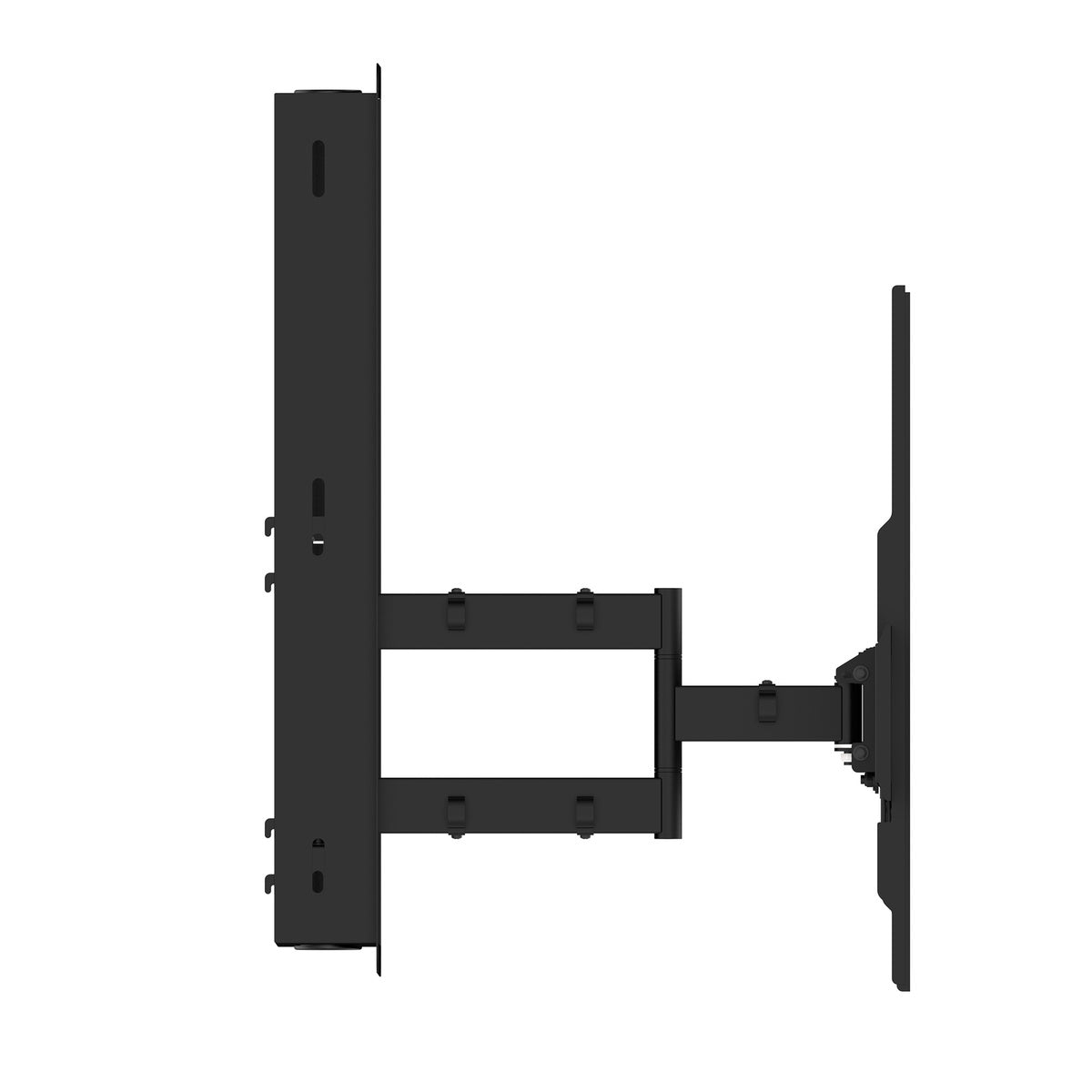

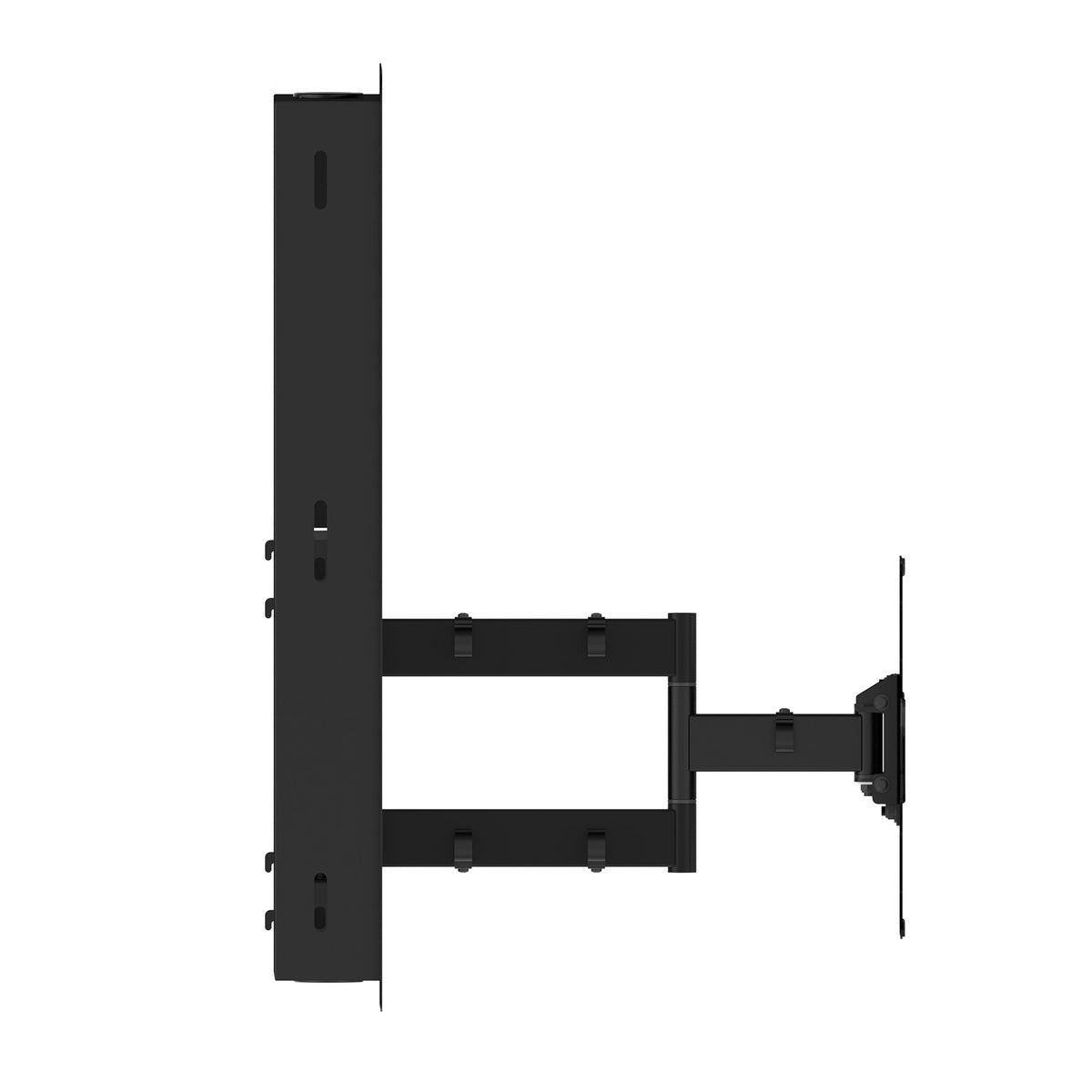

Extension Extends up to 18” (45.7 cm) from the wall Extends up to 18.7” (47.5 cm) from the wall
Cable Management Integrated cable management Integrated cable management

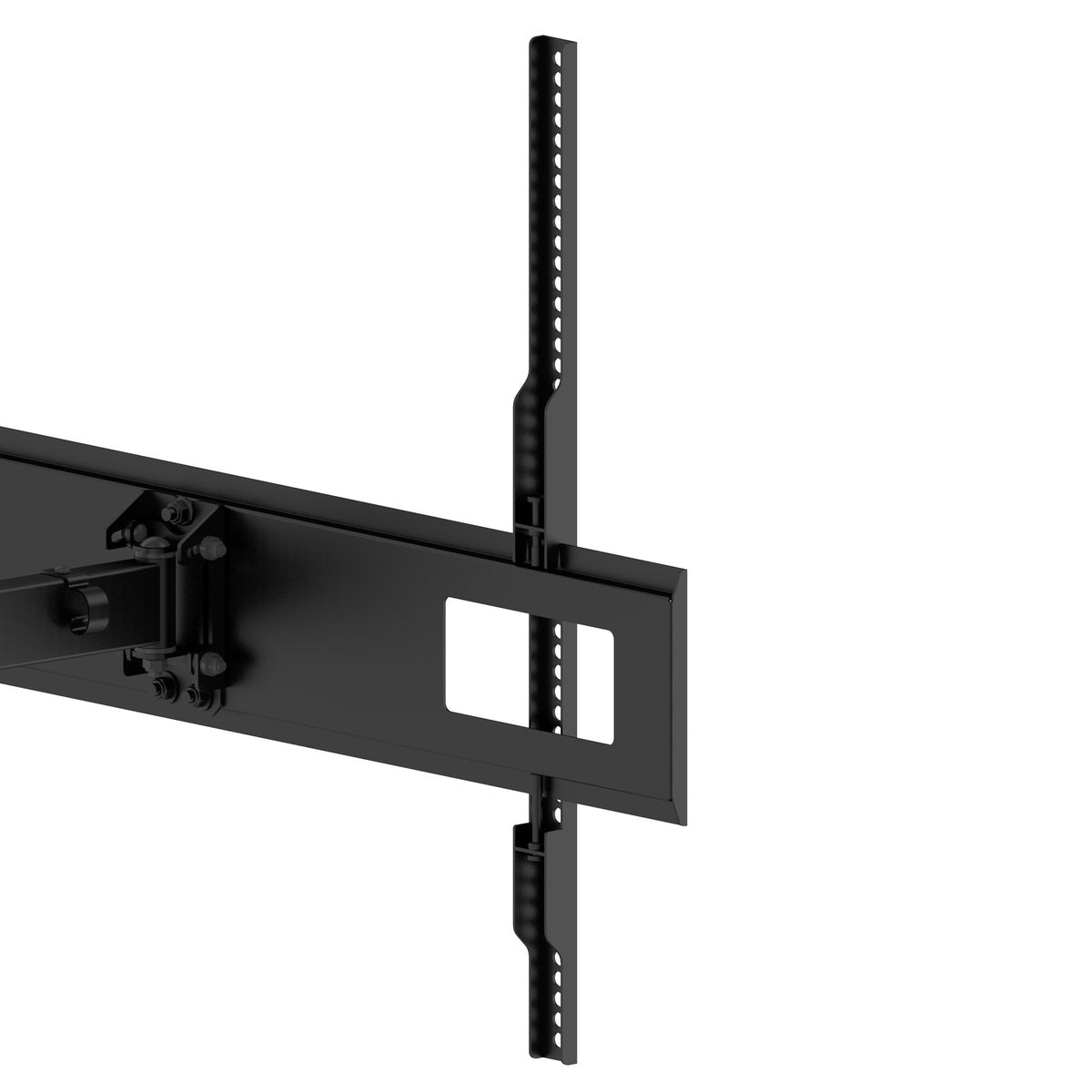

Leveling N/A Features horizontal levelling screws
Stud Spacing Installs between 16" wood studs Installs between 16" wood studs
Min-Max TV Display Size 35-65 65-90
Recommended Max Weight 80 135
VESA Compatibility 100x100 - 400x400 100x100 - 800x600
Assembly Required Yes Yes
Installation Required Yes Yes
Indoor/Outdoor Designed for indoor installation Designed for indoor installation
Hardware and Manuals Installation manual and all mounting hardware for wood studs is included Installation manual and all mounting hardware for wood studs is included
