Item #PMX900HD

PMX900HD

Pro Series Full Motion Articulating TV Wall Mount for 65” - 140” TVs
Item #PMX900HD

PMX900HD

Pro Series Full Motion Articulating TV Wall Mount for 65” - 140” TVs
$499.99
More on the way! Order now to reserve risk free.

Overview

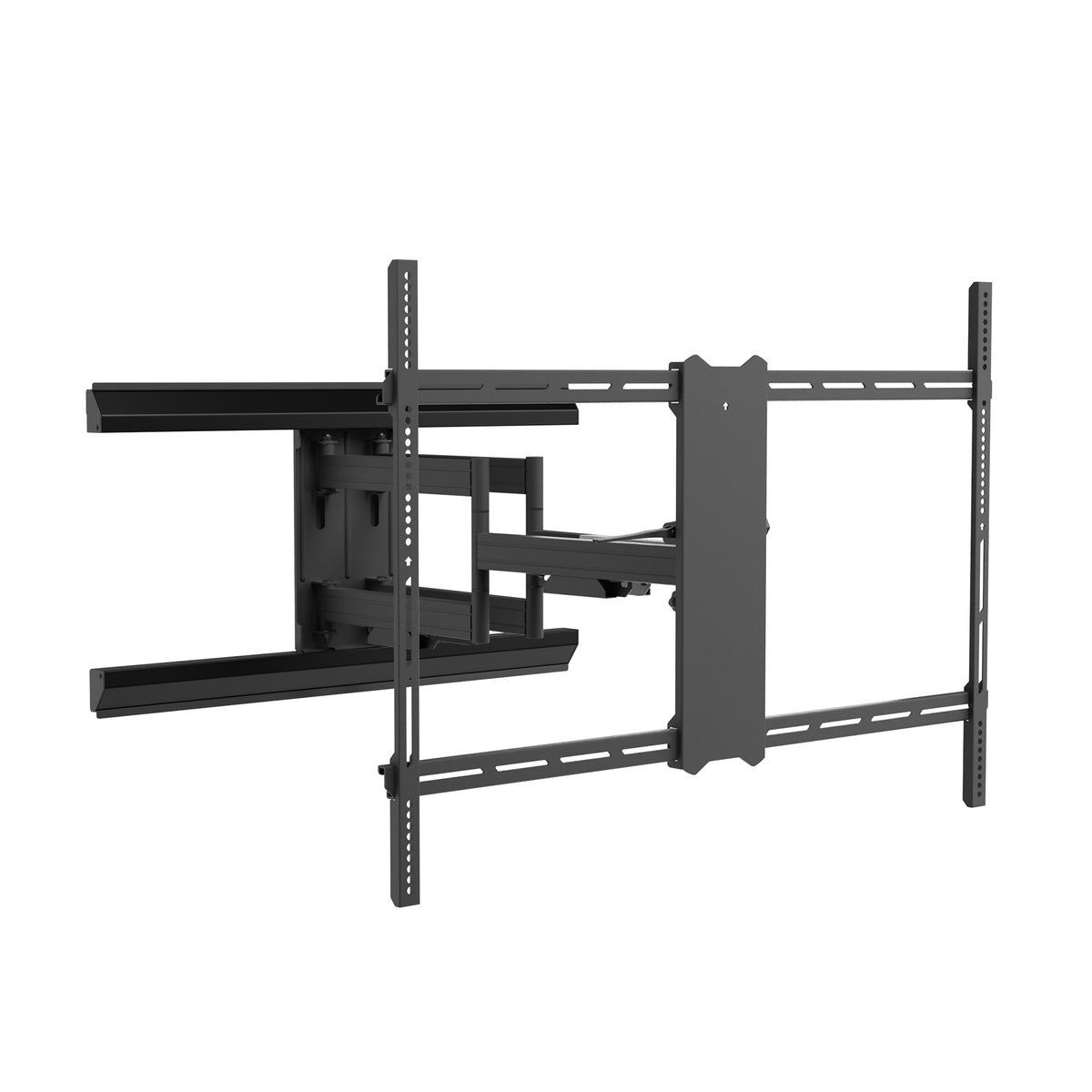

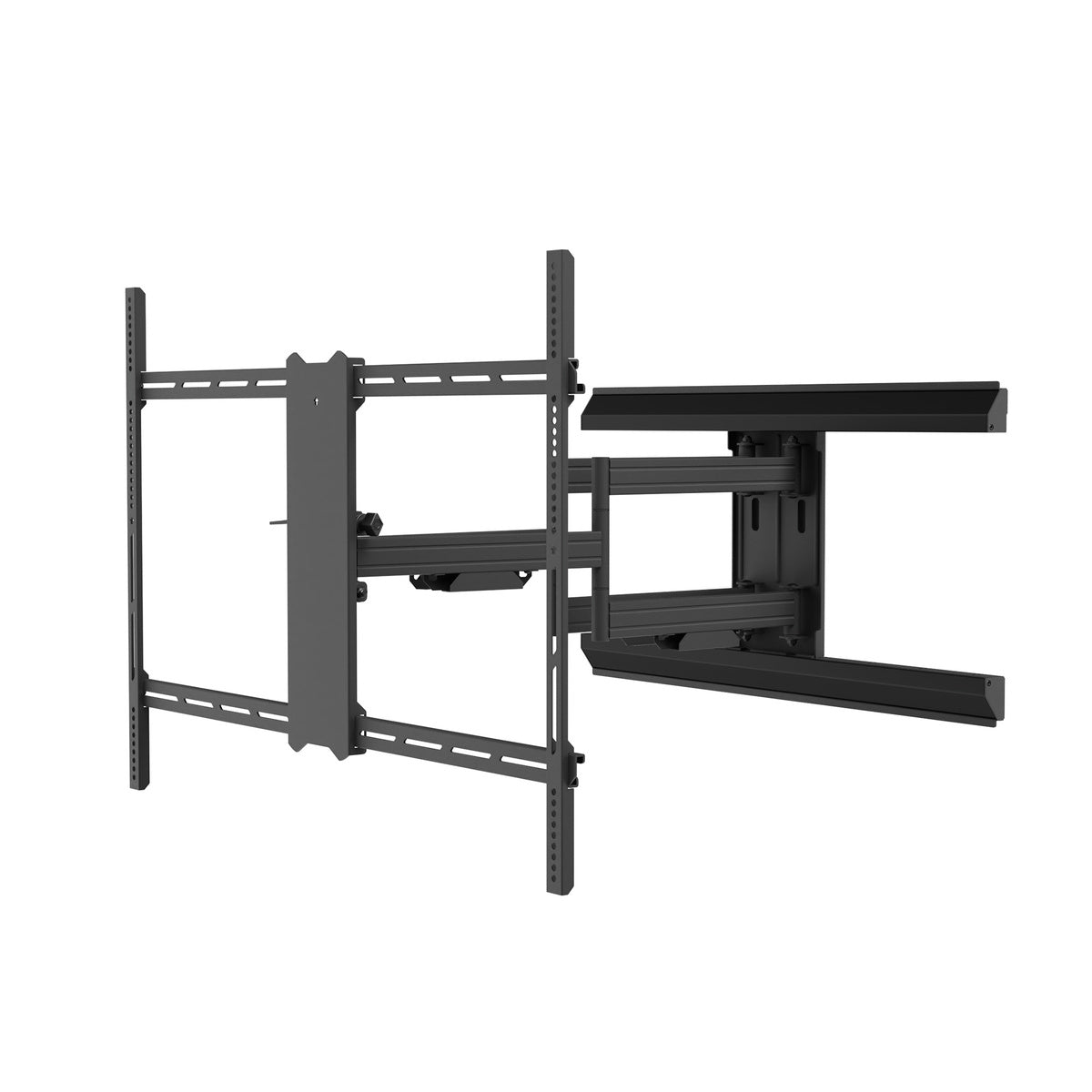

Supporting 65 to 140 inch screens, this heavy duty articulating mount spans three studs and extends 33 inches for cable access. With horizontal shift, vertical adjustments, and toolless tilt, it collapses to a slim three inch profile for seamless commercial audio visual solutions.

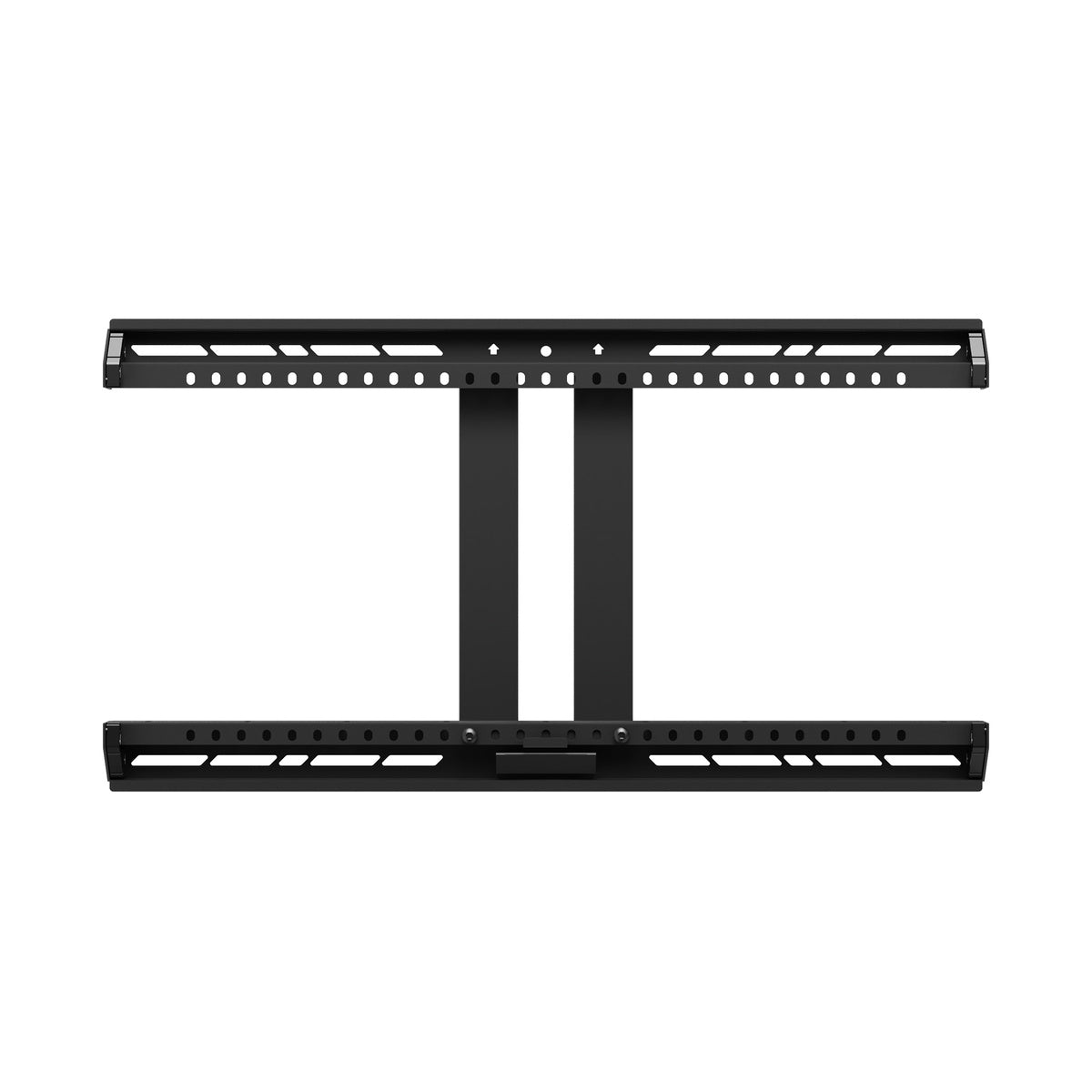

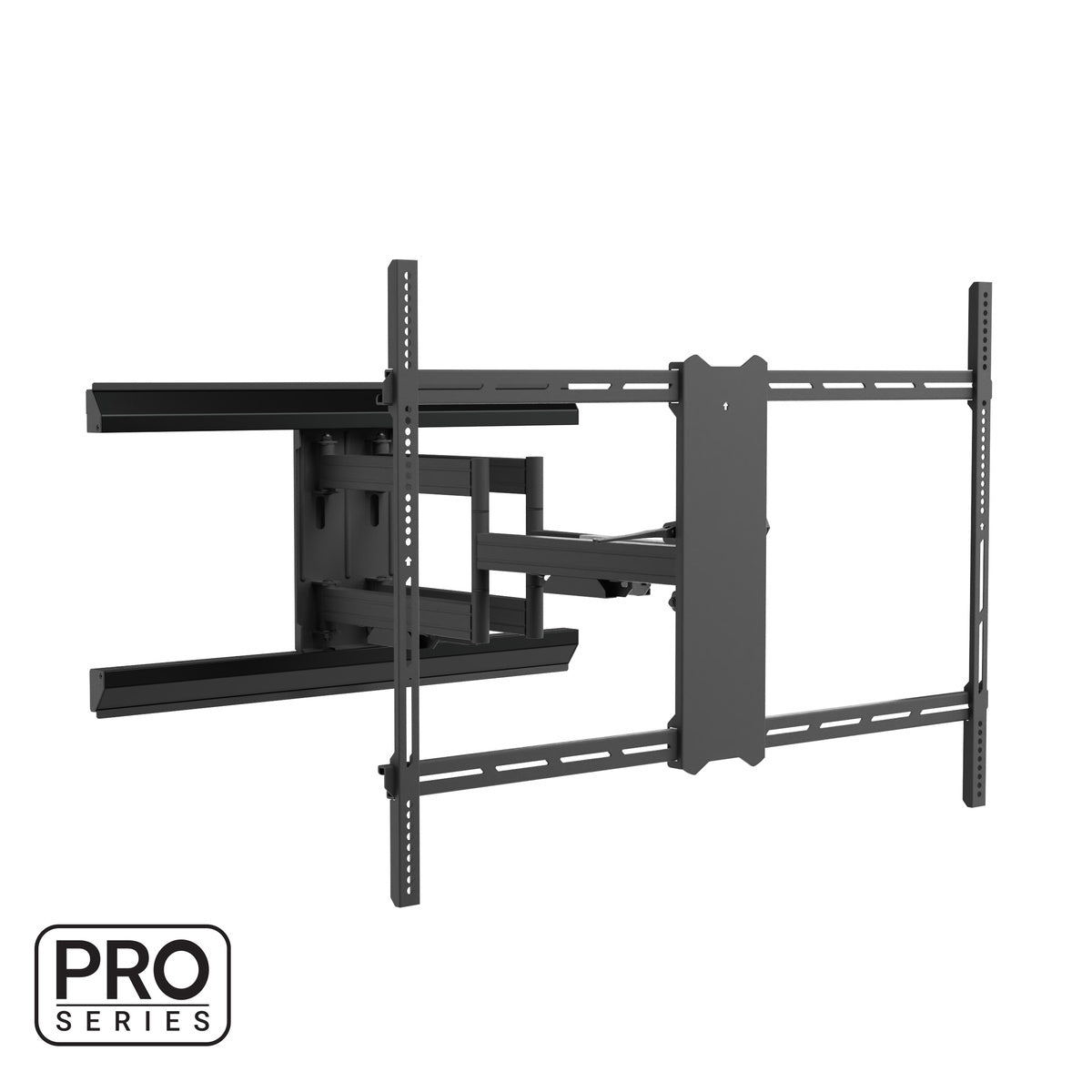

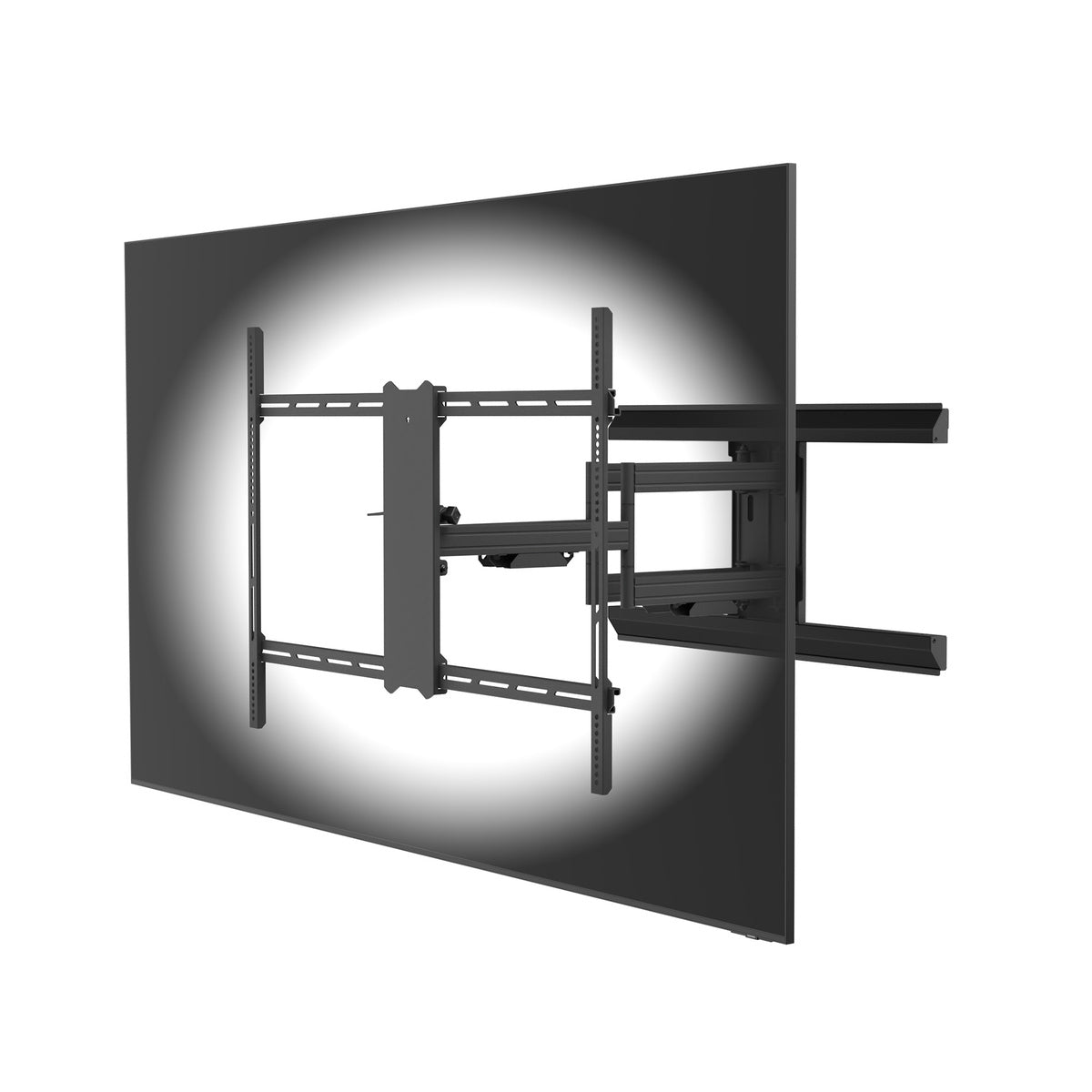

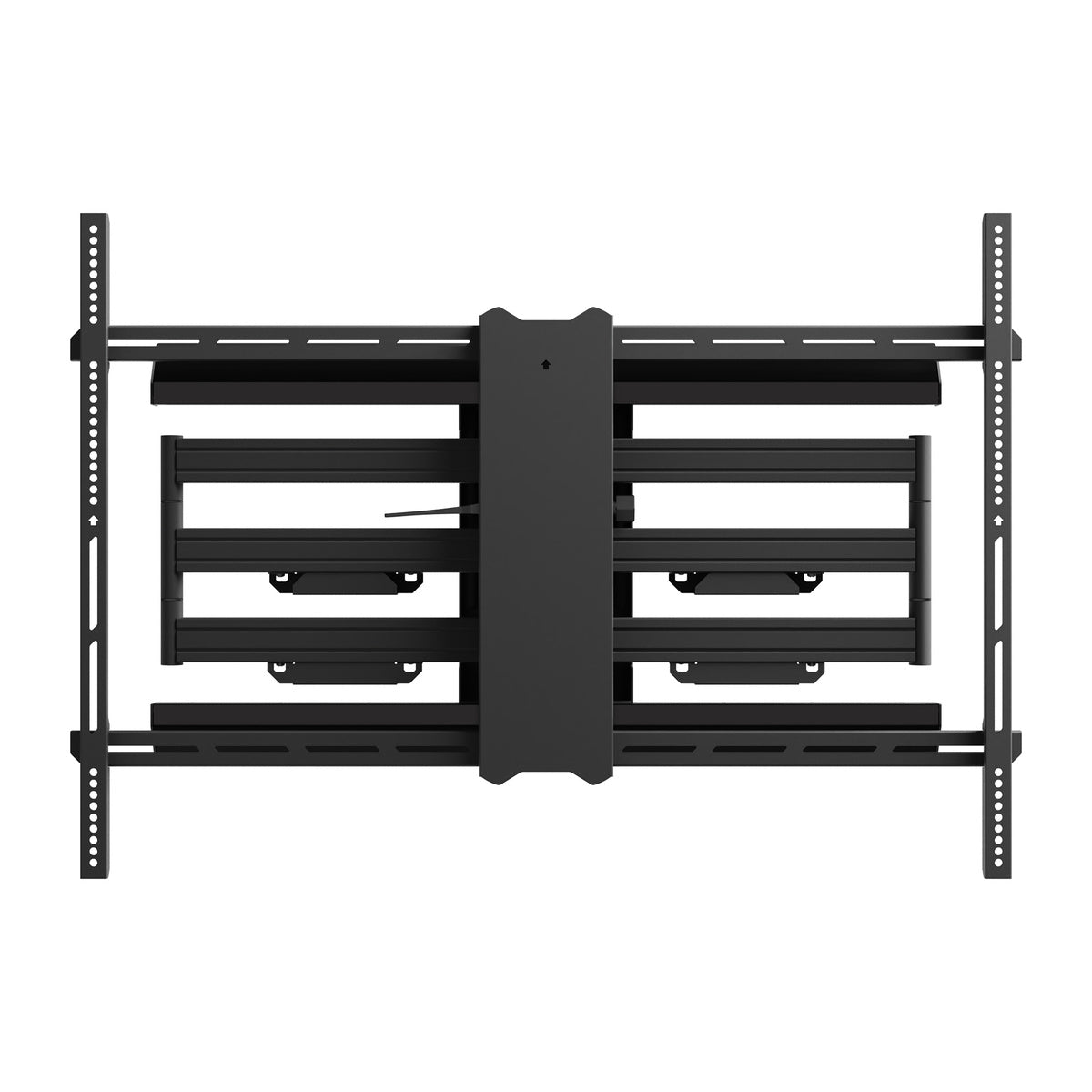

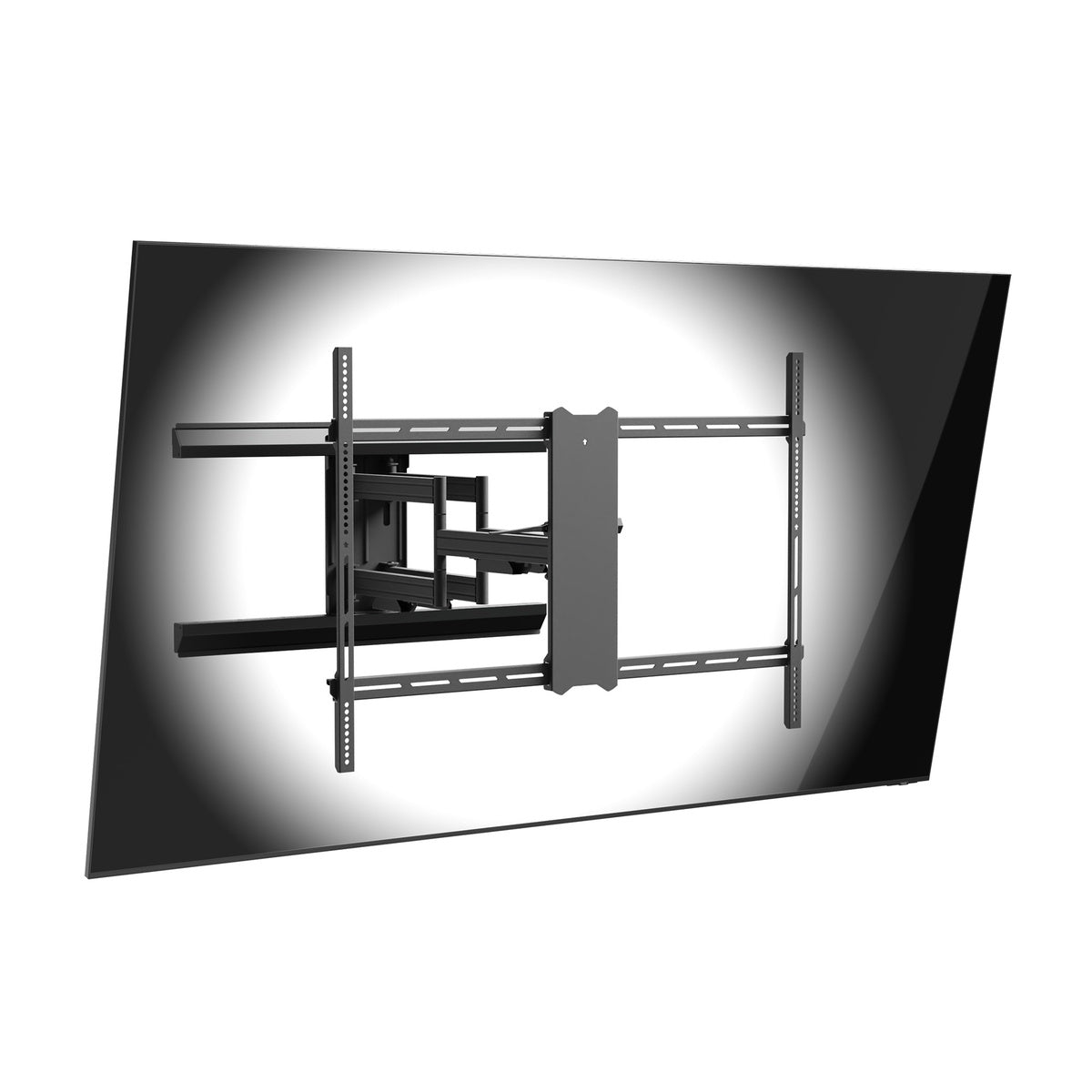

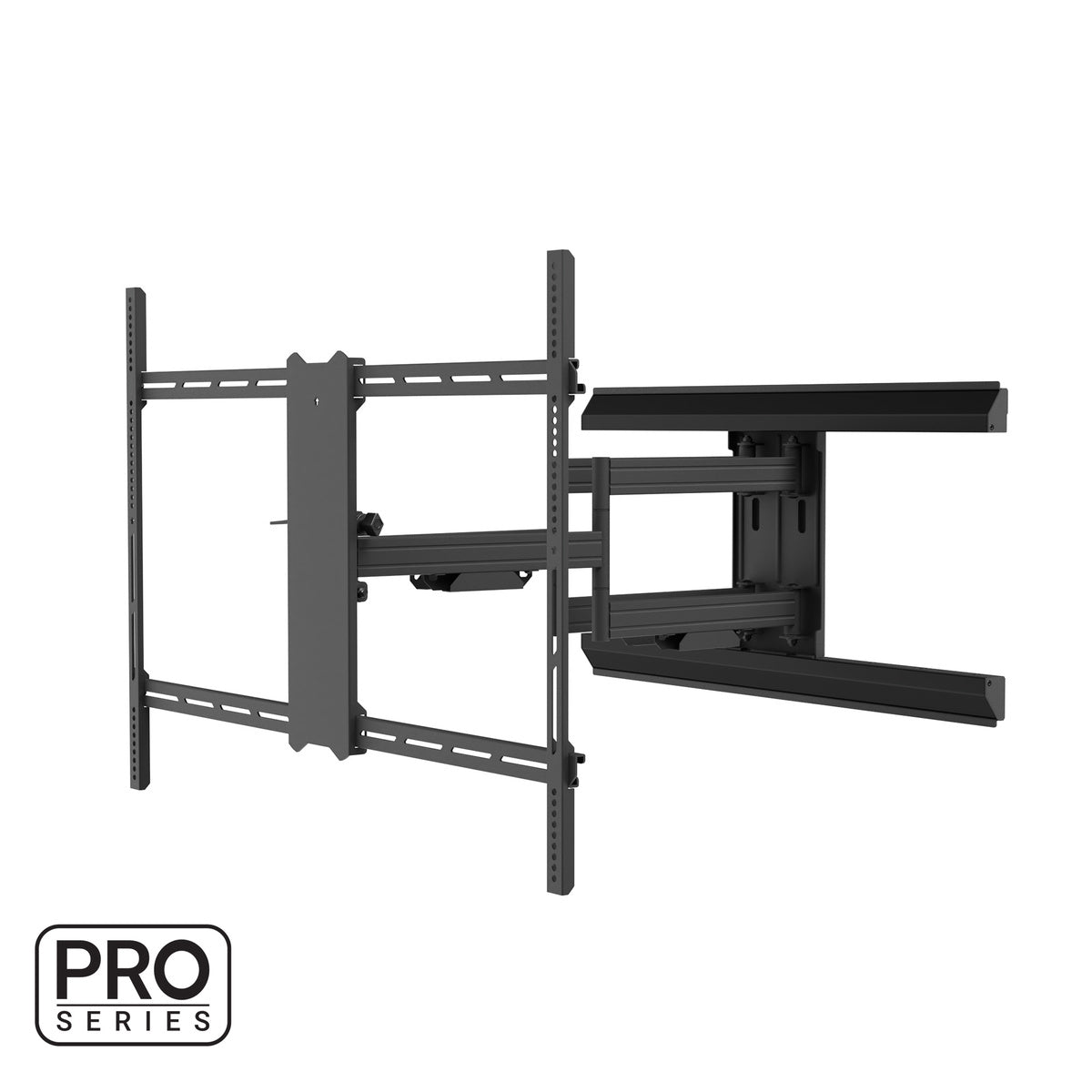

The Kanto PMX900HD Pro Series Full Motion Articulating TV Wall Mount provides a highly adjustable, heavy duty structural solution for positioning exceptionally large flat panel displays ranging from 65 inches up to 140 inches. To handle the immense physical leverage of these massive screens, the hardware utilizes an extra wide wall plate engineered to span across up to three wall studs, guaranteeing an ultra secure foundation.

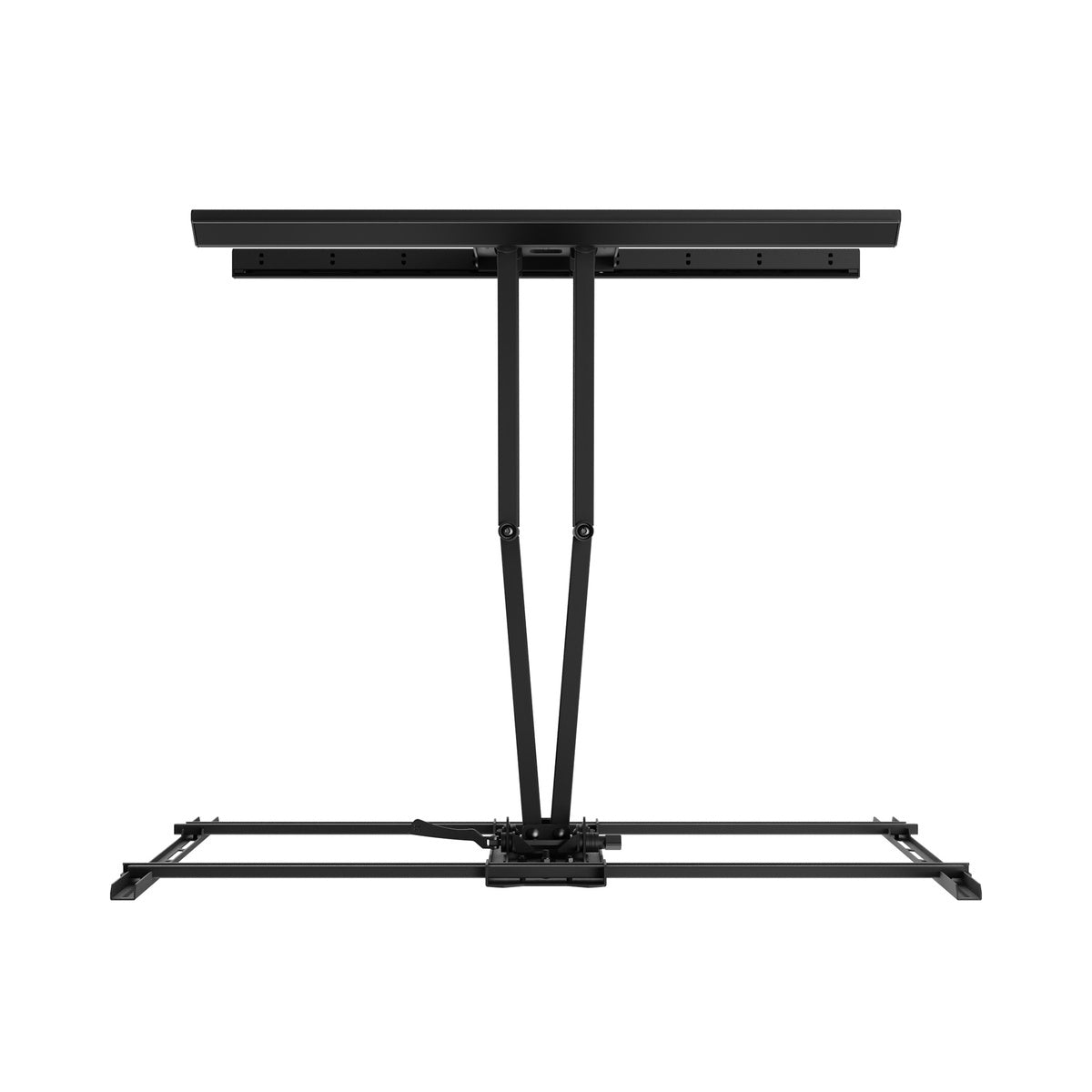

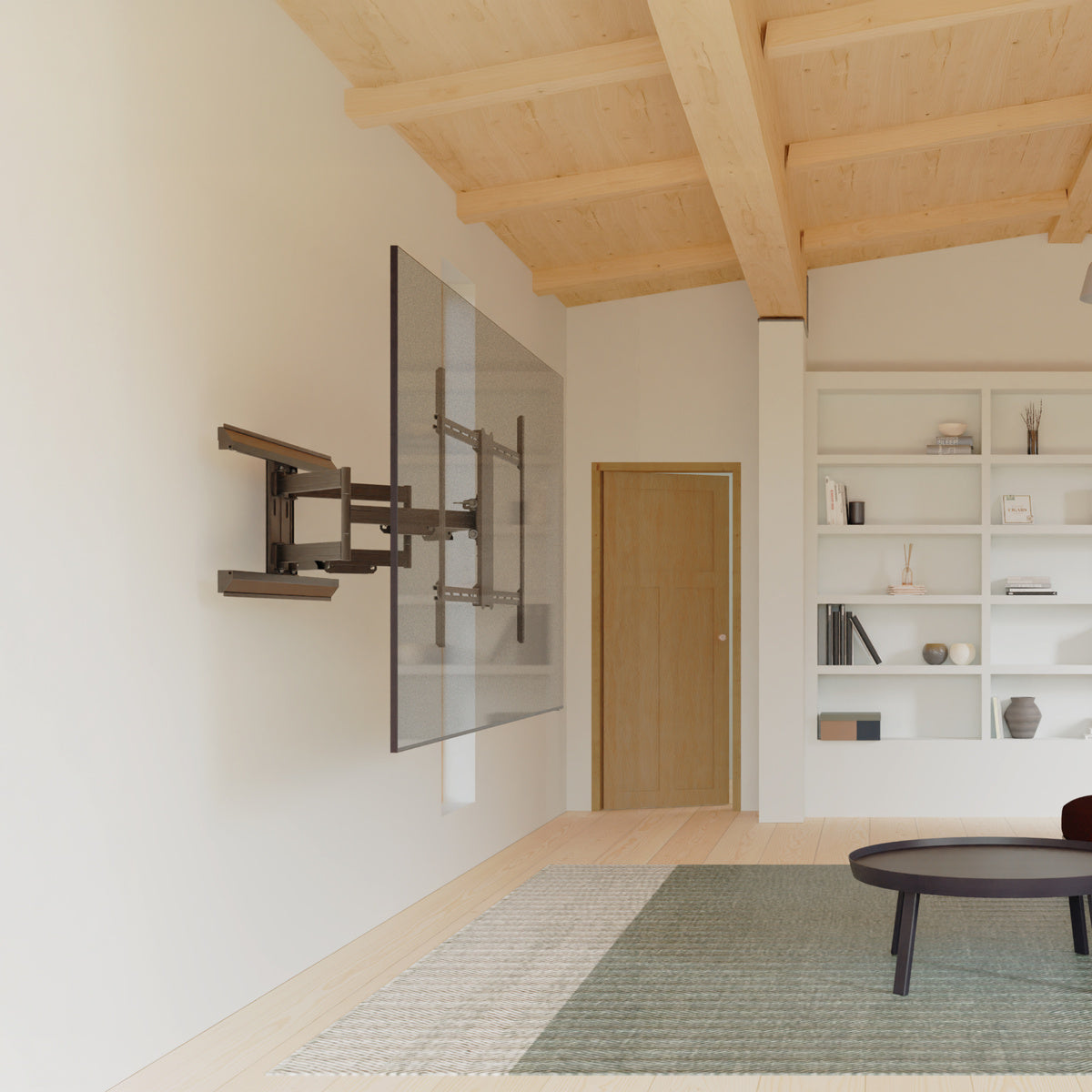

This articulation system addresses the common alignment problems of large installations by providing 22 inches of horizontal shift alongside 2 inches of independent vertical adjustment. These micro positioning capabilities permit an installer to perfectly center a television within a custom wall recess or sit it tightly above a dedicated center speaker, even after the wall plate has been fully bolted down. For wide rotational panning and quick servicing, the dual arms extend a generous 33 inches away from the wall surface, granting straightforward physical access to rear connection panels and input ports.

Despite this long reach and high load capacity, the mechanism collapses flat to a slim 3 inch profile, maintaining a tidy appearance when pushed back. The system is equipped with an oversized 1000x700 VESA mounting interface to match the hole patterns of large scale displays. Fine tuning the screen angle is managed by an overbuilt, toolless tilt mechanism that lets technicians make quick on the fly viewing adjustments before locking the display confidently in place. This high capacity articulating mount functions as a dependable mechanical centerpiece for executing a flawless commercial AV installation or premium media center upgrade.

Details & Specs

Model PMX900HD
Product Dims (W x D x H) 41.5" x 33" x 29" (105.5 x 83.3 x 73.6 cm)
Product Weight 57.3 lb (26 kg)

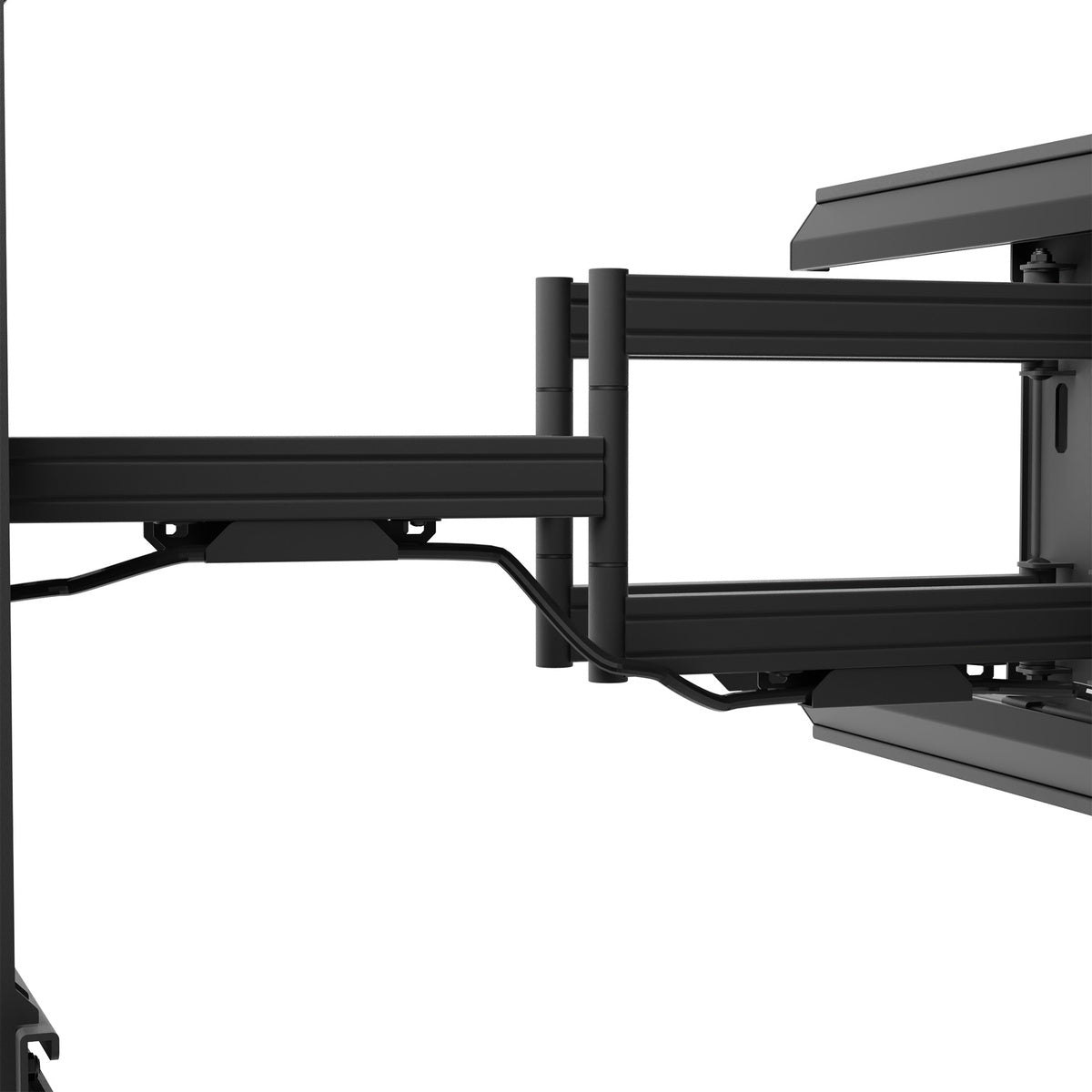

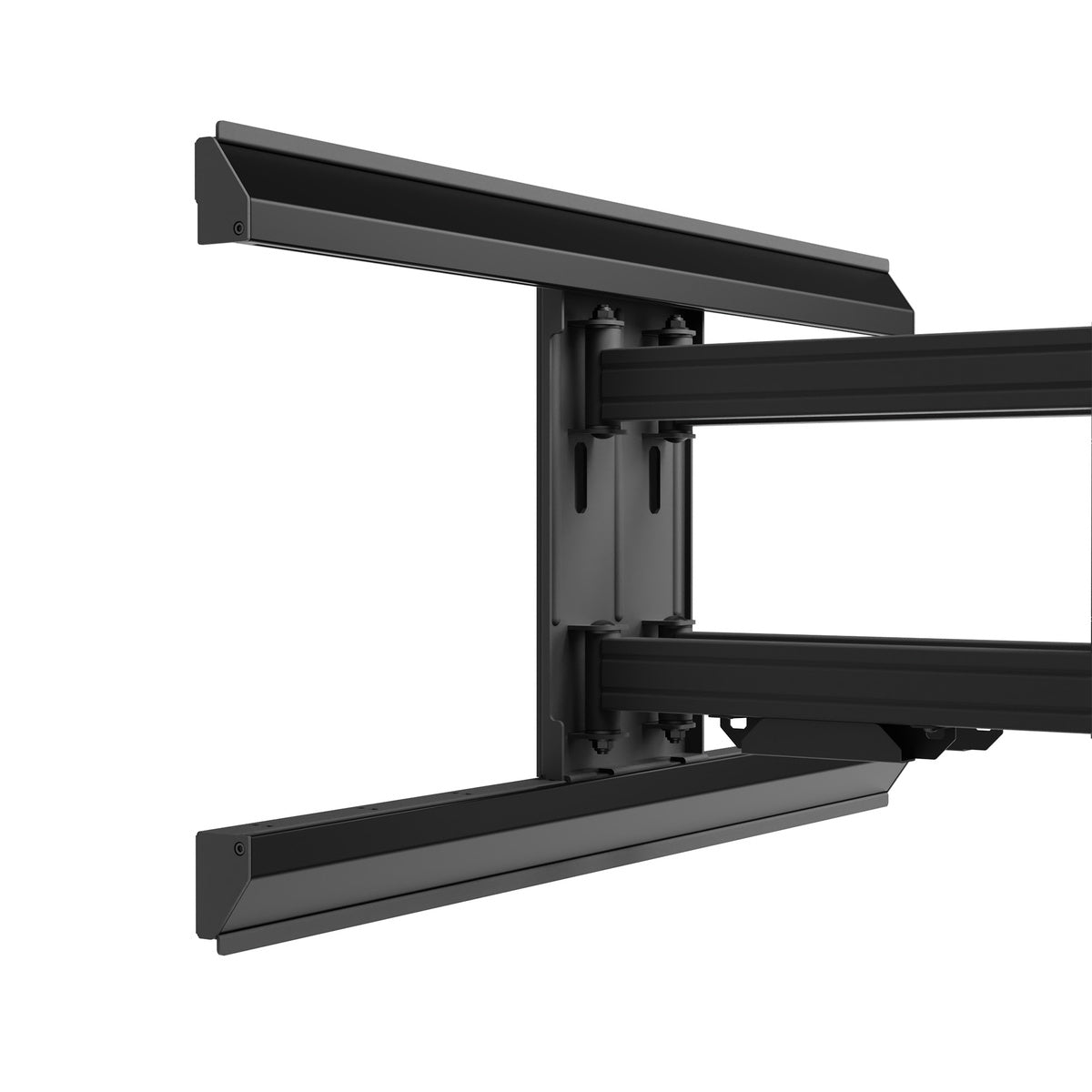

Cable Management Integrated cable management
TV Size Fits most TVs from 65” to 140”
Load Rated Supports TVs up to 275 lb (124.7 kg)

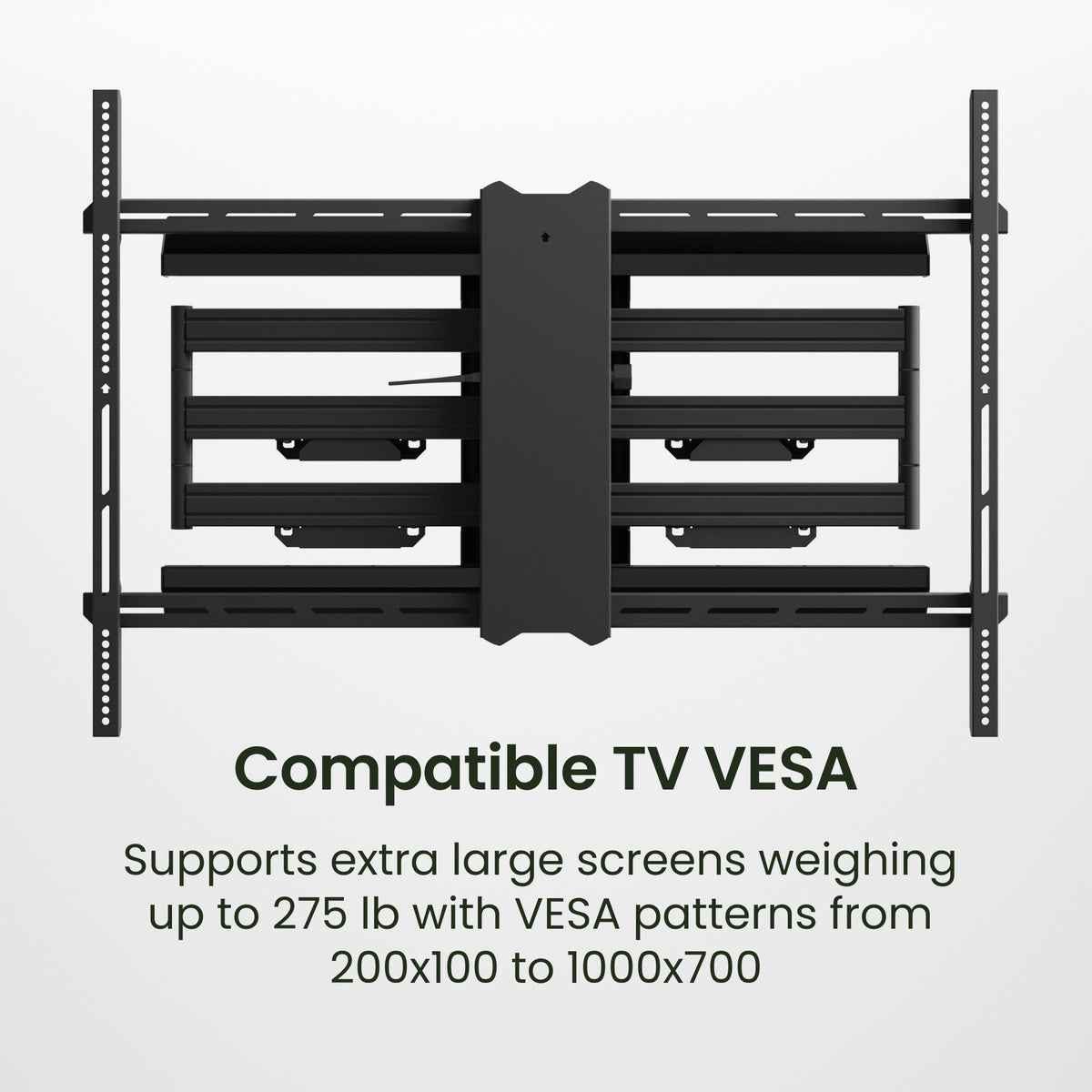

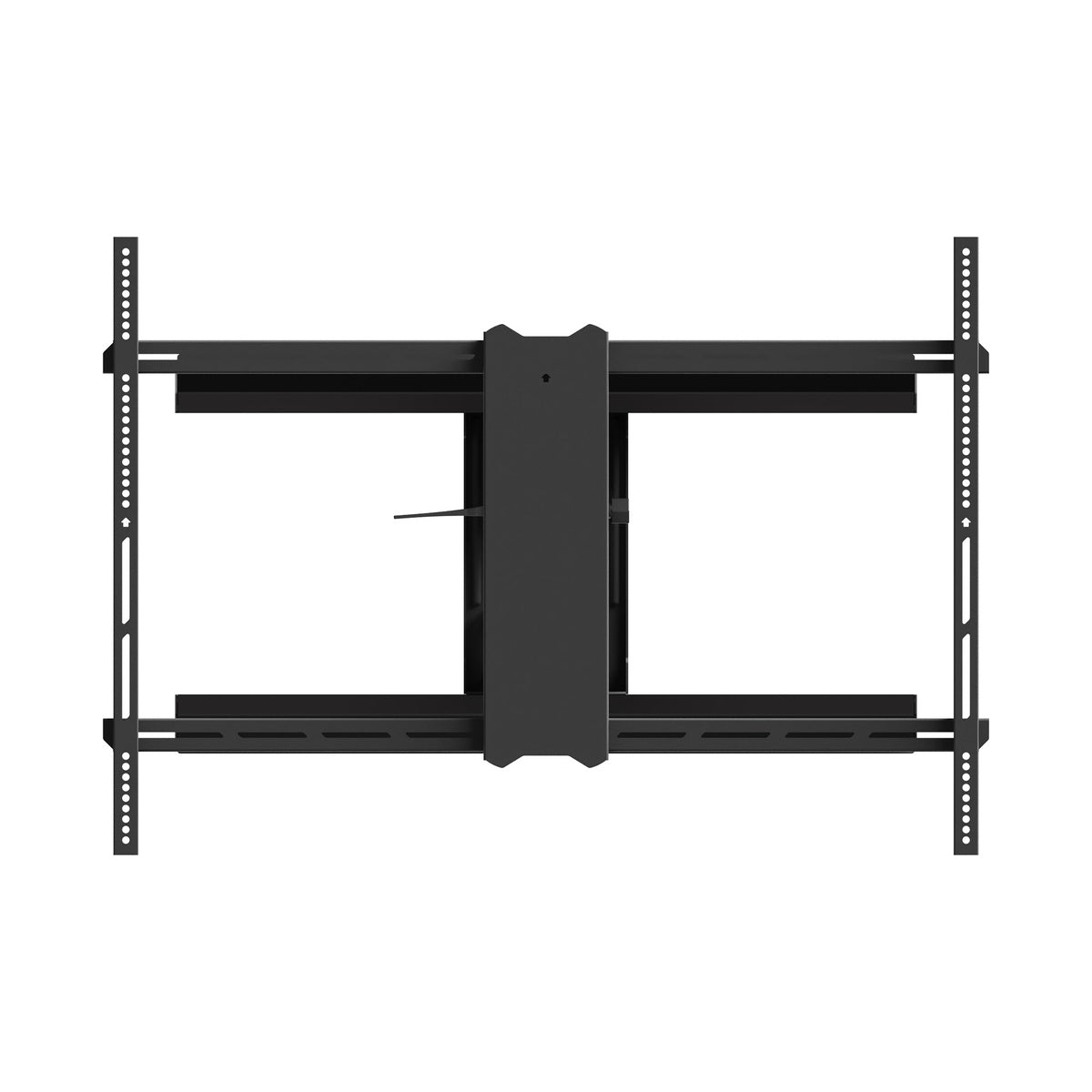

Vesa Accommodates VESA sizes from 200x100 to 1000x700

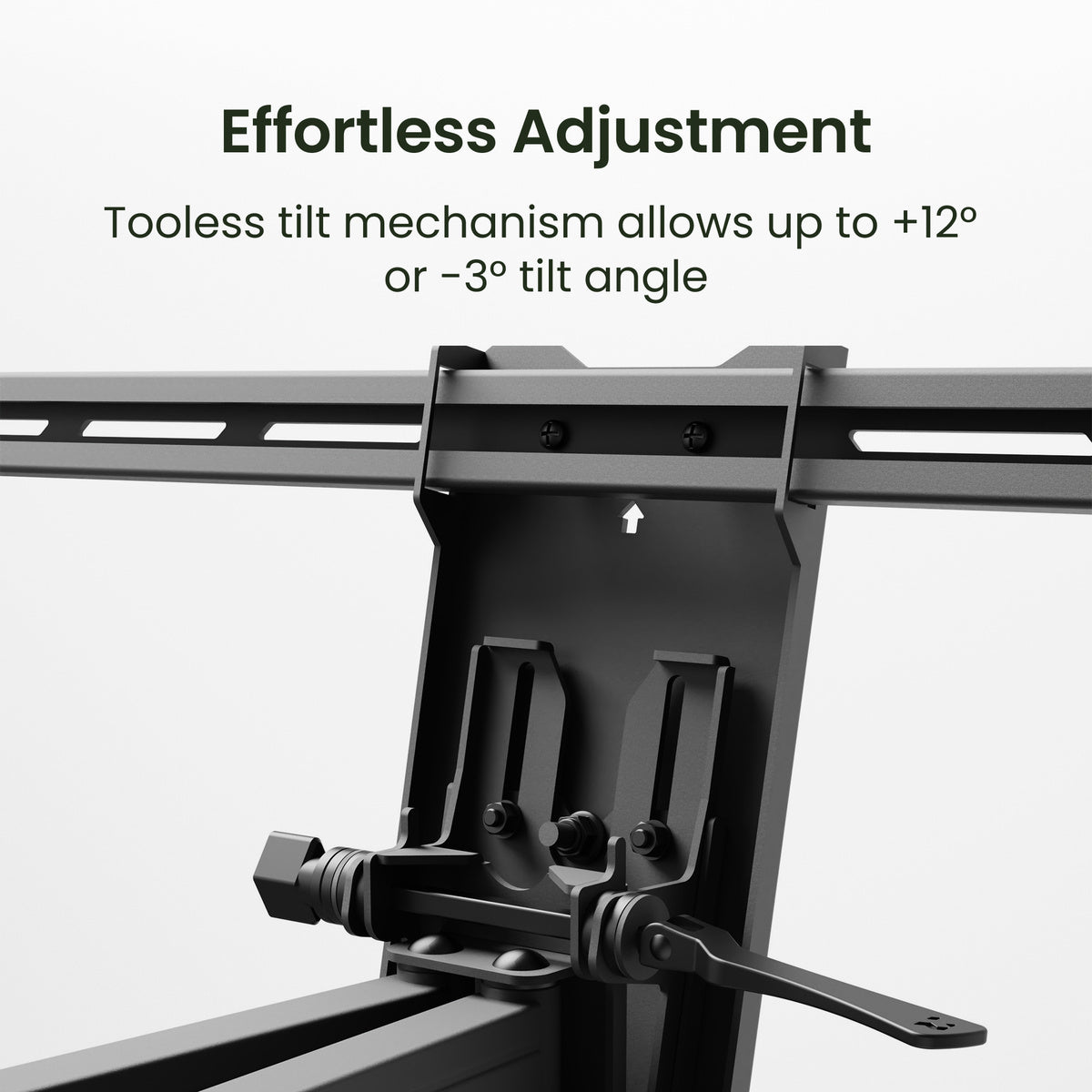

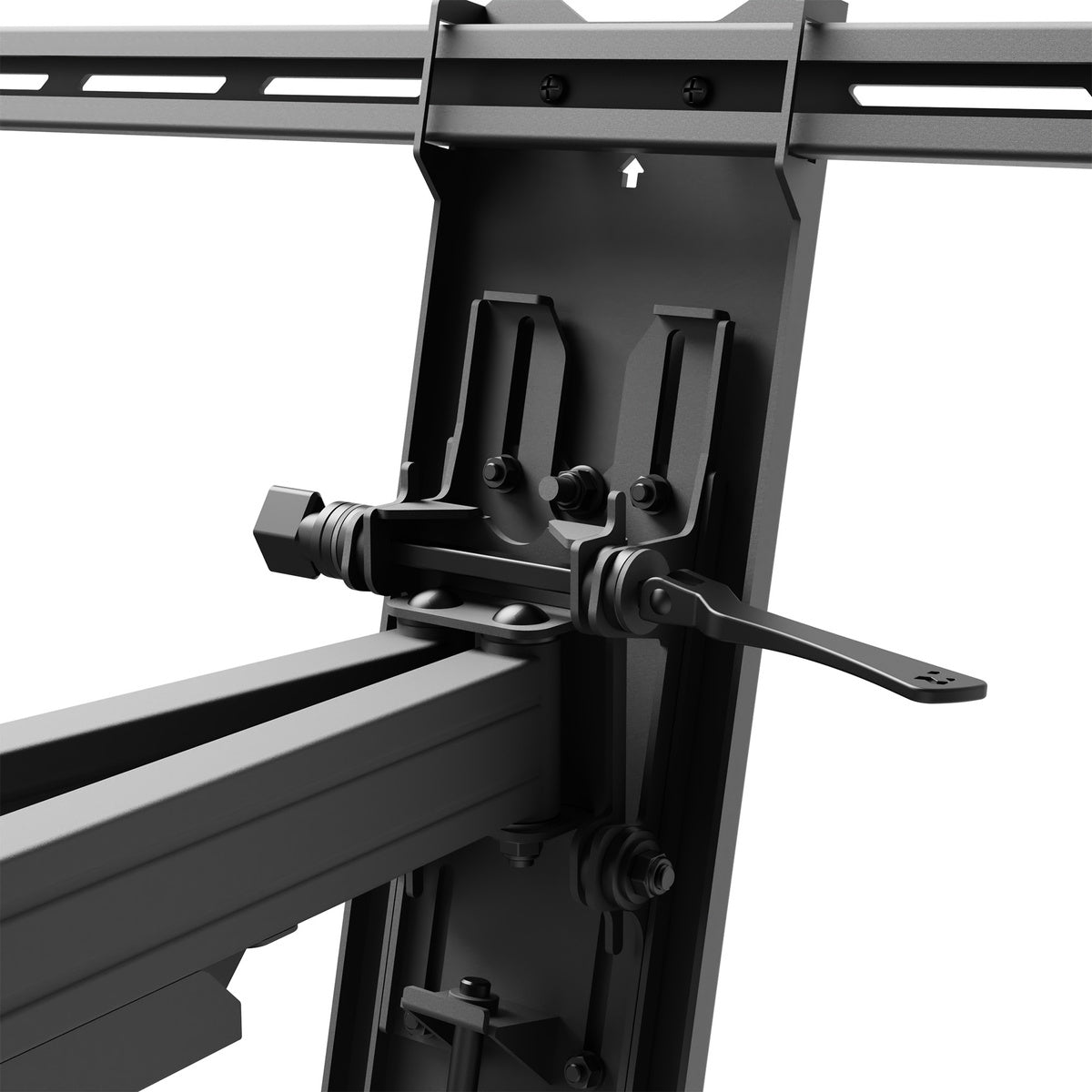

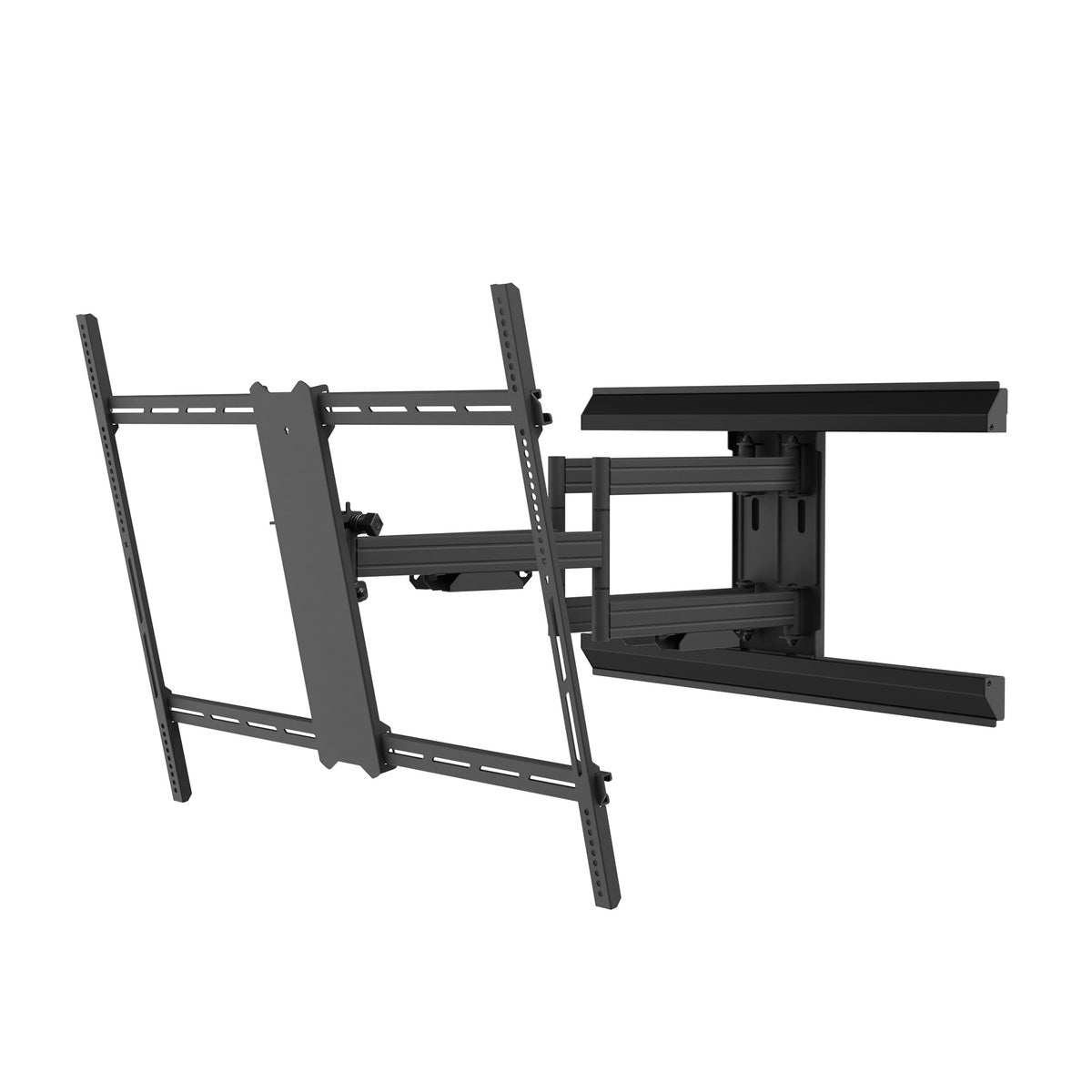

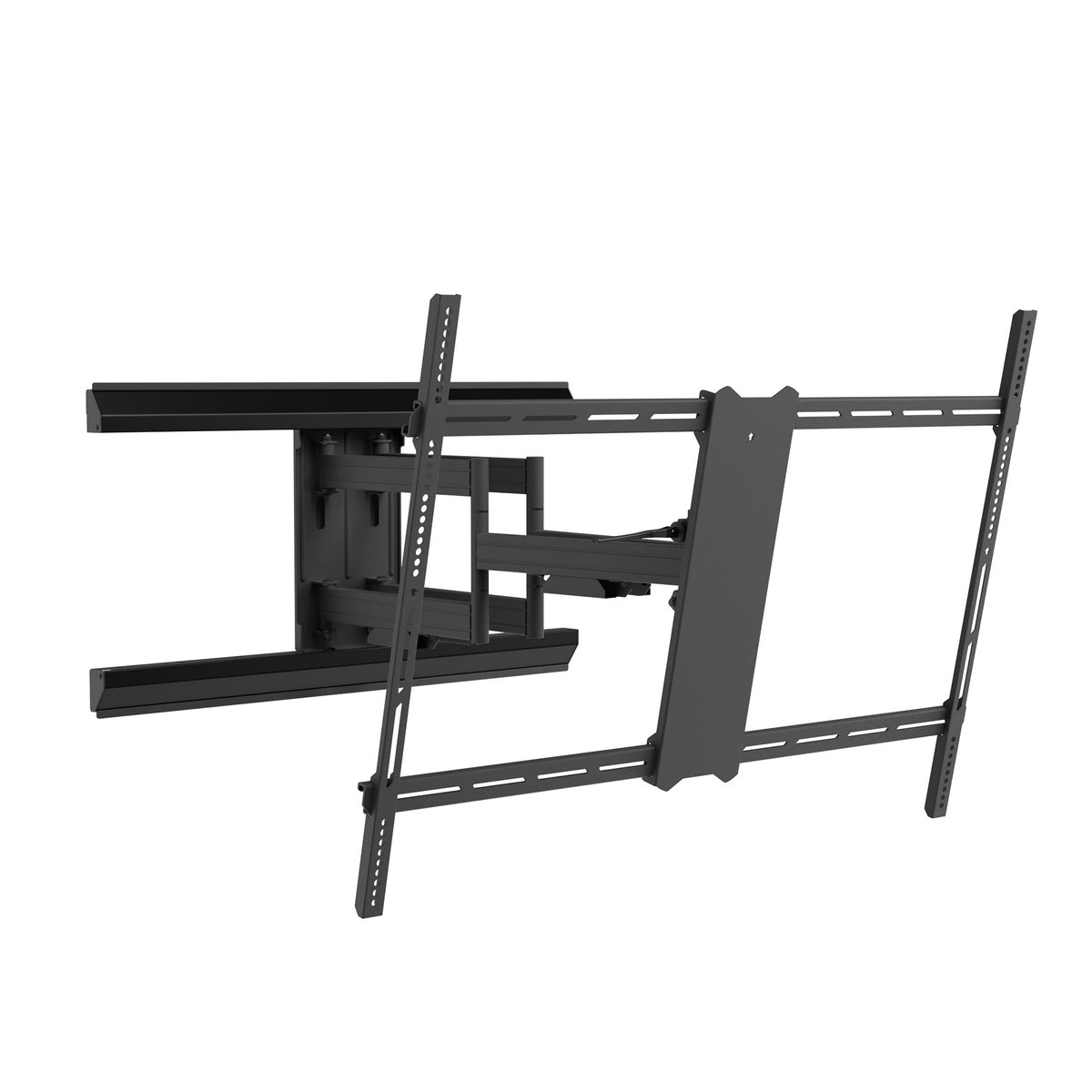

Tilt Toolless tilt mechanism provides +12° to -3° of tilt

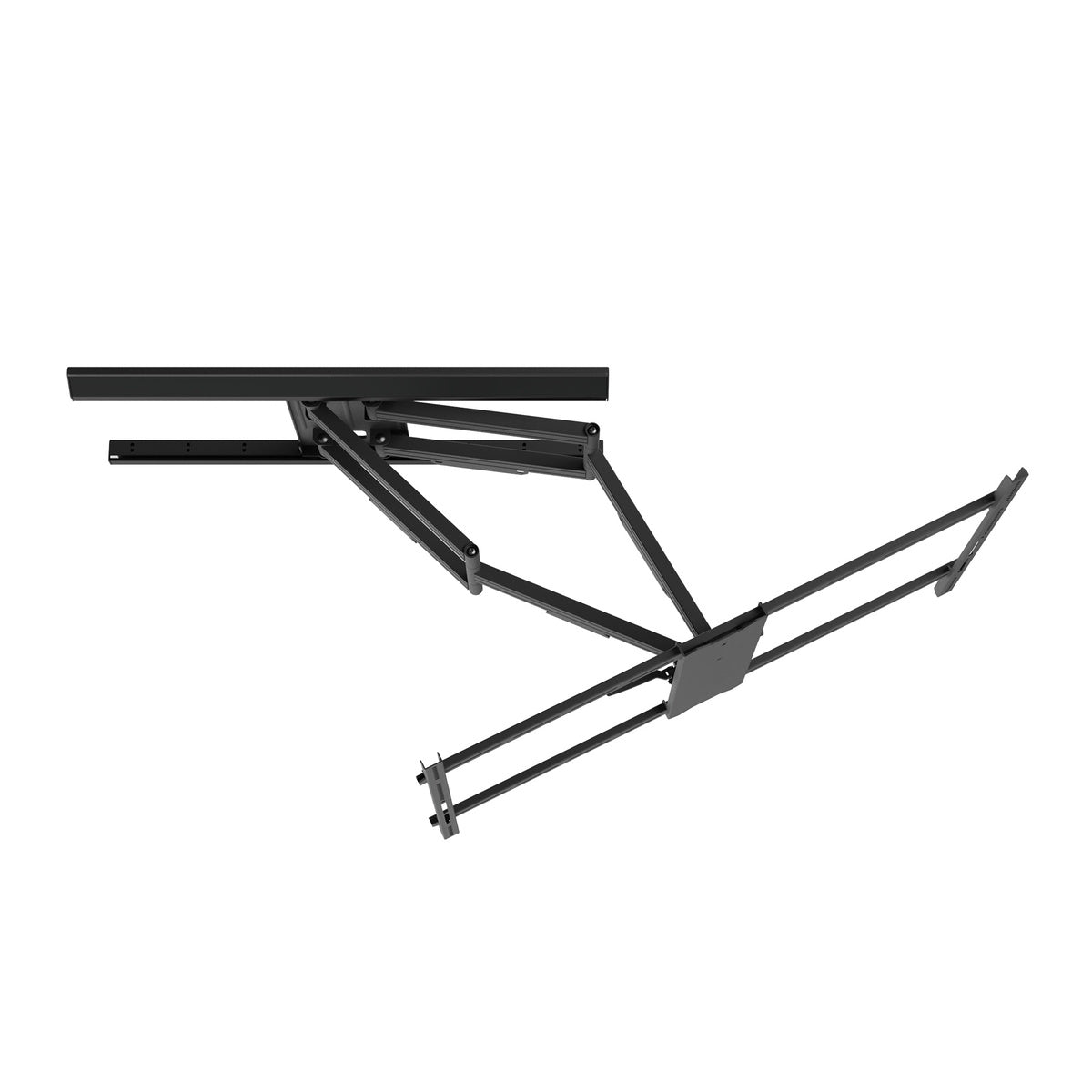

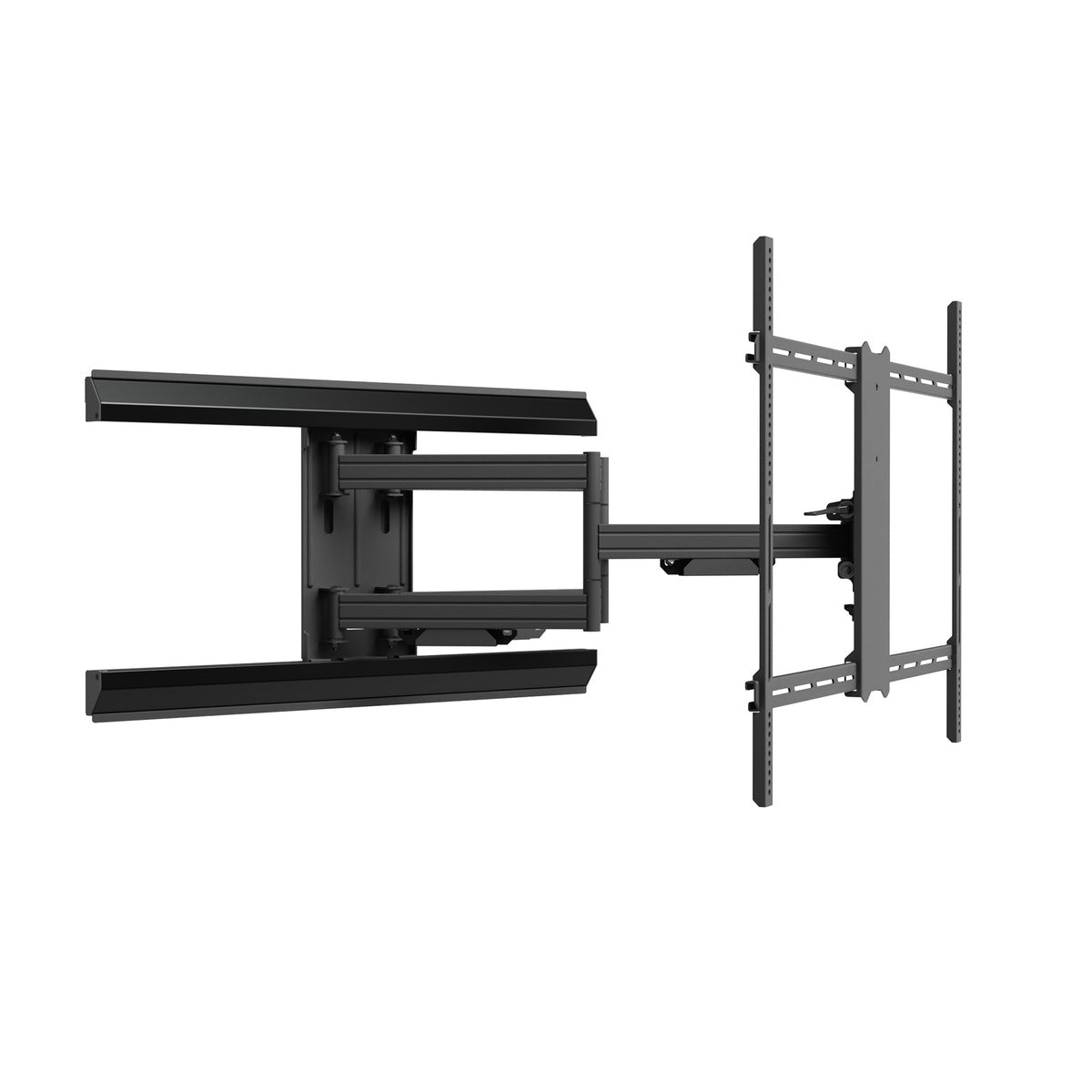

Swivel 90° of swivel in either direction, depending on screen size.

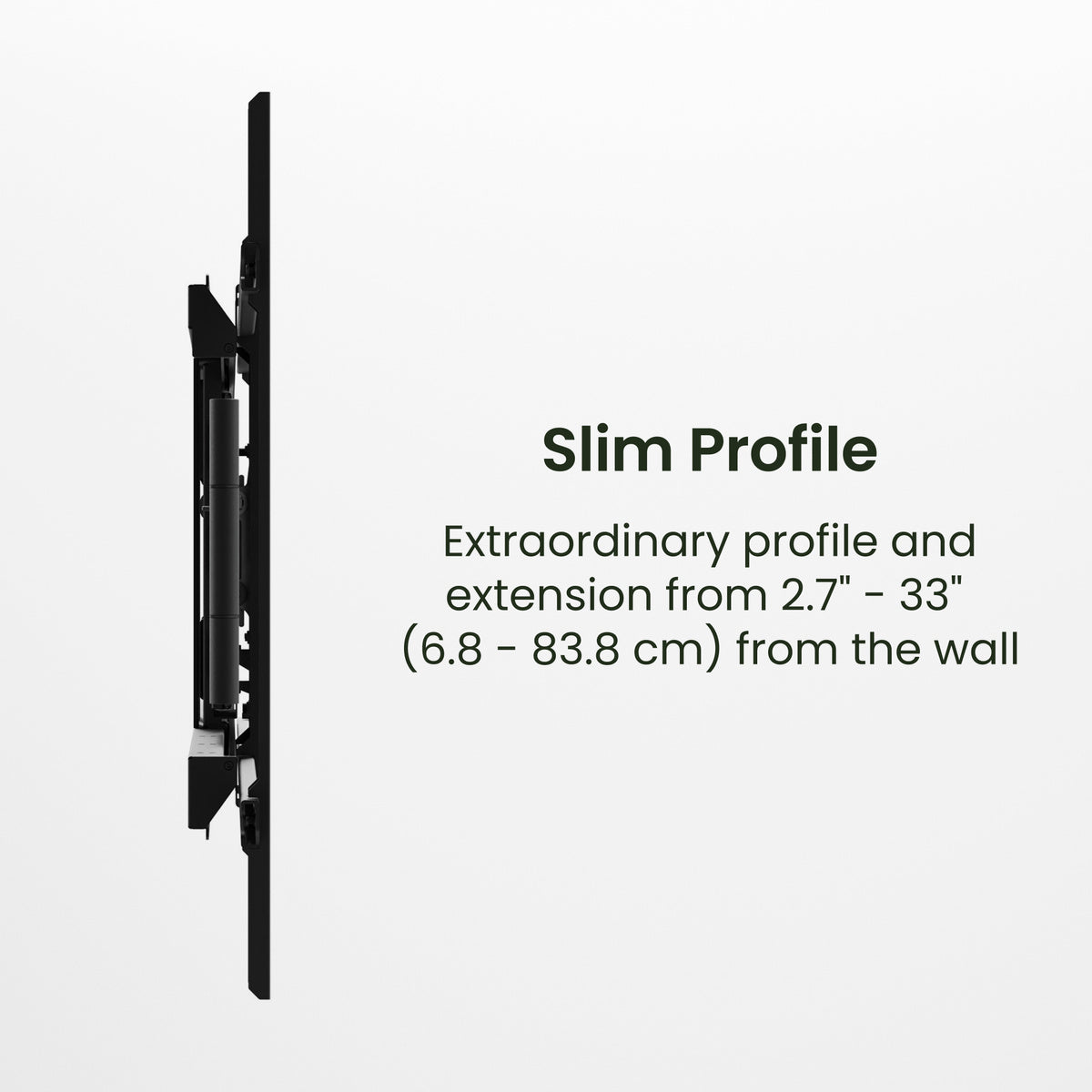

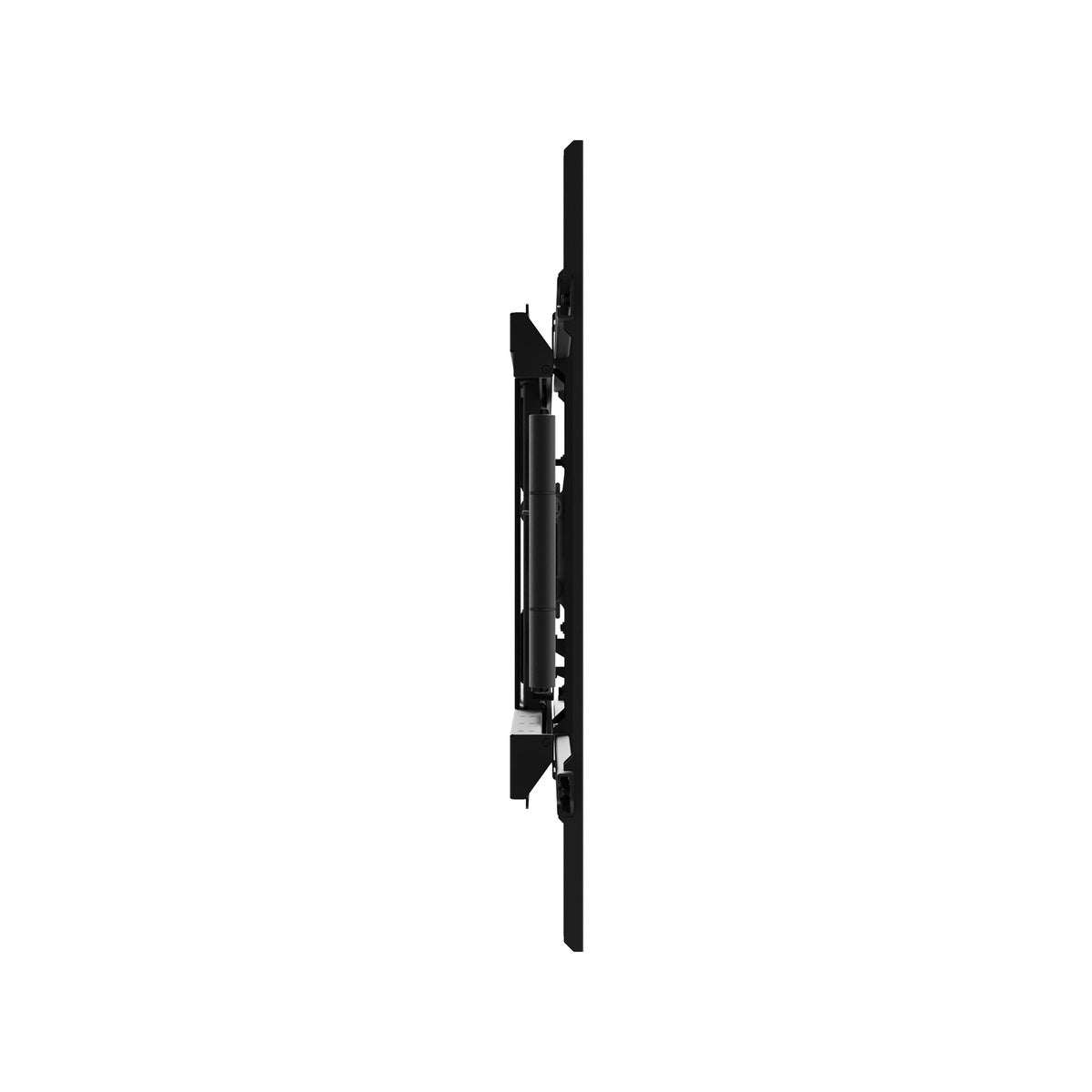

Profile Sits 2.7” (6.8 cm) when fully retracted

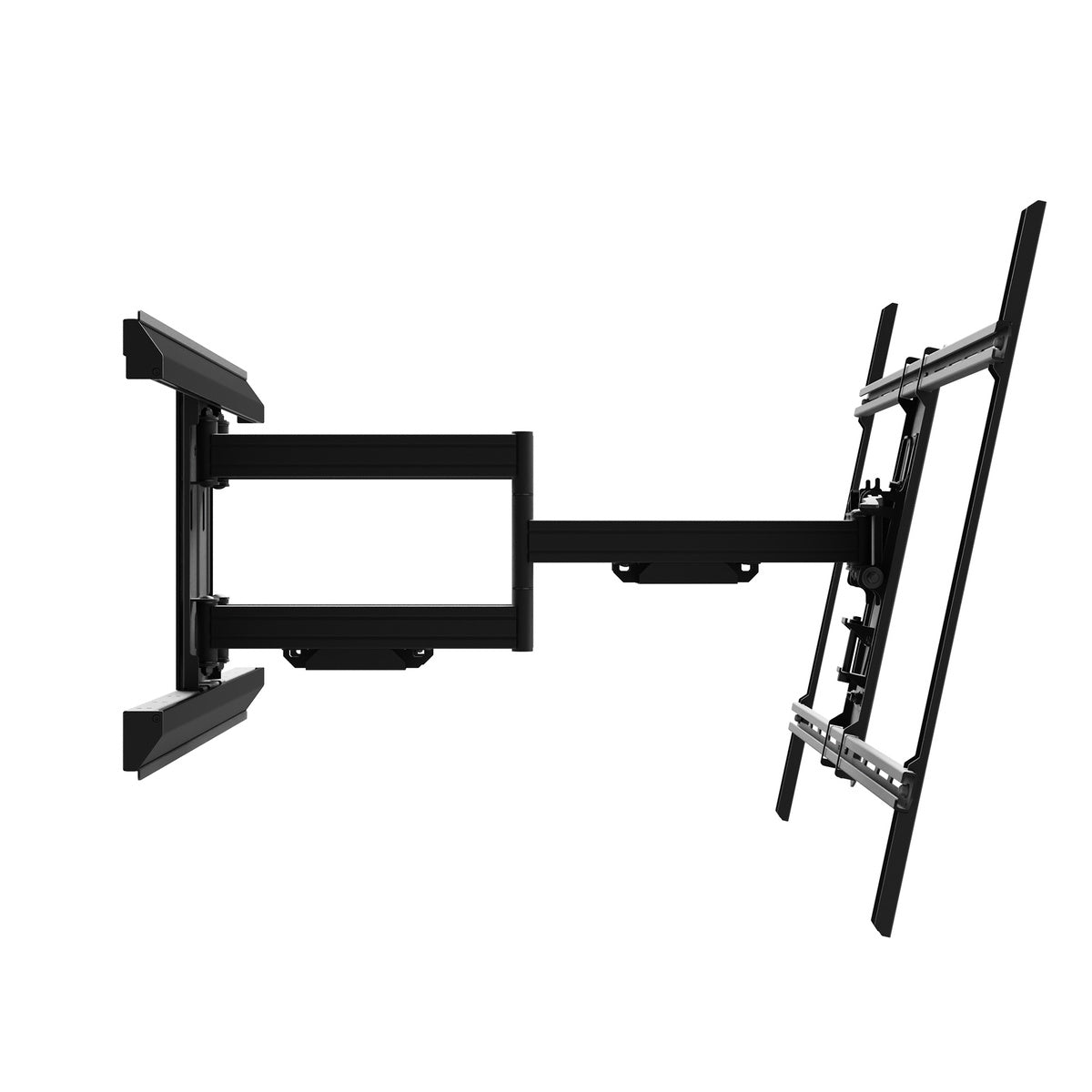

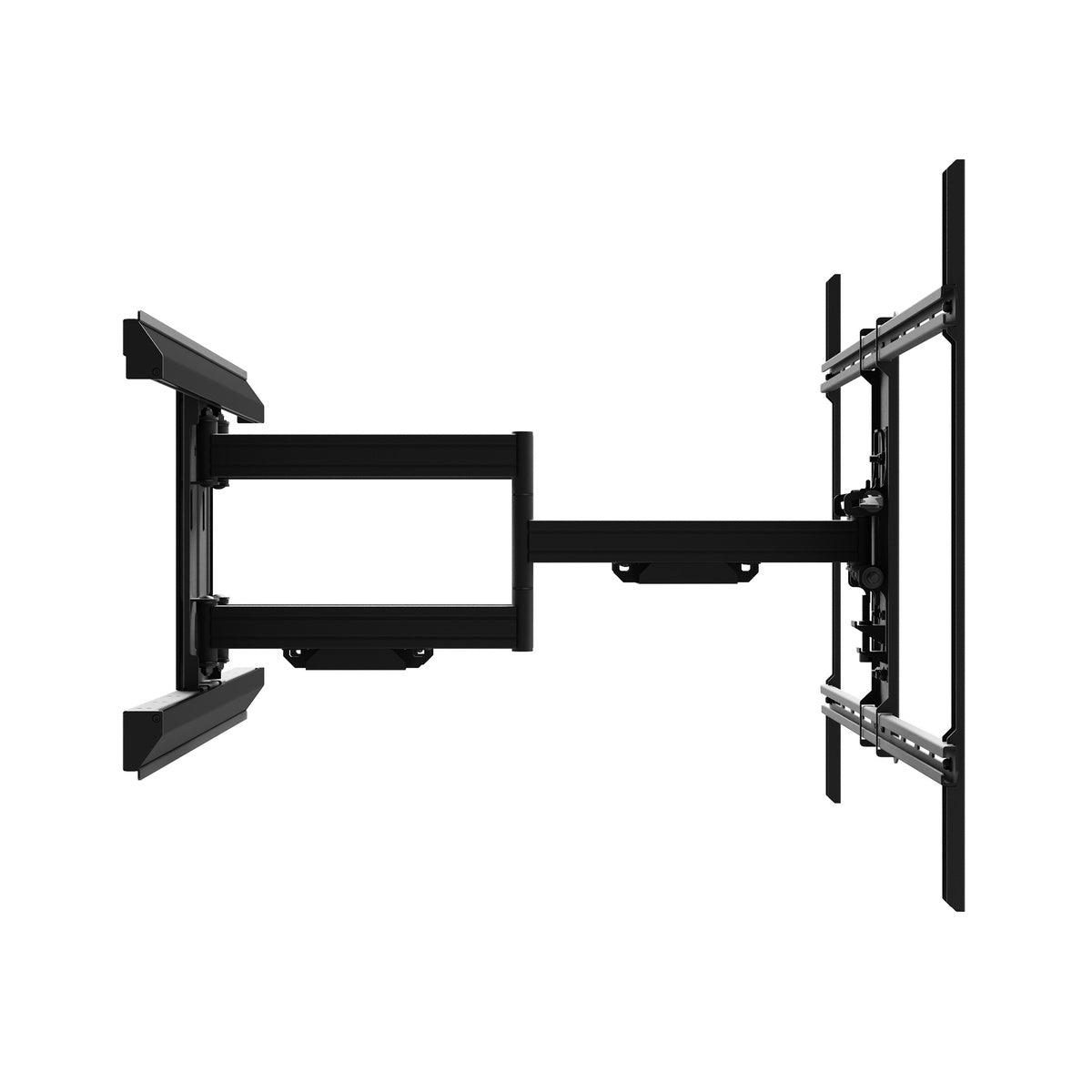

Extension Extends up to 33” (83.8 cm) from the wall
Leveling Adjustable horizontal leveling
Stud Spacing 35" (88.9 cm) dual stud wall plate accommodates up to 24” stud spacing

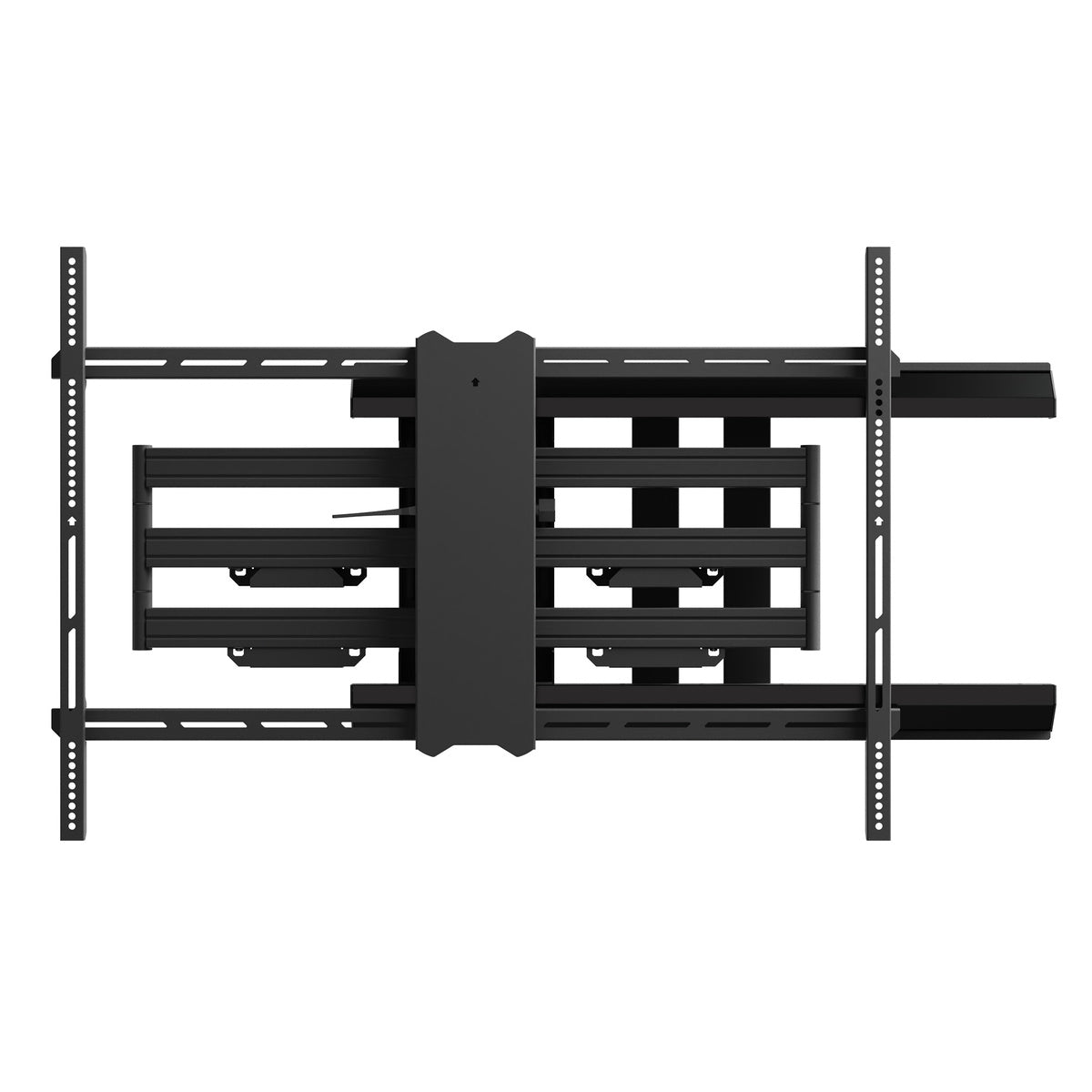

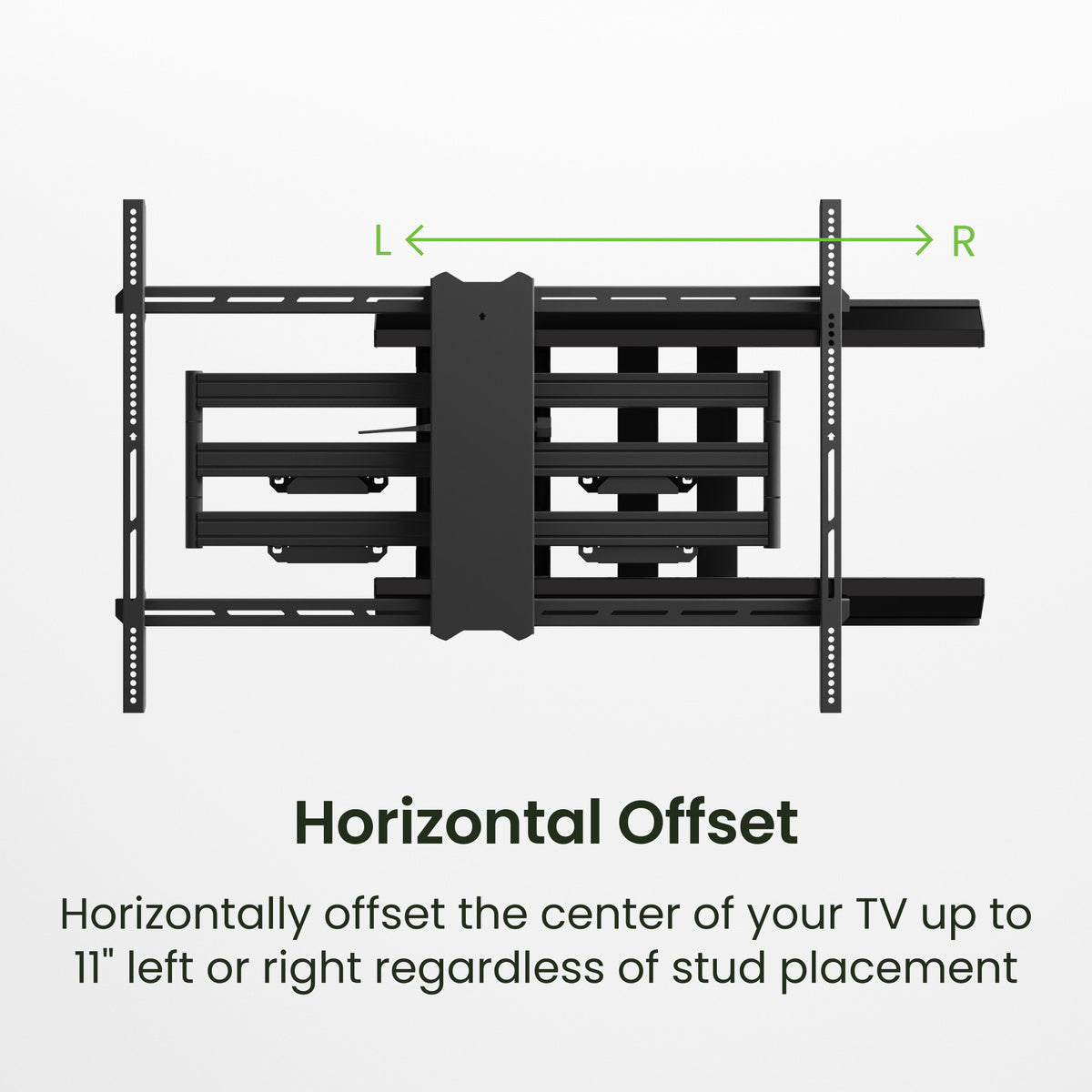

Horizontal Offset up to ±11” (28 cm) of horizontal offset

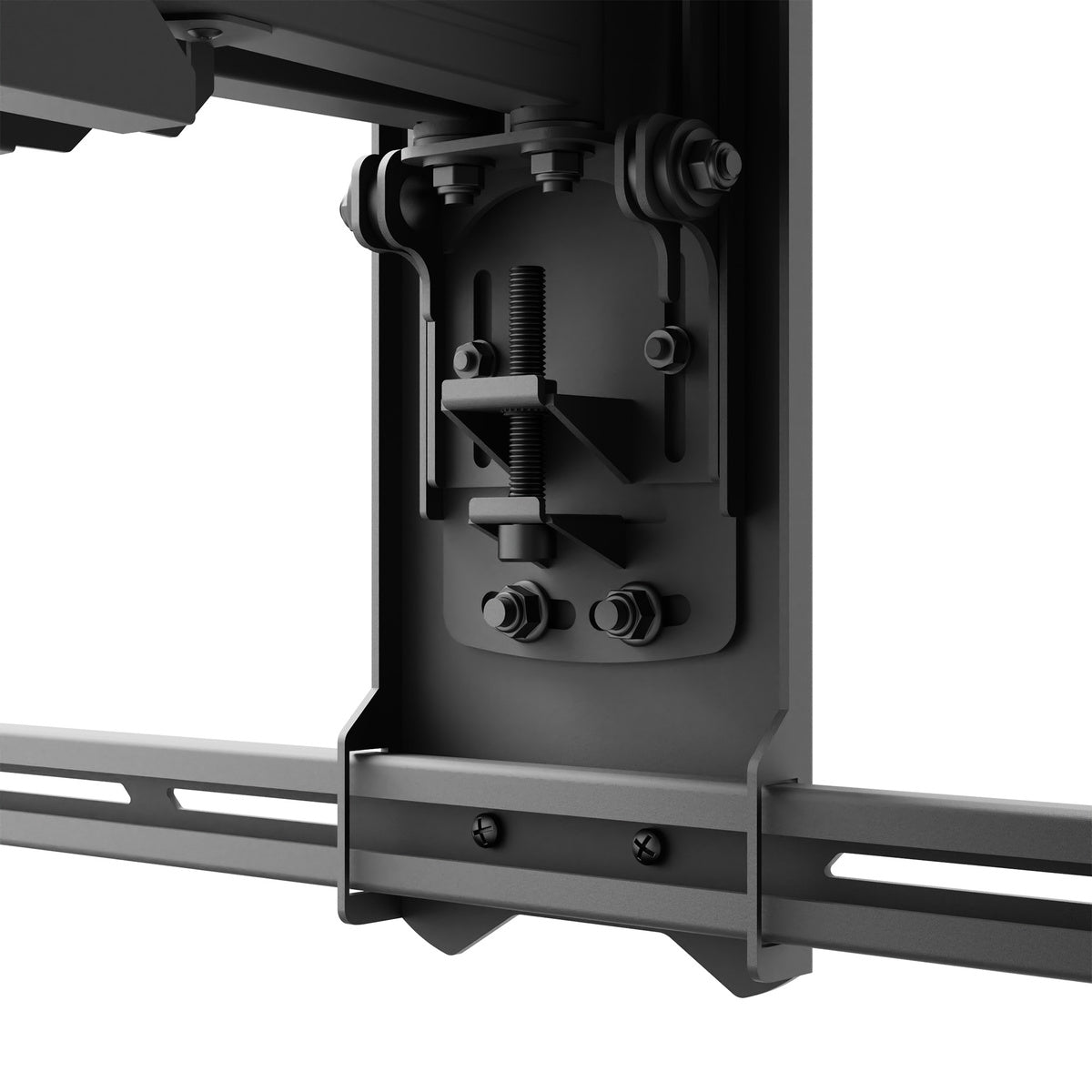

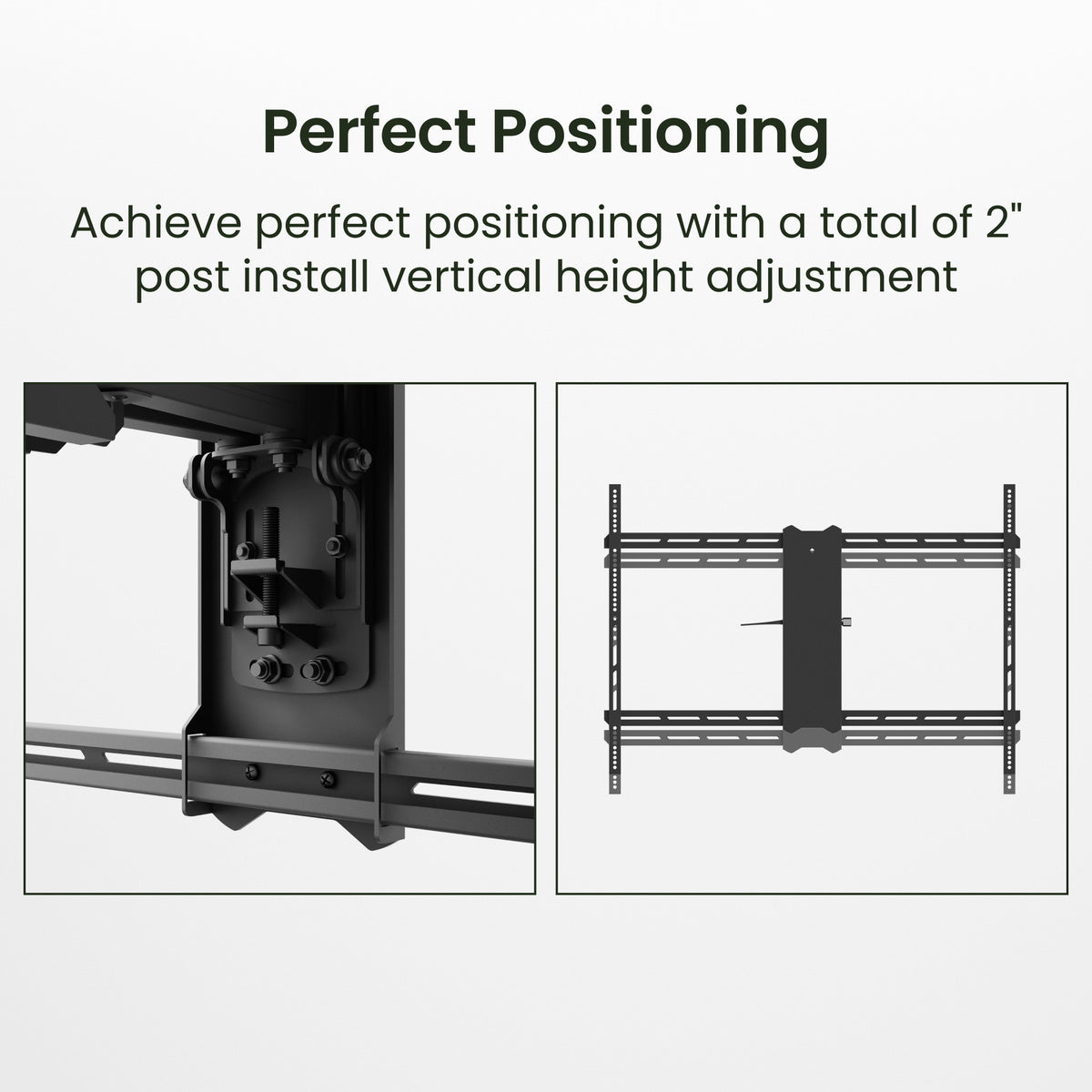

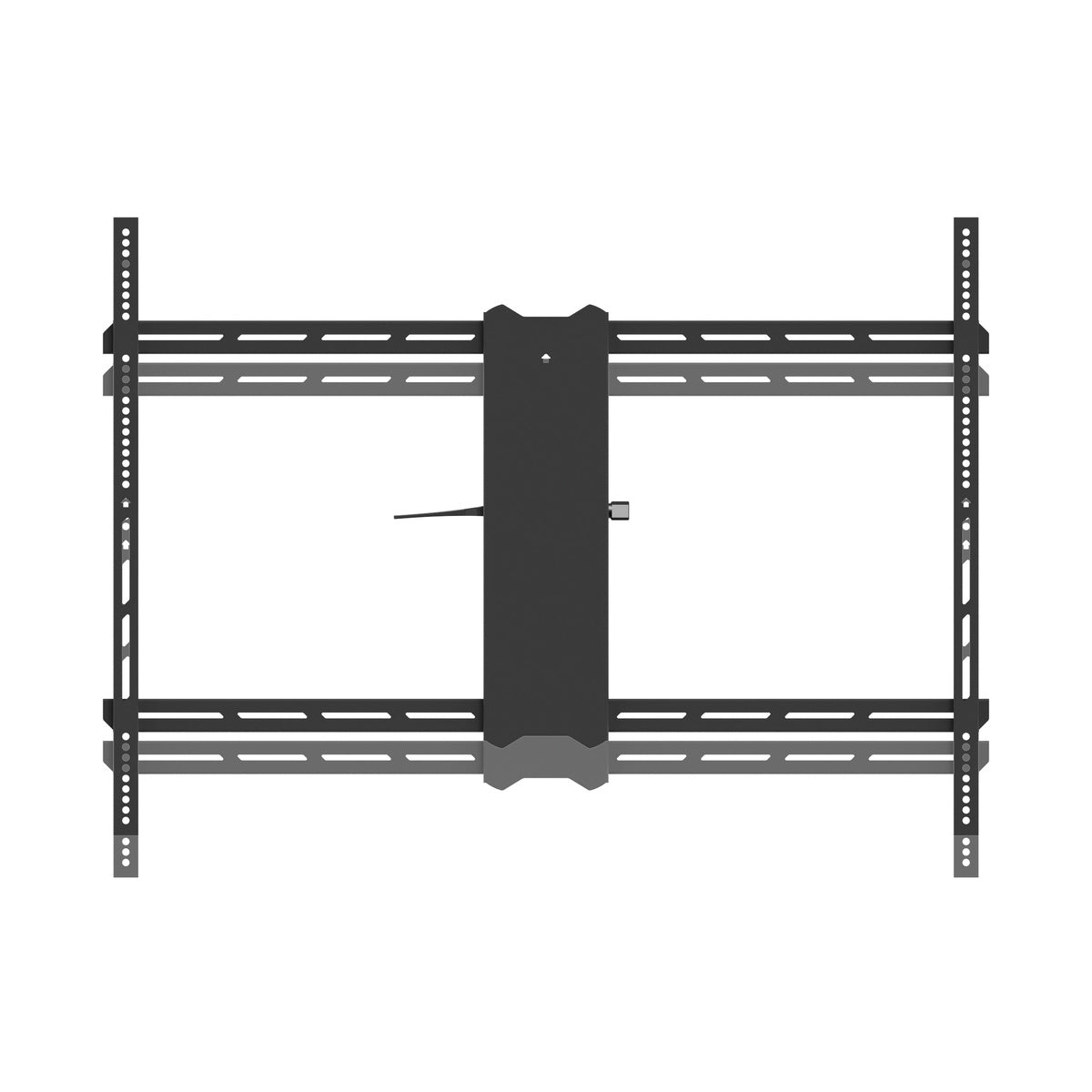

Height Adjustment Up to 2" (5.1 cm) height adjustment
Min-Max TV Display Size 65-140
Recommended Max Weight 275
Assembly Required Yes
Installation Required Yes
Indoor/Outdoor Designed for Indoor Use
Hardware and Manuals Includes manual and all mounting hardware for wood stud and concrete installation
