Item #P301

Kanto P301

Overhead Swivel Projector Mount
Item #P301

Kanto P301

Overhead Swivel Projector Mount
$89.99
In Stock: Free 2-Day Shipping
Contact Us

Overview

The Kanto P301 allows you to mount your overhead projector to the ceiling, to the side of a beam or a slanted surface. It sounds complex, so thankfully Kanto has designed this mount for total ease of use. It smartly features adjustable arms which allow you to accurately center the mount to the projector’s center of gravity – essential for vertical hanging. Versatility lies at the heart of the design – with extension, pivot, tilt and swivel adjustments to set up your projector in almost any situation. Almost any projector mounting configuration is now possible, thanks to the Kanto P301.

15” TO 18” OF EXTENSION
Once installed to your desired surface – either your ceiling or a slanted wall – the P301 allows your projector to extend 15” to 18” downward.

FITS MOST PROJECTORS
The P301 is shipped with four mounting arms attached to the tilt head, and four longer mounting arms are included in the box. You should be able to reach the mounting holes on virtually all projectors and easily locate the center of gravity.

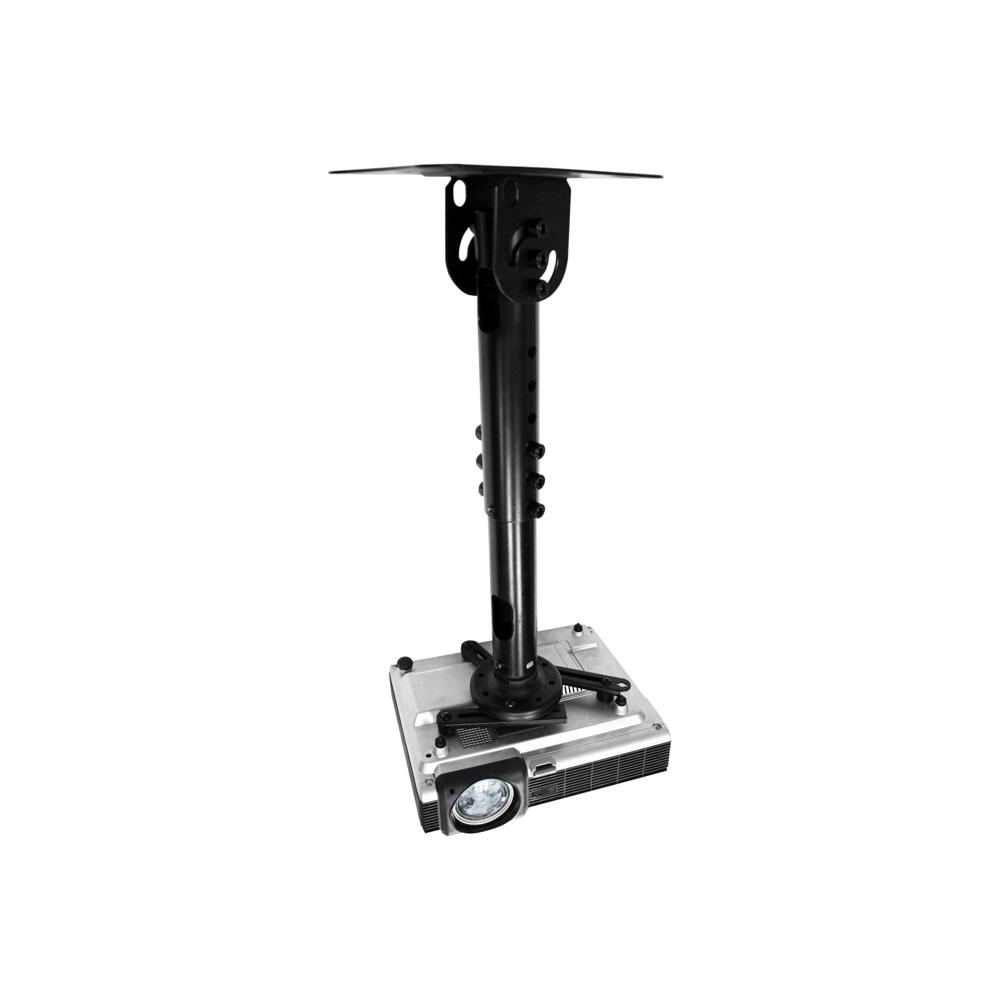

SIMPLE INSTALLATION
The P301 is designed with as much pre-assembly as possible to ensure that there are only a few steps to get it from the box to fully installed. With simplified manuals, an online installation video and phone support, we make it easy to get your projector mounted securely.

STURDY AND SECURE
Thick gauge steel construction makes the P301 as solid as a mount gets. Designed for strength and long-term security

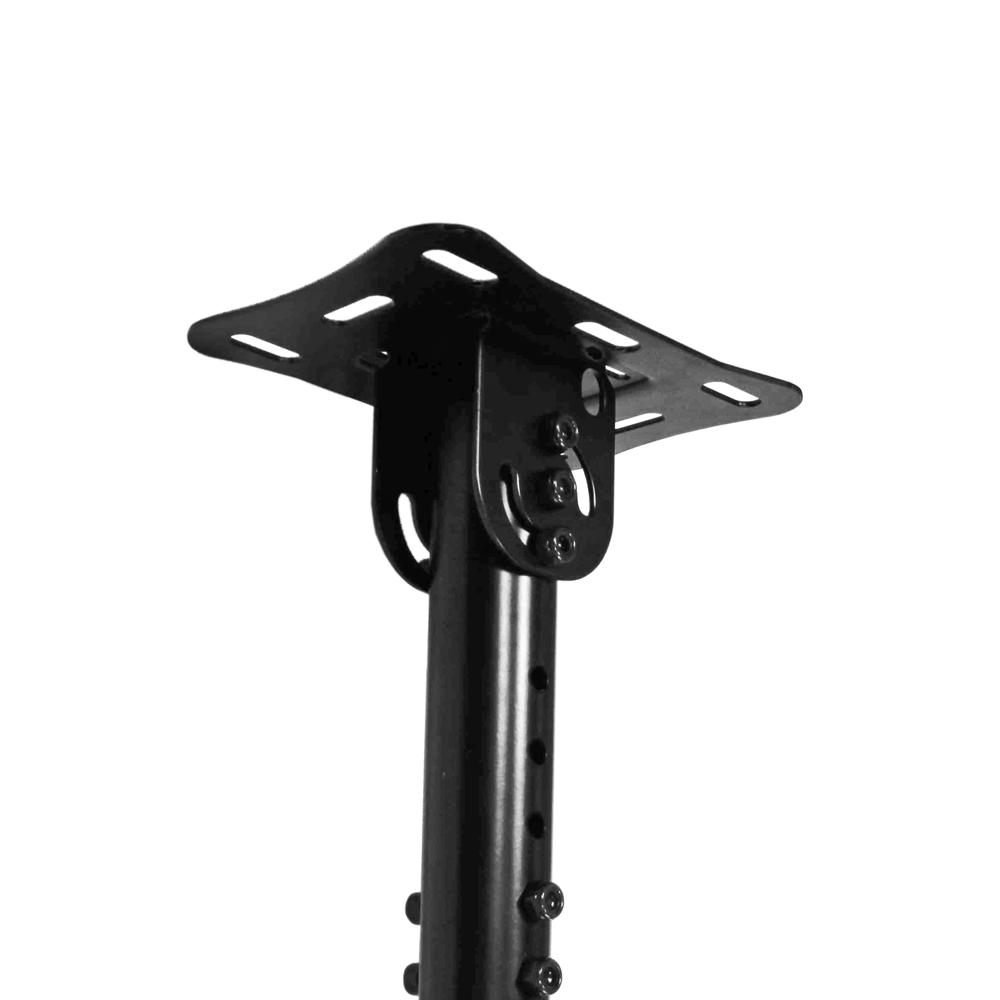

90 DEGREES OF TILT
With a 90° pivot point, the pole sits vertically whether mounted on sloped ceilings or even a vertical. Once mounted, the projector adapter will allow 20° of tilt so you can aim your projector at your screen. The tension of the ball adapter can be adjusted if necessary. The P301 also swivels 360°.

FEATURES & SPECIFICATIONS

  • Fits most projectors and supports up to 22 lb (10 kg)
  • Mounts projector 15” (37.7 cm) to 18” (45.7 cm) from the ceiling
  • Pivot adjustment of ±90° at the mounting plate ensures extension tubes hang vertically when mounted to sloped ceilings and beams
  • Ball swivel allows for 360° rotation
  • Integrated cable management system
  • Solid steel construction with durable powder coated finish
  • Spring lock allows easy attachment and removal of projector
  • Installation manual and hardware to attach your projector to the mount is included
  • Hardware for attaching the ceiling mount plate is not included due to the many mounting and ceiling variables
  • Five year warranty
  • Shipping box weight: 6.4 lb (2.9 kg)
  • Shipping box dimensions: 13” x 6.2” x 3.5” (33 x 15.8 x 9 cm)
  • Product weight: 5.9 lb (2.7 kg)

Details & Specs

Specifications
Weight Allowance 22 lb (10 kg)
Features
Tilt Pivot adjustment of ±90° at the mounting plate ensures extension tubes hang vertically when mounted to sloped ceilings and beams
Extension 15” (38.1 cm) to 18” (45.7 cm) from the ceiling
Swivel Ball swivel allows for 360° rotation
Locking Mechanism Spring lock allows easy attachment and removal of projector
General
Includes Adjustable horizontal leveling, Installation manual and hardware to attach your projector to the mount is included, Hardware for attaching the ceiling mount plate is not included due to the many mounting and ceiling variables, Integrated cable management
Material Steel and aluminum with durable powder coated finish
Warranty 5 years
Weights and Measurements
Shipping box weight 6.4 lb (2.9 kg)
Shipping box dimensions 13” x 6.2” x 3.5” (33 x 15.8 x 9 cm)
Product weight 5.9 lb (2.7 kg)
