Item #CM600B4B

CM600B4B

Back-to-Back Quad Screen TV Ceiling Mount for Four 40” to 45” TVs
Item #CM600B4B

CM600B4B

Back-to-Back Quad Screen TV Ceiling Mount for Four 40” to 45” TVs
$699.99
More on the way! Order now to reserve risk free.

Overview

This ceiling mount securely holds four displays up to 45 inches in a back to back configuration. Featuring a pivoting plate, height adjustments, and discrete tilt options, it simplifies screen alignment for high impact audio visual solutions and multi directional commercial setups.

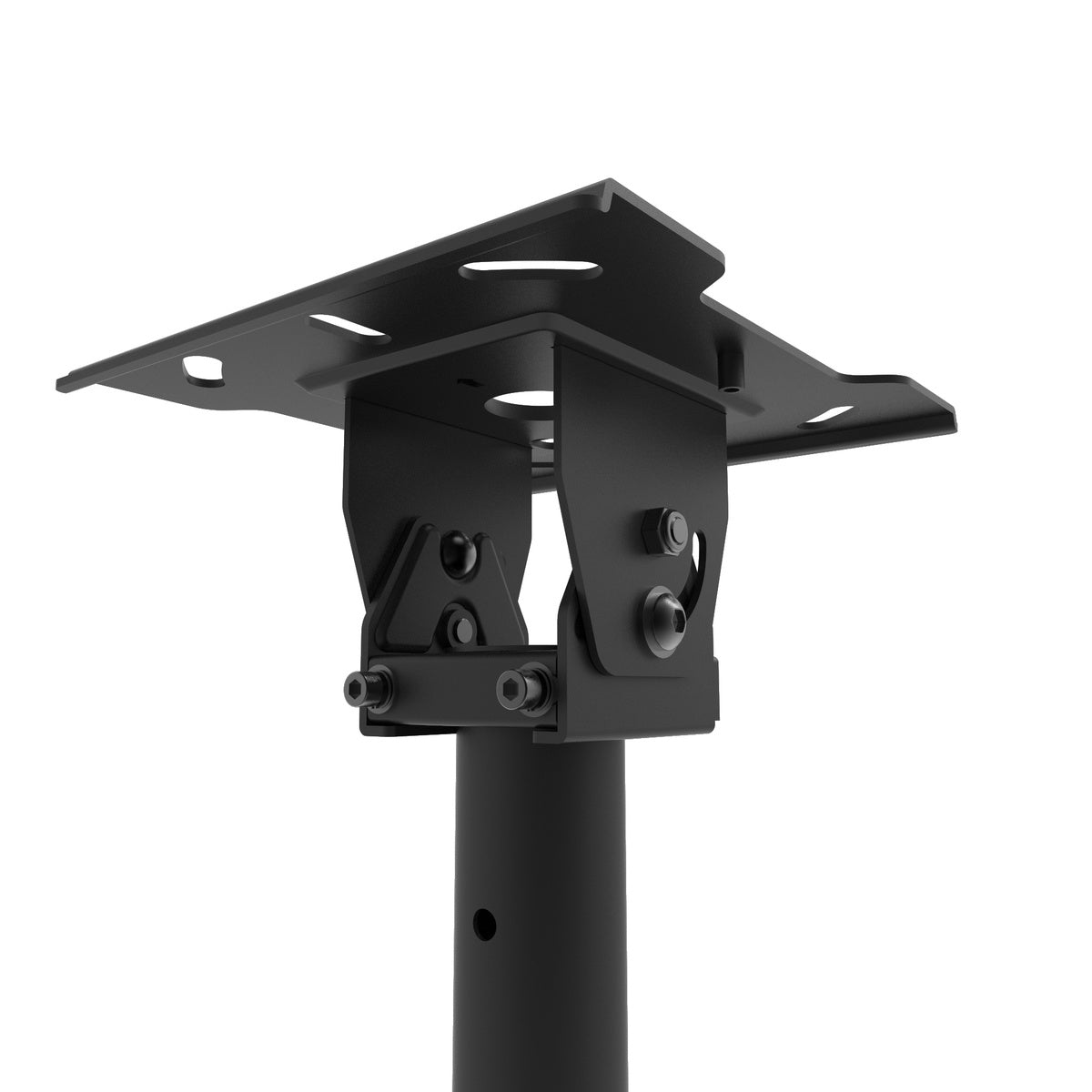

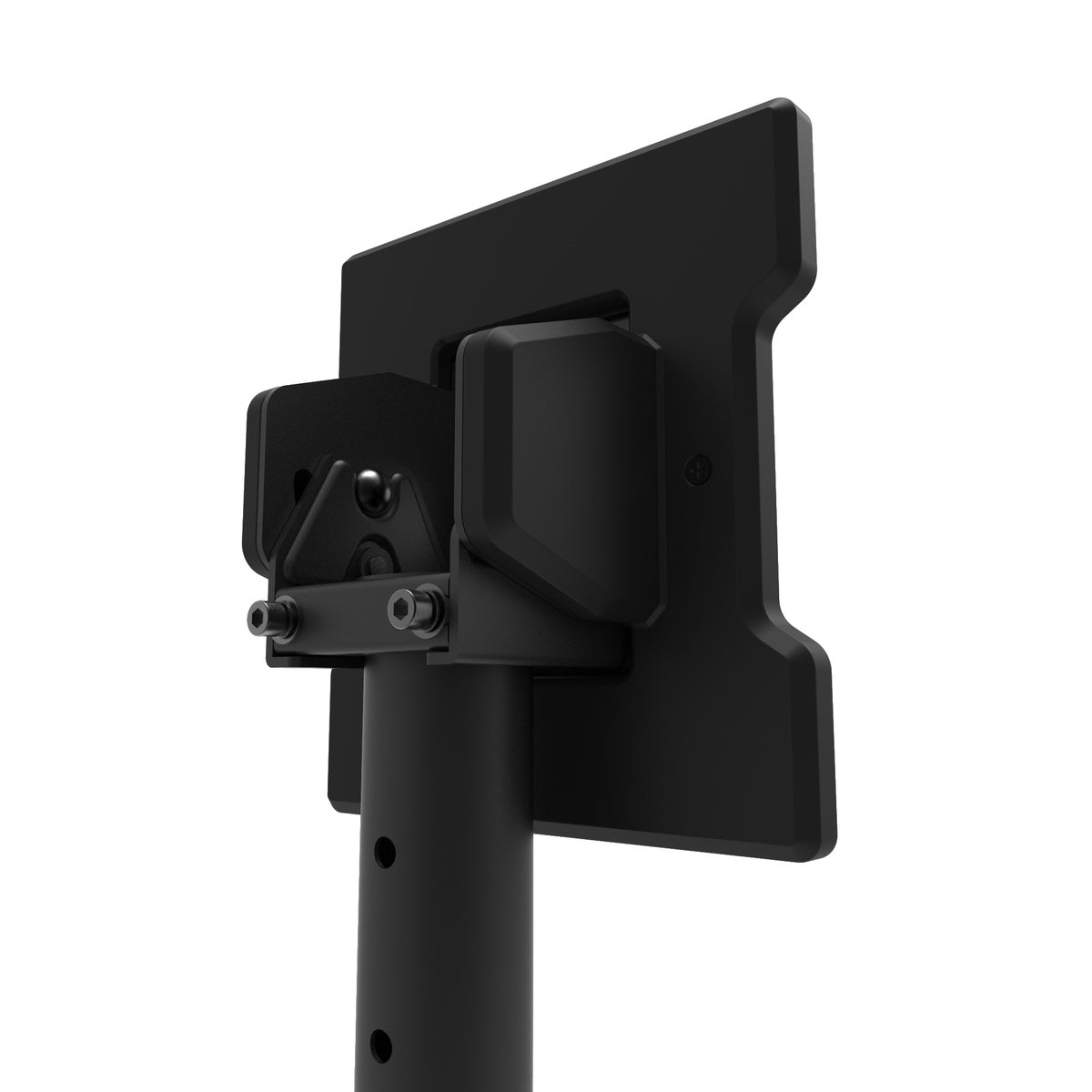

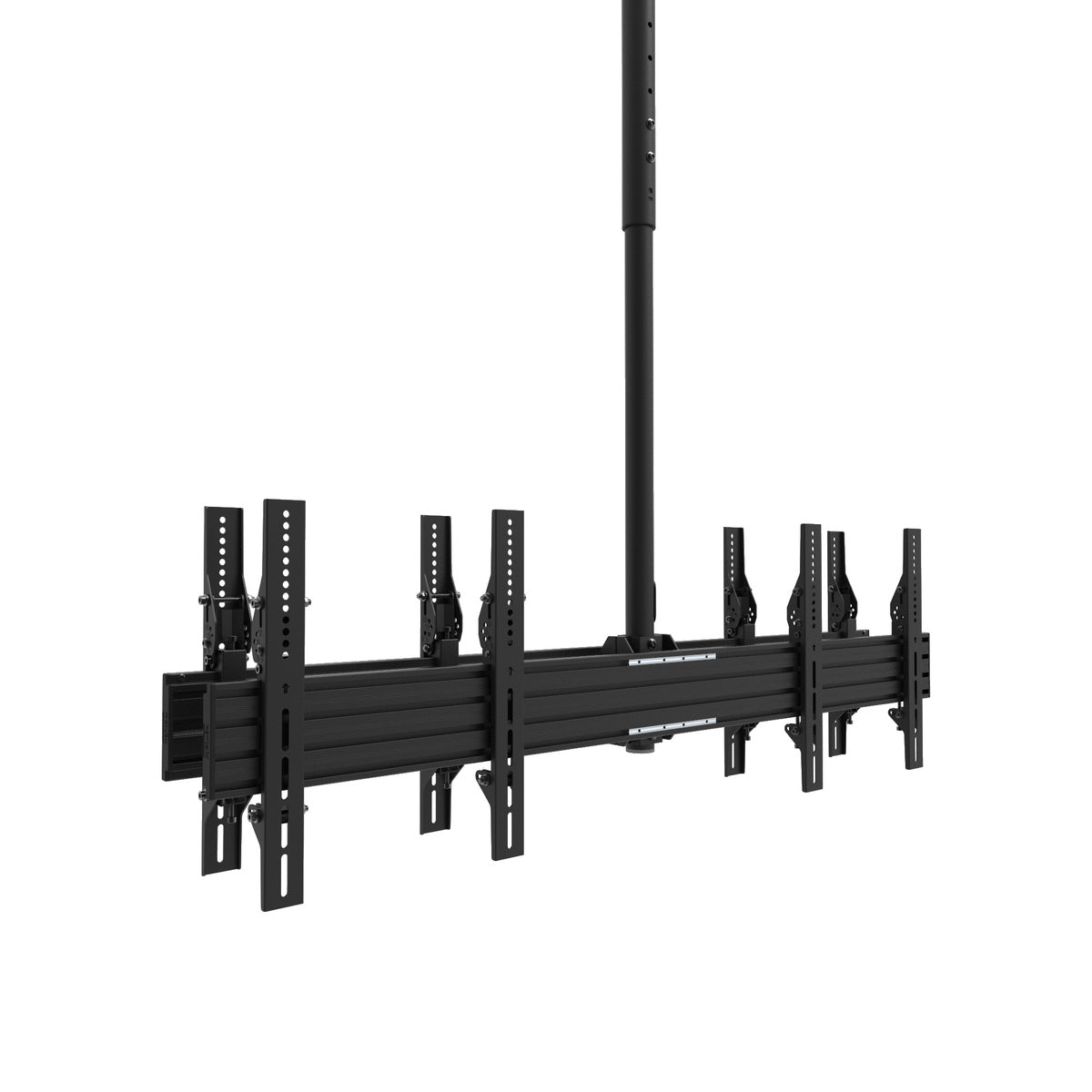

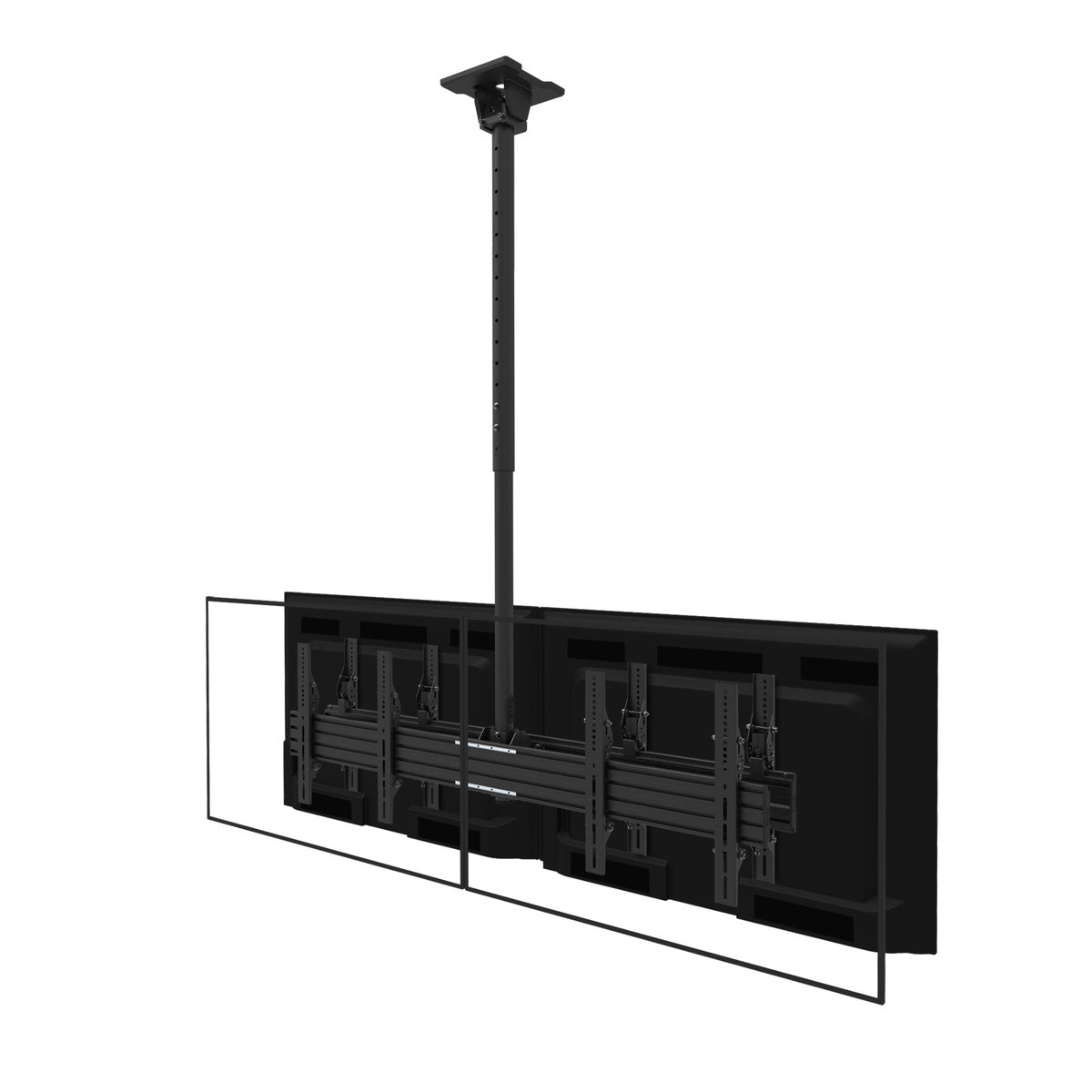

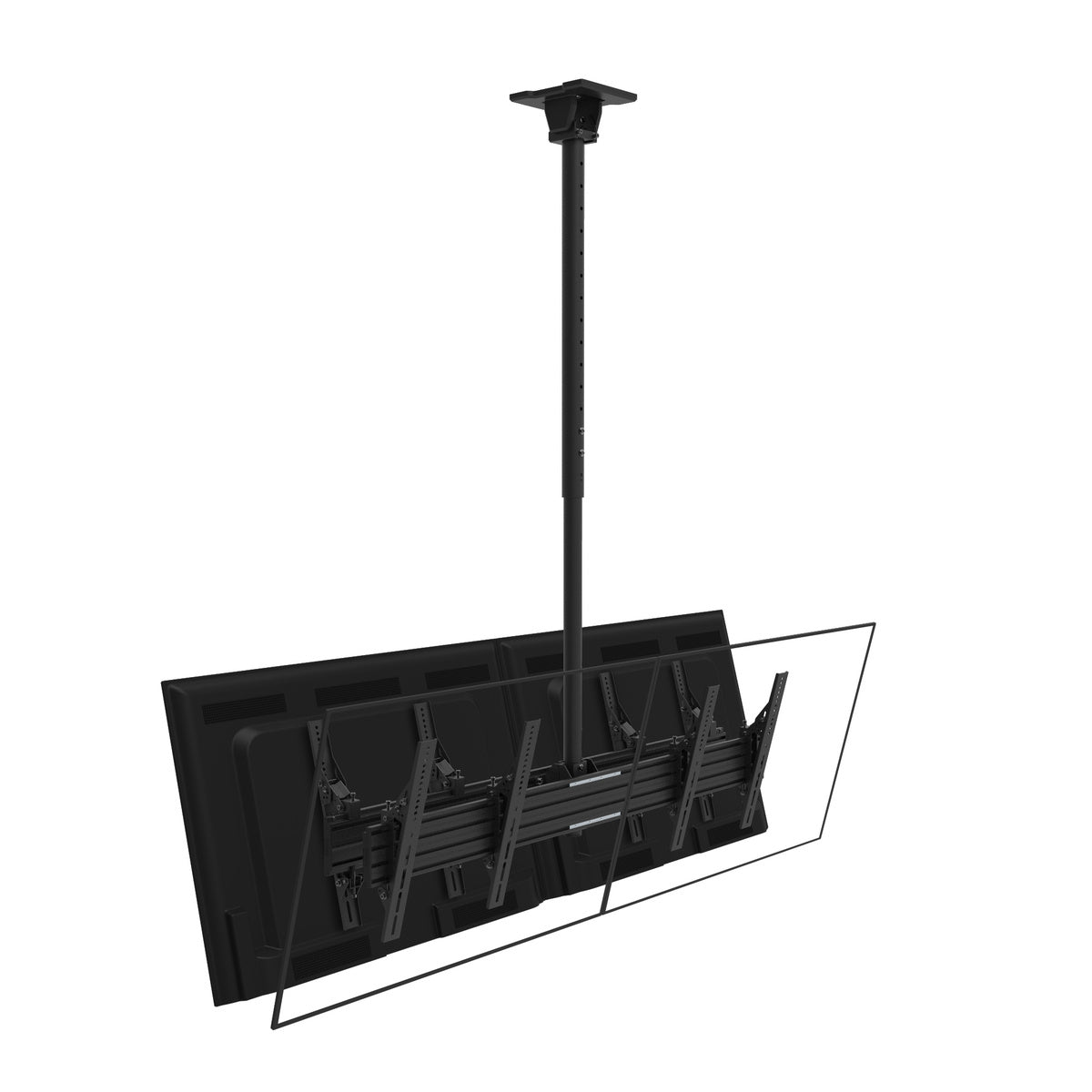

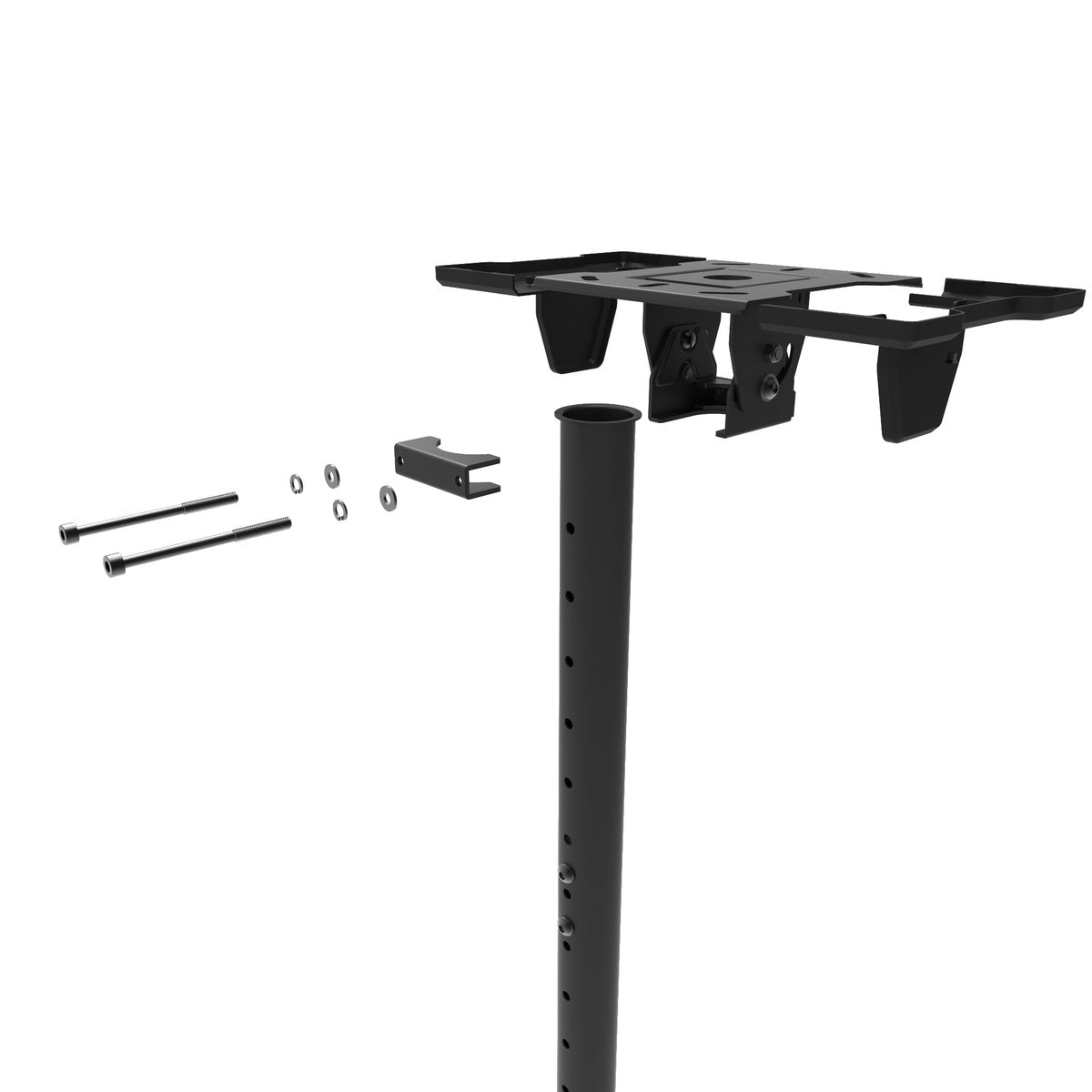

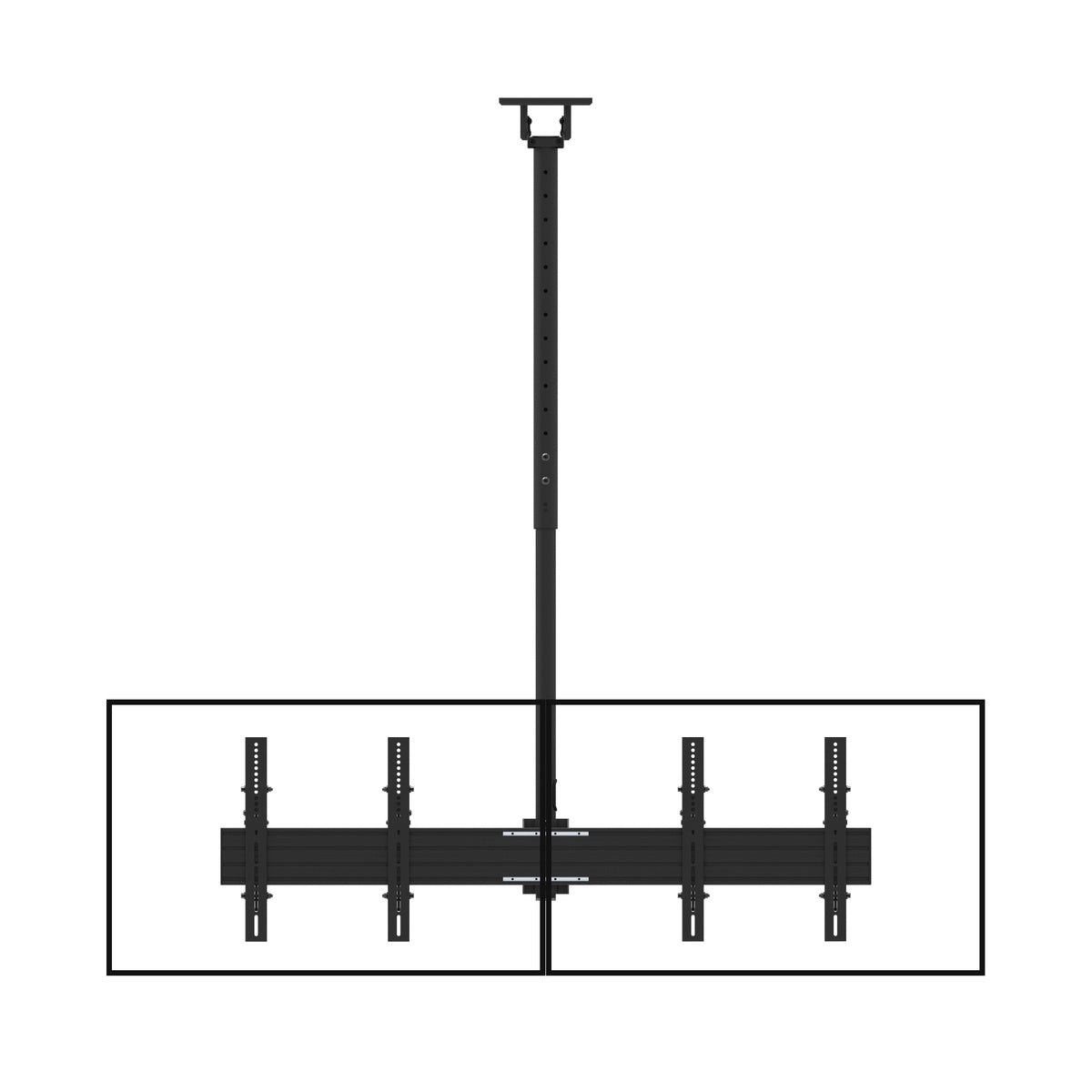

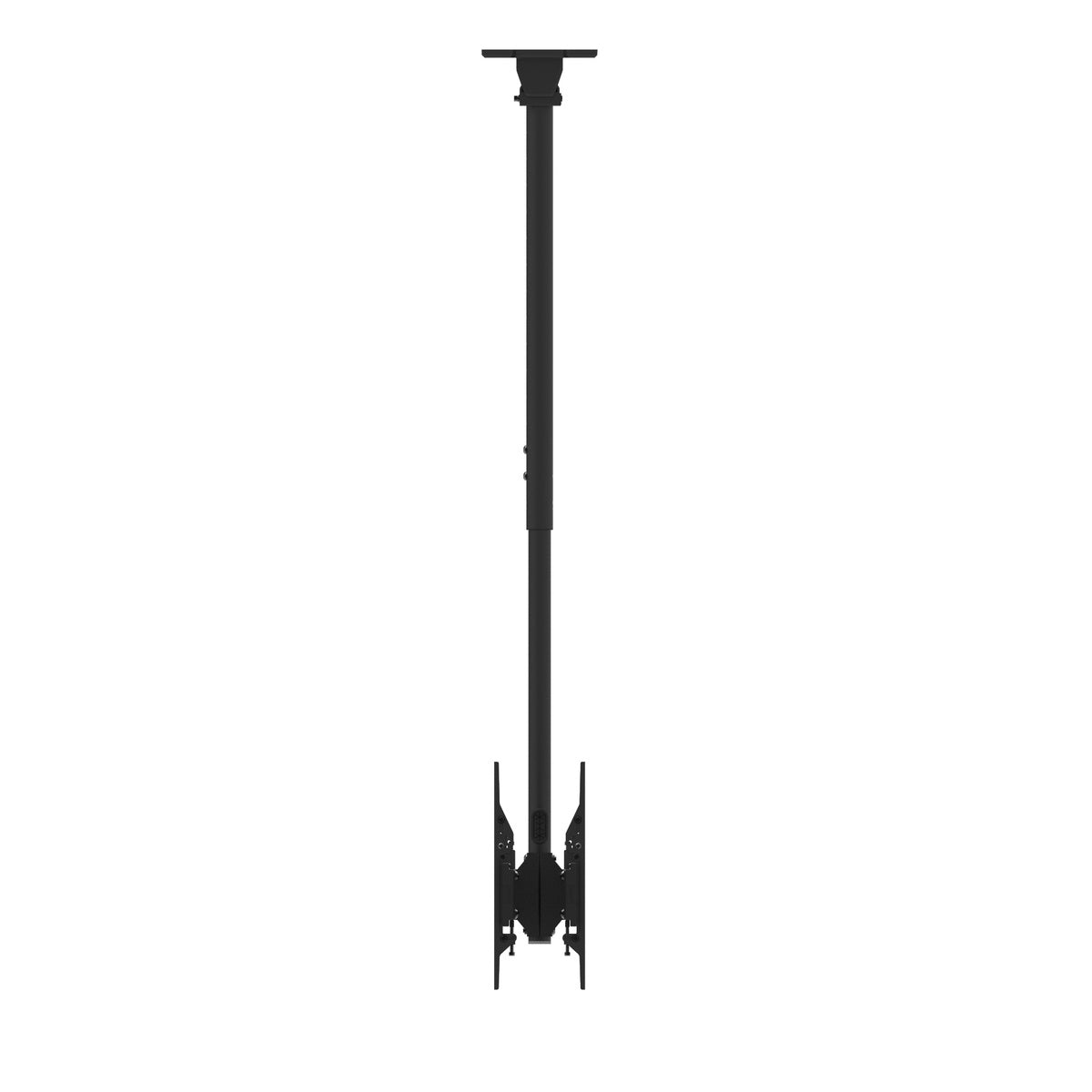

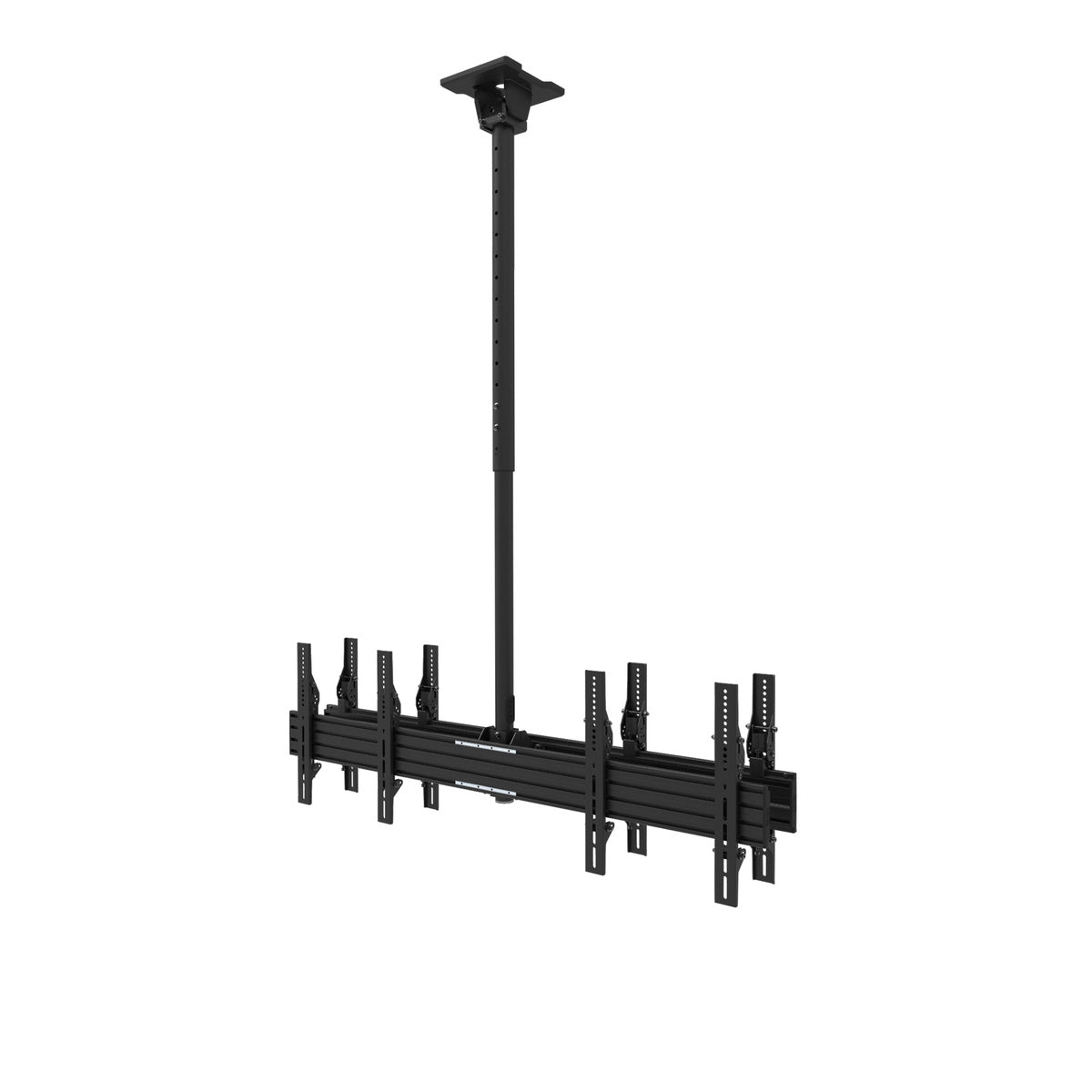

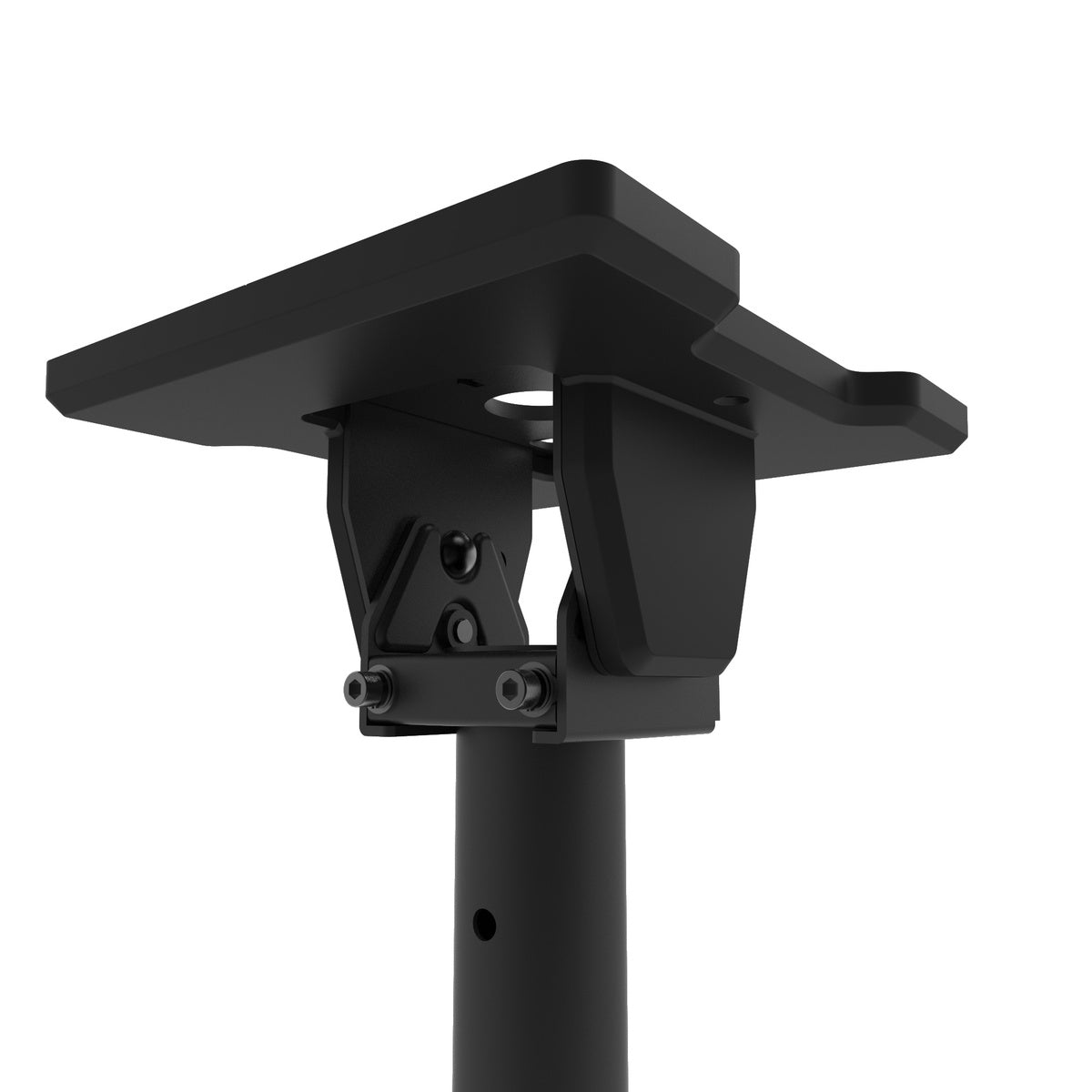

The Kanto CM600B4B Quad TV Ceiling Mount is a dedicated hardware solution for arrangements requiring multiple displays. It supports panels up to 45 inches, enabling the secure attachment of four separate screens in a back-to-back layout with two displays facing each direction. The ceiling plate features a pivoting mechanism that allows the assembly to be installed on flat, angled, or vertical structural surfaces.

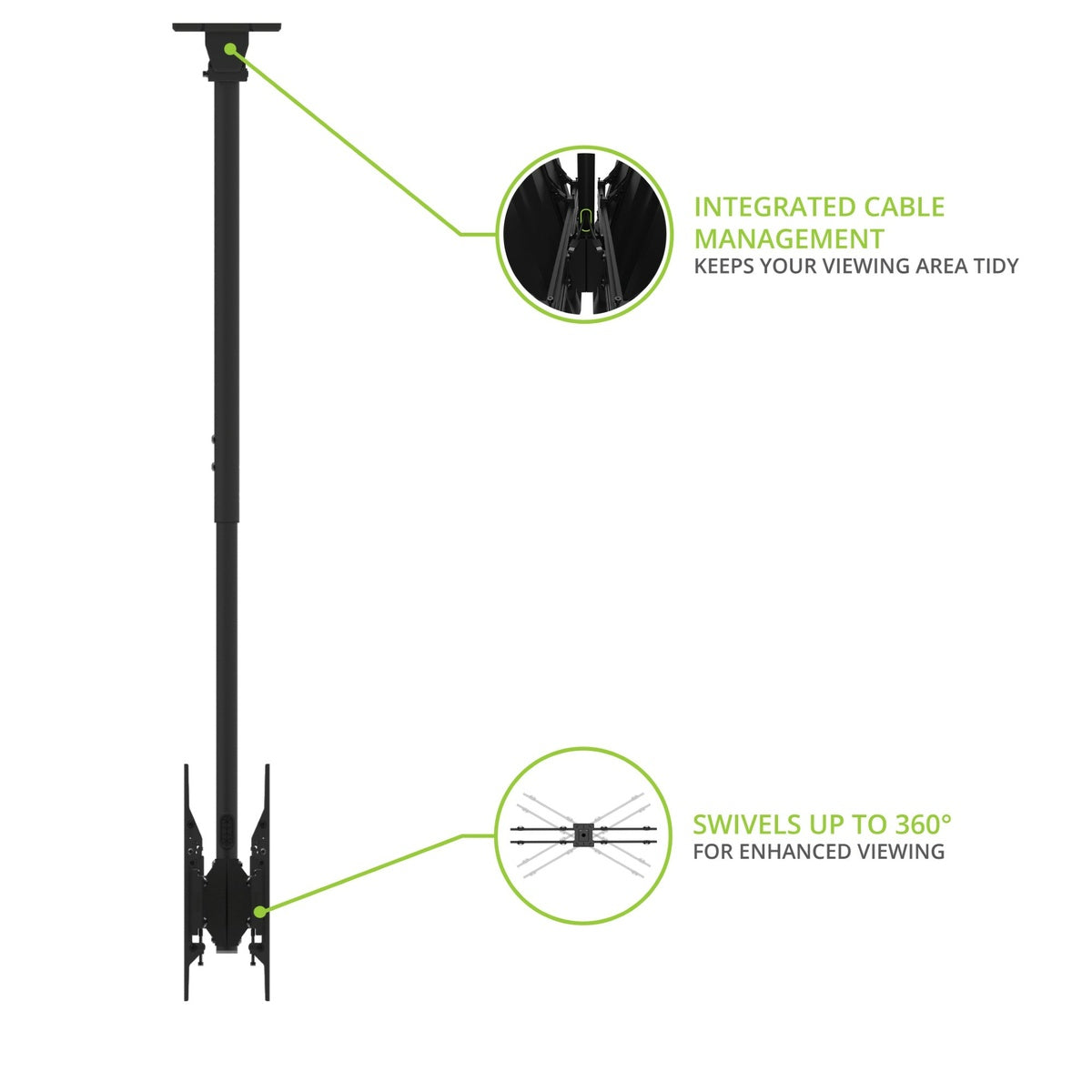

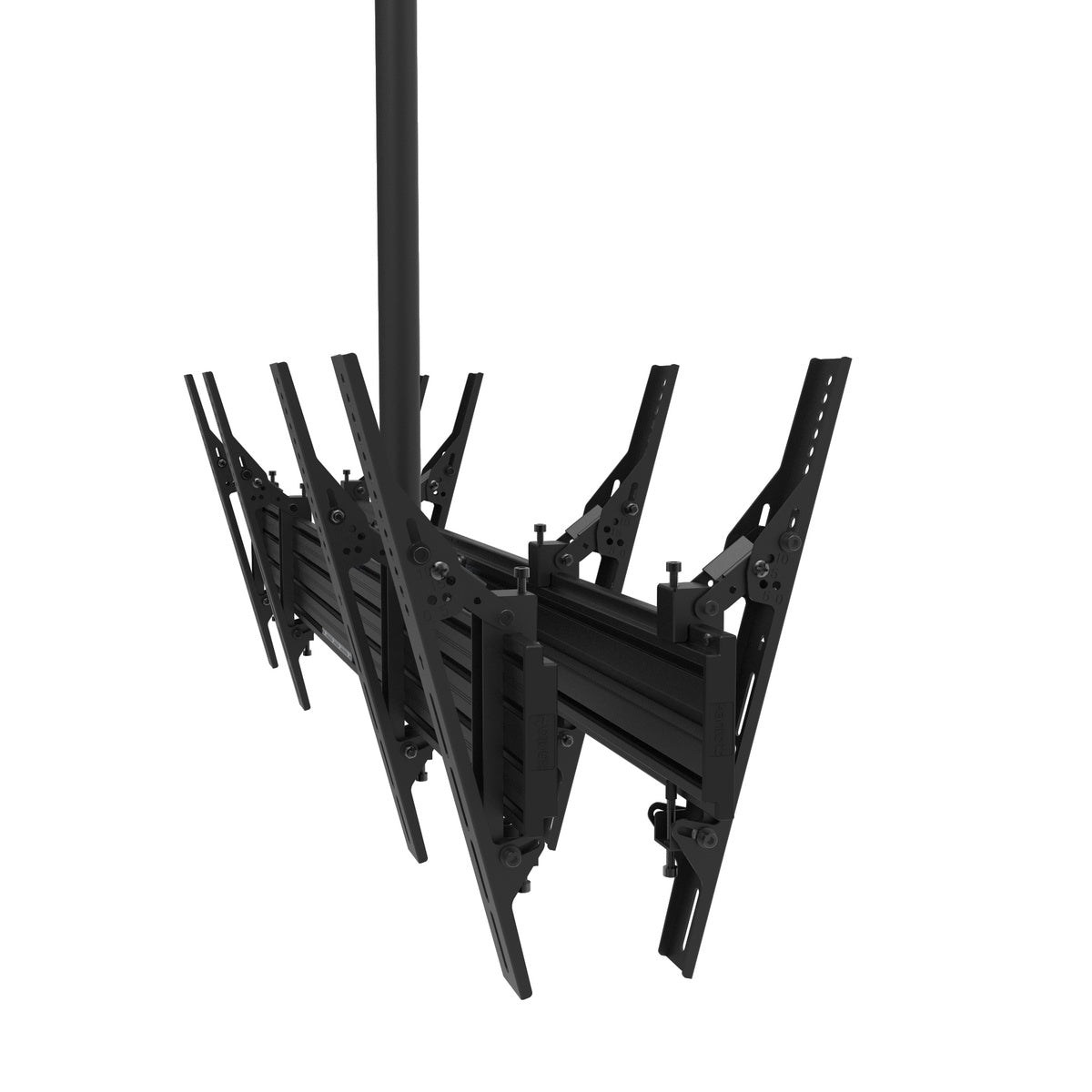

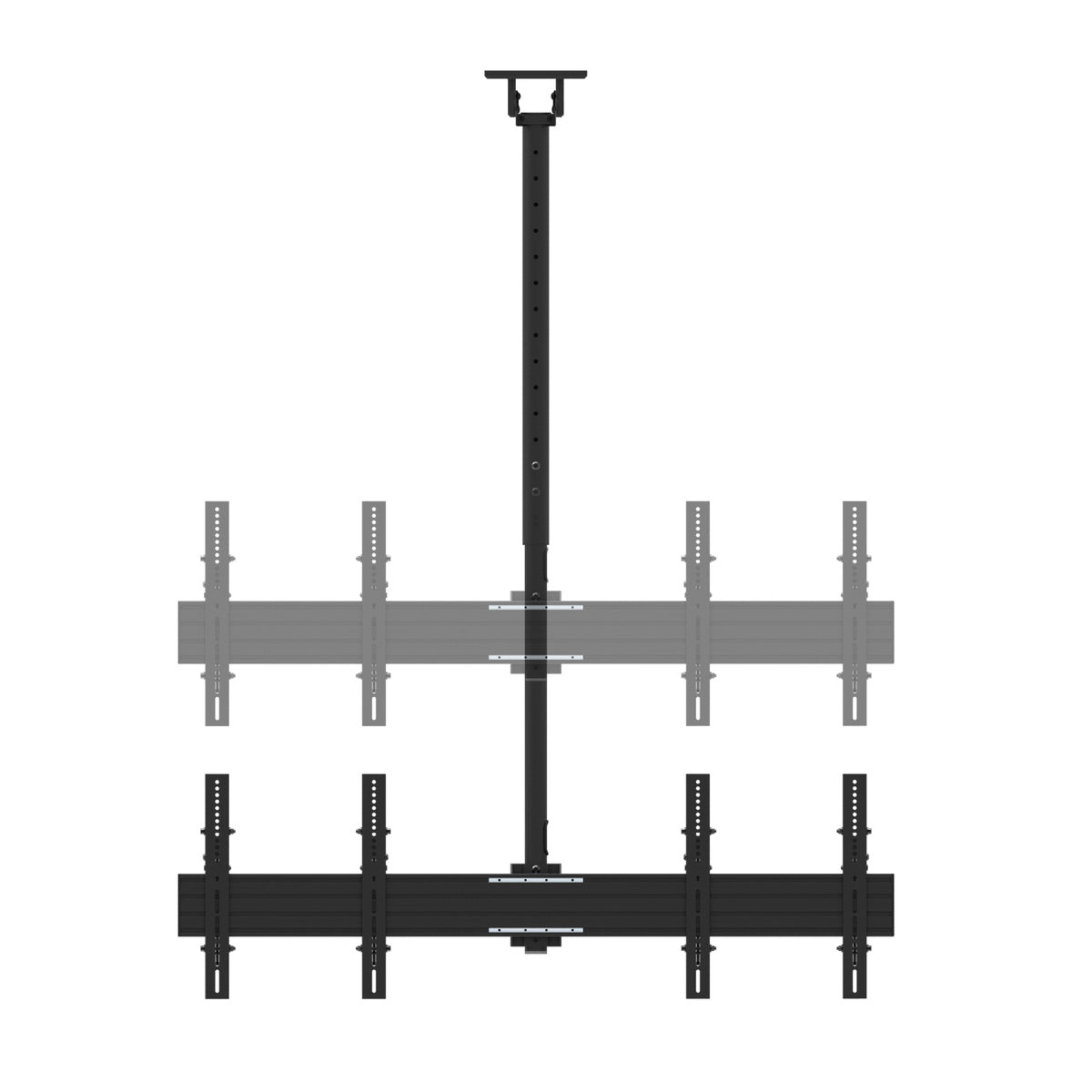

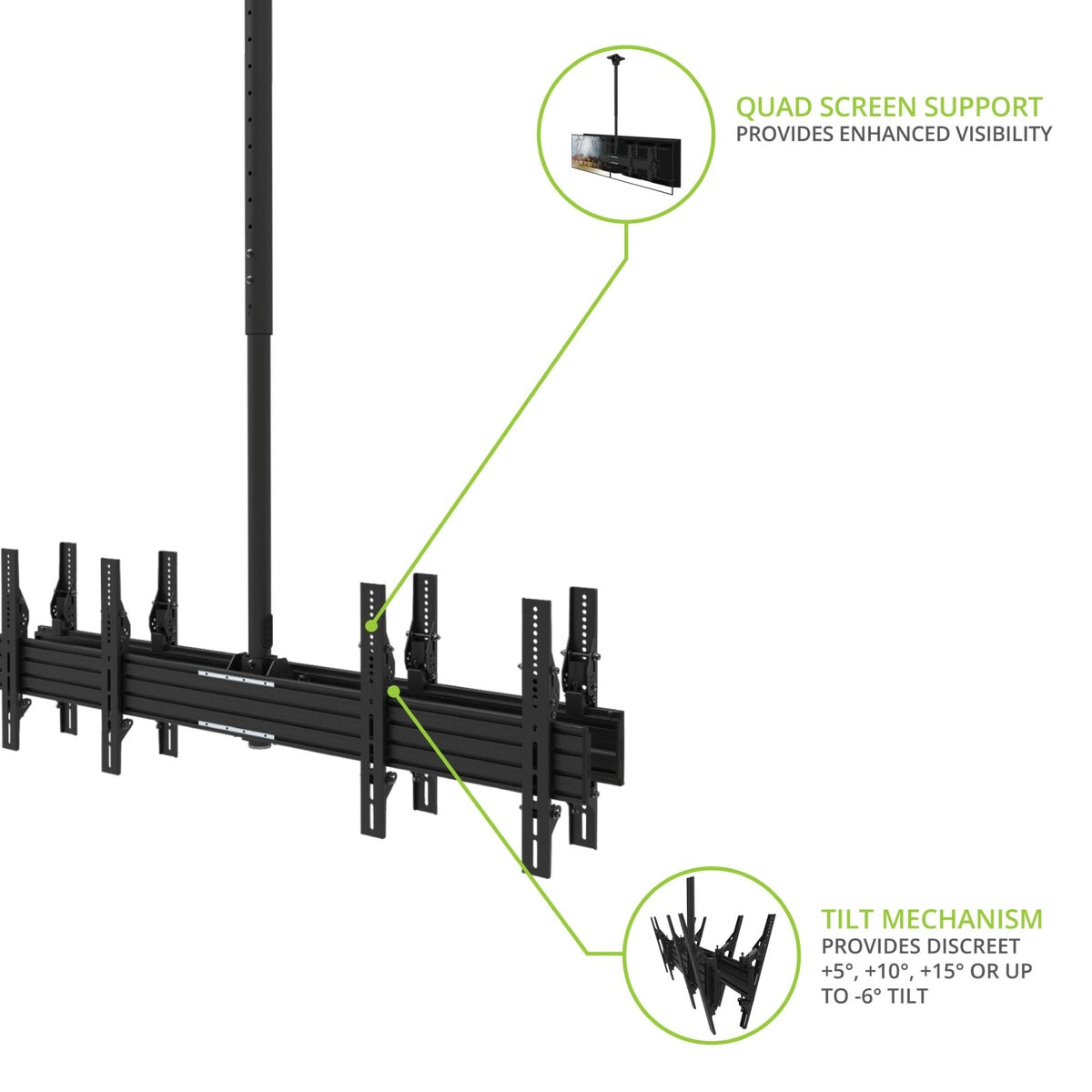

To achieve the correct viewing height, the telescoping extension pole provides twenty-three (23) point six inches of vertical adjustment along with full 360-degree rotation. This range of motion allows installers to orient the displays precisely within a space. Alignment is further improved with adjustable leveling screws and four discrete tilt settings, allowing each screen to tilt up to 15 degrees forward or 6 degrees backward.

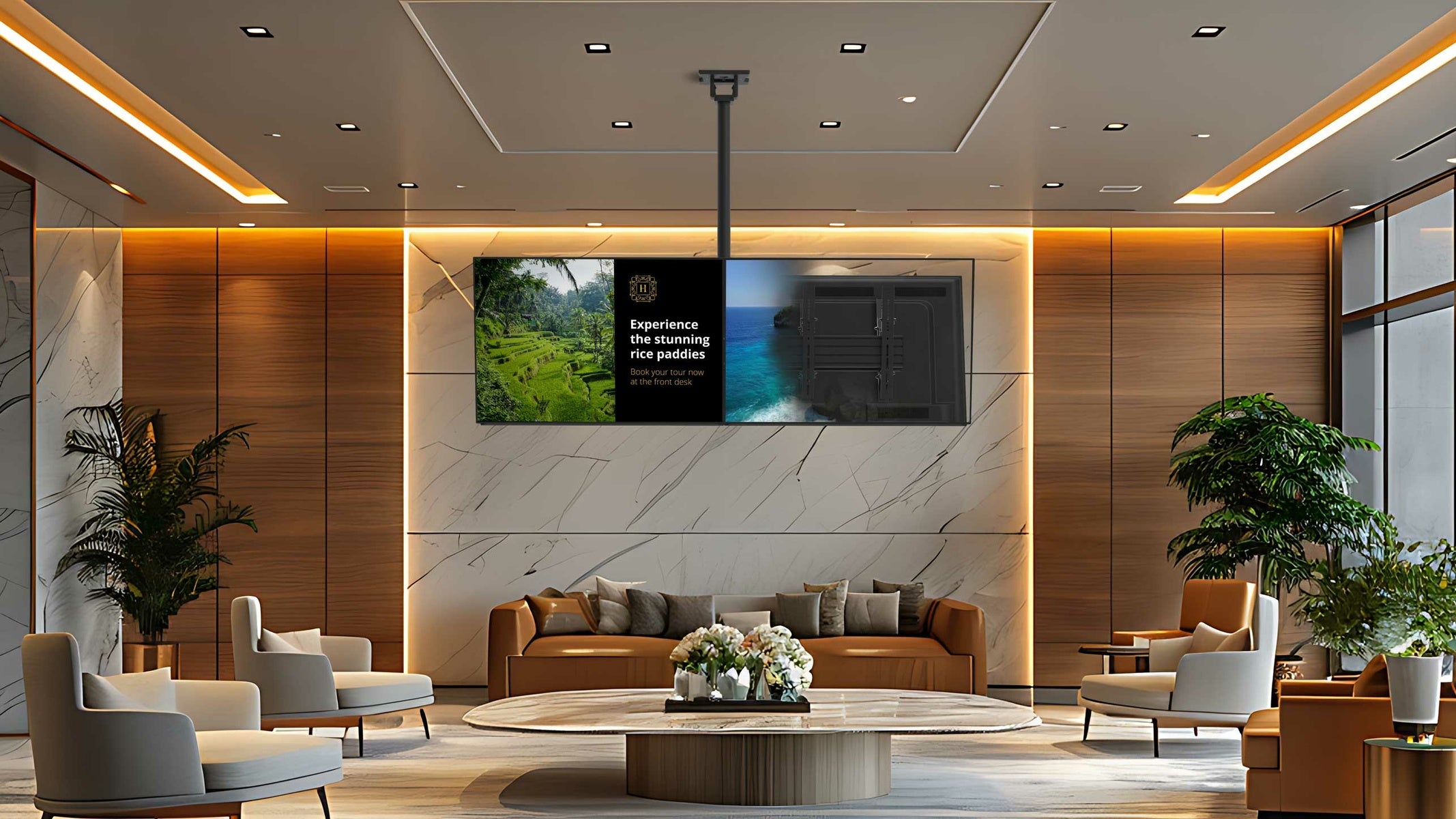

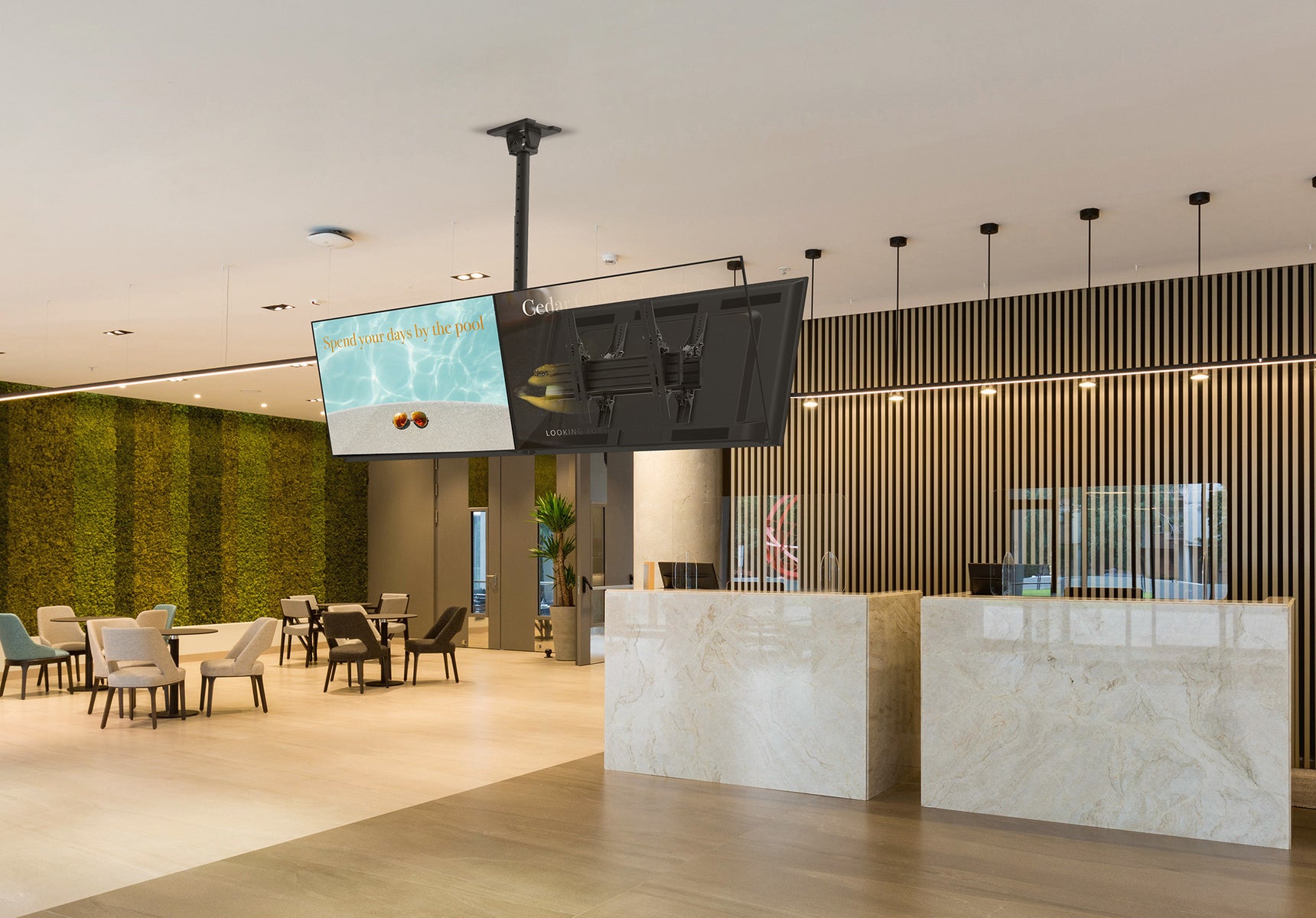

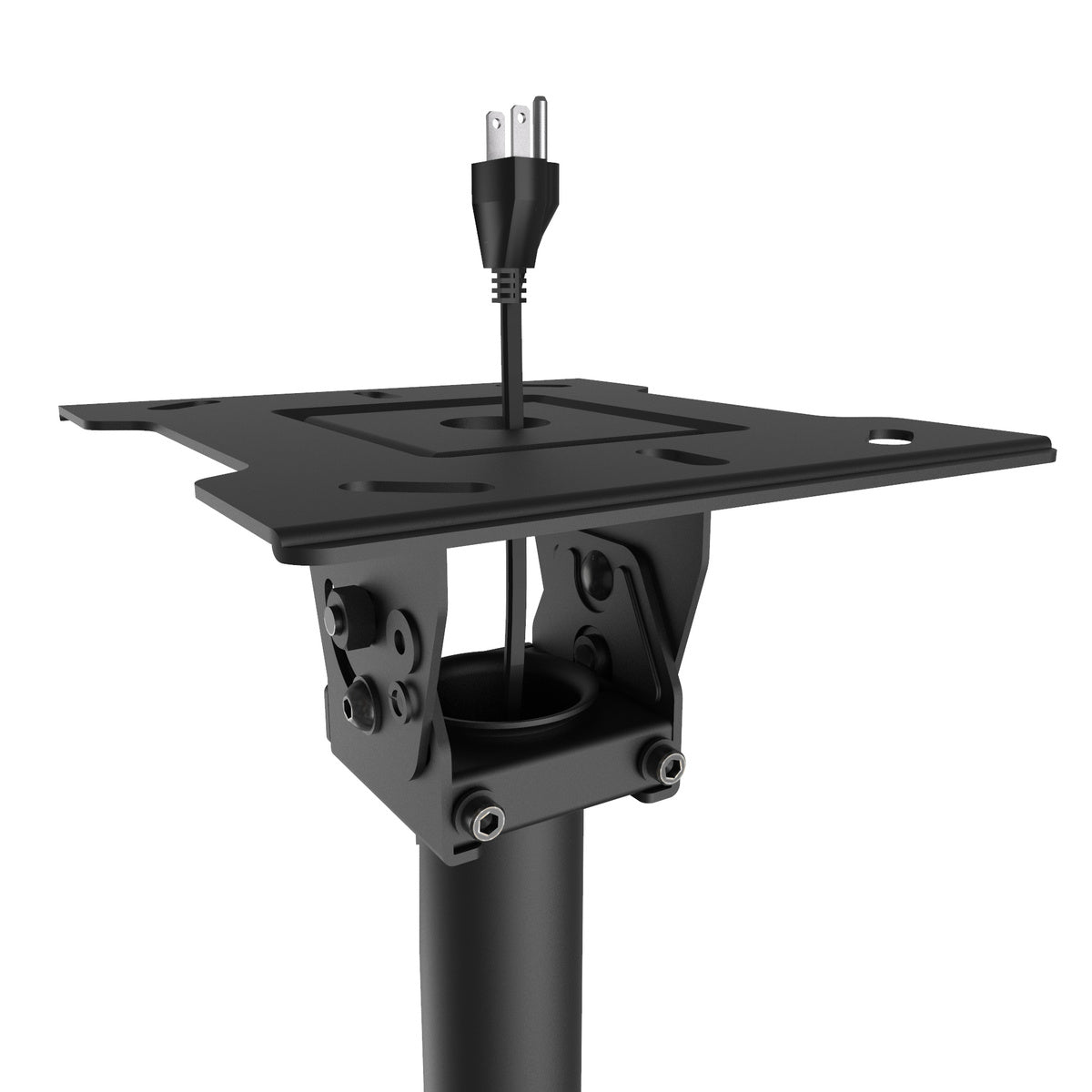

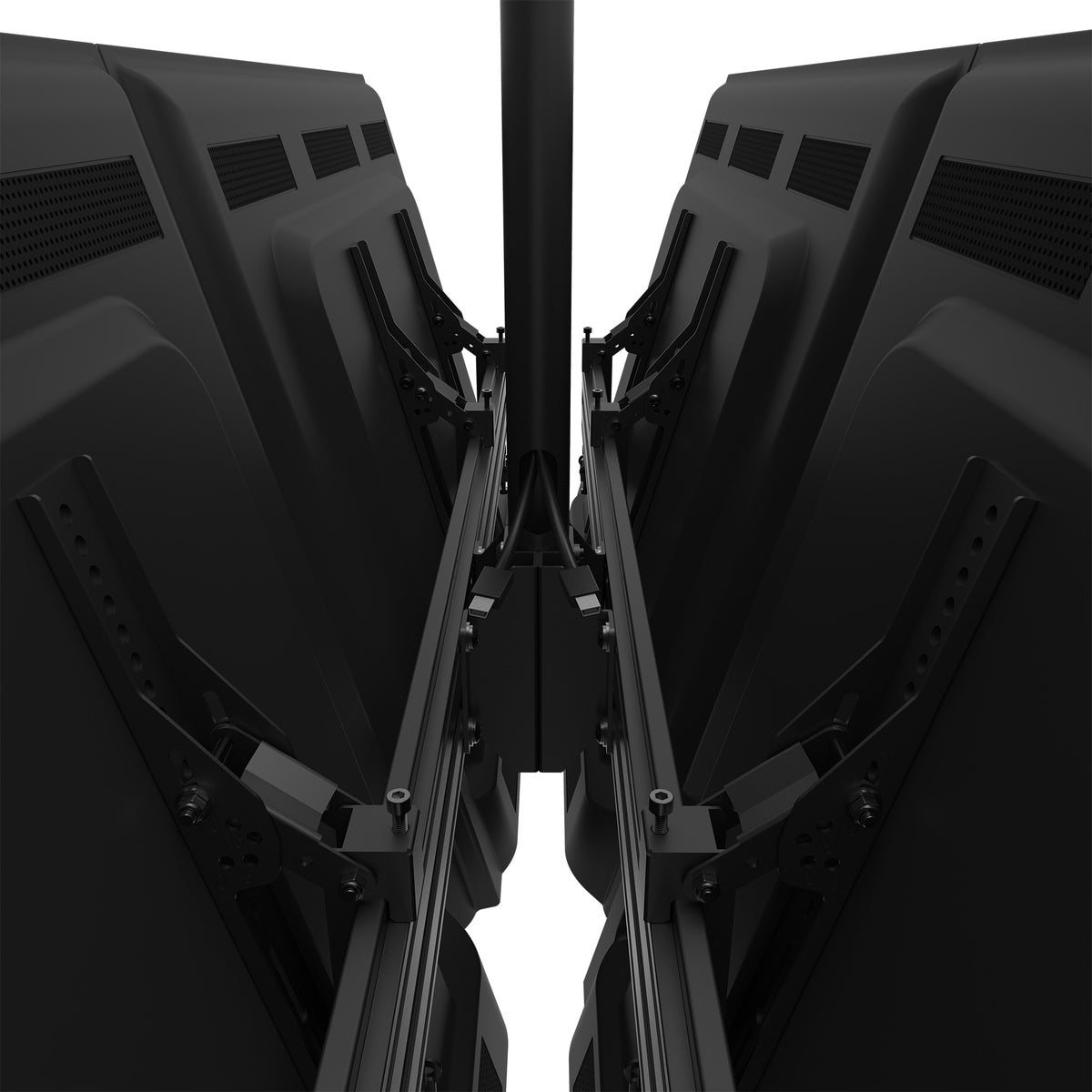

For clean integration inside a commercial AV installation or video conference systems environment, the mount features unobstructed cable management along the entire length of the pole. This pathway keeps power and signal lines completely concealed and organized, protecting them from damage while maintaining a neat appearance. This quad mount is a practical component for expanding audiovisual solutions in public or corporate settings where high visibility from multiple directions is required.

Details & Specs

Model CM600B4B
Product Dims (W x D x H) 53.9" x 13" x 70" (69 x 33 x 177.7 cm)
Box Weight 37.3 lb (16.9 kg)
TV Size Fits most TVs from 40” to 45”
Load Rated Supports four TVs up to 50 lb (23 kg) each

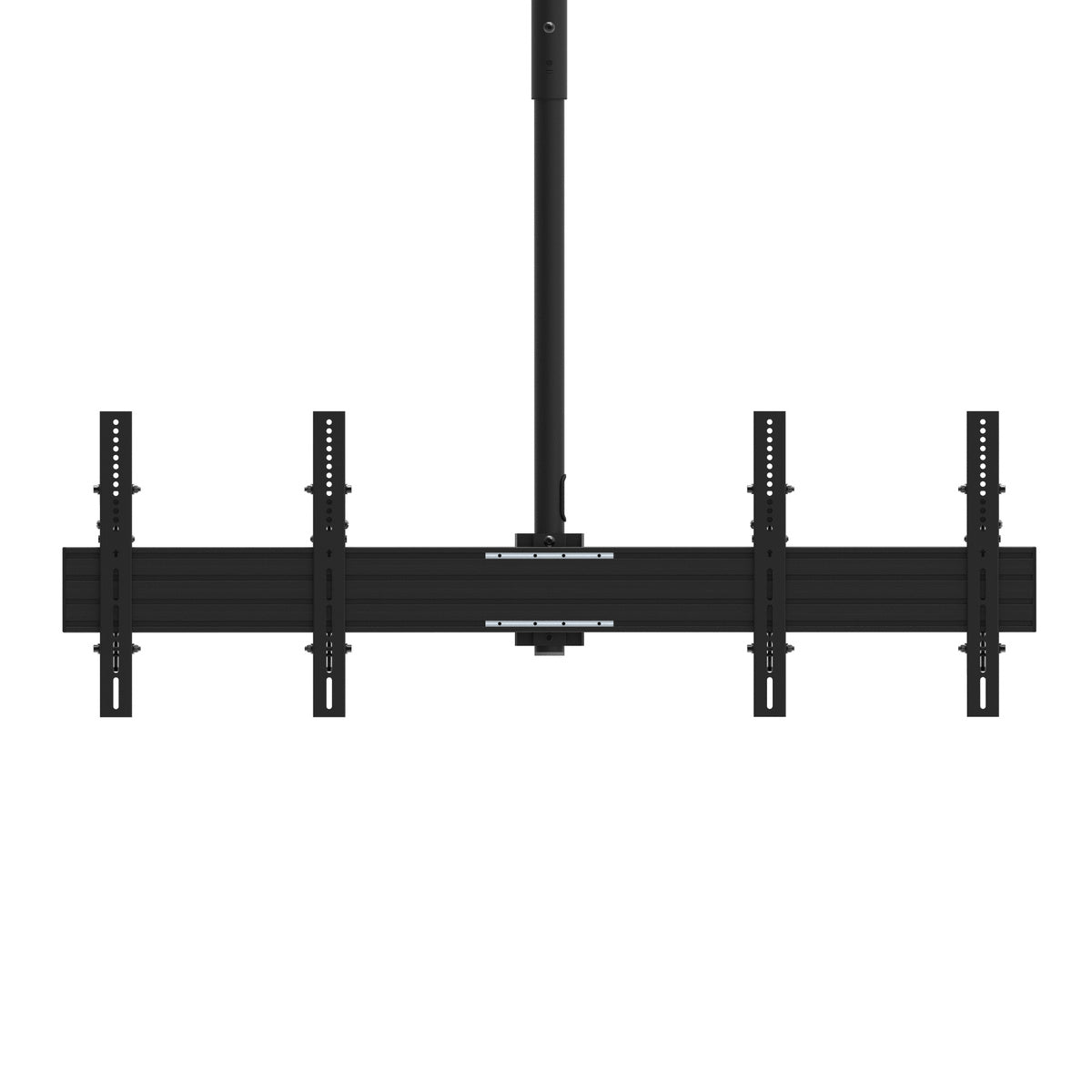

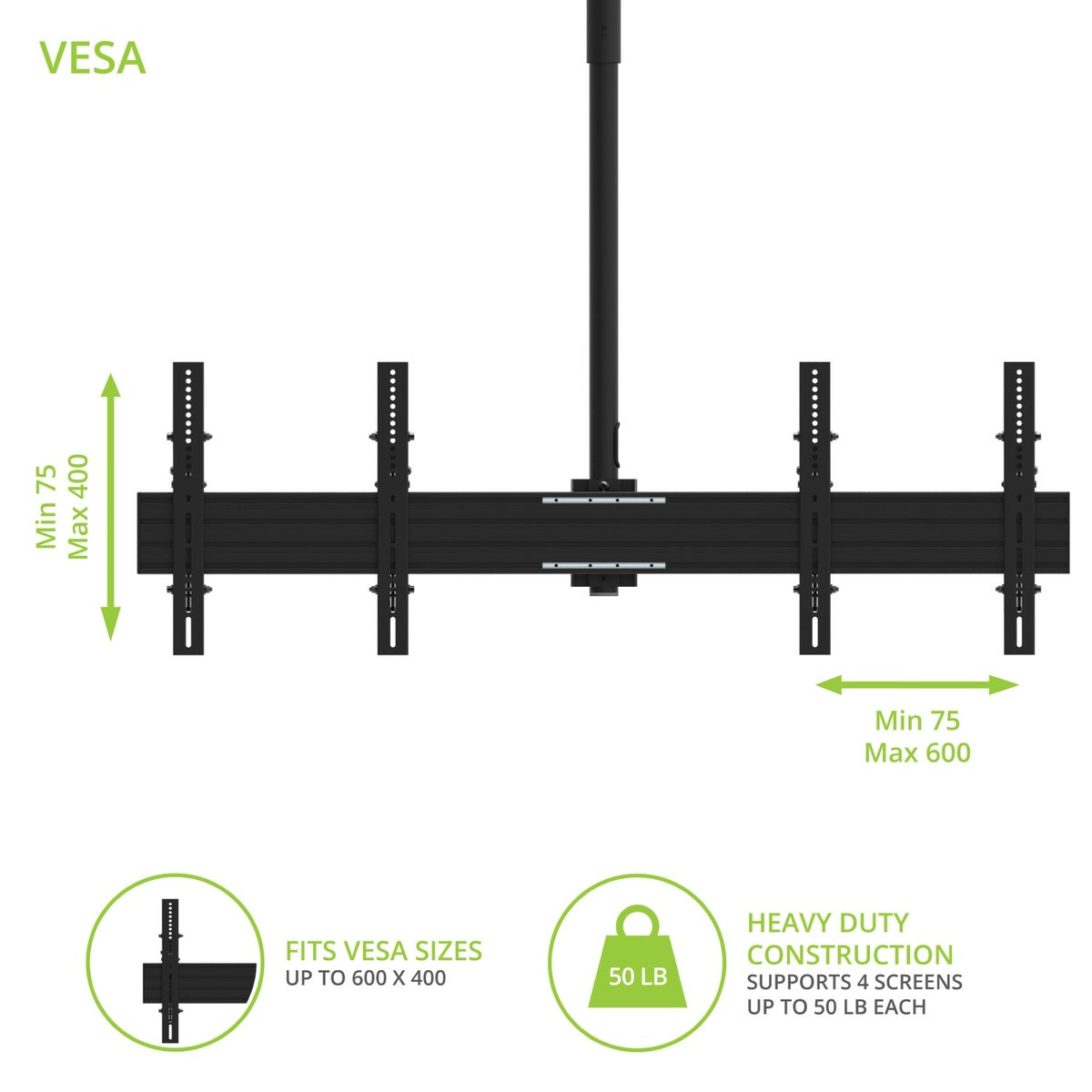

Vesa Accommodates VESA sizes from 75x75 to 600x400

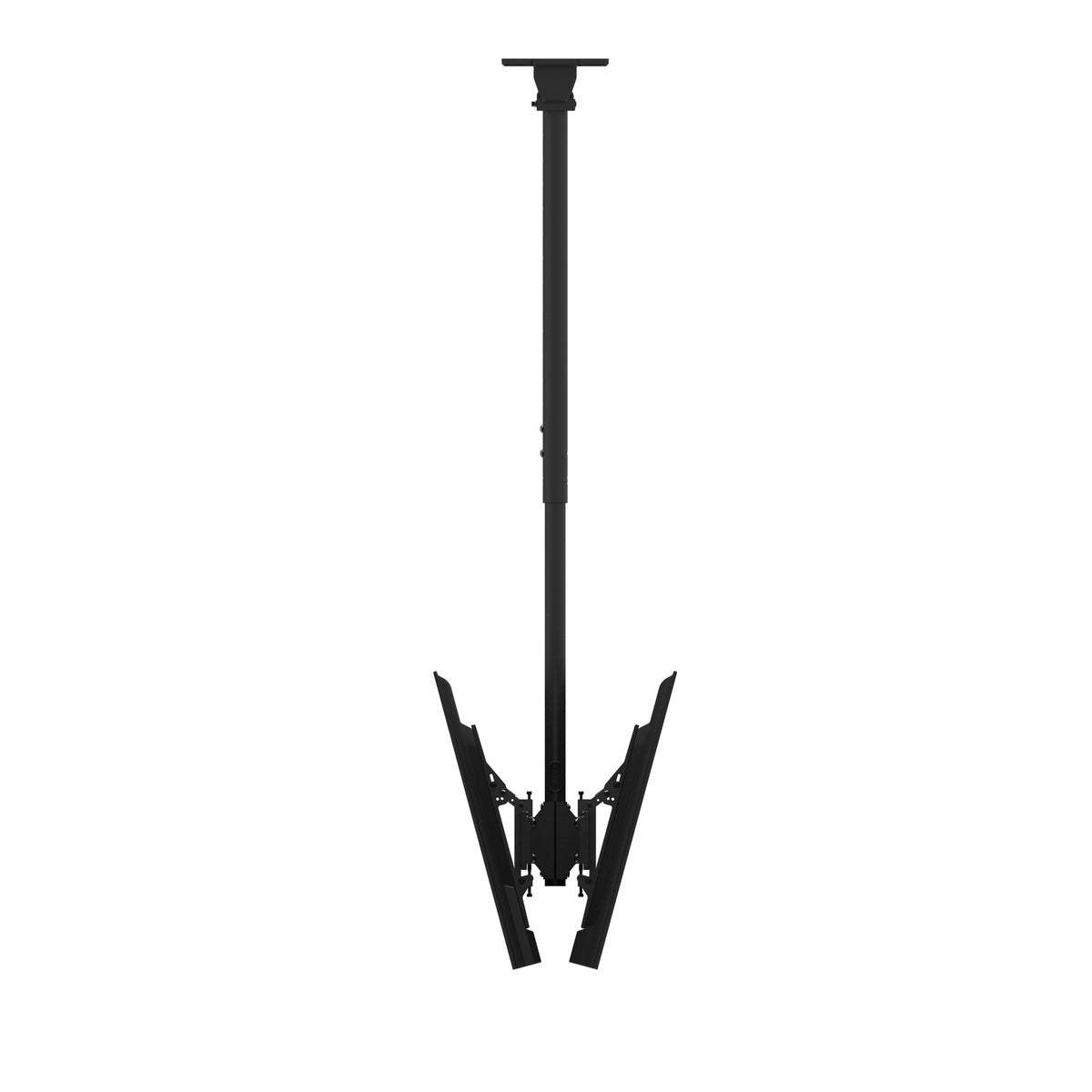

Tilt Up to +15° incremental and -6° of tilt

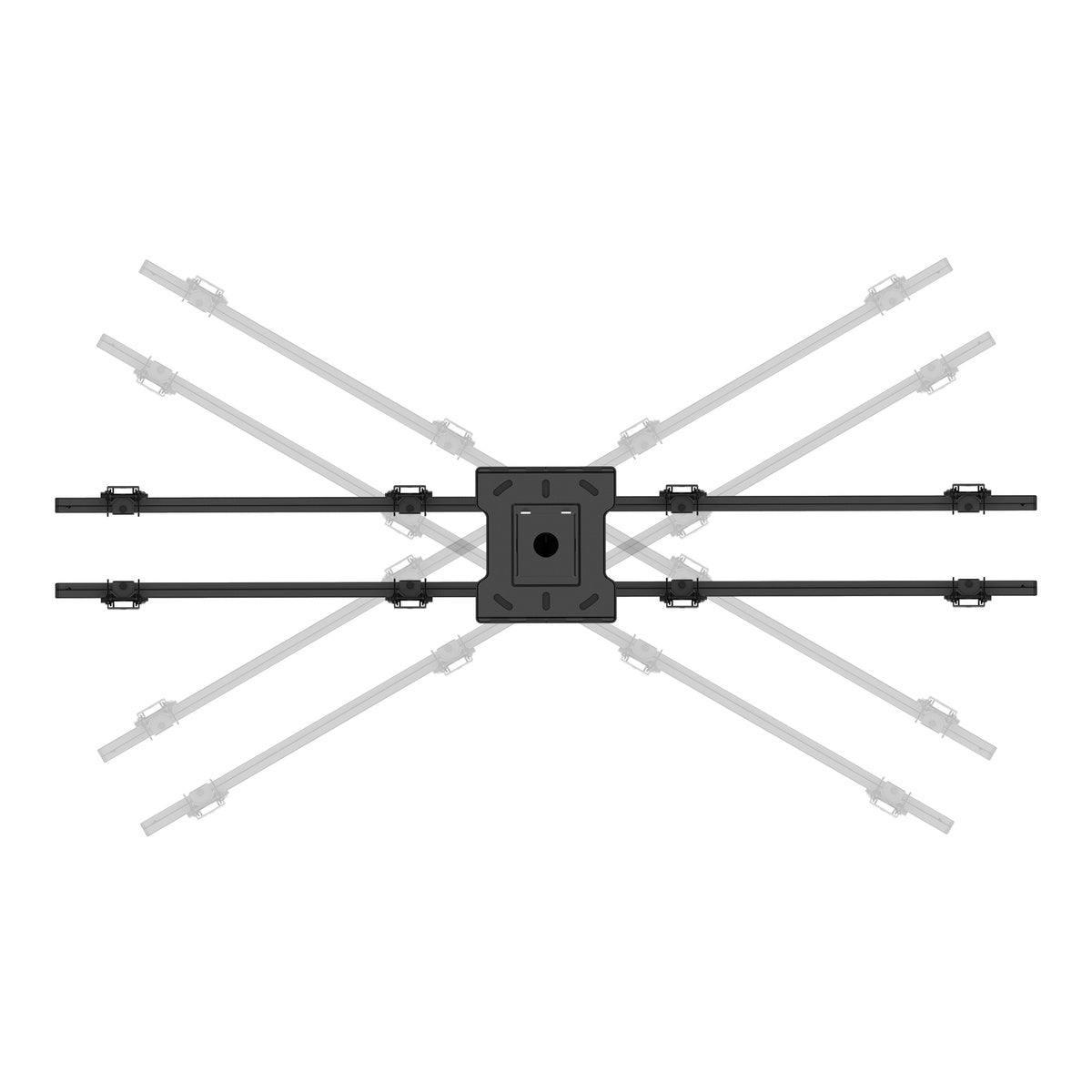

Swivel Telescopic post allows for 360˚ rotation

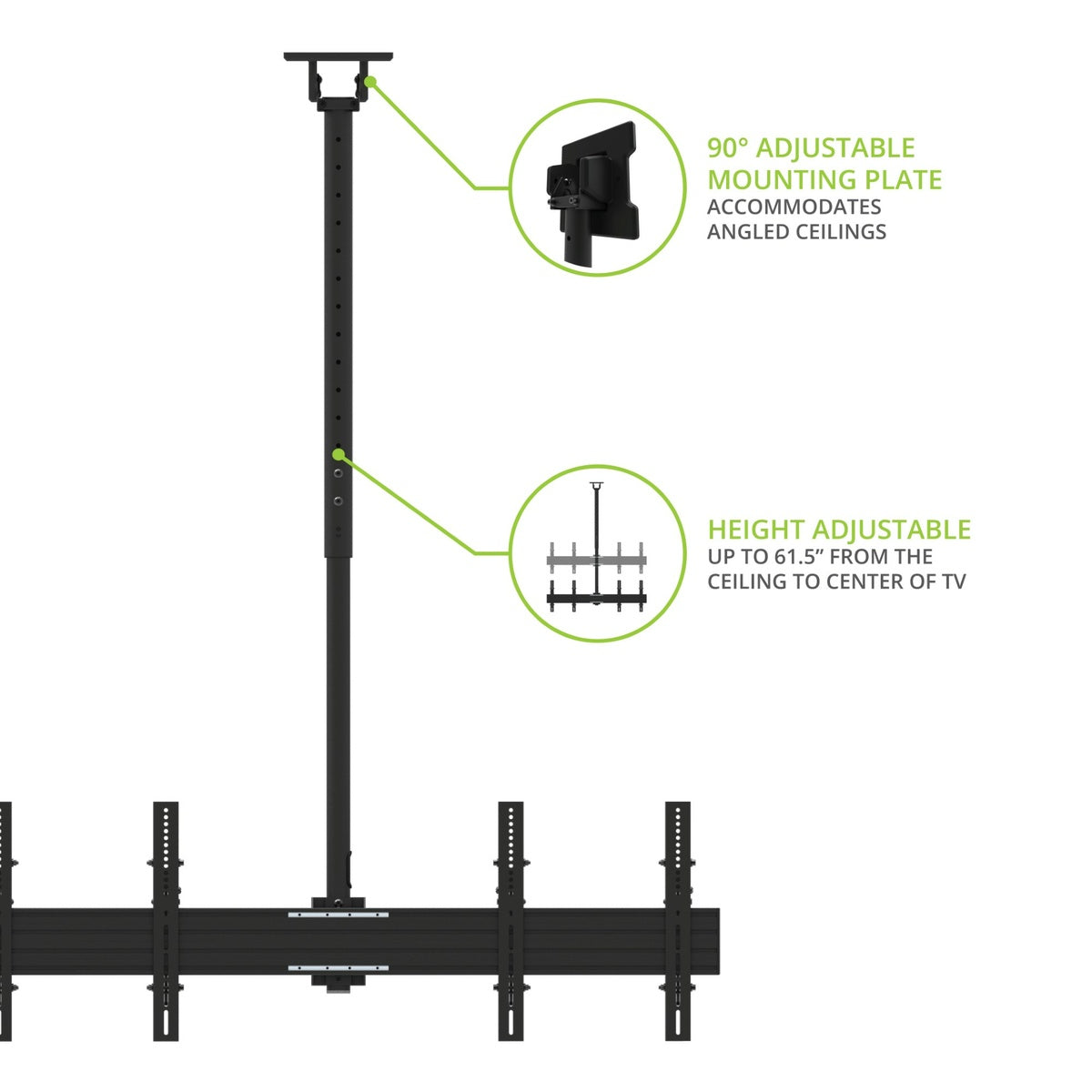

Extension Height adjustable from 42.7" to 61.5" (108.5 to 156.1 cm) from ceiling to center of TV
Cable Management Integrated cable management
Leveling Adjustable horizontal leveling

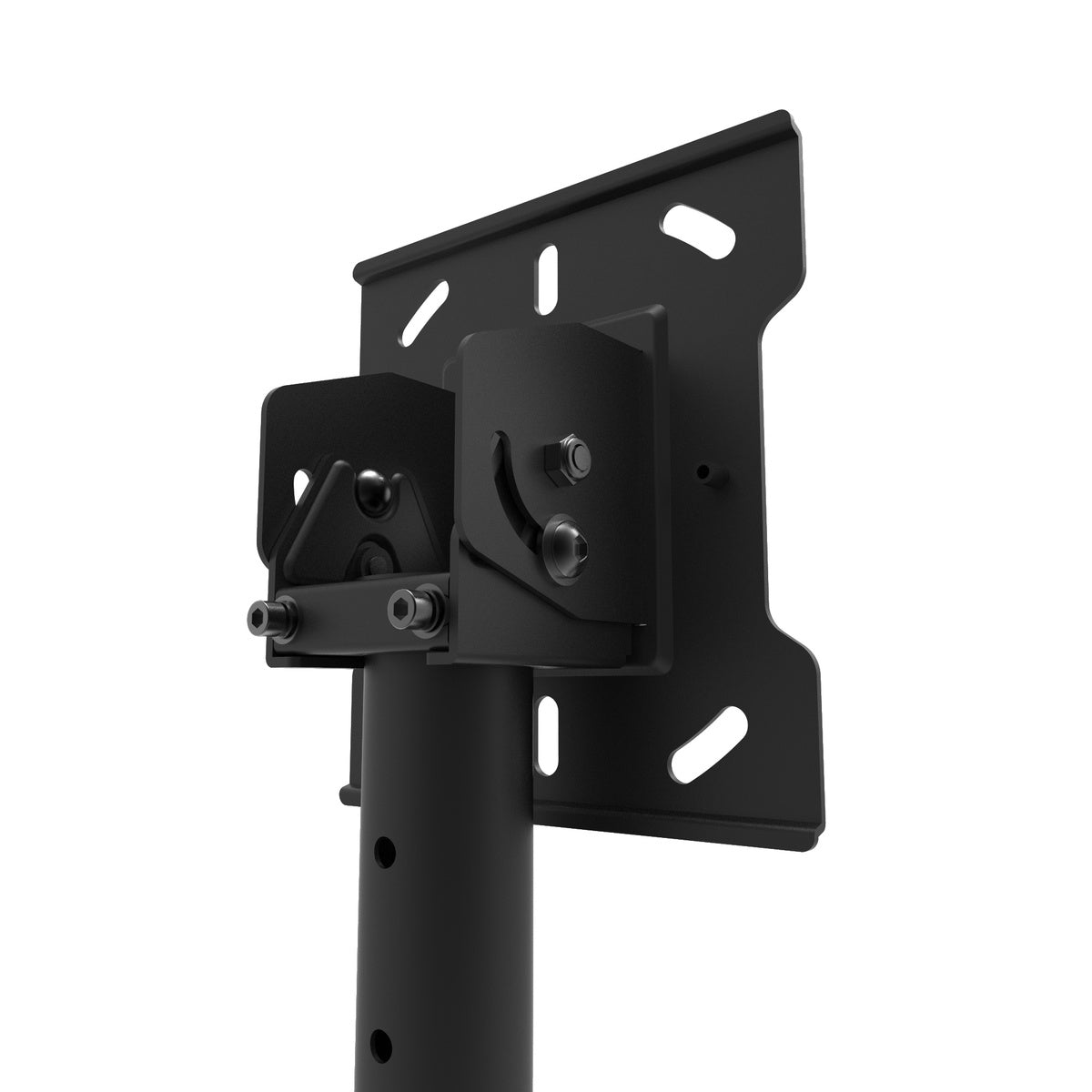

Pivot Point Pivot adjustment of 90° at the mounting plate
Min-Max TV Display Size 40-45
Recommended Max Weight 50
VESA Compatibility 75x75 - 600x400
Assembly Required Yes
Installation Required Yes
Indoor/Outdoor Designed for Indoor use
Hardware and Manuals Includes manual and all mounting hardware for wood stud and concrete installation
