Item #KPROMO-1260

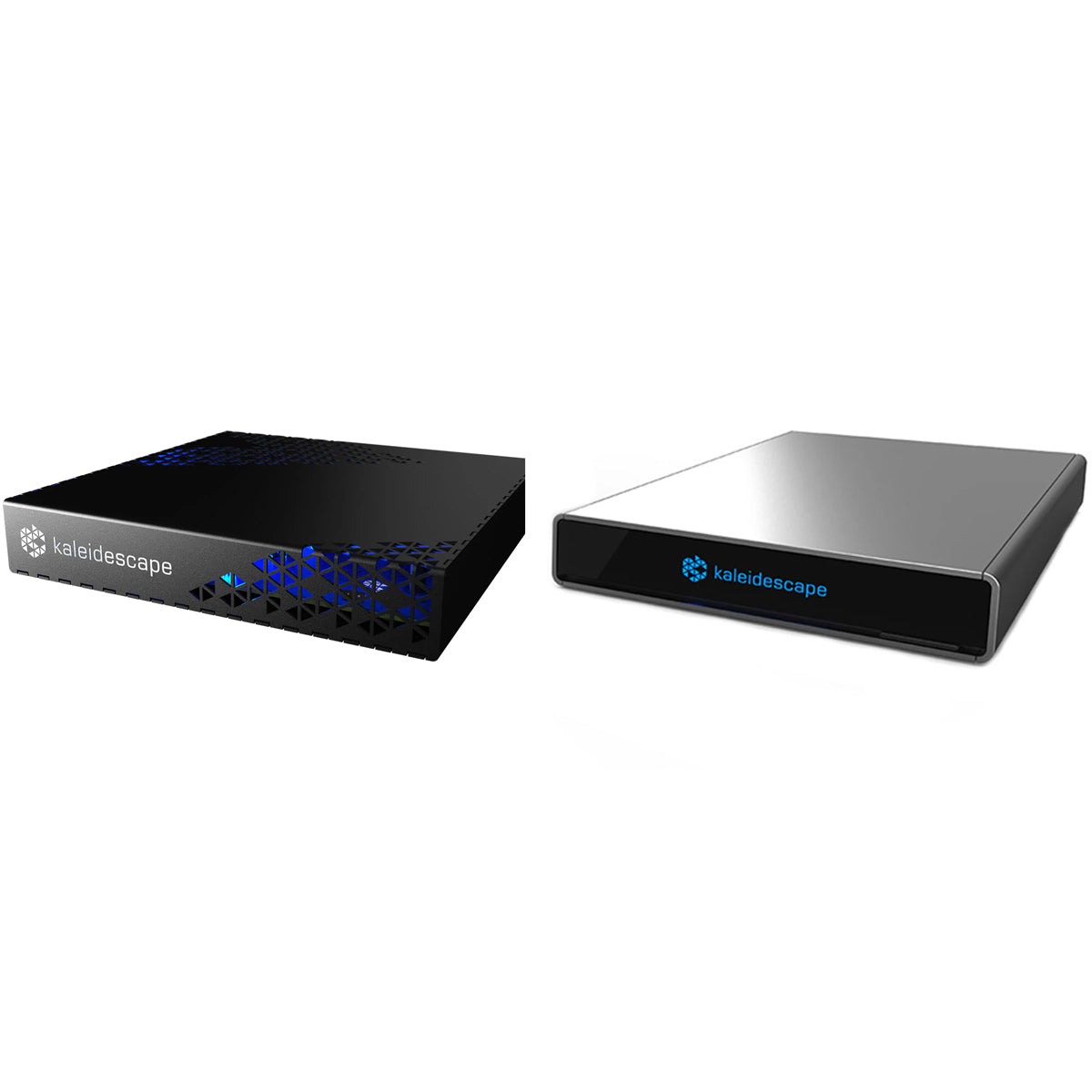

Kaleidescape Strato E + Terra Prime 12TB Bundle

Item #KPROMO-1260

Kaleidescape Strato E + Terra Prime 12TB Bundle

$8,990.00
Discontinued

Overview

Strato E is Kaleidescape’s entry-level 4K movie player. Strato E supports reference 4K video output with SDR, HDR10, and Dolby Vision. Like all Kaleidescape movie players, Strato E supports lossless multi-channel and spatial object-based audio, including Dolby Atmos and DTS:X. Strato E works on its own or as part of a Kaleidescape system.

Terra Prime movie servers feature an all-new board design, faster processing power, and a faster network. Offering faster downloads than its predecessor, with the highest capacity. Terra Prime adds increased performance and storage capabilities.

Strato E

Lossless Audio

Strato movie players provide lossless audio, maximizing sound quality with a range of downstream components. Strato supports multichannel and spatial audio codecs including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio.

Kaleidescape’s lossless audio makes your processor, amplifiers, and speakers sound the way the director intended. The dialogue is clearer, and every subtle sound and rumble draws you deeper into the story.

Standalone

As a standalone system, Strato E provides a single playback zone that holds a half-dozen movies on an internal solid-state drive – downloading a movie in about ten minutes over gigabit Ethernet. It features a streamlined interface, optimized for navigating a small movie library, offering automatic offloading of watched movies 48 hours after playback to make room for more movies. Purchased movies can be re-downloaded at any time.

Key Features

  • Lower cost of entry with 4K video output.
  • Lossless spatial audio. Clear dialog and immersive sound effects.
  • Reference video for every 4K display. SDR, HDR10, and Dolby Vision.
  • Standalone. Includes 480GB terabyte solid-state storage.
  • Scalable. Add a server for more movies on demand and more players for whole-house entertainment.

Terra Prime Server

Terra Prime stores movies, TV series, and concerts on an array of enterprise-class high-capacity hard drives or data center grade solid-state drives. Content stored on the movie server is played back on Strato players.

The new Terra Prime Solid-State is the only dedicated movie server with 2.5 Gigabit Ethernet enabling the fastest downloads and the most simultaneous movie playbacks.

Made in the USA, Kaleidescape movie servers are custom designed and manufactured for reliable, premium performance.

Kaleidescape’s operating system (kOS) is custom developed, managed, and controlled internally, with automatic updates, providing the best experience of any movie server on the market.

Key Features - All Models

  • 2.5 Gigabit Ethernet
  • Kaleidescape 4K movies have lossless audio and reference video
  • All movies are stored securely and protected by cloud backup
  • Movies can be downloaded on up to five systems; perfect for multiple residences
  • Terra movie servers enable large configurations
  • Up to four Terra servers can be combined for more storage
  • Custom rack mounts sold separately

Key Features w/ High-Capacity Hard Drives (HDD)

  • Next-generation movie server with high capacity
  • Enterprise-class hard disk drives
  • Storage options for approximately 1,450 (88TB), 800 (48TB), 350 (22TB), or 130 (8TB) 4K movies
  • Downloads a Kaleidescape high-bitrate 4K movie in as little as eight minutes
  • Distributes up to 5 simultaneous playback streams (compact)
  • Distributes up to 10 simultaneous playback streams (full-size)

Details & Specs

Model Kaleidescape Strato E
POWER
Max consumption 13W
Typical 4.3W
High power standby 3.8W
Low power standby 0.50W
External power adapter 100-240VAC to 12VDC @ 5A, 60W with detachable line cord
VIDEO OUTPUT
HDMI 2.1
HDCP 2.3 copy protection
VIDEO DISPLAY FORMATS
Resolutions 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p
Chroma 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12bit at 2160p50/60 only
Color spaces BT.2020, BT.709, BT.601
Aspect ratios 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable
Dolby Vision (standard and low- latency) and HDR10 (SMPTE ST 2084, 2086)
Movie playback up to 4K; UI in 2K
AUDIO OUTPUTS
HDMI 2.1 (combined with video)
AUDIO FORMATS
Dolby Atmos
DTS:X
Dolby TrueHD
DTS-HD Master Audio
Dolby Digital Plus
DTS-HD High Resolution Audio
Dolby Digital
DTS Digital Surround
Dolby MAT PCM
Linear PCM (up to 7.1ch, 96kHz/24-bit)
Model Terra Prime HDD
Specifications
Movie Server Downloads Kaleidescape high-bitrate 4K movies in as little as 8 minutes
Compact serves up to 5 simultaneous playbacks of Kaleidescape 4K movies
Full-size serves up to 10 simultaneous playbacks of Kaleidescape 4K movies
Network 2.5 Gigabit Ethernet (recommended)
1 Gigabit Ethernet (minimum)
Other Connection USB 3.0 (reserved)
Environment Operating: 41 to 95°F (5 to 35°C)
Storage: -4 to 140°F (-20 to 60°C)
Relative humidity: 20 to 80% (operation), 5 to 90% (storage)
Maximum operating altitude: 10,000ft (3,048m)
Ventilation Airflow:
Full Size - 10 CFM (17 m3/hr) max
Compact - 5 CFM (8.4 m3/hr) max
Minimum 1" (2.5cm) space at the front
Minimum 2" (5cm) space at the rear
Certifications CSA 62368-1
IEC 62368-1
FCC CLASS B
CE
RoHS Compliant
Compact - 24 & 12 TB
Dimensions (WxHxD) 7.87 x 1.52 x 14.33"
20.0 x 3.9 x 36.4 cm
Weight 7.2 lbs (3.3 kg)
Fan & Drive Noise Typical: 25 dB(A)
Power Max consumption: 29W
Typical: 24W
External power adapter:
2.6 x 1.4 x 6.5in (6.6 x 3.5 x 16.5 cm)
150W with detachable line cord
100-240V, 50-60Hz universal input
12VDC @ 12.5A
Storage 24TB configuration stores:
~400 Kaleidescape high-bitrate 4K movies
12TB configuration stores:
~200 Kaleidescape high-bitrate 4K movies
Rack Mount (sold separately) Rack shelf available for mounting one or two units in a 19" rack
1RU space
