Item #010-03794-00

JL Audio Primacy CS Centerpiece

Streaming Stereo Preamplifier for Primacy Audio Systems
Item #010-03794-00

JL Audio Primacy CS Centerpiece

Streaming Stereo Preamplifier for Primacy Audio Systems
$15,000.00
Available In-Store
Contact Us

Overview

The JL Audio Primacy CS Centerpiece brings powerful control and flexibility to your system, combining high-resolution 32-bit/192 kHz DSP processing with seamless HDMI ARC/eARC connectivity for simplified integration with your TV and sources. Its fully discrete analog circuitry and precision-tuned inputs deliver exceptional signal purity, while support for multiple digital, analog, and streaming connections ensures effortless system expansion. Designed to work with Primacy loudspeakers, the Centerpiece also enables advanced room optimization and personalized listening profiles for a refined, immersive audio experience.
Watch our Comparison

CS Centerpiece


Digital Audio

High-performance, triple-core DSP, operating at 32-bit/192 kHz audio resolution, matching the DSPs in each loudspeaker.

Connect all your sources and streaming services on your TV to the centerpiece via a single HDMI cable with support for ARC/eARC.

Connect your computer or other USB digital audio component to the centerpiece’s universal plug-and-play USB-C® connection.

Analog Audio

No op-amps or coupling capacitors are in its analog signal paths – only highly optimized discrete circuitry.

Connect additional source components via two pairs of analog inputs, each precisely optimized to drive the centerpiece’s dual-mono ESS analog-to-digital converters for maximum performance.

Connect two subwoofers or an external amplifier to the included analog outputs.

Remote Control Compatibility

Simple one-cable HDMI ARC/eARC connection to your compatible television enables a TV remote to adjust the volume level of the centerpiece when you’re watching TV or streaming content.

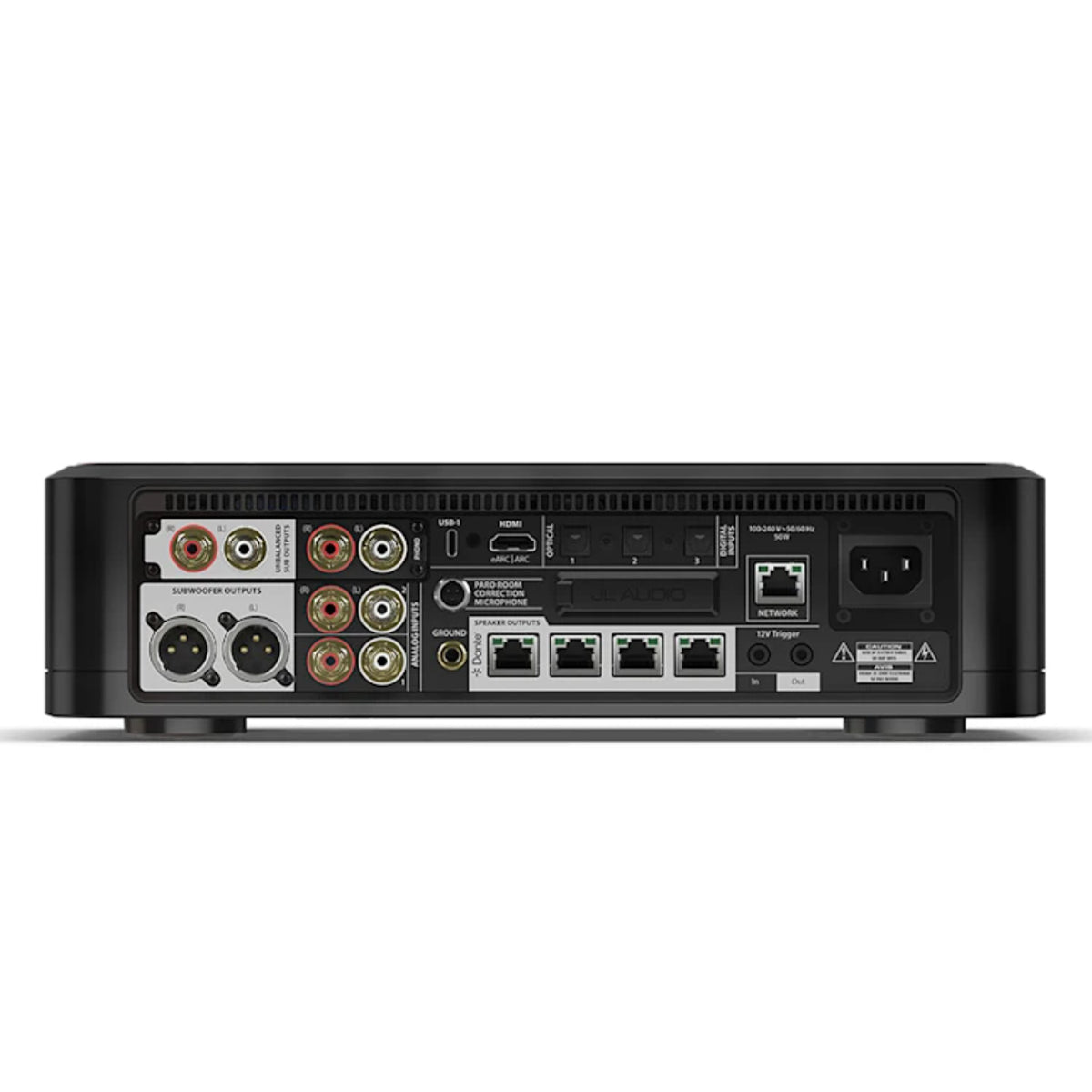

Input Connections

  • HDMI audio with ARC/eARC (1)
  • Optical digital (3)
  • USB-C audio (1)
  • Analog stereo (2 pr)
  • Phono stereo (1 pr)
  • P.A.R.C. calibration microphone (1)

Primacy Audio Systems


Primacy Centerpiece Compatible

Enhance your system with the optional Primacy CS Centerpiece, which allows for control of digital, analog, and streaming sources as well as Primacy Automatic Room Optimization (P.A.R.O.).

Connections and Streaming

The optional CS Centerpiece connects to your compatible loudspeakers via Dante® networking, preserving a high-resolution digital signal flow. You can also connect to your compatible smartphone or computer via Ethernet, Wi-Fi® connectivity or Bluetooth® technology, and stream audio from your favorite online sources.

User Profiles

Fine-tune your audio experience based on your room’s acoustics, seating position and frequency response preferences.

Room Optimization

When paired with your Primacy loudspeakers, you’ll get P.A.R.O., which measures and optimizes the entire system — as well as any additional powered subwoofers — for your room and listening position.

Active Design

Individual amplifier channels are connected to each driver section. This allows for optimal control and damping over each moving diaphragm.

Built-In Amplifiers

Each loudspeaker features multiple built-in amplifiers — one for each driver section — employing our most advanced switching technology. DSP filtering occurs at the input of each of the active amplifier channels.

Alloy Casting

The enclosure starts with a one-piece alloy casting, which includes many internal features, such as the bracing and ports for the woofer section.

High-Performance Triple-Core DSP

A digital signal processor, operating at 32-bit/192 kHz audio resolution, provides precise control over crossover filters, equalization, dynamics, delay, and phase.

Beautifully Built

Optional replaceable cosmetic panels are available in a variety of finishes to match a wide range of decors.

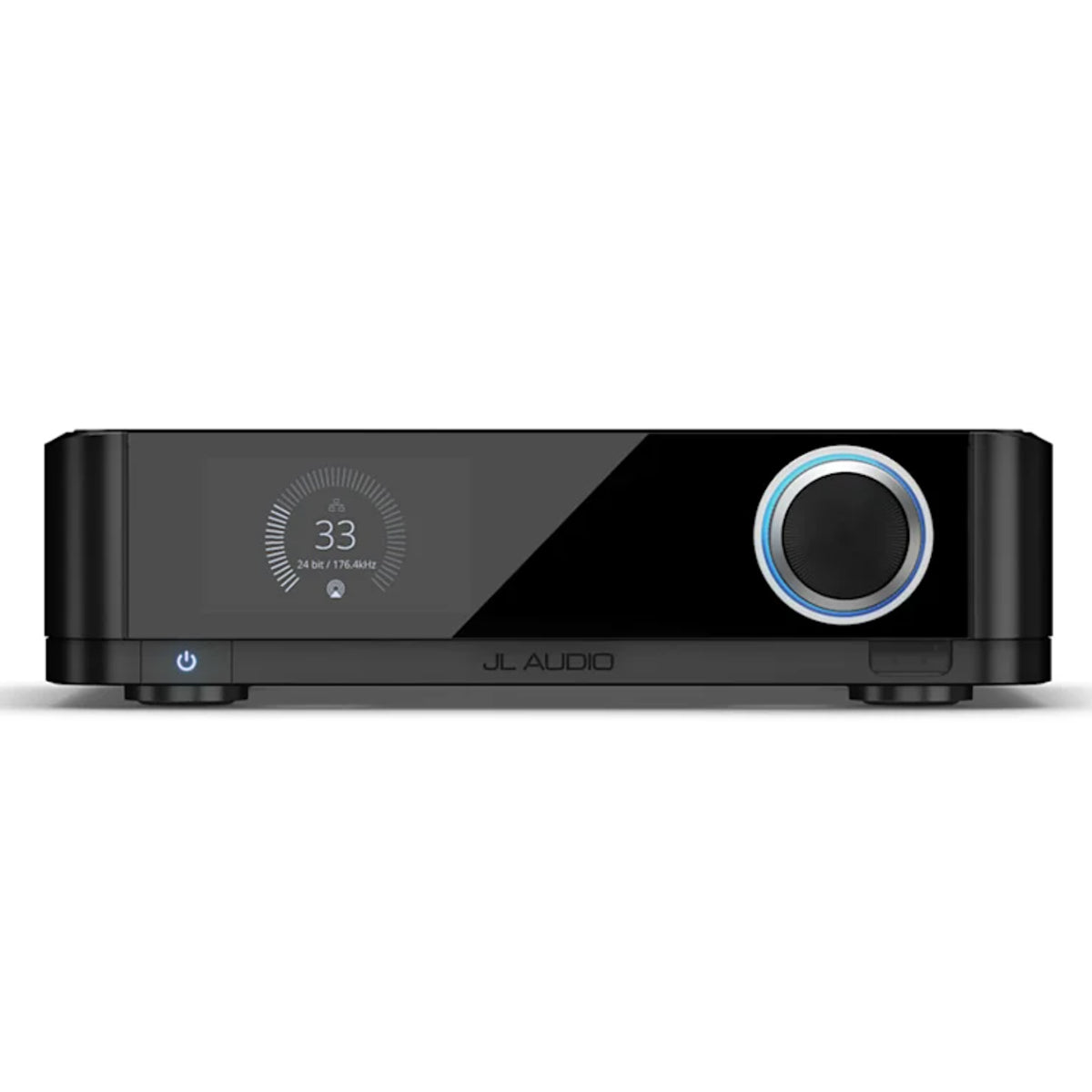

JL Audio Primacy CS Centerpiece Preamplifier

Details & Specs

General

ConstructionPrimary cast aluminum alloy enclosure with secondary machining, glass top, and fascia
Volume control: machined aluminum rotary dial with active lighting ring and push-button center cap
DisplayRGB AMOLED dead front, 640 x 320 pixels, 198 ppi, 70 x 43 mm active area
Circuitry ShieldingModular architecture with isolated power supply and dedicated, fully shielded secondary enclosures for analog and phono subsections
Thermal ManagementActive, quiet-flow fan cooling system with user-serviceable air intake filtration

Streaming Functionality

Streaming FunctionsApple AirPlay 2, Google Cast, Qobuz Connect, Roon Ready, Spotify Connect, TIDAL Connect
Network StandardUPnP/DLNA
Source Level Trim–12 dB to +12 dB in 0.5 dB steps

Digital Signal Processing & Conversion

Analog to Digital ConvertersESS SABRE PRO x 2 (mono mode)
Digital Signal ProcessorAKM triple-core with Velvet Sound technology
Processing Resolution32-bit / 192 kHz
Sample Rate ConversionDedicated hardware asynchronous converters
Digital to Analog ConvertersESS SABRE Reference DACs x 2 (mono mode)

Room Optimization

Room OptimizationPrimacy Automatic Room Optimization (P.A.R.O.)
Measurement EngineDual FFT measuring time, frequency, and amplitude
Measured ResultsFrequency response, impulse response, and phase
Computer RequirementsWindows 10 or later; macOS 14 or later

Audio Settings

BalanceLeft/right channel slider
Tone ControlsOff/on; Bass, Midrange, Treble: ±6.0 dB in 0.5 dB steps
E.L.F. Trim–12 dB to 0 dB

Network Digital Audio Transport

ProtocolDante audio over IP
Standard802.3ab compliant 1000BASE-T
ConnectionsFour RJ45 ports
Resolution2-channel at 32-bit / 192 kHz

Analog Inputs

Inputs2x RCA stereo inputs
Input Impedance47 kΩ
Frequency Response20 Hz to 20 kHz, ±0.02 dB
2 Hz to 80 kHz, +0, -3 dB
THD+N<0.027% / <0.011%
Signal to Noise Ratio>101 dB A-weighted

Phono Inputs

TypeMM/MC compatible
RIAA Accuracy±0.2 dB
Infrasonic Filter6 dB/octave at 22 Hz

Digital Inputs

Optical3x Toslink, up to 192 kHz / 24-bit
HDMIHDMI 2.1 with ARC/eARC
USBUSB-C; PCM up to 384 kHz, DSD up to 4x

Subwoofer Outputs

OutputsRCA and XLR dual outputs
Output VoltageXLR: 1.5V RMS
RCA: 3.0V RMS
ControlsLevel trim, low-pass filter, mono/stereo modes

Network & Wireless

LANGigabit Ethernet, 1000BASE-T
Wi-FiWi-Fi 6, 802.11ax, 2x2 MIMO
BluetoothBluetooth 5.1 with AAC

Electrical

Voltage100 to 240V AC, 50/60 Hz
Power ConsumptionStandby: <7W
Operation: ~52W

Physical Specifications

Dimensions H x W x D3.61" x 13.10" x 11.30"
Weight18 lbs

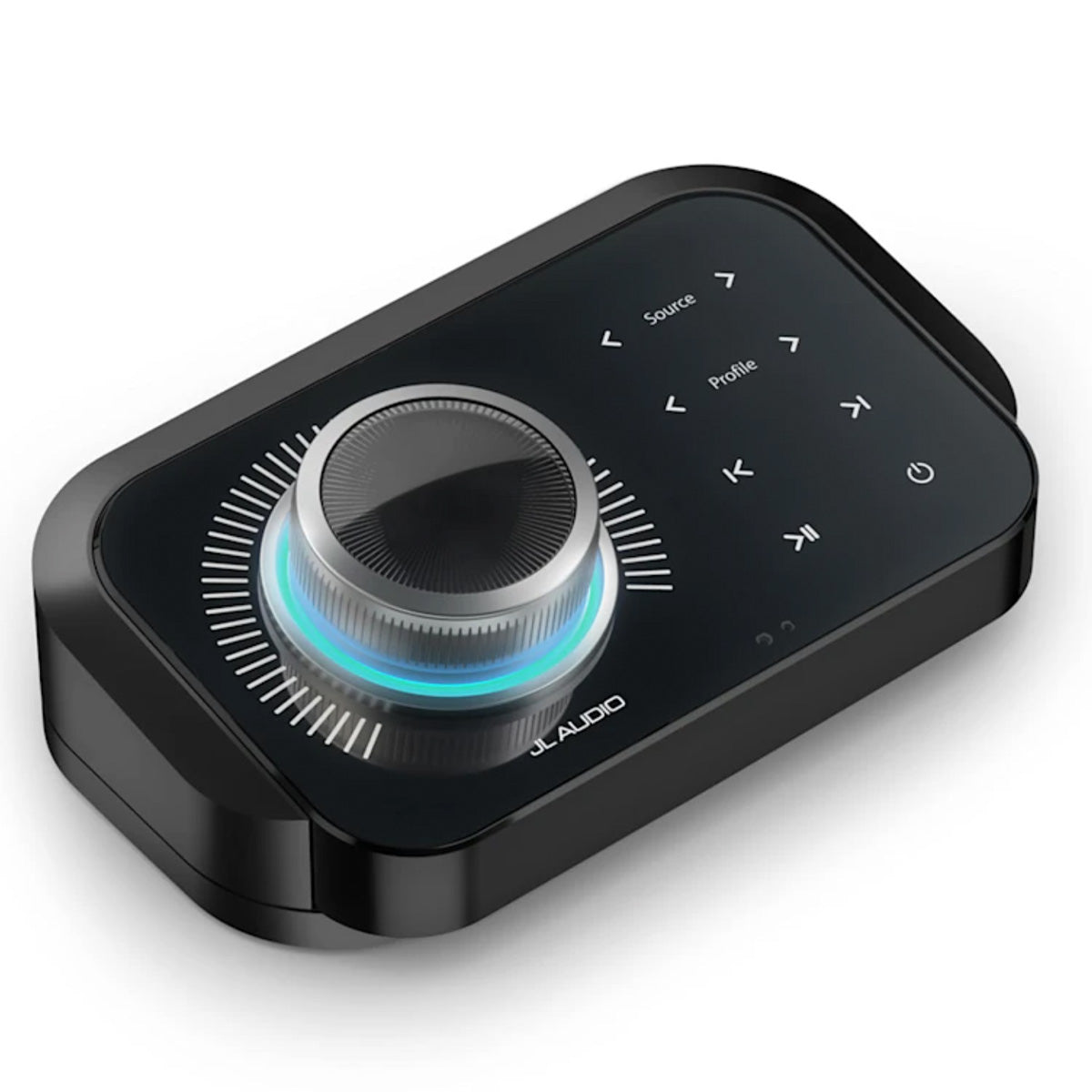

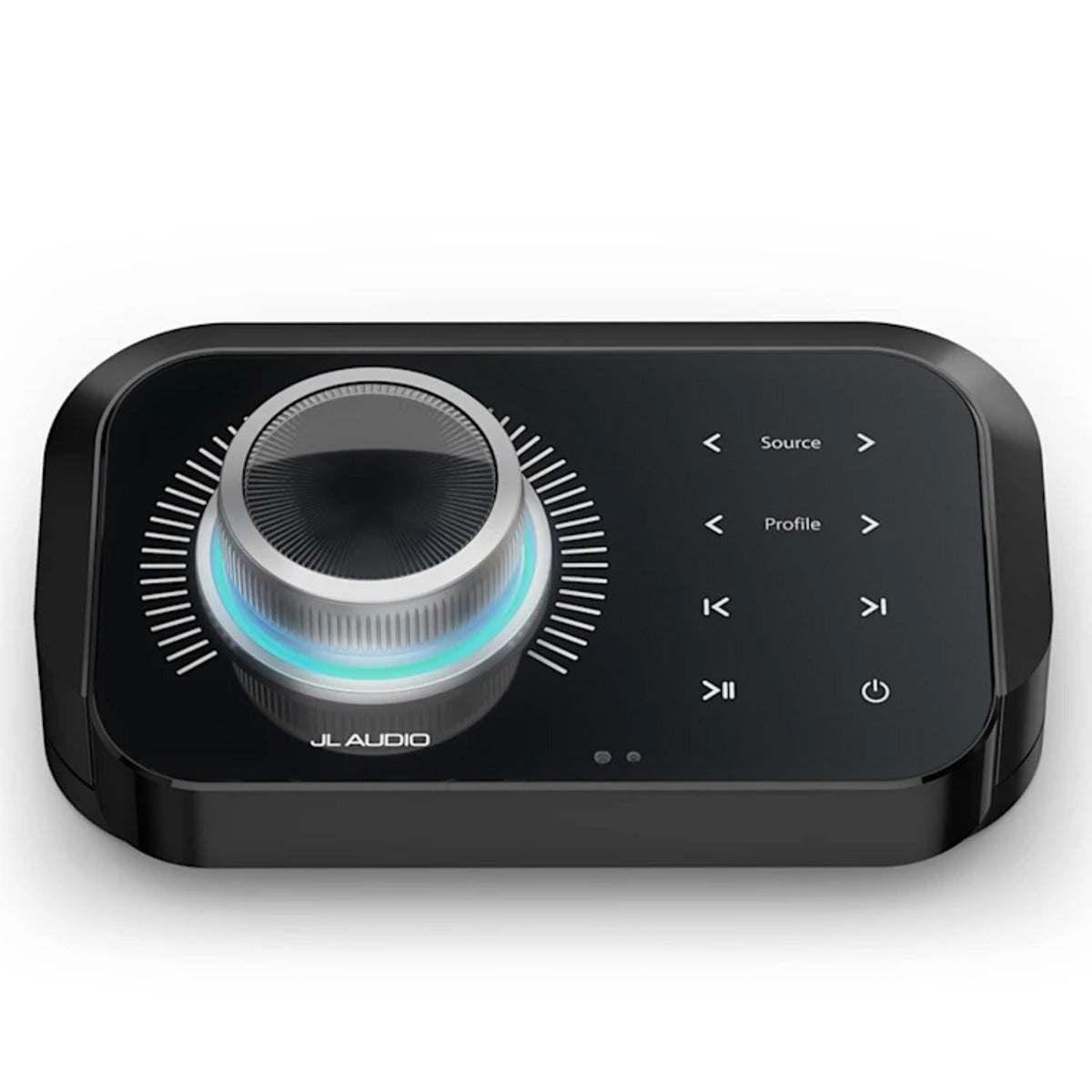

Remote Specifications

Dimensions H x W x D1.20" x 6.61" x 3.98"
Weight1.72 lbs
