JL Audio Fathom IWS-SYS-208

Dual 8" In-Wall Powered Subwoofer System
Item #IWS-SYS-208

JL Audio Fathom IWS-SYS-208

Dual 8" In-Wall Powered Subwoofer System
$4,300.00
Available In-Store

Overview

Born from the same groundbreaking technologies used to develop JL Audio's free-standing powered subwoofers, the Fathom® IWS in-wall subwoofer systems deliver remarkable bass performance, while remaining largely concealed within most home audio/theater environments.

The 8-inch Fathom® IWS systems are smaller and easier to integrate than the larger in-wall Fathoms, fitting in all standard, 16-inch, on-center stud openings, and operating through very small grilles. These grilles accommodate all common drywall thicknesses and can be easily painted to match the wall.

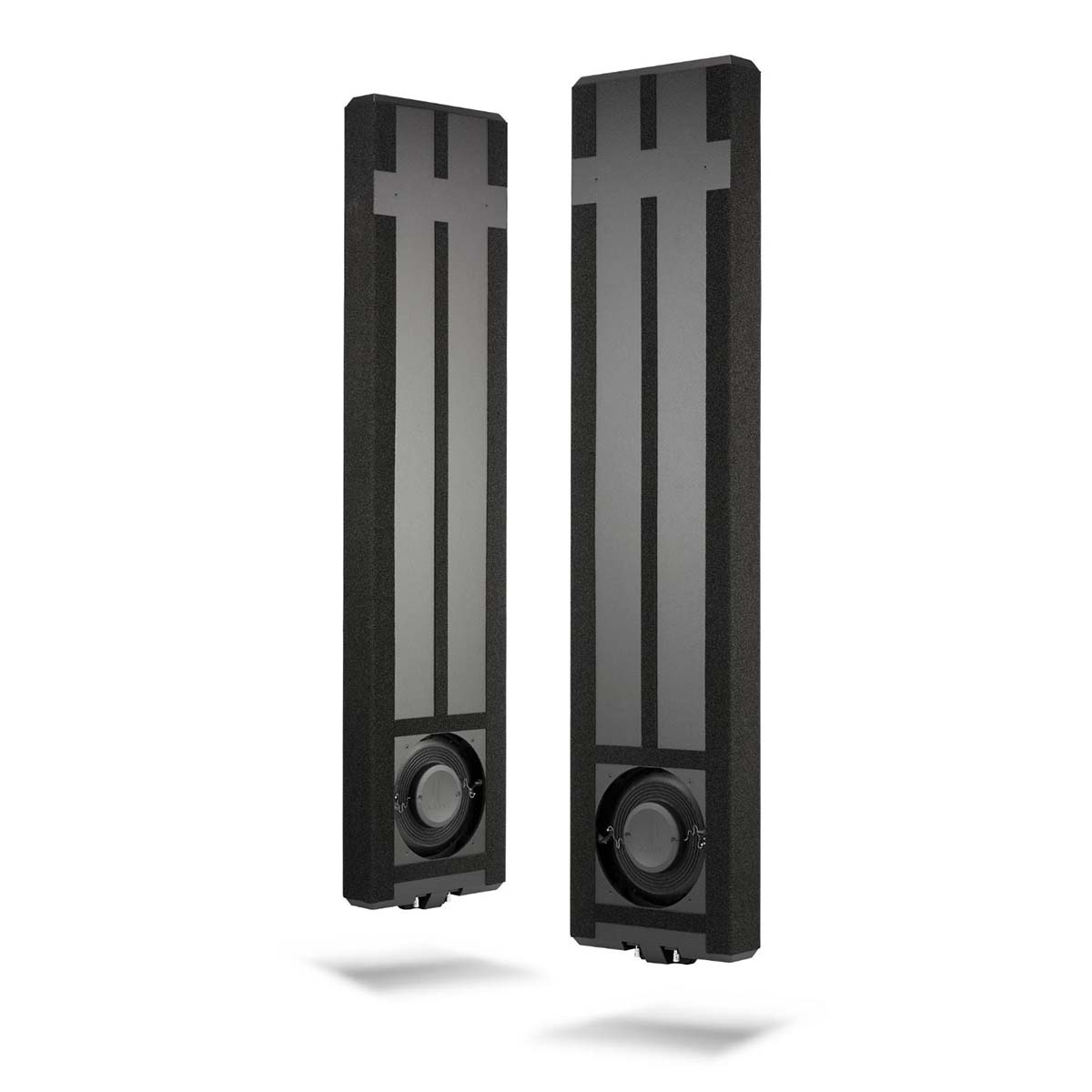

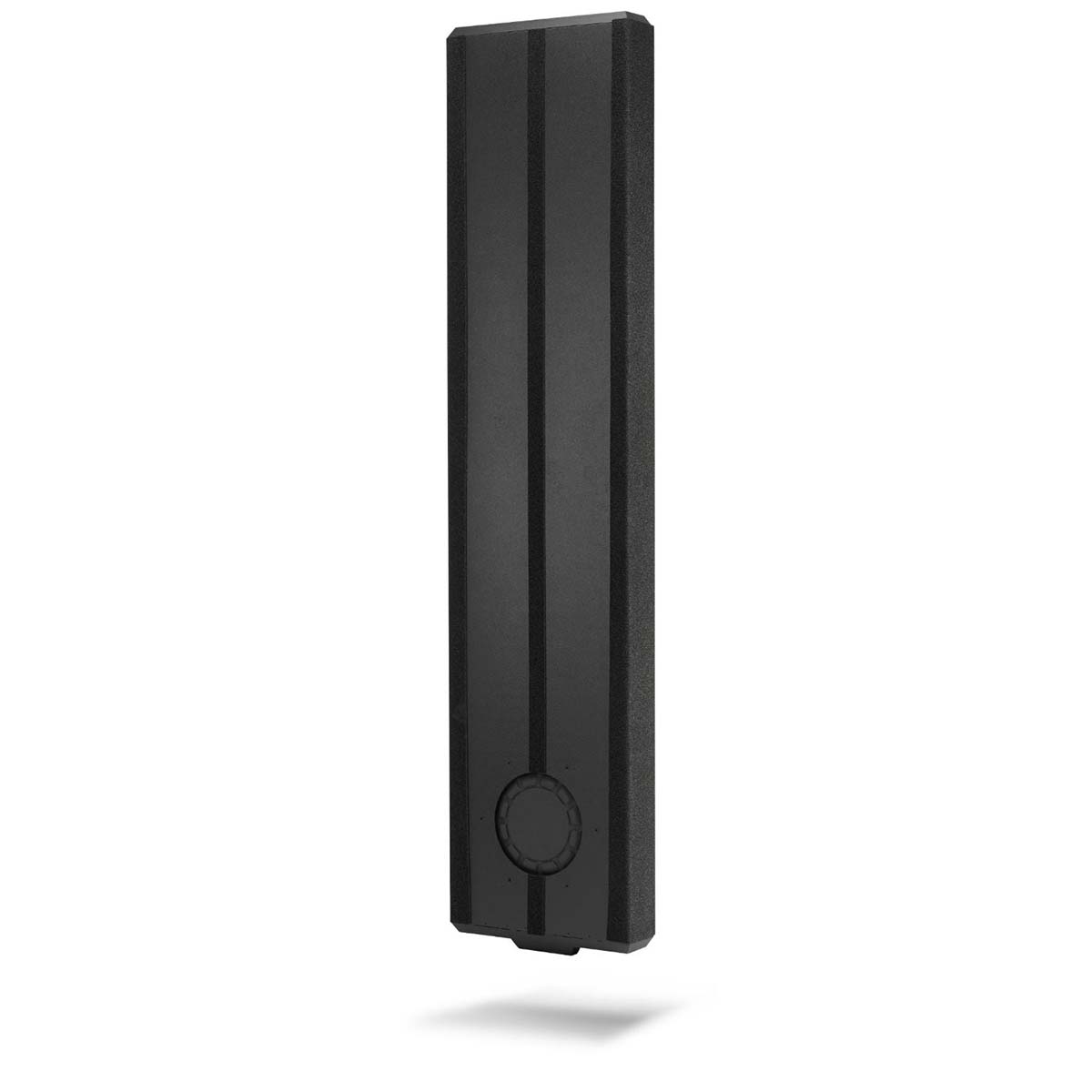

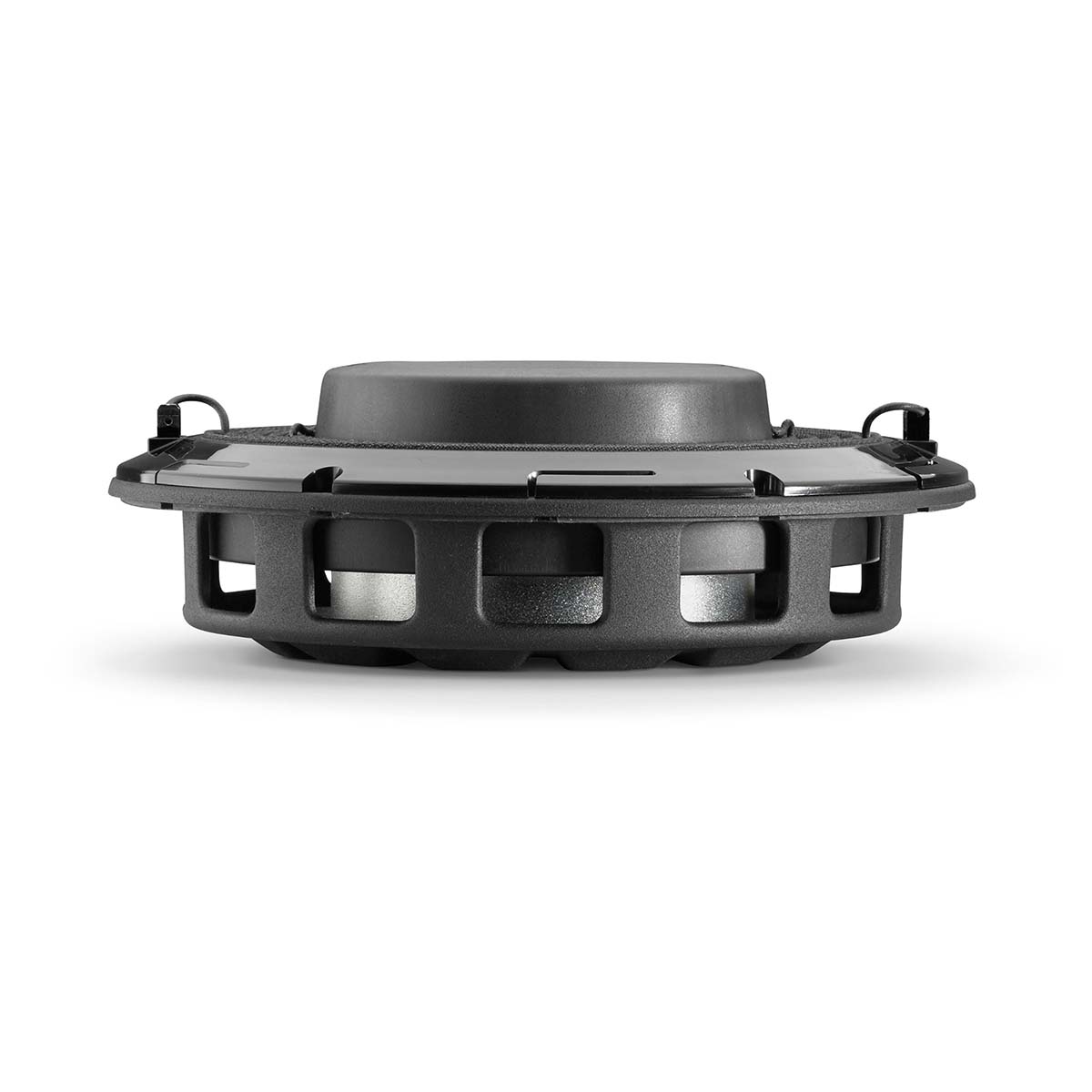

The subwoofer enclosures utilize extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. A unique port design vents through a slot located at the perimeter of the driver mount to enhance efficiency and low-bass output. Inside the enclosure is a long-excursion, 8-inch thin-line woofer, built to exacting standards by JL Audio for the Fathom® IWS products.

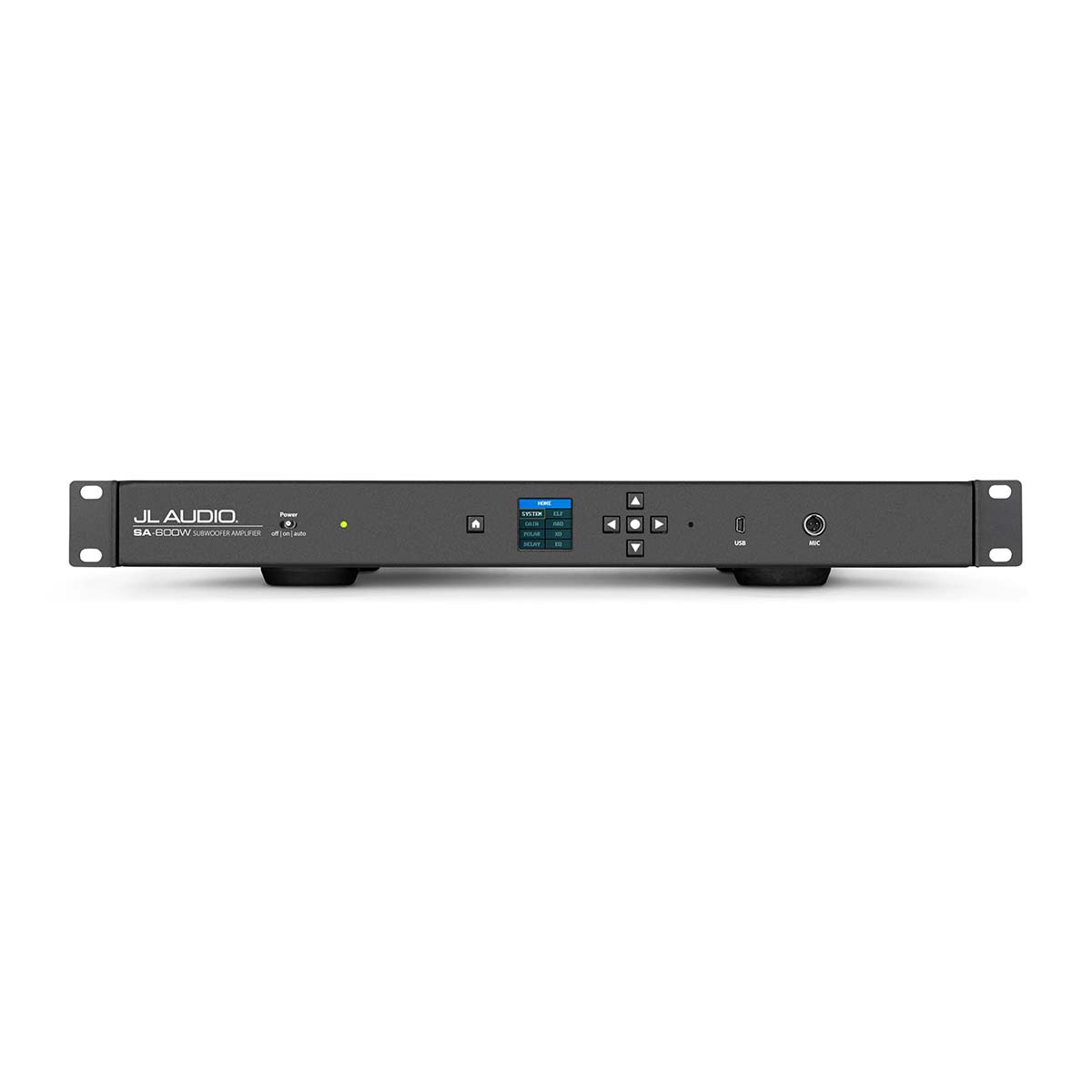

Each 8-inch Fathom® IWS system is powered by a rack-mountable amplifier, capable of generating up to 600 watts of clean power and can drive up to two enclosures. A complete set of Fathom® signal processing features is also onboard, including JL Audio's powerful, 18-band Digital Automatic Room Optimization (D.A.R.O.) system, all managed via an easy-to-use, menu-driven interface and LCD display. Note: D.A.R.O. functionality requires optional calibration microphone (sold separately).

This system fits 2" x 4" wall studs or larger.

Details & Specs

General

  • Enclosure Type: Ported
  • Enclosure Finish: Black Texture-Coated
  • Frequency Response (Anechoic): 24.9 Hz - 109 Hz (± 1.5 dB) -3dB at 24.6 Hz / 111 Hz -10dB at 23.4 Hz / 118 Hz
  • Effective Piston Area (Sd): 63.24 sq in / 0.0408 sq m
  • Effective Displacement: 95.0 cu in / 1.56 L
  • Amplifier Power: 600 W RMS short-term
  • Power Mode(s): Off, On or Automatic (Signal-Sensing or 12V Trigger)
  • 12V Trigger Output Capacity: 150 mA (1/8-inch/3.5mm mini jack)

Signal Processing

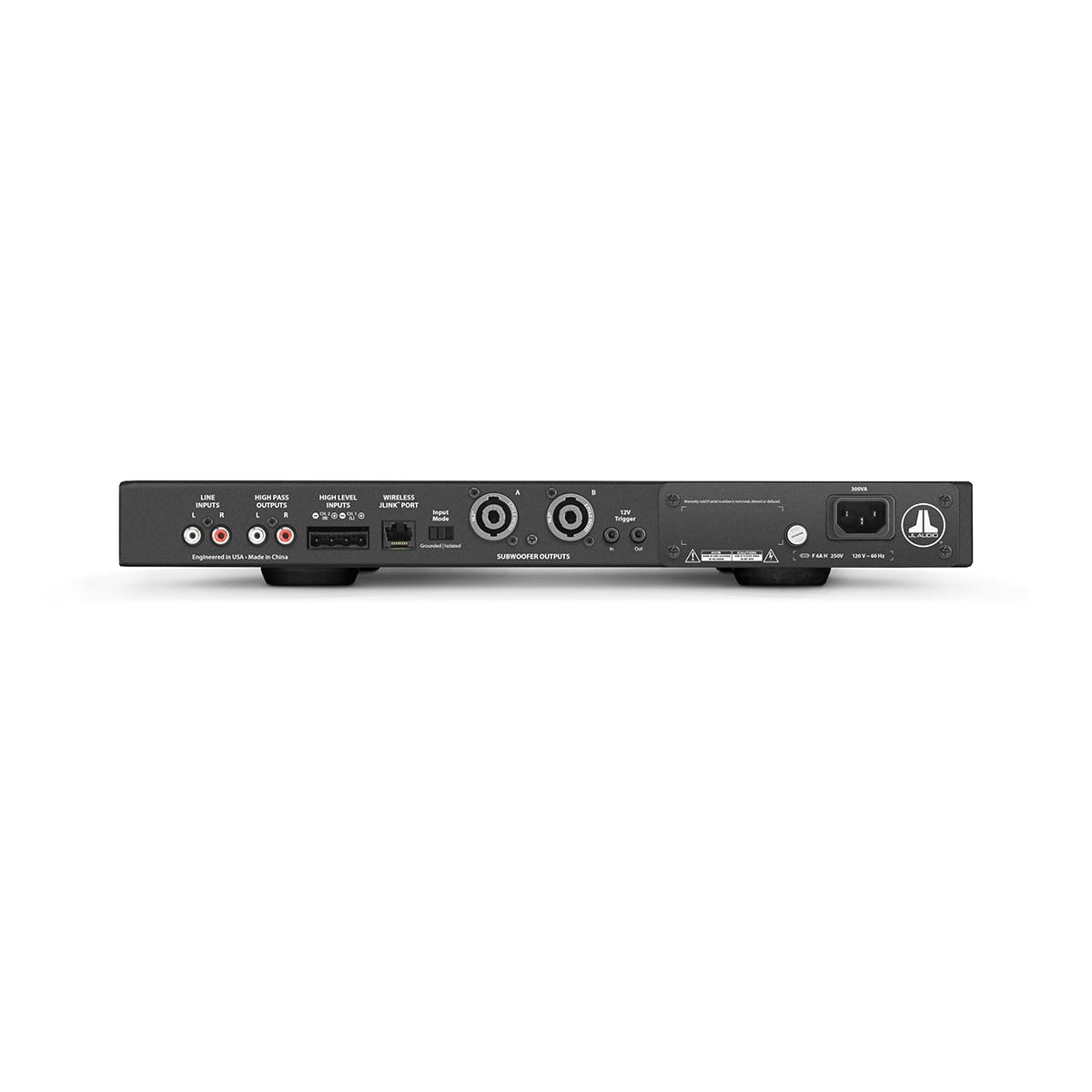

  • Unbalanced Inputs: Stereo or Mono (two RCA jacks - Input Impedance of 50k Ohms)
  • Speaker/High-Level Inputs: Stereo or Mono (removable plug - Input Impedance of 4.4k Ohms)
  • Input Grounding: Isolated or Grounded
  • Level Control: Reference (fixed gain) or Variable from -50dB to +15dB over reference gain (0.5 dB increments)
  • Filter Mode(s): Low-Pass, with tracking High-Pass Outputs
  • Filter Slope(s): 12/24 dB/octave
  • Filter Frequency Range: 30 Hz - 130.1 Hz
  • Filter Defeat Function: Yes
  • Polarity: 0 or 180 degrees
  • Delay (Phase): Variable from 0 – 25 ms
(0.1 ms increments, Sub and HP outputs)
  • Extreme Low Frequency (E.L.F.) Trim: Variable, -12 dB to +3 dB at 25 Hz (0.5 dB increments)
  • Line Outputs: Stereo or Mono (two RCA jacks - Pass-Through or High-Pass)
  • Subwoofer Outputs: Neutrik speakOn® 2-Pole Connectors
(uses Neutrik part: NL2FX)
  • Calibration Mode: Digital Automatic Room Optimization (D.A.R.O.), requires microphone (sold separately)
  • Equalizer Bands: 3
  • Equalizer Frequency Range: 20 to 160 Hz (1 Hz increments)
  • Equalizer Gain Range -12 dB to +12 dB (0.2 dB increments)
  • Equalizer Q Range 0.7 to 5.0 (0.1 increments)
