Item #JBLSSW5AM

SSW-5

12-Inch Front-Firing Subwoofer - Each
Item #JBLSSW5AM

SSW-5

12-Inch Front-Firing Subwoofer - Each
$3,999.95
Pre-Order: Shipping in August

Overview

This front firing twelve inch powered subwoofer delivers one thousand Watts RMS of dynamic low frequency impact for medium and large rooms. Featuring dual front tuned ports and installer friendly controls, it provides accurate bass reproduction. This unit enhances premium audio visual solutions and complements any SCL series sound system setup.

The JBL Synthesis SSW 5 powered subwoofer delivers low frequency sound reproduction and dynamic power for medium to large rooms. This model is designed to acoustically complement the JBL Synthesis Custom Loudspeakers SCL Series, turning it an adaptable choice for a dedicated home theater or a high performance sound system setup.

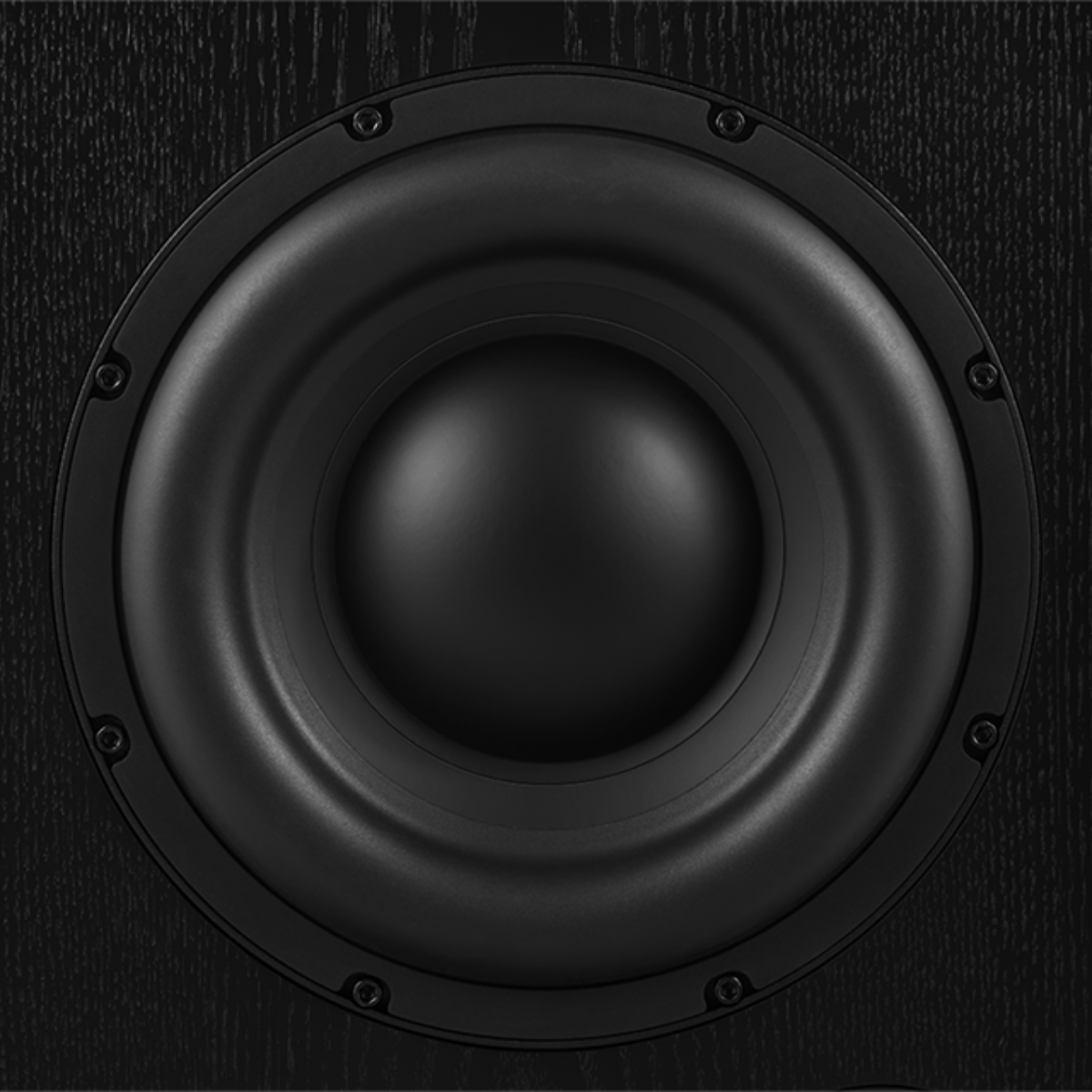

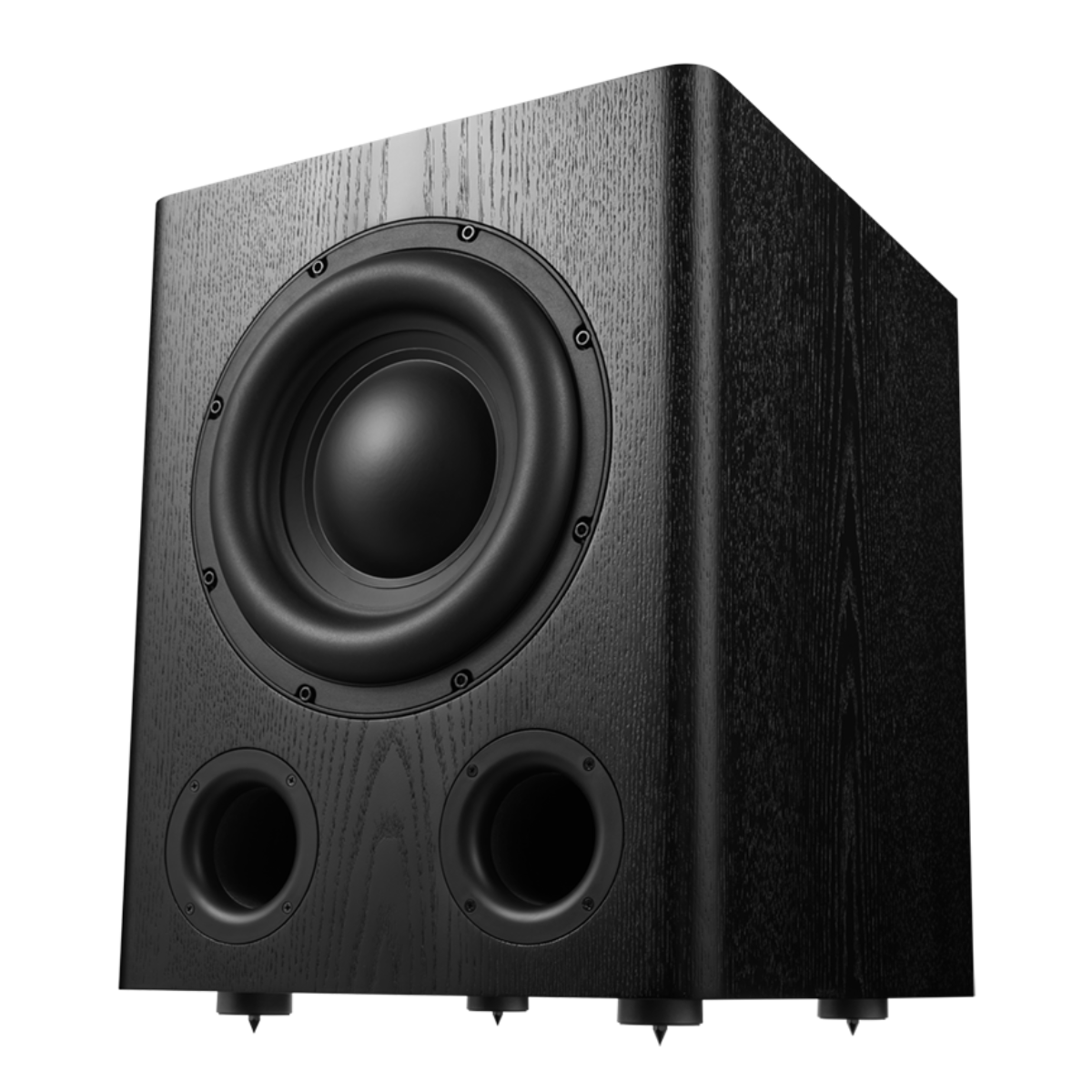

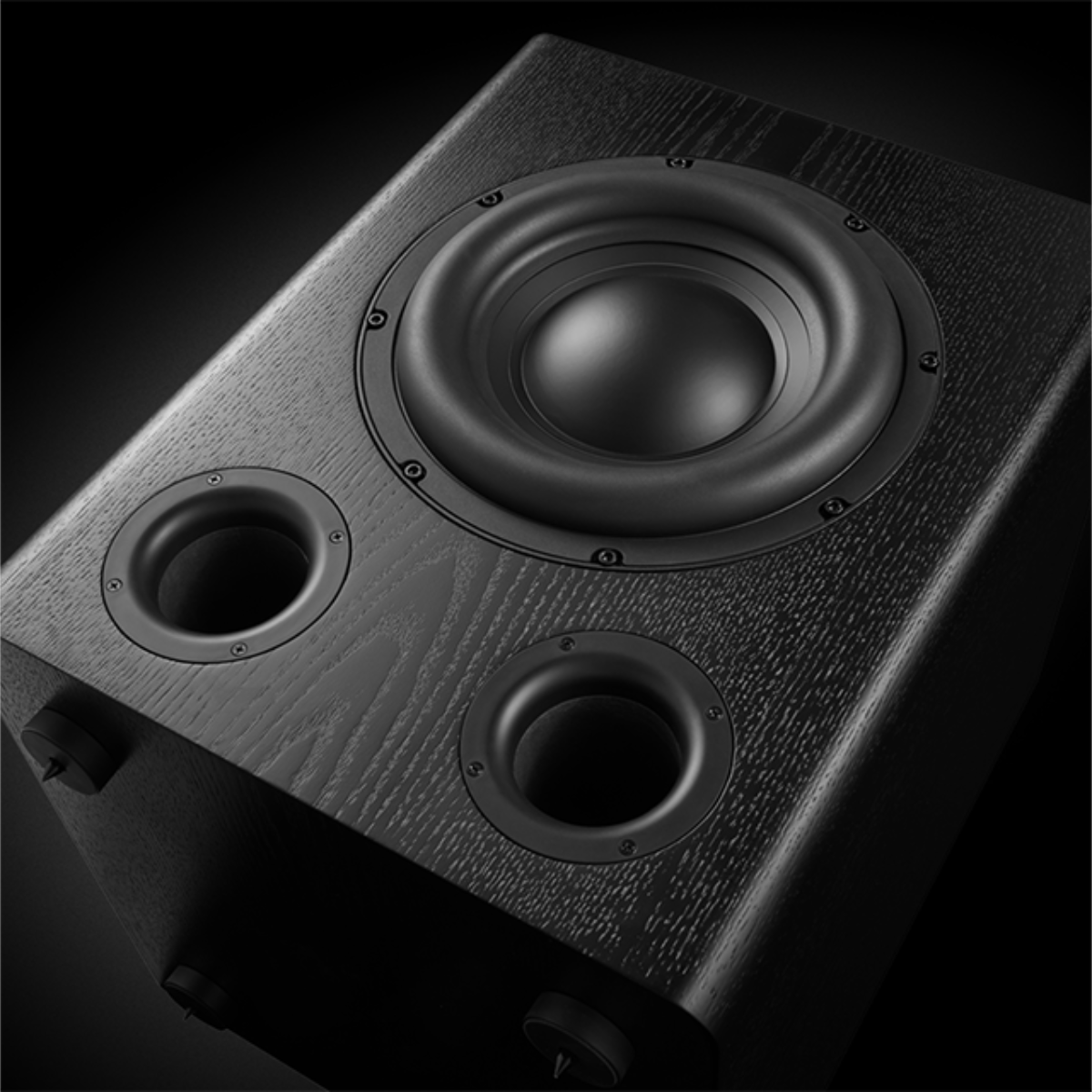

At the center of the hardware is a front firing twelve inch cast frame woofer built with a black pure pulp cone and a substantial four inch voice coil. This driver works in a bass reflex configuration, utilizing dual front firing tuned ports to manage airflow and optimize low end performance. A built in one thousand Watt RMS amplifier drives the assembly, providing clean power and structural bass impact.

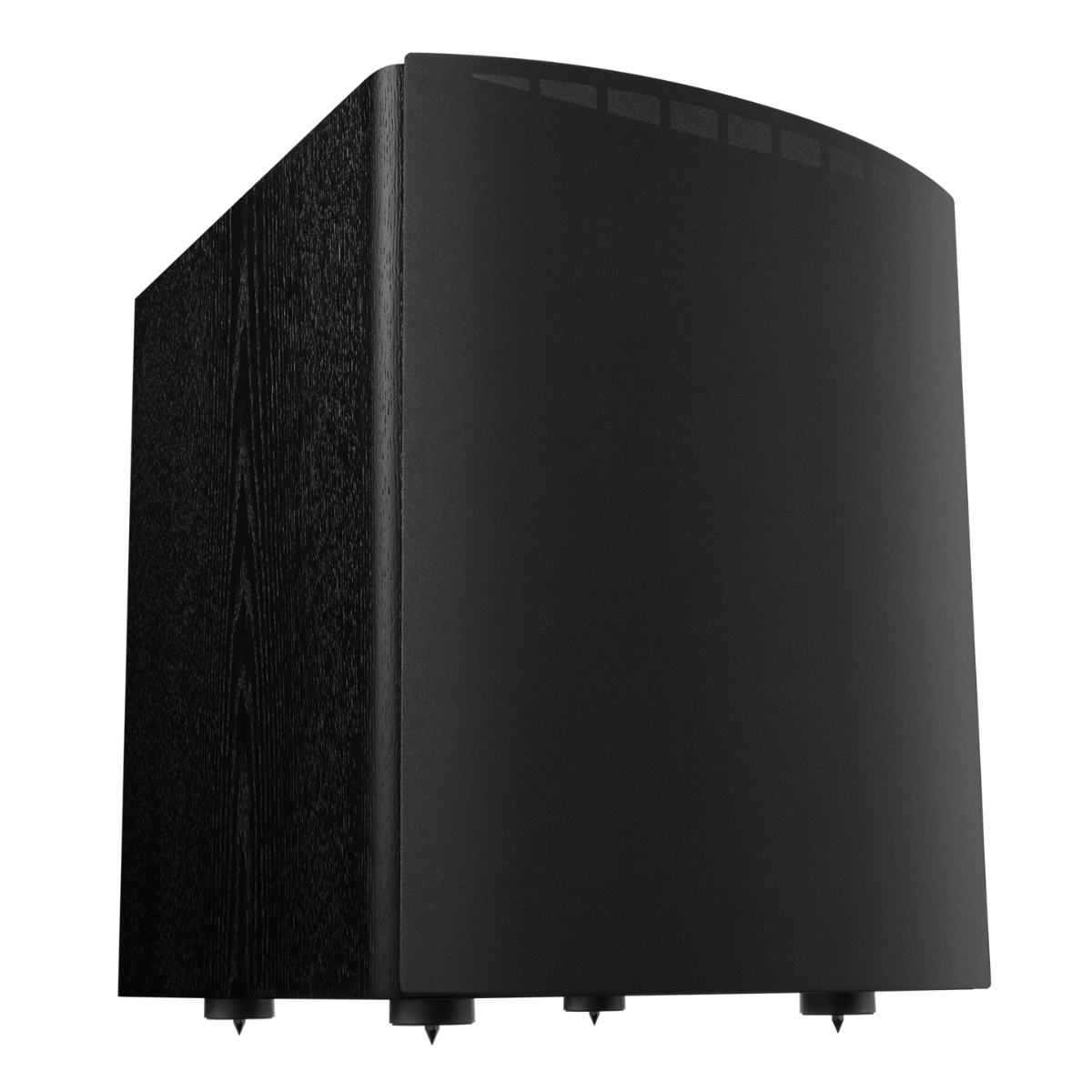

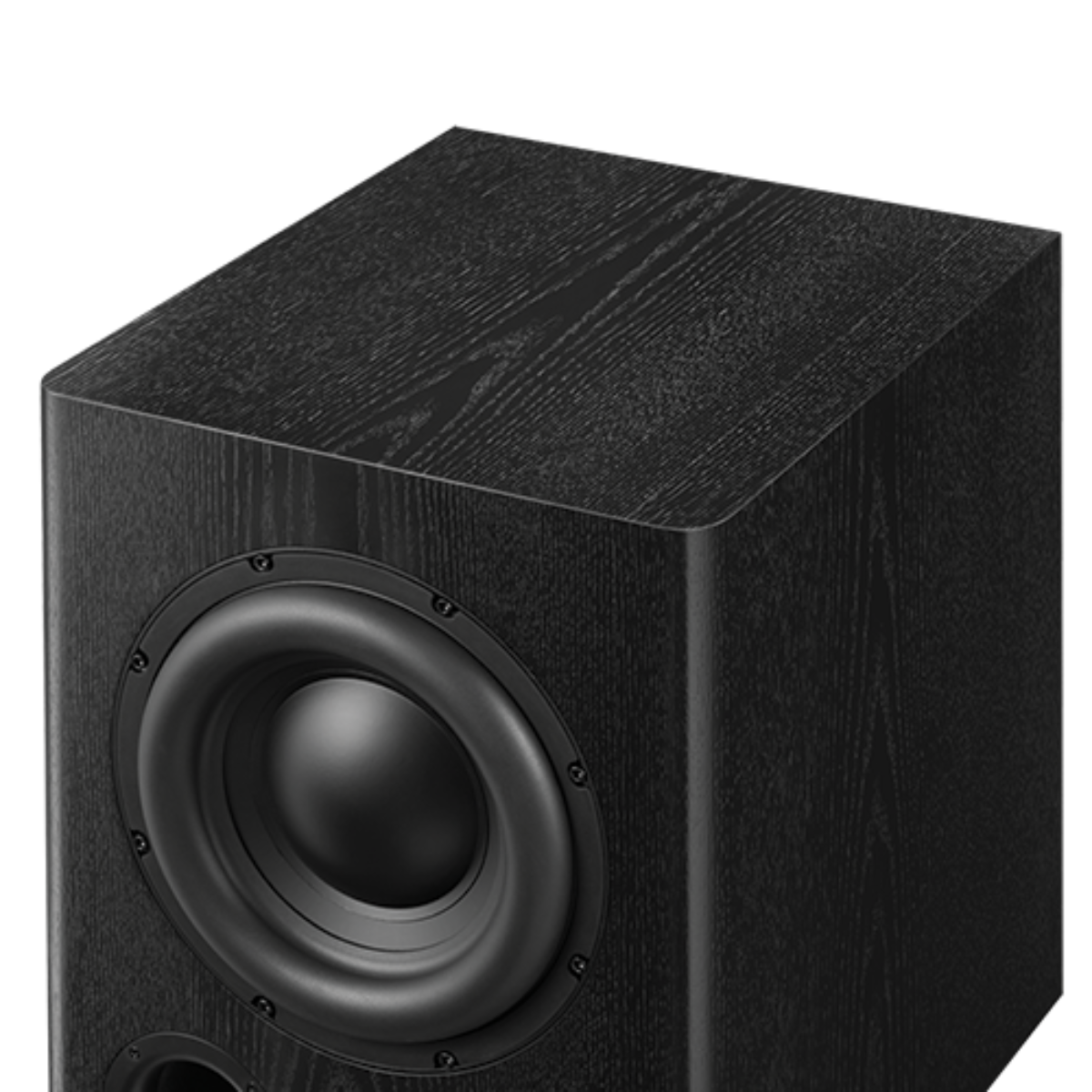

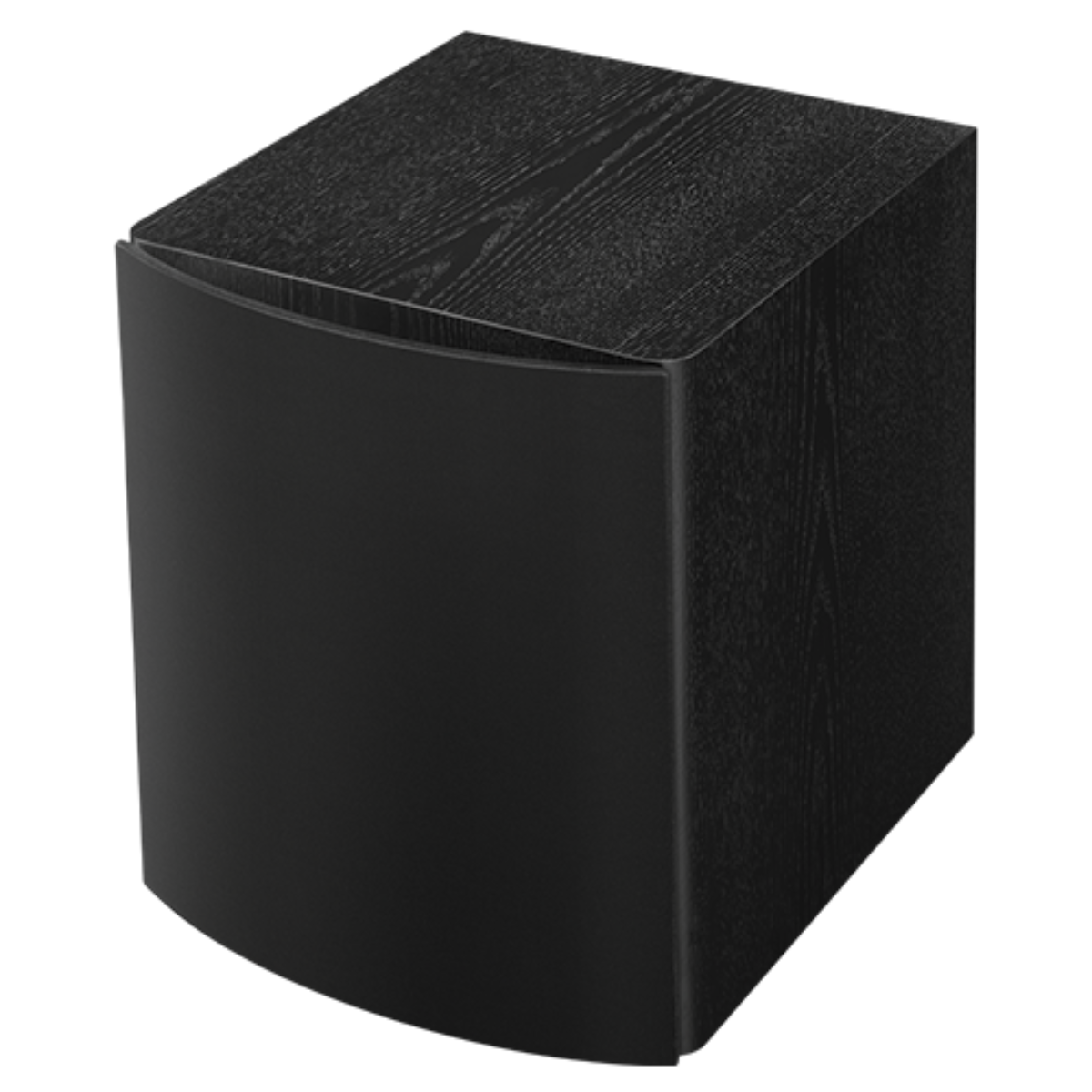

Installing this unit into a residential smart residential integration or audio visual solutions layout is simple. The amplifier contains a full complement of installer friendly connections and controls to calibrate the output to the room acoustics. Visually, the cabinet is finished in a satin-black ash wood veneer, allowing the enclosure to blend into clean-room aesthetics. A magnetically attachable cloth grille is also included, covering the front-firing components while maintaining a clean, minimalist profile.

Details & Specs

Model SSW-5
Finished Dimensions with Grille (H x W x D) 21.7” x 16.9” x 20.5” (550mm x 430mm x 522mm)
Finished Dimensions without Grille (H x W x D) 21.7” x 16.9” x 19.1” (550mm x 430mm x 484mm)
Product Weight 104.5lb (47.4kg)
Type 1000W RMS powered subwoofer
Low Frequency Driver 12-inch (300mm) black pure-pulp cone, cast frame woofer with 4-inch (100mm) voice coil

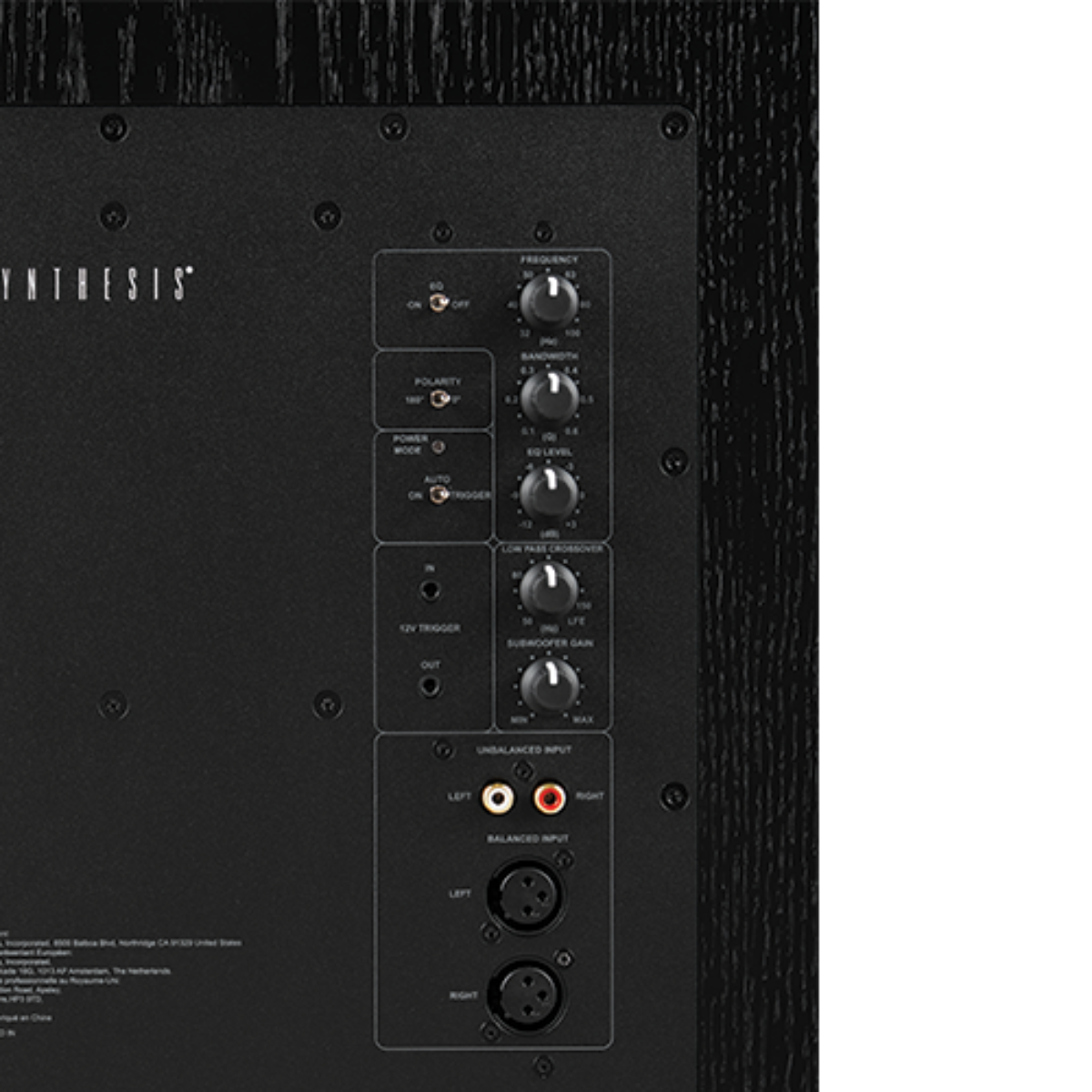

Controls Auto Power, Crossover, Level, Polarity, Single-band parametric EQ

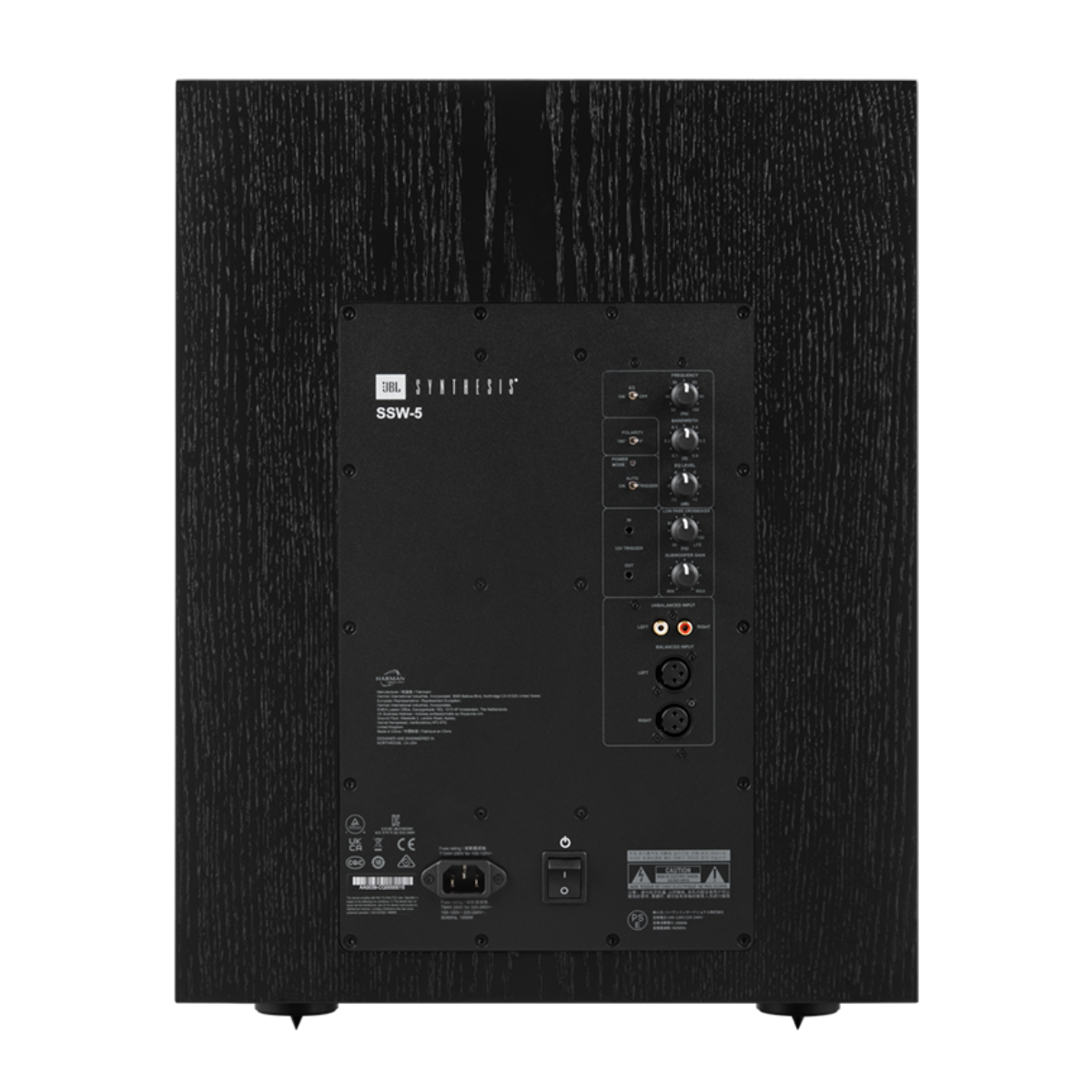

Inputs 2x RCA (unbalanced), 2x XLR (balanced)
Frequency Response 24Hz – 20kHz (-6dB)
Crossover Frequency 50Hz - 150Hz (variable) 24dB/octave, LFE selectable
