SDR-40

16-Channel Audio Video Receiver
Item #SDR40

SDR-40

16-Channel Audio Video Receiver
$7,999.95
Pre-Order: Shipping in August

Overview

Bring clean power to a residential cinema with this sixteen channel AV receiver. Processing Dolby Atmos and 8K video, it ensures flawless performance. This premium sound system setup adapts to any room with room calibration and flexible matrix channel routing, delivering the ultimate home audio visual solutions.

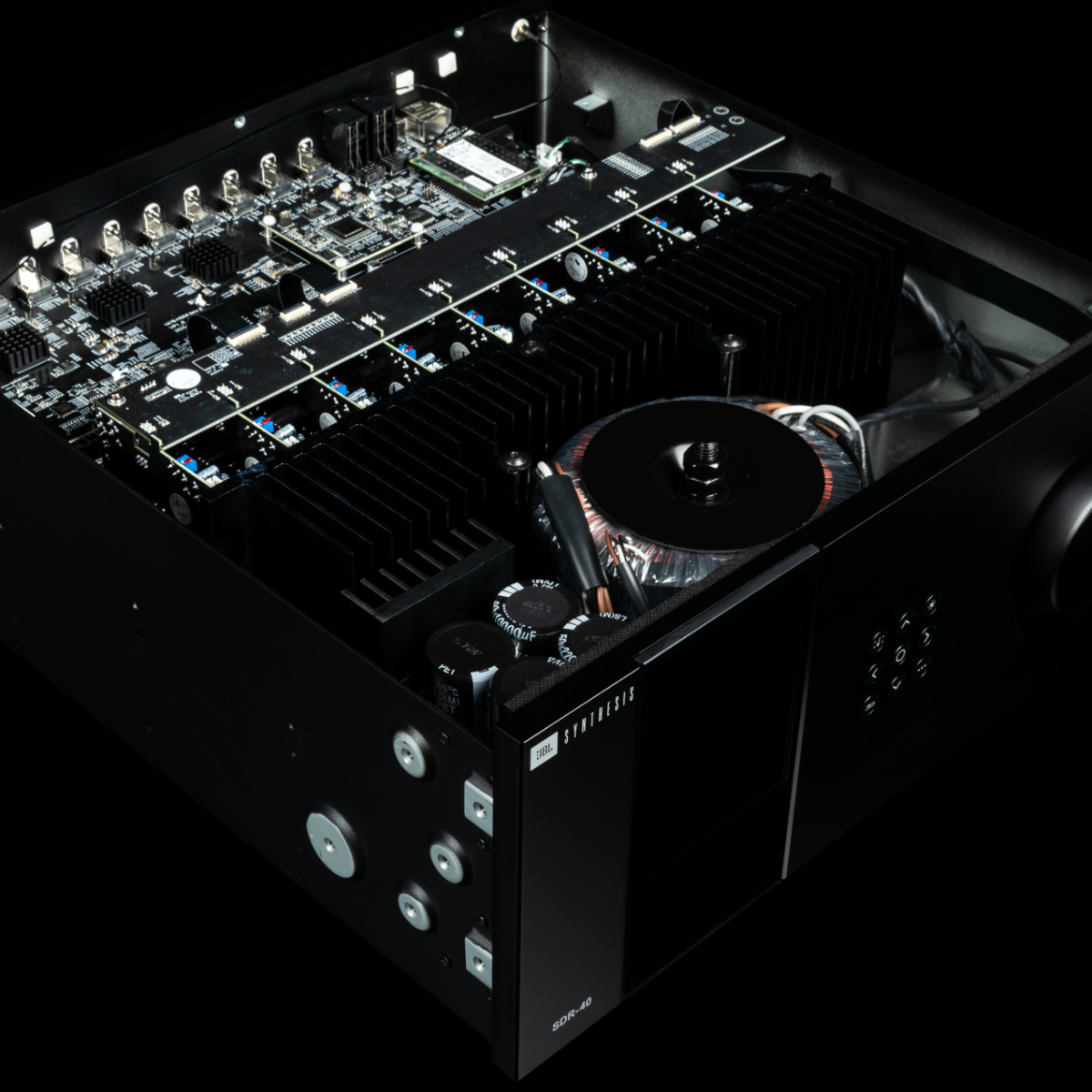

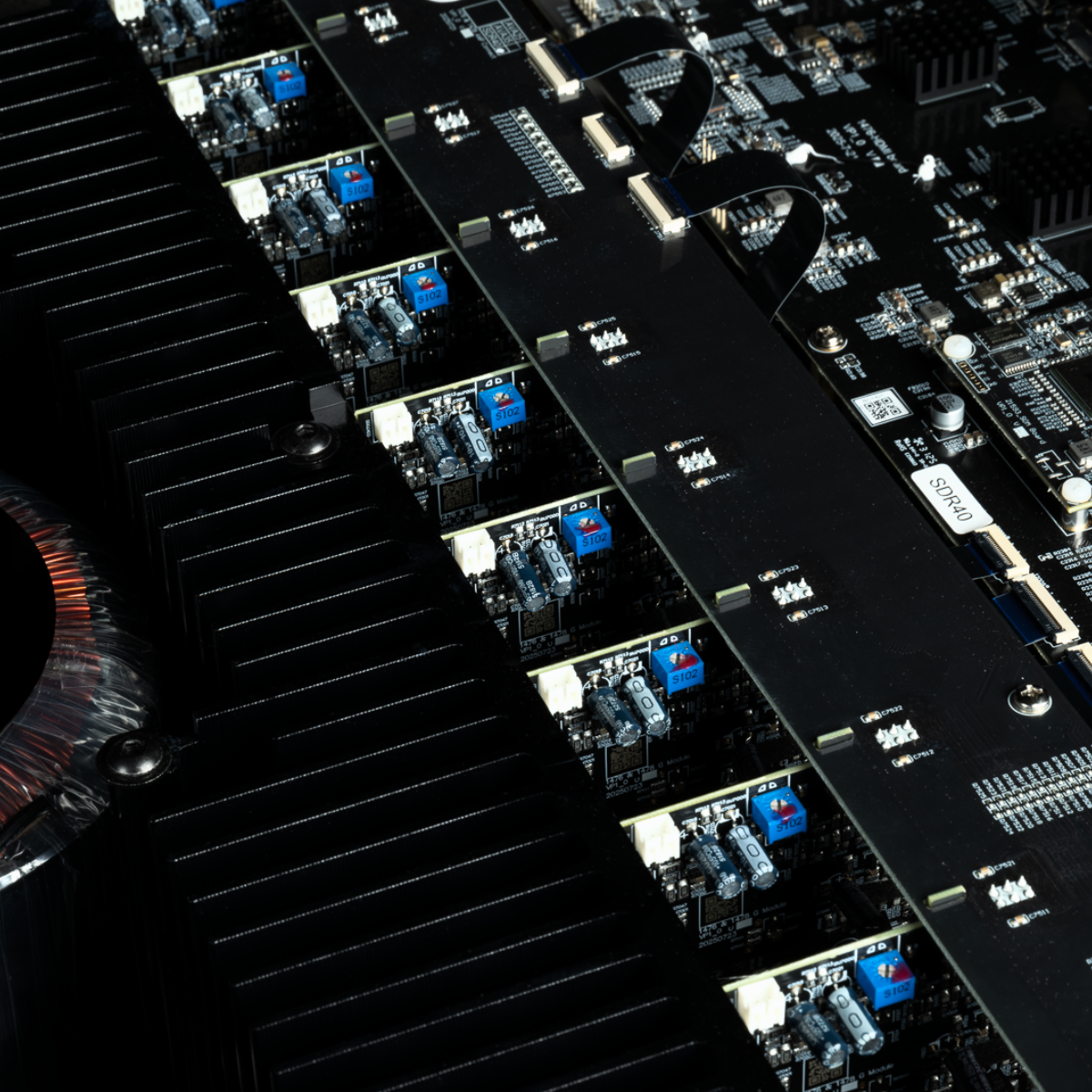

The JBL Synthesis SDR-40 is built for residential cinema setups where reliable performance is needed. It processes sixteen channels and includes nine channels of Class G amplification. Each channel delivers one hundred watts into eight Ohms when all nine are running, so the system maintains clean power and avoids clipping or distortion during sudden peaks.

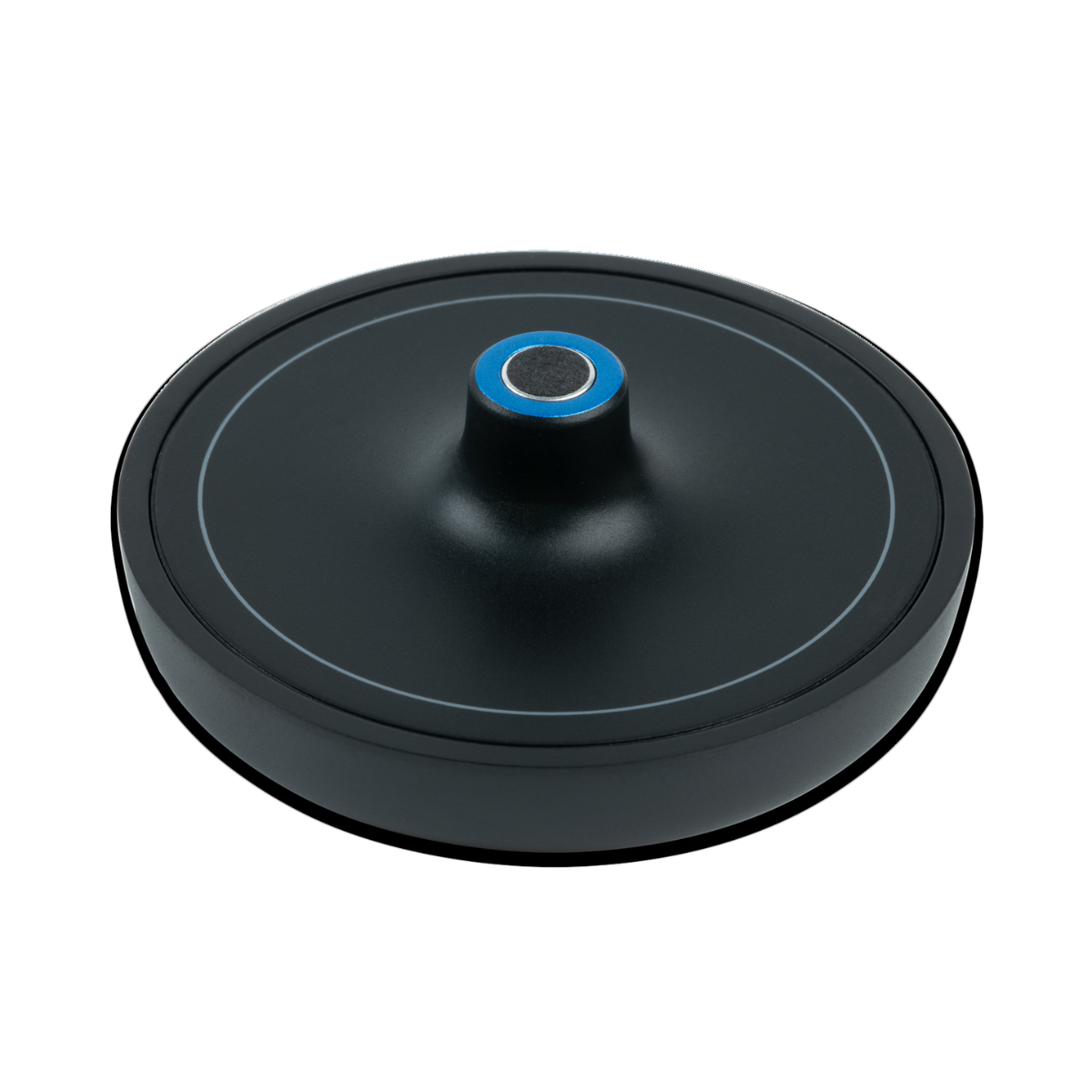

The matrix channel assignment feature allows surround outputs to be reconfigured, which helps with unusual room layouts or architectural constraints. The SDR-40 supports immersive formats including Dolby Atmos, DTS:X Pro, IMAX Enhanced, and AURO-3D. A high performance digital to analog converter handles high resolution files up to twenty-four bit and one hundred ninety-two kilohertz. Dirac Live room correction is included to calibrate the system to the room and maintain acoustic accuracy.

The video section includes seven HDMI inputs and three outputs, which can be used across two zones. HDMI 2.1a and HDCP 2.3 support allows for 8K video at 60Hz or 4K at 120Hz. The SDR-40 also supports Dolby Vision, HDR10+, and Variable Refresh Rate for gaming. Network audio options cover Apple AirPlay, Google Cast, Spotify Connect, Tidal Connect, and Roon Ready. Setup and adjustments can be made using the high resolution front panel display or the JBL Synthesis app, which also shows album artwork.

Details & Specs

Model SDR-40
Product Dims (W x D x H) 19”W x 18.4”D x 7.3”H
Product Weight 55 lb
Maximum Channel Count 16
Reassignable Channels All channels (Subwoofers into CH4/11-16 only)
Dolby Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround
DTS DTS:X Pro, DTS HD Master, DTS Neural:X, DTS Virtual:X
IMAX Enhanced Yes
Auro 3D Yes
MPEG H Yes/td>
Frequency response 20Hz—20kHz ± 0.05dB

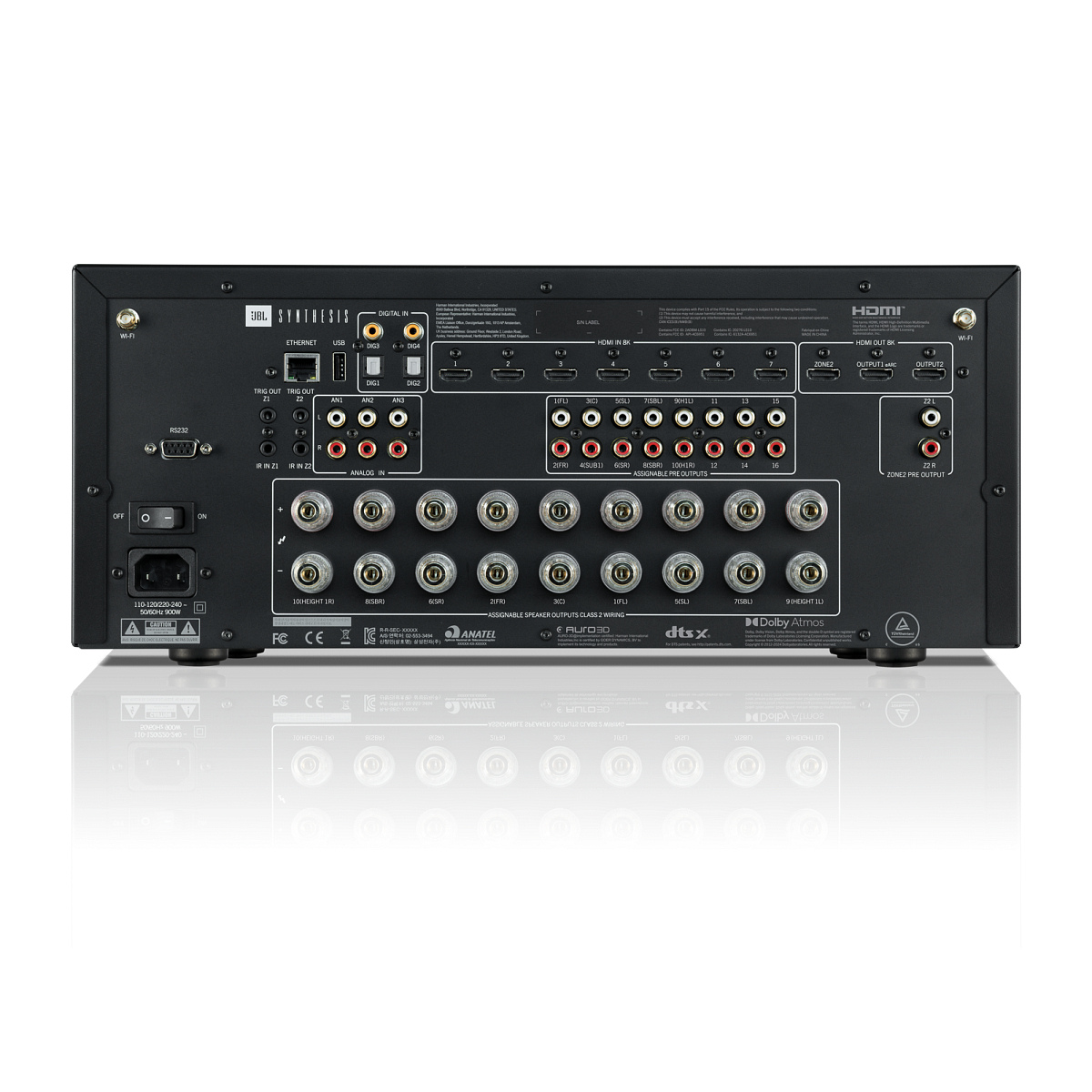

Inputs/Outputs 7/2 (Zone 1), 1 (Zone 2)
HDMI/HDCP Versions 2.1a/2.3
Resolution support resolution/framerate Up to 8K/60Hz or 4K 120Hz
Supported Dynamic Range Profiles HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG
Supported HDMI features Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC/ARC (Zone 1,Output 1)
On Screen Display Yes
Works with (apps) ARCAM Radia, Spotify Connect, Tidal Connect, Qobuz Connect, Roon (Ready)
Works with (services) Apple Airplay, Google Cast
ARCAM Radia supported services (Global) Internet Radio, Podcasts, UPnP
Supported Hi-res media FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, DSD (up to 128), MP3, OGG, WMA
Supported Hi-res Bit depth 16,24
Supported samples rates (kHz) Up to 192 kHz
Gapless Playback Yes
Frequency response 20Hz—20kHz ± 0.05dB
Number of inputs (Coaxial/Toslink) 2/2
Supported Sample Rates (kHz)- Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1
Supported Sample Rates (kHz)- Optical (Toslink) 96, 88.2, 48, 44.1
Bit depths (bit) - Coaxial and Optical (Toslink) 24, 16
Frequency response 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 100dB
Number of inputs 3x RCA pairs
Number of Outputs XLR/RCA 0/16
Single-ended (RCA) peak output level per channel 2V RMS
THD+N (20 Hz to 20 kHz) –100dB
Amplifier Channels 9, Class G
