JBL Synthesis SDA-1700

Class D Subwoofer Amplifier
Item #JBLSDA1700AM

JBL Synthesis SDA-1700

Class D Subwoofer Amplifier
$1,449.95
In Stock: Free 2-Day Shipping

Overview

The SDA-1700 is a custom amplifier solution, optimized for the highest level of performance and reliability.

Audio Advice is the exclusive authorized online seller, and the largest seller of JBL Synthesis systems nationwide. Backed by factory-trained system designers and certified calibration specialists, our team delivers complete custom design, engineering, and support for high-performance home theaters nationwide. Explore and audition reference-level JBL Synthesis surround sound systems in person at our world-class interactive showrooms, or consult with our experts online for turnkey system design and nationwide delivery.

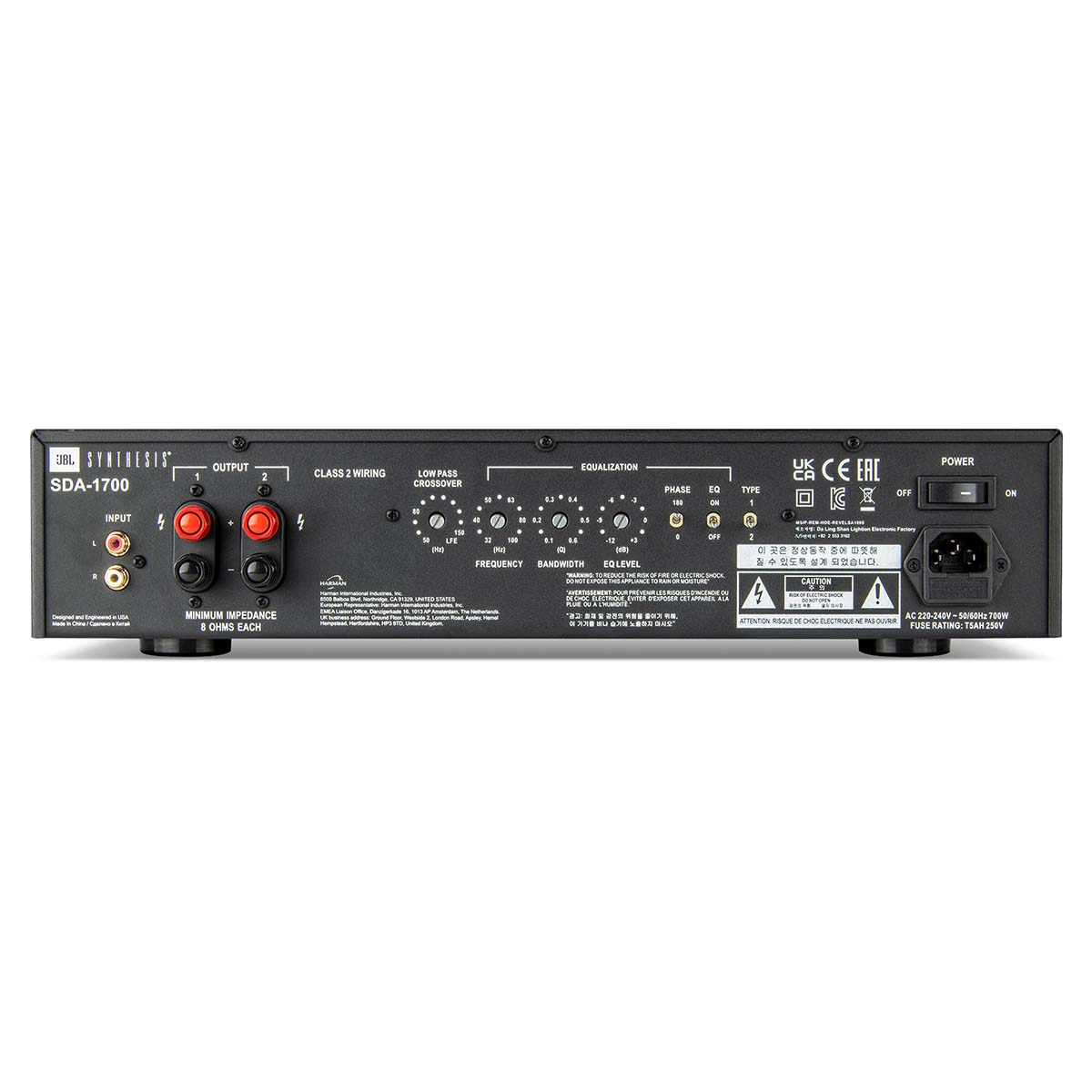

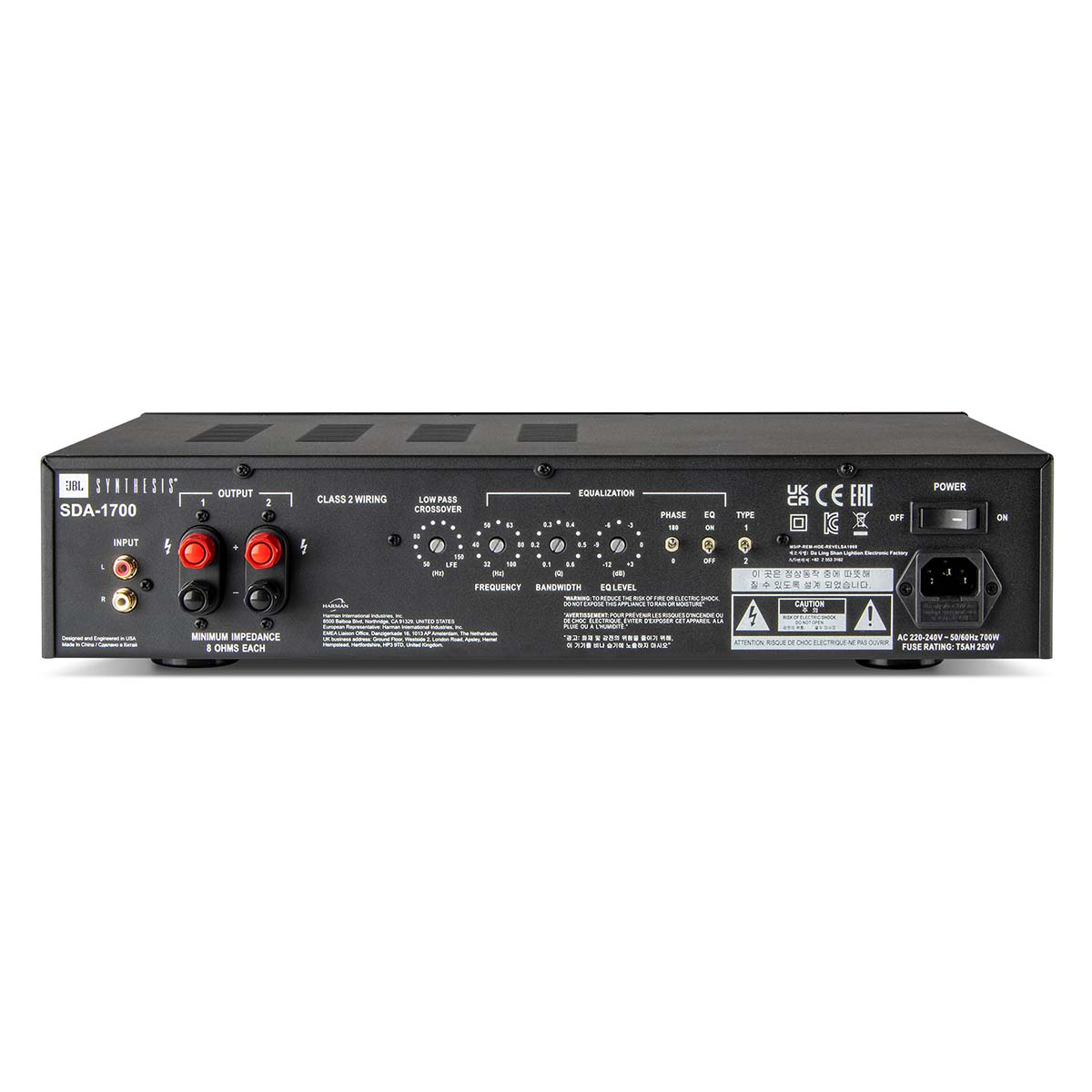

This rackmount amplifier includes user features on the front panel, and a custom installer focused feature set on the rear panel. As part of JBL Synthesis custom in-wall subwoofer system, this rack mountable Class D component is designed to power the SSW-4 in-wall subwoofers.

Key Features

  • Connect up to two SSW-4 Subwoofers with each SDA-1700 Amplifier
  • 2 EQ modes (Customized for in-wall subwoofers)
  • User-adjustable Single-band equalization
  • Low distortion and low noise
  • Short-circuit and over-current protection
  • Over-temperature compensation
  • Automatic signal sensing Turn-On and Turn-Off

Details & Specs

Model SDA-1700
Rated Output Power (RMS) at 4 Ohms 700 Watts
Peak Power 1500 Watts
Rated Impedance 8 Ohms per speaker output
Minimum Load Impedance 4 Ohms
Input Sensitivity to 1W @ 50Hz 16.3mVrms +/- 1dB (Single input driven) Gain=41.7dB
Input Impedance > 10K Ohms
Input Overload (Both inputs driven) > 2.0Vrms
Low Pass Crossover Range 50-150Hz
THD+N at 1W < 0.3%
Signal-to-Noise Ratio to 1W > 65dBA
Power Consumption (Standby) 0.5 W
Auto Turn On Input Sensitivity @ 50Hz Typical 10mV
THD+N at Rated Output Power < 1%
Dimensions (WxHxD) 17 x 3.5 x 11.04"
Weight 14 lbs
