Item #JBLSCL9

SCL-9

2-Way Dual 5.25-Inch On-Wall Loudspeaker - Each
Item #JBLSCL9

SCL-9

2-Way Dual 5.25-Inch On-Wall Loudspeaker - Each
$1,499.95
Pre-Order: Shipping in August

Overview

This low profile on wall speaker delivers vital performance where in wall fitting is impossible. The symmetrical design mounts horizontally or vertically as a front or surround channel, pairing dual woofers with a patented compression driver. It provides discreet audio visual solutions for an adaptable surface mount sound system setup.

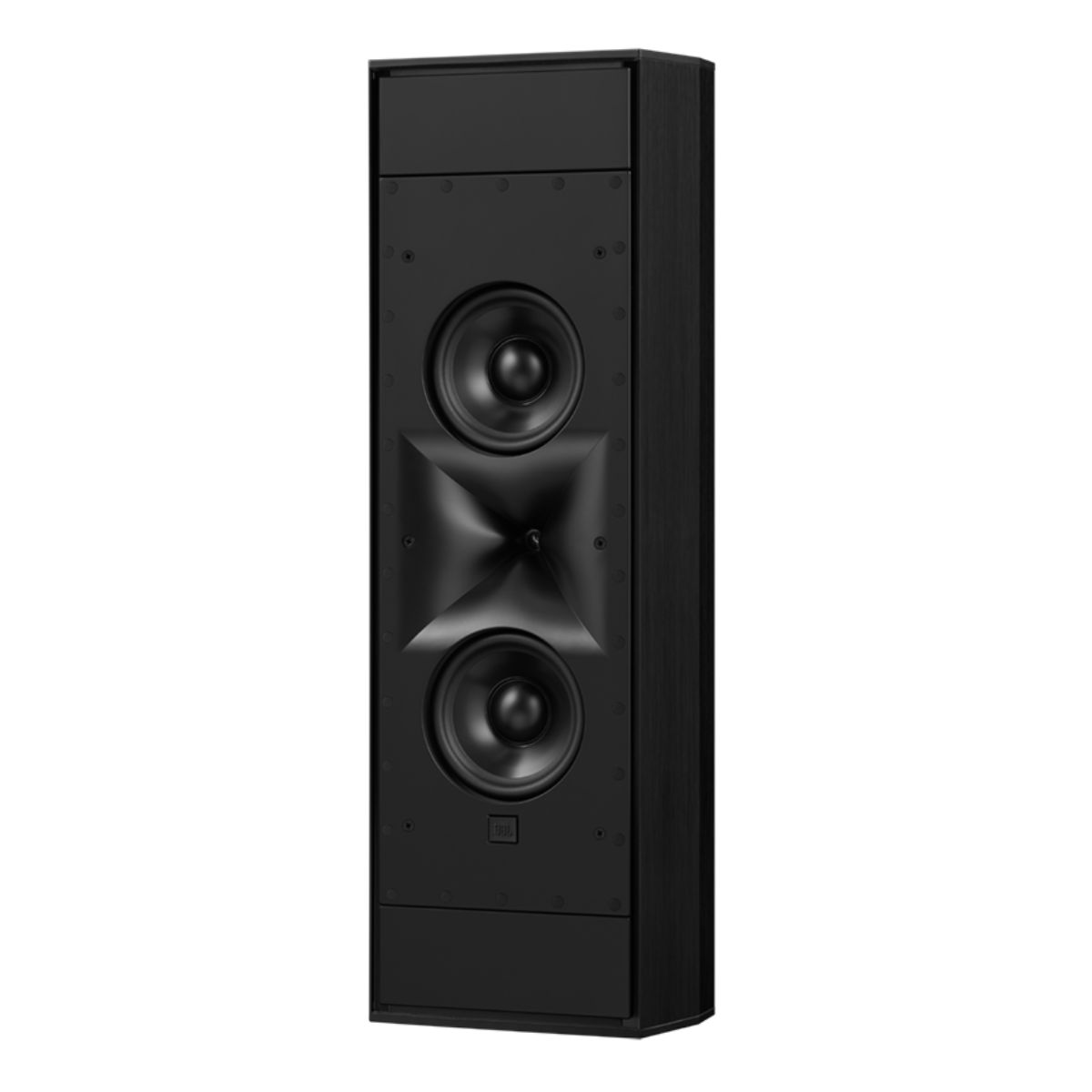

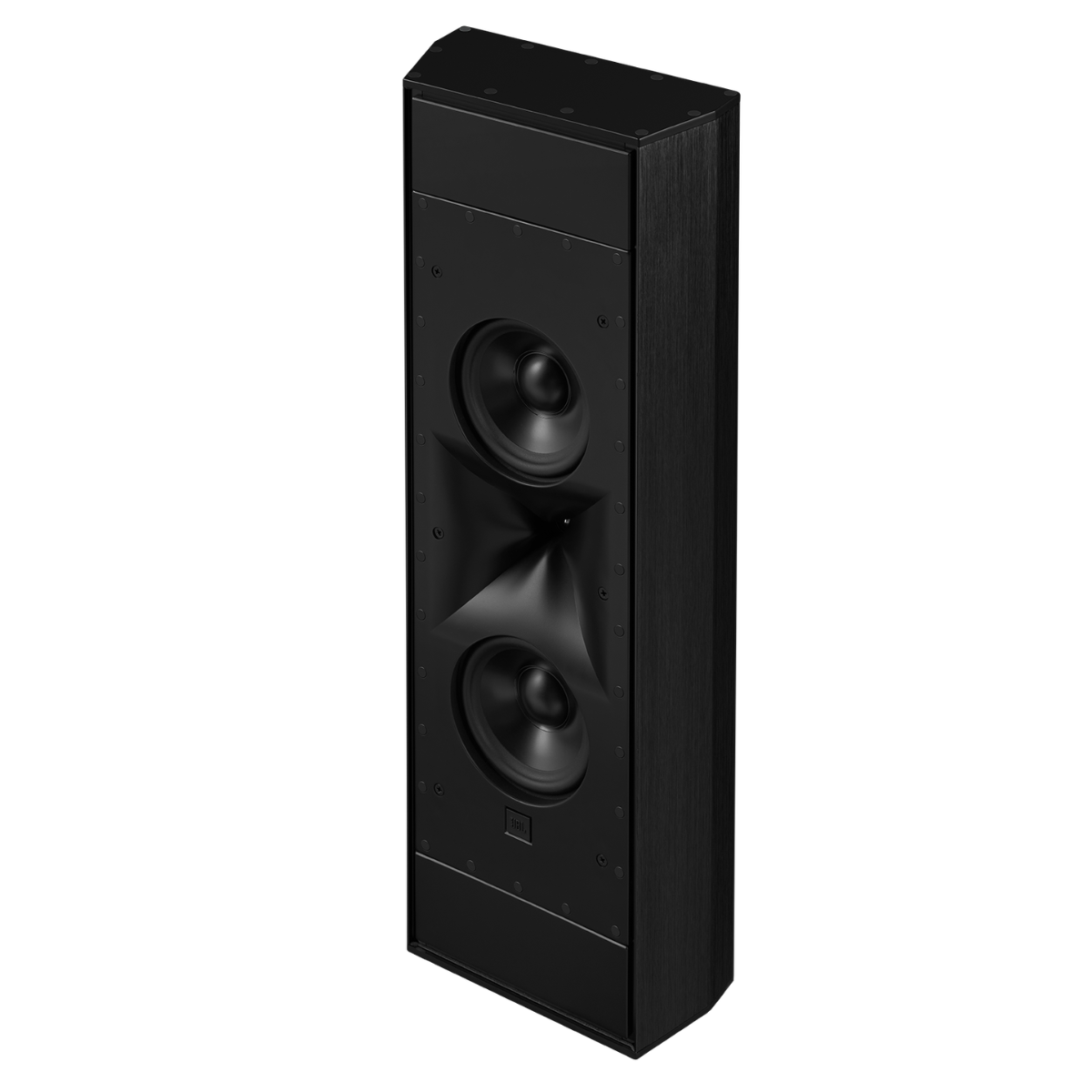

The JBL Synthesis SCL 9 two way surface mount loudspeaker provides a high performance audio solution for installations where in wall placement is not an option. Designed with a low profile sealed enclosure, the speaker offers a discreet appearance without compromising on structural integrity. The hardware utilizes an integrated aluminum enclosure combined with a molded baffle and an isolation mounting system to control unwanted vibrations.

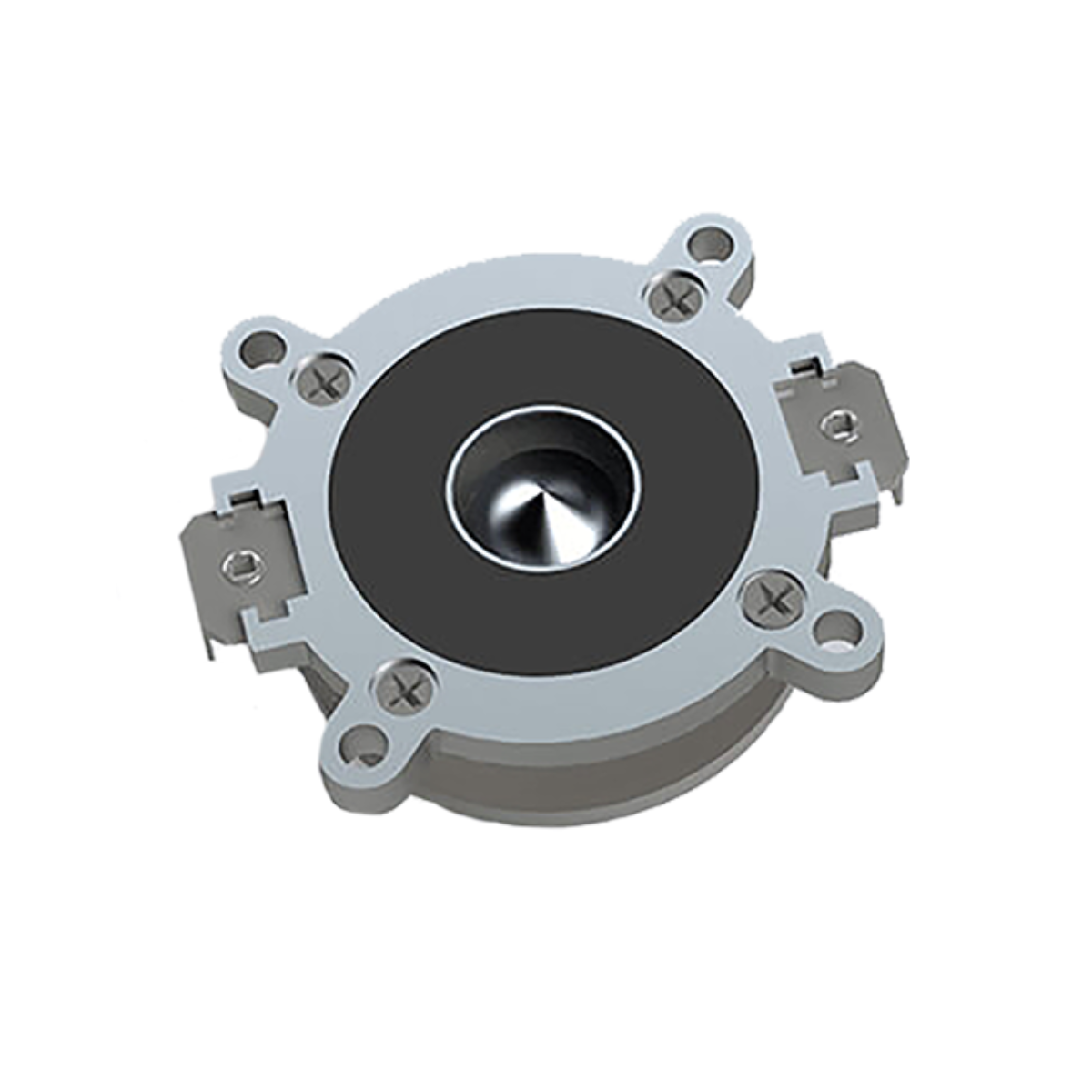

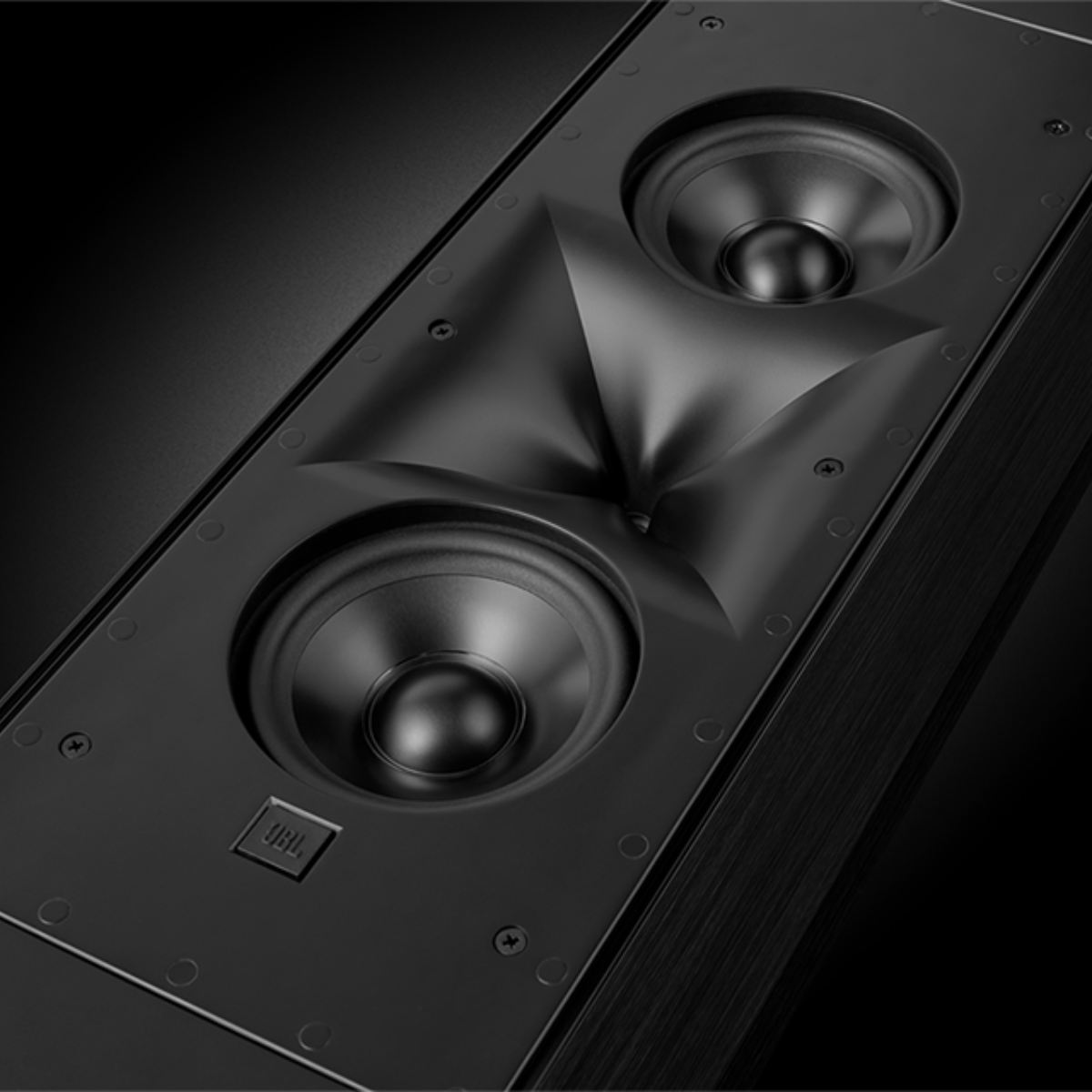

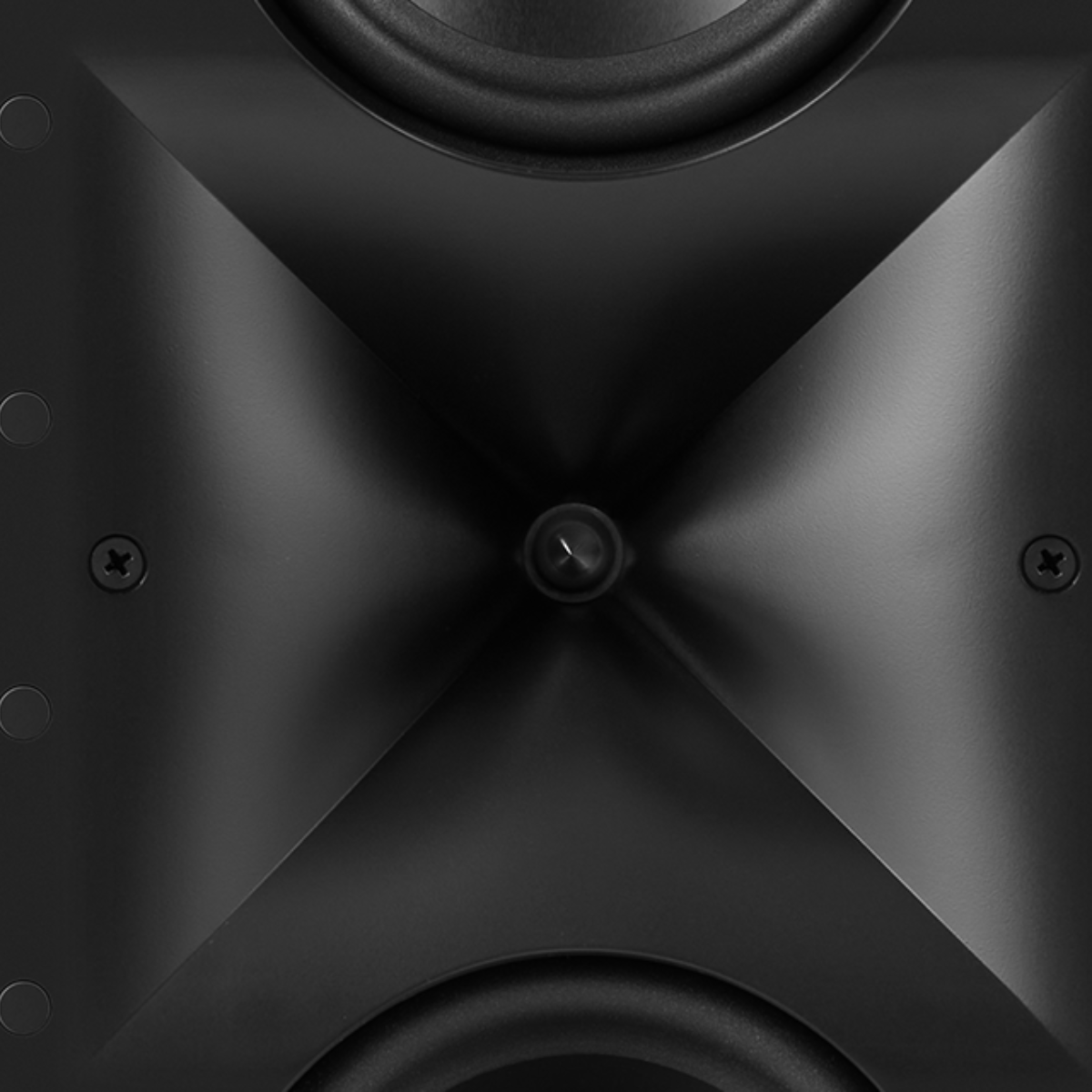

At the core of the speaker is a patented 2410H 2 one inch high frequency compression driver. This driver is paired with a symmetrical High Definition Imaging horn geometry, allowing the unit to maintain excellent coverage patterns regardless of orientation. Operating alongside the compression driver are dual five and a quarter inch cast frame woofers featuring Advanced Aluminum Matrix cones. A two way network configuration manages the frequencies across these components using premium network components.

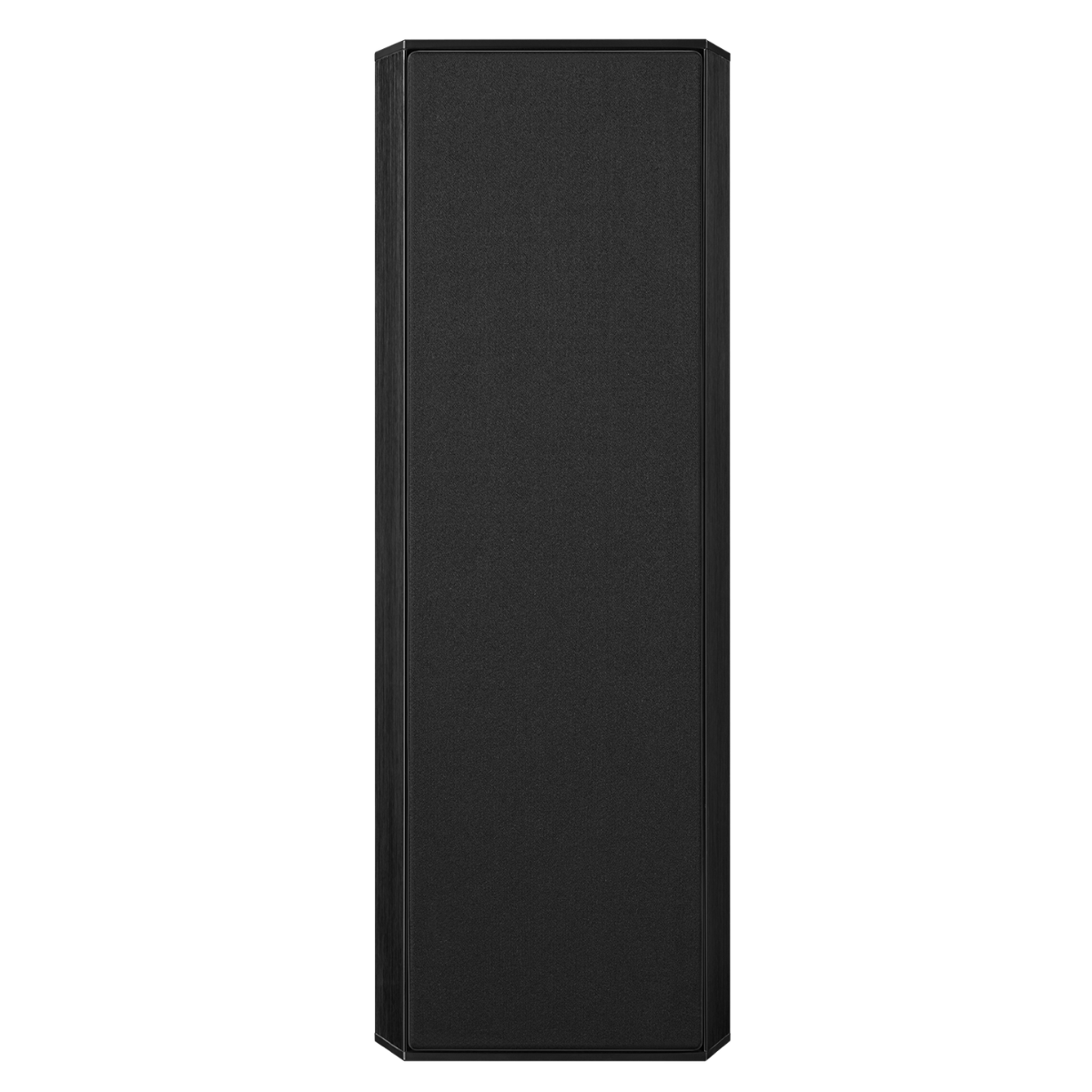

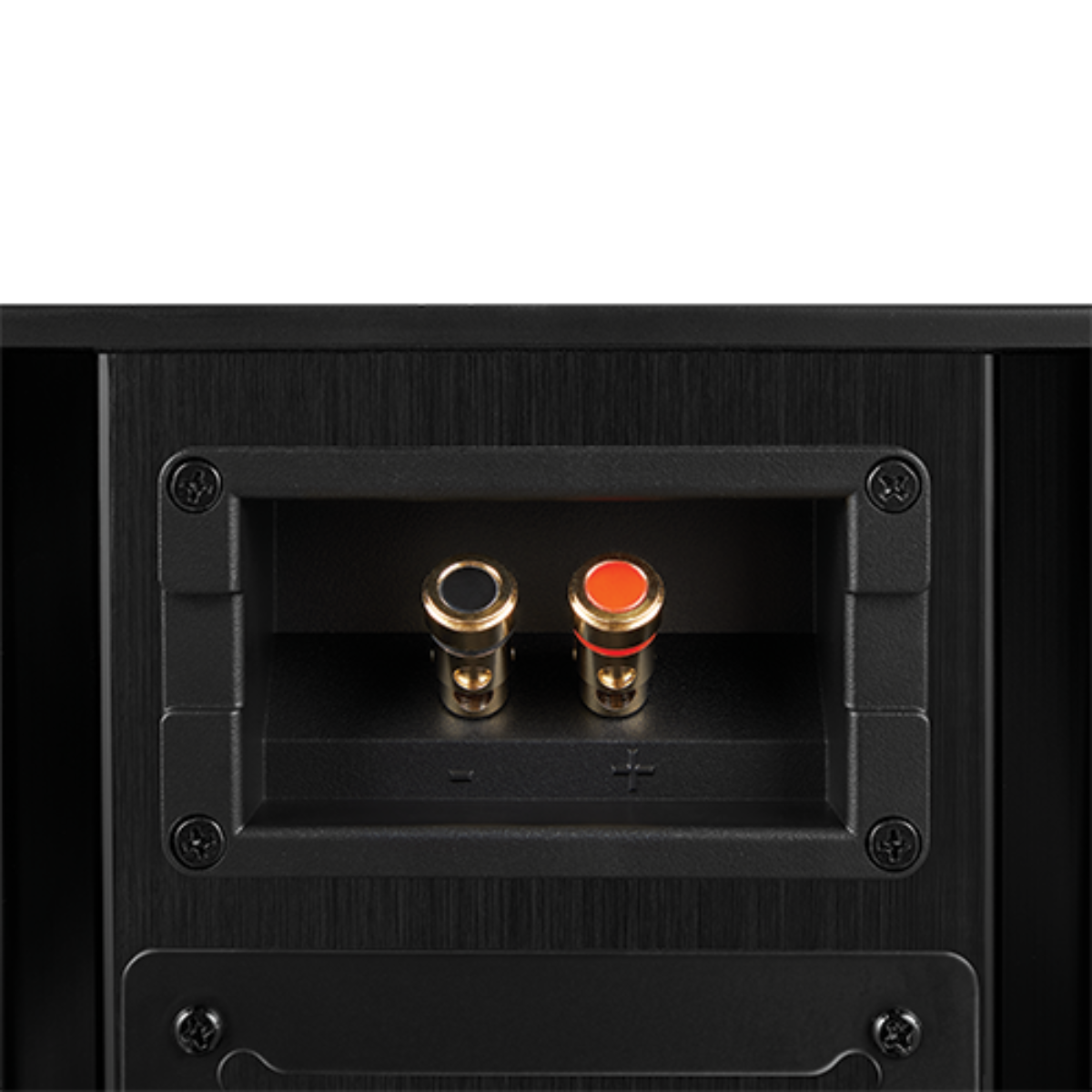

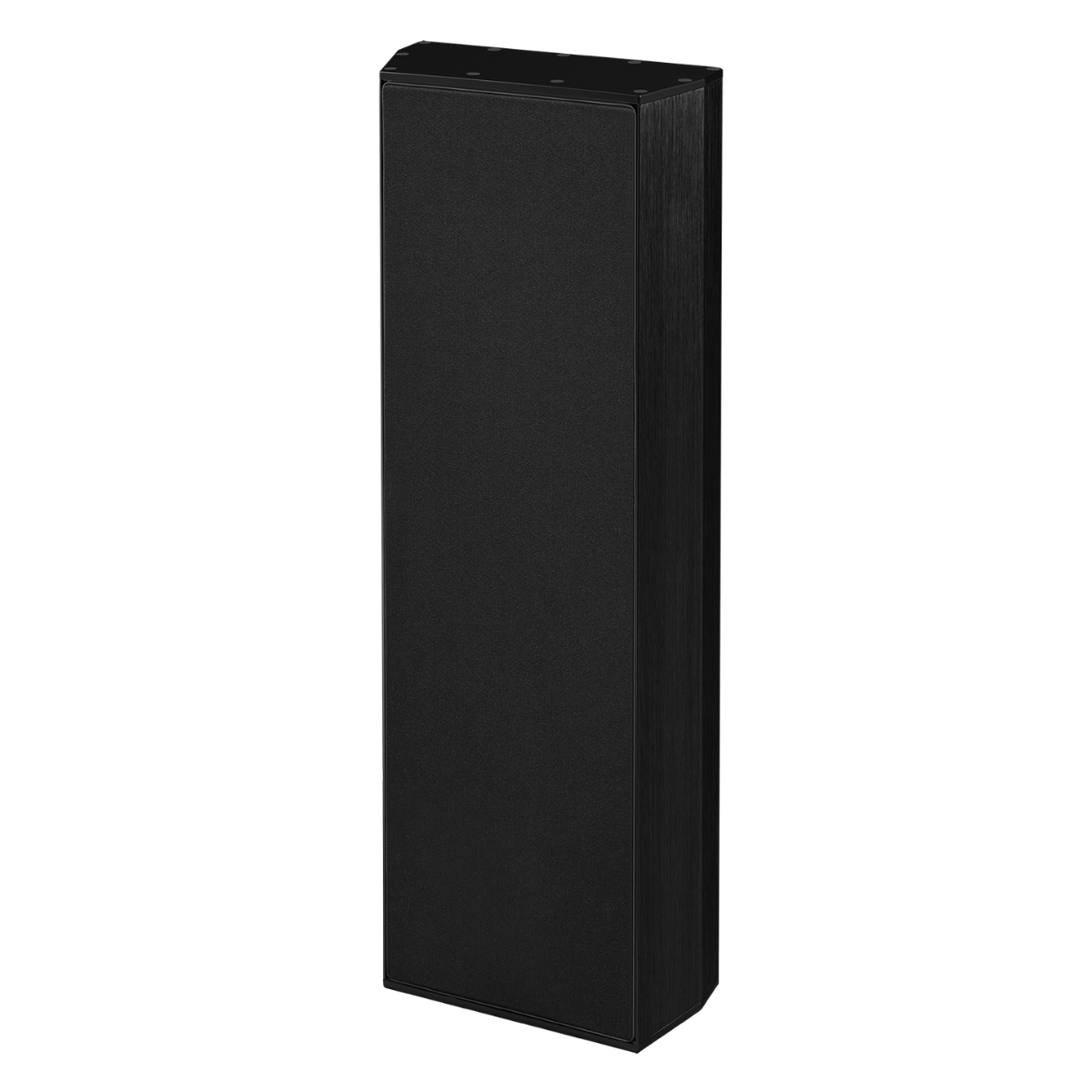

The symmetrical design gives this model the versatility to function horizontally or vertically during a sound system setup. This makes it an adaptable choice to serve as an on wall left, center, or right channel, or as a dedicated on wall surround speaker. Connections are made via gold plated, spring loaded binding post input terminals that accept premium speaker wire. For a clean final look in any smart home integration, the cabinet is finished with a magnetically attachable cloth grille that conceals the drivers from view.

Details & Specs

Model SCL-9
Product Dims (W x D x H) 25.5” x 9.2” x 4.4” (648mm x 233mm x 112mm)
Product Weight 22lbs (10kg)
Type 2-way on-wall loudspeaker
Low Frequency Driver Dual 5 ¼ -inch (130mm) cast-frame, Advanced Aluminum Matrix cone woofers
High Frequency Driver 2410H-2, 1-inch (25mm) high frequency compression driver

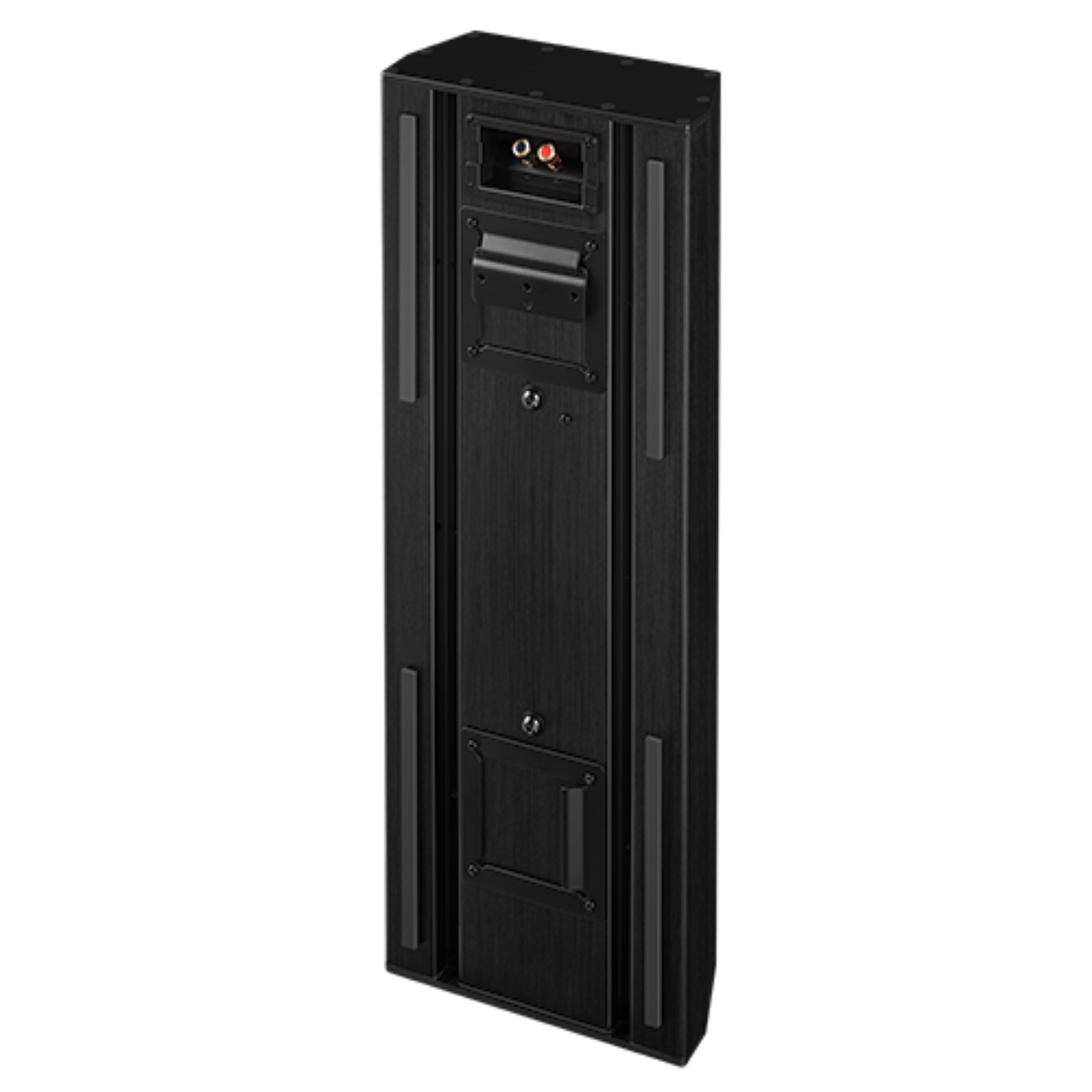

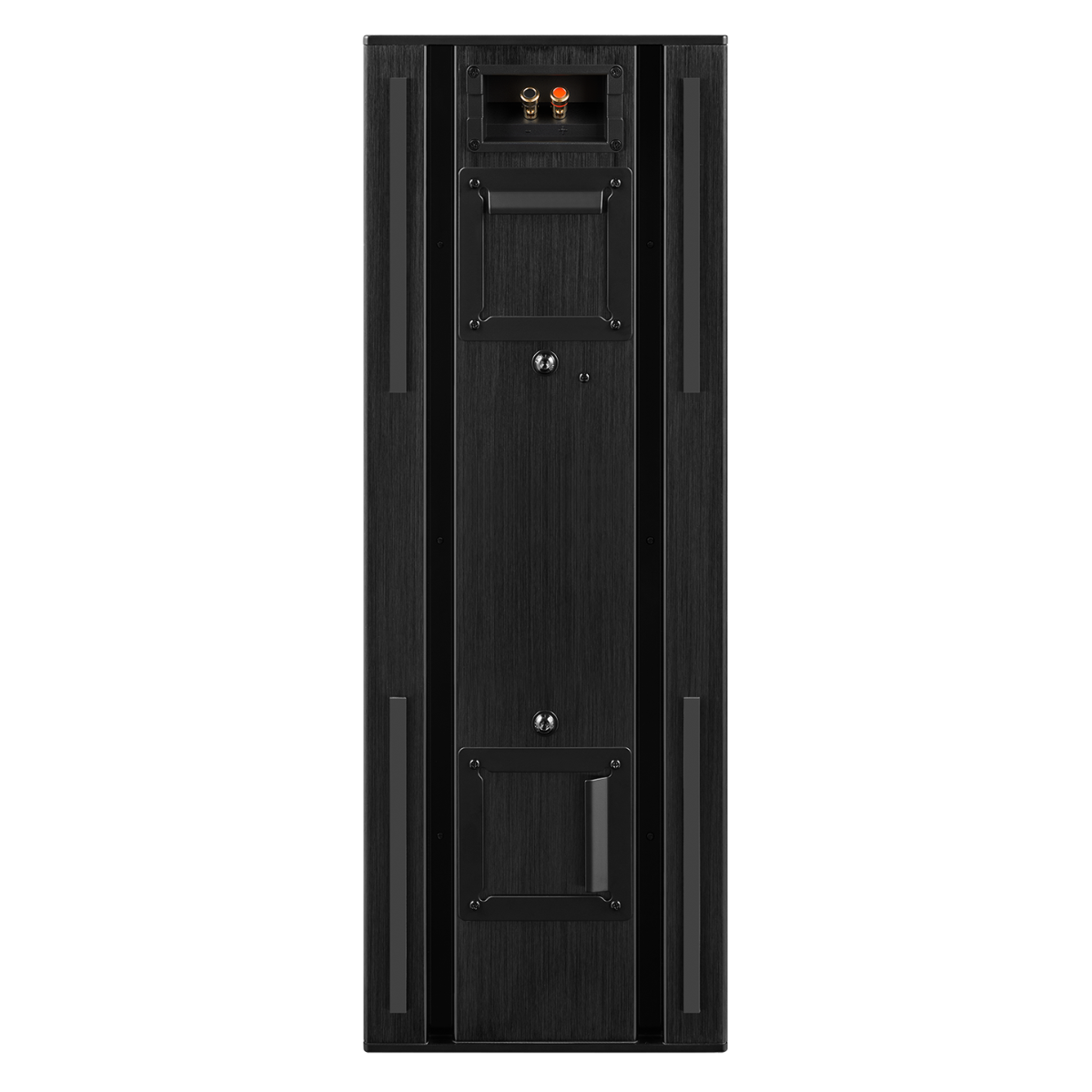

Inputs Spring-loaded gold-plated binding posts
Power Handling 125W RMS (CEA-426B specification, at rated load impedance)
Frequency Response 64Hz – 20kHz (-6dB)
Coverage Angle (-6dB, averaged over 2kHz-10kHz) 90° Vertical, 90° Horizontal
Sensitivity (2.83V@1m) 87dB
Impedance 4Ω nominal, 4.0Ω minimum @ 503Hz
Crossover Frequencies 1.7kHz
Enclosure Type Sealed, on-wall mount
Finish Black anodized brushed aluminum with magnetically attachable cloth grille
