Item #JBLSCL7XL

SCL-7XL

2-Way Dual 6.5-Inch In-Wall Loudspeaker - Each
Item #JBLSCL7XL

SCL-7XL

2-Way Dual 6.5-Inch In-Wall Loudspeaker - Each
$2,499.95
Pre-Order: Shipping in July

Overview

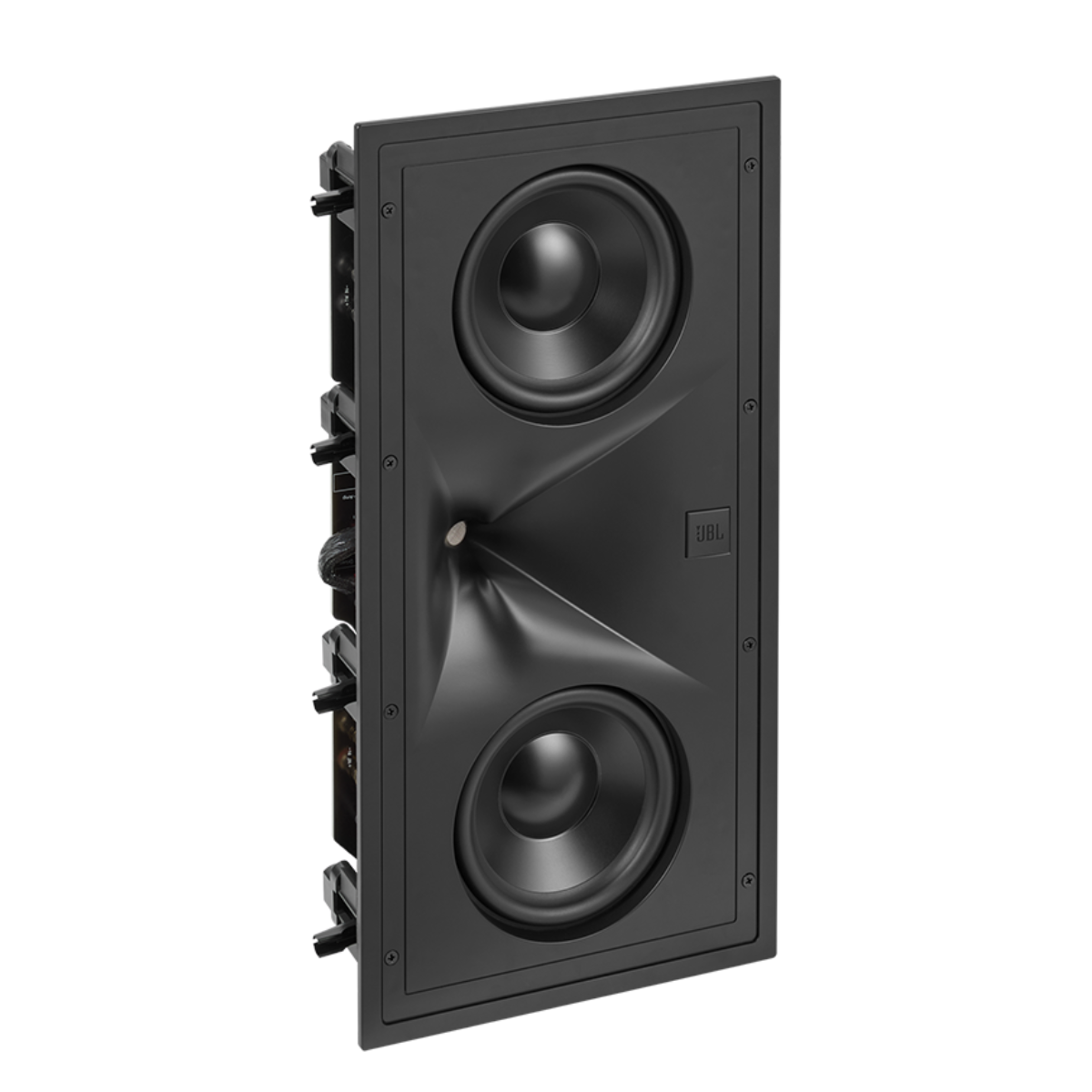

This flush mount in wall speaker features an offset horn waveguide to aim sound directly at the listening area. Ideal for surround or center channels in medium to large rooms, it mounts vertically or horizontally. It offers flexible, high output audio visual solutions for a clean sound system setup.

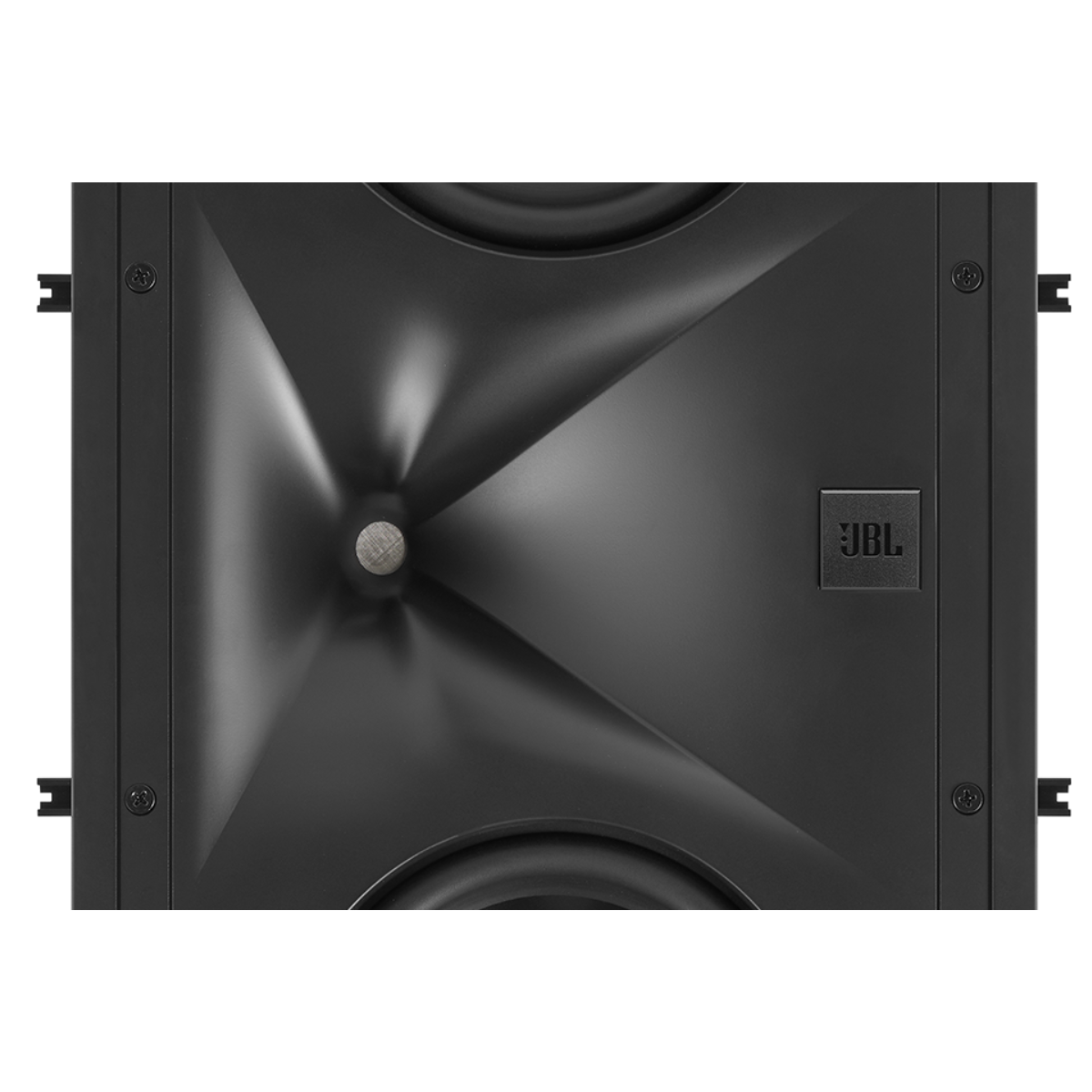

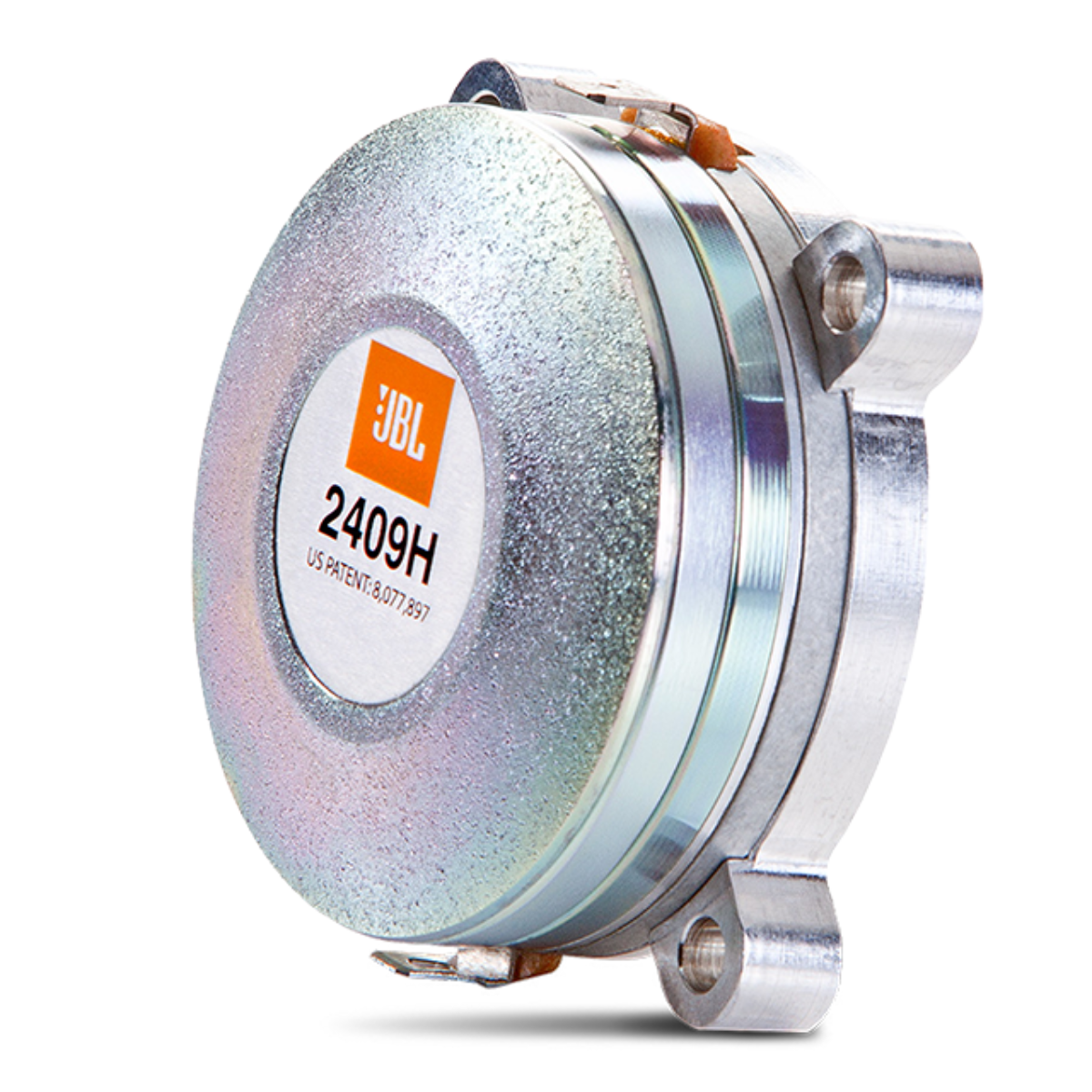

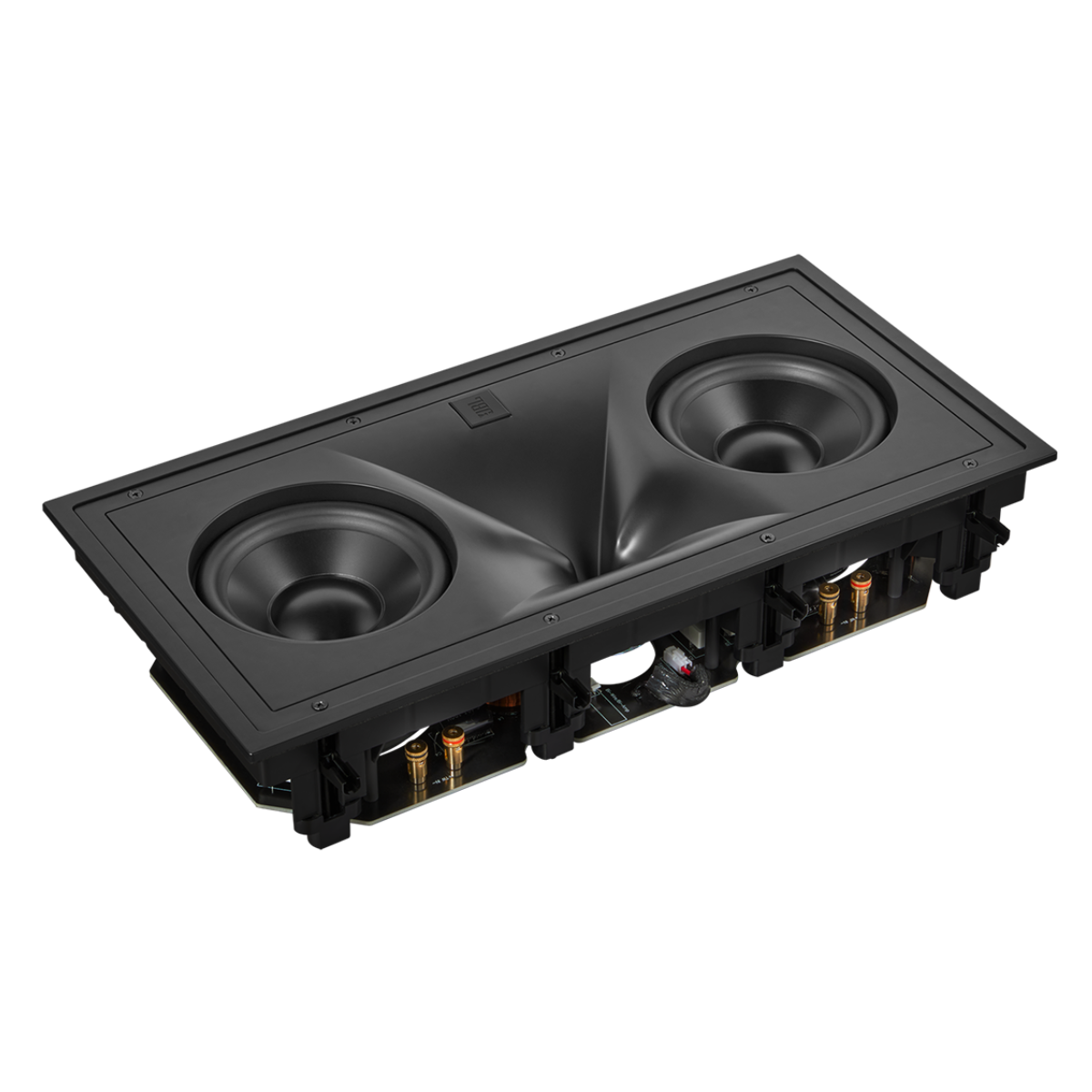

The JBL Synthesis SCL-7XL two way in wall loudspeaker delivers high performance for surround channel and dedicated center channel applications in medium and large rooms. Built with a patented 2409H one inch high frequency compression driver, the loudspeaker features a Defined Directivity High Definition Imaging horn with an offset geometry. This specialized configuration allows the speaker output to be aimed toward a specific listening area while remaining completely flush mounted to the wall surface, resolving the placement challenges of positioning a center channel directly above or below a display.

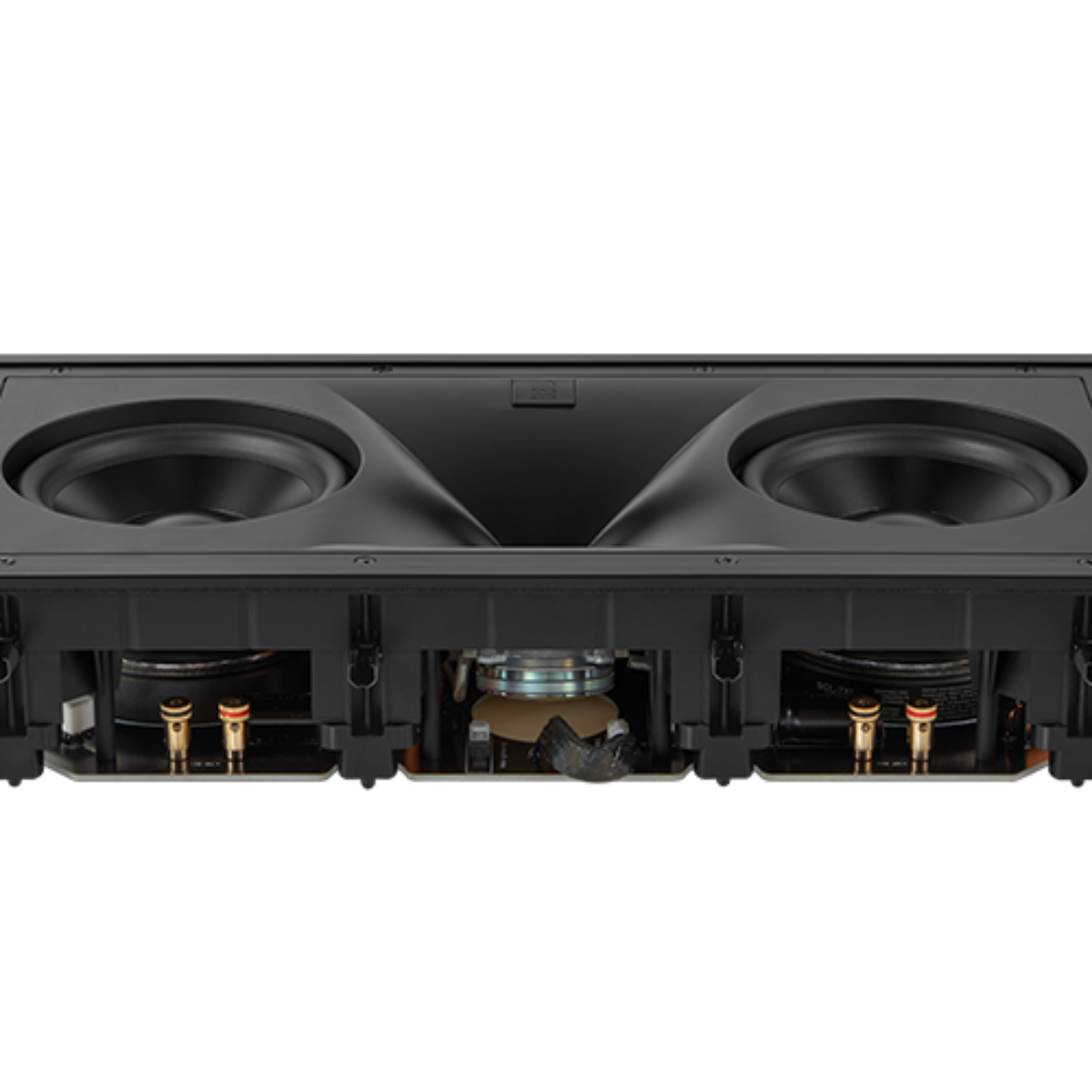

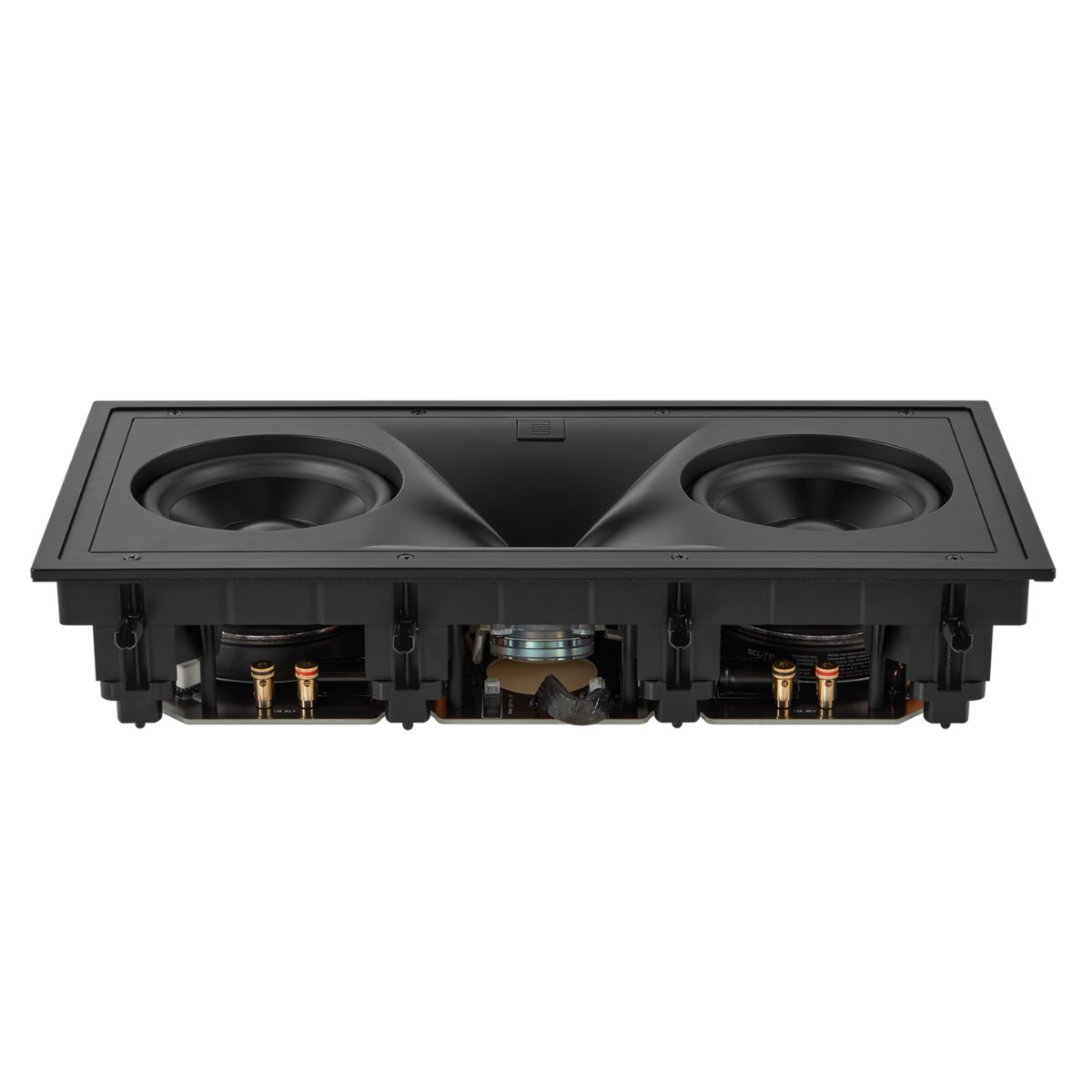

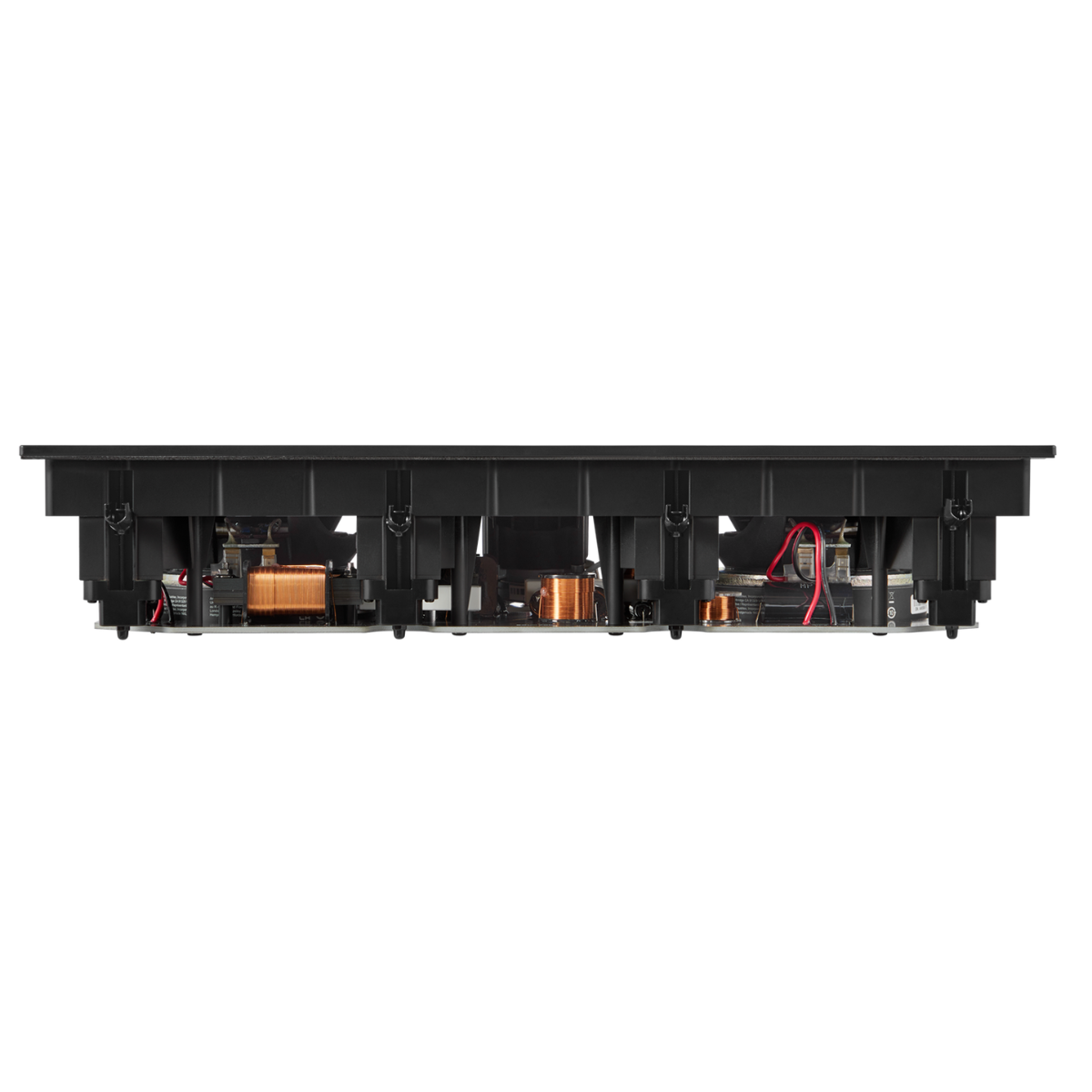

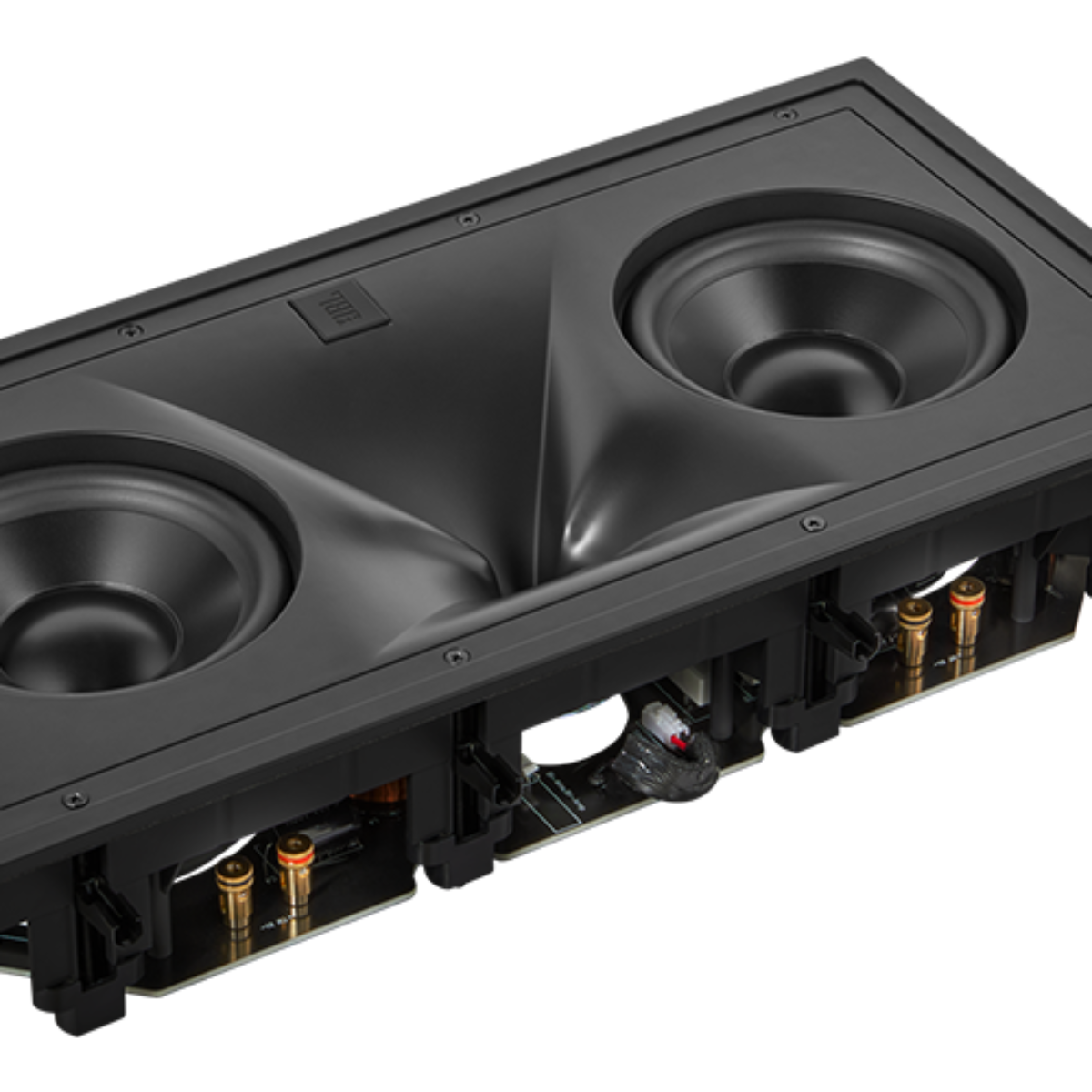

The high frequency driver works alongside dual six and a half inch cast frame woofers featuring Advanced Aluminum Matrix cones. An advanced crossover network manages the frequencies, permitting vertical or horizontal orientation during a sound system setup without causing the acoustic lobing issues found in traditional architectural speaker designs. For advanced installations, dual sets of gold plated, spring loaded binding post input terminals allow for bi wiring or bi amplification.

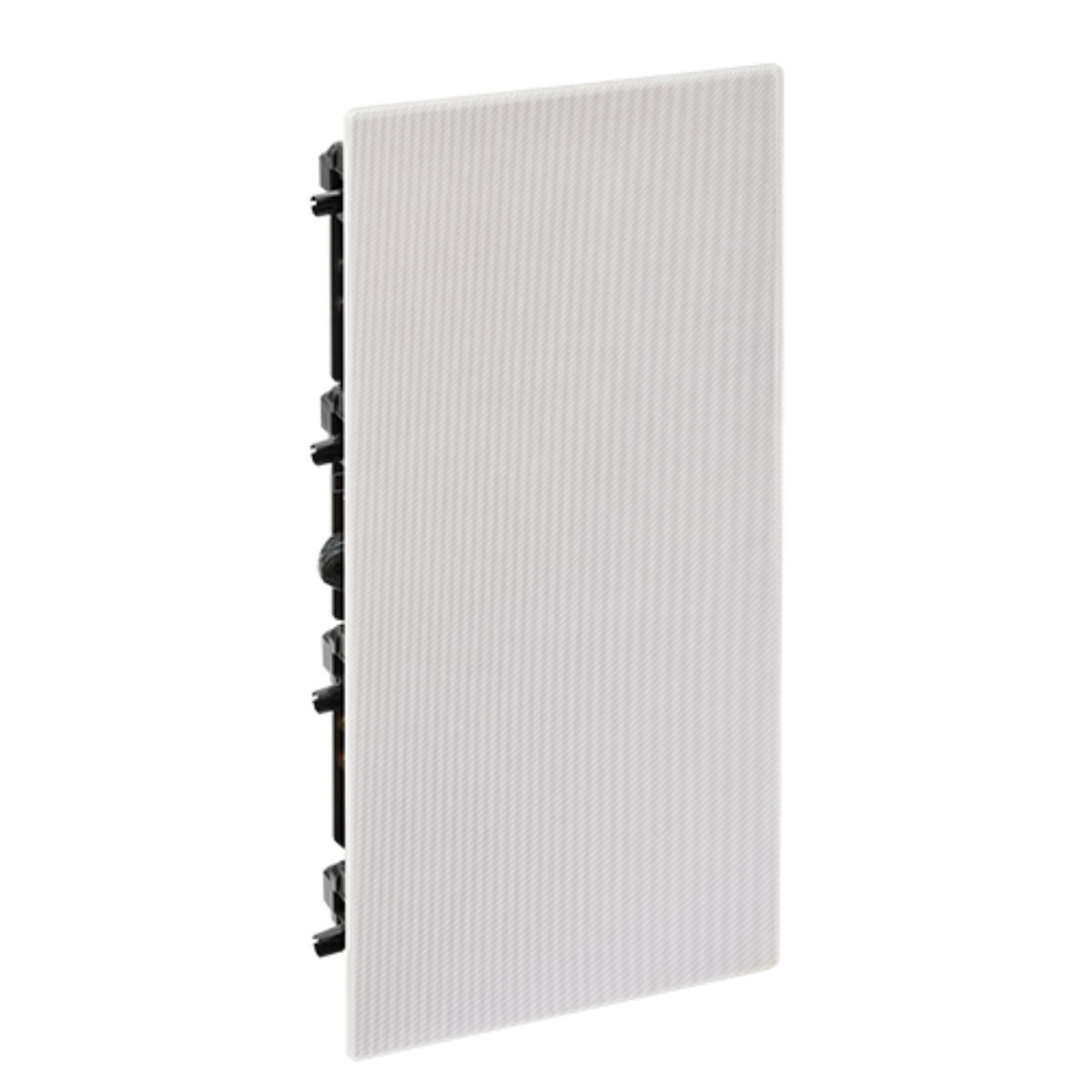

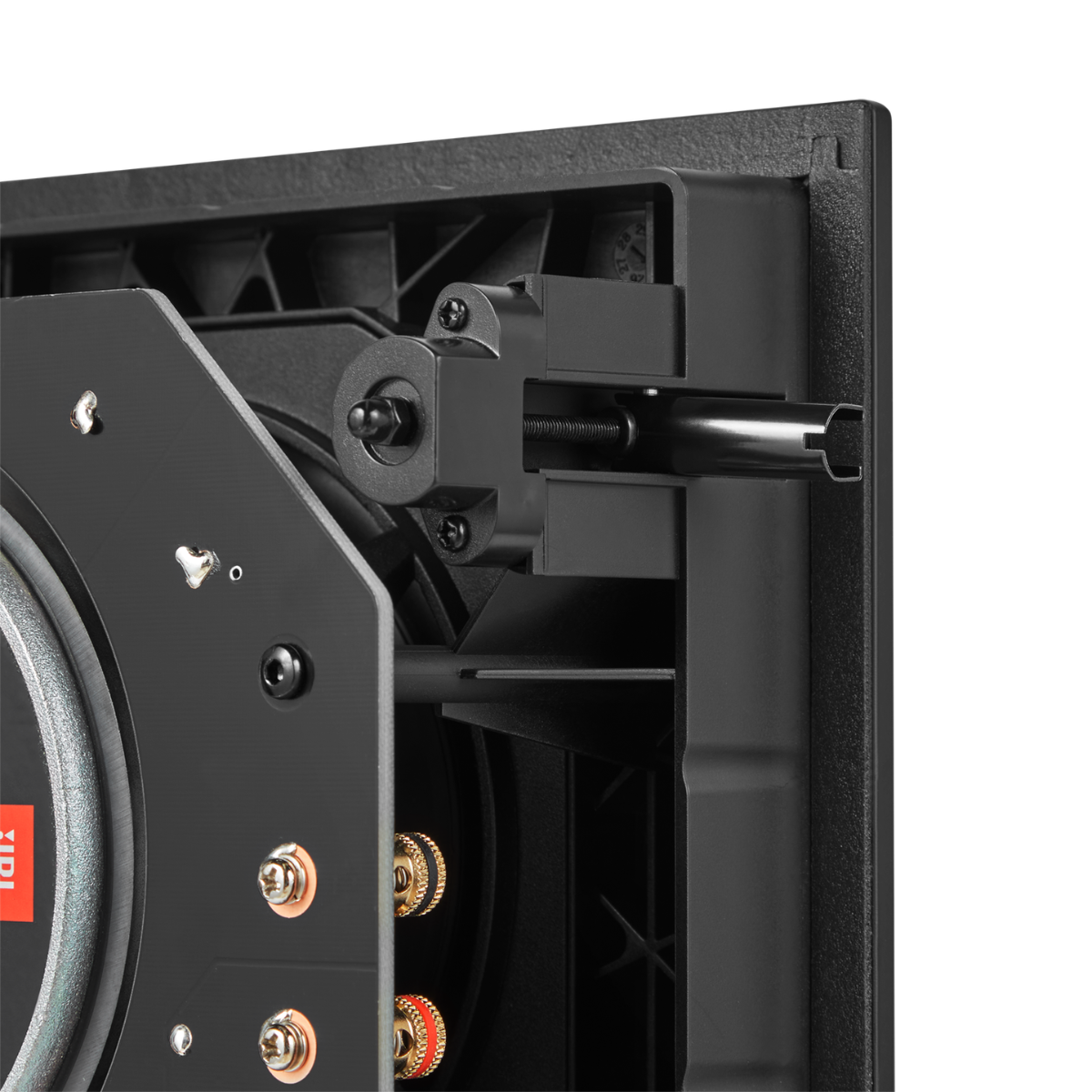

The chassis fits cleanly within standard two by four inch wood frame construction. Integrating this model into a high end smart home integration is streamlined by the patented Cat Claw installation mechanism, which ensures a fast and reliable mounting process. Visually, the speaker blends into the room decor using a zero bezel, magnetically attached paintable grille, providing high output audio visual solutions without disturbing the lines of the wall.

Details & Specs

Model SCL-7XL
Product Dims (W x D x H) 20.9” x 10.7 x 4.0” (529mm x 269mm x 101.5mm)
Product Weight 19.6lbs (8.9kg)
Type 2-way in-wall loudspeaker
Low Frequency Driver Dual 6½-inch (165mm) Advanced Aluminum Matrix cone, cast-frame woofers
High Frequency Driver 2409H, 1-inch (25mm) high frequency compression driver
Inputs Dual set of spring-loaded gold-plated binding posts for bi-amp/bi-wire capability (crossover not defeated)
Power Handling 200 Watts RMS (CEA-426B specification, at rated load impedance)
Frequency Response 50Hz – 20kHz (-6dB)
Coverage Angle (-6dB, averaged over 2kHz-10kHz) 110° Horizontal (centered on 15° axis), 100° Vertical
Sensitivity (2.83V@1m) 90dB
Impedance 4Ω nominal, 3.2Ω minimum @ 620Hz
Crossover Frequencies 1.45 kHz
Enclosure Type Open Back
Finish Matte Black with white paintable grille
