Item #JBLSCL6XL

SCL-6XL

2.5-Way Quad 6.5-Inch In-Wall Loudspeaker - Each
Item #JBLSCL6XL

SCL-6XL

2.5-Way Quad 6.5-Inch In-Wall Loudspeaker - Each
$3,499.95
Pre-Order: Shipping in July

Overview

This in wall loudspeaker serves as a powerful front or surround channel in medium to large rooms. Quadruple woofers mount vertically or horizontally without acoustic issues, covering multiple seating rows. It fits standard framing using a quick installation mechanism, providing clean audio visual solutions for an invisible sound system setup.

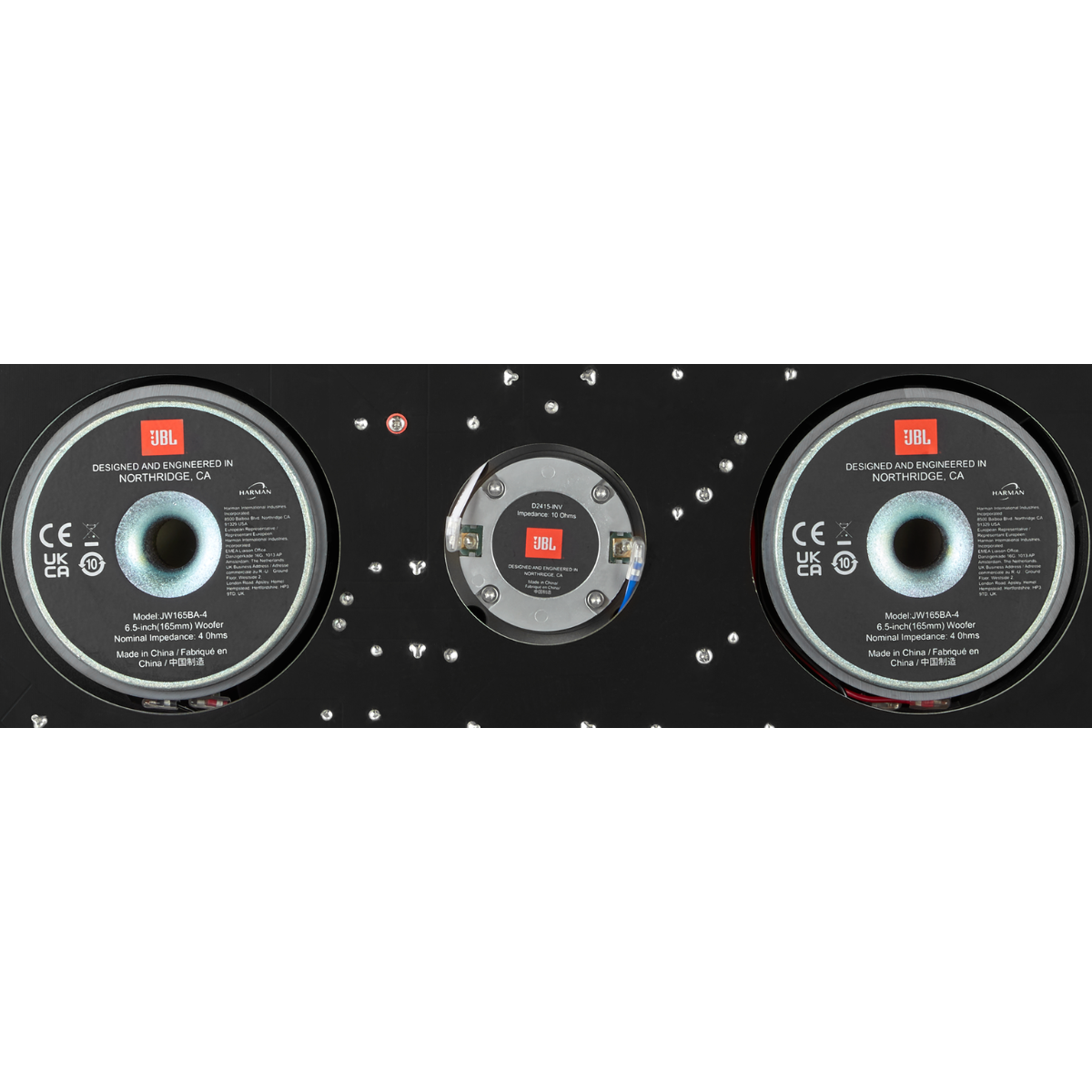

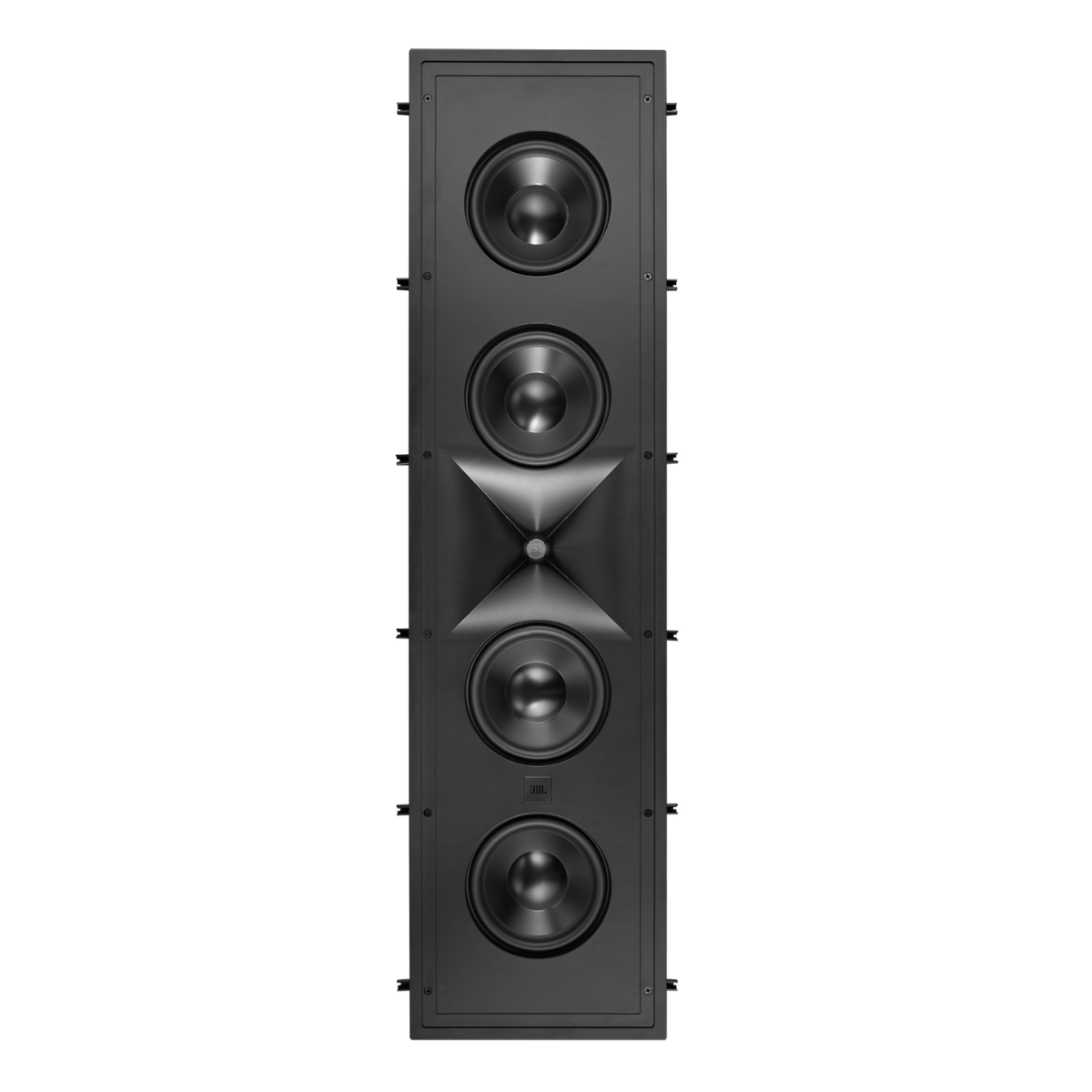

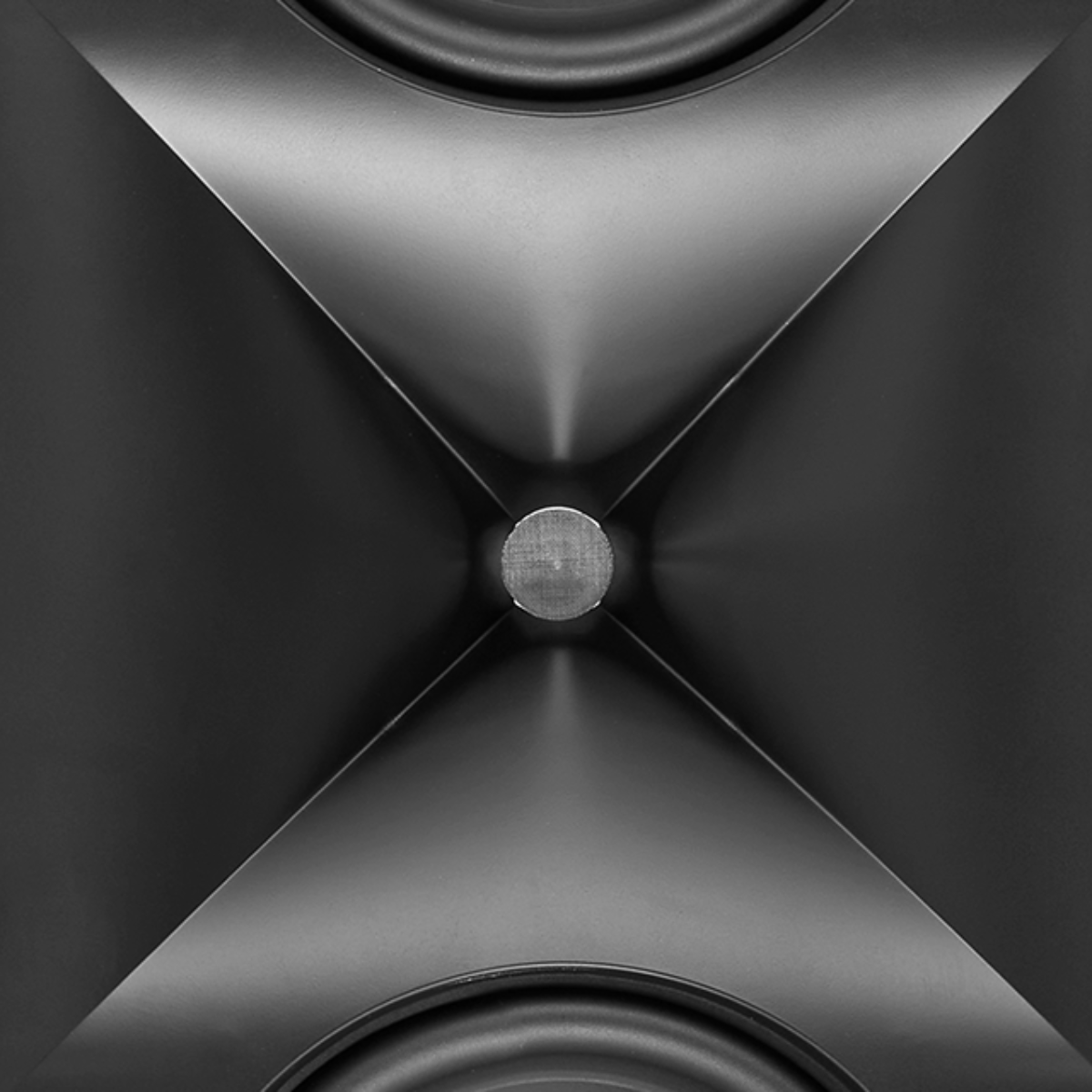

The JBL Synthesis SCL-6XL two and a half way in wall loudspeaker delivers high performance across medium and large rooms. Built with a patented 2415 INV one and a half inch high frequency compression driver, the speaker utilizes a High Definition Imaging horn geometry. This specialized driver configuration operates alongside quadruple six and a half inch cast frame woofers featuring Advanced Aluminum Matrix cones.

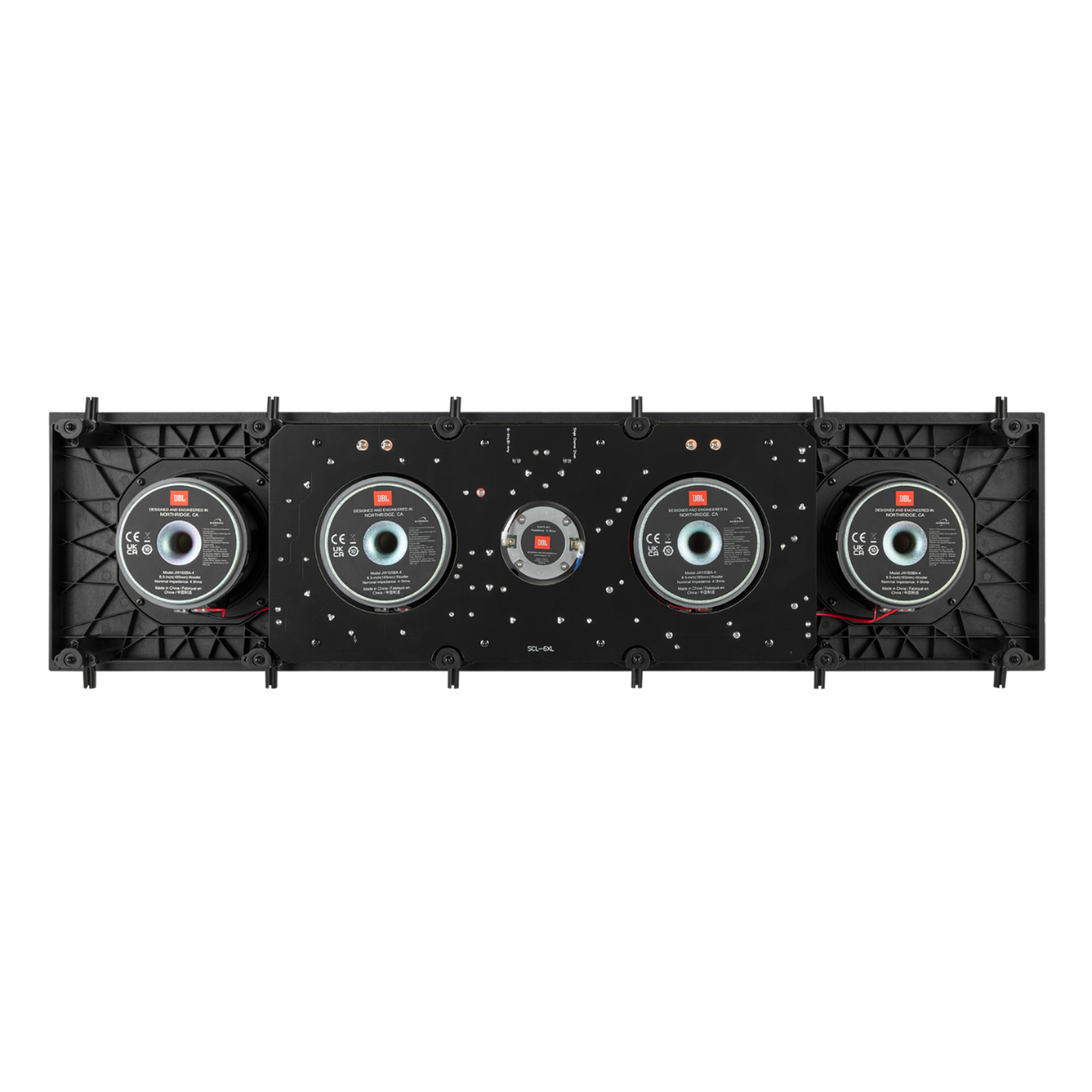

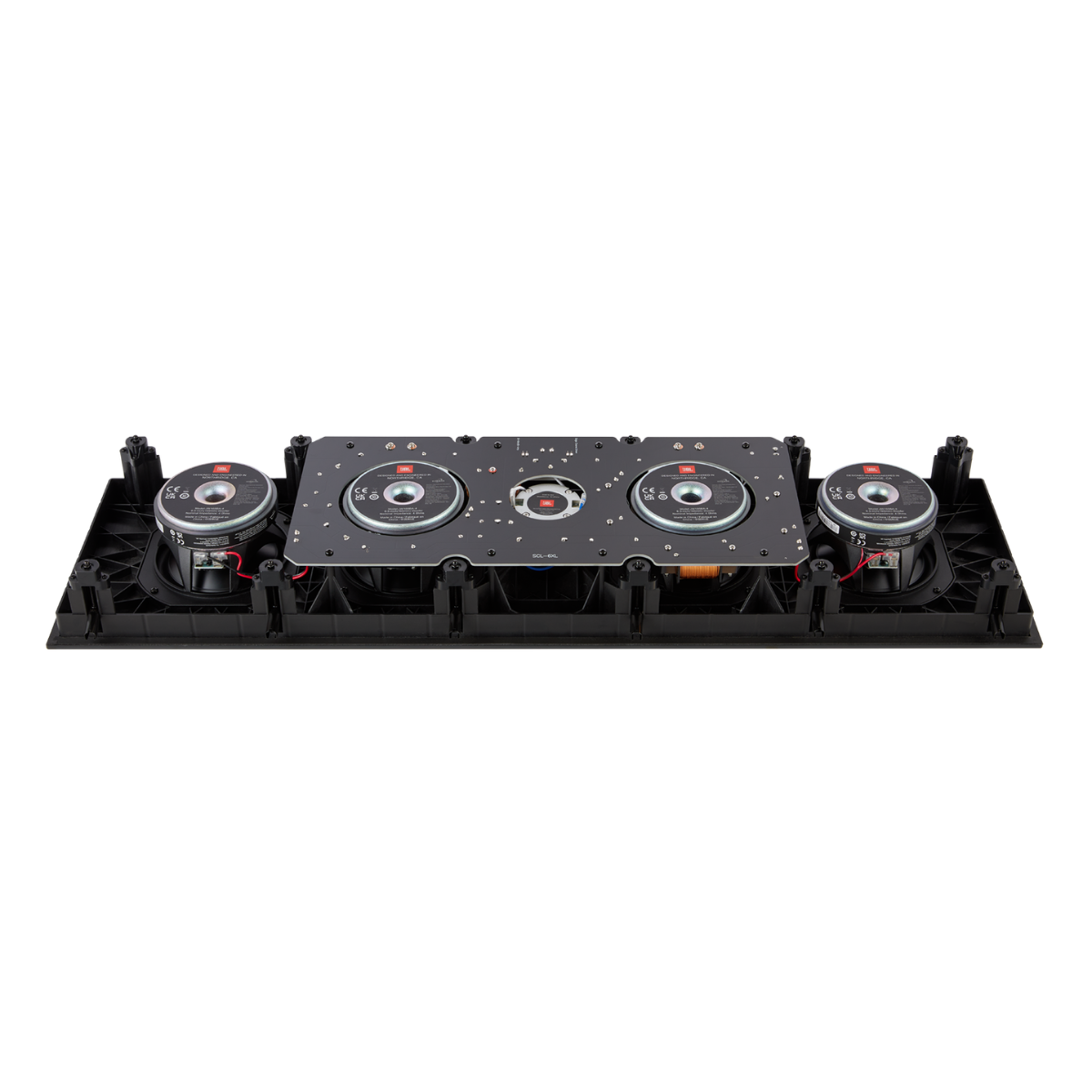

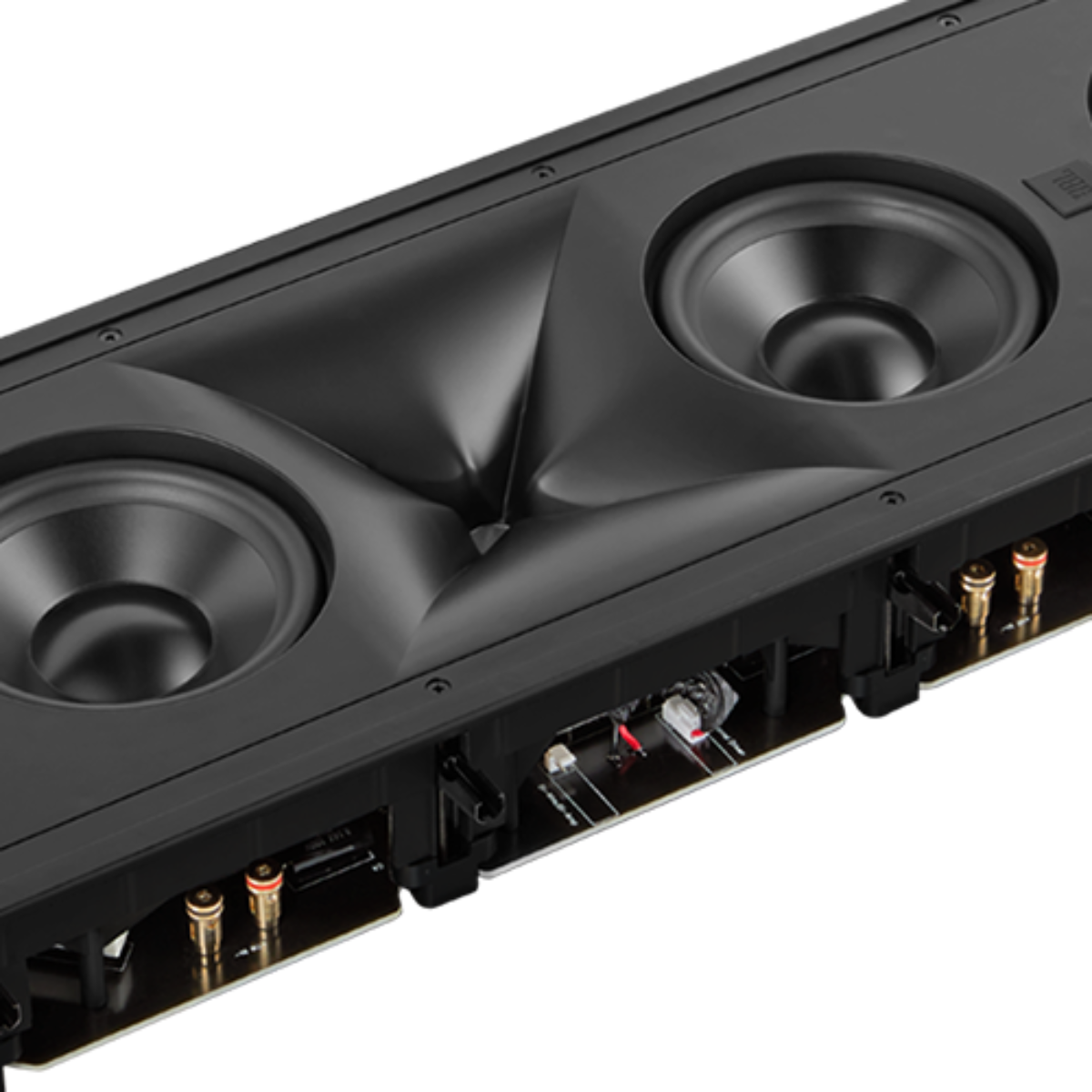

A two and a half way crossover network manages the frequencies with precision. This engineering allows for vertical or horizontal orientation during a sound system setup without creating the acoustic lobing issues common in traditional loudspeaker designs. For advanced installations, dual sets of gold plated, spring loaded binding post input terminals facilitate bi wiring or bi amplification configurations.

This model functions exceptionally well as a left, center, or right channel behind an acoustically transparent projection screen in medium sized rooms. Because of its wide one hundred ten degree on axis horizontal coverage, it also serves as an ideal surround channel for deeper rooms that require audio coverage across multiple rows of seats.

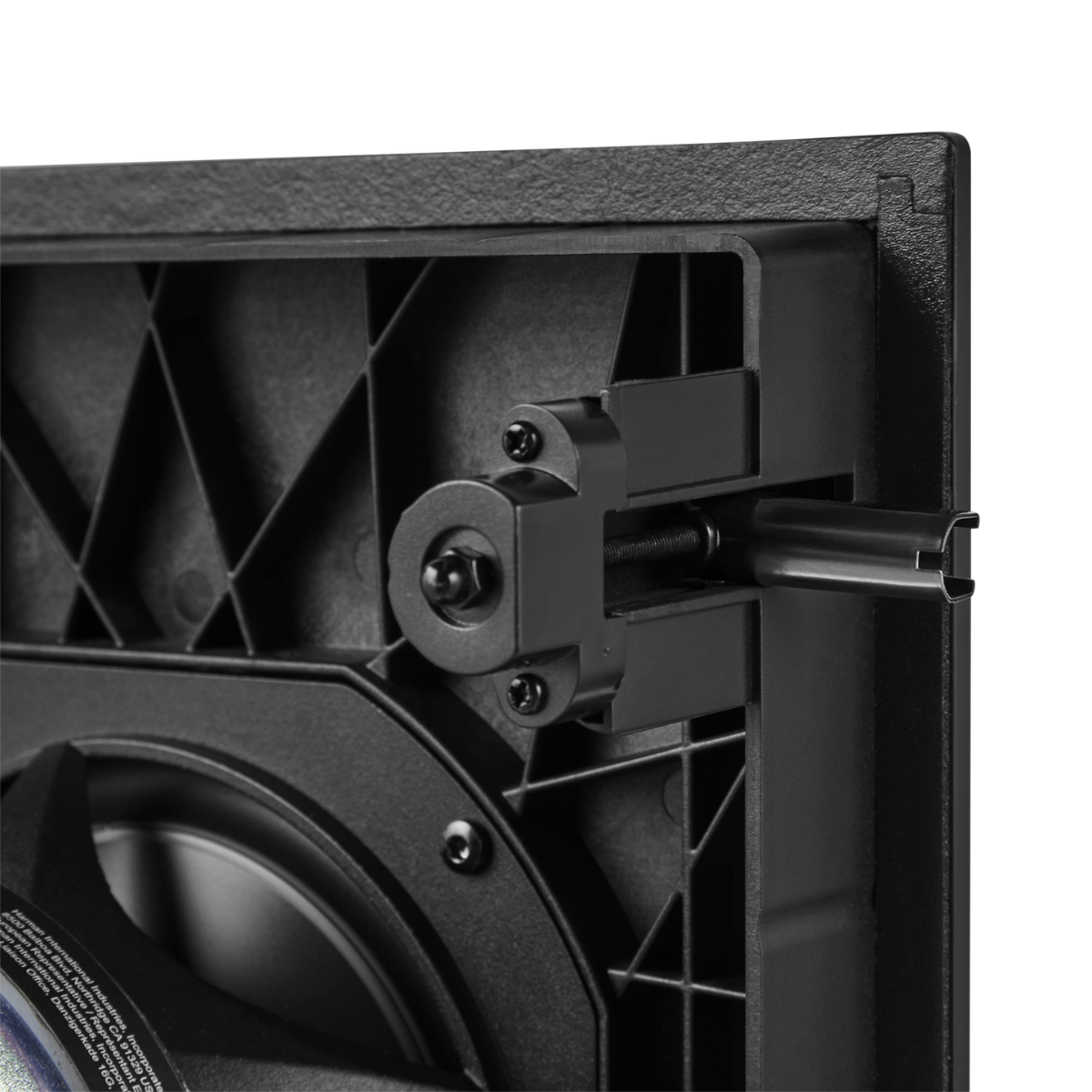

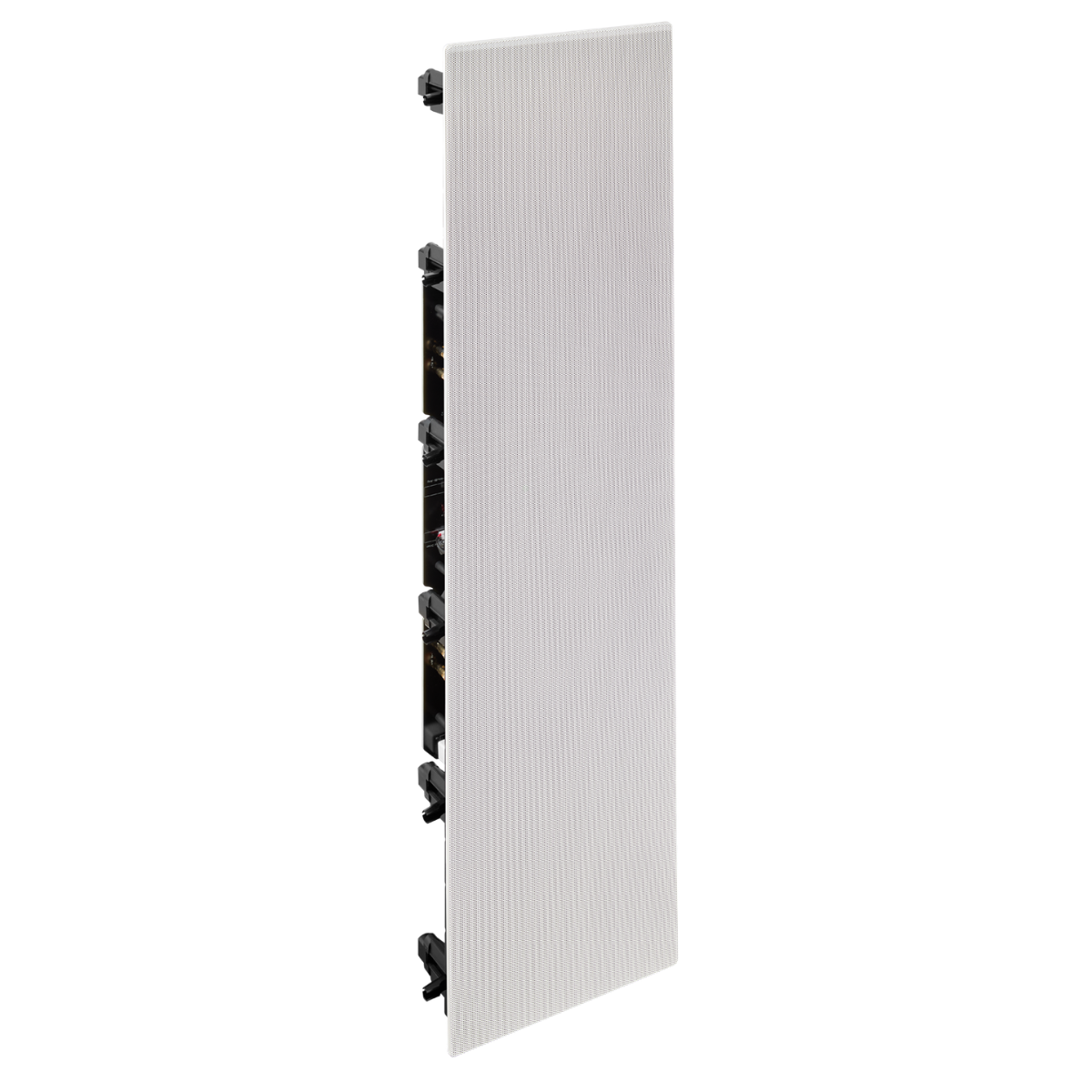

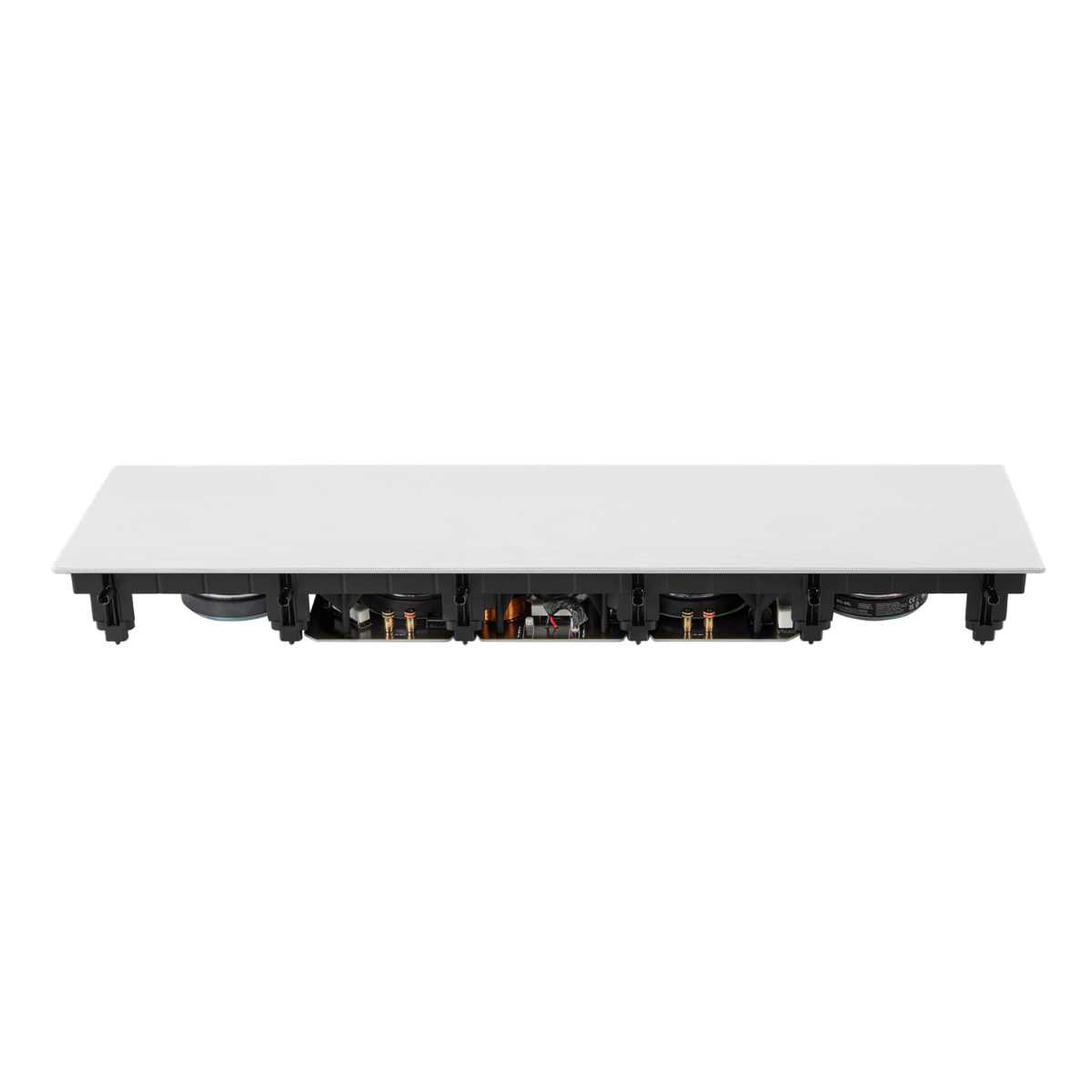

The structural housing is sized specifically for installation within standard two by four inch wood frame construction. Integrating this model into a high end smart home integration is simplified by the patented Cat Claw installation mechanism, which allows for a quick and easy mounting process. Visually, the speaker blends into the wall using a zero bezel, magnetically attached paintable grille, keeping the hardware hidden from view.

Details & Specs

Model SCL-6XL
Product Dims (W x D x H) 10.7”W x 4.0”D x 39.8”H
Product Weight 36.8lbs (16.7kg)
Type 2 ½ -way in-wall loudspeaker
Low Frequency Driver Quadruple 6½-inch (165mm) Advanced Aluminum Matrix cone, cast-frame woofers
High Frequency Driver 2415-INV, 1½-inch (38mm) high frequency compression driver
Inputs Dual set of spring-loaded gold-plated binding posts for bi-amp/bi-wire capability (crossover not defeated)
Power Handling 200 Watts RMS (CEA-426B specification, at rated load impedance)
Frequency Response 35Hz – 20kHz (-6dB)
Coverage Angle (-6dB, averaged over 2kHz-10kHz) 110 degree Horizontal, 100 degree Vertical
Sensitivity (2.83V@1m) 90dB
Impedance 4Ω nominal, 3.8Ω minimum @ 650Hz
Crossover Frequencies 105 Hz, 1.45 kHz
Enclosure type Open Back
Finish Matte Black with white paintable grille
