Item #JBLSCL3

JBL Synthesis SCL-3

2-Way 5.25" In-Wall & In-Ceiling Speaker
Item #JBLSCL3

JBL Synthesis SCL-3

2-Way 5.25" In-Wall & In-Ceiling Speaker
$3,300.00
In Stock: Free 2-Day Shipping
Contact Us

Overview

The two-way SCL in-wall loudspeakers are the first flush-mount compression driver loudspeakers using JBL Professional technology. The dual 5-¼" cast frame aluminum woofers are ideal for in-wall or ceiling mounting. Utilizing the D2-derived 1-inch / 25mm annular ring compression driver with Teonex® diaphragm and an advanced HDI geometry horn, the SCL-3 provides unparalleled performance compared to any in-wall loudspeaker in the market today.

Sold individually.

The JBL brand has become synonymous with the cinema experience. The SCL-3 was designed to continue this legacy. The two-way SCL in-wall loudspeakers are the first flush-mount compression driver loudspeakers using JBL Professional technology. The dual 5-¼" cast frame aluminum woofers are ideal for in-wall or ceiling mounting. Utilizing the D2-derived 1-inch / 25mm annular ring compression driver with Teonex® diaphragm and an advanced HDI geometry horn, the SCL-3 provides unparalleled performance compared to any in-wall loudspeaker in the market today.

Features

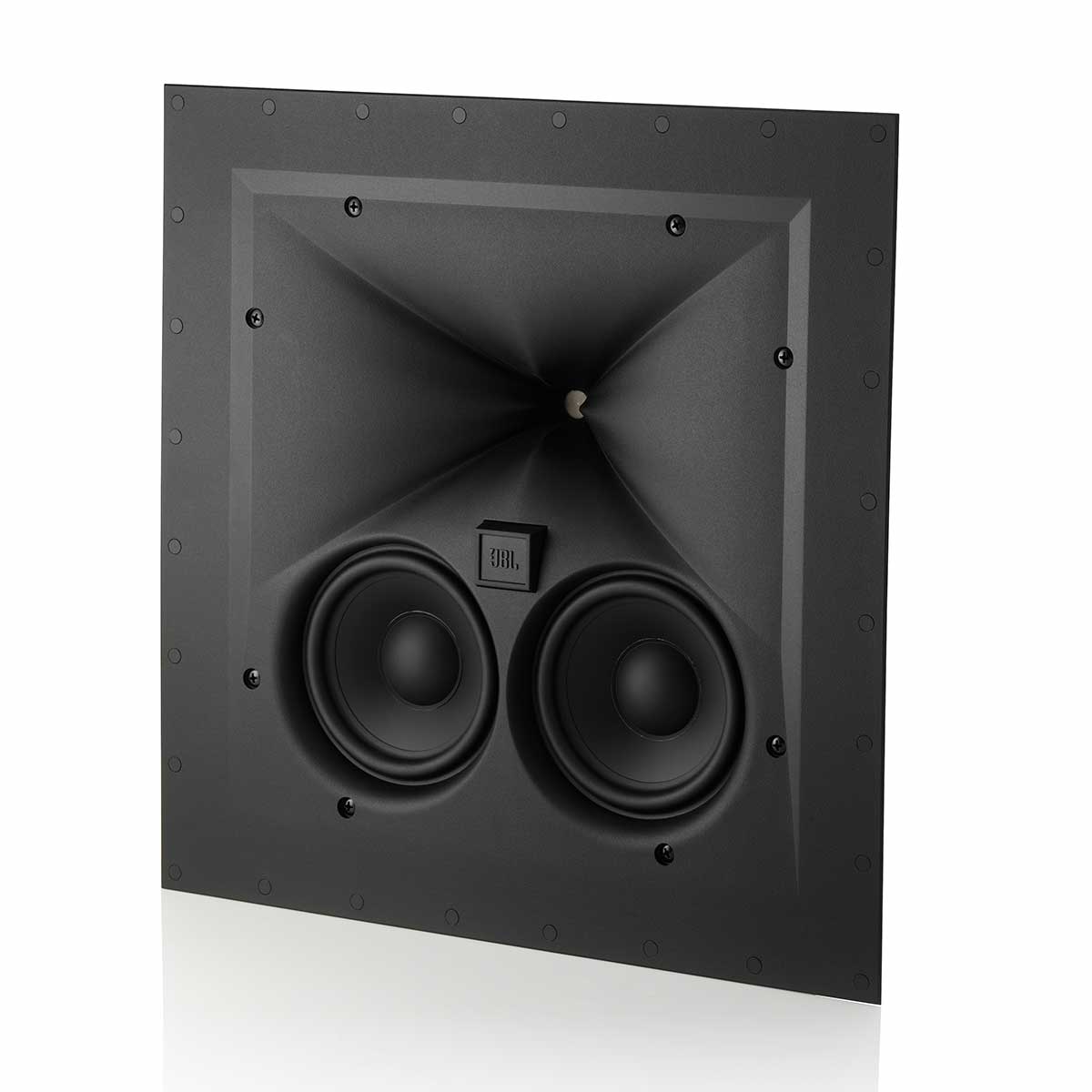

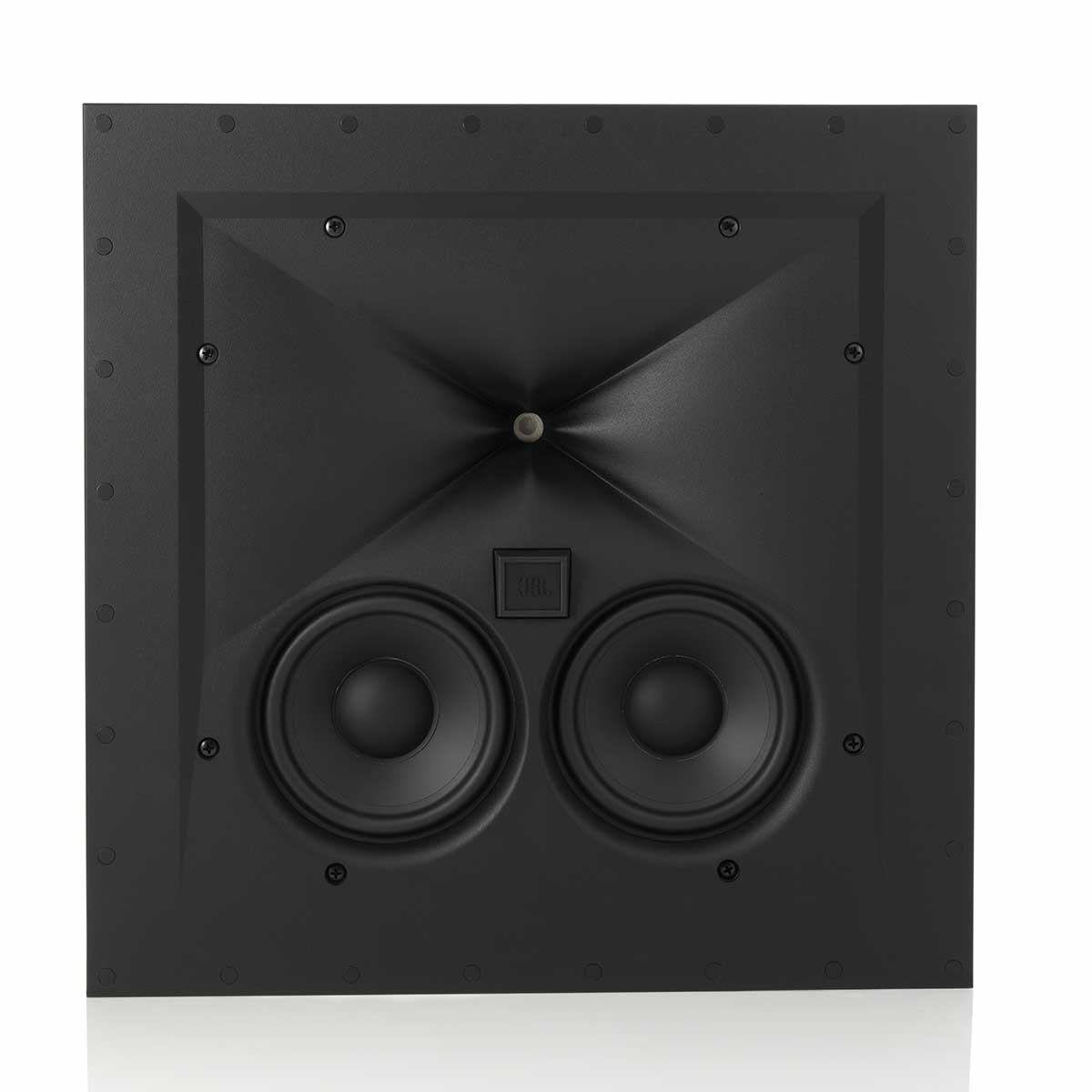

  • Dual 5-¼" (130mm) cast-frame, advanced aluminum matrix cone woofers with low-distortion neodymium motor structures
  • D2-derived 1" (25mm) 2409H annular ring, Teonex ® diaphragm, compression driver
  • Patented HDI™ (High-Definition Imaging) technology provides elevated performance in combination with patented D2-Series compression driver
  • Design can be oriented in any of the four possible directions for flexibility in applications as an in-wall surround, in-wall LCR, or in-ceiling overhead height channel
  • Ideal for overhead channel flush-mount for Dolby Atmos or similar
  • Immersive surround sound installations

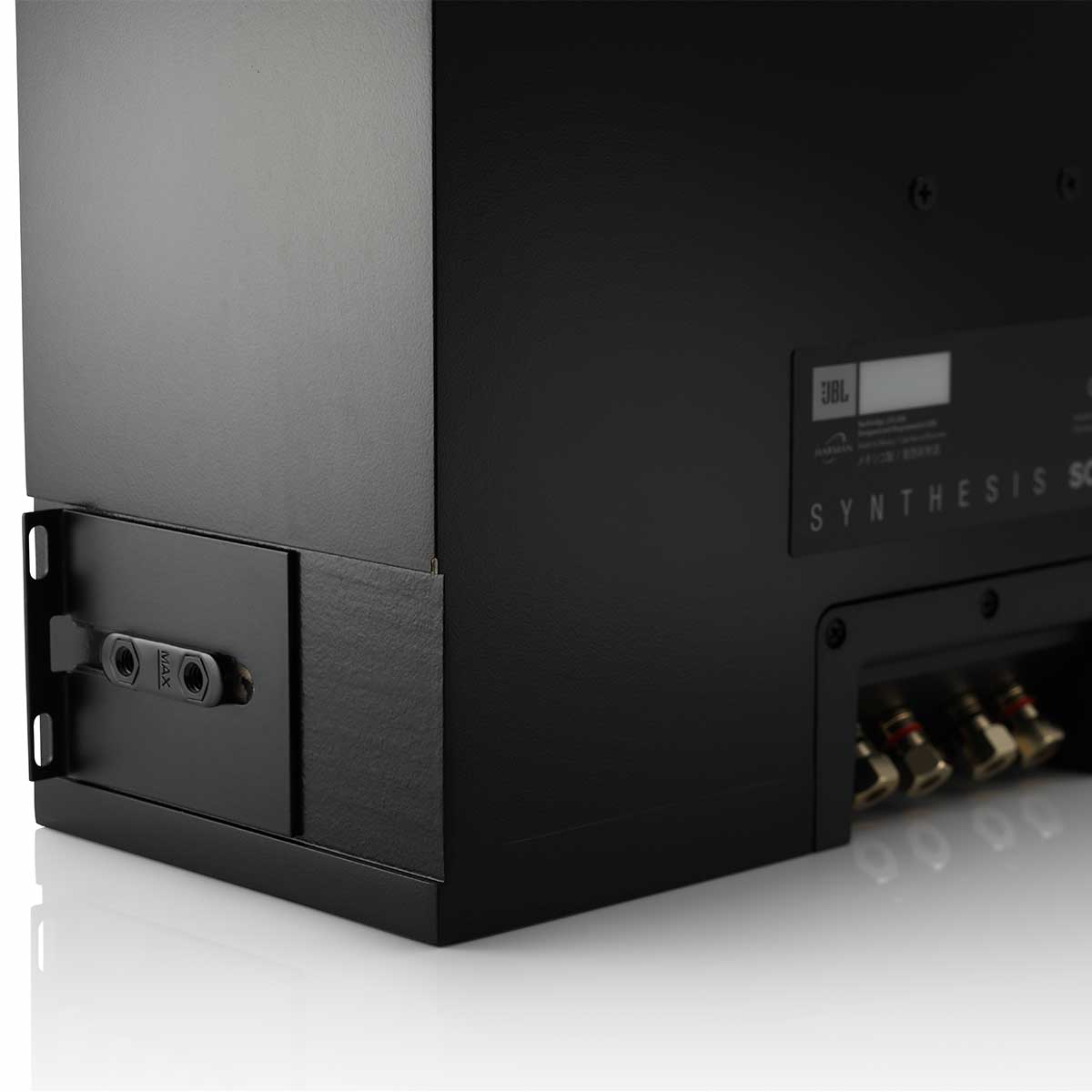

  • Patent Pending extended range L-Bracket mounting system

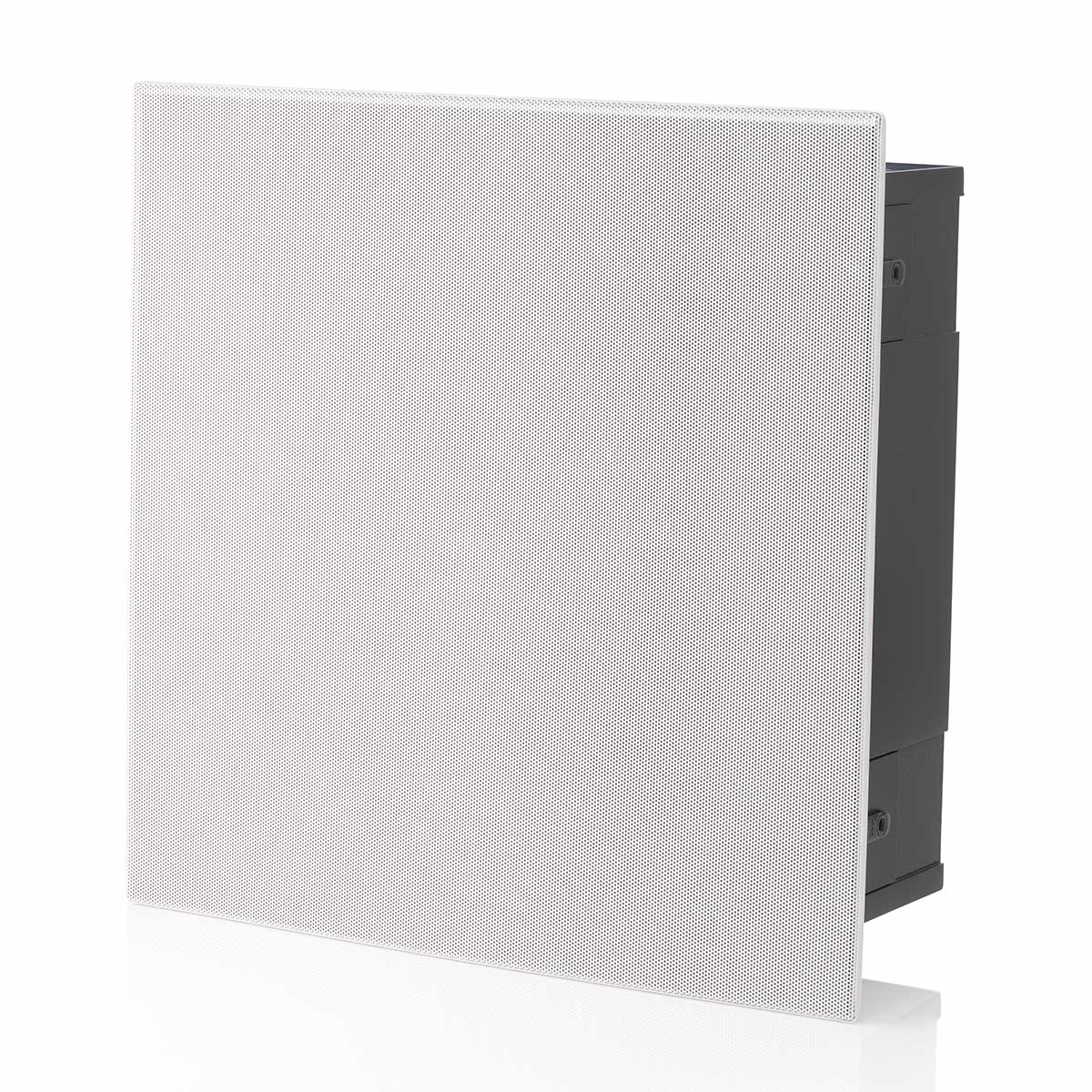

  • Zero-bezel, magnetically-attached grille

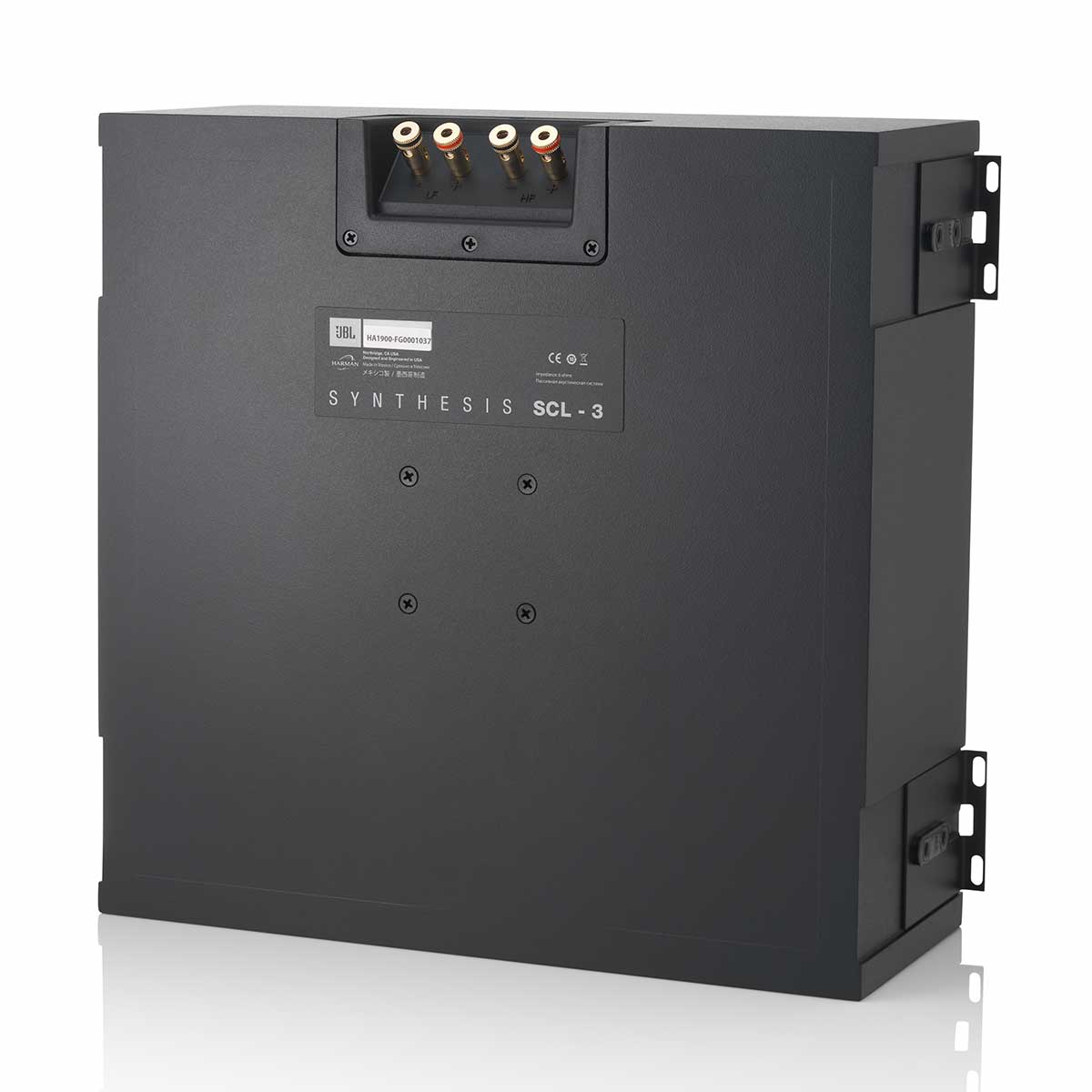

  • Dual binding post inputs for bi-wire or bi-amplified connections
  • Low resonance, well-damped MDF wood rear enclosures
  • Unique center mounting point to aid installation and greatly minimize baffle resonances
  • High-performance passive network utilizing all air-core inductors, polypropylene capacitors

Details & Specs

General Specifications

  • Speaker Type - Two-way In-Wall Loudspeaker
  • Low-Frequency Transducer - Dual 5-¼” (130mm) cast-frame, advanced aluminum matrix cone woofers
  • Mid/High-Frequency Transducer - D2-derived 1" (25mm) 2409H annular ring, Teonex® diaphragm compression driver
  • Maximum Recommended Amplifier Power - 200 watts RMS
  • Frequency Response (-6dB on-axis) - 65 Hz – 33KHz
  • Coverage area (-6dB @ 20 KHz) - 90 x 60 deg, (-6dB @ 10 KHz) 110 x 90 deg (Hor. x Vert.)
  • Sensitivity (2.83V@1m) - 91dB
  • Nominal Impedance - 6 Ohm
  • Crossover Frequencies - 1.3 KHz
  • Enclosure type - Sealed In-Wall Mount with included back box
  • Inputs - Dual Gold-plated Five-way Binding Posts
  • Dimensions (H x W x D) - 16.46" x 16.46" x 6.01" (418mm x 418mm x 153mm)
  • Weight - 24.3 lb (11.02 kg)
