Item #JBLSCL2XL

SCL-2XL

2.5-Way Quad 8-Inch In-Wall Loudspeaker
Item #JBLSCL2XL

SCL-2XL

2.5-Way Quad 8-Inch In-Wall Loudspeaker
$8,999.95
Pre-Order: Shipping in July

Overview

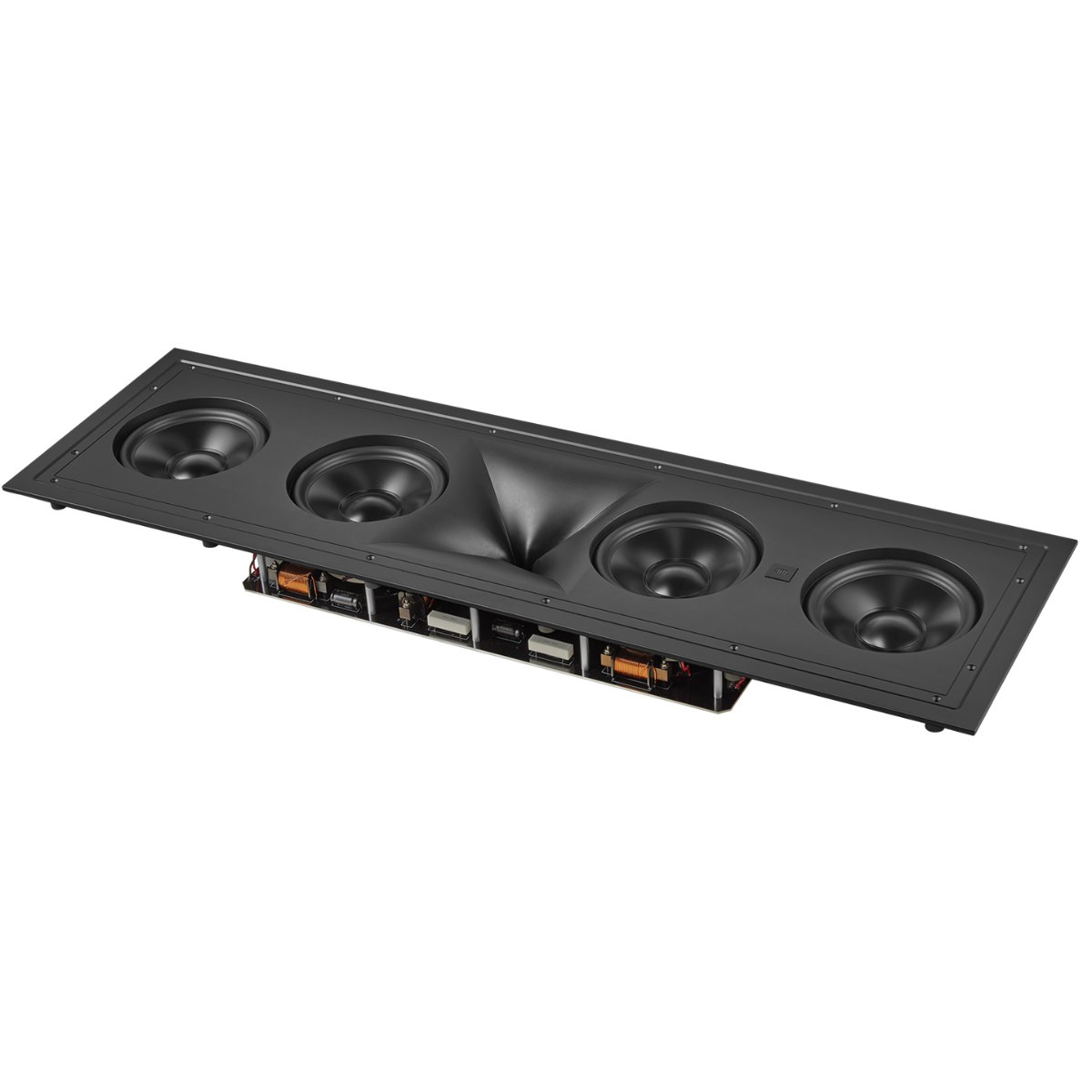

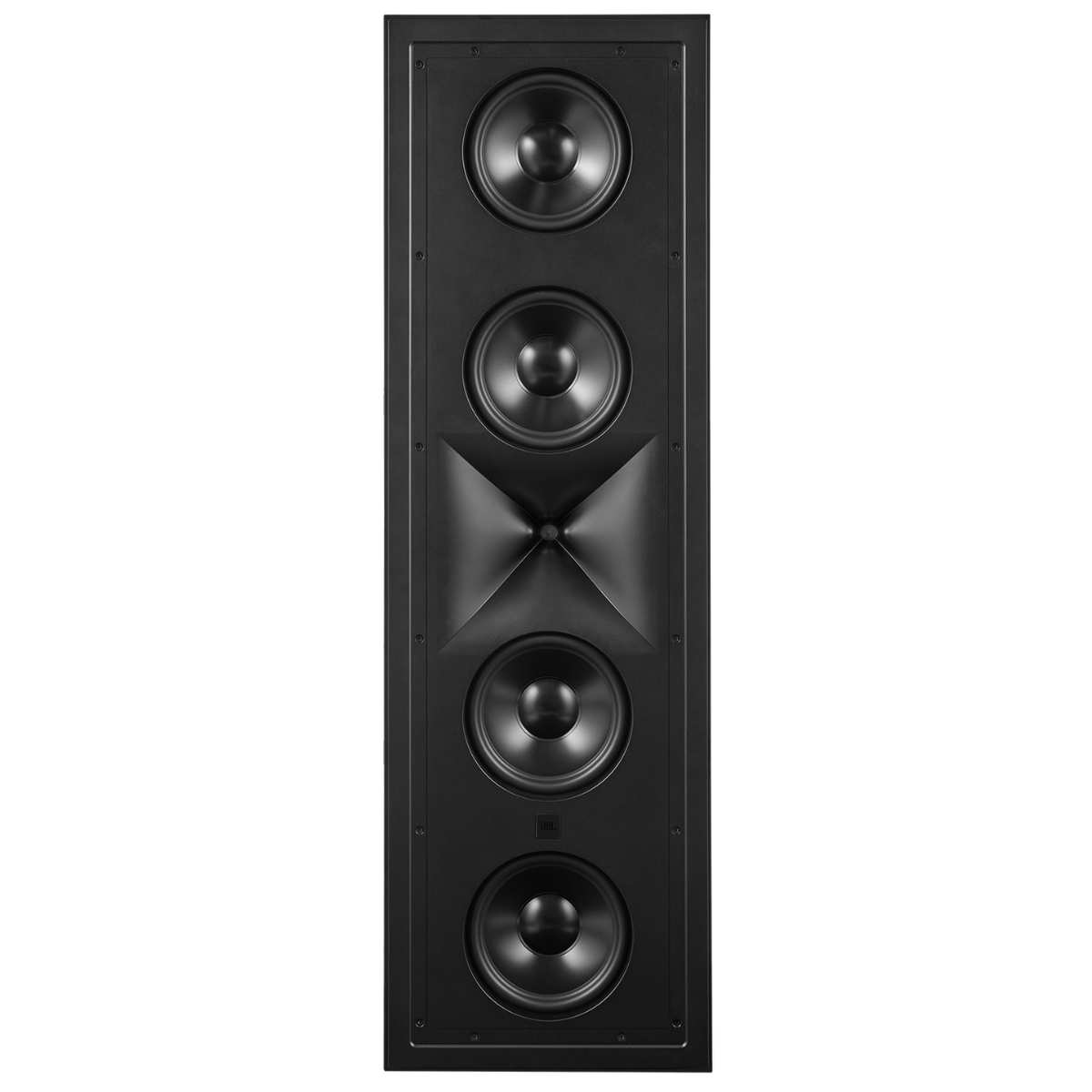

This in wall loudspeaker brings massive theater power to medium or large rooms. Quadruple eight inch woofers and a compression driver mount vertically or horizontally behind a paintable grille. It fits standard framing perfectly, making it an excellent anchor for a premium sound system setup or custom audio visual solutions.

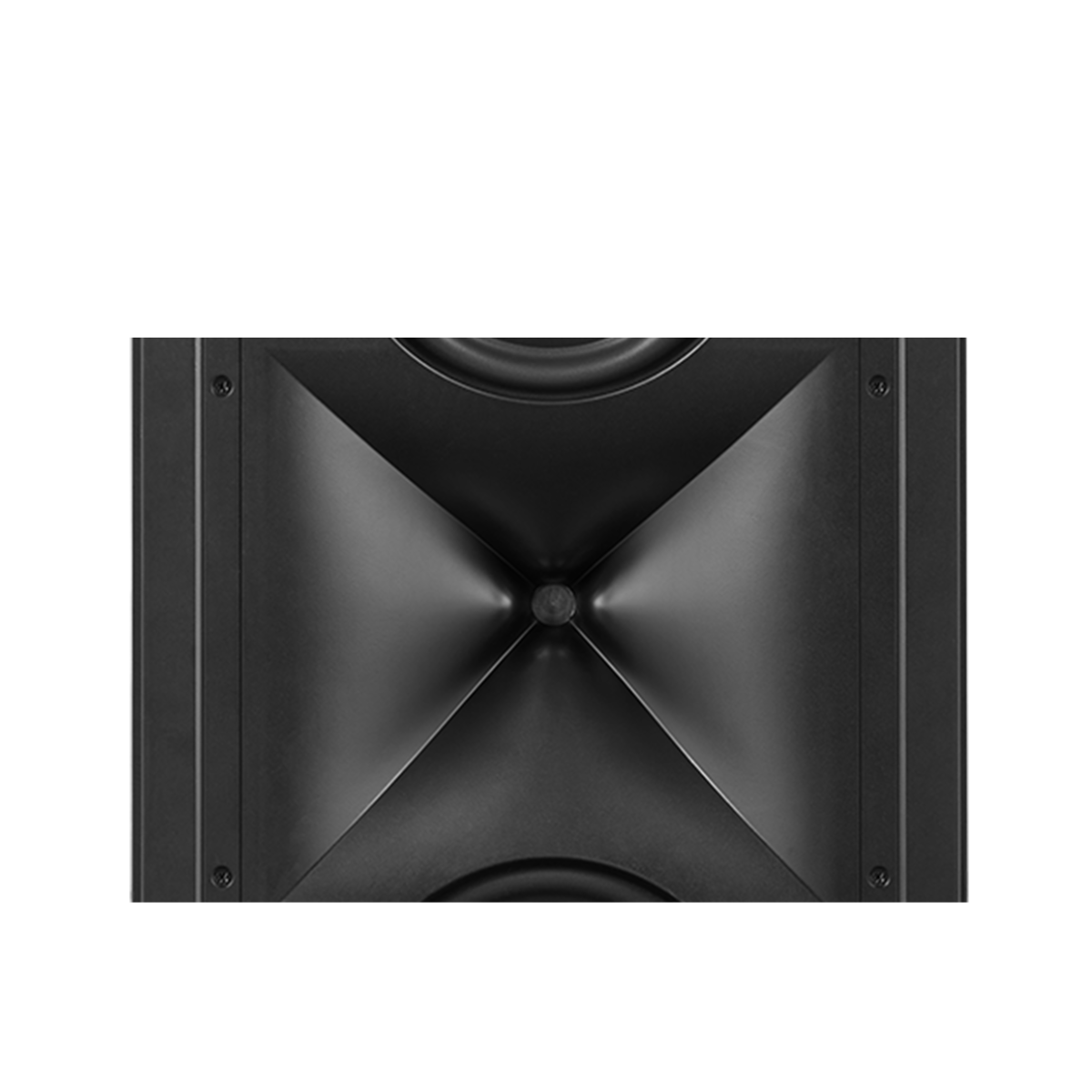

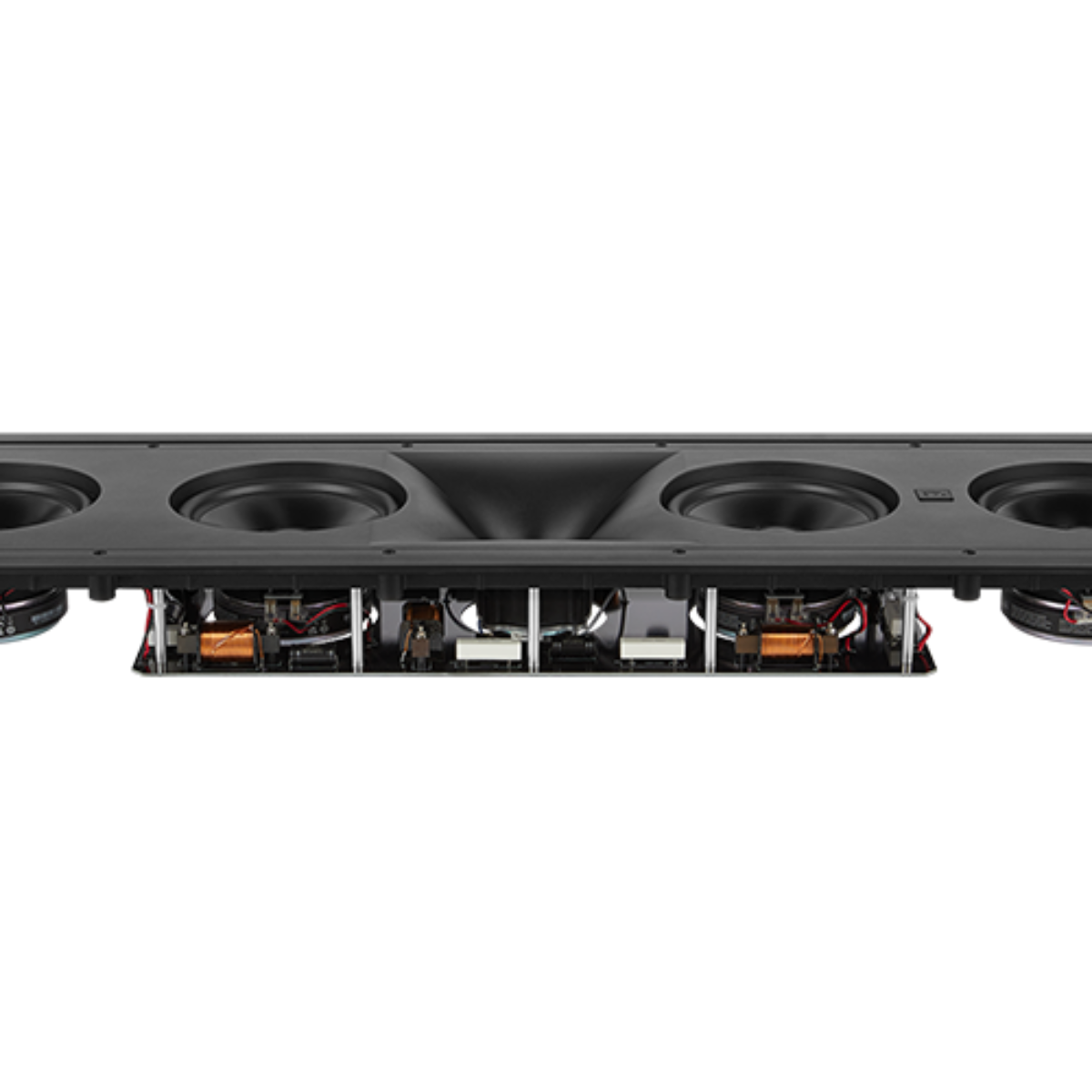

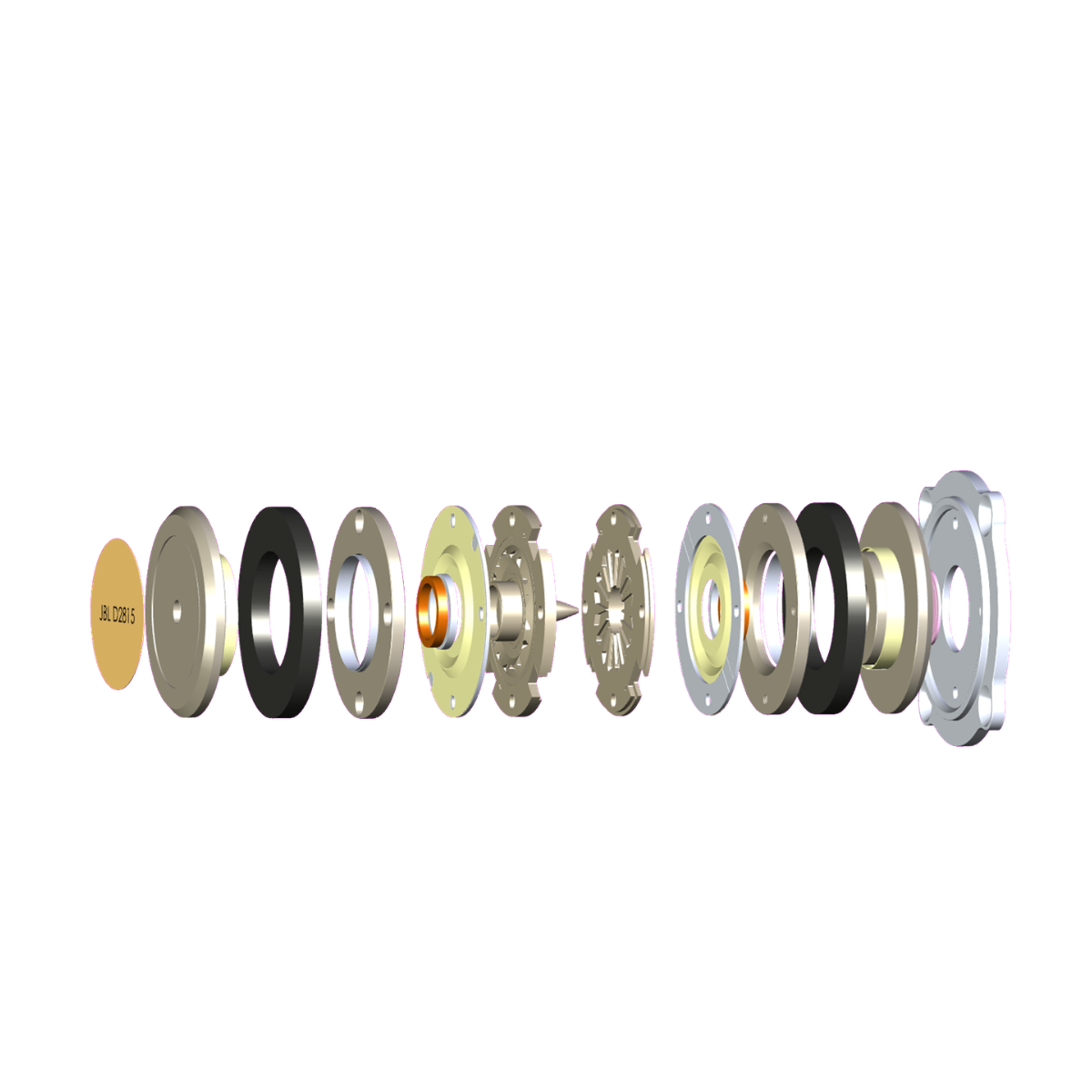

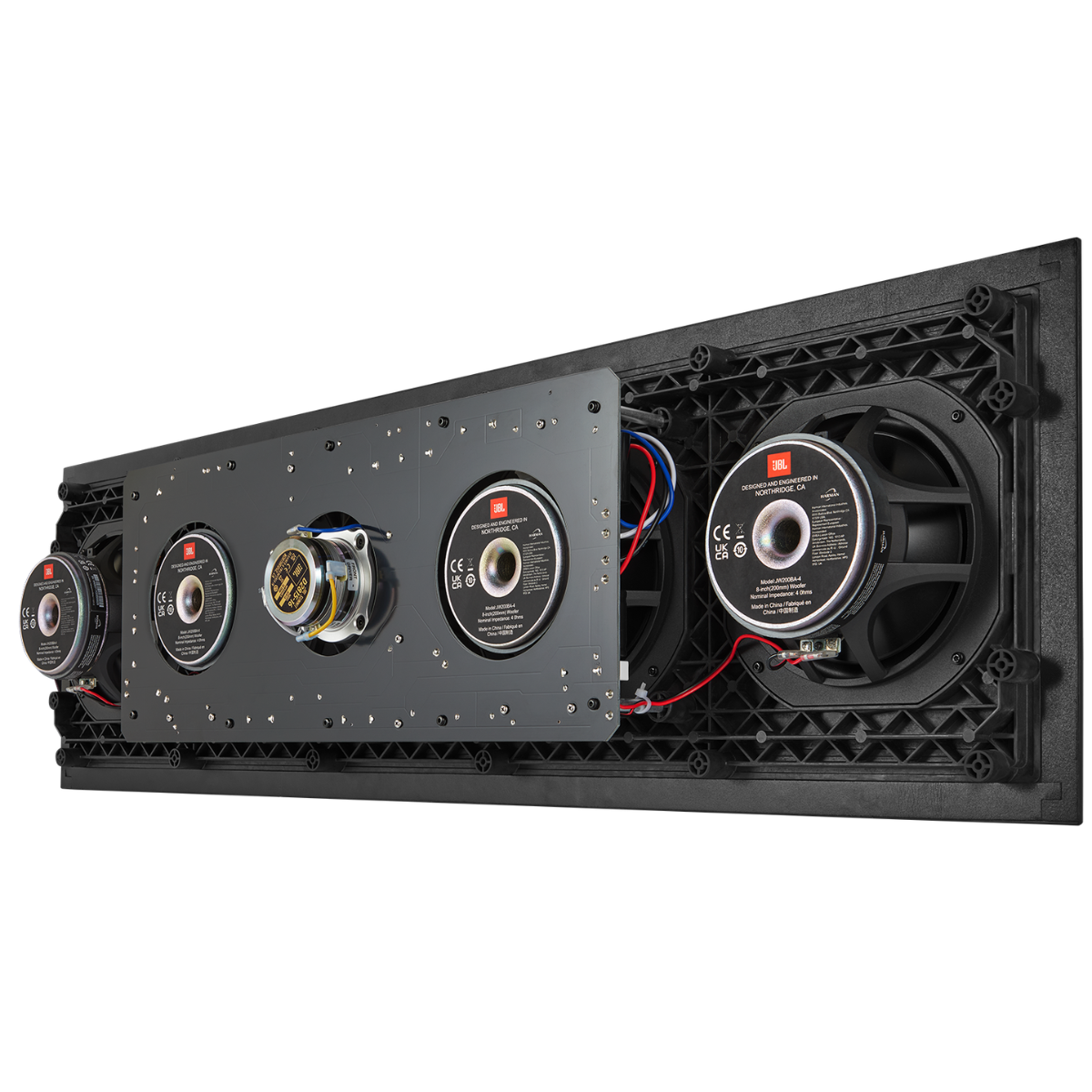

The JBL Synthesis SCL-2XL two and a half way in wall loudspeaker delivers high performance across medium, large, and extra large rooms. Built with a patented D2815 dual one and a half inch compression driver, the speaker features a dual diaphragm and dual motor design mated to a large format High Definition Imaging horn geometry. This driver configuration operates alongside quadruple eight inch cast frame woofers featuring Advanced Aluminum Matrix cones.

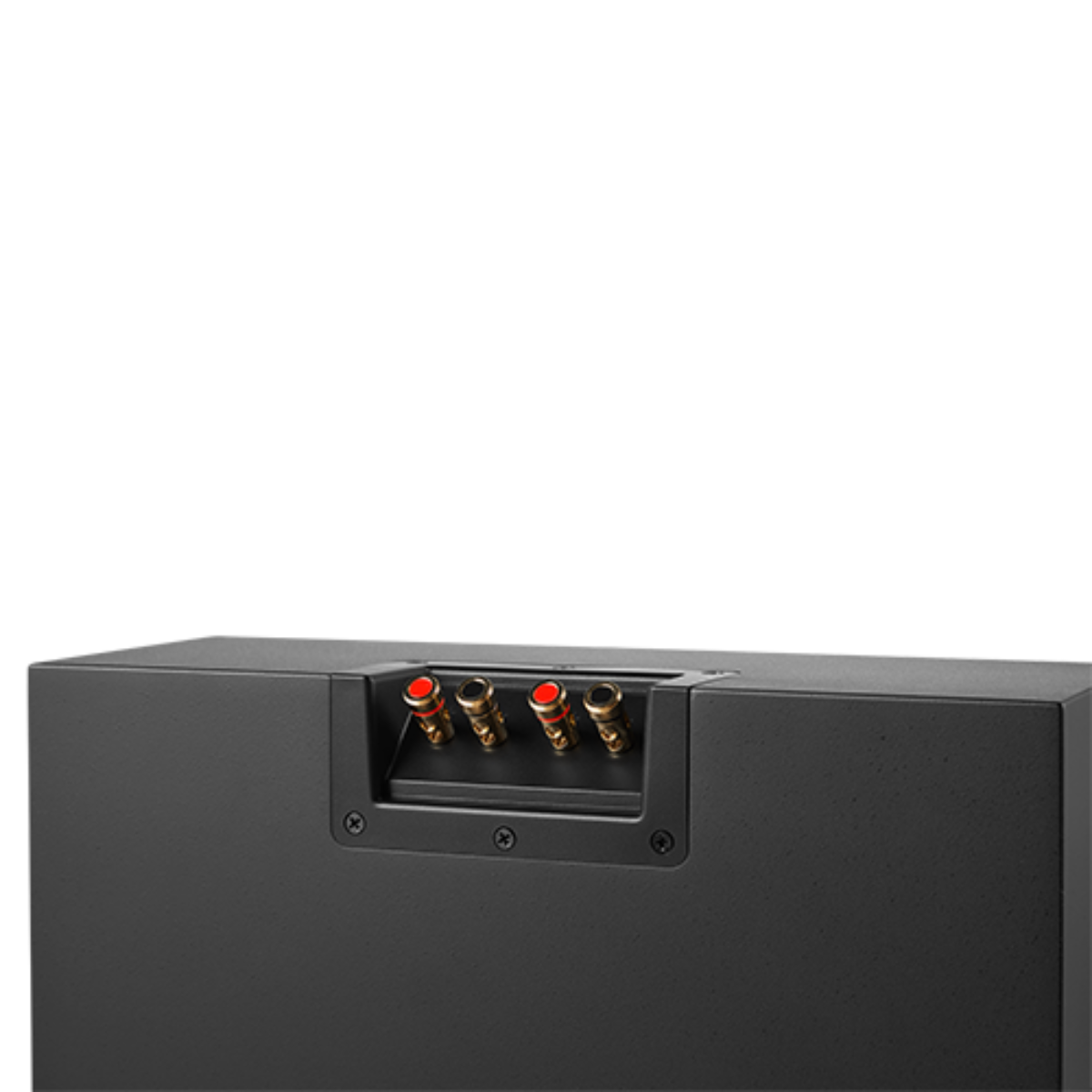

A two and a half way crossover network with premium components manages the frequencies. This specialized network allow for vertical or horizontal orientation during a sound system setup without creating the acoustic lobing issues common in traditional loudspeaker designs. For advanced installations, dual sets of gold plated, spring loaded binding post input terminals facilitate bi wiring or bi amplification configurations.

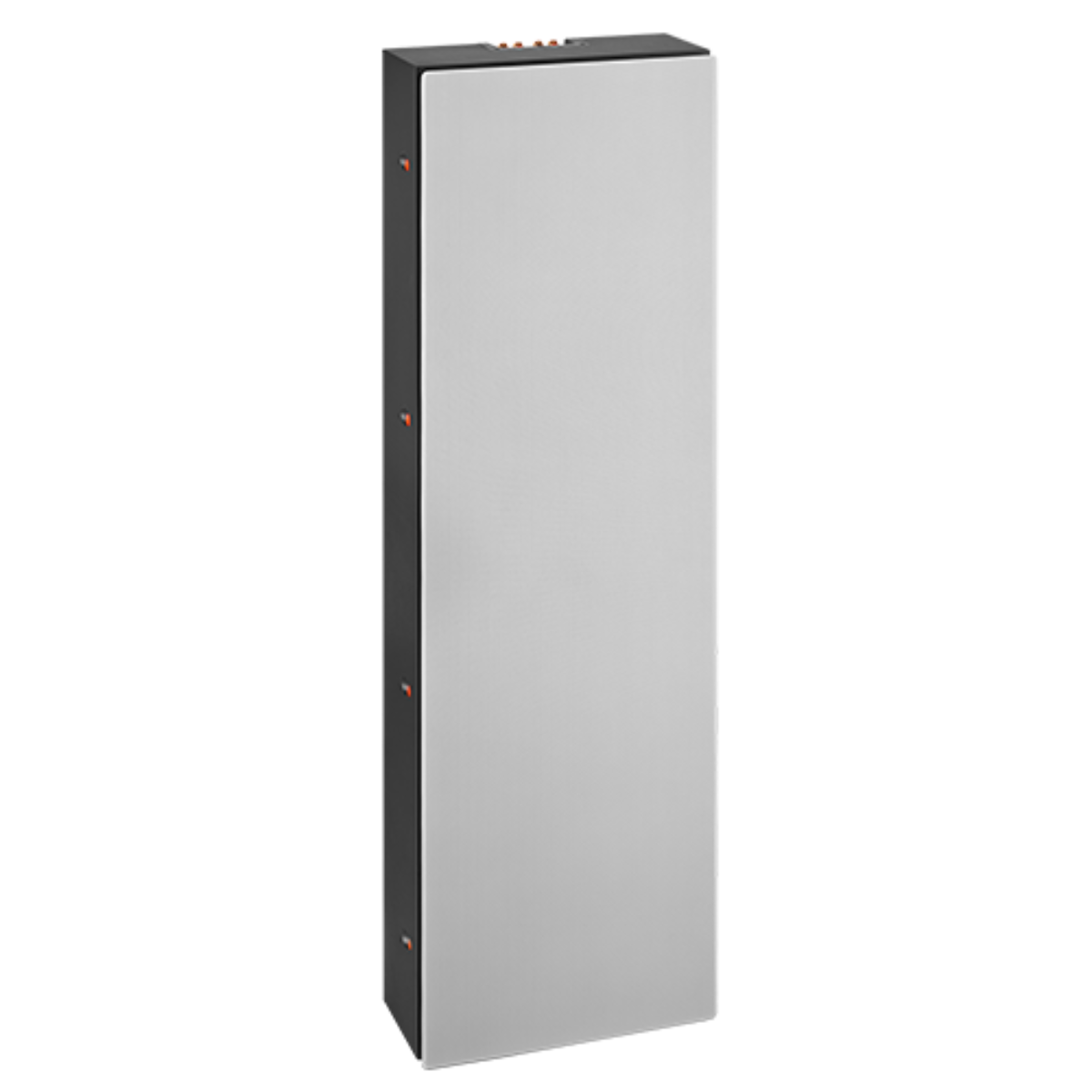

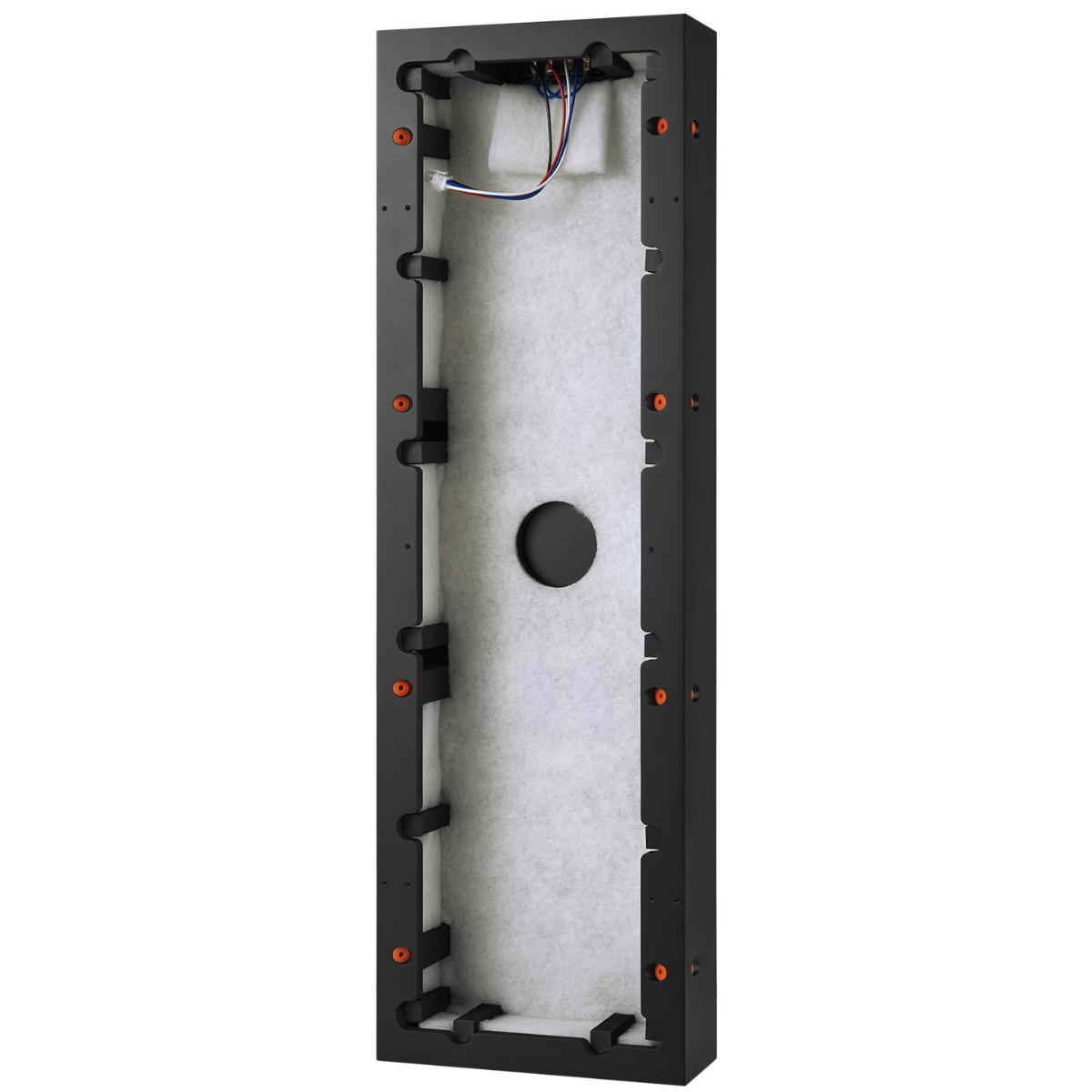

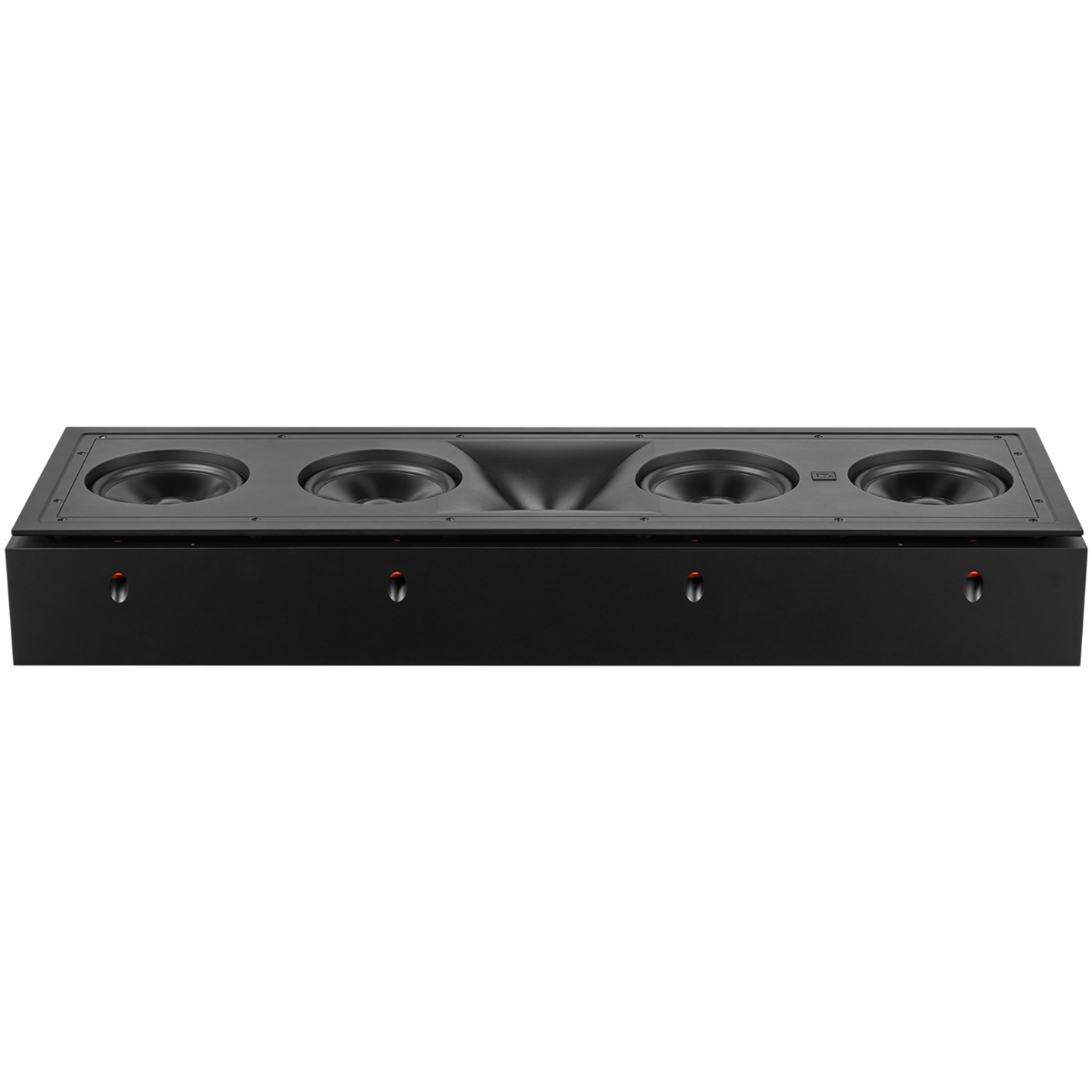

The structural foundation utilizes a Sonoglass baffle combined with an integrated MDF enclosure and an isolation mounting system. This enclosure is sized specifically for installation within standard two by six wood frame construction. Visually, the speaker blends into the room environment using a zero bezel, magnetically attached paintable grille, making it a clean choice for a high end smart home integration where high output audio must remain visually unobtrusive.

Details & Specs

Model SCL-2XL
Product Dims (W x D x H) 14.2”H x 6.2”W x 45.7”D
Product Weight 77lbs (35kg)
Type 2½-way in-wall loudspeaker
Low Frequency Driver Quadruple 8-inch (200mm) cast-frame,Advanced Aluminum Matrix cone woofers
High Frequency Driver D2815, 1½” (38mm), dual annular ring Teonex® diaphragm compression driver mounted to Sonoglass® horn/baffle
Inputs Dual set of spring-loaded gold-plated binding posts for bi-amp/bi-wire capability (crossover not defeated)
Power Handling 500 Watts RMS (CEA-426B specification, at rated load impedance)
Frequency Response 53Hz – 25kHz (-6dB)
Coverage Angle (-6dB, averaged over 2kHz-10kHz) 110° Horizontal, 90° Vertical
Sensitivity (2.83V@1m) 92dB
Impedance 4Ω nominal, 3.2Ω minimum @ 800Hz
Crossover Frequencies 450Hz, 1.1kHz
Enclosure type Sealed in-wall mount with included backbox
Finish Matte Black with white paintable grille
