Item #JBLSCL10

SCL-10

2-Way Dual 6.5-Inch LCR Loudspeaker - Each
Item #JBLSCL10

SCL-10

2-Way Dual 6.5-Inch LCR Loudspeaker - Each
$3,499.95
Pre-Order: Shipping in August

Overview

This versatile loudspeaker functions horizontally or vertically inside custom cabinetry or behind projection screens. Designed for medium and large rooms, it avoids acoustic lobing while offering bi amp capabilities. It delivers high performance audio visual solutions for a clean, flexible sound system setup.

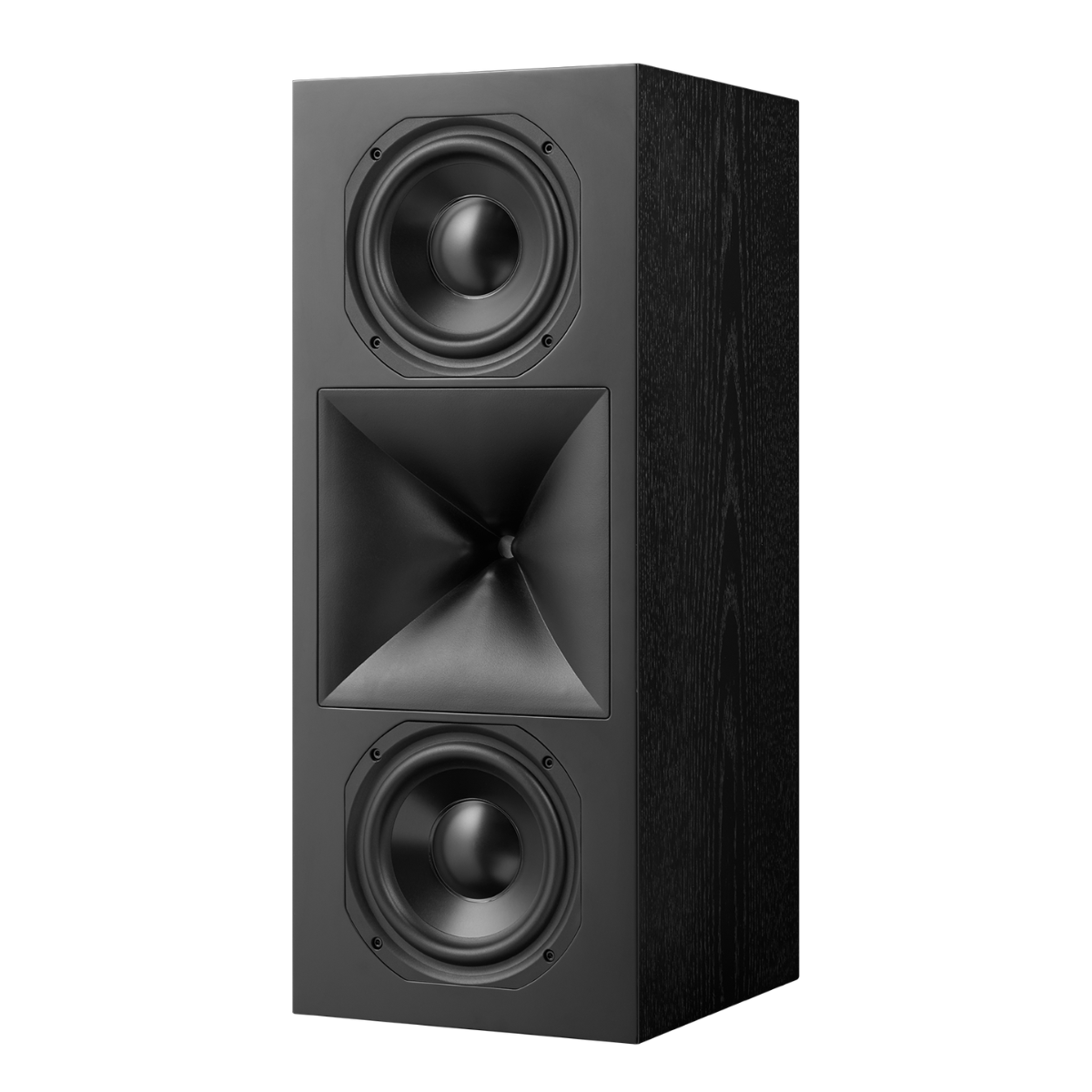

The JBL Synthesis SCL 10 two way custom loudspeaker provides high output performance across a wide variety of architectural applications in medium and large rooms. Built as an in room or built in audio component, the speaker functions as a left, center, or right channel situated behind an acoustically transparent projection screen. Alternatively, it slips directly into custom media cabinetry to preserve a clean look.

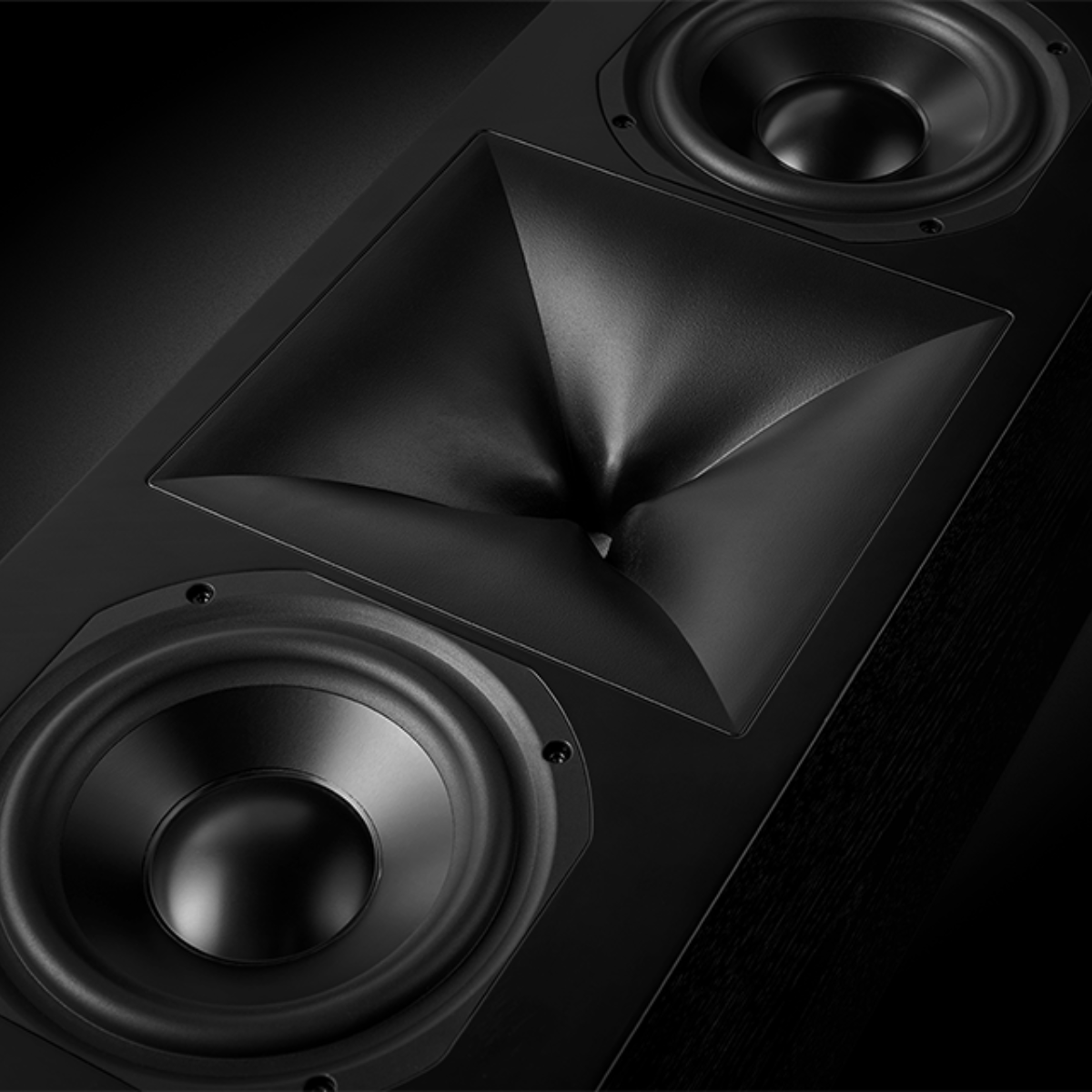

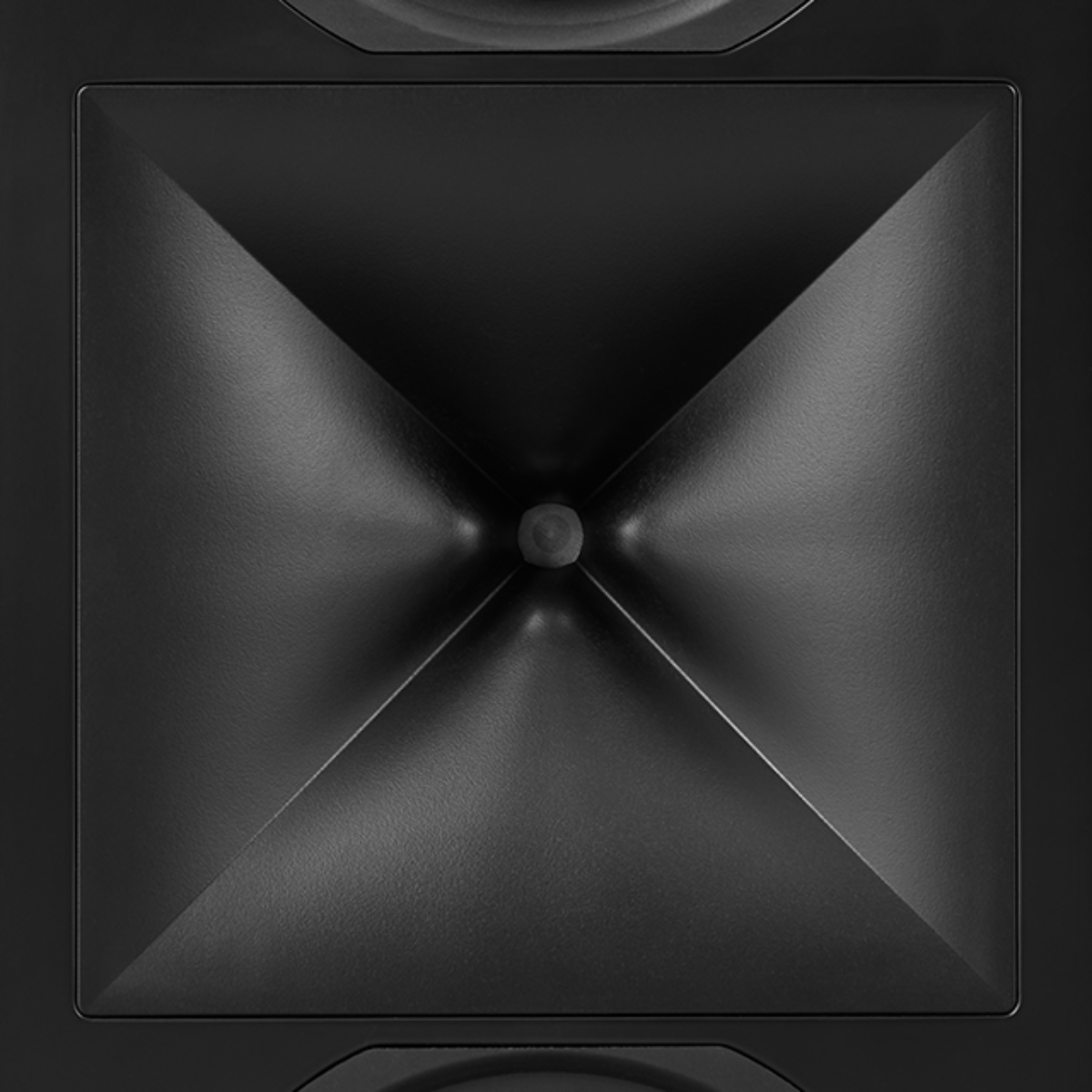

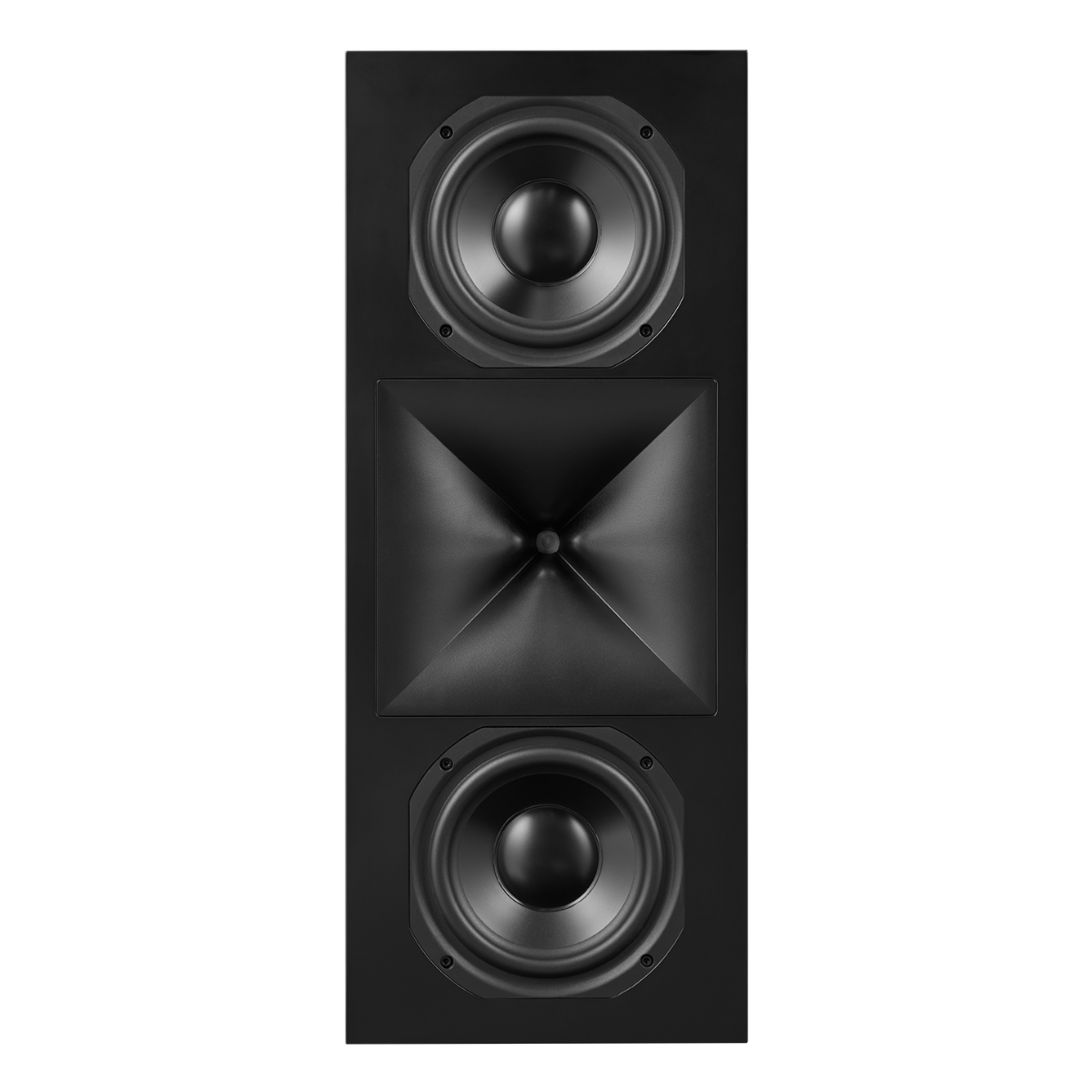

At the center of its performance is a patented JBL 2409H one inch high frequency compression driver paired with a High Definition Imaging horn geometry. Handling the midbass and lower registers are dual six and a half inch cast frame woofers designed with Advanced Aluminum Matrix cones. These components are tied together by an advanced crossover network configured in a two way arrangement. This specific crossover structure allows the cabinet to be placed vertically or horizontally during a sound system setup without causing the acoustic lobing issues common to standard speaker layouts.

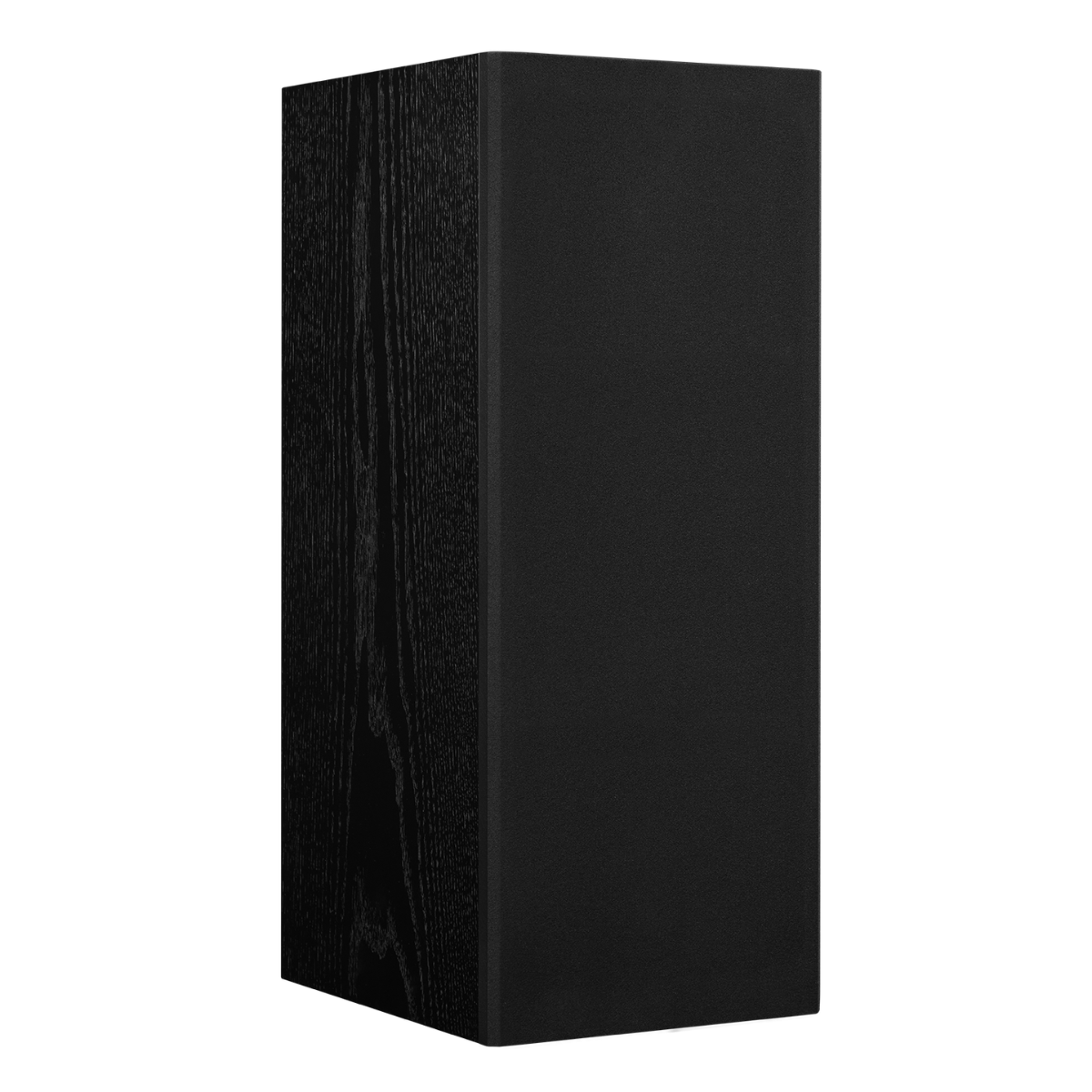

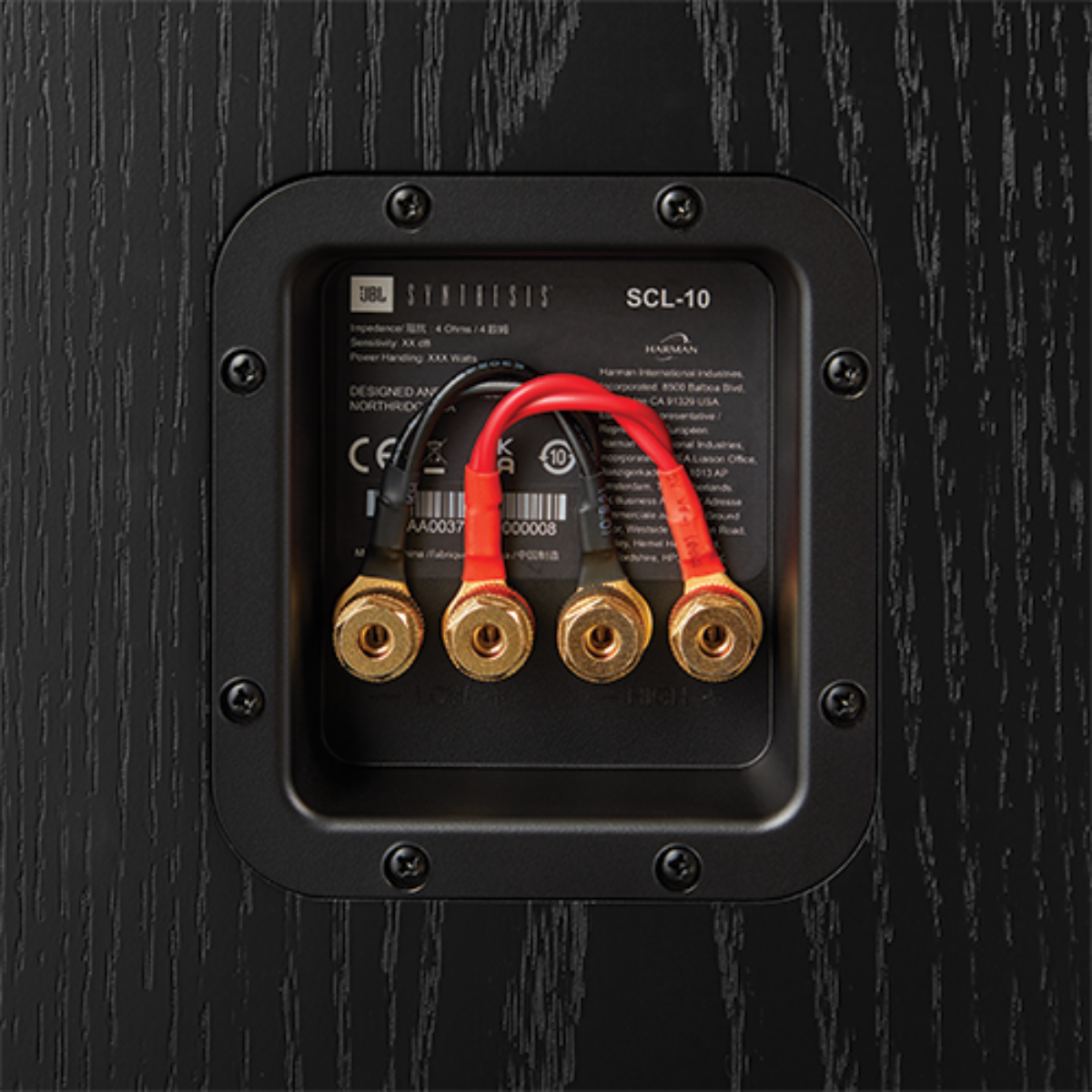

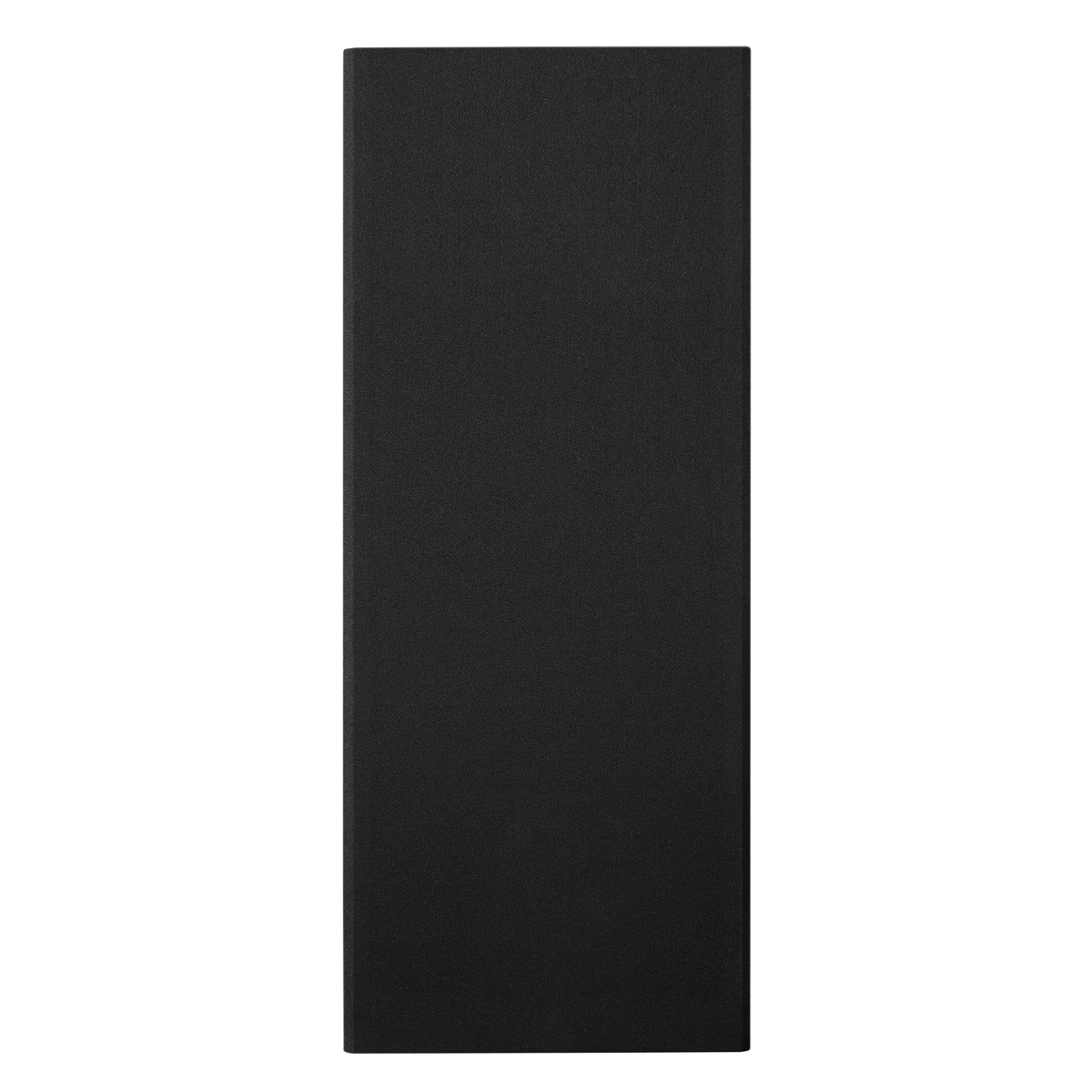

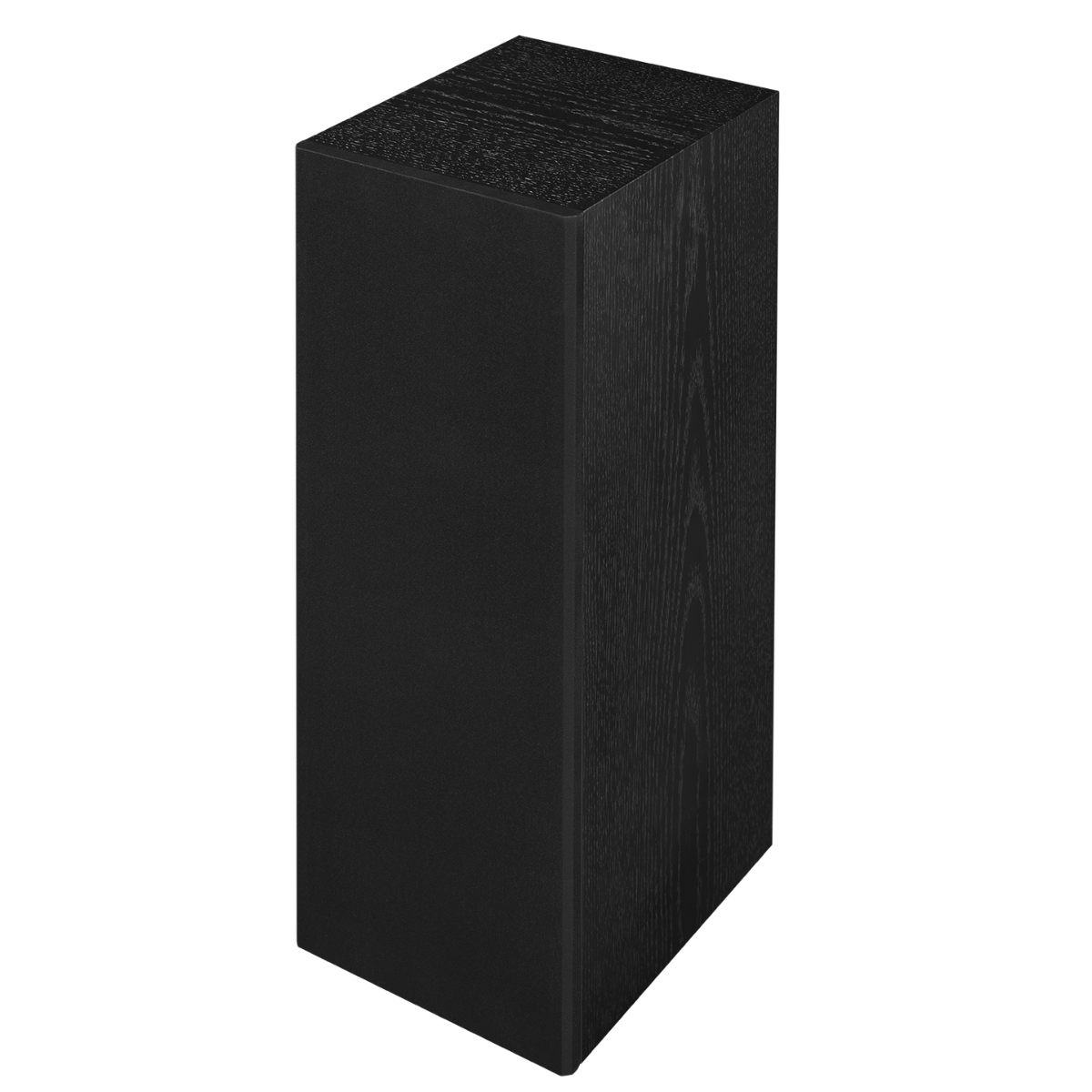

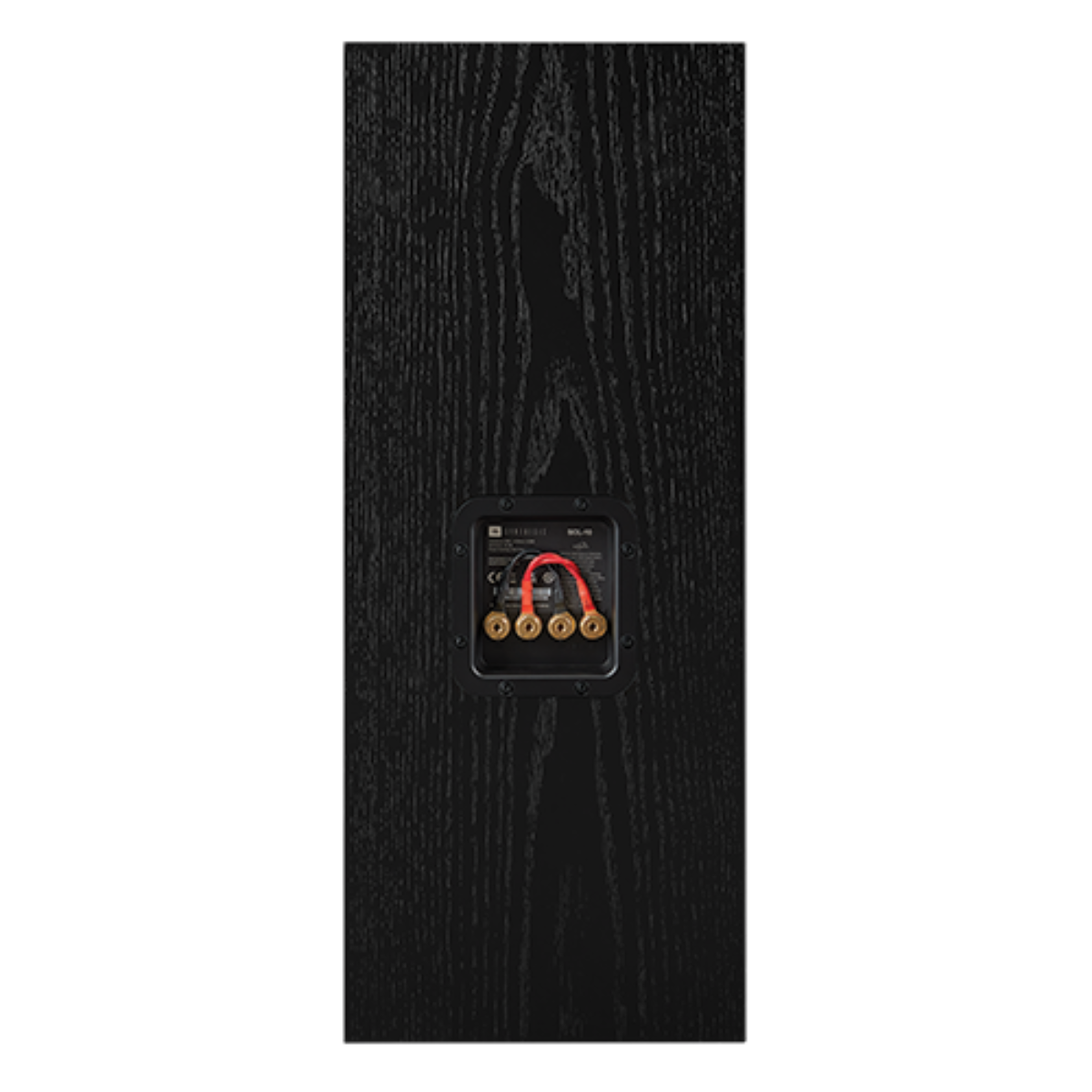

The cabinet construction features internal connections engineered for advanced setups, providing bi wiring or bi amplification capabilities via a dual set of gold plated, spring loaded binding post input terminals. For external appearance, the structural cabinet is finished in a premium satin black ash wood veneer. When the speaker is not hidden inside specialized cabinetry or behind theater screens, the included magnetically attachable cloth grille conceals the drivers while keeping the visual lines clean. This flexible architecture ensures reliable performance in a residential smart home integration or a dedicated media space.

Details & Specs

Model SCL-10
Product Dims (W x D x H) 23.6” x 9.5” x 11.6” (600mm x 241mm x 296mm)
Product Weight 38.6lbs (17.5)
Type 2-way built-in loudspeaker
Low Frequency Driver Dual 6 ½ -inch (165mm) cast-frame, Advanced Aluminum Matrix cone woofers
High Frequency Driver 2409H 1-inch (25mm) high frequency compression driver
Inputs Dual sets of gold-plated binding posts for bi-amp/bi-wire capability (crossover not defeated)
Power Handling 200W RMS (CEA-426B specification, at rated load impedance)
Frequency Response 53Hz – 20kHz (-6dB)
Coverage Angle (-6dB, averaged over 2kHz-10kHz) 100° Horizontal, 80° Vertical
Sensitivity (2.83V@1m) 88dB
Impedance 4Ω nominal, 4.0Ω minimum @ 197Hz
Crossover Frequencies 2.1kHz
Enclosure Type Sealed
Finish Black ash wood veneer with magnetically attachable cloth grille
