JBL Summit Ama

Stand-Mount Loudspeakers - Ebony High Gloss - Pair

JBL Summit Ama

Stand-Mount Loudspeakers - Ebony High Gloss - Pair
$19,999.90
Select Color:

Available In-Store
Contact Us

Overview

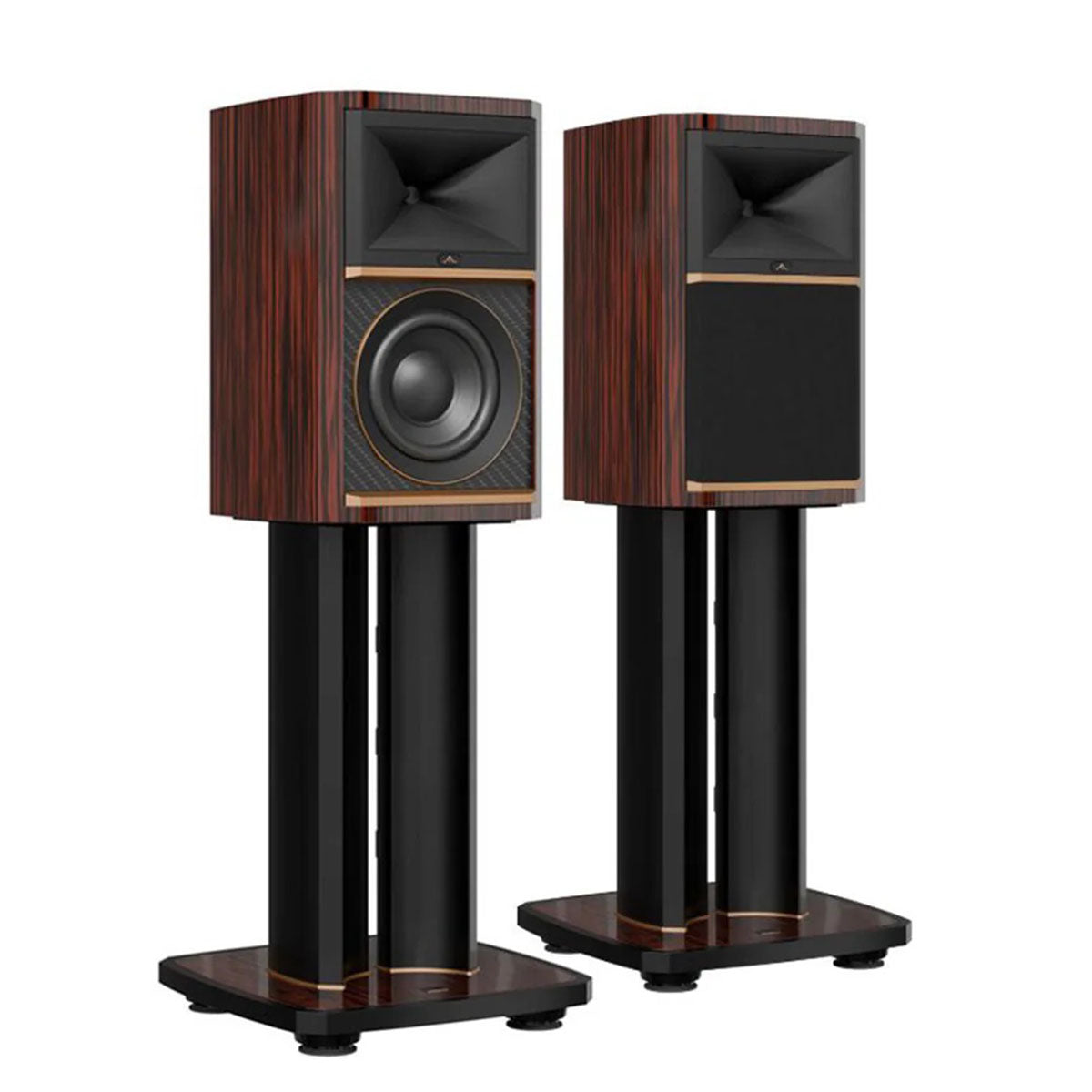

The JBL Summit Ama is a compact reference stand-mount loudspeaker engineered for uncompromising musical accuracy. It pairs JBL’s D2 compression driver and HDI horn with an 8-inch Hybrid Carbon Cellulose Composite woofer for exceptional clarity, dynamics, and control. A MultiCap crossover and rigid, curved cabinet construction ensure ultra-low distortion and precise imaging. Designed for discerning listeners, Summit Ama delivers flagship performance in a refined, space-efficient form.
Watch our Comparison

Introducing

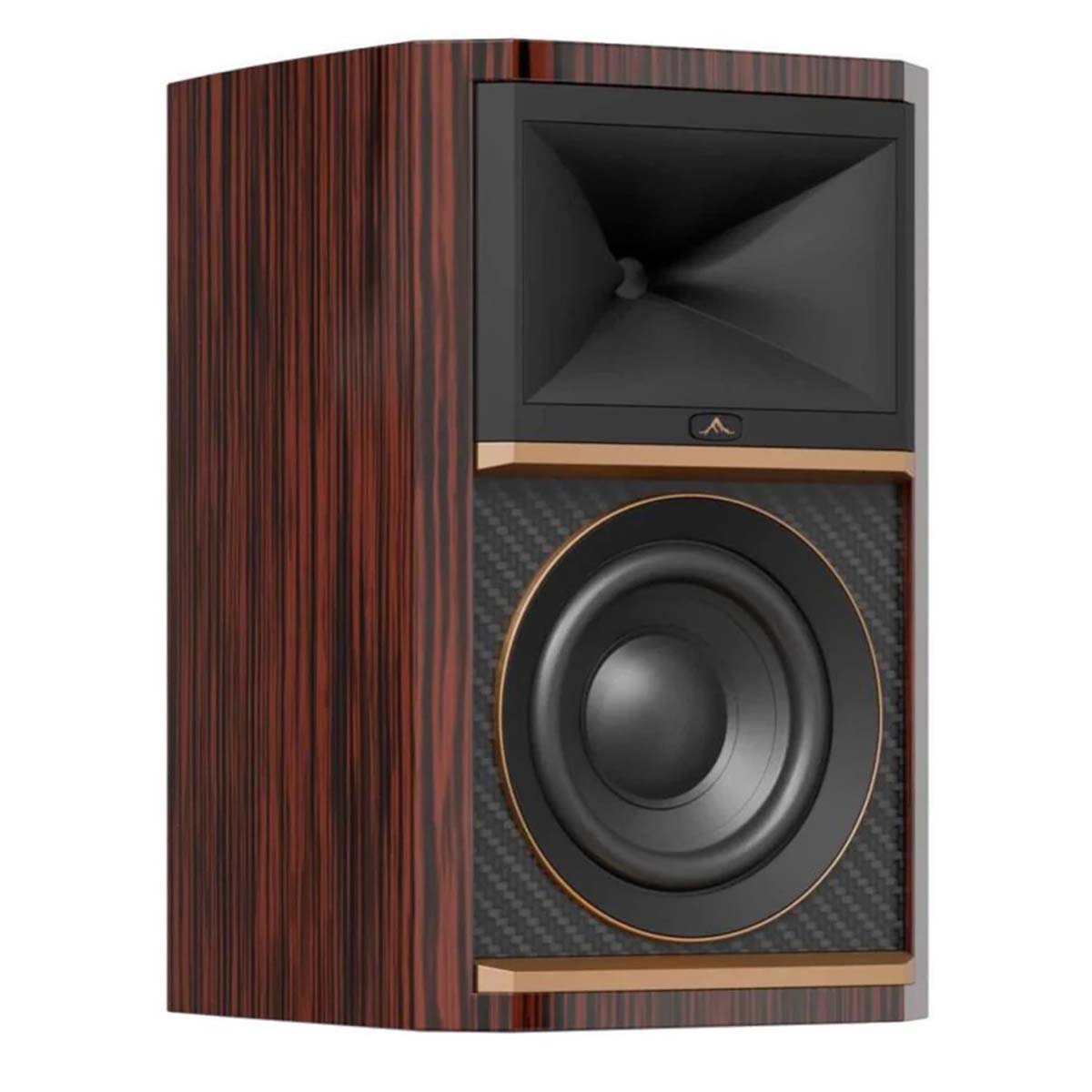

The Summit Ama, a stand-mount loudspeaker built for the discerning music enthusiast. It features a newly designed complement of drivers starting with JBL’s D2815K 1.5-inch (38mm) dual-diaphragm, dual-motor compression driver mated to a large format Sonoglass High-Definition Imaging (HDI) horn. Anchoring the sound foundation of Summit Ama is an 8-inch (200mm) cast-frame woofer utilizing a triple-layer Hybrid Carbon Cellulose Composite Cone (HC4), a design made from a proprietary formula of carbon-fiber and pure-pulp front and rear surfaces, sandwiched with an internal core of closed-cell foam. This hybrid cone design provides the proper stiffness, overall mass, and structure to deliver high-output, low distortion, and high power handling.

Controlling how the signal is distributed to each of the drivers in Summit Ama is a MultiCap crossover network with single-wire and bi-amp/bi-wire connectivity. By replacing traditional large capacitors with an increased number of smaller capacitors, this design results in lower ESR (Electro-Static Resistance) and less energy lost in mechanical movement. All of which results in greater signal throughput to the drivers, increased power handling, enhanced dynamics, ultra-low distortion, and exceptional clarity. All drivers and crossover components are housed in a beautifully engineered cabinet featuring internally offset multi-braced and damped curved-wall construction to minimize internal cabinet standing waves. Enclosures are offered in a choice of a high-gloss painted black finish with Summit platinum accents or high-gloss ebony wood veneer finish with Summit gold accents.

Highlights

  • Dual 1.5-inch (38mm) Annular Ring Teonex Diaphragms, Dual-Motor D2 Compression Driver Mated to the Summit Ama High-Definition Imaging (HDI) Sonoglass High-Frequency Horn
  • 8-inch (200mm), Triple-layer Hybrid Carbon Cellulose Composite Cone (HC4) with Dual Inverted Spiders, 2.5-inch Voice Coil, Ferrite Motor, Cast Aluminum Frame, and Half-Forward-Roll Surround
  • MultiCap™ Crossover Network with Single-wire and Bi-Amp/Bi-Wire Connectivity
  • Frequency Response: 25Hz–33kHz (-10dB) / 34Hz–25kHz (-6dB)
  • Soft-curved Cabinet Walls with Heavily Braced and Dampened Construction from sustainably-sourced engineered wood
  • Internally damped, Dual-leg Steel and Aluminum Floor Stand with JBL/IsoAcoustics Adjustable Acoustic Isolation Feet
  • Luxurious High Gloss Finishes with Summit Platinum or Summit Gold detailing and bespoke Carbon-Fiber Baffle Trim
JBL Summit Ama Stand-Mount Loudspeakers

Details & Specs

Model JBL Summit Ama
Description 2-Way, 8-inch (200mm) Pedestal-Mount Reference Loudspeaker
High Frequency Control High-Definition Imaging (HDI) Sonoglass Acoustic Horn
High Frequency Transducer D2815K; Dual 1.5-inch (38mm) Annular Ring Teonex Diaphragms, Dual-motor D2 Compression Driver Mated to the Summit Ama High-Definition Imaging (HDI) Horn
Low Frequency Transducer JW200SG; 8-inch (200mm), Triple-layer Hybrid Carbon Cellulose Composite Cone (HC4) with Dual Inverted Spiders, 2.5-inch Voice Coil, Ferrite Motor, Cast Aluminum Frame, Half-Forward-Roll Surround
Sensitivity (2.83V @ 1m) 84 dB
Recommended Power 25 – 200 Watts RMS
Maximum SPL 107 dB
Frequency Response 25Hz – 33kHz (-10dB on-axis)
34Hz – 25kHz (-6dB on-axis)
Impedance 4 Ohms (Nominal)
3.1 Ohms (Minimum @ 239Hz)
Crossover 1600Hz / Series MultiCap / Acoustically Symmetric 3rd Order 2-way
Internal Wiring Ohno-Continuous-Cast (OCC) Long-Crystal Oxygen-Free Silver-Plated Copper Wire

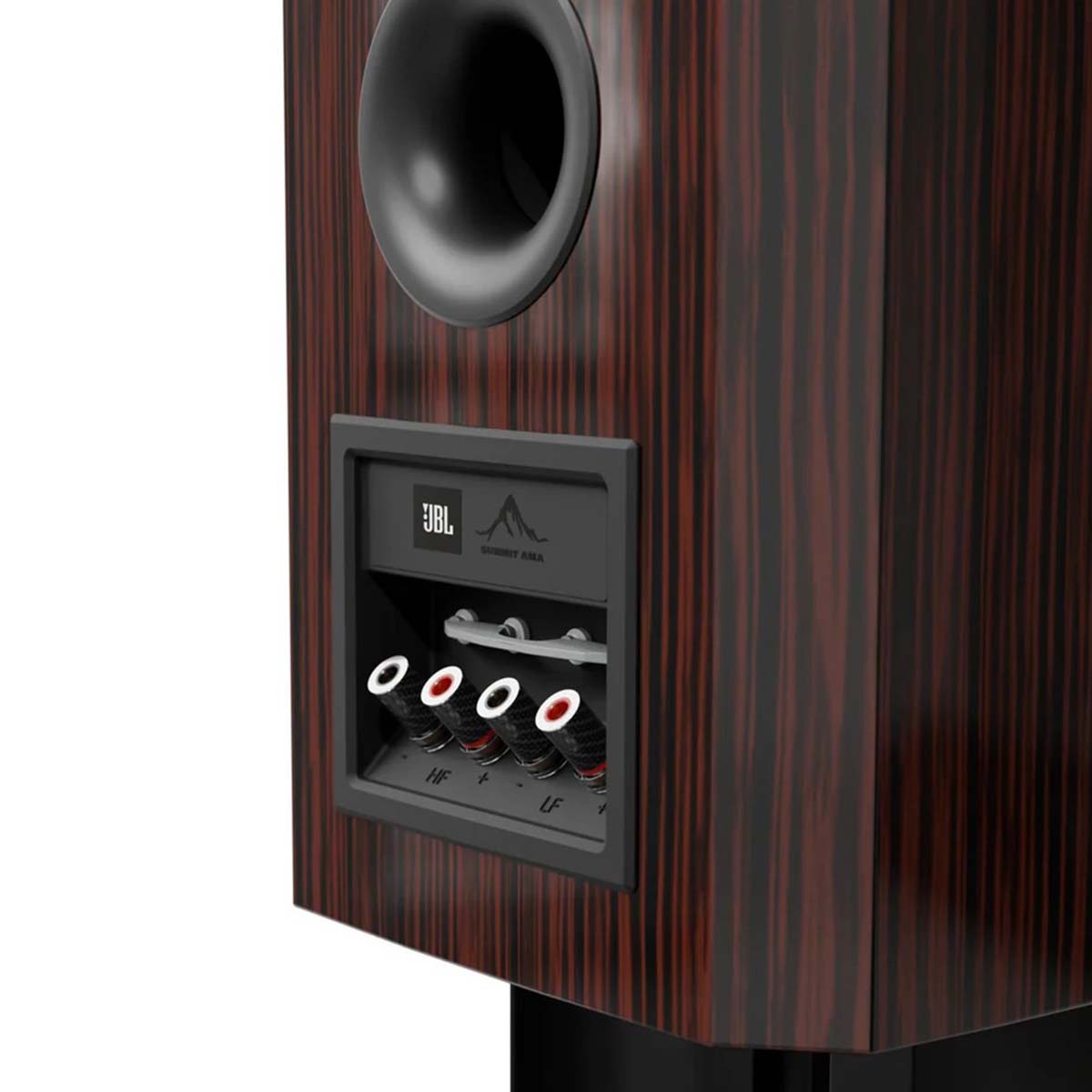

Controls Bi-amp / Bi-wire Capable with 2-Pairs of Binding Posts
Input Type Rhodium-Plated, Silver-Coated, Oxygen-Free, Pure Copper Core Binding Posts with a Chrome-Plated Brass Carbon-Fiber Wrapped Shell and Nylon / Glass-fiber Insulators (2 pairs)
Enclosure Type Internally Offset Multi-Braced & Dampened Curved-Wall Made from Sustainably-Sourced Engineered Wood with Multi-Component Lining

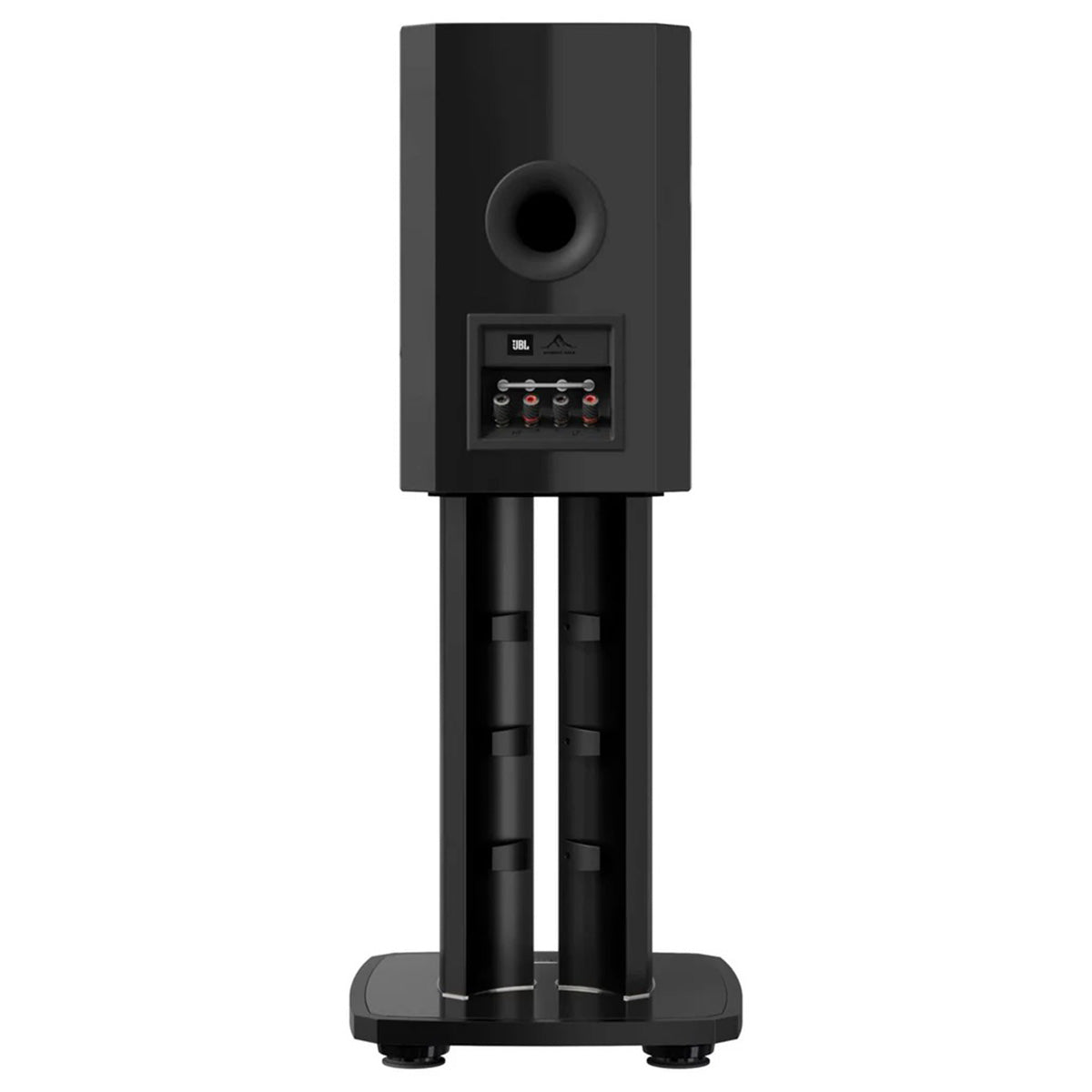

Enclosure Tuning Single Rear-Flared Bass Port

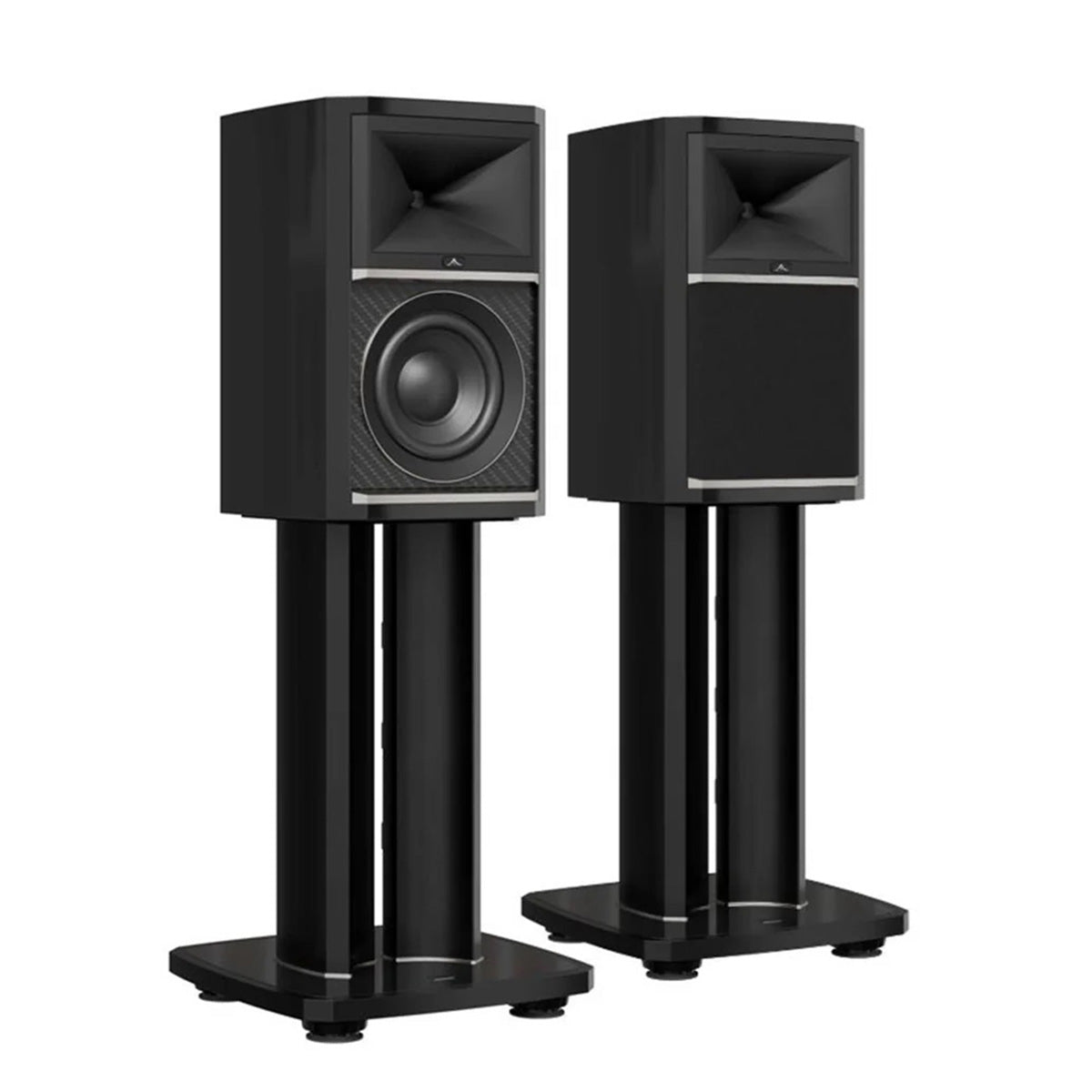

Enclosure Finish Options Black High Gloss (BG)
Ebony Veneer with High Gloss (EG)
Net Dimensions with grille (H x W x D) Speaker: 18.6" x 12.1" x 13.2" (476.3mm x 308.0mm x 336.0mm)
Stand: 21.7" x 16.2" x 16.2" (550.6mm x 412.2mm x 412.2mm)
Weight Speaker: 58 lbs (26.3kg)
Stand: 44.4 lbs (20.1kg)
Shipping Dimensions 26.0" x 38.7" x 21.1" (660mm x 982mm x 537mm) Including Grille and Stand
Shipping Weight 126.1 lbs (57.2kg) Including Stand
