Item #315001

iFi Audio ZEN DAC Signature

USB3.0 B Socket (USB2.0 compatible)
Item #315001

iFi Audio ZEN DAC Signature

USB3.0 B Socket (USB2.0 compatible)
$249.99
More on the way! Order now to reserve risk free.
Contact Us

Overview

The ZEN DAC Signature’s digital stage retains the True Native DAC architecture much loved here at iFi as well as It delivers bit-perfect PCM (up to 32-bit/384kHz), native DSD (up to DSD256), DXD and MQA – the hi-res streaming technology, as used by Tidal’s ‘HiFi’ tier. The sample rate of incoming audio data is indicated by a multicoloured LED residing behind the aluminium volume control. The iFi-programmed XMOS chip, which processes data received at the USB input, and jitter-eradicating, audiophile-grade oscillators, contribute to exemplary handling of digital audio signals as they are received, processed and converted to analogue form.

Soul connections

The USB Type B input supports the ‘SuperSpeed’ USB 3.0 standard, as well as USB 2.0 for backwards compatibility. It is asynchronous, meaning that the data rate is regulated solely by the ZEN DAC Signature’s specialised audio clock circuitry for accurate, jitter-free data transfer from the source device.

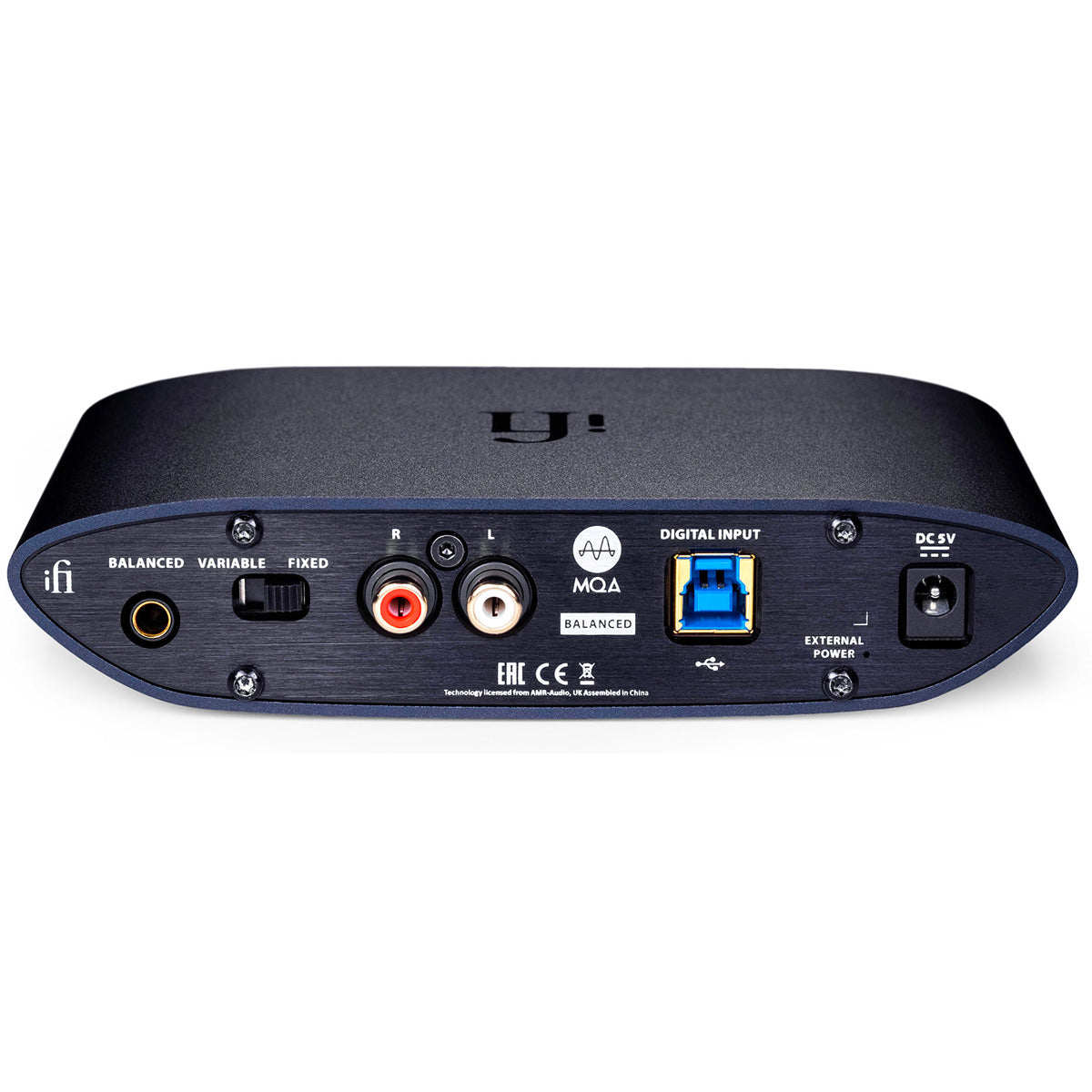

There is a pair of RCA sockets for single-ended connection to an amp, plus a Balanced 4.4mm output – this enables balanced signal transfer between compact products that cannot accommodate traditional, bulky XLR connections.

When connected to an amp or active speakers equipped with a balanced input – either a 4.4mm Balanced input, or stereo XLR inputs via a 4.4mm-to-XLR cable – the full benefit of the ZEN DAC Signature’s balanced circuit design can be heard. It will speak to your soul.

Fixed or variable. You decide.
The ZEN DAC Signature’s outputs can be switched between ‘variable’ and ‘fixed’.

The variable setting applies volume control to the audio signal, enabling the ZEN DAC Signature to act as a preamp to connect directly to a power amp.

The fixed option bypasses the volume control, fixing the output at 4.2V (balanced) or 2.1V (single-ended) for connection to an external preamp, integrated amp or active speakers with their own volume control.

Dynamic Duo
The ZEN DAC Signature works well with the ZEN CAN Signature. Products can be bought separately but a ‘ZEN Signature Set’ is now available. This comprises both ZEN Signature units plus a high-performance 4.4mm Balanced cable (worth £69 when purchased separately) to connect them together.

When used in tandem, the two ZEN Signatures make a fantastic, desktop-sized headphone system for both digital and analogue sources, further extending the reputation of iFi’s ZEN Series for delivering exceptional performance and versatility at remarkable prices.

Details & Specs

Input USB3.0 B Socket (USB2.0 compatible)
Formats 2.8/3.1/5.6/6.2/11.2/12.4MHz DSD
352.8/384KHz DXD
MQA
DAC Bit-Perfect DSD & DXD DAC by Burr Brown
Power consumption 5V / 174ma, P = 0.887W (on idle using included iPower X)
Dimensions 160(w) x 117(d) x 35(h) mm
6.3" x 4.6" x 1.4"
Weight 0.75kg / 1.65lbs
