HRS R3X

Isolation Base

HRS R3X

Isolation Base
From $2,075.00
Select Color:


Overview

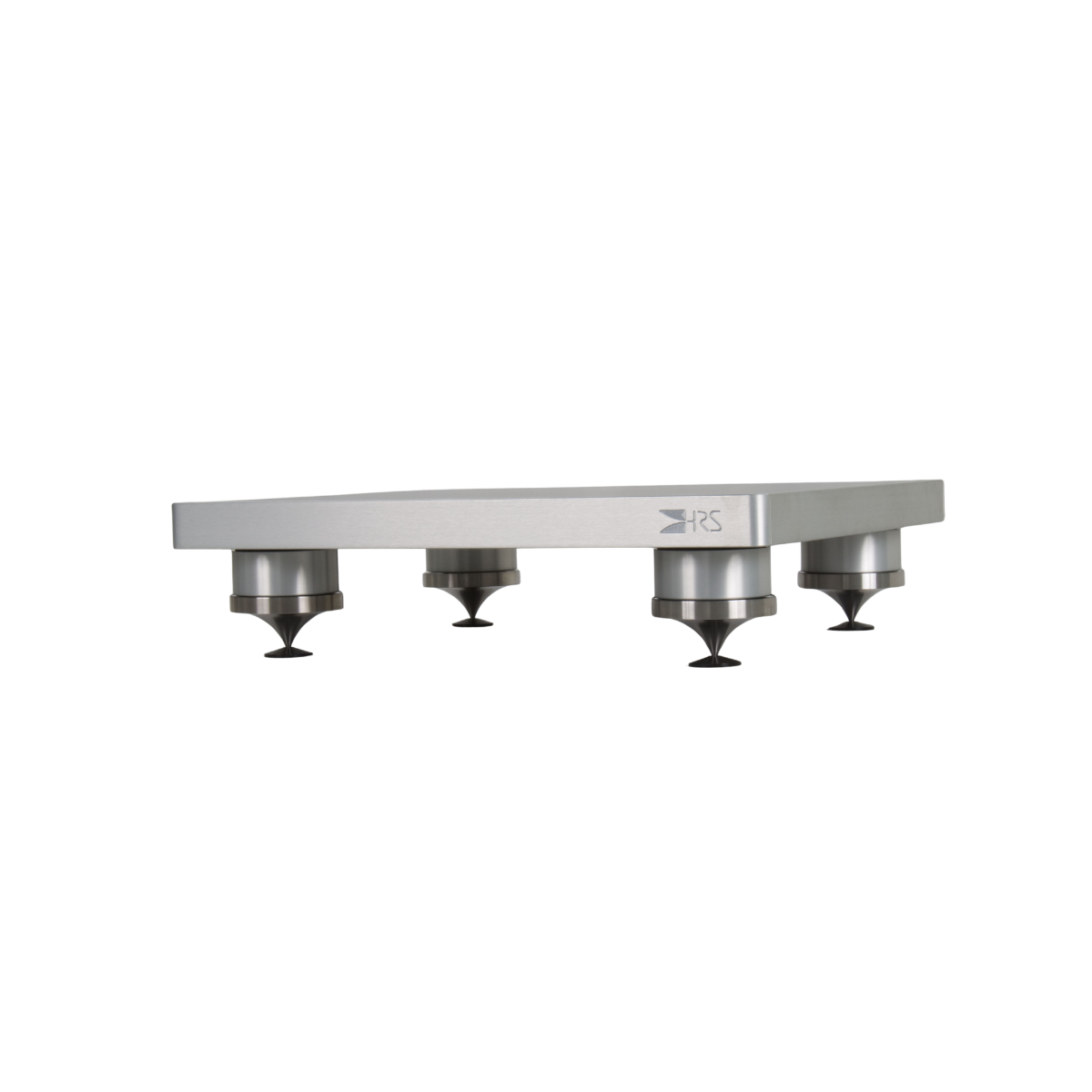

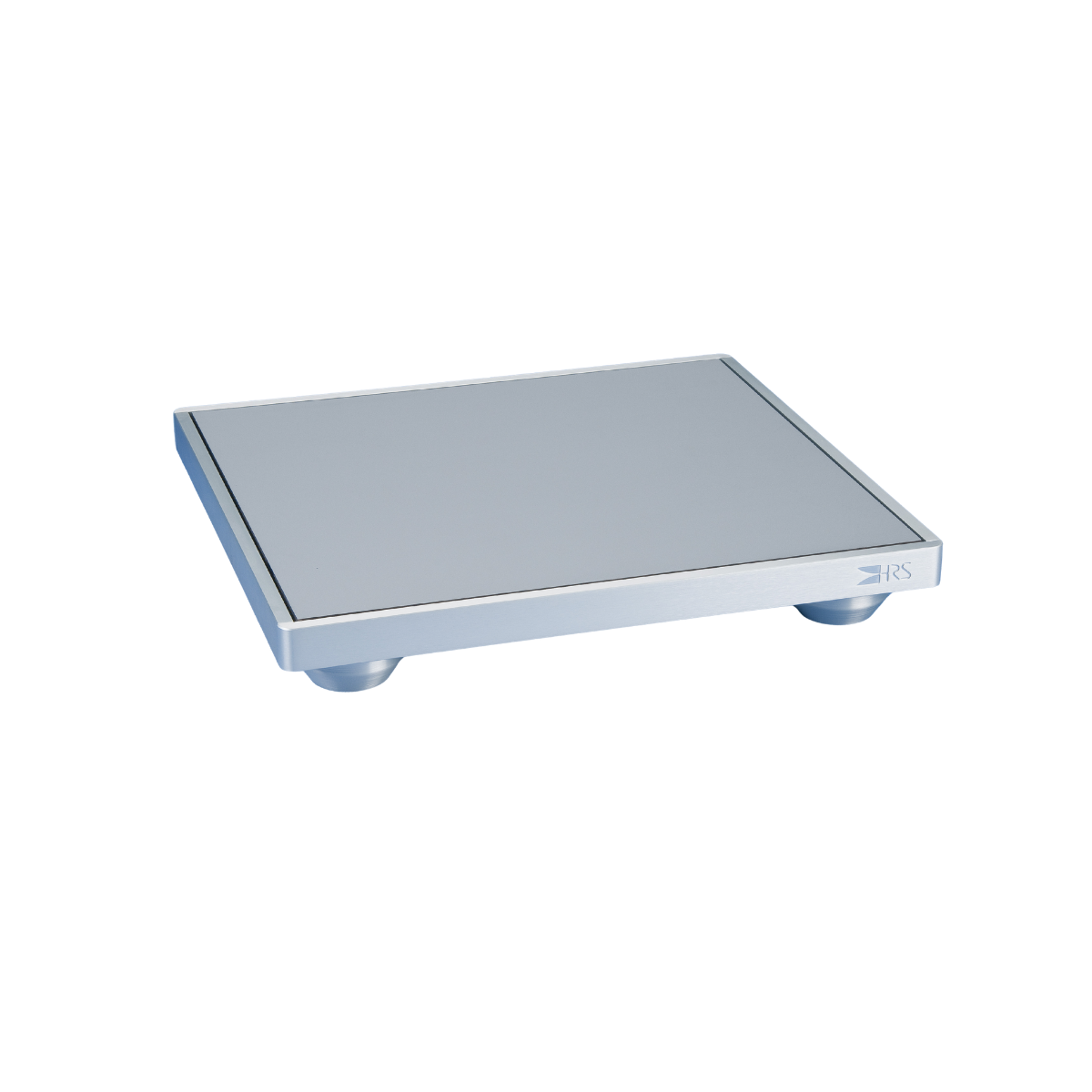

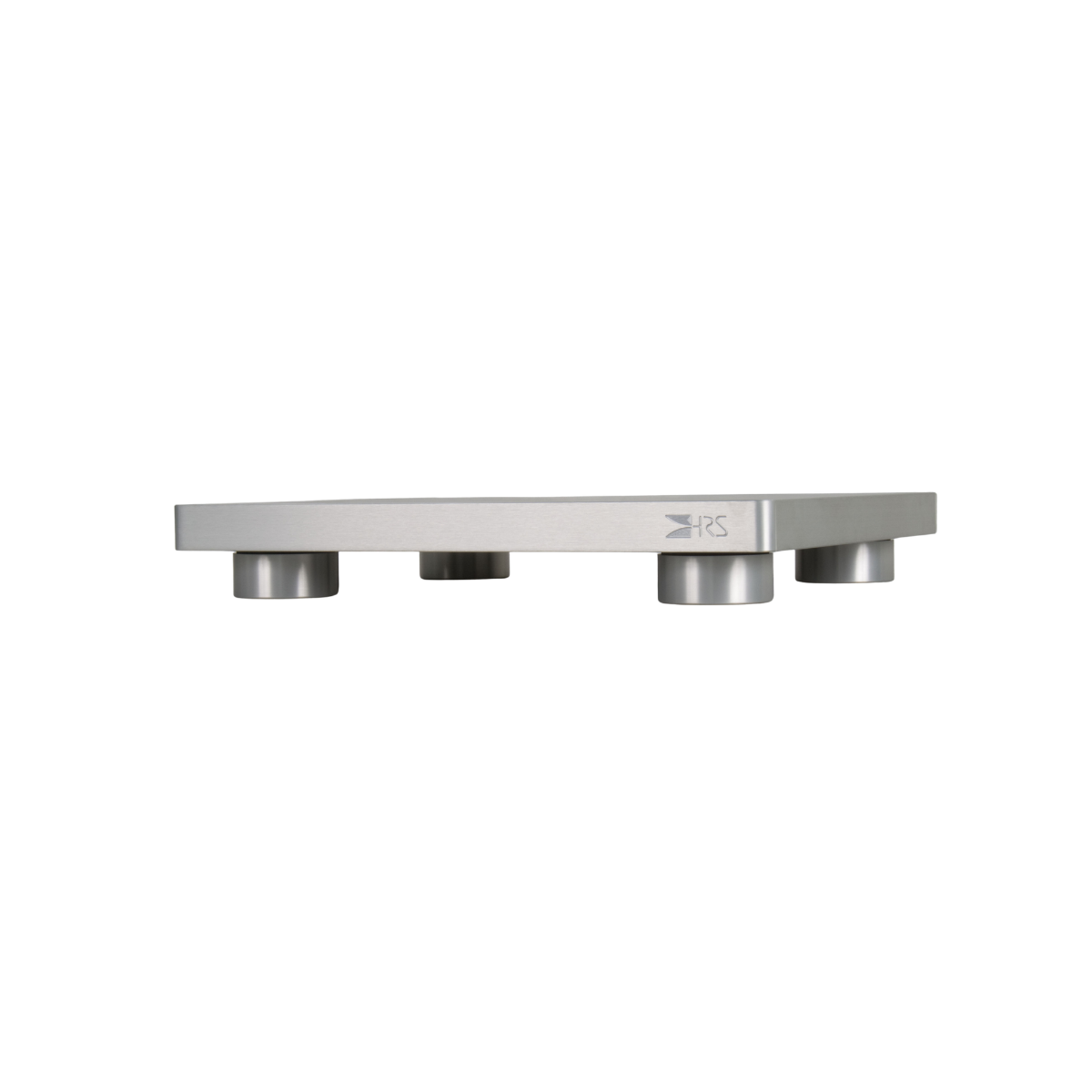

Engineered to eliminate equipment noise, the HRS R3X Isolation Base combines a CNC machined core, aluminum trim, and interchangeable feet. It delivers precise resonance control for any sound system setup or commercial AV installation, providing customizable weight options within a three inch profile.

The HRS R3X Isolation Base is built with five different materials to manage resonance and reduce noise in audio systems. At the center is a CNC machined core that does not resonate. Inside, separate high mass damping systems sit in their own pockets to absorb energy where it is needed most. The top and bottom plates are made from pressed resin fabric composite and fit inside a machined aluminum alloy trim that adds strength. The outer plinth has a scratch resistant coating to keep the surface looking clean. With a three inch profile, the base fits easily on shelves and helps save space during installation.

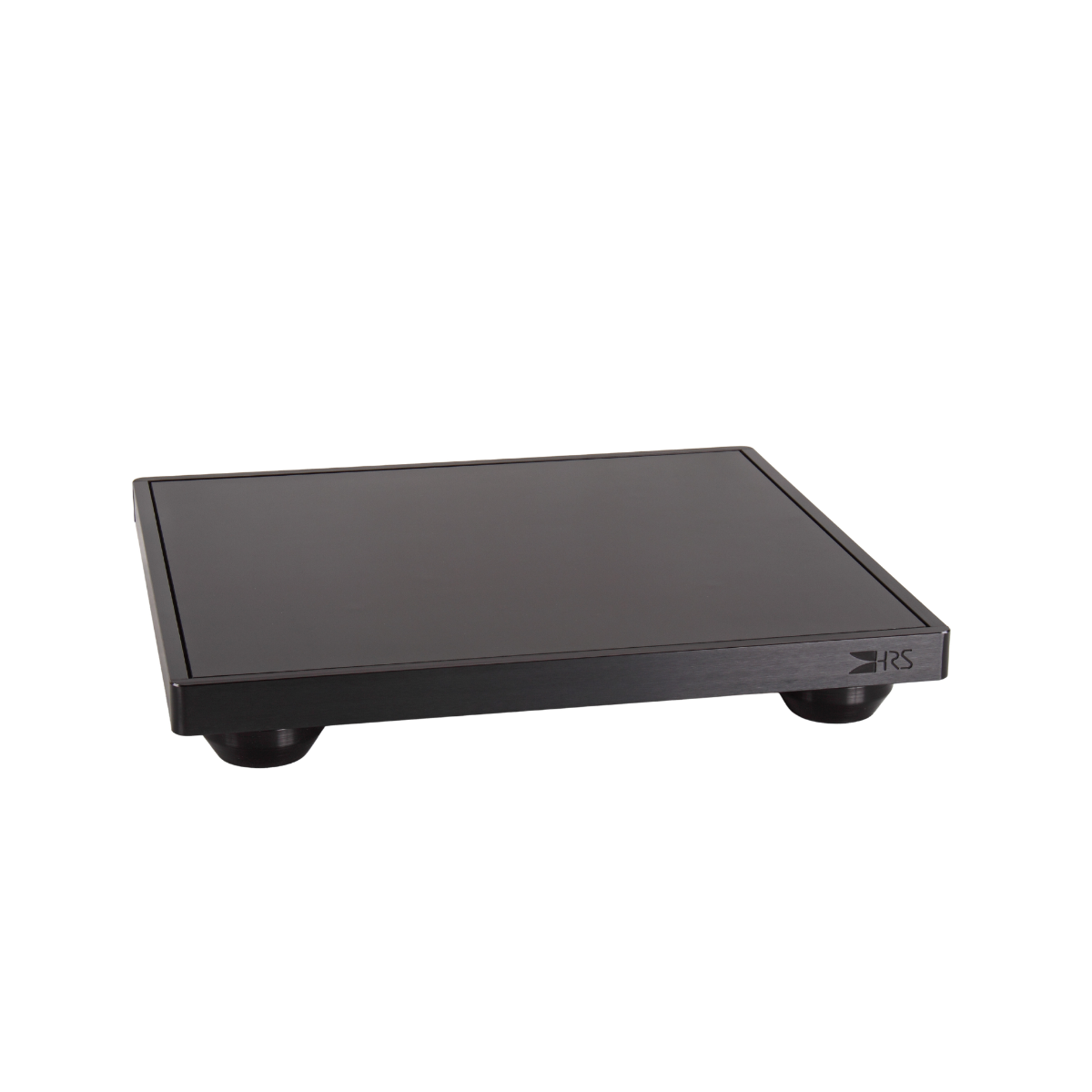

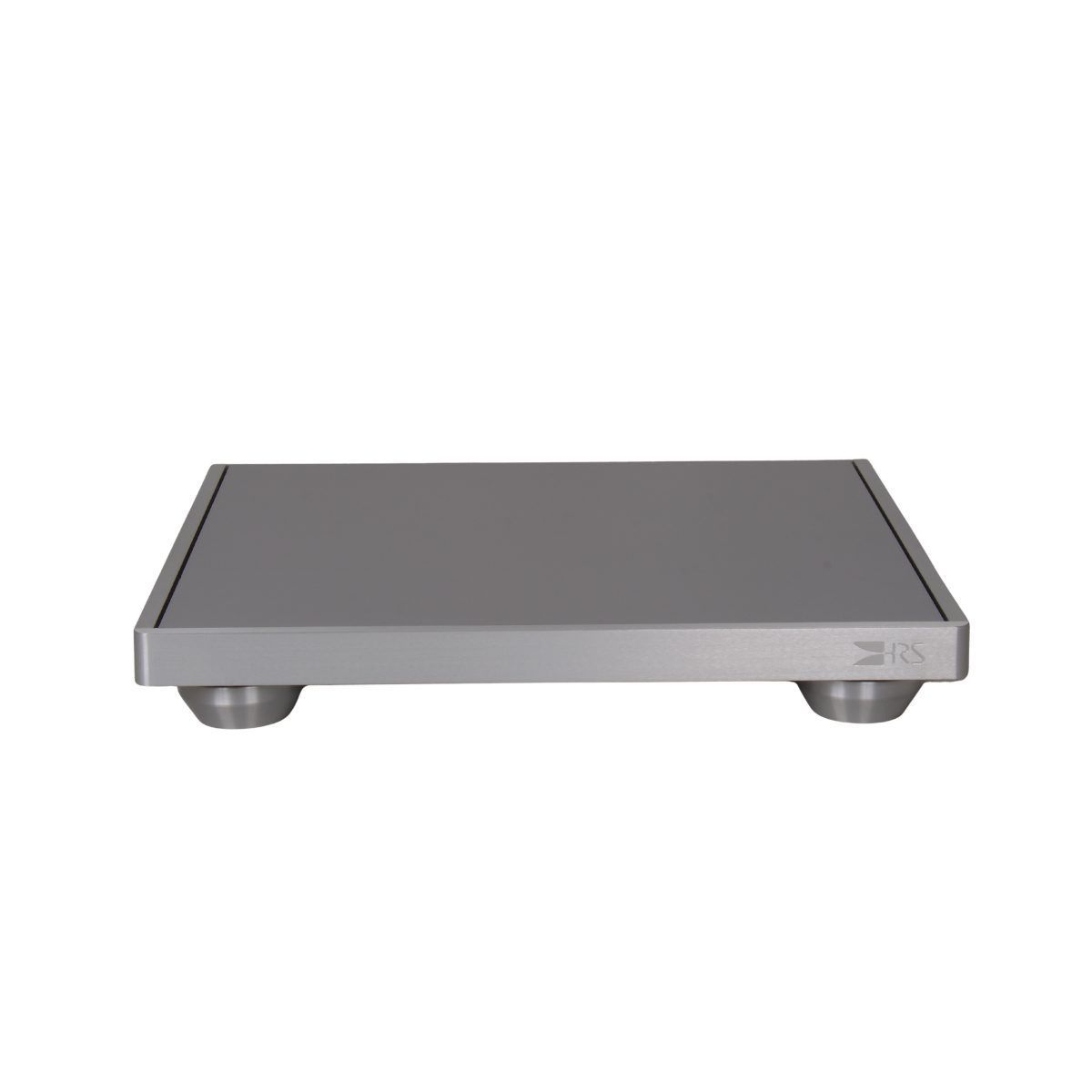

The base can be used with different equipment setups as needs change. It fits directly into HRS Audio Stands without any extra parts and works well on most surfaces. Black and silver finishes are available in two standard sizes, so the base matches a range of component sizes and keeps attention on the main equipment.

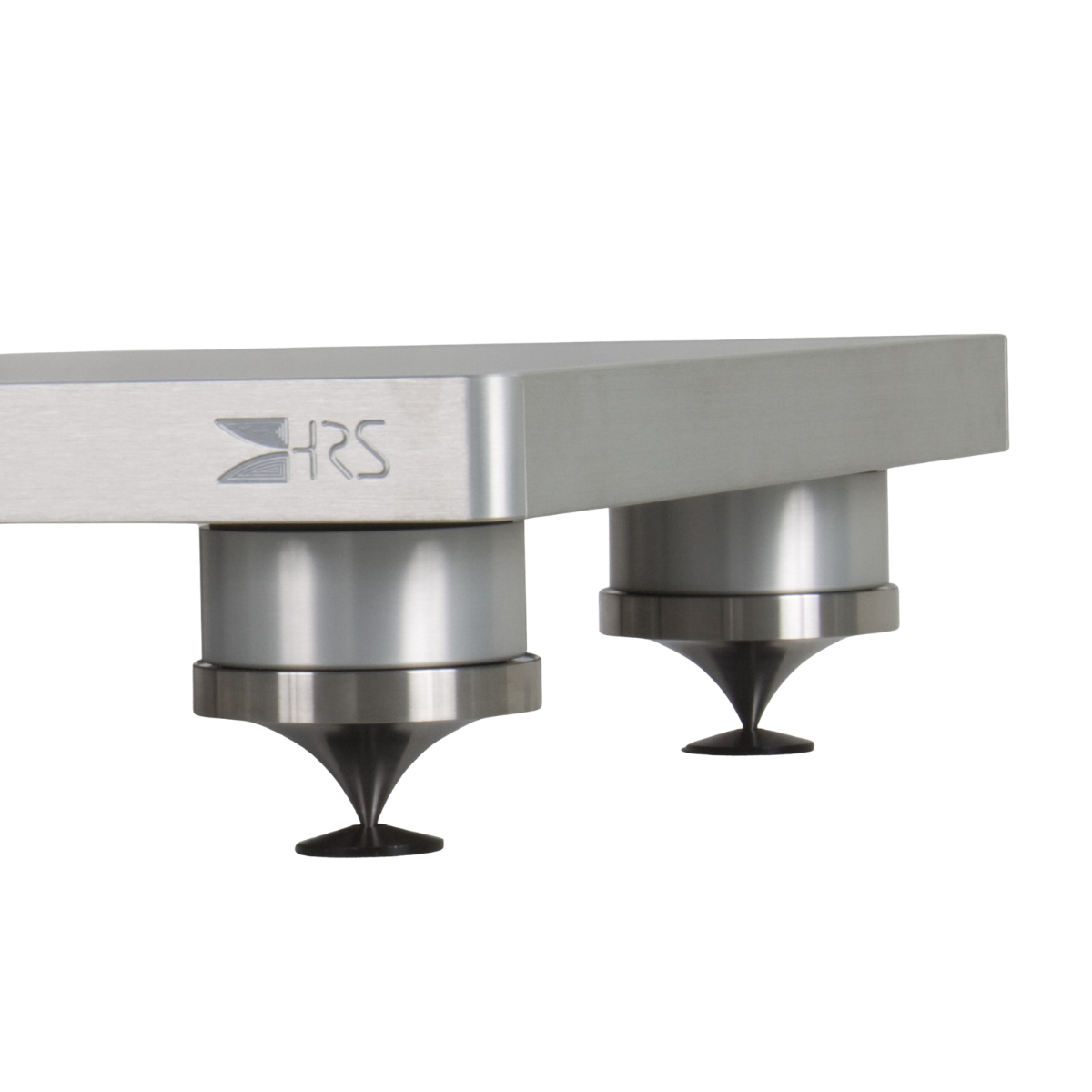

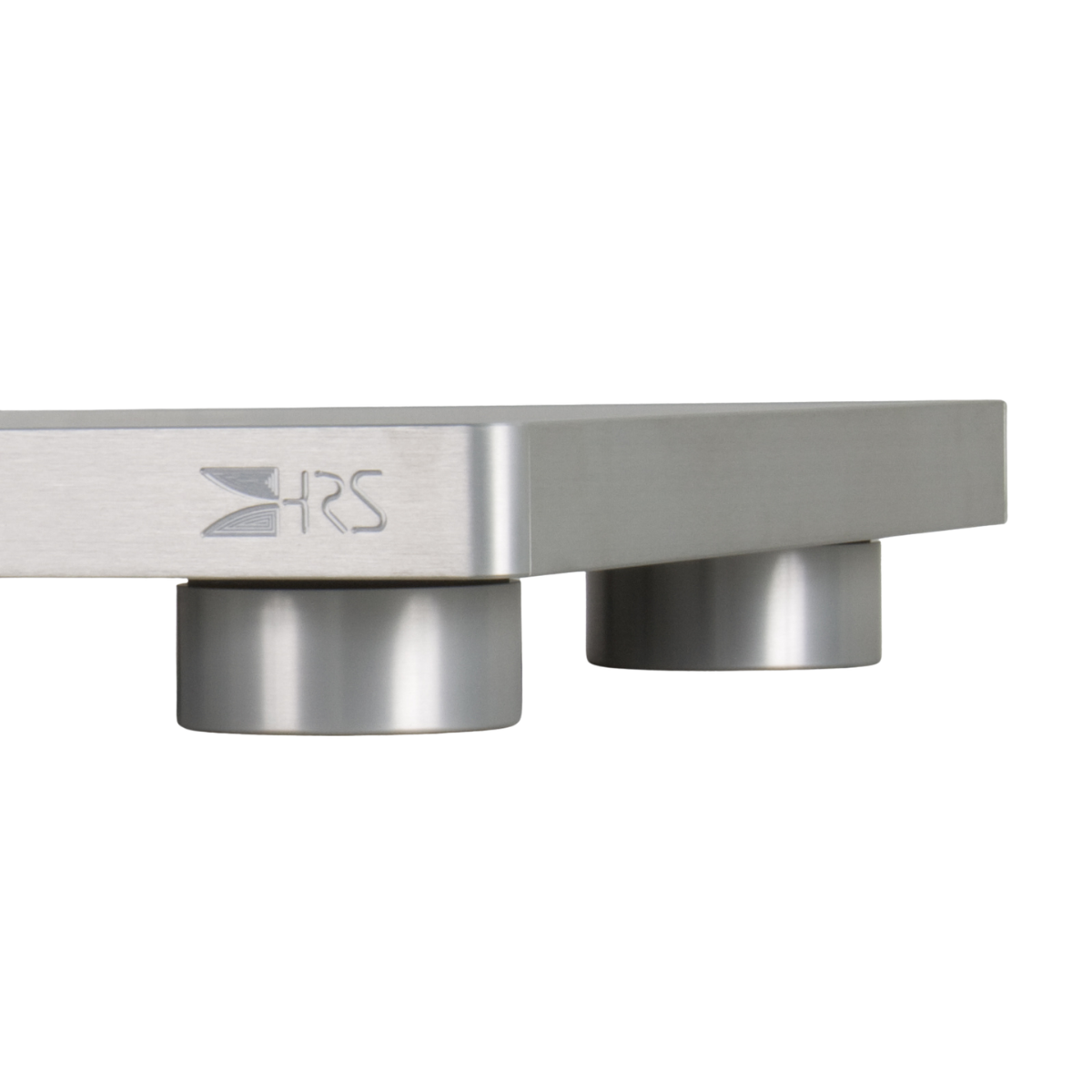

Interchangeable footer systems can be swapped at home to match different setups. Choices include Broadband Isolation Feet for blocking vibration from below twenty Hertz up to above forty kilohertz, Low Frequency Feet for protecting against subsonic feedback, and Bi Directional Noise Reduction Feet for handling energy in both directions. Each option comes with color coded weight ranges to help match the base to the equipment and keep performance consistent in audio visual systems.

Details & Specs



Model R3X-1719-B / R3X-1719-S R3X-1921-B / R3X-1921-S
Dimensions (W x D x H) 19” x 17” x 3”
(48.3 x 43.2 x 7.6 cm)
21” x 19” x 3”
(53.3 x 48.3 x 7.6 cm)
Base Weight 25.5 lb
11.6 kg
31 lb
14.1 kg
Load Range & Supported Equipment Weight for Broadband Isolation Feet (SF) WHITE (WT) 0 - 14 lb
(0 - 6.7 kg)
YELLOW (YL) 15 - 37 lb
(6.8 - 16.8 kg)
RED (RD) 38 - 69 lb
(16.9 - 31.4 kg)
GREEN (GN) 70 - 114 lb
(31.5 - 51.8 kg)
BLUE (BL) 115 - 183 lb
(51.9 - 83.2 kg)
WHITE (WT) 0 - 9 lb
(0 - 4.4 kg)
YELLOW (YL) 10 - 31 lb
(4.5 - 14.1 kg)
RED (RD) 32 - 63 lb
(14.2 - 28.6 kg)
GREEN (GN) 64 - 109 lb
(28.7 - 49.5 kg)
BLUE (BL) 110 - 178 lb
(49.6 - 80.9 kg)
