HRS E1X

Isolation Base

HRS E1X

Isolation Base
From $1,550.00
Select Color:


Overview

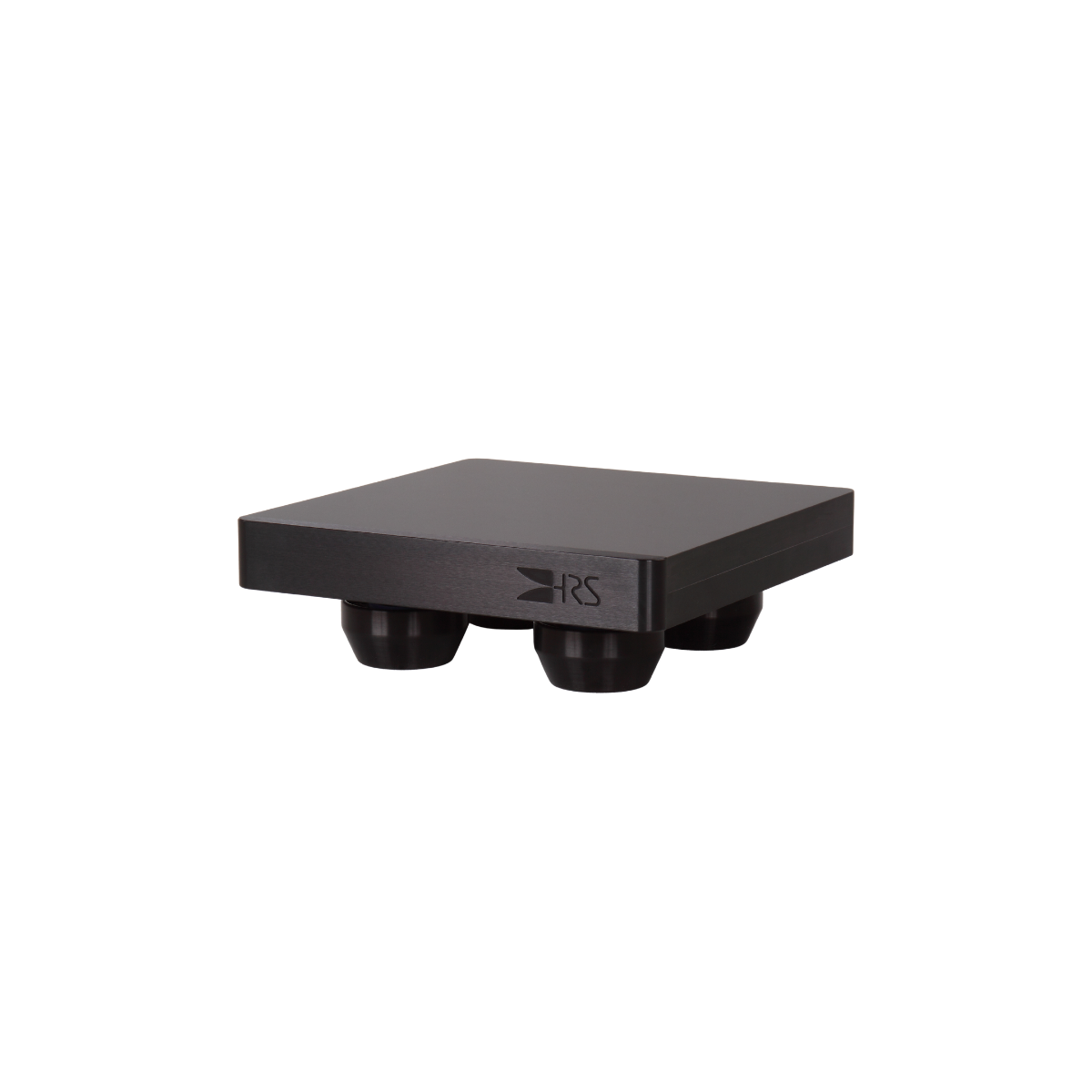

Engineered to eliminate structural noise, the HRS E1X Isolation Base combines a constrained layer damping plinth, resin composite plates, and custom footer options. It delivers precise resonance control for commercial AV installation setups or home audio equipment, supporting multiple weight capacities in a three inch profile.

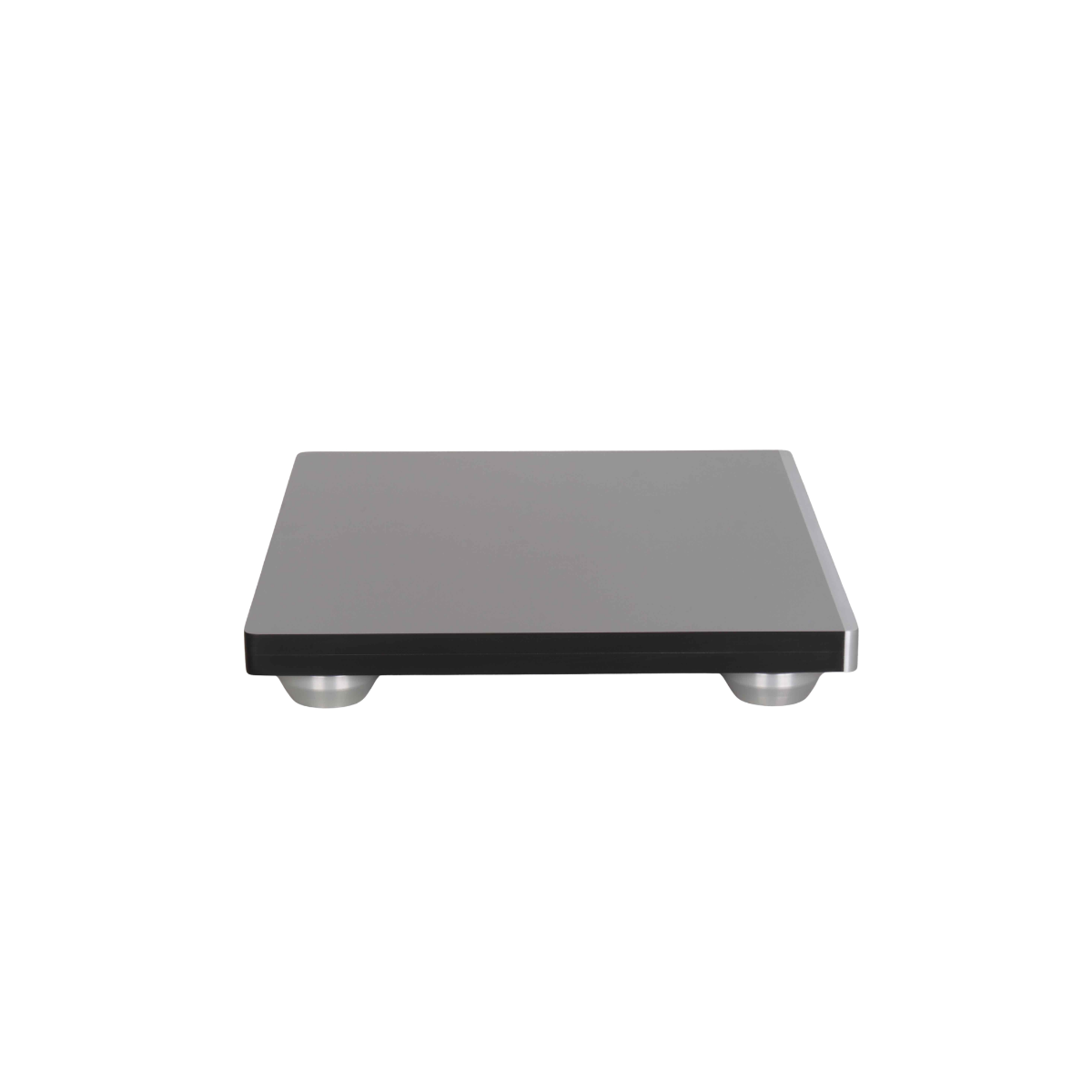

The HRS E1X Isolation Base is built with several materials working together to reduce resonance and keep noise out of the signal. The design uses a solid aluminum front trim, a plinth with a special damping layer, and pressed resin fabric composite plates on the top and bottom. This approach keeps the structure strong and stable. The plinth has a scratch resistant coating on the top surface, so it holds up well over time. At three inches tall, the base takes up little vertical space on a rack and keeps attention on the equipment in use.

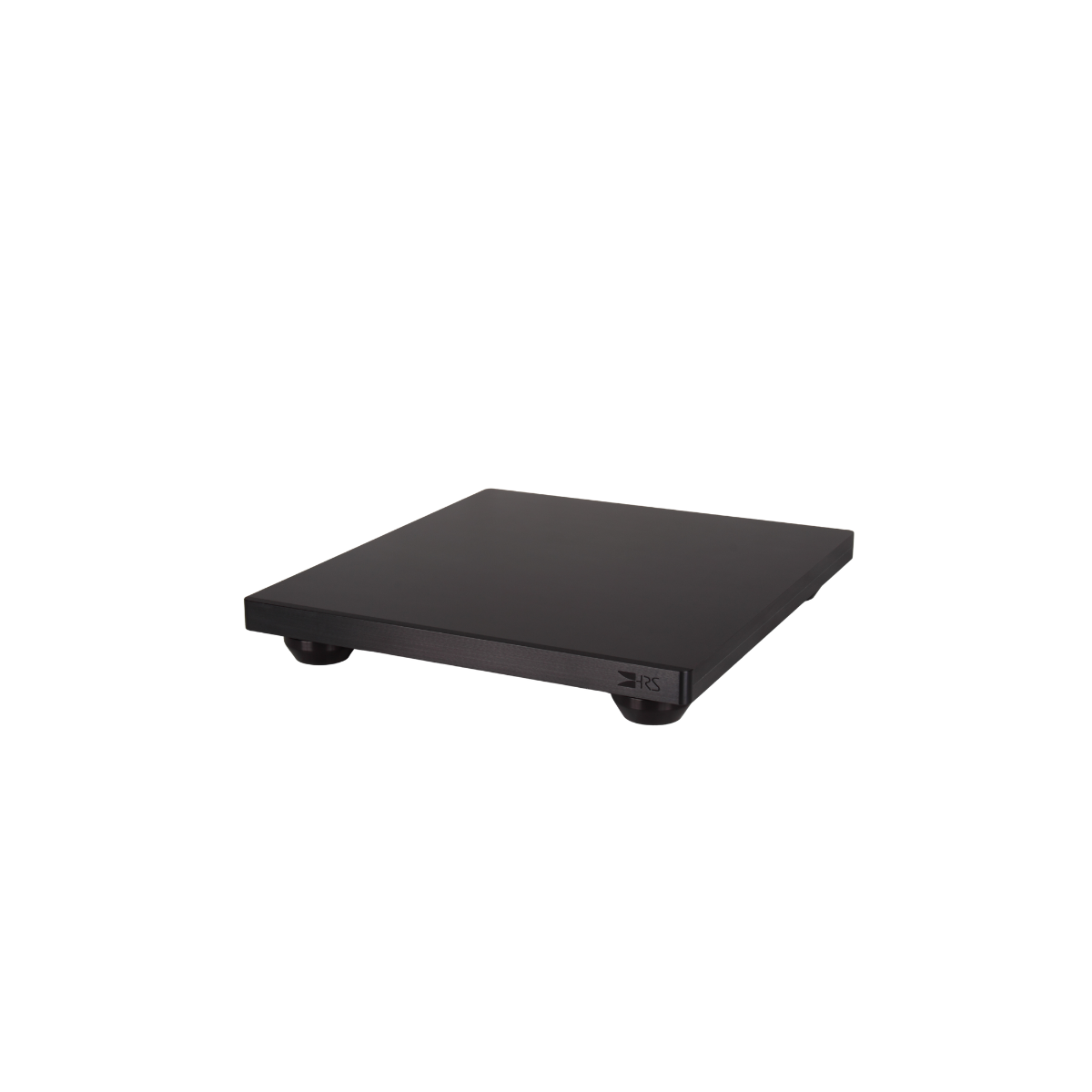

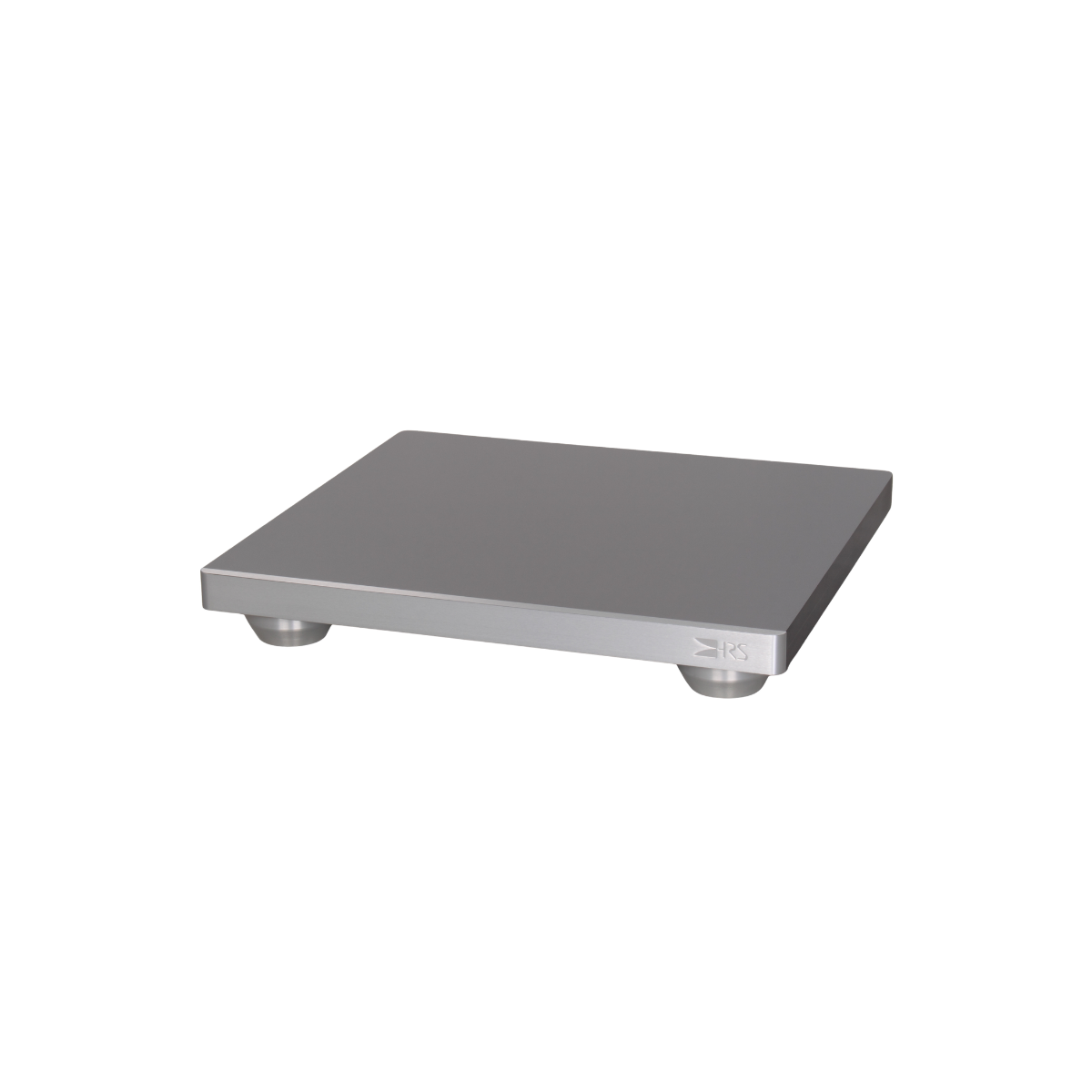

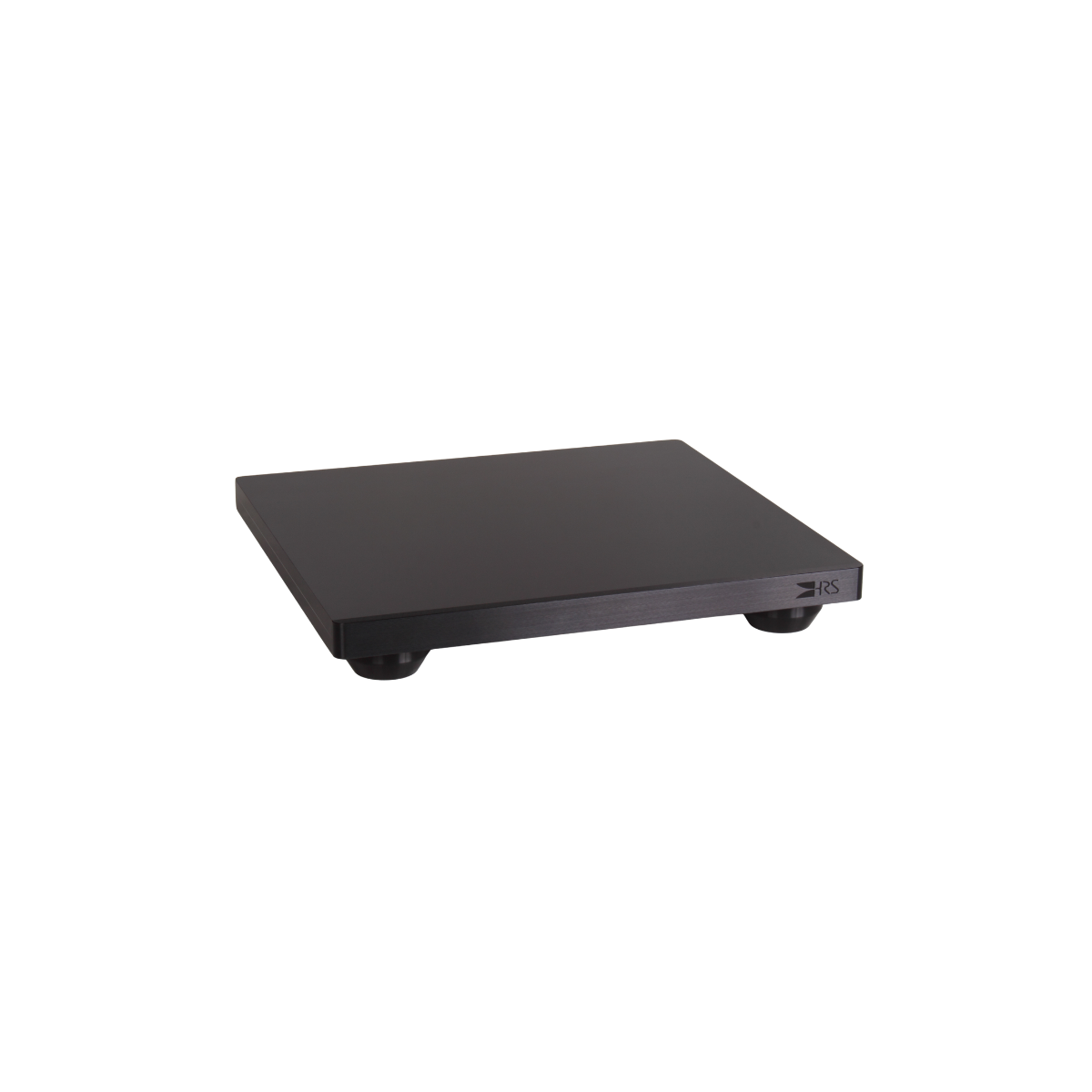

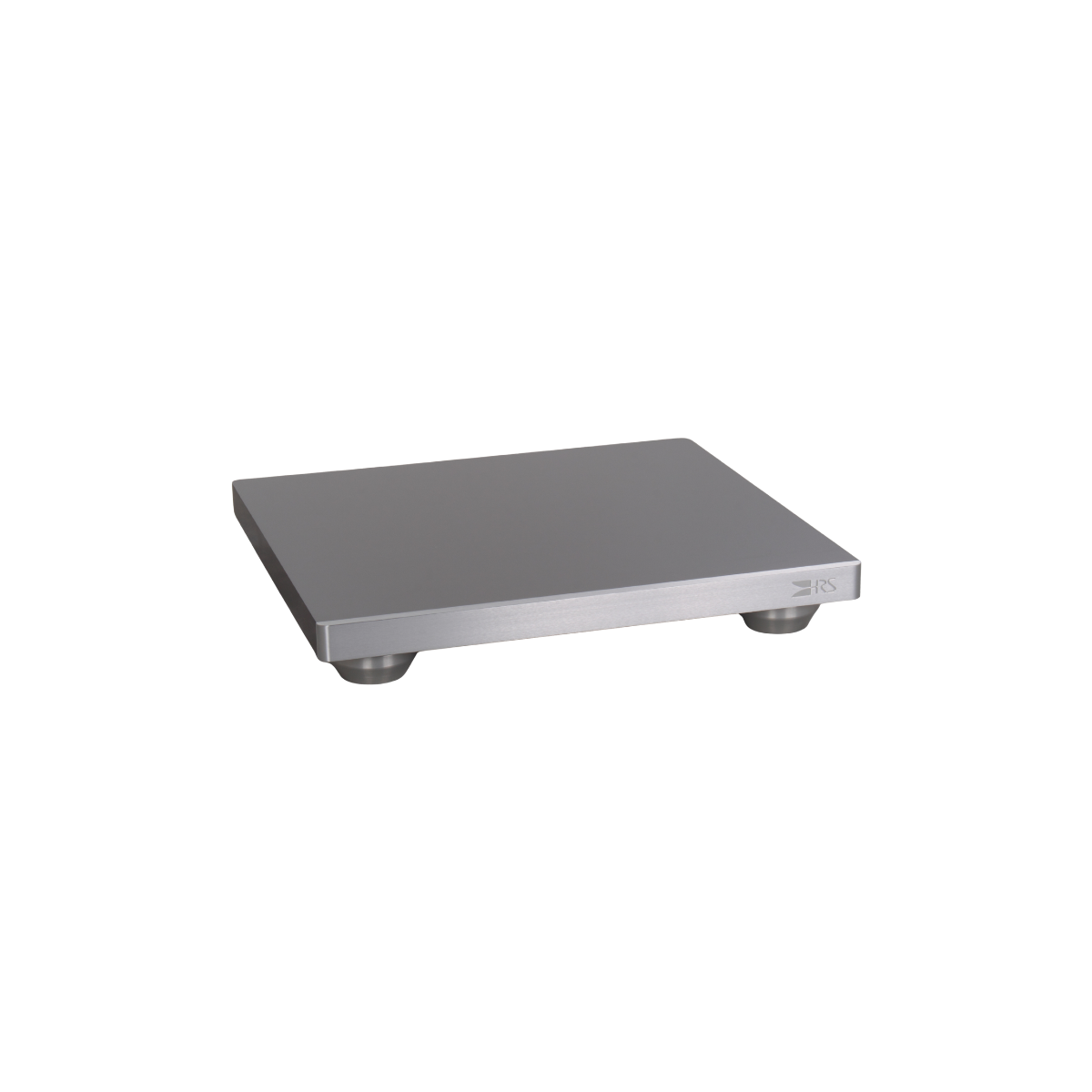

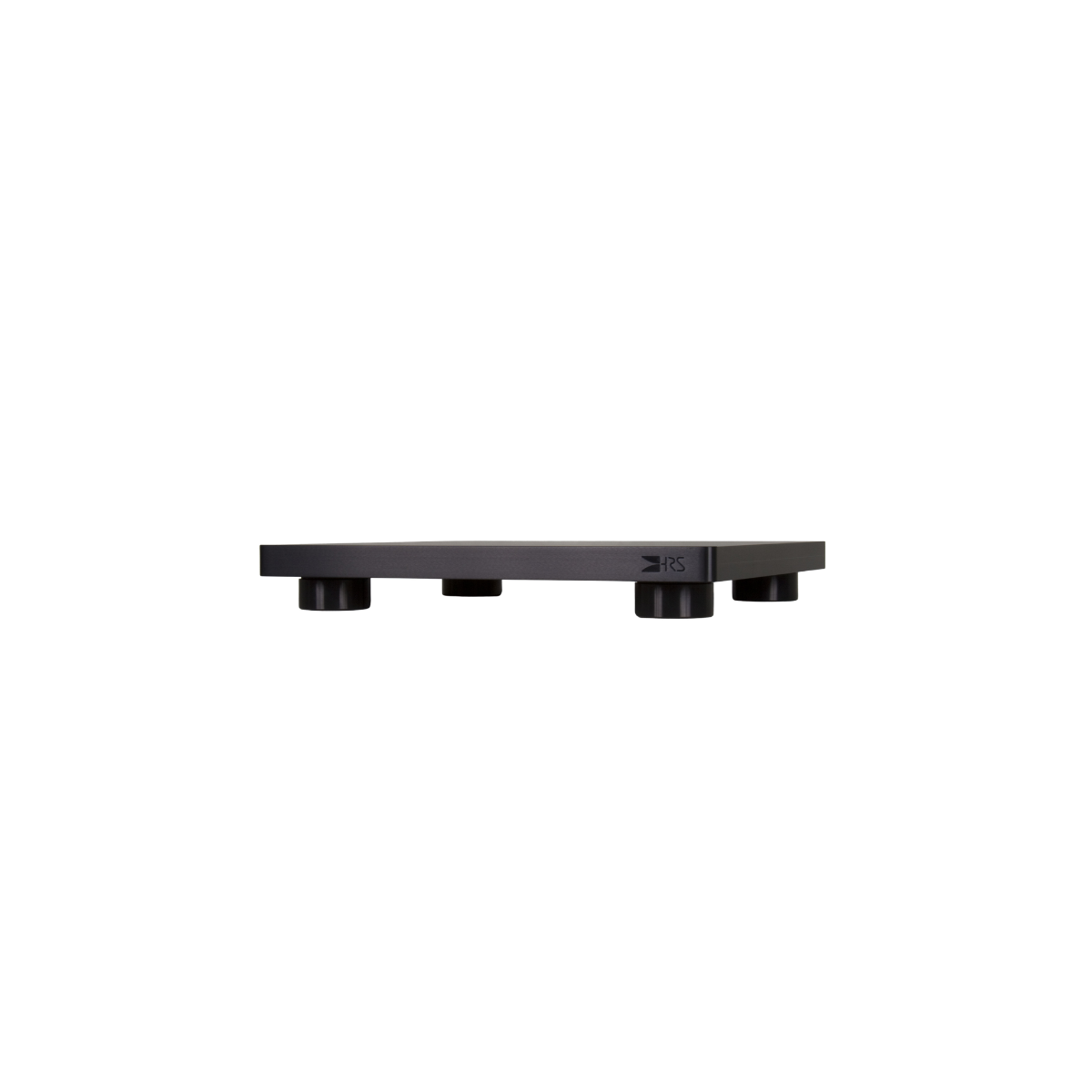

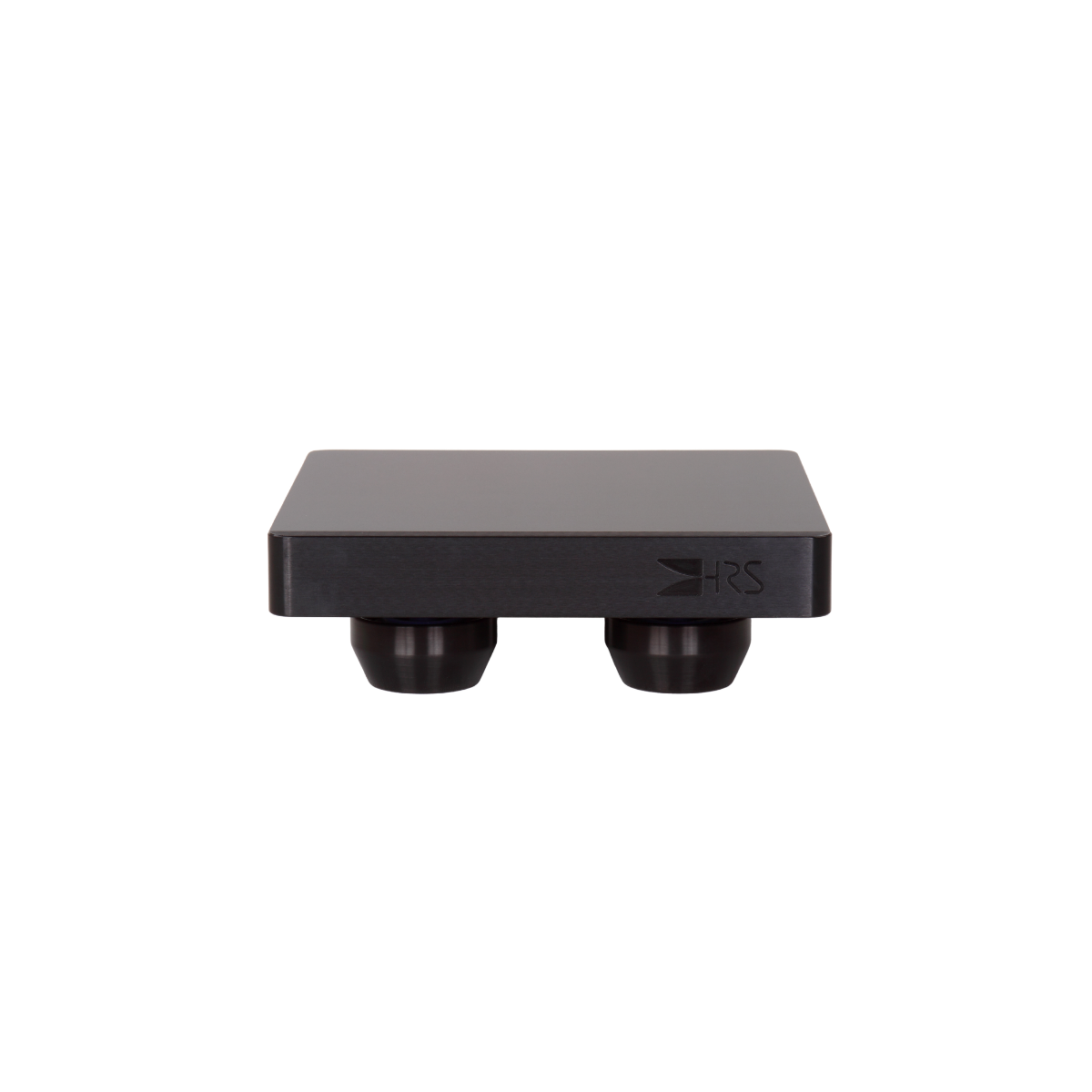

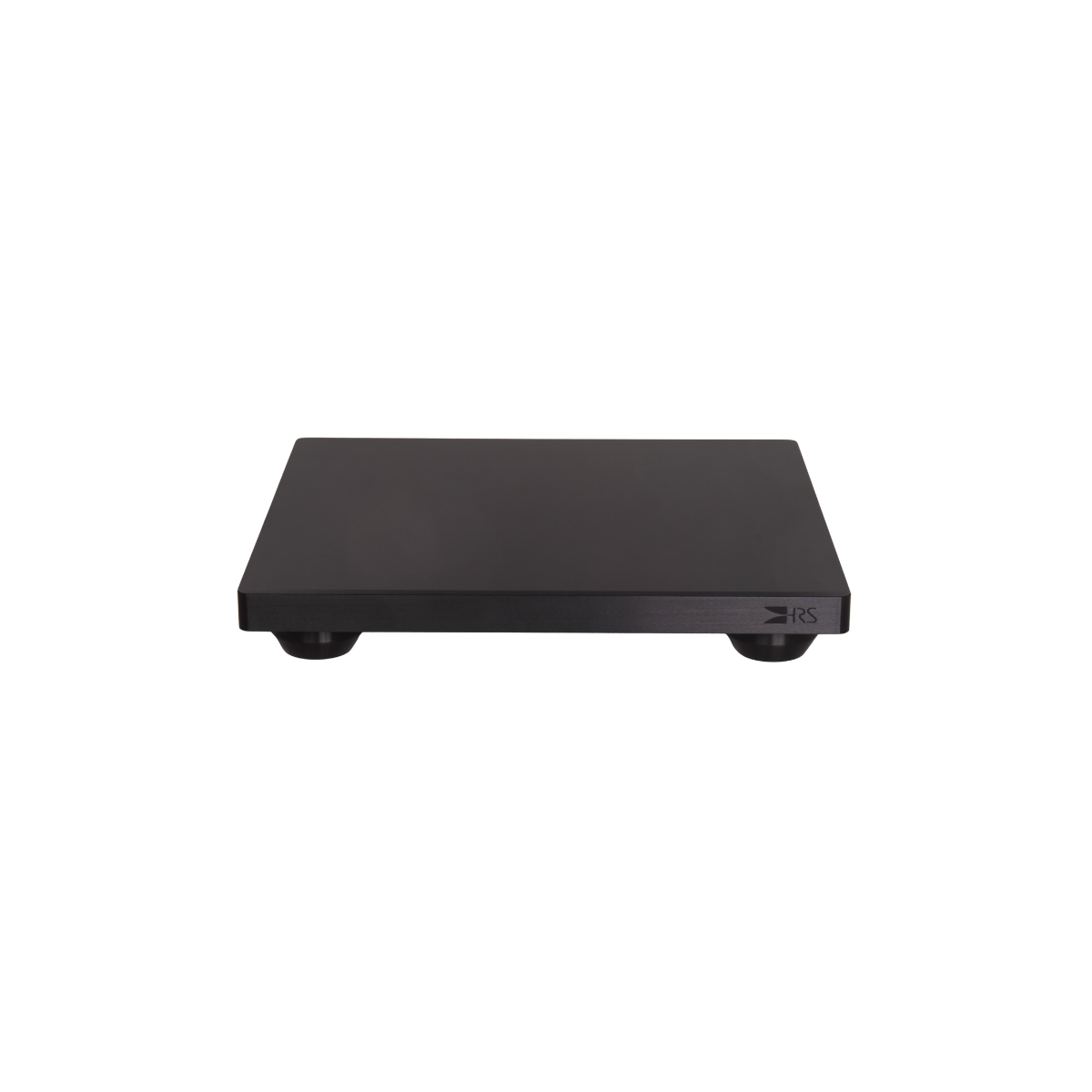

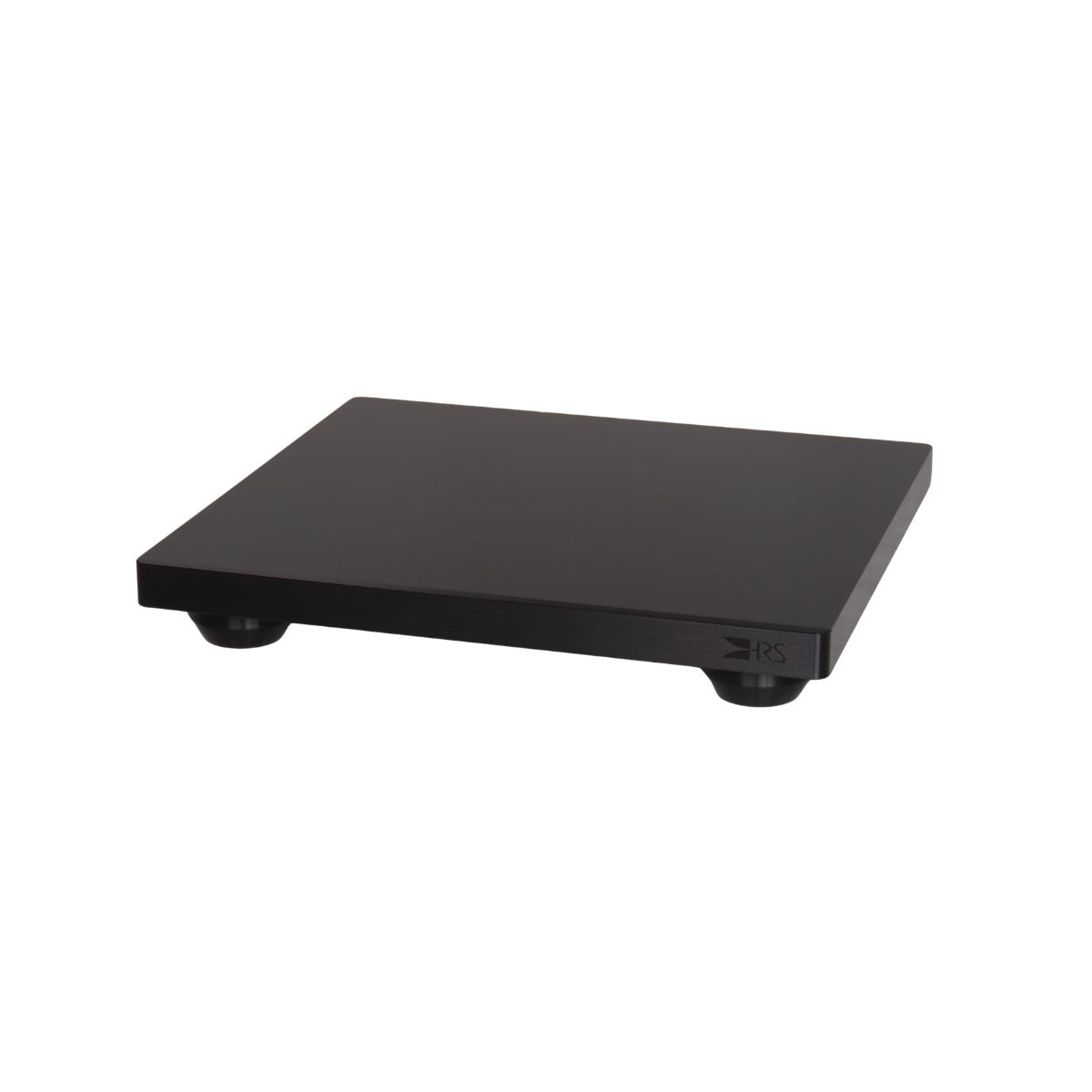

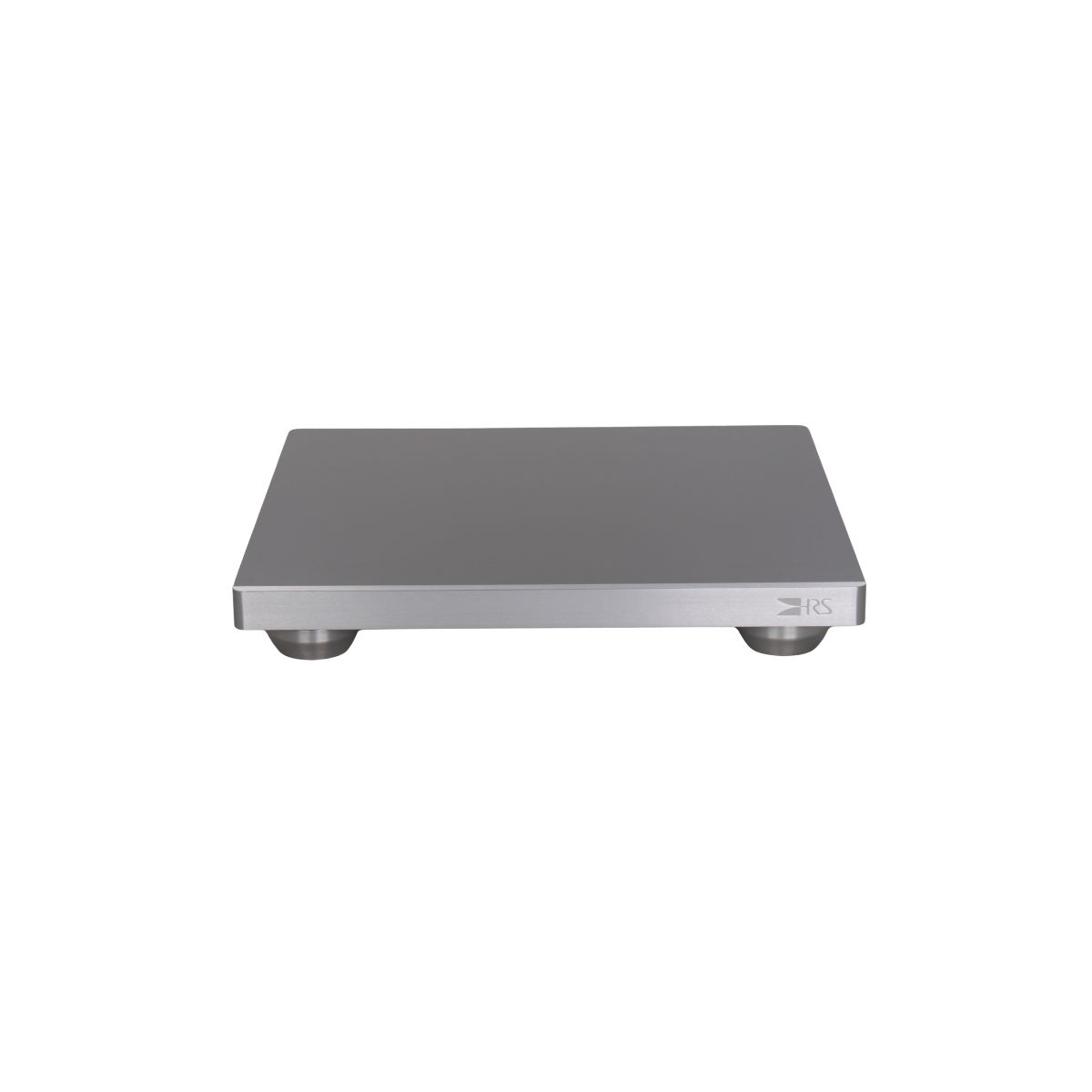

The E1X Isolation Base fits directly into HRS Audio Stands without any changes and also works well on any flat surface. It comes in standard and custom sizes to handle different types of audio gear, including large amplifiers and turntables up to twenty five inches wide. Both black and silver finishes are available. Silver models have black side and rear edges to match other equipment.

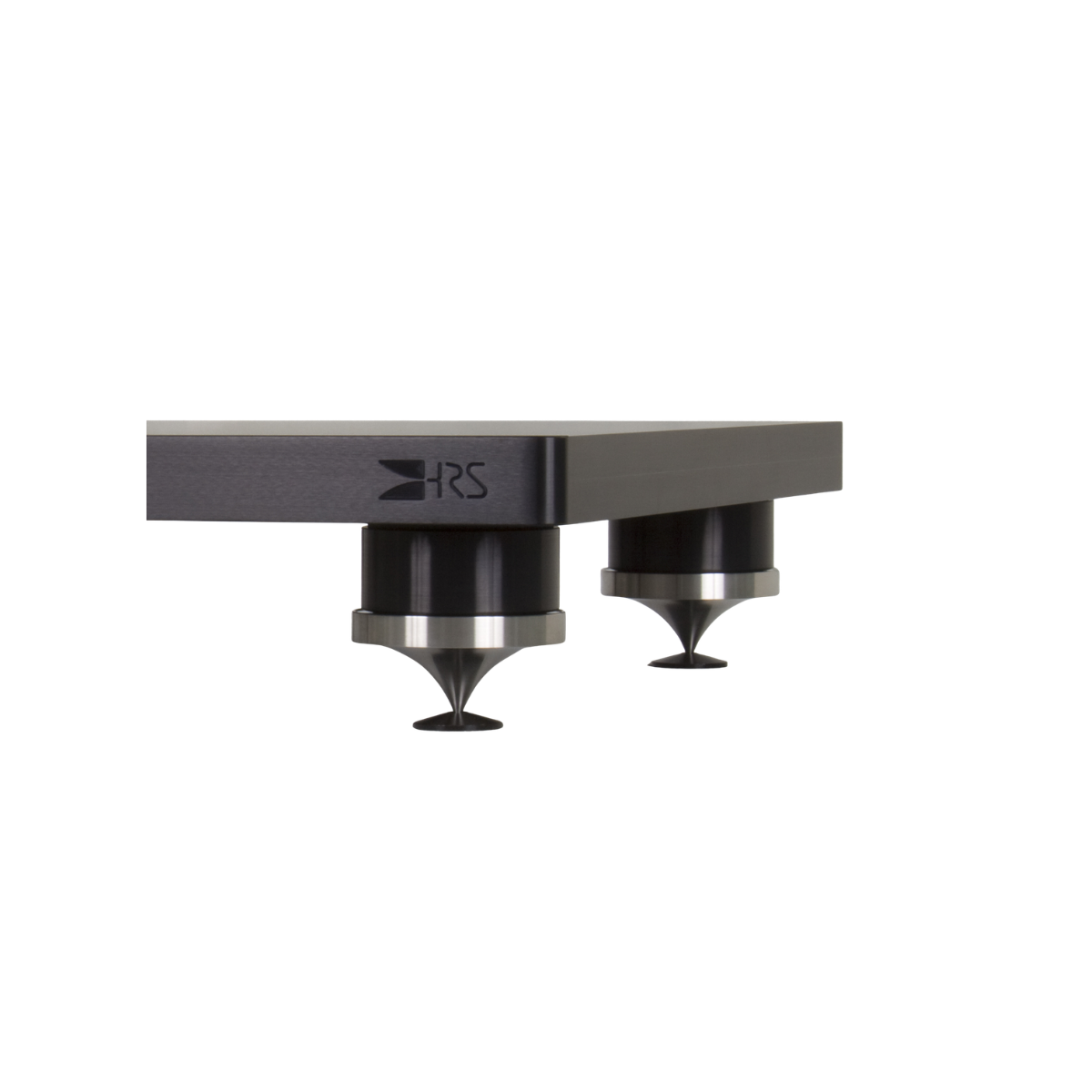

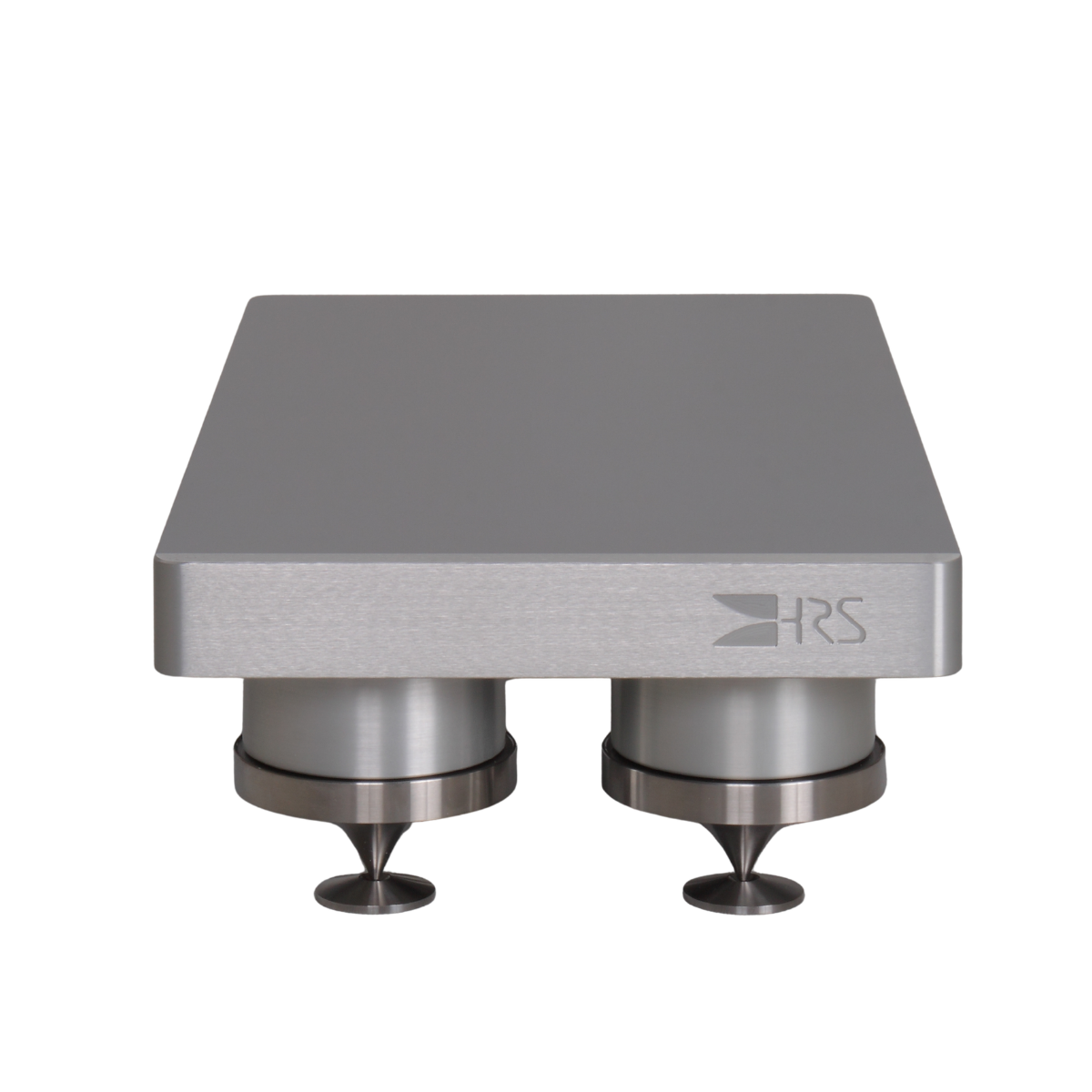

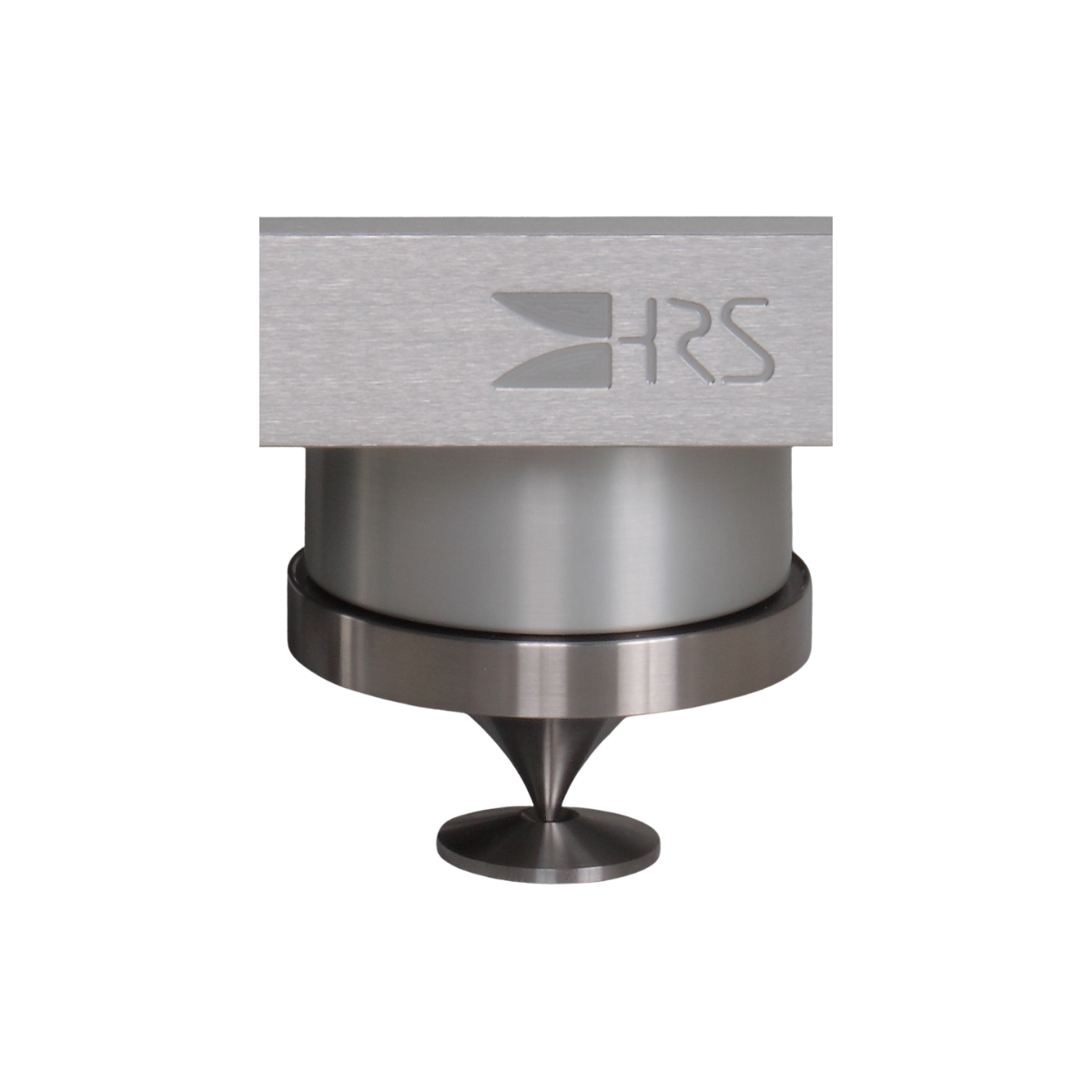

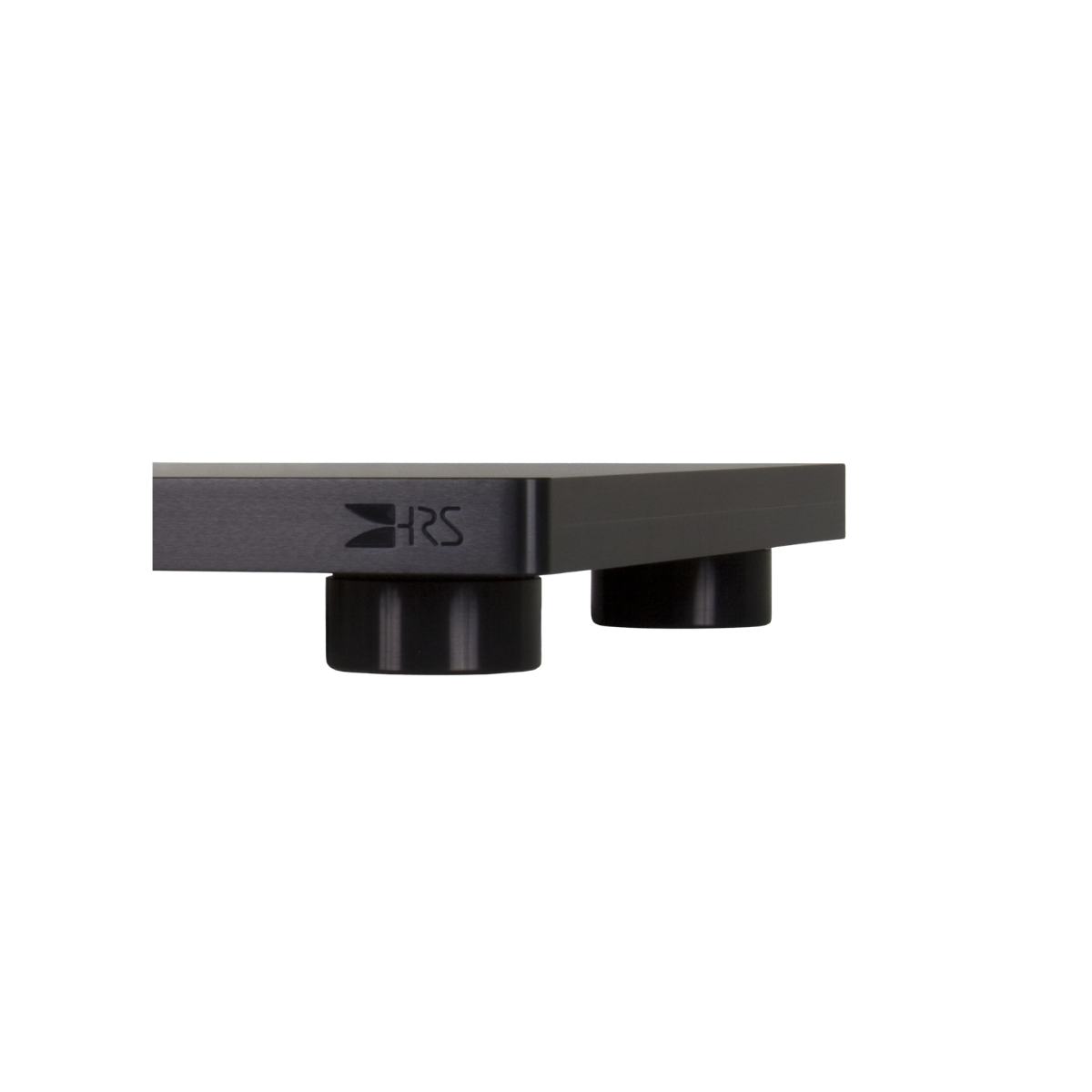

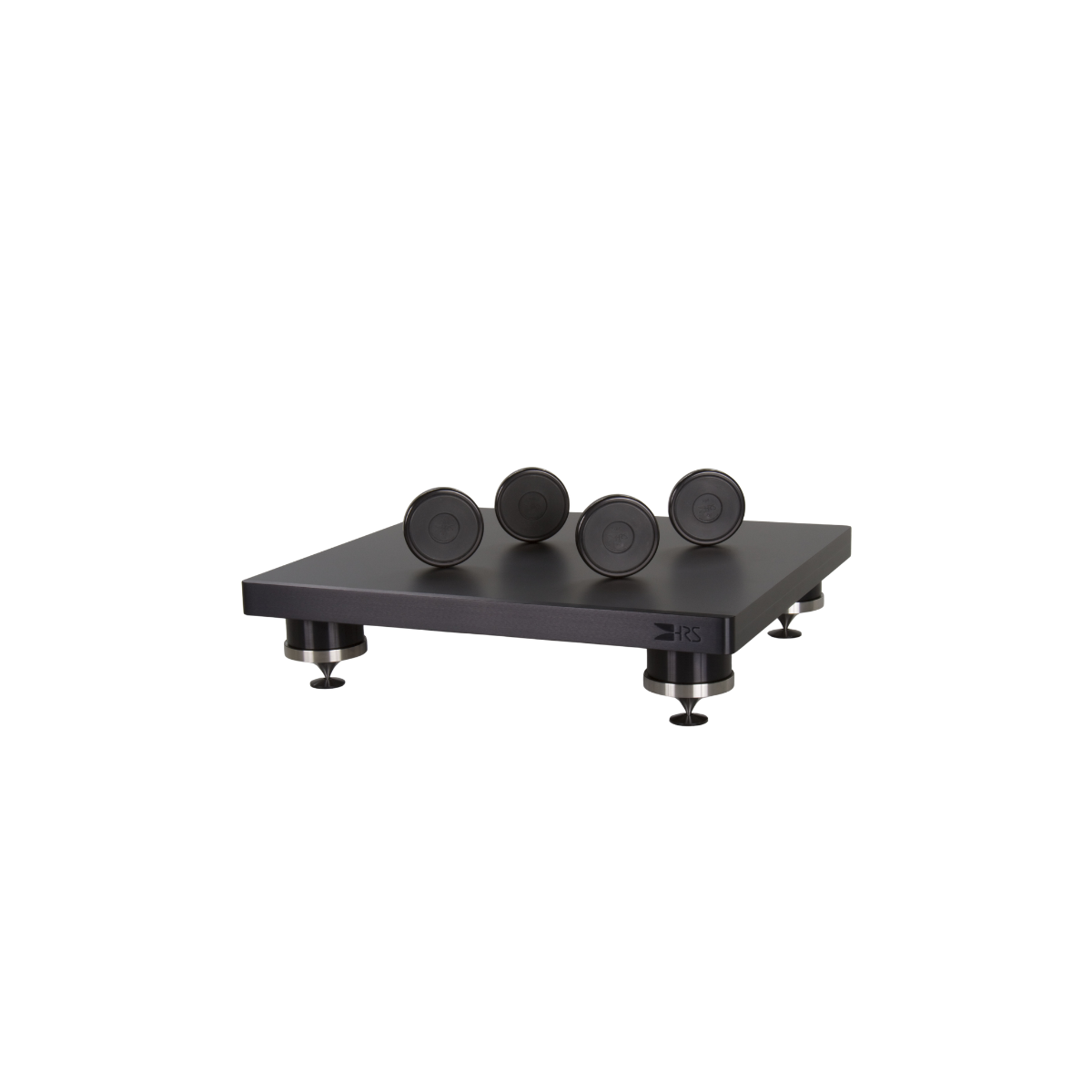

The base uses interchangeable feet that can be swapped out at home to match different needs. Broadband Isolation Feet cover a wide frequency range for general isolation. Low Frequency Feet help control subsonic feedback. Bi Directional Noise Reduction Feet are designed for solid state equipment. Each type comes in color coded versions to match the weight of the gear, which helps get the best results in both commercial and home audio setups.

Details & Specs



Model E1X-1419-B / E1X-1419-S E1X-1719-B / E1X-1719-S E1X-1921-B / E1X-1921-S E1X-1923-B / E1X-1923-S E1X-1925-B / E1X-1925-S E1X-2123-B / E1X-2123-S
Dimensions (W x D x H) 19" x 14" x 3"
(48.3 x 35.6 x 7.6 cm)
19" x 17" x 3"
(48.3 x 43.2 x 7.6 cm)
21" x 19" x 3"
(53.3 x 48.3 x 7.6 cm)
23" x 19" x 3"
(58.4 x 48.3 x 7.6 cm)
25" x 19" x 3"
(63.5 x 48.3 x 7.6 cm)
23" x 21" x 3"
(58.4 x 53.3 x 7.6 cm)
Base Weight 19 lb
8.6 kg
22.6 lb
10.2 kg
27.2 lb
12.3 kg
29.6 lb
13.4 kg
32 lb
14.5 kg
32.5 lb
14.8 kg
Load Range & Supported Equipment Weight for Broadband Isolation Feet (SF) WHITE (WT) 0 - 21 lb
(0 - 9.9 kg)
YELLOW (YL) 22 - 43 lb
(10 - 19.5 kg)
RED (RD) 44 - 75 lb
(19.6 - 34.1 kg)
GREEN (GN) 76 - 121 lb
(34.2 - 55 kg)
BLUE (BL) 122 - 190 lb
(55.1 - 86.4 kg)
WHITE (WT) 0 - 18 lb
(0 - 8.5 kg)
YELLOW (YL) 19 - 39 lb
(8.6 - 17.7 kg)
RED (RD) 40 - 71 lb
(17.8 - 32.3 kg)
GREEN (GN) 72 - 117 lb
(32.4 - 53.2 kg)
BLUE (BL) 118 - 186 lb
(53.3 - 84.5 kg)
WHITE (WT) 0 - 13 lb
(0 - 6.3 kg)
YELLOW (YL) 14 - 35 lb
(6.4 - 15.9 kg)
RED (RD) 36 - 67 lb
(16 - 30.5 kg)
GREEN (GN) 68 - 113 lb
(30.6 - 51.4 kg)
BLUE (BL) 114 - 181 lb
(51.5 - 82.3 kg)
WHITE (WT) 0 - 11 lb
(0 - 5.4 kg)
YELLOW (YL) 12 - 32 lb
(5.5 - 14.5 kg)
RED (RD) 33 - 64 lb
(14.6 - 29.1 kg)
GREEN (GN) 65 - 110 lb
(29.2 - 50 kg)
BLUE (BL) 111 - 179 lb
(50.1 - 81.4 kg)
WHITE (WT) 0 - 8 lb
(0 - 4 kg)
YELLOW (YL) 9 - 31 lb
(4.1 - 14.1 kg)
RED (RD) 32 - 63 lb
(14.2 - 28.6 kg)
GREEN (GN) 64 - 108 lb
(28.7 - 49.1 kg)
BLUE (BL) 109 - 177 lb
(49.2 - 80.5 kg)
WHITE (WT) 0 - 8 lb
(0 - 4 kg)
YELLOW (YL) 9 - 29 lb
(4.1 - 13.2 kg)
RED (RD) 30 - 61 lb
(13.3 - 27.7 kg)
GREEN (GN) 62 - 107 lb
(27.8 - 48.6 kg)
BLUE (BL) 108 - 176 lb
(48.7 - 80 kg)
