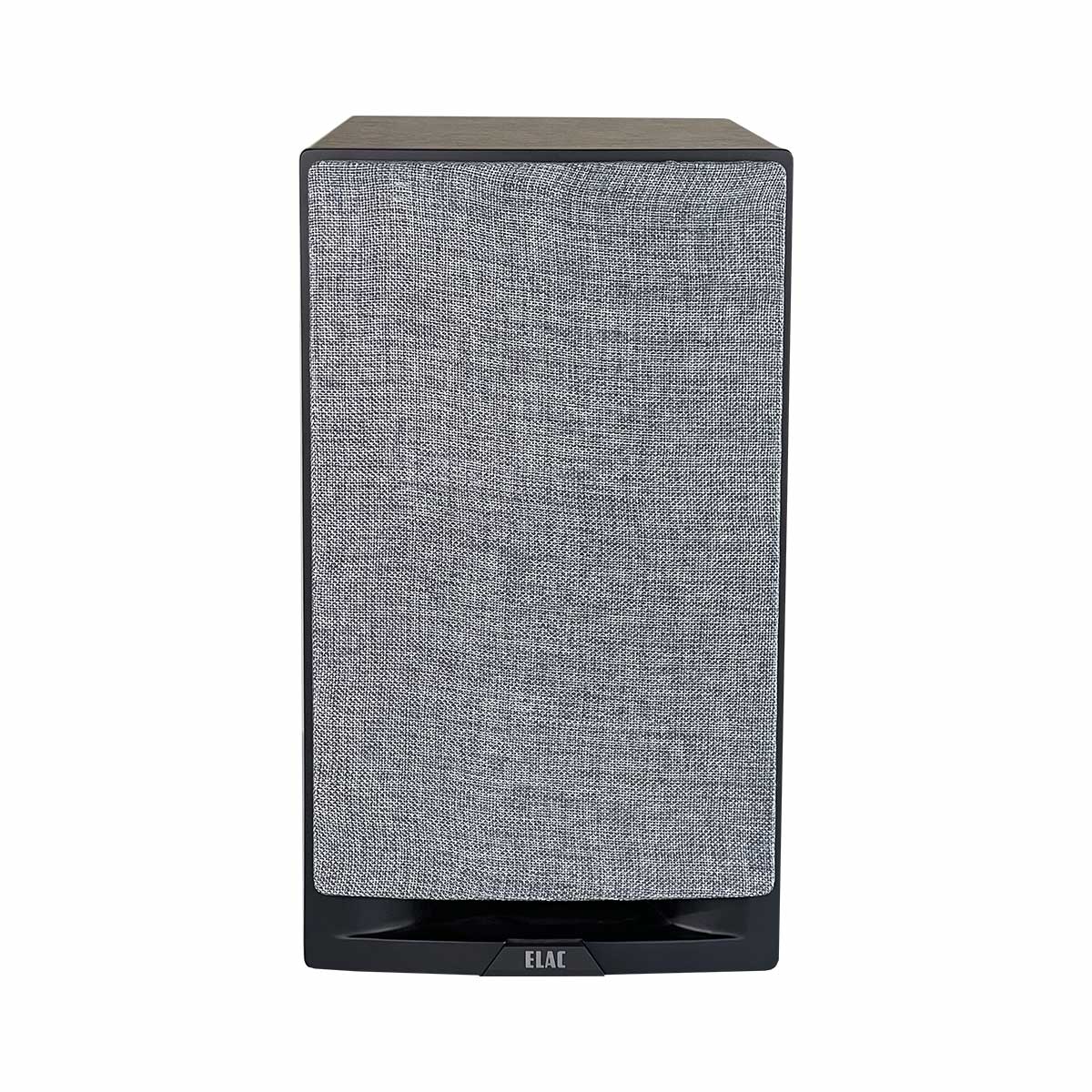

ELAC Uni-Fi Reference UBR62

3-Way Bookshelf Speaker - Pair

ELAC Uni-Fi Reference UBR62

3-Way Bookshelf Speaker - Pair
$1,199.98
Select Color Options:

Contact Us

Overview

Building on the success and performance of the Uni-Fi 2.0 series, Uni-Fi Reference is not merely a name, but the defining characteristic of a product that has been refined for maximum performance and style. The ELAC Uni-Fi Reference UBR62 3-Way Bookshelf Speakers features a 3-way design with a 1" soft-dome tweeter, a 4" aluminum midrange, and a 6.5" aluminum cone woofer.

Sold as a pair.

IMPROVED AESTHETICS

Reference Aesthetics

For some, looking good is as important as sounding good.

The Uni-Fi Reference has been redesigned for maximum performance and style, so it can look as good as it sounds.

IMPROVED 3-WAY DESIGN

Leap Into High End Audio

Would you ask two people to do a three person job?

Most speakers in this price range have one driver tuned for highs and another tuned for both mids and lows. The Uni-Fi Reference has three - one for each frequency range. W

ith an entirely new midrange driver and newly designed cast chassis, the Uni-Fi Reference is truly a step into high end audio.

IMPROVED CROSSOVER

Listen to a Perfect Harmony

A conductor is to an orchestra, what a crossover is to a 3-way speaker - a guide to make many sound like one.

Their improved crossover blends the Uni-Fi Reference's three unique drivers into one harmonious sound.

Enjoy the luxury of a 3-way speaker at an unmatched price.

PURE BLISS. NO RATTLING.

Full Perimeter Bracing

A supercar isn't just measured by how much power it produces - it's measured by how well it handles the power.

The all new Uni-Fi Reference adds full perimeter bracing, allowing you to push it harder with significantly reduced cabinet vibration and coloration.

IMPROVED BASS DYNAMICS

Dual Flared Slot Vents

A dedicated woofer optimized with all our newly developed dual flared slot vents.

Utilizing both internal and external flares, the reference series slot vents allow for lower noise and higher bass output for improved low frequency dynamics.

IMPROVED DRIVERS

Aluminum Drivers with Cast Chassis

Drastically improving low-end reproduction, their newly developed bass driver delivers improved linearity and the best low frequency response out of any of their previous Uni-Fi speakers.

With a single piece compound curvature aluminum cone and a large rear vented magnet, the new 6.5" woofer with cast chassis will not disappoint.

UNI-FI REFERENCE SERIES FEATURES

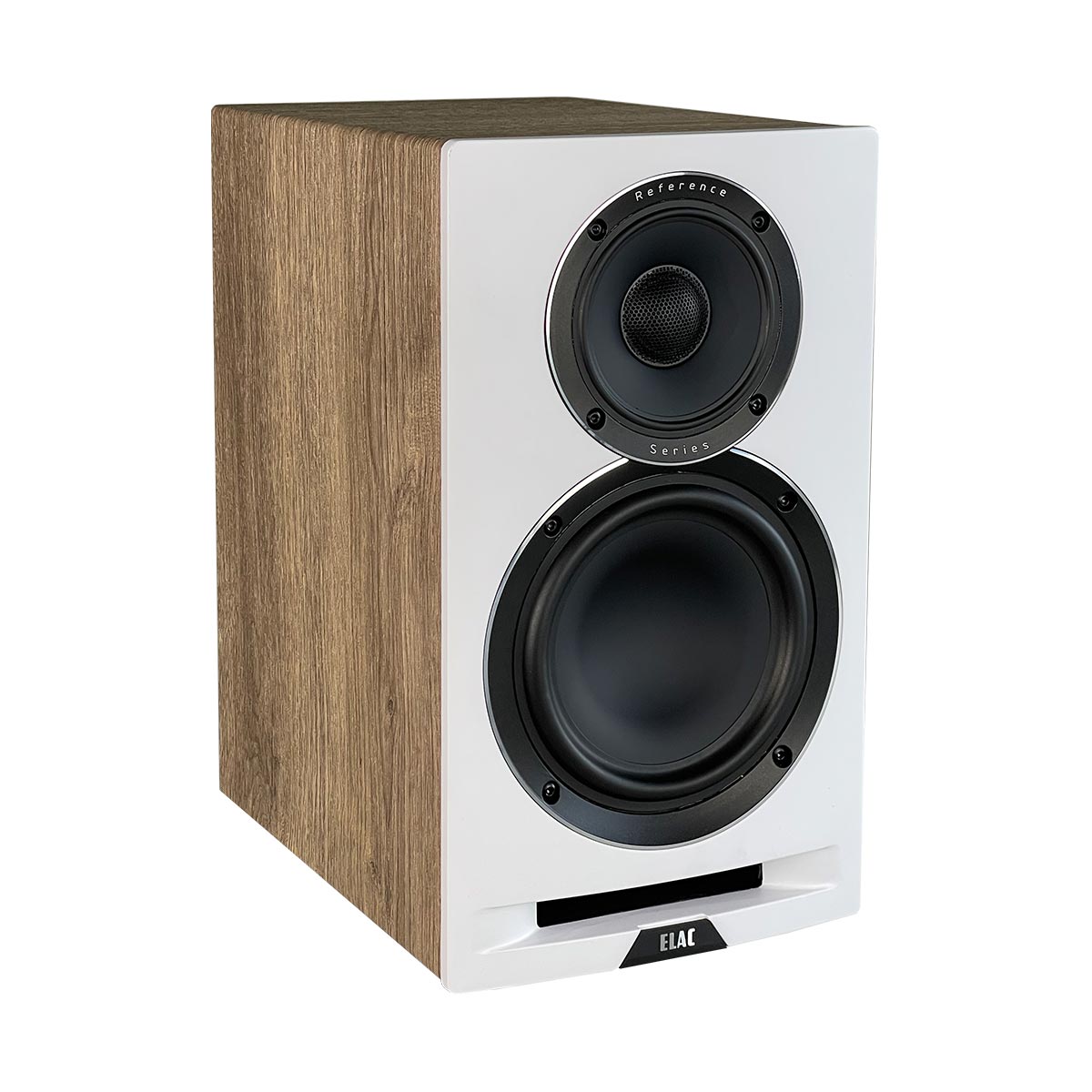

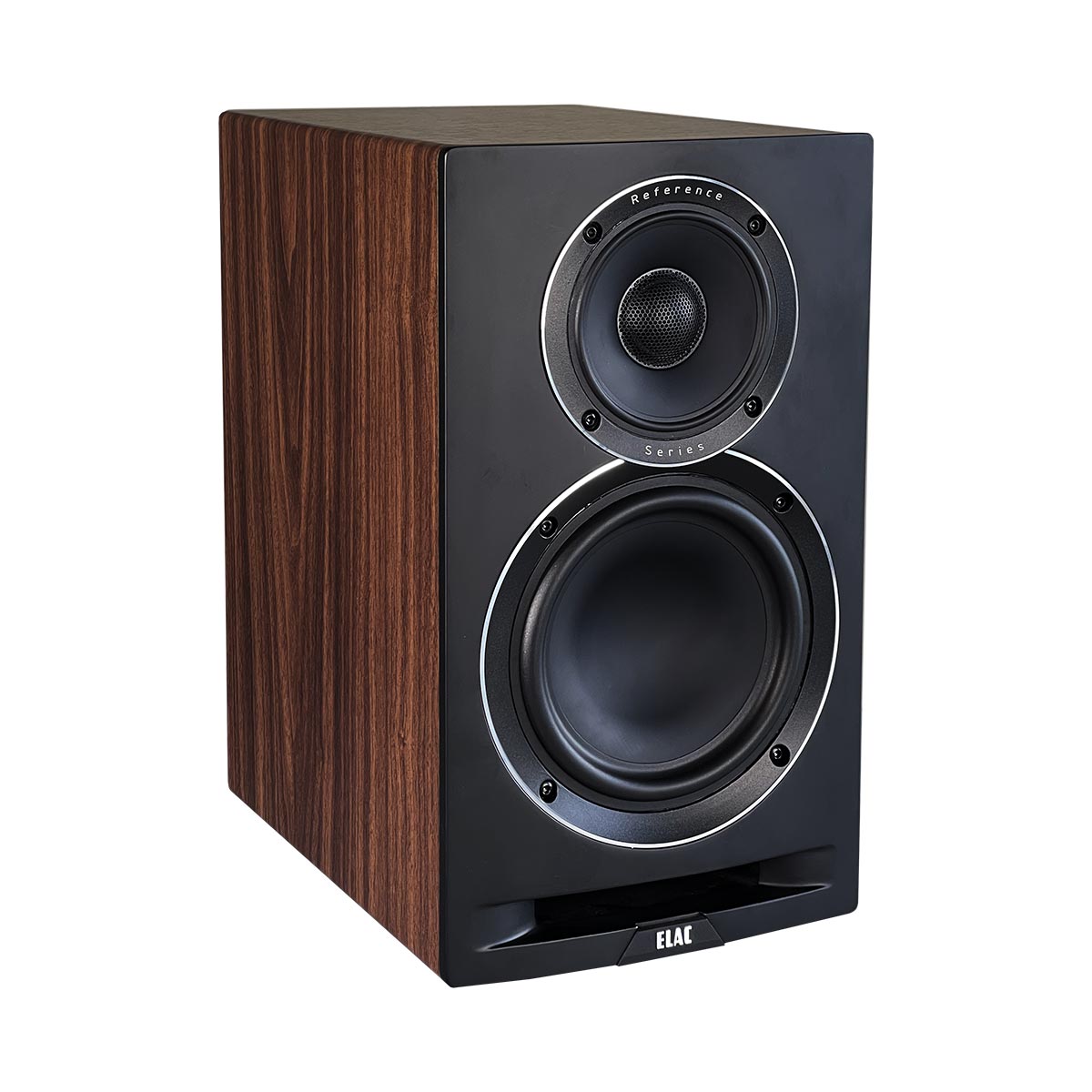

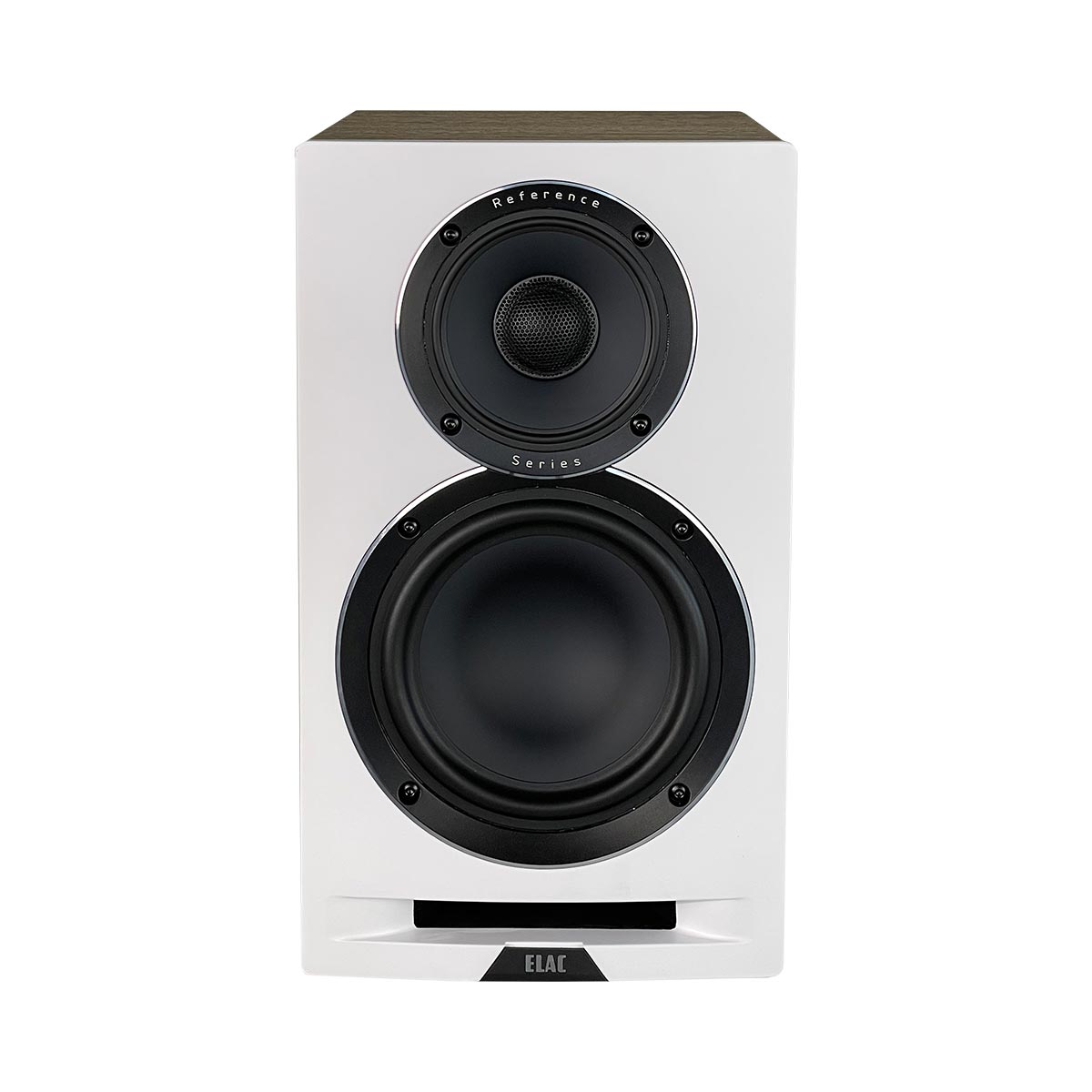

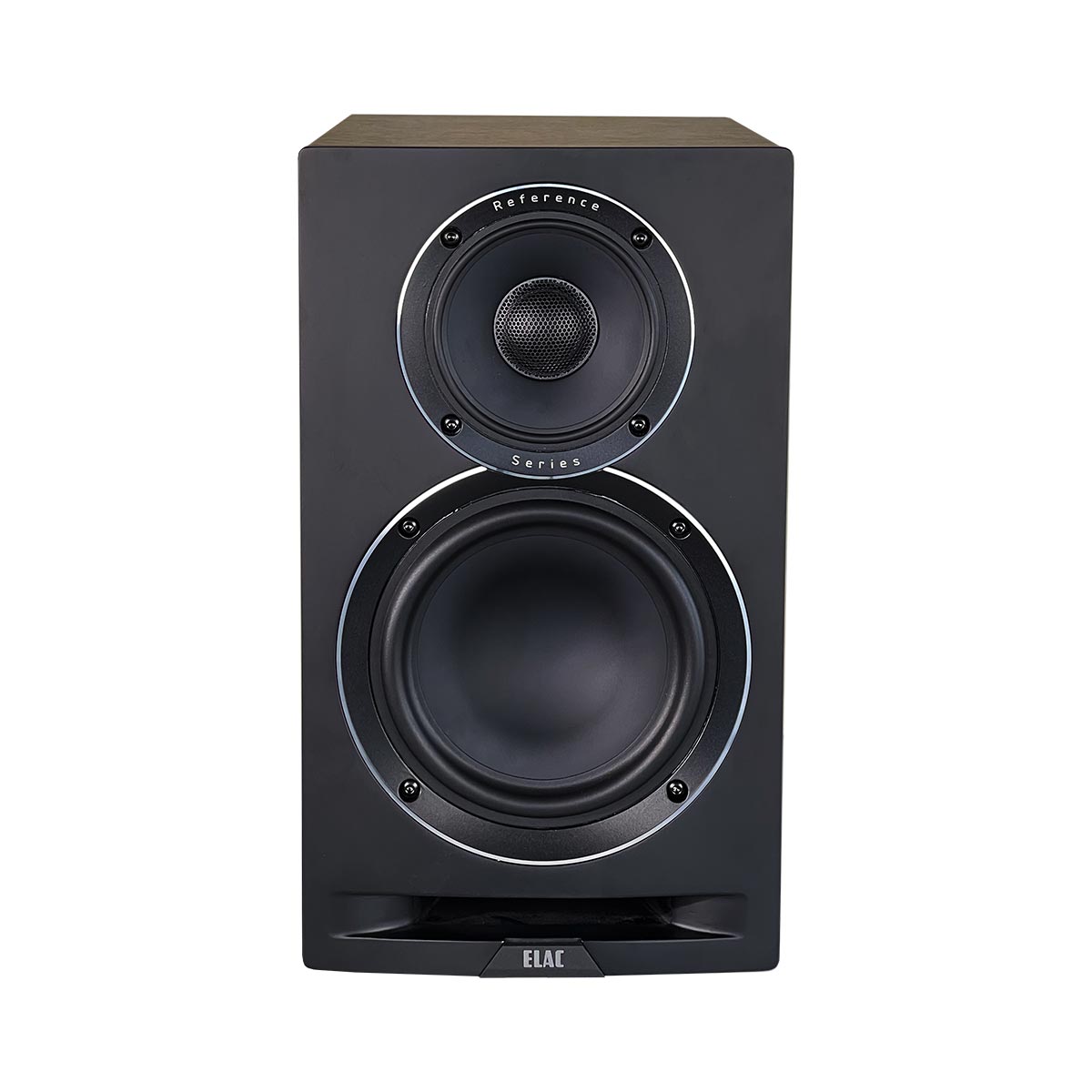

New Concentric Driver with Cast Chassis

A wide-surround tweeter enhances it’s low and high frequency extension allowing for improved blending with the midrange. An entirely new midrange driver with large diameter voicecoil, vented rear spider and new neodymium magnet allows for better excursion and control of midrange frequencies. A new cast chassis was designed to minimize reflections back to the cone resulting in better clarity.

Newly developed 6.5" Aluminum Woofer with Cast Chassis

Drastically improving low-end reproduction, this newly developed bass driver features a single piece compound curvature aluminum cone with a large rear vented magnet delivering improved linearity and better low frequency response of any previous Uni-Fi bookshelf speaker.

Full Perimeter Bracing

Reducing the speaker cabinets influence on audio quality the Uni-Fi reference line implements full perimeter bracing significantly reducing cabinet vibration and cabinet coloration.

Dual Flared Slot Vents

ELACs's newly developed slot vents utilized both internal and external flares allowing for lower noise and high bass output for improved low frequency dynamics.

Details & Specs

Speaker Type

3-Way Bass Reflex

Frequency Response

41Hz—35000Hz

Nominal Impedance

6 Ohms

Sensitivity

85db

Crossover Frequency

260 / 1800Hz

Maximum Power Input

140 Watts

Tweeter

1" Soft Dome

Midrange

4" Aluminum

Woofers

6.5" Aluminum

Cabinet

CARB2 Rated MDF

Cabinet Finish

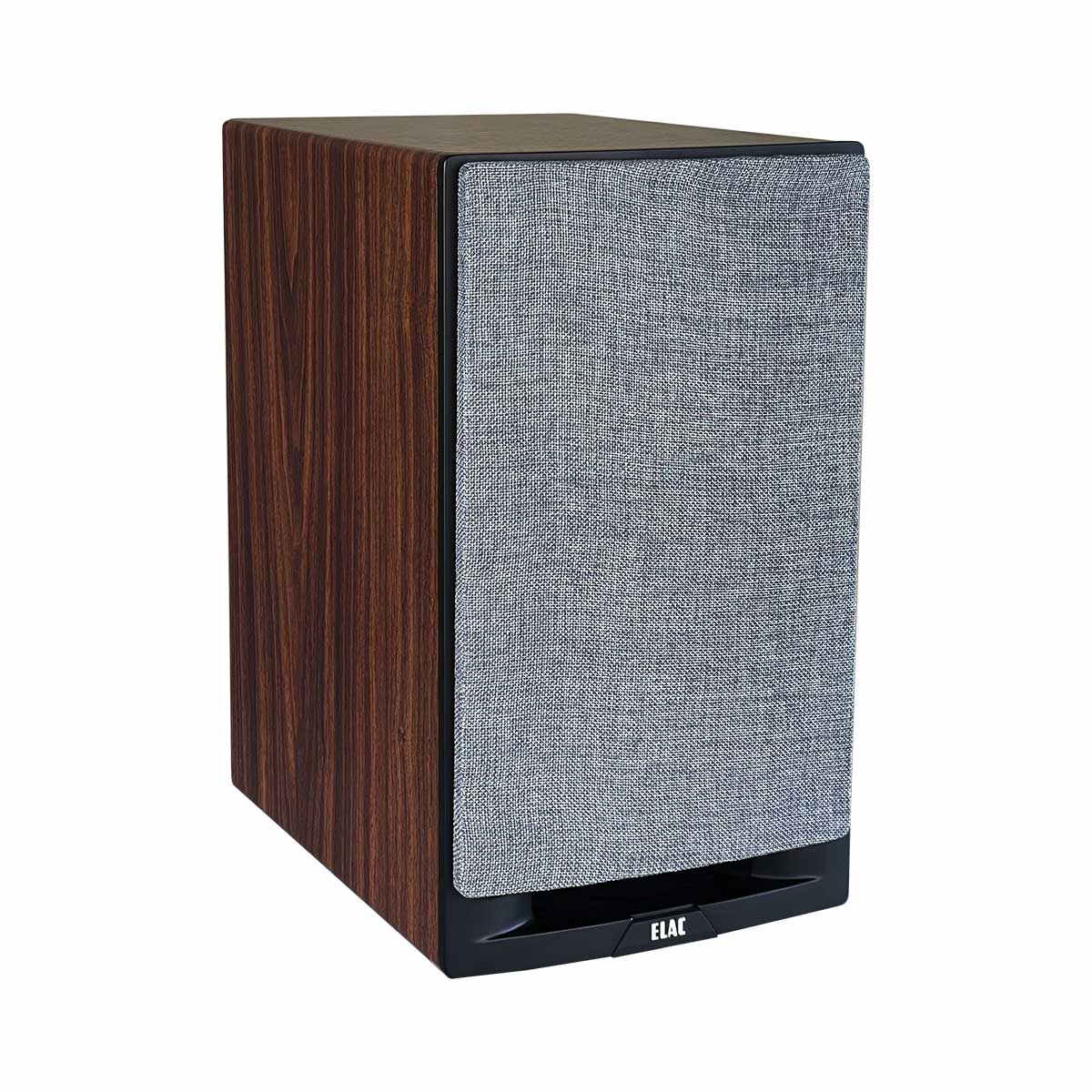

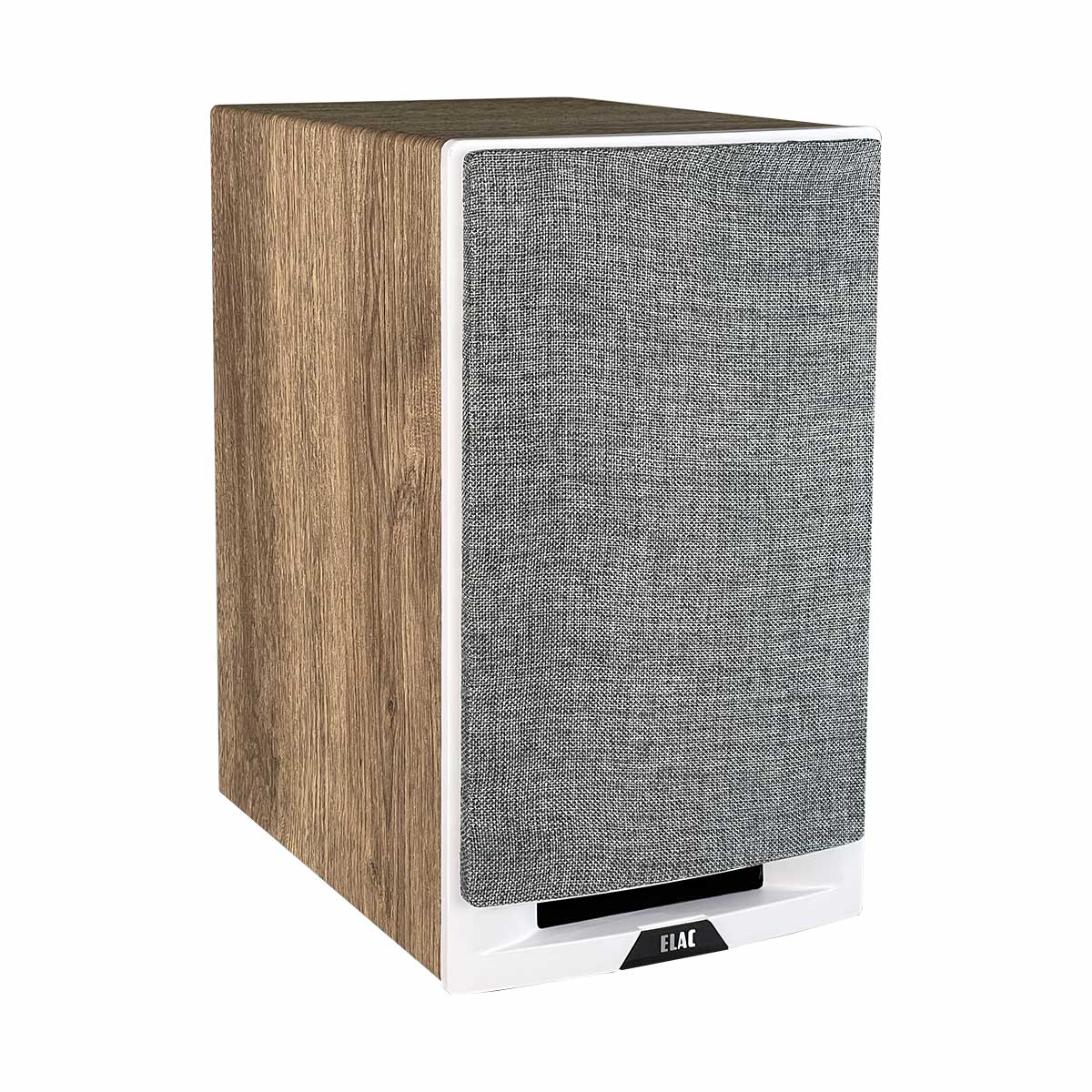

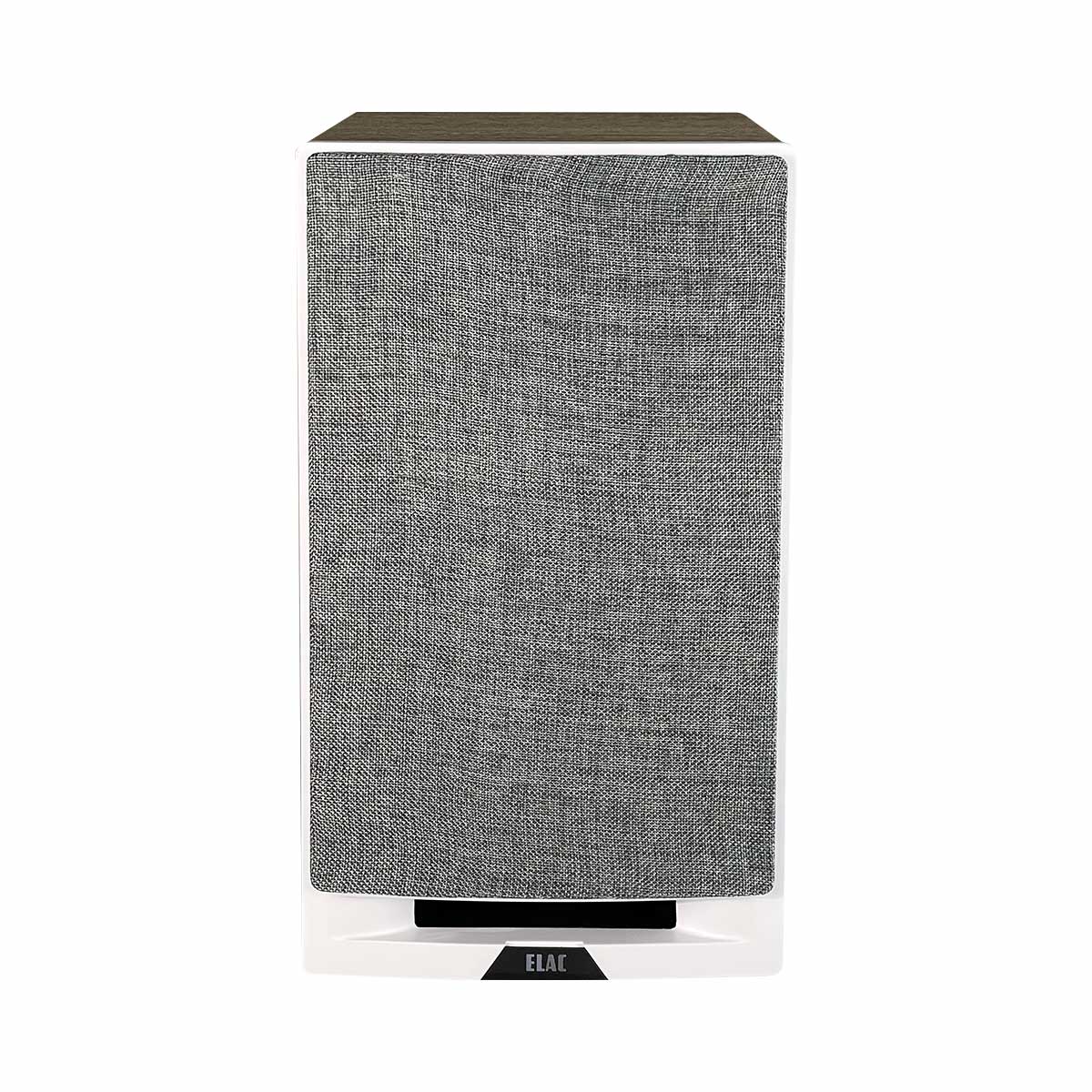

Satin White with Oak Sides or Satin Black with Walnut Sides

Port

Dual Flared Slots

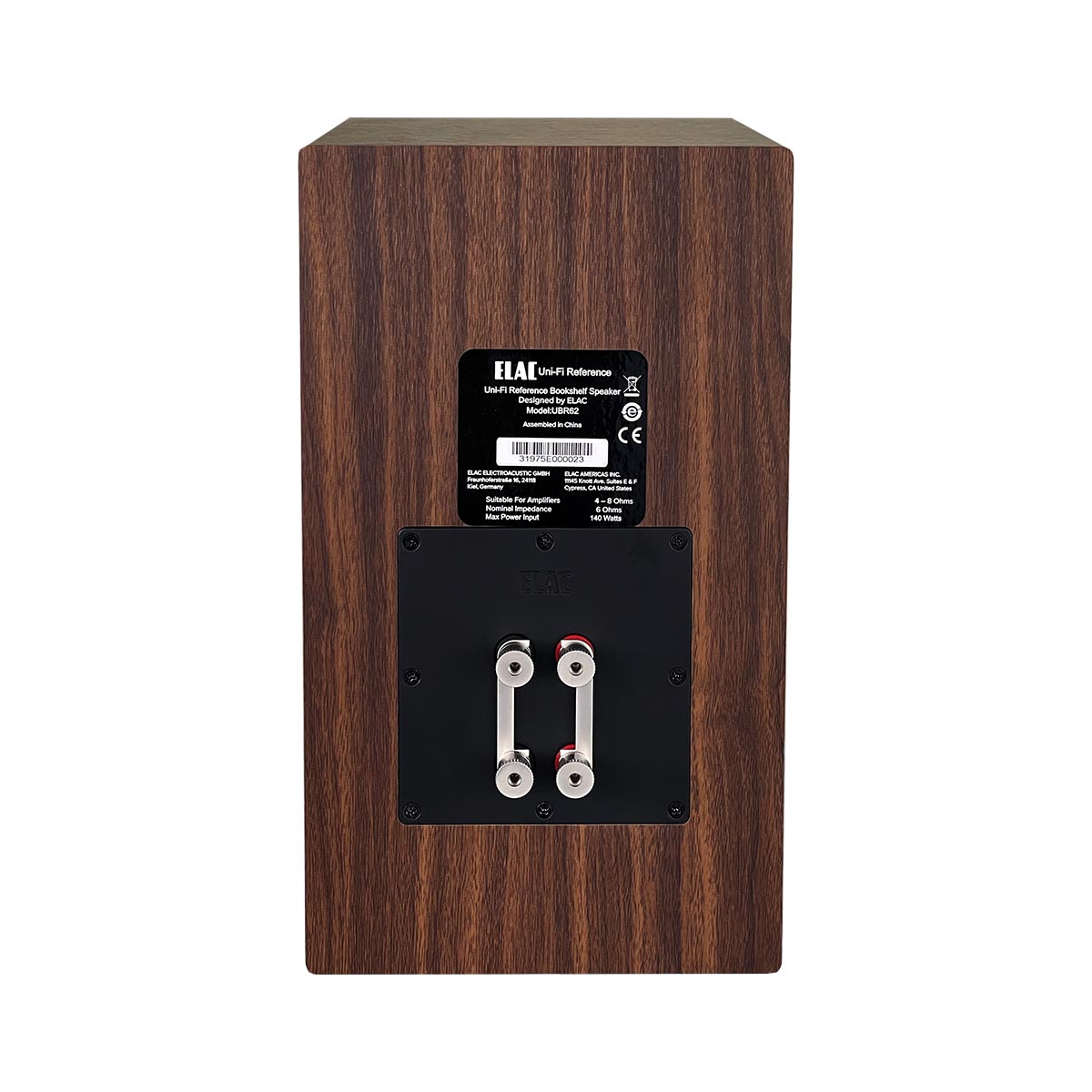

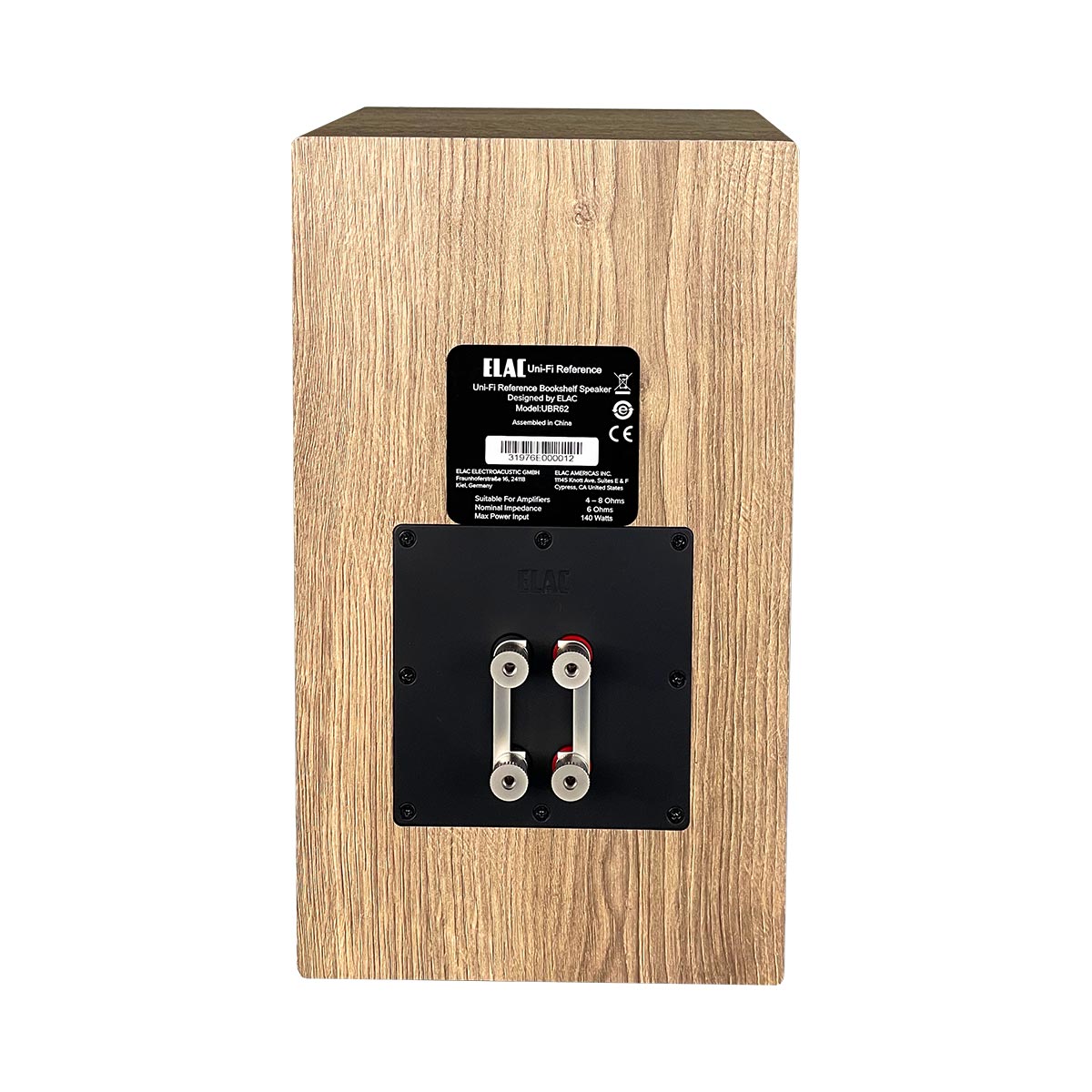

Binding Posts

Bi-Wire 5-Way

Dimensions (W x H x D)

8.19" x 14.13" x 13.15"

Net Weight

23.54 lbs Each (47.08 lbs Total)


Reviews

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
V
Vinny(l)
Love 'em

Great for small space & room to improve w/stands. Solid housing & beautiful grills. Sound is crisp & clear thruout. Subwoofer doesn't hurt. Three cheers!
