Item #MXW70

MXW70

Compact Power Amplifier - Lunar Grey
Item #MXW70

MXW70

Compact Power Amplifier - Lunar Grey
$599.00
Select Color: Lunar Grey

In Stock: Free 2-Day Shipping

Overview

This compact power amplifier uses Hypex NCORE Class D technology to deliver seventy Watts per channel or bridge into a two hundred and fifty Watt mono block. Equipped with RCA and XLR inputs, it offers excellent audio visual solutions for a high performance, space saving sound system setup.

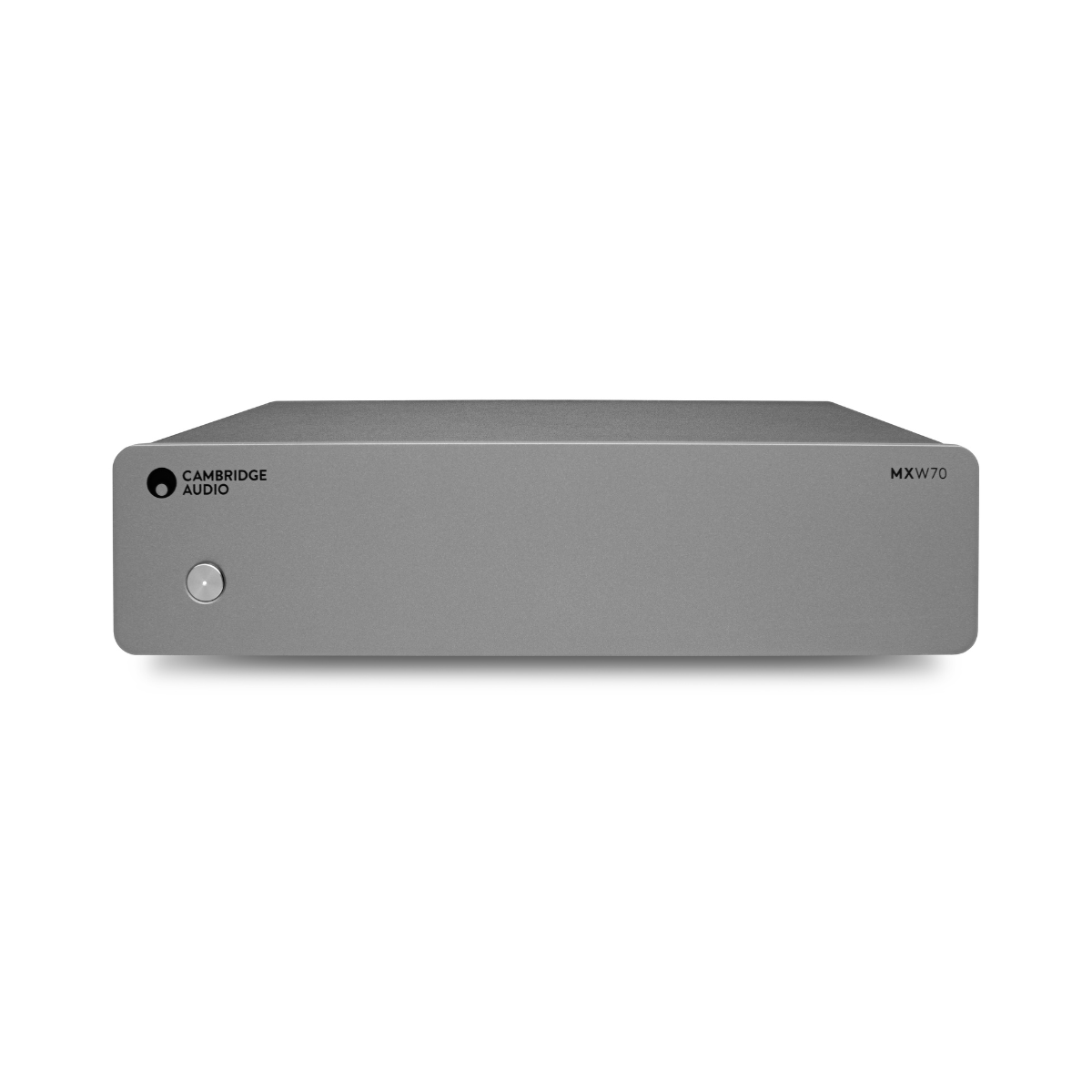

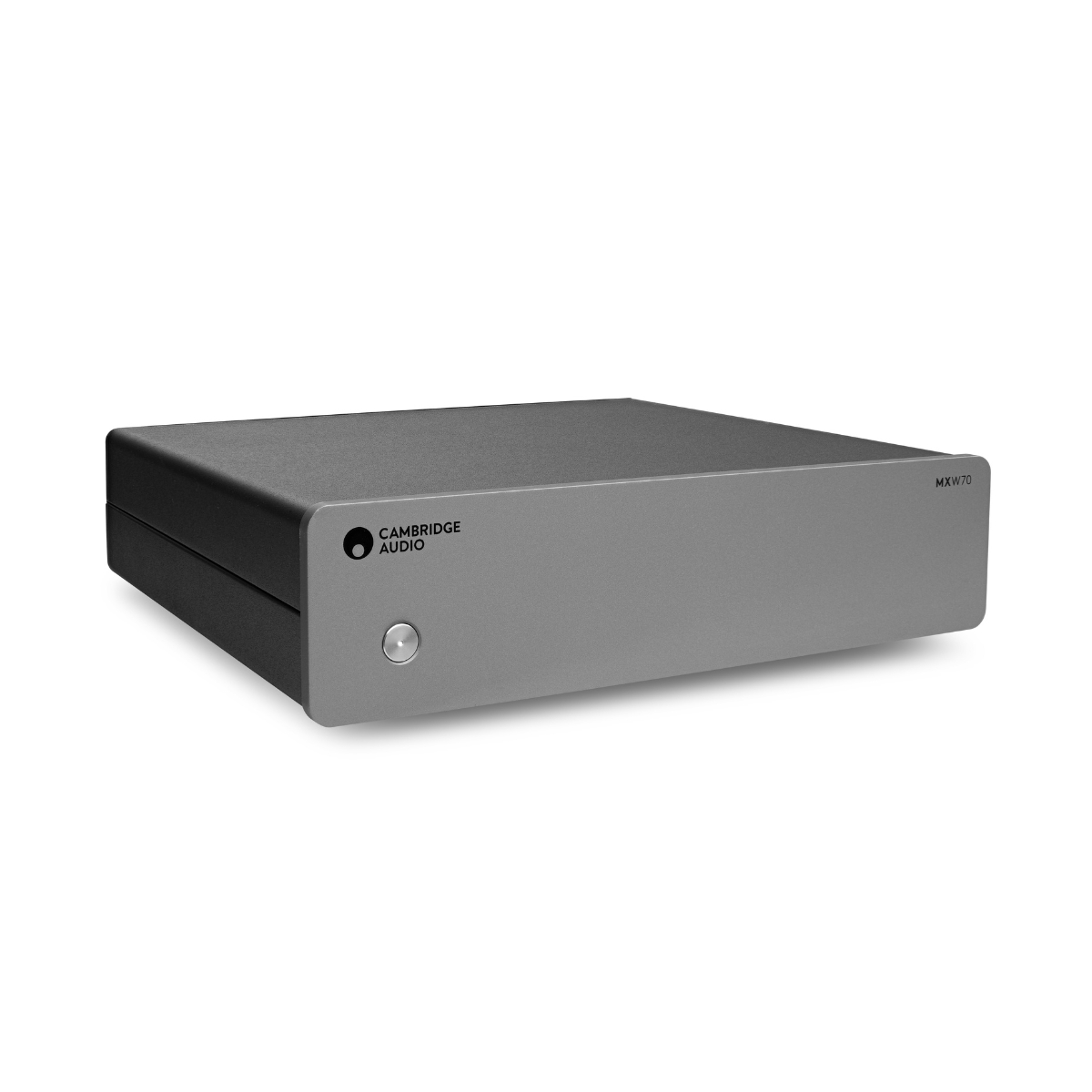

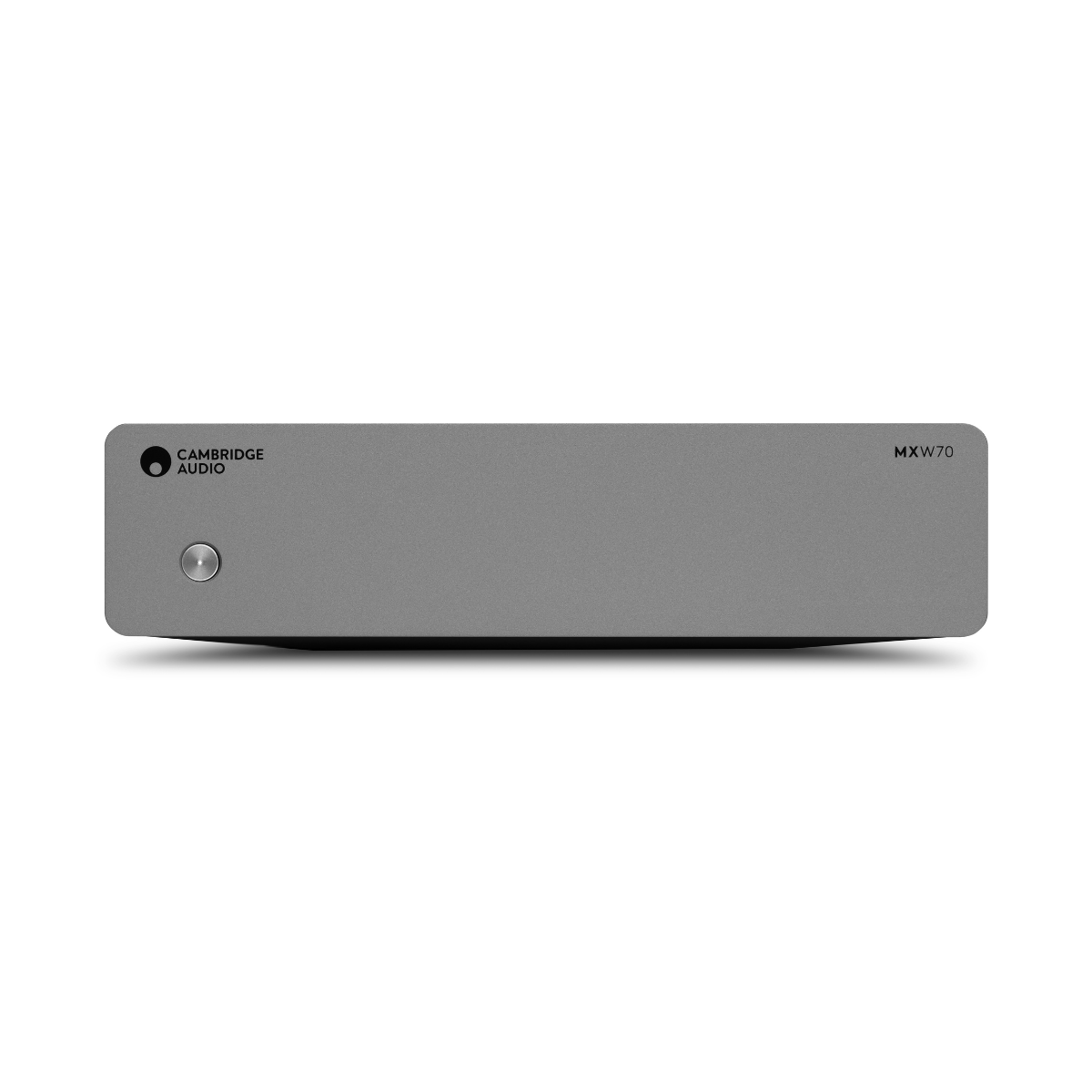

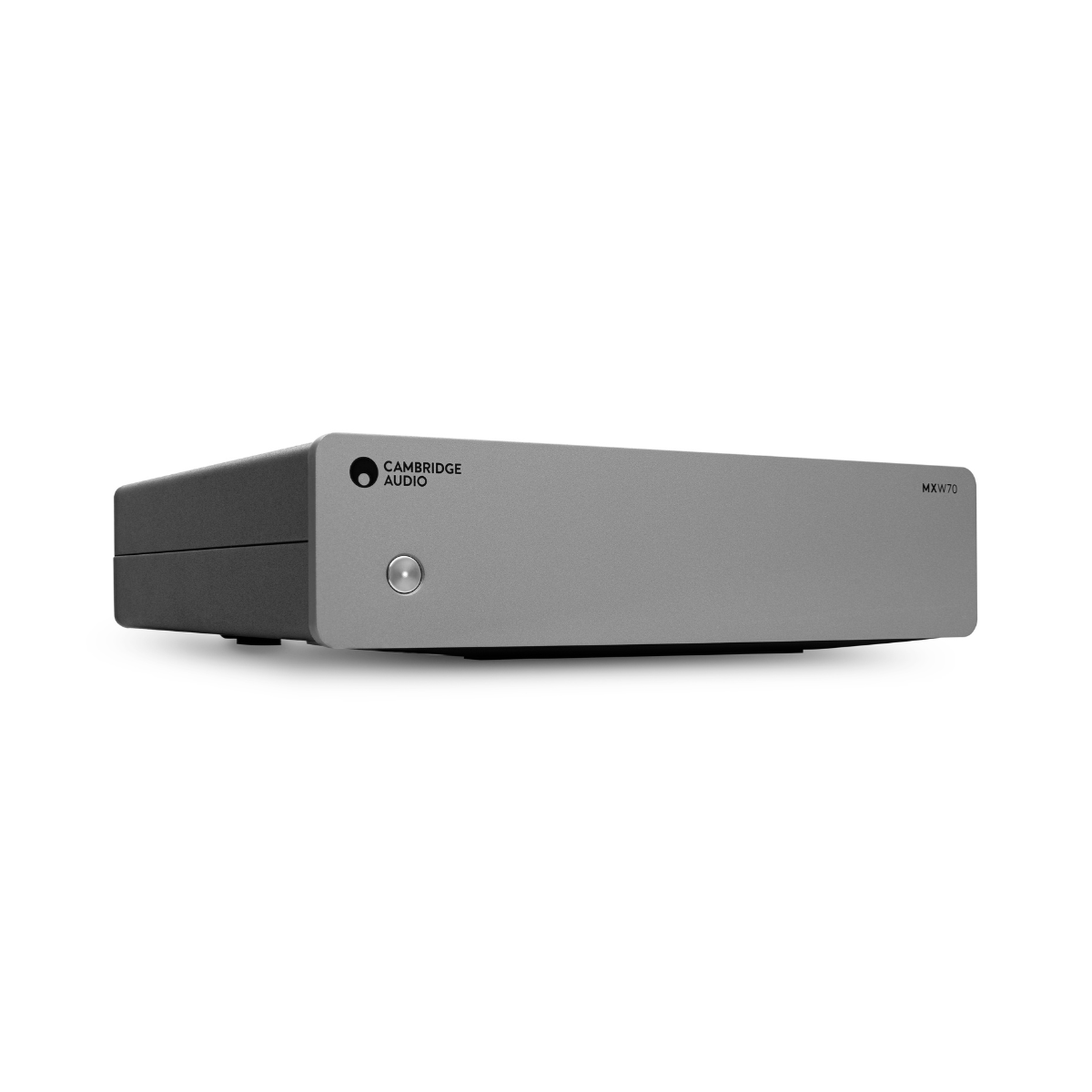

The Cambridge Audio MXW70 compact power amplifier adds a high performance amplification stage to the compact half width MX series components. Measuring only two hundred and fifteen millimeters wide, this unit features premium all metal casework finished in a signature lunar grey tone that perfectly coordinates with the MXN10 music streamer or the DacMagic 200M digital to analog converter. Its low profile footprint allows it to slide cleanly onto a desk, place inside an entertainment unit, or hide entirely out of sight.

The core technology relies on Hypex NCORE Class D amplification hardware that is tuned specifically for acoustic precision, resolution, and resolution clarity. In its standard stereo configuration, the amplifier outputs seventy Watts per channel at eight Ohms, or one hundred and twenty five Watts per channel at four Ohms. For more demanding configurations, a simple rear switch converts the unit into mono mode, delivering a massive two hundred and fifty Watts of bridgeable power.

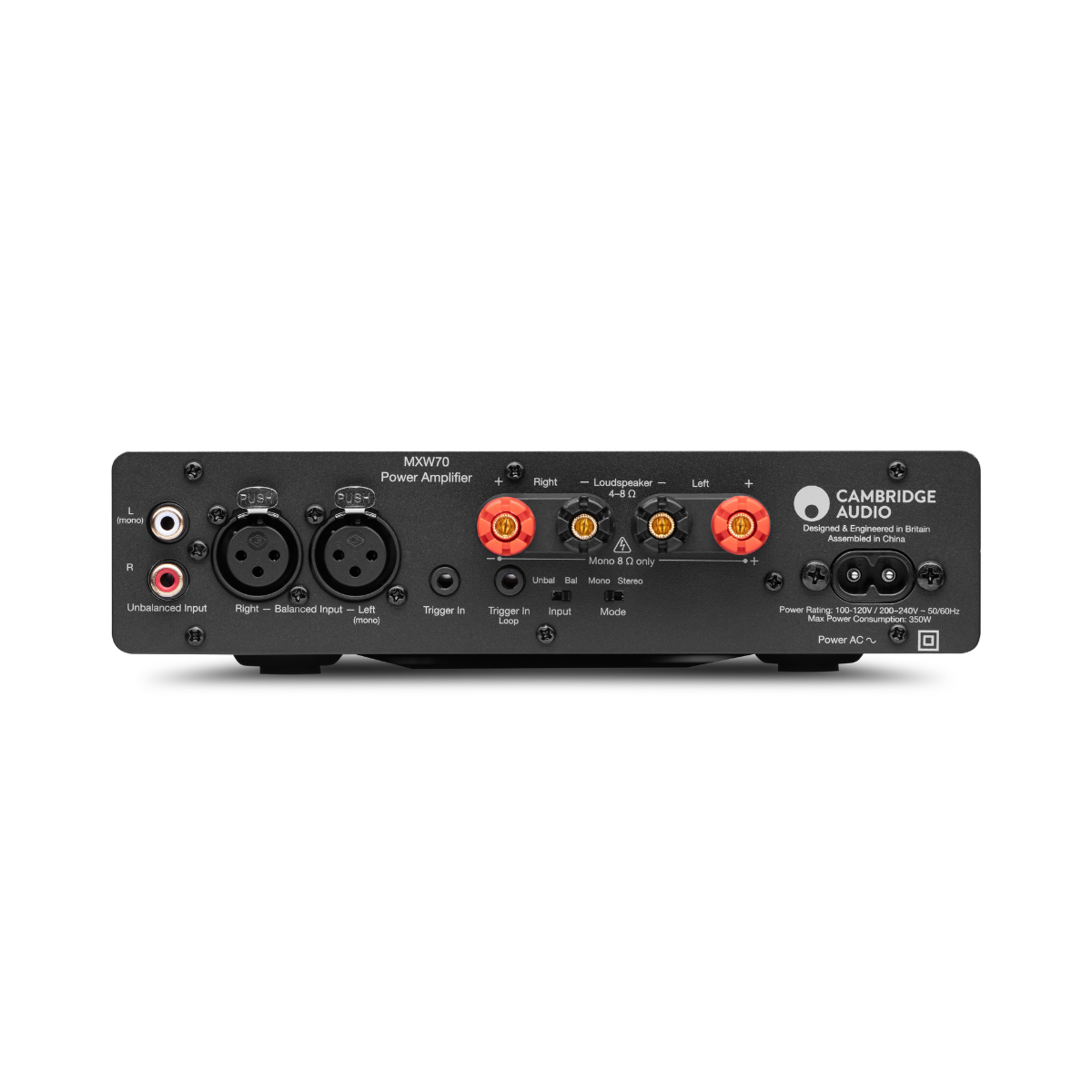

Physical connections on the rear panel feature stereo RCA inputs alongside studio quality balanced XLR inputs to prevent unwanted transmission noise. Speakers connect using standard four millimeter banana plug sockets with integrated binding posts. To streamline automated operation within a modern smart home integration or a multi component sound system setup, the hardware includes a twelve Volt trigger input and a trigger pass through. A supplied USB adapter cable also syncs power states with the MXN10 music streamer, allowing the amplifier to turn on automatically whenever the streamer activates.

Details & Specs

Model MXN70
Power Output 2x70W (8ohm stereo), 2x 125W (4ohm stereo), 250W (8ohm mono)
Speaker Outputs 1 set
Other Outputs 12v Trigger pass-through
THD+N (unweighted) <0.015% @ 5W/8ohm
S/N Ratio (REF 1W - 20k BW) >92dB (XLR), >89dB (RCA)
Crosstalk @1kHz <-82dB
Gain 22.2dB (XLR), 28.8dB (RCA)
Input Sensitivity (RCA) Input Sensitivity 3.6V (mono XLR), 1.65V (mono RCA), 0.9V (stereo RCA), 1.9V (stereo XLR)
Input Impedances 22kohm (RCA), 35kohm (XLR)
Power Amp Damping Factor >180 @ 1kHz 8ohm
MAX POWER CONSUMPTION 300w
STANDBY POWER CONSUMPTION >0.5W
