Item #C11336

Evo 150 SE

Streaming Amplifier - Black
Item #C11336

Evo 150 SE

Streaming Amplifier - Black
$3,299.00
More on the way! Order now to reserve risk free.

Overview

An advanced streaming amplifier delivers 150 Watts per channel through Hypex NCOREx Class D technology and an ESS SABRE DAC. Featuring a built in StreamMagic platform, HDMI ARC, and an MM phono stage, it offers flexible audio visual solutions for a multiroom sound system setup.

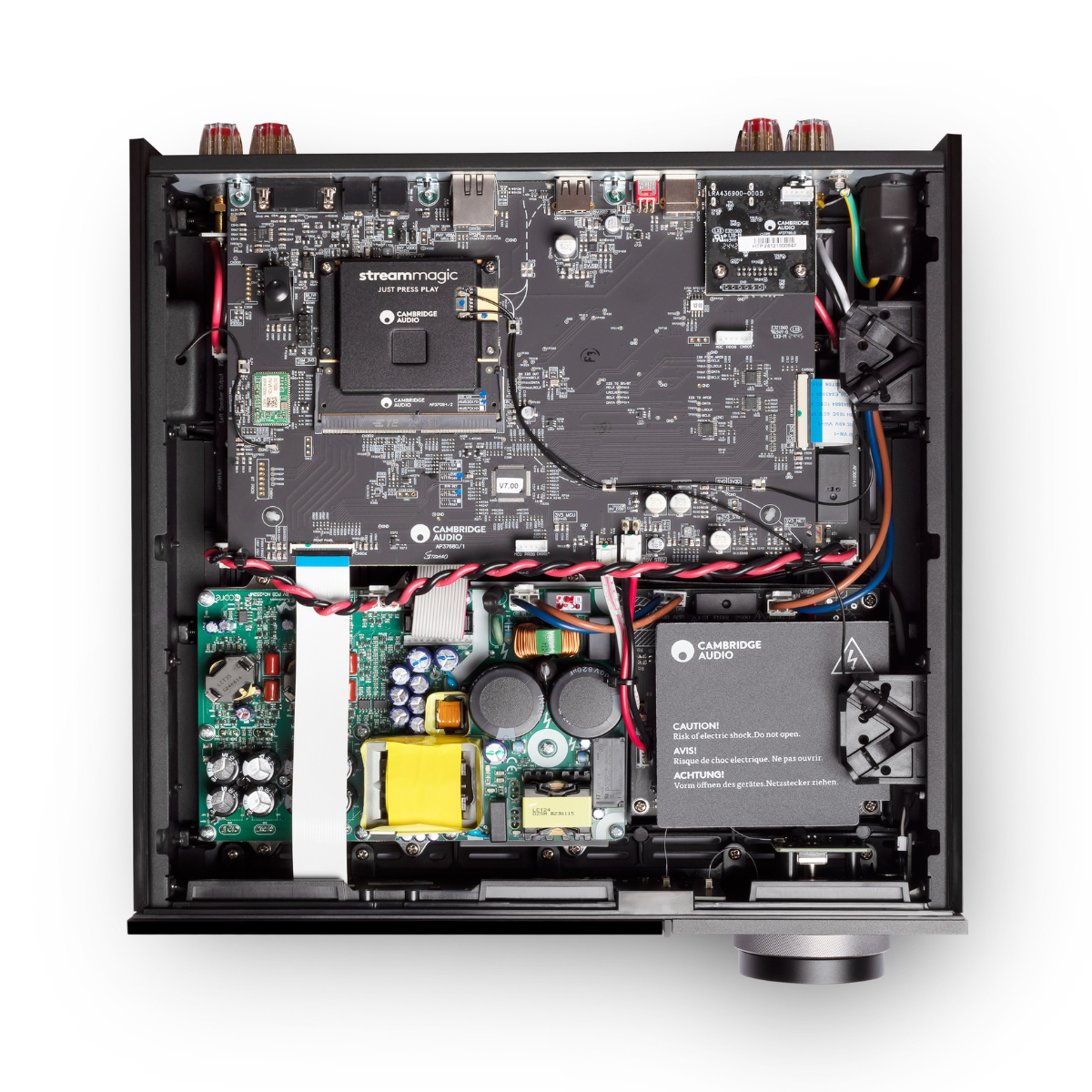

The Cambridge Audio Evo 150 SE streaming amplifier is built for situations where space is limited but flexibility is important. Its twelve inch square chassis fits easily into most setups and still offers strong amplification and a range of network playback options. Inside, Hypex NCOREx Class D modules tuned by Cambridge engineers deliver one hundred and fifty Watts per channel into eight Ohm loads. This gives it enough power to handle speakers that need more current without taking up much room.

An onboard ESS SABRE ES9018k2m digital to analog converter handles digital audio. Streaming runs on the fourth generation StreamMagic platform, which works over Wi Fi or Ethernet. This gives direct access to services like Spotify Connect, TIDAL Connect, Amazon Music, Deezer, Qobuz, UPnP, and Internet Radio. Wireless options include Bluetooth aptX, AirPlay 2, and Google Cast. The unit also works with Google Home, Apple AirPlay, and Roon multiroom systems.

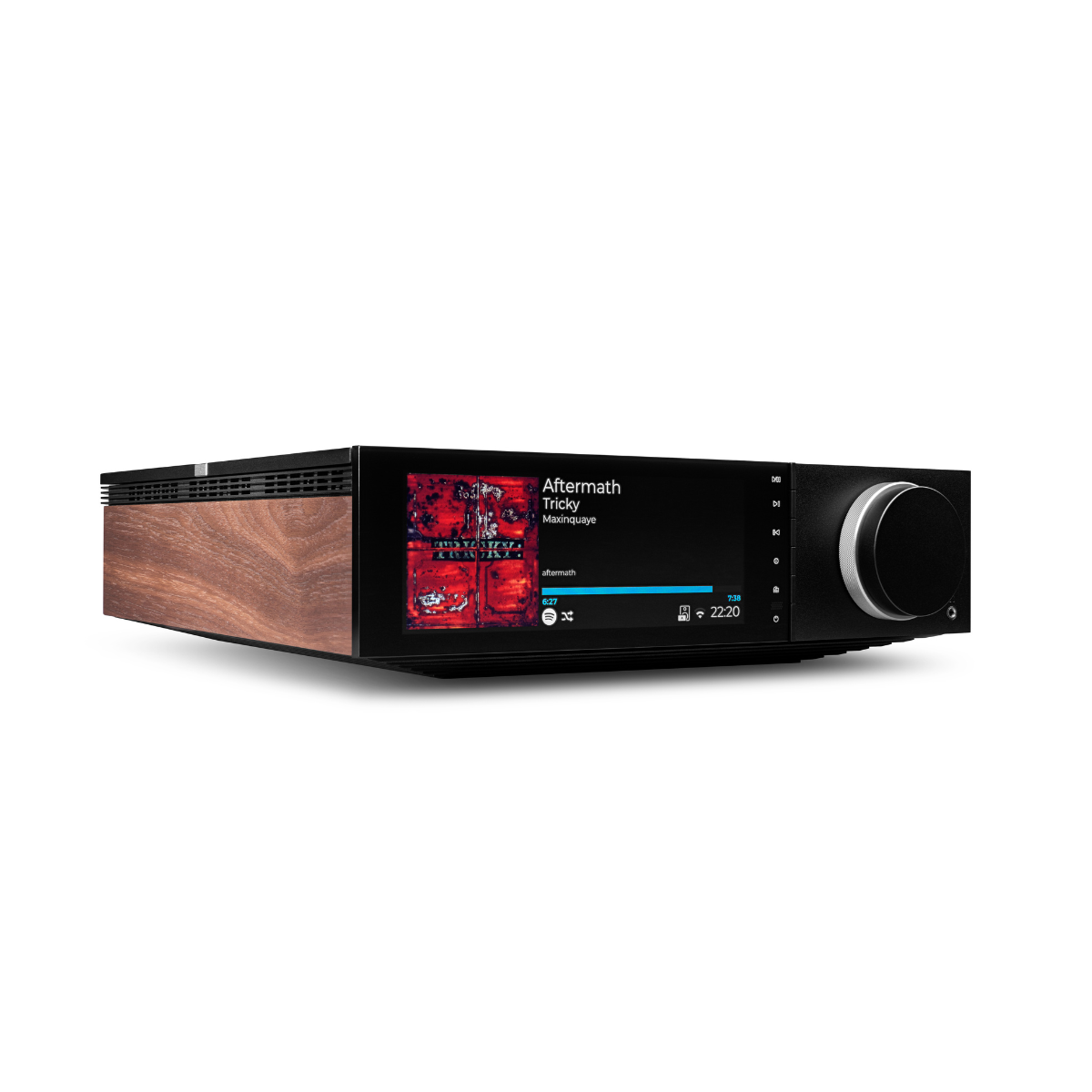

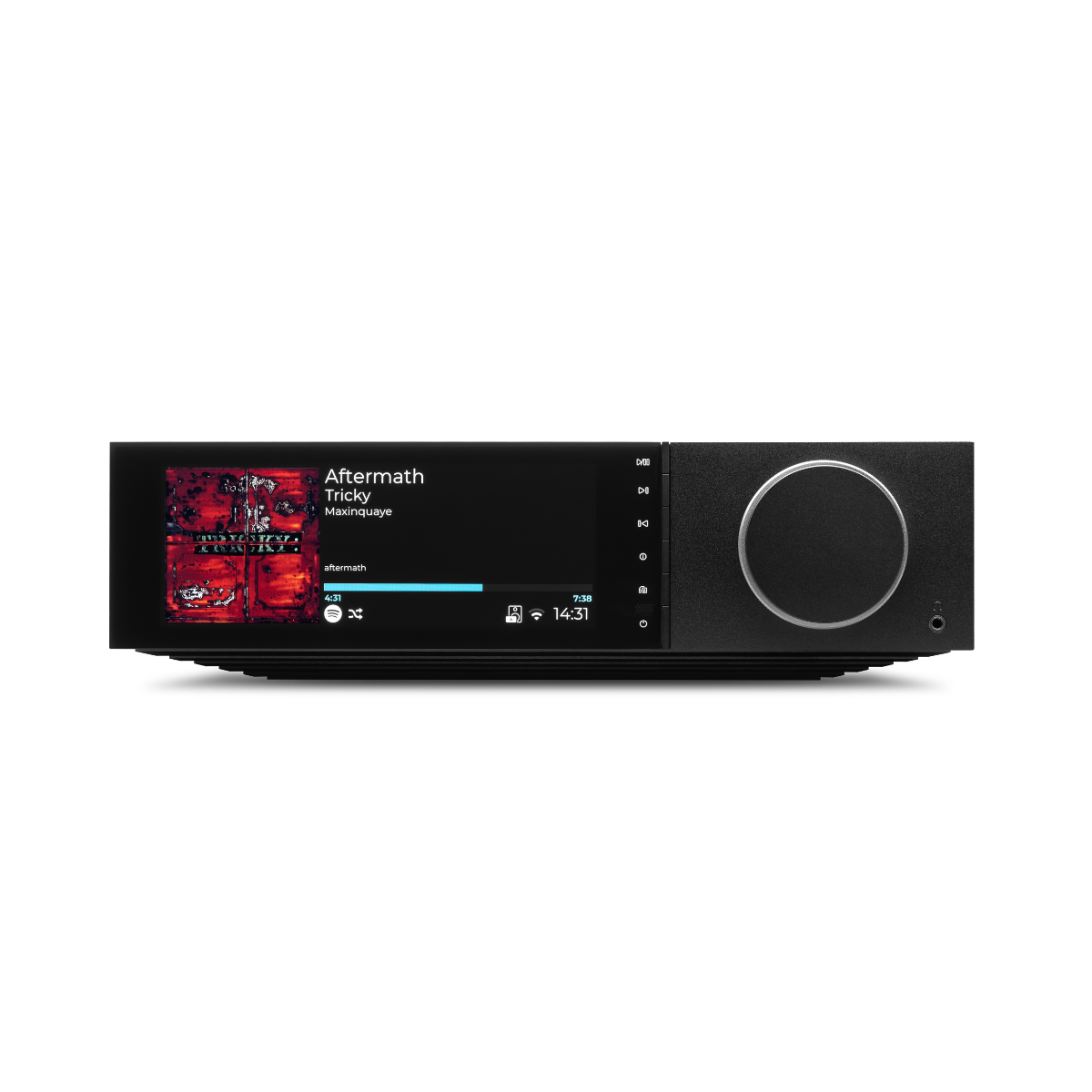

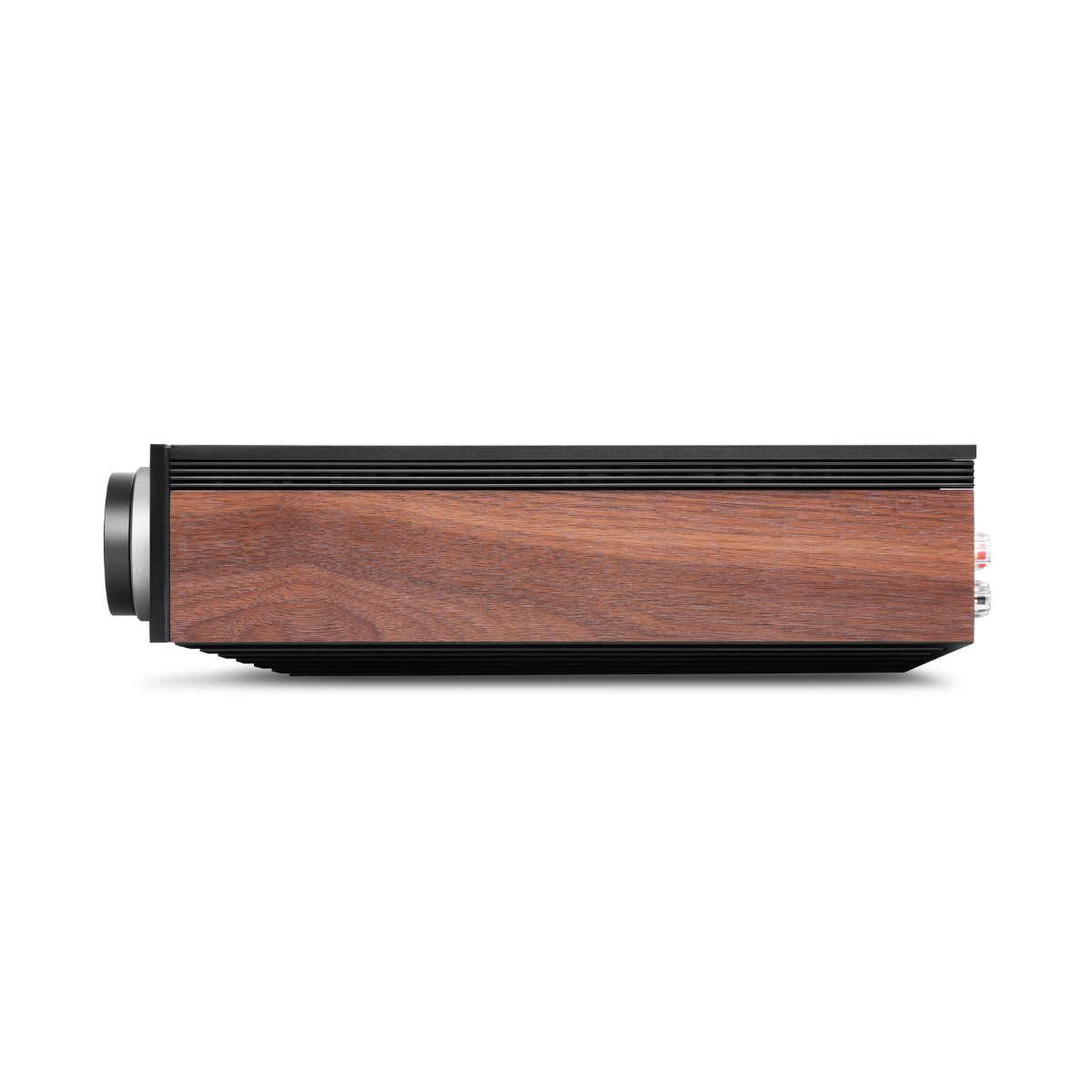

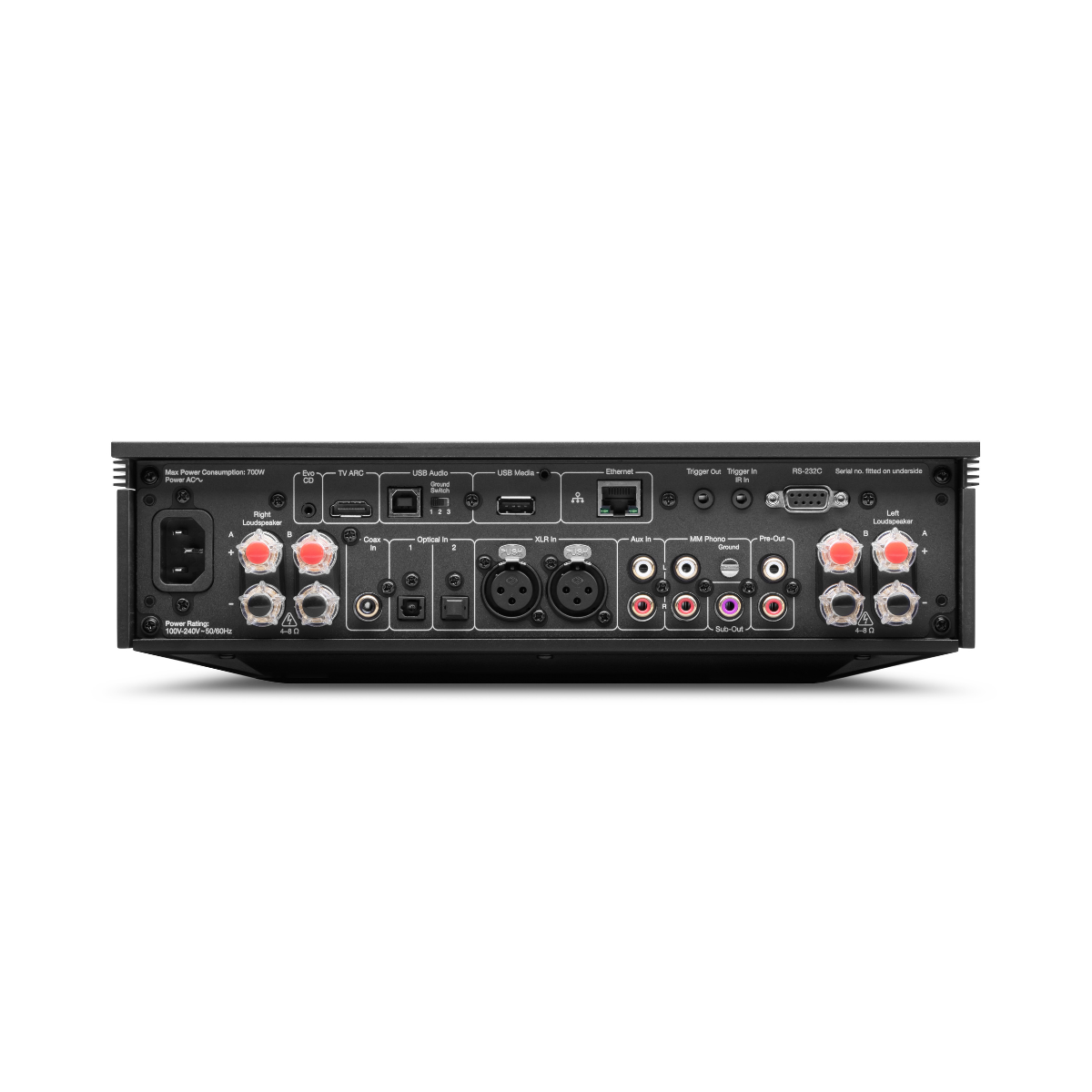

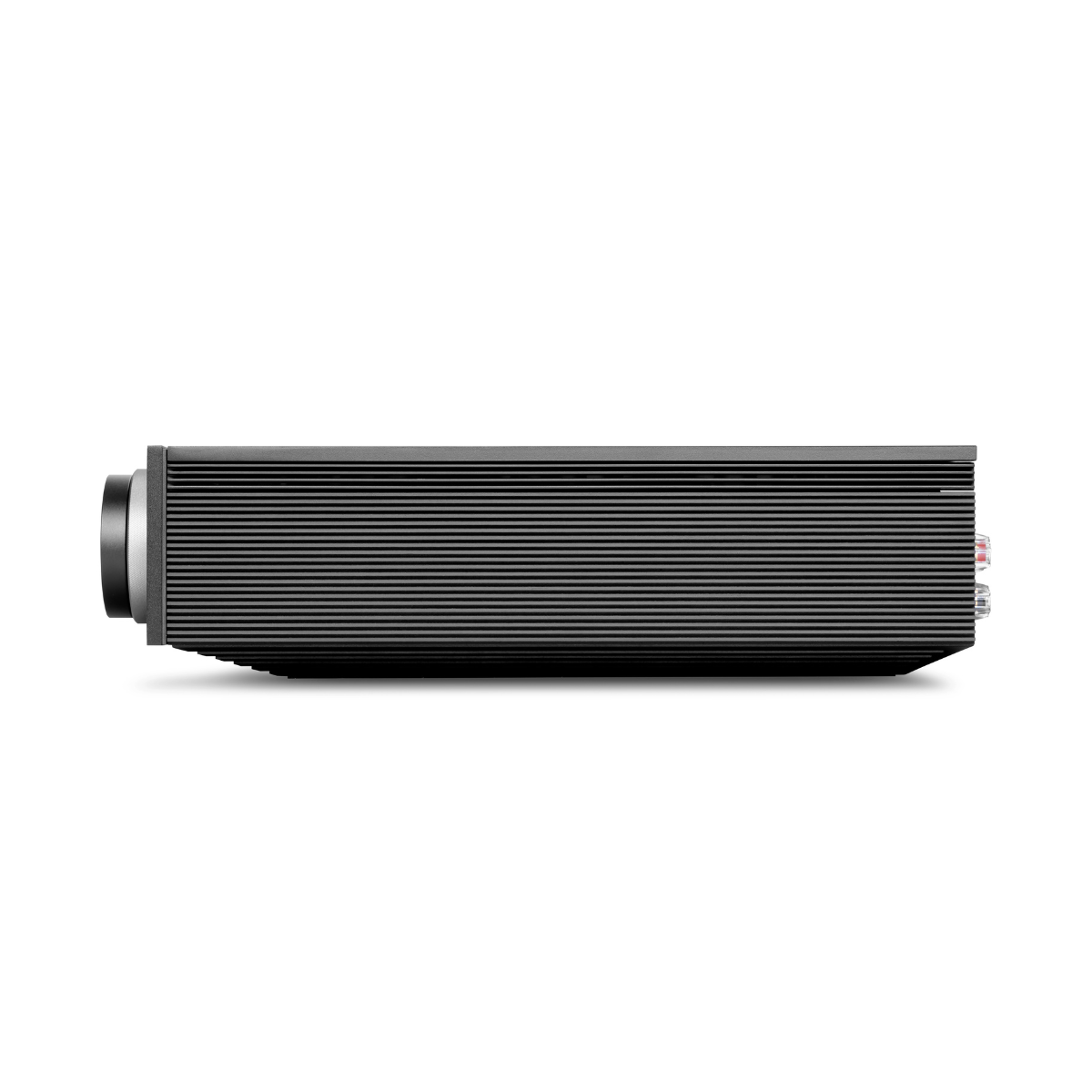

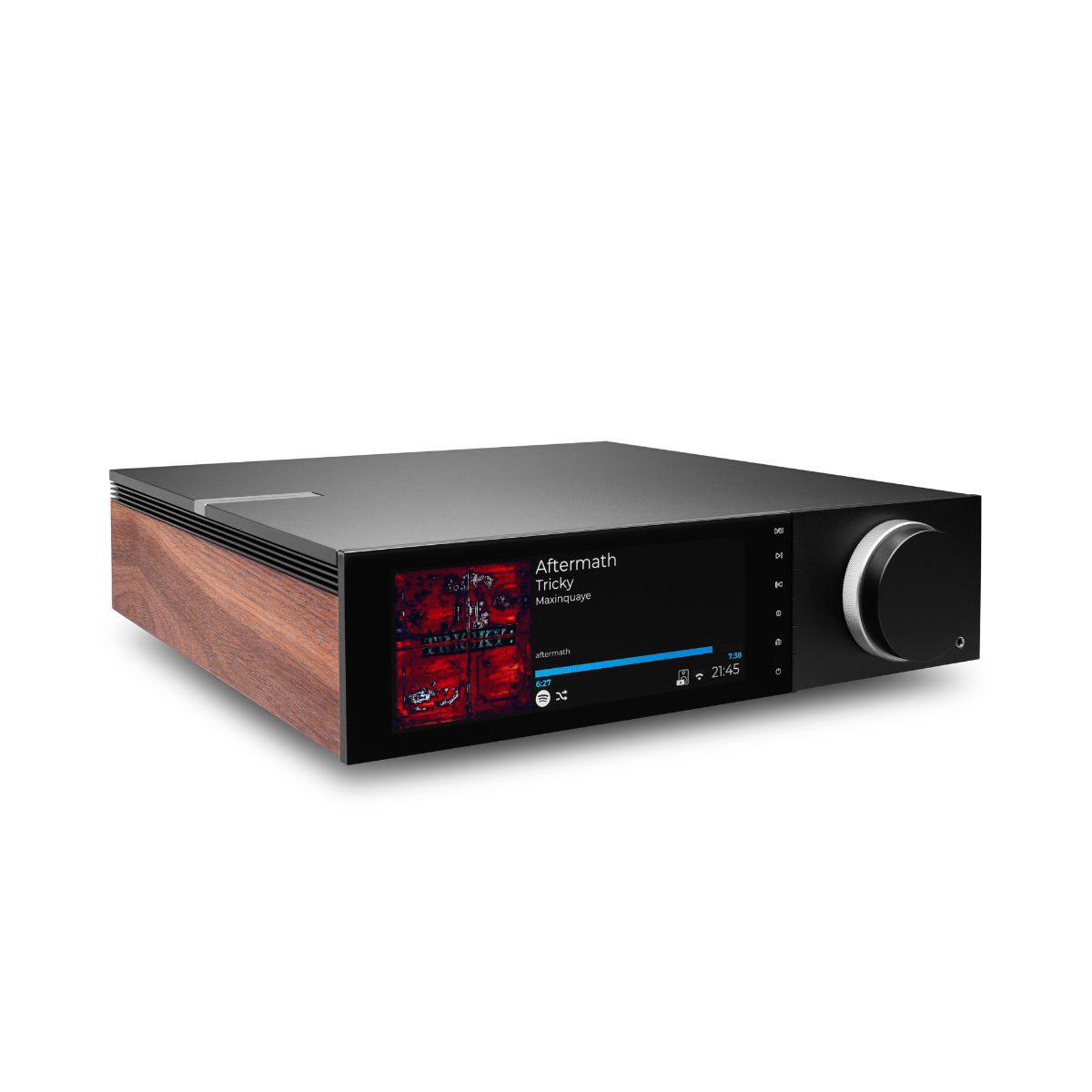

The Evo 150 SE offers a range of physical connections for different source equipment. HDMI ARC brings television audio straight into the system. A moving magnet phono stage supports direct turntable hookup. Other inputs include line level RCA, balanced XLR, two TOSLINK optical, digital coaxial, and both USB Audio and USB Media sockets. For output, there is a subwoofer out, RCA pre outs, and a dedicated Evo CD input. Two sets of four millimeter banana plug sockets with binding posts allow for dual zone listening. The front panel features a six point eight inch color screen that can show album art, a clock, or virtual VU meters. The side panels attach magnetically and can be swapped between real wood or ridged finishes.

Details & Specs

Model Evo 150 SE
POWER OUTPUT 150W into 8 Ohms
AMPLIFICATION Tuned by Cambridge Class-D Hypex
AUDIO FORMATS ALAC, WAV, FLAC, AIFF, DSD (x256), WMA, MP3, AAC, HE AAC AAC+, OGG Vorbis
COMPATIBILITY TOSLINK optical: 16/24bit 32-96kHz PCM only S/PDIF coaxial: 16/24bit 32-192kHz PCM only USB Audio Class 1: Up to 24-bit 96kHz (asynchronous) USB Audio Class 2: Up to 24-bit 384kHz (asynchronous) and up to DSD 256 Bluetooth: 4.2 A2DP/ AVRCP supporting up to aptX HD (24bit 48kHz) UPnP, Local USB media, Airplay 2, Chromecast built-in, Internet Radio, Spotify Connect, TIDAL, MQA, Qobuz, Roon Ready, ARC: 16/24bit 32-192kHz PCM only, Deezer
ANALOGUE AUDIO INPUTS 1 x RCA, 1 x balanced XLR, 1 x Moving Magnet Phonostage
DIGITAL AUDIO INPUTS 1 x TOSLINK optical, 1 x S/PDIF coaxial, 1 x TV ARC, Bluetooth (integrated), USB Audio
USB AUDIO INPUT USB Type B conforming to USB Audio Class 1 or USB Audio Class 2 (user selectable)
OUTPUTS Speakers A+B, 3.5mm headphone, Preamp Output, Subwoofer Output, Bluetooth: 4.2 A2DP/AVRCP supporting up to aptX HD
DAC ESS Sabre ES9018K2M
Bluetooth 4.2 A2DP/AVRCP supporting SBC, aptX and aptX HD codecs
Wi-Fi Dual Band 2.4/5gHz
Ethernet IEEE 802.3, 10 Base-T or 100 Base-T
