Item #C11217

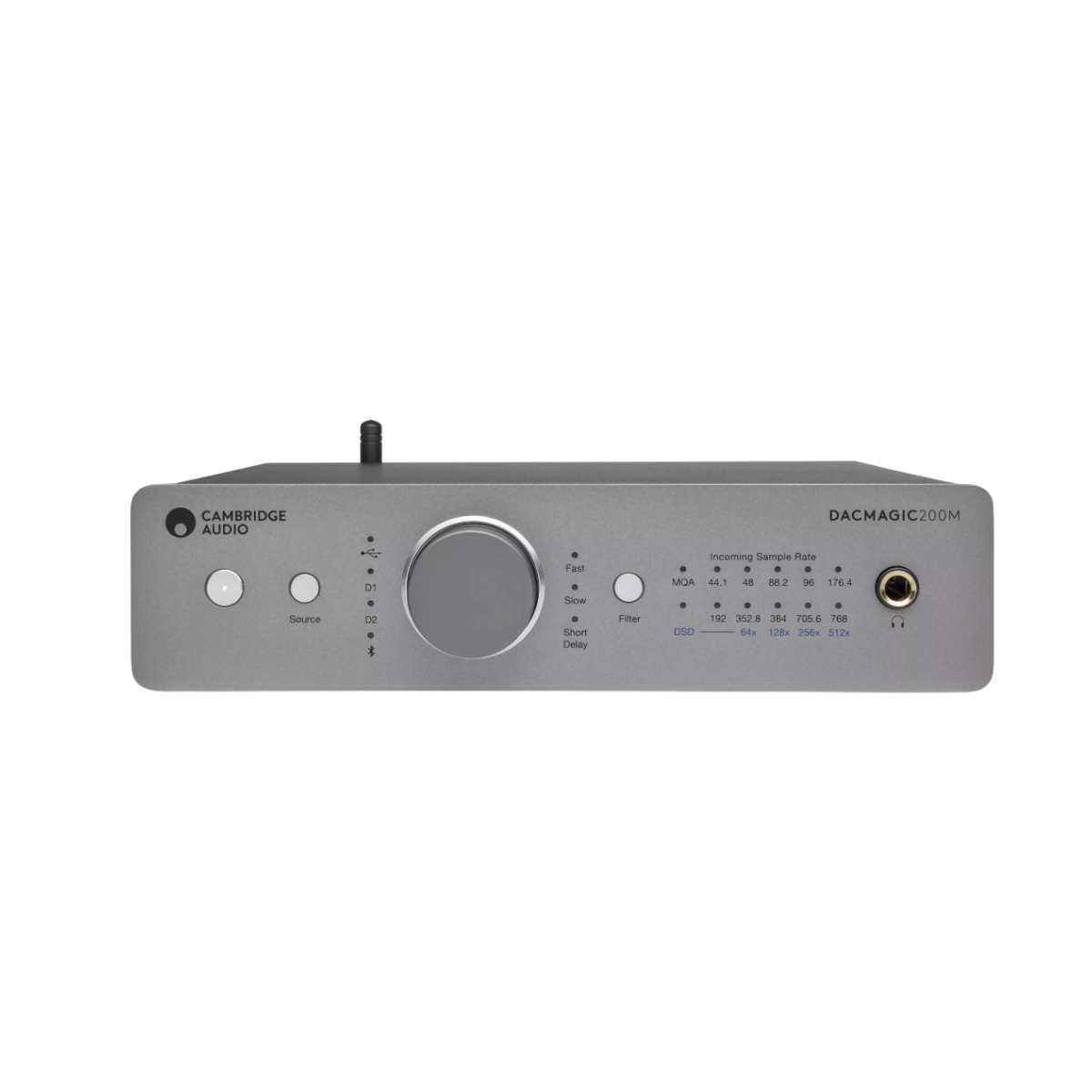

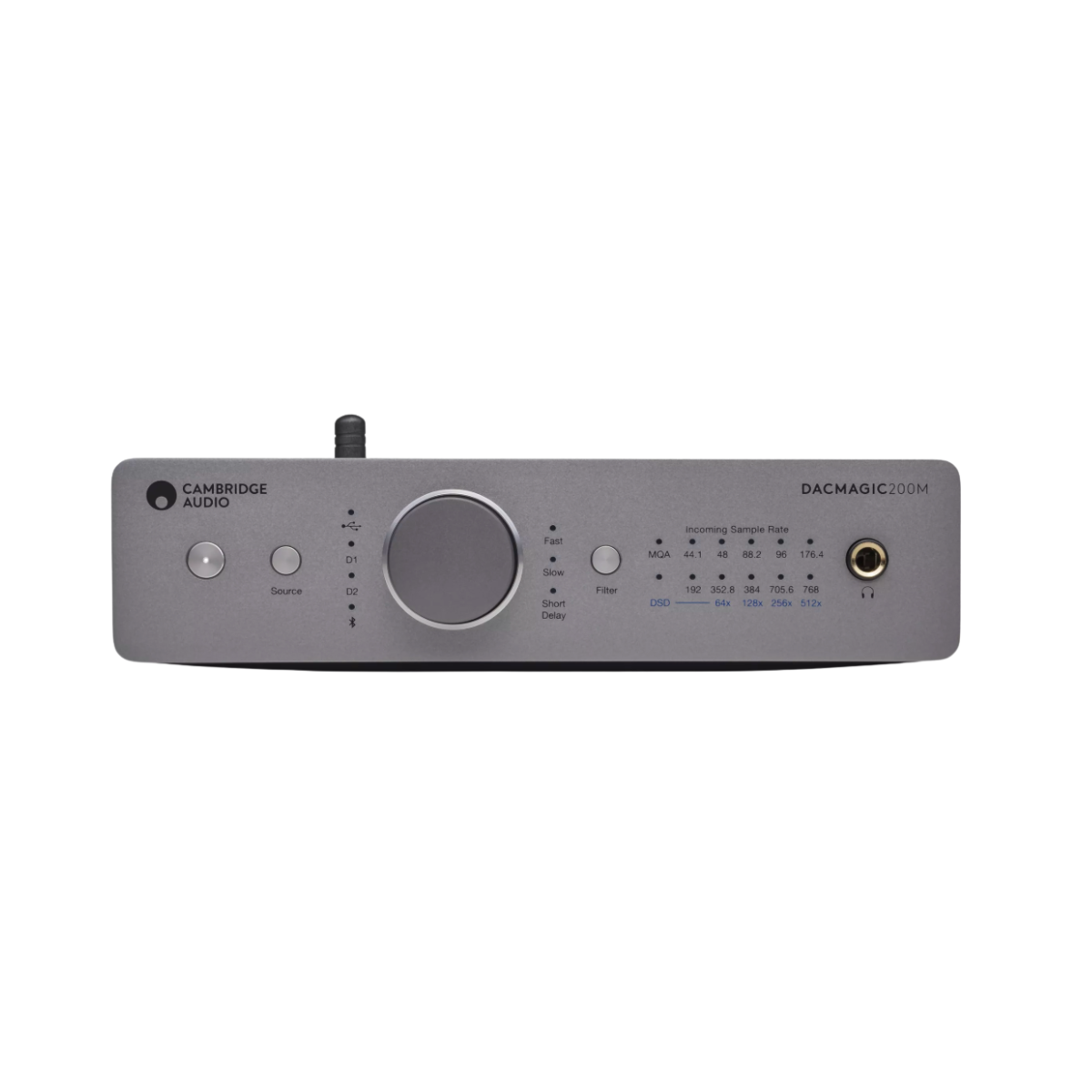

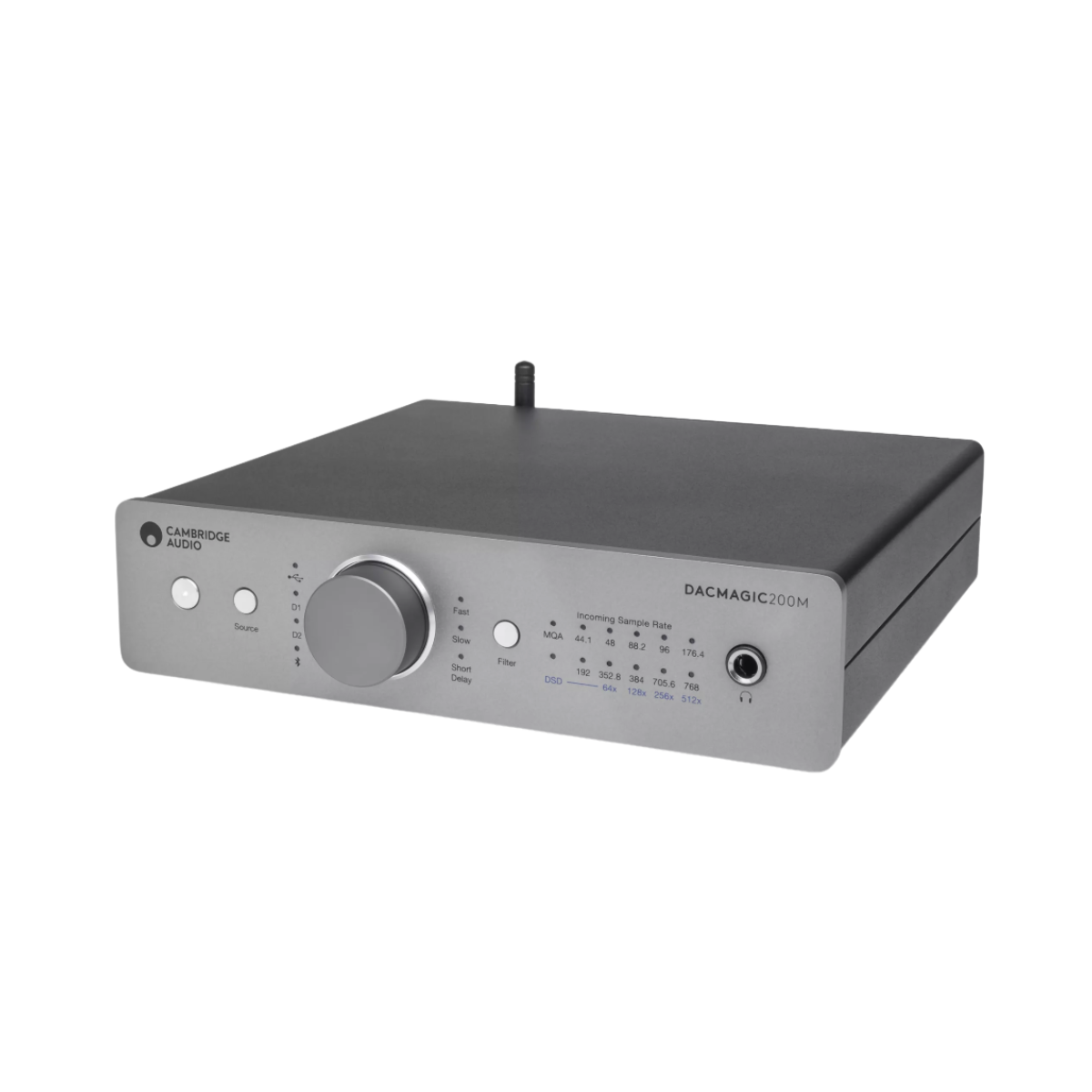

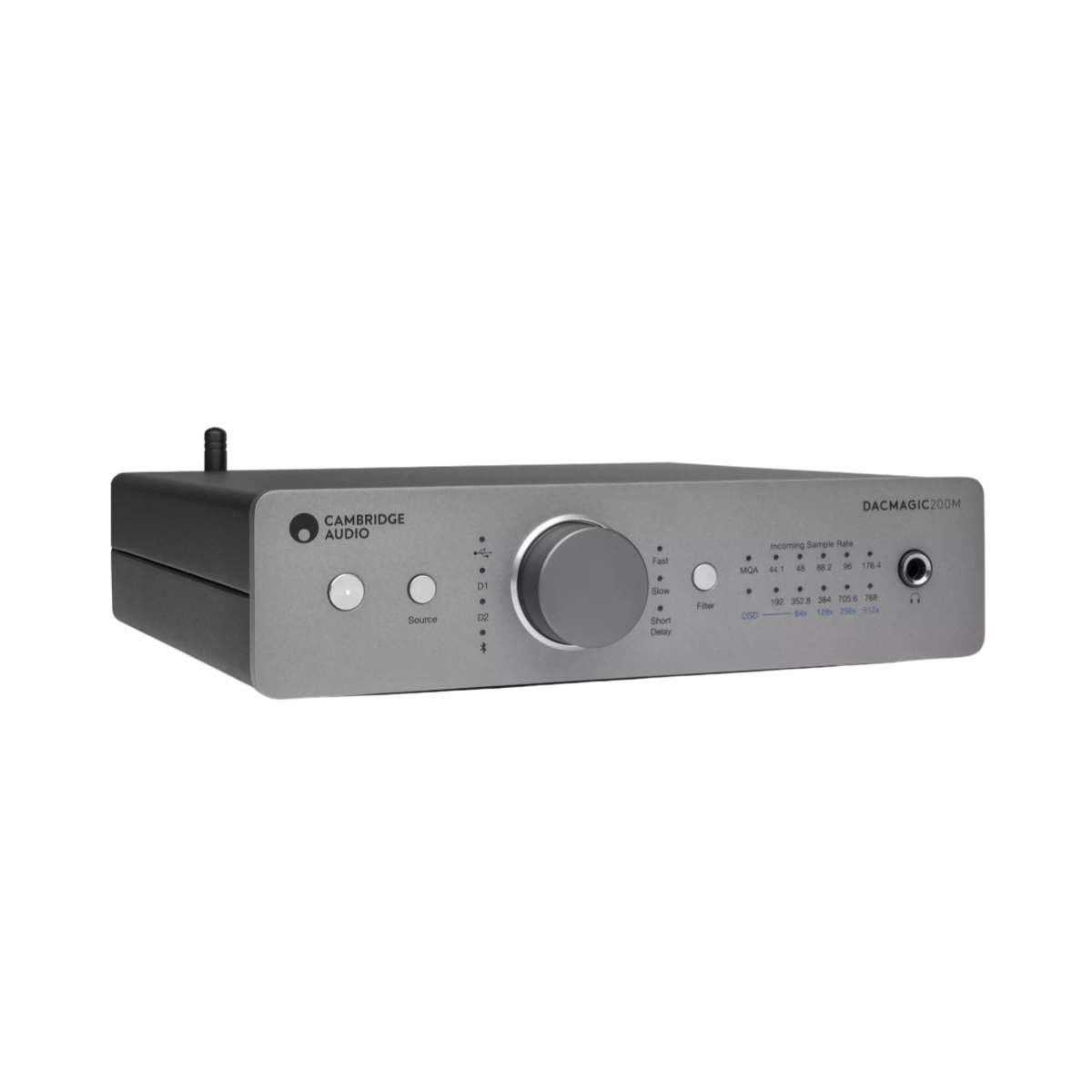

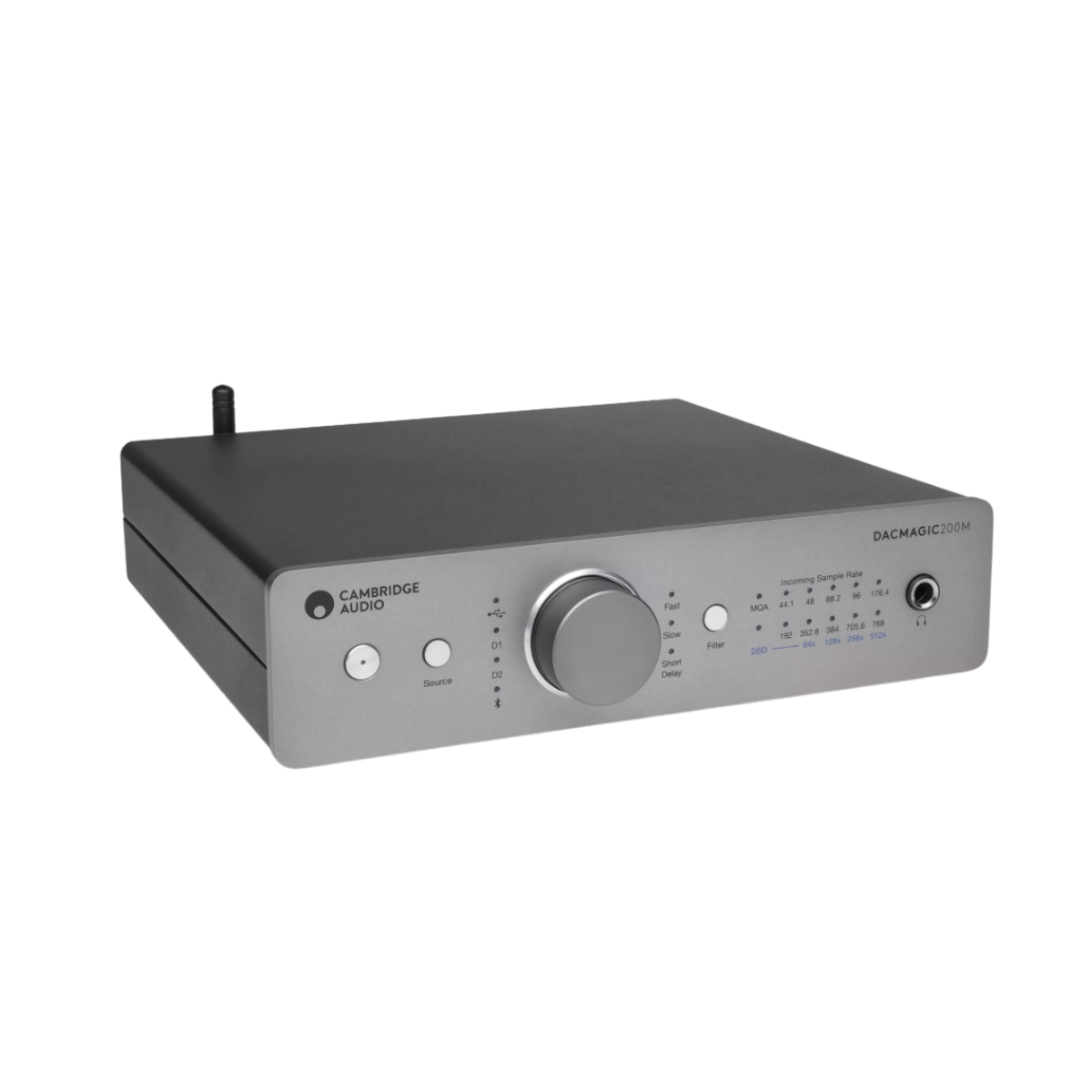

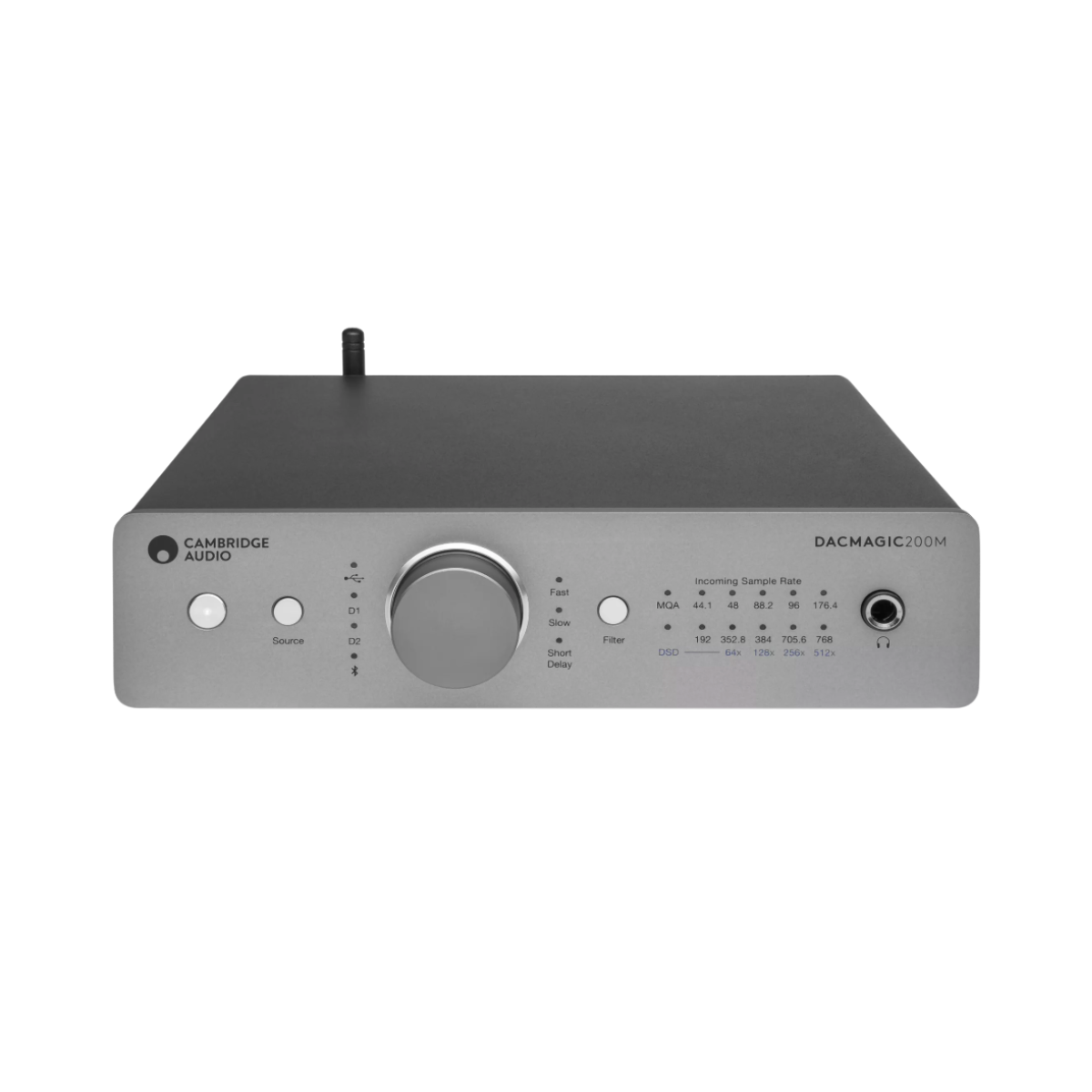

DacMagic 200M

Digital to Analogue Converter and Headphone Amplifier - Lunar Grey
Item #C11217

DacMagic 200M

Digital to Analogue Converter and Headphone Amplifier - Lunar Grey
$399.00
More on the way! Order now to reserve risk free.

Overview

An advanced digital to analogue converter utilizes dual ESS ES9028Q2M SABRE DACs and full MQA decoding to process high resolution audio files up to DSD512. Equipped with balanced XLR, RCA, and Bluetooth aptX inputs, it provides highly versatile audio visual solutions for an upgraded home sound system setup.

The Cambridge Audio DacMagic 200M is a digital to analogue converter and headphone amplifier built for audio systems that need accurate signal conversion. It uses two (2) separate ESS ES9028Q2M SABRE converters, one for each channel, to keep stereo separation clear and reduce crosstalk. This setup facilitates maintaining detail and sharpness in music, even at higher frequencies.

The DacMagic 200M offers a range of input options. It has two optical and two coaxial terminals for digital audio up to twenty four bit one hundred and ninety two kilohertz. The USB Type B port handles higher resolution files, up to thirty two bit seven hundred and sixty eight kilohertz or native DSD512. The unit supports Master Quality Authenticated decoding for studio quality playback. Bluetooth with aptX is built in for wireless streaming.

For outputs, the DacMagic 200M includes balanced XLR and unbalanced RCA connections, plus a front panel quarter inch headphone jack. Output voltage can be set to fixed or variable, depending on the system. Three digital filter presets are available to match different equipment setups. The unit keeps a signal to noise ratio above one hundred and fifteen decibels.

Details & Specs

Model DacMagic 200M
DIGITAL TO ANALOGUE CONVERTERS Dual ESS ES9028Q2M DACs
DIGITAL FILTER Selectable, Fast – Slow – Short delay
FREQUENCY RESPONSE 10Hz to 50kHz (±1dB)
THD+N @ 1KHZ 0DBFS <0.0005% (A-Weighted)
SIGNAL TO NOISE RATIO >115dB (A-Weighted)
CROSSTALK @ 10KHZ <-110dB
OUTPUT IMPEDANCE <50 Ohms (unbal), <100 Ohm (bal)
MAX. OUTPUT LEVEL (UNBALANCED) 2.1V rms (fixed or variable – user selectable)
MAX. OUTPUT LEVEL (BALANCED) 4.2V rms (fixed or variable – user selectable)
DIGITAL INPUT WORD WIDTHS SUPPORTED 16bit (Bluetooth), 16-24bit (Optical, Coaxial), 16-24bit (USB)
DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED 44.1kHz to 96kHz PCM, DoP64 (Optical), 44.1kHz to 192kHz PCM, DoP64 (Coaxial), 44.1kHz to 768kHz PCM, Native DSD 64x to 512x, DoP 64x to 256x (USB)
MQA COMPATIBILITY Full decoding (Core + Renderer)
