Item #C11092

AXR100

FM/AM Stereo Receiver - Grey
Item #C11092

AXR100

FM/AM Stereo Receiver - Grey
$699.00
More on the way! Order now to reserve risk free.

Overview

A powerful stereo receiver provides 100 Watts per channel into 8 Ohms alongside a built in moving magnet phono stage and an FM AM tuner with RDS. Featuring Bluetooth 5.0, digital inputs, and a dedicated subwoofer output, it delivers flexible audio visual solutions for a complete home sound system setup.

The Cambridge Audio AXR100 stereo receiver delivers one hundred Watts per channel into eight Ohm speakers. It is built to handle a wide range of home audio needs, bringing together television sound, vinyl playback, and radio broadcasts through one main unit. This makes it easier to connect different types of audio gear without needing extra equipment.

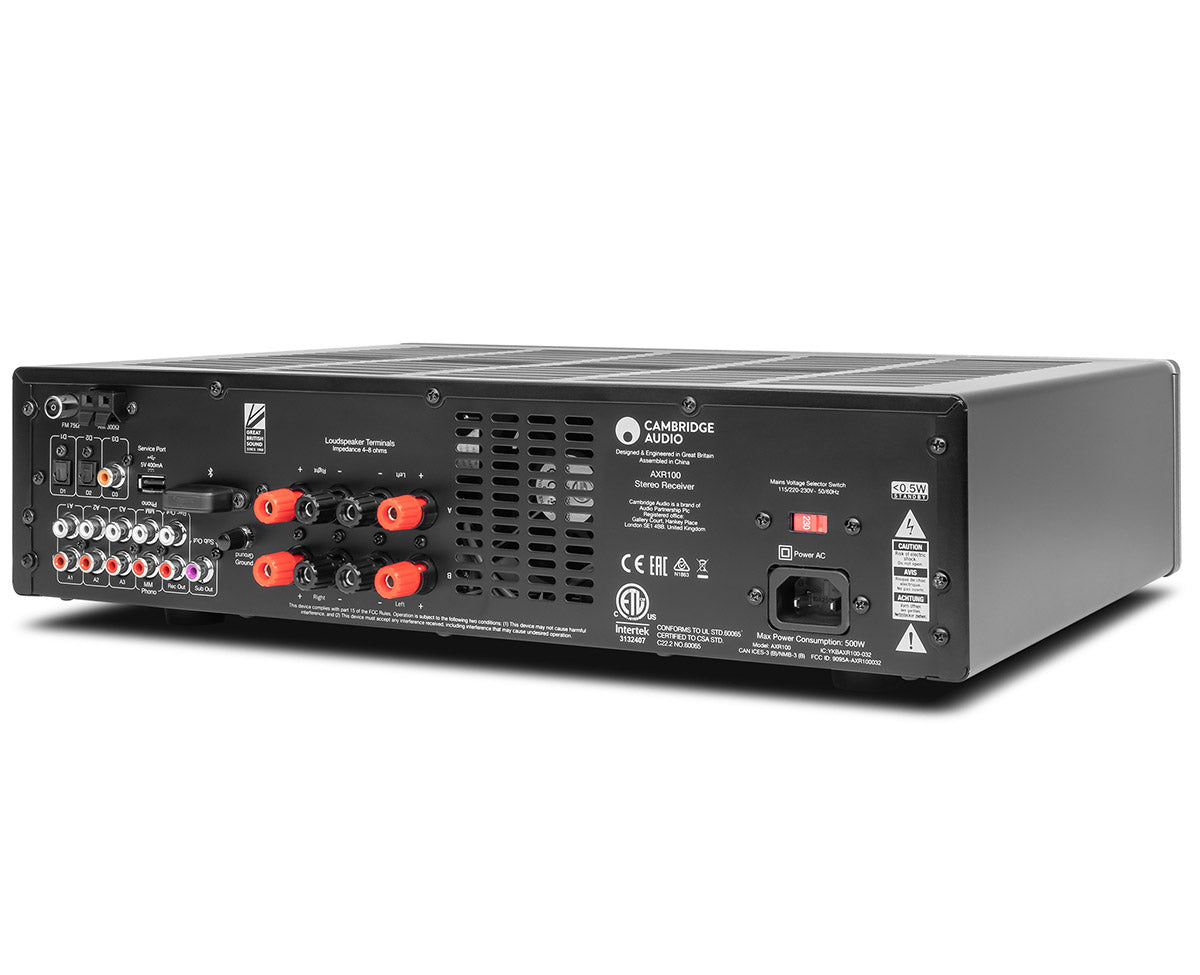

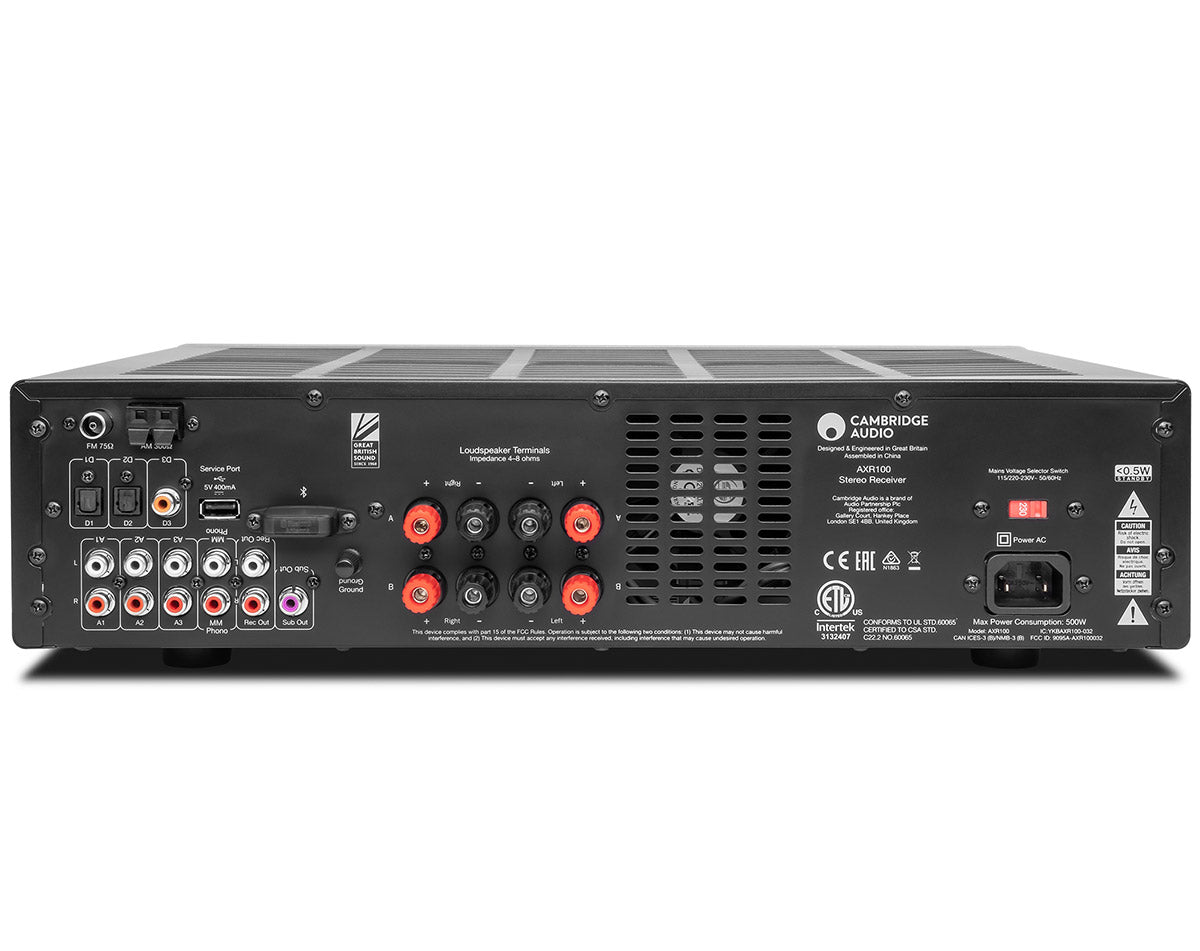

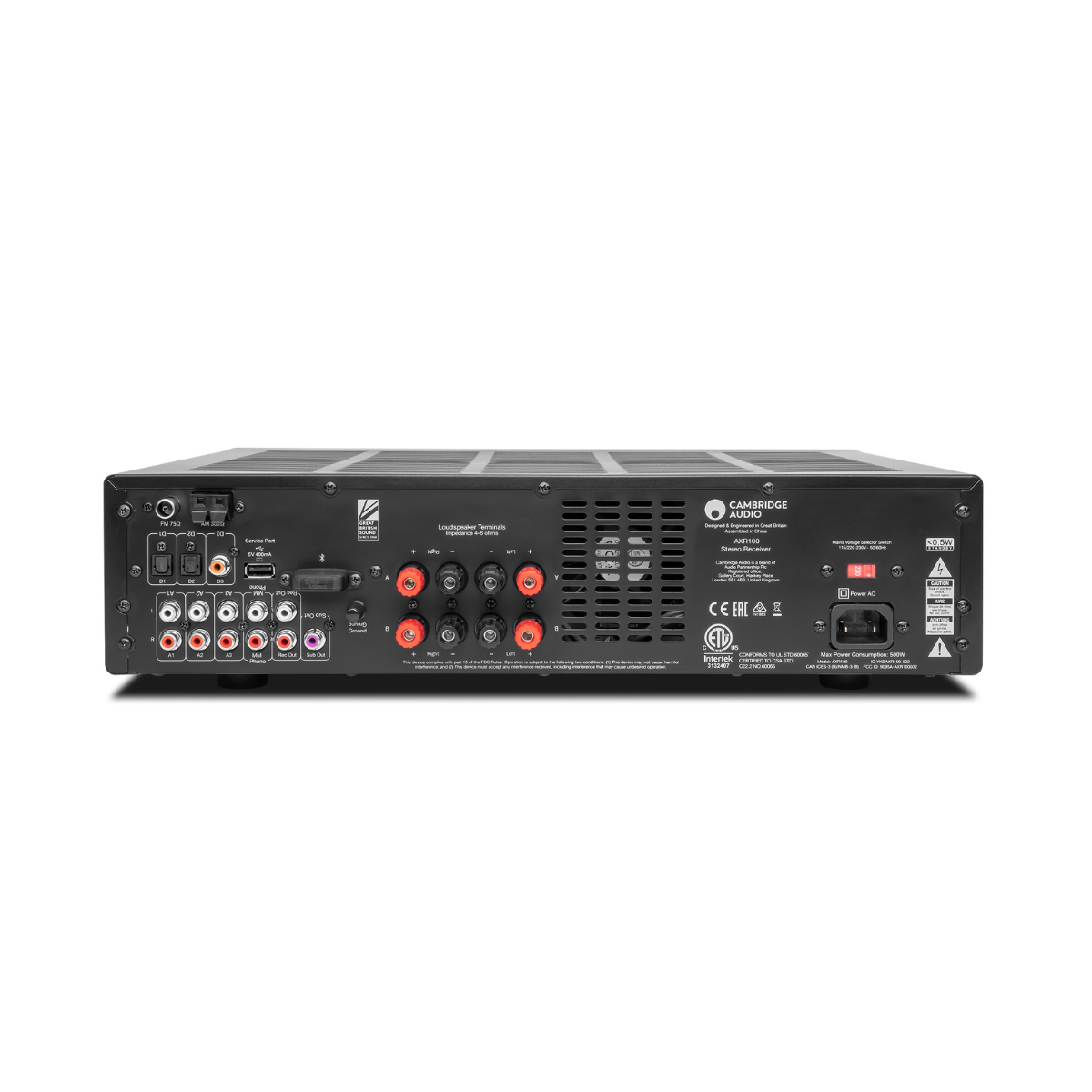

The AXR100 includes standard analog inputs and a built in moving magnet phono stage, so a turntable can be connected directly without an external preamp. FM and AM radio are supported with radio data system features. Bluetooth 5.0 is included for quick wireless streaming from computers, phones, or tablets. For digital sources, the receiver accepts coaxial and optical TOSLINK inputs and can handle sixteen to twenty four bit PCM signals. Two sets of speaker outputs and a dedicated subwoofer output with a fixed low pass filter at two hundred Hertz make it easy to manage bass and set up different speaker zones. Bass and treble controls allow up to ten decibels of adjustment at 100 Hertz and 20 kilohertz to help tailor the sound to the room.

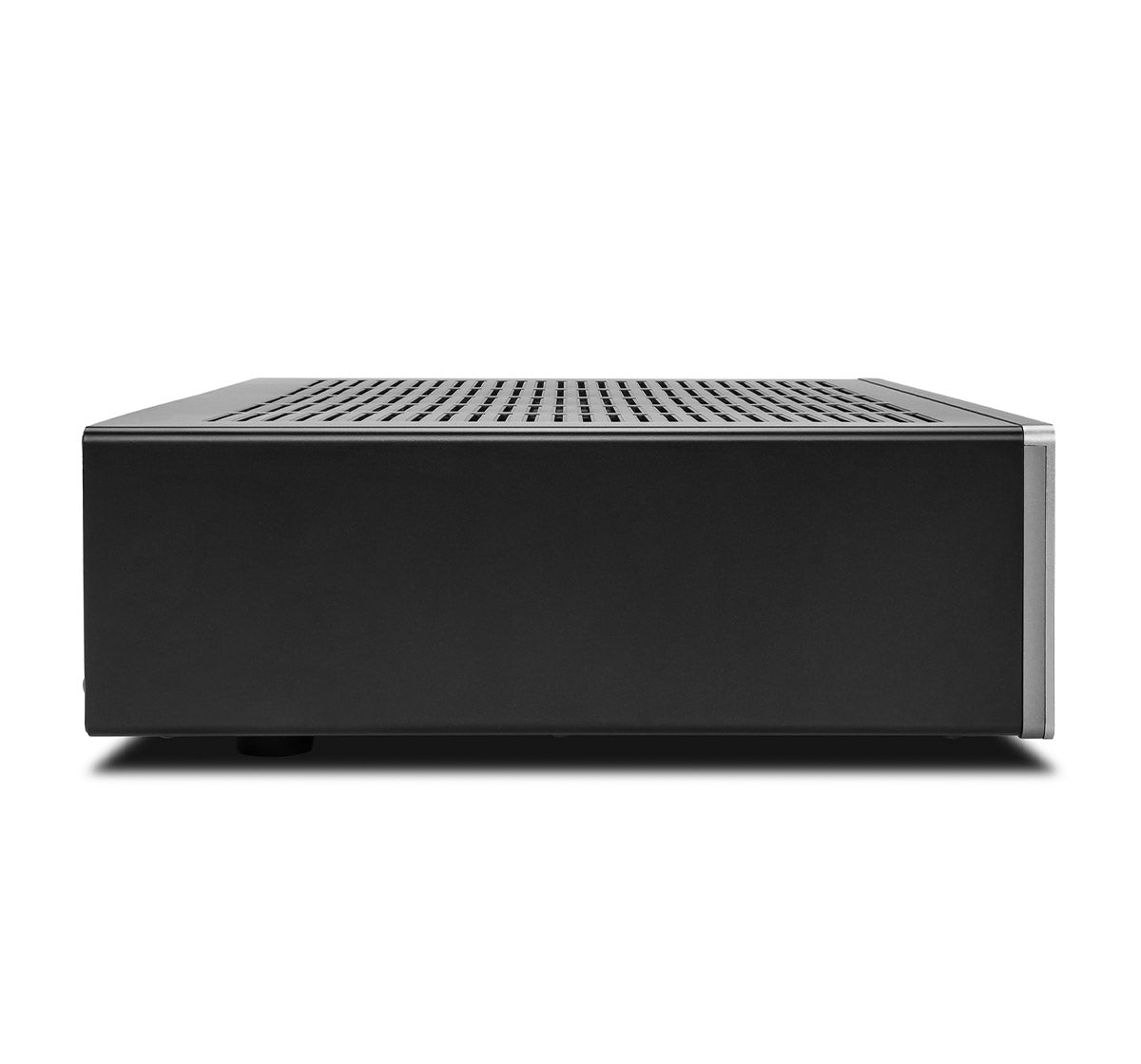

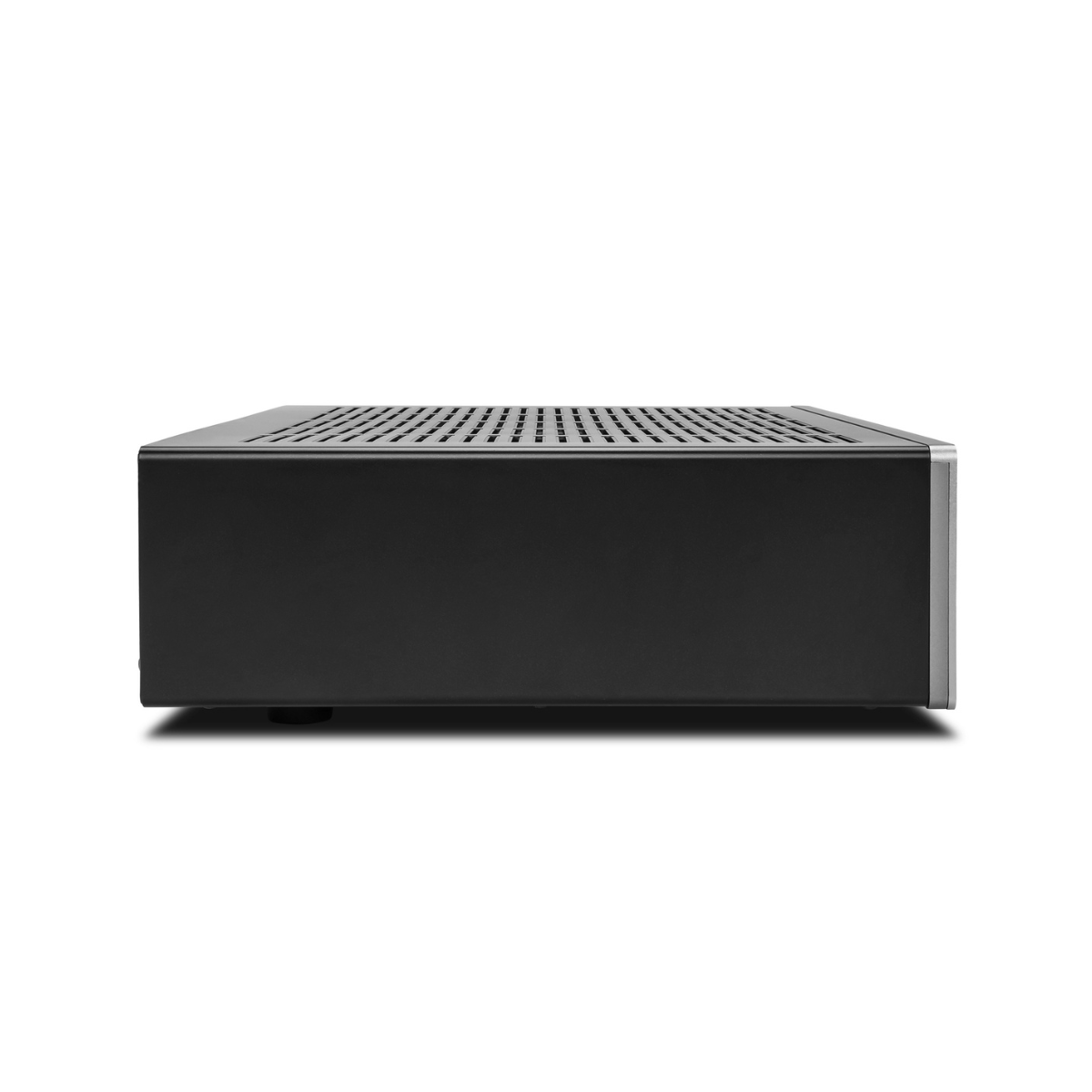

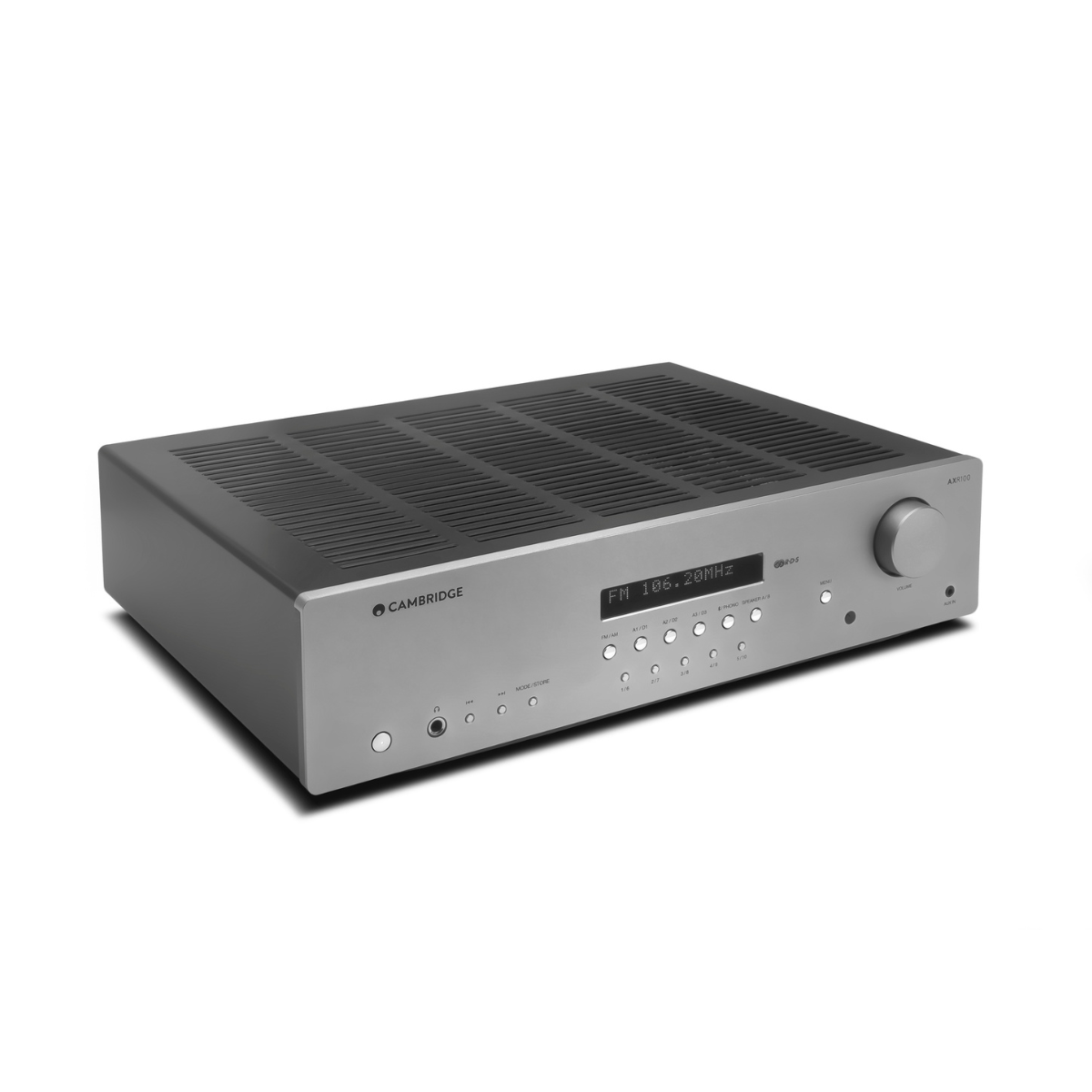

The chassis uses a simple metal design and measures one hundred and ten by four hundred and thirty by three hundred and forty millimeters, so it fits well with standard forty three centimeter components. The receiver runs with very low distortion at one kilohertz and draws up to five hundred and fifty Watts at full power. In standby mode, it uses less than half a Watt.

Details & Specs

Model AXR100
POWER OUTPUT 100 watts (into 8Ω)
THD (unweighted) <0.01% @ 1kHz, 80% of rated power &l5;0.15% 20Hz - 20kHz, 80% of rated power
Frequency response (-1dB) 5Hz - 50kHz
S/N ratio (ref 1W) >82dB (unweighted)
Input impedances 47k ohms
Power Amp damping factor >50
Standby power consumption <0.5W
Max. power consumption 550W
Bass/Treble controls Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 20kHz
Subwoofer output 200Hz 2nd order L+R Level follows volume setting
Digital inputs PCM 16-24-bit S/P DIF Co-axial 32-192kHz TOSlink Optical 32-192kHz
Dimensions 110 x 430 x 340mm (4.3 x 16.9 x 13.4”)
