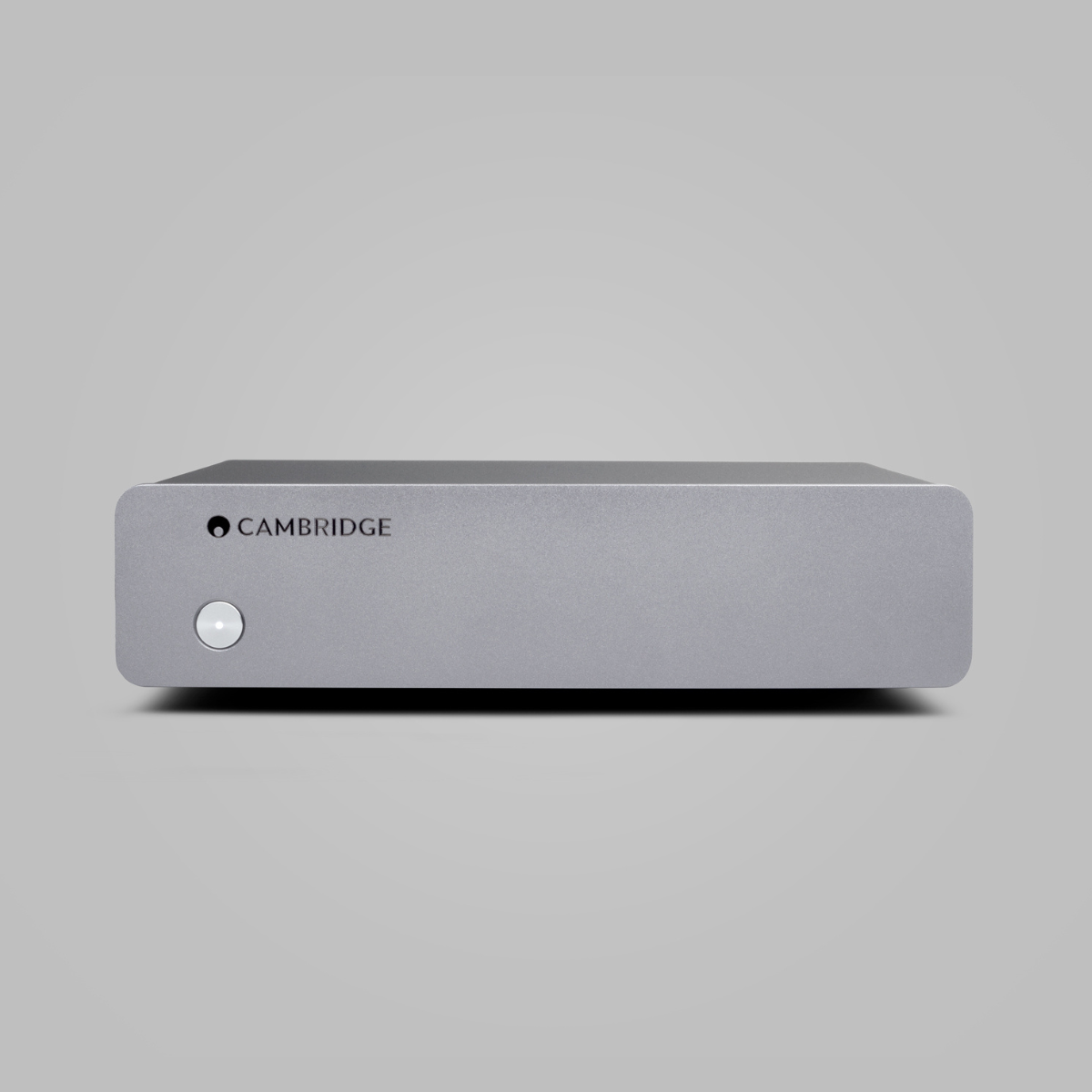

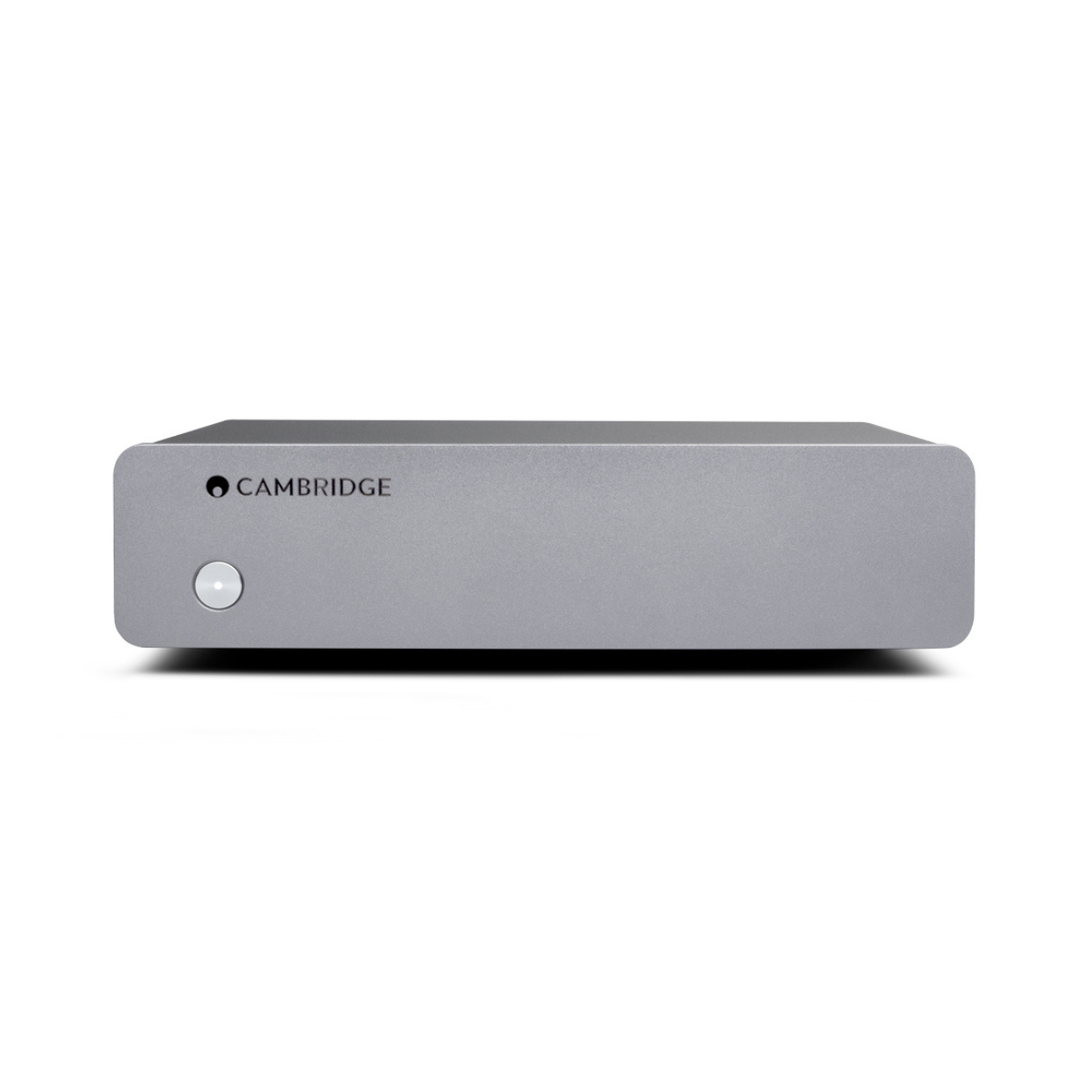

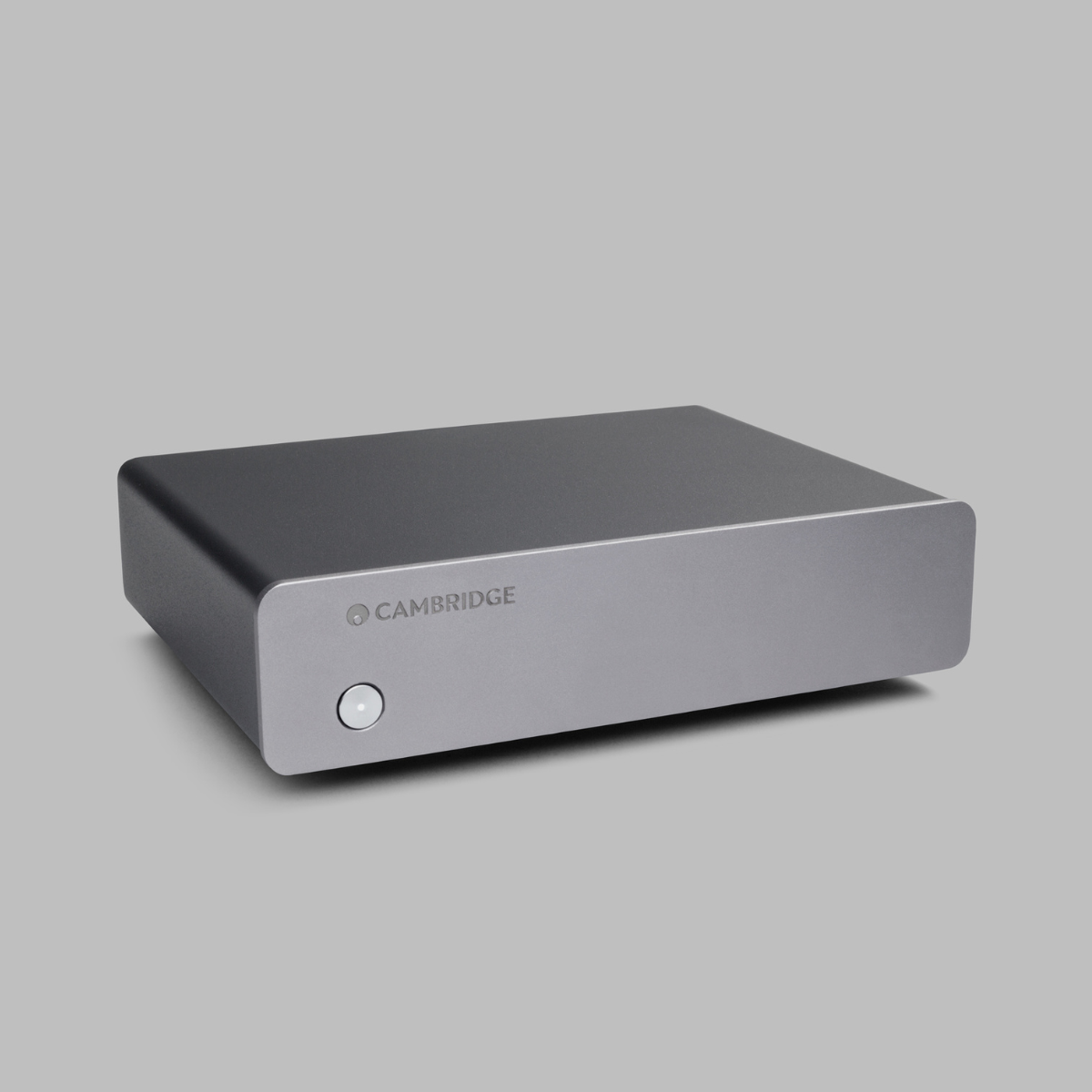

Alva Solo

Moving Magnet Phono Preamplifier - Grey

Alva Solo

Moving Magnet Phono Preamplifier - Grey
$249.00
Select Color: Grey

More on the way! Order now to reserve risk free.

Overview

An advanced moving magnet phono preamplifier amplifies low level turntable signals while reducing hum via a switch mode power supply. Equipped with a subsonic filter and balance control, it offers clean, rich audio visual solutions and essential signal matching for a high performance analog sound system setup.

The Cambridge Audio Alva Solo moving magnet phono preamplifier is built to connect a turntable to modern hi fi amplifiers that do not have a dedicated phono input. It takes the low level signal from a moving magnet cartridge and brings it up to line level, so records can be played with full detail and warmth.

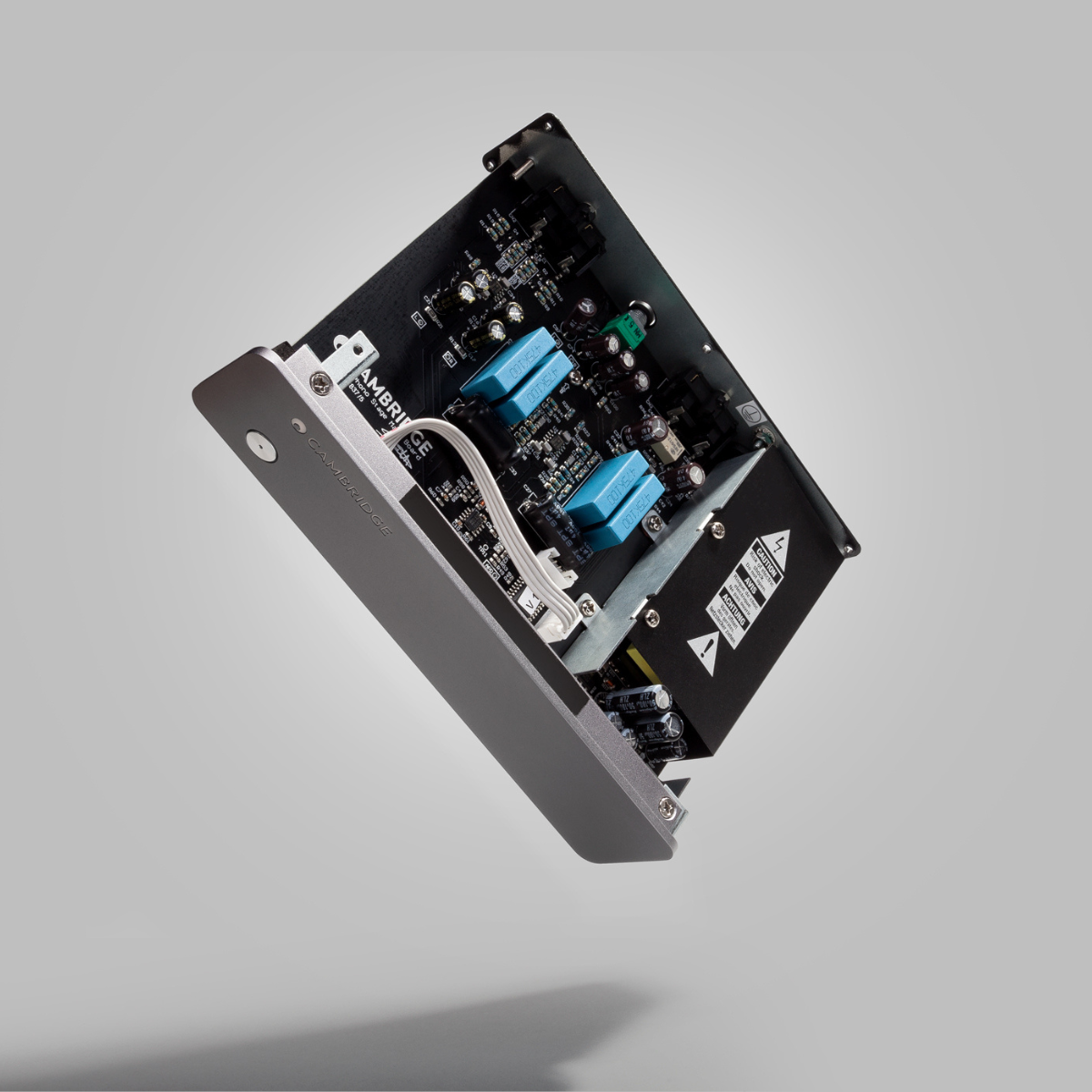

The Alva Solo uses a switch mode power supply and a surface mounted circuit board to keep hum and background noise low. This helps music sound clean and clear. For records that are worn or warped, a subsonic filter cuts out low frequency rumbles. An adjustable balance control is included to fix channel imbalances from the cartridge. These features help keep the soundstage balanced in a stereo system.

Technically, the preamplifier provides thirty nine decibels of gain at one kilohertz, yielding a nominal output of three hundred millivolts from a three point thirty five millivolt input sensitivity rating. It features aThe preamplifier delivers thirty nine decibels of gain at one kilohertz, with a nominal output of three hundred millivolts from a three point thirty five millivolt input. Input impedance is forty seven kilohms and input capacitance is one hundred picofarads. The RIAA equalization curve stays within plus or minus zero point sixty five decibels from thirty Hertz to twenty kilohertz. Signal to noise ratio is over ninety decibels, and total harmonic distortion plus noise is kept below zero point zero zero two five percent. For efficiency, the unit draws less than half a Watt in standby and powers down after twenty minutes without use.

Details & Specs

Model Alva Solo
MAX POWER CONSUMPTION 10W
GAIN @ 1KHZ 39dB
NOMINAL OUTPUT 300mV
SENSITIVITY FOR NOMINAL OUTPUT 3.35mV
EQUIVALENT INPUT NOISE (A-WEIGHTED) ~0.09uV
RIAA CURVE ACCURACY +/- 0.65dB 30Hz-20kHz
SIGNAL TO NOISE RATIO GROUNDED INPUTS REF. 1V OUTPUT (20HZ-20KHZ BW) >90dB
THD+N 1KHZ (20-20KHZ BW) <0.0025%
Other Digital Inputs 1× TOSLINK, 1× USB Media, 1× USB Audio
INPUT IMPEDANCE 47k Ohm
INPUT CAPACITANCE 100pF
OVERLOAD MARGIN >30dB
CROSSTALK @10KHZ >85dB
