Bowers & Wilkins HTM72 S3

2-Way Center Channel Loudspeaker

Bowers & Wilkins HTM72 S3

2-Way Center Channel Loudspeaker
$1,499.00
Select Color Options:

Contact Us

Overview

HTM72 S3 is the more compact centre channel speaker in the new 700 Series. It features a Carbon Dome tweeter and twin Continuum cone Mid/Bass drivers. It’s the perfect partner for a home theatre system based around the 704 S3, 706 S3 or 707 S3.
Watch our Comparison
The High Notes

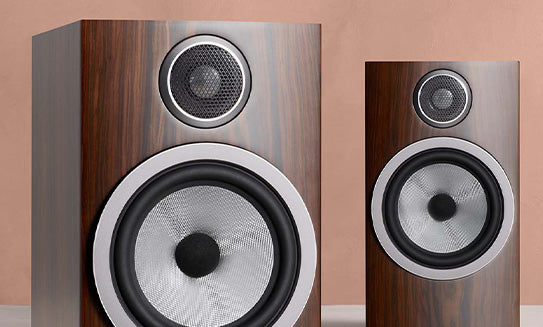

Carbon Tweeter

Carbon Tweeter

The specially designed Carbon tweeter reproduces sound way beyond the range of human hearing giving it a super effortless quality. You'll hear all kinds of nuances in the main dialog track with this great tweeter

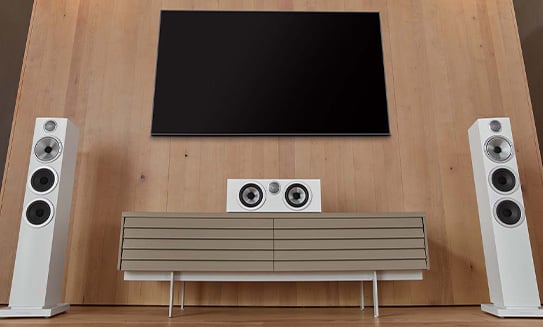

Continuum Cone Midrange/Bass Driver

Continuum Cone Midrange/Bass Driver

B&W's Continuum midrange driver came from the top of the line 800 series and is the first material they found that outdid their classic Kevlar drivers. This driver excels at midrange reproducion which is perfect for a center channel speaker.

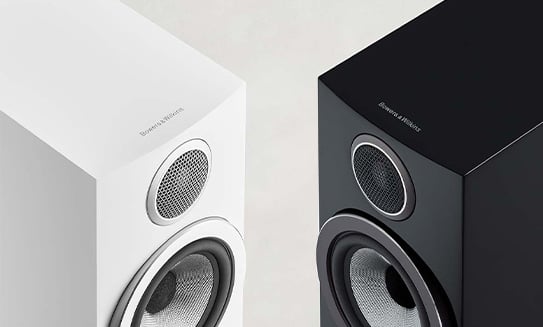

Beautiful New Curved Cabinet Design

Beautiful New Curved Cabinet Design

For decades B&W has been all about improving their cabinets for less resonance and the new 700S3 series now has curved cabinets like the 800 models for not only a very cool look, but better antiresonance properties.
HTM72 S3 is the more compact centre channel speaker in the new 700 Series. It features a Carbon Dome tweeter and twin Continuum cone Mid/Bass drivers. It’s the perfect partner for a home theatre system based around the 704 S3, 706 S3 or 707 S3.

Details & Specs

Solid Body Tweeter

The 700 Series features the latest generation of Bowers & Wilkins' iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tubeloading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.

Carbon dome tweeters

Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

Biomimetic Suspension

The new Biomimetic Suspension, first seen on the 800 Series Diamond, revolutionises midrange cone performance by greatly reducing the unwanted air pressure and coloration that a conventional fabric spider can generate. The result? Midrange transparency you wouldn’t believe possible.

Continuum™ Cone

Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.

Decoupled Midrange Assembly

Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.

Aerofoil™ Profile bass cone

Developed using advanced computer modeling techniques, the Aerofoil Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.

Curved Baffle

The new 700 Series features a curved front baffle for the first time. This allows the midrange and bass drivers to be located in individual pod-type housings that sit proud of the speaker baffle. When combined with the curvature of the structure, this new approach – derived from the 800 Series Diamond – reduces the audible impact of the cabinet, creating a cleaner, more open and more immersive sound.

Technical Features:

  • Decoupled Carbon Dome tweeter
  • Continuum™ cone bass / midrange
  • Flowport™

Description: 2-way vented-box system

Drive Units:

  • 1x ø25mm (1in) Decoupled Carbon Dome high-frequency
  • 2x ø130mm (5in) Continuum cone bass / midrange

Frequency Range: 48Hz to 33kHz

Frequency Response: (+/-3dB from reference axis) 70Hz - 28kHz

Sensitivity: (on axis at 2.83Vrms at 1m) 87dB

Harmonic Distortion:

  • 2nd and 3rd harmonics (90dB, 1m on axis)
  • <1% 100Hz - 22kHz
  • <0.5% 200Hz - 22kHz

Nominal Impedance:  8Ω (minimum 4.3Ω)

Recommended Amplifier Power: 30W - 120W into 8Ω on unclipped programme

Dimensions:

  • Height: 165mm (6.5in) cabinet only
  • Width: 477mm (18.8in) cabinet only
  • Depth: 266mm (10.5in) cabinet only, 302mm (11.9in) including grille and terminals

Net Weight: 9.7kg (21.3lbs)
