Item #FP41092

Bowers & Wilkins CWM 7.3 S2

In-Wall Speaker
Item #FP41092

Bowers & Wilkins CWM 7.3 S2

In-Wall Speaker
$2,100.00
In Stock: Free 2-Day Shipping
Contact Us

Overview

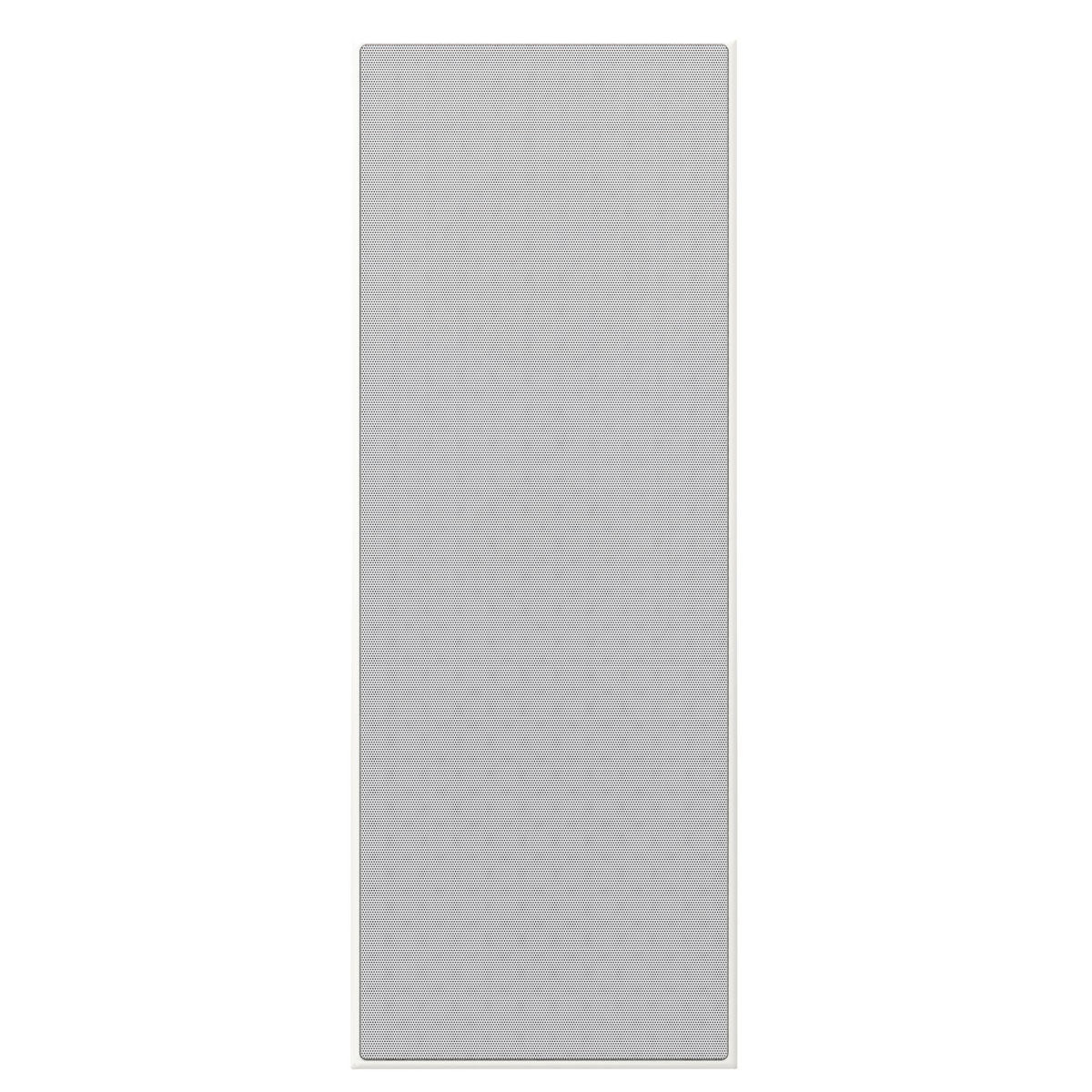

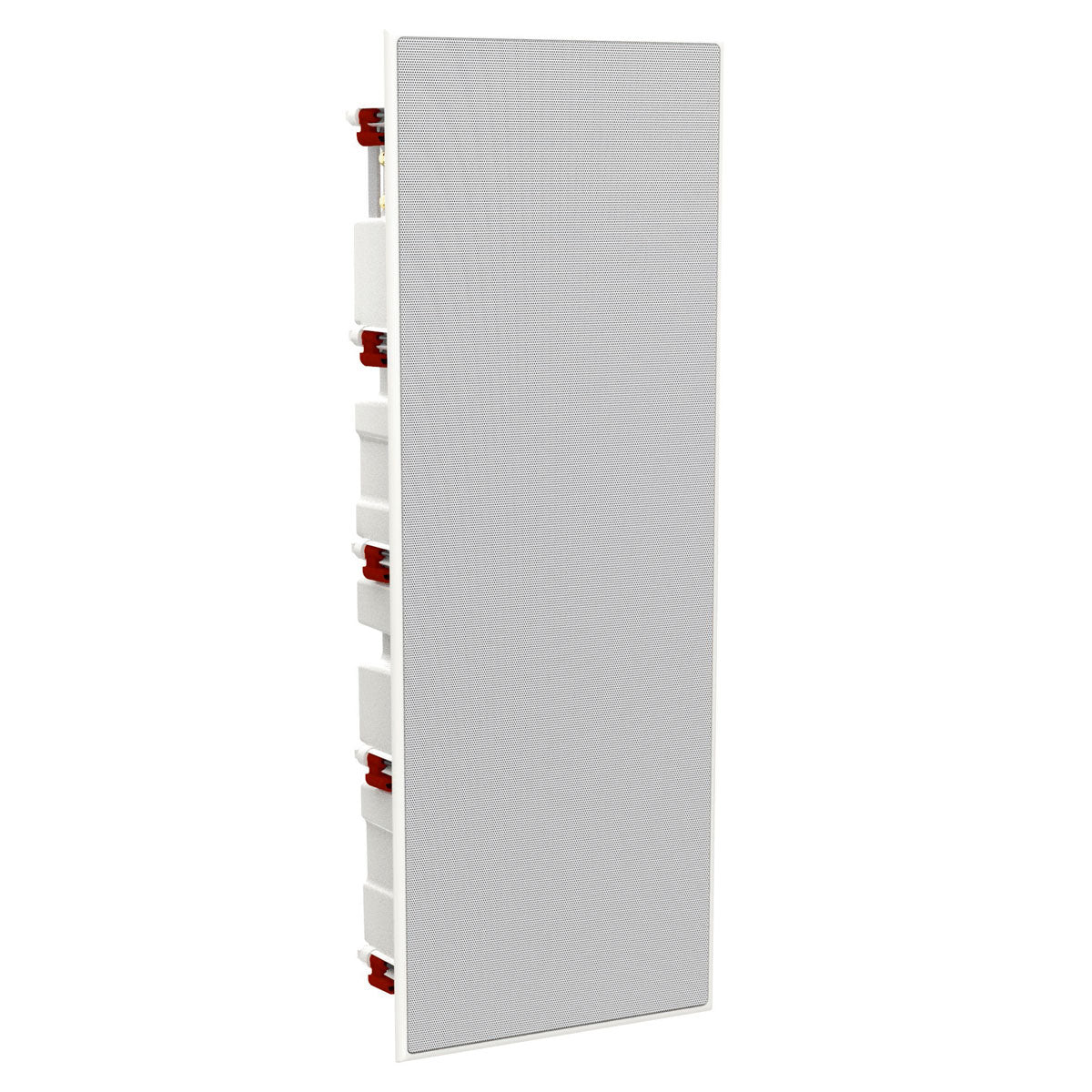

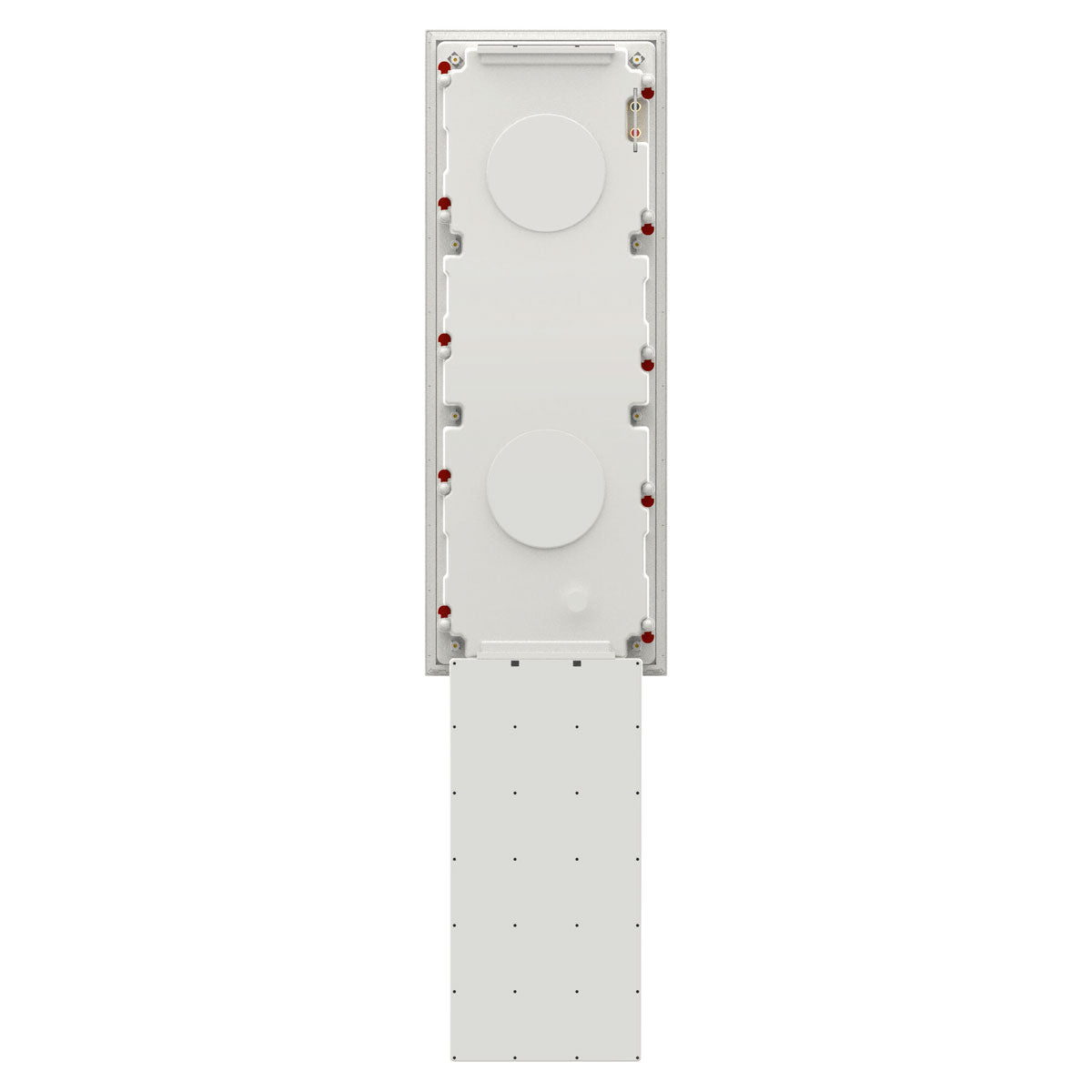

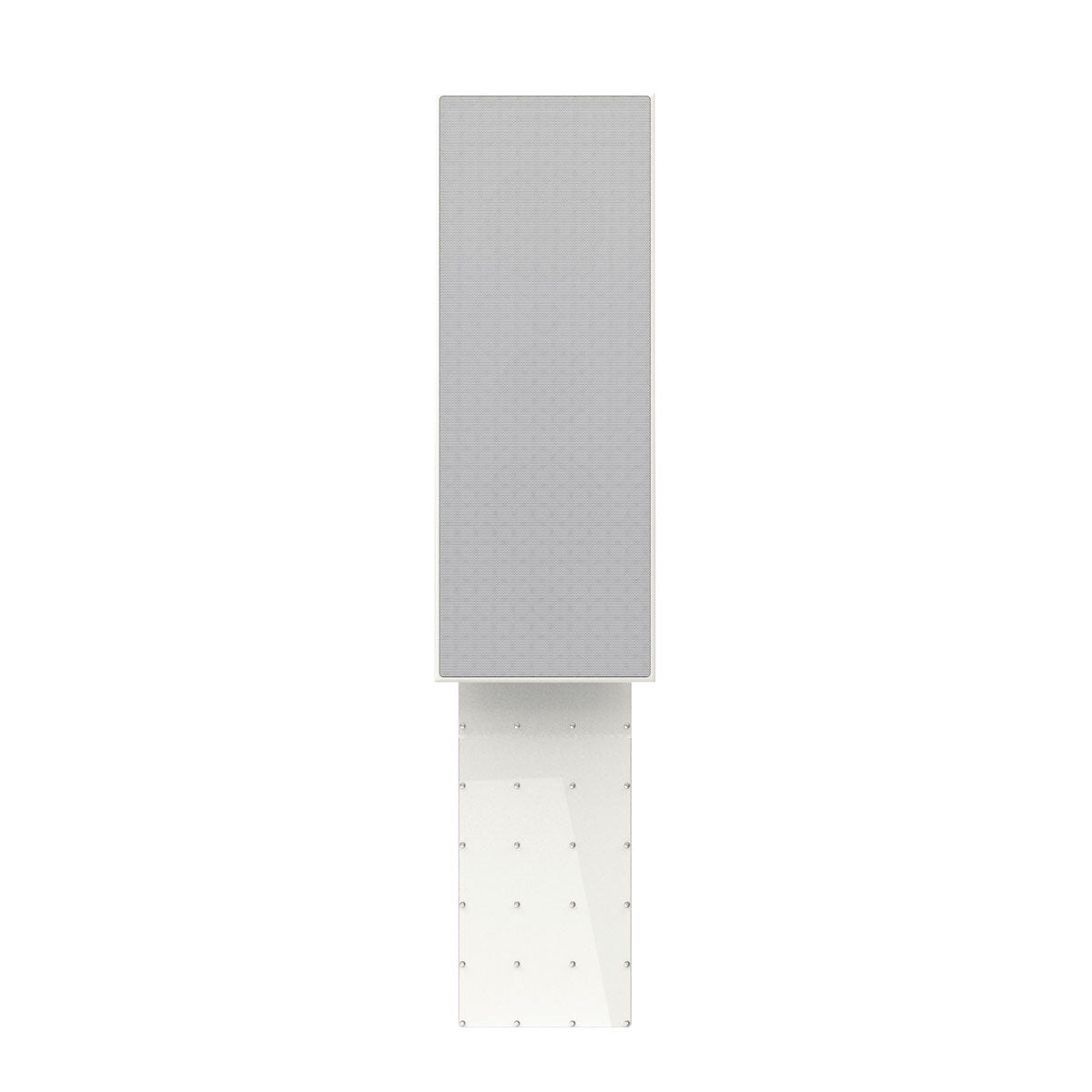

The CWM 7.3 S2 features an integrated back box that optimizes its performance, cuts down on sound transference through walls, and also makes it easy to retrofit.
Watch our Comparison

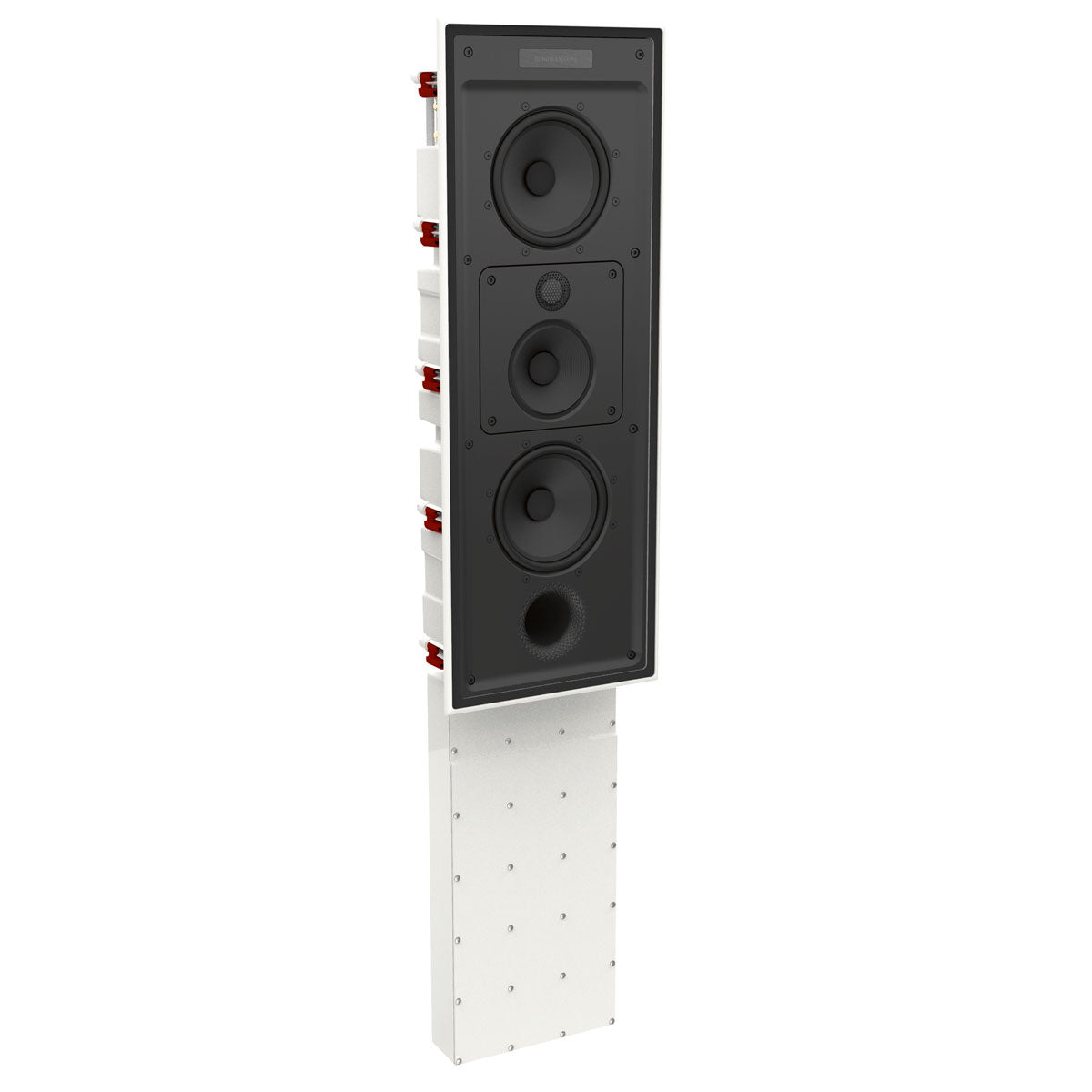

The CWM 7.3 S2 design incorporates twin 150mm (6in) Aerofoil profile bass drivers, a 100mm (4in) Continuum cone FSTTM mid-range driver, and a Carbon Dome 25mm (1in) tweeter, all proven technologies shared with the acclaimed 700 Series range of loudspeakers. These outstanding transducers, when combined with high-quality, optimized, components on the crossover and a critically formed baffle constructed from glass-reinforced ABS, produce a truly remarkable in-wall speaker.

Details & Specs

Specifications

  • Technical features
    • Carbon Dome tweeter
    • Continuum cone FST midrange
    • Aerofoil profile bass cones
    • Flowport™
  • Description: 3-way in-wall system
  • Drive units
    • 1x ø25mm (1 in) Carbon Dome high-frequency
    • 2x ø100mm (4 in) Continuum cone mid/bass
    • 2x ø150mm (6 in) Aerofoil profile bass
  • Frequency range (-6dB): -6dB at 43Hz - 33kHz
  • Frequency Response -3dB: 45Hz - 28kHz ±3dB
  • Sensitivity: 90dB spl (2.83Vrms, 1m)
  • Harmonic distortion
    • 2nd and 3rd harmonics (90dB, 1m)
    • <1% 80Hz - 33kHz
    • <0.5% 120Hz - 33kHz
  • Nominal impedance: 8Ω (minimum 3.1Ω)
  • Recommended amplifier power: 25W - 200W into 8Ω on unclipped program
  • PMK: 7.3W

Approximate Dimensions

  • Frame height: 29"
  • Frame width: 11"
  • Cut-out height: 28"
  • Cut-out width: 9.9"
  • Cut-out width w/PMK: 28.1
  • Cut-out height w/PMK: 10.1"
  • Depth (behind surface): 4.02"
  • Protrusion: 0.28"

Approximate Weight

  • Unit: 27.32 lbs
  • Shipping: 35 lbs
