Item #FP39322

Bowers & Wilkins CCM8.5 D

In-Ceiling Speaker
Item #FP39322

Bowers & Wilkins CCM8.5 D

In-Ceiling Speaker
$3,200.00
Available In-Store

Overview

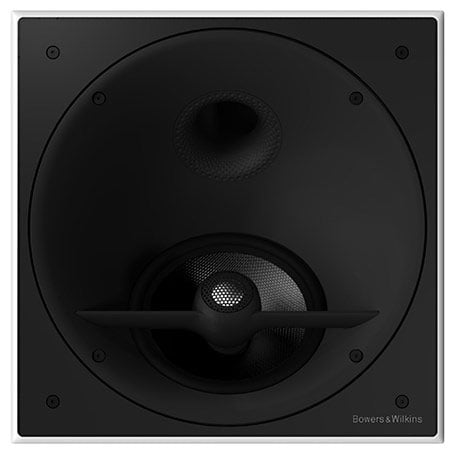

CCM8.5 D is a two-way in-ceiling speaker. It features a decoupled Diamond dome 25mm (1 inch) tweeter and a single 180mm (7-inch) bass/mid Continuum driver. The drivers are located in a continuously rotatable mini-baffle which allows the user to ‘toe in' the drivers for the best performance.

Watch our Comparison

CCM8.5 D's backbox is fully Matrix braced, for extra rigidity and improved performance. The backbox also includes bi-wirable cables that are guided to the terminal panel through tubes and connect to the baffle with a multi-pin connector. CCM8.5 D has also been developed to fit into existing back boxes enabling customers who purchased the original CCM8.5 to easily upgrade.

  • Aluminium Tweeter ‘wing’
  • Rotatable aluminum mini-baffle allows ‘toe-in’
  • Diamond Dome, Nautilus tube-loaded tweeter
  • Anti-resonance plug Flowport

Details & Specs

Specifications

  • Technical
    • Aluminum Tweeter 'wing'
    • Rotatable aluminum
    • mini-baffle allows 'toe-in'
    • Diamond Dome, Nautilus™ tube-loaded tweeter
    • Anti-resonance plug
    • Flowport™
  • Drive Units
    • 1x ø25mm (1in) Diamond Dome
    • Nautilus™ tube-loaded tweeter
    • 1x ø180mm (7in) Continuum cone bass
    • Midrange driver with anti-resonance plug
  • Frequency range (-6dB): 35Hz - 35kHz
  • Recommended Amplifier Power: 120W
  • Sensitivity: 88dB
  • Nominal Impedance:
  • Frame (Width/Height): 351mm (13.8in)
  • Cut-Out (Width/Height): 331mm (13in)
  • Protrusion: 8mm (0.3in)

Approximate Dimensions

  • Height: 13.8"
  • Width: 13.8"
  • Depth: 6.5"

Approximate Weight

  • Unit: 11.02 lbs
  • Shipping: 15 lbs
