Item #FP29629

Bowers & Wilkins CCM 682

In-Ceiling Speakers - Pair
Item #FP29629

Bowers & Wilkins CCM 682

In-Ceiling Speakers - Pair
$1,650.00
In Stock: Free 2-Day Shipping
Contact Us

Overview

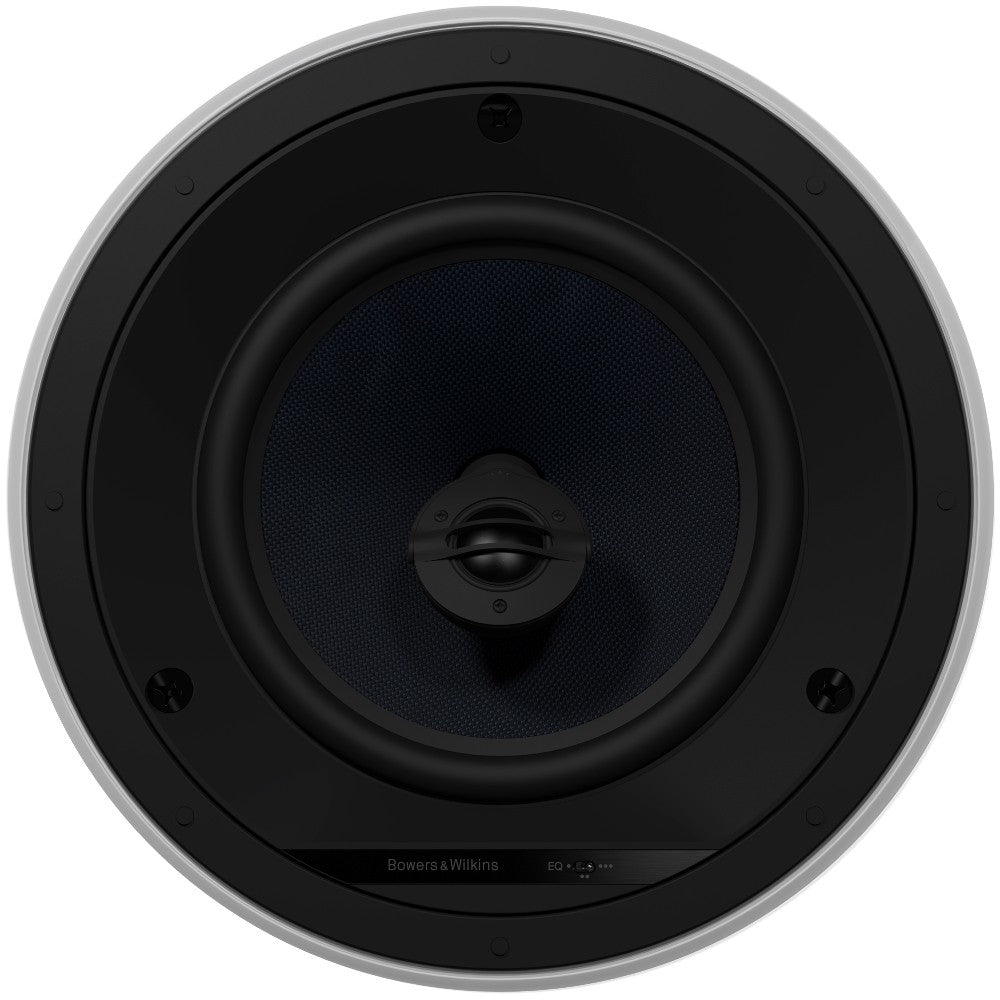

The CCM682 is a high-performance ceiling-mount speaker that features a 200mm (8in) Aramid Fibre cone bass/midrange driver and an aluminum dome tweeter in a neat circular die-cast chassis.

Watch our Comparison

Its 30mm coil and 100mm magnet ensure an incredibly efficient and reliable speaker with outstanding sound quality. The aluminum tweeter’s housing pivots for adjustable off-axis treble response. The speaker also has a three-position EQ switch for a better off-axis response. The bass/midrange driver’s diecast chassis provides extra rigidity which results in a cleaner, faster bass. The blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.

Details & Specs

Specifications

  • Description: 2-way in-ceiling system
  • Drive Units
    • 1x ø25mm (1in) Nautilus™ swirl loaded aluminum dome tweeter
    • 1x ø150mm (8in) blue aramid fiber cone bass/midrange
  • Frequency Range (-6dB): 35Hz – 50kHz
  • Recommended Amp Power: 25 – 150w
  • Sensitivity SPL (2.83V, 1m): 89dB
  • Impedance Nominal (min): 8 ohms (4.5 ohms)

Approximate Dimensions

  • Frame Dimensions
    • Frame Diameter: 11.4 "
    • Depth Behind Surface: 5.2 "
  • Cut-out Dimensions
    • Cut-out diameter: 9.8 "
    • Protrusion: 0.2"
  • Pre-mount Kit: C8
  • Recommended Back Box: 6C

Approximate Weight

  • Shipping: 10 lbs

Warranty Information

  • Manufacturer Warranty (authorized online retailer): 1 Year Parts And Labor
