Item #FP29610

Bowers & Wilkins CCM 664SR

In-Ceiling Speaker
Item #FP29610

Bowers & Wilkins CCM 664SR

In-Ceiling Speaker
$475.00
More on the way! Order now to reserve risk free.
Contact Us

Overview

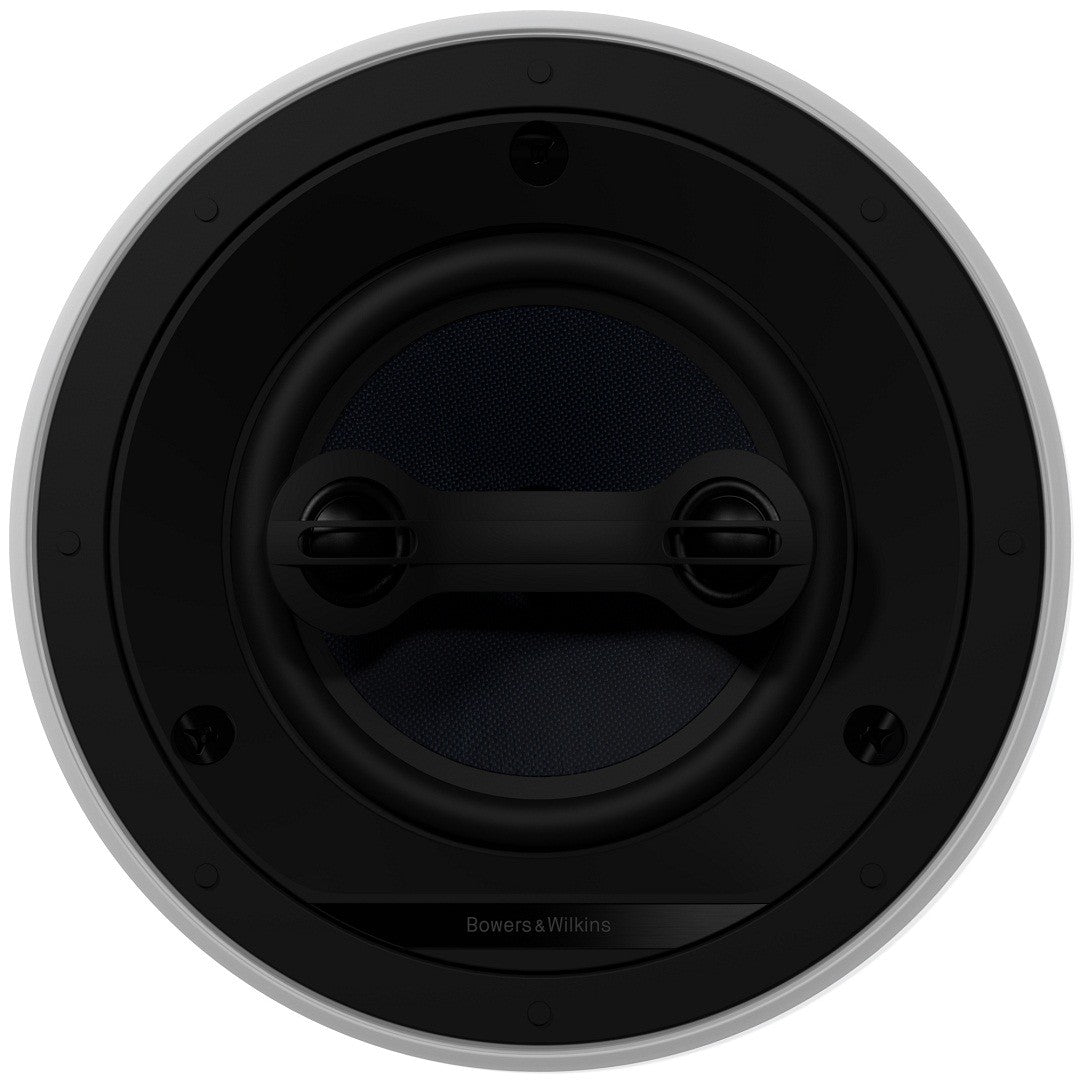

The CCM664SR is a dual, two-way ceiling speaker combining two offset tweeters and a twin voice coil bass/midrange driver to allow either for a combined stereo signal from one speaker or for rear-channel surround sound.

Watch our Comparison

See nothing, hear nothing

The CCM664SR is a dual, two-way ceiling speaker featuring a 150mm(6in) woven glass fiber cone bass/midrange driver and two offset soft dome tweeters. The twin voice coil bass/midrange driver and tweeters allow a stereo signal to be combined to facilitate the use of just one ceiling speaker in a single installation area without the loss of one audio channel. The CCM664SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel. Incorporating QuickDogs and plug-and-play functionality it is quick and easy to install.

Features a 150mm (6in) woven glass fiber cone bass/midrange driver and soft dome tweeters, as well as a two-position stereo/surround switch to instantly change between modes.

Details & Specs

Specifications

  • Description: 2-way dual channel in-ceiling system
  • Drive Units
    • 2x ø20mm (1in) soft dome tweeter
    • 1x ø150mm (6in) blue aramid fiber cone bass/midrange
  • Frequency Range (-6dB): 48Hz – 30kHz48Hz – 30kHz
  • Recommended Amp Power: 25 – 80w (per channel)
  • Sensitivity SPL (2.83V, 1m):
    • 83dB (per channel)
    • 89dB (both channels driven)
  • Impedance Nominal (min): 8 ohms (4 ohms) (per channel)

Approximate Dimensions

  • Frame Dimensions
    • Frame Diameter: 9.5 "
    • Depth Behind Surface: 5.2 "
  • Cut-out Dimensions
    • Cut-out diameter: 8 "
    • Protrusion: 0.2"
  • Pre-mount Kit: C6
  • Recommended Back Box: 6C

Approximate Weight

  • Shipping: 10 lbs

Warranty Information

  • Manufacturer Warranty (authorized online retailer): 1 Year Parts And Labor
